SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES ··································· 3
2. PART NAMES AND FUNCTIONS····················· 3
3. SPECIFICATION················································ 4
4. OUTLINES AND DIMENSIONS ························ 6
5. WIRING DIAGRAM············································ 7
6. REFRIGERANT SYSTEM DIAGRAM ··············11
7. DATA································································ 13
8. ACTUATOR CONTROL··································· 20
9. SERVICE FUNCTIONS ··································· 21
10. TROUBLESHOOTING····································· 22
11. DISASSEMBLY INSTRUCTIONS···················· 41
Models
MUZ-D30NA /- 1/- U1 /- U2
MUZ-D36NA /- 1/- U1 /- U2
MUY-D30NA /- 1
MUY-D36NA /- 1
SPLIT-TYPE AIR CONDITIONERS
OUTDOOR UNIT
Indoor unit service manual
MSZ-D•NA Series (OBH501)
MSY-D•NA Series (OBH501)
NOTE:
RoHS compliant products have <G> mark on the spec name plate.
TM
HFC
utilized
R410A
No. OBH502
REVISED EDITION-B
PARTS CATALOG (OBB502)
Revision B:
• MUZ-D•NA- 1/-U2 and MUY-D•NA- 1have
been corrected.
Please void OBH502 REVISED EDITION-A.

2
Revision A:
• 3. SPECIFICATION has been corrected.
Revision B:
• MUZ-D•NA- 1/-U2 and MUY-D•NA- 1have been corrected.

3
MUZ-D30NA MUZ-D30NA- U1
MUZ-D36NA MUZ-D36NA- U1
MUY-D30NA
MUY-D36NA
1. New model
MUZ-D30NA →MUZ-D30NA- 1MUZ-D30NA- U1 →MUZ-D30NA- U2
MUZ-D36NA →MUZ-D36NA- 1MUZ-D36NA- U1 →MUZ-D36NA- U2
MUY-D30NA →MUY-D30NA- 1
MUY-D36NA →MUY-D36NA- 1
1. Wiring diagram has been changed.
2. Fan motor has been changed.

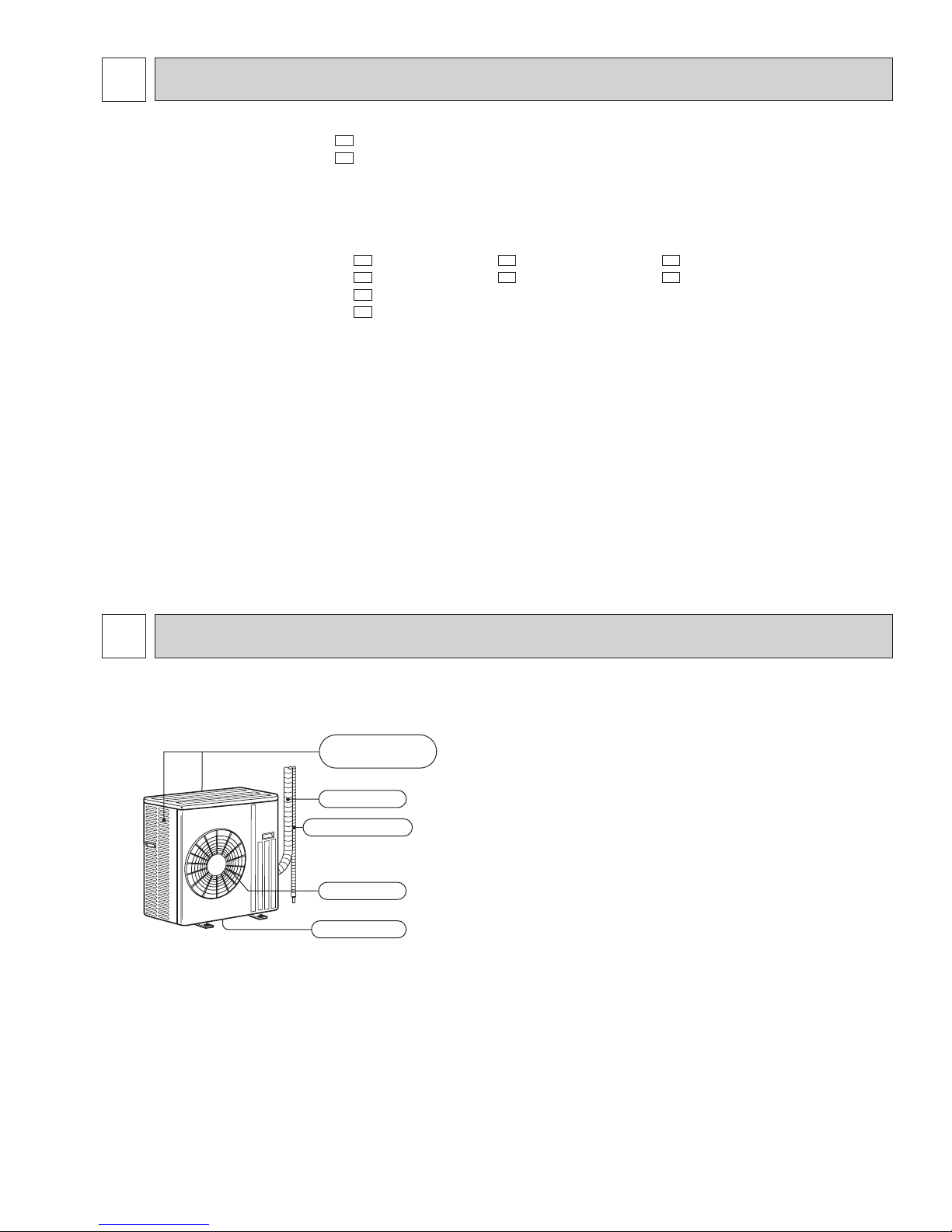

PART NAMES AND FUNCTIONS
2
MUZ-D30NA MUZ-D36NA MUY-D30NA MUY-D36NA
Piping
Air outlet
Drain hose
Drain outlet
Air inlet
(back and side)
1TECHNICAL CHANGES

4
Item Model MSZ-D30NA MSY-D30NA MSZ-D36NA MSY-D36NA
Capacity
Rated (Minimum ~
Maximum)
Cooling 1
Btu/h
30,700
(9,800 ~ 30,700)
30,700
(9,800 ~ 30,700)
32,000/33,200
(9,800 ~ 32,000) /
(9,800 ~ 33,200)
33,200/34,600
(9,800 ~ 33,200) /
(9,800 ~ 34,600)
Heating 47 132,600
(8,700 ~ 34,000) —35,200 (8,700 ~ 36,000) —
Capacity Heating 17 2 Btu/h 20,800 — 22,800 —
Power consumption
Rated (Minimum ~
Maximum)
(TOTAL)
Cooling 1
W
3,850
(620 ~ 3,850)
3,380
(620 ~ 3,380)
4,140/4,360
(620 ~ 4,140) /
(620 ~ 4,360)
4, 210/4,240
(620 ~ 4,210) /
(620 ~ 4,240)
Heating 47 1 3,360
(520 ~ 3,600) —3,840 (520 ~ 4,100) —
Power consumption Heating 17 2 W 2,620 — 3,000 —
EER 1 [SEER] 3 Cooling 8.0 [14.5] 9.1 [16.0] 7.7/7.6
[14.5]
7.9/8.2
[15.1]
HSPF IV(V) 4 Heating 8.2 (6.7) — 8.2 (6.7) —
COP Heating 1 2.84 — 2.69 —
Outdoor unit model MUZ-D30NA MUY-D30NA MUZ-D36NA MUY-D36NA
Power supply V , phase , Hz 208/230 , 1 , 60
Max. fuse size (time delay) A 25
Min. circuit ampacity A 21
Fan motor F.L.A 0.93
Compressor
Model TNB220FMCHT
R.L.A 16
L.R.A 20
Refrigeration oil cc 870 (NEO22)
Refrigerant control Linear expansion valve
Sound level 1 Cooling dB(A) 55 55 56 56
Heating 57 — 57 —
Defrost method Reverse cycle — Reverse cycle —
Dimensions
W
in.
33-1/16
D13
H 33-7/16
Weight Ib. 141 126 141 126
External finish Munsell 3Y 7.8/1.1
Remote controller Wireless type
Control voltage (by built-in transformer) 12 - 24 VDC
Refrigerant piping Not supplied
Refrigerant pipe size
(Min. wall thickness)
Liquid in. 3/8 (0.0315)
Gas 5/8 (0.0394)
Connection method Indoor Flared
Outdoor
Between the indoor
& outdoor units
Height
difference ft. 50
Piping length 100
Refrigerant charge (R410A) 4 lb. 10 oz. 4 lb. 4 lb. 10 oz. 4 lb.
NOTE: Test conditions are based on ARI 210/240.
1: Rating conditions (Cooling) — Indoor: 80˚FDB, 67˚FWB, Outdoor: 95˚FDB, (75˚FWB) Rated frequency
(Heating) — Indoor: 70˚FDB, 60˚FWB, Outdoor: 47˚FDB, 43˚FWB Rated frequency
2: (Heating) — Indoor: 70˚FDB, 60˚FWB, Outdoor: 17˚FDB, 15˚FWB Maximum frequency
3SPECIFICATION

5
Test condition
ARI Mode Test Indoor air condition (°F) Outdoor air condition (°F)
Dry bulb Wet bulb Dry bulb Wet bulb
SEER
(Cooling)
"A" Cooling Steady State
at rated compressor Speed 80 67 95 (75)
"B-2" Cooling Steady State
at rated compressor Speed 80 67 82 (65)
"B-1" Cooling Steady State
at minimum compressor Speed 80 67 82 (65)
Low ambient Cooling Steady State
at minimum compressor Speed 80 67 67 (53.5)
Intermediate Cooling Steady State
at Intermediate compressor Speed 5 80 67 87 (69)
HSPF
(Heating)
Standard Rating-Heating
at rated compressor Speed 70 60 47 43
Low temperature Heating
at rated compressor Speed 70 60 17 15
Max temperature Heating
at minimum compressor Speed 70 60 62 56.5
High temperature Heating
at minimum compressor Speed 70 60 47 43
Frost Accumulation
at rated compressor Speed 70 60 35 33
Frost Accumulation
at Intermediate compressor Speed 570 60 35 33
5: At Intermediate compressor Speed
=("Cooling rated compressor speed" - "minimum compressor speed") / 3 + "minimum compressor speed".
3, 4
OPERATING RANGE
(1) POWER SUPPLY
Rated voltage Guaranteed voltage (V)
Outdoor unit
208/230 V
1 phase
60 Hz
Min. 187 208 230 Max. 253
(2) OPERATION
Mode Condition
Intake air temperature (°F)
Indoor Outdoor
DB WB DB WB
Cooling
Standard temperature 80 67 95 —
Maximum temperature 90 73 115 —
Minimum temperature 67 57 14 —
Maximum humidity 78% —
Heating
Standard temperature 70 60 47 43
Maximum temperature 80 67 75 65
Minimum temperature 70 60 14 13

6

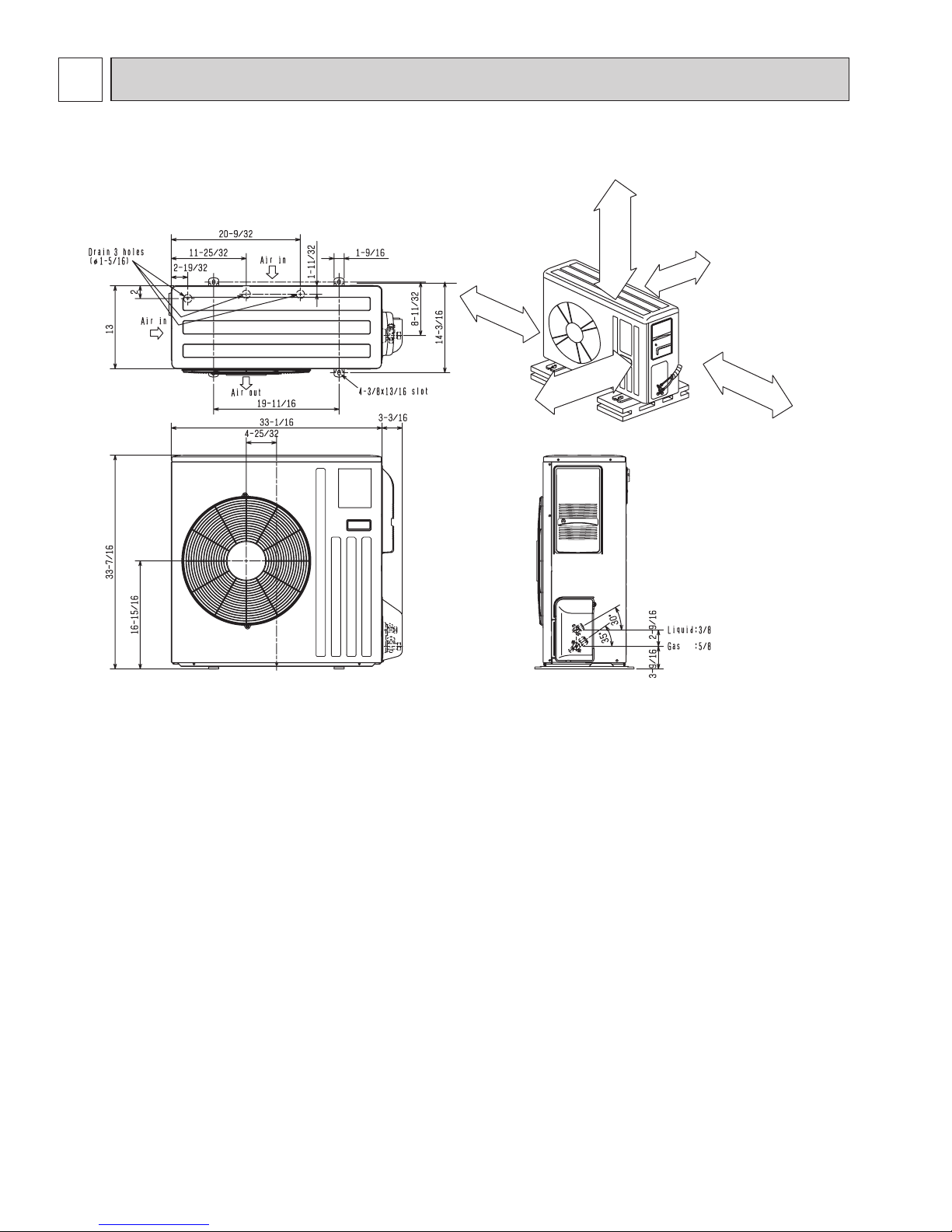

Open as a rule
20 inch or more if
the front and both
sides are open
4 inch or more /
8 inch or more if
there are obstacles
to both sides
Open as a rule
20 inch or more if the back,
both sides and top are open
14 in. or more
4 in. or more
REQUIRED SPACE
Unit: inch
MUZ-D30NA MUZ-D36NA MUY-D30NA MUY-D36NA
4OUTLINES AND DIMENSIONS

7

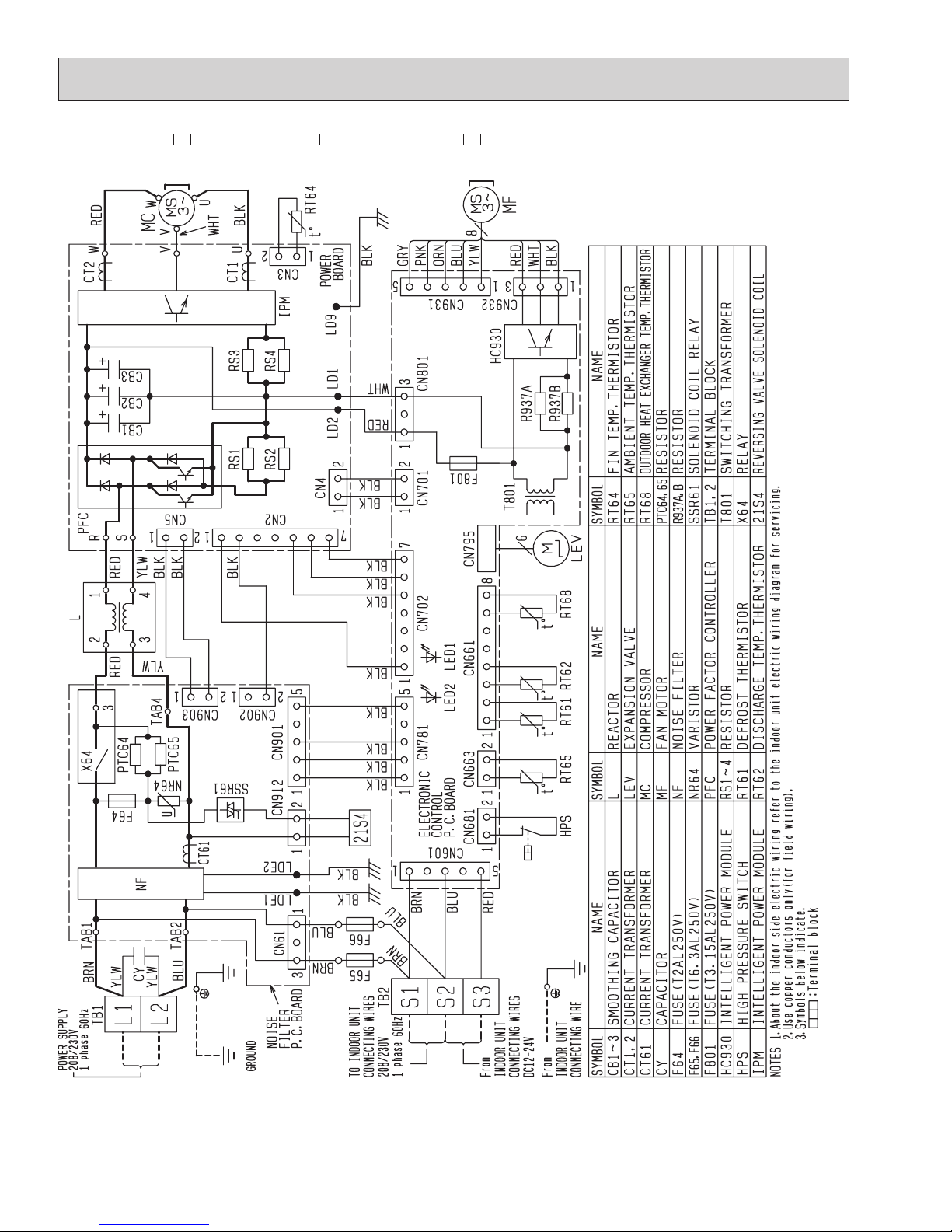

MUZ-D30NA MUZ-D30NA- U1 MUZ-D36NA MUZ-D36NA- U1

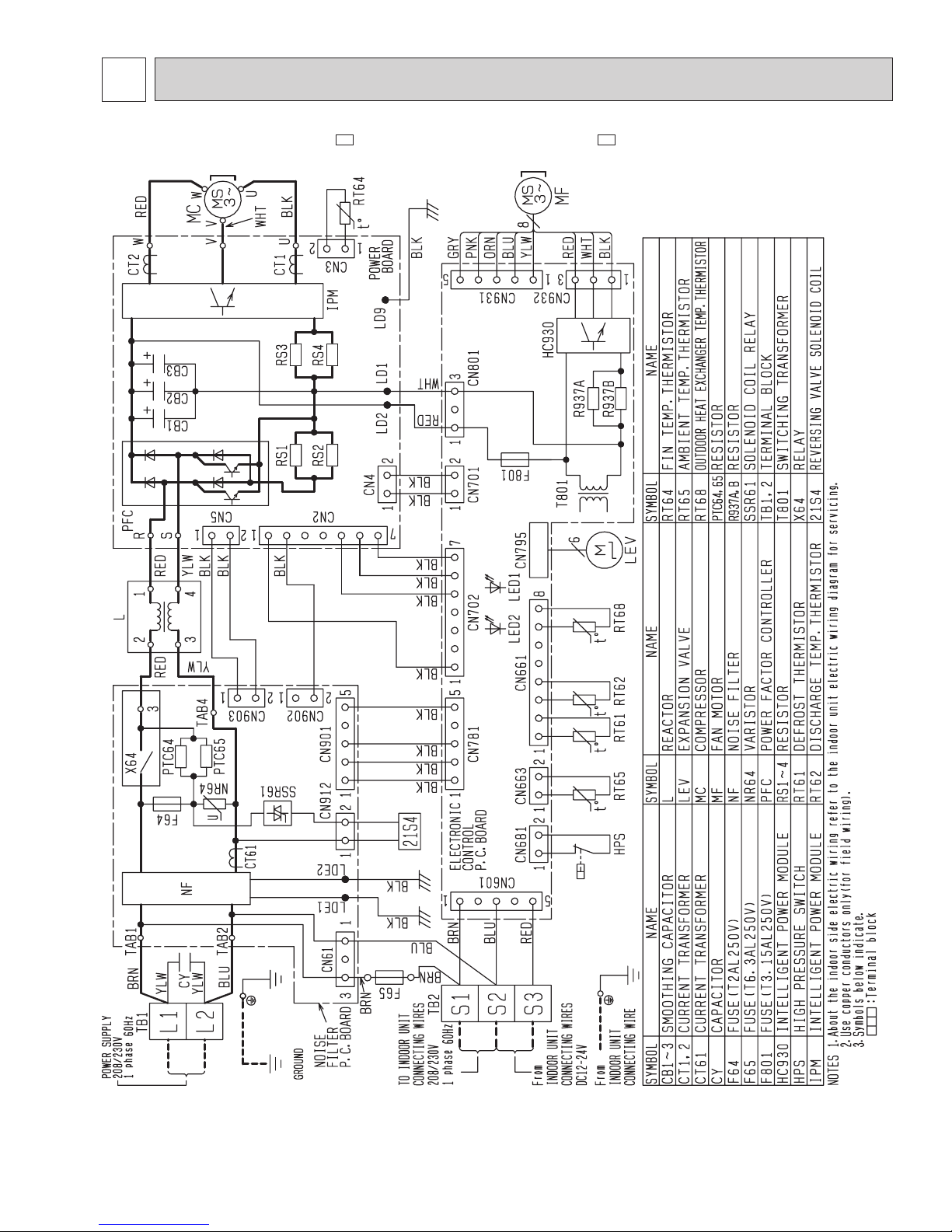

5WIRING DIAGRAM

8

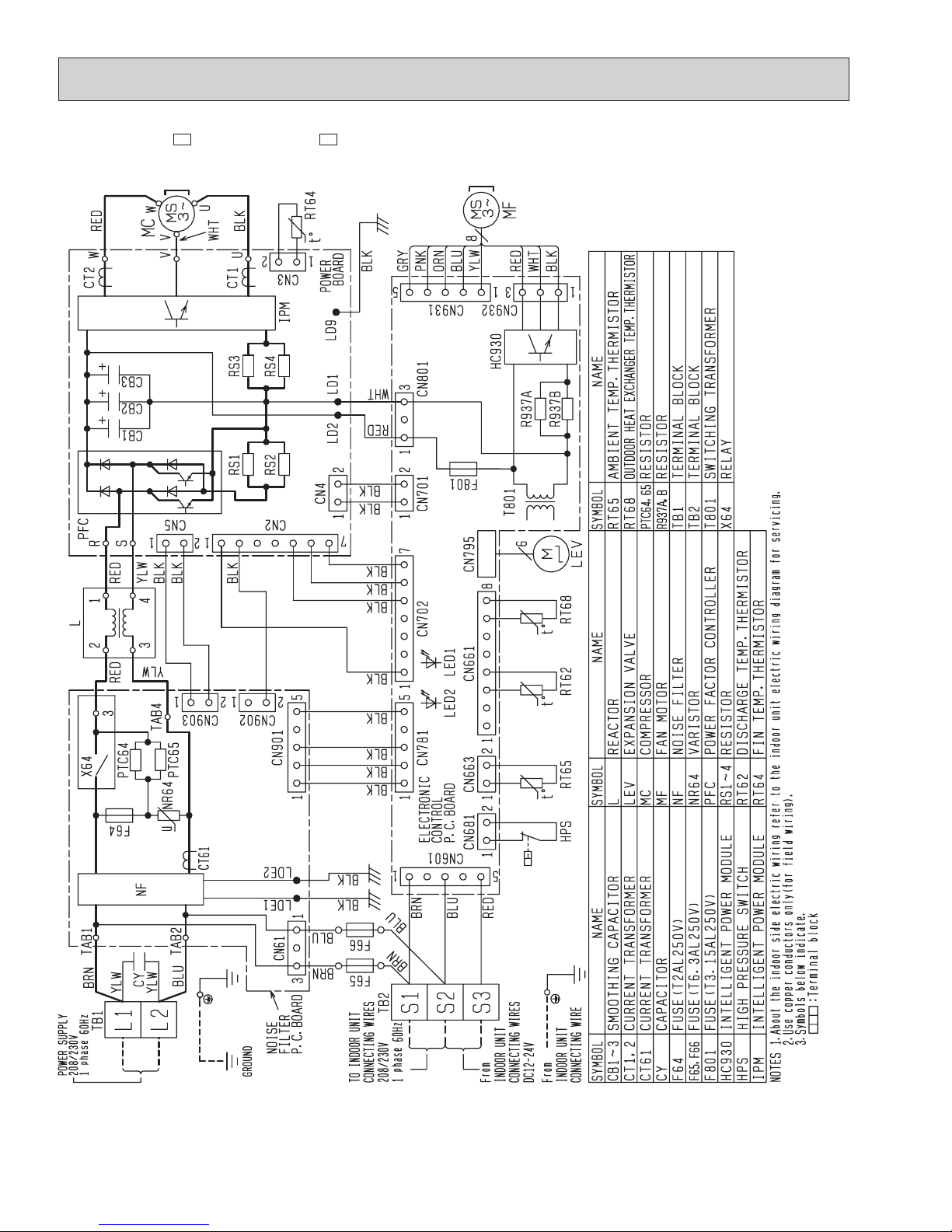

MUZ-D30NA- 1MUZ-D30NA- U2 MUZ-D36NA- 1MUZ-D36NA- U2

9
MUY-D30NA MUY-D36NA

10
MUY-D30NA- 1MUY-D36NA- 1

11

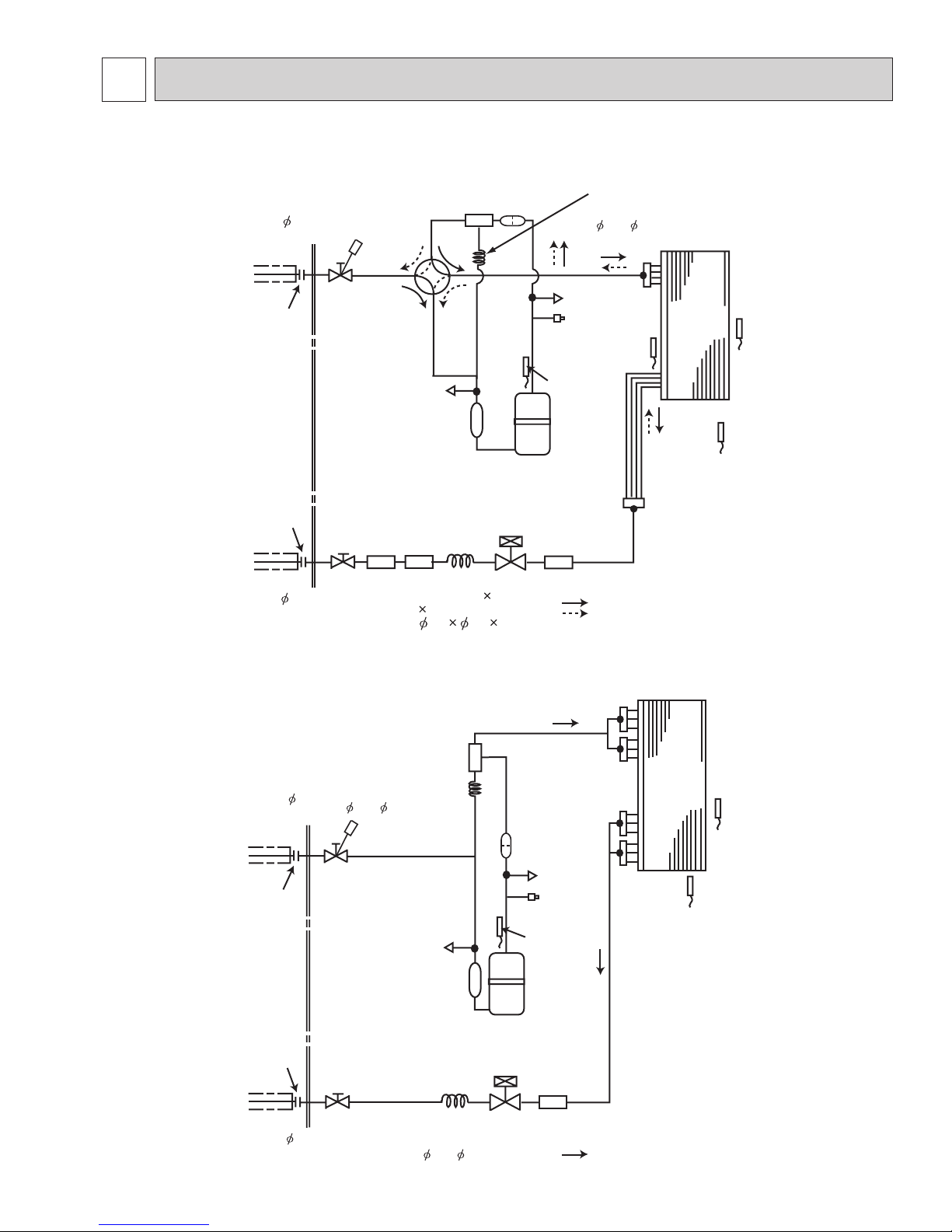

Unit: inch
MUZ-D30NA MUZ-D36NA
MUY-D30NA MUY-D36NA
Outdoor
heat
exchanger
Flared connection
Defrost
thermistor
RT61
Service
port
Service
port
Discharge
temperature
thermistor
RT62
Flared connection
Stop valve
Stop valve
(with service port)
Capillary tube
Refrigerant flow in cooling
Compressor
4-way valve
Refrigerant flow in heating
LEV
R.V. coil
heating ON
cooling OFF
Strainer
#100
Receiver
Outdoor heat
exchanger
temperature
thermistor
RT68
Ambient
temperature
thermistor
RT65
Strainer
#100
Refrigerant pipe 5/8
(with heat insulator)
Refrigerant pipe 3/8
(with heat insulator)
O.D. 0.142 I.D. 0.094
1-31/32
(
3.6 2.4 50 )
Oil
separator Strainer
#100
High-pressure
Switch
Capillary tube
O.D. 0.071 x I.D. 0.024
x 39-3/8
( 1.8 x 0.6 x 1,000)
O.D. 0.142 x I.D. 0.094
x 1-31/32
( 3.6 x 2.4 x 50)
Capillary tube
High-pressure
Switch
Flared connection
Discharge
temperature
thermistor
RT62
Flared connection
Stop valve
Stop valve
(with service port)
Capillary tube
Refrigerant flow in cooling
Refrigerant pipe 5/8
(with heat insulator)
Refrigerant pipe 3/8
(with heat insulator)
Strainer
#100
Strainer
#100
Oil separator
Outdoor
heat
exchanger Ambient
temperature
thermistor
RT65
Outdoor heat
exchanger
temperature
thermistor
RT68
Compressor
Service
port
LEV
Service
port
O.D. 0.071 x I.D. 0.024
x 39-3/8
( 1.8 x 0.6 x 1,000)
6REFRIGERANT SYSTEM DIAGRAM
Unit: inch

12

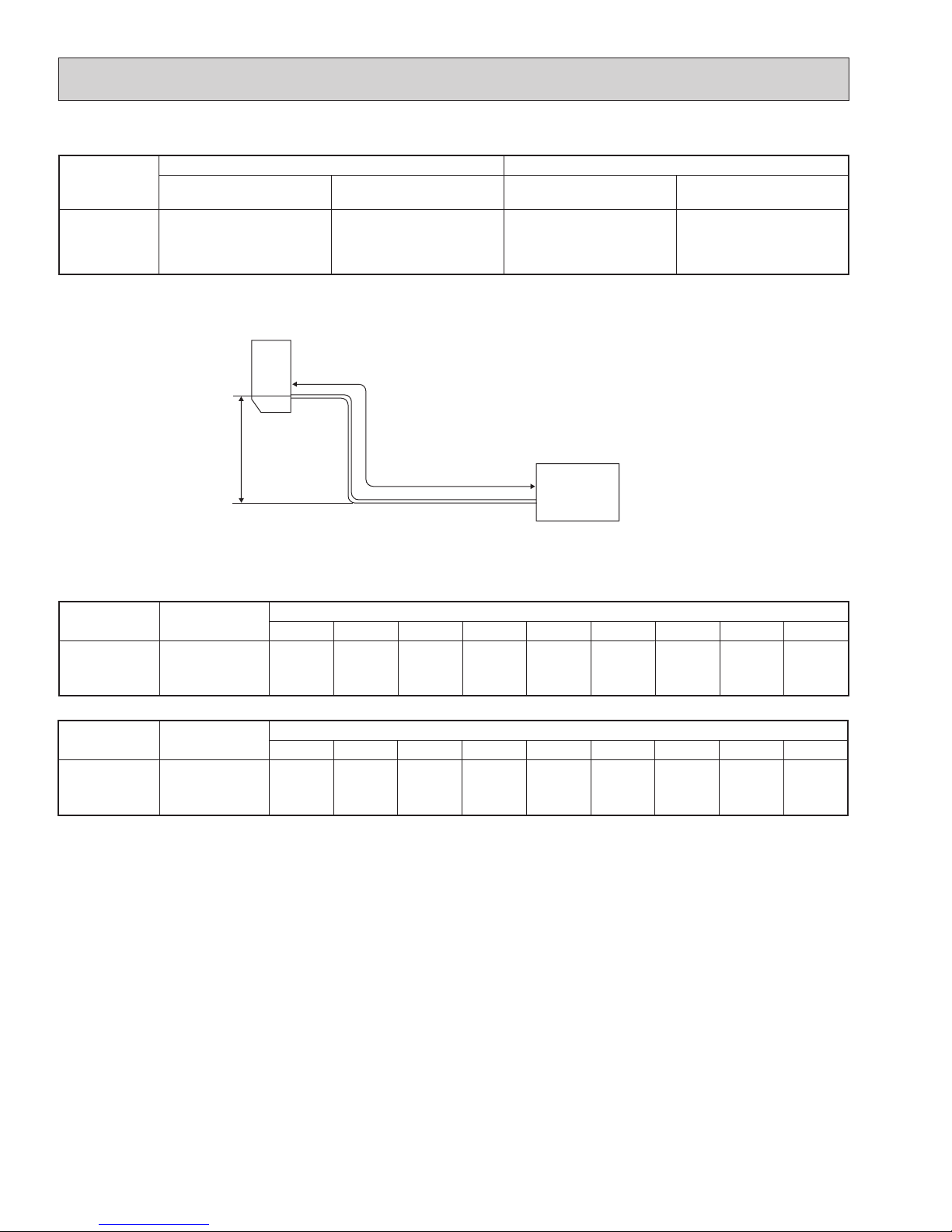

Max. Length
A
Max. Height
difference
B
Indoor
unit
Outdoor unit
MAX. REFRIGERANT PIPING LENGTH and MAX. HEIGHT DIFFERENCE
Model
Refrigerant piping: ft. Piping size O.D: in.
Max. Length
A
Max. Height difference
B Gas Liquid
MUZ-D30NA
MUZ-D36NA
MUY-D30NA
MUY-D36NA
100 50 5/8 3/8
ADDITIONAL REFRIGERANT CHARGE (R410A: oz.)
Refrigerant piping exceeding 25 ft. requires additional refrigerant charge according to the calculation.
Model Outdoor unit
precharged
Refrigerant piping length (one way): ft.
25 30 40 50 60 70 80 90 100
MUZ-D30NA
MUZ-D36NA 4 lb. 10 oz. 0 2.96 8.88 14.80 20.72 26.64 32.56 38.48 44.40
Calculation: X oz. = 2.96/5 oz. / ft. × (Refrigerant piping length (ft.) - 25)
Model Outdoor unit
precharged
Refrigerant piping length (one way): ft.
25 30 40 50 60 70 80 90 100
MUY-D30NA
MUY-D36NA 4 lb. 0 1.08 3.24 5.40 7.56 9.72 11.88 14.04 16.20
Calculation: X oz. = 1.08/5 oz. / ft. × (Refrigerant piping length (ft.) - 25)
NOTE: Refrigerant piping exceeding 25 ft. requires additional refrigerant charge according to the calculation.

13
MUZ-D30NA MUZ-D36NA MUY-D30NA MUY-D36NA

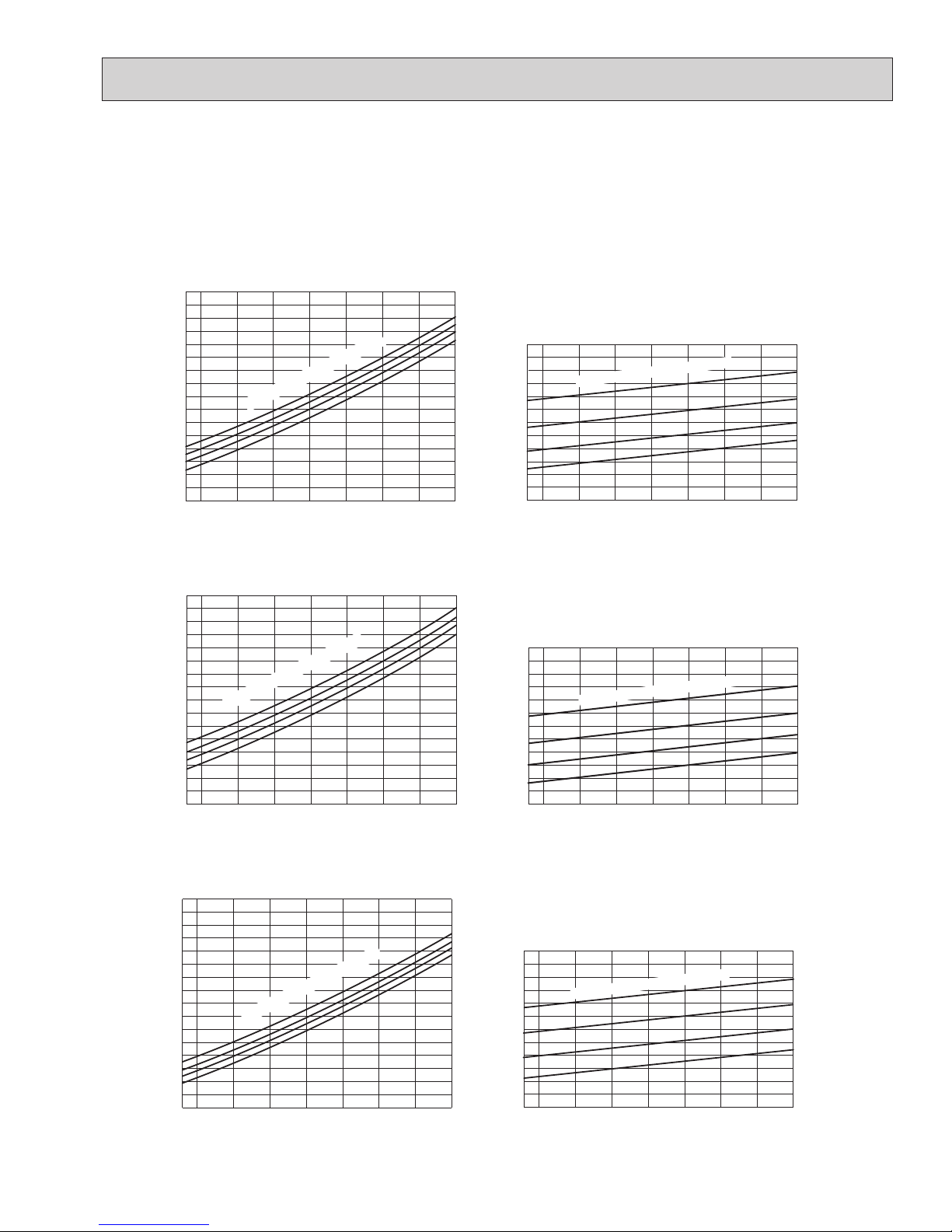

7-1. PERFORMANCE DATA
1) COOLING CAPACITY
Model
Indoor air Outdoor intake air DB temperature (˚F)
IWB (˚F) 75 85 95 105 115
TC SHC TPC TC SHC TPC TC SHC TPC TC SHC TPC TC SHC TPC
MUZ-D30NA
71 37.6 19.1 3.43 35.2 17.8 3.75 33.0 16.7 4.04 30.7 15.6 4.25 28.2 14.3 4.43
67 35.6 22.8 3.23 33.2 21.2 3.56 30.7 19.6 3.85 28.6 18.3 4.08 26.2 16.8 4.27
63 33.5 25.9 3.08 31.0 24.0 3.41 28.9 22.3 3.68 26.2 20.3 3.93 23.9 18.5 4.08
MUZ-D36NA
71 40.7 19.8 3.88 38.0 18.5 4.25 35.7 17.4 4.58 33.2 16.2 4.82 30.5 14.9 5.01
67 38.5 23.9 3.66 35.9 22.2 4.03 33.2 20.6 4.36 30.9 19.1 4.62 28.4 17.6 4.84
63 36.2 27.3 3.49 33.5 25.3 3.86 31.2 23.5 4.16 28.4 21.4 4.45 25.9 19.5 4.62
MUY-D30NA
71 37.6 19.1 3.01 35.2 17.8 3.30 33.0 16.7 3.55 30.7 15.6 3.73 28.2 14.3 3.89
67 35.6 22.8 2.84 33.2 21.2 3.13 30.7 19.6 3.38 28.6 18.3 3.58 26.2 16.8 3.75
63 33.5 25.9 2.70 31.0 24.0 2.99 28.9 22.3 3.23 26.2 20.3 3.45 23.9 18.5 3.58
MUY-D36NA
(208 V)
71 40.7 19.8 3.75 38.0 18.5 4.10 35.7 17.4 4.42 33.2 16.2 4.65 30.5 14.9 4.84
67 38.5 23.9 3.54 35.9 22.2 3.89 33.2 20.6 4.21 30.9 19.1 4.46 28.4 17.6 4.67
63 36.2 27.3 3.37 33.5 25.3 3.73 31.2 23.5 4.02 28.4 21.4 4.29 25.9 19.5 4.46
MUY-D36NA
(230 V)
71 42.4 20.6 3.77 39.6 19.3 4.13 37.2 18.1 4.45 34.6 16.8 4.69 31.8 15.5 4.88
67 40.1 24.9 3.56 37.4 23.2 3.92 34.6 21.5 4.24 32.2 20.0 4.49 29.6 18.3 4.71
63 37.7 28.4 3.39 34.9 26.3 3.75 32.5 24.5 4.05 29.6 22.3 4.32 27.0 20.3 4.49
NOTE: 1. IWB : Intake air wet-bulb temperature
TC : Total Capacity (x103Btu/h)
SHC : Sensible Heat Capacity (x103Btu/h)
TPC : Total Power Consumption (kW)
2. SHC is based on 80˚F of indoor Intake air DB temperature.
2) COOLING CAPACITY CORRECTIONS
Refrigerant piping length (one way: ft.)
25 (std.) 40 65 100
MUZ-D30NA
MUZ-D36NA
MUY-D30NA
MUY-D36NA
1.0 0.95 0.878 0.713
3) HEATING CAPACITY
Model
Indoor air Outdoor intake air WB temperature (˚F)
IDB (˚F) 15 25 35 43 45 55
TC TPC TC TPC TC TPC TC TPC TC TPC TC TPC
MUZ-D30NA
75 18.9 2.50 23.6 2.94 28.2 3.28 31.8 3.44 32.8 3.49 37.2 3.63
70 20.0 2.42 24.5 2.87 28.9 3.19 32.6 3.36 33.6 3.43 38.0 3.56
65 20.5 2.32 25.6 2.77 29.8 3.11 33.6 3.28 34.6 3.33 38.8 3.49
MUZ-D36NA
75 20.4 2.86 25.5 3.36 30.4 3.74 34.3 3.94 35.4 3.99 40.1 4.15
70 21.6 2.76 26.4 3.28 31.2 3.65 35.2 3.84 36.3 3.92 41.0 4.07
65 22.2 2.65 27.6 3.17 32.2 3.55 36.3 3.74 37.3 3.80 41.9 3.99
NOTE: 1. IDB: Intake air dry-bulb temperature
TC : Total Capacity (x103 Btu/h)
TPC : Total Power Consumption (kW)
2. Above data is for heating operation without any frost.
How to operate with fixed operational frequency of the compressor.
1. Press the EMERGENCY OPERATION switch on the front of the indoor unit, and select either EMERGENCY COOL
mode or EMERGENCY HEAT mode before starting to operate the air conditioner.
2. The compressor starts with operational frequency.
3. The fan speed of the indoor unit is High.
4. This operation continues for 30 minutes.
5. In order to release this operation, press the EMERGENCY OPERATION switch twice or once, or press any button on
the remote controller.
7DATA

14
7-2. PERFORMANCE CURVE
65
70
75
75
70
65
45
40
35
30
25
20
15
Indoor intake air DB temperature (°F)
= 848 CFM
Airflow
15 25 35 45 55
Outdoor intake air WB temperature (°F)
4.0
3.6
3.2
2.8
2.4
Indoor intake air DB temperature (°F)
Total power consumption
(kW)
Total capacity (10
3Btu/h)
65
70
75
75
70
65
48
43
38
33
28
23
18
Indoor intake air DB temperature (°F)
= 848 CFM
Airflow
15 25 35 45 55
Outdoor intake air WB temperature (°F)
4.5
4.1
3.7
3.3
2.9
Indoor intake air DB temperature (°F)
Total power consumption
(kW)
Total capacity (10
3Btu/h)
Cooling
This value of frequency is not the same as the actual frequency in operating. Refer to 7-5 and 7-6 for the relationships
between frequency and capacity.
71
67
63
71
67
63
24
26
28
30
32
34
36
38
40
Indoor intake air WB temperature (°F)
Indoor intake air WB temperature (°F)
4.5
4.3
4.1
3.9
3.7
3.5
3.3
3.1
SHF at rating condition = 0.64
= 763 CFM
Airflow
65 75 85 95 105 115
Outdoor intake air DB temperature (°F)
Total power consumption
(kW)
Total capacity (10
3Btu/h)
71
67
63
71
67
63
27
29
31
33
35
37
39
41
43
Indoor intake air WB temperature (°F)
5.2
4.8
4.4
4.0
3.6
Indoor intake air WB temperature (°F)
SHF at rating condition = 0.62
= 763 CFM
Airflow
65 75 85 95 105 115
Outdoor intake air DB temperature (°F)
Total power consumption
(kW)
Total capacity (10
3Btu/h)
MUZ-D30NA MUZ-D36NA
Heating
MUZ-D30NA MUZ-D36NA
MUY-D36NA
MUY-D30NA
71
67
63
71
67
63
24
26
28
30
32
34
36
38
40
Indoor intake air WB temperature (°F)
Indoor intake air WB temperature (°F)
4.0
3.8
3.6
3.4
3.2
3.0
2.8
2.6
SHF at rating condition = 0.64
= 763 CFM
Airflow
65 75 85 95 105 115
Outdoor intake air DB temperature (°F)
Total power consumption
(kW)
Total capacity (10
3Btu/h)
71
67
63
71
67
63
46
42
38
34
30
26
Indoor intake air WB temperature (°F)
5.0
4.6
4.2
3.8
3.4
Indoor intake air WB temperature (°F)
SHF at rating condition = 0.62
= 763 CFM
Airflow
65 75 85 95 105 115
Outdoor intake air DB temperature (°F)
Total power consumption
(kW)
Total capacity (10
3Btu/h)

15

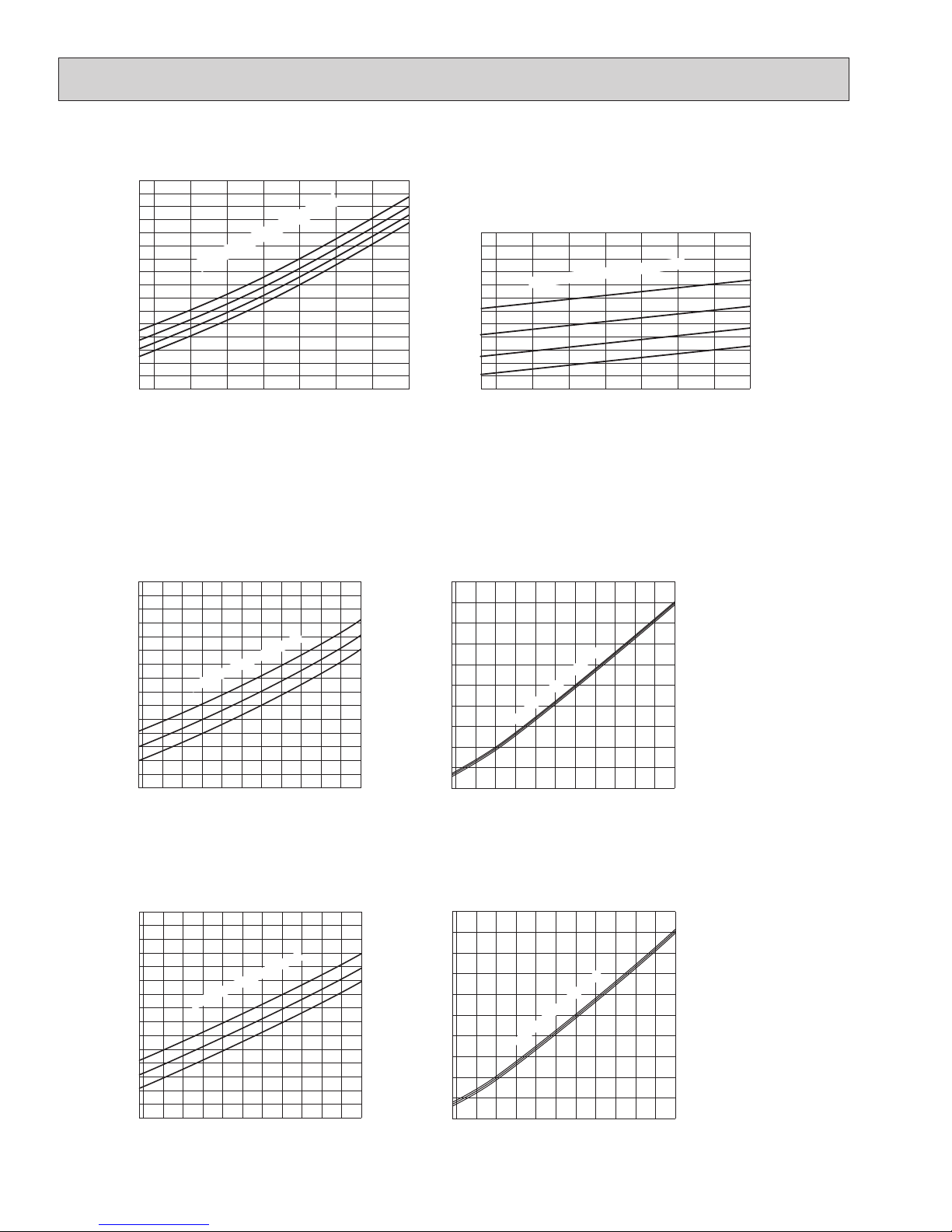

7-3. CONDENSING PRESSURE
Cooling
Data is based on the condition of indoor humidity 50%.
Air flow should be set to High speed.
MUZ-D36NA
(PSIG)
Condensing pressure
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
90
100
110
120
130
140
150
Suction pressure
Outdoor ambient temperature
(PSIG)
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
260
300
340
380
420
460
500
540
580
Indoor DB temperature (°F)
Outdoor ambient temperature
Indoor DB temperature (°F)
MUZ-D30NA
(PSIG)
Condensing pressure
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
90
100
110
120
130
140
150
Suction pressure
Outdoor ambient temperature
(PSIG)
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
260
300
340
380
420
460
500
540
580
Indoor DB temperature (°F)
Outdoor ambient temperature
Indoor DB temperature (°F)
MUY-D30NA
(PSIG)
Condensing pressure
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
90
100
110
120
130
140
150
Suction pressure
Outdoor ambient temperature
(PSIG)
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
260
300
340
380
420
460
500
540
580
Indoor DB temperature (°F)
Outdoor ambient temperature
Indoor DB temperature (°F)

16
75
70
65
75
70
65
(PSIG) (PSIG)
Condensing pressure
Outdoor ambient temperature
14 20 25 30 35 40 45 50 55 60 65 70(°F)
200
500
480
460
440
420
400
380
360
340
320
300
280
260
240
220
Indoor DB temperature(°F)
Suction pressure
Outdoor ambient temperature
14 20 25 30 35 40 45 50 55
58Hz
58Hz
60 65 70(°F)
140
130
120
150
110
100
90
80
70
60
50
Indoor DB temperature (°F)
Heating
Data is based on the condition of outdoor humidity 75%.
Air flow should be set to High speed.
Data is for heating operation without any frost.
MUZ-D36NA
MUZ-D30NA
75
70
65
75
70
65
(PSIG) (PSIG)
Condensing pressure
Outdoor ambient temperature
14 20 25 30 35 40 45 50 55 60 65 70(°F)
200
500
480
460
440
420
400
380
360
340
320
300
280
260
240
220
Indoor DB temperature(°F)
Suction pressure
Outdoor ambient temperature
14 20 25 30 35 40 45 50 55
58Hz
58Hz
60 65 70(°F)
140
150
130
120
110
100
90
80
70
60
50
Indoor DB temperature (°F)
MUY-D36NA
(PSIG)
Condensing pressure
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
90
100
110
120
130
140
150
Suction pressure
Outdoor ambient temperature
(PSIG)
86
80
75
70
68 70 75 80 85 90 95 100 105(°F)
260
300
340
380
420
460
500
540
580
Indoor DB temperature (°F)
Outdoor ambient temperature
Indoor DB temperature (°F)

17
7-4. STANDARD OPERATION DATA
Model MSZ-D30NA MSZ-D36NA MSY-D30NA MSY-D36NA
Item Unit Cooling Heating Cooling Heating Cooling Cooling
Total
Capacity Btu/h 30,700 32,600 32,000/33,200 35,200 30,700 33,200/34,000
SHF — 0.64 — 0.62 — 0.64 0.62
Input kW 3.85 3.36 4.14/4.36 3.84 3.38 4.21/4.24
Rated frequency Hz 84 84 91 91 79 92
Electrical circuit
Indoor unit MSZ-D30NA MSZ-D36NA MSY-D30NA MSY-D36NA
Power supply
V,
phase,
Hz
208/230 , 1 , 60
Input kW 0.058
Fan motor current A 0.45/0.42
Outdoor unit MUZ-D30NA MUZ-D36NA MUY-D30NA MUY-D36NA
Power supply
V,
phase,
Hz
208/230 , 1 , 60
Input kW 3.792 3.302 4.082/4.302 3.782 3.322 4.152/4.182
Comp. current A 17.25/15.56 14.95/13.46 18.65/17.86 17.25/15.56 15.05/13.56 18.95/17.26
Fan motor current A 0.80/0.72
Refrigerant circuit
Condensing pressure PSIG 468 404 480 420 453 475
Suction pressure PSIG 126 96 122 94 125 119
Discharge temperature ˚F 186.8 169.7 198.7 168.8 191.3 197.1
Condensing temperature ˚F 126.5 114.3 128.5 117.0 123.8 127.4
Suction temperature ˚F 45.5 29.8 48.0 29.1 54.7 48.6
Comp. shell bottom temperature ˚F 175.6 156.4 187.0 155.7 177.4 182.7
Ref. pipe length ft. 25
Refrigerant charge (R410A) — 4 lb. 10 oz. 4 lb.
Indoor unit
Intake air temperature DB ˚F 80 70 80 70 80 80
WB ˚F 67 60 67 60 67 67
Discharge air temperature DB ˚F 53.9 112.2 53 114.9 53.7 51.7
WB ˚F 53 73.9 52.1 74.6 52.8 50.8
Fan speed (High) rpm 1,100
Airflow (High) CFM 741 (Wet) 795 738 (Wet) 794 718 (Wet) 710 (Wet)
Outdoor unit
Intake air temperature DB ˚F 95 47 95 47 95 95
WB ˚F — 43 — 43 — —
Fan speed rpm 800
Airflow CFM 1,941

18

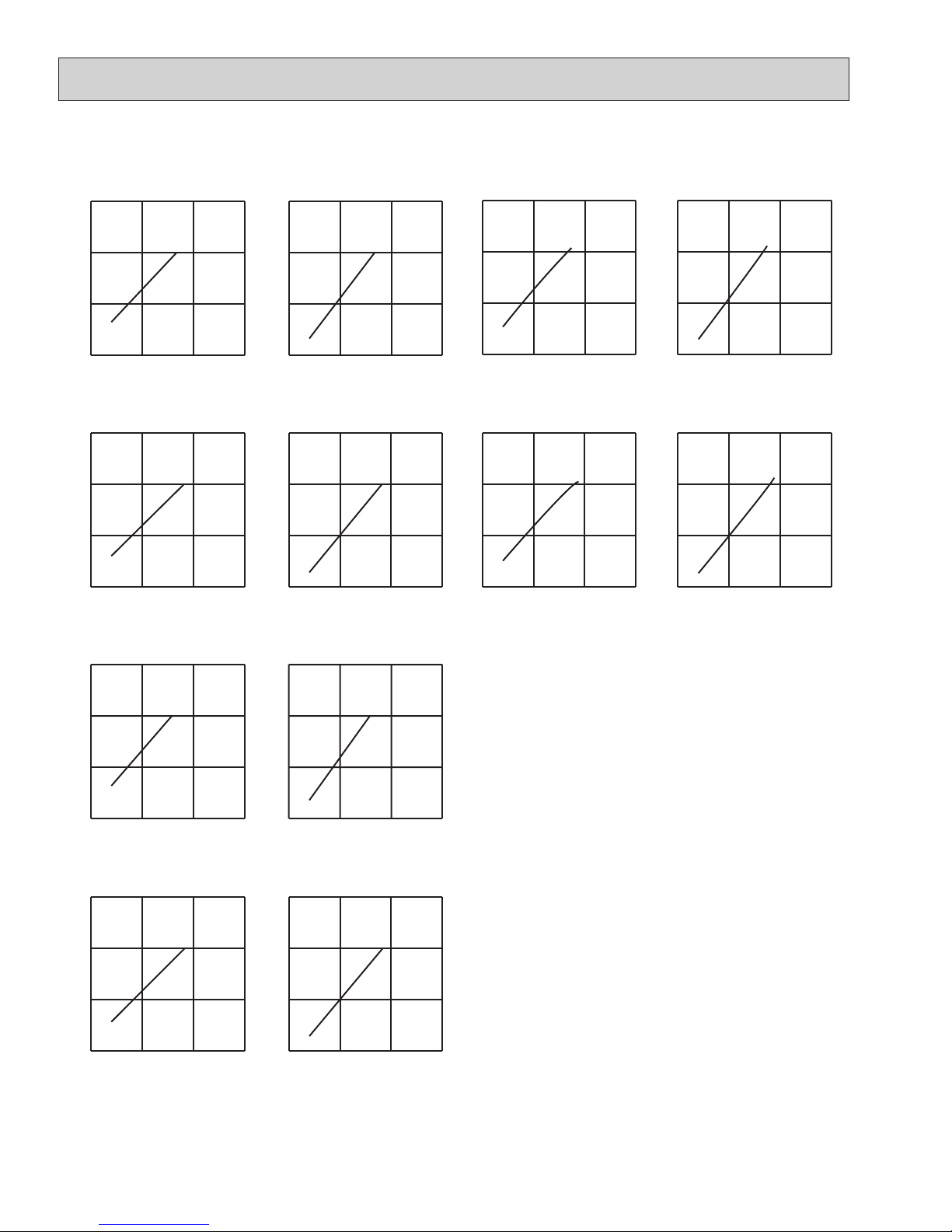

7-5. CAPACITY AND INPUT CORRECTION BY INVERTER OUTPUT FREQUENCY
MUZ-D36NA
Capacity correction factors
Input correction factors
Input correction factors
Capacity correction factors
Correction of Cooling capacity
The operational frequency of compressor
Correction of Cooling total input
The operational frequency of compressor
Correction of Heating total input
The operational frequency of compressor
Correction of Heating capacity
The operational frequency of compressor
0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5
MUY-D36NA
Capacity correction factors
Input correction factors
Correction of Cooling capacity
The operational frequency of compressor
Correction of Cooling total input
The operational frequency of compressor
0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5
(Hz)
Capacity correction factors
Input correction factors
Input correction factors
Capacity correction factors
Correction of Cooling capacity
The operational frequency of compressor
Correction of Cooling total input
The operational frequency of compressor
Correction of Heating total input
The operational frequency of compressor
Correction of Heating capacity
The operational frequency of compressor
MUZ-D30NA
0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5
(Hz)
Capacity correction factors
Input correction factors
Correction of Cooling capacity
The operational frequency of compressor
Correction of Cooling total input
The operational frequency of compressor
MUY-D30NA
0 50 100 150
0.5
1.0
1.5
(Hz) 0 50 100 150
0.5
1.0
1.5

19
7-6. TEST RUN OPERATION (How to operate fixed-frequency operation)
1. Press EMERGENCY OPERATION switch to COOL or HEAT mode (COOL: Press once, HEAT: Press twice).
2. Test run operation starts and continues to operate for 30 minutes.
3. Compressor operates at rated frequency in COOL mode or 58 Hz in HEAT mode.
4. Indoor fan operates at High speed.
5. After 30 minutes, test run operation finishes and EMERGENCY OPERATION starts (Operation frequency of compressor
varies).
6. To cancel test run operation (EMERGENCY OPERATION), press EMERGENCY OPERATION switch or any button on
remote controller.

20
MUZ-D30NA MUZ-D36NA MUY-D30NA MUY-D36NA
8-3. Relation between main sensor and actuator
Sensor Purpose
Actuator
Compressor LEV Outdoor
fan motor R.V. coil Indoor fan motor
Discharge temperature thermistor Protection ○○
Indoor coil temperature thermistor Cooling: Coil frost prevention ○
Heating: High pressure protection ○○○
Defrost thermistor Defrosting ○○○○○
Fin temperature thermistor Protection ○○
Outdoor heat exchanger temperature Protection ○○○
Ambient temperature thermistor Cooling: Low ambient temperature operation
○○○

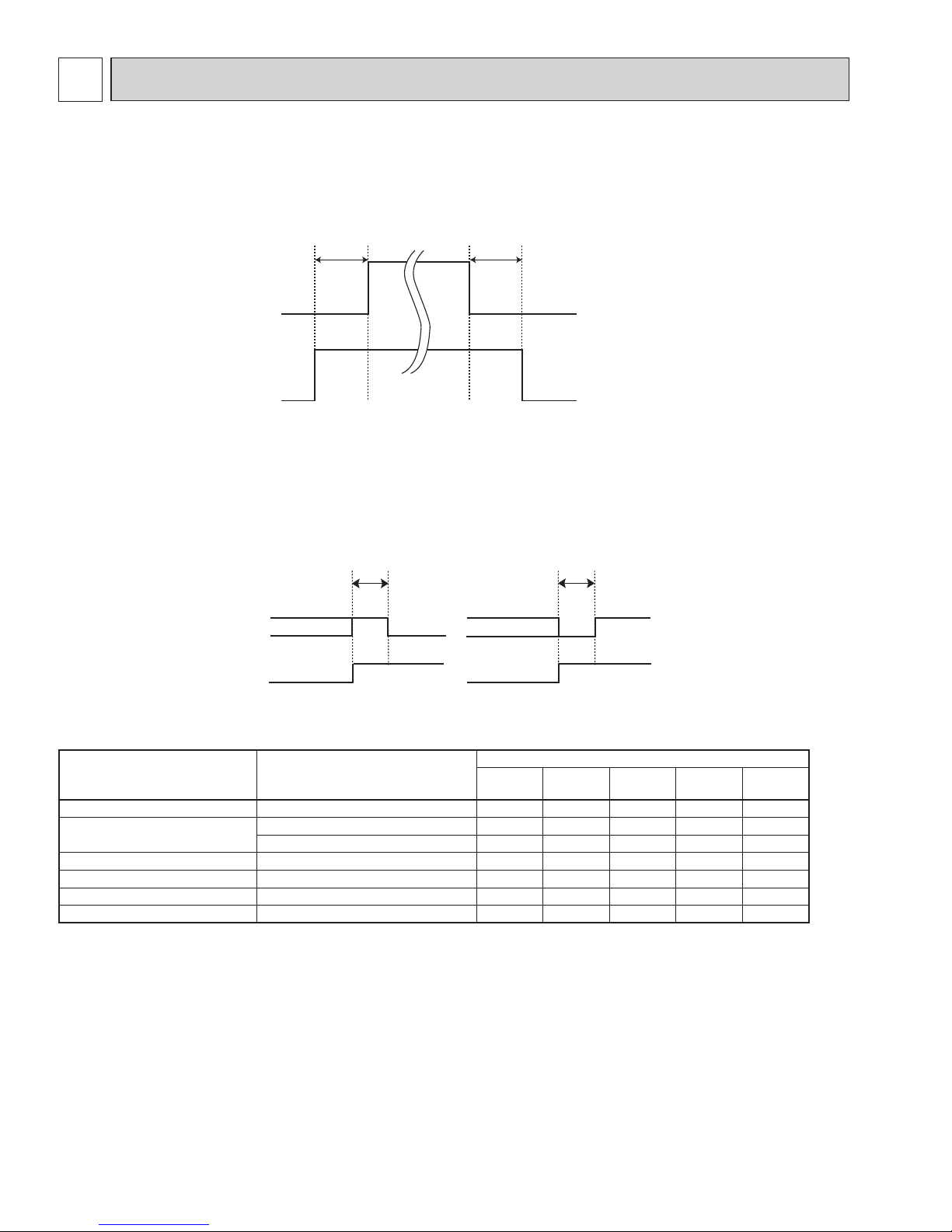

8-2. R.V. COIL CONTROL
<MUZ>
Heating . . . . . . . . . . . . . . . . . ON
Cooling . . . . . . . . . . . . . . . . . OFF
Dry . . . . . . . . . . . . . . . . . . . . OFF
NOTE: The 4-way valve reverses for 5 seconds right before start-up of the compressor.
ON
OFF
ON
OFF
Outdoor fan
motor
Compressor
5 seconds 15 seconds
Outdoor fan
motor
ON
OFF
<COOL>
5 seconds
<HEAT>
5 seconds
R.V.coil ON
OFF
ON or OFF ON or OFF
8-1. OUTDOOR FAN MOTOR CONTROL
The fan motor turns ON/OFF, interlocking with the compressor.
[ON] The fan motor turns ON 5 seconds before the compressor starts up.
[OFF] The fan motor turns OFF 15 seconds after the compressor has stopped running.
8ACTUATOR CONTROL
