Mitsubishi Electric Mr. Slim PUY-A36NHA3 Installation and user guide

Job Name: Location: Date:
Purchaser: Engineer:
Submitted to: For Reference Approval Construction
Unit Designation: Schedule No.:
Cooling*
Rated Capacity...............................34,200 Btu/h
Minimum Capacity ............................12,000 Btu/h
SEER ......................................14.0 Btu/h/W
Total Input......................................5,030 W
* Rating Conditions (Cooling) - Indoor: 80ºF (27ºC) DB / 67ºF (19ºC) WB.
Outdoor: 95ºF (35ºC) DB / 75ºF (24ºC) WB.
Electrical Requirements
Power Supply ....................208 / 230V, 1-Phase, 60 Hz
Breaker Size........................................30 A
Voltage
Indoor - Outdoor S1-S2 ......................AC 208 / 230V
Indoor - Outdoor S2-S3 ............................DC 24V
Wireless Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC
OPERATING RANGE
Indoor Intake Air Temp. Outdoor Intake Air Temp.
Cooling Maximum 95ºF (35ºC) DB, 71ºF (22ºC) WB 115ºF (46ºC) DB
Minimum 67ºF (19ºC) DB, 57ºF (14ºC) WB 0ºF** (-18ºC) DB
** With optional wind bafe accessory installed. If not installed, the minimum
temperature will be 23ºF (-5ºC) DB.
Indoor Unit: PKA-A36KAL
Outdoor Unit: PUY-A36NHA3
Indoor Unit
MCA .............................................. 1 A
Fan Motor ...................................0.57 F.L.A.
Fan Motor Output ...................................56 W
Airow (Lo - Mid - Hi) ................705 - 810 - 920 Dry CFM
635 - 730 - 830 Wet CFM
Air Filter ........................ Polypropylene Honeycomb
Sound Pressure Level (Lo - Mid - Hi)....................43 - 46 - 49 dB(A)
DIMENSIONS UNIT INCHES / MM
W 46-1/16 / 1,170
D 11-5/8 / 295
H 14-3/8 / 365
Weight. ....................................46 lbs. / 21 kg
External Finish ....................Munsell No. 1.0Y 9.2 / 0.2
Field Drainpipe Size O.D........................5/8" / 16 mm
Remote Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wireless
Outdoor Unit
Compressor ..................DC Inverter-driven Twin Rotary
MCA ............................................ . 25 A
Fan Motor ....................................0.75 F.L.A.
Sound Pressure Level
Cooling ...................................... . .48 dB(A)
DIMENSIONS INCHES / MM
W 37-3/8 / 950
D 13 + 1-3/16 / 330 + 30
H 37-1/8 / 943
Weight ...................................163 lbs. / 74 kg
External Finish ......................Munsell No. 3Y 7.8 / 1.1
Refrigerant Type .................................. R410A
Refrigerant Pipe Size O.D.
Gas Side ................................5/8" / 15.88 mm
Liquid Side................................3/8" / 9.52 mm
Max. Refrigerant Pipe Length.....................165' / 50 m
Max. Refrigerant Pipe Height Difference ............100' / 30 m
Connection Method ................................Flared

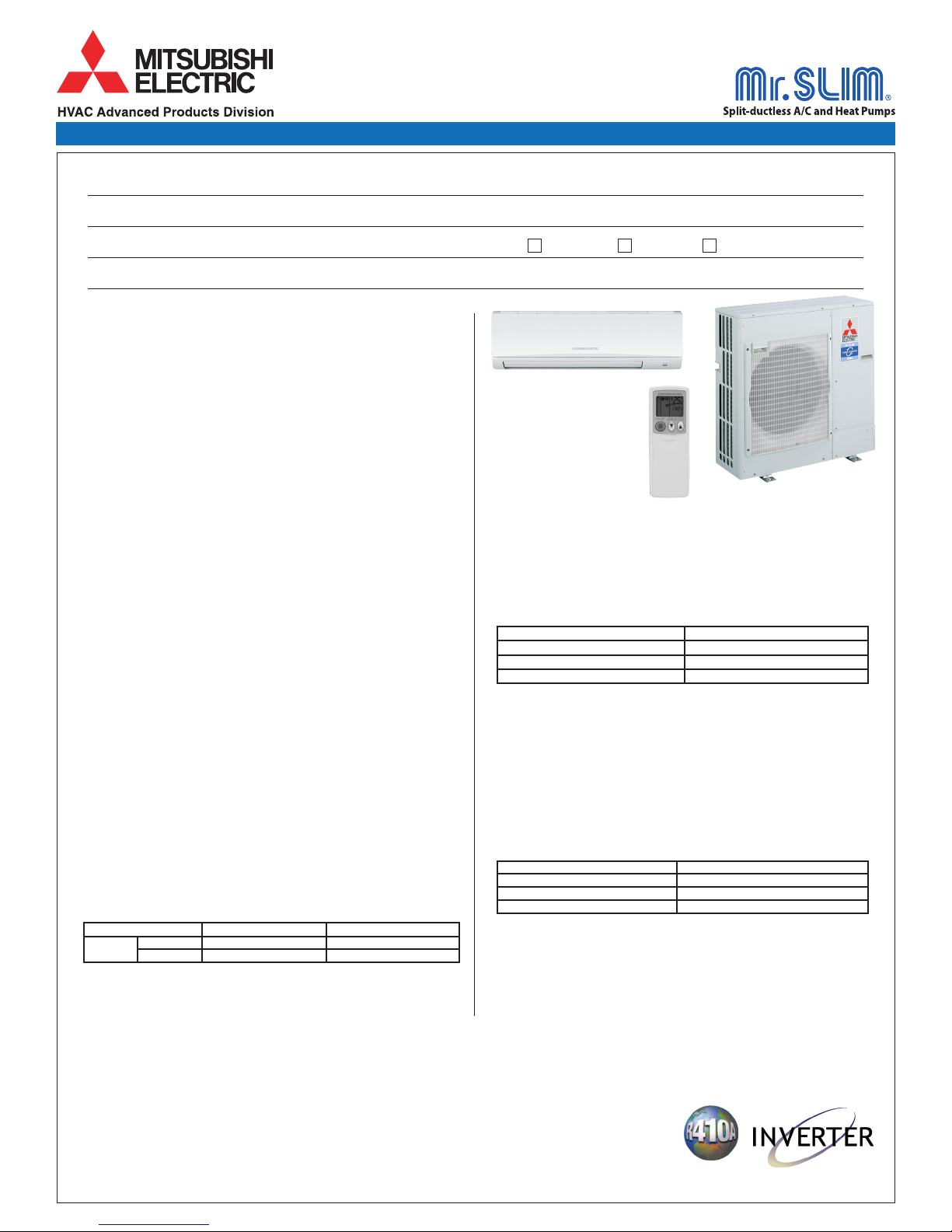

SUBMITTAL DATA: PKA-A36KAL & PUY-A36NHA3 36,000 BTU/H WALL-MOUNTED AIR-CONDITIONING SYSTEM
Wireless Remote
Controller
OPTIONAL ACCESSORIES
Indoor Unit
• Remote Temperature Sensor (PAC-SE41TS-E)
Outdoor Unit
• M-NET Adapter (PAC-SF81MA-E)
• Air Outlet Guide (PAC-SG59SG-E)
• Wind Bafe (WB-PA2)
GENERAL FEATURES
• Wall-mounted indoor unit for residential and commercial
applications
• Shiny-white–exterior plastic; compact design
• Quiet operation—both indoor and outdoor units
• Wireless remote controller is included
• Self-check function—integrated diagnostics
• Limited warranty: ve years on parts and defects and seven years
on compressors

3400 Lawrenceville Suwanee Rd
Suwanee, GA 30024
Tele: 678-376-2900 • Fax: [phone]
Toll Free: 800-433-4822 (#3)
www.mehvac.com
Specications are subject to change without notice.
C SD - PKA-A36KAL / PUY-A36NHA3 - 200907 © MITSUBISHI ELECTRIC / HVAC 2009
Dimensions: PUY-A36nHA3
Clearance Area
