Mitsubishi Electric Mr.SLIM PLH Series Operating manual

TECHNICAL & SERVICE MANUAL
SPLIT-TYPE,HEAT PUMP AIR CONDITIONERS
SPLIT-TYPE,AIR CONDITIONERS
CONTENTS
1. COMBINATION OF INDOORAND OUTDOOR UNITS··2
2. SAFETY PRECAUTION·······························3
3. PART NAMES AND FUNCTIONS ···············5
4. SPECIFICATIONS········································8
5. DATA ··························································19
6. OUTLINES AND DIMENSIONS·················45
7. WIRING DIAGRAM ·······································48
8. REFRIGERANT SYSTEM DIAGRAM ··············51
9. DISASSEMBLY PROCEDURE ··················53
10. PARTS LIST···············································56
11. OPTIONAL PARTS·····································68
Indoor unit
[Model names]
1999
PLH-P1.6KAH
PLH-P2KAH
PLH-P2.5KAH
PLH-P3KAH
PLH-P4KAH
PLH-P5KAH
PLH-P6KAH
2000
PLA-P1.6KA
PLA-P2KA
PLA-P2.5KA
PLA-P3KA
PLA-P4KA
PLA-P5KA
PLA-P6KA
No. OC181
REVISED EDITION-A
1999
Refer to the OCT03 as regarding
control relation.
Revised Edition-A are
PLA-P1.6KA, P2KA, P2.5KA,
P3KA, P4KA, P5KA, P6KA, and
PUH-P1.6, P2, P2.5YGA added.
This manual does not cover the
following outdoor units. When
servicing them, please refer to
the service manual No.OC180
REVISED EDITION-A and this
manual in a set.
[Service Ref.]
PUH-P1.6VGA PU-P1.6VGA
PUH-P1.6YGA
PUH-P2VGA PU-P2VGA
PUH-P2YGA
PUH-P2.5VGA PU-P2.5VGA
PUH-P2.5YGA
PUH-P3VGA PU-P3VGA
PUH-P3YGA PU-P3YGA
PUH-P4YGA PU-P4YGA
PUH-P5YGA PU-P5YGA
PUH-P6YGA PU-P6YGA
INDOOR UNIT
Ceiling Cassettes
Series PLH/PLA
FILTER
CHECK MODE
TEST RUN
REMOTE CONTROLLER
[Service Ref.]
1999
PLH-P1.6KAH
PLH-P2KAH
PLH-P2.5KAH
PLH-P3KAH
PLH-P4KAH
PLH-P5KAH
PLH-P6KAH
2000
PLA-P1.6KA
PLA-P2KA
PLA-P2.5KA
PLA-P3KA
PLA-P4KA
PLA-P5KA
PLA-P6KA
R407C

2
1COMBINATION OF INDOOR AND OUTDOOR UNITS
Heat pump typeOutdoor unit
PUH-P · VGA / YGA Cooling only type PU-P · VGA / YGA
Heat pump with
electric heater
PLH-P1.6KAH
PLH-P2KAH
PLH-P2.5KAH
PLH-P3KAH
PLH-P4KAH
PLH-P5KAH
PLH-P6KAH
PLA-P1.6KA
PLA-P2KA
PLA-P2.5KA
PLA-P3KA
PLA-P4KA
PLA-P5KA
PLA-P6KA
Heat pump without
electric heater
or
Cooling only
6YGA
—
—
—
—
—
—
—
—
—
—
—
—
—
5YGA
—
—
—
—
—
—
—
—
—
—
—
—
—
4YGA
—
—
—
—
—
—
—
—
—
—
—
—
—
3YGA
—
—
—
—
—
—
—
—
—
—
—
—
—
3VGA
—
—
—
—
—
—
—
—
—
—
—
—
—
2.5VGA
—
—
—
—
—
—
—
—
—
—
—
—
—
2VGA
—
—
—
—
—
—
—
—
—
—
—
—
—
1.6VGA
—
—
—
—
—
—
—
—
—
—
—
—
—
6YGA
—
—
—
—
—
—
—
—
—
—
—
—
5YGA
—
—
—
—
—
—
—
—
—
—
—
—
4YGA
—
—
—
—
—
—
—
—
—
—
—
—
3YGA
—
—
—
—
—
—
—
—
—
—
—
—
3VGA
—
—
—
—
—
—
—
—
—
—
—
—
2.5VGA
—
—
—
—
—
—
—
—
—
—
—
—
2.5YGA
—
—
—
—
—
—
—
—
—
—
—
—
2YGA
—
—
—
—
—
—
—
—
—
—
—
—
2VGA
—
—
—
—
—
—
—
—
—
—
—
—
1.6VGA
—
—
—
—
—
—
—
—
—
—
—
—
1.6YGA
—
—
—
—
—
—
—
—
—
—
—
—
Indoor unit

3
SAFETY PRECAUTION
2
Cautions for using with the outdoor unit which adopts R407C refrigerant.
· Do not use the existing refrigerant piping.
-The old refrigerant and refrigerant oil in the existing piping contains a large amount of chlorine which may cause the refriger-
ant oil of the new unit to deteriorate.
· Do not use copper pipes which are broken, deformed or discolour .
In addition, be sure that the inner surfaces of the pipes are clean, free of hazardous sulphur and oxides, or have no dust /
dirt, shaving particles, oils, moisture or any other contamination.
-If there is a large amount of residual oil (hydraulic oil, etc.) inside the piping and joints, deterioration of the refrigerant oil will
result.
· Store the piping to be used during installation indoors and keep both ends of the piping sealed until just before
brazing. (Store elbows and other joints in a plastic bag.)
-If dust, dirt, or water enters the refrigerant cycle, deterioration of the oil and compressor trouble may result.
· Use ester oil, ether oil or alkyl benzene (small amount) as the refrigerant oil to coat flares and flange connections.
-The refrigerant oil will degrade if it is mixed with a large amount of mineral oil.
Use liquid refrigerant to fill the system.
-If gas refrigerant is used to fill the system, the composition of the refrigerant in the cylinder will change and performance
may drop.
· Do not use a refrigerant other than R407C.
-If another refrigerant (R22, etc.) is used, the chlorine in the refrigerant may cause the refrigerant oil to deteriorate.
· Use a vacuum pump with a reverse flow check valve.
-The vacuum pump oil may flow back into the refrigerant cycle and cause the refrigerant oil to deteriorate.
· Do not use the following tools that are used with conventional refrigerant.
(Gauge manifold , charge hose, gas leak detector, reverse flow check valve, refrigerant charge base, vacuum gauge,
refrigerant recovery equipment)
-If the conventional refrigerant and refrigerant oil are mixed in the R407C, the refrigerant may deteriorated.
-If water is mixed in the R407C, the refrigerant oil may deteriorate.
-Since R407C does not contain any chlorine, gas leak detectors for conventional refrigerant will not react to it.
· Do not use a charging cylinder.
-Using a charging cylinder may cause the refrigerant to deteriorate.
· Be especially careful when managing the tools.
-if dust, dirt, or water gets in the refrigerant cycle, the refrigerant may deteriorate.
· Do not use the drier which is sold in the field.
-The drier for R407C refrigerant is per-attached to outdoor unit refrigerant circuit.
-Some drier in the field are not in conformity with R407C refrigerant .

4

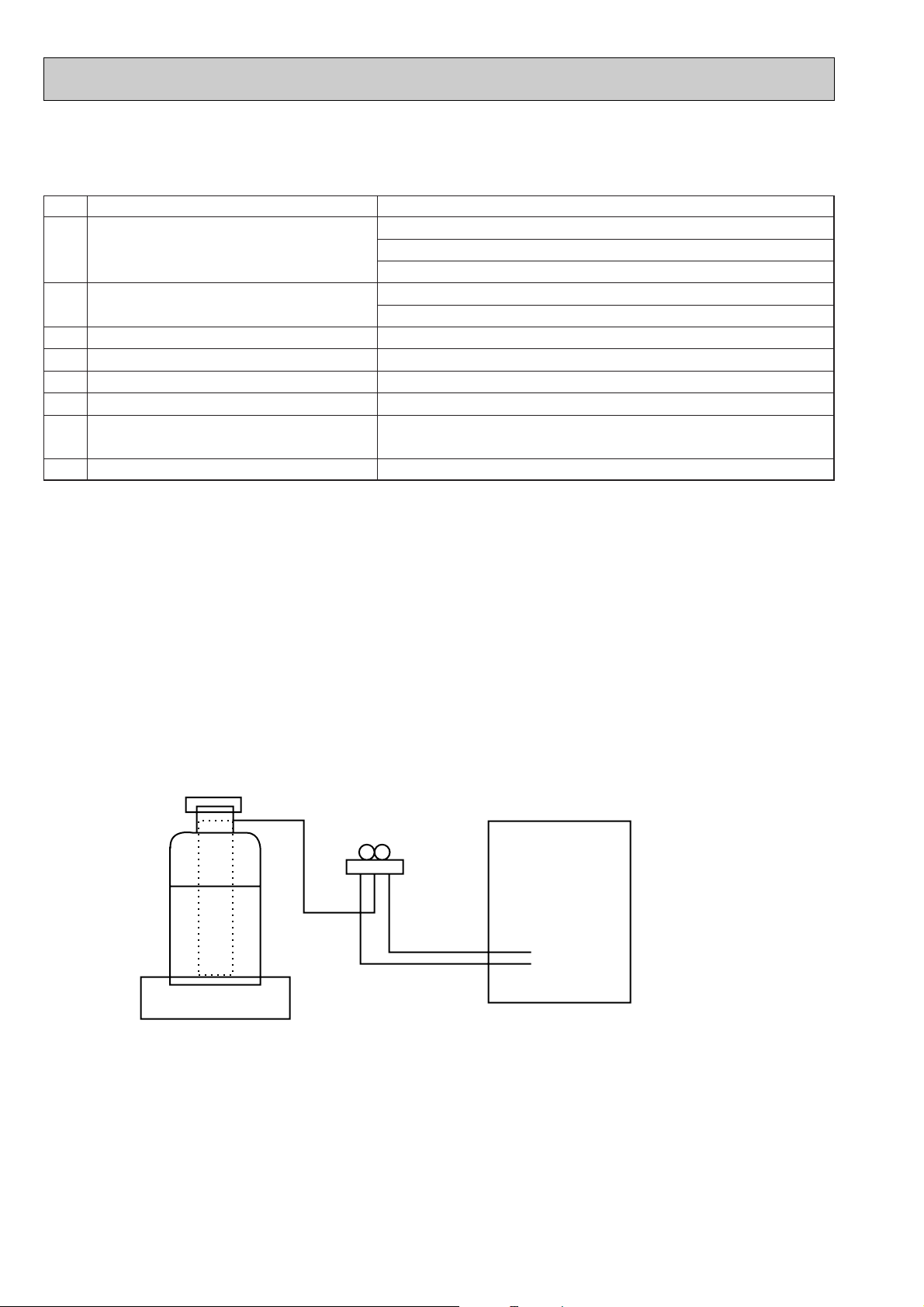

[3] Refrigerant recharging
(1) Refrigerant recharging process
1Direct charging from the cylinder.
·R407C cylinder are available on the market has a syphon pipe.
·Leave the syphon pipe cylinder standing and recharge it.
(By liquid refrigerant)
(2) Recharge in refrigerant leakage case
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release the refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
Gravimeter
Unit
[1] Service tools
Use the below service tools as exclusive tools for R407C refrigerant.
No. Tool name Specifications
1Gauge manifold ·Only for R407C.
·Use the existing fitting SPECIFICATIONS. (UNF7/16)
·Use high-tension side pressure of 3.43MPa·G or over.
2Charge hose ·Only for R407C.
·Use pressure performance of 5.10MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R407C.
5Adapter for reverse flow check. ·Attach on vacuum pump.
6Refrigerant charge base.
7Refrigerant cylinder. ·For R407C ·Top of cylinder (Brown)
·Cylinder with syphon
8Refrigerant recovery equipment.
[2] Notice on repair service
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.

5

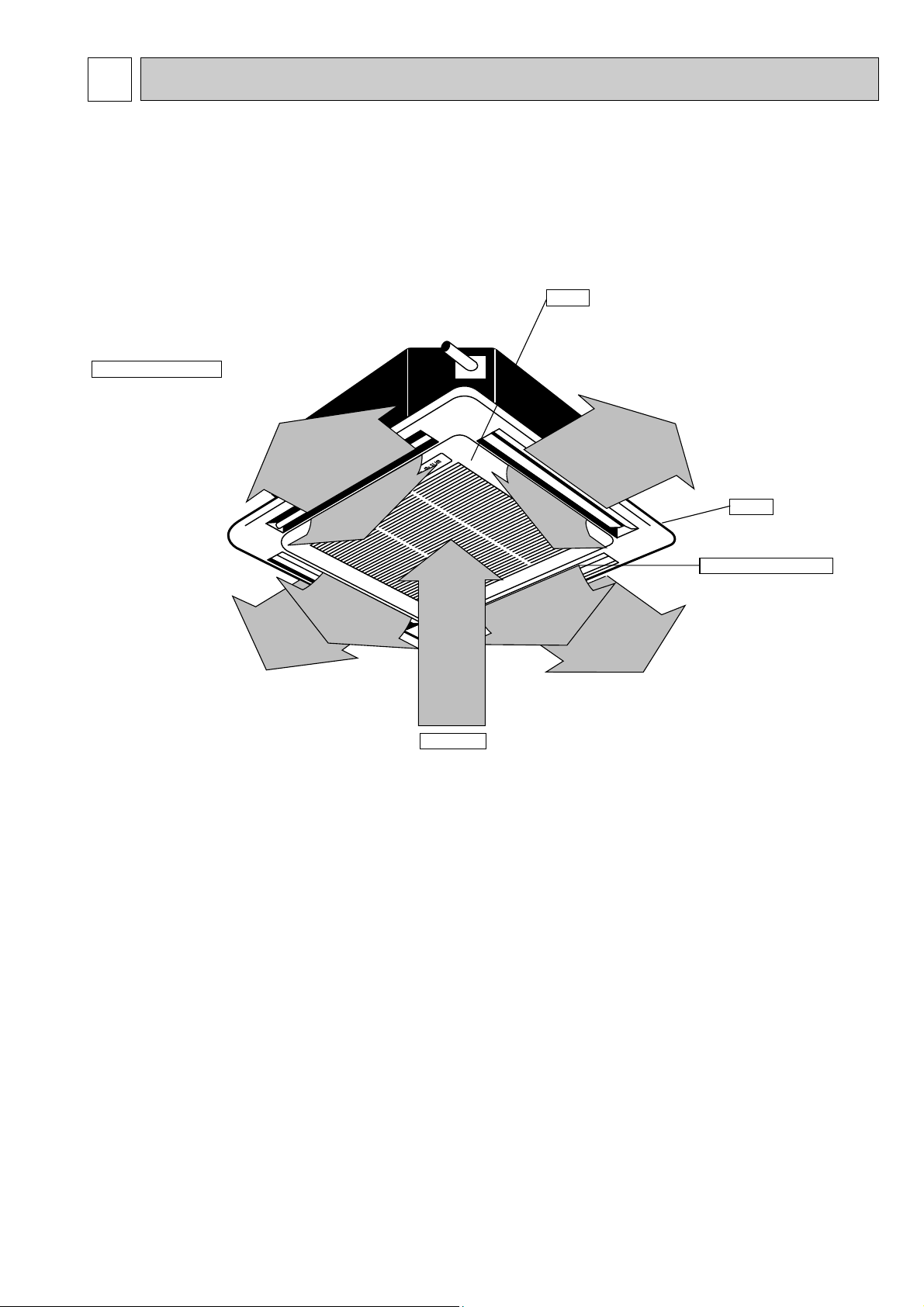

PART NAMES AND FUNCTIONS
3
● Indoor (Main) Unit
PLH-P1.6KAH, PLA-P1.6KA
PLH-P2KAH, PLA-P2KA
PLH-P2.5KAH, PLA-P2.5KA
PLH-P3KAH, PLA-P3KA
PLH-P4KAH, PLA-P4KA
PLH-P5KAH, PLA-P5KA
PLH-P6KAH, PLA-P6KA
Auto Air Swing Vane
Disperses airflow up and
down and adjusts the angle
of airflow direction.
Grille
Filters
Remove dust and pollutants
from inhaled air
Horizontal Air Outlet
Sets airflow horizontal automatically
during cooling or dehumidifying.
Air Intake
Inhales air from room.

6

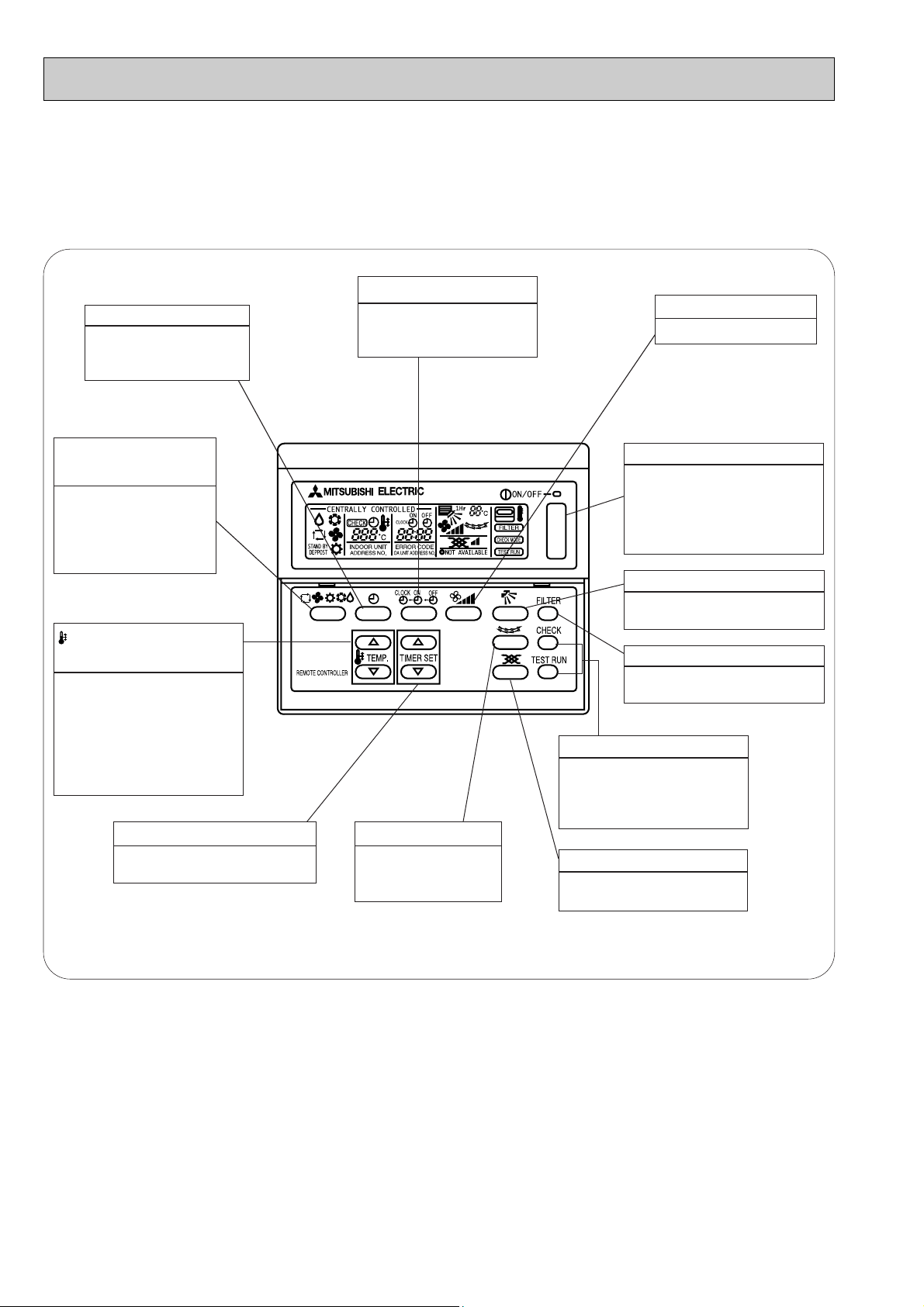

TIMER button
● Remote controller
● Operation buttons
● Once the controls are set, the same operation mode can
be repeated by simply pressing the ON/OFF button.
This switches between
continuous operation and
the timer operation.
This sets the fan speed.
AIR SPEED button
Press this button to
switch the cooler elec-
tronic dry (dehumidify)
automatic and heater
modes.
OPERATION SWITCH
button
This sets the room tempera-
ture The temperature setting
can be performed in 1°C
units
Setting range
Cooler 19°C to 30°C
Heater 17°C to 28°C
TEMP. ADJUSTMENT
button
This sets of switches the
current time. start time and
stop time.
TIME SETTING button
(This button does not
operate in this model)
This switches the hori-
zontal fan motion ON
and OFF.
LOUVER button
This switches between the
operation and stop modes
each time it is pressed. The
lamp on this button lights dur-
ing operation.
ON/OFF button
This adjusts the vertical angle
of the ventilation.
AIR DIRECTION button
Only press this button to per-
form an inspection check or
test operation Do not use it
for normal operation.
CHECK-TEST RUN button
This resets the filter cleaning
indication display.
FILTER button
This sets the ventilation fan
speed.
VENTILATION button
This adjust the current time, start
time and stop time.
TIMER ADJUSTMENT button

7
Caution
●Only the Power display lights when the unit is stopped and power supplied to the unit.
●When power is turned ON for the first time the (CENTRAL CTRL) display appears to go off momentarily but this is not a
malfunction.
●When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch button
and TEMP. adjustment button do not operate.
●“NOT AVAILABLE” is displayed when the Air speed button are pressed.This indicates that this room unit is not equipped
with the fan direction adjustment function and the louver function.
●When power is turned ON for the first time, it is normal that “H0” is displayed on the room temperature indication (For max.
2minutes). Please wait until this “H0” indication disappear then start the operation.
CENTRALLY
CONTROLLED display
This indicates when the unit is con-
trolled by optional features such as
central control type remote controller.
TIMER display
This indicates when the continuous
operation and time operation modes
are set.
It also display the time for the timer
operation at the same time as when
it is set.
OPERATION MODE display
This indicates the operation mode.
STANDBY display
This indicates when the standby
mode is set from the time the sleep
operation starts until the heating air
is discharged.
DEFROST display
This indicates when the defrost oper-
ation is performed.
CHECK display
This indicates when a malfunction
has occurred in the unit which should
be checked.
CLOCK display
The current time , start time and stop
time can be displayed in ten second
intervals by pressing the time switch
button. The start time or stop time is
always displayed during the timer
operation.
●Display
In this display example on the bot-
tom left, a condition where all dis-
play lamps light is shown for expla-
nation purposes although this differs
from actual operation.
Operation lamp
This lamp lights during operation,
goes off when the unit stops and
flashes when a malfunction occurs.
POWER display
This lamp lights when electricity is
supplied to the unit.
SET TEMPERATURE display
This displays the selected setting
temperature.
FAN SPEED display
This displays the air direction.
ROOM TEMPERATURE display
The temperature of the suction air is
displayed during operation. The dis-
play range is 8° to 39°C. The display
flashes 8°C when the actual temper-
ature is less than 8° and flashes
39°C when the actual temperature is
greater than 39°C.
display
This display lights in the check mode
or when a test operation is per-
formed.
CHECK MODE
TEST RUN
FILTER display
This lamp lights when the filter need
to be cleaned.
AIR DIRECTION display
The selected fan speed is displayed.

8
4 SPECIFICATIONS
Service Ref. With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity w1
Total input w1
Service Ref.
Power supply(phase, cycle,voltage)
Input w2
Running current w2
Starting current w2
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater w2
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
PLH-P1.6KAH
PLA-P1.6KA
Cooling
15,000
4,400
1.86
0.15
0.64
0.70
1.71
7.66 / 2.67
Heating
17,100(21,800)
5,000(6,400)
1.93(3.33)
0.10<1.40>
0.45<5.83>
0.50<5.83>
1.83
8.19 / 2.86
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
PLH-P1.6KAH
PLA-P1.6KA
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.030
13-14-15-16(459-494-530-565)
0(direct blow)
<1.4>
Remote controller & built-in
32-34-35.5-37
32(1-1/4)
PUH-P1.6VGA / YGA
Single, 50Hz, 220-240V / 3-ph, 50Hz, 380-415V(4wires)
36 / 20
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
RE277VHSM / RE277YFKM
1.3
Line start
Inner thermostat, HP switch,Discharge thermo. / Thermal rely, Discharge thermo, HP switch, Anti-phase protector.
Plate fin coil
Propeller (direct) x 1
0.070
45(1,590)
30
Reverse cycle
46
48
900(35-7/16)
330+20(13+3/4)
650 (25-5/8)
55(121)
R407C
2.6(5.7)
0.57 (Ester)MEL56
9.52 (3/8)
15.88 (5/8)
Flared
Flared
Max. 40m
Max. 40m
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
w1 : ( ) Shows the total rating.
w2 : < > Shows the only booster heater rating.
UNIT : 660(26) PANEL : 760(30)
UNIT : 660(26) PANEL : 760(30)
UNIT : 253(10) PANEL : 30(1-1/8)
UNIT : 20(44) PANEL : 3.7(8)
UNIT : 19(42) PANEL : 3.7(8)
1.Heat pump

9
Cooling
18,400
5,400
2.62
0.14
0.65
0.72
2.48
11.11 / 3.88
Heating
21,300(26,100)
6,250(7,650)
2.67(4.07)
0.10<1.40>
0.45<5.83>
0.50<5.83>
2.57
11.51 / 4.02
PLH-P2KAH
PLA-P2KA
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.030
13-14-15-16(459-494-530-565)
0(direct blow)
<1.4>
Remote controller & built-in
32-34-35.5-37
32(1-1/4)
PUH-P2VGA / YGA
Single, 50Hz, 220-240V / 3-ph, 50Hz, 380-415V(4wires)
74 / 30
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
NE38VMJM / NE38YEJM
1.7
Line start
Inner thermostat, HP switch, Discharge thermo. / Thermal rely, Discharge thermo, HP switch, Anti-phase protector.
Plate fin coil
Propeller (direct) x 1
0.070
55(1,940)
38
Reverse cycle
48
49
900(35-7/16)
330+20(13+3/4)
855 (33-5/8)
71(157)
R407C
3.1(6.8)
1.2 (Ester)MEL56
9.52 (3/8)
15.88 (5/8)
Flared
Flared
Max. 40m
Max. 40m
PLH-P2KAH
PLA-P2KA
UNIT : 660(26) PANEL : 760(30)
UNIT : 660(26) PANEL : 760(30)
UNIT : 253(10) PANEL : 30(1-1/8)
UNIT : 20(44) PANEL : 3.7(8)
UNIT : 19(42) PANEL : 3.7(8)
Service Ref. With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity w1
Total input w1
Service Ref.
Power supply(phase, cycle,voltage)
Input w2
Running current w2
Starting current w2
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater w2
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
w1 : ( ) Shows the total rating.
w2 : < > Shows the only booster heater rating.

10
Cooling
21,500
6,300
2.77
0.14
0.61
0.67
2.63
11.78 / 4.11
Heating
25,200(32,400)
7,400(9,500)
2.68(4.78)
0.10<2.10>
0.45<8.75>
0.50<8.75>
2.58
11.55 / 4.03
PLH-P2.5KAH
PLA-P2.5KA
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.030
14-15-16-17 (494-530-565-600)
0(direct blow)
<2.1>
Remote controller & built-in
35-36.5-38-39.5
32(1-1/4)
PUH-P2.5VGA / YGA
Single, 50Hz, 220-240V / 3-ph, 50Hz, 380-415V(4wires)
77 / 32
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
NE41VMJM / NE41YEJM
1.9
Line start
Internal thermostat, HP switch, Discharge thermo. / Thermal rely, Discharge thermo, HP switch, Anti-phase protector.
Plate fin coil
Propeller (direct) x 1
0.070
50(1,770)
38
Reverse cycle
48
50
900(35-7/16)
330+20(13+3/4)
855 (33-5/8)
82(181)
R407C
3.3(7.3)
1.2 (Ester)MEL56
9.52 (3/8)
15.88 (5/8)
Flared
Flared
Max. 50m
Max. 50m
PLH-P2.5KAH
PLA-P2.5KA
UNIT : 660(26) PANEL : 760(30)
UNIT : 660(26) PANEL : 760(30)
UNIT : 253(10) PANEL : 30(1-1/8)
UNIT : 21(46) PANEL : 3.7(8)
UNIT : 20(44) PANEL : 3.7(8)
Service Ref. With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity w1
Total input w1
Service Ref.
Power supply(phase, cycle,voltage)
Input w2
Running current w2
Starting current w2
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater w2
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
w1 : ( ) Shows the total rating.
w2 : < > Shows the only booster heater rating.

11
Cooling
26,300
7,700
3.47
0.13
0.62
0.91
3.34
14.64/5.46
Heating
31,400(38,500)
9,200(11,300)
3.65(5.75)
0.13<2.10>
0.62<8.75>
0.91<8.75>
3.52
15.43/5.76
PLH-P3KAH
PLA-P3KA
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.070
15-16.5-18.5-20 (530-582-653-706)
0(direct blow)
<2.1>
Remote controller & built-in
32-34-37-39
32(1-1/4)
PUH-P3VGA / YGA
Single, 50Hz, 220-240V / 3-ph, 50Hz, 380-415V (4wires)
93/41
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
NE52VNJM / NE52YDJM
2.5
Line start
Internal thermostat, HP switch, Discharge thermo. / Thermal rely, Discharge thermo, HP switch, Anti-phase protector.
Plate fin coil
Propeller (direct) x 1
0.070
50(1,770)
38
Reverse cycle
49
51
900(35-7/16)
330+20(13+3/4)
855 (33-5/8)
82(181)
R407C
3.7(8.2)
1.6 (Ester)MEL56
9.52 (3/8)
15.88 (5/8)
Flared
Flared
Max. 50m
Max. 50m
PLH-P3KAH
PLA-P3KA
UNIT : 840(33) PANEL : 950(37)
UNIT : 840(33) PANEL : 950(37)
UNIT : 290(11) PANEL : 30(1-1/8)
UNIT : 28(62) PANEL : 5(11)
UNIT : 26(57) PANEL : 5(11)
Service Ref. With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity w1
Total input w1
Service Ref.
Power supply(phase, cycle,voltage)
Input w2
Running current w2
Starting current w2
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater w2
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
w1 : ( ) Shows the total rating.
w2 : < > Shows the only booster heater rating.

12
Cooling
33,100
9,700
3.57
0.21
0.99
1.38
3.36
5.49
Heating
36,200(43,300)
10,600(12,700)
3.75(5.85)
0.21<2.10>
0.99<8.75>
1.38<8.75>
3.54
5.79
PLH-P4KAH
PLA-P4KA
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.090
19.5-21.5-24-26(688-759-847-918)
0(direct blow)
<2.1>
Remote controller & built-in
34-36-39-42
32(1-1/4)
PUH-P4YGA
3-ph, 50Hz, 380-415V (4wires)
45
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
NE56YDJM
2.7
Line start
Anti-phase protector, Thermal relay, Discharge thermo, HP switch
Plate fin coil
Propeller (direct) x 2
0.070+0.070
85(3,000)
38
Reverse cycle
51
53
900(35-7/16)
330+20(13+3/4)
1,260 (49-5/8)
96(212)
R407C
4.0(8.8)
1.6 (Ester)MEL56
9.52 (3/8)
19.05 (3/4)
Flared
Flared
Max. 50m
Max. 50m
PLH-P4KAH
PLA-P4KA
UNIT : 840(33) PANEL : 950(37)
UNIT : 840(33) PANEL : 950(37)
UNIT : 290(11) PANEL : 30(1-1/8)
UNIT : 31(68) PANEL : 5(11)
UNIT : 29(64) PANEL : 5(11)
Service Ref. With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity w1
Total input w1
Service Ref.
Power supply(phase, cycle,voltage)
Input w2
Running current w2
Starting current w2
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater w2
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
w1 : ( ) Shows the total rating.
w2 : < > Shows the only booster heater rating.

13
Cooling
43,700
12,800
5.47
0.22
1.04
1.38
5.25
8.39
Heating
52,900(63,100)
15,500(18,500)
5.69(8.69)
0.22<3.00>
1.04<12.50>
1.38<12.50>
5.47
8.74
PLH-P5KAH
PLA-P5KA
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.090
22.5-25-27.5-30(794-883-971-1,059)
0(direct blow)
<3.0>
Remote controller & built-in
36-38-40-43
32(1-1/4)
PUH-P5YGA
3-ph, 50Hz, 380-415V (4wires)
79
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
HE86YAA
4.3
Line start
Internal thermostat, Anti-phase protector, Thermal relay, HP switch, LP switch, Discharge thermo.
Plate fin coil
Propeller (direct) x 2
0.075+0.075
95(3,360)
38
Reverse cycle
53
55
1,050(41-5/16)
330+20(13+3/4)
1,260 (49-5/8)
122(269)
R407C
5.8(12.8)
2.0 (Ester)MEL32
9.52 (3/8)
19.05 (3/4)
Flared
Flared
Max. 50m
Max. 50m
PLH-P5KAH
PLA-P5KA
UNIT : 840(33) PANEL : 950(37)
UNIT : 1,360(54) PANEL : 1,470(58)
UNIT : 290(11) PANEL : 30(1-1/8)
UNIT : 39(86) PANEL : 9(20)
UNIT : 37(82) PANEL : 9(20)
Service Ref. With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity w1
Total input w1
Service Ref.
Power supply(phase, cycle,voltage)
Input w2
Running current w2
Starting current w2
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater w2
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
w1 : ( ) Shows the total rating.
w2 : < > Shows the only booster heater rating.

14
Cooling
48,800
14,300
6.58
0.22
1.04
1.38
6.36
10.17
Heating
57,300(67,600)
16,800(19,800)
6.65(9.65)
0.22<3.00>
1.04<12.50>
1.38<12.50>
6.43
10.28
PLH-P6KAH
PLA-P6KA
Single, 50Hz, 220-240V (4wires)
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.090
25-27.5-30-33(883-971-1,059-1,165)
0(direct blow)
<3.0>
Remote controller & built-in
38-40-42-45
32(1-1/4)
PUH-P6YGA
3-ph, 50Hz, 380-415V (4wires)
84
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
HE101YAA
5.1
Line start
Internal thermostat, Anit-phase protector, Thermal relay, HP switch, LP switch, Discharge thermo.
Plate fin coil
Propeller (direct) x 2
0.075+0.075
100(3,530)
38
Reverse cycle
55
57
1,050(41-5/16)
330+20(13+3/4)
1,260 (49-5/8)
122(269)
R407C
5.8(12.8)
2.0 (Ester)MEL32
9.52 (3/8)
19.05 (3/4)
Flared
Flared
Max. 50m
Max. 50m
PLH-P6KAH
PLA-P6KA
UNIT : 840(33) PANEL : 950(37)
UNIT : 1,360(54) PANEL : 1,470(58)
UNIT : 290(11) PANEL : 38(1-1/8)
UNIT : 39(86) PANEL : 9(20)
UNIT : 37(82) PANEL : 9(20)
Service Ref. With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
With Electric heater
Without Electric heater
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity w1
Total input w1
Service Ref.
Power supply(phase, cycle,voltage)
Input w2
Running current w2
Starting current w2
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater w2
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
w1 : ( ) Shows the total rating.
w2 : < > Shows the only booster heater rating.

15
2.Cooling only type
Service Ref.
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity
Total input
Service Ref.
Power supply(phase, cycle,voltage)
Input
Running current
Starting current
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
PLA-P1.6KA
PLA-P1.6KA
PLA-P2KA
PLA-P2KA
Cooling
15,000
4,400
1.86
0.15
0.64
0.70
PU-P1.6VGA
1.71
7.66
36
RE277VHSM
1.3
45(1,590)
30
46
650 (25-5/8)
55(121)
2.6(5.7)
0.57(Ester)MEL56
Cooling
18,400
5,400
2.62
0.14
0.65
0.72
PU-P2VGA
2.48
11.11
74
NE38VMJM
1.7
55(1,940)
38
48
855(33-5/8)
71(157)
3.1(6.8)
1.2(Ester)MEL56
W
D
H
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.030
13-14-15-16(459-494-530-565)
0(direct blow)
—
Remote controller & built-in
32-34-35.5-37
32(1-1/4)
Single, 50Hz, 220-240V
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
Line start
Inner thermostat, High pressure switch,Discharge thermo.
Plate fin coil
Propeller (direct) x 1
0.070
—
900(35-7/16)
330+20(13+3/4)
R407C
9.52 (3/8)
15.88 (5/8)
Flared
Flared
Max. 40m
Max. 40m
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
Cooling
UNIT : 660(26), PANEL : 760(30)
UNIT : 660(26), PANEL : 760(30)
UNIT : 253(10), PANEL : 30(1-1/8)
UNIT : 19(42), PANEL : 3.7(8)

16
Service Ref.
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity
Total input
Service Ref.
Power supply(phase, cycle,voltage)
Input
Running current
Starting current
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
PLA-P2.5KA
PLA-P2.5KA
PLA-P3KA
PLA-P3KA
Cooling
21,500
6,300
2.77
0.14
0.61
0.67
0.030
14-15-16-17 (494-530-565-600)
35-36.5-38-39.5
PU-P2.5VGA
Single, 50Hz, 220-240V
2.63
11.78
77
NE41VMJM
1.9
48
3.3(7.3)
1.2(Ester)MEL56
Cooling
26,300
7,700
3.47
0.13
0.62
0.91
0.070
15-16.5-18.5-20 (530-582-653-706)
32-34-37-39
PU-P3VGA / YGA
Single, 50Hz, 220-240V / 3-ph, 50Hz, 380-415V(4wires)
3.34
14.64 / 5.46
93 / 41
NE52VNJM / NE52YDJM
2.5
49
3.7(8.2)
1.6(Ester)MEL56
W
D
H
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
Cooling
UNIT : 660(26), PANEL : 760(30)
UNIT : 660(26), PANEL : 760(30)
UNIT : 253(10), PANEL : 30(1-1/8)
UNIT : 20(44), PANEL : 3.7(8)
UNIT : 840(33), PANEL : 950(37)
UNIT : 840(33), PANEL : 950(37)
UNIT : 290(11), PANEL : 30(1-1/8)
UNIT : 26(57), PANEL : 5(11)
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0(direct blow)
—
Remote controller & built-in
32(1-1/4)
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
Line start
Internal thermostat, High switch,Discharge thermo. / Thermal rely, Discharge thermo, HP switch, Anti-phase protector.
Plate fin coil
Propeller (direct) x 1
0.070
50(1,770)
38
—
900(35-7/16)
330+20(13+3/4)
855(33-5/8)
82(181)
R407C
9.52 (3/8)
15.88 (5/8)
Flared
Flared
Max. 50m
Max. 50m

17
Service Ref.
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity
Total input
Service Ref.
Power supply(phase, cycle,voltage)
Input
Running current
Starting current
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
W
D
H
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
Cooling
PLA-P4KA
Cooling
33,100
9,700
3.57
PLA-P4KA
Single, 50Hz, 220-240V
0.21
0.99
1.38
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.090
19.5-21.5-24-26(688-759-847-918)
0(direct blow)
—
Remote controller & built-in
34-36-39-42
32(1-1/4)
PU-P4YGA
3-ph, 50Hz, 380-415V (4wires)
3.36
5.49
45
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
NE56YDJM
2.7
Line start
Anti-phase protector, Thermal relay, Discharge thermo, HP switch
Plate fin coil
Propeller (direct) x 2
0.070+0.070
85(3,000)
38
—
51
900(35-7/16)
330+20(13+3/4)
1,260 (49-5/8)
96(212)
R407C
4.0(8.8)
1.6 (Ester)MEL56
9.52 (3/8)
19.05 (3/4)
Flared
Flared
Max. 50m
Max. 50m
UNIT : 840(33), PANEL : 950(37)
UNIT : 840(33), PANEL : 950(37)
UNIT : 290(11), PANEL : 30(1-1/8)
UNIT : 29(64), PANEL : 5(11)

18
Service Ref.
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K
/min(CFM )
W
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity
Total input
Service Ref.
Power supply(phase, cycle,voltage)
Input
Running current
Starting current
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Mi1-Mi2-Hi)
External static pressure
Booster heater
Operation control & Thermostat
Noise level(Lo-Mi1-Mi2-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Crankcase heater
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
INDOOR UNITOUTDOOR UNIT
REFRIGERANT PIPING
PLA-P5KA PLA-P6KA
Cooling
43,700
12,800
5.47
PLA-P5KA
0.22
1.04
1.38
22.5-25-27.5-30(794-883-971-1,059)
36-38-40-43
PU-P5YGA
5.25
8.39
79
HE86YAA
4.3
95(3,360)
53
Cooling
48,800
14,300
6.58
PLA-P6KA
0.22
1.04
1.38
25-27.5-30-33(883-971-1,059-1,165)
38-40-43-45
PU-P6YGA
6.36
10.17
84
HE101YAA
5.1
100(3,530)
57
W
D
H
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
Cooling
UNIT : 840(33), PANEL : 950(37)
UNIT : 1,360(54), PANEL : 1,470(58)
UNIT : 290(11), PANEL : 30(1-1/8)
UNIT : 37(82), PANEL : 9(20)
Single, 50Hz, 220-240V
Galvanized sheets with gray heat insulation
Plate fin coil
Turbo fan (direct) x 1
0.090
0(direct blow)
—
Remote controller & built-in
32(1-1/4)
3-ph, 50Hz, 380-415V (4wires)
Munsell 5Y 8/1
Linear Expansion Valve
Hermetic
Line start
Internal thermostat, Anti-phase protector, Thermal relay, HP switch, LP switch, Discharge thermo.
Plate fin coil
Propeller (direct) x 2
0.075+0.075
38
—
1,050(41-5/16)
330+20(13+3/4)
1,260 (49-5/8)
122(269)
R407C
5.8(12.8)
2.0 (Ester)MEL32
9.52 (3/8)
19.05 (3/4)
Flared
Flared
Max. 50m
Max. 50m

19
DATA5
1. PERFORMANCE DATA
1) COOLING CAPACITY(1)
PLH-P1.6KAH, PLA-P1.6KA
Outdoor intake air D.B.(°C)
20 25 30
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
20
22
22
22
24
24
24
24
26
26
26
26
28
28
28
28
30
30
30
30
32
32
32
32
34
34
34
34
16
18
20
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
CA
4356
4664
5016
4356
4664
5016
4356
4664
5016
5346
4356
4664
5016
5346
4356
4664
5016
5346
4356
4664
5016
5346
4356
4664
5016
5346
4356
4664
5016
5346
SHC(W)
3049
2705
2307
3398
3078
2709
3746
3451
3110
2673
4095
3824
3511
3101
4356
4198
3912
3528
4356
4571
4314
3956
4356
4664
4715
4384
4356
4664
5016
4811
SHF
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.50
0.94
0.82
0.70
0.58
1.00
0.90
0.78
0.66
1.00
0.98
0.86
0.74
1.00
1.00
0.94
0.82
1.00
1.00
1.00
0.90
SHF
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.50
0.94
0.82
0.70
0.58
1.00
0.90
0.78
0.66
1.00
0.98
0.86
0.74
1.00
1.00
0.94
0.82
1.00
1.00
1.00
0.90
SHF
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.50
0.94
0.82
0.70
0.58
1.00
0.90
0.78
0.66
1.00
0.98
0.86
0.74
1.00
1.00
0.94
0.82
1.00
1.00
1.00
0.90
P.C.
1.49
1.52
1.56
1.49
1.52
1.56
1.49
1.52
1.56
1.60
1.49
1.52
1.56
1.60
1.49
1.52
1.56
1.60
1.49
1.52
1.56
1.60
1.49
1.52
1.56
1.60
1.49
1.52
1.56
1.60
CA
4224
4532
4906
4224
4532
4906
4224
4532
4906
5236
4224
4532
4906
5236
4224
4532
4906
5236
4224
4532
4906
5236
4224
4532
4906
5236
4224
4532
4906
5236
SHC(W)
2957
2629
2257
3296
2991
2649
3633
3354
3042
2618
3971
3716
3434
3037
4224
4079
3827
3456
4224
4441
4219
3875
4224
4532
4612
4294
4224
4532
4906
4712
P.C.
1.57
1.60
1.64
1.57
1.60
1.64
1.57
1.60
1.64
1.69
1.57
1.60
1.64
1.69
1.57
1.60
1.64
1.69
1.57
1.60
1.64
1.69
1.57
1.60
1.64
1.69
1.57
1.60
1.64
1.69
CA
4092
4378
4774
4092
4378
4774
4092
4378
4774
5104
4092
4378
4774
5104
4092
4378
4774
5104
4092
4378
4774
5104
4092
4378
4774
5104
4092
4378
4774
5104
SHC(W)
2864
2539
2196
3192
2889
2578
3519
3240
2960
2552
3846
3590
3342
2960
4092
3940
3724
3369
4092
4290
4106
3777
4092
4378
4488
4185
4092
4378
4774
4594
P.C.
1.66
1.71
1.75
1.66
1.71
1.75
1.66
1.71
1.75
1.80
1.66
1.71
1.75
1.80
1.66
1.71
1.75
1.80
1.66
1.71
1.75
1.80
1.66
1.71
1.75
1.80
1.66
1.71
1.75
1.80
SHC(W) : Sensible heat capacity
SHF : Sensible heat factor
Note CA : Capacity (W)
P.C. : Power consumption (kW)

20
COOLING CAPACITY(2)
PLH-P1.6KAH, PLA-P1.6KA
Outdoor intake air D.B.(°C)
35 40 45
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
20
22
22
22
24
24
24
24
26
26
26
26
28
28
28
28
30
30
30
30
32
32
32
32
34
34
34
34
16
18
20
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
CA
3916
4224
4576
3916
4224
4576
3916
4224
4576
4928
3916
4224
4576
4928
3916
4224
4576
4928
3916
4224
4576
4928
3916
4224
4576
4928
3916
4224
4576
4928
SHC(W)
2741
2450
2105
3054
2788
2471
3368
3126
2837
2464
3681
3464
3203
2858
3916
3802
3569
3252
3916
4140
3935
3647
3916
4224
4301
4041
3916
4224
4576
4435
SHF
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.50
0.94
0.82
0.70
0.58
1.00
0.90
0.78
0.66
1.00
0.98
0.86
0.74
1.00
1.00
0.94
0.82
1.00
1.00
1.00
0.90
SHF
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.50
0.94
0.82
0.70
0.58
1.00
0.90
0.78
0.66
1.00
0.98
0.86
0.74
1.00
1.00
0.94
0.82
1.00
1.00
1.00
0.90
SHF
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.50
0.94
0.82
0.70
0.58
1.00
0.90
0.78
0.66
1.00
0.98
0.86
0.74
1.00
1.00
0.94
0.82
1.00
1.00
1.00
0.90
P.C.
1.79
1.83
1.88
1.79
1.83
1.88
1.79
1.83
1.88
1.92
1.79
1.83
1.88
1.92
1.79
1.83
1.88
1.92
1.79
1.83
1.88
1.92
1.79
1.83
1.88
1.92
1.79
1.83
1.88
1.92
CA
3740
4092
4400
3740
4092
4400
3740
4092
4400
4752
3740
4092
4400
4752
3740
4092
4400
4752
3740
4092
4400
4752
3740
4092
4400
4752
3740
4092
4400
4752
SHC(W)
2618
2373
2024
2917
2701
2376
3216
3028
2728
2376
3516
3355
3080
2756
3740
3683
3432
3136
3740
4010
3784
3516
3740
4092
4136
3897
3740
4092
4400
4277
P.C.
1.92
1.97
2.01
1.92
1.97
2.01
1.92
1.97
2.01
2.06
1.92
1.97
2.01
2.06
1.92
1.97
2.01
2.06
1.92
1.97
2.01
2.06
1.92
1.97
2.01
2.06
1.92
1.97
2.01
2.06
CA
3652
3960
4268
3652
3960
4268
3652
3960
4268
4620
3652
3960
4268
4620
3652
3960
4268
4620
3652
3960
4268
4620
3652
3960
4268
4620
3652
3960
4268
4620
SHC(W)
2556
2297
1963
2849
2614
2305
3141
2930
2646
2310
3433
3247
2988
2680
3652
3564
3329
3049
3652
3881
3670
3419
3652
3960
4012
3788
3652
3960
4268
4158
P.C.
2.01
2.06
2.10
2.01
2.06
2.10
2.01
2.06
2.10
2.16
2.01
2.06
2.10
2.16
2.01
2.06
2.10
2.16
2.01
2.06
2.10
2.16
2.01
2.06
2.10
2.16
2.01
2.06
2.10
2.16
SHC(W) : Sensible heat capacity
SHF : Sensible heat factor
Note CA : Capacity (W)
P.C. : Power consumption (kW)
