SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES ····································2
2. PART NAMES AND FUNCTIONS······················3
3. SPECIFICATION·················································4
4. OUTLINES AND DIMENSIONS ·························5
5. WIRING DIAGRAM ············································6
6. REFRIGERANT SYSTEM DIAGRAM················6
7. SERVICE FUNCTIONS ······································7
8. TROUBLESHOOTING········································9
9. DISASSEMBLY INSTRUCTIONS ····················18
10. PARTS LIST······················································20
Wireless type
Models
SPLIT-TYPE, AIR CONDITIONERS
MS-A08VD-
MS-A10VD-
MS-A13VD- P1
P1
P1
TM
No. OB396
Indication of model name
MS-A08VD -
MS-A10VD -
MS-A13VD - P1
P1
P1
NOTE:
• This service manual describes technical data of indoor units.
• As for outdoor units MU-A08VD - ,MU-A10VD - and MU-A13VD - , refer to the service manual OB397.
P1P1P1
OB396--1.qxp 05.3.18 8:59 AM Page 1

TECHNICAL CHANGES
2
1
MS-07UV - ➔MS-A08VD -
MS-10UV - ➔MS-A10VD -
MS-13UV - ➔MS-A13VD - P1P1
P1P1
P1P1
1. Indoor unit has been changed.
• Front panel has been changed. (Grill ➔ Flat)
• Dimension has been changed. (850Wo278Ho191D ➔815Wo278Ho244D)
2. Easy clean function has been added.
3. Catechin air filter has been added.
4. Air cleaning filter has been added.
5. Fan motor has been changed.
6. Fan motor capacitor has been changed.
7. P.C. board has been changed.
8. Fin pattern of cooler has been changed.
9. Remote controller has been changed.
• OPERATE/STOP(ON/OFF) button and TEMPERATURE buttons have been remodeled to be luminous.
OB396--1.qxp 05.3.18 8:59 AM Page 2

3
Installation plate
Installation plate fixing screw 4 x 25 mm
Remote controller holder
Fixing screw for 33.5 x 16 mm (Black)
Battery (AAA) for remote controller
Wireless remote controller
Felt tape (Used for left or left-rear piping)
Air cleaning filter
1
5
1
2
2
1
1
2
1
2
3
4
5
6
7
8
MS-A10VD -
MS-A08VD -
P1
P1
MS-A13VD -
P1
ACCESSORIES
PART NAMES AND FUNCTIONS
2
INDOOR UNIT
MS-A08VD -
MS-A10VD -
MS-A13VD - P1
P1
P1
Emergency operation switch
Fan
Air outlet
Vertical vanes
Air inlet
to Breaker
Remote control
receiving section
Display section
Air cleaning filter
(white bellows type)
Catechin air filter
(with deodorizing)
Front panel
Power supply cord
Panel
Horizontal vane
Operation section
(When the front panel is opened)
Remote controller
Operation indicator lamp
Remote control
receiving section
OB396--1.qxp 05.3.18 8:59 AM Page 3

4
SPECIFICATION
3
Indoor model
Function
Power supply
Air flow
(High/Medw/Loww)
Power outlet
Running current
Power input
Auxiliary heater
Fan motor current
Model
Winding
resistance(at 20:)
Dimensions WOHOD
Weight
Air direction
Sound level (High/Medw/Loww)
Fan speed(High/Medw/Loww)
Fan speed regulator
Thermistor RT11(at 25:)
Thermistor RT12(at 25:)
Remote controller model
K/h
A
A
W
A(kW)
A
"
mm
kg
dB
rpm
k"
k"
630/558w/486w
0.19
40
0.19
RC4V19-HA
WHT-BLK 224
BLK-RED 318
10
42/36w/29w
960/850w/740w
Electrical data
Fan motor
Special remarks
Capacity
630/498w/360w
0.17
35
0.17
RC4V19-JA
WHT-BLK 283
BLK-RED 188
9
39/32w/26w
960/760w/550w
Cooling
Single phase
220-230-240V, 50Hz
10
815O278O244
5
3
10
10
MP04B
MS-A08VD - P1 MS-A10VD - P1 MS-A13VD - P1
NOTE: Test conditions are based on JIS C 9612.
Cooling : Indoor DB27°C / WB19°C
Outdoor DB35°C / WB24°C
Indoor-Outdoor piping length : 5 m
WReference value

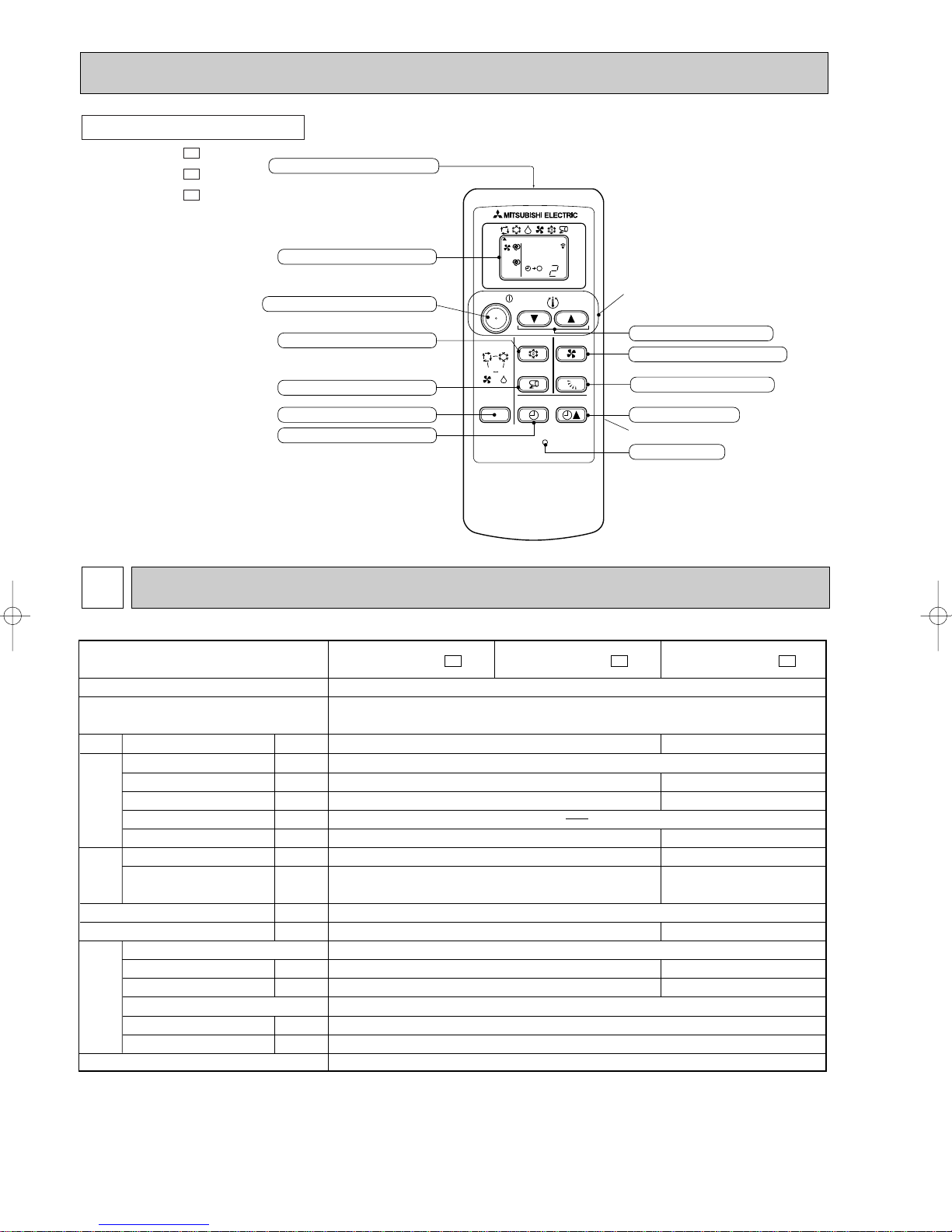

REMOTE CONTROLLER
MS-A08VD -
MS-A10VD -
MS-A13VD - P1
P1
P1
ON/OFF
RESET
TOO
WARM
TOO
COOL
ECONO COOL
POWERFUL COOL
SELECT
FAN
VANE
TIMEMODE
I FEEL COOL
DRYFAN
h
Signal transmitting section
Operation display section
TEMPERATURE buttons
VANE CONTROL button
TIME SET button
RESET button
ECONO COOL button
POWERFUL COOL button
OPERATION SELECT button
TIMER MODE SELECT button
OPERATE/STOP (ON/OFF) button
FAN SPEED CONTROL button
Indication of remote controller
model is on back.
These buttons are able to store the light
from nature, fluorescent lamp, etc and
shine in the dark.
OB396--1.qxp 05.3.18 8:59 AM Page 4

5
OUTLINES AND DIMENSIONS4
Unit : mm
MS-A08VD -
MS-A10VD - P1
P1
INDOOR UNIT
244
242 5
7 or more
90
110
30
149
606
278
60
815
783
Power supply cord
Lead to right 1.0m
Lead to left 0.3m
Air out
Installation plate
Insulation [28
Drain hose [16
(Connected part O,D)
Liquid line [6.35-0.5m
Gas line [9.52-0.43m
Insulation [37 O.D
[21 I.D
{
Wireless remote controller
81.5
81.5
41
2.5
42
271
231.5
4.5
81.5 133.5
326326
Wall hole [65
Indoor unit
Installation plate
57
140
17.5
Air in
MS-A13VD - P1
INDOOR UNIT
244
242
218.5
258
81.581.5
41
42
2.5
17.5
161.5161.5
326326
5
7 or more
90
110
30
149
606
278
60
815
783
Power supply cord
Lead to right 1.0m
Lead to left 0.3m
Air out
Indoor unit
Installation plate
Wall hole [65
Installation plate
Insulation [28
Drain hose [16
(Connected part O,D)
Air in
Liquid line [6.35-0.5m
Gas line [9.52-0.43m
Insulation [37 O.D
[21 I.D
{
Wireless remote controller
57
140
17.5
OB396--1.qxp 05.3.18 8:59 AM Page 5

6
INDOOR UNIT
Room
temperature
thermistor
Indoor
heat
exchanger
RT11
Indoor coil
thermistor
RT12
Refrigerant pipe
(Option){6.35
(with heat insulator)
Flared
connection
Flared
connection
Refrigerant pipe
(Option){12.7
(with heat insulator)
Refrigerant flow in cooling
REFRIGERANT SYSTEM DIAGRAM
6
MS-A08VD -
MS-A10VD - P1
P1
INDOOR UNIT
Room
temperature
thermistor
Indoor
heat
exchanger
RT11
Indoor coil
thermistor
RT12
Refrigerant pipe
(Option){6.35
(with heat insulator)
Flared
connection
Flared
connection
Refrigerant pipe
(Option){9.52
(with heat insulator)
MS-A13VD - P1 Unit : mm

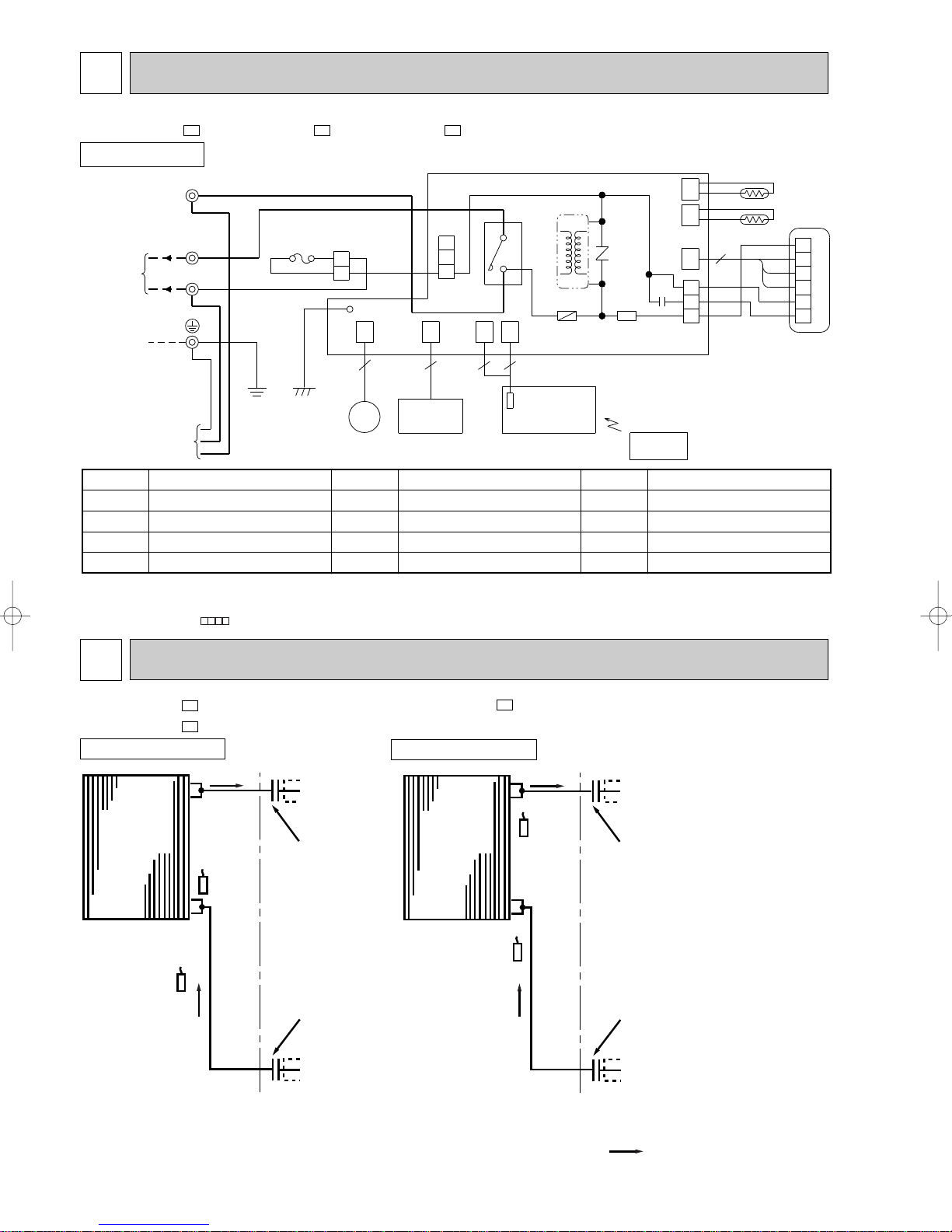

WIRING DIAGRAM
5
MS-A08VD - MS-A10VD - MS-A13VD - P1P1P1
INDOOR UNIT
GRN
BLU
BRN
GRN/YLW
GRN/YLW
POWER
SUPPLY
CORD
220-230-240V
~/N 50Hz
LD103
F12
BLU
BLU
2
1
BLU
220-230-240V~
5
MV
151
CN
TO OUTDOOR
UNIT
CONNECTING
BRN
L
N
TB
2
BLU
WHT
POWER MONITOR,
RECEIVER
P.C.BOARD
REMOTE
CONTROLLER
2
109
CN
2
SAFETY
DEVICE(FAN)
1R1
CN CN
125
CN201
3
2
1
ELECTRONIC CONTROL P.C. BOARD
3
T11
RED
WHT
NR11
SR141
F11 C11
111
CN
CN
112
3
121
CN
CN211
6
5
BRN
YLW
GRY
BLK
4
3
2
1
MF
RT11
RT12
1
3
5
52C
3
4
SYMBOL
SR141
TB
T11
52C
SYMBOL
MV
NR11
RT11
RT12
SYMBOL
C11
F11
F12
MF
NAME NAME NAME
INDOOR FAN CAPACITOR
FUSE(3.15A)
THERMAL FUSE(93:)
INDOOR FAN MOTOR(INNER FUSE)
VANE MOTOR
VARISTOR
ROOM TEMPERATURE THERMISTOR
INDOOR COIL THERMISTOR
SOLID STATE RELAY
TERMINAL BLOCK
TRANSFORMER
CONTACTOR
MODELS WIRING DIAGRAM
NOTE:1. About the outdoor side electric wiring refer to the outdoor unit electric wiring diagram for servicing.
2. Use copper conductors only. (For field wiring)
3. Symbols below indicate.
/: Terminal block, : Connector
OB396--1.qxp 05.3.18 8:59 AM Page 6

7
SERVICE FUNCTIONS
7
7-2. P.C. BOARD MODIFICATION FOR INDIVIDUAL OPERATION
A maximum of 4 indoor units with wireless remote controllers can be used in a room.
In this case, to operate each indoor unit individually by each remote controller, P.C. boards of remote controller must be
modified according to the number of the indoor unit.
7-1. TIMER SHORT MODE
For service, set time can be shortened by short circuit of JPG and JPS the electronic control P.C. board.
The time will be shortened as follows. (Refer to 8-6.)
Set time : 1-minute ➔ 1-second
Set time : 3-minute ➔ 3-second
It takes 3 minutes for the compressor to start operation. However, the starting time is shortened by short
circuit of JPG and JPS.

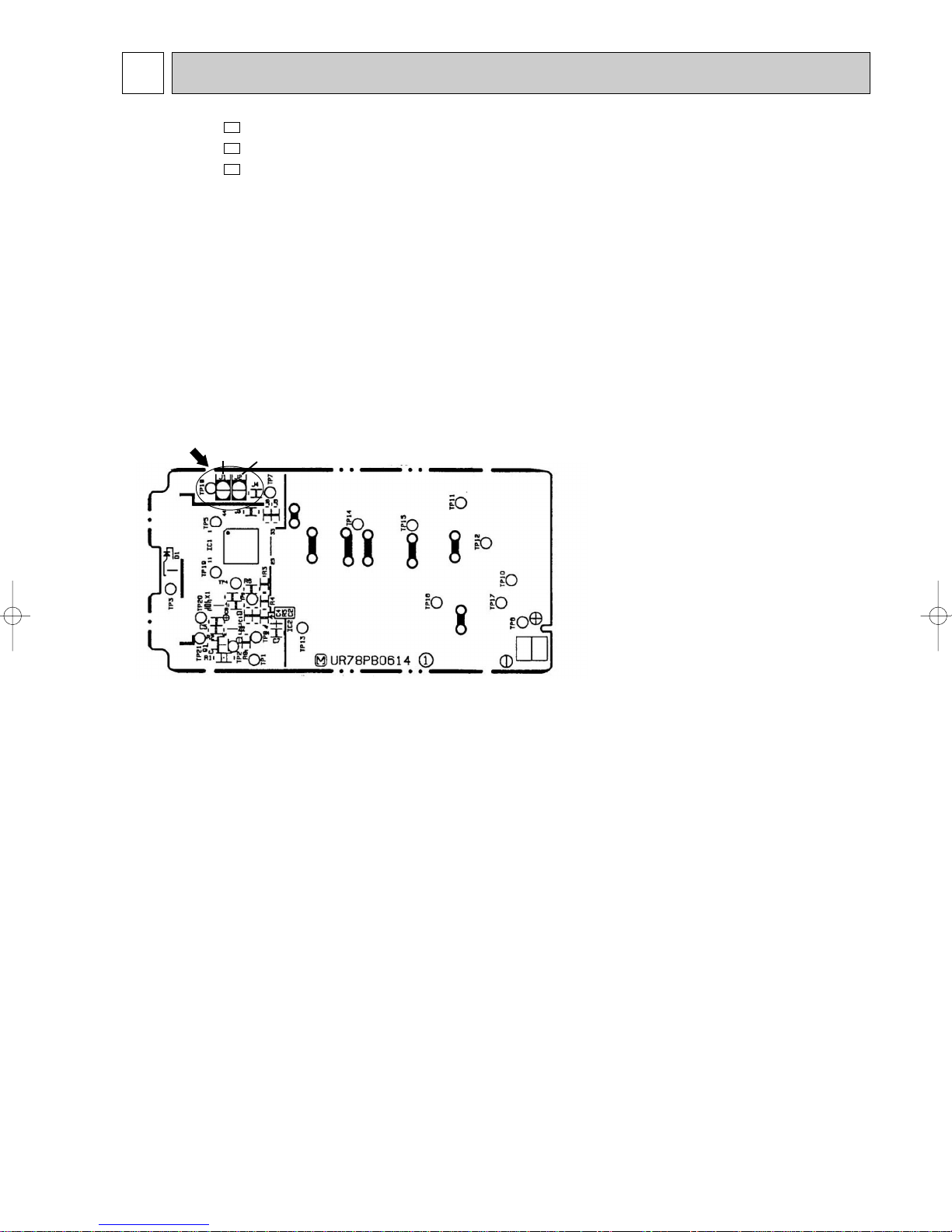

How to modify the remote controller P.C. board
Remove batteries before modification.
The board has a print as shown below :
NOTE : For remodelling, take out the bat-
teries and push the
OPERATE/STOP(ON/OFF)button
twice or 3 times at first.
After finish remodelling, put back
the batteries then press the
RESET button.
MS-A08VD -
MS-A10VD -
MS-A13VD - P1
P1
P1
Remote controller model : MP04B
The P.C. board has the print “J1” and “J2”. Solder “J1” and “J2” according to the number of indoor unit as shown in Table 1.
After modification, press the RESET button.
J2
J1
OB396--1.qxp 05.3.18 8:59 AM Page 7

8
When the indoor unit is controlled with the remote controller, the operation mode, set temperature, and the fan speed are
memorized by the indoor electronic control P.C.board. The “AUTO RESTART FUNCTION” sets to work the moment
power has restored after power failure. Then, the unit will restart automatically. However if the unit is operated in “I FEEL
CONTROL” mode before power failure, the operation is not memorized. In “I FEEL CONTROL” mode, the operation is
decided by the initial room temperature.
Operation
1If the main power has been cut, the operation settings remain.
2After the power is restored, the unit automatically resumes the same operation
as the memory has recorded.
However, it takes the compressor at least 3 minutes to get started.

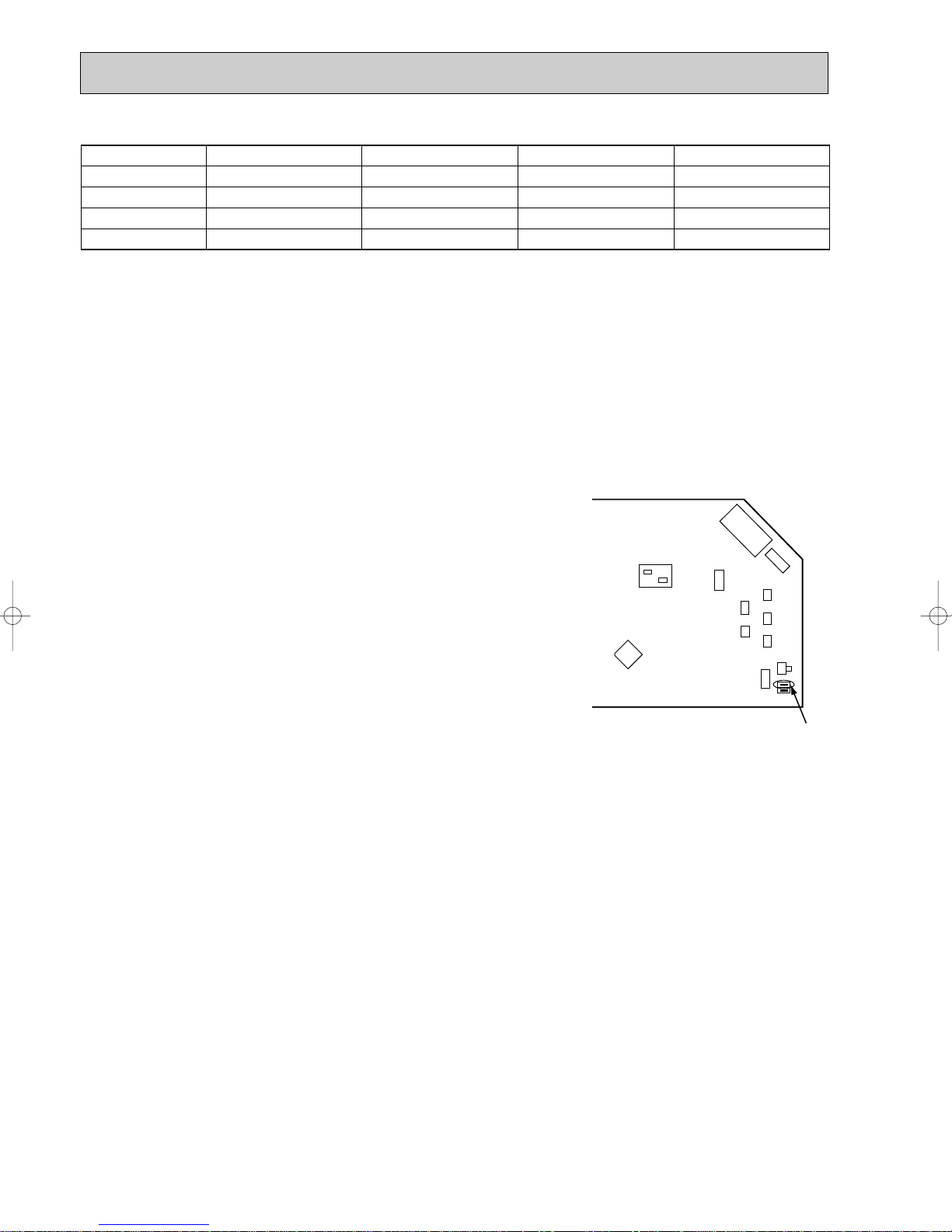

How to release “AUTO RESTART FUNCTION”
1Turn off the main power for the unit.
2Pull out the indoor electronic control P.C. board and the power monitor, receiver
P.C. board. (Refer to 9-1.)
3Solder the Jumper wire to the JR07 on the indoor electronic control P.C.board.
(Refer to 8-6.)
JR07
IC101
CN151
SW1
CN112
CN111
CN201
52C
C11
CN211
CN1V1
CN1R1CN121
7-3. AUTO RESTART FUNCTION
NOTE:
•The operation settings are memorized when 10 seconds have passed after the indoor unit was operated with the remote
controller.
•If the main power is turned off or a power failure occurs while AUTO START/STOP timer is active, the timer setting is
cancelled.
•If the unit has been off with the remote controller before power failure, the auto restart function does not work as the
power button of the remote controller is off.
•To prevent breaker off due to the rush of starting current, systematize other home appliances not to turn on at the same
time.
•When some air conditioners are connected to the same supply system, if they are operated before power failure, the
starting current of all the compressors may flow simultaneously at restart.
Therefore, the special counter-measures are required to prevent the main voltage-drop or the rush of the starting current
by adding to the system that allows the units to start one by one.
No. 1 unit
No. 2 unit
No. 3 unit
No. 4 unit
1 unit operation
No modification
–
–
–
2 units operation
Same as at left
Solder J1
–
–
3 units operation
Same as at left
Same as at left
Solder J2
–
4 units operation
Same as at left
Same as at left
Same as at left
Solder both J1 and J2
Table 1
How to set the remote controller exclusively for particular indoor unit
After you turn the breaker ON, the first remote controller that sends the signal to the indoor unit will be regarded as the
remote controller for the indoor unit.
The indoor unit only accepts the signal from the remote controller that has been assigned to the indoor unit once they are
set.
The setting will be cancelled if the breaker has turned off, or the power supply has shut down.
Please conduct the above setting once again after the power has restored.
OB396--1.qxp 05.3.18 8:59 AM Page 8

9
TROUBLESHOOTING8
8-1. Cautions on troubleshooting
1. Before troubleshooting, check the following:
1) Check the power supply voltage.
2) Check the indoor/outdoor connecting wire for mis-wiring.
2. Take care the following during servicing.
1).Before servicing the air conditioner, be sure to turn off the main unit first with the remote controller, and then after con-
firming the horizontal vane is closed, turn off the breaker and / or disconnect the power plug.
2) Be sure to turn OFF the power supply before removing the front panel, the cabinet, the top panel and the electronic
control P.C. board.
3) When removing the electronic control P.C. board, hold the edge of the board with care NOT to apply stress on the
components.
4) When connecting or disconnecting the connectors, hold the housing of the connector. DO NOT pull the lead wires.
MS-A08VD -
MS-A10VD -
MS-A13VD - P1
P1
P1
Lead wiring Housing point
3. Troubleshooting procedure
1) First, check if the OPERATION INDICATOR lamp on the indoor unit is flashing on and off to indicate an abnormality.
To make sure, check how many times the abnormality indication is flashing on and off before starting service work.
2) Before servicing that the connector and terminal are connected properly.
3) If the electronic control P.C. board is supposed to be defective, check the copper foil pattern for disconnection and the
components for bursting and discolouration.
4) When troubleshooting, refer to 8-2. and 8-3.
4. How to replace batteries
Weak batteries may cause the remote controller malfunction.
In this case, replace the batteries to operate the remote controller normally.
Insert the negative pole
of the batteries first.
Check if the polarity of
the batteries are correct. RESET button
2Press the RESET button with tip end of ball point
pen or the like, and then use the remote controller.
NOTE : 1. If the RESET button is not pressed, the remote controller may not operate correctly.
2. This remote controller has a circuit to automatically reset the microcomputer when batteries are replaced.
This function is equipped to prevent the microcomputer from malfunctioning due to the voltage drop caused by
the battery replacement.
1Remove the back lid and insert batteries.
Then reattach the back lid.
OB396--1.qxp 05.3.18 8:59 AM Page 9

10
5. How to install the horizontal vanes
65 4
32 1
In procedure 2,3,5, and 6, lock the stoppers until they click into place.
Stopper
Lock.
Stopper
Lock.
Lock. Lock. In. Insert.
Insert.
In.
If horizontal vanes are not installed correctly, both of the operation indicator lamps will flash.
In this case, install the horizontal vanes correctly by following the procedures 1to 6.
NOTE: Before installation of the horizontal vanes, disconnect the power supply plug and/ or turn off the breaker.
Upper vane
Lower vane
The holes on the
insertion ends of
the upper and lower
horizontal vanes have
different shapes.
Insert this end first.
Upper right
Lower right
Insert this end first.
OB396--1.qxp 05.3.18 8:59 AM Page 10

11
Start
Indoor unit
operates.
Outdoor unit
doesn't
operate.
Indoor unit
doesn't receive
the signal from
remote controller.
OPERATION INDICATOR
lamp on the indoor unit is
flashing on and off.
Outdoor unit
operates in
only Test Run
operation.
Outdoor unit
doesn't
operate
even in
Test Run
operation.
Indoor unit
operates, when
the EMERGENCY
OPERATION
switch is pressed.
Indoor unit
doesn't operate,
when the
EMERGENCY
OPERATION
switch is pressed.
Check room
temperature
thermistor.
Refer to 8-6.
"Test point
diagram and
voltage".
Refer to 8-5. B
"Check of
remote controller
and receiver
P.C. board".
Left lamp
2-time flash
Cause:
Indoor unit
• Trouble of room
temperature/
indoor coil
thermistor
Check room
temperature
thermistor and
indoor coil thermistor.
Refer to 8-6.
"Test point diagram
and voltage".
Left lamp
3-time flash
Cause:
Indoor unit
• Trouble of
indoor fan
motor
Refer to 8-5.A
"Check of
indoor fan
motor".
1. Check indoor /
outdoor
connecting wire.
2. Refer to 8-5. C
"Check of indoor
electronic control
P.C. board".
Check of
wiring
diagram
of outdoor
unit.
Left lamp
4-time flash
Cause:
Indoor unit
• Trouble of
indoor control
system
Replace the
indoor
electronic
control P.C.
board.
As for outdoor unit,
refer to service
manual OB397.
Both lamps
(Left and right)
Flash on and off at
0.5-second intervals
Cause:
Indoor unit
• The horizontal vanes
are not installed
correctly.
Refer to 8-5. D
"Check of installation
of the horizontal vane".
8-2. Instruction of troubleshooting
OB396--1.qxp 05.3.18 8:59 AM Page 11

12
Before taking measures, make sure that the symptom reappears for accurate troubleshooting.
Self check table
Operation Indicator · Flashing of the OPERATION INDICATOR lamp (on the left)
indicates possible abnormalities.
· The OPERATION INDICATOR lamp (on the left) is
lighting during normal operation.
flashing
• The following indication applies regardless of shape of the indicator.
No.
2
SymptomIndication Detection method
Check point
Indoor coil
thermistor
3Indoor fan
motor.
Abnormal
point
Room
tempera-
ture
thermistor
2-time flash
2.5-second OFF
Detect Indoor coil/room temperature
thermistor short or open circuit every 8
seconds during operation.
• Refer to the characteristics of
indoor coil thermistor and
room temperature thermistor
shown in 8-6.
3-time flash
2.5-second OFF
Indoor fan
motor repeats
12 seconds
ON and 3
minutes OFF.
When the
indoor fan
motor breaks,
the fan keeps
stopping.
When rotational frequency feedback signal is
not emitting during 12-second indoor fan
operation.
• Refer to 8-5.A"Check of
indoor fan motor".
Outdoor unit
does not
operate.
Left lamp flashes.
Left lamp flashes.
Indoor
control
system 4-time flash
2.5-second OFF
Left lamp flashes.
4
• Replace the indoor electronic
control P.C. board.
Outdoor unit
does not
operate.
When it cannot properly read data in the
nonvolatile memory of the indoor electronic
control P.C. board.
NOTE : When the indoor unit has started operation and the above detection method has detected an abnormality (the first
detection after the power ON), the indoor electronic control P.C. board turns OFF the indoor fan motor with the
OPERATION INDICATOR lamp flashing.
10.5-second ON
0.5-second OFF
When the electricity is not conducted to the
safety device (FAN) of the horizontal vane. • Refer to 8-5. D"Check of
installation of the horizontal
vanes".
Indoor unit
and outdoor
unit do not
operate.
Attachment
of the
horizontal
vane
Both lamps flash at the same time.
8-3. Troubleshooting check table
OB396--1.qxp 05.3.18 8:59 AM Page 12

13
Vane motor
(MV)
Measure the resistance between the terminals with a tester.
(Part temperature10°C ~ 30°C)
RED
YLW
BRN
ORN GRN
ROTOR
Normal Abnormal
Open or short-circuit
240 ~ 260"
Room
temperature
thermistor (RT11)
8-4. Trouble criterion of main parts
Part name
Indoor coil
thermistor
(RT12)
Check method and criterion
Measure the resistance with a tester.
(Part temperature 10°C ~ 30°C)
Figure
Normal
8k"~ 20k"
Abnormal
Open or short-circuit
Measure the resistance between the terminals with a tester.
(Coil wiring temperature10°C ~ 30°C)
Indoor fan
motor (MF)
INNER FUSE
145i 2:CUT OFF
Motor part
Sensor part
Measure the voltage Power ON.
MAIN
AUX.
BLK REDWHT
FUSE
Normal
215~233"
WHT-BLK MS-A13VD
BLK-RED
Color of lead wire
BRN-YLW
YLW-GRY
Normal
4.5 ~ 5.5V Abnormal
Remain 0V or 5V
(When fan revolved one time)
0V➔5V➔0V
(Approx.)
305~331"
271~294"
MS-A08/A10VD
180~195"
Abnormal
Open or
short-circuit
MS-A08VD -
MS-A10VD -
MS-A13VD - P1
P1
P1
Color of lead wire
OB396--1.qxp 05.3.18 8:59 AM Page 13

14
Yes

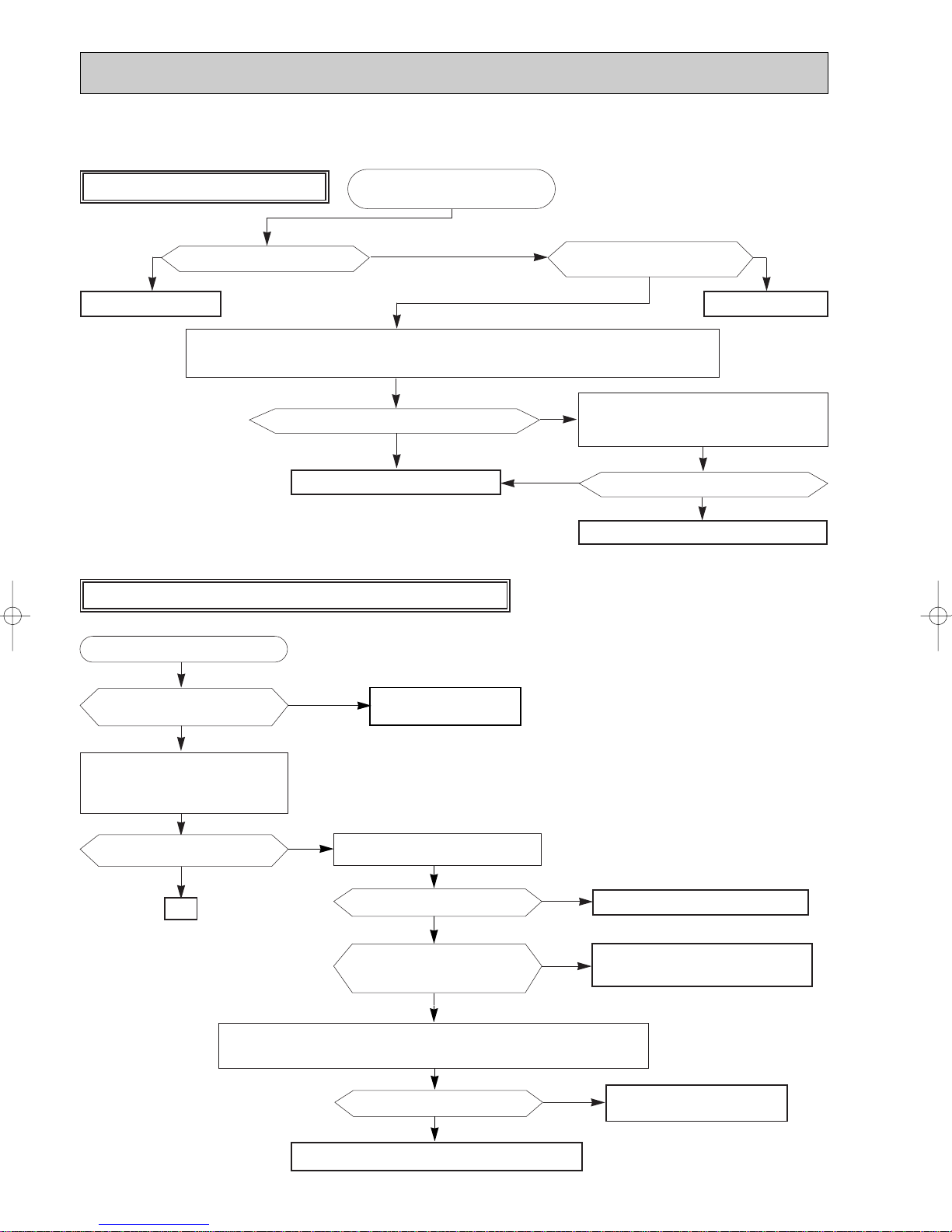

BBCheck of remote controller and receiver P.C. board
w Check if the remote controller is exclusive for this air conditioner.
Replace the batteries.
(Refer to 8-1.4.)
Turn on a radio to AM and press switch on
the remote controller.
Is noise heard from radio?
Are there any fluorescent lights of
inverter or rapid-start type within the
range of 1m?
Measure the voltage between receiver P.C. board connector CN302 No.3(-) and No.5(+)
when the remote controller button is pressed.
Is the voltage approx. 4V DC? Replace the indoor electronic control
P.C. board
Replace the power monitor, receiver P.C.board.
Replace the remote controller.
● Reinstall the unit away from lights.
● Attach a filter on receiving part.
Switch on the remote controller.
Is LCD display on the remote con-
troller visible?
Remove batteries, then set them back and
press the RESET button.
Check if the unit operates with remote con-
troller.
Yes
Does the unit operate with remote
controller?
Yes
OK
No
(not clear)
Yes
No
No
No(5V or 0V DC)
No
AACheck of indoor fan motor Turn OFF the power supply.
Check connector CN211 visually.
Disconnect lead wires from connector CN211 on the indoor electronic control P.C. board.
Measure resistance between lead wires: No.1 and No.5 and then No.3 and No.5.
Are lead wires connected? Is soldering point of the connector
correctly soldered?
Resolder it.
Yes
No
No Yes
Reconnect the lead wires.
Repair the indoor fan motor.
Is resistance 0 (short circuit) or ∞(open circuit)?
Yes ( 0 or ∞)No
(others)
Insert screwdriver into air outlet to rotate indoor fan
motor slowly for 1 revolution or over, and measure
voltage No.2(+) and No.3(-) on CN121.
Replace the indoor electronic control P.C. board.
Does voltage repeat 0V DC and 5V DC?
Yes
No
When left OPERATION INDICATOR lamp flashes 3-time.
Indoor fan motor doesn’t operate.
Indoor unit operates by pressing the EMERGENCY OPERATION switch, but doesn’t operate with the remote controller.
Yes
8-5. Troubleshooting flow
OB396--1.qxp 05.3.18 8:59 AM Page 14

15

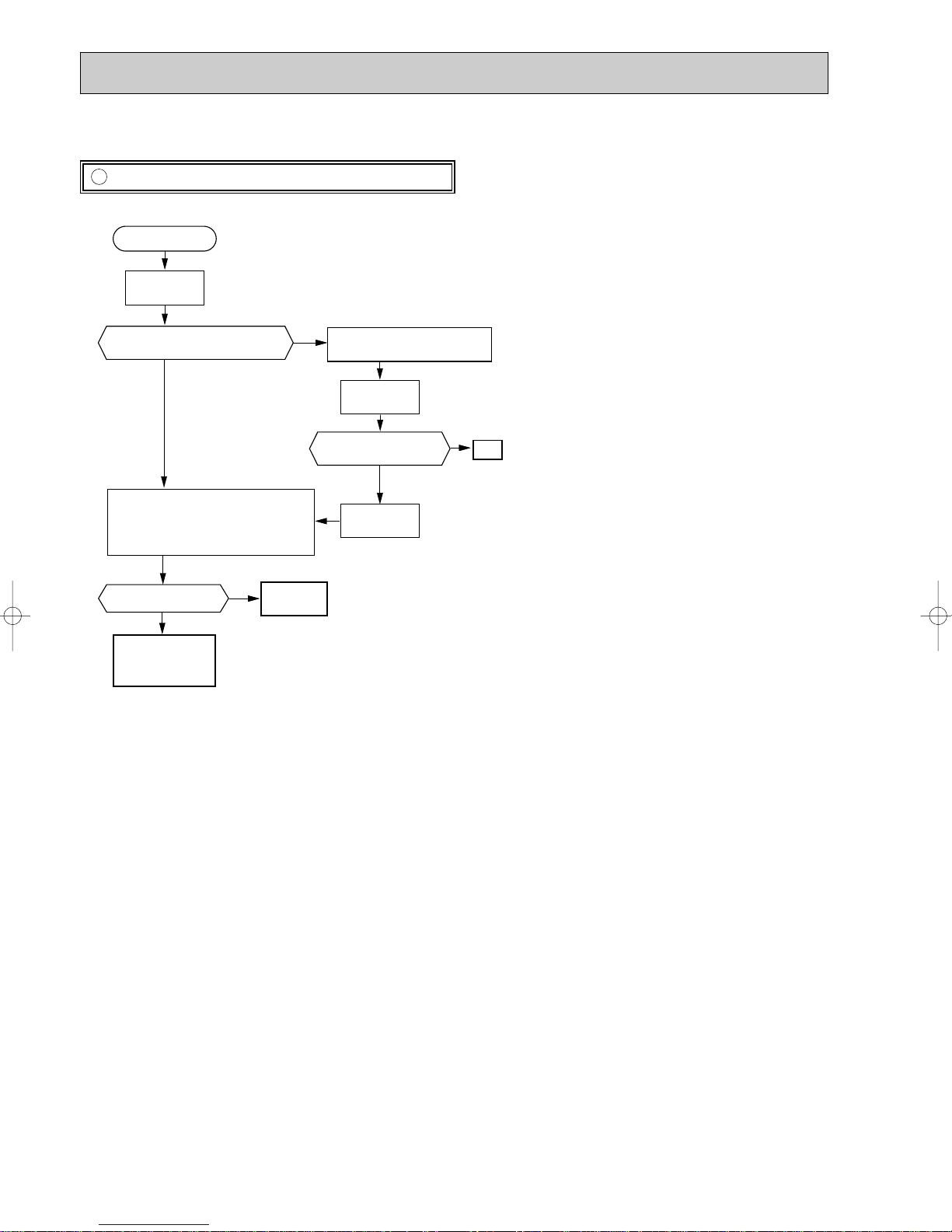

Check of indoor electronic control P.C. board
C
Check both “parts side” and “pattern
side” of the indoor electronic control P.C.
board visually.
Replace the fuse.
Is fuse(F11) blown?
Be sure to check both fuse
and varistor in any case.
Replace the fan
motor.
Replace the
indoor electronic
control P.C. board.
Is the winding
resistance of
fan motor 0 "?
Is the winding
resistance of
vane motor 0 "?
No
Yes
Replace the vane
motor.
No
Yes
Yes
Is varistor(NR11) burnt?
Replace the varistor.
Yes
Turn OFF the power supply.
Remove indoor fan motor connector CN211 and
vane motor connector CN151 from the indoor electronic
control P.C. board and turn ON the power supply.
No
No
Does the unit operate with the remote controller?
Does the OPERATION INDICATOR lamp light up by
pressing the EMERGENCY OPERATION switch?
Yes
No
1.Pull out the power
supply cord.
2.Measure the
resistance between
CN201 1on
the indoor electronic
control P.C. board
and Non the
terminal block with
a tester.
Is there resistance
approx. 0 "?
Replace the fuse (F12).
CN201 1
2
L
N
F12
13
Terminal
block
Be sure to check both resistance.
Turn OFF the
power supply. Turn OFF the power supply.
Yes
No(∞)
The unit doesn’t operate with the remote controller.
Also, the OPERATION INDICATOR lamp doesn’t light up by pressing the EMERGENCY OPERATION switch.
OB396--1.qxp 05.3.18 8:59 AM Page 15

16
Check of installation of the horizontal vane
D
Start
Replace the
indoor electronic
control P.C. board.
Replace the
safety device.
Is the stopper of the horizontal vane
locked to the indoor unit correctly?
Yes
No
Is there resistance 0 "?
Relock the stopper of the
horizontal vane to the indoor unit.
Refer to 8-1-5.
Yes
Is the OPERATION
INDICATOR lamp flashing?
Yes
No(∞)
No OK
Turn ON the
power supply.
To check the continuity of safety device,
measure the resistance of connector 1- 3
connected to CN1R1 on the indoor
electronic control P.C. board.
Turn OFF the
power supply.
Turn OFF the
power supply.
When both OPERATION INDICATOR lamps flash ON and OFF every 0.5-second.
Indoor unit and outdoor unit don’t operate.
OB396--1.qxp 05.3.18 8:59 AM Page 16

17
MS-A08VD -
MS-A10VD -
MS-A13VD -
Indoor electronic control P.C. board
P1
P1
P1
Indoor coil thermistor (RT12)
Room temperature thermistor (RT11)
Temperature (:)
Resistance (k")
Release of Auto restart function
Solder the Jumper wire to the JR07.
(Refer to 7-3.)
CN302
Power monitor, receiver P.C. board
Power supply input
220-230-240V AC
Varistor
(NR11)
Fuse 250V AC 3.15A
Room temperature
thermistor (RT11)
Indoor coil
thermistor (RT12)
Timer short mode
point JPG, JPS
(Refer to 7-1.)
Emergency
operation switch
}
}
Indoor fan motor
220-230-240V AC
}
5V DC
+–
{
12V
DC +
–
}
}
J23
J33
J33
J12
8-6. Test point diagram and voltage
Safety device of
fan by horizontal
vane CN1R1
Varistor
(NR12)
OB396--1.qxp 05.3.18 8:59 AM Page 17

18

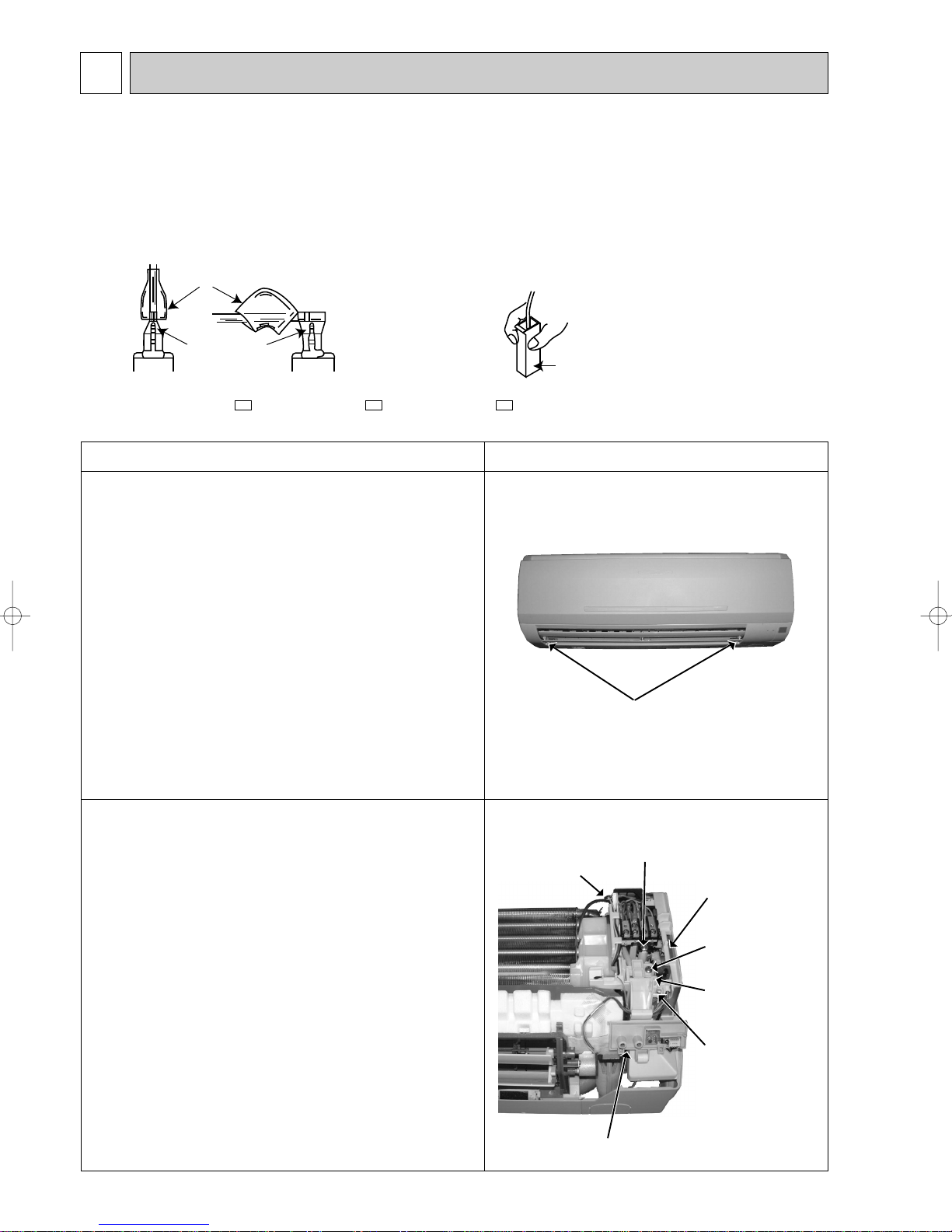

(1) Slide the sleeve and check if there is a locking lever or not. (2) The terminal with this connector has the locking
mechanism.
1Slide the sleeve.
2Pull the terminal while
pushing the locking
lever.
1Hold the sleeve, and
pull out the terminal
slowly.
The terminal which has the locking mechanism can be detached as shown below.
There are two types ( Refer to (1) and (2)) of the terminal with locking mechanism.
The terminal without locking mechanism can be detached by pulling it out.
Check the shape of the terminal before detaching.
<"Terminal with locking mechanism" Detaching points>
Connector
Sleeve
Locking lever
9-1. MS-A08VD - MS-A10VD - MS-A13VD -
INDOOR UNIT P1P1P1
DISASSEMBLY INSTRUCTIONS9
OPERATING PROCEDURE PHOTOS
Photo 1
Screws of the panel
1. Removing the panel
(1) Remove the screw caps of the panel.
Remove the screws.
(2) Pull the panel down to your side slightly and unhook the
catches at the top.
2. Removing the electronic control P.C. board and the
power monitor, receiver P.C. board
NOTE : In case of removing only indoor electronic control
P.C. board work (3) is not necessary.
(1) Remove the panel. (Refer to 1.)
(2) Remove the power monitor, receiver P.C. board
holder from the bottom of electrical box.
(3) Open the power monitor, receiver P.C. board holder and
remove the power monitor, receiver P.C. board.
(4) Remove the screw of the electrical cover and the electrical
cover.
(5) Remove the screw of the V.A. clamp and the V.A. clamp.
(6) Remove the screw of the cord clamp and the cord clamp.
(7) Remove the screw of the terminal block.
(8) Remove the screw of the ground wire.
(9) Pull out indoor electronic control P.C. board slightly.
(10) Disconnect all (except CN125, CN109) the connectors on
the electronic control P.C. board.
(11) Remove the electronic control P.C. board.
(12) Disconnect the connector of power monitor, receiver P.C.
board (CN 125, CN109) on the electronic control P.C.
board.
Terminal block
fixing screw
Screw of the V.A.
clamp
Indoor electronic
control P.C. board
Screw of the
ground wire
Power monitor, receiver
P.C. board holder
Screw of the
electrical cover
Cord clamp fixing
screw
Photo 2
OB396--1.qxp 05.3.18 8:59 AM Page 18

19
OPERATING PROCEDURE PHOTOS
Photo 5
Photo 7
Screws of the
left side of the
heat exchanger
Photo 6
Hooks of the
motor band
Hexagon socket set screw
Screw of
the lead
cover
5. Removing the indoor fan motor and the line flow fan
(1) Remove the panel. (Refer to 1.)
(2) Remove the electrical box. (Refer to 3.)
(3) Pull out the drain hose from the nozzle assembly, and
remove the nozzle assembly. (Refer to 4.)
(4) Remove the screw of the lead cover and lead cover.
(5) Release the hooks to open the motor band slightly.
(6) Loosen the hexagon socket set screw from the line flow
fan.
(7) Remove the screws fixing the motor bed, and remove the
fan motor with motor band and the motor bed.
(8) Remove the screws fixing the left side of the heat
exchanger.
(9) Lift the left side of the heat exchanger.
(10) Remove the line flow fan.
Screws of
the motor
bed
3. Removing the electrical box
(1) Remove the panel. (Refer to 1.)
(2) Remove the electrical cover. (Refer to 2.)
(3) Remove the V.A. clamp. (Refer to 2.)
(4) Remove the cord clamp. (Refer to 2.)
(5) Remove the terminal block. (Refer to 2.)
(6) Remove the screw of ground wire. (Refer to 2.)
(7) Disconnect the connector of the indoor coil thermistor
(CN112), the fan motor connector (CN211 and CN121) and
the vane motor connector (CN151)on the electronic control
P.C. board.
(8) Remove the fan motor lead wire and indoor coil thermistor
from the electrical box.
(9) Remove the lead wire of vane motor from the bottom of
electrical box.
(10) Remove the screw fixing the electrical box, remove the
electrical box.
Photo 3 Indoor coil thermistor
connector
Fan motor connectors
Vane motor
connector
Screw of the
electrical box
Photo 4
Drain hose
Screws of the vane motor
4. Removing the nozzle assembly and the vane motor
(1) Remove the panel. (Refer to 1.)
(2) Remove the electrical box. (Refer to 3.)
(3) Pull out the drain hose from the nozzle assembly, remove
the nozzle assembly.
(4) Remove the screws of the vane motor, disconnect the
vane motor connector.
(5) Remove the vane motor.
OB396--1.qxp 05.3.18 8:59 AM Page 19

20
PARTS LIST10
MS-A08VD -
MS-A10VD -
MS-A13VD -
10-1. INDOOR UNIT STRUCTURAL PARTS
P1
P1
P1
No. Part No. Part name Remarks Price
Symbol
in Wiring
Diagram
Q'ty/unit
1
2
3
4
5
6
7
8
9
E02 763 234
E02 764 234
E02 940 000
E02 763 067
E02 940 010
E02 408 142
E02 763 100
E02 764 100
E02 763 975
E02 408 970
E02 751 970
MS-
A08VD - P1 MS- A10VD - P1 MS- A13VD - P1
10
11 E02 846 426
E02 527 083 REMOTE CONTROLLER REMOTE CONTROLLER HOLDER
1
1
1
11 1MP04B
BOX
BOX
PANEL ASSEMBLY
SCREW CAP
FRONT PANEL
CATCH
CATECHIN AIR FILTER
CATECHIN AIR FILTER
AIR CLEANING FILTER
CORNER BOX (RIGHT)
INSTALLATION PLATE
INSTALLATION PLATE
1
1
2
1
2
2
2
1
1
1
1
2
1
2
2
2
1
1
Including No.3,4,5
2PCS/SET
2PCS/SET
2PCS/SET
2PCS/SET
MAC-1300FT
1
1
2
1
2
2
2
1
1
10-1. INDOOR UNIT STRUCTURAL PARTS
10-2. ACCESSORY AND REMOTE
CONTROLLER
1
8
2
4
3
9(W)
56
11
10
10-2. ACCESSORY AND REMOTE CONTROLLER
7 (See 10-5.)
(W) This figure shows MS-A13VD.
OB396--1.qxp 05.3.18 8:59 AM Page 20
