Mitsubishi Electric PLA-RP3AA Operating manual

TECHNICAL & SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES······························2
2. COMBINATION OF INDOOR AND OUTDOOR UNITS ···3
3. SAFETY PRECAUTION·······························4
4. PART NAMES AND FUNCTIONS ···············8
5. SPECIFICATIONS ······································11
6. DATA ··························································23
7. OUTLINES AND DIMENSIONS·················62
8. WIRING DIAGRAM ····································63
9. REFRIGERANT SYSTEM DIAGRAM········64
10. TROUBLESHOOTING ·······························65
11. DISASSEMBLY PROCEDURE ··················76
12. PARTS LIST···············································79
13. OPTIONAL PARTS ····································86
Indoor unit
[Model names] [Service Ref.]
PLA-RP1.6AA PLA-RP1.6AA
PLA-RP2AA PLA-RP2AA
PLA-RP2.5AA PLA-RP2.5AA
PLA-RP3AA PLA-RP3AA
PLA-RP3AA1
PLA-RP4AA PLA-RP4AA
PLA-RP4AA1
PLA-RP5AA PLA-RP5AA
PLA-RP5AA1
PLA-RP6AA PLA-RP6AA
PLA-RP6AA1
No.OC293
REVISED EDITION-B
• PLA-RP1.6AA, PLA-RP2AA
and PLA-RP2.5AA are added in
REVISED EDITION-B.
• This manual does not cover outdoor
units.
When serving them, please refer to
the service manual No.OC294
REVISED EDITION-B, OC285
REVISED EDITION-A, OC298 and
this manual in a set.
INDOOR UNIT
Ceiling Cassettes
Series PLA
WIRED REMOTE
CONTROLLER
R407C/R410A
WIRELESS REMOTE
CONTROLLER
ON/OFF TEMP
MODEL SELECT
NOT AVAILABLE
CHECK TEST RUN
˚C
AMPM
AMPM
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
˚C
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
˚C
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
TEMP.
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SPLIT-TYPE, AIR CONDITIONERS
•Please void OC293 REVISED
EDITION-A.
2004
Model name
indication
OC293-B-1.qxp 04.9.29 4:09 PM Page 1

2

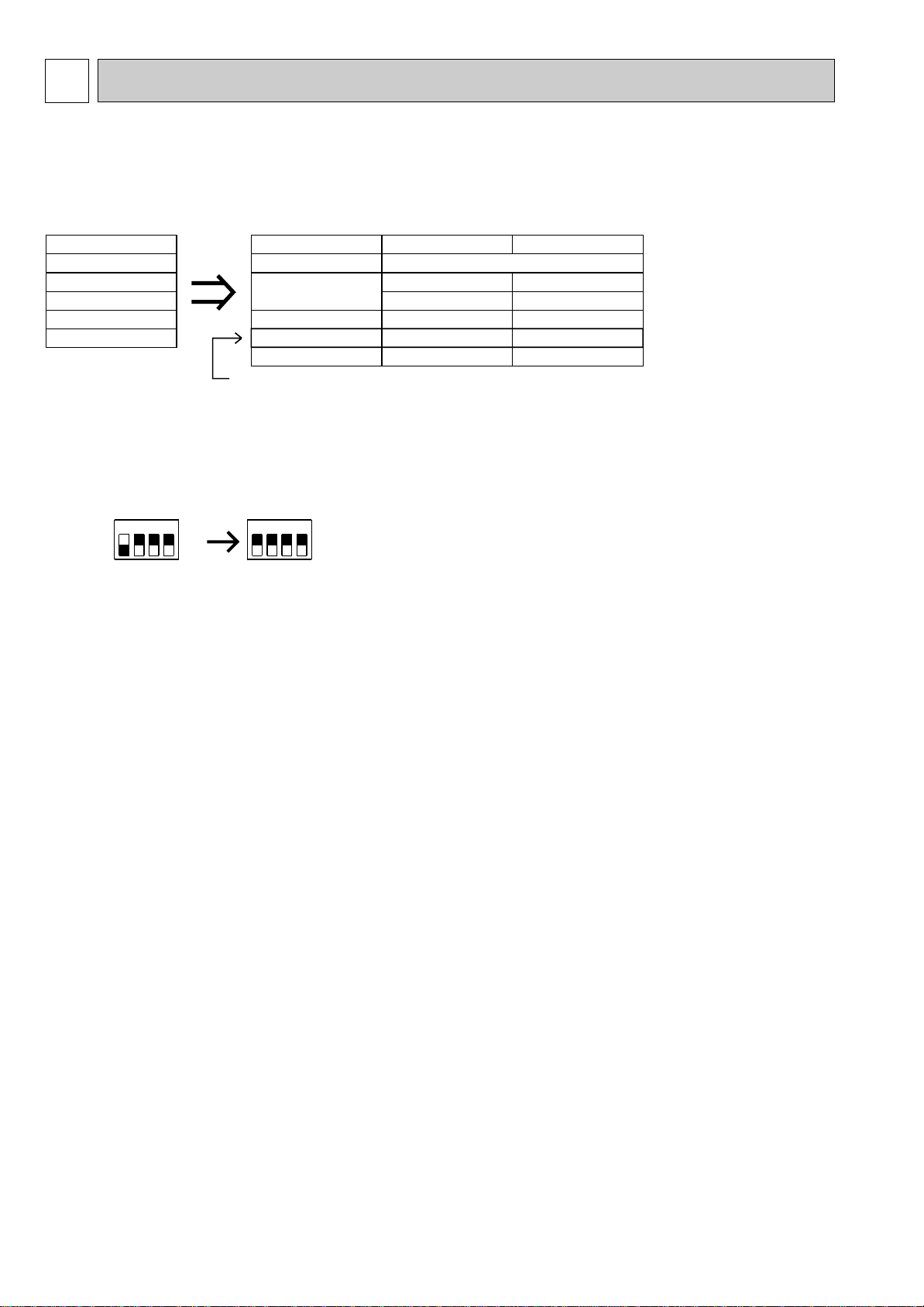

1TECHNICAL CHANGES
REVISED EDITION-B
• PLA-RP1.6AA, PLA-RP2AA and PLA-RP2.5AA are added in REVISED EDITION-B.
REVISED EDITION-A
PLA-RP3,4,5,6AA
PLA-RP3,4,5,6AA1
1. The units that can be connected have been changed as follows.
OFF
ON
4321
OFF
ON
4321
PLA-RP5AA1
2. Because of additional connectable outdoor units, the setting of SW2 (capacity setting) on the indoor
controller board has also been changed.
PLA-RP5AA PLA-RP5AA1
Note: PLA-RP5AA1can connect to PUHZ-RP5VHA, PUH-P5YGAA
and PU-P5YGAA. PLA-RP5AA, however, can connect to
PUHZ-RP5VHA only.
PUHZ-RP3VHA
PUHZ-RP4VHA
PUHZ-RP5VHA
PUHZ-RP6VHA
OC294
R410A
●OC293 (PLA-RP•AA) ●OC293 REVISED EDITION-A (PLA-RP•AA, AA1)
PUHZ-RP3VHA
PUHZ-RP4VHA
PUHZ-RP5VHA
PUHZ-RP6VHA
OC294
R410A PUH-P3VGAA
PUH-P3YGAA
PUH-P4YGAA
PUH-P5YGAA
PUH-P6YGAA
PU-P3VGAA
PU-P3YGAA
PU-P4YGAA
PU-P5YGAA
PU-P6YGAA
OC285 OC298
R407C
OC293-B-1.qxp 04.9.29 4:09 PM Page 2

3
COMBINATION OF INDOOR AND OUTDOOR UNITS
2
Heat pump type
Outdoor unit [OC285 REVISED EDITION-A]
PUH-P
Heat pump without
electric heater
6
YGAA
YGAA1
—
—
—
—
—
—
—
—
—
5
YGAA
YGAA1
—
—
—
—
—
—
—
✕
—
—
YGAA
—
—
—
—
—
—
—
—
—
YGAA
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
—
Indoor unit
Outdoor unit [OC298]
Indoor unit
PLA-RP1.6AA
PLA-RP2AA
PLA-RP2.5AA
PLA-RP3AA
PLA-RP3AA1
PLA-RP4AA
PLA-RP4AA1
PLA-RP5AA
PLA-RP5AA1
PLA-RP6AA
PLA-RP6AA1
PLA-RP1.6AA
PLA-RP2AA
PLA-RP2.5AA
PLA-RP3AA
PLA-RP3AA1
PLA-RP4AA
PLA-RP4AA1
PLA-RP5AA
PLA-RP5AA1
PLA-RP6AA
PLA-RP6AA1
34
1.6 2 2.5
34
1.6 2 2.5
Cooling only type
PU-P 6
YGAA
—
—
—
—
—
—
—
—
—
5
YGAA
—
—
—
—
—
—
—
✕
—
—
YGAA
—
—
—
—
—
—
—
—
—
YGAA
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
—
VGAA
—
—
—
—
—
—
—
—
—
—
Cooling only
(R407C Fixed speed)
Heat pump type
Outdoor unit [OC294 REVISED EDITION-B]
PUHZ-RP 6
VHA
VHA1
—
—
—
—
—
—
—
—
—
5
VHA
VHA1
—
—
—
—
—
—
—
—
—
VHA
—
—
—
—
—
—
—
—
—
VHA
—
—
—
—
—
—
—
—
—
—
VHA
—
—
—
—
—
—
—
—
—
—
VHA
—
—
—
—
—
—
—
—
—
—
VHA
VHA1
—
—
—
—
—
—
—
—
—
Indoor unit
PLA-RP1.6AA
PLA-RP2AA
PLA-RP2.5AA
PLA-RP3AA
PLA-RP3AA1
PLA-RP4AA
PLA-RP4AA1
PLA-RP5AA
PLA-RP5AA1
PLA-RP6AA
PLA-RP6AA1
321.6 2.5 4
(R410A Inverter)
OC293-B-1.qxp 04.9.29 4:09 PM Page 3

4
3SAFETY PRECAUTION
[2] Refrigerant recharging
(1) Refrigerant recharging process
1Direct charging from the cylinder.
·R407C cylinder are available on the market has a syphon pipe.
·Leave the syphon pipe cylinder standing and recharge it.
(By liquid refrigerant)
(2) Recharge in refrigerant leakage case
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release the refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
[1] Cautions for service
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
Cautions for units utilizing refrigerant R407C
CAUTIONS RELATED TO NEW REFRIGERANT
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Use ESTR , ETHER or HAB as the lubricant to
coat flares and flange connection parts.
If large amount of mineral oil enter, that can cause
deterioration of refrigerant oil etc.
Use liquid refrigerant to charge the system.
If gas refrigerant is used to seal the system, the composition
of the refrigerant in the cylinder will change and performance
may drop.
Do not use a refrigerant other than R407C.
If another refrigerant (R22, etc.) is used, the chlorine in the
refrigerant may cause the lubricant deterioration.
Use a vacuum pump with a reverse flow check valve.
The vacuum pump oil may flow back into the refrigerant
cycle and cause the lubricant deterioration.
Store the piping to be used during installation
indoors with keep both ends sealed until just
before brazing.
(Store elbows and other joints in a plastic bag.)
If dust, dirt, or water enters the refrigerant cycle,
deterioration of the oil and compressor trouble may result. Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.

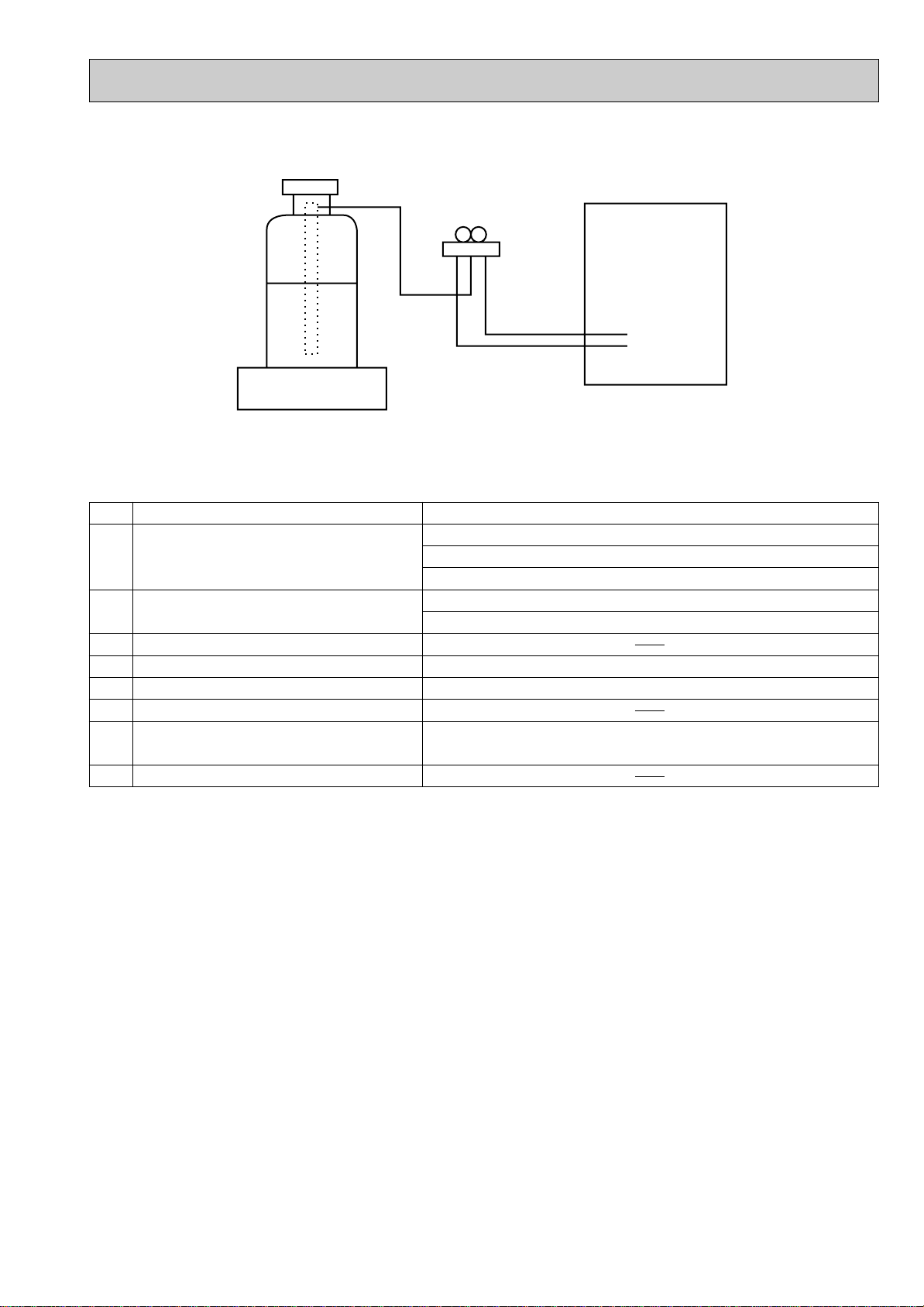

Gravimeter
Unit
OC293-B-1.qxp 04.9.29 4:09 PM Page 4

5
[3] Service tools
Use the below service tools as exclusive tools for R407C refrigerant.
No. Tool name Specifications
1Gauge manifold ·Only for R407C.
·Use the existing fitting SPECIFICATIONS. (UNF7/16)
·Use high-tension side pressure of 3.43MPa·G or over.
2Charge hose ·Only for R407C.
·Use pressure performance of 5.10MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R134a or R407C.
5Adapter for reverse flow check. ·Attach on vacuum pump.
6Refrigerant charge base.
7Refrigerant cylinder. ·For R407C ·Top of cylinder (Brown)
·Cylinder with syphon
8Refrigerant recovery equipment.
OC293-B-1.qxp 04.9.29 4:09 PM Page 5

6
Cautions for units utilising refrigerant R410A
CAUTIONS RELATED TO NEW REFRIGERANT
Use new refrigerant pipes.
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contamination
such as sulfur hazardous for use, oxides, dirt,
shaving particles, etc.
In addition, use pipes with specified thickness.
Store the piping to be used during installation
indoors and keep both ends of the piping sealed
until just before brazing. (Leave elbow joints, etc.
in their packaging.)
Use ester oil, ether oil or alkylbenzene oil (small
amount) as the refrigerant oil applied to flares
and flange connections.
In case of using the existing pipes for R22, be careful with
the followings.
· For RP4, 5 and 6, be sure to perform replacement opera-
tion before test run.
· Change flare nut to the one provided with this product.
Use a newly flared pipe.
· Avoid using thin pipes.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Keep the tools with care.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil etc.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enter, that can cause deterio-
ration of refrigerant oil etc.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
[1] Cautions for service
(1) Perform service after collecting the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
OC293-B-1.qxp 04.9.29 4:09 PM Page 6

7
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Specifications
1Gauge manifold ·Only for R410A
·Use the existing fitting specifications. (UNF1/2)
·Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose ·Only for R410A
·Use pressure performance of 5.09MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check ·Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder ·Only for R410A Top of cylinder (Pink)
Cylinder with syphon
8Refrigerant recovery equipment
OC293-B-1.qxp 04.9.29 4:09 PM Page 7

8

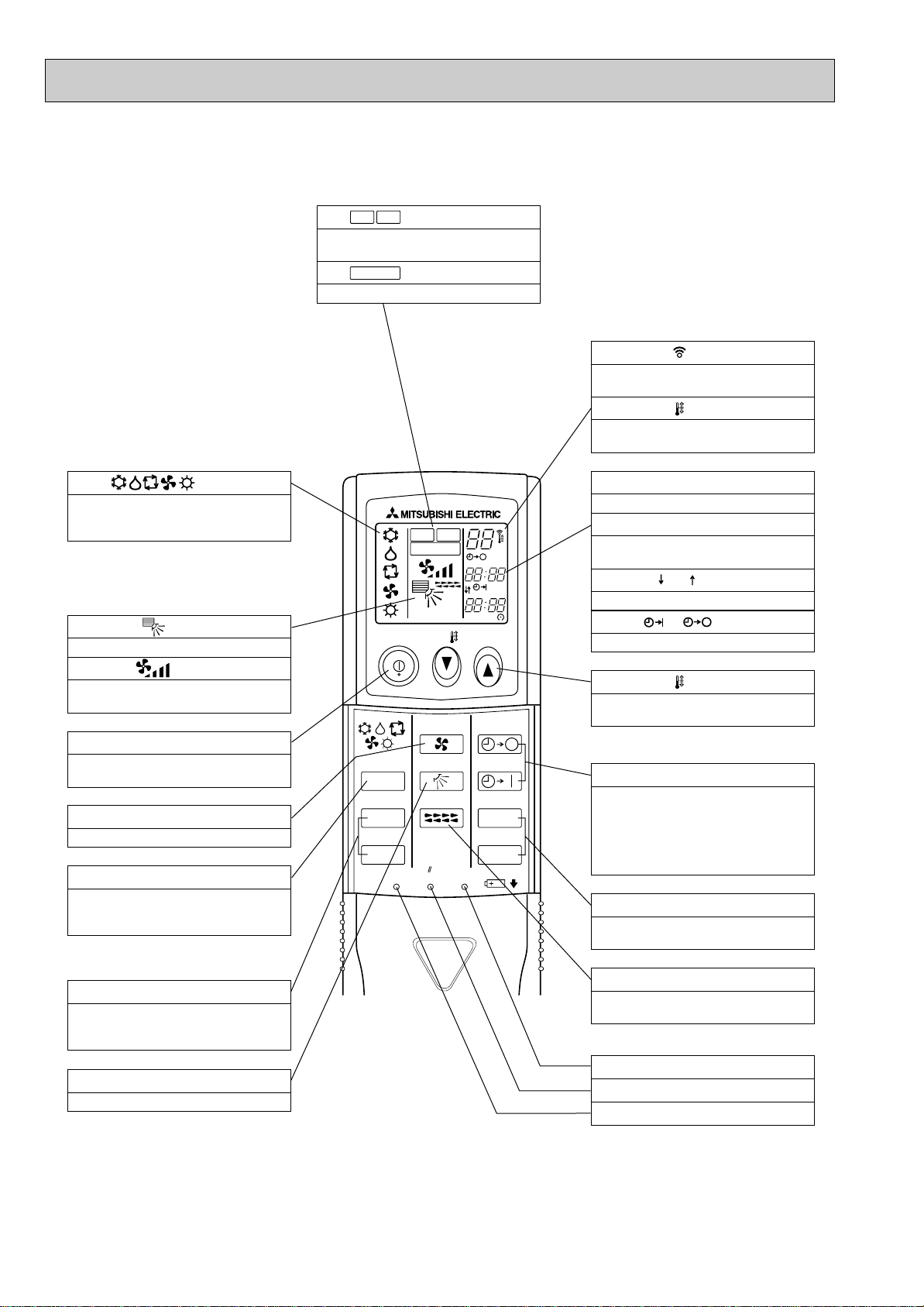

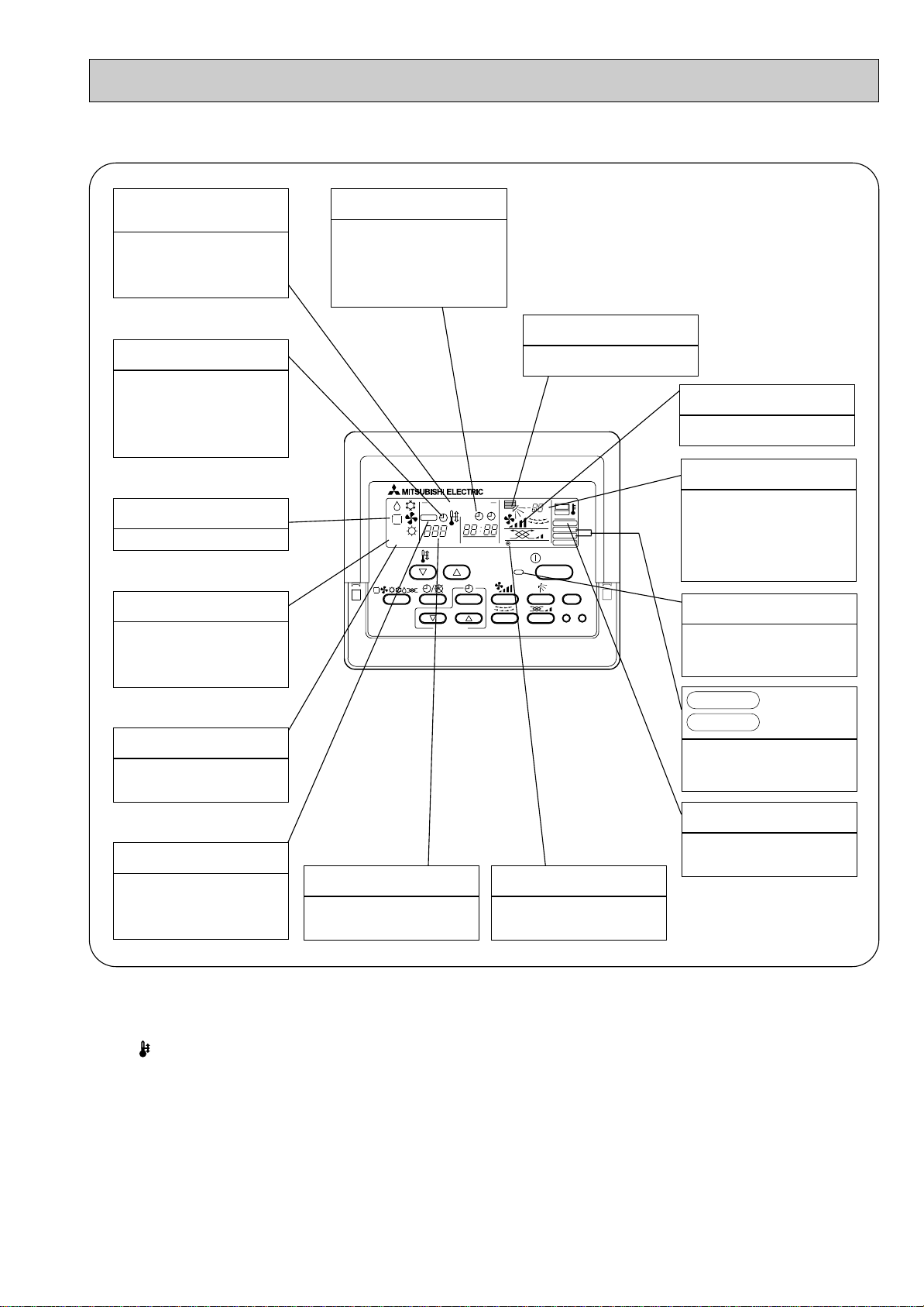

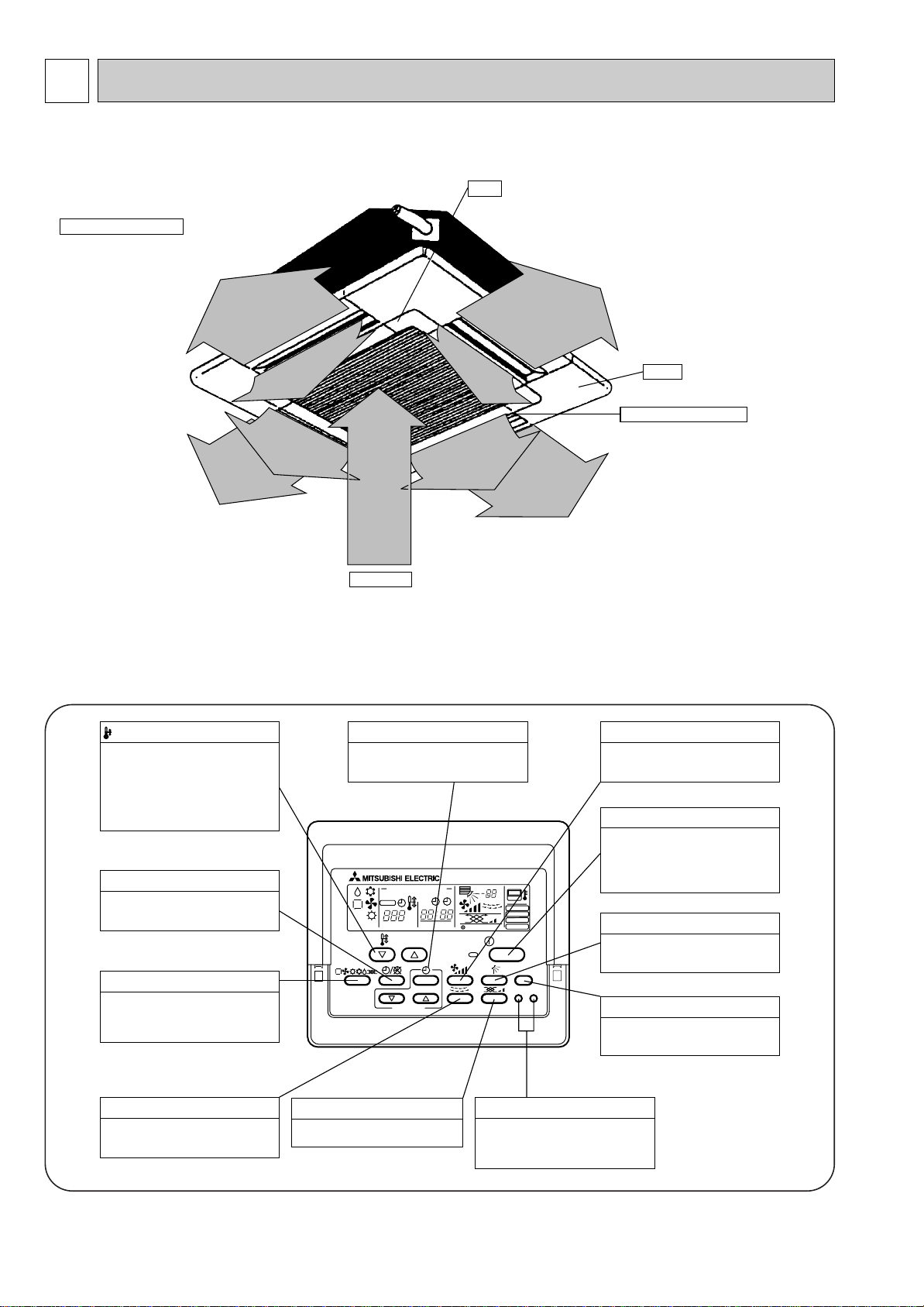

● Operation buttons
PAR-20MAA
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
˚C
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
˚C
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
FILTER
CHECK TEST
TEMP.
TIMER SET
This sets the ventilation fan speed.
VENTILATION button
Press this button to switch between
cool,
dry, automatic and heat modes.
OPERATION SWITCH button
This sets the room temperature. The
temperature setting can be performed
in 1:units
Setting range
Cooling 19:to 30:
Heating 17:to 28:
TEMP. ADJUSTMENT button
This switches between continuous
operation and the timer operation.
TIMER button
This switches between the operation
and stop modes each time it is pressed.
The lamp on this button lights during
operation.
ON/OFF button
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
CHECK-TEST RUN button
To switch the horizontal fan motion
ON and OFF.
(Not available for this model.)
LOUVER button
This adjusts the vertical angle of the
ventilation.
AIR DIRECTION button
This resets the filter service indication
display
FILTER button
This sets the current time, start time
and stop time.
TIME SETTING button
This sets the ventilation fan speed.
FAN SPEED button
PART NAMES AND FUNCTIONS
4
On the controls are set, the same operation mode can be repeated by simply pressing the ON/OFF button.
Auto Air Swing Vane
Disperses airflow up and
down and adjusts the angle
of airflow direction.
Grille
Filter
Removes dust and pollutants
from intake air
Horizontal Air Outlet
Sets airflow of horizontal automatically
during cooling or dehumidifying.
Air Intake
Intakes air from room.
● Indoor Unit
● Wired remote controller
OC293-B-1.qxp 04.9.29 4:09 PM Page 8

9
Caution
●Only the Power display lights when the unit is stopped and power supplied to the unit.
●When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch button
and TEMP. adjustment button do not operate.
●“NOT AVAILABLE” is displayed when the Air speed button is pressed. This indicates that this room unit is not equipped with
the fan direction adjustment function and the louver function.
●When power is turned ON for the first time, it is normal that “H0” is displayed on the room temperature indication (For max.
2minutes). Please wait until this “H0” indication disappear then start the operation.
CENTRALLY
CONTROLLED display
This indicates when the unit is con-
trolled by optional features such as
central control type remote controller.
TIMER display
This indicates when the continuous
operation and time operation modes
are set.
It also display the time for the timer
operation at the same time as when
it is set.
OPERATION MODE display
This indicates the operation mode.
STANDBY display
The [STANDBY] symbol is only dis-
played from the time the heating
operation starts until the heated air
begins to blow.
DEFROST display
This indicates when the defrost oper-
ation is performed.
CHECK display
This indicates when a malfunction
has occurred in the unit which should
be checked.
CLOCK display
The current time , start time and stop
time can be displayed in ten second
intervals by pressing the time switch
button. The start time or stop time is
always displayed during the timer
operation.
●Display
In this display example on the bot-
tom left, a condition where all dis-
play lamps light is shown for expla-
nation purposes although this differs
from actual operation.
Operation lamp
This lamp lights during operation,
goes off when the unit stops and
flashes when a malfunction occurs.
POWER display
This lamp lights when electricity is
supplied to the unit.
SET TEMPERATURE display
This displays the selected setting
temperature.
AIR DIRECTION display
This displays the air direction.
ROOM TEMPERATURE display
The temperature of the suction air
is displayed during operation. The
display range is 8°C to 39°C. The
display flashes 8°C when the actual
temperature is less than 8°C and
flashes 39°C when the actual tem-
perature is greater than 39°C.
display
This display lights in the check mode
or when a test operation is per-
formed.
CHECK MODE
TEST RUN
This lamp lights when the filter need
to be cleaned.
AIR SPEED display
The selected fan speed is displayed.
FILTER display
PAR-20MAA
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
˚C
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
˚C
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
FILTER
CHECK TEST
TEMP.
TIMER SET
OC293-B-1.qxp 04.9.29 4:09 PM Page 9

10
ON/OFF TEMP
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
RESETSET CLOCK
MODEL SELECT
NOT AVAILABLE
CHECK TEST RUN
˚C
AMPM
AMPM
VANE CONTROL button
Used to change the air flow direction.
CLOCK button
RESET button
SET button
ON/OFF button
The unit is turned ON and OFF alternately
each time the button is pressed.
LOUVER button
This switch the horizontal fan motion ON
and OFF.
(Not available for this model.)
MODE SELECT button
Used to switch the operation mode between
cooling, drying, blowing, heating and auto
mode.
CHECK-TEST RUN button
Only press this button to perform an inspec-
tion check or test operation.
Do not use it for normal operation.
FAN SPEED SELECT button
Used to change the fan speed.
TIMER display
Displays when in timer operation or when
setting timer.
button
SET TEMPERATURE button sets any desired
room temperature.
CLOCK display
Displays the current time.
“” “ ” display
Displays the order of timer operation.
“ ” “ ” display
Displays whether timer is on or off.
wIn case the outdoor unit is cool only type,
the heating mode is not available.
Buttons used to set the “hour and minute” of
the current time and timer settings.
h and min buttons
display
SET TEMP. display indicates desired temper-
ature set.
display
FAN SPEED display indicates which fan
speed has been selected.
display
The vertical direction of air flow is indicated.
display
Blinks when model is selected.
display
Lights up while transmission to the indoor
unit is mode using switches.
display
CHECK&TEST RUN display indicates that
the unit is being checked or test-run.
display
OPERATION MODE display
Operation mode display indicates which op-
eration mode is in effect.
TIMER CONTROL buttons
AUTO STOP (OFF timer): when this switch
is set, the air conditioner will be au-
tomatically stopped at the preset time.
AUTO START (ON timer): when this switch
is set, the air conditioner will be automatical-
ly started at the preset time.
MODEL SELECT
CHECK TEST RUN
● Wireless remote controller
OC293-B-1.qxp 04.9.29 4:09 PM Page 10

11
SPECIFICATIONS
5
5-1. SPECIFICATIONS
Heat Pump type(1)
Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle,voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP2AA
Cooling Heating
17,100 20,500
5,000(2,300~5,600) 6,000(2,500~7,300)
1.55 1.62
PLA-RP2AA
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 0.79
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
14-15-16-18(495-530-565-635)
0 (direct blow)
—
Remote controller & built-in
28-29-31-33
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL : 30 (1-3/16)
UNIT : 24(53) PANEL : 5 (11)
PUHZ-RP2VHA
Outdoor unit Service Ref.
Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
Airflow (Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
Outdoor unit Service Ref.
PLA-RP1.6AA
Cooling Heating
12,300 14,000
3,600(1,600~4,500) 4,100(1,600~5,200)
1.07 1.12
PLA-RP1.6AA
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 0.79
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
11-12-13-14(390-425-460-495)
0 (direct blow)
—
Remote controller & built-in
27-28-29-31
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL: 30 (1-3/16)
UNIT : 24 (53)
PUHZ-RP1.6VHA
PANEL: 5 (11)
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11˚C, W.B. -12˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
OC293-B-1.qxp 04.9.29 4:09 PM Page 11

12
Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
Airflow (Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
Outdoor unit Service Ref.
PLA-RP3AA
PLA-RP3AA1
Cooling Heating
24,200 27,300
7,100 (3,300~8,100) 8,000 (3,500~10,200)
1.97 2.34
PLA-RP3AA
PLA-RP3AA1
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 0.79
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
15-16-18-20 (530-565-635-705)
0 (direct blow)
—
Remote controller & built-in
28-30-32-34
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL: 30 (1-3/16)
UNIT : 24 (53)
PUHZ-RP3VHA
PANEL: 5 (11)
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11˚C, W.B. -12˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
Airflow (Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
Outdoor unit Service Ref.
PLA-RP2.5AA
Cooling Heating
20,500 23,900
6,000 (2,700~6,700) 7,000 (2,800~8,200)
1.65 1.85
PLA-RP2.5AA
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 0.79
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
14-15-16-18(495-530-565-635)
0 (direct blow)
—
Remote controller & built-in
28-29-31-33
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL: 30 (1-3/16)
UNIT : 24 (53)
PUHZ-RP2.5VHA
PANEL: 5 (11)
OC293-B-1.qxp 04.9.29 4:09 PM Page 12

13
Service Ref.
Item
Function
Capacity Btu/h
W
W
PUHZ-RP4VHA
PUHZ-RP4VHA1
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP4AA
PLA-RP4AA1
Cooling Heating
34,100 38,200
10,000 (5,000~11,400)
10,000 (4,900~11,400) 11,200 (5,600~14,000) 11,200 (4,500~14,000)
3.03 3.39
PLA-RP4AA
PLA-RP4AA1
Single phase, 50Hz, 220-230-240V
0.25 0.25
1.25 1.25
2.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.120
20-23-26-28 (705-810-920-990)
0 (direct blow)
—
Remote controller & built-in
33-36-39-41
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4) PANEL : 30 (1-3/16)
UNIT : 30 (66) PANEL : 5 (11)
PUHZ-RP4VHA
PUHZ-RP4VHA1
Outdoor unit Service Ref.
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11˚C, W.B. -12˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
Cooling Heating
42,700 47,800
12,500 (6,000~14,000)
12,500 (5,500~14,000) 14,000 (6,000~16,000)
14,000 (5,000~16,000)
3.89 4.27
PLA-RP5AA
PLA-RP5AA1
Single phase, 50Hz, 220-230-240V
0.33 0.33
1.64 1.64
2.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.120
22-25-28-30 (775-880-990-1,060)
0 (direct blow)
Remote controller & built-in
37-40-43-45
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4) PANEL : 30 (1-3/16)
UNIT : 32 (71) PANEL : 5 (11)
—
Service Ref.
Item
Function
Capacity Btu/h
W
W
PUHZ-RP5VHA
PUHZ-RP5VHA1
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP5AA
PLA-RP5AA1
PUHZ-RP5VHA
PUHZ-RP5VHA1
Outdoor unit Service Ref.
OC293-B-1.qxp 04.9.29 4:09 PM Page 13

14
Cooling Heating
47,800 54,600
14,000 (6,200~15,300)
14,000 (5,500~15,300) 16,000 (6,200~18,000)
16,000 (5,000~18,000)
4.99 4.91
PLA-RP6AA
PLA-RP6AA1
Single phase, 50Hz, 220-230-240V
0.33 0.33
1.64 1.64
2.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.120
22-25-28-30 (775-880-990-1,060)
0 (direct blow)
Remote controller & built-in
37-40-43-45
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4) PANEL: 30 (1-3/16)
UNIT : 32 (71) PANEL : 5 (11)
—
Service Ref.
Item
Function
Capacity Btu/h
W
W
PUHZ-RP6VHA
PUHZ-RP6VHA1
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP6AA
PLA-RP6AA1
PUHZ-RP6VHA
PUHZ-RP6VHA1
Outdoor unit Service Ref.
NOTE: 1. Rating conditions (ISO T1)
Cooling : Indoor: D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor: D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating : Indoor: D.B. 20:(68˚F) Outdoor: D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35:, W.B. 22.5:D.B. 46:
Lower limit D.B. 19 :, W.B. 15:D.B. -5:
Heating Upper limit D.B. 28:D.B. 21:, W.B. 15:
Lower limit D.B. 17:D.B. -11:, W.B. -12:
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Outdoor unit Single phase 230V 50Hz
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
OC293-B-1.qxp 04.9.29 4:09 PM Page 14

15
Heat pump type (2)
Service Ref.
Item
Function
Capacity Btu/h
W
kW
kW
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP1.6AA
Cooling Heating
15,400 16,900
4,500 4,950
1.72 1.70
PLA-RP1.6AA
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 0.79
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
11-12-13-14(390-425-460-495)
0 (direct blow)
—
Remote controller & built-in
27-28-29-31
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL: 30 (1-3/16)
UNIT : 24 (53)
PUH-P1.6VGAA
PANEL: 5 (11)
Outdoor unit Service Ref.
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
Heating Upper limit D.B. 28˚C D.B. 24˚C, W.B. 18˚C
Lower limit D.B. 17˚C D.B. -11˚C, W.B. -12˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50HzOutdoorunit
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
Service Ref.
Item
Function
Capacity Btu/h
W
kW
kW
A
A
Total input
Service Ref.
Power supply (phase, cycle,voltage)
Input
Running current
Starting current
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP2AA
Cooling Heating
19,100 21,700
5,600 6,350
2.53 2.20
PLA-RP2AA
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 0.79
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
14-15-16-18(495-530-565-635)
0 (direct blow)
—
Remote controller & built-in
28-29-31-33
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL : 30 (1-3/16)
UNIT : 24 (53) PANEL : 5 (11)
PUH-P2VGAA
Outdoor unit Service Ref.
OC293-B-1.qxp 04.9.29 4:09 PM Page 15

Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
A
A
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP3AA
PLA-RP3AA1
Cooling Heating
26,300 31,400
7,700 9,200
3.42 3.48
PLA-RP3AA
PLA-RP3AA1
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 079
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
15-16-18-20 (530-565-635-705)
0 (direct blow)
—
Remote controller & built-in
28-30-32-34
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL: 30 (1-3/16)
UNIT : 24 (53)
PUH-P3VGAA / PUH-P3YGAA
PANEL: 5 (11)
Outdoor unit Service Ref.
16
Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
A
A
Airflow (Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP2.5AA
Cooling Heating
22,900 24,900
6,700 7,300
2.57 2.40
PLA-RP2.5AA
Single phase, 50Hz, 220-230-240V
0.16
0.79
1.0
0.16
0.79
1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
14-15-16-18(495-530-565-635)
0 (direct blow)
—
Remote controller & built-in
28-29-31-33
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL: 950 (37-3/8)
UNIT : 258 (10-3/16) PANEL: 30 (1-3/16)
UNIT : 24 (53)
PUH-P2.5VGAA
PANEL: 5 (11)
Outdoor unit Service Ref.
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
Heating Upper limit D.B. 28˚C D.B. 24˚C, W.B. 18˚C
Lower limit D.B. 17˚C D.B. -11˚C, W.B. -12˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50HzOutdoorunit
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
OC293-B-1.qxp 04.9.29 4:09 PM Page 16

17
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
Heating Upper limit D.B. 28˚C D.B. 24˚C, W.B. 18˚C
Lower limit D.B. 17˚C D.B. -11˚C, W.B. -12˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
3 phase 400V 50HzOutdoorunit
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
Service Ref.
Item
Function
Capacity Btu/h
W
kW
kW
A
A
Total input
Service Ref.
Power supply (phase, cycle,voltage)
Input
Running current
Starting current
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP4AA
PLA-RP4AA1
Cooling Heating
32,800 35,800
9,600 10,500
3.68 3.91
PLA-RP4AA
PLA-RP4AA1
Single phase, 50Hz, 220-230-240V
0.25 0.25
1.25 1.25
2.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.120
20-23-26-28 (705-810-920-990)
0 (direct blow)
—
Remote controller & built-in
33-36-39-41
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4) PANEL: 30 (1-3/16)
UNIT : 30 (66) PANEL : 5 (11)
PUH-P4YGAA
Outdoor unit Service Ref.
Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
A
A
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP5AA1
Cooling Heating
45,400 53,200
13,300 15,600
5.09 5.54
PLA-RP5AA1
Single phase, 50Hz, 220-230-240V
0.33 0.33
1.64 1.64
2.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.120
22-25-28-30 (775-880-990-1,060)
0 (direct blow)
Remote controller & built-in
37-40-43-45
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4) PANEL: 30 (1-3/16)
UNIT : 32 (71) PANEL : 5 (11)
PUH-P5YGAA
PUH-P5YGAA1
—
Outdoor unit Service Ref.
OC293-B-1.qxp 04.9.29 4:09 PM Page 17

18
NOTE: 1. Rating conditions (ISO T1)
Cooling : Indoor: D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor: D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating : Indoor: D.B. 20:(68˚F) Outdoor: D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range Indoor Outdoor
Cooling Upper limit D.B. 35:, W.B. 22.5:D.B. 46:
Lower limit D.B. 19 :, W.B. 15:D.B. -5:
Heating Upper limit D.B. 28:D.B. 24 :, W.B. 18:
Lower limit D.B. 17:D.B. -11:, W.B. -12:
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Outdoor unit 3 phase 400V 50Hz
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
Service Ref.
Item
Function
Capacity Btu/h
W
Total input
Service Ref.
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
kW
kW
A
A
A
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Weight kg (lbs.)
PLA-RP6AA
PLA-RP6AA1
Cooling Heating
48,500 58,000
14,200 17,000
5.90 6.35
PLA-RP6AA
PLA-RP6AA1
Single phase, 50Hz, 220-230-240V
0.33 0.33
1.64 1.64
2.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.120
22-25-28-30 (775-880-990-1,060)
0 (direct blow)
Remote controller & built-in
37-40-43-45
32 (1-1/4)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16) PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4) PANEL: 30 (1-3/16)
UNIT : 32 (71) PANEL : 5 (11)
PUH-P6YGAA
PUH-P6YGAA1
—
Outdoor unit Service Ref.
OC293-B-1.qxp 04.9.29 4:09 PM Page 18

19
Cooling only type (3)
NOTE: 1. Rating conditions (ISO T1)
Cooling : Indoor: D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Outdoor unit Single phase 230V 50Hz
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
Weight kg (lbs.)
Service Ref.
Item
Function
Capacity Btu/h
W
Total input kW
Service Ref.
Power supply (phase, cycle, voltage)
Input kW
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
Airflow (Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
PLA-RP2.5AA
Cooling
22,900
6,700
2.57
PLA-RP2.5AA
Single phase, 50Hz, 220-230-240V
0.16
0.79
1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070
14-15-16-18 (495-530-565-635)
0 (direct blow)
—
Remote controller & built-in
28-29-31-33
32 (1-1/4)
Outdoor unit Service Ref. PU-P2.5VGAA
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 258 (10-3/16), PANEL : 30 (1-3/16)
UNIT : 24 (53), PANEL : 5 (11)
Weight kg (lbs.)
Service Ref.
Item
Function
Capacity Btu/h
W
Total input kW
Service Ref.
Power supply (phase, cycle, voltage)
Input kW
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
Airflow (Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Cooling
15,400 19,100
4,500 5,600
1.72 2.53
PLA-RP1.6AA PLA-RP2AA
Single phase, 50Hz, 220-230-240V
0.16 0.16
0.79 0.79
1.0 1.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070 0.070
11-12-13-14 (390-425-460-495) 14-15-16-18 (495-530-565-635)
0 (direct blow)
—
Remote controller & built-in
27-28-29-31 28-29-31-33
32 (1-1/4)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 258 (10-3/16), PANEL : 30 (1-3/16)
UNIT : 24 (53), PANEL : 5 (11)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 258 (10-3/16), PANEL : 30 (1-3/16)
UNIT : 24 (53), PANEL : 5 (11)
PU-P1.6VGAA PU-P2VGAA
PLA-RP1.6AA PLA-RP2AA
Outdoor unit Service Ref.
OC293-B-1.qxp 04.9.29 4:09 PM Page 19

20
NOTE: 1. Rating conditions (ISO T1)
Cooling : Indoor: D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Outdoor unit Single phase 230V 50Hz, 3 phase 230V 50Hz
3. Guaranteed voltage
198~264V, 50Hz
5. Refer to the service manual of outdoor unit for tha outdoor
unit's specifications.
Weight kg (lbs.)
Service Ref.
Item
Function
Capacity Btu/h
W
Total input kW
Service Ref.
Power supply (phase, cycle, voltage)
Input kW
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
Airflow (Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level (Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
PLA-RP5AA1PLA-RP6AA
PLA-RP6AA1
Cooling
45,400 48,500
13,300 14,200
5.09 5.90
PLA-RP5AA1PLA-RP6AA1
PLA-RP6AA
Single phase, 50Hz, 220-230-240V
0.33 0.33
1.64 1.64
2.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.120
22-25-28-30 (775-880-990-1,060)
0 (direct blow)
—
Remote controller & built-in
37-40-43-45
32 (1-1/4)
PU-P5YGAA PU-P6YGAA
Outdoor unit Service Ref.
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4), PANEL : 30 (1-3/16)
UNIT : 32 (71), PANEL : 5 (11)
Weight kg (lbs.)
Service Ref.
Item
Function
Capacity Btu/h
W
Total input kW
Service Ref.
Power supply (phase, cycle, voltage)
Input kW
Running current A
Starting current A
External finish (Panel)
Heat exchanger
Fan
Fan (drive) oNo.
Fan motor output kW
Airflow
(Low-Medium2-Medium1-High) K/ min (CFM)
External static pressure Pa (mmAq)
Booster heater kW
Operation control & Thermostat
Sound level
(Low-Medium2-Medium1-High) dB
Unit drain pipe I.D. mm (in.)
Dimensions
Indoor unit
W mm (in.)
D mm (in.)
H mm (in.)
Cooling
26,300 32,800
7,700 9,600
3.42 3.68
PLA-RP3AA
1 PLA-RP4AA 1
PLA-RP3AA PLA-RP4AA
Single phase, 50Hz, 220-230-240V
0.16 0.25
0.79 1.25
1.0 2.0
Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) o1
0.070 0.120
15-16-18-20 (530-565-635-705) 20-23-26-28 (705-810-920-990)
0 (direct blow)
—
Remote controller & built-in
28-30-32-34 33-36-39-41
32 (1-1/4)
PU-P3VGAA / PU-P3YGAA PU-P4YGAA
PLA-RP3AA 1
PLA-RP3AA PLA-RP4AA
1
PLA-RP4AA
Outdoor unit Service Ref.
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 258 (10-3/16), PANEL : 30 (1-3/16)
UNIT : 24 (53), PANEL : 5 (11)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 840 (33-1/16), PANEL : 950 (37-3/8)
UNIT : 298 (11-3/4), PANEL : 30 (1-3/16)
UNIT : 30 (66), PANEL : 5 (11)
OC293-B-1.qxp 04.9.29 4:09 PM Page 20
