Mitsubishi Electric PU-P3VGAAPUH-P3YGAA PU-P3YGAAPUH-P4VGAA PU-P4VGAAPUH-P4YGAA PU-P4YGAAPUH-P5YGAA PU-P5YGAAPUH-P6YGAA... Operating manual

TECHNICAL & SERVICE MANUAL
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SPLIT-TYPE, AIR CONDITIONERS
CONTENTS
1. TECHNICAL CHANGES·································3
2. SAFETY PRECAUTION··································4
3. COMBINATION OF INDOOR AND OUTDOOR UNITS ···6
4. PART NAMES AND FUNCTIONS··················7
5. SPECIFICATIONS···········································8
6. DATA·····························································15

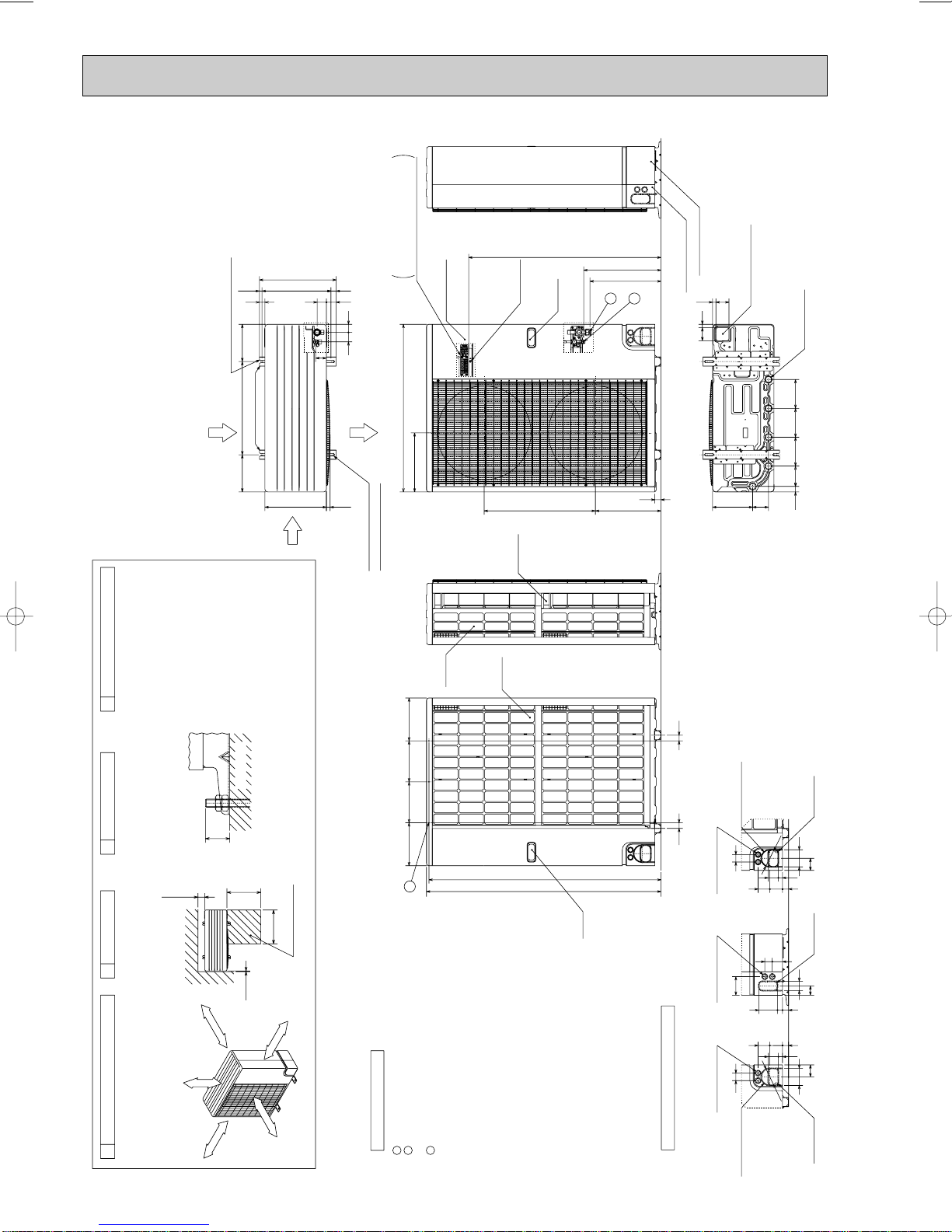

7. OUTLINES AND DIMENSIONS····················18
8. WIRING DIAGRAM·······································22
9. WIRING SPECIFICATIONS··························26
10. REFRIGERANT SYSTEM DIAGRAM ··············27
11. TROUBLESHOOTING···································31
12. DISASSEMBLY PROCEDURE ·····················36
13. PARTS LIST··················································40
14. OPTIONAL PARTS························Back Cover
Outdoor unit
[model names]
PUH-P1VGAA
PUH-P1.6VGAA PU-P1.6VGAA
PUH-P1.6YGAA PU-P1.6YGAA
PUH-P2VGAA PU-P2VGAA
PUH-P2YGAA PU-P2YGAA
PUH-P2.5VGAA PU-P2.5VGAA
PUH-P2.5YGAA PU-P2.5YGAA
PUH-P3VGAA PU-P3VGAA
PUH-P3YGAA PU-P3YGAA
PUH-P4VGAA PU-P4VGAA
PUH-P4YGAA PU-P4YGAA
PUH-P5YGAA PU-P5YGAA
PUH-P6YGAA PU-P6YGAA
No.OC261
REVISED EDITION-B
R407C
Service Ref. is on page 2.
Revision:
• [PUH-5, 6YGAA1.UK PU-5, 6YGAA1.UK]
TECHNICAL CHANGES, SPECIFICATIONS,
DATA and PARTS LIST have been partially
modified.
COMPRESSOR CONVERSION KIT(TFD-230)
has been added to the PARTS LIST(page 69).
• Please void OC261 REVISED EDITION-A.
Model name indication
OC261-B--1.qxp 03.2.19 3:07 PM Page 1

2
[Service Ref.]
PUH-P1VGAA.UK
PUH-P1.6VGAA.UK PU-P1.6VGAA.UK
PUH-P1.6YGAA.UK PU-P1.6YGAA.UK
PUH-P2VGAA.UK PU-P2VGAA.UK
PUH-P2YGAA.UK PU-P2YGAA.UK
PUH-P2.5VGAA.UK PU-P2.5VGAA.UK
PUH-P2.5YGAA.UK PU-P2.5YGAA.UK
PUH-P3VGAA.UK PU-P3VGAA.UK
PUH-P3YGAA.UK PU-P3YGAA.UK
PUH-P4VGAA.UK PU-P4VGAA.UK
PUH-P4YGAA.UK PU-P4YGAA.UK
PUH-P5YGAA.UK PU-P5YGAA.UK
PUH-P6YGAA.UK PU-P6YGAA.UK
PUH-P1VGAA1.UK
PUH-P1.6VGAA1.UK PU-P1.6VGAA1.UK
PUH-P1.6YGAA1.UK PU-P1.6YGAA1.UK
PUH-P2VGAA1.UK PU-P2VGAA1.UK
PUH-P2YGAA1.UK PU-P2YGAA1.UK
PUH-P2.5VGAA1.UK PU-P2.5VGAA1.UK
PUH-P2.5YGAA1.UK PU-P2.5YGAA1.UK
PUH-P3VGAA1.UK PU-P3VGAA1.UK
PUH-P3YGAA1.UK PU-P3YGAA1.UK
PUH-P4VGAA1.UK PU-P4VGAA1.UK
PUH-P4YGAA1.UK PU-P4YGAA1.UK
PUH-P5YGAA1.UK PU-P5YGAA1.UK
PUH-P6YGAA1.UK PU-P6YGAA1.UK
OC261-B--1.qxp 03.2.19 3:07 PM Page 2

3
1 TECHNICAL CHANGES
(REVISED EDITION-A)
PUH-P1, 1.6, 2, 2.5, 3, 4VGAA.UK ➔PUH-P1, 1.6, 2, 2.5, 3, 4VGAA1.UK
PUH-P1.6, 2, 2.5, 3, 4YGAA.UK ➔PUH-P1.6, 2, 2.5, 3, 4YGAA1.UK
PU-P1.6, 2, 2.5, 3, 4VGAA.UK ➔PU-P1.6, 2, 2.5, 3, 4VGAA1.UK
PU-P1.6, 2, 2.5, 3, 4YGAA.UK ➔PU-P1.6, 2, 2.5, 3, 4YGAA1.UK
● Strainer (#50) for stop valve of liquid pipe side and Filter Drier are not used.
(REVISED EDITION-A)
PUH-P1, 1.6, 2, 2.5, 3, 4VGAA.UK ➔PUH-P1, 1.6, 2, 2.5, 3, 4VGAA1.UK
PUH-P1.6, 2, 2.5, 3, 4, 5, 6YGAA.UK ➔PUH-P1.6, 2, 2.5, 3, 4, 5, 6YGAA1.UK
PU-P1.6, 2, 2.5, 3, 4VGAA.UK ➔PU-P1.6, 2, 2.5, 3, 4VGAA1.UK
PU-P1.6, 2, 2.5, 3, 4, 5, 6YGAA.UK ➔PU-P1.6, 2, 2.5, 3, 4, 5, 6YGAA1.UK
●Microcomputer of Outdoor Controller Board has changed since Filter Drier is not used.
(The limit of discharging temperature has been added.)
(REVISED EDITION-A)
PUH-P5YGAA.UK ➔PUH-P5YGAA1.UK
● The method of connecting the Compressor’s terminals has changed from Faston type to
Screw type.
(REVISED EDITION-B)
PUH-P5YGAA1.UK PUH-P6YGAA1.UK
PU-P5YGAA1.UK PU-P6YGAA1.UK
● Compressor has changed due to the change in refrigerant oil.
Refrigerant oil : 3MA-POE ➔3MAW-POE
Compressor model : ZR61KCE-TFD-522 ➔ZR61KCW-TFD-522
ZR72KCE-TFD-522 ➔ZR72KCW-TFD-522
OC261-B--1.qxp 03.2.19 3:07 PM Page 3

4
2SAFETY PRECAUTION
Cautions for using with the outdoor unit which adopts R407C refrigerant.
· Do not use the existing refrigerant piping.
-The old refrigerant and refrigerant oil in the existing piping contains a large amount of chlorine which may cause the refriger-
ant oil of the new unit to deteriorate.
· Do not use copper pipes which are broken, deformed or discolour .
In addition, be sure that the inner surfaces of the pipes are clean, free of hazardous sulphur and oxides, or have no dust /
dirt, shaving particles, oils, moisture or any other contamination.
-If there is a large amount of residual oil (hydraulic oil, etc.) inside the piping and joints, deterioration of the refrigerant oil will
result.
· Store the piping to be used during installation indoors and keep both ends of the piping sealed until just before
brazing. (Store elbows and other joints in a plastic bag.)
-If dust, dirt, or water enters the refrigerant cycle, deterioration of the oil and compressor trouble may result.
· Use ester oil, ether oil or alkyl benzene (small amount) as the refrigerant oil to coat flares and flange connections.
-The refrigerant oil will degrade if it is mixed with a large amount of mineral oil.
Use liquid refrigerant to fill the system.
-If gas refrigerant is used to fill the system, the composition of the refrigerant in the cylinder will change and performance
may drop.
· Do not use a refrigerant other than R407C.
-If another refrigerant (R22, etc.) is used, the chlorine in the refrigerant may cause the refrigerant oil to deteriorate.
· Use a vacuum pump with a reverse flow check valve.
-The vacuum pump oil may flow back into the refrigerant cycle and cause the refrigerant oil to deteriorate.
· Do not use the following tools that are used with conventional refrigerant.
(Gauge manifold , charge hose, gas leak detector, reverse flow check valve, refrigerant charge base, vacuum gauge,
refrigerant recovery equipment)
-If the conventional refrigerant and refrigerant oil are mixed in the R407C, the refrigerant may deteriorated.
-If water is mixed in the R407C, the refrigerant oil may deteriorate.
-Since R407C does not contain any chlorine, gas leak detectors for conventional refrigerant will not react to it.
· Do not use a charging cylinder.
-Using a charging cylinder may cause the refrigerant to deteriorate.
· Be especially careful when managing the tools.
-if dust, dirt, or water gets in the refrigerant cycle, the refrigerant may deteriorate.
· Do not use the drier which is sold in the field.
-The drier for R407C refrigerant is pre-attached to outdoor unit refrigerant circuit.
-Some drier in the field are not in conformity with R407C refrigerant.
OC261-B--1.qxp 03.2.19 3:07 PM Page 4

5
[3] Refrigerant recharging
(1) Refrigerant recharging process
1Direct charging from the cylinder.
·R407C cylinder are available on the market has a syphon pipe.
·Leave the syphon pipe cylinder standing and recharge it.
(By liquid refrigerant)
(2) Recharge in refrigerant leakage case
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release the refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
Gravimeter
Unit
[1] Service tools
Use the below service tools as exclusive tools for R407C refrigerant.
No. Tool name Specifications
1Gauge manifold ·Only for R407C.
·Use the existing fitting SPECIFICATIONS. (UNF7/16)
·Use high-tension side pressure of 3.43MPa·G or over.
2Charge hose ·Only for R407C.
·Use pressure performance of 5.10MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R407C.
5Adapter for reverse flow check. ·Attach on vacuum pump.
6Refrigerant charge base.
7Refrigerant cylinder. ·For R407C ·Top of cylinder (Brown)
·Cylinder with syphon
8Refrigerant recovery equipment.
[2] Notice on repair
·After recovering the all refrigerant in the unit, perform repair work.
·Do not release refrigerant in the air.
·After completing the repair work, recharge the specified amount of liquid refrigerant.
OC261-B--1.qxp 03.2.19 3:07 PM Page 5

6
3COMBINATION OF INDOOR AND OUTDOOR UNITS
Heat pump type Outdoor unit
PUH-P • GAA.UK
PUH-P • GAA1.UK
Cooling only type
PU-P • GAA.UK
PU-P • GAA1.UK
PEHD-P·EAH
PCH-P·GAH 1
PKH-P·GALH 1
PKH-P·FALH 2
PSH-P·GAH 1
PLH-P·KAH 1 .UK
PLH-P·AAH 1 .UK
PEAD-P·EA
PCA-P·GA 1
PKA-P·GAL 1
PKA-P·FAL 2
PSA-P·GA 1
PLA-P · KA 1 .UK
PLA-P · AA 1 .UK
PMH-P·BA 1
PMH-P·BA 2
PCA-P·HA
MEE 01K048
OC182
OC176
OC175
OC212
OC235
OC236
MEE 01K048
OC182
OC176
OC175
OC212
OC240
OC241
OC238
OC279
OC289
Y
—
—
—
—
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
V
—
—
—
—
—
—
V
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
Indoor unit
1.6Service
Manual No.
Service Ref. 2 2.5 3 4 5 6 1.6 2 2.5 3 4 5 6
Heat pump with electric heater
Heat pump without electric heater or Cooling only
REVISED
EDITION-B
REVISED
EDITION-B
REVISED
EDITION-B
REVISED
EDITION-B
REVISED
EDITION-A
REVISED
EDITION-A
REVISED
EDITION-A
REVISED
EDITION-B
REVISED
EDITION-B
REVISED
EDITION-B
REVISED
EDITION-A
REVISED
EDITION-A
REVISED
EDITION-A
1
V
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
—
—
—
—
—
—
V
—
—
—
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Y
—
—
—
—
—
—
—
—
—
—
—
—
—
OC261-B--1.qxp 03.2.19 3:07 PM Page 6

7
4PART NAMES AND FUNCTIONS
CHARGELESS SYSTEM
PRE-CHARGED REFRIGERANT IS SUPPLIED FOR PIPING LENGTH AT SHIPMENT.
(Max.20m(PU(H)-P1~P2.5) / 30m(PU(H)-P3~P6))
The refrigerant circuit with LEV(Linear Expansion Valve) and a large accumulator always control the optimal refrigerant
level regardless of the length (20/30m max. and 5m min.) of piping. The additional refrigerant charging work during
installation often causes problems. Heretofore it is completely eliminated. This unique system improves the quality
and reliability of the work done.It also helps to speed up the installation time.
Air intake
Air outlet
(Expels warm air during cooling)
Air intake
Air outlet
Air intake Air outlet
Air intake
Air outlet
PUH-P1VGAA.UK
PU(H)-P1.6VGAA.UK
PU(H)-P1.6YGAA.UK
PUH-P1VGAA1.UK
PU(H)-P1.6VGAA1.UK
PU(H)-P1.6YGAA1.UK
PU(H)-P2VGAA.UK PU(H)-P2YGAA.UK
PU(H)-P2.5VGAA.UK PU(H)-P2.5YGAA.UK
PU(H)-P3VGAA.UK PU(H)-P3YGAA.UK
PU(H)-P2VGAA1.UK PU(H)-P2YGAA1.UK
PU(H)-P2.5VGAA1.UK PU(H)-P2.5YGAA1.UK
PU(H)-P3VGAA1.UK PU(H)-P3YGAA1.UK
PU(H)-P4VGAA.UK
PU(H)-P4YGAA.UK
PU(H)-P4VGAA1.UK
PU(H)-P4YGAA1.UK
PU(H)-P5YGAA.UK
PU(H)-P6YGAA.UK
PU(H)-P5YGAA1.UK
PU(H)-P6YGAA1.UK
OC261-B--1.qxp 03.2.19 3:07 PM Page 7

8
5 SPECIFICATIONS
kW
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C(66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C(75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C(43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
Service Ref. PUH-P1VGAA.UK
PUH-P1VGAA1.UK PUH-P1.6VGAA / YGAA.UK
PUH-P1.6VGAA1/ YGAA1.UK
Cooling
1.11
4.92
Single,50Hz,220-230-240V
30
RE189VHSMT
0.9
45(1,590)
46
48
50(110)
1.7(3.8)
6.35(1/4)
12.7(1/2)
Max. 30m
Max. 30m
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
30
Plate fin coil
Propeller (direct) o1
0.07
Reverse cycle
900(35-7/16)
330+20(13+3/4)
650(25-5/8)
R407C
0.57(Ester)MEL56
Flared
Flared
Heating
1.02
4.52
Cooling
1.59
7.36 / 2.49
Single,50Hz,220-230-240V / 3-ph,50Hz,380-400-415V
36/20
RE277VHSMT/RE277YFKM
1.3
45(1,590)
47
49
55(121)
2.5(5.5)
9.52(3/8)
15.88(5/8)
Max. 40m
Max. 40m
Heating
1.64
7.59 / 2.56
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
Internal thermostat
HP switch
Discharge thermo
1. Heat pump
OC261-B--1.qxp 03.2.19 3:07 PM Page 8

9
kW
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C(66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C(75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C(43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
Service Ref. PUH-P2VGAA / YGAA.UK
PUH-P2VGAA1/ YGAA1.UK PUH-P2.5VGAA / YGAA.UK
PUH-P2.5VGAA1/ YGAA1.UK
Cooling
2.29
10.26 / 3.70 62 / 31
NE36VMJMT / NE36YEKMT
1.6
55(1,940)
49
71(157)
2.6(5.7)
Max. 40m
Max. 40m
Single, 50Hz, 220-230-240V/3-ph, 50Hz, 380-400-415V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
38
Plate fin coil
Propeller (direct) o1
0.07
Reverse cycle
48
900(35-7/16)
330+20(13+3/4)
855(33-5/8)
R407C
1.2 (Ester)MEL56
9.52(3/8)
15.88(5/8)
Flared
Flared
Heating
2.36
10.57 / 3.82
Cooling
2.77
11.90 / 4.48 77 / 35
NE41VMJMT / NE41YEKMT
1.9
50(1,770)
50
82(181)
3.1(6.8)
Max. 50m
Max. 50m
Heating
2.68
11.51 / 4.34
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
OC261-B--1.qxp 03.2.19 3:07 PM Page 9

10
kW
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C(66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C(75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C(43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
Service Ref. PUH-P4VGAA / YGAA.UK
PUH-P4VGAA1/ YGAA1.UK
PUH-P3VGAA / YGAA.UK
PUH-P3VGAA1/ YGAA1.UK
Cooling
3.27
14.81 / 5.29 93 / 47
NE52VNJMT / NE52YDKMT
2.5
Propeller (direct) o1
0.07
50(1,770)
49
51
855(33-5/8)
82(181)
3.3(7.3)
15.88(5/8)
Single, 50Hz, 220-230-240V/3-ph, 50Hz, 380-400-415V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
38
Plate fin coil
Reverse cycle
900(35-7/16)
330+20(13+3/4)
R407C
1.3 (Ester)MEL56
9.52(3/8)
Flared
Flared
Max. 50m
Max. 50m
Heating
3.48
15.76 / 5.63
Cooling
3.43
15.71 / 5.55 99 / 49
NE56VNJMT / NE56YDKMT
2.7
Propeller (direct) o2
0.07+0.07
85(3,000)
51
53
1,260(49-5/8)
96(212)
4.0(8.8)
19.05(3/4)
Heating
3.62
16.58 / 5.86
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
OC261-B--1.qxp 03.2.19 3:07 PM Page 10

11
kW
A
A
kW
W
kW
K
/min(CFM )
dB(A)
dB(A)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating :Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
Service Ref. PUH-P5YGAA.UK
PUH-P5YGAA1.UK Cooling
5.58
9.03 74
ZR72KCW-TFD-522
4.2
100(3,530)
57
58
4.9(10.8)
1.774 (Ester) 3MAW-POE
3-ph, 50Hz, 380-400-415V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
Internal thermostat, thermal relay, HP switch, Discharge thermo
38
Plate fin coil
Propeller (direct) o2
0.07 +0.07
Reverse cycle
1,050(41-5/16)
330+20(13+3/4)
1,260(49-5/8)
122(269)
R407C
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Heating
5.91
9.56
Cooling
4.70
7.60 65.5
ZR61KCE-TFD-230 (YGAA.UK)
ZR61KCW-TFD-522 (YGAA1.UK)
3.5
95(3,360)
55
56
4.6(10.1)
1.690 (Ester) 3MAW-POE
Heating
5.04
8.15
PUH-P6YGAA.UK
PUH-P6YGAA1.UK
OC261-B--1.qxp 03.2.19 3:07 PM Page 11

12
kW
A
A
kW
W
kW
K
/min(CFM )
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz / 3phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
Cooling
Service Ref.
PU-P1.6VGAA / YGAA.UK
PU-P1.6VGAA1/ YGAA1.UK
PU-P2VGAA / YGAA.UK
PU-P2VGAA 1 / YGAA 1 .UK
PU-P2.5VGAA / YGAA.UK
PU-P2.5VGAA1/ YGAA1.UK
Cooling
1.59
7.36 / 2.49
36 / 20
RE277VHSMT/RE277YFKM
1.3
30
45(1,590)
47
650(25-5/8)
55(121)
2.5(5.5)
0.57 (Ester)MEL56
Single, 50Hz, 220-230-240V / 3-ph, 50Hz, 380-400-415V(4wires)
2.29
10.26 / 3.70
62 / 31
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
NE36VMJMT/NE36YEKMT
1.6
Line start
Internal thermostat, HP switch, Discharge thermo / Thermal relay,Discharge thermo,HP switch
Plate fin coil
Propeller (direct) o1
0.07
55(1,940)
—
900(35-7/16)
330+20(13+3/4)
71(157)
R407C
2.6(5.7)
9.52(3/8)
15.88(5/8)
Flared
Flared
Cooling
38
48
855(33-5/8)
1.2 (Ester)MEL56
2.77
11.90 / 4.48
77 / 35
NE41VMJMT/NE41YEKMT
1.9
50(1,770)
82(181)
3.1(6.8)
Max. 50m
Max. 50m
Cooling
Max. 40m
Max. 40m
2. Cooling only type
OC261-B--1.qxp 03.2.19 3:07 PM Page 12

13
kW
A
A
kW
W
kW
K
/min(CFM )
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C(66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C(75˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 1 phase 240V 50Hz/3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35˚C , W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
Cooling
Service Ref. PU-P3VGAA / YGAA.UK
PU-P3VGAA
1 / YGAA1.UK PU-P4VGAA / YGAA.UK PU-P4VGAA 1 / YGAA1.UK
Cooling
3.27
14.81 / 5.29
93 / 47
NE52VNJMT / NE52YDKMT
2.5
Propeller (direct) o1
0.07
50(1,770)
49
855(33-5/8)
82(181)
3.3(7.3)
15.88(5/8)
Single, 50Hz, 220-230-240V/3-ph, 50Hz, 380-400-415V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
38
Plate fin coil
—
900(35-7/16)
330+20(13+3/4)
R407C
1.3 (Ester)MEL56
9.52(3/8)
Flared
Flared
Max. 50m
Max. 50m
Cooling
3.43
15.71 / 5.55
99 / 49
NE56VNJMT / NE56YDKMT
2.7
Propeller (direct) o2
0.07+0.07
85(3,000)
51
1,260(49-5/8)
96(212)
4.0(8.8)
19.05(3/4)
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
OC261-B--1.qxp 03.2.19 3:07 PM Page 13

14
kW
A
A
kW
W
kW
K
/min(CFM )
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Power supply (phase, cycle, voltage)
Input
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Notes1.Rating Conditions (ISO T1)
Cooling :Indoor : D.B. 27˚C(80˚F), W.B. 19˚C(66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C(75˚F)
Refrigerant piping length (one way) : 5m (16ft)
3. Above data based on indicated voltage
Indoor Unit 1 phase 240V 50Hz
Outdoor Unit 3 phase 415V 50Hz
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35˚C , W.B.22.5˚C
D.B. 19˚C, W.B. 15˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
Cooling
Service Ref. PU-P5YGAA.UK
PU-P5YGAA1.UK PU-P6YGAA.UK
PU-P6YGAA1.UK
Cooling
5.58
9.03
74
ZR72KCW-TFD-522
4.2
100(3,530)
57
4.9(10.8)
1.774 3MAW-POE
3-ph, 50Hz, 380-400-415V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
Internal thermostat, thermal relay, HP switch, Discharge thermo
38
Plate fin coil
Propeller (direct) o2
0.07+0.07
—
1,050(41-5/16)
330+20(13+3/4)
1,260(49-5/8)
122(269)
R407C
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Cooling
4.70
7.60
65.5
ZR61KCE-TFD-230 (YGAA.UK)
ZR61KCW-TFD-522 (YGAA1.UK)
3.5
95(3,360)
55
4.6(10.1)
1.690 3MAW-POE
OC261-B--1.qxp 03.2.19 3:07 PM Page 14

15
6DATA
1. REFILLING REFRIGERANT CHARGE (R407C : kg)
2. COMPRESSOR TECHNICAL DATA
Piping length (one way)
10m 20m 30m 40m 50m Factory
charged
1.6
2.4
2.4
2.5
2.5
2.9
2.9
2.9
2.9
3.4
3.4
4.0
4.3
1.7
2.5
2.5
2.6
2.6
3.1
3.1
3.1
3.1
3.7
3.7
4.3
4.6
1.8
2.6
2.6
3.1
3.1
3.3
3.3
3.3
3.3
4.0
4.0
4.6
4.9
—
3.0
3.0
3.7
3.7
3.9
3.9
3.9
3.9
4.7
4.7
5.3
5.6
—
—
—
—
—
4.5
4.5
4.5
4.5
5.4
5.4
6.0
6.3
1.7
2.5
2.5
2.6
2.6
3.1
3.1
3.3
3.3
4.0
4.0
4.6
4.9
Service Ref.
PUH-P1VGAA(1).UK
PUH-P1.6VGAA(1).UK
PU-P1.6VGAA(1).UK
PUH-P1.6YGAA(1).UK
PU-P1.6YGAA(1).UK
PUH-P2VGAA(1).UK
PU-P2VGAA(1).UK
PUH-P2YGAA(1).UK
PU-P2YGAA(1).UK
PUH-P2.5VGAA(1).UK
PU-P2.5VGAA(1).UK
PUH-P2.5YGAA(1).UK
PU-P2.5YGAA(1).UK
PUH-P3VGAA(1).UK
PU-P3VGAA(1).UK
PUH-P3YGAA(1).UK
PU-P3YGAA(1).UK
PUH-P4VGAA(1).UK
PU-P4VGAA(1).UK
PUH-P4YGAA(1).UK
PU-P4YGAA(1).UK
PUH-P5YGAA(1).UK
PU-P5YGAA(1).UK
PUH-P6YGAA(1).UK
PU-P6YGAA(1).UK
Compressor model
Winding
Resistance
( ")
U-V
(R-C)
U-W
(S-C)
W-V
U-V
(R-C)
U-W
(S-C)
W-V
RE277VHSMT RE277YFKM
Unit
PUH-P1.6VGAA(1).UK
PU-P1.6VGA(1).UK PUH-P2VGAA(1).UK
PU-P2VGAA(1).UK
NE36VMJMT
1.80
3.00
—
10.8
10.8
10.8
5.01
5.01
5.01
NE36YEKMT
0.89
2.03
—
Unit
Compressor model
Winding
Resistance
( ")
PUH-P5YGAA(1).UK
PU-P5YGAA(1).UK PUH-P6YGAA(1).UK PU-P6YGAA(1).UK
ZR61KCE-TFD
ZR61KCW-TFD
(at 25°C) (at 25°C)
(at 20°C)
[Except P5, P6]
ZR72KCW-TFD
0.628 ~ 0.722
0.628 ~ 0.722
0.628 ~ 0.722
0.517
0.517
0.517
PUH-P4YGAA(1).UK
PU-P4YGAA(1).UK
NE56YDKMT
3.32
3.32
3.32
PUH-P3VGAA(1).UK
PU-P3VGAA(1).UK
NE52VNJMT
0.64
1.67
—
3.59
3.59
3.59
PUH-P3YGAA(1).UK
PU-P3YGAA(1).UK
PUH-P1VGAA(1).UK
PUH-P1.6YGAA(1).UK
PU-P1.6YGA(1).UK PUH-P2YGAA(1).UK
PU-P2YGAA(1).UK
U-V
(R-C)
U-W
(S-C)
W-V
Unit
Compressor model
Winding
Resistance
( ")
PUH-P2.5VGAA(1).UK
PU-P2.5VGAA(1).UK
NE41VMJMT
PUH-P2.5YGAA(1).UK
PU-P2.5YGAA(1).UK
NE41NEKMT
5.00
5.00
5.00
PUH-P4VGAA(1).UK
PU-P4VGAA(1).UK
NE56VNJMT
0.62
1.59
—
RE189VHSMT
2.79
3.36
—
0.87
2.22
—
NE52YDKMT
This is a dividing line between the ones that
need no refrigerant charge and the ones that
need additional refrigerant charge.
OC261-B--1.qxp 03.2.19 3:07 PM Page 15

16
1m
1m
MICROPHONE UNIT
GROUND

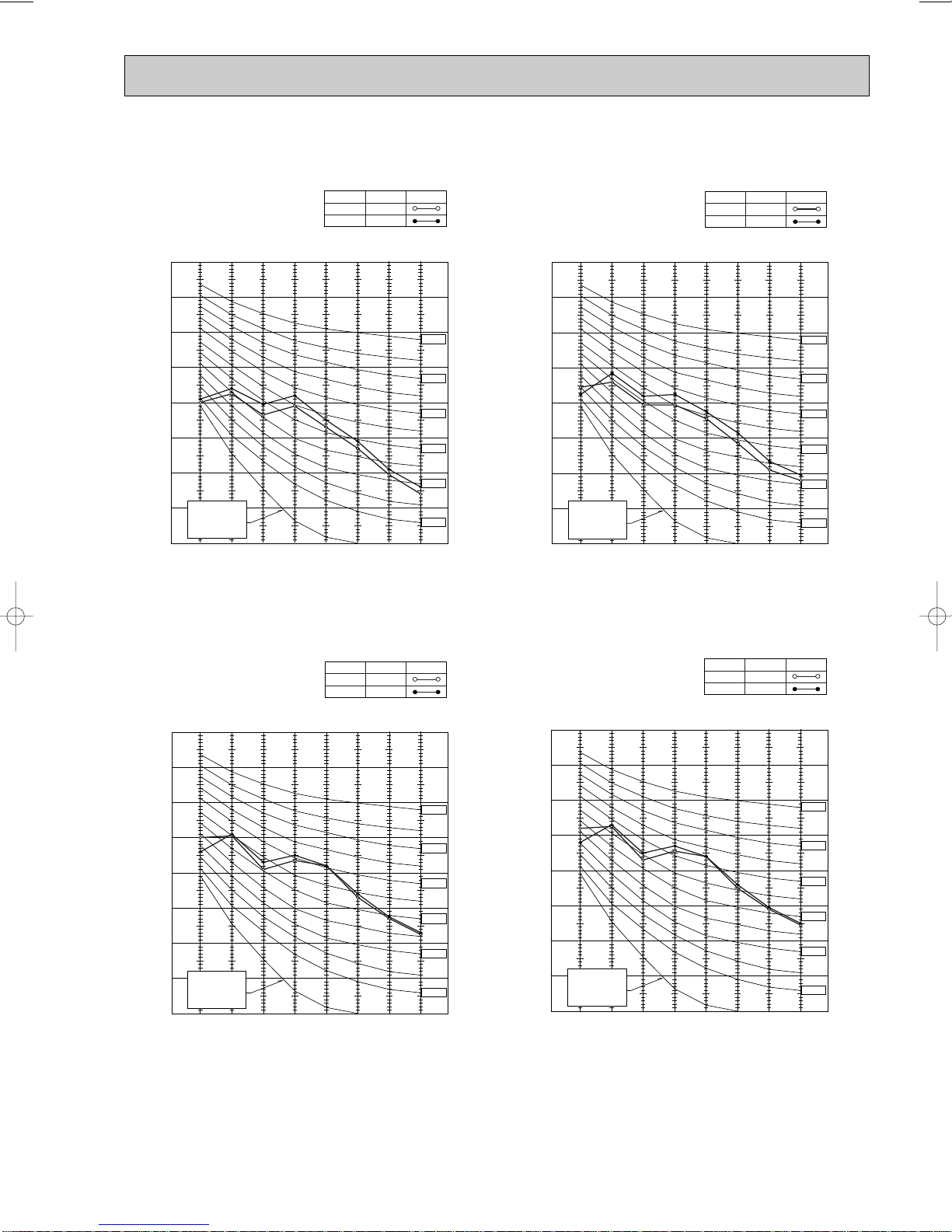

90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
PUH-P1.6VGAA(1).UK
PUH-P1.6YGAA(1).UK
PU-P1.6VGAA(1).UK
PU-P1.6YGAA(1).UK
COOLING
MODE
HEATING
47
SPL(dB)
49
LINE

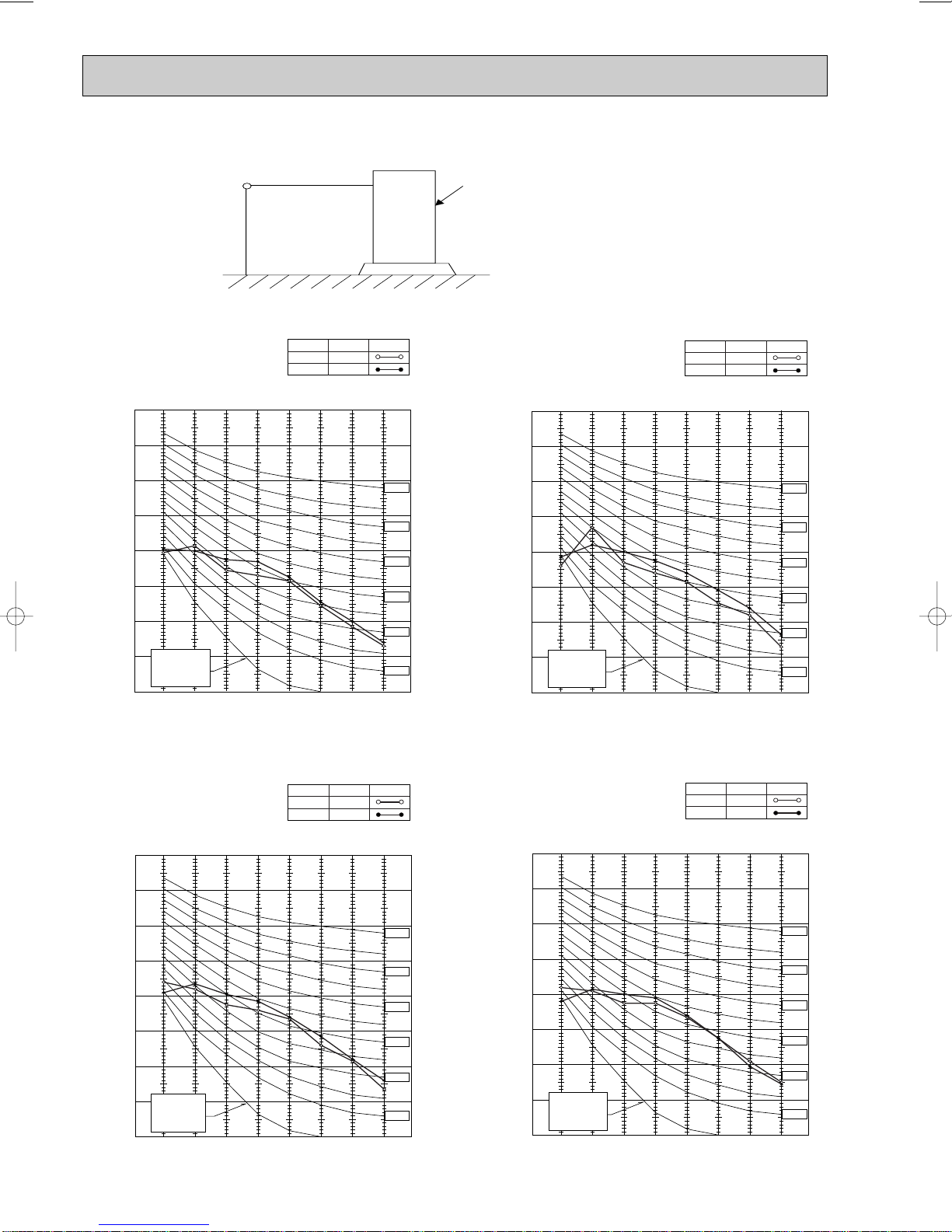

3. NOISE CRITERION CURVES
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
PUH-P2VGAA(1).UK
PUH-P2YGAA(1).UK
PU-P2VGAA(1).UK
PU-P2YGAA(1).UK
48
49
90
80
70
60
50
40
30
20
10
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
63 125 250 500 1000 2000 4000 8000
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
COOLING
MODE
HEATING
SPL(dB) LINE
PUH-P2.5VGAA(1).UK
PUH-P2.5YGAA(1).UK
PU-P2.5VGAA(1).UK
PU-P2.5YGAA(1).UK
48
50
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
PUH-P1VGAA(1).UK
COOLING
MODE
HEATING
46
SPL(dB)
48
LINE
OC261-B--1.qxp 03.2.19 3:07 PM Page 16

17
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
55
56
PUH-P5YGAA(1).UK
PU-P5YGAA(1).UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
57
58
PUH-P6YGAA(1).UK
PU-P6YGAA(1).UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
51
53
PUH-P4VGAA(1).UK
PUH-P4YGAA(1).UK
PU-P4VGAA(1).UK
PU-P4YGAA(1).UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
49
51
PUH-P3VGAA(1).UK
PUH-P3YGAA(1).UK
PU-P3VGAA(1).UK
PU-P3YGAA(1).UK
OC261-B--1.qxp 03.2.19 3:07 PM Page 17

18

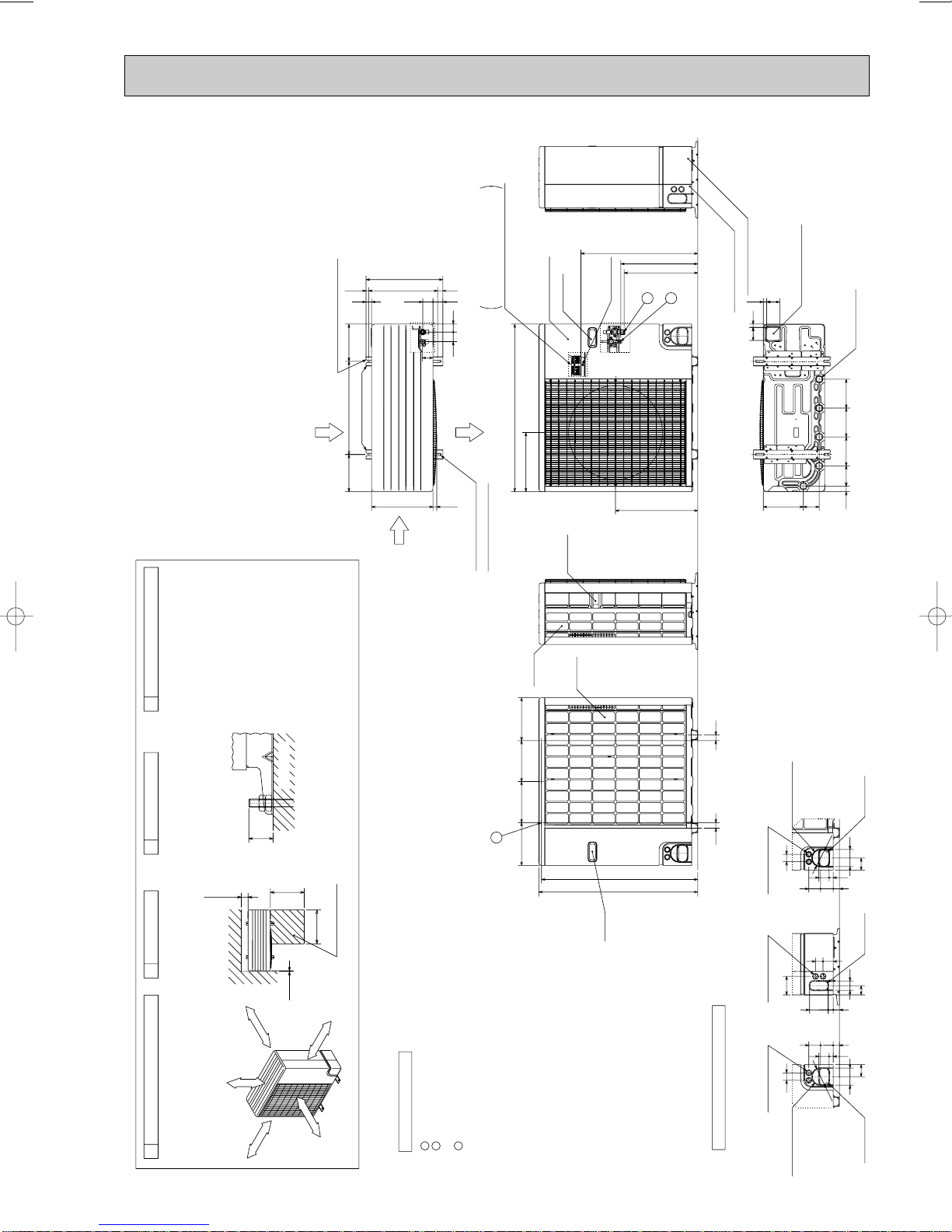

7OUTLINES AND DIMENSIONS
PUH-P1VGAA(1).UK
PUH-P1.6VGAA(1).UK
PUH-P1.6YGAA(1).UK
PU-P1.6VGAA(1).UK
PU-P1.6YGAA(1).UK
321
T
SR
w1 248
w1 196
500
Power Supply Wiring Hole (2-[27Knock-Out)
Right Piping Hole (Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out)
Terminal Connections Left...Power supply Wiring Right..Indoor/Outdoor Wiring
70
70
15515515510930
21585
Bottom Piping Hole (Knock-Out)
Drain Hole (5-[33holes)
18
18
424
900
318 Handle for moving
Earth Point
Service Panel
Front Piping Cover
Rear Piping Cover
1
2
Side Air Intake
200200
53 370 (14)
412
29
330
55
4351
Rear Air Intake
Air Discharge
2-U Shaped notched holes (Foundation Bolt M10)
2-12x40 oval holes (Foundation Bolt M10)
20
28
58
Installation Feet
Rear Air Intake
Side Air Intake
Handle for moving
3
230220220230
637
650
3030
Rear Trunking Hole (Knock-Out)
< Rear Side >
Power Supply Wiring Hole (2-[27Knock-Out)
40
33
22 55
68 63
65 92 Rear Piping Hole
(Knock-Out)
[92
Piping Knock-Out Hole Details
. . Refrigerant GAS pipe connection (FLARE)P1.6V(Y)GAA: [15.88 (5/8F)
. . Refrigerant LIQUID pipe connection (FLARE)P1.6V(Y)GAA: [9.52 (3/8F)
. . Height of STOP VALVE connection location.
1 2
Front Trunking Hole (Knock-Out)
< Right Side >< Front Side >
Explanation of Notes
40
68 63
22 55
65
92
33 27 100
50 50
100
33
[92
Front Piping Hole (Knock-Out)
5540
3. . 3-[3.6 holes (for securing the top of the unit)
These holes are provided for cases where the unit must be secured by the base AND by the top surface. Use Self Tapping screws 5 x L15 or less.(Obtained locally)
w1
. . Refrigerant GAS pipe connection (FLARE)P1VGAA : [12.7 (1/2F)
. . Refrigerant LIQUID pipe connection (FLARE)P1VGAA : [6.35 (1/4F)
1 2
Over 10mm
F R E E
Over 500mm
Less than
30mm
FREE SPACE (Around the Unit)
Piping and wiring connections can be made from 4 directions: Front, Right, Rear and Below.
FOUNDATION BOLTS
1
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
SERVICE SPACE
Dimensions of space needed for service access are shown in the below diagram.
2
Over500
Over500
PIPING-WIRING DIRECTIONS
43
FOUNDATION
<Foundation bolt height>
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally).
Service Space
Over 100mm
Over 10mm
Over10
Over100
Unit : mm
OC261-B--1.qxp 03.2.19 3:07 PM Page 18

19
PUH-P2VGAA(1).UK
PUH-P2YGAA(1).UK
PUH-P2.5VGAA(1).UK
PUH-P2.5YGAA(1).UK
PUH-P3VGAA(1).UK
PUH-P3YGAA(1).UK
PU-P2VGAA(1).UK
PU-P2YGAA(1).UK
PU-P2.5VGAA(1).UK
PU-P2.5YGAA(1).UK
PU-P3VGAA(1).UK
PU-P3YGAA(1).UK
321TSR
w1 376
w1 428
Handle
Rear Air Intake
Side Air Intake
Installation Feet
2-U Shaped notched holes (Foundation Bolt M10)
Side Air Intake
Rear Air Intake
Air Discharge
2-12x40 oval holes (Foundation Bolt M10) Terminal Connections
Left...Power supply Wiring Right..Indoor/Outdoor Wiring
Earth Point
Service Panel
Rear Piping Cover
Front Piping Cover
Bottom Piping Hole (Knock-Out)
Drain Hole (5-[33holes)
Power Supply Wiring Hole (2-[27Knock-Out)
Rear Piping Hole (Knock-Out)
< Rear Side >
Rear Trunking Hole (Knock-Out)
40
33
22 55
68 63
65 92
[92
Piping Knock-Out Hole Details
Front Piping Hole (Knock-Out)
Front Trunking Hole (Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out) Power Supply Wiring Hole
(2-[27Knock-Out)
< Front Side >
Right Piping Hole (Knock-Out)
< Right Side >
40
68 63
22 55
65
92
33 27 100
50 50
100
33
[92
5540
70
70
15515515510930
21585
18
18
627
442
900
318
Handle
1 2
200500200
53 370 (14)
412
29
330
55
43
51
20
28
58
Handle
3
230220220230
840
855
3030
. . . Refrigerant GAS pipe connection (FLARE) [15.88 (5/8F)
. . . Refrigerant LIQUID pipe connection (FLARE) [9.52 (3/8F) . . . Height of STOP VALVE connection location. . . . 3-[3.6 holes (for securing the top of the unit) These holes are provided for cases where the unit must be secured by the base AND by the top surface together. Use Self Tapping screws 5 x L15 or less. (Obtained Locally)
Explanation of Notes
1
w1
2 3
Over10
Over100
Over500
Over500
Service Space
Less than
<Foundation bolt height>
30mm
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally).
SERVICE SPACE
2
Piping and wiring connections can be made from 4 directions: Front, Right, Rear and Below.
Dimensions of space needed for service access are shown in the below diagram.
FOUNDATION
FOUNDATION BOLTS
3
PIPING-WIRING DIRECTIONS
4
FREE SPACE (Around the Unit)
1
F R E E
Over 10mm
Over 500mm
Over 10mm
Over 100mm
Unit : mm
OC261-B--1.qxp 03.2.19 3:07 PM Page 19

20
W1 376
W1 428
3
Rear Piping Cover
Front Piping Cover
2-U Shaped notched holes (Foundation Bolt M10)
Installation Feet
Rear Air Intake
Side Air Intake
2-12x40 oval holes (Foundation Bolt M10) Terminal Connections
Left...Power supply Wiring Right..Indoor/Outdoor Wiring
[92
92
65
6368
5522
33
40 Rear Trunking Hole
(Knock-Out)
< Rear Side >
Rear Piping Hole (Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out)
4055
[92
33
100
50
50
100
27
33
92 65
5522 6368
40
< Right Side >
Right Piping Hole (Knock-Out)
< Front Side > Power Supply Wiring Hole
(2-[27Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out)
Front Trunking Hole (Knock-Out)
Front Piping Hole (Knock-Out)
Piping Knock-Out Hole Details
Drain Hole (5-[33Holes)
Bottom Piping Hole (Knock-Out)
85 215
30 109 155 155 155
70
70 18
18
1 2
Earth Point
598
Handle
Service Panel
318 900
1033
352
33
4351
50
200500200
53 370 (14)
412
29
330
Air Discharge
20
58
28
Handle
Rear Air Intake
Side Air Intake
Handle
230220220
230
1246
1260
3030
PUH-P4VGAA(1).UK
PUH-P4YGAA(1).UK
PU-P4VGAA(1).UK
PU-P4YGAA(1).UK
4
PIPING-WIRING DIRECTIONS
3
FOUNDATION BOLTS
FOUNDATION
Piping and wiring connections can be made from 4 directions: Front, Right, Rear and Below.
SERVICE SPACE
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally).
30mm
<Foundation bolt height>
Less than
Over500 Over100
Service Space
Over500
1
FREE SPACE (Around the Unit)
Dimensions of space needed for service access are shown in the below diagram.
2
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
Over10
Over 10mm
F R E E
Over 500mm Over 100mm
Over 10mm
Explanation of Notes
. . . Refrigerant GAS pipe connection(FLARE) [19.05 (3/4F)
. . . Refrigerant LIQUID pipe connection(FLARE) [9.52 (3/8F)
. . . Height of STOP VALVE connection location. . . . 3-[3.6 holes (for securing the top of the unit)
These holes are provided for cases where the unit must be secured by the base AND by the top surface together. Use Self Tapping screws 5 x L15 or less. (Obtained Locally)
3 2
w1
1
Unit : mm
OC261-B--1.qxp 03.2.19 3:07 PM Page 20
