SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES.................................3
2. REFERENCE MANUAL.................................. 4
3. SAFETY PRECAUTION..................................5
4. FEATURES...................................................... 8
5. SPECIFICATIONS...........................................9

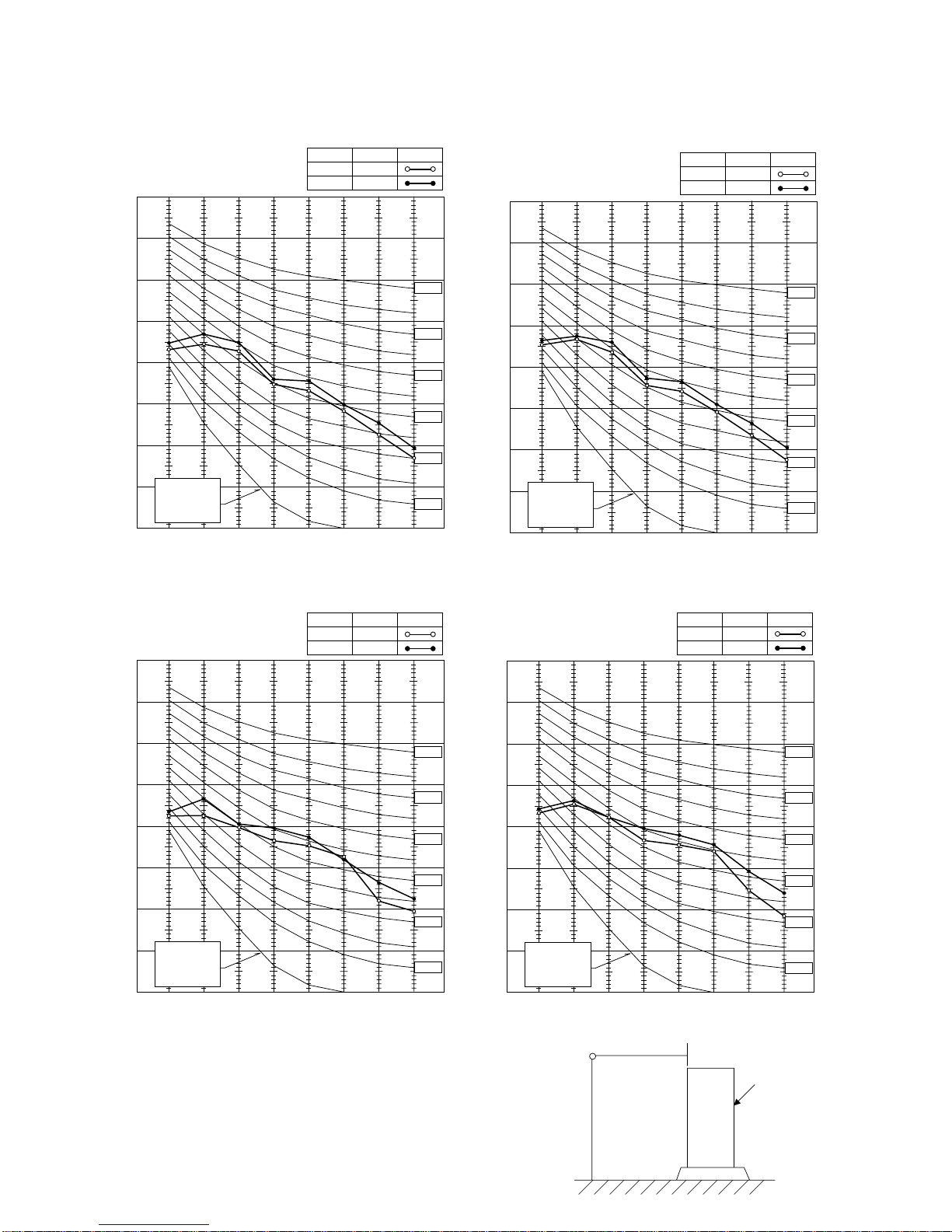

6. DATA............................................................. 11

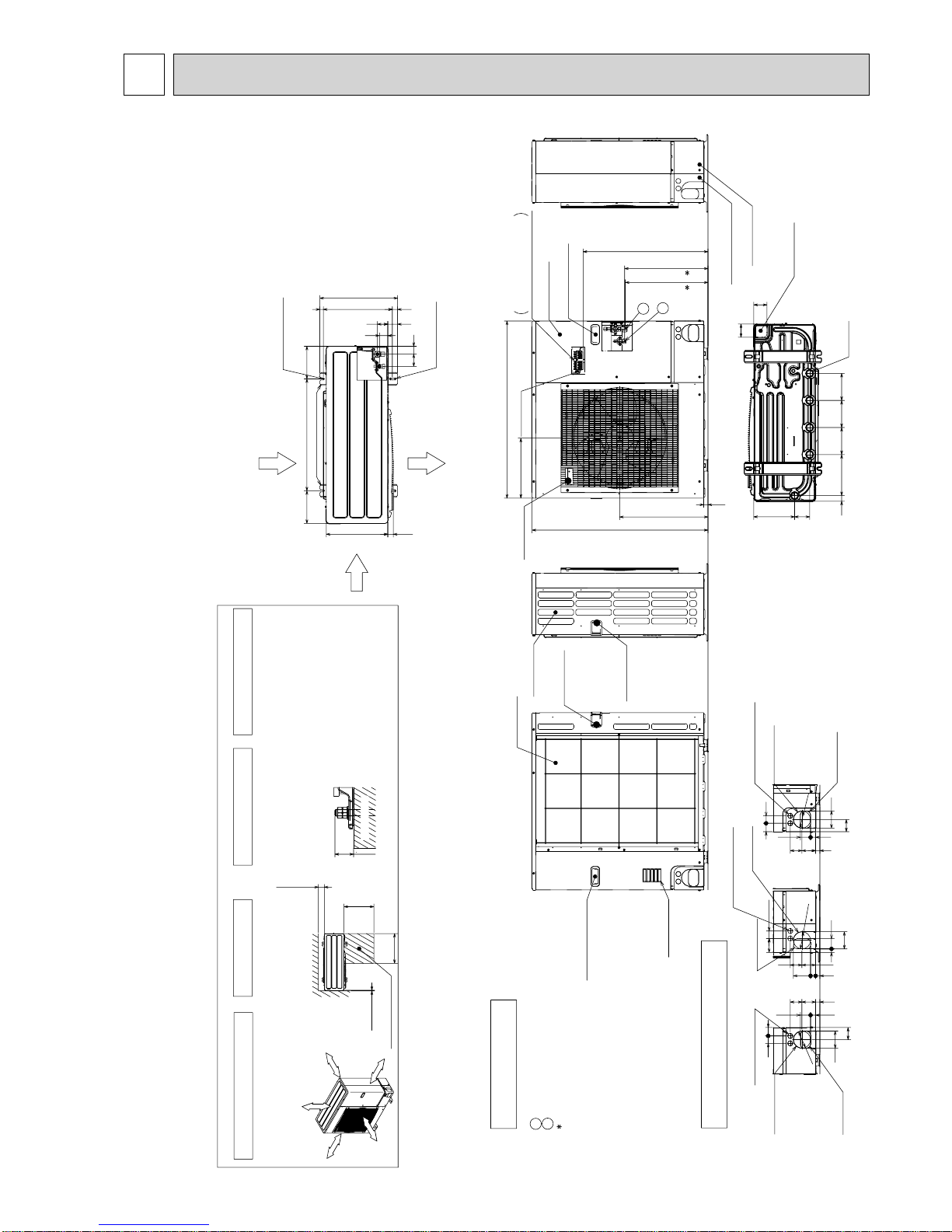

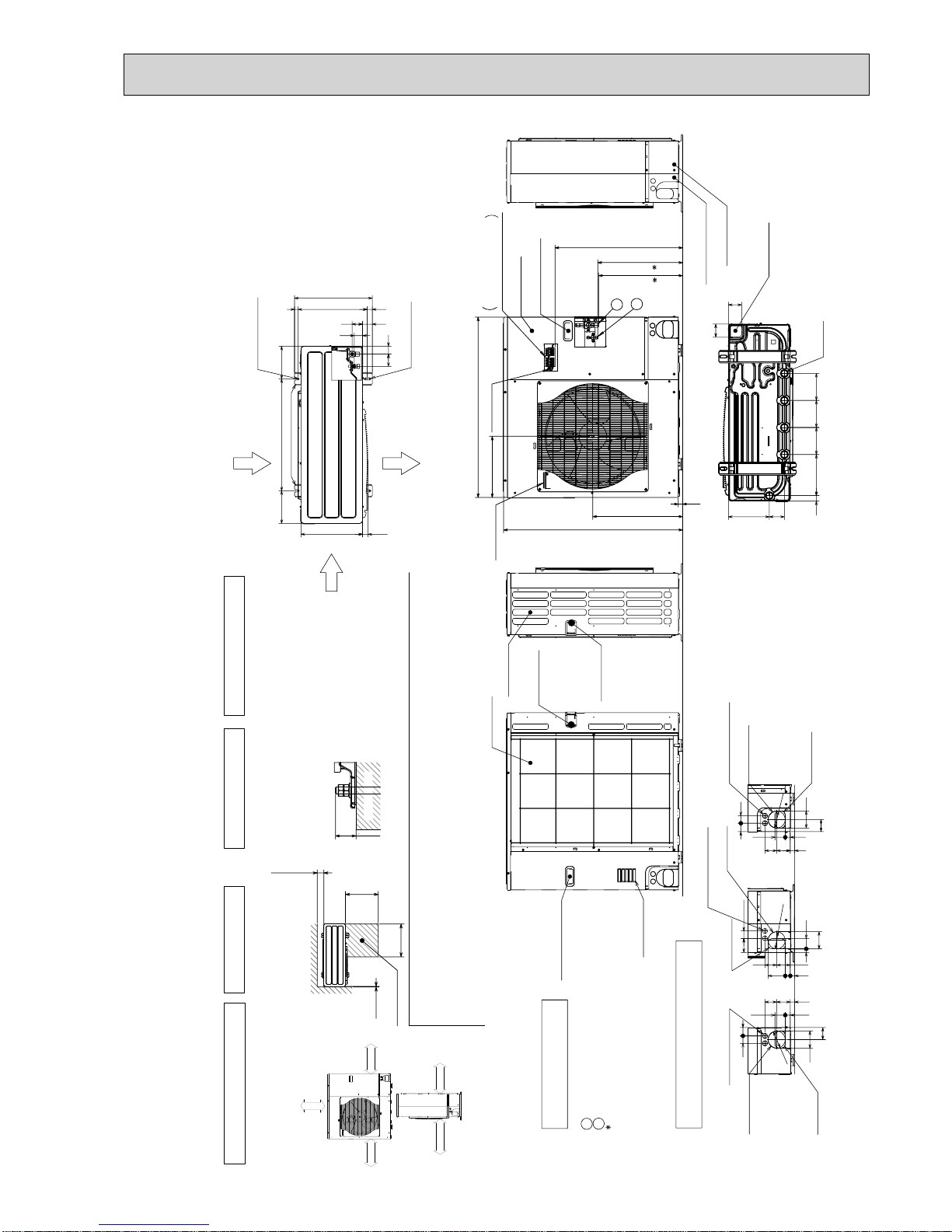

7. OUTLINES AND DIMENSIONS.................... 15
8. WIRING DIAGRAM.......................................19
9. WIRING SPECIFICATIONS..........................23
10. REFRIGERANT SYSTEM DIAGRAM............... 28
11. TROUBLESHOOTING...................................30
12. FUNCTION SETTING.................................... 66
13. DISASSEMBLY PROCEDURE..................... 73
14. PARTS LIST..................................................82
15. RoHS PARTS LIST....................................... 88
No.OC379
REVISED EDITION-F
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SPLIT-TYPE, AIR CONDITIONERS
R410A
April 2012
Outdoor unit
[Model names]
PU-P71VHA PUH-P71VHA
PU-P71YHA PUH-P71YHA
PU-P100VHA PUH-P100VHA
PU-P100YHA PUH-P100YHA
PU-P125YHA PUH-P125YHA
PU-P140YHA PUH-P140YHA
PU(H)-P71VHA(1).UK PU(H)-P71VHA#2.UK
PU(H)-P71YHA(1).UK PU(H)-P71YHA#2.UK
PU(H)-P100VHA(1).UK PU(H)-P100VHA#2.UK
PU(H)-P100YHA(1).UK PU(H)-P100YHA#2.UK
Note:
•This manual describes only
service data of the outdoor
units.
•RoHS compliant products
have <G> mark on the spec
nameplate.
•For servicing of RoHS com-
pliant products, refer to the
RoHS Parts List.
Revision:
•PU(H)-P125/140YHAR4.UK
have been added in
REVISED EDITION-F.
•Some descriptions have
been modified.
•Please void OC379
REVISED EDITION-E.
[Service Ref.]
Service Ref. is on page 2.

2
[Service Ref.]
PU-P71VHA.UK PU-P100VHA.UK PU-P125YHA.UK PU-P140YHA.UK
PU-P71VHA1.UK PU-P100VHA1.UK PU-P125YHA1.UK PU-P140YHA1.UK
PU-P71VHA#2.UK PU-P100VHA#2.UK PU-P125YHA#2.UK PU-P140YHA#2.UK
PU-P71VHAR3.UK PU-P100VHAR3.UK PU-P125YHAR3.UK PU-P140YHAR3.UK
PU-P71YHA.UK PU-P100YHA.UK PU-P125YHAR4.UK PU-P140YHAR4.UK
PU-P71YHA1.UK PU-P100YHA1.UK
PU-P71YHA#2.UK PU-P100YHA#2.UK
PU-P71YHAR3.UK PU-P100YHAR3.UK
PUH-P71VHA.UK PUH-P100VHA.UK PUH-P125YHA.UK PUH-P140YHA.UK
PUH-P71VHA1.UK PUH-P100VHA1.UK PUH-P125YHA1.UK PUH-P140YHA1.UK
PUH-P71VHA#2.UK PUH-P100VHA#2.UK PUH-P125YHA#2.UK PUH-P140YHA#2.UK
PUH-P71VHAR3.UK PUH-P100VHAR3.UK PUH-P125YHAR3.UK PUH-P140YHAR3.UK
PUH-P71YHA.UK PUH-P100YHA.UK PUH-P125YHAR4.UK PUH-P140YHAR4.UK
PUH-P71YHA1.UK PUH-P100YHA1.UK
PUH-P71YHA#2.UK PUH-P100YHA#2.UK
PUH-P71YHAR3.UK PUH-P100YHAR3.UK
OC379F

3
1TECHNICAL CHANGES
PU-P71VHA1.UK PU-P71VHA#2.UK
PU-P71YHA1.UK PU-P71YHA#2.UK
PU-P100VHA1.UK PU-P100VHA#2.UK
PU-P100YHA1.UK PU-P100YHA#2.UK
PU-P125YHA1.UK PU-P125YHA#2.UK
PU-P140YHA1.UK PU-P140YHA#2.UK
PUH-P71VHA1.UK PUH-P71VHA#2.UK
PUH-P71YHA1.UK PUH-P71YHA#2.UK
PUH-P100VHA1.UK PUH-P100VHA#2.UK
PUH-P100YHA1.UK PUH-P100YHA#2.UK
PUH-P125YHA1.UK PUH-P125YHA#2.UK
PUH-P140YHA1.UK PUH-P140YHA#2.UK
• CONTACTOR (52C) has been changed.
PU-P71VHA#2.UK PU-P71VHAR3.UK
PU-P71YHA#2.UK PU-P71YHAR3.UK
PU-P100VHA#2.UK PU-P100VHAR3.UK
PU-P100YHA#2.UK PU-P100YHAR3.UK
PU-P125YHA#2.UK PU-P125YHAR3.UK
PU-P140YHA#2.UK PU-P140YHAR3.UK
PUH-P71VHA#2.UK PUH-P71VHAR3.UK
PUH-P71YHA#2.UK PUH-P71YHAR3.UK
PUH-P100VHA#2.UK PUH-P100VHAR3.UK
PUH-P100YHA#2.UK PUH-P100YHAR3.UK
PUH-P125YHA#2.UK PUH-P125YHAR3.UK
PUH-P140YHA#2.UK PUH-P140YHAR3.UK
• Fan grille has been changed.
• Structural parts have been changed. (Munsell 5Y 7/1 →3Y 7.8/1.1)
PU-P71VHA.UK PU-P71VHA1.UK
PU-P71YHA.UK PU-P71YHA1.UK
PU-P100VHA.UK PU-P100VHA1.UK
PU-P100YHA.UK PU-P100YHA1.UK
PU-P125YHA.UK PU-P125YHA1.UK
PU-P140YHA.UK PU-P140YHA1.UK
PUH-P71VHA.UK PUH-P71VHA1.UK
PUH-P71YHA.UK PUH-P71YHA1.UK
PUH-P100VHA.UK PUH-P100VHA1.UK
PUH-P100YHA.UK PUH-P100YHA1.UK
PUH-P125YHA.UK PUH-P125YHA1.UK
PUH-P140YHA.UK PUH-P140YHA1.UK
• OUTDOOR CONTROLLER BOARD (O.B) has been changed.
PU-P125YHAR3.UK PU-P125YHAR4.UK
PU-P140YHAR3.UK PU-P140YHAR4.UK
PUH-P125YHAR3.UK PUH-P125YHAR4.UK
PUH-P140YHAR3.UK PUH-P140YHAR4.UK
• Thermistor has been changed. (Discharge temp. thermistor →Compressor surface temp. thermistor (Protector of compressor))
OC379F

4
2REFERENCE MANUAL
Model name Service Ref. Service
Manual No.
PLA-RP35/50/60/71AA
PLA-RP100/125/140AA2
PLA-RP35/50/60/71AA.UK OC335
PLA-RP35/50/60/71/100/125/140BA PLA-RP35/50/60/71/100/125/140BA(#2).UK
PLA-RP35/50/60/71BA1.UK
PLA-RP71/100/125/140BA2.UK OCH412
OCB412
OC357
PLA-RP100/125/140AA2.UK
PCA-RP50/60/71/100/125/140GA PCA-RP50/60/71/100/125/140GA(#1) OC328
PCA-RP50GA2 PCA-RP50GA2(#1)
PEAD-RP60/71/100GA PEAD-RP60/71/100GA(#1).UK HWE0506
PEAD-RP50/60/71/125/140EA
PEAD-RP35/100EA2 PEAD-RP50/60/71/125/140EA(#1).UK PEAD-RP35/100EA2(#1).UK HWE0521
2-2.TECHNICAL DATA BOOK
Manual No. OCS07
PKA-RP35/50HAL OCH453
OCB453
OCH452
OCB452
OCH454
OCB454
HWE08130
BWE08240
PKA-RP35/50HAL
PKA-RP60/71/100KAL
PCA-RP50/60/71/100/125/140KA
PEAD-RP35/50/60/71/100/125/140JA(L)
PKA-RP60/71/100KAL.TH
PCA-RP50/60/71/100/125/140KA
PEAD-RP35/50/60/71/100/125/140JA(L).UK
OC332
PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA(#1)
OC329
PCA-RP71/125HA PCA-RP71/125HA(#1)
2-1. INDOOR UNIT’S SERVICE MANUAL
OC379F

5
3 SAFETY PRECAUTION
3-2. CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilizing refrigerant R410A
Use new refrigerant pipes.
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contamination
such as sulfur hazardous for use, oxides, dirt,
shaving particles, etc.
In addition, use pipes with specified thickness.
Store the piping to be used indoors during
installation and both ends of the piping sealed
until just before brazing. (Leave elbow joints, etc.
in their packaging.)
In case of using the existing pipes for R22, be careful with
the followings.
· Be sure to clean the pipes and make sure that the insides
of the pipes are clean.
· Change flare nut to the one provided with this product.
Use a newly flared pipe.
· Avoid using thin pipes.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil etc.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enter, that can cause deterio-
ration of refrigerant oil etc.
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Use the specified refrigerant only.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
3-1. ALWAYS OBSERVE FOR SAFETY
Before obtaining access to terminal, all supply
circuits must disconnected.
OC379F

6
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
Cautions for refrigerant piping work
New refrigerant R410A is adopted for replacement inverter series. Although the refrigerant piping work for R410A is same
as for R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working
pressure of R410A is 1.6 times higher than that of R22, their sizes of flared sections and flare nuts are different.
1Thickness of pipes
Because the working pressure of R410A is higher compared to R22, be sure to use refrigerant piping with thickness
shown below. (Never use pipes of 0.7mm or below.)
1/4”
3/8”
1/2”
5/8”
3/4”
6.35
9.52
12.70
15.88
19.05
0.8
0.8
0.8
1.0
—
0.8
0.8
0.8
1.0
1.0
Nominal
dimensions
Diagram below: Piping diameter and thickness
Outside
diameter (mm)
Thickness (mm)
R410A R22
No. Tool name Specifications
1Gauge manifold · Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09MPa·G or over.
3Electronic scale —
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base —
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment —
[1] Cautions for service
(1) Perform service after collecting the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
OC379F

7
3Tools for R410A (The following table shows whether conventional tools can be used or not.)
1/4”
3/8”
1/2”
5/8”
3/4”
6.35
9.52
12.70
15.88
19.05
9.1
13.2
16.6
19.7
—
9.0
13.0
16.2
19.4
23.3
Nominal
dimensions
Flare cutting dimensions
Outside
diameter Dimension A ( )
+0
-0.4
(mm)
R410A R22 1/4"
3/8"
1/2"
5/8"
3/4"
6.35
9.52
12.70
15.88
19.05
17.0
22.0
26.0
29.0
–
17.0
22.0
24.0
27.0
36.0
Nominal
dimensions
Flare nut dimensions
Outside
diameter Dimension B (mm)
R410A
**36.0mm for
indoor unit
of RP100,
125 and 140
R22
Gauge manifold
Charge hose
Gas leak detector
Refrigerant recovery equipment
Refrigerant cylinder
Applied oil
Safety charger
Charge valve
Vacuum pump
Flare tool
Bender
Pipe cutter
Welder and nitrogen gas cylinder
Refrigerant charging scale
Vacuum gauge or thermis-
tor vacuum gauge and
vacuum valve
Charging cylinder
Air purge, refrigerant charge and
Operation check
Gas leak check
Collection of refrigerant
Refrigerant charge
Apply to flared section
Prevent compressor malfunction
when charging refrigerant by
spraying liquid refrigerant
Prevent gas from blowing out
when detaching charge hose
Vacuum drying and air
purge
Flaring work of piping
Bend the pipes
Cut the pipes
Weld the pipes
Charge refrigerant
Check the degree of vacuum. (Vacuum
valve prevents back flow of oil and refri-
gerant to thermistor vacuum gauge)
Charge refrigerant
Tool exclusive for R410A
Tool exclusive for R410A
Tool for HFC refrigerant
Tool exclusive for R410A
Tool exclusive for R410A
Ester oil and alkylbenzene
oil (minimum amount)
Tool exclusive for R410A
Tool exclusive for R410A
Tools for other refrigerants can
be used if equipped with adop-
ter for reverse flow check
Tools for other refrigerants
can be used by adjusting
flaring dimension
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants
can be used
Tool exclusive for R410A
Tools and materials Use R410A tools Can R22 tools be used?
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
Can R407C tools be used?
Ester oil:
Alkylbenzene oil: minimum amount
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
: Prepare a new tool. (Use the new tool as the tool exclusive for R410A.)
: Tools for other refrigerants can be used under certain conditions.
: Tools for other refrigerants can be used.
2Dimensions of flare cutting and flare nut
The component molecules in HFC refrigerant are smaller compared to conventional refrigerants. In addition to that,
R410A is a refrigerant, which has higher risk of leakage because of its working pressure higher than that of other refriger-
ants. Therefore, to enhance airtightness and intensity, flare cutting dimension of copper pipe for R410A has been speci-
fied separately from the dimensions for other refrigerants as shown below. The dimension B of flare nut for R410A also
has partly been changed to increase intensity as shown below. Set copper pipe correctly referring to copper pipe flaring
dimensions for R410A below. For 1/2” and 5/8”, the dimension B changes.
Use torque wrench corresponding to each dimension.
Dimension A
Dimension B
OC379F

8
CHARGELESS SYSTEM
PRE-CHARGED REFRIGERANT IS SUPPLIED FOR PIPING LENGTH AT SHIPMENT. (Max.30m)
The refrigerant circuit with LEV (Linear Expansion Valve) and accumulator always control the optimal refrigerant level
regardless of the length (30m max. and 5m min.) of piping. The additional refrigerant charging work during installation often
causes problems. Heretofore it is completely eliminated. This unique system improves the quality and reliability of the work
done. It also helps to speed up the installation time.
PU(H)-P71VHA(1).UK PU(H)-P71VHA#2.UK
PU(H)-P71YHA(1).UK PU(H)-P71YHA#2.UK
PU(H)-P100VHA(1).UK PU(H)-P100VHA#2.UK
PU(H)-P100YHA(1).UK PU(H)-P100YHA#2.UK
PU(H)-P125YHA(1).UK
PU(H)-P140YHA(1).UK
PU(H)-P125YHA#2.UK
PU(H)-P140YHA#2.UK
4 FEATURES
PU(H)-P71VHAR3.UK
PU(H)-P71YHAR3.UK
PU(H)-P100VHAR3.UK
PU(H)-P100YHAR3.UK
PU(H)-P125YHAR3.UK
PU(H)-P140YHAR3.UK
PU(H)-P125YHAR4.UK
PU(H)-P140YHAR4.UK
OC379F

9
5 SPECIFICATIONS
A
A
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
Protection current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUH-P71VHA/YHA.UK
PUH-P71VHA/YHA1.UK
PUH-P71VHA/YHA#2.UK
PUH-P71VHA/YHAR3.UK
PUH-P100VHA/YHA.UK
PUH-P100VHA/YHA1.UK
PUH-P100VHA/YHA#2.UK
PUH-P100VHA/YHAR3.UK
Cooling
12.03/4.29 23.5/7.8
25.5/9.4
NN33VAAMT/ NN33YCAMT
2.2
(V) Internal thermostat
HP switch
Discharge thermo
25
0.070
55(1940)
49
50
93(205)
3.6(7.9)
28.5/9.4
30.5/11.3
NN40VAAMT/ NN40YCAMT
2.7
(Y) Thermal relay
HP switch
Discharge thermo
25
0.110
65(2290)
50
52
94(207)
4.4(9.7)
Propeller fan %1
943(37-1/8)
1.30(MEL56)
Max. 50m
Munsell 5Y 7/1 / Munsell 3Y 7.8/1.1 (V/YHAR3)
Linear Expansion Valve
Hermetic
Line start
Plate fin coil
Reverse cycle
950(37-3/8)
330+30(13+1-3/16)
R410A
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Heating
11.98/4.28
Cooling
15.07/5.39
Heating
14.48/5.18
Single, 50Hz, 230V/ 3Phase, 50Hz, 400V(4wires)
OUTDOOR UNIT
REFRIGERANT PIPING
A
A
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
Protection current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref.
PUH-P140YHA.UK
PUH-P140YHA
1 .UK
PUH-P140YHA#2.UK
PUH-P140YHAR3.UK
PUH-P140YHAR4.UK
PUH-P125YHA.UK
PUH-P125YHA 1 .UK
PUH-P125YHA#2.UK
PUH-P125YHAR3.UK
PUH-P125YHAR4.UK
Cooling
6.79
Munsell 5Y 7/1 / Munsell 3Y 7.8/1.1 (YHAR3)
Linear Expansion Valve
Hermetic
Line start
Plate fin coil
Propeller fan %2
0.070+0.070
100(3,530)
Reverse cycle
950(37-3/8)
330+30(13+1-3/16)
1,350(53-1/8)
131(289)
R410A
5.0(11.0)
2.10(MEL56)
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Max. 50m
Heating
6.57
Cooling
8.55 15.6
18.7
BN65YEGMT or BN65YELMT
4.6
25
51
53
12.6
15.1
BN52YEGMT or BN52YELMT
3.7
25
50
52
Heating
8.45
3Phase, 50Hz, 400V
OUTDOOR UNIT
REFRIGERANT PIPING
(YHA, YHA 1 ,YHA#2, YHAR3) Discharge thermo, HP switch, Thermal relay
(YHAR4) Compressor surface thermo, HP switch, Thermal relay
OC379F

10
A
A
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
Protection curent
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PU-P71VHA/YHA.UK
PU-P71VHA/YHA1.UK
PU-P71VHA/YHA#2.UK
PU-P71VHA/YHAR3.UK
PU-P100VHA/YHA.UK
PU-P100VHA/YHA1.UK
PU-P100VHA/YHA#2.UK
PU-P100VHA/YHAR3.UK
Cooling
12.03/4.29
23.5/7.8
25.5/9.4
NN33VAAMT/ NN33YCAMT
2.2
(V) Internal thermostat
HP switch
Discharge thermo
25
0.070
55(1940)
49
–
93(205)
3.6(7.9)
Propeller fan %1
943(37-1/8)
1.30(MEL56)
Max. 50m
Munsell 5Y 7/1 / Munsell 3Y 7.8/1.1(V/YHAR3)
Linear Expansion Valve
Hermetic
Line start
Plate fin coil
–
950(37-3/8)
330+30(13+1-3/16)
R410A
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Cooling
15.07/5.18
28.5/9.4
30.5/11.3
NN40VAAMT/ NN40YCAMT
2.7
(Y) Thermal relay
HP switch
Discharge thermo
25
0.110
65(2290)
50
–
94(207)
4.4(9.7)
Single, 50Hz, 230V / 3Phase, 50Hz, 400V(4wires)
OUTDOOR UNIT
REFRIGERANT PIPING
A
A
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
Protection current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref.
PU-P140YHA.UK
PU-P140YHA1.UK
PU-P140YHA#2.UK
PU-P140YHAR3.UK
PU-P140YHAR3.UK
PU-P125YHA.UK
PU-P125YHA1.UK
PU-P125YHA#2.UK
PU-P125YHAR3.UK
PU-P125YHAR4.UK
Cooling
6.79
12.6
15.5
BN52YEGMT or BN52YELMT
3.7
25
50
–
Munsell 5Y 7/1 / Munsell 3Y 7.8/1.1(YHAR3)
Linear Expansion Valve
Hermetic
Line start
Plate fin coil
Propeller fan %2
0.070+0.070
100(3,530)
–
950(37-3/8)
330+30(13+1-3/16)
1,350(53-1/8)
131(289)
R410A
5.0(11.0)
2.10(MEL56)
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Max. 50m
Cooling
8.55
15.6
18.7
BN65YEGMT or BN65YELMT
4.6
25
51
–
3Phase, 50Hz, 400V
OUTDOOR UNIT
REFRIGERANT PIPING
(YHA, YHA 1 ,YHA#2, YHAR3) Discharge thermo, HP switch, Thermal relay
(YHAR4) Compressor surface thermo, HP switch, Thermal relay
OC379F

11
6 DATA
6-1. REFILLING REFRIGERANT CHARGE (R410A : kg)
6-2. COMPRESSOR TECHNICAL DATA
Piping length (one way)
10m 20m 30m 40m 50m Factory
charged
3.4
4.2
4.8
3.5
4.3
4.9
3.6
4.4
5.0
4.2
5.0
5.6
4.8
5.6
6.2
3.6
4.4
5.0
Service Ref.
PU(H)-P71VHA/YHA.UK
PU(H)-P71VHA/YHA1.UK
PU(H)-P71VHA/YHA#2.UK
PU(H)-P71VHA/YHAR3.UK
PU(H)-P100VHA/YHA.UK
PU(H)-P100VHA/YHA1.UK
PU(H)-P100VHA/YHA#2.UK
PU(H)-P100VHA/YHAR3.UK
PU(H)-P125/140YHA.UK
PU(H)-P125/140YHA1.UK
PU(H)-P125/140YHA#2.UK
PU(H)-P125/140YHAR3.UK
PU(H)-P125/140YHAR4.UK
U-V
(R-C)
U-W
(S-C)
W-V
Unit
Compressor model
Winding
Resistance
()
NN33YCAMT
(at 20°C)
4.64
4.64
4.64
0.63
1.55
–
3.32
3.32
3.32
NN33VAAMT
0.68
1.80
–
PU(H)-P71VHA.UK
PU(H)-P71VHA1.UK
PU(H)-P71VHA#2.UK
PU(H)-P71VHAR3.UK
PU(H)-P71YHA.UK
PU(H)-P71YHA1.UK
PU(H)-P71YHA#2.UK
PU(H)-P71YHAR3.UK
NN40YCAMT
NN40VAAMT
PU(H)-P100VHA.UK
PU(H)-P100VHA1.UK
PU(H)-P100VHA#2.UK
PU(H)-P100VHAR3.UK
PU(H)-P100YHA.UK
PU(H)-P100YHA1.UK
PU(H)-P100YHA#2.UK
PU(H)-P100YHAR3.UK
U-V
U-W
W-V
Unit
Compressor model
Winding
Resistance
()
(at 20°C)
2.149
2.149
2.149
1.794
1.794
1.794
BN65YEGMT
BN65YELMT
BN65YEXMT
BN52YEGMT
BN52YELMT
BN52YEXMT
PU(H)-P125YHA.UK
PU(H)-P125YHA1.UK
PU(H)-P125YHA#2.UK
PU(H)-P125YHAR3.UK
PU(H)-P125YHAR4.UK
PU(H)-P140YHA.UK
PU(H)-P140YHA1.UK
PU(H)-P140YHA#2.UK
PU(H)-P140YHAR3.UK
PU(H)-P140YHAR4.UK
Additional charge is required for using
pipes longer than 30 m.
OC379F

12
6-3. NOISE CRITERION CURVES
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
50
SPL(dB)
52
LINE
PU(H)-P100YHA.UK
PU(H)-P100YHA1.UK
PU(H)-P100YHA#2.UK
PU(H)-P100YHAR3.UK
PU(H)-P100VHA.UK
PU(H)-P100VHA1.UK
PU(H)-P100VHA#2.UK
PU(H)-P100VHAR3.UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
COOLING
MODE
HEATING
50
SPL(dB)
52
LINE
PU(H)-P125YHA.UK
PU(H)-P125YHA1.UK
PU(H)-P125YHA#2.UK
PU(H)-P125YHAR3.UK
PU(H)-P125YHAR4.UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
PU(H)-P71YHA.UK
PU(H)-P71YHA1.UK
PU(H)-P71YHA#2.UK
PU(H)-P71YHAR3.UK
PU(H)-P71VHA.UK
PU(H)-P71VHA1.UK
PU(H)-P71VHA#2.UK
PU(H)-P71VHAR3.UK
COOLING
MODE
HEATING
49
SPL(dB)
51
LINE
1.5m
1m
MICROPHONE
UNIT
GROUND
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
COOLING
MODE
HEATING
51
SPL(dB)
53
LINE
PU(H)-P140YHA.UK
PU(H)-P140YHA1.UK
PU(H)-P140YHA#2.UK
PU(H)-P140YHAR3.UK
PU(H)-P140YHAR4.UK
OC379F

13
6-4. STANDARD OPERATION DATA
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/cm2)
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
PLA-RP71AA PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
PLA-RP71AA PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
Cooling
8,000
2.83
Heating
9,000
2.82
Cooling
10,000
3.53
Heating
11,500
3.40
Cooling
12,300
4.36
Heating
14,300
4.23
Cooling
14,200
5.41
Heating
17,000
5.35
12.03/4.29
2.99
(30.4)
0.79
(8.0)
76.9
49.7
3.8
5
27
19
12.8
35
24
0.74
0.11
11.98/4.28
2.55
(26.0)
0.53
(5.4)
85.1
41.0
6.5
5
20
15
44.5
7
6
—
—
15.07/5.39
3.16
(32.2)
0.91
(9.3)
78.2
49.9
4.2
5
27
19
13.4
35
24
0.78
0.06
14.48/5.18
2.67
(27.2)
0.74
(7.5)
81.4
40.9
4.0
5
20
15
42.2
7
6
—
—
6.79
3.00
(30.6)
0.75
(7.7)
80.5
38.7
2.4
5
27
19
12.3
35
24
0.74
0.05
6.57
2.97
(30.3)
0.74
(7.5)
78.1
46.2
-0.5
5
20
15
46.1
7
6
—
—
8.55
3.05
(31.1)
0.94
(9.6)
78.0
49.9
-0.8
5
27
19
11.2
35
24
0.70
0.08
8.45
3.68
(37.5)
0.61
(6.2)
82.4
56.3
-1.2
5
20
15
51.6
7
6
—
—
1 , 50
230
0.79
1/3 , 50
230/400
1 , 50
230
0.92
1/3 , 50
230/400
1 , 50
230
0.92
3 , 50
400
1 , 50
230
0.92
3 , 50
400
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
(.f/%)
MPa
(.f/%)
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PUH-P71VHA
PUH-P71YHA PUH-P100VHA PUH-P100YHA PUH-P125YHA PUH-P140YHA
OC379F

14
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/cm2)
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
SHF
BF
W
kW
V
A
V
A
MPa
(.f/%)
MPa
(.f/%)
°C
°C
°C
m
°C
°C
°C
°C
°C
Mode
Capacity
Input
Indoor unit
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
Cooling
8,000
2.83
1 , 50
230
0.79
1/3 , 50
230/400
12.03/4.29
2.99
(30.4)
0.79
(8.0)
76.9
49.7
3.8
5
27
19
12.8
35
24
0.74
0.11
Cooling
10,000
3.53
1 , 50
230
0.92
1/3 , 50
230/400
15.07/5.39
3.16
(32.2)
0.91
(9.3)
78.2
49.9
4.2
5
27
19
13.4
35
24
0.78
0.06
Cooling
12,300
4.36
1 , 50
230
0.92
3 , 50
400
6.79
3.00
(30.6)
0.75
(7.7)
80.5
38.7
2.4
5
27
19
12.3
35
24
0.74
0.05
Cooling
14,200
5.41
1 , 50
230
0.92
3 , 50
400
8.55
3.05
(31.1)
0.94
(9.6)
78.0
49.9
-0.8
5
27
19
11.2
35
24
0.70
0.08
D.B.
W.B.
D.B.
D.B.
W.B.
PLA-RP71AA PLA-RP100AA2
PU-P71VHA
PU-P71YHA
PU-P100VHA
PU-P100YHA PU-P125YHA PU-P140YHA
PLA-RP125AA2 PLA-RP140AA2
PLA-RP71AA PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
Representative matching
OC379F

15
7 OUTLINES AND DIMENSIONS
Unit : mm
PU(H)-P71VHA.UK PU(H)-P71VHA#2.UK
PU(H)-P71YHA.UK PU(H)-P71YHA#2.UK
PU(H)-P100VHA.UK PU(H)-P100VHA#2.UK
PU(H)-P100YHA.UK PU(H)-P100YHA#2.UK
PU(H)-P71VHA1.UK
PU(H)-P71YHA1.UK
PU(H)-P100VHA1.UK
PU(H)-P100YHA1.UK
417
66 42
45
56
(19)37028
53
175600175
330
2-12%36 oval holes (Foundation Bolt M10)
Air Discharge
Rear Air Intake
Side Air Intake
2-U Shaped notched holes (Foundfation Bolt M10)
Installation Feet
30
Over
Over
Less than
Piping and wiring connections can be made from 4 directions: Front,Right,Rear and Below.
4 PIPING-WIRING DIRECTIONS
3 FOUNDATION BOLTS2 SERVICE SPACE
1 FREE SPACE (Around the unit)
Piping Knockout Hole Details
Example of Notes
···Refrigerant GAS pipe connction (FLARE)W15.88(5/8F) ···Refrigerant LIQUID pipe connection (FLARE)W9.52(3/8F)
1 ···Indication of STOPVALVE connection location.
1 2
Over 10mm
Over 500mm
The diagram below shows a basic example. Explantion of particular details are given in the installation manuals etc.
Over 10mm
Over 100mm
FREE
Over10
500
500
Over100
Dimensions of space needed for service access are shown in the below diagram.
Service space
30
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
<Foundation bolt height>
Handle for moving
Side Air Intake
Front piping cover
Rear piping cover
14522030 145
81 219
145
71
71
Drain hole (5-W33)
Bottom piping hole (Knockout)
Air Intake
Rear Air Intake
Handle for moving
Handle for moving
23
943
473
950
322
1 447
1 443
670
Terminal Connections
Left···Power supply wiring Reight···Indoor/Outdoor wiring
Earth terminal
Service panel Handle for moving
Handle for moving
1
2
19 55
23 27 92
92
40
75
73 63
Right piping hole (Knockout)
Right trunking hole (Knockout)
Power supply wiring hole (2-W27Knockout)
W
92
27 55
7323 63
40
92 65
45
Front piping hole (Knockout)
Front trunking hole (Knockout)
Power supply wiring hole (2-W27Knockout)
W
92
4045
65
92
27 55
23 73 63
Rear piping hole (Knockout)
Rear trunking hole (Knockout)
Power supply wiring hole (2-W27Knockout)
W92
FOUNDATION
OC379F

16
Unit : mm
PU-P125YHA.UK PUH-P125YHA.UK
PU-P140YHA.UK PUH-P140YHA.UK
PU-P125YHA1.UK PUH-P125YHA1.UK
PU-P140YHA1.UK PUH-P140YHA1.UK
PU-P125YHA#2.UK PUH-P125YHA#2.UK
PU-P140YHA#2.UK PUH-P140YHA#2.UK
Less than
Over
Over Over
Over
Handle for moving
Side Air Intake
Front piping cover
Rear piping cover
Air intake
Rear Air Intake
Handle for moving
Handle for moving
Terminal connection
Left···Power supply wiring Right···Indoor/Outdoor wiring
Earth terminal
Service panel
Handle for moving
1
2
The diagram below shows a basic example. Explantion of particular details are given in the installation manuals etc.
Dimensions of space needed for service access are shown in the below diagram.
<Foundation bolt height>
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
Air Discharge
Rear Air Intake
Side Air Intake
2 1
···Refrigerant GAS pipe connction (FLARE)W15.88(5/8F) ···Refrigerant LIQUID pipe connection (FLARE)W9.52(3/8F)
1 ···Indication of STOP VALVE connection location.
Example of Notes
Piping Knockout Hole Details
1 FREE SPACE (Around the unit)
2 SERVICE SPACE
3 FOUNDATION BOLTS
4 PIPING-WIRING DIRECTIONS
Piping and wiring connections can be made from 4 directions: Front,Right,Rear and Below.
Over1000mm Over 150mm
Over 10mm
Over 10mm
FREE
30
FOUNDATION
150
500
500
10
Service space
600175 175
330
417
42
66
53 56
45
(19)28 370
2-U Shaped notched holes (Foundation Bolt M10)
2-12 x 36 Oval holes (Foundation Bolt M10)
Installation Feet
30
45 40
65 92
27 55
23 73 63
Rear piping hole (Knockout)
Rear trunking hole (Knockout)
Power supply wiring hole (2-
W
27Knockout)
W
92
19 55
92
75 40
73 63
23 27 92
Right piping hole (Knockout) Right trunking hole
(Knockout)
Power supply wiring hole (2-
W
27Knockout)
W
92
92 65
4540
27 55
23 73 63
Front piping hole (Knockout)
Front trunking hole (Knockout)
Power supply wiring hole (2-
W
27Knockout)
W
92
14514522030 145
81 219
71
71
Bottom piping hole (Knockout)
Drain hole (5-W33)
1350
23
950
1076
1 447
1 443
371 635
322
Handle for moving
OC379F

17
417
66 42
45
56
(19)370
28
53
175600175
330
2-12%36 oval holes (Foundation Bolt M10)
Air Discharge
Rear Air Intake
Side Air Intake
2-U Shaped notched holes (Foundfation Bolt M10)
Installation Feet
30
Piping Knockout Hole Details
Example of Notes
···Refrigerant GAS pipe connction (FLARE)W15.88(5/8F) ···Refrigerant LIQUID pipe connection (FLARE)W9.52(3/8F) 1 ···Indication of STOP VALVE connection location.
1 2
Handle for moving
Side Air Intake
Front piping cover
Rear piping cover
14522030 145
81 219
145
71
71
Drain hole (5-W33)
Bottom piping hole (Knockout)
Air Intake
Rear Air Intake
Handle for moving
Handle for moving
19 55
23 27 92
92
40
75
73 63
Right piping hole (Knockout)
Right trunking hole (Knockout)
Power supply wiring hole (2-W27Knockout)
W
92
27 55
7323 63
40
92 65
45
Front piping hole (Knockout)
Front trunking hole (Knockout)
Power supply wiring hole (2-W27Knockout)
W
92
4045
65
92
27 55
23 73 63
Rear piping hole (Knockout)
Rear trunking hole (Knockout)
Power supply wiring hole (2-W27Knockout)
W92
Over
Over
Less than
Piping and wiring connections can be made from 4 directions: front, right, rear and below.
4 PIPING-WIRING DIRECTIONS
3 FOUNDATION BOLTS2 SERVICE SPACE
1 FREE SPACE (Around the unit)
The diagram below shows a basic example. Explantion of particular details is given in the installation manuals etc.
Over10
500
500
Over100
Dimensions of space needed for service access are shown in the below diagram.
Service space
30
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
<Foundation bolt height>
FOUNDATION
over 100mm
over 500mm
over 10mm
FREE
over 10mm
322
950
473 943
23
1 447
1 443
670
2
1
Handle for moving
Handle for moving Service panel
Earth terminal
Left···Power supply wiring Reight···Indoor/Outdoor wiring
Terminal Connections
PU-P71VHAR3.UK PUH-P71VHAR3.UK
PU-P71YHAR3.UK PUH-P71YHAR3.UK
PU-P100VHAR3.UK PUH-P100VHAR3.UK
PU-P100YHAR3.UK PUH-P100YHAR3.UK
Unit : mm
OC379F

18
Less than
Over
Over Over
Over
Handle for moving
Side Air Intake
Front piping cover
Rear piping cover
Air intake
Rear Air Intake
Handle for moving
Handle for moving
Terminal connection
Left···Power supply wiring Right···Indoor/Outdoor wiring
Earth terminal
Service panel
Handle for moving
1
2
The diagram below shows a basic example. Explantion of particular details is given in the installation manuals etc.
Dimensions of space needed for service access are shown in the below diagram.
<Foundation bolt height>
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
Air Discharge
Rear Air Intake
Side Air Intake
···Refrigerant GAS pipe connction (FLARE)W15.88(5/8F) ···Refrigerant LIQUID pipe connection (FLARE)W9.52(3/8F)
1 ···Indication of STOP VALVE connection location.
Example of Notes
Piping Knockout Hole Details
1 FREE SPACE (Around the unit)
2 SERVICE SPACE
3 FOUNDATION BOLTS
4 PIPING-WIRING DIRECTIONS
Piping and wiring connections can be made from 4 directions: front, right, rear and below.
30
FOUNDATION
150
500
500
10
Service space
600175 175
330
417
42
66
53 56
45
(19)
28 370
2-U Shaped notched holes (Foundation Bolt M10)
2-12 × 36 Oval holes (Foundation Bolt M10)
Installation Feet
30
45 40
65 92
27 55
23 73 63
Rear piping hole (Knockout)
Rear trunking hole (Knockout)
Power supply wiring hole (2-
W
27Knockout)
W
92
19 55
92
75 40
73 63
23 27 92
Right piping hole (Knockout) Right trunking hole
(Knockout)
Power supply wiring hole (2-
W
27Knockout)
W
92
92 65
4540
27 55
23 73 63
Front piping hole (Knockout)
Front trunking hole (Knockout)
Power supply wiring hole (2-
W
27Knockout)
W
92
14514522030 145
81 219
71
71
Bottom piping hole (Knockout)
Drain hole (5-W33)
1350
23
950
1076
1 447
1 443
371 635
322
Handle for moving
Over 10mm Over 10mm
Over 150mm
Over 1000mm
FREE
Handle for moving
PU-P125YHAR3.UK PUH-P125YHAR3.UK
PU-P140YHAR3.UK PUH-P140YHAR3.UK
PU-P125YHAR4.UK PUH-P125YHAR4.UK
PU-P140YHAR4.UK PUH-P140YHAR4.UK
Unit : mm
OC379F

19
8 WIRING DIAGRAM
3131 31
MC
LEV
52C
(PNK)
CH
(BLU)
21S4
(GRN)
TH3/TH6
(RED)
CNVMNT
(WHT) CNMNT (WHT) CNLEV
(WHT)
TH4
(WHT)
LED1(GRN)
LED2(RED)
R
E
D
SCR
2
/
T
1
C5
TB1
TB4
INDOOR
UNIT
MODEL
J1




J2


J3


J4


J5 J6




PUH-P71VHA
PUH-P100VHA
PU-P71VHA
PU-P100VHA
NL
S3S2S1
S1
S3
S2
S1
T
S2
S3
52C
W
H
T
B
L
U
R
E
D
B
L
UY
L
W
O
R
N
B
R
N
6
/
T
3
1
/
L
1
5
/
L
3
CT
O.B
F.C
MF
21S4
52C
63H
MF3
(WHT)
C3
49C
a
bX51
X52
4/S R
FUSE3
FUSE4
FUSE1
CN31
CNM
SW5
ON
OFF
SW1 SW4
FUSE2
BLU
RED
CH
13
A1
A1 A2 A2 B1 B1
12 12 23145
321 12345
123456789 1011121314
634
TH3
TH6
TH4
J1 J2 J3 J4 J5 J6
POWER SUPPLY
~/N
230V 50Hz
<Notes when servicing>
Some fastening terminals have a lock mechanism:When removing the fastening terminal, push the projection (locking lever)on a
terminal with your finger and pull it out.
MC
MF
TH3
TH4
TH6
C3
C5
CH
52C
21S4
63H
49C
TB1
LEV
O.B
COMPRESSOR(INNER THERMOSTAT)
FAN MOTOR(INNER THERMOSTAT)
THERMISTOR
MF CAPACITOR
MC CAPACITOR
CRANKCASE HEATER
MC CONTACTOR
4-WAY VALVE SOLENOID COIL
HIGH PRESSURE PROTECT SWITCH
INNER THERMOSTAT FOR MC
TERMINAL BLOCK
LINEAR EXPANSION VALVE
OUTDOOR CONTROLLER BOARD
SYMBOL FUSE1(O.B)
FUSE2(O.B)
FUSE3(O.B)
FUSE4(O.B)
X51 (O.B)
X52 (O.B)
F.C (O.B)
SW1 (O.B)
SW4 (O.B)
SW5 (O.B)
JA,JB (O.B)
JI~J6 (O.B)
T (O.B)
CT (O.B)
LED1 (O.B)
LED2 (O.B)
CN31 (O.B)
SYMBOL
NAME
LIQUID TEMP
DISCHARGE TEMP
COND./EVA.TEMP
FUSE (6.3A 250V)
FUSE (6.3A 250V)
FUSE (6.3A 250V)
FUSE (6.3A 250V)
MC/CH RELAY
21S4 RELAY
FAN CONTROLLER
GROUP NUMBER ADDRESS
TEST RUN
FUNCTION SELECTION
JUMPER WIRE
MODEL SELECTION 2
TRANSFORMER
CURRENT TRANS
OPERATION CHECK DISPLAY LED
OPERATION CHECK DISPLAY LED
EMERGENCY OPERATION CONNECTER
NAME
1
: with jumper wire : without jumper wire
2
1 PUH-P71/P100VHA MODEL ONLY
2 MODEL SELECTION
JA JB
PU-P71VHA.UK PUH-P71VHA.UK PU-P100VHA.UK PUH-P100VHA.UK
PU-P71VHA1.UK PUH-P71VHA1.UK PU-P100VHA1.UK PUH-P100VHA1.UK
OC379F

20
SYMBOL
MC
MF
TH3
TH4
TH6
C3
C5
CH
52C
21S4
63H
49C
TB1
LEV
JA, JB(O.B)
COMPRESSOR (INNER THERMOSTAT)
FAN MOTOR (INNER THERMOSTAT)
THERMISTOR
MF CAPACITOR
MC CAPACITOR
CRANKCASE HEATER
MC CONTACTOR
4-WAY VALVE SOLENOID COIL
HIGH PRESSURE PROTECT SWITCH
INNER THERMOSTAT FOR MC
TERMINAL BLOCK
LINEAR EXPANSION VALVE
JUMPER WIRE
LIQUID TEMP
DISCHARGE TEMP
2-PHASE PIPE TEMP
O.B
FUSE1 (O.B)
FUSE2 (O.B)
FUSE3 (O.B)
FUSE4 (O.B)
X51 (O.B)
X52 (O.B)
F.C (O.B)
SW1 (O.B)
SW4 (O.B)
SW5 (O.B)
J1~J6 (O.B)
T (O.B)
CT (O.B)
LED1 (O.B)
LED2 (O.B)
CN31 (O.B)
OUTDOOR CONTROLLER BOARD
FUSE (6.3A 250V)
FUSE (6.3A 250V)
FUSE (6.3A 250V)
FUSE (6.3A 250V)
MC/CH RELAY
21S4 RELAY
FAN CONTROLLER
GROUP NUMBER ADDRESS
TEST RUN
FUNCTION SELECTION
MODEL SELECTION
TRANSFORMER
CURRENT TRANS
OPERATION CHECK DISPLAY LED
OPERATION CHECK DISPLAY LED
EMERGENCY OPERATION CONNECTOR
MC
49C
A1 A2 B1
A1 A2 B1
SCR
R
E
D
W
H
T
B
L
U
C5
2
/
T
1
6
/
T
3
1
/
L
1
5
/
L
3
52C
B
L
U
R
E
D
LN
TB1
POWER SUPPLY
~/N
230V 50Hz
Y
L
W
S1 S2 S3
O
R
N
B
R
N
S1
S2
S3
TB4
INDOOR
UNIT
C3 MF
MF3
(WHT)
52C
A1
A2
63H
CH
21S4
52C
(PNK)
CH
(BLU)
21S4
(GRN)
X51
X52
1
1
1
13
33
13
CN31
CNM
ON
OFF
F.C
CT
SW5 SW1 SW4
1413121110 9 8 7 6 5 4 3 2 1
LED1 (GRN)
LED2 (RED)
CNVMNT
(WHT) CNMNT
(WHT) CNVEV
(WHT)
TH4
(WHT)
TH3/TH6
(RED)
3 2 1 1 2 3 4 5
J1 J2 J3 J4 J5 J6
FUSE2 FUSE1
FUSE4
FUSE3
S1
S2
S3
R
4/S
BLU
RED
TH4
TH6
TH3
LEV
O.B
6 5 4 3 2 1
1 2
1 2 3 4
NAME SYMBOL NAME
<Notes when servicing>
Some fastening terminals have a lock mechanism : When removing the fastening terminal, push the projection (locking lever) on the
terminal with your finger and pull it out.
JA JB
2
MODEL J1




J2


J3


J4


J5 J6




PUH-P71VHA
PUH-P100VHA
PU-P71VHA
PU-P100VHA
: with jumper wire : without jumper wire
1 PUH-P71/P100VHA MODEL ONLY
2 MODEL SELECTION
2
PU-P71VHA#2.UK PUH-P71VHA#2.UK PU-P100VHA#2.UK PUH-P100VHA#2.UK
PU-P71VHAR3.UK PUH-P71VHAR3.UK PU-P100VHAR3.UK PUH-P100VHAR3.UK
OC379F
