Mitsubishi Electric AnyWire ASLINK User manual

CC-Link IE TSN―AnyWireASLINK Bridge Module
User's Manual
-NZ2AW1GNAL

1
COPYRIGHT
This document is protected by the law of copyright, whereby all rights established therein remain with the company Mitsubishi
Electric Corporation. Reproduction of this document or parts of this document is only permissible within the limits of the legal
determination of Copyright Law. Alteration or abridgement of the document is not permitted without the explicit written
approval of the company Mitsubishi Electric Corporation.
PRECAUTIONS REGARDING WARRANTY AND
SPECIFICATIONS
The NZ2AW1GNAL was jointly developed and manufactured by Mitsubishi Electric and Anywire Corporation. Note that there
are some precautions regarding warranty of this product.
Item NZ2AW1GNAL Other programmable controller products (e.g.
MELSEC iQ-R series)
Gratis warranty term 12 months after delivery or 18 months after
manufacturing
36 months after delivery or 42 months after manufacturing
Repair term after discontinuation of production 1 year 7 years

2
SAFETY PRECAUTIONS
(Read these precautions before using this product.)
Before using this product, please read this manual and the relevant manuals carefully and pay full attention to safety to handle
the product correctly.
The precautions given in this manual are concerned with this product only. For the safety precautions of the programmable
controller system, refer to the user's manual for the CPU module used.
In this manual, the safety precautions are classified into two levels: " WARNING" and " CAUTION".
Under some circumstances, failure to observe the precautions given under " CAUTION" may lead to serious
consequences.
Observe the precautions of both levels because they are important for personal and system safety.
Make sure that the end users read this manual and then keep the manual in a safe place for future reference.
[Design Precautions]
[Design Precautions]
WARNING
●An AnyWireASLINK system has no control function for ensuring safety.
●When a communication failure occurs in CC-Link IE TSN, data in the master station are held.
Check Data link status of each station (SW00B0 to SW00B7) and configure an interlock circuit in the
sequence program to ensure that the entire system will operate safely.
●Do not use any "use prohibited" signals as a remote I/O signal since they are used by the system. Do
not write any data to the "use prohibited" areas in the remote register. If these operations are
performed, an accident may occur due to an incorrect output or malfunction.
CAUTION
●Do not install the control lines or communication cables together with the main circuit lines or power
cables. Keep a distance of 100mm or more between them. Failure to do so may result in malfunction
due to noise.
●Configure safety circuits, such as an emergency stop circuit and interlock circuit, external to the
AnyWireASLINK system.
WARNING Indicates that incorrect handling may cause hazardous conditions, resulting in
death or severe injury.
CAUTION Indicates that incorrect handling may cause hazardous conditions, resulting in
minor or moderate injury or property damage.

3
[Security Precautions]
[Installation Precautions]
[Installation Precautions]
[Wiring Precautions]
WARNING
●To maintain the security (confidentiality, integrity, and availability) of the programmable controller and
the system against unauthorized access, denial-of-service (DoS) attacks, computer viruses, and other
cyberattacks from external devices via the network, take appropriate measures such as firewalls,
virtual private networks (VPNs), and antivirus solutions.
WARNING
●Shut off the external power supply (all phases) used in the system before mounting or removing a
module. Failure to do so may result in electric shock or cause the module to fail or malfunction.
CAUTION
●Use the module in an environment that meets the general specifications in this manual. Failure to do
so may result in electric shock, fire, malfunction, or damage to or deterioration of the product.
●Do not directly touch any conductive parts and electronic components of the module. Doing so can
cause malfunction or failure of the module.
●Securely connect the cable connectors. Poor contact may cause malfunction.
●After the first use of the product, do not connect/remove the connector more than 50 times (IEC
61131-2/JIS B 3502 compliant). Exceeding the limit may cause malfunction.
WARNING
●Shut off the external power supply (all phases) used in the system before wiring. Failure to do so may
result in electric shock or cause the module to fail or malfunction.

4
[Wiring Precautions]
CAUTION
●Individually ground the FG and LG terminals of the programmable controller with a ground resistance
of 100 ohms or less. Failure to do so may result in electric shock or malfunction.
●Check the rated voltage and terminal layout before wiring to the module, and connect the cables
correctly. Connecting a power supply with a different voltage rating or incorrect wiring may cause a fire
or failure.
●Tighten the terminal block screws within the specified torque range. Undertightening can cause short
circuit, fire, or malfunction. Overtightening can damage the screw and/or module, resulting in drop,
short circuit, fire, or malfunction.
●Prevent foreign matter such as dust or wire chips from entering the module. Such foreign matter can
cause a fire, failure, or malfunction.
●Incorrect wiring may damage modules and external devices. Adjust a cable length and a module
position to prevent disconnection of a connector type terminal block or a cable.
●Do not solder stranded wires of a cable when connecting them to the terminal block. Doing so may
cause poor contact.
●The power supply voltage of remote slave modules may be insufficient due to a voltage drop in the
power supply line. Connect an external power supply so that the voltage of remote slave modules is
ensured.
●Do not apply the 24VDC power before wiring the entire AnyWireASLINK system. If the power is
applied before wiring, normal data transmission is not guaranteed.
●Connect a 24VDC external power supply to the device(s) in an AnyWireASLINK system.
●Place the cables in a duct or clamp them. If not, dangling cables may swing or inadvertently be pulled,
resulting in malfunction or damage to modules or cables.
In addition, the weight of the cables may put stress on modules in an environment of strong vibrations
and shocks.
●Do not install the control lines or communication cables together with the main circuit lines or power
cables. Keep a distance of 100mm or more between them. Failure to do so may result in malfunction
due to noise.
●When disconnecting the cable from the module, do not pull the cable by the cable part. For the cable
with connector, hold the connector part of the cable. For the cable connected to the terminal block,
loosen the terminal screw. Pulling the cable connected to the module may result in malfunction or
damage to the module or cable.
●Use 1000BASE-T-compliant Ethernet cables for Ethernet connection. For the station-to-station cable
length and the maximum overall cable length, follow the specifications in this manual. If not, normal
data transmission is not guaranteed.
●When an overcurrent caused by an error of an external device or a failure of the programmable
controller flows for a long time, it may cause smoke and fire. To prevent this, configure an external
safety circuit, such as a fuse.
●Mitsubishi Electric programmable controllers must be installed in control panels. Wiring and
replacement of a module must be performed by qualified maintenance personnel with knowledge of
protection against electric shock. For wiring methods, refer to "INSTALLATION AND WIRING" in this
manual.

5
[Startup and Maintenance Precautions]
[Startup and Maintenance Precautions]
[Disposal Precautions]
WARNING
●Do not touch any terminal while power is on. Doing so will cause electric shock or malfunction.
●Shut off the external power supply (all phases) used in the system before cleaning the module,
retightening the terminal block screws or connector screws, or operating the IP address/station
number setting switches. Failure to do so may cause the module to fail or malfunction.
CAUTION
●Do not disassemble or modify the module. Doing so may cause failure, malfunction, injury, or a fire.
●Do not drop or apply strong shock to the module. Doing so may damage the module.
●Use any radio communication device such as a cellular phone or PHS (Personal Handy-phone
System) more than 25cm away from wiring as well as away in all directions from the programmable
controller. Failure to do so may cause malfunction.
●Shut off the external power supply (all phases) used in the system before mounting or removing a
module. Failure to do so may cause the module to fail or malfunction.
●After the first use of the product, do not connect/remove the terminal block more than 50 times (IEC
61131-2/JIS B 3502 compliant). Exceeding the limit may cause malfunction.
●After the first use of the product, do not connect/remove the connector more than 50 times (IEC
61131-2/JIS B 3502 compliant). Exceeding the limit may cause malfunction.
●Before handling the module or connection cables, touch a conducting object such as a grounded
metal to discharge the static electricity from the human body. Failure to do so may cause the module
to fail or malfunction.
●Startup and maintenance of a control panel must be performed by qualified maintenance personnel
with knowledge of protection against electric shock. Lock the control panel so that only qualified
maintenance personnel can operate it.
●Use a clean and dry cloth to wipe off dirt on the module.
CAUTION
●When disposing of this product, treat it as industrial waste.

6
CONDITIONS OF USE FOR THE PRODUCT
COMPLIANCE WITH EMC AND LOW VOLTAGE
DIRECTIVES
Method of ensuring compliance
To ensure that Mitsubishi Electric programmable controllers maintain EMC and Low Voltage Directives when incorporated into
other machinery or equipment, certain measures may be necessary. Please refer to one of the following manuals.
• User's manual for the CPU module or head module used
• Safety Guidelines (This manual is included with the CPU module, base unit, or head module.)
The CE mark on the side of the programmable controller indicates compliance with EMC and Low Voltage Directives.
Additional measures
To ensure that this product maintains EMC and Low Voltage Directives, please refer to the following.
Page 184 EMC and Low Voltage Directives
(1) MELSEC programmable controller ("the PRODUCT") shall be used in conditions;
i) where any problem, fault or failure occurring in the PRODUCT, if any, shall not lead to any major or serious accident;
and
ii) where the backup and fail-safe function are systematically or automatically provided outside of the PRODUCT for the
case of any problem, fault or failure occurring in the PRODUCT.
(2) The PRODUCT has been designed and manufactured for the purpose of being used in general industries.
MITSUBISHI ELECTRIC SHALL HAVE NO RESPONSIBILITY OR LIABILITY (INCLUDING, BUT NOT LIMITED TO
ANY AND ALL RESPONSIBILITY OR LIABILITY BASED ON CONTRACT, WARRANTY, TORT, PRODUCT
LIABILITY) FOR ANY INJURY OR DEATH TO PERSONS OR LOSS OR DAMAGE TO PROPERTY CAUSED BY the
PRODUCT THAT ARE OPERATED OR USED IN APPLICATION NOT INTENDED OR EXCLUDED BY
INSTRUCTIONS, PRECAUTIONS, OR WARNING CONTAINED IN MITSUBISHI ELECTRIC USER'S, INSTRUCTION
AND/OR SAFETY MANUALS, TECHNICAL BULLETINS AND GUIDELINES FOR the PRODUCT.
("Prohibited Application")
Prohibited Applications include, but not limited to, the use of the PRODUCT in;
• Nuclear Power Plants and any other power plants operated by Power companies, and/or any other cases in which the
public could be affected if any problem or fault occurs in the PRODUCT.
• Railway companies or Public service purposes, and/or any other cases in which establishment of a special quality
assurance system is required by the Purchaser or End User.
• Aircraft or Aerospace, Medical applications, Train equipment, transport equipment such as Elevator and Escalator,
Incineration and Fuel devices, Vehicles, Manned transportation, Equipment for Recreation and Amusement, and
Safety devices, handling of Nuclear or Hazardous Materials or Chemicals, Mining and Drilling, and/or other
applications where there is a significant risk of injury to the public or property.
Notwithstanding the above restrictions, Mitsubishi Electric may in its sole discretion, authorize use of the PRODUCT in
one or more of the Prohibited Applications, provided that the usage of the PRODUCT is limited only for the specific
applications agreed to by Mitsubishi Electric and provided further that no special quality assurance or fail-safe,
redundant or other safety features which exceed the general specifications of the PRODUCTs are required. For details,
please contact the Mitsubishi Electric representative in your region.
(3) Mitsubishi Electric shall have no responsibility or liability for any problems involving programmable controller trouble and
system trouble caused by DoS attacks, unauthorized access, computer viruses, and other cyberattacks.

7
INTRODUCTION
Thank you for purchasing the CC-Link IE TSN-AnyWireASLINK bridge module (hereafter abbreviated as bridge module).
This manual describes the procedures, system configuration, parameter settings, functions, and troubleshooting of the
relevant product listed below.
Before using this product, please read this manual and the relevant manuals carefully and develop familiarity with the
functions and performance of the relevant product to handle the product correctly.
When applying the program examples introduced in this manual to an actual system, ensure the applicability and confirm that
it will not cause system control problems.
Relevant product
NZ2AW1GNAL
Unless otherwise specified, this manual describes the program examples in which the remote I/O signals and
remote registers are assigned for the NZ2AW1GNAL as follows.
• Remote input signal: RX0 to RX21F
• Remote output signal: RY0 to RY21F
• Remote register: RWr0 to RWr21F
• Remote register: RWw0 to RWw21F
For the assignment of remote I/O signals and remote registers, refer to the following.
Page 84 Program Example

8
CONTENTS
COPYRIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
PRECAUTIONS REGARDING WARRANTY AND SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
CONDITIONS OF USE FOR THE PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
COMPLIANCE WITH EMC AND LOW VOLTAGE DIRECTIVES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
RELEVANT MANUALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TERMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
GENERIC TERMS AND ABBREVIATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

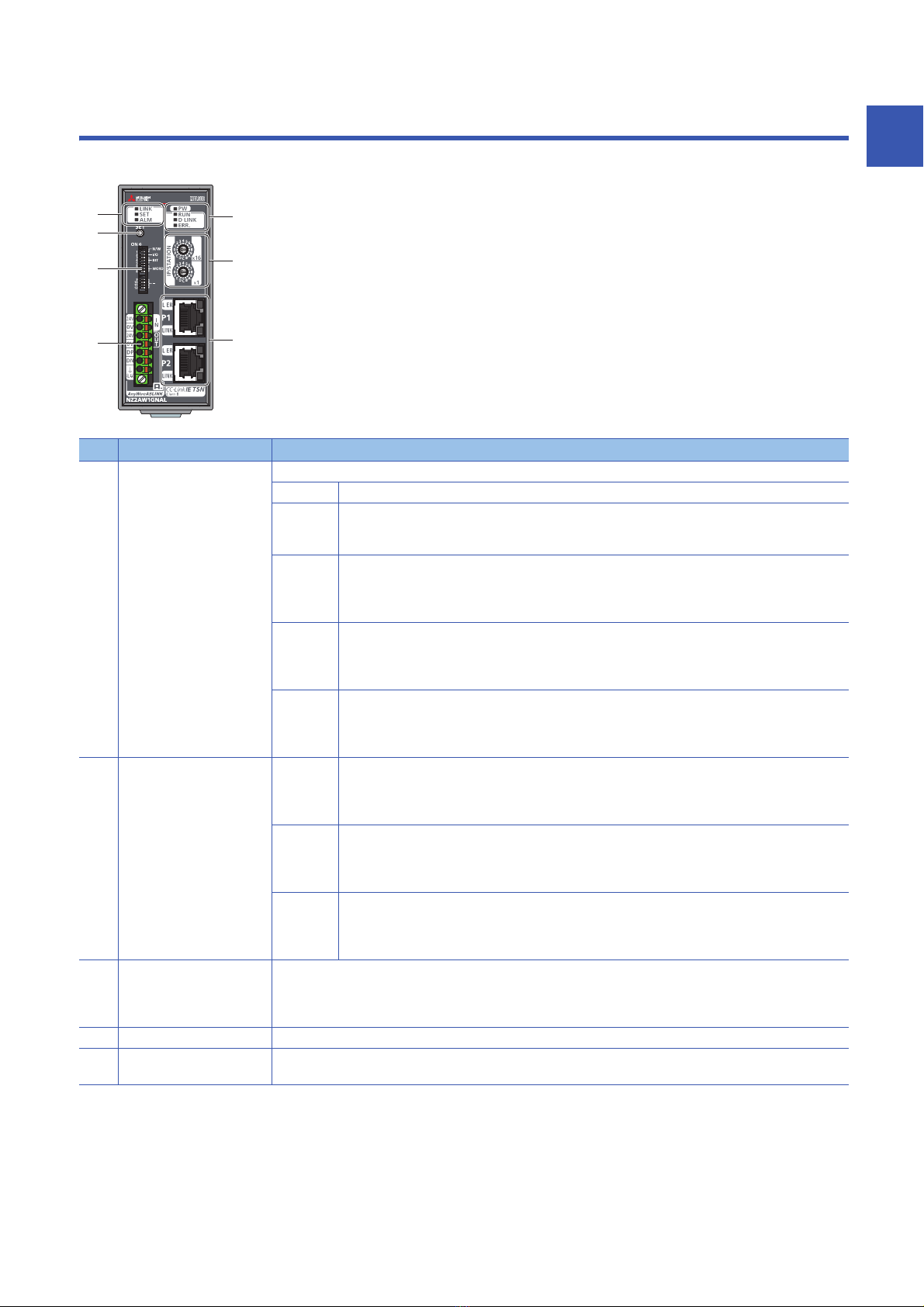

CHAPTER 1 PART NAMES 13
CHAPTER 2 SPECIFICATIONS 15
2.1 General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2 Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3 Performance Specifications of Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.4 Function List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CHAPTER 3 PROCEDURES BEFORE OPERATION 19
CHAPTER 4 SYSTEM CONFIGURATION 21
4.1 System Configuration of AnyWireASLINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Applicable Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
CHAPTER 5 INSTALLATION AND WIRING 23
5.1 Setting Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
IP address setting switch setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
MODE switch setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.2 Installation Environment and Installation Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mounting direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Mounting a module on a DIN rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.4 CC-Link IE TSN Connector Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.5 Wiring to a Transmission Cable Terminal Block of the AnyWireASLINK. . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Transmission cable terminal block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Wiring product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Wiring method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.6 Connecting Slave Module or Terminating Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Connection type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Terminating unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
5.7 Supplying Power to the NZ2AW1GNAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Method of supplying the power to the slave module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Scope of the power supply with transmission cables (DP and DN). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.8 Checking System Before Power-on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.9 Powering on the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

9
CONTENTS
CHAPTER 6 CONFIGURATION 40
6.1 Network Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.2 Parameter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Parameter processing of a slave station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.3 Settings of Slave Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Address setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Slave module parameter setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.4 Automatic Address Detection Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Performing the automatic address detection mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Performing the automatic address detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Automatic address detection execution timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
CHAPTER 7 FUNCTIONS 57
7.1 AnyWireASLINK Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Bit transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Word transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.2 Remote Address Change Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
7.3 Address Inspection Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7.4 Transmission Cable Short Detection Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.5 Disconnected Transmission Cable Location Detection Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
7.6 Module Power Supply Voltage Drop Detection Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
7.7 Disconnection Error Automatic Recovery Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
7.8 Input/output Hold/Clear Setting Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.9 Slave Module Information Acquisition Function at Start-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
7.10 Slave Module Parameter Read/Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
7.11 Easy Replacement Function for One Slave Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
7.12 Word Data Start Address Setting Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
7.13 AnyWireASLINK Version Compatibility Inspection Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
7.14 iQ Sensor Solution Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
CHAPTER 8 PROGRAMMING 83
8.1 Precautions on Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
8.2 Program Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
System configuration example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Parameter setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Sample program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
CHAPTER 9 MAINTENANCE AND INSPECTION 107
9.1 Daily Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
9.2 Periodic Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
CHAPTER 10 TROUBLESHOOTING 109
10.1 Checking with LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
10.2 CC-Link IE TSN/CC-Link IE Field Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
10.3 Unit Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
10.4 Troubleshooting by Symptom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
A slave module cannot be detected when automatic address detection is executed . . . . . . . . . . . . . . . . . . . . 114
When parameter read/write and CC-Link IE TSN diagnostics cannot be performed . . . . . . . . . . . . . . . . . . . . 114
When AnyWireASLINK system communication is unstable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
When the easy replacement setting for one slave module is not available . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

10
When the AnyWireASLINK version compatibility inspection cannot be executed. . . . . . . . . . . . . . . . . . . . . . . 116
When the remote address cannot be changed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
10.5 How to Check Error Codes and Alarm Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
10.6 List of Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
10.7 Alarm Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
APPENDICES 127
Appendix 1 Remote I/O Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
List of remote I/O signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Details of remote I/O signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Details of remote output signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Appendix 2 Remote Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Lists of remote register areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Details of remote register areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Appendix 3 Remote Buffer Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
List of buffer memory addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Details of buffer memory addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Appendix 4 Double Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Bit data double verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Word data double verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Appendix 5 Processing Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Transmission cycle time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Bit data update timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Update timing of word data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Response delay time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Parameter access response time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Appendix 6 EMC and Low Voltage Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Measures to comply with the EMC Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Measures to comply with the Low Voltage Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Appendix 7 How to Check Production Information and Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Checking the production information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Checking the firmware version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Appendix 8 External Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
INDEX 192
REVISIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195
TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196

11
RELEVANT MANUALS
e-Manual refers to the Mitsubishi Electric FA electronic book manuals that can be browsed using a dedicated
tool.
e-Manual has the following features:
• Required information can be cross-searched in multiple manuals.
• Other manuals can be accessed from the links in the manual.
• The hardware specifications of each part can be found from the product figures.
• Pages that users often browse can be bookmarked.
• Sample programs can be copied to an engineering tool.
Manual name [manual number] Description Available form
CC-Link IE TSN―AnyWireASLINK Bridge Module
User's Manual
[SH-082405ENG] (this manual)
Specifications, procedures before operation, system configuration, wiring,
parameter settings, functions, communication examples, troubleshooting,
remote I/O signals, remote register, and remote buffer memory of the
NZ2AW1GNAL
Print book
e-Manual
PDF
MELSEC iQ-R CC-Link IE TSN User's Manual
(Startup)
[SH-082127ENG]
Specifications, procedures before operation, system configuration, wiring,
and communication examples of CC-Link IE TSN
Print book
e-Manual
PDF
MELSEC iQ-R CC-Link IE TSN User's Manual
(Application)
[SH-082129ENG]
Functions, parameter settings, troubleshooting, I/O signals, and buffer
memory of CC-Link IE TSN
Print book
e-Manual
PDF
GX Works3 Operating Manual
[SH-081215ENG]
System configuration, parameter settings, and online operations of GX
Works3
e-Manual
PDF
iQ Sensor Solution Reference Manual
[SH-081133ENG]
Operating methods of iQ Sensor Solution, such as programming and
monitoring
Print book
e-Manual
PDF

12
TERMS
Unless otherwise specified, this manual uses the following terms.
GENERIC TERMS AND ABBREVIATIONS
Unless otherwise specified, this manual uses the following generic terms and abbreviations.
Term Description
Address Device information set to a slave module to identify each node on the AnyWireASLINK network
Address writer A hand-held device to read/write parameters (including addresses) from/to a slave module
Alarm ID An ID of a slave module where an alarm has occurred.
Note that if the alarm is for the NZ2AW1GNAL or the entire network, the alarm ID will be 0FFFH.
AnyWireASLINK A system where sensors at the end of a control system are connected to a programmable controller in the most suitable
way.
With this system, the NZ2AW1GNAL can detect sensor disconnection and a user can set the I/O operations of a slave
module on the NZ2AW1GNAL without using I/O areas of the CPU module.
Authentication Class A group of devices and switching hubs compatible with CC-Link IE TSN, classified according to the functions and
performance by the CC-Link Partner Association.
For authentication Class, refer to the CC-Link IE TSN Installation Manual (BAP-C3007ENG-001) published by the CC-
Link Partner Association.
Engineering tool A tool used for setting up programmable controllers, programming, debugging, and maintenance.
ID Information assigned to a module based on its address to identify whether it is an input module or output module
Link device A device (RX, RY, RWr, RWw, LB, or LW) in a module on CC-Link IE TSN
Master station A station that controls the entire network on CC-Link IE TSN. This station can perform cyclic transmission and transient
transmission with all stations.
Only one master station can be used in a network.
Power cable (24V, 0V) A cable that connects a 24VDC external power supply to the NZ2AW1GNAL
Remote buffer memory Buffer memory in a remote station on CC-Link IE TSN
Remote station A station that exchanges I/O signals (bit data) and I/O data (word data) with the master station of CC-Link IE TSN by
cyclic transmission. This station can perform transient transmission.
Slave station A station other than a master station on CC-Link IE TSN: a local station, a remote station
Terminating unit A waveform shaper
Transmission cable (DP, DN) A signal cable that connects between a slave module and the NZ2AW1GNAL
Transmission cycle time A data sampling interval
Generic term/abbreviation Description
ASLINKAMP A generic term for sensor amplifiers that have an AnyWireASLINK interface
ASLINKER A generic term for I/O devices that have an AnyWireASLINK interface
ASLINKSENSOR A generic term for sensor modules that have an AnyWireASLINK interface
RWr An abbreviation for a remote register of a link device. Word data input from a slave station to the master station. (For
some areas in a local station, data are input in the opposite direction.)
RWw An abbreviation for a remote register of a link device. Word data output from the master station to a slave station. (For
some areas in a local station, data are output in the opposite direction.)
RX An abbreviation for remote input of a link device. Bit data input from a slave station to the master station. (For some
areas in a local station, data are input in the opposite direction.)
RY An abbreviation for remote output of a link device. Bit data output from the master station to a slave station. (For some
areas in a local station, data are output in the opposite direction.)
Slave module A generic term for modules that communicate data with the NZ2AW1GNAL via AnyWireASLINK communication

1 PART NAMES
13
1
1PART NAMES
This chapter describes the part names of the NZ2AW1GNAL.
No. Name Description
(1) LED indicator
(CC-Link IE TSN)
The NZ2AW1GNAL status is indicated by the LEDs.
LED name Description
PW LED Indicates the power supply status of the NZ2AW1GNAL.
On: Power-on
Off: Power-off
RUN LED Indicates the operating status of the NZ2AW1GNAL.
On: Normal operation
Flashing: Unit test mode
Off: Hardware error
D LINK
LED
Indicates the cyclic transmission status of the NZ2AW1GNAL.
On: Cyclic transmission being performed
Off: Cyclic transmission stopped
Off: Disconnected
ERR. LED Indicates the error status of the NZ2AW1GNAL.
On: Moderate error or major error
Flashing: Minor error
Off: Normal operation
(2) LED indicator
(AnyWireASLINK)
LINK LED Indicates the link status of AnyWireASLINK.
On: Data link not available, AnyWireASLINK version compatibility inspection in progress
Flashing: Data link being performed
Off: Data link not available
SET LED Indicates the address detection status of AnyWireASLINK.
On: Automatic address detection in progress, non-volatile memory data error occurred
Flashing: Address write to a non-volatile memory in progress
Off: Normal operation
ALM LED Indicates the alarm status of AnyWireASLINK.
On: Alarm occurred
Flashing: DP-DN short circuit, 24V-DP short circuit
Off: Normal operation
(3) SET switch Used for the automatic detection of IDs (addresses) of the slave modules connected to AnyWireASLINK and the
AnyWireASLINK version compatibility inspection.
Page 54 Performing the automatic address detection
Page 78 AnyWireASLINK Version Compatibility Inspection Function
(4) IP address setting switch Sets the IP address (fourth octet) of CC-Link IE TSN. (Page 23 IP address setting switch setting)
(5) MODE switch Sets the transmission points setting and operation mode of AnyWireASLINK using MODE switch at the front of the
NZ2AW1GNAL. (Page 25 MODE switch setting)
(3)
(2) (1)
(5)
(7)
(4)
(6)

14 1 PART NAMES
(6) P1
P2
Ports for CC-Link IE TSN connection. (RJ45 connector)
Connect an Ethernet cable. (Page 30 CC-Link IE TSN Connector Wiring)
There is no restrictions on the connection order of P1 and P2.
LED name Description
L ER LED Indicates the frame loss status.
On: Frame loss
Off: No frame loss
LINK LED Indicates the link status.
On: Link-up
Off: Link-down
(7) AnyWireASLINK
transmission cable terminal
block
A terminal block connected to the transmission cable and module power supply of AnyWireASLINK (Page 31
Wiring to a Transmission Cable Terminal Block of the AnyWireASLINK, Page 37 Supplying Power to the
NZ2AW1GNAL)
No. Name Description

2 SPECIFICATIONS
2.1 General Specifications 15
2
2SPECIFICATIONS
2.1 General Specifications
The following table lists the general specifications.
*1 Do not use or store the programmable controller under pressure higher than the atmospheric pressure of altitude 0m.
Doing so may cause malfunction.
When using the programmable controller under pressure, please consult your local Mitsubishi representative.
*2 This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power
distribution network and the machinery within premises.
Category applies to equipment for which electrical power is supplied from fixed facilities.
The surge voltage withstand level for the equipment with the rated voltage of 300V or less is 2500V.
*3 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used.
In pollution degree 2, only non-conductive pollution occurs. A temporary conductivity caused by an accidental condensation may also
occur occasionally.
*4 The equipment can also be used outside the control panel, provided that environmental conditions such as operating ambient
temperature and operating ambient humidity are met.
Item Specifications
Operating ambient
temperature
0 to 55
Storage ambient
temperature
-25 to 75
Operating ambient
humidity
5 to 95%RH, non-condensing
Storage ambient
humidity
Vibration resistance Compliant with IEC
61131-2 and JIS B
3502
Frequency Constant
acceleration
Half amplitude Number of sweeps
Under intermittent
vibration
5 to 8.4Hz 3.5mm 10 times each in X,
Y, and Z directions
8.4 to 150Hz 9.8m/
Under continuous
vibration
5 to 8.4Hz 1.75mm 
8.4 to 150Hz 4.9m/
Shock resistance Compliant with IEC 61131-2 and JIS B 3502 (147m/, 3 times each in X, Y, and Z directions)
Operating
atmosphere
No corrosive gas
Operating altitude*1 0 to 2000m
Installation location Inside a control panel*4
Overvoltage
category*2
or less
Pollution degree*3 2 or less
Equipment class Class 

16 2 SPECIFICATIONS
2.2 Performance Specifications
2.2 Performance Specifications
The following table lists the performance specifications.
*1 For the number of points used in the NZ2AW1GNAL, refer to the following.
Page 127 Remote I/O Signals
Page 141 Remote Register
*2 For the network topology, follow the specifications of the master station used.
*3 For wiring of 50m or more with 4 wires (DP, DN, 24V, 0V), insert the noise filter for power supply cables between the power supply and
cables. For details, refer to the manual for the AnyWireFILTER (ANF-01) manufactured by Anywire Corporation.
*4 For the relationship between the total length, the wire diameter of transmission cables (DP, DN), and the transmission cable supply
current, refer to the following. On some slave modules with cables, the wire diameter of module-integrated transmission cables (DP, DN)
may be 0.75or less. However, they can be used without any problem, provided that the diameter of the transmission cables (DP,
DN) meets the requirement below.
*5 When the 24VDC power is supplied from the NZ2AW1GNAL to slave modules, ensure that the total amount of the transmission cable
supply current and the current supplied to slave modules does not exceed 2A.
Classification Item Specifications
CC-Link IE TSN Station type Remote station
Authentication Class Authentication Class B
Maximum number of link points Remote input (RX) 544 points*1
Remote output (RY) 544 points*1
Remote register (RWw) 544 words*1
Remote register (RWr) 544 words*1
Network topology Line topology, star topology, coexistence of line and star topologies, ring topology*2
AnyWireASLINK Transmission clock 27.0kHz
Maximum transmission distance
(total length)
200m*3
Transmission method DC power supply superimposed total frame/cyclic method
Connection type Bus topology (multidrop system, T-branch system, tree branch system)
Transmission protocol Dedicated protocol (AnyWireASLINK)
Error control Checksum, double-verification system
Number of bit data points 1024 points maximum (input: 512 points, output: 512 points)
Number of word data points 1024 points maximum (input: 512 points, output: 512 points)
Number of connected slave
modules
256 maximum (varies depending on the current consumption of each slave module)*4
RAS function Disconnected transmission cable location detection function, transmission cable short detection
function, module power supply drop detection function
AnyWireASLINK transmission
cable
24VDC power cable
• UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25, 0.75, temperature rating 70
or higher)
• UL-listed general-purpose wire (1.25, 0.75, temperature rating 70or higher)
• Dedicated flat cable (1.25, 0.75, temperature rating 90)
Transmission cable supply
current*4*5
2A maximum
Common Power supply Voltage: 21.6 to 27.6VDC (24VDC -10 to +15%), ripple 0.5Vp-p or lower
Recommended voltage: 26.4VDC (24VDC + 10%)
Module current consumption: 0.2A
External dimensions 102mm(H) 43mm(W) 102.8mm(D)
Weight 0.2kg
Wire diameter of transmission
cables (DP, DN)
Transmission cable supply current
Total length of 50m or less Total length of 50m to 100m Total length of 100m to 200m
1.252A maximum 1A maximum 0.5A maximum
0.751.2A maximum 0.6A maximum 0.3A maximum

2 SPECIFICATIONS
2.3 Performance Specifications of Ethernet 17
2
2.3 Performance Specifications of Ethernet
The following table lists the performance specifications of Ethernet of the RJ71GN11-T2.
Item Description
Transmission
specifications
Data transmission speed 1Gbps
Communication mode 1000BASE-T Full-duplex
Interface RJ45 connector (AUTO MDI/MDI-X)
Maximum frame size 1518 bytes
Maximum segment length 100m
Number of cascade connections 1000BASE-T 100m
IP version Compatible with IPv4

18 2 SPECIFICATIONS
2.4 Function List
2.4 Function List
This section lists the functions of the NZ2AW1GNAL.
Item Description Reference
AnyWireASLINK
transmission
Bit
transmission
Exchanges I/O data of up to 1024 points (input 512 points, output 512 points) between
the NZ2AW1GNAL and a slave module.
Page 58 Bit transmission
Word
transmission
Exchanges I/O data of up to 1024 words (input 512 words, output 512 words) between
the NZ2AW1GNAL and a slave module.
Page 58 Word
transmission
Remote address change function Changes the ID (address) of a slave module remotely without an address writer. Page 59 Remote
Address Change Function
Address inspection function Executes an address inspection to detect a slave module having no ID or a slave module
having a duplicate ID.
Page 61 Address
Inspection Function
Transmission cable short detection
function
Protects the system by detecting the current out of the specifications of the
AnyWireASLINK system across DP-DN or 24V-DP and stopping the transmission.
Page 63 Transmission
Cable Short Detection
Function
Disconnected transmission cable
location detection function
Notifies the NZ2AW1GNAL of the ID of a slave module that has been separated from the
NZ2AW1GNAL because of disconnection in the transmission cables (DP, DN) between
the NZ2AW1GNAL and the slave module, to locate the disconnection in the transmission
cables (DP, DN) from the upper system.
Page 64 Disconnected
Transmission Cable Location
Detection Function
Module power supply drop
detection function
Detects a voltage drop in the module power supply, and detects a module power supply
failure or wiring error from the upper system.
Page 65 Module Power
Supply Voltage Drop
Detection Function
Disconnection error automatic
recovery function
For DP/DN disconnection errors, automatically clears the error flag when the
disconnection error status is cleared.
Page 66 Disconnection
Error Automatic Recovery
Function
Input/output Hold/Clear setting
function
Sets to hold or clear the last input or output values when the NZ2AW1GNAL is
disconnected from a data link, when the operating status of the CPU module is in STOP
state, or when the operating status of the CPU module is in error stop status.
Page 67 Input/output
Hold/Clear Setting Function
Slave module information
acquisition function at start-up
Automatically acquires a slave module information when the NZ2AW1GNAL is powered
off and on or is reset remotely.
Page 68 Slave Module
Information Acquisition
Function at Start-Up
Slave module parameter read/write Reads/Writes individual or all parameter information of a slave module or the
AnyWireASLINK by using the program.
Page 69 Slave Module
Parameter Read/Write
Easy replacement function for one
slave module
Automatically sets the address and the device parameters without an address writer
when the slave module is replaced with the one of the same type.
Page 74 Easy
Replacement Function for
One Slave Module
Word data start address setting
function
Shortens the word transmission cycle time by setting the start address of word data
transmission.
Page 77 Word Data Start
Address Setting Function
AnyWireASLINK version
compatibility inspection function
Detects a slave module that does not support word transmission. Page 78
AnyWireASLINK Version
Compatibility Inspection
Function
IQ Sensor Solution function Establishes data communications with AnyWireASLINK-compatible slave modules via
CC-Link IE TSN and AnyWireASLINK.
Page 82 iQ Sensor
Solution Function
