Mitsubishi Electric MJ-E16VX-A1 User manual

DEHUMIDIFIER
MODEL
MJ-E16VX-A1
INSTRUCTION MANUAL
Features
zDrying Inside
zAir Filter and Washable
Photocatalytic Filter
zEasy Dehumidifying · Laundry
zIn order to ensure correct usage, please read
this instruction manual carefully and retain it
for future reference.
zBefore accepting the Warranty at the time of
purchase, please make sure that the date of
purchase, place of purchase and other items
are correctly filled in the form.
zRecommended Ways of Using the
Unit Depending on Purpose ·········· 2
zFrequently Asked Questions ········· 3
zPrecautions····································· 4
zWarnings ········································· 6
zTips on Dehumidifying··················· 6

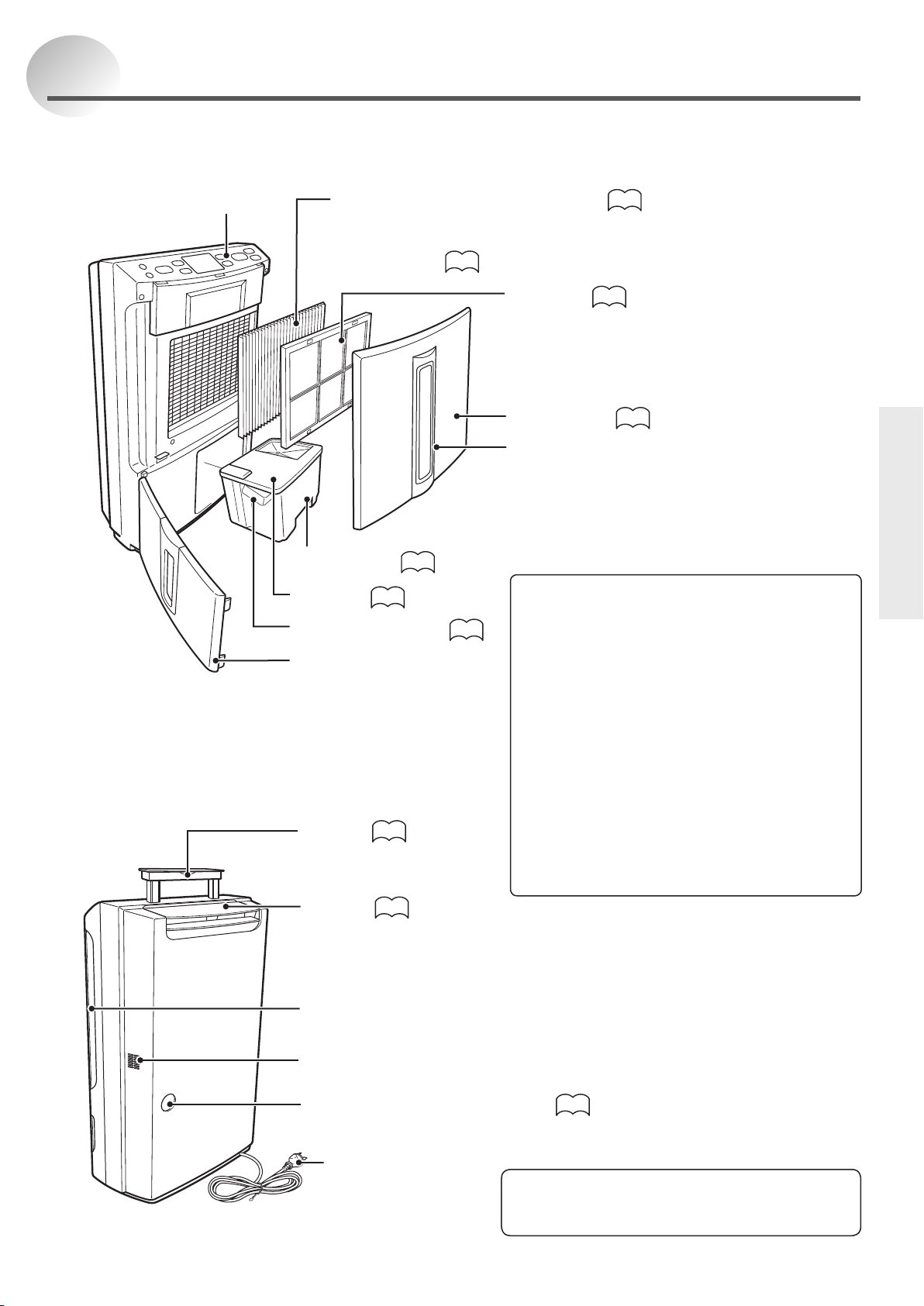

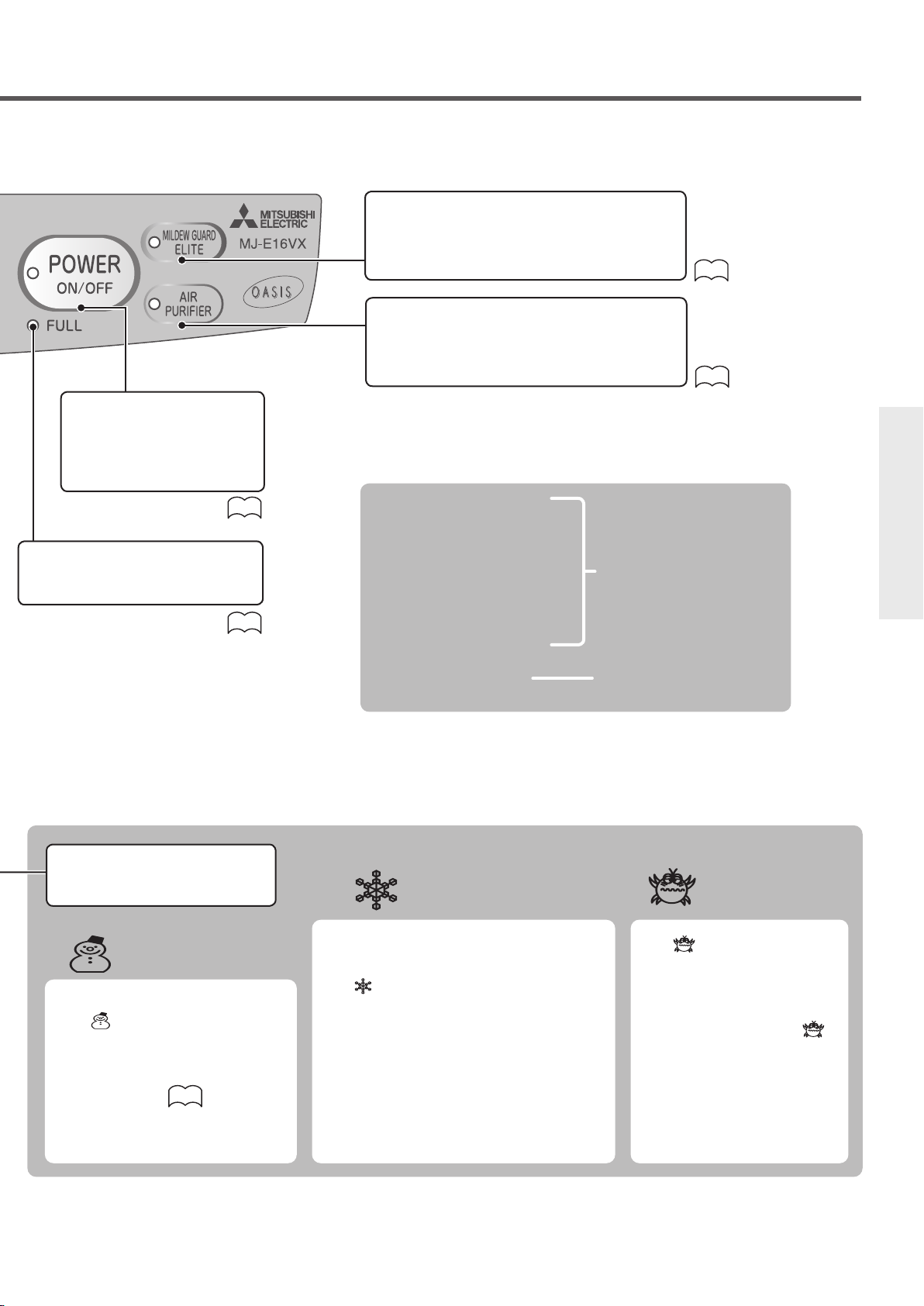

zNames and Functions of Parts······ 7
Unit/Control Panel/LCD Panel
(Low Temperature/Defrost/High Humidity)
zThings to Be Aware of·················· 10
zBefore Using Your Dehumidier ···· 10
zTurning the Unit ON and OFF······ 12
To turn ON/To turn OFF
Reading the humidity display/Tank full lamp
zEasy Operation ····························· 13
EASY DEHUMIDIFYING/LAUNDRY

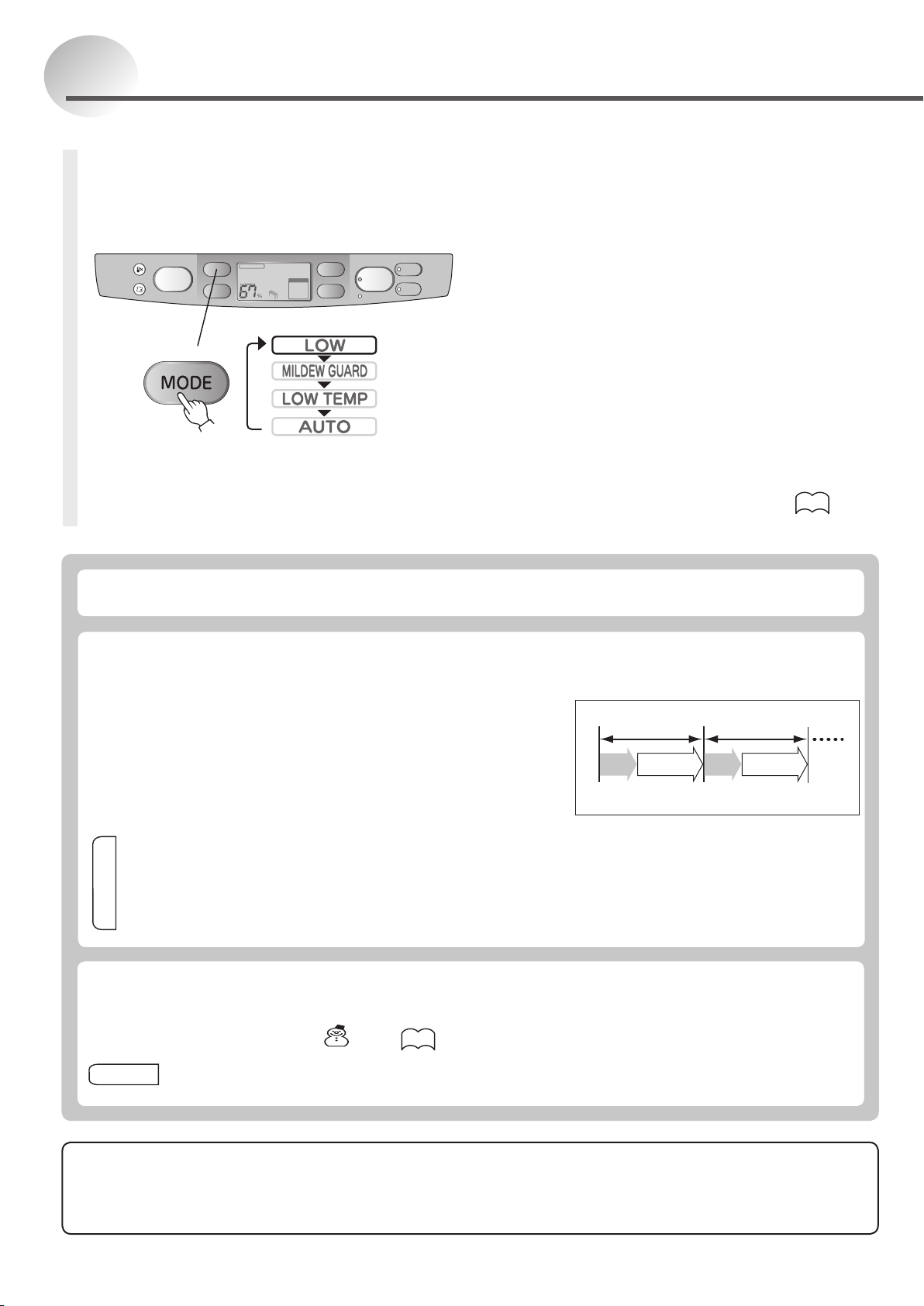

zSetting Modes······························· 14
LOW/MILDEW GUARD/LOW TEMP/AUTO/
AIR PURIFIER
zSwing Louvre Function················ 16
zDrying Inside ································ 17
zUsing the Timer ···························· 18
OFF timer operation/ON timer operation
zUsing the Child Lock···················· 20
zCarrying the Unit ·························· 20
zRemoving Water from the Tank ···· 21
zContinuous Drainage ··················· 22
zMaintenance·································· 23
zReplacing the Air Purifying Filter ··· 25
zStorage and Disposal··················· 25
zTroubleshooting ··························· 26
zSpecications················ Back cover
Before Using the UnitOperating
Troubleshooting
Table of Contents page
e_mj_e16vx_a1.indb 1 2016/06/27 14:37:55

2
Recommended Ways of Using the Unit Depending on Purpose
Combine operating mode and swing louvre function to get optimum results.
Objective
Recommended
operating
mode
Recommended
swing setting
Procedure
Press the
power button
(the unit turns on)
Page 12
Select the
mode
Page 13–15
Select the
louvre swing
range
Page 16
Lowering room humidity Preventing mold/
When you don’t
want to hang
clothes outside or
it is raining...
When you don’t
know what
humidity level to
set the unit to...
When you want to
set the humidity
level...
When
condensation
occurs indoors...
To prevent
mildew...
LAUNDRY
The unit operates for 12
hours and automatically
switches off.
EASY
DEHUMIDIFYING
The unit operates
until the air is
comfortable.
AUTO
The unit maintains
the set humidity.
LOW TEMP
The unit changes the
airflow according to
room temperature.
MILDEW
GUARD
The unit operates
in mildew
suppression mode.
UPWARD
Aim toward clothes.
Turn the power on
Select
LAUNDRY
Select EASY
DEHUMIDIFYING
Select
LOW TEMP
Select
MILDEW
GUARD
Select UPWARD Select any swing setting Select any swing setting
Turn the power on
Switch to
HUMIDITY
SELECTION
Set the
humidity
Turn the
power on
Any swing setting Any swing setting
Drying
laundry
What
should I
set it to?
I want to
set it to
60%
e_mj_e16vx_a1.indb 2 2016/06/27 14:37:56

3
Before Using the Unit
To clean
the air
To keep the inside
of closets and
shoeboxes dry...
There is no need for
dehumidication, but you
wish to remove pollen and
dust from the air.
LOW
The dehumidifier
operates regardless
of the humidity level.
REAR
Direct the
air flow
Switch to AIR PURIFIER
Select LOW
Select any
swing setting
Select REAR
Turn the power on
Any swing setting
AIR PURIFIER
The unit operates the air
purifier only.
condensation

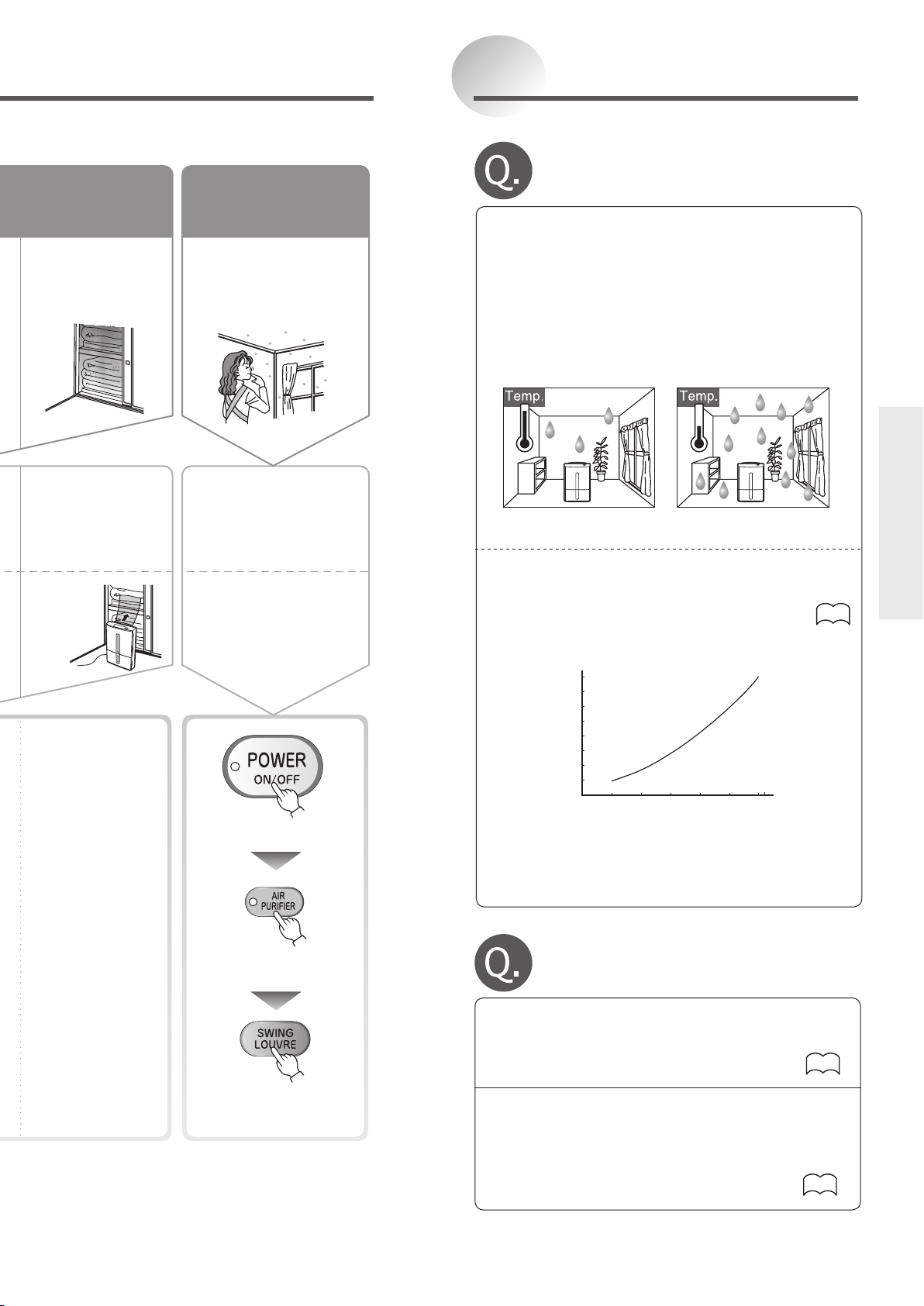

Frequently Asked Questions
Why does the dehumidier seem
to collect less water in winter?
A. Are the temperature and humidity low?
When the temperature and humidity are
low, the amount of water collected is
decreased.
In winter, because the temperature is lower than
in summer, the effect of the dehumidifier is greatly
reduced as shown in the graph below.
Although only a little water collects in the tank, this is
not a malfunction.
Winter (dampness)
* If the temperature is low, but the humidity is high due
to snow or rain, operating the unit in LOW TEMP mode
will yield better results than in LOW mode. 14
• Thevaluesshownonthegraphweremeasuredat
constant temperature and humidity and do not reflect
values obtained in actual usage conditions.
• Why doesn’t the dehumidier operate?
• Why does the unit stop operating suddenly?
A. The unit might be in LAUNDRY mode.
The unit operates for 12 hours and automatically
switches off.. 13
A. The unit might be in EASY
DEHUMIDIFYING, MILDEW GUARD, or
AUTO mode.
The unit automatically switches between
dehumidifying, airflow only, and non-operation.
13–15
Summer (humidity)
Recommended Ways of Using the Unit Depending on Purpose
Preventing mold/
To prevent
mildew...
MILDEW
GUARD
The unit operates
in mildew
suppression mode.
Select any swing setting
Any swing setting
Room temperature (°C)
0
2
4
6
8
12
14
16
10
30252015105
Dehumidification capacity (L/day)
Values for LOW dehumidifying
operation.
e_mj_e16vx_a1.indb 3 2016/06/27 14:37:56

4
Precautions
WARNING

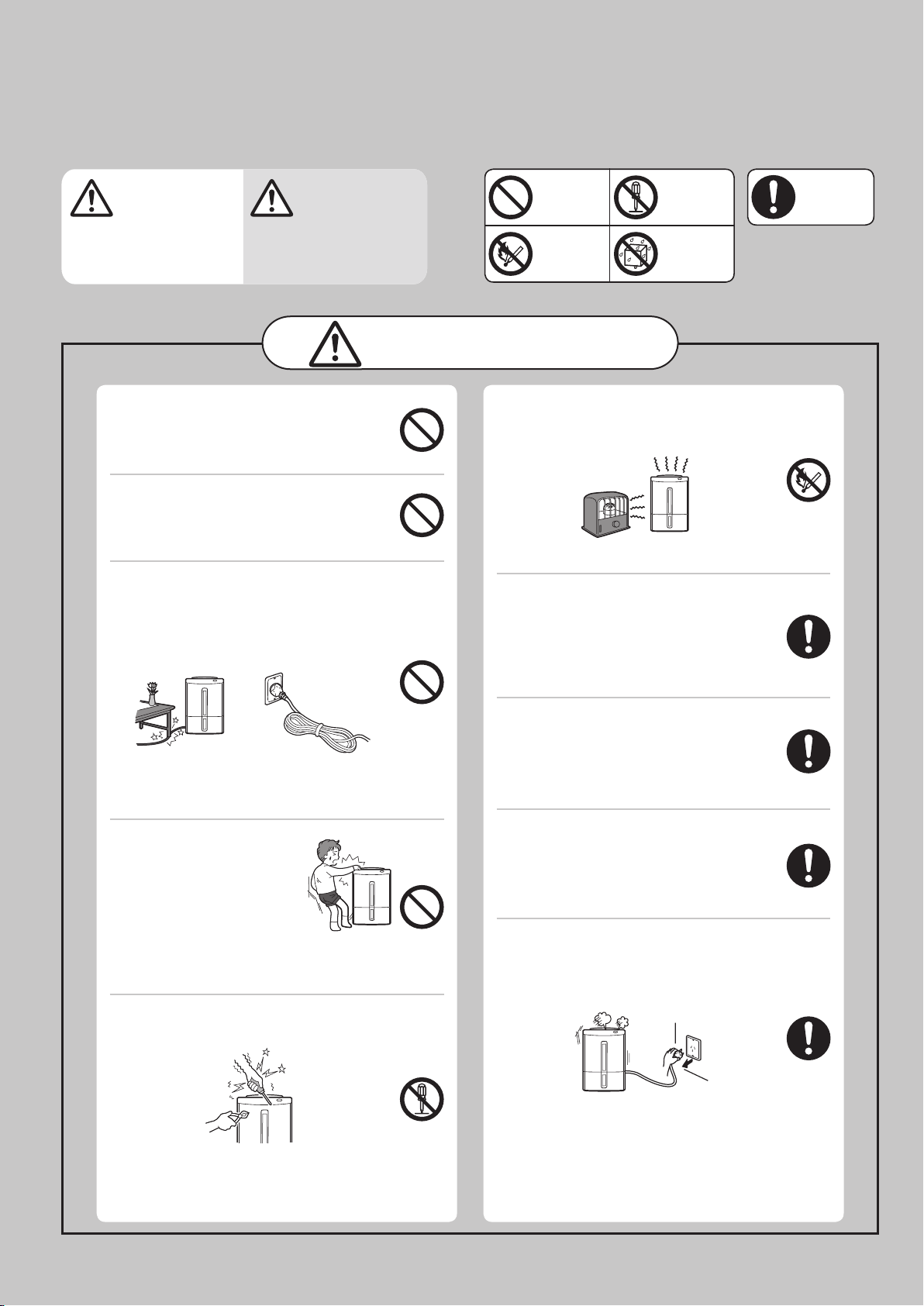

Meanings of the graphic symbols used in this manual and on
the unit are explained below.
Forbidden
Keep
away from
fire
Do not
subject to
water
Do not
disassemble
Always
follow the
instructions
The following diagrams indicate circumstances where
danger can result from mishandling the unit.
WARNING CAUTION
Mishandling may result in
fatal or serious injuries.
Mishandling may result in
injuries or damage to your
home or property, etc.
Do not start/stop the unit by
plugging/unplugging the power
cord.
This may result in re and/or electric shock.
Do not use extension cords or
multiple head adapters.
This may result in re, electric shock or
malfunctions.
Do not damage or modify the
power cord or plug.
Do not modify, bundle, twist, bend or heat
the power cord. Do not place under objects
or use with the end close to the plug bent.
The cord may be damaged resulting in
re or electric shock. (Keep pets from
biting the cord.)
Do not put your ngers
or any long object, into
the air intake/outlet.
Do not touch the swing
louvre.
The internal fan rotates at high speeds,
and such actions may result in injury or
malfunctions.
Do not attempt to repair,
disassemble, or modify the unit.
This may result in re and/or electric
shock. See the last page for service
contact details.
Do not put the unit near heat-
generating devices (such as
stoves, fan heaters, etc.).
The plastic parts may melt causing re.
Wipe dust off the power plug and
insert the plug rmly.
If the plug is not fully inserted into
the socket, dust may gather on the
connectors which may cause re and/or
electric shock.
Use 230-240V AC power sockets.
Connecting to power sockets other than
230-240V AC may result in re and/or
electric shock.
Remove water that has collected
in the tank.
Accidentally drinking the water or using
it for other purposes may cause illness
and/or unforeseen accidents.
Should abnormal symptoms occur
(a burning smell, etc.), switch off
the unit and unplug it from the
socket.
Continuing to operate the unit may result
in re, electric shock, or malfunctions.
See the last page for service contact
details.
e_mj_e16vx_a1.indb 4 2016/06/27 14:37:57

5
Before Using the Unit

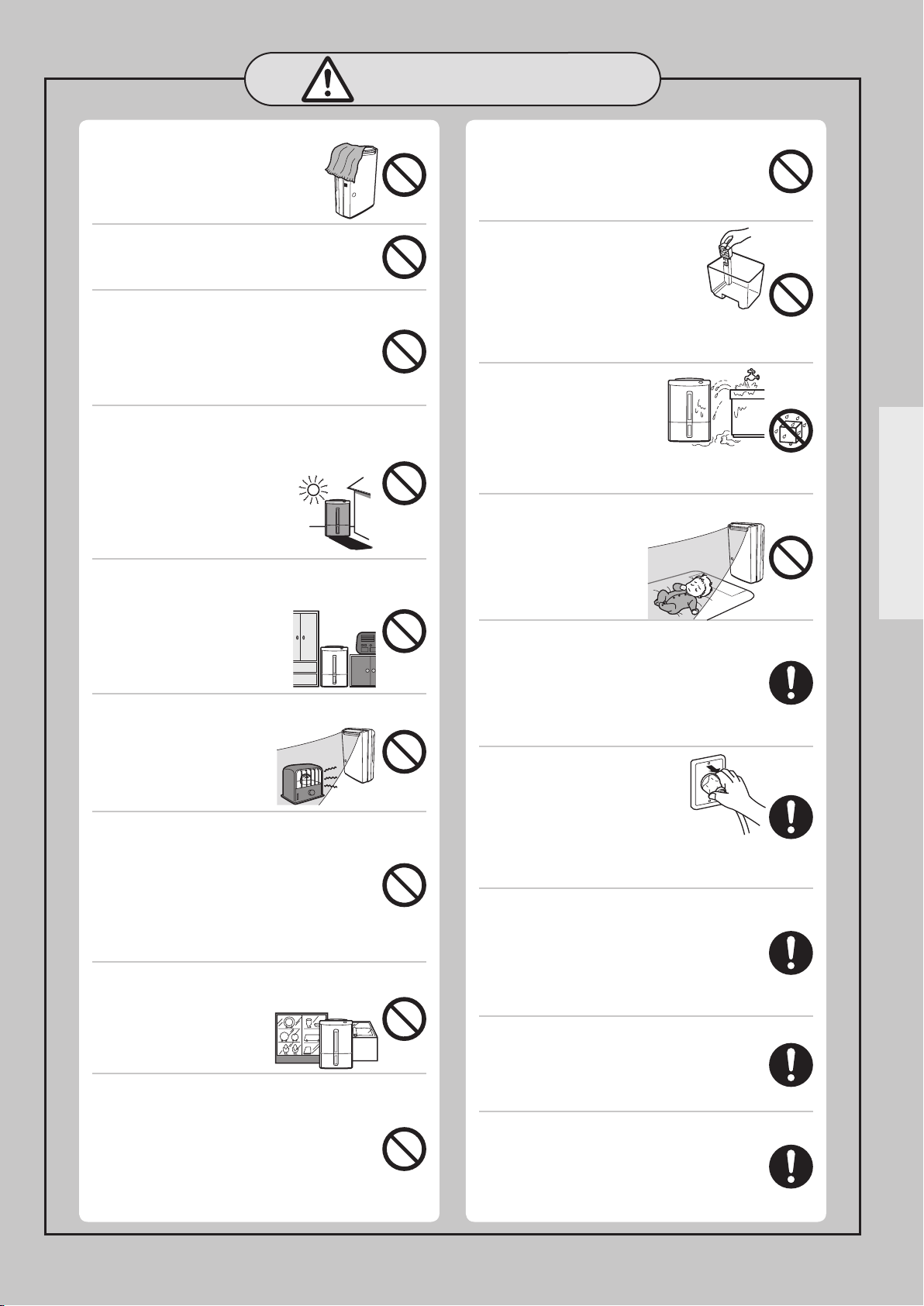

Do not cover the front or side
air intakes or the air outlet
with cloth, curtain, etc.
This results in poor ventilation and
may cause heat generation/re.
Do not stand on, sit on or lean
against the unit.
The unit may tip over causing injury.
Do not put vases or any other
objects lled with water on the unit.
Water may leak into the unit adversely
affecting electric insulation and cause
electric shock and/or re by short-
circuiting.
Do not use the unit where it may be
exposed to direct sunlight or other
weather conditions.
(This unit is for indoor
use only.)
This may cause overheating,
electric shock and/or re
caused by an electric leak.
Do not use the unit in narrow,
enclosed places such as inside
closets, between
pieces of furniture, etc.
This results in poor
ventilation and may cause
heat generation and/or re.
Do not use combustion appliances
in the path of the
air outlet.
This may cause
incomplete combustion
in the appliance.
Do not use the unit in places
where chemicals are used
(such as hospitals, factories,
laboratories or beauty salons).
Chemicals and solvents evaporated in
the air may harm the unit and cause
water in the tank to leak, resulting in
damage to property.
Do not use the unit for special
purposes, such as preservation of food,
art or scientic works.
This may negatively
affect the quality of the
items stored.
Do not drain water continuously
if there is a possibility that
temperature around the hose could
drop to freezing point.
Water inside the hose may freeze and
prevent the water in the tank from flowing out.
The water may leak from the unit and
damage surrounding objects.
Do not use the unit in places
that may be subject to oil or
ammable gas leakage.
Such a leak around the unit may cause
combustion and re.
Do not remove the Styrofoam
from the oating element.
The floating element will not
be able to detect a full tank
resulting in water leakage,
which may damage surrounding
objects or cause electric shock and/or
an electric leak.
Do not wash the unit
with water. Do not
use the unit where it
is likely to come in
contact with water.
Exposure to water may result in re or
electric shock caused by an electric leak.
Do not point air-ow from the unit
directly at the body.
If air-flow is directed at
the body for long periods,
it may harm one’s
physical condition and
lead to dehydration.
Install the unit in a location where
the oor is at and stable.
If the unit falls over, the water collected
in the water tank may leak damaging
surrounding objects and in turn result
in re or electric shock caused by an
electrical leak.
Grasp the plug and remove
from the power socket.
When removing the plug from
the power socket, do not pull
on it diagonally or by the cord as this
may cause the projections/wiring to be
damaged resulting in a short circuit,
electric shock or re.
Before moving the unit always
switch it off, unplug it and remove
water from the water tank.
Moving the unit with water in its tank may
cause the water to leak and damage the
surrounding objects and in turn result
in electric shock and/or an electric leak.
After emptying the tank, transport the
unit by grasping the handle rmly.
Losing your footing while carrying the
unit may cause personal injury or
damage to the oor.
When using the continuous
drainage outlet, make sure to
position the hose so that the
water drains without obstruction.
The water in the tank may leak and
damage surrounding objects.
CAUTION
e_mj_e16vx_a1.indb 5 2016/06/27 14:37:58

6
Drain the water tank before use
Refrain from opening
doors/windows during operation
Drying laundry indoors
Maintain room temperature above 16°C with a
heater
zDrying times will vary depending on the nature
of the laundry and the room temperature. In low
temperatures (10°C), drying takes about twice as
long as when normal (20°C+).
zThe airflow is strongest to the top right of the unit.
Installing your dehumidier
Make sure to leave some
space around the unit.
<For use in close proximity
to a wall>
Stop the louvre in the
vertical position. Blowing
air at the wall may cause
staining.
Operating noise
Place the unit on top of a mat. This reduces vibration and
noise. It also prevents leaving depressions on carpets.
At least
20 cm
At least 50 cm
At least
2 cm
At least 20 cm
At least
20 cm
•Directthelouvresatthelaundry.
•Spacelaundrytoimproveairflow.
•Spacethewashingtoensuregoodairflow.
Precautions (Cont.)
Use the dehumidifier in a small, enclosed room.
zKeep the unit always in an upright
position. Inclining the unit may cause water
in the tank to leak into the unit, resulting in
malfunction. Should this happen contact
service number on the last page for advice.
z
Damage to the dehumidifier caused by
atmospheric conditions (ie. Salt or Sulphur) will
not be covered under warranty.
When draining water
continuously or left
unattended for long periods,
inspect the unit every two
weeks.
Do not allow debris to clog the
filter/hose as this may cause
overheating/leakage.
Use the unit with caution
in rooms where the walls,
furniture and art work are
vulnerable to dry air, as
it may cause cracks and
warping.
Switch the unit off
and unplug from
the power source
when cleaning it.
When the unit is on, the internal fan
rotates at high speeds and may
cause injury.
Unplug the unit from the
power source when not using
the unit for an extended
period of time.
Otherwise it may cause re and/
or electric shock caused by an
electric leak.
Tips on Dehumidifying
zDo not carry the unit horizontally.
This may result in malfunctions.
Such malfunctions are
NOT covered under
warranty.
Warnings
CAUTION
zThis appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
zChildren should be supervised to ensure that
they do not play with the appliance.
e_mj_e16vx_a1.indb 6 2016/06/27 14:37:58

7
Before Using the Unit
Front
Back
Washable photocatalytic lter
24·25
(hereafter: photocatalytic lter) (see box below for discussion)
Supplied with unit.
Fit before use. 10
Front air intake
Do not block.
Handle
Raise handle to transport.
20
Side air intakes (left/right)
Do not block.
Power plug
What is a washable photocatalytic lter?
The washable photocatalytic filter is made from two
layers: a white particle filter and a blue air-freshener
filter.
<Particle filter>
The particle filter removes pollen* and dust
particles.
<Air-freshener filter>
The special air-freshening agent contained in
the fibres absorbs odorants such as ammonia.
The odorants are broken down by photocatalysis
constantly renewing the air-freshening properties.
As the filter’s particle and air-freshening properties
are renewed by simply soaking and leaving it to dry
in the sun, the filter can be used continuously over a
long time.
Cigarette smoke and toxins found in smoke, such as
carbon monoxide, cannot be removed with this filter.
* Diameter of pollen: approx. 10–100 μm
The water tank may contain water residue at time
of purchase. This is from final product testing at the
factory and is not due to a defect.
Names and Functions of Parts
Control panel
Pre-lter 23
Air filter performance testing facility
Japan Spinners Inspecting Foundation
(tested under JIS L 1902 standards)
Front panel 10
Water tank
11·21
Tank lid
11·21
Floating element 21
Front door
Louvre 16
Sensor
Do not cover.
Continuous drainage outlet 22
e_mj_e16vx_a1.indb 7 2016/06/27 14:37:58

zChild lock
To set the child lock,
press the mode
button for three
seconds.
8
Names and Functions of Parts (Cont.)
All indicators on the LCD panel shown below.
Control Panel
zLamp
Current mode lights.
zSelection button
Switches modes.
zMode button
For switching from one
operating mode to another.
zHumidity selection
button
This is used to set the
target humidity.
14–15
zSwing louvre button
Sets swing louvre
direction or locks it into
position.
16
18–19
zON/OFF timer button
Sets timer.
LCD Panel
zMode indicator
Indicates the current
operating mode.
14–15
zHumidity indicator
This indicates the approximate
humidity.
indicates the current
humidity.
indicates the
humidity setting in
AUTO mode.
The current humidity is displayed
in a range from 30 to 80%.
12
zSwing monitor
Indicates the direction
of the swing louvre.
16
zTimer display
Displays the time
set for the ON/
OFF timer.
18–19
13
20
zChild lock indicator
Displayed while child lock
is active.
20
e_mj_e16vx_a1.indb 8 2016/06/27 14:37:59

9
Before Using the Unit
The indicator comes on if the
room temperature drops below
15°C.
Activating Low Temp mode is
recommended. 14
zTank full lamp
This lights up to warn that the
water tank is full.
12
zPower lamp
Lights when unit is ON.
zPower button
Use this to switch the unit
ON and OFF.
12
You can select from 7 operating modes.
Low Temperature
Indicator
DEFROST Indicator
Airflow (dehumidifying) will stop and the
frost that has accumulated inside will be
melted and dropped into the tank when
the indicator is on.
Please wait a moment as operation will
resume in around 5 minutes.
While in DEFROST mode, airow
(dehumidifying) and the louvre will
stop. The sounds coming from the unit
will also change.
DEFROST will start automatically when
room temperature drops below 15°C
(This may be as often as once every 40
minutes).
Names and Functions of Parts (Cont.)
zMildew guard elite lamp
Flashes when drying inside in progress.
zMildew guard elite button
Activate/deactivates drying inside. 17
zAir purier lamp
Lights during air purifier-only operation.
zAir purier button
Switches to air purifier-only operation. 15
zInformation display
Indicates room and unit
condition. High Humidity
Warning
The indicator flashes
when the unit is OFF and
the humidity in the room
exceeds 75%. Activating
the dehumidifier is
recommended when the
indicator is flashing.
If the High humidity warning
is not used, remove the
power plug from the power
socket.
EASY
DEHUMIDIFYING
LAUNDRY
LOW
MILDEW GUARD
LOW TEMP
AUTO
AIR PURIFIER
All modes include
dehumidifier and air purifier
functions.
Air purifier only operation.
The dehumidifier function is
disabled.
e_mj_e16vx_a1.indb 9 2016/06/27 14:37:59

10
Before Using Your Dehumidifier
Fitting the
photocatalytic filter
The photocatalytic filter is supplied with the unit at
time of purchase. Fit before using the unit.
1Remove the photocatalytic lter
from the polyethylene bag.
2Remove the front panel and pre-
lter.
3Fit the photocatalytic lter into
the pre-lter.
With the strips facing up, set the photocatalytic
lter inside the tabs on the pre-lter.
Strips
Tabs (6)
4Attach the pre-lter and front
panel.
Front panel Pre-filter
Performance is unaffected even if
the metal fins inside the main unit
are slightly bent.
1Remove holding
the bottom.
2Remove
holding
the tabs.
1Attach holding
the tabs.
2Hook the top edge
to the top part of
the unit and push
the bottom in.
Things to Be Aware of
How does the dehumidier
work?
If you pour cold water into a cup, the air around
it becomes cold, causing water droplets to form
on the surface of the cup.
The dehumidifier takes advantage of this
phenomenon to remove moisture from the air.
1 The unit draws air from the room, cools it
with its cooling coil, causing the moisture to
transform into water droplets.
2 The water droplets fall into the water tank.
3 The dehumidied air is reheated by the
heating coil, and then discharged.
The humidity of the room is thus reduced by
repeating steps 1, 2, and 3.
Room temperature may rise 2-4°C
during operation
The dehumidier does not have a cooler function.
Due to heat produced during operation, the room
temperature may rise 2–4°C. As a result, the unit may
blow warm air, but this is not due to a malfunction.
During winter, the air may not feel warm as the
temperature is below body temperature.
The humidity reading on the unit
may differ from a hygrometer in
the same room
Even in the same room, temperature and humidity
levels may differ from place to place. If the hygrometer
and the unit are in different parts of the room, the
humidity levels are prone to differ. Moreover, humidity
levels differ between places that have good and no
airow.
Use the reading on the unit as an estimate.
<Cause>
zInconsistencies in
temperature and
humidity
zDifference in
location
zDifference in
hygrometer
precision
Dried (warm) air
Cooling coil Re-heating coil
Moist air
Compressor Water tank
1
2
3
W
h
y
a
r
e
t
h
e
y
d
i
f
f
e
r
e
n
t
?
e_mj_e16vx_a1.indb 10 2016/06/27 14:37:59

11
Before Using the Unit
Inserting the water
tank correctly
Tank Lid
Open the front door.
Conrm that the lid
is securely attached
to the water tank.
Push the tank in.
Front door
Plug the power cord
into the power socket
Use a 230-240V AC
power socket only.
 The current humidity level is indicated.
If the louvre is open, it closes automatically.
Before Using Your Dehumidifier
e_mj_e16vx_a1.indb 11 2016/06/27 14:37:59

12
Information
zIf the room temperature falls below 15°C,
defrosting mode is activated once every 40
minutes (for about 5 minutes) causing water to
drain to the tank.
zThe unit can operate in a room temperature range of
1-35°C. However, if the room temperature exceeds
35°C, the unit may operate in blower mode or
increase the airflow. This is because the temperature
within the unit rises causing the protection mechanism
to operate. In order to lower the temperature within the
unit, when using the louvre, point UPWARD.
• Ifthetemperatureisbelow1°C,theextractedwateris
close to freezing disabling the dehumidifier, and only
the blower is operational.
To turn ON
zPower lamp lights.
zThe mode is displayed.
zThe louvre opens automatically.
To start dehumidifying, select the desired mode.
13–15
The dehumidifier does not activate for
3 minutes when the unit is turned ON
immediately after turning it OFF or plugging it
into the power socket. (In order to protect the
compressor.) When dehumidifying begins,
the operational noise increases.
The dehumidifier remembers the operating mode.
Even if the plug is disconnected or the power
turned off, the unit restarts at the previous setting.
Reading the humidity display
Tank full lamp
9
Turning the Unit ON and OFF
Press
To turn OFF
Drying inside will commence if it has been
activated. 17
Press
zPower lamp turns off.
zThe Mode Indicator
goes out.
Example
Example
CURRENT indicates the
current humidity.
Current humidity range is
between 30–80%.
•Humiditylevelsbelow30%are
displayed as 30%.
•Humiditylevelsabove80%are
displayed as 80%.
SELECTION indicates set
humidity level
(Automatic mode only).
15
The unit automatically shuts down and indicates
with the lamp and sound that the water tank is full.
Empty the water tank.
Tank full lamp lights.
(The unit beeps continuously.)
Air ows stops (louvre stops).
Swing monitor turns off.
Compressor turns off.
• Afterremovingthewaterandreplacingthetank,
the Tank full lamp will go off, and the unit will
automatically return to operation mode.
• WhentheTankfulllampislit,nooperationbutON/
OFF is possible.
21
e_mj_e16vx_a1.indb 12 2016/06/27 14:38:00

13
Operating
The unit automatically monitors room temperature/humidity alleviating the necessity to make minor adjustments. Use
EASY DEHUMIDIFYING for dehumidifying a room and LAUNDRY for drying clothes.
Selected mode lamp lights.
Easy Operation
Press
Changes with
every press
EASY DEHUMIDIFYING
The unit operates intermittently
controlling the airow to remove the
damp feeling in the air. (There is no need
to set the humidity level.)
When the room temperature is high, the
blower operates to decrease the damp
feeling.
The airflow or louvre operation may stop
according to the humidity level.
LAUNDRY
The unit operates for 12 hours and
automatically switches off.
50
20 3027
60
Room temperature is
below 27°C - the unit
automatically sets the
humidity level according
to the temperature.
Room temperature is
above 27°C - the unit
lowers the humidity level
to 50%, then activates
the blower.
The dehumidifier is
reactivated when
humidity rises to 60%.
Humidity level (%)
Room
temperature
(°C)
Information
zDrain the tank before use.
The unit may stop before the laundry dries
because of a full tank.
zDo not use in conjunction with the OFF timer.
The timer may turn the unit off before the laundry
dries.
zThe following conditions prevent clothes from
drying well:
Room temperature below 15°C, large volume of
laundry; laundry not spaced well; clothes of thick
fabric and spacious room. 6
Pressing Humidity Selection button while in EASY DEHUMIDIFYING or LAUNDRY mode changes the mode to AUTO.
15
Information
e_mj_e16vx_a1.indb 13 2016/06/27 14:38:00

14
LOW, MILDEW GUARD and LOW TEMP
LOW mode is for when you want to leave the dehumidifier on. MILDEW GUARD mode suppresses mildew growth.
LOW TEMP mode is for preventing condensation or when the room temperature is low.
Setting Modes
Press
Frame appears around selected mode.
Changes with every press
The amount of dehumidication decreases with the temperature and humidity.
The humidity level cannot be set with LOW, MILDEW GUARD, and LOW TEMP. 3
zLOW The dehumidifier operates regardless of the humidity level.
zMILDEW GUARD The unit lowers humidity levels automatically once a day, suppressing
mildew growth.
The unit operates intermittently for 2-4 hours a day (24
hours). The operating time varies depending on the humidity.
The unit continues to operate when the humidity does not
decrease.
• Humidity 40% Approx. 2 hours
• Humidity 50% Approx. 4 hours
ON
Dehumidifies
Standby
Dehumidifies
24 hours 24 hours
Standby Repeat
zLOW TEMP The unit operates continuously automatically controlling airflow according to
room temperature. The air flow is strongest below 15°C.
The use of LOW TEMP mode is recommended when the Low temperature
indicator is lit. 9
When the temperature is low, condensation may still form on windows exposed to the outside air even when
LOW TEMP mode is operating.
Information
How is mildew
growth suppressed? Mildew is unable to produce new spores if dried as mycelia. The Mildew Guard feature
applies this principle. (However, the spores themselves are resilient to dry conditions.)
Information
zRefrain from turning on ventilation fans or opening windows or doors as this lowers performance.
zMildew growth may still occur due to the fungus type and conditions of the room.
E.g. Rooms that contain excessive condensation, bathrooms, and places with bad airflow (insides of closets and
behind furniture).
zThis mode does not remove existing mildew.
zDo not use in conjunction with OFF Timer mode. Effects may not be achieved.
“Identification of Aspergillus and Penicillium” <Research paper by Dr. K. Abe of the Environmental Biology Research Center>
e_mj_e16vx_a1.indb 14 2016/06/27 14:38:00

15
Operating
AUTO
Setting Modes
When you want to set the humidity level.
Press
Frame appears around
AUTO.
AIR PURIFIER
To operate only the air purifier.
Press
Air purier lamp lights.
The MODE button can also be used to select
AUTO.
To return to the previous mode, press the air
purifier button again.
zAUTO
The unit maintains the humidity level
by automatically controlling airow and
operating intermittently as necessary. All
you have to do is setting the humidity level.
• The unit turns off when current humidity
decreases past the set humidity level, and
restarts when the level is exceeded. (airflow
and louvre stops)
• The unit operates for 6 minutes continuously
regardless of the humidity level immediately
after turning the power on.
Information
Frequent use of exits and room size/conditions
may cause the humidity to not reach the set
level.
<To view set humidity level/To set
humidity level>
• Pressing the button once displays
the set humidify level with the
indicator.
After 3 seconds, the
display returns to
the current humidity
display.
• Pressing the button while
is displayed sets
the humidity level. Each time the
button is pressed, the humidity
setting changes.
6570 505560
Press
Press
again
zAIR PURIFIER
The unit cleans the air by passing it
through the pre-lter and photocatalytic
lter. The dehumidifying function is
disabled.
Information
zThe air passes through the photocatalytic
filter in all modes, cleaning the air even if the
air purifier lamp is not lit.
zCigarette smoke and toxins found in smoke,
such as carbon monoxide, cannot be
removed with these filters.
e_mj_e16vx_a1.indb 15 2016/06/27 14:38:01

16
The louvre can be made to swing. Select from the 4 possible settings to suit the purpose.
Press
Swing Louvre Function (how to read the swing monitor)
Starts swing operation.
The swing monitor is displayed.
Objective Recommended swing setting Explanation of the swing modes
To stop the
louvre at the
desired angle
Stop swing
operation
zThe louvre stops in a vertical position.
zThe swing monitor turns off.
To change the louvre to a desired angle, wait until the
louvre stops, then adjust by hand.
To cover the
entire room WIDE The louvre swings from the UPWARD position through to
the REAR position.
For drying
clothes, etc. UPWARD
Swing speed is automatically controlled to send air at
washing from all angles.
For directing air
into a closet REAR
The louvre moves slowly through
the last 30° of the swing, as the
time taken to traverse the rear arc
is shorter than that for the upward
arc when moving at a constant
speed.
Information
zThe level of noise emitted from the unit varies according to the angle of the air-flow.
zThe louvre may stop up to a maximum of 8 seconds to correct its position, after which it will start moving again.
zIf the louvre is knocked out of the desired angle, readjust by following the above steps.
Note
Stop the louvre in the vertical position when using the unit against a wall. Blowing air at the wall may cause staining.
The swing operation stops when the power
cord is unplugged.
This indicates the range of louvre swing.
(The louvre and monitor do not move in
synchronization.)
With each press
of the button
Stop swing
operation
WIDE
UPWARD
REAR
e_mj_e16vx_a1.indb 16 2016/06/27 14:38:01

17
Operating
Information
zConnecting/disconnecting the power plug deactivates automatic operation.
zThis function does not remove existing mildew. Also, aborting drying inside may cause the benefits to diminish.
zDo not close the louvres while drying inside as this causes noise.
zThe moisture expelled from inside the unit may cause the humidity level of the room to rise.
zThe air leaving the unit may appear white depending on the humidity or temperature of the room.
zThe moisture expelled from inside the unit may smell due to odorants* that were not caught by the filter dissolving in the
water.
* The photocatalytic filter is mainly for absorbing ammonia.
zThe OFF timer cannot be set during drying inside.
Drying Inside
The inside of the unit can be dried to suppress mildew growth on the cooler.
On days the dehumidifier is used, drying inside is recommended.
Automatic operation
To activate drying inside after every use.
Press while the unit is on
zDrying inside standby
(Mildew guard elite lamp lit)
Drying inside starts when operation
ends
When the unit is turned off, LAUNDRY mode
ends, or the OFF timer ends.
zDrying inside starts
The mildew guard elite lamp flashes, the
humidity indicator turns off, and the louvre
stops in the vertical position.
Drying inside mode
zDrying inside ends
The mildew guard elite lamp turns off and the
louvres shut.
<To deactivate automatic operation>
Press the mildew guard elite button while the unit
is on (the mildew guard elite lamp turns off)
Manual operation
To activate drying inside by pressing a button.
Press while the unit is off
zDrying inside starts
The mildew guard elite lamp flashes, the
humidity indicator turns off, and the louvre
stops in the vertical position.
Drying inside mode
zDrying inside ends
The mildew guard elite lamp turns off and the
louvres shut.
To abort drying inside
Press the mildew guard elite button while the
unit is performing drying inside (the mildew
guard elite lamp turns off)
Press the power button to abort drying inside,
and resume normal operation.
<Drying inside operation> This operation takes approximately one hour. However, when the room
temperature is below 1°C, drying time is shortened to protect the
compressor.
Airow
Approx.
30 min. Approx. 20 min.
Regular
operation
Dehumidifier
Air purifier
Drying inside operation (approx. one hour.)
Airow stops; compressor
activates (operating sound)
Compressor operates
according to room temperature
Operating
sounds
OFF
Airow
Approx.
10 min.
Compressor
stops
Unit
stops
auto-
mati-
cally
e_mj_e16vx_a1.indb 17 2016/06/27 14:38:02

18
To cancel
<When you want to turn the unit
off>
Press the POWER button. (Power off)
zThe OFF Timer is cancelled.
<When you want to disable the
Timer OFF mode, and continue
operation>
Keep pressed until the remaining time
display disappears. The unit returns to LOW
mode.
zThe OFF Timer is cancelled.
Information
zEmpty the water tank before operating. The unit stops
and the Tank full lamp lights if the tank becomes full
during operation.
zThe OFF timer and ON timer cannot be set at the
same time.
zDo not use the timer OFF mode in conjunction with
LAUNDRY or MILDEW GUARD.
zThe OFF timer cannot be set during drying inside.
Press
Press
To set
1Switch the power on. 12
2Select operating mode.
13–15
Select desired operating mode.
3Change the louvre swing
direction. 16
Select the desired setting.
4Set the operation time.
zWhen pressed once the gure [ ] and
[OFF] appear.
zEach subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
→The OFF timer is set.
The following is an example of a display indicating
AUTO dehumidifying (set to 60%), swing set to
WIDE and the OFF timer set for 2 hours.
zThe time remaining until the unit
switches itself off is indicated in
increments of one hour.
zWhen the set time is reached, the unit switches
itself off and the louvre closes automatically.
Drying inside will commence if it has been
activated.
Press
No Display
(Low mode)
17
OFF timer operation The OFF timer can be set for 1 to 9 hours.
Set the timer when the power is switched on.
Using the Timer
e_mj_e16vx_a1.indb 18 2016/06/27 14:38:02

19
Operating
ON timer operation The ON timer can be set for 1 to 9 hours.
Set the timer when the power is switched off.
The following is an example of a display indicating
AUTO dehumidifying (set to 60%), swing set to
WIDE and the ON timer set for 5 hours.
•Thetimeremaininguntiltheunitswitchesitself
on is indicated in increments of one hour.
•Whenthesettimeisreached,theunitswitches
itself on.
To cancel
Press the Power button. (Power off)
zThe ON timer is cancelled.
Information
zDrying inside is deactivated when the ON timer is set
during drying inside operation.
zThe ON timer function is not operable using a
commercially-available timer plug outlet.
Press
To set
1Switch the power off. 12
2Set the time you wish the unit to
turn on.
zPress once. The Power lamp, Mode
indicator, and a [ ] on the digital
display ash. The [ON] indicator
lights.
zEach subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
3Select operating mode.
13–15
Select desired operating mode.
Set drying inside as desired.
4Change the louvre swing
direction. 16
Select the desired setting.
5Conrm the operating start time.
zPower lamp and Timer display light.
gThe ON timer is set.
The unit informs you if you forget to press the
Power button by making the Timer display and
Mode indicator blink and sounding an alarm for
1 minute.
Press
No Display
(operation
is off)
Press
Using the Timer
e_mj_e16vx_a1.indb 19 2016/06/27 14:38:02

20
Releasing the child
lock
Press for 3 or
more seconds.
zThe child lock indicator goes out.
To lock
Press for 3 or
more seconds.
zThe child lock indicator
The child lock is switched off when the power
cord is unplugged.
When the child lock is activated, the other
buttons are inoperable. Deactivate the child lock
to use the other buttons.
Carrying the Unit Using the Child Lock
If you lock the unit when the POWER is
OFF.
The unit will not turn on, even if you press the
POWER button to turn it on. Only the CHILD LOCK
indicator will blink.
(Press the POWER button once again so that the
indicator turns on.)
If you lock the unit when the POWER is
ON.
The unit will not turn off, even if you press the
POWER button to turn it off. Only the CHILD LOCK
indicator will blink.
(Press the POWER button once again so that the
indicator turns on.)
Pull the handle out, and grasp with a
rm grip
Before moving the unit, first make sure to remove
water from the water tank and close the louvre.
Note
zDo not carry the unit on its side as this may cause
malfunctions.
zDo not let the power cord drag, as this may damage
the cord.
e_mj_e16vx_a1.indb 20 2016/06/27 14:38:03
