MITSUBISHI DEHUMIDIFIER
MODEL
MJ-E22WX-H
INSTRUCTION MANUAL
Features
●Air Supplement for Drying Indoors
●Internal Drying Mode
● Air Filter and Silver ion Filter
●Easy Dehumidifying · Laundry
Table of Contents page
¡Getting the most out of your
dehumidifier...........................................2
¡Frequently Asked Questions ...............3
¡Precautions............................................4
¡Warning ..................................................6
¡Tips on dehumidifying..........................6
¡Names and Functions of Parts ............7

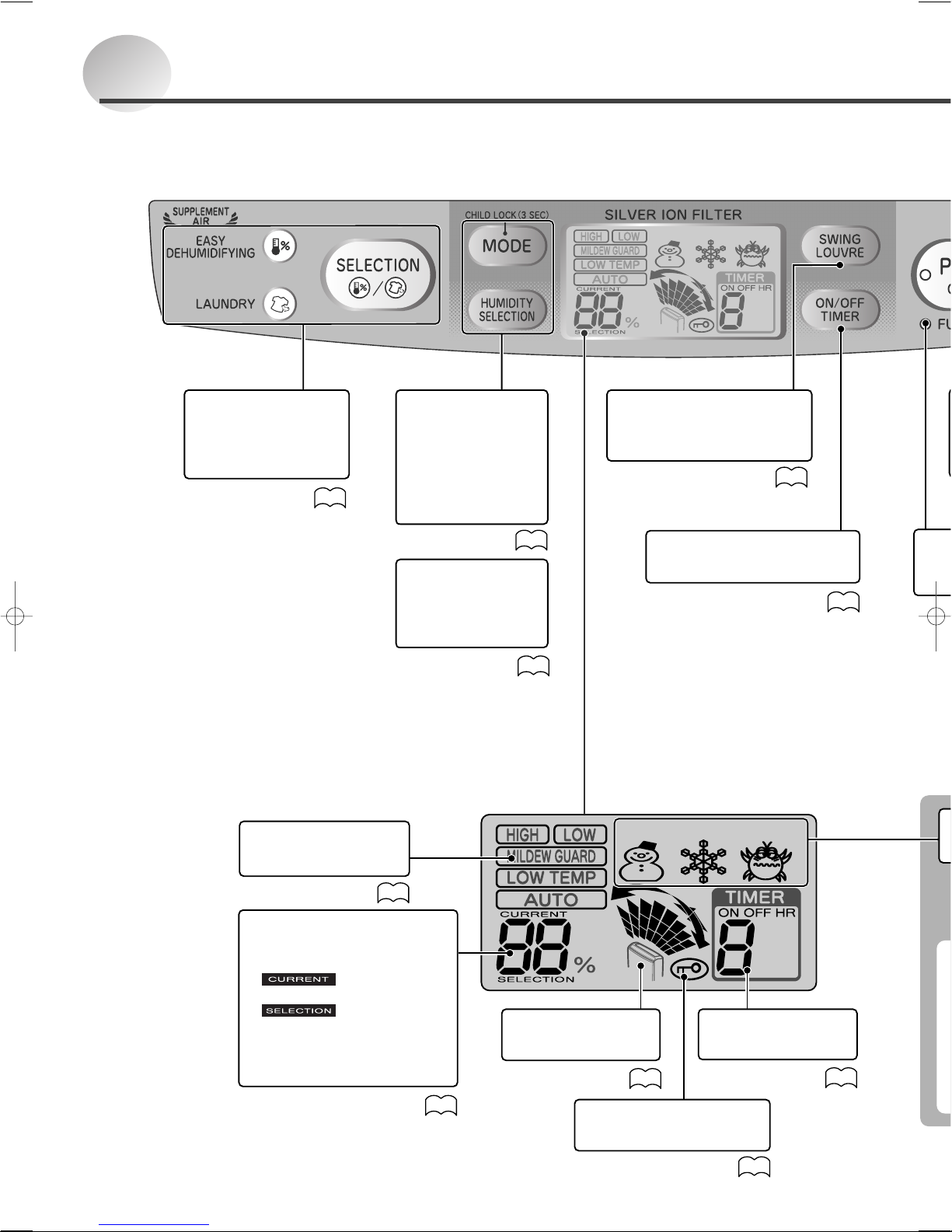

Unit-Control Panel-LCD Panel
(Low Temperature/Defrost/High humidity)
¡Things to be aware of.........................10
¡Before using your dehumidifier.........10

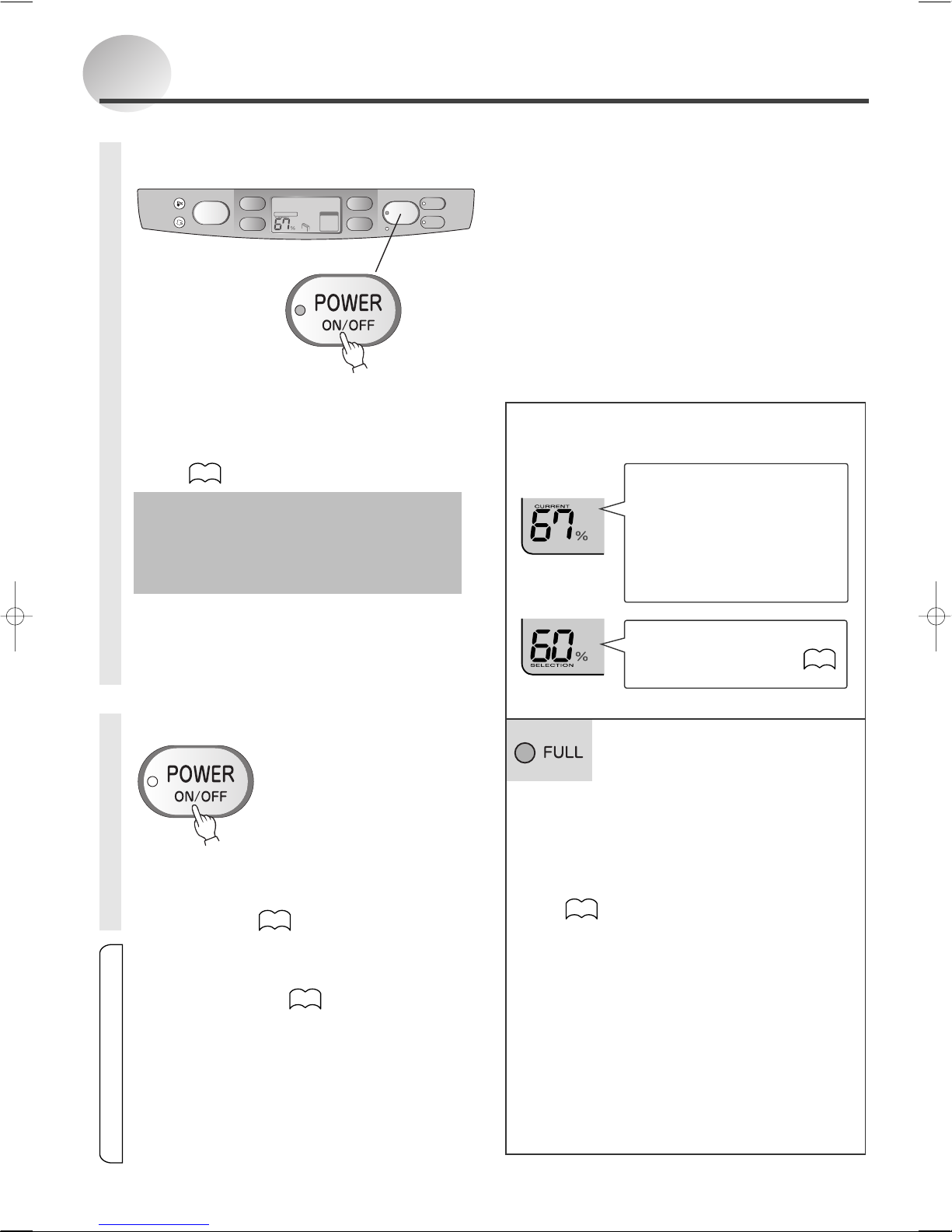

¡Turning the Unit ON and OFF ............12
To turn ON/To turn OFF
Reading the humidity display/Tank full lamp

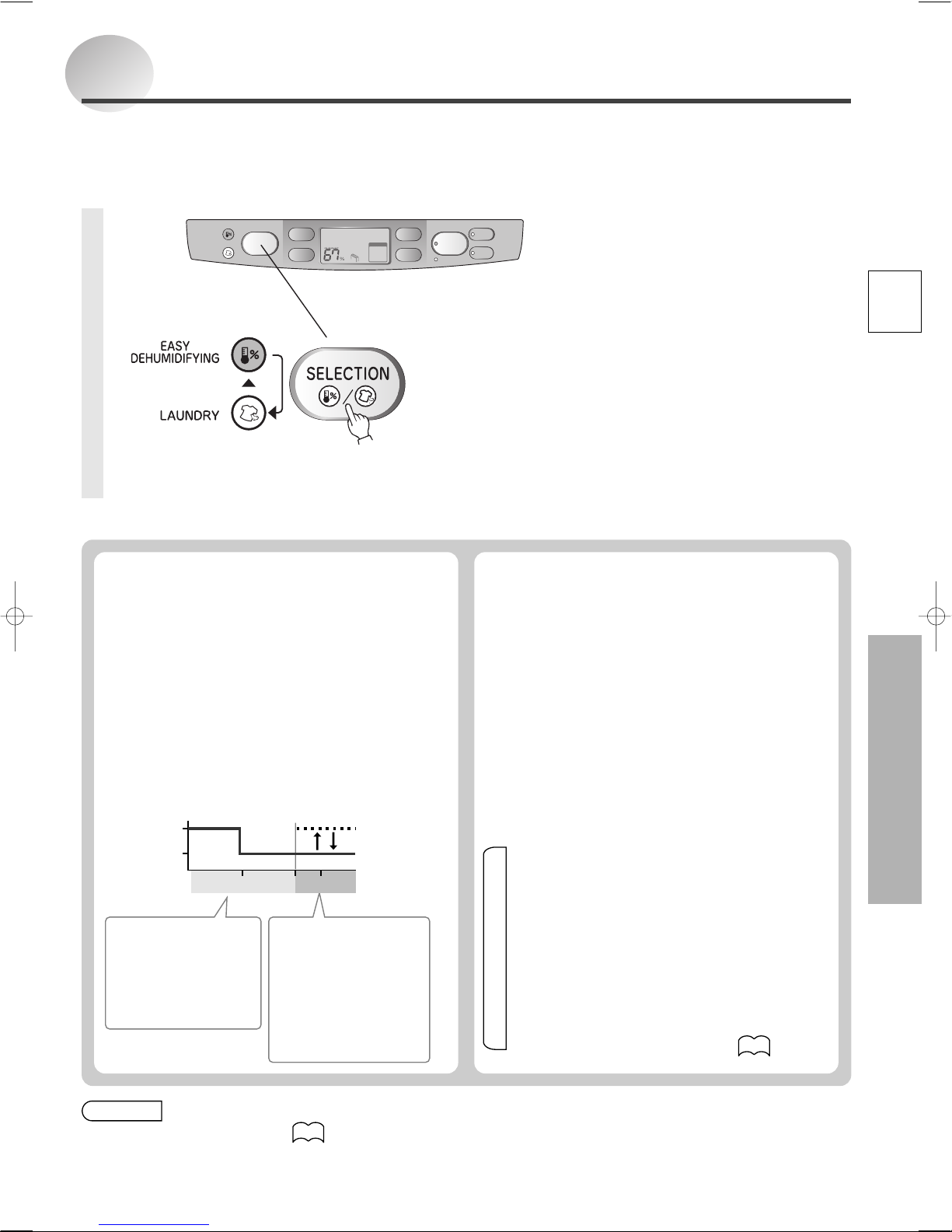

¡Easy Operation....................................13
EASY DEHUMIDIFYING/LAUNDRY
¡Setting modes .....................................14
HIGH, LOW, MILDEW GUARD and LOW
TEMP/AUTO/AIR PURIFIER
¡Swing louvre function ........................16
¡Drying inside .......................................17
¡Using the Timer ...................................18
OFF timer operation/ON timer operation
¡Using the Child Lock ..........................20
¡Carrying the Unit.................................20
¡Removing Water from the Tank..........21
¡Continuous Drainage..........................22
¡Maintenance ........................................23
¡
Replacing the Filter and Cartridge
..........25
¡Storage and Disposal .........................25
¡Troubleshooting ..................................26
¡Specifications .......................back cover
¡In order to ensure correct usage, please read
this instruction manual carefully and retain it for
future reference.
¡Before accepting the Warranty at the time of
purchase, please make sure that the date of
purchase, place of purchase and other items
are correctly filled in the form.
Printed on recycled paper.
Protect our environment and enrich our lives by
saving energy
E
English
e_mj_e22wx_c(01_19)_e33.qx 5/10/06 2:47 PM Page 1

2
Getting the most out of your deh
Combine operating mode and swing louvre function to get optimum results.
Objective
Recom-
mended
operating
mode
Recom-
mended
swing
setting
Procedure
Press the
power button
(the unit turns on)
Page 12
Select the
mode
Page 13-15
Select the
louvre
swing range
Page 16
Drying
laundry
Lowering room humidity Preventing mold/
When you don’t
want to hang the
clothes outside or
it is raining...
When you don’t
know what
humidity level to
set the unit to...
When you want to
set the humidity
level...
When
condensation
occurs indoors...
To prevent
mildew...
LAUNDRY
The unit operates for 12
hours and automatically
switches off.
EASY
DEHUMIDIFYING
The unit operates
until the air is
comfortable.
AUTO
The unit maintains
the set humidity.
LOW TEMP
The unit changes the
airflow according to
room temperature.
MILDEW
GUARD
The unit operates
in mildew sup-
pression mode.
UPWARD
Aim toward clothes.
Turn the power on
Select
LAUNDRY
Select EASY
DEHUMIDIFYING
Select
LOW TEMP
Select
MILDEW
GUARD
Select UPWARD Select any swing setting Select any swing setting
Turn the power on Tur n the
power on
Any swing setting Any swing setting
What
should I
set it to?
I want to
set it to
60%
Switch to
HUMIDITY
SELECTION
Set the
humidity
e_mj_e22wx_h(01_19)_e33.qx 10/6/06 11:56 AM Page 2

E
3
Before using the unit
Frequently Asked Questions
Room temperature (°C)
Dehumidification capacity (L/day)
14
13
13~15
To clean
the air
To keep the inside
of closets and
shoeboxes dry...
There is no need for
dehumidification, but you
wish to remove pollen and
dust from the air.
HIGH
The unit operates
continuously with the
airflow on “HIGH.”
REAR
Direct the
air flow
Switch to AIR PURIFIER
Select HIGH
Select any
swing setting
Select REAR
Turn the
power on
Any swing setting
AIR PURIFIER
The unit operates the air
purifier only.
Why does the dehumidifier seem
to collect less water in winter?
A.When the temperature and humidity are
low, the amount of water collected is
decreased.
In winter, the temperature is low and the air is dry.
Compared to summer, the effects of the
dehumidifier are minimized dramatically as shown
in the graph below.
Although only a little water collects in the tank, this
is not a malfunction.
•Why doesn’t the
dehumidifier operate?
•Why does the unit stop
operating suddenly?
A.The unit might be in LAUNDRY mode.
The unit operates for 12 hours and automatically
switches off.
A. The unit might be in EASY DEHUMIDIFYING,
MILDEW GUARD, or AUTO mode.
The unit automatically switches between
dehumidifying, airflow only, and non-operation.
Wet season (summer) Winter
*If the temperature is low, but the humidity is high
due to snow or rain, operating the unit in LOW
TEMP mode will yield better results than in HIGH
mode.
Values for HIGH dehumidifying
operation.
¡The values shown on the graph were measured at
constant temperature and humidity and do not
reflect values obtained in actual usage conditions.
0
5
10
15
20
22
510152025 30
umidifier
condensation
e_mj_e22wx_h(01_19)_e33.qx 10/6/06 11:56 AM Page 3

4
Precautions
Do not start/stop the unit by
plugging/unplugging the power
cord.
This may result in fire and/or electric shock.
Do not use extension cords or
multiple head adapters.
This may result in fire, electric shock or
malfunctions.
Do not damage or modify the
power cord or plug.
Do not modify, bundle, twist, bend or heat the
power cord. Do not place under objects or
use with the end close to the plug bent.
The cord may be damaged resulting in fire or
electric shock. (Keep pets from biting the
cord.)
Do not put your fingers
or any long object, into
the air intake/outlet. Do
not touch the swing
louvre.
The internal fan rotates at high speeds, and
such actions may result in injury or
malfunctions.
Do not attempt to repair,
disassemble, or modify the unit.
This may result in fire and/or electric shock.
Refer servicing to your dealer or Mitsubishi
Electric Service Centre.
Do not put the unit near heat-
generating devices (such as stoves,
fan heaters, etc.).
The plastic parts may melt and cause fire.
Wipe dust off the power plug and
insert the plug firmly.
If the plug is not fully inserted into the
socket, dust may gather on the
connectors which may cause fire and/or
electric shock.
Use 220-240V AC power sockets.
Connecting to power sockets other than 220-
240V AC may result in fire and/or electric
shock.
Remove water that has collected
in the tank.
Accidentally drinking the water or using it for
other purposes may cause illness and/or
unforeseen accidents.
Should abnormal symptoms occur (a
burning smell, etc.), switch off the unit
and unplug it from the socket.
Continuing to operate the unit may result in
fire, electric shock, or malfunctions.
Contact your dealer or Mitsubishi Electric
Service Centre for consultation.

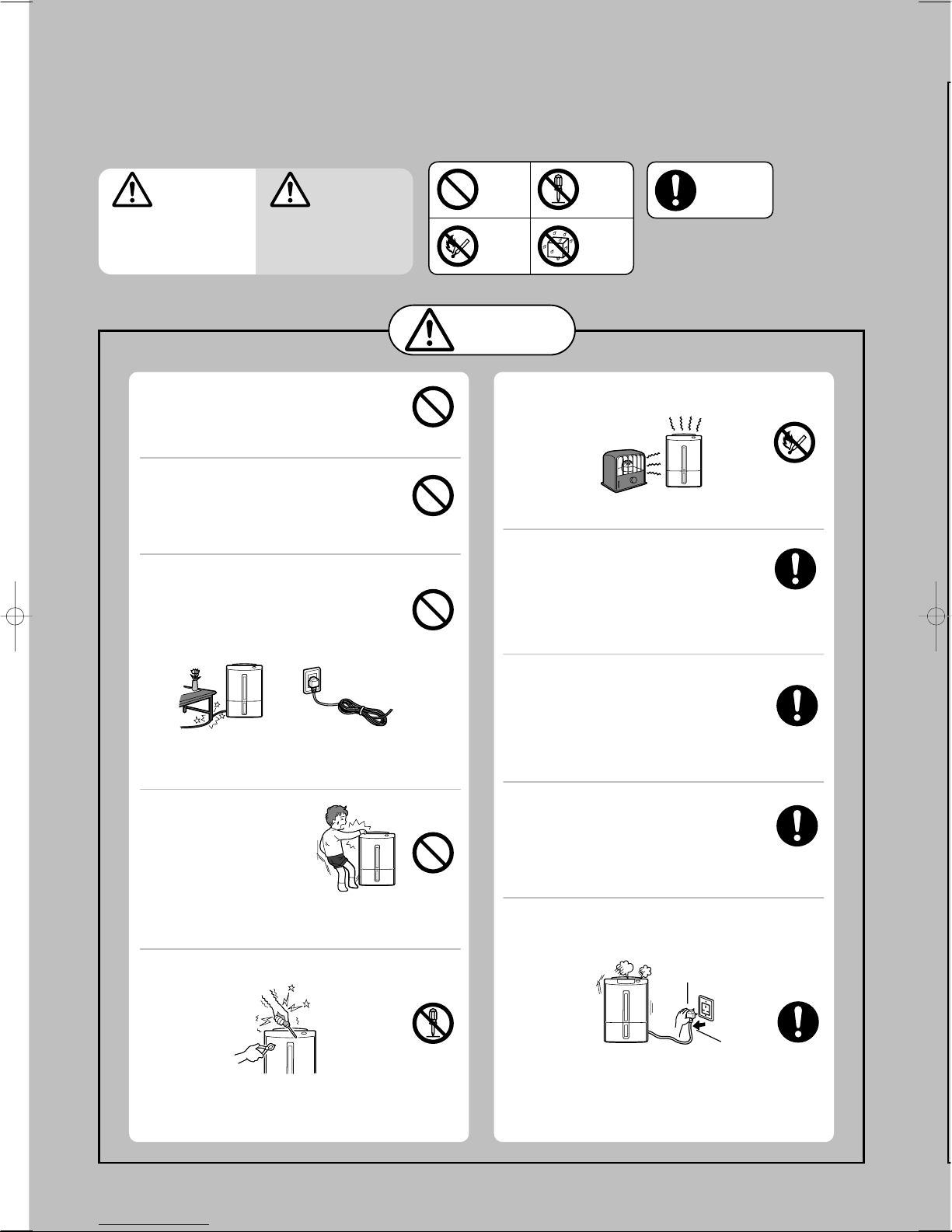

The following diagrams indicate
circumstances where danger can result from
mishandling the unit.
Meanings of the graphic symbols used in this manual and
on the unit are explained below.
WARNING
Mishandling may
result in fatal or
serious injuries.
CAUTION
Mishandling may result in
injuries or damage to your
home or property, etc.
Always
follow the
instructions
WARNING
Forbidden
Keep
away
from fire
Do not
disassemble
Do not
subject to
water
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 4

E
5
Before using the unit
CAUTION

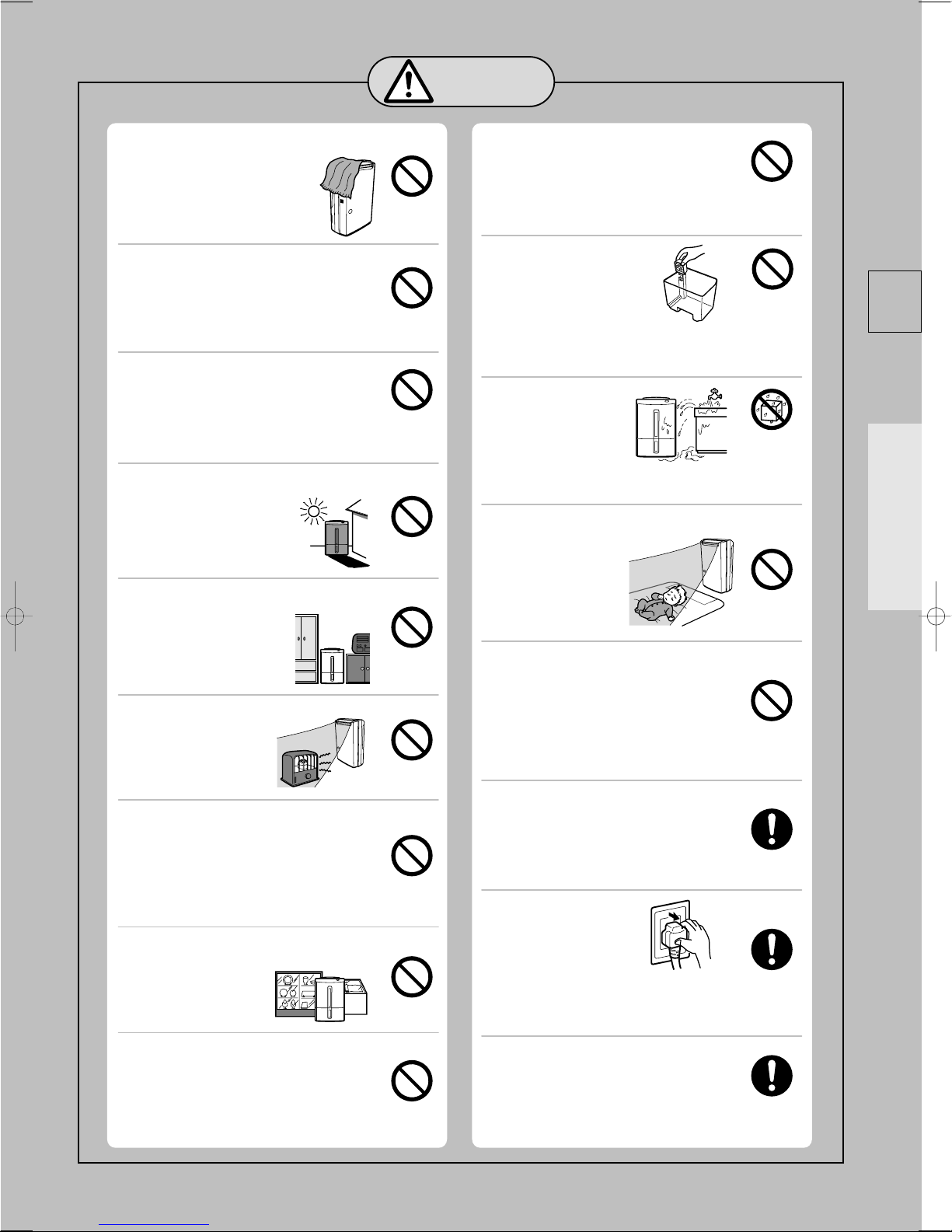

Do not cover the front or side air
intakes or the air outlet
with cloth, curtain, etc.
This results in poor ventilation and
may cause heat generation/fire.
Do not stand on, sit on or lean
against the unit.
The unit may tip over causing injury.
Do not put vases or any other
objects filled with water on the unit.
Water may leak into the unit adversely affecting
electric insulation and cause electric shock
and/or fire by short-circuiting.
Do not use the unit where it may be exposed
to direct sunlight or other weather conditions.
(This unit is for indoor
use only.)
This may cause overheating,
electric shock and/or fire
caused by an electric leak.
Do not use the unit in narrow,
enclosed places such as inside
closets, between
pieces of furniture, etc.
This results in poor
ventilation and may cause
heat generation and/or fire.
Do not use combustion appliances
in the path of the
air outlet.
This may cause
incomplete combustion
in the appliance.
Do not use the unit in places where
chemicals are used (such as
hospitals, factories, laboratories or
beauty salons).
Chemicals and solvents evaporated in the
air may harm the unit and cause water in the
tank to leak, resulting in damage to property.
Do not use the unit for special
purposes, such as preservation of
food, art or scientific
works.
This may negatively affect
the quality of the items stored.
Do not drain water continuously if there
is a possibility that temperature around
the hose could drop to freezing point.
Water inside the hose may freeze and prevent
the water in the tank from flowing out.
The water may leak from the unit and damage
surrounding objects.
Do not use the unit in places
that may be subject to oil or
flammable gas leakage.
Such a leak around the unit may cause
combustion and fire.
Do not remove the
Styrofoam from the
floating element.
The floating element will not
be able to detect a full tank
resulting in water leakage, which may
damage surrounding objects or cause
electric shock and/or an electric leak.
Do not wash the unit
with water. Do not
use the unit where it
is likely to come in
contact with water.
Exposure to water may result in fire or
electric shock caused by an electric leak .
Do not point air-flow from the unit
directly at the body .
If air-flow is directed at
the body for long
periods, it may harm
one’s physical
condition and lead to
dehydration.
Install the unit in a location where
the floor is flat and stable.
If the unit falls over, the water collected in the
water tank may leak damaging surrounding
objects and in turn result in fire or electric
shock caused by an electrical leak.
Keep the supplement cartridge
out reach of children.
Do not disassemble or tear the bag
inside the cartridge.
Make sure children do not swallow the
contents.
Grasp the plug and
remove from the
power socket.
When removing the plug
from the power socket, do not pull on it
diagonally or by the cord as this may cause the
projections/wiring to be damaged resulting in a
short circuit, electric shock or fire.
Before moving the unit always
switch it off, unplug it and remove
water from the water tank.
Moving the unit with water in its tank may
cause the water to leak and damage the
surrounding objects and in turn result in
electric shock and/or an electric leak.
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 5

6
Warning
●Keep the unit always in an upright
position.
Inclining the unit may cause water in the
tank to leak into the unit, resulting in
malfunction. Should you incline the unit
accidentally, contact the place of purchase
for advice.
●Do not carry the unit horizontally.
This may result in malfunctions.
CAUTION
After emptying the tank,
transport the unit by grasping
the handle firmly.
Losing your footing while carrying the
unit may cause personal injury or
damage to the floor.
When using the continuous
drainage outlet, make sure to
position the hose so that the
water drains without
obstruction.
The water in the tank may leak and
damage surrounding objects.
When draining water continuously
or left unattended for long periods,
inspect the unit every two weeks.
Do not allow debris to clog the
filter/hose as this may cause over-
heating/leakage.
Use the unit with caution in rooms
where the walls, furniture and art
work are vulnerable to dry air, as it
may cause cracks and warping.
Switch the unit off
and unplug from
the power source
when cleaning it.
When the unit is on, the internal
fan rotates at high speeds and may
cause injury.
Unplug the unit from the power
source when not using the unit
for an extended period of time.
Otherwise it may cause fire and/or electric
shock caused by an electric leak.
Tips on dehumidifying
Drain the water tank before use
Refrain from opening
doors/windows during operation
Drying laundry indoors
Use the dehumidifier in a small, enclosed room.
Maintain room temperature above 16°C
with an air conditioner
¡Drying times will vary depending on the nature of the
laundry and the room temperature. In low
temperatures, drying takes about twice as long as
normal. In low temperatures (10°C), drying takes
about twice as long as when normal (20°C+).
¡The airflow is strongest to the top right of the unit.

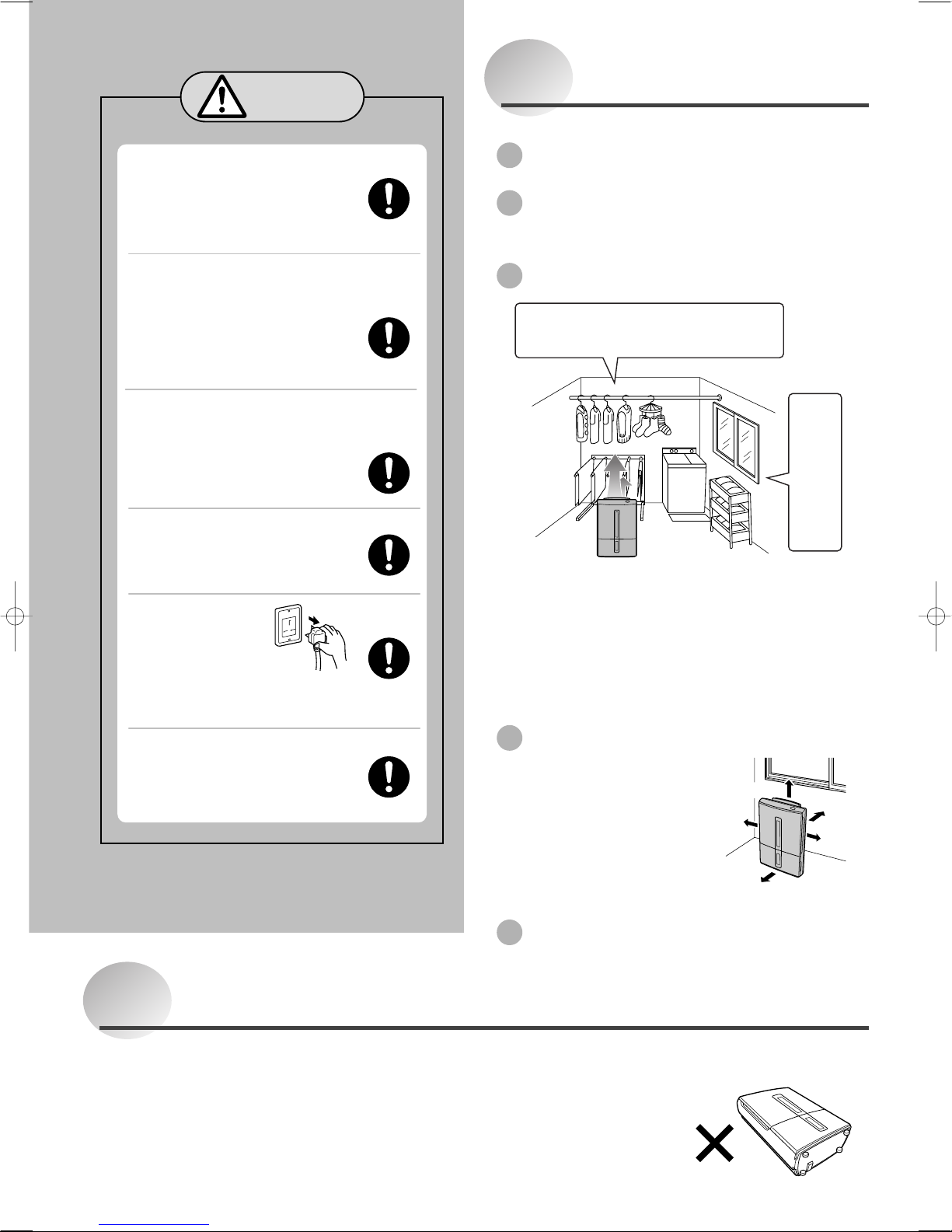

Installing your dehumidifier
Make sure to leave some
space around the unit.
<For use in close proximity to
a wall>
Stop the louvre in the
vertical position. Blowing
air at the wall may cause
staining.
Operating noise
Place the unit on top of a mat. This reduces
vibration and noise. It also prevents leaving
depressions on carpets.
At least 50 cm At least
2 cm
At least
20 cm
At least 20 cm
At least
20 cm
Precautions (cont.)
¡Direct the louvres at the laundry.
¡Space laundry to improve airflow.
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 6

E
7
Before using the unit

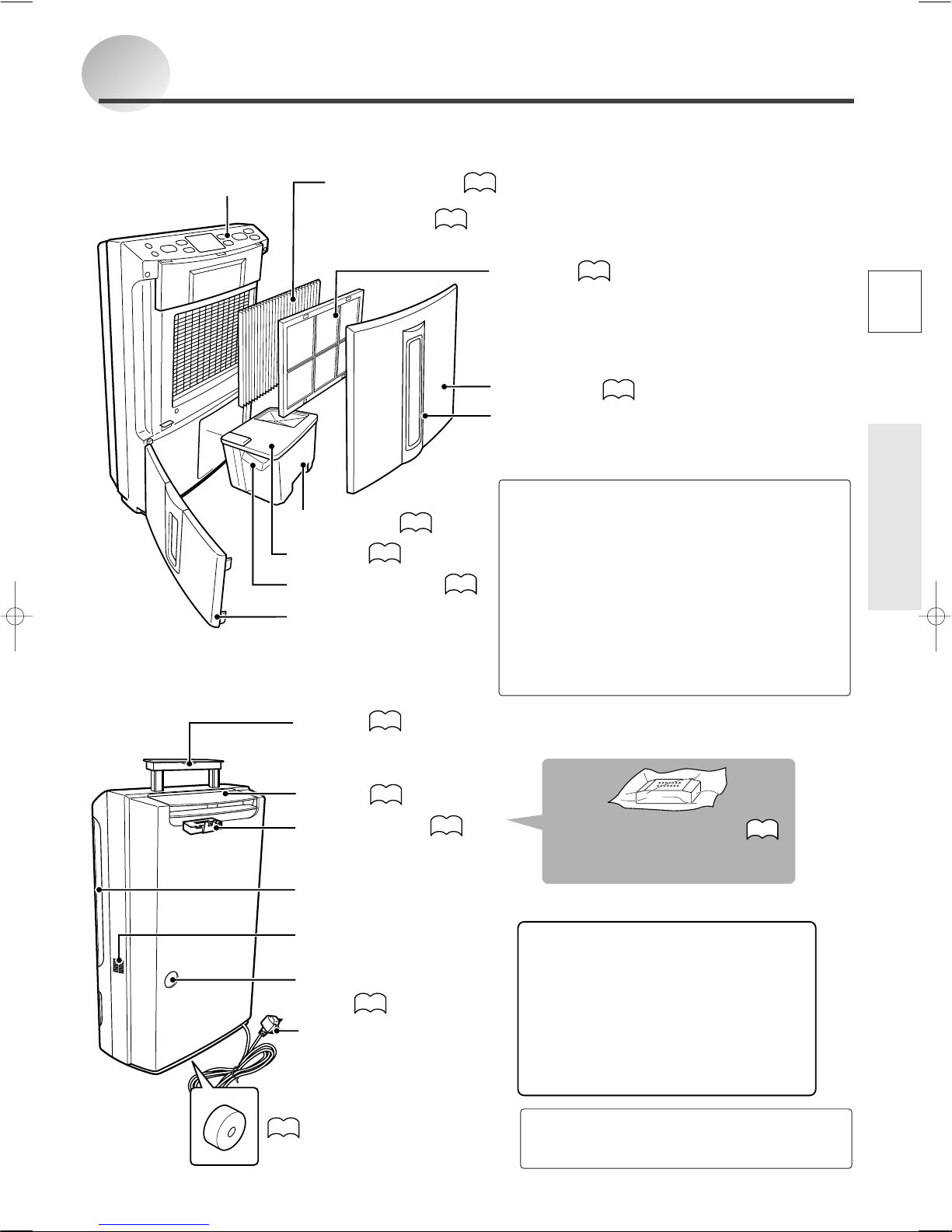

Names and Functions of Parts
Front
Back
What is supplement air?
The water tank may contain water residue at
time of purchase. This is from final product
testing at the factory and is not due to a defect.
Front Air Intake
Do not block.
Control panel Silver ion filter
Supplied with unit.
Set before use.
Pre-filter
The pre-filter is made from two layers: a blue air filter
and a white particle filter. These layers cannot be
separated.
Air filter performance testing facility
Japan Spinners Inspecting Foundation (tested under
JIS L 1902 standards)
Water tank
Front panel
Tank lid
Floating element
Front door
24~25
10
23
10
11 •21
11 •21
21
22
20
Louvre
Continuous drainage
outlet
Power plug
Wheel (4)
Sensor
Do not cover
Side air intakes (left/right)
Do not block
Cartridge case Supplement cartridge
Supplied with unit. Set before use.
Handle
Raise handle to transport
20
16
11
11
Recognizing the antioxidant qualities of natural herbs,
we put the oil extracted from rosemary, which has
exceptional antioxidant qualities, into the air outlet
cartridge. The fragrance is so slight that it can be hardly
noticed.
The reason washing yellows is because colourless
organic material trapped within the fibres is oxidized by
heat from a drier or the sun’s UV rays. By using the
dehumidifier and drying your washing indoors, you can
keep away the oxidizing effects of heat and UV rays, as
well as benefit from rosemary’s antioxidant properties,
preventing your clothes from yellowing.
What is a silver ion filter?
The silver ion filter has a two-layer construction
consisting of a white particle filter and a blue air-
freshener filter.
<Particle filter>
The fine particle filter removes pollen* and dust
particles.
* Diameter of pollen: approx. 10-100µm
<Silver ion filter>
A special deodorant and anti-bacterial agent (anti-
allergen, anti-virus and sterilization) are contained in
the fibres of the silver ion filter.
Cigarette smoke and toxins found in smoke, such as
carbon monoxide, cannot be removed with this filter.
e_mj_e22wx_c(01_19)_e33.qx 9/27/06 10:18 AM Page 7

8
Names and Functions of Parts (cont.)
LCD Panel
¡Lamps
Current mode lights
¡Selection button
Switches modes
¡Mode button
For switching from one
operating mode to
another
¡ Humidity
Selection
This is used to set
the target humidity
¡Swing louvre button
Sets swing louvre direction or
locks it into position
All indicators on the LCD panel shown below.
¡Timer ON/OFF
Sets timer
¡Mode Indicator
Indicates the current
operating mode
¡Humidity Indicator
This indicates the approximate
humidity
indicates the
current humidity
indicates the
humidity setting in
AUTO mode
The current humidity is
displayed in a range from 30 to
80%.
¡Swing monitor
Indicates the direction
of the swing louvre
¡Timer display
Displays the time set
for the ON/OFF timer
Control Panel
¡ Child lock indicator
Displayed while child lock
is active
13
14~15
18~19
16
14~15
12
16
18~19
20
¡Child lock
To set the child lock,
press the mode
button for three
seconds.
20
e_mj_e22wx_c(01_19)_e33.qx 5/10/06 3:21 PM Page 8

E
9
Before using the unit

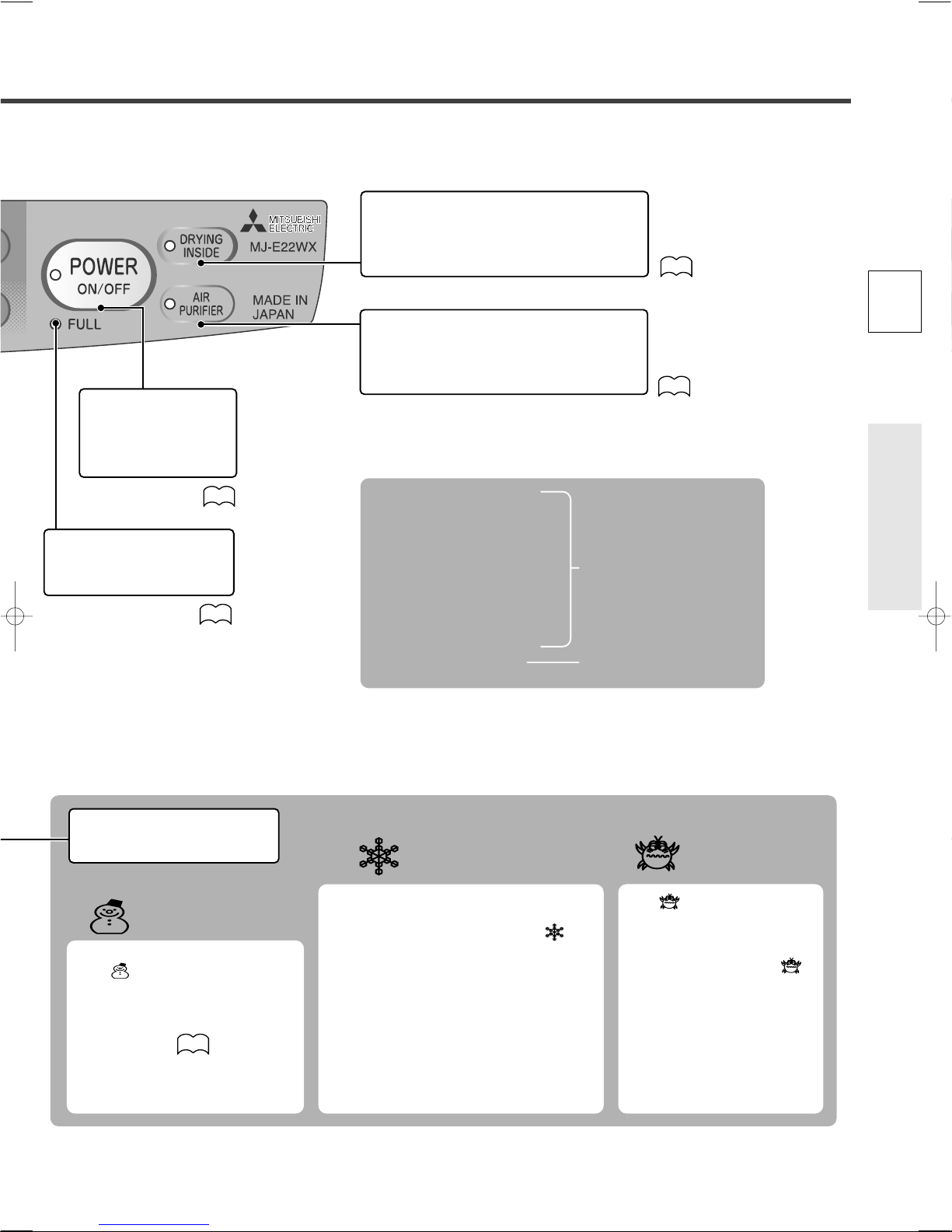

¡Power lamp
Lights when unit is ON
¡Power button
Use this to switch the
unit ON and OFF
The indicator comes on if the
room temperature drops below
15°C.
Activating Low Temp mode is
recommended.
¡Tank full light
This lights up to warn that
the water tank is full
¡Air purifier lamp
Lights during air purifier only operation
¡Air purifier button
Switches to air purifier only operation
¡DRYING INSIDE lamp
Flashes during drying inside operation
¡DRYING INSIDE switch
Activate/deactivates drying inside
¡Information display
Indicates room and unit
condition
Airflow (dehumidifying) will stop and the frost
that has accumulated inside will be melted
and dropped into the tank when the
indicator is on.
Please wait a moment as operation will
resume in around 5 minutes.
While in DEFROST mode, airflow
(dehumidifying) and the louvre will stop.
The sounds coming from the unit will also
change.
DEFROST will start automatically when room
temperature drops below 15°C (This may be
as often as once every 40 minutes).
The indicator flashes when
the unit is OFF and the humidity
in the room exceeds 75%.
Activating the dehumidifier is
recommended when the
indicator is flashing.
If the High humidity warning is
not used, remove the power
plug from the power socket.
¡EASY
DEHUMIDIFYING
¡LAUNDRY
¡HIGH
¡LOW
¡MILDEW GUARD
¡LOW TEMP
¡AUTO
¡AIR PURIFIER
All modes include
dehumidifier and air purifier
functions.
Air purifier only operation.
The dehumidifier function is
disabled.
You can select from 8 operating modes
DEFROST Indicator High humidity
warning
Low Temperature
Indicator
12
12
15
17
14
e_mj_e22wx_c(01_19)_e33.qx 5/10/06 3:21 PM Page 9

10
Room temperature may rise
2-4°C during operation
The dehumidifier does not have a cooler function.
Due to heat produced during operation, the room
temperature may rise 2-4°C. As a result, the unit
may blow warm air, but this is not due to a
malfunction.During winter, the air may not feel warm
as the temperature is below body temperature.
The humidity reading on the
unit may differ from a
hygrometer in the same room
Even in the same room, temperature and humidity
levels may differ from place to place. If the
hygrometer and the unit are in different parts of the
room, the humidity levels are prone to differ.
Moreover, humidity levels differ between places
that have good and no airflow.
Use the reading on the unit as an estimate.
Things to be aware of Before using your
How does the dehumidifier
work?
If you pour cold water into a cup, the air around
it becomes cold, causing water droplets to form
on the surface of the cup.
The dehumidifier takes advantage of this
phenomenon to remove moisture from the air.
1The unit draws air from the room, cools it with
its cooling coil, causing the moisture to
transform into water droplets.
2The water droplets fall into the water tank.
3The dehumidified air is reheated by the
heating coil, and then discharged.
The humidity of the room is thus reduced by
repeating steps 1, 2, and 3.
Re-heating coil
Cooling coil
Moist air
Compressor
Dried (warm) air
Water tank
1
2
3
W
h
y
a
r
e
t
h
e
y
d
i
f
f
e
r
e
n
t
?
CURRENT
<Cause>
●Inconsistencies
in temperature
and humidity
●Difference in
location
●Difference in
hygrometer
precision
Setting the silver ion
filter

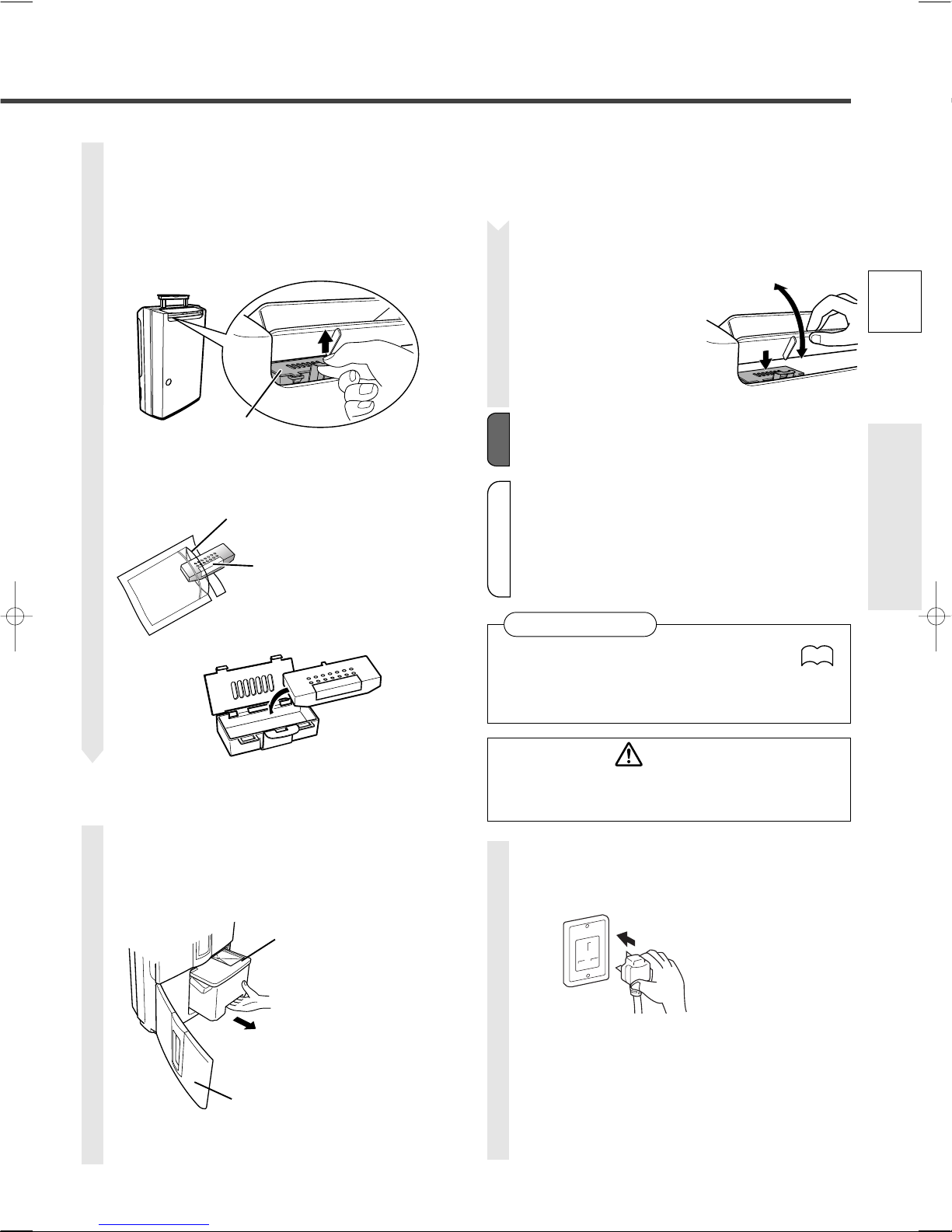

The silver ion filter is supplied with the
unit at time of purchase. Set before using
the unit.
1Remove the silver ion filter from
the polyethylene bag.
2Remove the front panel and pre-
filter.
3Set the silver ion filter into the
pre-filter.
With the strips facing up, set the silver
ion filter inside the tabs on the pre-
filter.
4Attach the pre-filter and front
panel.
Front panel Pre-filter
1Remove by holding
the bottom.
2Remove by
holding the
tabs.
Performance is unaffected even if
the metal fins inside the main unit
are slightly bent.
Tabs (6)
Strips
1Attach by holding
the tabs.
2Hook the top edge to
the top part of the unit
and push the bottom in.
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 10

E
Replace the cartridge after 6 months (not
including the time it is stored in the bag).
Replacement cartridges available for purchase.
Only the cartridge is replaced. Do not throw away
the case.
∞The unit can be operated without the cartridge.
∞The unit can be operated with an expired
cartridge, but will lack antioxidant properties.
∞The herbal oil used in the cartridge is only
slight fragrant, and is hard to detect.
∞Use the original bag when storing the cartridge
after a short use (1-2 months).
11
Before using the unit
3Set the case in the unit.
1Set the case.
2Move the louvre manually
and see if it does not hit
the cartridge.
1Remove the case.
2Remove the cartridge from the
bag and set in the case.
dehumidifier
case
Tear along dotted line.
(This bag can be used when
storing.)
Write the date on
the label.
Inserting the water
tank correctly
Tank lid
Open the front door.
Confirm that the lid
is securely attached
to the water tank.
Push the tank in.
Front door
Plug the power cord
into the power socket
¡The current humidity level is
indicated.
If the louvre is open, it closes
automatically.
Use a 220-240V AC
power socket only.
Setting the supplement cartridge
The unit disperses antioxidants during dehumidifier and air purifier operation by setting the supplement
cartridge.
1
2
Information
∞Do not disassemble or tear the bag inside the
cartridge.
∞Follow the procedures described above.
Note
CAUTION
Keep the supplement cartridge out reach of children.
Do not disassemble or tear the bag inside the cartridge.
Make sure children do not swallow the contents.
Cartridge life
25
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 11

To turn ON
¡Power lamp lights.
¡The mode is displayed.
¡The louvre opens automatically.
To start dehumidifying, select the desired
mode.
The dehumidifier remembers the operating
mode. Even if the plug is disconnected or
the power turned off, the unit restarts at
the previous setting.
To turn OFF
¡Power lamp turns off.
¡The Mode Indicator
goes out.
Internal cleaning will commence if it has
been activated.
∞If the room temperature falls below 15°C,
defrosting mode is activated once every 40
minutes (for about 5 minutes) causing water
to drain to the tank.
∞ The unit can operate in a room temperature range of 1-35°C.
However, if the room temperature exceeds 35°C,
the unit may operate in blower mode or increase
the airflow. This is because the temperature within
the unit rises causing the protection mechanism to
operate. In order to lower the temperature within
the unit, when using the louvre, point UPWARD.
•If the temperature is below 1°C, the extracted
water is close to freezing disabling the
dehumidifier, and only the blower is operational.
12
Turning the Unit ON and OFF
Press
Press
Reading the humidity display
SELECTION indicates set
humidity level
(Automatic mode only).
CURRENT indicates the
current humidity.
Current humidity range is
between 30-80%.
•Humidity levels below 30%
are displayed as 30%.
•Humidity levels above 80%
are displayed as 80%.
Example
Example
The unit automatically shuts down and
indicates with the lamp and sound that
the water tank is full. Empty the water
tank.
¡Tank full lamp lights.
(The unit beeps continuously).
¡Air flows stops (louvre stops).
¡Monitor turns off.
•After removing the water and replacing the
tank, the Tank full lamp will go off, and the unit
will automatically return to operation mode.
•When the Tank full lamp is lit, no operation but
ON/OFF is possible.
Tank full lamp
The dehumidifier does not activate for 3 minutes
when the unit is turned ON immediately after
turning it OFF or plugging it into the power
socket. (In order to protect the compressor.)
When dehumidifying begins, the operational
noise increases.
13~15
17
9
15
21
Information
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 12

E
13
Operating
¡EASY DEHUMIDIFYING
The unit operates intermittently
controlling the airflow to remove the
damp feeling in the air. (There is no need
to set the humidity level.)
When the room temperature is high, the
blower operates to decrease the damp
feeling.
The airflow or louvre operation may stop
according to the humidity level.
Easy Operation
The unit automatically monitors room temperature/humidity alleviating the necessity to make minor adjustments. Use
EASY DEHUMIDIFYING for dehumidifying a room and LAUNDRY for drying clothes.
Press
Changes with
every press
¡Selected mode lamp lights
¡LAUNDRY
The unit operates for 12 hours and
automatically switches off.
∞Drain the tank before use.
The unit may stop before the washing dries
because of a full tank.
∞Do not use in conjunction with the OFF
timer.
The timer may turn the unit off before the
washing dries.
∞The following conditions prevent clothes
from drying well:
Room temperature below 15°C, large volume
of laundry; laundry not spaced well; clothes of
thick fabric and spacious room.
Humidity level (%)
Room
temperature
(°C)
Information
50
20 3027
60
Room temperature is
below 27°C - the unit
automatically sets the
humidity level
according to the
temperature.
Room temperature is
above 27°C - the unit
lowers the humidity
level to 50%, then
activates the blower.
The dehumidifier is
reactivated when
humidity rises to 60%.
Information
∞Pressing Humidity Selection switch while in EASY DEHUMIDIFYING or LAUNDRY mode changes the
mode to AUTO.
6
15
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 13

¡LOW TEMP The unit operates continuously automatically controlling airflow
according to room temperature. The air flow is strongest below 15°C.
The use of LOW TEMP mode is recommended when the Low
temperature indicator is lit.
When the temperature is low, condensation may still form on windows exposed to the
outside air even when LOW TEMP mode is operating.
¡ MILDEW GUARD The unit lowers humidity levels automatically once a day, suppressing
mildew growth.
¡The unit operates intermittently for 2-4 hours a day (24 hours).
¡The operating time varies depending on the humidity.
The unit continues to operate when the humidity does not
decrease.
•Humidity 40%→Approx. 2 hours
•Humidity 50%→Approx. 4 hours
∞Refrain from turning on ventilation fans or opening windows or doors as this lowers performance.
∞Mildew growth may still occur due to the fungus type and conditions of the room.
•E.g. Rooms that contain excessive condensation, bathrooms, and places with bad airflow (insides of
closets and behind furniture).
∞This mode does not remove existing mildew.
∞Do not use in conjunction with OFF Timer mode. Effects may not be achieved.
14
Setting modes
Information
Information
HIGH, LOW, MILDEW GUARD and LOW TEMP
To leave the unit operating continuously, use HIGH and LOW modes. To suppress mildew, use MILDEW GUARD
mode. For preventing condensation or when the room temperature is low, use LOW TEMP mode.
Changes with every press
Press
¡Frame appears around selected mode.
¡The amount of dehumidification decreases with the temperature and humidity.
¡The humidity level cannot be set with HIGH, LOW, MILDEW GUARD, and LOW TEMP.
¡HIGH The dehumidifier operates
regardless of the humidity level.
Airflow is strong.
¡LOW The dehumidifier operates
regardless of the humidity level.
Airflow is weak.
ON 24 hours
Dehumidifies Dehumidifies
Standby
24 hours
Standby
How is mildew Mildew is unable to produce new spores if dried as mycelia. The Mildew
growth suppressed? Guard feature applies this principle (However, the spores themselves are
resilient to dry conditions.)
“Identification of Aspergillus and Penicillium”
<Research paper by Dr. K. Abe of the Environmental Biology Research Center>
Repeat
3
9
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 14

E
15
Operating
AUTO
When you want to set the humidity level.
The MODE button can also be used to select
AUTO.
Press
¡Frame appears around
AUTO
¡AUTO
The unit maintains the humidity level by
automatically controlling airflow and
operating intermittently as necessary. All
you have to do is set the humidity level.
¡The unit turns off when current humidity
decreases past the set humidity level, and
restarts when the level is exceeded. (airflow
and louvre stops)
¡The unit operates for 6 minutes continuously
regardless of the humidity level immediately
after turning the power on.
Frequent use of exits and room
size/conditions may cause the humidity to
not reach the set level.
<To view set humidity level/ To set
humidity level>
¡Pressing the button once
displays the set humidify level
with
the
indicator. After 3
seconds, the
display returns
to the current humidity display.
¡Pressing the button while
is displayed sets
the humidity level. Each time
the button is pressed, the
humidity setting changes.
¡AIR PURIFIER
The unit cleans the air by passing it
through the pre-filter and silver ion
filter. The dehumidifying function is
disabled.
∞The air passes through the silver ion filter
in all modes, cleaning the air even if the air
purifier lamp is not lit.
∞Cigarette smoke and toxins found in
smoke, such as carbon monoxide, cannot
be removed with these filters.
Information
AIR PURIFIER
To operate only the air purifier.
To return to the previous mode, press the air
purifier button again.
Press
¡Air purifier lamp lights
Information
Press
Press
again
6570 505560
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 15

16

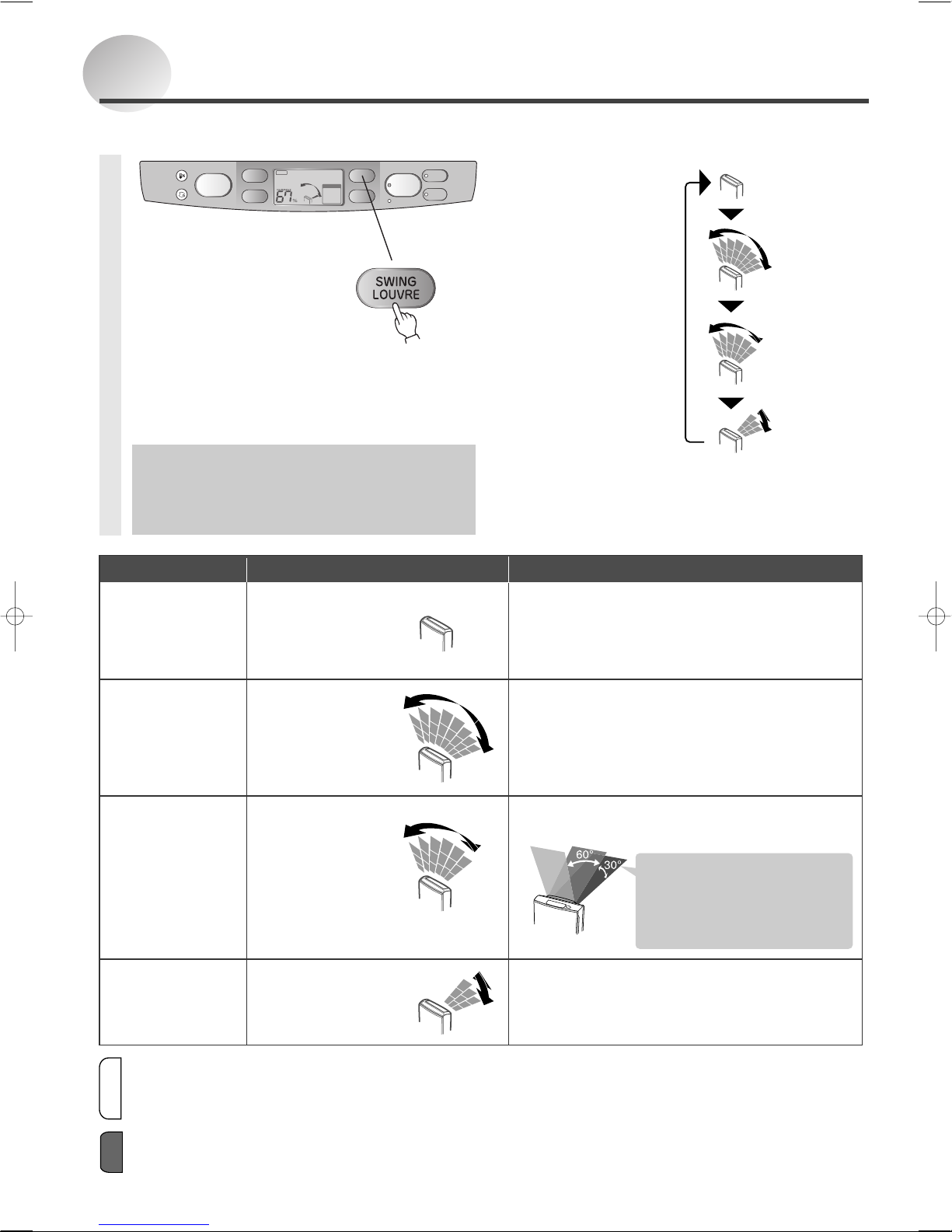

Stop the louvre in the vertical position when using the unit against a wall. Blowing air at the wall may cause
staining.
Swing louvre function (how to read the swing monitor)
The louvre can be made to swing. Select from the 4 possible settings to suit the purpose.
Press
¡Starts swing operation.
¡The swing monitor is displayed.
The swing operation stops when the power
cord is unplugged.
Note
This indicates the range of louvre swing.
(The louvre and monitor do not move in
synchronization.)
Stop swing
operation
WIDE
UPWARD
REAR
With each press
of the button
∞The level of noise emitted from the unit varies according to the angle of the air-flow.
∞The louvre may stop up to a maximum of 8 seconds to correct its position, after which it will start moving
again.
∞If the louvre is knocked out of the desired angle, readjust by following the above steps.
Information
Objective Recommended swing setting Explanations of the swing modes
For directing
air into a
closet
To stop the
louvre at the
desired angle
To cover the
entire room
For drying
clothes, etc.
Swing speed is automatically controlled to send air
at washing from the all angles.
The louvre swings from the UPWARD position
through to the REAR position.
¡The louvre stops in a vertical position.
¡The swing monitor turns off.
To change the louvre to a desired angle, wait until
the louvre stops, then adjust by hand.
The louvre moves slowly through
the last 30° of the swing, as the
time taken to traverse the rear arc
is shorter than that for the upward
arc when moving at a constant
speed.
¡ Stop swing
operation
¡WIDE
¡UPWARD
¡REAR
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 16

E
17
Operating
Drying inside
The inside of the unit can be dried to suppress mildew growth on the cooler.
On days the dehumidifier is used, internal cleaning (drying the inside) is recommended.
Automatic operation
To activate internal cleaning after every use.
¡Drying inside standby
(Drying inside lamp lit)
Drying inside starts when operation ends
When the unit is turned off, LAUNDRY mode
ends, or the OFF timer ends.
¡Drying inside starts
Drying inside lamp flashes, the humidity
indicator turns off, and the louvre stops in the
vertical position.
Drying inside mode
¡Drying inside ends
Drying inside lamp turns off and the louvres
shut.
<To deactivate automatic operation>
Press the drying inside button while the unit is on
(drying inside lamp turns off)
Press while the unit is on
Manual operation
To activate internal cleaning by pressing a button.
¡Drying inside starts
Drying inside lamp flashes, the humidity
indicator turns off, and the louvre stops in the
vertical position.
Drying inside mode
¡Drying inside ends
Drying inside lamp turns off and the louvres
shut.
Press while the unit is off
To abort drying inside
Press drying inside button while the unit is
performing drying inside (drying inside lamp
turns off)
Press the power button to abort internal drying,
and resume normal operation.
∞Connecting/disconnecting the power plug deactivates automatic operation.
∞This function does not remove existing mildew. Also, aborting internal cleaning may cause the benefits to
diminish.
∞Do not close the louvres while drying inside as this causes noise.
∞The moisture expelled from inside the unit may cause the humidity level of the room to rise.
∞The air leaving the unit may appear white depending on the humidity or temperature of the room.
∞The moisture expelled from inside the unit may smell due to odorants* that were not caught by the filter
dissolving in the water.
* The silver ion filter is mainly for absorbing ammonia.
∞The OFF timer cannot be set during drying inside.
Information
<Drying inside operation> This operation takes approximately one hour. However, when the room
temperature is below 1°C, drying time is shortened to protect the compressor.
OFF
Regular
operation
Dehumidifier
Air purifier
Drying inside operation (approx. one hour.)
Airflow
Approx.
30min.
Airflow stops; compressor
activates (operating sound)
Compressor operates
according to room temperature
Approx. 20min.
Compressor
stops
Airflow
Approx.
10min.
Unit
stops
auto-
mati-
cally
Operating
sounds
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 17

To cancel
<When you want to turn the unit
off>
Press the POWER button. (Power off)
¡The OFF Timer is cancelled.
<When you want to disable the
Timer OFF mode, and continue
operation>
Keep pressed until the remaining time
display disappears. The unit returns to LOW
mode.
¡The OFF Timer is cancelled.
∞Empty the water tank before operating. The unit
stops and the Tank full lamp lights if the tank
becomes full during operation.
∞The OFF timer and ON timer cannot be set at
the same time.
∞Do not use timer OFF mode in conjunction with
LAUNDRY or MIDEW GUARD.
∞The OFF timer cannot be set during internal
drying.
To set
1Switch the power on.
2Select operating mode.
Select desired operating mode.
3
Change the louvre swing direction.
Select the desired setting.
4Set the operating time.
¡When pressed once the figure [ ]
and [OFF] appear.
¡Each subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
➝The OFF timer is set.
The following is an example of a display indicating
AUTO dehumidifying (set to 60%), swing set to WIDE
and the OFF timer set for 2 hours.
¡The time remaining until the unit
switches itself off is indicated in
increments of one hour.
¡
When the set time is reached, the unit switches
itself off and the louvre closes automatically.
Drying inside will commence if it has been
activated.
18
Using the Timer
OFF timer operation The OFF timer can be set for 1 to 9 hours.
Set the timer when the power is switched on.
No Display
(LOW mode)
Press
Information
Press
Press
12
13~15
16
17
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 18

E
19
Operating
ON timer operation The ON timer can be set for 1 to 9 hours.
Set the timer when the power is switched off.
Information
Press
Press
Press
No Display
(operation
is off)
12
17
13~15
16
To set
1Switch the power off.
2Set the time you wish the unit to
turn on.
¡ Press once. The Power lamp, Mode
indicator, and a [ ] on the digital
display flash. The [ON] indicator lights.
¡Each subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
3Select operating mode.
Select desired operating mode.
Set drying inside (auto) as desired.
4Change the louvre swing
direction.
Select the desired setting.
5Confirm the operating start time.
¡Power lamp and Timer display light.
➝The ON timer is set.
The unit informs you if you forget to press the
Power button by making the Timer display and
Mode indicator blink and sounding an alarm for 1
minute.
The following is an example of a display
indicating AUTO dehumidifying (set to 60%),
swing set to WIDE and the ON timer set for 5
hours.
¡The time remaining until the unit switches
itself on is indicated in increments of one
hour.
¡When the set time is reached, the unit
switches itself on.
To cancel
Press the Power button. (Power off)
¡The ON timer is cancelled.
∞Drying inside is deactivated when the ON timer
is set during internal drying operations.
∞The ON timer function is not operable using a
commercially-available timer plug outlet.
e_mj_e22wx_c(01_19)_e33.qx 9/25/06 4:25 PM Page 19

Note
20
Using the
Child Lock
To Lock
¡The child lock indicator
The child lock is switched off when the power
cord is unplugged.
When the child lock is activated, the other
switches are inoperable. Deactivate the child
lock to use the other buttons.
Releasing the child
lock
¡The child lock lamp goes out.
Press for 3 or
more seconds.
Press for 3 or
more seconds.
If you lock the unit when the POWER is OFF.
The unit will not turn on, even if you press the
POWER button to turn it on. Only the CHILD LOCK
lamp will blink.
(Pressing the POWER button again will cause the
lamp to turn on solidly.)
If you lock the unit when the POWER is ON.
The unit will not turn off, even if you press the
POWER button to turn it off. Only the CHILD LOCK
lamp will blink.
(Pressing the POWER button again will cause the
lamp to turn on solidly.)
Carrying the
Unit
Pull the handle out, and grasp with a
firm grip
Use the wheels as shown above when moving
the unit.
Before moving the unit, first make sure to remove
water from the water tank and close the louvre.
The unit only moves on one axis. The unit may
topple over if it is moved forcefully in another
direction.
∞Do not carry the unit on its side as this may
cause malfunctions.
∞Wheel the unit on a hard, flat surface.
∞Lift the unit over steps or up stairs. Avoid using
the wheels on thick carpet as this may
damage the carpet.
∞Do not let the power cord drag, as this may
damage the cord.
e_mj_e22wx_c(20_28)_e33.qx 5/10/06 3:22 PM Page 20
