DEHUMIDIFIER
MODEL
MJ-EZ6CX-S1-IT
INSTRUCTION MANUAL
Features
Intelligent Laundry
Clothes Deodorant
Bathroom Mildew Guard
Downward Blowing Louvre
Table of Contents page
Before using the unit
Recommended Ways of Using the Unit ··· 2
Features of this dehumidier···················· 3
Precautions················································· 4
Warnings····················································· 6
Names and Functions of Parts ················· 6
Before using your dehumidier················ 8
Operating
Dehumidifying (AUTO,HIGH,LOW) ············ 9
Drying Laundry (Intelligent Laundry) ······· 10
Tips on Drying Laundry
Reducing Growth of Mildew in Bathroom
(Bathroom Mildew Guard)·························· 12
Removing Odor from Clothes
(Clothes Deodorant)··································· 13
Using Louvre ············································ 14
Using OFF Timer ······································ 15
CLEAN FILTER Lamp······························· 15
Draining····················································· 16
Continuous Drainage······························· 17
Troubleshooting
Maintenance ············································· 18
Replacement Parts··································· 21
Storage and Disposal······························· 21
Troubleshooting······································· 22
Specications··········································· 24
In order to ensure correct usage, please read this
instruction manual carefully and retain it for future
reference.
Before accepting the Warranty at the time of purchase,
please make sure that the date of purchase, place of
purchase and other items are correctly filled in the form.
Keep the Instruction Manual and Warranty in a safe
place.
E
English
I
Italiano
emjez6cxs1.indb1emjez6cxs1.indb1 2010/05/1710:28:132010/05/1710:28:13
Tips on Drying Laundry
P.11
2
When you want to perform automatic operation
INTELLIGENT LAUNDRY
When you want to dry laundry
When you want to remove
odor from clothes
When you want to dehumidify the room
When you want to dehumidify
a closet or shoebox
Recommended Ways of Using the Unit
P.9
P.10
HIGH
When you are worried about
mildew in the bathroom
P.12
BATHROOM MILDEW GUARD
Reducing blowing sound and performing continuous operation
LOWP.9
When you want to perform continuous operation
HIGHP.9
When you want to perform continuous operation
HIGHP.9
When you want to perform automatic operation
AUTOP.9
P.13
DEO-DRY
emjez6cxs1.indb2emjez6cxs1.indb2 2010/05/1710:28:132010/05/1710:28:13
Room temperature may rise 3-6°C during operation.
The dehumidifier does not have a cooler function. Due to heat produced during operation, the room temperature may rise
3-6°. As a result, the unit may blow warm air, but this is not due to a malfunction. (During winter, the air may not feel warm
as the temperature is below body temperature.)
z
The unit can operate in a room temperature range of 1-35°C.
However, if the room temperature exceeds 35°C, the unit may operate in blower mode or increase the airflow. This is
because the temperature within the unit rises causing the protection mechanism to operate. In order to lower the internal
temperature of the unit, use the unit with the swing stopped and louvre vertical.
If the temperature is over 40°, the unit will operate in blower mode without dehumidifying.
If the temperature is below 1°C, the extracted water is close to freezing disabling the dehumidification, and only the
blower is operating.
z
The amount of dehumidifying becomes less when the humidity
becomes approximately 40% or less or the room temperature becomes
approximately 35°C or more.
If the humidity becomes approximately 40% or less or the room temperature becomes approximately 35°C or more, the
amount of dehumidifying becomes less because operation is performed with the power consumption of the heater reduced
to a level equivalent to that of LOW mode.
z
The blown air may cause smell during operation.
An odor may be emitted from the parts inside the dehumidifier when you first use the dehumidifier.
Odorants that cannot be removed by the silver ion filter may be absorbed by the dehumidifier rotor inside the unit.
Odors unique to zeolite (sour smell, burning smell, etc.) may be emitted from the dehumidifier rotor. These odors have
no effect on humans and animals.
If the room contains any of the following items, the corresponding odor will be absorbed by the dehumidifier rotor inside
the dehumidifier. Also, that absorbed odor will be heated by the heater, which may result in a burning like smell or other
abnormal odor.
Examples: Cigarettes, cosmetics, hair dressing products, building materials, new furniture, etc.
z
Absorption of moisture
Discharge of moisture
3
Before using the unit
How does dehumidication work?
1Air is drawn from the room, moisture is absorbed
by the dehumidifier rotor, and dry air is blown
out.
2The dehumidifier rotor is heated with a heater,
and the absorbed moisture is discharged inside
the heat exchanger.
3The discharged moisture is cooled by the heat
exchanger, causing it to transform into droplets,
which is collected in the water tank.
Dehumidier
rotor
Moist air
Dry air
Heat exchanger
Heater
Water tank
Features of this dehumidifier
E
emjez6cxs1.indb3emjez6cxs1.indb3 2010/05/1710:28:142010/05/1710:28:14
4
Meanings of the graphic symbols used in this manual and on
the unit are explained below.
Precautions
Precautions
Forbidden
Keep away
from fire
Do not
subject to
water
Do not
disassemble
Always
follow the
instructions
The following diagrams indicate circumstances
where danger can result from mishandling the unit.
WARNING CAUTION
Mishandling may result in
fatal or serious injuries.
Mishandling may result in
injuries or damage to your
home or property, etc.
Do not damage or modify the power
cord or plug. Do not use power sockets
in which the plug ts loosely.
Do not modify, bundle, twist, bend or heat the power
cord. Do not place under objects or use with the end
close to the plug bent.
(Keep pets from biting the cord.)
The cord may be damaged resulting in re,
electric shock or heat generation.
Do not plug many power cords
into one power socket.
This may result in re, electric shock or
malfunctions.
Do not start/stop the unit by
plugging/unplugging the power cord.
This may result in re and/or electric shock.
To prevent the temperature inside the unit from
rising, the blower fan rotates for approximately
2 minutes after the power button is turned off.
Remove the power plug after the blower fan
has stopped.
Do not put the unit near
heat-generating devices
(such as stoves, fan
heaters, etc.).
The plastic parts may melt and cause re.
Do not put your ngers
or any long object, into
the air intake/outlet.
Do not touch the swing
louver.
The internal fan rotates at high speeds,
and such actions may result in injury or
malfunctions.
Do not attempt to repair,
disassemble, or modify
the unit.
This may result in re and/or electric shock.
Refer servicing to your dealer or Mitsubishi
Electric Service Centre.
Exclusively use 230V AC power
sockets for the power supply.
Failing to do so may result in re and/or
electric shock.
∗ Use an extension cord by itself.
Wipe dust off the power plug and
insert the plug rmly.
If the plug is not fully inserted into the socket,
dust may gather on the connectors which may
cause re and/or electric shock.
Should abnormal symptoms occur (a
burning smell, etc.), switch off the unit
and unplug it from the socket.
Continuing to operate the unit may result in
re, electric shock, or malfunctions.
Contact your dealer or Mitsubishi Electric
Service Centre for consultation.
Remove water that has collected in
the tank.
Accidentally drinking the water or using it for
other purposes may cause illness and/or
unforeseen accidents.
WARNING
emjez6cxs1.indb4emjez6cxs1.indb4 2010/05/1710:28:142010/05/1710:28:14
5
Before using the unit

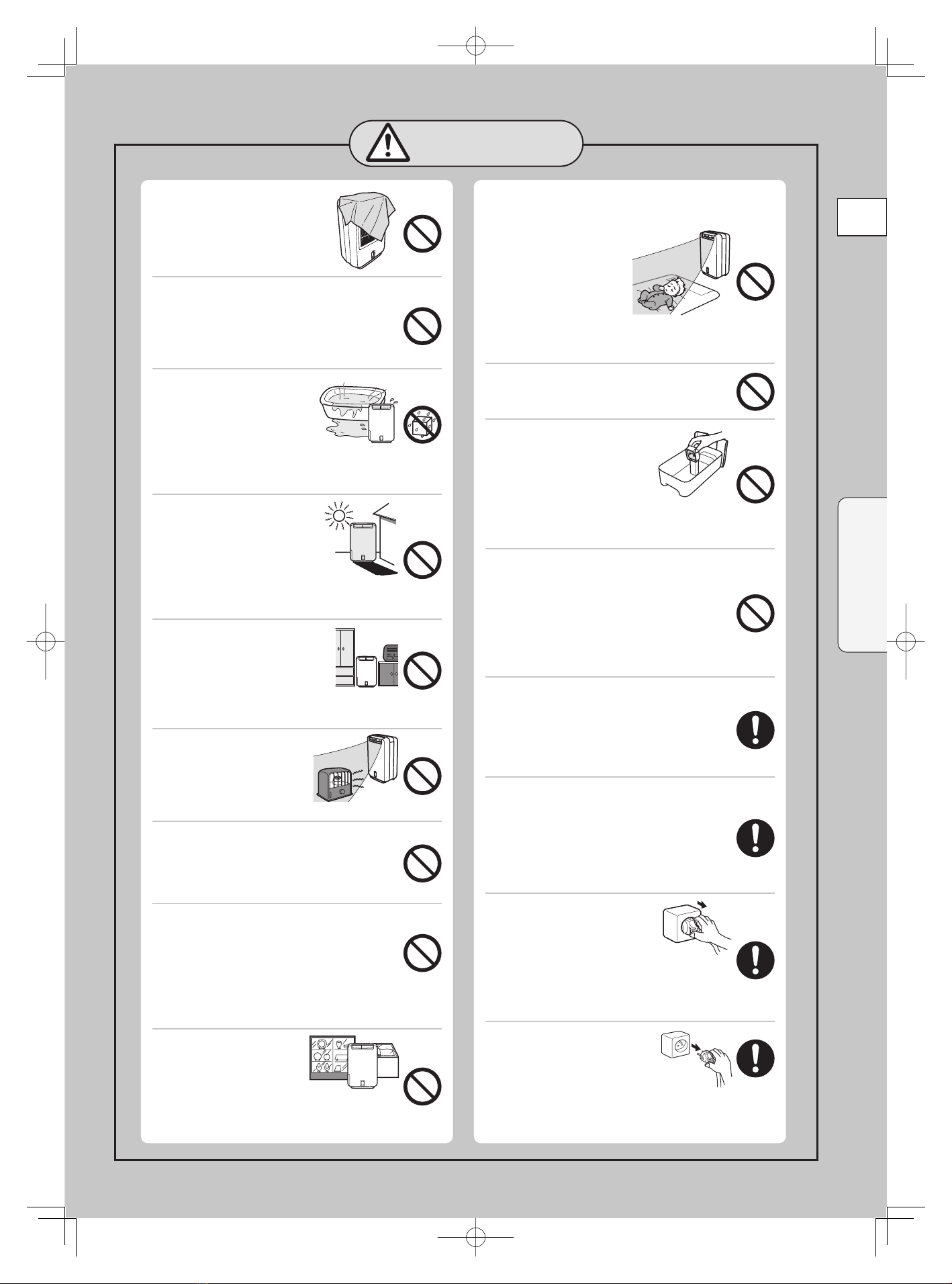

CAUTION
Do not cover an air outlet or
air intake with laundry, cloth,
curtain, etc.
This results in poor ventilation and
may cause heat generation/re.
Do not put vases or any other objects
lled with water on the unit.
Water may leak into the unit adversely
affecting electric insulation and cause
electric shock and/or re by short-circuiting.
Do not use the unit in a
bathroom or other
location where it is likely
to come into contact with
water, or wash it with water.
Exposure to water may result in re or
electric shock caused by an electric leak.
Do not use the unit where it
may be exposed to direct
sunlight or other weather
conditions.
(This unit is for indoor use only.)
This may cause overheating, electric shock
and/or re caused by an electric leak.
Do not use the unit in narrow,
enclosed places such as
inside closets, between
pieces of furniture, etc.
This results in poor ventilation and may cause
heat generation and/or re.
Do not use combustion
appliances in the path
of the air outlet.
This may cause incomplete
combustion in the appliance.
Do not use the unit in places that may be
subject to oil or ammable gas leakage.
Such a leak around the unit may cause
combustion and re.
Do not use the unit in places where
chemicals are used (such as hospitals,
factories, laboratories or beauty salons).
Chemicals and solvents evaporated in the
air may harm the unit and cause water in
the tank to leak, resulting in damage to
property.
Do not use the unit for
special purposes, such
as preservation of food,
art or scientic works.
This may negatively affect the quality of the
items stored.
Do not point airow from the unit directly at
the body for a prolonged period of time.
Be especially careful when
using the unit where there
is someone who is unable
to adjust the humidity
(infant, child, or elderly
person).
If air-flow is directed at
the body for long periods, it may harm one’s
physical condition and lead to dehydration.
Do not stand on, sit on or lean against
the unit.
The unit may tip over causing injury.
Do not remove the Styrofoam
from the oating element.
The floating element will not
be able to detect a full tank
resulting in water leakage,
which may damage surrounding objects
or cause electric shock and/or an electric
leak.
Do not drain water continuously if
there is a possibility that temperature
around the hose could drop to
freezing point.
Water inside the hose may freeze and
prevent the water in the tank from flowing
out. The water may leak from the unit and
damage surrounding objects.
Install the unit in a location where the
oor is at and stable.
If the unit falls over, the water collected in the
water tank may leak damaging surrounding
objects and in turn result in re or electric
shock caused by an electrical leak.
Before moving the unit always switch
it off, unplug it and remove water
from the water tank.
Moving the unit with water in its tank may
cause the water to leak and damage the
surrounding objects and in turn result in
electric shock and/or an electric leak.
Grasp the plug and remove
from the power socket.
When removing the plug from the
power socket, do not pull on it
diagonally or by the cord as this may
cause the projections/wiring to be damaged
resulting in a short circuit, electric shock or
re.
Before cleaning the unit, wait
until the blower fan stops
after operation has stopped,
and then remove the power plug.
When the unit is on, the internal fan rotates at high
speeds and may cause injury.
EE
emjez6cxs1.indb5emjez6cxs1.indb5 2010/05/1710:28:142010/05/1710:28:14
6
Unplug the unit from the power
source when not using the unit
for an extended period of time.
Otherwise it may cause re and/or
electric shock caused by an electric
leak.
When using the continuous
drainage outlet, make sure to
position the hose so that the
water drains without obstruction.
The water in the tank may leak and
damage surrounding objects.
When draining water
continuously or left unattended
for long periods, inspect the unit
every two weeks.
Do not allow debris to clog the filter/
hose as this may cause overheating/
leakage.
First remove the water
from the tank and then
grasp the handle rmly
when moving the unit.
The falling or dropping of the
dehumidifier may cause an
injury, damage to the oor,
or household belongings
becoming wet as a result of
water spilling out of the tank.
Use the unit with caution in
rooms where the walls, furniture
and art work are vulnerable to
dry air, as it may cause cracks
and warping.
Keep the unit always in an upright position.
Inclining the unit may cause water in the tank to leak
into the unit, resulting in malfunction. Should you
incline the unit accidentally, contact the place of
purchase for advice.
Do not carry the unit horizontally.
This may result in malfunctions.
Warnings
Names and
Front
Back
Precautions (cont.)
Precautions (cont.)
CAUTION
Continuous
drainage
outlet
Power plug
Air intake
There is a filter inside the unit.
It cannot be removed.
Filter cover
Do not cover.
Water level
window
P19
Handle
Raise the handle to
carry the unit.
P8
P17
Sensor (inside unit)
Do not cover.
Silver ion
sterilizing and
deodorizing lter
The water tank may contain water residue at time of
purchase. This is from final product testing at the factory
and is not due to a defect.
Downward blowing
louvre P14
Tank lid
Water tank
Control panel
Floating element P16
Louvre (air outlet)
P14
P816
P816
P1820
emjez6cxs1.indb6emjez6cxs1.indb6 2010/05/1710:28:142010/05/1710:28:14
7
Before using the unit
Functions of Parts
Silver ion sterilizing and deodorizing
lter
Hereafter referred to as simply “sliver ion filter.”
The silver ion filter is supplied with the unit at the time
of purchase. Set before using the unit.
Accessories
What is a silver ion sterilizing and deodorizing lter?
At least 50 cm
At least
2 cm
At least
40 cm
Installing your
dehumidier
Make sure to leave
some space around
the unit.
<When installing your dehumidifier near a wall>
Stop the swing operation and use the louvre in the
upward direction. Since the wind blown out of the
unit mixes with the dust in the air, dust may stick to
the wall and make it dirty if the wind is blown directly
onto the wall.
<Operating noise>
Use the unit on a mat or the like. This reduces
vibration and noise. It also prevents leaving
depressions on carpets, etc.
At least
20 cm
At least 50 cm
The silver ion sterilizing and deodorizing filter is a filter
consisting of fibres containing special deodorant and
silver ion anti-bacterial agent (anti-allergen, anti-virus,
and sterilization).
Cigarette smoke and toxins found in smoke, such as
carbon monoxide, cannot be removed with this filter.
POWER lamp
Lights during operation.
POWER switch
Turns the power on/off.
P1519
CLEAN FILTER lamp
Flashes or lights to notify you that it
is time to clean the filter.
RESET switch
Cancels the flashing or lit state of
the CLEAN FILTER lamp.
Control panel
FULL lamp
Lights when the tank is full.
Lights when the tank is not
attached to the unit.
OFF TIMER lamps
Indicates the OFF timer remaining
operation time.
OFF TIMER switch
Sets the OFF timer operation time.
SWING LOUVRE lamps
The lamp for the swing direction of
the louvre lights.
SWING LOUVRE switch
Changes the swing direction of
the louvre, or stops the swing
operation.
P15
P8
Operating mode lamps
The lamp of the selected operating
mode lights.
INTELLIGENT LAUNDRY
switch
Switches to the Intelligent laundry
operation.
DEHUMIDIFYING switch
Switches to the dehumidifying
operation.
MODE switch
Switches between the clothes
deodorant operation and bathroom
mildew guard operation.
INTELLIGENT LAUNDRY
LOW
HIGH
AUTO
DEO-DRY
BATHROOM MILDEW GUARD
P10
P9
P13
P12
You can select one of the six
operating modes above.
It is not possible to use a combination
of two operating modes.
At least 50 cm
At least
2 cm
At least
40 cm
P16
P14
E
emjez6cxs1.indb7emjez6cxs1.indb7 2010/05/1710:28:152010/05/1710:28:15
8
1
2
Carrying the Unit
Note
Do not attempt to carry the unit horizontally.
Tilting the unit will result in the water spilling
and cause a malfunction.
Do not let the power cord drag, as this may
damage the cord.
Inserting the water tank correctly
Tank lid
Press the edge to insert
it firmly into place.
Water tank
Make sure the tank is
not broken or cracked.
Check the water tank, and push
it rmly all the way into the unit
Plug the power cord into
the power socket
Use a 230V AC power
socket only.
If the louvre is opened, it closes automatically.
Before using your dehumidifier
Note
Make sure the silver ion filter is attached to the
unit.
If it is not, fine dust will enter inside the unit
and cause a malfunction.
Set the silver ion filter
The silver ion filter is supplied with the unit at time of
purchase. Please fit before using the unit.
Set the lter cover.
4
1Insert the tabs at the bottom of the filter cover
into the unit.
2Push in the filter cover at the top.
Remove the silver ion lter
from the polyethylene bag.
1
Remove the lter cover.
2
Hold the top of the
filter cover, and pull
it toward you and
remove it.
Filter cover
Set the silver ion lter into the
lter cover.
3
Align the white net surface with
the filter cover, and insert the
filter inside the tabs of the filter
cover.
White net surface
Tabs (8 places)
Empty the tank and close the louvre.
Moving the unit without emptying the tank may
cause an accident due to, for example, the floor
or household belongings becoming wet as a
result of water spilling out of the tank.
Do not hold the louvre.
Carry the unit slowly
and gently.
Raise the handle to
carry the unit.
emjez6cxs1.indb8emjez6cxs1.indb8 2010/05/1710:28:152010/05/1710:28:15
9
Operating Before using the unit
The unit remembers the operating mode. Even if
the plug is disconnected or the power turned off,
the unit restarts at the previous setting.
(The swing setting is not remembered)
Information
1
2
Dehumidifying
The POWER lamp lights.
The operating mode lamp lights.
The louvre opens and airflow starts.
Changes with every press.
Use the swing louvre as desired. P14
LOW
Dehumidification is performed continuously with the
airflow rate and heater in LOW level regardless of the
current humidity.
HIGH
Dehumidification is performed continuously with the
airflow rate and heater in HIGH level regardless of the
current humidity.
AUTO
The unit operates intermittently controlling the airflow
to remove the damp feeling in the air. When the room
temperature is high, the blower operates to reduce the
rise in room temperature.
Once the set humidity level is reached the
airflow and louvre operations may stop.
Rough Guide on Usage
Size of room Up to approx. 9m2
Keep usage within the ranges specified in “Rough
Guide on Usage” to ensure efficient operation.
If the room is large, the humidity level may
not fall to the set humidity level.
z
z
z
1
2
Press .
Press to select the
operating mode.
<To stop operation>
The POWER lamp turns off.
The operating mode lamp turns off.
Air is blown for approximately 2 minutes,
and then operation stops.
Press .
Information
To prevent the temperature inside the
unit from rising, the blower fan rotates for
approximately 2 minutes before operation
stops. Wait until the blower fan stops before
unplugging the power cord.
Set Humidity Level (%)
Room Temperature (°C)
2720 30
60
50
If the room
temperature is
below 27°C, the
unit changes the
set humidity level
according to the
room temperature,
and starts
dehumidifying.
If the room temperature
is above 27°C, the
unit dehumidifies until
the humidity level
reaches 50%, and then
activates the blower. The
dehumidifier is reactivated
when the humidity level
rises to 60%.
E
emjez6cxs1.indb9emjez6cxs1.indb9 2010/05/1710:28:152010/05/1710:28:15
10
1
2
3
Intelligent Laundry
The unit controls the airflow rate while monitoring the
humidity in the room, estimates when the clothes will
dry, and stops operation automatically.
These operations are performed for a period of time
ranging from approximately 1 hour to 12 hours.
Rough Guide
on Usage
Size of room Amount of laundry
Up to approx. 7m
2
Up to approx. 2.5kg
Keep usage within the ranges specified
in “Rough Guide on Usage” to ensure
efficient drying.
z
The unit performs operation automatically while monitoring the temperature and humidity in the room, thus alleviating
the need for advanced settings.
Press .
Drying Laundry (Intelligent Laundry)
Press to select the
louvre swing direction.
The POWER lamp lights.
The operating mode lamp lights.
The louvre opens and airflow starts.
Press .
The INTELLIGENT LAUNDRY lamp lights.
The unit remembers the operating mode. Even
if the plug is disconnected or the power turned
off, the unit restarts at the previous setting. (The
swing setting is not remembered)
Information
<To stop operation>
The POWER lamp turns off.
The operating mode lamp turns off.
Air is blown for approximately 2 minutes,
and then operation stops and the louvre
closes automatically.
Press .
Information
To prevent the temperature inside the
unit from rising, the blower fan rotates for
approximately 2 minutes before operation
stops. Wait until the blower fan stops before
unplugging the power cord.
2
1
3
Drain the tank before use.
The unit may stop before the laundry dries
because of a full tank.
If this is used in conjunction with the
OFF timer, operation may stop before the
clothes are dry.
When the room temperature is
approximately 5°C or less, operation stops
after about 1 hour because the evaporation
of moisture becomes difcult and the
clothes will not dry.
In such a case, use the unit with dehumidifying
set to “HIGH.”.
Information
P14
P15
emjez6cxs1.indb10emjez6cxs1.indb10 2010/05/1710:28:152010/05/1710:28:15
11
Operating
How to Blow Air at Clothes
Use the swing louvre to blow air onto all of the clothes
Clothes places in locations that are not exposed to the wind
will take time to dry.
When there are a lot of clothes
Change the hanging positions of the clothes during drying to
ensure air is blown onto all of the clothes.
Using the unit to dry clothes hung in a room is recommended on days such as
the following.
About the Room for Hanging Clothes
Hanging the clothes in a small enclosed room and
dehumidifying
It allows for very efficient dehumidifying and quick drying.
When the room temperature is low such as during the winter
Drying becomes easier if you also use a heater to raise the room
temperature to approximately 16°C or more.
How to Hang Clothes
Fully extend the clothes to remove any wrinkles
Leave space between clothes to allow air to easily pass
through them (Guideline for spacing: Approximately 5 cm)
Hang any difcult to dry items in positions where wind can
easily come into contact with them
Clothes placed close together will take time to dry.
<Drying takes a long time in the following cases>
When there are a lot of clothes
When the room temperature is low
The drying time required at a low temperature (approximately 10°C) is
around 1.5 times that at a normal temperature (approximately 20°C).
When the room is large
Cloudy and rainy days
Drying clothes hung outside takes
a while on days with high humidity
because it is difficult for water to
evaporate.
zDays with a lot of pollen
and dust in the air
Hanging clothes inside enables you
to prevent pollen and dirt getting on
them.
z
Days you are unable to bring
in the washing during daylight
hours
Dry clothes absorb dampness when
the air cools outside after the sun
sets, meaning your efforts will have
gone to waste.
z
Tips on Drying Laundry
To dry laundry quickly and neatly
P14
P10
E
emjez6cxs1.indb11emjez6cxs1.indb11 2010/05/1710:28:152010/05/1710:28:15
12
Changes with
every press.
The BATHROOM MILDEW GUARD lamp lights.
The swing louvre operation starts (blowing
set to “WIDE” and “FRONT”).
Operation stops after approximately 4 to 12 hours.
The POWER lamp and BATHROOM MILDEW
GUARD lamp turn off.
About Bathroom Mildew Guard Operation
After dehumidifying is performed until the humidity reaches 50%,
operation is performed for approximately 4 hours and then stopped
automatically. The operation time varies depending on the temperature
and humidity, but the minimum time is approximately 4 hours
(approximately 6 hours when the room temperature is 20°C or less) and
the maximum time is approximately 12 hours.
How is mildew growth suppressed?
Mildew is unable to produce new spores if dried as mycelia. The Mildew Guard feature applies
this principle. (However, the spores themselves are resilient to dry conditions.)
Installing the Dehumidier
Reducing Growth of Mildew in Bathroom (Bathroom Mildew Guard)
This operation is for reducing the growth of mildew by drying the inside of a bathroom to remove any humidity and droplets that
remain inside after, for example, you take a bath. This operation can also be used as a measure for tackling mildew in rooms.
Information
For effective use, keep the windows and doors of the room closed and do not ventilate the room during operation.
Operation may not be sufficiently effective if the bathroom is spacious or because of the building materials used for the
floor and walls of the bathroom.
Drops of water may remain in places where water collects easily.
Mildew may grow depending on the room conditions and the type of mildew.
Example: Where air circulation is poor such as beneath a container or the like in the bathroom or at the back of a cupboard
or behind furniture in the bathroom.
This operation cannot dry locations where the airflow cannot reach such as inside a bathtub and beneath a container.
This operation cannot remove existing mildew and water scale, or slime in the drain outlet.
If this operation is used in conjunction with the off timer, operation may stop before drying is complete.
If water remains in the
bathtub, cover the bathtub.
Set air to be blown from
the front of the unit.
Adjust the orientation of
the unit so that air flows
toward the whole room.
<Preparation> Install the dehumidier in the dressing room
Use the “downward blowing louvre” operation
.
1Press .
2Press to select
“BATHROOM MILDEW GUARD”.
<When you want to abort the operation>
When you want to end the operation partway through:
Press the POWER switch (OFF).
When you want to switch to another operation:
Press any one of the “INTELLIGENT LAUNDRY”,
“DEHUMIDIFYING”, and “MODE” switches.
Install the unit in the dressing room (entrance to
the bathroom).
(Do not install the unit inside the bathroom.)
Humidity 50%
Operation time
Swing direction
Start of
operation
End of
operation
WIDE FRONT
Varies depending on the
temperature and humidity
4 hours
“Identification of Black Mold”
[Research paper by Dr.K.Abe of the
Environmental Biology Research Center]
Rough Guide on Usage
Location to be dehumidified
Size
Bathroom (bathroom +
dressing room)
Up to approximately 7 m2(size of
bathroom + dressing room)
Room Up to 9 m2
For more effective operation, use the unit within the above ranges.
Do not use the unit in a bathroom or other
location where it is likely to come into contact
with water, or wash it with water.
The unit does not have a drip-proof or water-proof
structure. Water coming into contact with the unit may
result in a fire due to a short circuit, or an electric shock.
CAUTION
The louvre operates in the “WIDE” swing direction
until the humidity drops to 50% and then
automatically switches to the “FRONT” swing
direction. The swing direction can be changed
according to preference.
The airflow rate cannot be set because it is
changed automatically. Do not use this operation in
conjunction with other operations.
P9
P14
P14
emjez6cxs1.indb12emjez6cxs1.indb12 2010/05/1710:28:152010/05/1710:28:15
13
Operating
How to Hang Clothes
Removing Odor from Clothes (Clothes Deodorant)
This unit operates for approximately 1 hour to remove odor from clothes by blowing
warm air on them.
Use this operation when you want to remove odor from clothes that are not frequently
washed, such as suits and sweaters.
<Use for odor from
the following>
Cigarettes and grilled meat
Note
Do not use for leather and silk goods.
Drain the water tank before operating.
Ensure ventilation during operation.
Information
The odor cannot be removed in the following
cases.
When the temperature and humidity inside
the room are low.
When there are many clothes.
The odor will not be removed from parts not
blown by the wind.
The sharp odor such as perfumes and
chemicals cannot be removed.
The odor of oil and dirt on clothes cannot be
removed.
If the operation has little effect, try the
operation again, or wash or clean the clothes.
1Press .
<Preparation> Hang the hangers on which
the clothes are hung, and then
place the dehumidier beneath
them.
2Press to select “DEO-
DRY”.
The odor will not be removed from parts not
blown by the wind. Select a swing direction
that enables a good amount of wind to blow
the clothes.
3Press to select the
louvre swing direction.
<When you want to abort the operation>
When you want to end the operation
partway through:
Press the POWER switch (OFF).
When you want to switch to another
operation:
Press any one of the “INTELLIGENT LAUNDRY”,
“DEHUMIDIFYING”, and “MODE” switches.
<Details on Clothes Deodorant Operation> This operation takes approximately one hour.
CLOTHES DEODORANT switch (ON)
Secure hangers
so they will not be
moved by airow.
Space out laundry
to improve airow.
Allow pants
to hang
unfolded.
Fasten the buttons
on suits, coats,
and the like.
When odor is
absorbed into the
fabric, allow air
to blow inside the
hanging garment. P14
Changes with every
press.
Operation stops after approximately 1 hour.
The DEO-DRY lamp turns off.
P9
The airflow rate cannot be set because it is
changed automatically. Do not use this operation
in conjunction with other operations.
Dehumidifying operation
(maximum airow rate)
A strong wind is used to blow away odors.
Approx. 30 min.
Clothes deodorant operation (Approx. one hour.)
Dehumidifying operation
(high airow rate)
The temperature of the wind is raised to remove odors that
have penetrated deep into fabric.
Approx. 30 min.
Auto Stop
E
emjez6cxs1.indb13emjez6cxs1.indb13 2010/05/1710:28:152010/05/1710:28:15
14
Using Louvre
The louvre can be made to swing. Use the louvre in accordance with the intended use.
During operation,
press to select the
louvre swing direction.
Information
The level of noise emitted from the unit varies according to the
angle of the air-flow.
The louvre sometimes stops for up to about 8 seconds to align
the position, but it will start moving again afterwards.
If the louvre is knocked out of the desired angle because
the louvre is touched by a hand or object, press the SWING
LOUVRE switch again to readjust the position.
If air is blown directly onto a wall, the wall may become dirty
because of dust in the air being blown onto the wall.
When you want to dry training shoes, place them at a position
that is a little higher than the floor.
Preventing condensation on windows
and dehumidifying the inside of closets
or shoeboxes
Use the swing louvre to
blow air at the location you
want to dehumidify.
<Recommended Operating
Mode>
Dehumidifying “HIGH”
Changes with each press for swing direction.
Off (swing operation
is stopped)
UPWARD
For drying clothes,
etc.
zSwing speed is automatically controlled to
send air at clothes from all angles.
The blowing range is approximately 90°.
FRONT
When you want
to dehumidify the
inside of closets, etc.
zThe louvre swings so that air is blown from
the front of the unit.
The blowing range is approximately 60°.
WIDE
To cover the entire
room
zThe louvre swings so that air is blown
over a wide area. The blowing range is
approximately 145°.
(The moving range of the louvre is
approximately 120°.)
Stop swing
operation
To stop the louvre
at the desired angle
zThe louvre stops in the vertical
position.
The SWING LOUVRE lamp turns off.
Wait until the louvre stops before you
adjust the angle by hand.
If the louvre swings at the same
speed all the time, the airflow will
be directed on the clothes in front
of the unit for a shorter period than
in the upward direction. Therefore,
the louvre swings slowly for the 30°
portion shown at right.
1Stop the swing operation, and
raise the louvre.
2Hold the tab and pull up the bottom
blowing louvre.
Louvre in
raised position
3Lower the louvre.
Align the surfaces
When you want to use the “downward
blowing louvre”
Use this when you want to perform the
“bathroom mildew guard” operation,
dehumidify bedding, carpets, or tatami,
or dry training shoes.
60°30°
emjez6cxs1.indb14emjez6cxs1.indb14 2010/05/1710:28:152010/05/1710:28:15
15
3
2
Operating
Using OFF Timer
You can select an operating time from “2”, “4”, and “8” hours.
When the set time is reached, the unit switches itself off
automatically. Set the OFF timer while the unit is “ON”.
If you use the “INTELLIGENT LAUNDRY” operation or
“BATHROOM MILDEW GUARD ” operation together with the
off timer, the operation may end before drying is complete.
Information
Removing water from the tank.
If the water tank becomes full, dehumidifying is
not possible because the unit automatically shuts
down. Empty the water tank before operating.
1
2Press .
Set the desired operating mode P9-13 and
louvre swing direction. P14
3Press to select the
operating time.
Changes with each press.
The lamp for the selected time lights.
(Off time operation starts)
The OFF timer lamp (remaining operation
time indication) changes as time passes.
When the set time is reached, the unit
switches itself off and the louvre closes
automatically.
The POWER lamp turns off.
Disactive
(lamp turns off)
<When you want to cancel the OFF timer
before the set time is reached>
When you want to turn the unit off
Press the POWER button. (Power off)
When you want to disable the OFF timer
and continue operation
Press the OFF TIMER switch repeatedly until the
operating time lamps go out.
P9
CLEAN FILTER Lamp
When it becomes time to clean the silver ion filter and
air intake, you are notified by the flashing or lighting
of the CLEAN FILTER lamp. Press the POWER switch
to turn off the power, and then make sure you perform
cleaning before pressing the RESET button.
CLEAN FILTER lamp ashes.
Clean the silver ion filter and air intake, and then
insert the power plug and press the RESET switch
until you hear a beep.
If you continue use without performing cleaning:
CLEAN FILTER lamp lights.
If you continue operation
for approximately another
150 hours while the
CLEAN FILTER lamp is
flashing, an alarm sounds,
the lamp lights, and
operation stops.
Clean the silver ion filter and air intake, and then
insert the power plug and press the RESET switch
until you hear a beep. P19
Operation is not possible while the CLEAN FILTER lamp
is on.
When the CLEAN FILTER lamp is flashing or on, an
alarm sounds each time you turn on the POWER switch.
Information
In the following cases as well, the CLEAN FILTER
lamp lights and operation stops to prevent the
temperature inside the unit from rising.
The silver ion filter and air intake are clogged.
The air outlet and filter cover are blocked by a
curtain, towel, or the like.
The room temperature is high (approximately
40°C).
P19
When the operation time
becomes approximately
150 hours, an alarm
sounds and the CLEAN
FILTER lamp flashes.
E
emjez6cxs1.indb15emjez6cxs1.indb15 2010/05/1710:28:162010/05/1710:28:16
16
Draining
The unit automatically shuts down and lights the Tank full lamp when the tank is full.
Empty the water tank.
When the water tank becomes full, the “FULL lamp” lights.
Tank full lamp lights.
(The unit beeps continuously).
Blowing stops (louvre stops).
The operation indicator lamp turns
off.
Remove the water tank.
1
Grasp handle and
slide out.
<Hold the tank this way>
Remove the tank lid, and pour
out the water.
2
Pour the water out as shown.
Tank lid
Slide the tank lid to close the
tank.
3
Check the tank, and rmly
push it all the way in.
4
Tank lid
Press the edge to insert
it firmly into place.
Water tank
Make sure the tank
is not broken or
cracked
A beep is heard and the lamp turns off.
Not attaching the tank lid properly may result in water
leaking.
If the tank lid is not inserted firmly, it may not be
possible to remove the tank.
If the tank is not installed correctly, the tank full light
will come on, and the unit will not operate.
Note
Do not remove or dismantle the floating element in the
tank. If it is removed, the unit cannot detect when the
tank is full, and this could result in leakage.
Lit
Information
After removing the water and
replacing the tank, the Tank full
lamp will go off, and the unit will
automatically return to operation
mode.
When the Tank full lamp is lit,
no operation but ON/OFF is
possible.
If you remove the tank, the FULL lamp lights.
Floating element
Do not remove this.
Check the tank lid, and
firmly push it all the way in.
Information
emjez6cxs1.indb16emjez6cxs1.indb16 2010/05/1710:28:162010/05/1710:28:16
17
Operating
<Preparation>
Turn the POWER switch “OFF”,
and remove the power plug.
1Feed the commercially available hose
(internal diameter of 15 mm) into the
continuous drainage outlet while keeping the
stopper pressed.
Continuous Drainage
If a drain is available, the unit can continuously drain excess water by attaching a commercially available hose
(internal diameter 15 mm).
The unit can be operated for extensive periods without the need to empty the water tank.
Items to
prepare
Commercially available hose
(I.D. 15 mm)
Long enough to reach the drain
Nippers or the like
CAUTION
Do not drain water continuously if there
is a possibility that temperatures around
the hose could drop below freezing point.
Water inside the hose may freeze and water may leak
from the unit and damage surrounding objects.
When draining water continuously or left
unattended for long periods, inspect the
unit once a fortnight.
Foreign objects, etc. could clog the hose resulting in
overheating and/or leakage.
Insert the hose through the
continuous drainage outlet
from the back of the unit.
4
Attach the tank to the unit,
and place the end of the hose
in the drain location.
5
If the tank is not reattached, the “FULL lamp”
remains on and operation is not possible.
HoseDrain
Note
When you will perform continuous drainage, leave at least 20 cm of space from the surface with the outlet for the hose.
Confirm that the hose does not show signs of deterioration such as bending cracks and clogging.
Inspect the hose every 2 weeks. Insects or dirt blocking the hose may cause leakage resulting in malfunctions.
2Firmly push the hose
through the drainage
outlet of the unit.
Remove the
water tank.
1
Grasp handle and
slide out.
Open the continuous
drainage outlet.
2
Use nippers or the like to cut the fixing ribs (three
places) of the continuous drainage outlet on the
back of the unit, and remove it from the outlet (while
taking care not to injure yourself on a cut surface).
Position of
drainage outlet
115 mm
45 mm
Use a nger to press the
stopper of the drainage outlet.
3
Press here
Drainage outlet
Stopper
How to set up the drainage hose
Correctly
installed
Incorrectly
installed
hose immersed in water
hose raised to a
level higher than the
drainage outlet
The water will not
drain.
→
3Check for water
leakage.
E
emjez6cxs1.indb17emjez6cxs1.indb17 2010/05/1710:28:162010/05/1710:28:16
18
Do not use detergents, cleaning agents for heat
exchange equipment, abrasive powders, chemically
treated dusters, gasoline, benzene, thinners or other
solvents, as they can damage the unit or the water
tank, which may result in leakage.
Remove the power plug before you begin
maintenance.
When dirty
Frequency and Parts for Maintenance
Tank
Unit
→Wipe with a dry
cloth
When dirty
Silver ion lter
Air intake
Sensor
→Clean with a
vacuum cleaner
Once every two
weeks
Silver ion lter
→Soak in water
Once every three
months
Water tank · Unit
Wipe with a soft cloth.
The unit draws in dust present in the air, and this
may cause the tank to gradually become dirty. If
the dirt does not come off easily, wash with cold
or warm water, then wipe with a soft, dry cloth.
Mildew may form in the tank unless kept clean.
Floating element
Do not remove or
dismantle.
P18
P19
P20
Flashes or lights
Maintenance
emjez6cxs1.indb18emjez6cxs1.indb18 2010/05/1710:28:162010/05/1710:28:16
19
Troubleshooting
Resetting the CLEAN FILTER
lamp
Silver Ion Filter, Air Intake, and Sensor
Clogging with dust and the like reduces the effectiveness of the dehumidifying.
Clean once every two weeks
Removing and setting the filter, see P8
1Insert the power plug in
a power socket.
2Press the RESET switch
until you hear a beep
(for approximately 3
seconds). Press
until you hear a
beep.
Once every two weeks or when the CLEAN FILTER lamp flashes or lights
Remove any dust from the white net surface with
the nozzle of a vacuum cleaner.
Do not use a nozzle with a brush. This may
damage the filter.
<When the filter is very dirty>
Soak the filter in water.
Remove the lter cover.
Clean the lter.
Clean the air intake and
sensor.
4
Remove any dirt
with a vacuum
cleaner.
Do not use a nozzle with a brush.
This may damage the filter.
Set the silver ion lter into
the lter cover.
5
Make sure the silver ion filter is attached to
the unit. If it is not, fine dust will enter inside
the unit and cause a malfunction.
Set the lter cover.
6
Press the POWER switch to turn off the
power, wait until the blower fan stops rotating
(approximately 2 minutes) before unplugging the
power cord.
Remove the silver ion lter
from the lter cover.
1
3
2
P20
Sensor
Air intake
E
emjez6cxs1.indb19emjez6cxs1.indb19 2010/05/1710:28:162010/05/1710:28:16
20
Silver Ion Filter (Soak in Water)
Soak the silver ion filter in water.
Removing and setting the filter, see
Remove any dust from the white net surface with
the nozzle of a vacuum cleaner.
Do not use a nozzle with a brush. This may
damage the filter.
Remove the lter cover.
1
Remove the silver ion lter
from the lter cover.
2
Soak the silver ion lter in
water.
4
Soak in cool to
lukewarm water for
about 30 minutes.
Do not use detergent or hot water. Also,
do not use a brush or the like to scrub the
filter or rub the filter while soaking. This may
damage the filter.
Dry the silver ion lter well.
5
Once Every Three Months
Dry the filter on a flat
surface.
Press the POWER switch to turn off the
power, wait until the blower fan stops rotating
(approximately 2 minutes) before unplugging the
power cord.
Any yellow or dark stains may remain on the
filter, but should not affect performance.
The filter can be soaked for a total of eight
times. After that, replace with a new filter.
Set the silver ion lter into
the lter cover.
6
Set the lter cover.
7
P8
Clean the lter.
3
Maintenance (cont.)
emjez6cxs1.indb20emjez6cxs1.indb20 2010/05/1710:28:162010/05/1710:28:16
Table of contents
Other Mitsubishi Electric Dehumidifier manuals
Mitsubishi Electric
Mitsubishi Electric MJ-E80EX-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-EV38HR-A User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E16VX-S1 User manual
Mitsubishi Electric
Mitsubishi Electric MJ-EV210FJ-TW User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E100AR-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E20TX-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E16SX-A1 User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E152AK-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E15BX-A1 User manual
Mitsubishi Electric
Mitsubishi Electric MJ-EV230HR-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E21BG-S1-IT User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E15BX-S1-IT User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E16V-S1 User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E16VX-S1 User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E130AL-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E14CG-S1-SWE User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E82GH-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-101MWX-A1 User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E22WX-H User manual
Mitsubishi Electric
Mitsubishi Electric MJ-E26SX-A1 User manual
