Mitsubishi Electric MJ-E16VX-S1 User manual

Operating Before using the unit
Troubleshooting
DEHUMIDIFIER
MODEL
MJ-E16VX-S1
INSTRUCTION MANUAL
Features
●Drying inside
●Air Filter and Washable
Photocatalytic Filter
●Easy Dehumidifying/Laundry
Table of Contents page
¡Recommended ways of using the unit
depending on purpose .........................2
¡Frequently Asked Questions ...............3
¡Precautions............................................4
¡Warnings ................................................6
¡Tips on dehumidifying..........................6

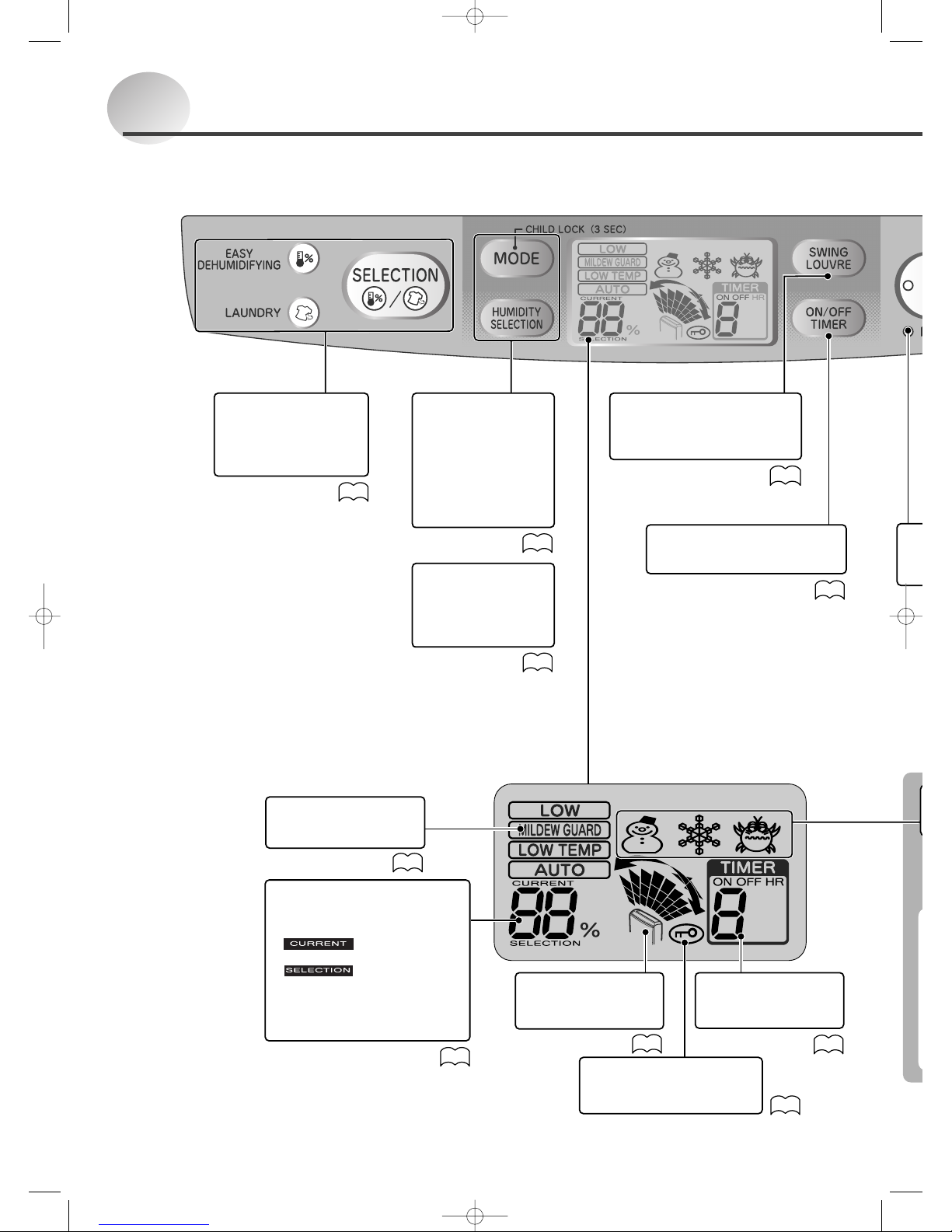

¡Names and Functions of Parts ............7
Unit-Control Panel-LCD Panel
(Low Temperature/Defrost/High humidity)
¡Things to be aware of.........................10
¡Before using your dehumidifier.........10

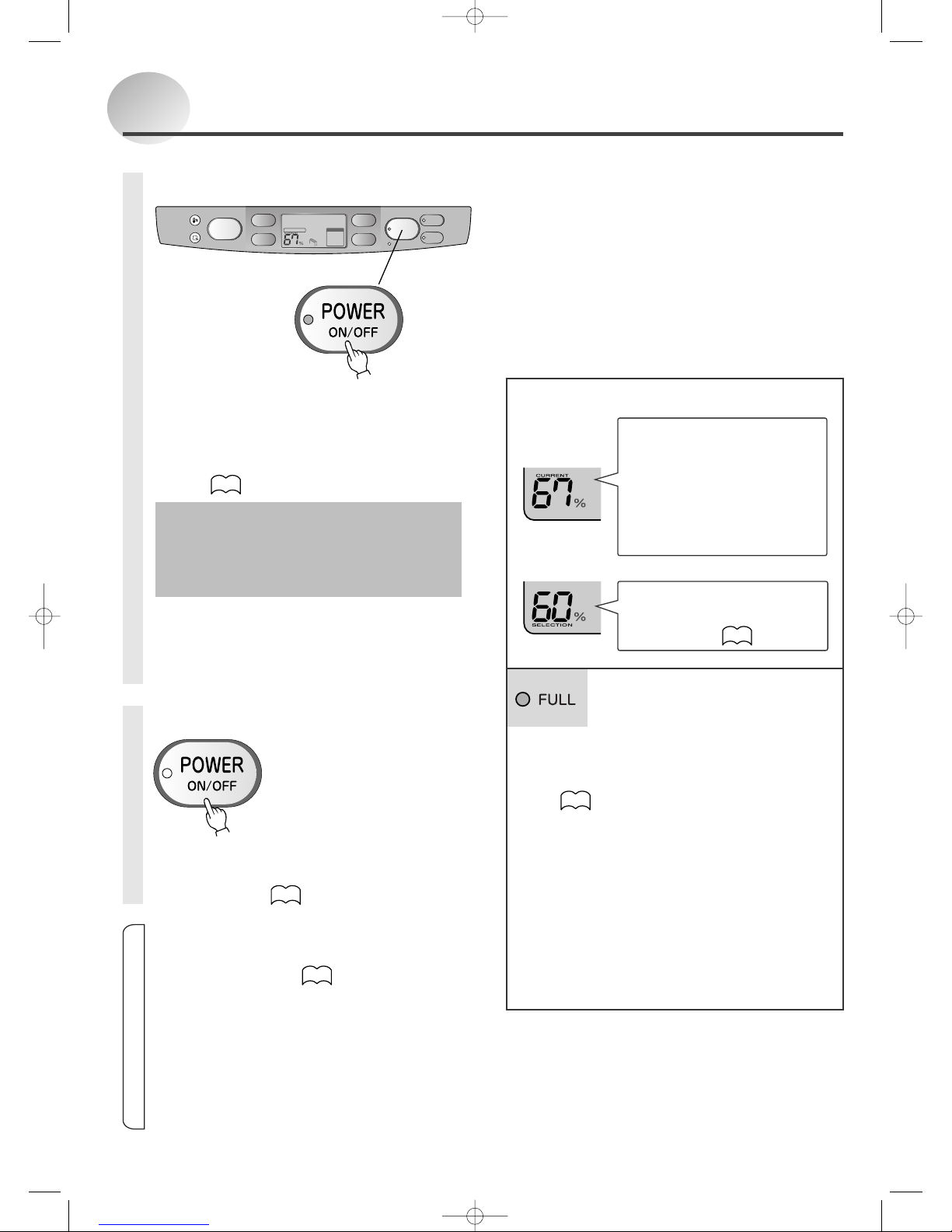

¡Turning the Unit ON and OFF ............12
To t u r n ON/To turn OFF
Reading the humidity display/Tank full lamp

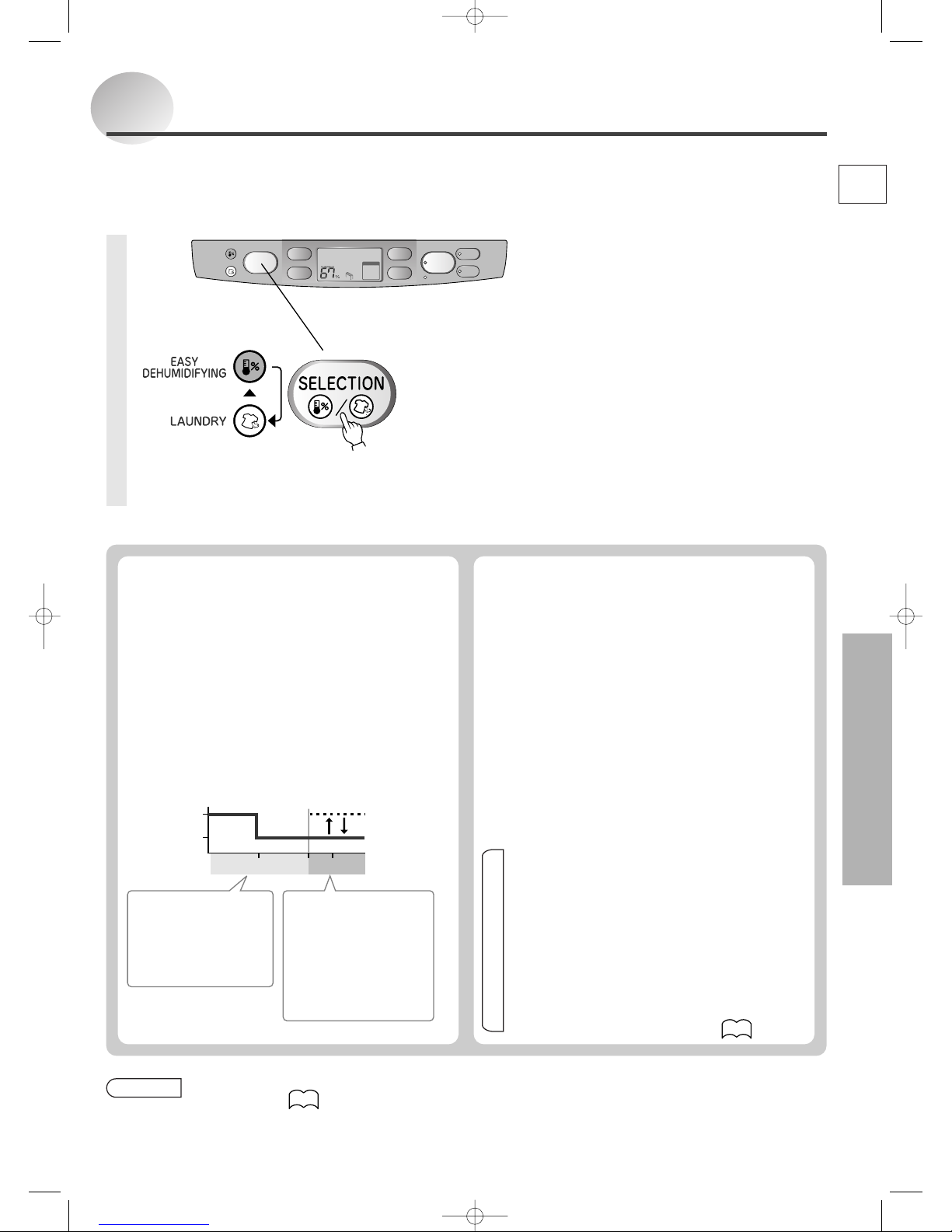

¡Easy Operation....................................13
EASY DEHUMIDIFYING/LAUNDRY
¡Setting modes .....................................14
LOW, MILDEW GUARD and LOW TEMP/
AUTO/AIR PURIFIER

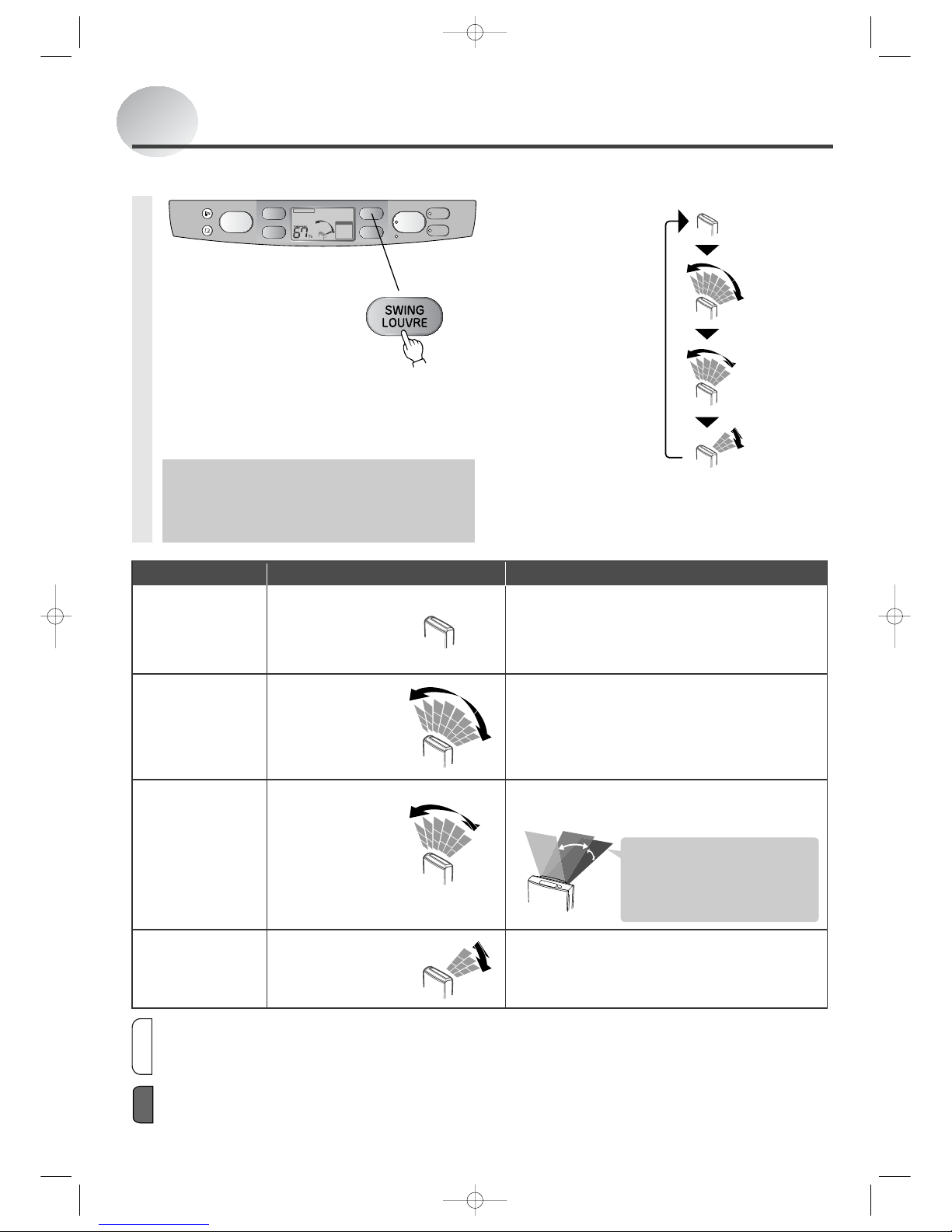

¡Swing louvre function ........................16

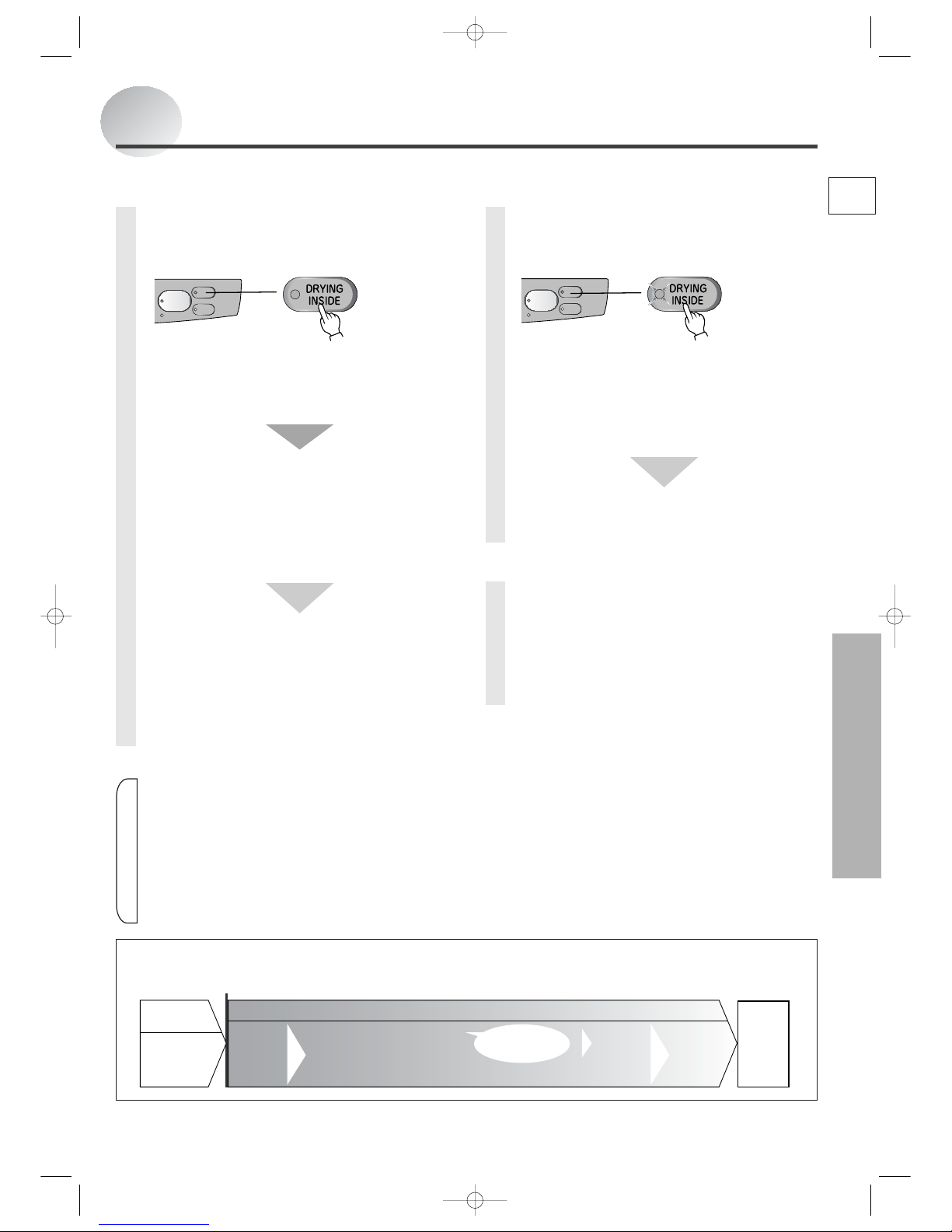

¡Drying inside .......................................17
¡Using the Timer ...................................18
OFF timer operation/ON timer operation

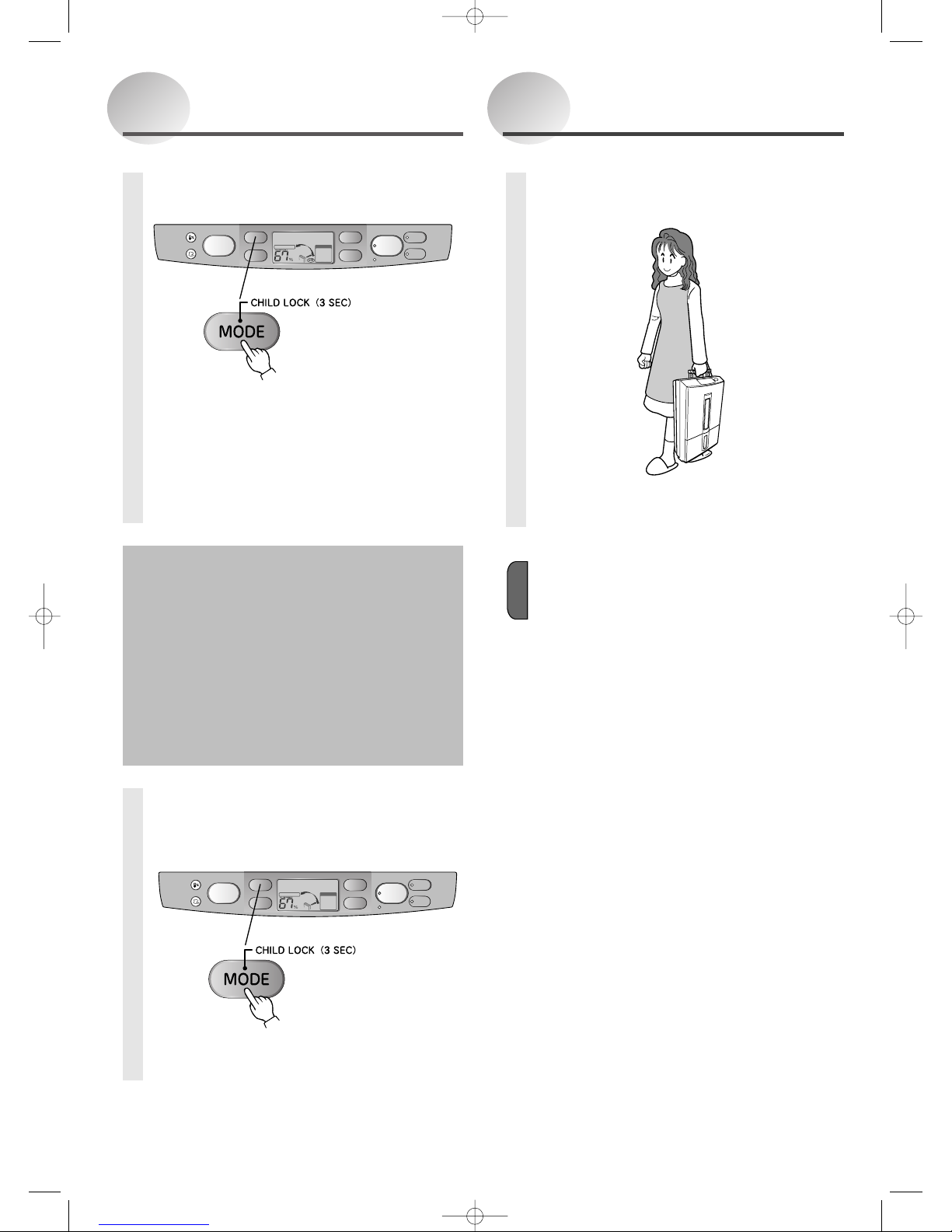

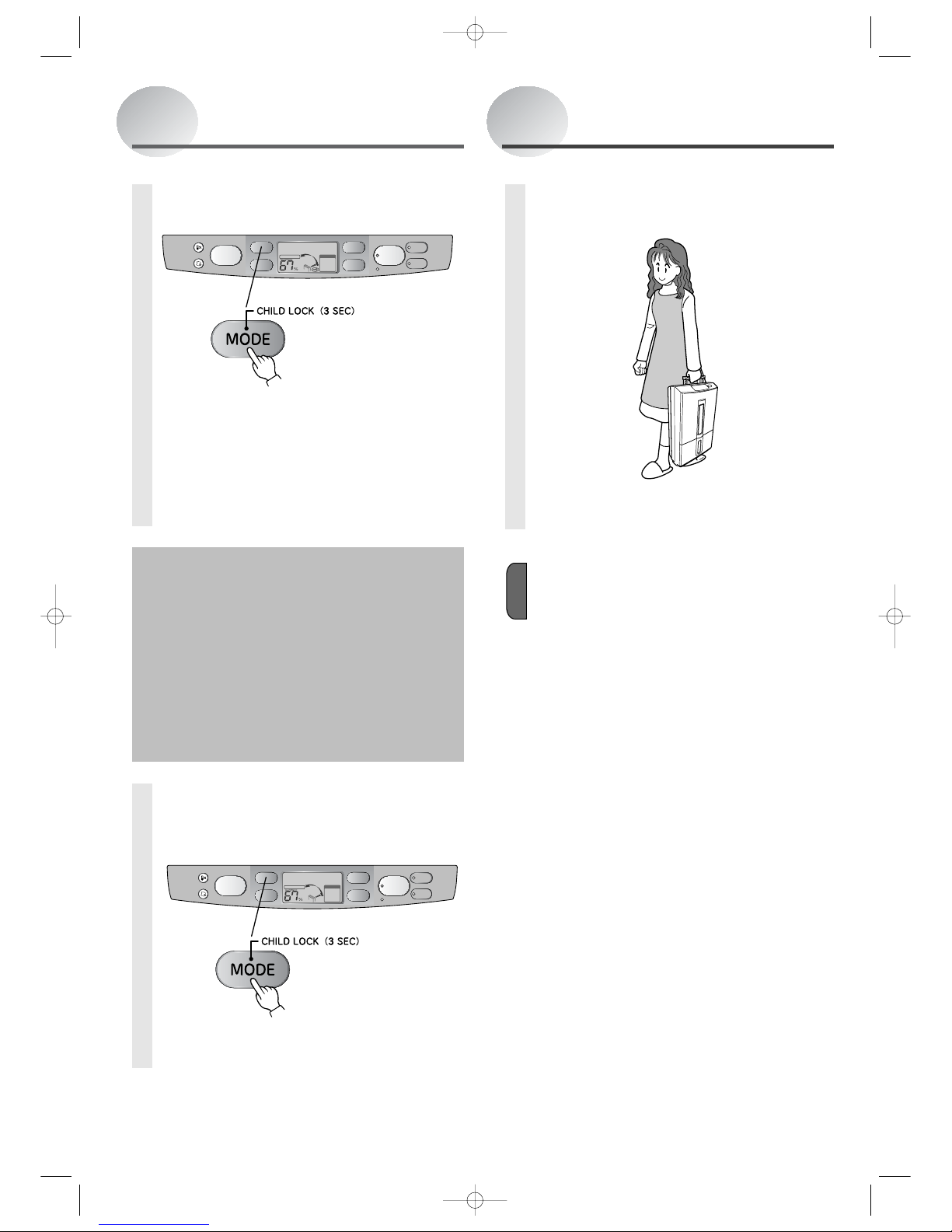

¡Using the Child Lock ..........................20
¡Carrying the Unit.................................20
¡Removing Water from the Tank..........21
¡Continuous Drainage..........................22
¡Maintenance ........................................23
¡Replacing the Filter and Cartridge .......25
¡Storage and Disposal .........................25
¡Troubleshooting ..................................26
¡Specifications......................................28
¡In order to ensure correct usage, please read
this instruction manual carefully and retain it for
future reference.
¡Before accepting the Warranty at the time of
purchase, please make sure that the date of
purchase, place of purchase and other items
are correctly filled in the form.
Protect our environment and enrich our lives by
saving energy
I
Italiano
SV
Svenska
DE
Deutsch
E
English

2

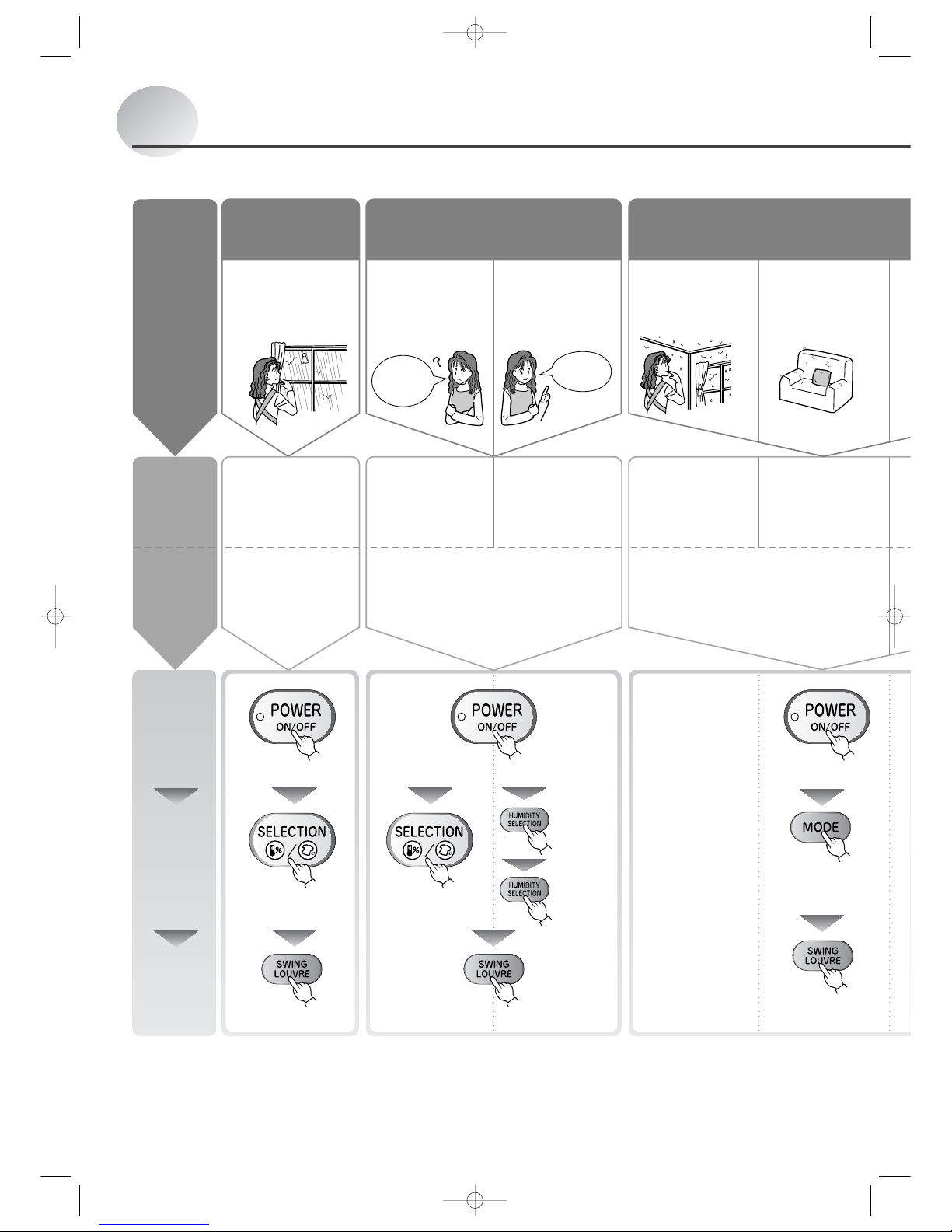

Recommended ways of using the unit depending
Combine operating mode and swing louvre function to get optimum results.
Objective
Recommended
operating
mode
Recommended
swing setting
Procedure
Press the
power button
(the unit turns on)
Page 12
Select the
mode
Page 13-15
Select the
louvre swing
range
Page 16
Drying
laundry
Lowering room humidity Preventing mold/
When you don’t
want to hang the
clothes outside or
it is raining...
When you don’t
know what
humidity level to
set the unit to...
When you want to
set the humidity
level...
When
condensation
occurs indoors...
To prevent
mildew...
LAUNDRY
The unit operates for 12
hours and automatically
switches off.
EASY
DEHUMIDIFYING
The unit operates
until the air is
comfortable.
AUTO
The unit maintains
the set humidity.
LOW TEMP
The unit changes the
airflow according to
room temperature.
MILDEW
GUARD
The unit operates
in mildew sup-
pression mode.
UPWARD
Aim toward clothes.
Turn the power on
Select
LAUNDRY
Select EASY
DEHUMIDIFYING
Select
LOW TEMP
Select
MILDEW
GUARD
Select UPWARD Select any swing setting Select any swing setting
Turn the power on
Switch to
HUMIDITY
SELECTION
Set the
humidity
Tur n the
power on
Any swing setting Any swing setting
What
should I
set it to?
I want to
set it to
60%

E
3
Before using the unit
Frequently Asked Questions
Room temperature (°C)
Dehumidification capacity (L/day)
14
13
13~15
0
2
4
6
8
12
14
16
10
51015202530
condensation
To clean
the air
tTo keep the inside
of closets and
shoeboxes dry...
There is no need for
dehumidification, but you
wish to remove pollen and
dust from the air.
LOW
The dehumidifier
operates regardless
of the humidity level.
REAR
Direct the
air flow
Switch to AIR PURIFIER
Select LOW
ct
EW
RD
Select any
swing setting
Select REAR
the
r on
Turn the power on
Any swing setting
AIR PURIFIER
The unit operates the air
purifier only.

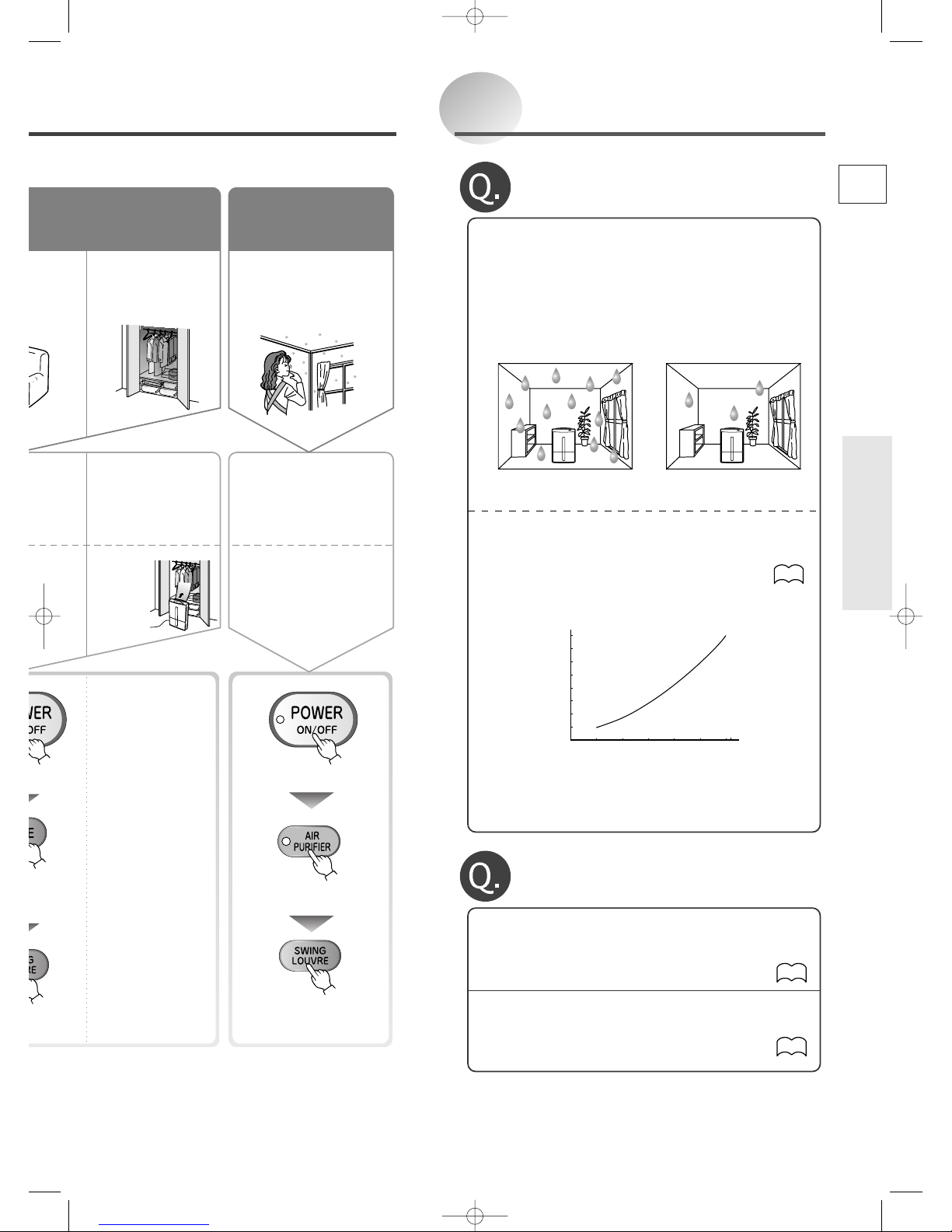

Why does the dehumidifier seem
to collect less water in winter?
A.When the temperature and humidity are
low, the amount of water collected is
decreased.
In winter, because the temperature is lower than in
summer, the effects of the dehumidifier decrease
dramatically as shown in the graph below.
Although less water collects in the tank, this is not
a malfunction.
• Why doesn’t the dehumidifier operate?
• Why does the unit stop operating suddenly?
A.The unit might be in LAUNDRY mode.
The unit operates for 12 hours and automatically
switches off.
A. The unit might be in EASY DEHUMIDIFYING,
MILDEW GUARD, or AUTO mode.
The unit automatically switches between
dehumidifying, airflow only, and non-operation.
Summer (humidity) Winter (dampness)
*If the temperature is low, but the humidity is high
due to snow or rain, operating the unit in LOW
TEMP mode will yield better results than in LOW
mode.
Values for LOW dehumidifying
operation.
¡The values shown on the graph were measured at
constant temperature and humidity and do not
reflect values obtained in actual usage conditions.
on purpose
E

4

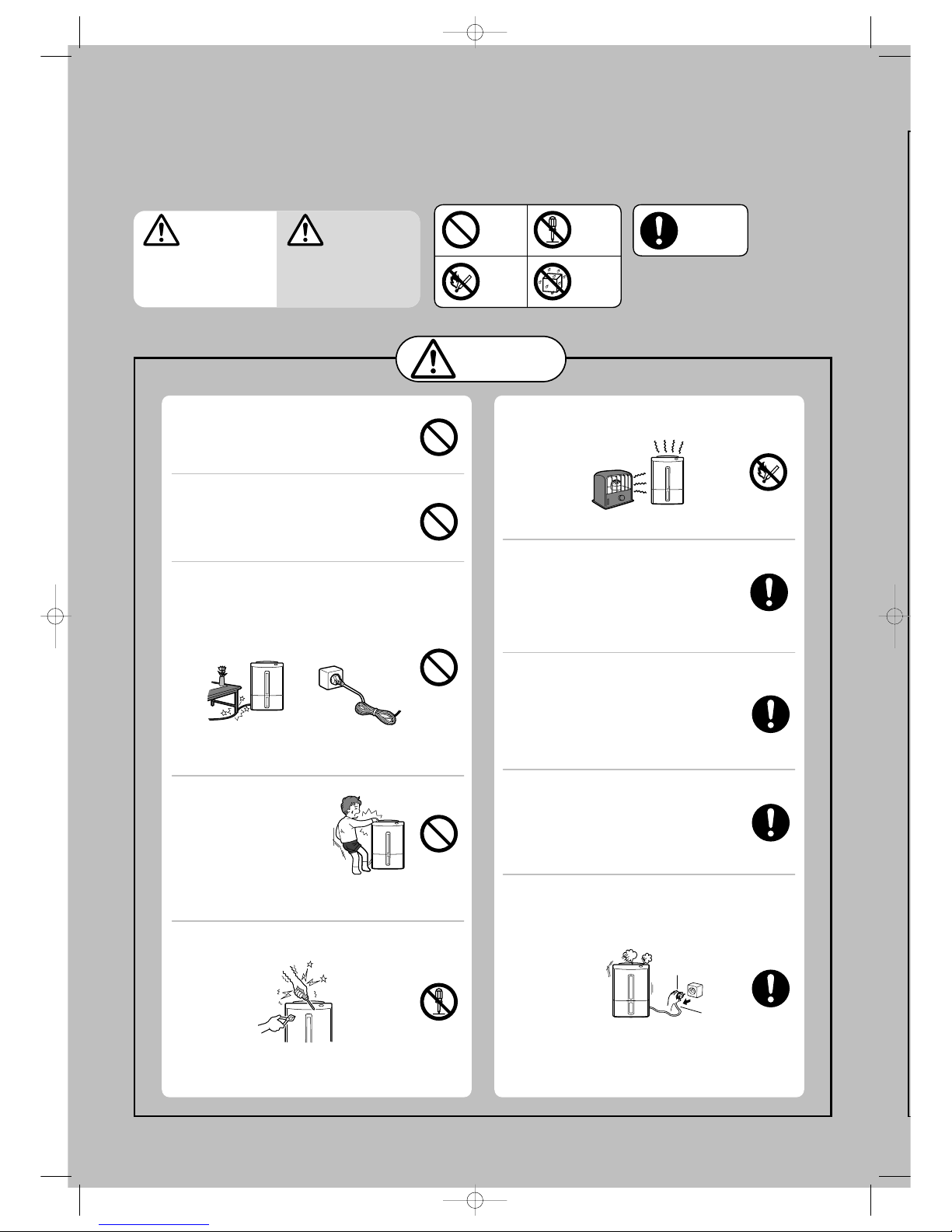

Precautions
Do not start/stop the unit by
plugging/unplugging the power
cord.
This may result in fire and/or electric shock.
Do not use extension cords or
multiple head adapters.
This may result in fire, electric shock or
malfunctions.
Do not damage or modify the
power cord or plug.
Do not modify, bundle, twist, bend or heat the
power cord. Do not place under objects or
use with the end close to the plug bent.
The cord may be damaged resulting in fire or
electric shock. (Keep pets from biting the
cord.)
Do not put your fingers
or any long object, into
the air intake/outlet. Do
not touch the swing
louvre.
The internal fan rotates at high speeds, and
such actions may result in injury or
malfunctions.
Do not attempt to repair,
disassemble, or modify the unit.
This may result in fire and/or electric shock.
See the last page for service contact details.
Do not put the unit near heat-
generating devices (such as stoves,
fan heaters, etc.).
The plastic parts may melt causing fire.
Wipe dust off the power plug and
insert the plug firmly.
If the plug is not fully inserted into the
socket, dust may gather on the
connectors which may cause fire and/or
electric shock.
Use 220-240V AC power sockets.
Connecting to power sockets other than 220-
240V AC may result in fire and/or electric
shock.
Remove water that has collected
in the tank.
Accidentally drinking the water or using it for
other purposes may cause illness and/or
unforeseen accidents.
Should abnormal symptoms occur (a
burning smell, etc.), switch off the unit
and unplug it from the socket.
Continuing to operate the unit may result in
fire, electric shock, or malfunctions.
See the last page for service contact details.
The following diagrams indicate
circumstances where danger can result from
mishandling the unit.
Meanings of the graphic symbols used in this manual and
on the unit are explained below.
WARNING
Mishandling may
result in fatal or
serious injuries.
CAUTION
Mishandling may result in
injuries or damage to your
home or property, etc.
Always
follow the
instructions
WARNING
Forbidden
Keep
away
from fire
Do not
disassemble
Do not
subject to
water

5

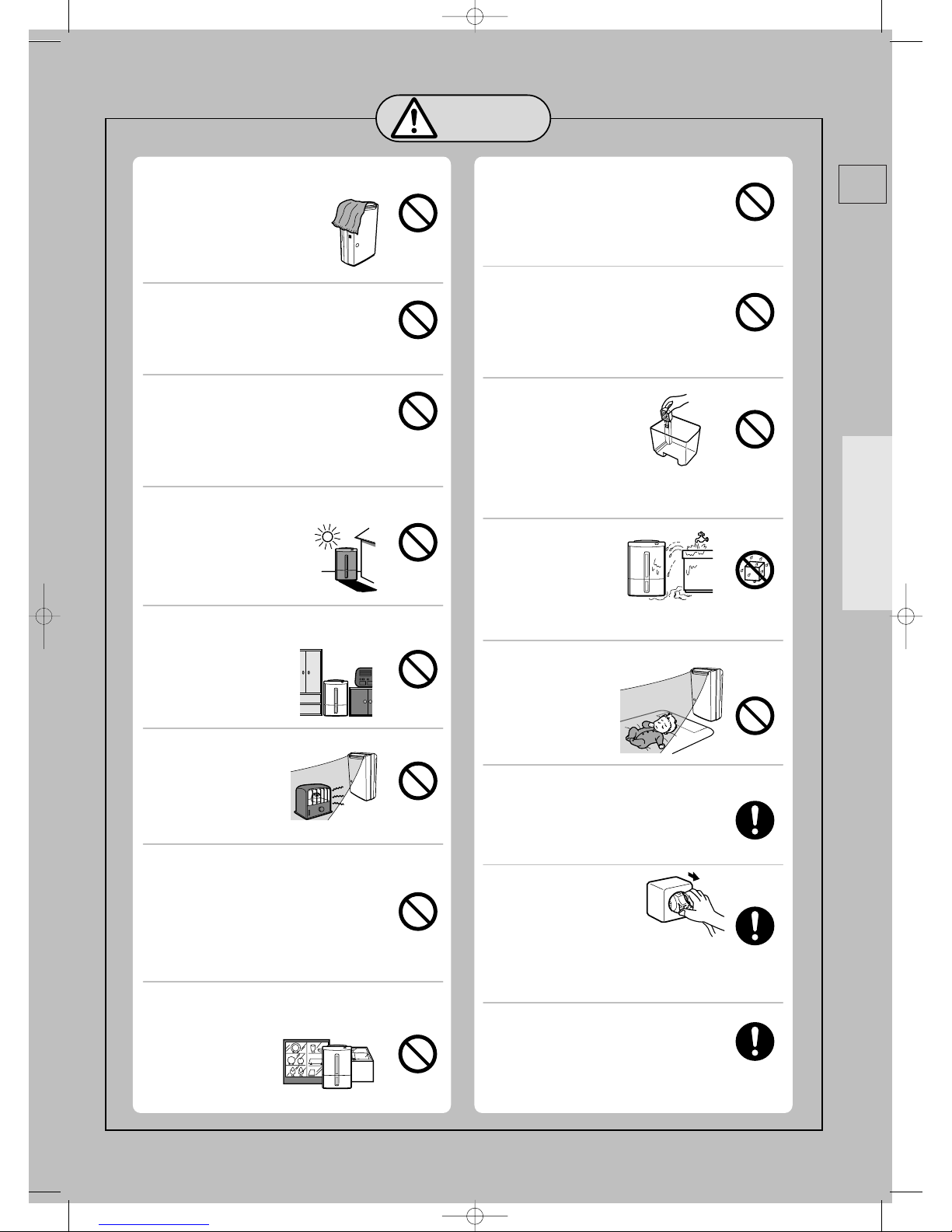

Before using the unit

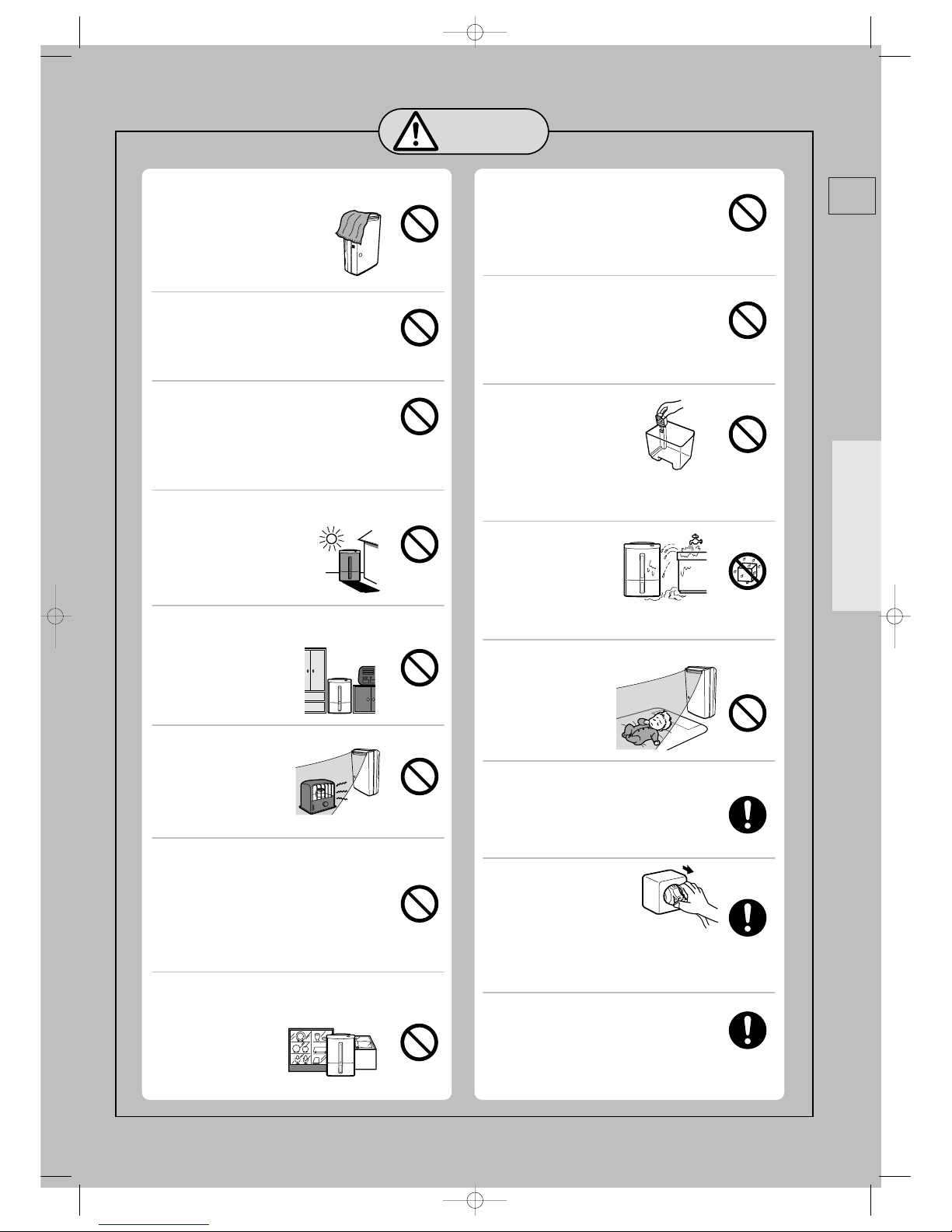

CAUTION
Do not cover the front or side air
intakes or the air outlet with cloth,
curtain, etc.
This results in poor ventilation and
may cause heat generation/fire.
Do not stand on, sit on or lean
against the unit.
The unit may tip over causing injury.
Do not put vases or any other
objects filled with water on the unit.
Water may leak into the unit adversely affecting
electric insulation and cause electric shock
and/or fire by short-circuiting.
Do not use the unit where it may be
exposed to direct sunlight or other weather
conditions. (This unit is for
indoor use only.)
This may cause overheating,
electric shock and/or fire
caused by an electric leak.
Do not use the unit in narrow,
enclosed places such as inside
closets, between
pieces of furniture, etc.
This results in poor
ventilation and may cause
heat generation and/or fire.
Do not use combustion appliances
in the path of the
air outlet.
This may cause
incomplete combustion
in the appliance.
Do not use the unit in places
where chemicals are used (such
as hospitals, factories,
laboratories or beauty salons).
Chemicals and solvents evaporated in the
air may harm the unit and cause water in the
tank to leak, resulting in damage to
property.
Do not use the unit for special
purposes, such as preservation of
food, art or scientific works.
This may negatively affect
the quality of the items stored.
Do not drain water continuously if there
is a possibility that temperature around
the hose could drop to freezing point.
Water inside the hose may freeze and prevent
the water in the tank from flowing out.
The water may leak from the unit and damage
surrounding objects.
Do not use the unit in places
that may be subject to oil or
flammable gas leakage.
Such a leak around the unit may cause
combustion and fire.
Do not remove the
Styrofoam from the
floating element.
The floating element will not
be able to detect a full tank
resulting in water leakage, which may
damage surrounding objects or cause
electric shock and/or an electric leak.
Do not wash the unit
with water. Do not
use the unit where it
is likely to come in
contact with water.
Exposure to water may result in fire or
electric shock caused by an electric leak .
Do not point air-flow from the unit
directly at the body.
If air-flow is directed at
the body for long
periods, it may harm
one’s physical
condition and lead to
dehydration.
Install the unit in a location where
the floor is flat and stable.
If the unit falls over, the water collected in the
water tank may leak damaging surrounding
objects and in turn result in fire or electric
shock caused by an electrical leak.
Grasp the plug and
remove from the
power socket.
When removing the plug from
the power socket, do not pull on it diagonally
or by the cord as this may cause the
projections/wiring to be damaged resulting in
a short circuit, electric shock or fire.

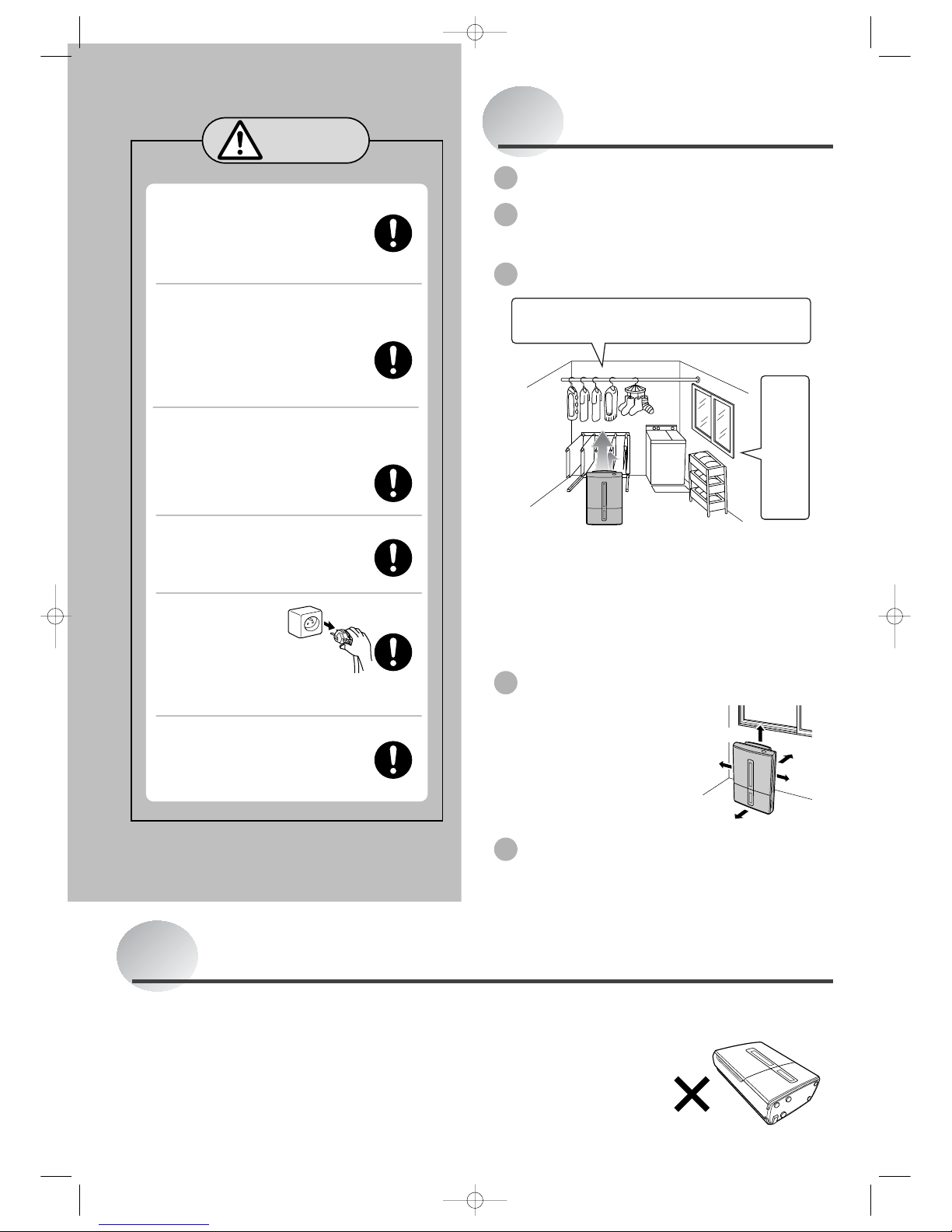

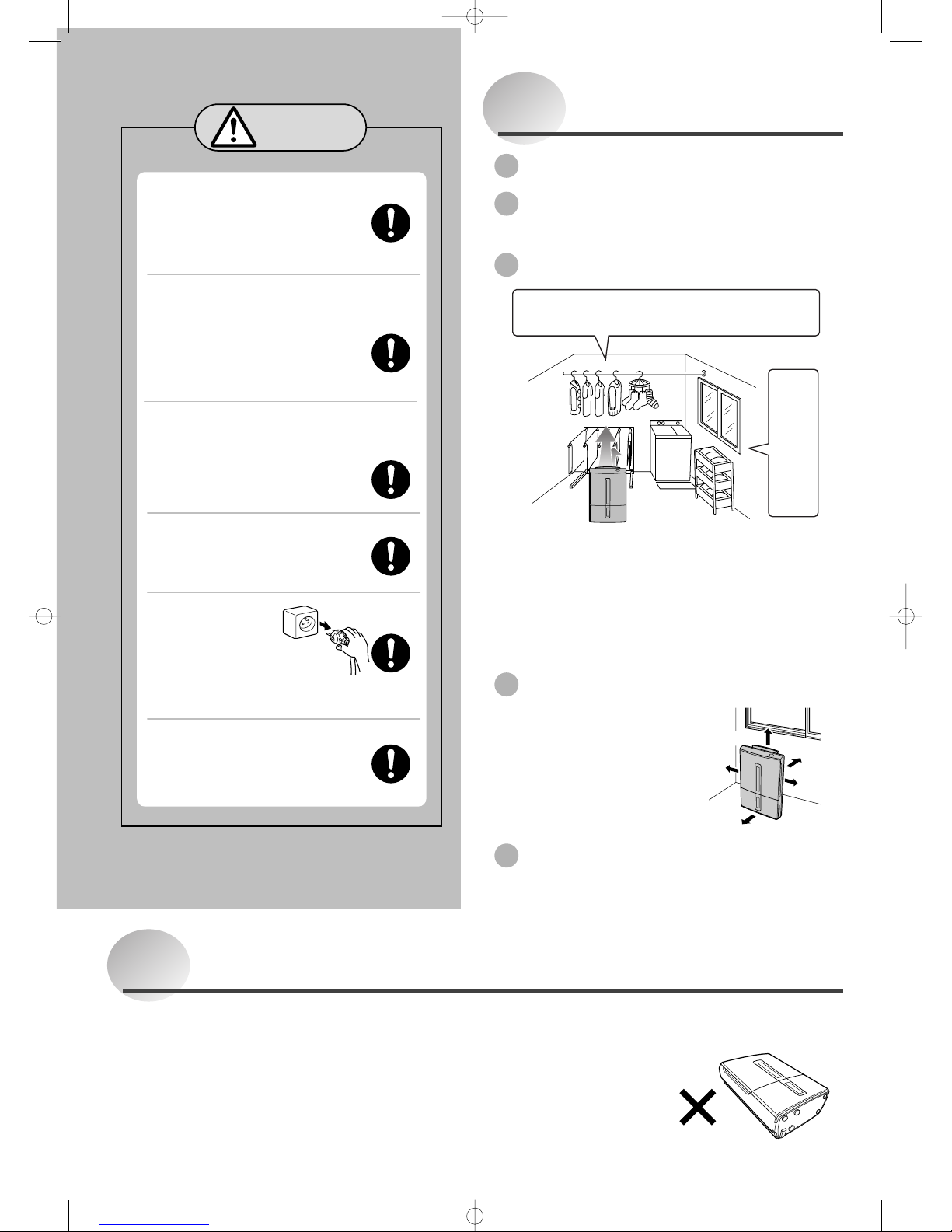

Before moving the unit always
switch it off, unplug it and remove
water from the water tank.
Moving the unit with water in its tank may
cause the water to leak and damage the
surrounding objects and in turn result in
electric shock and/or an electric leak.
E

6
Warnings
● Keep the unit always in an upright position.
Inclining the unit may cause water in the tank
to leak into the unit, resulting in malfunction.
Should this happen contact service number
on the last page for advice.
●Damage to the dehumidifier caused by
atmospheric conditions (ie. Salt or Sulphur)
will not be covered under warranty.
●Do not carry the unit horizontally.
This may result in malfunctions.
Such malfunctions
are NOT covered
under warranty.
CAUTION
After emptying the tank,
transport the unit by grasping
the handle firmly.
Losing your footing while carrying the
unit may cause personal injury or
damage to the floor.
When using the continuous
drainage outlet, make sure to
position the hose so that the
water drains without
obstruction.
The water in the tank may leak and
damage surrounding objects.
When draining water continuously
or left unattended for long periods,
inspect the unit every two weeks.
Do not allow debris to clog the
filter/hose as this may cause over-
heating/leakage.
Use the unit with caution in rooms
where the walls, furniture and art
work are vulnerable to dry air, as it
may cause cracks and warping.
Switch the unit off
and unplug from
the power source
when cleaning it.
When the unit is on, the internal
fan rotates at high speeds and may
cause injury.
Unplug the unit from the power
source when not using the unit
for an extended period of time.
Otherwise it may cause fire and/or electric
shock caused by an electric leak.
Tips on dehumidifying
Drain the water tank before use
Refrain from opening
doors/windows during operation
Drying laundry indoors
Use the dehumidifier in a small, enclosed room.
Maintain room temperature above 16°C
with a heater.
¡Direct the louvres at the laundry.
¡Space laundry to improve airflow.
¡Drying times will vary depending on the nature of the
laundry and the room temperature. In low
temperatures, drying takes about twice as long as
normal. In low temperatures (10°C), drying takes
about twice as long as when normal (20°C+).
¡The airflow is strongest to the top right of the unit.
Installing your dehumidifier
Make sure to leave some
space around the unit.
<For use in close proximity to
a wall>
Stop the louvre in the
vertical position. Blowing
air at the wall may cause
staining.
Operating noise
Place the unit on top of a mat. This reduces
vibration and noise. It also prevents leaving
depressions on carpets.
At least 50 cm At least
2 cm
At least
20 cm
At least 20 cm
At least
20 cm
Precautions (cont.)

E
7
Before using the unit
Names and Functions of Parts
Front
Front Air Intake
Do not block.
Back
Louvre
Continuous drainage
outlet
Power plug
Sensor
Do not cover.
Side air intakes (left/right)
Do not block.
Handle
Raise handle to transport.
22
20
16
Control panel Washable photocatalytic filter
(hereafter: photocatalytic filter) (see box below for discussion)
Supplied with unit.
Fit before use.
Pre-filter
Air filter performance testing facility
Japan Spinners Inspecting Foundation (tested
under JIS L 1902 standards)
Water tank
Front panel
Tank lid
Floating element
Front door
24~25
10
23
10
11 •21
11 •21
21
The washable photocatalytic filter is made from
two layers: a white particle filter and a blue air-
freshener filter.
<Particle filter>
The particle filter removes pollen* and dust
particles.
<Air-freshener Filter>
The special air-freshening agent contained in
the fibres absorbs odorants such as ammonia.
The odorants are broken down by
photocatalysis constantly renewing the air-
freshening properties.
As the filter’s particle and air-freshening
properties are renewed by simply soaking and
leaving it to dry in the sun, the filter can be used
continuously over a long time.
Cigarette smoke and toxins found in smoke,
such as carbon monoxide, cannot be removed
with this filter.
* Diameter of pollen: approx. 10–100µm
What is a washable photocatalytic filter?
It is impossible to remove the back panel
because the two spots shown are fastened with
two special screws.
If the unit malfunctions, contact your Mitsubishi
dealer:
The water tank may contain water residue at
time of purchase. This is from final product
testing at the factory and is not due to a defect.
NOTE

¡Child lock
To set child lock,
press the mode
button for three
seconds.
8
¡Lamp
Current mode lights.
¡Selection button
Switches modes.
¡Mode button
For switching from
one operating mode
to another.
¡Humidity
Selection
This is used to set the
target humidity.
¡Mode Indicator
Indicates the current
operating mode.
13
14~15
14~15
16
18~19
Names and Functions of Parts (cont.)
LCD Panel
All indicators on the LCD panel shown below.
Control Panel
¡Humidity Indicator
This indicates the approximate
humidity.
indicates the
current humidity
indicates the
humidity setting in
AUTO mode
The current humidity is
displayed in a range from 30 to
80%.
¡Swing monitor
Indicates the direction
of the swing louvre.
¡Timer display
Displays the time set
for the ON/OFF timer.
¡ Child lock indicator
Displayed while child lock
is active.
¡Swing louvre button
Sets swing louvre direction
or locks it into position.
¡Timer ON/OFF
Sets timer.
12
16
18~19
20
20

E
9
Before using the unit
12
12
17
15
14
The indicator comes on if the
room temperature drops below 15°C.
Activating Low Temp mode is
recommended.
¡Information display
Indicates room and unit
condition.
Airflow (dehumidifying) will stop and the
frost that has accumulated inside will be
melted and dropped into the tank when
the indicator is on.
Please wait a moment as operation will
resume in around 5 minutes.
While in DEFROST mode, airflow
(dehumidifying) and the louvre will stop.
The sounds coming from the unit will
also change.
DEFROST will start automatically when room
temperature drops below 15°C (This may be
as often as once every 40 minutes).
The indicator flashes when
the unit is OFF and the humidity in
the room exceeds 75%.
Activating the dehumidifier is
recommended when the
indicator is flashing.
If the High humidity warning is not
used, remove the power plug from
the power socket.
DEFROST Indicator High humidity
warning
Low Temperature
Indicator
¡EASY DEHUMIDIFYING
¡LAUNDRY
¡LOW
¡MILDEW GUARD
¡LOW TEMP
¡AUTO
¡AIR PURIFIER
All modes include
dehumidifier and air
purifier functions.
Air purifier only
operation. The
dehumidifier
function is disabled.
¡Tank full light
This lights up to warn that
the water tank is full.
¡Power lamp
Lights when unit is ON.
¡Power button
Use this to switch the
unit ON and OFF.
¡Air purifier lamp
Lights during air purifier-only
operation.
¡Air purifier button
Switches to air purifier-only
operation.
¡Drying inside lamp
Flashes when drying inside in
progress.
¡Drying inside button
Activates/deactivates drying inside.
You can select from 7 operating modes.

Room temperature may rise
2-4°C during operation
The dehumidifier does not have a cooler function.
Due to heat produced during operation, the room
temperature may rise 2-4°C. As a result, the unit may
blow warm air, but this is not due to a malfunction.
During winter, the air may not feel warm as the
temperature is below body temperature.
The humidity reading on the
unit may differ from a
hygrometer in the same room
Even in the same room, temperature and humidity
levels may differ from place to place. If the
hygrometer and the unit are in different parts of
the room, the humidity levels are prone to differ.
Moreover, humidity levels differ between places
that have good and no airflow.
Use the reading on the unit as an estimate.
10
Things to be aware of Before using your
How does the dehumidifier
work?
If you pour cold water into a cup, the air around
it becomes cold, causing water droplets to form
on the surface of the cup.
The dehumidifier takes advantage of this
phenomenon to remove moisture from the air.
1The unit draws air from the room, cools it with
its cooling coil, causing the moisture to
transform into water droplets.
2The water droplets fall into the water tank.
3The dehumidified air is reheated by the
heating coil, and then discharged.
The humidity of the room is thus reduced by
repeating steps 1, 2, and 3.
Re-heating coil
Cooling coil
Moist air
Compressor
Dried (warm) air
Water tank
1
2
3
W
h
y
a
r
e
t
h
e
y
d
i
f
f
e
r
e
n
t
?
<Cause>
●Inconsistencies
in temperature
and humidity
●Difference in
location
●Difference in
hygrometer
precision
Fitting the
photocatalytic filter
The photocatalytic filter is supplied with
the unit at time of purchase. Fit before
using the unit.
1Remove the photocatalytic filter
from the polyethylene bag.
2Remove the front panel and pre-
filter.
3Fit the photocatalytic filter into
the pre-filter.
With the strips facing up, set the
photocatalytic filter inside the tabs on
the pre-filter.
4Attach the pre-filter and front
panel.
Front panel Pre-filter
1Remove holding
the bottom.
2Remove
holding the
tabs.
Performance is unaffected even if
the metal fins inside the main unit
are slightly bent.
Tabs (6)
Strips
1Attach holding the
tabs.
2Hook the top edge to
the top part of the unit
and push the bottom in.

E
11
Before using the unit
dehumidifier

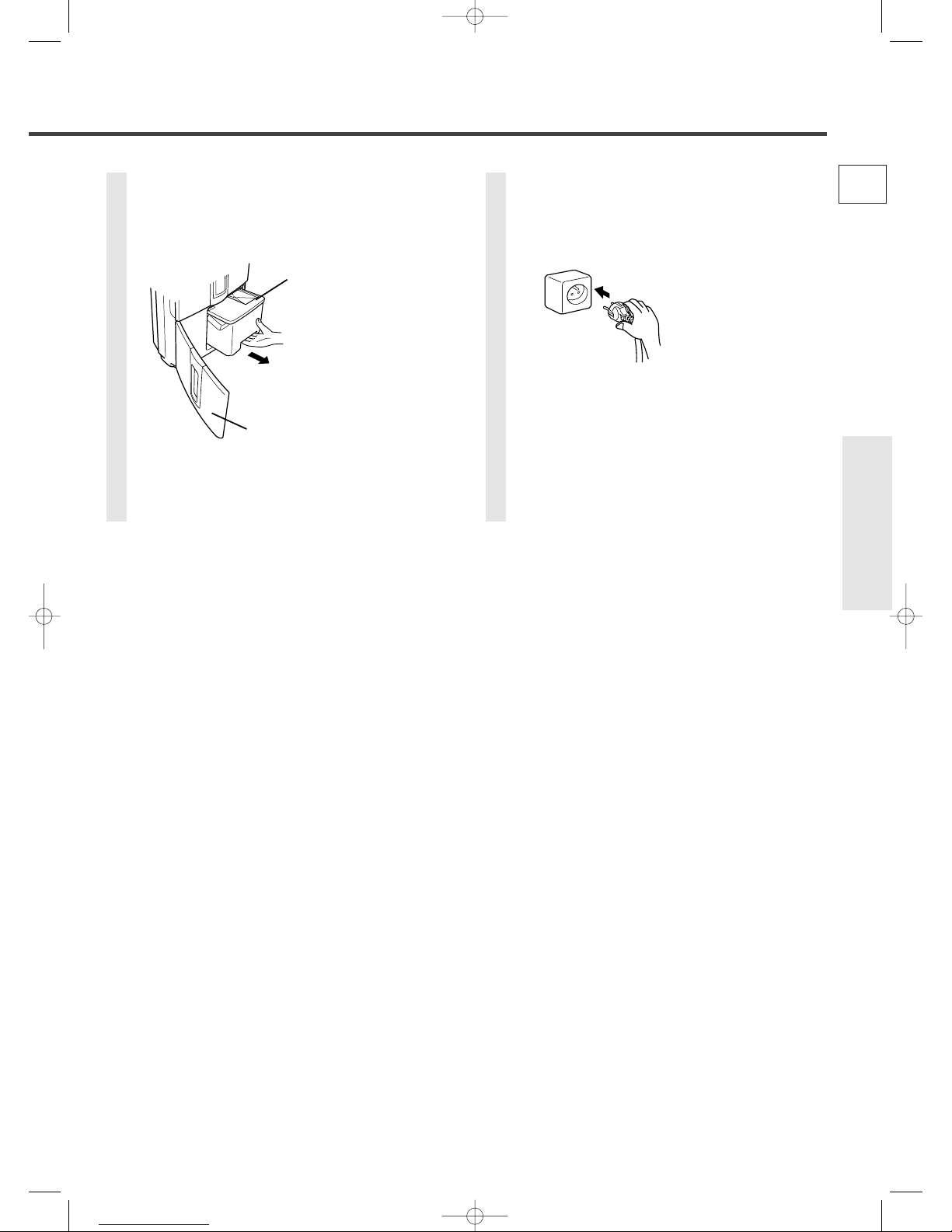

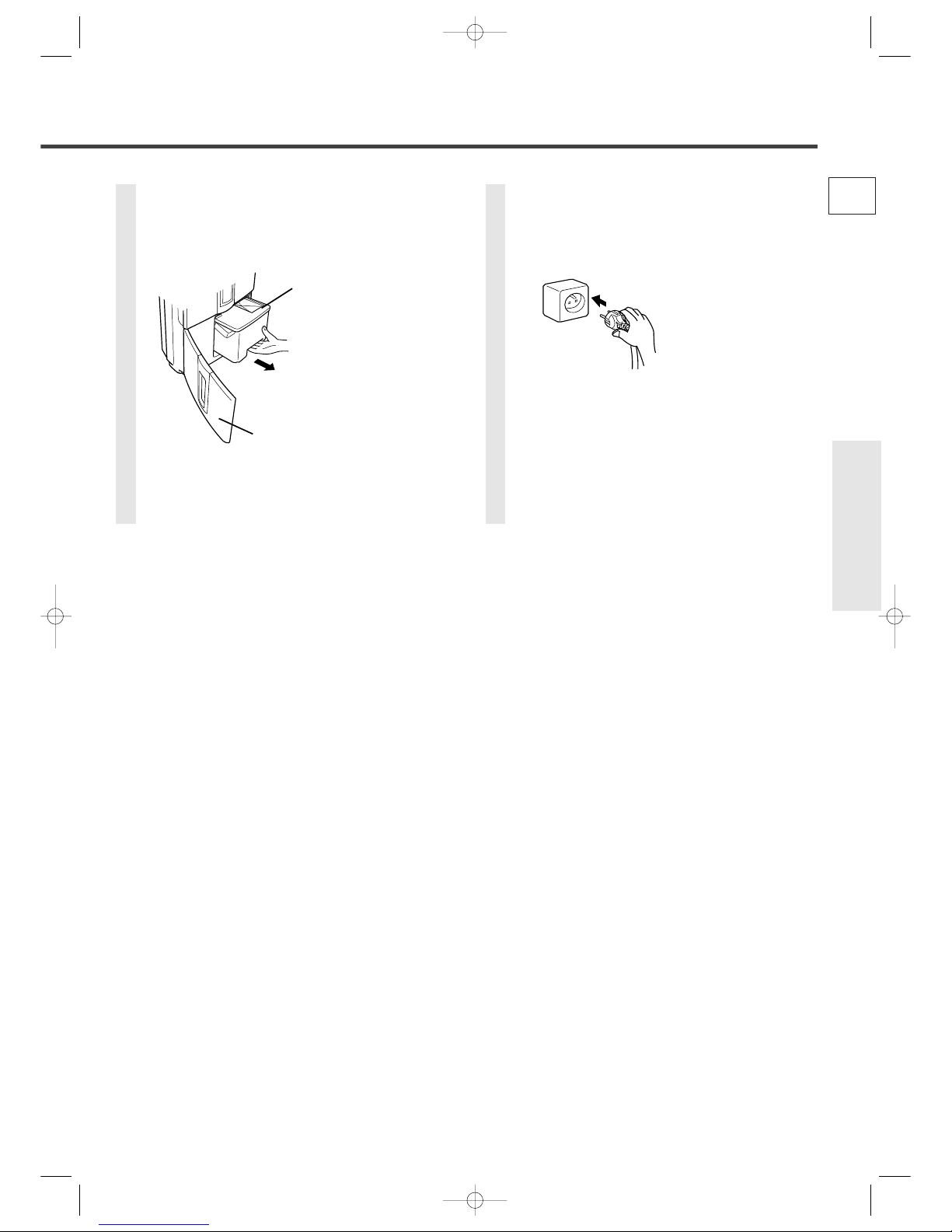

Inserting the water
tank correctly
Tank lid
Open the front door.
Confirm that the lid
is securely attached
to the water tank.
Push the tank in.
Front door
Plug the power cord
into the power socket
¡The current humidity level is
indicated.
If the louvre is open, it closes
automatically.
Use a 220-240V AC
power socket only.

12
Reading the humidity display
Tank full lamp
SELECTION indicates set
humidity level (Automatic
mode only).
CURRENT indicates the
current humidity.
Current humidity range is
between 30-80%.
•Humidity levels below 30%
are displayed as 30%.
•Humidity levels above 80%
are displayed as 80%.
Example
Example
To turn ON
¡Power lamp lights.
¡The mode is displayed.
¡The louvre opens automatically.
To start dehumidifying, select the desired
mode.
The dehumidifier remembers the
operating mode. Even if the plug is
disconnected or the power turned off, the
unit restarts at the previous setting.
To turn OFF
¡Power lamp turns off.
¡The Mode Indicator
goes out.
Drying inside will commence if it has
been activated.
Turning the Unit ON and OFF
Press
The compressor does not activate for 3 minutes
when the unit is turned ON immediately after
turning it OFF or plugging it into the power
socket. (In order to protect the compressor.)
When dehumidifying begins, the operational
noise increases.
Information
Press
13~15
15
∞If the room temperature falls below 15°C,
defrosting mode is activated once every 40
minutes (for about 5 minutes) causing water
to drain to the tank.
∞ The unit can operate in a room temperature range of 1-35°C.
However, if the room temperature exceeds 35°C,
the unit may operate in blower mode or increase
the airflow. This is because the temperature within
the unit rises causing the protection mechanism to
operate. In order to lower the temperature within
the unit, when using the louvre, point UPWARD.
•If the temperature is below 1°C, the extracted
water is close to freezing disabling the
dehumidifier, and only the blower is operational.
The unit automatically shuts down and
indicates with the lamp and sound that
the water tank is full. Empty the water
tank.
¡Tank full lamp lights.
(The unit beeps continuously).
¡Air flows stops (louvre stops).
¡Swing monitor turns off.
¡Compressor turns off.
•After removing the water and replacing the
tank, the Tank full lamp will go off, and the unit
will automatically return to operation mode.
•When the Tank full lamp is lit, no operation but
ON/OFF is possible.
17
9
21

E
13
Operating
¡EASY DEHUMIDIFYING
The unit operates intermittently
controlling the airflow to remove the
damp feeling in the air. (There is no need
to set the humidity level.)
When the room temperature is high, the
blower operates to decrease the damp
feeling.
The airflow or louvre operation may stop
according to the humidity level.
Easy Operation
The unit automatically monitors room temperature/humidity alleviating the necessity to make minor adjustments. Use
EASY DEHUMIDIFYING for dehumidifying a room and LAUNDRY for drying clothes.
Press
Changes with
every press
¡Selected mode lamp lights
¡LAUNDRY
The unit operates for 12 hours and
automatically switches off.
∞Drain the tank before use.
The unit may stop before the washing dries
because of a full tank.
∞Do not use in conjunction with the OFF
timer.
The timer may turn the unit off before the
washing dries.
∞The following conditions prevent clothes
from drying well:
Room temperature below 15°C, large volume
of laundry; laundry not spaced well; clothes of
thick fabric and spacious room.
Humidity level (%)
Room
temperature
(°C)
Information
50
20 3027
60
Room temperature is
below 27°C - the unit
automatically sets the
humidity level
according to the
temperature.
Room temperature is
above 27°C - the unit
lowers the humidity
level to 50%, then
activates the blower.
The dehumidifier is
reactivated when
humidity rises to 60%.
Information
Pressing Humidity Selection switch while in EASY DEHUMIDIFYING or LAUNDRY mode changes the
mode to AUTO.
6
15

¡The amount of dehumidification decreases with the temperature and humidity.
¡The humidity level cannot be set with LOW, MILDEW GUARD, and LOW TEMP.
14
¡LOW TEMP The unit operates continuously automatically controlling airflow
according to room temperature. The air flow is strongest below 15°C.
The use of LOW TEMP mode is recommended when the Low
temperature indicator is lit.
When the temperature is low, condensation may still form on windows exposed to the
outside air even when LOW TEMP mode is operating.
¡ MILDEW GUARD The unit lowers humidity levels automatically once a day,
suppressing mildew growth.
¡The unit operates intermittently for 2-4 hours a day (24 hours).
The operating time varies depending on the humidity.
¡The unit continues to operate when the humidity does not
decrease.
Humidity 40%→Approx. 2 hours
Humidity 50%→Approx. 4 hours
∞Refrain from turning on ventilation fans or opening windows or doors as this lowers performance.
∞Mildew growth may still occur due to the fungus type and conditions of the room.
E.g. Rooms that contain excessive condensation, bathrooms, and places with bad airflow (insides of
closets and behind furniture).
∞This mode does not remove existing mildew.
∞Do not use in conjunction with OFF Timer mode. Effects may not be achieved.
Setting modes
Information
Information
LOW, MILDEW GUARD and LOW TEMP
LOW mode is for when you want to leave the dehumidifier on. MILDEW GUARD mode
suppresses mildew growth. LOW TEMP mode is for preventing condensation or when the
room temperature is low.
Changes with every press
Press
¡Frame appears around selected mode.
¡LOW The dehumidifier operates regardless of the humidity level.
ON 24 hours
Dehumidifies Dehumidifies
Standby
24 hours
Standby
How is mildew Mildew is unable to produce new spores if dried as mycelia. The Mildew
growth suppressed? Guard feature applies this principle. (However, the spores themselves are
resilient to dry conditions.)
“Identification of Aspergillus and Penicillium” <Research paper by Dr. K. Abe of the Environmental Biology Research Center>
Repeat
3
9

E
15
Operating
AUTO
When you want to set the humidity level.
The MODE button can also be used to select AUTO.
Press
¡AUTO
The unit maintains the humidity level by
automatically controlling airflow and
operating intermittently as necessary. All
you have to do is set the humidity level.
¡The unit turns off when current humidity
decreases past the set humidity level, and
restarts when the level is exceeded. (airflow
and louvre stops)
¡The unit operates for 6 minutes continuously
regardless of the humidity level immediately
after turning the power on.
Frequent use of exits and room
size/conditions may cause the humidity to
not reach the set level.
<To view set humidity level/ To set
humidity level>
¡Pressing the button once
displays the set humidify level
with the indicator.
After 3 seconds,
the display
returns to the
current humidity
display.
¡Pressing the button while
is displayed sets
the humidity level. Each time
the button is pressed, the
humidity setting changes.
¡AIR PURIFIER
The unit cleans the air by passing it
through the pre-filter and
photocatalytic filter. The
dehumidifying function is disabled.
∞The air passes through the photocatalytic
filter in all modes, cleaning the air even if
the air purifier lamp is not lit.
∞Cigarette smoke and toxins found in
smoke, such as carbon monoxide, cannot
be removed with these filters.
Information
AIR PURIFIER
To operate only the air purifier.
To return to the previous mode, press the air
purifier button again.
Press
Information
Press
Press
again
¡Frame appears around
AUTO.
¡Air purifier lamp lights.

Stop the louvre in the vertical position when using the unit against a wall. Blowing air at the wall may cause
staining.
16
Swing louvre function (how to read the swing monitor)
The louvre can be made to swing. Select from the 4 possible settings to suit the purpose.
Press
¡Starts swing operation.
¡The swing monitor is displayed.
The swing operation stops when the power
cord is unplugged.
Note
This indicates the range of louvre swing.
(The louvre and monitor do not move in
synchronization.)
Stop swing
operation
WIDE
UPWARD
REAR
With each press
of the button
60°30°
∞The level of noise emitted from the unit varies according to the angle of the air-flow.
∞The louvre may stop up to a maximum of 8 seconds to correct its position, after which it will start moving
again.
∞If the louvre is knocked out of the desired angle, readjust by following the above steps.
Information
Objective Recommended swing setting Explanations of the swing modes
For directing
air into a
closet
To stop the
louvre at the
desired angle
To cover the
entire room
For drying
clothes, etc.
Swing speed is automatically controlled to send air
at washing from all angles.
The louvre swings from the UPWARD position
through to the REAR position.
¡The louvre stops in a vertical position.
¡The swing monitor turns off.
To change the louvre to a desired angle, wait until
the louvre stops, then adjust by hand.
The louvre moves slowly through
the last 30° of the swing, as the
time taken to traverse the rear arc
is shorter than that for the upward
arc when moving at a constant
speed.
¡ Stop swing
operation
¡WIDE
¡UPWARD
¡REAR

E
<Drying inside operation> This operation takes approximately one hour. However, when the room
temperature is below 1°C, drying time is shortened to protect the compressor.
17
Operating
Drying inside
The inside of the unit can be dried to suppress mildew growth on the cooler.
On days the dehumidifier is used, drying inside is recommended.
Press while the unit is on Press while the unit is off
To abort drying inside
Press the drying inside button while the unit is
performing drying inside (the Drying inside
lamp turns off)
Press the power button to abort drying inside, and
resume normal operation.
∞Connecting/disconnecting the power plug deactivates automatic operation.
∞This function does not remove existing mildew. Also, aborting drying inside may cause the benefits to
diminish.
∞Do not close the louvres while drying inside as this causes noise.
∞The moisture expelled from inside the unit may cause the humidity level of the room to rise.
∞The air leaving the unit may appear white depending on the humidity or temperature of the room.
∞The moisture expelled from inside the unit may smell due to odorants* that were not caught by the filter
dissolving in the water.
* The photocatalytic filter is mainly for absorbing ammonia.
∞The OFF timer cannot be set during drying inside.
Information
OFF
Regular
Regular
operation
operation
Dehumidifier
Air purifier
Drying inside operation (approx. one hour.)
Airflow
Approx.
30min.
Airflow stops; compressor
activates (operating sound)
Compressor operates according
to room temperature
Approx. 20min.
Compressor
stops
Airflow
Approx.
10min.
Unit
stops
auto-
mati-
cally
Operating
sounds
Automatic operation
To activate drying inside after every use.
¡Drying inside standby
(Drying inside lamp lit)
Drying inside starts when operation ends
When the unit is turned off, LAUNDRY mode
ends, or the OFF timer ends.
¡Drying inside starts
The Drying inside lamp flashes, the humidity
indicator turns off, and the louvre stops in the
vertical position.
Drying inside mode
¡Drying inside ends
The Drying inside lamp turns off and the
louvres shut.
<To deactivate automatic operation>
Press the Drying inside button while the unit is on
(the Drying inside lamp turns off)
Manual operation
To activate drying inside by pressing a button.
¡Drying inside starts
The drying inside lamp flashes, the humidity
indicator turns off, and the louvre stops in the
vertical position.
Drying inside mode
¡Drying inside ends
The drying inside lamp turns off and the
louvres shut.

18
Using the Timer
43221
To cancel
<When you want to turn the unit
off>
Press the Power button. (Power off)
¡The OFF Timer is cancelled.
<When you want to disable the
Timer OFF mode, and continue
operation>
Keep pressed until the remaining time
display disappears. The unit returns to LOW
mode.
¡The OFF Timer is cancelled.
∞Empty the water tank before operating. The unit
stops and the Tank full lamp lights if the tank
becomes full during operation.
∞The OFF timer and ON timer cannot be set at
the same time.
∞Do not use the timer OFF mode in conjunction
with LAUNDRY or MILDEW GUARD.
∞The OFF timer cannot be set during drying
inside.
OFF timer operation The OFF timer can be set for 1 to 9 hours.
Set the timer when the power is switched on.
To set
1Switch the power on.
2Select operating mode.
Select desired operating mode.
3
Change the louvre swing direction.
Select the desired setting.
4Set the operating time.
¡When pressed once the figure [ ]
and [OFF] appear.
¡Each subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
➝The OFF timer is set.
The following is an example of a display indicating
AUTO dehumidifying (set to 60%), swing set to WIDE
and the OFF timer set for 2 hours.
¡ The time remaining until the unit switches
itself off is indicated in increments of one
hour.
¡ When the set time is reached, the unit switches
itself off and the louvre closes automatically.
Drying inside will commence if it has been
activated.
No Display
(Low
mode)
Press
Press
Information
12
16
17
13~15
Press

E
Information
∞Drying inside is deactivated when the ON timer
is set during drying inside operation.
∞The ON timer function is not operable using a
commercially-available timer plug outlet.
19
Operating
ON timer operation The ON timer can be set for 1 to 9 hours.
Set the timer when the power is switched off.
No Display
(operation
is off)
12
16
13~15
To set
1Switch the power off.
2Set the time you wish the unit to
turn on.
¡ Press once. The Power lamp, Mode
indicator, and a [ ] on the digital
display flash. The [ON] indicator lights.
¡Each subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
3Select operating mode.
Select desired operating mode.
Set drying inside as desired.
4Change the louvre swing
direction.
Select the desired setting.
5Confirm the operating start time.
¡Power lamp and Timer display light.
➝The ON timer is set.
The unit informs you if you forget to press the
Power button by making the Timer display and
Mode indicator blink and sounding an alarm for 1
minute.
The following is an example of a display
indicating AUTO dehumidifying (set to 60%),
swing set to WIDE and the ON timer set for 5
hours.
¡The time remaining until the unit switches itself
on is indicated in increments of one hour.
¡When the set time is reached, the unit switches
itself on.
To cancel
Press the Power button. (Power off)
¡The ON Timer is cancelled.
Press
Press
Press

Pull the handle out, and grasp with a
firm grip
Before moving the unit, first make sure to remove
water from the water tank and close the louvre.
∞Do not carry the unit on its side as this may
cause malfunctions.
∞Do not let the power cord drag, as this may
damage the cord.
20
Carrying the
Unit
Using the
Child Lock
To Lock
¡The child lock indicator
The child lock is switched off when the power
cord is unplugged.
When the child lock is activated, the other
switches are inoperable. Deactivate the child lock
to use the other buttons.
Releasing the child
lock
¡The child lock lamp goes out.
Press for 3 or more
seconds.
Press for 3 or more
seconds.
Note
If you lock the unit when the POWER is OFF.
The unit will not turn on, even if you press the
POWER button to turn it on. Only the CHILD LOCK
lamp will blink.
(Press the POWER button once again so that the
lamp lights.)
If you lock the unit when the POWER is ON.
The unit will not turn off, even if you press the
POWER button to turn it off. Only the CHILD LOCK
lamp will blink.
(Press the POWER button once again so that the
lamp lights.)
