Mitsubishi Electric PAC-YT52CRA User manual

– 1 –
GB
This installation manual describes how to install the Simple MA Remote Controller for use with
Mitsubishi Building Air Conditioning System, direct expansion type CITY MULTI air conditioner indoor
units (“-A” type and later), and Mitsubishi Mr. SLIM packaged air conditioners.
Please be sure to read this installation manual and Instruction Book that are supplied with the Remote
Controller before proceeding with the installation. Failure to follow the instructions may result in
equipment damage.
For information on how to wire and install the air conditioning units, refer to the installation manual.
After the installation, hand over this manual to users.
• Read the following safety precautions prior to installation.
• Observe these precautions carefully to ensure safety.
• After reading this manual, provide this manual to end user for future reference.
• Keep this manual for future reference and refer to it as necessary. This manual should be made
available to those who repair or relocate the controller. Make sure that the manual is forwarded to
future end users.
WARNING
1 Safety Precautions
WARNING Indicates a risk of death or serious injury if you misuse the PAC-YT52CRA.
CAUTION Indicates a risk of serious injury or structural damage if you misuse the
PAC-YT52CRA.
General precautions
All electric work must be performed by qualified personnel.
Do not install the unit in a place where large amounts of
oil, steam, organic solvents, or corrosive gases, such
as sulfuric gas, are present or where acidic/alkaline
solutions or sprays are used frequently. These
substances can compromise the performance of the
unit or cause certain components of the unit to corrode,
which can result in electric shock, malfunctions,
smoke, or fire.
To reduce the risk of shorting, current leakage, electric
shock, malfunctions, smoke, or fire, do not wash the
controller with water or any other liquid.
To reduce the risk of electric shock, malfunctions,
smoke or fire, do not operate the switches/buttons or
touch other electrical parts with wet hands.
To reduce the risk of injury or electric shock, stop the
operation and switch off the power supply before
cleaning, maintaining, or inspecting the controller.
To reduce the risk of injury or electric shock, before
spraying a chemical around the controller, stop the
operation and cover the controller.
To reduce the risk of injury, keep children away while
installing, inspecting, or repairing the unit.
Properly install all required covers to keep moisture
and dust out of the controller. Dust accumulation and
water can cause electric shock, smoke, or fire.
CITY MULTI Control System
and Mitsubishi Mr. SLIM Air Conditioners
Simple MA Remote Controller PAC-YT52CRA
Installation Manual
WT06592X01
GB
For distribution to dealers and contractors
DFESINLPRGRRUTRSCTCDESW
WT06592X01.book Page 1 Monday, April 16, 2012 10:38 AM

– 2 –
GB
CAUTION
WARNING
CAUTION
WARNING
CAUTION
Precautions during installation
Precautions during wiring
To reduce the risk of electric shock or malfunctions, do
not touch the touch panel, switches, or buttons with a
pointy or sharp object.
To reduce the risk of damage to the controller, do not
directly spray insecticide or other flammable sprays on
the controller.
To reduce the risk of injury and electric shock, avoid
contact with sharp edges of certain parts.
To reduce the risk of injury, wear protective gear when
working on the controller.
Consult your dealer for the proper disposal of the
controller.
Do not install the unit where there is a risk of leaking
flammable gas.
If flammable gas accumulates around the unit, it may
ignite and cause a fire or explosion.
To reduce the risk of shorting, current leakage, electric
shock, malfunctions, smoke, or fire, do not install the
controller in a place exposed to water or in a
condensing environment.
Controller must be installed by qualified personnel
according to the instructions detailed in the Installation
Manual.
Improper installation may result in electric shock or fire.
Install the top case into the bottom case until it clicks.
To reduce the risk of damage to the controller,
malfunctions, smoke, or fire, do not connect the power
cable to the signal terminal block.
Properly secure the cables in place and provide
adequate slack in the cables so as not to stress the
terminals. Improperly connected cables may break,
overheat, and cause smoke or fire.
To reduce the risk of injury or electric shock, switch off
the main power before performing electrical work.
All electric work must be performed by a qualified
electrician according to the local regulations,
standards, and the instructions detailed in the
Installation Manual.
To reduce the risk of electric shock, install a breaker
and a residual current circuit breaker on the power
supply.
To reduce the risk of electric shock, smoke, or fire,
install a breaker for each controller.
Use properly rated breakers and fuses (breaker, local
switch <switch + fuse>, no-fuse breaker).
Breaker with a breaking capacity greater than the
specified capacity may cause electric shock,
malfunctions, smoke, or fire.
To reduce the risk of current leakage, overheating,
smoke, or fire, use properly rated cables with adequate
current carrying capacity.
Proper grounding must be provided by a licensed
electrician.
Do not connect the grounding wire to a gas pipe, water
pipe, lightning rod, or telephone wire.
Improper grounding may result in electric shock,
smoke, fire, or malfunction due to electrical noise
interference.
To reduce the risk of electric shock, shorting, or
malfunctions, keep wire pieces and sheath shavings
out of the terminal block.
To reduce the risk of shorting, current leakage, electric
shock, or malfunctions, keep the cables out of contact
with controller edges.
To reduce the risk of electric shock, malfunctions, or
fire, seal the gap between the cables and cable access
holes with putty.
WT06592X01.book Page 2 Monday, April 16, 2012 10:38 AM

– 3 –
GB
WARNING
CAUTION
Precautions for moving or repairing the controller
Additional precautions
The controller should be repaired or moved only by
qualified personnel.
Do not disassemble or modify the controller.
Improper installation or repair may cause injury, electric
shock, or fire.
To reduce the risk of electric shock, shorting, or
malfunctions, keep wire pieces and sheath shavings
out of the terminal block.
To avoid damage to the unit, use appropriate tools to
install, inspect, or repair the unit.
This controller is designed for exclusive use with the
Building Management System by Mitsubishi Electric.
The use of this controller for with other systems or for
other purposes may cause malfunctions.
To avoid discoloration, do not use benzene, thinner, or
chemical rag to clean the controller.
To clean the controller, wipe with a soft cloth soaked in
water with mild detergent, wipe off the detergent with a
wet cloth, and wipe off water with a dry cloth.
To avoid damage to the controller, provide protection
against static electricity.
Take appropriate measures against electrical noise
interference when installing the air conditioners in
hospitals or facilities with radio communication
capabilities.
Inverter, high-frequency medical, or wireless
communication equipment as well as power
generators may cause the air conditioning system to
malfunction. Air conditioning system may also
adversely affect the operation of these types of
equipment by creating electrical noise.
To avoid malfunctions, do not bundle power cables and
signal cables together, or place them in the same
metallic conduit.
Leave the circuit board and its protective film on the
case.
To avoid damage to the controller, do not overtighten
the screws.
Use a flat-head screwdriver with a blade width of 5 mm
(7/32 inch).
Do not turn the flat-head screwdriver with fitting it in the
latch strongly.
To avoid deformation and malfunction, do not install
the remote controller in direct sunlight or where the
ambient temperature may exceed 40ºC (104ºF) or
drop below 0ºC (32ºF).
Do not install the controller on the control panel door.
Vibrations or shocks to the controller may damage the
controller or cause the controller to fall.
Secure the cable with a clamp.
Do not use solderless terminals to connect cables to
the terminal block.
Solderless terminals may come in contact with the
circuit board and cause malfunctions or damage the
controller cover.
After connecting the connector, install the top case
properly.
WT06592X01.book Page 3 Monday, April 16, 2012 10:38 AM

– 4 –
GB
The following parts are included in the box.
(1) Field-supplied parts
The following parts are field-supplied parts.
(2) Field-supplied tools
• Flat-tip screwdriver (Width: 3 - 5 mm (1/8 - 7/32 inch))
• Knife or Nipper
• Miscellaneous tools
2 Component names and supplied parts
*3 ISO metric screw thread
*4 Remote controller cable is not included.
3 Field-supplied parts/Required tools
Parts name Qty. Notes
Single switch box 1 Not required for direct wall installation
Thin metal conduit Necessary
Lock nut and bushing Necessary
Cable cover Necessary Required for routing remote controller cable along a wall
Putty Reasonable
Molly anchor Necessary
Remote controller cable
(Use a 0.3 mm² (AWG22) 2-core
sheathed cable.)
Necessary
Parts name Qty. Appearance
Remote controller (top case) 1 Right figure *1
Remote controller (bottom case) 1 Right figure *2
Roundhead cross slot screws M4×30 2 *3
Wood screw 4.1×16
(for direct wall installation) 2*3
Installation Manual (this manual) 1
Instruction Book 1
Bottom case *2
Top case *1
h
16 (5/8) 16 (5/8)
25 (1)
25 (1)
102 (4)
54 (2-1/8)
20
(13/16)
10
(3/8)
44 (1-3/4)
(3-3/8±1/32)
ø6 (1/4OD)
20 (13/16)
6 (1/4)
ø6 (1/4OD)
20 (13/16)
Switch box
unit: mm (in)
1.5 (1/16) or less
83.5±0.4
WT06592X01.book Page 4 Monday, April 16, 2012 10:38 AM

– 5 –
GB
The wiring is different when the remote controller is connected to a CITY MULTI control system (“-A”
type and later) and when it is connected to a Mr. SLIM air conditioner (A control type). The wiring also
differs with the system configuration. Check the system used.
1. Connecting to CITY MULTI control system

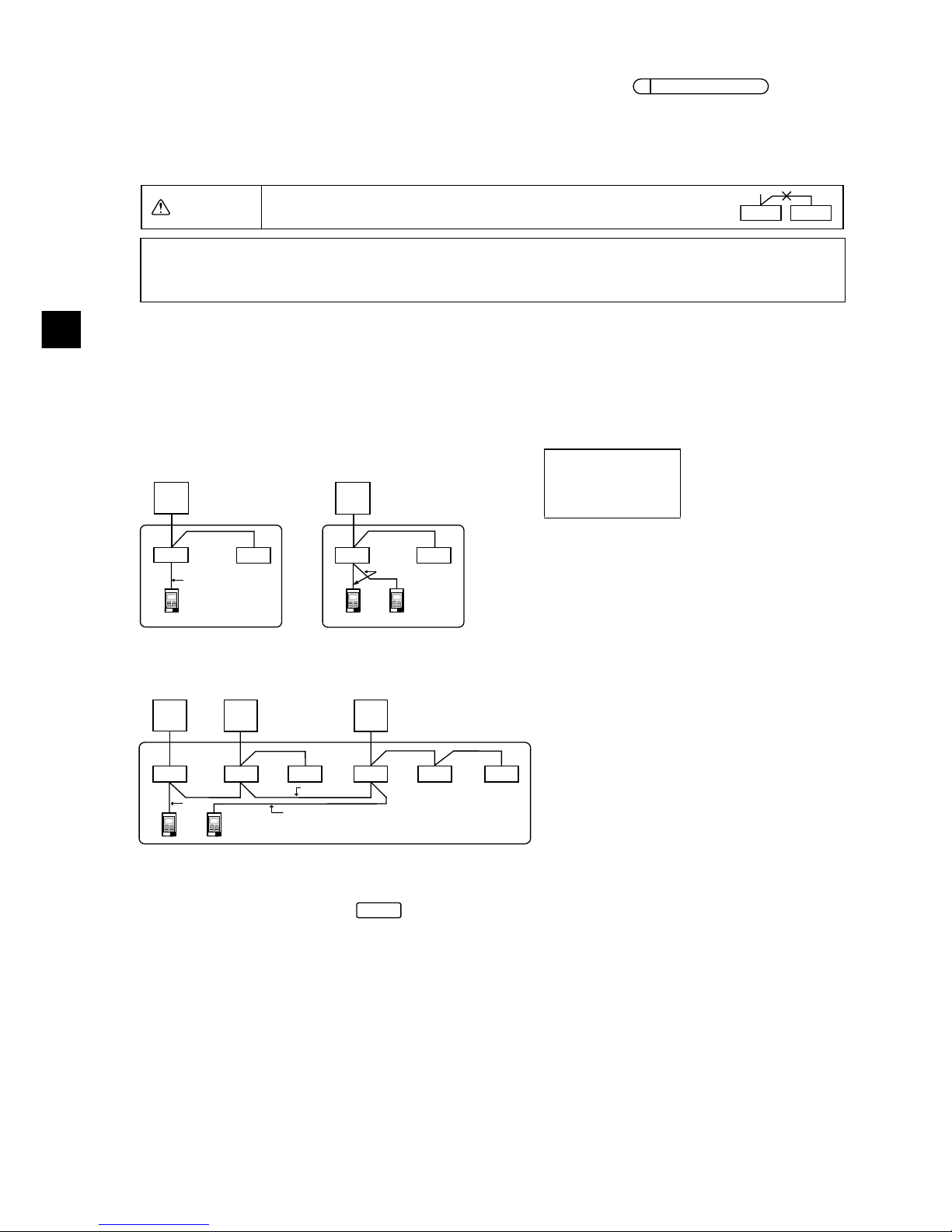

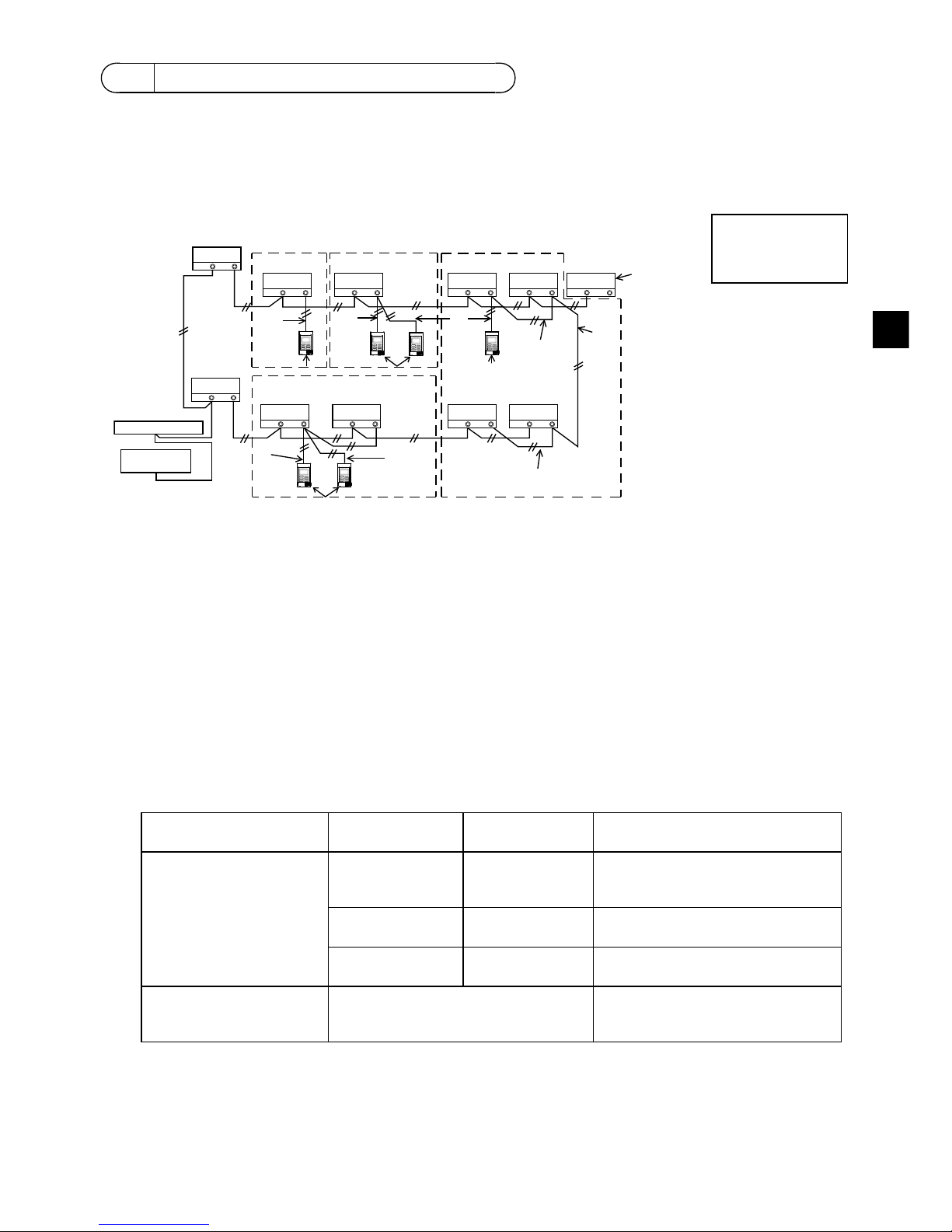

The numbers (1) to (4) in the figure correspond to items (1) to (4) in the following description.
(1) Wiring from the remote controller
• Connect to the MA remote controller terminal block (TB15) on the indoor unit.
• The terminal block has no polarity. Connect to the terminal block at the rear bottom of the remote
controller.
(2) Operating in a group (Groups 03, and 04 above)
• Interconnect the MA remote controller terminal block (TB15) of the indoor units you want to
operate as a group, and connect the MA remote controller to that point.
• When the remote controller is used in combination with the system controller as shown in the
figure above, group setting at the system controller (central controller in the figure above) is
necessary.
(3) Number of connectable remote controllers (groups 02 and 04)
• A main remote controller and one sub remote controller, a total of two, can be connected to a
group made up of indoor units.
NOTE: When using this Simple MA remote controller in combination with other MA remote
controllers, be sure to follow the compatibility rules below.
4 How To Wire Transmission Line
Connect to TB15
on the indoor unit.
a Outdoor unit
b Indoor unit
c LOSSNAY or
OA processing unit
d Main Remote Controller
e Sub Remote Controller
f Central controller
g Power supply unit for
transmission line
Indoor unit function Main remote
controller
Sub remote
controller
Compatibility
Models applicable for
AUTO (dual set point)
mode
This Simple MA
remote controller
This Simple MA
remote controller
Compatible, and AUTO (dual set
point) mode can be used depending
on the indoor units to be connected.
Other MA remote
controllers
This Simple MA
remote controller
Compatible, but AUTO (dual set
point) mode cannot be used.
This Simple MA
remote controller
Other MA remote
controllers
Incompatible
Models not applicable for
AUTO (dual set point)
mode
Combination with all of the above Compatible
TB5 TB15
TB5 TB15
bb
TB5 TB15
c
TB5 TB15
b
TB5 TB15
b
TB5 TB15
b
TB5 TB15
b
TB7 TB3
TB5 TB15
TB5 TB15
TB7 TB3
(1) (1)
(3) (3)
(1)
(3)
(3)
(2)
(2)
(2)
(4)
(1)
(1)
a
a
dded
ed
bb
g
f
Address = 51
Address = 01 Address = 02
Address = 55
Address = 08 Address = 07
Address = 03 Address = 04 Address = 09
Address = 06 Address = 05
Group 01 Group 02 Group 03
Group 04
WT06592X01.book Page 5 Monday, April 16, 2012 10:38 AM

– 6 –
GB
(4) To interlock to a LOSSNAY or OA processing unit, make the following settings using the remote
controller. (For a description of how to set an interlock, see section .)
Set the LOSSNAY or OA processing unit address and the address of all the indoor units you want
to interlock.
(5) Total length of remote controller wiring
• The simple MA controller can be wired up to 200 m (656 ft).
2. Connecting to Mr. SLIM air conditioner
The remote controller wiring depends on the system configuration. Check the system configuration.
Wire the remote controller as shown in the example below.
The numbers (1) to (3) in the figure correspond to items (1) to (3) in the following description.
[1] Connecting the remote controller for each refrigerant system (Standard 1:1, simultaneous twin,
simultaneous triple, simultaneous four)
[2] When grouping by different refrigerant systems
* Set the refrigerant address using the outdoor unit dip switches. (For more information, refer to the
outdoor unit installation manual.)
* All the indoor units enclosed in are controlled as one group.
(1) Wiring from remote controller
• Connect to indoor unit TB5 (remote controller terminal block). (The terminal block has no polarity.)
• For simultaneous multi type, when mixing various types of indoor units, always connect the
remote controller to the indoor unit with the most functions (wind velocity, vane, louver, etc.).
(2) When grouping with difference refrigerant systems
• Group using the remote controller wiring. Connect the remote controller to an arbitrary indoor unit
of each refrigerant system you want to group.
• When mixing different types of indoor units in the same group, always make the outdoor unit
connecting the indoor unit with the most functions (wind velocity, vane, louver, etc.) the Main unit
(refrigerant address = 00). Also, when the Main unit is the simultaneous multi type, always satisfy
the conditions of (1) above.
• The Simple MA Remote Controller can control up to 16 refrigerant systems as one group.
CAUTION Remote controllers cannot be wired together. Only one wire
can be connected to the remote controller terminal block.
Connect to TB5
on the indoor unit.
a Outdoor unit
b Indoor unit
d Main Remote Controller
(Simple MA Controller)
e Sub Remote Controller
(Simple MA Controller)
7
Ventilation Setting
ed
NOTE: When interlocking the MA remote controller with a LOSSNAY or OA processing unit,
always set the address of all the indoor units in the group and the address of the
LOSSNAY or OA processing unit.
(1)
TB5
TB4
TB1
TB4
(3)
(3)(3)
(1)
TB4 TB4
TB5
TB1
a
bb
d
a
bb
de
Refrigerant
address = 00
Refrigerant
address = 00
Simultaneous twin Simultaneous twin
TB4
TB4 TB4
TB4 TB4TB4
TB1 TB1 TB1
TB5
TB5
TB5 (2)
(1)
(3)
(3)
(1)
(2)
aa a
bbbbbb
de
Standard 1:1 Simultaneous twin
Simultaneous triple
Refrigerant
address = 01
(Sub)
Refrigerant
address = 00
(Main)
Refrigerant
address = 02
(Sub)
WT06592X01.book Page 6 Monday, April 16, 2012 10:38 AM

– 7 –
GB
(3) Up to two remote controllers can be connected to one group
• When two remote controllers are connected to one group, always set the Main remote controller
and Sub remote controller.
• When only one remote controller is connected to one group, set it as the Main controller. When
two remote controllers are connected to one group, set the Main remote controller and Sub
remote controller. (For a description of how to set the Main/Sub switch, see step 5 in section
.)
NOTE: When using this Simple MA remote controller in combination with other MA remote
controllers, be sure to follow the compatibility rules below.
(4) Total length of remote controller wiring
• The Simple MA Remote Controller can be wired up to 500 m (1640 ft).
This remote controller is for the wall installation. It can be installed either in the switch box or directly
on the wall. When performing direct wall installation, wires can be thread through either back or top of
the remote controller.
(1) Selecting an installation site
Install the remote controller (switch box) on the site where the following conditions are met.
(a) A flat surface
(b) A place where the remote controller can measure the accurate indoor temperature
Sensors to monitor indoor temperature are on the indoor unit and on the remote controller. When
the room temperature is monitored with the sensor on the remote controller, the built-in sensor on
the Main remote controller monitors the room temperature. When using the sensor on the remote
controller, follow the instructions below.
Indoor unit function Main remote
controller
Sub remote
controller
Compatibility
Models applicable for
AUTO (dual set point)
mode
This Simple MA
remote controller
This Simple MA
remote controller
Compatible, and AUTO (dual set
point) mode can be used depending
on the indoor units to be connected.
Other MA remote
controllers
This Simple MA
remote controller
Compatible, but AUTO (dual set
point) mode cannot be used.
This Simple MA
remote controller
Other MA remote
controllers
Incompatible
Models not applicable for
AUTO (dual set point)
mode
Combination with all of the above Compatible
CAUTION - The wiring cannot be connected to TB5 of the indoor unit of the same
refrigerant system. If so connected, the system will not operate normally.
- Remote controllers cannot be wired together. Only one wire can be connected
to the remote controller terminal block.
- When connecting to TB5, connect up to two wires of the same size to one
terminal block.
a Outdoor unit
b Indoor unit
d Main Remote Controller
e Sub Remote Controller
5How To Install
5
How To Install
dd
TB4 TB4
TB4
TB4
TB4 TB4
TB1
TB1 TB1
TB1
TB5 TB5 TB5 TB5 TB5 TB5
a
bbb bbb
de
aa a
Refrigerant
address = 00
Refrigerant
address = 00
Refrigerant
address = 01
Refrigerant
address = 00
Simultaneous twin Standard 1:1 Simultaneous twin Standard 1:1
WT06592X01.book Page 7 Monday, April 16, 2012 10:38 AM

– 8 –
GB
• To monitor the accurate indoor temperature, install the remote controller away from direct
sunlight, heat sources, and the supply air outlet of the air conditioner.
• Install the remote controller in a location that allows the sensor to measure the representative
room temperature.
• Install the remote controller where no wires are routed around the temperature sensor on the
controller. (If wires are routed, the sensor cannot measure accurate indoor temperature.)
(2) Installation space
Leave a space around the remote controller as shown in the figure shown below, regardless of
whether the controller is installed in the switch box or directly on the wall. Removing the remote
controller will not be easy with insufficient space.
Also, leave an operating space in front of the remote controller.
(3) Installation work
Controller can be installed either in the switch box or directly on the
wall. Perform the installation properly according to the installation
method.
1Drill a hole in the wall.
■ Installation using a switch box
• Drill a hole in the wall, and install the switch box on the wall.
• Connect the switch box to the conduit tube.
■ Direct wall installation
• Drill a hole in the wall, and thread the cable through it.
2Seal the cable access hole with putty
■ Installation using a switch box
• Seal the remote controller cable access hole at the
connection of switch box and conduit tube with putty.
Do not install the controller in a place where
the difference between the remote controller
surface temperature and the actual room
temperature will be great.
If the temperature difference is too high,
room temperature may not be adequately
controlled.
To reduce the risk of malfunctions, do not
install the controller in a place where water
or oil may come into contact with the
controller, or in a condensing or corrosive
environments.
To avoid deformation and malfunction, do
not install the remote controller in direct
sunlight or where the ambient temperature
may exceed 40ºC (104ºF) or drop below 0ºC
(32ºF).
Do not install the remote controller directly
onto electrically conductive objects such as
metal plate that has not been painted.
Important
30
(1-3/16)
30
(1-3/16)
30 (1-3/16)
120 (4-3/4)
Temperature sensor
unit: mm (in)
External dimensions of remote controller
Minimum required space
around the remote
controller
Wall Conduit tube
Locknut
Switch box
Seal the gap
with putty.
Remote
controller cable
Bushing
To reduce the risk of electric shock, malfunctions, or fire, seal
the gap between the cables and cable access holes with putty.
WT06592X01.book Page 8 Monday, April 16, 2012 10:38 AM

– 9 –
GB
3Prepare the bottom case of the remote controller.
4Connect the remote controller cable to the terminal block on the bottom case.
Peel off the remote controller cable sheath as shown below to connect to the terminal block properly.
Secure the remote controller cable so that the peeled part of the cable will fit into the case.
■ Direct wall installation
• Seal the hole through which the cable is threaded with putty.
Top case Bottom case
16 (21/32)
6 (1/4)
Sheath
Unit: mm (in)
Connect the cable.
(non-polarized)
2-core wire must not be
seen on the back.
Insert the sheathed part of the cable inside
the case, and then secure the cable.
Seal the gap with putty.
Route the cable behind
the remote controller.
Remote controller cable
To reduce the risk of electric shock, shorting, or
malfunctions, keep wire pieces and sheath shavings
out of the terminal block.
Do not use solderless terminals to connect cables to
the terminal block.
Solderless terminals may come in contact with the
circuit board and cause malfunctions or damage the
controller cover.
Important
WT06592X01.book Page 9 Monday, April 16, 2012 10:38 AM

– 10 –
GB
5Install the bottom case.
Be sure to secure two places of the bottom case.

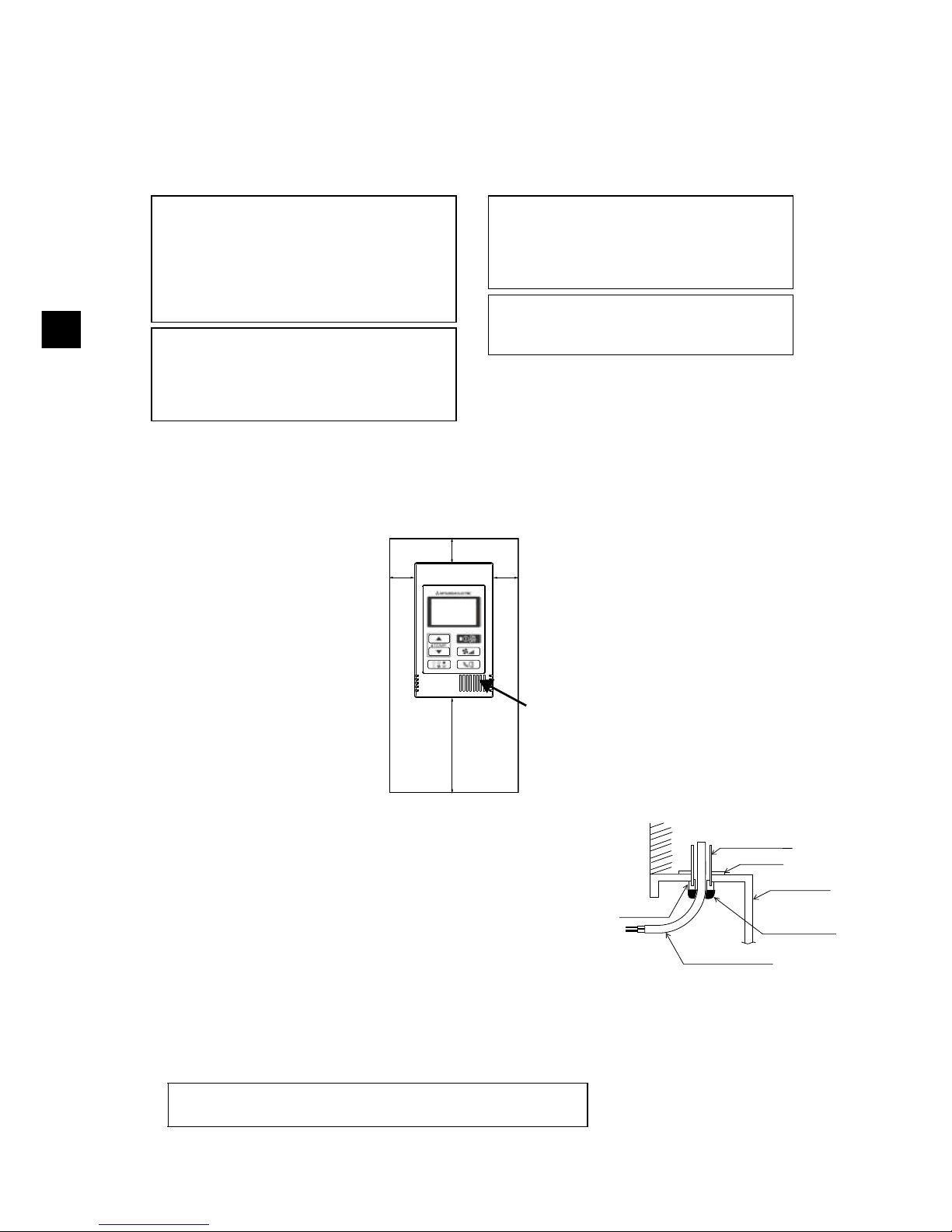

6Cut out the cable access hole.
■ Direct wall installation (when running the cable along the wall)
• Cut out the thin-wall part on the cover (the shaded area in the right
figure) with a knife or a nipper.
• Thread the cable from the groove behind the bottom case through
this access hole.

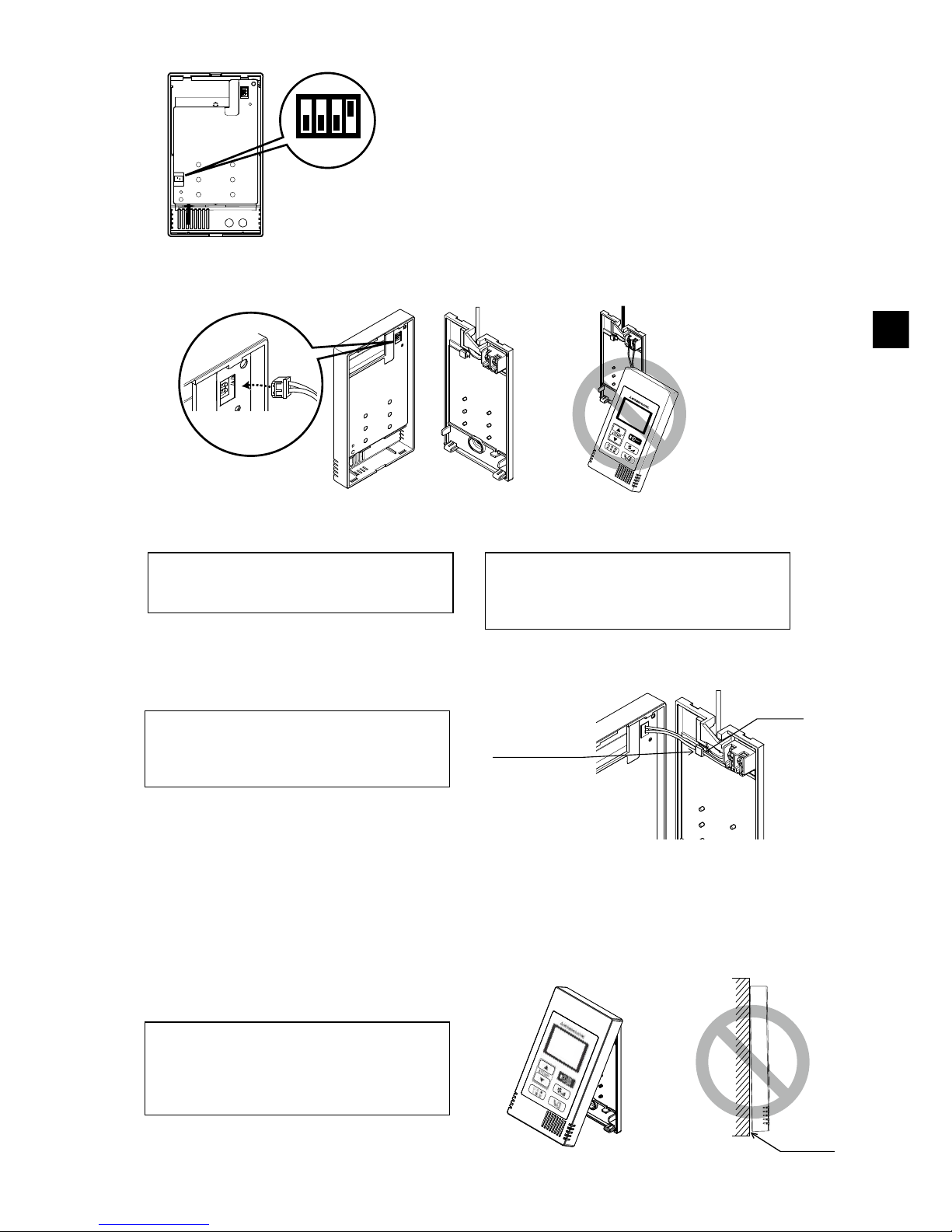

7Set the dip switches on the top case.
When using two remote controllers in one group, set the dip switches.
When using two remote controllers in one group, specify the main and sub remote controllers using
dip switch No. 1 shown below.
• When connecting only one remote controller to one group, it is always the main remote controller.
When connecting two remote controllers to one group, set one remote controller as the main
remote controller and the other as the sub remote controller.
• The factory setting is “Main”.
There are switches on the back of the top case. Remote controller Main/Sub and other function
settings are performed using these switches. Ordinarily, only change the Main/Sub setting of SW1.
(The factory settings are ON for SW1, 2, and 3 and OFF for SW4.)
■ Installation using a switch box ■ Direct wall installation
Setting the dip switches
SW No. SW contents Main ON OFF Comment
1Remote controller
Main/Sub setting Main Sub Set one of the two remote controllers at one
group to “ON”.
2Temperature display
units setting Celsius Fahrenheit When the temperature is displayed in
[Fahrenheit], set to “OFF”.
3Cooling/heating
display in AUTO mode Yes No When you do not want to display “Cooling” and
“Heating” in the AUTO mode, set to “OFF”.
4Indoor temperature
display Yes No When you want to display the indoor
temperature, set to “ON”.
Remote
controller
cable
Refer to 4.
Refer to 1.
Single switch box
Roundhead
cross slot
screws
Seal the cable
access hole
with putty.
Refer to 4.
Wood
screws
Remote
controller cable
To avoid deformation and damage to the
bottom case, do not overtighten the screws.
To avoid damage to the bottom case, do not
make holes on it.
Important
WT06592X01.book Page 10 Monday, April 16, 2012 10:38 AM

– 11 –
GB
8Connect the connector to the top case.
Connect the connector on the bottom case to the socket on the top case.
9Insert the wires into the clamp.
0 Install the top case on the bottom case.
Two mounting tabs are at the top of the top case.
Hook those two tabs onto the bottom case, and click the top case into place. Check that the case is
securely installed and not lifted.
1 2 3 4
ON
OFF
ON
OFF
Connect the
connector.
To prevent malfunctions, do not remove the
protective sheet or the circuit board from the
top case.
To prevent cable breakage and
malfunctions, do not hang the top controller
casing hang by the cable as shown in the
figure above.
Important
Clamp
Insert the wires.
Hold the wires in place with the clamp to
prevent undue force from being applied to
the terminal block and causing cable
breakage.
Important
Wall
Should not
be lifted.
When attaching the top casing to the bottom
casing, push it until it they click into place.
If they are not properly locked into place,
they may fall, causing personal injury,
controller damage, or malfunctions.
Important
WT06592X01.book Page 11 Monday, April 16, 2012 10:38 AM

– 12 –
GB
■ Direct wall installation (when running the cable along the wall)
• Thread the cable through the access hole at the top of the remote controller.
• Seal the cut-out part of the cover with putty.
• Use a cable cover.
• Uninstalling the top case
1Uninstalling the top case
Insert a flat-tip screwdriver with a blade width of 3-5 mm (1/8-7/32
inch) into the latches at the bottom of the remote controller and lift
the latches. Then, pull up the top case.
Seal the gap
with putty.
Use a cable
cover.
Thread the cable through the top of the
remote controller.
To prevent damage to the controller casing,
do not force the flat-tip screwdriver to turn
with its tip inserted in the slot.
Do not insert the flat-tip screwdriver too far.
Doing so will damage the circuit board.
Important
WT06592X01.book Page 12 Monday, April 16, 2012 10:38 AM

– 13 –
GB
1. Before making a test run, refer to the “Test Run” section of the indoor unit installation manual.
2. When the button and button are pressed simultaneously for 2 seconds or
longer, test run is performed.
3. Stop the test run by pressing the button.
4. If trouble occurred during the test run, refer to the “Test Run” section of the indoor unit installation
manual.
Perform this operation when you want to register the LOSSNAY or OA processing unit, confirm the
registered units, or delete the registered units controlled by the remote controller.
The following uses indoor unit address 05 and LOSSNAY or OA processing unit address 30 as an
example to describe the setting procedure.
[Setting Procedure]
1Stop the air conditioner using the remote controller button.
2Press and hold down the and buttons at the same time for two seconds. The
display shown below appears. The remote controller confirms the registered LOSSNAY or OA
processing unit addresses of the currently connected indoor units.
3Registration confirmation result
- The indoor unit address and registered LOSSNAY or OA processing unit address are displayed
alternately.
6 Test Run
7 Ventilation Setting
ON
OFF
..
ON
OFF

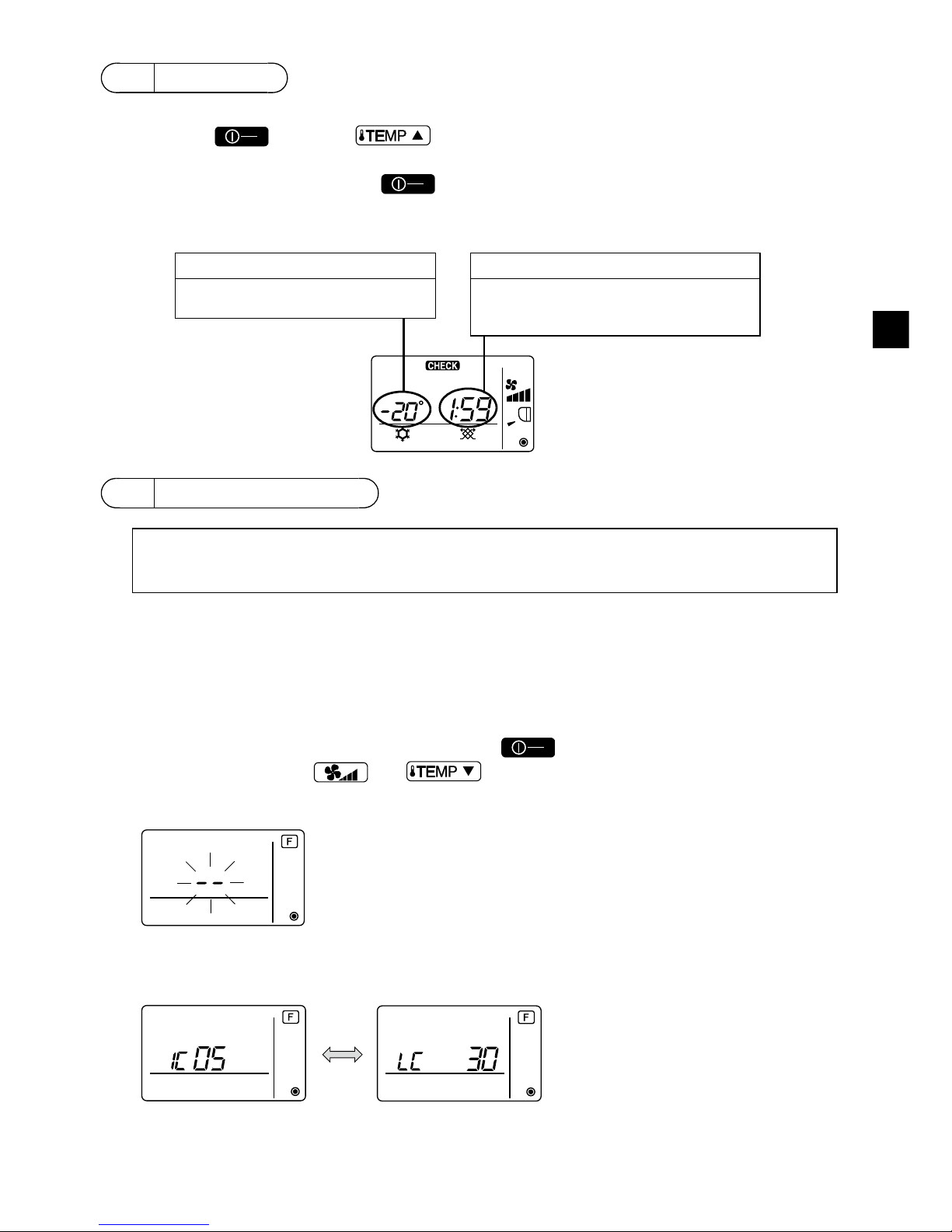

Indoor unit piping temperature
Display range: -20ºC (-4ºF) to 70ºC (158ºF)
“-20ºC” or “70ºC” flashes on the display.
Test run time
The remaining time for test run is displayed.
Display range: 2:00 to 0:01
After two hours, the test run stops automatically.
Make this setting only when interlocked operation with LOSSNAY or OA processing unit is
necessary with CITY MULTI models.
(This setting cannot be made with Mr. SLIM air conditioners.)
ON
OFF
..
<Indoor unit address and indoor unit display> <LOSSNAY address display and LOSSNAY display>
WT06592X01.book Page 13 Monday, April 16, 2012 10:38 AM

– 14 –
GB
- When LOSSNAY or OA processing unit are not registered
4If registration is unnecessary, end registration by pressing and holding down the and
buttons at the same time for two seconds.
If a new LOSSNAY or OA processing unit must be registered, go to step 1. Registration
procedure.
If you want to confirm another LOSSNAY or OA processing unit, go to step 2. Confirmation
procedure. To delete a registered LOSSNAY or OA processing unit, go to step 3. Deletion
procedure.
<1. Registration procedure>
5Set the address of the indoor unit to be interlocked with the LOSSNAY unit using the and
buttons. (01 to 50)
6After setting, press the button and set the Lossnay address you want to register by
operating the and buttons. (01~50)
7Press the button, and register the set indoor unit address and LOSSNAY address.
- Registration end display
The indoor unit address and “IC” and LOSSNAY address and “LC” are alternately displayed.
- Registration error display
If the address is not registered correctly, the indoor unit address and [ ], and the registered
LOSSNAY (or OA processing unit address) and [ ] are alternately displayed.
Cannot be registered because the registered indoor unit or LOSSNAY or OA processing unit does
not exist.
Cannot be registered because another LOSSNAY or OA processing unit was registered at the
registered indoor unit.
..
..
..
..
..
Indoor unit address LOSSNAY or OA processing unit address
ON
OFF
WT06592X01.book Page 14 Monday, April 16, 2012 10:38 AM

– 15 –
GB

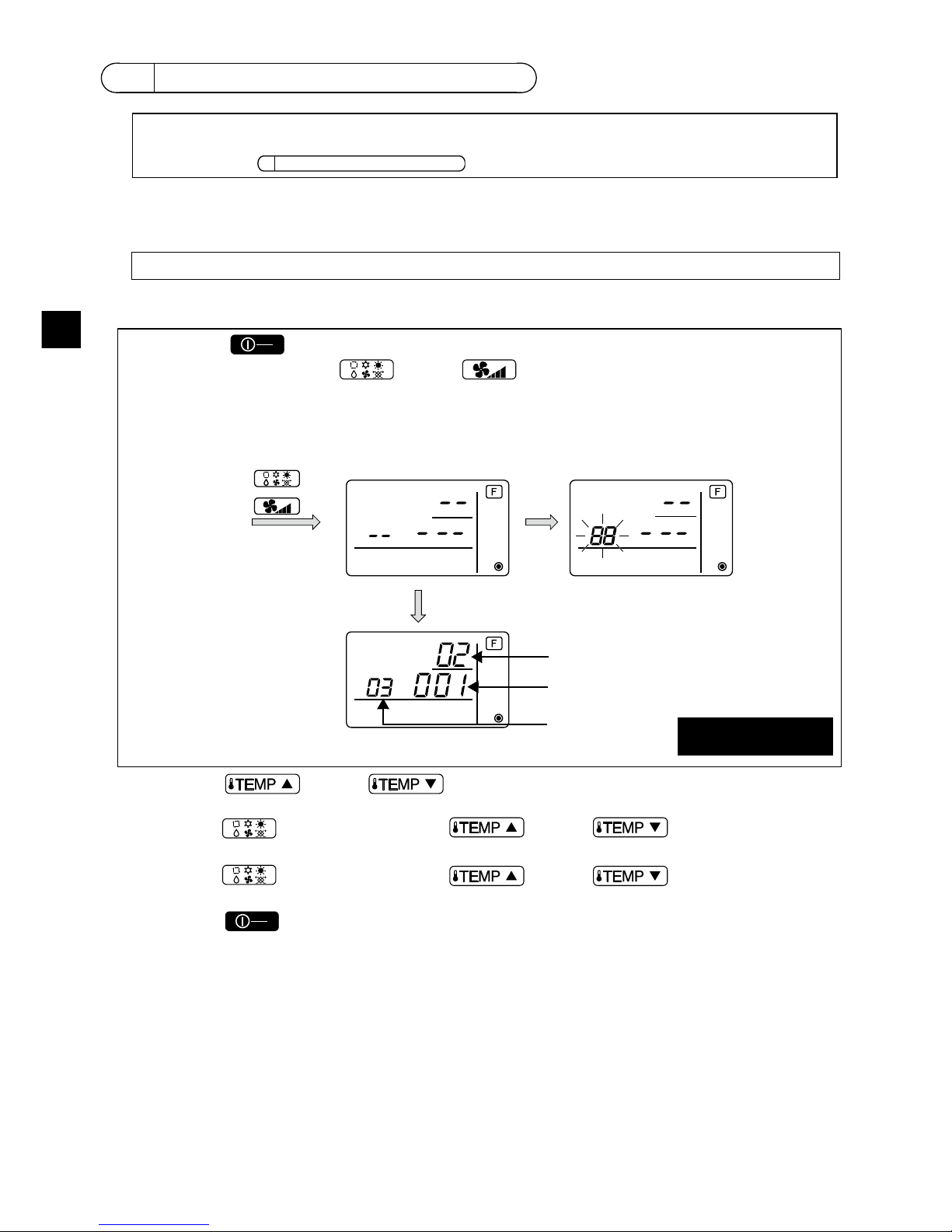

<2. Confirmation procedure>

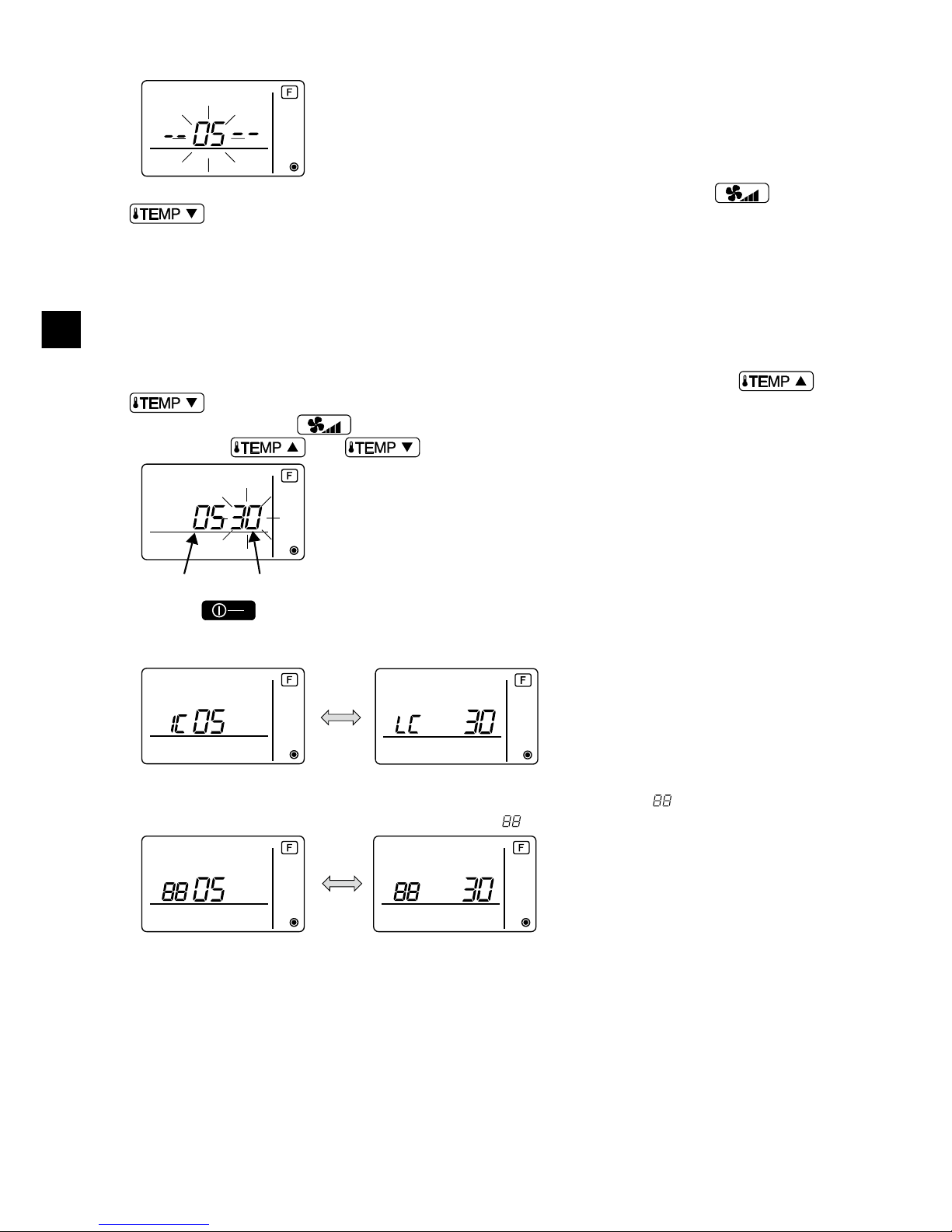

8Set the address of the indoor unit connected by the remote controller whose LOSSNAY or OA
processing unit you want to confirm using the and buttons. (01 to 50)
9Press the button and button simultaneously for 2 seconds, and check the
LOSSNAY address registered at the set indoor unit address.
- Confirmation end display (When LOSSNAY is connected.)
The indoor unit address and “IC” and registered LOSSNAY address and “LC” are alternately
displayed.
- Confirmation end display (When LOSSNAY or OA processing unit is not connected.)
- Registered indoor unit address does not exist.
<3. Deletion procedure>
Use this procedure when you want to delete registration of indoor units connected by the remote
controller and LOSSNAY or OA processing unit.
0 Confirm (see 2. Confirmation procedure) the LOSSNAY or OA processing unit you want to delete
and display the indoor units and LOSSNAY or OA processing unit confirmation results.
a Press the and buttons simultaneously for 2 seconds, and delete registration
of the LOSSNAY or OA processing unit address registered at the set indoor unit.
- Deletion end display
Indoor unit address and “– –” and registered LOSSNAY or OA processing unit address and “– –”
are alternately displayed.
- Deletion error display
When deletion was not performed properly.
.
.
.
.
ON
OFF
.
.
.
.
WT06592X01.book Page 15 Monday, April 16, 2012 10:38 AM

– 16 –
GB
Set the functions of each indoor unit from the remote controller, as required. The functions of each
indoor unit can be selected only from the remote controller.
Set the functions by selecting the necessary items from Table 1.
Table1. Function selection contents
(For a detailed description of the factory settings and mode of each indoor unit, refer to the indoor unit installation manual.)
* Static pressure setting can be made by using Mode 08 in combination with Mode 10 depending on
the indoor unit model. Refer to the Indoor unit Installation Manual for details.
* For mode numbers other than listed above, refer to the indoor unit installation manual.
8 Function Selection for Mr. SLIM
Mode
No.
Mode Settings Setting
No.
Check Unit numbers
01 Automatic recovery
after power failure
Disable 1 Set "00" for the Unit number.
These settings apply to all the
connected indoor units.
Enable (Four minutes of standby time is required
after the restoration of power.)
2
02 Thermistor selection
(Indoor temperature
detection)
Average temperature reading of the indoor units
in operation
1
Thermistor on the indoor unit to which the remote
controller is connected (fixed)
2
Built-in sensor on the remote controller 3
03 LOSSNAY connection Not connected 1
Connected (without outdoor air intake by the
indoor units )
2
Connected (with outdoor air intake by the indoor
units )
3
04 Power voltage 240 V 1
220 V, 230 V 2
07 Filter sign 100 hours 1 Set "01” to “04” or “AL” for the
Unit number.
These settings apply to each
indoor unit.
• If "01” (“02”, “03”, “04") is
set for the Unit number, the
settings apply only to the
specified indoor unit
regardless of the number of
connected indoor units (one
through four units).
• If "AL" is set for the Unit
number, the settings apply
to all the connected indoor
units regardless of the
number of connected
indoor units (one through
four units).
2500 hours 2
Not displayed 3
08 Fan speed Silent mode (or standard) 1
Standard (or High ceiling 1) 2
High ceiling (or High ceiling 2) 3
09 No. of air outlets 4 directional 1
3 directional 2
2 directional 3
10 Installed options No 1
(High performance filter) Yes 2
11 Vane setting No vanes (or the vane setting No.3 is effective.) 1
Equipped with vanes
(The vane setting No.1 is effective.)
2
Equipped with vanes
(The vane setting No.2 is effective.)
3
Make the following settings for Mr. SLIM if necessary.
(This setting cannot be made with CITY MULTI Control System. To make CITY MULTI indoor
unit settings from the remote controller, refer to section .)
9
Function Selection for CITY MULTI
NOTE: When the indoor unit functions were changed using the function selection after
installation is complete, always indicate the set contents by entering check marks or
other marks in the appropriate check field of Table 1.
WT06592X01.book Page 16 Monday, April 16, 2012 10:38 AM

– 17 –
GB

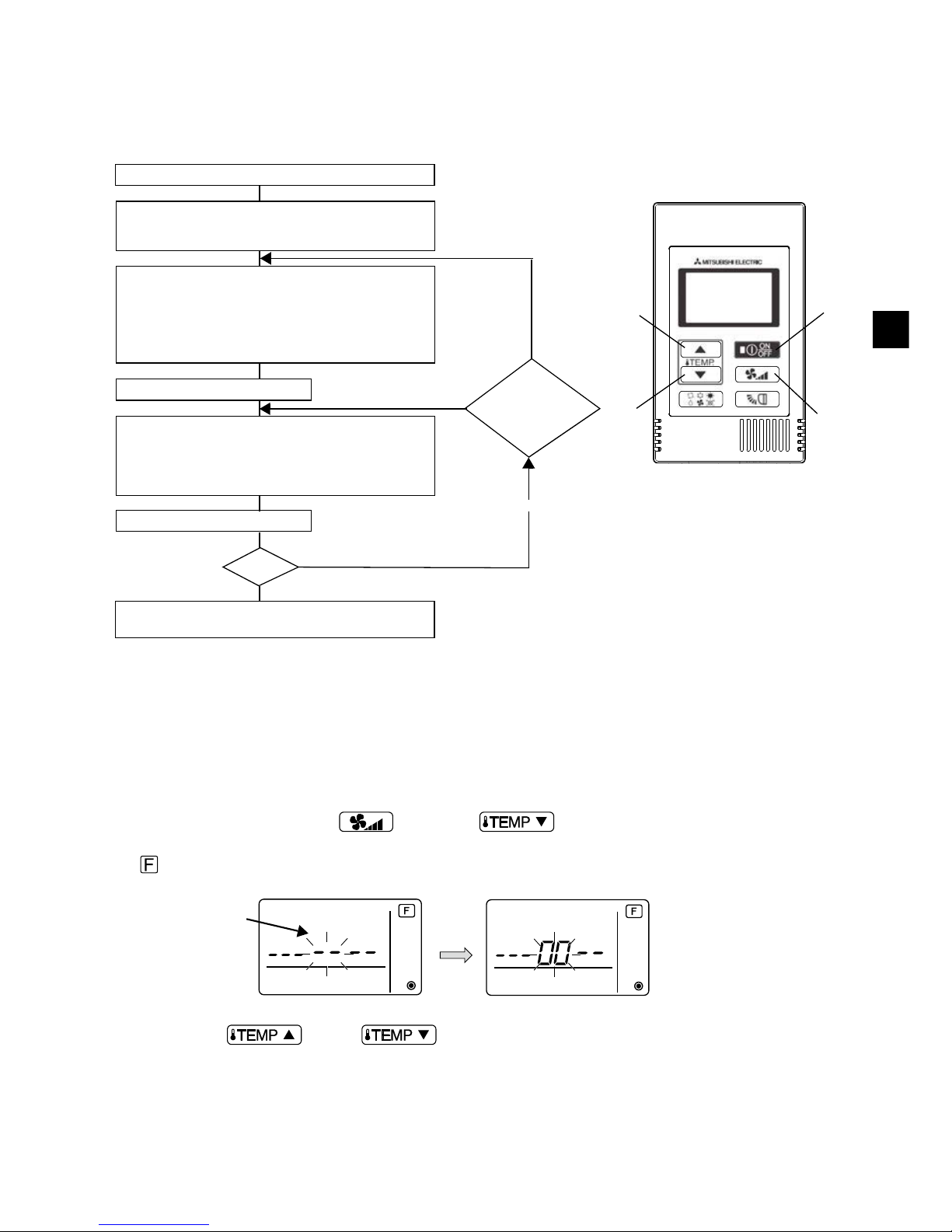

[Function selection flow]
First grasp the function selection flow. The following describes setting of “Thermistor selection” of
Table 1 as an example.
(For the actual setting procedure, see [Setting procedure] 1 to 0.)
[Setting procedure] (Set only when change is necessary.)
1Check the set contents of each mode. When the set contents of a mode were changed by function
selection, the functions of that mode also change.
Check the set contents as described in steps 2 to 7 and change the setting based on the entries
in the Table 1 check field. For the factory settings, refer to the indoor unit installation manual.
-------------------------------------------------------------------------------------------------------------------------------------
2Set the remote controller to Off.
Press and hold down the D and the C buttons at the same time for two
seconds or longer.
“ (FUNCTION)” blinks for a while, then the remote controller display changes to the display
shown below.
3Set the outdoor unit refrigerant address No.
When the B and C buttons are pressed, the refrigerant address No.
decreases and increases between 00 and 15.
Set it to the refrigerant address No. whose function you want to select.
(This step is unnecessary for single refrigerant system.)
1 Check the function selection set contents.
2 Switch to the FUNCTION SELECTION mode.
(Press D and C simultaneously in the remote
controller OFF state.)
3 Refrigerant address specification
→ 00 (Outdoor unit specification)
(Unnecessary for single refrigerant system)
4 Unit address No. specification
(Buttons B, C and D)
→ 00 (Indoor unit specification)
5 Register (Press button A.)
6 Mode No. Selection
→ 02 (Thermistor selection)
7 Setting No. selection
(Buttons B, C and D)
→ 3 (Built-in sensor on the remote controller)
8 Register (Press button A.)
(Specified indoor unit
→ Fan operation)
End?
0 Ending function display
(Press buttons D and C simultaneously.)
9
Change
refrigerant
address and unit
address No.?
Yes
No
Yes
No
A
D
C
B
.
.
Refrigerant address
display
.
.
.
.
WT06592X01.book Page 17 Monday, April 16, 2012 10:38 AM

– 18 –
GB
* If the remote controller enters the OFF state after the “ (FUNCTION)” and room temperature
displays “ ” have flashes for two seconds, communication is probably abnormal. Make sure there
are no noise sources near the transmission line.
4Set the indoor unit address No.
Press the D button. The unit address No. display “– –” flashes.
When the B and C buttons are pressed, the unit address No. changes in the
order of 00 ↔ 01 ↔ 02 ↔ 03 ↔ 04 ↔ AL. Set it to the unit address No. of the indoor unit whose
functions you want to set.
* When setting mode 1 ~ 6, set the unit address No. to “00”.
* When setting modes 7 to 14:
- When setting for each indoor unit, set the unit address No. to “01-04”.
- When batch setting for all indoor units, set the unit address No. to “AL”.
5Refrigerant address and unit address No. registration
Press the A button. The refrigerant address and unit address No. are registered.
After a while, the mode No. display “– –” flashes.
* When “ ” flashes at the room temperature display, the selected refrigerant address is not in the
system. When “F” is displayed at the unit address No. display, and when it flashes together with
the refrigerant address display, the selected unit address No. does not exist. Correctly set the
refrigerant address and unit address No. by repeating steps 3 and 4.
When registered using the A, the registered indoor unit begins fan operation.
When you want to know the location of the indoor units of the unit address No. whose functions
were selected, check here.
When the unit address No. is 00 or AL, all the indoor units of the selected refrigerant address
perform the fan operation.
* When grouping by different refrigerant systems and an indoor unit other than the specified
refrigerant address performs the fan operation, the refrigerant address set here is probably
duplicated.
Recheck the refrigerant address at the outdoor unit dip switches.
NOTE: If you make a mistake during operation, end function selection by step 0 and repeat
selection from step 2.
..
..
Unit address No.
display
ON
OFF
Mode No. display
ON
OFF
EX): When refrigerant address 00, unit address No. = 02 registered
Refrigerant address 00
Indoor unit
Outdoor unit
Registration
Simple MA Controller
Fan operation
Unit address
No. 01
Unit address
No. 02
Unit address
No. 03
WT06592X01.book Page 18 Monday, April 16, 2012 10:38 AM

– 19 –
GB
6Mode No. selection
Select the mode No. you want to set with the B and C buttons. (Only the
settable mode numbers can be selected.)
7Select the setting contents of the selected mode.
When the D button is pressed, the current setting No. flashes. Use this to check the
currently set contents.
Select the setting No. using the B and C buttons.
8The contents set at steps 3 to 7 are registered.
When the A button is pressed, the mode No. and setting No. flash and registration begins.
The flashing mode No. and setting No. change to a steady light and setting ends.
* When “ ” flashes at the Mode No. display, communication is probably abnormal.
Make sure there are no noise sources near the transmission line.
-------------------------------------------------------------------------------------------------------------------------------------
9To select more functions, press the D and repeat steps 3 to 8.
-------------------------------------------------------------------------------------------------------------------------------------
0 End function selection.
Press and hold down the C and D buttons at the same time for two seconds or
longer.
After a while, the function selection display disappears and the remote controller returns to the air
conditioner off display.
* Do not operate the air conditioner from the remote controller for 30 seconds after the end of
function selection.
.
.
.
.
Mode No. display
Mode No. 02 = Thermistor selection
..
..
Setting No. display
Setting No. 1 =
Average temperature
reading of the indoor
units in operation
Setting No. 3 =
Built-in sensor on the
remote controller
ON
OFF
..
NOTE: When the functions of an indoor unit were changed by function selection after the end
of installation, always indicate the set contents by entering check marks or other marks
in the appropriate check field of Table 1.
WT06592X01.book Page 19 Monday, April 16, 2012 10:38 AM

– 20 –
GB
Set the functions of each indoor unit from the remote controller, as required.
Refer to the Indoor unit Installation Manual for factory settings, mode No., and the setting No. of the
indoor units.
■ Setting the indoor unit Setting Value
4Press the and the buttons to set the address of the indoor unit whose
settings to be made. (ALL, 1 to 50)
5Press the button, then press the and the buttons to set the
Function Setting No. to be set. (000 to 255)
6Press the button, then press the and the buttons to set the
Function Setting Value. to be set (00 to 15)
7Press the button to set the settings.
9 Function Selection for CITY MULTI
1Press the button to stop the operation of the air conditioner.
2Press and hold down the and the buttons at the same time for two seconds
or longer to check the current settings.
3When the response has been received from the indoor unit, the current settings appear. If
there is no response, nothing appears.
Make this setting only when the function settings need to be changed on CITY MULTI.
(This setting cannot be made with Mr. SLIM Control System. To make settings for Mr. SLIM,
refer to section .)
8
Function Selection for Mr. SLIM
NOTE: Be sure to write down any settings that you change performing the following steps.
ON
OFF
+
Air conditioner
stops.
Procedure A
2 sec.
Function Setting Value
Function Setting No.
Indoor unit address
Response is received.
Response has been received.
No response
No
response
Waiting for response
..
..
..
.
.
.
.
.
.
ON
OFF
WT06592X01.book Page 20 Monday, April 16, 2012 10:38 AM
