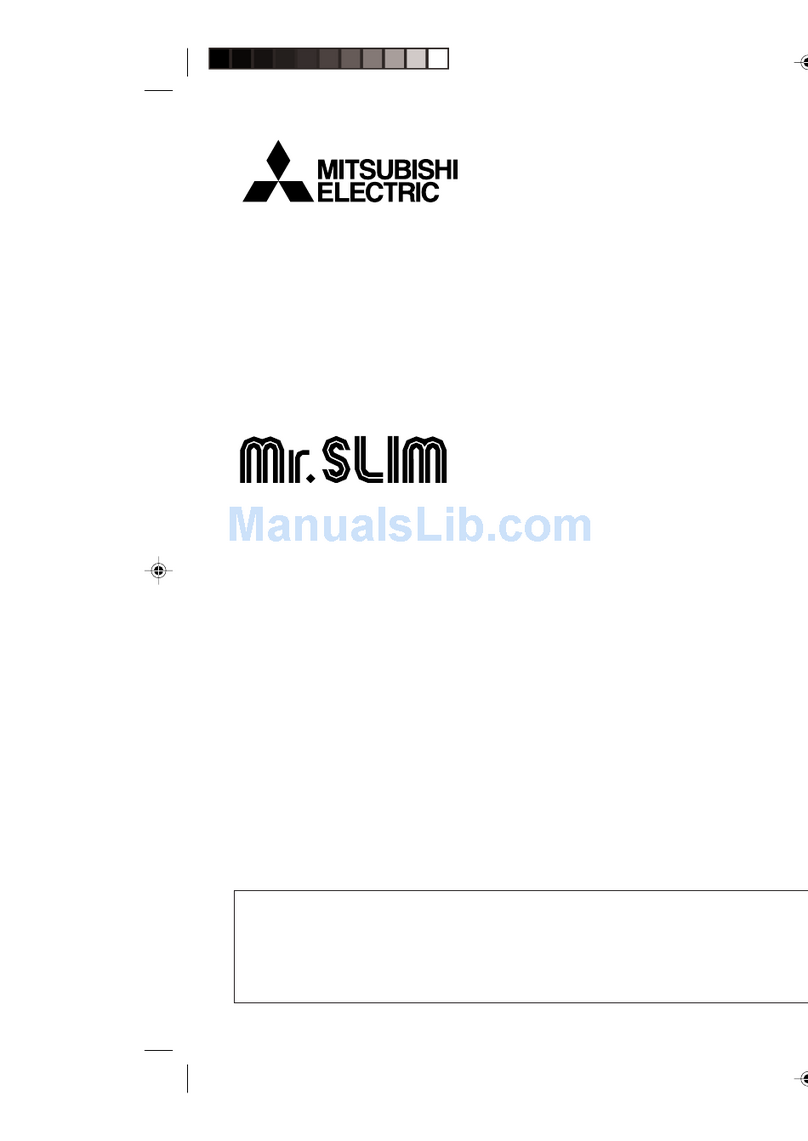

Mitsubishi Electric PAR-SL101A-E Series Installation and operating instructions

CITY MULTI Control System and
Mitsubishi Mr. Slim Air Conditioners
Wireless Remote Controller
PAR-SL101A-E Series
English
OPERATION MANUAL / INSTALLATION MANUAL FOR USER / FOR INSTALLER
VH79A034H01_cover.indd 1 2021/04/21 16:37:37
001

This installation manual contains only the description of how to install the wireless remote controller unit
PAR-SL101A-E.
Foryoursafety,rstbesuretoread“1. Safety Precautions” described below thoroughly and then install the
wireless remote controller unit PAR-SL101A-E correctly.
1
1. Safety Precautions
Installation Manual Contents
•The following two symbols are used to denote dangers that may be caused by incorrect use and their degree:
WARNING: This symbol denotes what could lead to serious injury or death if you misuse the PAR-
SL101A-E.
CAUTION: This symbol denotes what could lead to a personal injury or damage to your property if you
misuse the PAR-SL101A-E.
• After reading this installation manual, keep it in a place where the final user can see it anytime.
When someone moves, repairs or uses the PAR-SL101A-E, make sure that this manual is forwarded to the final user.
WARNING
■Ask your dealer or technical representative to install the unit.
• Anydeciencycausedbyyourowninstallationmayresultinanelectricshockorre.
■Install in a place which is strong enough to withstand the weight of the PAR-SL101A-E.
• Any lack of strength may cause the PAR-SL101A-E to fall down, resulting in personal injury.
■Never modify or repair the PAR-SL101A-E by yourself.
• Anydeciencycausedbyyourmodicationorrepairmayresultinanelectricshockorre.
Consult with your dealer about repairs.
■Ensure that installation work is done correctly following this installation manual.
• Anydeciencycausedbyinstallationmayresultinanelectricshockorre.
■All electrical work must be performed by a licensed technician, according to local regulations and the instruc-
tions given in this manual.
• Anylackofelectriccircuitoranydeciencycausedbyinstallationmayresultinanelectricshockorre.
■Do not move and re-install the PAR-SL101A-E yourself.
• Anydeciencycausedbyinstallationmayresultinanelectricshockorre.
Ask your distributor or special vendor for moving and installation.
■To dispose of this product, consult your dealer.
1. Safety Precautions ..................................................... 1
2. Confirming the Supplied Parts.................................... 2
3. Installation .................................................................. 3
4. Various settings .......................................................... 4
5. Initial setting ............................................................... 5
5.1. Switching to the initial setting mode ................... 5
5.2. Changing the temperature unit ........................... 5
5.3. Changing the time display .................................. 5
5.4. Changing the AUTO mode.................................. 5
5.5. Changing the pair No.......................................... 6
5.6. Changing the backlight setting ........................... 7
5.7. Completing the settings...................................... 7
6. Function settings ........................................................ 7
6.1. Switching to the function setting mode ............... 7
6.2. Entering the group model setting number .......... 7
6.3. Separate settings mode 1................................... 8
6.4. Completing the settings...................................... 9
6.5. Separate setting mode 2 .................................. 10
6.6. Completing the setting.......................................11
7. Service ..................................................................... 12
7.1. Test run............................................................. 12
7.2. Self-check......................................................... 12
7.3. Unit function selection ...................................... 16
For safe and correct use, read this manual and the indoor unit installa-
tion manual thoroughly before installing the air-conditioner unit.
en
VH79A034H01_IB_IM_01en.indd 1 2021/06/01 13:12:58
019

Check that the box includes the following parts in addition to this installation manual:
Parts Name Quantity
Wireless remote controller 1
Remote controller holder 1
LR6 AA alkaline battery 2
Tapping screws 3.5 × 16 2
Only use LR6 AA batteries. Replace low batteries with new LR6 AA batteries. Observe the polarity of the batteries as
indicated,andinsertthenegativeendrst.
2
CAUTION
■Do not install in any place exposed to ammable gas leakage.
• Flammable gases accumulated around the body of PAR-SL101A-E may cause an explosion.
■Do not use in any special environment.
• Using in any place exposed to oil (including machine oil), steam and sulfuric gas may deteriorate the performance
signicantlyorgivedamagetothecomponentparts.
■Do not wash with water.
• Doing so may cause an electric shock or a malfunction.
■Do not install in any place at a temperature of more than 40 °C (104 °F) or less than 0 °C (32 °F) or exposed to
direct sunlight.
■Do not install in any steamy place such a bathroom or kitchen.
• Avoid any place where moisture is condensed into dew. Doing so may cause an electric shock or a malfunction.
■Do not install in any place where acidic or alkaline solution or special spray are often used.
• Doing so may cause an electric shock or malfunction.
■Do not touch any circuit board with your hands or with tools. Do not allow dust to collect on the circuit board.
• Doingsomaycausereoranelectricshock.
■Do not touch any control button with your wet hands.
• Doing so may cause an electric shock or a malfunction.
■Do not press any control button using a sharp object.
• Doing so may cause an electric shock or a malfunction.
1. Safety Precautions
2. Conrming the Supplied Parts
en
VH79A034H01_IB_IM_01en.indd 2 2021/06/01 13:12:58
020

■Use the remote controller holder that is provided to avoid misplacing the remote controller.
■Install the remote controller in a location that meets the following conditions.
• Out of the direct sun light
• Away from any heat sources
• Out of the airflow from the air conditioner (cool or warm)
•Where the operation of the remote controller can easily be performed and the display is
readily visible to the user
• Out of the reach of small children
NOTES:
* If there is a fluorescent light in the room in which the air conditioner is to be installed, turn it
on and make sure that the signal from the remote controller can be received by the indoor
unit from the intended installation location. When the signal receiving unit receives a signal
from the remote controller, a short beeping sound will be heard.
Iftheairconditionerunitisinstalledinaroominwhichauorescentlightonanelectronic
lighting control system (i.e., inverter light) is installed, signal interference may occur.
* Maximum signal receiving distance is approximately 7 meters (Approx. 22 feet). Signal
receiving angle is approximately 45 degrees to the right and the left from the center.
* Install the unit at least 1 meter (Approx. 3 feet) away from the TV or radio.
(If the unit is installed too close to these appliances, signal interference (picture distortion
and noise) may occur.)
■Use the tapping screws that are provided to mount the remote controller holder on the wall,
and then place the remote controller in the holder.
1
2
3Press the Reset but-
ton with an object that
has a narrow end.
Two LR6 AA batteries
Insert the negative (–) end of each
batteryrst.Installthebatteriesin
the correct directions (+, –)!
Top cover
2. Press the Reset button.1. Remove the top cover, insert two LR6 AA batteries, and then install
the top cover.
Remote
controller
Self-tapping
screws
Holder
3
3. Installation
en
VH79A034H01_IB_IM_01en.indd 3 2021/06/01 13:12:59
021

4
4. Various settings
The following initial and function settings can be changed with this remote controller.
Stop operation
Initial settings
Function settings
Service
Temperature unit ( button)
Time display ( button)
Auto mode ( button)
Pair No. ( button)
Backlight ON ( button)
Entering the group model setting number ( button)
Operation mode setting
( button )
Fan speed setting ( button )
Verticalairowdirectionsetting ( button)
Louver setting ( button)
Autofanspeedandairowdirectionsetting ( button)
Set temperature range setting ( button)
Horizontalairowdirectionsetting ( button)
Direct/Indirectairowsetting ( button)
Weekly timer setting ( button)
Automaticlterelevationpaneloperationsetting ( button)
Test run
Self-check
Unit function selection
Separate
setting mode 1
Separate
setting mode 2
Pressing the
button
Pressing the button
while the function No. “1” is lit
Holding down the button
for 5 seconds or longer
Holding down the button
for 5 seconds or longer
Holding down the
button for
5 seconds or longer
en
VH79A034H01_IB_IM_01en.indd 4 2021/06/01 13:12:59
022

Fig. 5-3
B
E
F
D
C
8
2
1
4
3
5
7
6
G
9
5.1. Switching to the initial setting mode
(Fig. 5-1, Fig. 5-2)
1. Press the button 1to stop the air conditioner.
• If the weekly timer is enabled, press the
button 2to disable the timer. ( Gdisappears.)
2. Press the button 3.
• The Function setting screen will be displayed
and the function No. Awill blink.
•
Press the button 4to change the function No.
3. Check that function No. “1” is displayed, and then
press the button 5.
• The Screen display setting screen will be
displayed.
5.2. Changing the temperature unit
(Fig. 5-1, Fig. 5-3 B)
Press the button 6.
• Pressing the button 6changes the temper-
ature unit ( °C / °F ). (The factory setting is “°C”.)
: The temperature is displayed in degrees Celsius.
: The temperature is displayed in degrees Fahrenheit.
5.3. Changing the time display
(Fig. 5-1, Fig.5-3
c )
Press the button 7.
• Pressing the button 7changes the time
display ( / ). (The factory setting is “12-
hour format”.)
: The time is displayed in the 12-hour format.
: The time is displayed in the 24-hour format.
5.4. Changing the AUTO mode
(Fig. 5-1, Fig.5-3 D )
Press the button 8.
• Pressing the button 8changes the Auto
mode ( / ). (The factory setting is “Single set
point”.)
: The AUTO mode operates as the usual auto-
matic mode (Single set point).
: The AUTO mode operates using dual set
points.
The following settings can be made in the initial setting
mode.
Item Setting Fig. 5-3
Temperature unit ºC/ºF B
Time display 12-hour format/24-hour format C
AUTO mode Single set point/Dual set point D
Pair No. 0–3 E
Backlight On/Off F
Fig. 5-2
Fig. 5-1
A
5
5. Initial setting
en
VH79A034H01_IB_IM_01en.indd 5 2021/06/01 13:13:00
023

5.5. Changing the pair No. (Fig. 5-1, Fig.5-3 E)
Press the button 4.
• Set the pair number to "0"–"3". (The factory setting is “0”.)
Setting example (when using Mr. Slim)
Independent
system
(1) Same settings
• All of the units can be operated by the same wireless remote
controller.
•All of the indoor PC boards and the
wireless remote controller are set to
the same pair number.
•Install each unit within the receiving
range of the wireless remote con-
troller or have the operator move
the wireless remote controller to
operate each unit.
(2) Separate settings
• Each unit can be operated only by its own wireless remote control-
ler.
•The indoor PC boards and wireless
remote controllers are set to differ-
ent pair numbers for each unit.
Simultaneous
twin/triple/quad-
ruple system
•The system operates regardless
of which indoor unit receives the
signals.
Example of triple system
Outdoor unit
Outdoor unit
Indoor
unit
Indoor
unit
Indoor
unit
Indoor
unit
Indoor
unit
Indoor
unit
Indoor
unit
Indoor
unit
Pair No.0
Pair No.0
Pair No.0
Outdoor unit
Outdoor unit
Pair No.1
Pair No.1
Pair No.0
Pair No.0
Outdoor unit
Outdoor unit
Pair No.2
Pair No.2
Pair No.0
Outdoor unit
Outdoor unit
Pair No.3
Pair No.3
Pair No.0
Wireless remote controller operation unit
Wireless remote controller operation unit
Wireless remote controller operation unit
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Outdoor unit
Indoor
unit
Indoor
unit
Indoor
unit
Pair No.0 Pair No.0
Pair No.0
Pair No.0
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Wireless
remote
controller
receiver
Indoor unit setting
Mr. Slim CITY MULTI
Pair No. of wireless remote
controller Indoor PC board jumper wire (J41 and J42 settings)
Indoor PC board
SW22 settings
SW22-3 SW22-4
0 Do not cut (initial setting) ON ON
1 Cut only J41 OFF ON
2 Cut only J42 ON OFF
3 Cut both J41 and J42 OFF OFF
6
5. Initial setting
en
VH79A034H01_IB_IM_01en.indd 6 2021/06/01 13:13:00
024

5.6. Changing the backlight setting
(Fig. 5-1, Fig. 5-3 F )
Press the button 9.
• Pressing the button 9changes the setting
( / ). (The factory setting is “ON”.)
: The backlight comes on when a button is
pressed.
: The backlight does not come on when a
button is pressed.
5.7. Completing the settings
(Fig. 5-1, Fig. 5-2)
Press the button 5.
• The function No. A blinks.
Press the button 3.
• The remote controller exits the initial setting mode.
(The air conditioner operation is stopped.)
Fig. 6-1
4
1
A
3
B
2
Toconrmthefunctionsandsettingsfortheindoorunit
you want to set, refer to the operation manual and techni-
cal materials for the unit.
6.1. Switching to the function setting
mode (Fig. 6-1)
1. Press the button 1to stop the air conditioner.
• If the weekly timer is enabled, press the
button 2to disable the timer. ( Bdisappears.)
2. Press the button 3 for 5 seconds.
• The remote controller enters the function set-
ting mode. (The group model setting number
A
blinks.)
6.2. Entering the group model setting
number (Fig. 6-1)
Press the button 4 .
• Enter the group model setting number for the in-
door unit you want to operate. (The factory setting
is "001".)
To confirm the group model setting number, refer
to the indoor unit operation manual.
• The fan speed, vertical airflow direction and
operation mode can be set by operating the group
model setting number.
When you want to change any settings other than
above, refer to the descriptions about the sepa-
rate setting modes in the following pages.
7
5. Initial setting
6. Function settings
en
VH79A034H01_IB_IM_01en.indd 7 2021/06/01 13:13:00
025

Fig. 6-2
5
6
7
4
8
DE
F
C
6.3. Separate settings mode 1
(Fig. 6-2, Fig. 6-3)
You can also set the functions as necessary for the
indoor unit that you want to operate.
1) Operation mode setting (The factory setting is
"01".)
1. Press the button 5.
• The operation mode
C blinks.
2. Press the button
4 to select the setting
number D.
Operation mode
display C
Setting
No. D
Operation mode
display C
Setting
No. D
01 05
02 06
03 07
04
* If the setting is incorrect, press the button
6and repeat the procedure from step 1.
2) Fan speed setting (The factory setting is "01".)
1. Press the button 7.
• The fan speed Eblinks.
2. Press the button 4to select the setting
number D.
Fan speed display ESetting No. D
(4 speeds) 01
(3 speeds) 02
(2 speeds) 03
(1 speed, none) 04
* If the setting is incorrect, press the button
6and repeat the procedure from step 1.
3) Vertical airflow direction setting (The factory
setting is "01".)
1. Press the button 8.
• The airflow direction Fblinks.
2. Press the button 4to select the setting
number D.
AirowdirectionFSetting
No. D
With auto vane Without auto vane
(With vane, swing) (With vane, swing) 01
(With vane, no swing) (With vane, no swing) 02
No display (no vane) No display (no vane) 03
* If the setting is incorrect, press the button
6and repeat the procedure from step 1.
8
6. Function settings
en
VH79A034H01_IB_IM_01en.indd 8 2021/06/01 13:13:01
026

4) Louver setting (The factory setting is “01”.)
1. Press the button 9.
• The louver Gblinks.
2. Press the button 4to select the setting
number D.
Louver setting GSetting No.D
No display (Disabled) 01
(Enabled) 02
• To enable (02) the louver function, disable (01)
the horizontal airflow direction function.
* If the setting is incorrect, press the but-
ton 6and repeat the procedure from step 1.
5) Auto fan speed and airflow direction setting (The
factory setting is "02".)
1. Press the button 0.
• The auto fan speed and airflow direction H
blink. (2 locations)
2. Press the button 4to select the setting
number D.
Autofanspeedandairow
direction setting HSetting No. D
No display (Disabled) 01
(Enabled) 02
* If the setting is incorrect, press the but-
ton 6and repeat the procedure from step 1.
6) Set temperature range setting (The factory setting
is“01”.)
1. Press the button 1
• The number for the set temperature range
setting J“01” blinks.
2. Press the button 4to change the setting
number D.
Set temperature
range setting J
Setting
number D
(Standard)
Cooling/Dry: 19 - 30 °C (67 - 87 °F)
Heating: 17 - 28 °C (63 - 83 °F)
Auto: 19 - 28 °C (67 - 83 °F)
01
Cooling/Dry: 14 - 30 °C (57 - 87 °F)
Heating: 17 - 28 °C (63 - 83 °F)
Auto: 17 - 28 °C (63 - 83 °F)
04
Notes:
• If the setting is incorrect, press the but-
ton
6 and repeat the procedure from step 1.
• Single set point (Auto mode) must be selected
to enable the setting “04”. Refer to 7.3. for the
unit function selection and 5.4. for the way to
change the mode by the remote controller.
• The set temperature range of “04” cannot be
selected if the model does not support it.
6.4. Completing the settings (Fig. 6-3)
Press the button 3 for 5 seconds.
• The remote controller exits the function setting
mode.
Fig. 6-3
6
3
1
9
4
0
D
J
G
H
9
6. Function settings
en
VH79A034H01_IB_IM_01en.indd 9 2021/06/01 13:13:02
027

6.5. Separate setting mode 2 (Fig. 6-4, Fig. 6-5)
1) Switching to the separate setting mode 2
After switching to the function setting mode (6.1.),
hold down the button 2for 5 seconds.
• The pattern number Kblinks.
2) Horizontal airflow direction setting (The factory
setting is “01”.)
1. Press the button 9.
• The horizontal airflow direction setting G
blinks.
2.
Press the button 4to select the setting No. D.
Horizontal airflow direction
setting GSetting No. D
(Disabled) 01
(Enabled) 02
* If the setting is incorrect, press the button
6and repeat the procedure from step 1.
3 ) Direct/Indirect airflow setting (The factory setting
is “02”.)
1. Press the button 3 .
• Direct/Indirect airflow setting Lblinks.
2. Press the button
4 to set the setting No. D.
Direct/Indirect airflow
setting LSetting No. D
No display (Disabled) 01
(Enabled) 02
* If the setting is incorrect, press the button
6and repeat the procedure from step 1.
4) Weekly timer setting (The factory setting is
“02”.)
1. Press the button 2 .
• The weekly timer Bblinks.
2. Press the button
4 to set the setting No. D.
Weekly timer setting BSetting No. D
No display (Disabled) 01
(Enabled) 02
* If the setting is incorrect, press the button
6and repeat the procedure from step 1.
Fig. 6-4
2
6
9
3
4
2
D
B
K
G
L
10
6. Function settings
en
VH79A034H01_IB_IM_01en.indd 10 2021/06/01 13:13:03
028

5) Automatic filter elevation panel operation set-
ting (The factory setting is “01”.)
1. Press the button 4.
• The automatic filter elevation panel opera-
tion Mblinks.
2. Press the button 4to select the setting
number D.
Automatic elevation panel
operation MSetting No. D
No display (Without) 01
(With) 02
* If the setting is incorrect, press the button
6 and repeat the procedure from step 1.
6.6. Completing the setting (Fig. 6-5)
Hold down the button 3for 5 seconds.
• The separate setting mode is finished.
Fig. 6-5
4
6
3
4
D
M
11
6. Function settings
en
VH79A034H01_IB_IM_01en.indd 11 2021/06/01 13:13:03
029

7.1. Test run (Fig. 7-1)
1. Press the button 1to stop the air conditioner.
• If the weekly timer is enabled ( A is on),
press the button 2to disable it (
Ais off).
2.
Press the button 3for 5 seconds.
• B comes on and the unit enters the
service mode.
3. Press the button 3.
• Ccomes on and the unit enters the test
run mode.
4. Press the following buttons to start the test run.
: Switch the operation mode between cool-
ing and heating and start the test run.
: Switch the fan speed and start the test
run.
: Switch the airflow direction and start the
test run.
: Switch the louver and start the test run.
: Start the test run.
5. Stop the test run.
•
Press the button 1to stop the test run.
• After 2 hours, the stop signal is transmitted.
Fig. 7-1
1
C
3
2
A
B
Fig. 7-2
4
D
A
1
B
5
3
2
7.2. Self-check (Fig. 7-2)
1. Press the button 1to stop the air condi-
tioner.
• If the weekly timer is enabled ( Ais on),
press the button 2to disable it ( A
is off).
2. Press the button 3for 5 seconds.
• Bcomes on and the unit enters the self-
check mode.
3. Press the button 4to select the refrigerant
address (M-NET address) Dof the indoor unit for
which you want to perform the self-check.
4. Press the button 5.
• If an error is detected, the check code is indi-
cated by the number of beeps from the indoor
unit and the number of blinks of the OPERA-
TION INDICATOR lamp.
5. Press the button 1.
• Band the refrigerant address (M-NET
address) Dgo off and the self-check is com-
pleted.
12
7. Service
en
VH79A034H01_IB_IM_01en.indd 12 2021/06/01 13:13:04
030

Refer to the following tables for details on the check codes.
* A receiver adapter (MA type) cannot be used.
OPERATION
INDICATOR
lamp blinking
pattern
Beep Beep Beep Beep Beep Beep Beep
Off
Approx.
2.5 sec.
On
Approx.
3 sec.
On
0.5 sec. On 0.5 sec. On 0.5 sec.
On
0.5 sec. Off Approx.
2.5 sec.
On
Approx.
3 sec.
On
0.5 sec. On
0.5 sec.
· · · Repeated
Number of blinks/beeps in pattern indicates the check
code in the following table (i.e., n=5 for “U2”)
Number of blinks/beeps in pattern indi-
cates the check code in the following table
nth 1st 2nd 3rd 1st 2nd
Self-check
starts
(Start signal
received)
Beeper sounds
[Output pattern B]
[Output pattern A]
OPERATION
INDICATOR
lamp blinking
pattern
Beep Beep Beep Beep Beep Beep Beep
Off
Approx.
2.5 sec.
On
0.5 sec. On 0.5 sec. On 0.5 sec. On
0.5 sec. Off
Approx.
2.5 sec.
On
0.5 sec. On 0.5 sec.
· · · Repeated
Number of blinks/beeps in pattern indicates the
check code in the following table (i.e., n=5 for “P5”) Number of blinks/beeps in pattern indicates the check code in the following table
nth
1st 2nd 3rd 1st 2nd
Self-check
starts
(Start signal
received)
Beeper sounds
[Output pattern C]
OPERATION
INDICATOR
lamp blinking
pattern
Beep Beep Beep Beep Beep Beep Beep
Off
Approx.
2.5 sec.
Blinks
2 times
0.3 sec.×2
Blinks
2 times
0.3 sec.×2
Blinks
2 times
0.3 sec.×2
Blinks
2 times
0.3 sec.×2
Off
Approx.
2.5 sec.
Blinks
2 times
0.3 sec.×2
Blinks
2 times
0.3 sec.×2
· · · Repeated
Number of blinks/beeps in pattern indicates the
check code in the following table (i.e., n=9 for “EH”) Number of blinks/beeps in pattern indicates the check code in the following table
nth
1st 2nd 3rd 1st 2nd
Self-check
starts
(Start signal
received)
Beeper sounds
13
7. Service
en
VH79A034H01_IB_IM_01en.indd 13 2021/06/01 13:13:05
031

■Mr. Slim output contents
[Output pattern A] Errors detected by indoor unit
Wireless remote controller Wired remote
controller
Symptom Remark
Beeper sounds/OPERATION
INDICATOR lamp blinks
(Number of times)
Check code
1 P1 Intake sensor error
2 P2, P9 Pipe (liquid or 2-phase pipe) sensor error
3 E6, E7 Indoor/outdoor unit communication error
4 P4 Drain sensor error/Float switch connector open
5P5 Drainoverowprotectionoperation
PA Forced compressor error
6 P6 Freezing (during cooling operation)/Overheating protection operation
(during heating operation)
7 EE Assembly error (system error)
8 P8 Pipe temperature error
9 E4 Communication error between wired remote controller and indoor unit
10 — —
11 Pb Indoor unit fan motor error
12 Fb Indoor unit control system error (memory error, etc.)
14 PL Refrigerant circuit abnormal
[Output pattern B] Errors detected by unit other than indoor unit (outdoor unit, etc.) * The supported check codes may
vary depending on the connected outdoor unit.
Wireless remote controller Wired remote
controller
Symptom Remark
Beeper sounds/OPERATION
INDICATOR lamp blinks
(Number of times)
Check code
1E9 Indoor/outdoor unit communication error
For details,
check the LED
display of the
outdoor con-
troller board.
2UP Compressor overcurrent interruption
3U3, U4 Open/short of outdoor unit thermistors
4UF Compressor overcurrent interruption (When compressor locked)
5U2 Abnormalhighdischargingtemperature/49Cworked/insufcientrefriger-
ant
6U1, Ud Abnormal high pressure (63H worked)/Overheating protection operation
7U5 Abnormal temperature of heat sink
8U8 Outdoor unit fan protection stop
9U6 Compressor overcurrent interruption/Abnormal of power module
10 U7 Abnormality of super heat due to low discharge temperature
11 U9, UH Abnormality such as overvoltage or voltage shortage and abnormal
synchronous signal to main circuit/Current sensor error
12 — —
13 — —
14 Others Other errors (Refer to the technical manual for the outdoor unit.)
[Output pattern C] Errors detected by unit other than indoor unit (outdoor unit, etc.)
Wireless remote controller Wired remote
controller
Symptom Remark
Beeper sounds/OPERATION
INDICATOR lamp blinks
(Number of times)
Check code
9EH Panel communication abnormal (auto ascending/descending panel)
14
7. Service
en
VH79A034H01_IB_IM_01en.indd 14 2021/06/01 13:13:05
032

■CITY MULTI output contents
[Output pattern A] The abnormal unit (attribute) is an indoor unit, LOSSNAY unit, or outdoor air processing unit.
[Output pattern B] The abnormal unit (attribute) is an outdoor unit or other unit (a unit other than an indoor unit, LOSS-
NAY unit, or outdoor air processing unit).
Beeper sounds/OPERATION
INDICATOR lamp blinks
(Number of times)
M-NET check code Remarks
11000 – 1999
If the wired remote controller and system controller are not used together,
the details of the check codes in the error history can be checked using the
LED display of the outdoor PC board.
To check the error history of the outdoor unit, refer to the outdoor unit
service handbook.
22000 – 2999
33000 – 3999
44000 – 4999
55000 – 5999
66000 – 6999
77000 – 7999
80 – 999
Notes:
1. If the beeper does not sound and the OPERATION INDICATOR lamp remains off after the signal was received when the self-check starts,
there is no error history.
2. If the beeper sounds 3 times continuously “beep, beep, beep (0.4 + 0.4 + 0.4 seconds)” after the signal was received when the self-check
starts, the specified refrigerant address (M-NET address) is incorrect.
15
7. Service
en
VH79A034H01_IB_IM_01en.indd 15 2021/06/01 13:13:05
033

7.3. Unit function selection
This setting method is for Mr. Slim. For CITY MULTI models, set the DIP switches on the indoor PC
board and outdoor PC board.
To set the DIP switches, refer to the technical materials for the CITY MULTI models.
Set the functions as necessary using the remote controller. The functions for each unit can be set only
from the remote controller.
Select the functions from table 1 that must be set.
Only the refrigerant systems that are connected to indoor units equipped with wireless remote controller
receivers can be set from the wireless remote controller operation unit. The refrigerant address cannot be
speciedusingthewirelessremotecontrolleroperationunit.
Table 1 Function selection settings (For details about the factory settings and modes of each
indoor unit, refer to the indoor unit installation manual.)
Note: The items in the following table are representative examples. Because the settings for each
mode may vary depending on the model, refer to the indoor unit installation manual for details.
Mode Settings Mode no. Setting no. Initial setting Setting
Power failure auto-
matic recovery
Not available 01 1
Select unit
number 00.
Available 2
Indoor temperature
detecting
Indoor unit operating average
02
1
Set by indoor unit’s remote controller 2
Remote controller’s internal sensor 3
LOSSNAY
connectivity
Not Supported
03
1
Supported (indoor unit is not equipped with fresh air
intake)
2
Supported (indoor unit is equipped with
fresh air intake) 3
Auto operation mode Auto operation mode Single set point (Available 14°C
(58°F) cooling setting) *1 *2
06
1
Dual set point (Not available 14°C (58°F) cooling set-
ting) *1 *2 2
Filter sign 100Hr
07
1
Select unit
number 01–04
or AL (all
units).
2500Hr 2
Noltersignindicator 3
Fan speed Silent
08
1
Standard 2
High ceiling 3
Number of air outlets 4-directional
09
1
3-directional 2
2-directional 3
Installed option
(high-efciencylter,etc.)
Without 10 1
With 2
Up/down vane setting
*3 Not setting/Equipped with vanes (vanes angle setup 3)
11
1
Equipped with vanes (vanes angle setup 1)2
Equipped with vanes (vanes angle setup 2)3
*1 It is available when the indoor unit is connected to any of the particular outdoor units.
*2 An optional insulation kit is required.
*3 The setting varies depending on the model.
16
7. Service
en
VH79A034H01_IB_IM_01en.indd 16 2021/06/01 13:13:05
034

Fig. 7-3
Fig. 7-4
2
4
D
1
B
5
6
3
A
1. Press the button 1to stop the air conditioner.
* If the weekly timer is enabled ( A is on), press
the button 2to disable it ( A is off).
2. Press the button 3for 5 seconds.
• Bcomes on and the unit enters the self-check
mode.
3. Press the button 4to set the displayed number D
to "50".
• While pointing the wireless remote controller toward
the receiver, press the button 5. (The unit
number blinks.)
4. Press the button 4to set the unit number of the
indoor unit.
• While pointing the wireless remote controller toward
the receiver, press the button 5. (The mode
number blinks.)
* When the unit number is transmitted, the selected
indoor unit starts operating in the fan mode.
You can use this step to confirm which indoor unit
corresponds to the unit number you selected to
change the functions.
However, if you set the unit number to "00" or "AL",
all of the indoor units in the same refrigerant system
will start operating in the fan mode.
* If you transmit a unit number that cannot be
selected, the beeper sounds 3 times continuously
“beep, beep, beep (0.4 + 0.4 + 0.4 sec.)”.
If this occurs, press the button 6, and then
set the unit number again while the unit number
display is blinking.
* If the signal was not received correctly, the beeper
will not sound or it will beep twice.
If this occurs, press the button 6, and then
set the unit number again while the unit number
display is blinking.
Function selection procedure (Fig. 7-3, 7-4)
First, it is important to understand the procedure for the function selection. The following procedure explains how to set
"LOSSNAY connectivity" in table 1 to "Supported (indoor unit is not equipped with outdoor-air intake)" as an example.
For the actual operations, refer to the following procedure.
Unit
Mode
Setting
17
7. Service
en
VH79A034H01_IB_IM_01en.indd 17 2021/06/01 13:13:05
035

5. Press the button 4to set the mode number.
• While pointing the wireless remote controller toward
the receiver, press the button 5. (The setting
number blinks.)
At this time, the beeper sound and OPERATION IN-
DICATOR lamp blinking pattern indicate the current
setting number for the selected mode number.
Current setting value = 1: Beep (1 sec.) × 1 time
= 2: Beep (1 sec.) × 2 times
= 3: Beep (1 sec.) × 3 times
* If you enter a mode that cannot be set, the beeper
sounds 3 times continuously “beep, beep, beep (0.4
+ 0.4 + 0.4 sec.)”.
If this occurs, press the button 6, and then
set the mode number again while the mode number
display is blinking.
* If the signal was not received correctly, the beeper
will not sound or it will beep twice.
If this occurs, press the button 6, and then
set the mode number again while the mode number
display is blinking.
6. Press the button 4to select the setting number.
• While pointing the wireless remote controller toward
the receiver, press the button 5. (The mode
number blinks.)
At this time, the beeper sound and OPERATION IN-
DICATOR lamp blinking pattern indicate the setting
number for the selected mode number.
Current setting value = 1: Beep (1 sec.) × 1 time
= 2: Beep (1 sec.) × 2 times
= 3: Beep (1 sec.) × 3 times
* If you enter a number that cannot be set, the origi-
nally set number will be used.
* If the signal was not received correctly, the beeper
will not sound or it will beep twice.
If this occurs, repeat the procedure from step 5.
7. To set another mode without changing the unit number
of the indoor unit, repeat steps 5 and 6.
8. To change the unit number of the indoor unit and
perform the function selection, repeat steps 4–6.
9. Press the button 1to complete the function
selection.
Note:
● After the function selection is complete, do not
operate the wireless remote controller for 30
seconds.
● Whenever the function selection is used to
change the indoor unit functions after installa-
tion, be sure to record all of the settings with a
“○” or other mark in the “Initial setting” column
of the table.
18
7. Service
en
VH79A034H01_IB_IM_01en.indd 18 2021/06/01 13:13:05
036

Printed in Thailand
HEAD OFFICE: TOKYO BUILDING, 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
VH79A034H01
Please be sure to put the contact address/telephone number on
this manual before handing it to the customer.
This product is designed and intended for use in the residential,
commercial and light-industrial environment.
VH79A034H01_cover.indd 4 2021/04/21 16:37:37
512
