Mitsubishi Electric PAR-CT01MAU-SB User manual

English
Français
Español
<ORIGINAL>
Prior to use, thoroughly read the instructions in this manual to use the product correctly.
Retain for future reference.
Make sure that this CD-ROM and the Installation Manual are passed on to any future users.
To ensure safety and proper operation of the remote controller, the remote controller should
only be installed by qualified personnel.
CITY MULTI Control System
and M-series and P-series Air Conditioners
MA Touch Remote Controller
PAR-CT01MAU-SB
Instruction Book

Contents
Safety precautions................................................4
Controller components.........................................6
Controller interface - Status display/Main display................6
Controller interface - Menu screen ......................................8
Display - Status display/Main display ................................10
Menu structure and icons...................................12
Menu structure...................................................................12

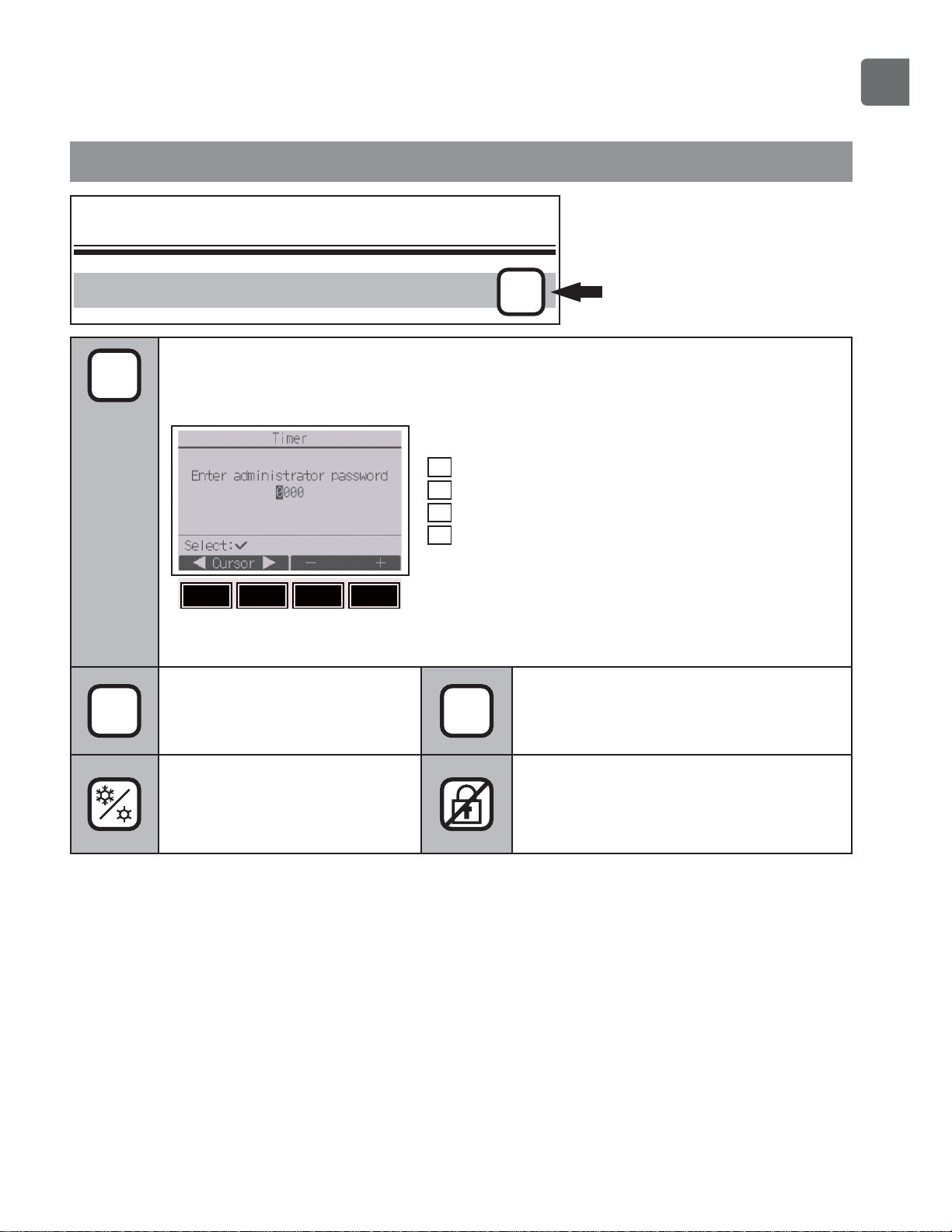

Icon explanations...............................................................15
Basic operations.................................................16

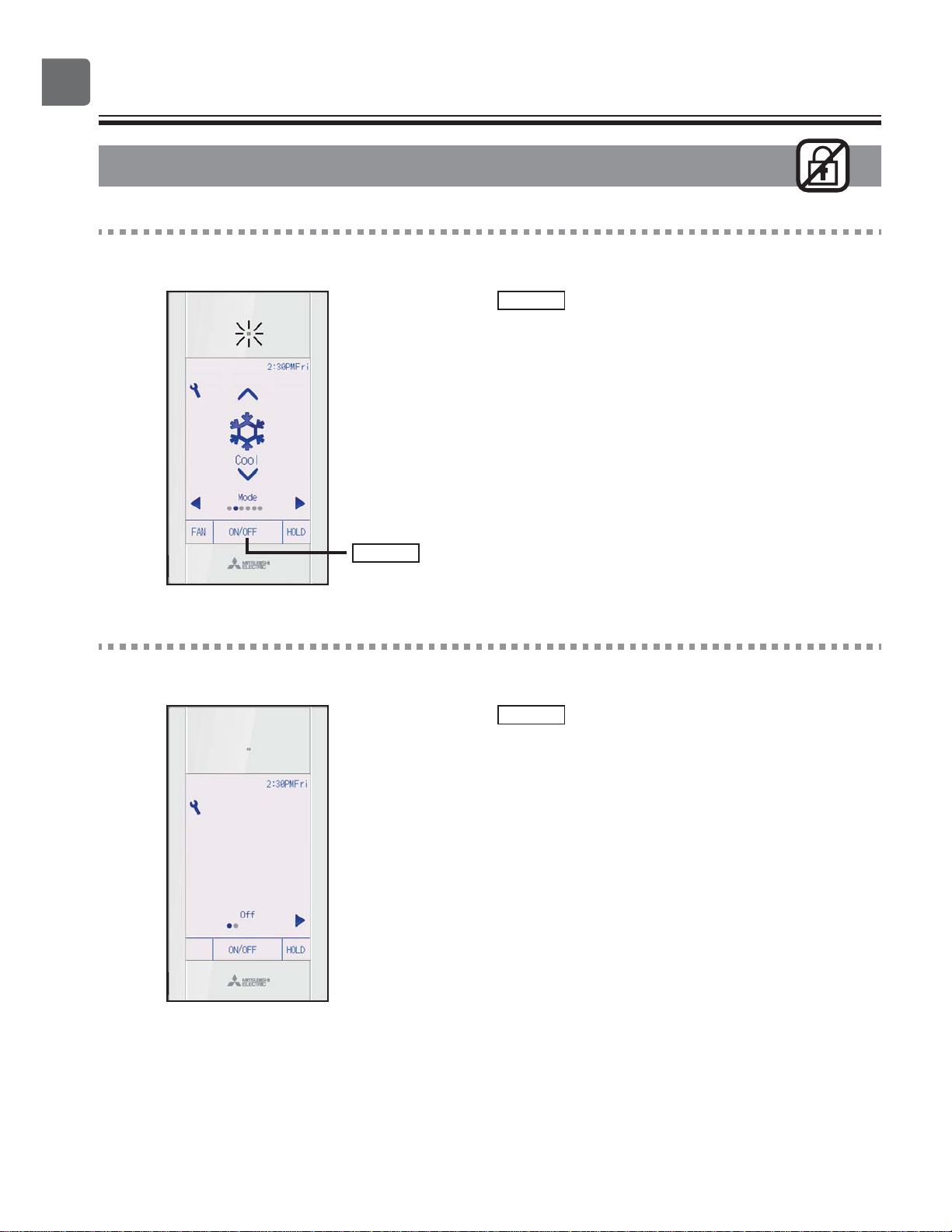

Power ON/OFF..................................................................16

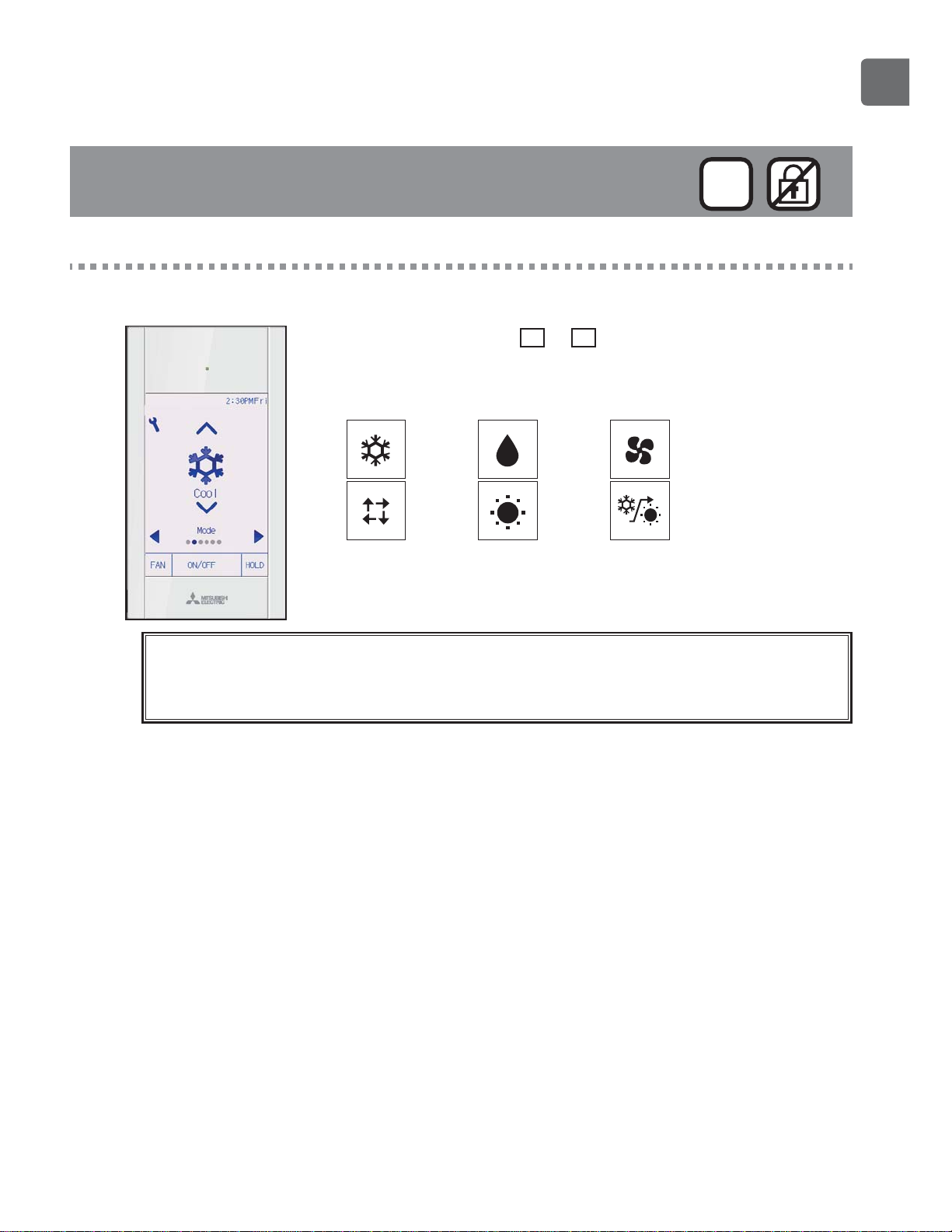

Operation mode, temperature, fan speed, vane, louver,
ventilation (Lossnay), and HOLD settings
..............................17
Navigating through the menu.............................24
Main menu list....................................................................24
Navigating through the Main menu....................................26
Function settings................................................27
High power.........................................................................27
Manual vane angle ............................................................28
Timer (On/Off timer)...........................................................31
Timer (Auto-Off timer)........................................................34
Weekly timer......................................................................36
OU silent mode..................................................................39
Restriction..........................................................................42
Energy saving....................................................................48
Clock..................................................................................53
Daylight saving time...........................................................55
Main display.......................................................................57
Icon explanation.................................................................58
Brightness..........................................................................60
Language selection............................................................61
Design................................................................................63
Touch panel calibration......................................................65
Touch panel cleaning.........................................................67
Initialize remote controller..................................................69
Remote controller information............................................71
Troubleshooting..................................................73
Error information................................................................73
No occupancy Auto-OFF ...................................................76
Maintenance.......................................................77
Filter information................................................................77
Specifications.....................................................79
Controller specifications.....................................................79
Function list (as of October 1, 2017)..................................80
List of functions that can/cannot be used in combination..81

4
Safety precautions
•Thoroughly read the following safety precautions before using the unit.
•Observe these precautions carefully to ensure safety.
WARNING Indicates a risk of death or serious injury.
CAUTION Indicates a risk of serious injury or structural damage.
•After reading this manual, pass it on to the end user to retain for future reference.
•Keep this manual for future reference and refer to it as necessary. This manual should be made available
to those who repair or relocate the controller. Make sure that the manual is passed on to any future
users.
General precautions
WARNING
Do not install the unit in a place where large
amounts of oil, steam, organic solvents, or corrosive
gases, such as sulfuric gas, are present or where
acidic/alkaline solutions or sprays are used
frequently. These substances can compromise the
performance of the unit or cause certain components
of the unit to corrode, which can result in electric
shock, malfunctions, smoke, or fire.
To reduce the risk of shorting, current leakage,
electric shock, malfunctions, smoke, or fire, do not
wash the controller with water or any other liquid.
To reduce the risk of electric shock, malfunctions,
smoke or fire, do not operate the switches/buttons or
touch other electrical parts with wet hands.
When disinfecting the unit using alcohol, ventilate
the room adequately. The fumes of the alcohol
around the unit may cause a fire or explosion when
the unit is turned on.
To reduce the risk of injury or electric shock, before
spraying a chemical around the controller, stop the
operation and cover the controller.
To reduce the risk of injury or electric shock, stop the
operation and switch off the power supply before
cleaning, maintaining, or inspecting the controller.
If any abnormality (e.g., burning smell) is noticed,
stop the operation, turn off the power switch, and
consult your dealer. Continued use of the product
may result in electric shock, malfunctions, or fire.
Properly install all required covers to keep moisture
and dust out of the controller. Dust accumulation and
water can cause electric shock, smoke, or fire.
CAUTION
To reduce the risk of fire or explosion, do not place
flammable materials or use flammable sprays
around the controller.
To reduce the risk of damage to the controller, do not
directly spray insecticide or other flammable sprays
on the controller.
To reduce the risk of environmental pollution, consult
an authorized agency for proper disposal of remote
controller.
To reduce the risk of electric shock or malfunctions,
do not touch the touch panel, switches, or buttons
with a pointy or sharp object.

5
To reduce the risk of injury and electric shock, avoid
contact with sharp edges of certain parts.
To avoid injury from broken glass, do not apply
excessive force on the glass parts.
To reduce the risk of injury, wear protective gear
when working on the controller.
Precautions for moving or repairing the controller
WARNING CAUTION
The controller should be repaired or moved only by
qualified personnel. Do not disassemble or modify
the controller.
Improper installation or repair may cause injury,
electric shock, or fire.
To reduce the risk of shorting, electric shock, fire, or
malfunction, do not touch the circuit board with tools
or with your hands, and do not allow dust to
accumulate on the circuit board.
Additional precautions
To avoid damage to the controller, use appropriate
tools to install, inspect, or repair the controller.
This controller is designed for exclusive use with the
Building Management System by Mitsubishi Electric.
The use of this controller for with other systems or
for other purposes may cause malfunctions.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
To avoid discoloration, do not use benzene, thinner,
or chemical rag to clean the controller. To clean the
controller, wipe with a soft cloth soaked in water with
mild detergent, wipe off the detergent with a wet
cloth, and wipe off water with a dry cloth.
To avoid damage to the controller, provide protection
against static electricity.
This appliance is intended to be used by expert or
trained users in shops, in light industry and on farms,
or for commercial use by lay persons.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

6
Controller components

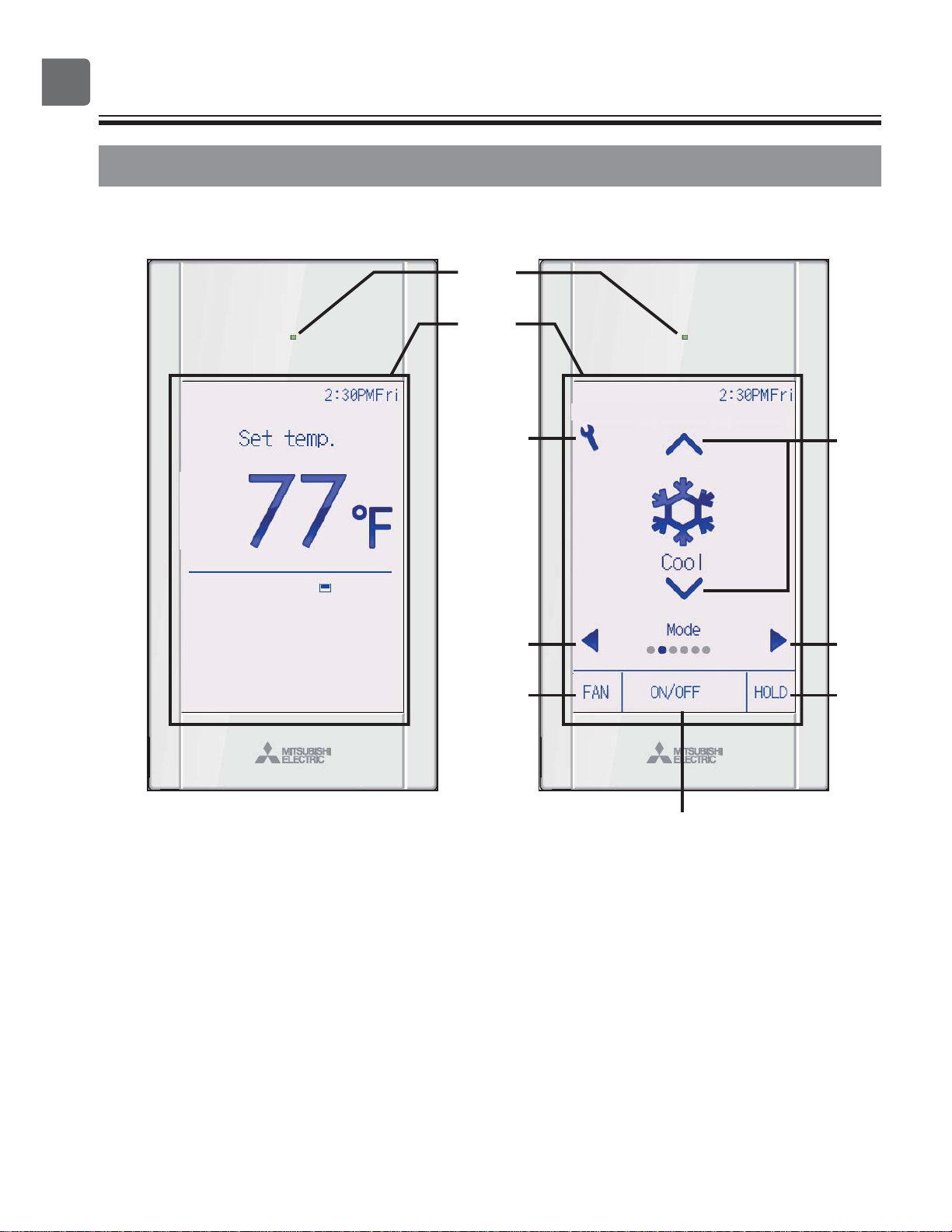

Controller interface - Status display/Main display
Status display Main display
④
③
⑤
②
⑦
⑥
⑧
①
⑨

7
①Touch panel &
Backlit full color LCD
Operation settings will appear.
When the backlight is off, pressing any
area switches the screen to the Status
display. While the Status display is
displayed, pressing any area switches the
screen to the Main display.
② ON/OFF button
Press to turn ON/OFF the indoor unit.
③ Setting button
Press to bring up the Main menu.
When the menu operation is locked, an
administrator password is required.
④◀button
Press to switch the setting items in the
following order: louver, ventilation, vane,
fan speed, operation mode, and preset
temperature.
⑤▶button
Press to switch the setting items in the
following order: preset temperature,
operation mode, fan speed, vane,
ventilation, and louver.
⑥▲▼button
Press to change the contents of the
setting selected in ④and ⑤above.
⑦Fan speed shortcut button
Press to directly access the fan speed
settings screen.
⑧ HOLD button
Press to enable/disable the HOLD
function.
⑨ON/OFF lamp
This lamp lights up in green while the unit
is in operation unless “LED lighting” is set
to “No”. It blinks while the remote
controller is starting up or when there is
an error.
When the ON/OFF operation is locked,
②will not be displayed.
When the setting item is switched with
the ④or ⑤button, if the operation of
the selected setting item is locked, the
item will not be displayed.
If the operation of the fan speed or
HOLD is locked, the item ⑦or ⑧will
not be displayed.
The setting contents cannot be
changed with the ⑥button when the
setting item is centrally controlled by
the system controller.

8
Controller components

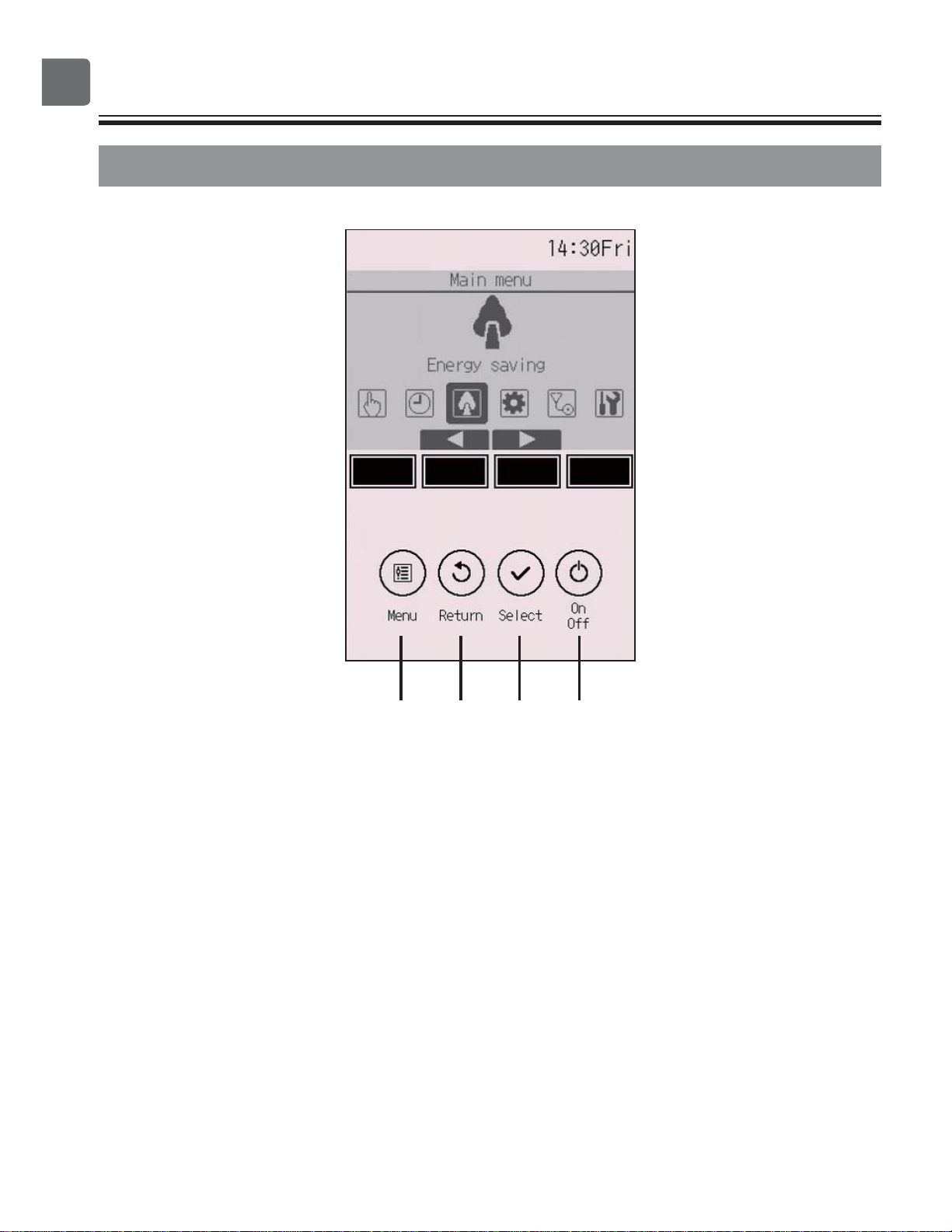

@@@Controller interface - Menu screen
④③②①
⑤⑥⑦⑧

9

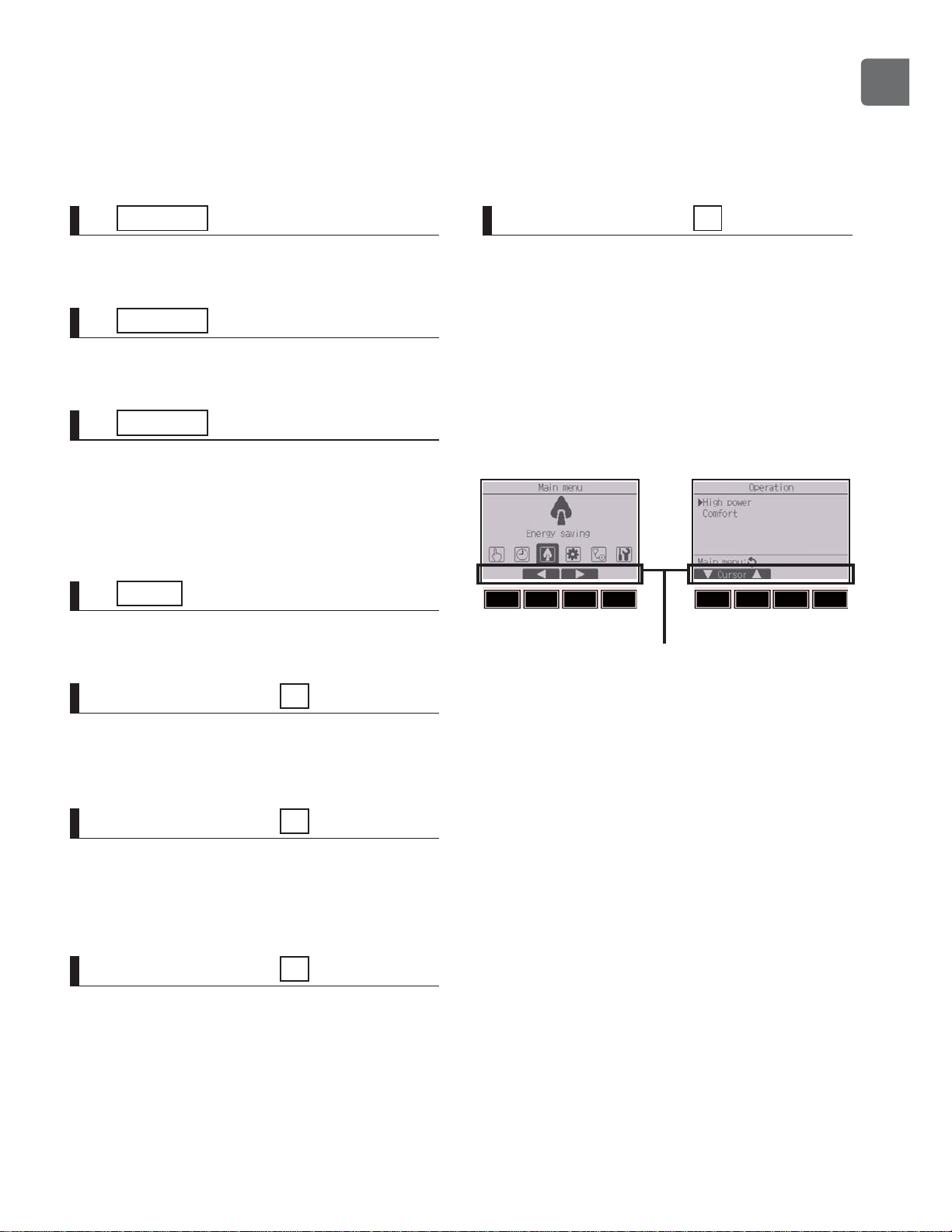

① ON/OFF button
Press to turn ON/OFF the indoor unit.
② SELECT button
Press to save the setting.
③RETURN button
Press to return to the previous screen.
When the Main menu is displayed,
pressing this button will display the Status
display.
④MENU button Page 26
Press to bring up the Main menu.
⑤Function button F1
Menu screen: The button function varies
with the screen.
⑥Function button F2
Main menu: Press to move the cursor left.
Menu screen: The button function varies
with the screen.
⑦Function button F3
Main menu: Press to move the cursor
right.
Menu screen: The button function varies
with the screen.
⑧Function button F4
Menu screen: The button function varies
with the screen.
The functions of the function buttons
change depending on the screen.
Refer to the button function guide that
appears at the bottom of the LCD for
the functions they serve on a given
screen.
Main menu Menu screen
Function guide
⑤⑥⑦⑧ ⑤⑥⑦⑧

10
Controller components

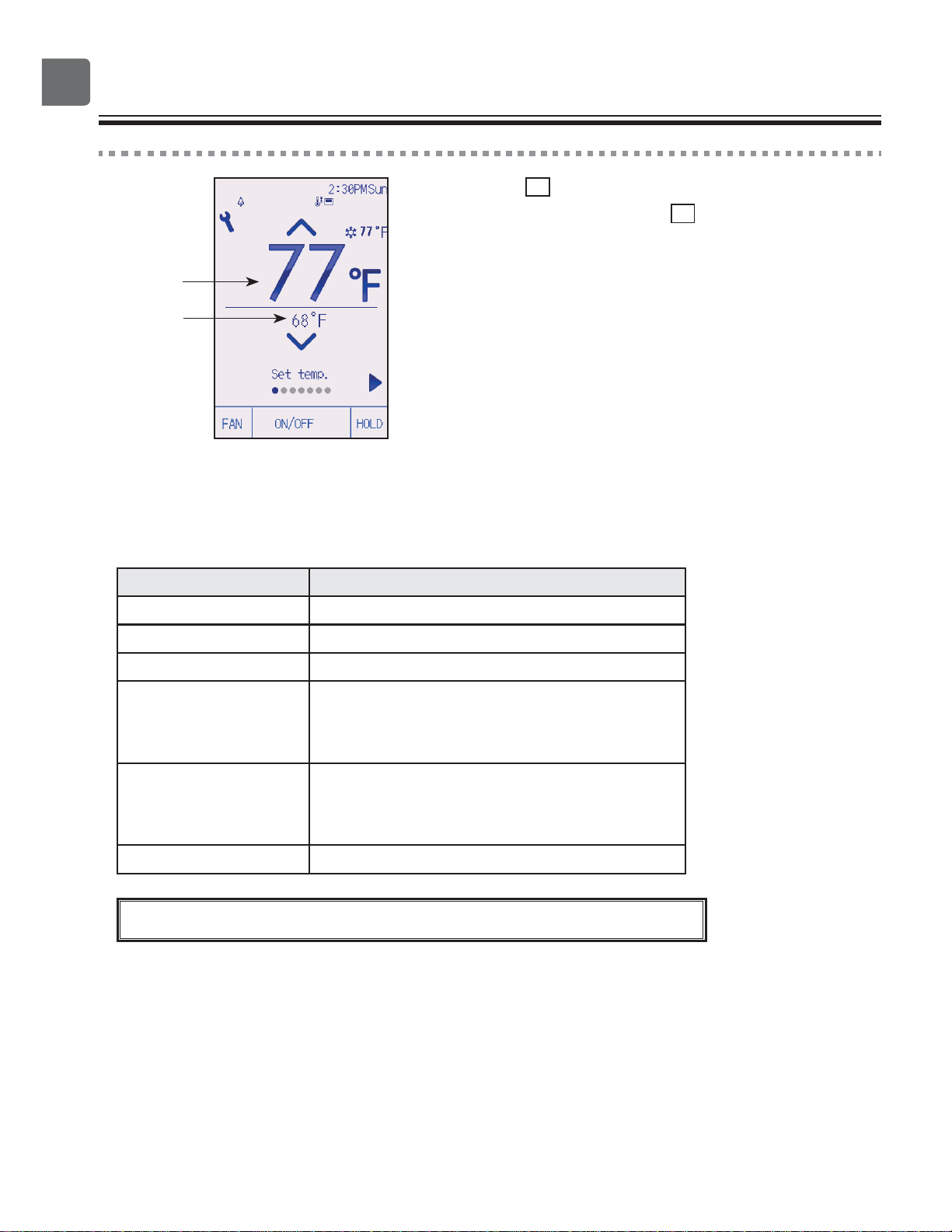

@@@Display - Status display/Main display
The Status display and Main display can be displayed in two different modes:
“Full” and “Basic.”
The factory setting is “Full.” For how to switch the mode, refer to page 57.
Full mode
Status display Main display
Basic mode
Status display Main display
①
③
④–⑰
⑱③
②
⑱
①
③⑱③
②
⑱
* All icons are displayed for explanation.

11
①Preset temperature or room
temperature
Preset temperature or room temperature
appears here. (See the Installation Manual.)
②Setting item and setting
contents Page 17
The setting items “Preset temperature”
↔“Operation mode” ↔“Fan speed”
↔“Vane” ↔“Ventilation” ↔“Louver,” and
their setting contents appear here.
“Centrally controlled” appears for a certain
period of time when a centrally-controlled
item is operated.
③Clock
Current time appears here.
(See the Installation Manual.)
④ Page 31, 34
Appears when the On/Off timer (Page
31) or Auto-off timer (Page 34)
function is enabled.
appears when the timer is disabled by
the centralized control system.
⑤ Page 36
Appears when the Weekly timer is enabled.
⑥ Page 50
Appears while the units are operated in the
energy-save mode. (Will not appear on
some models of indoor units)
⑦ Page 39
Appears while the outdoor units are
operated in the silent mode.
⑧
Appears when the ON/OFF operation is
centrally controlled.
⑨
Appears when the operation mode is
centrally controlled.
⑩
Appears when the preset temperature is
centrally controlled.
⑪
Appears when the filter reset function is
centrally controlled.
⑫ Page 45
Appears when the buttons are locked.
⑬ Page 42
Appears when the preset temperature
range is restricted.
⑭
Appears when the built-in thermistor on the
remote controller is activated to monitor
the room temperature.
appears when the thermistor on the
indoor unit is activated to monitor the room
temperature.
⑮
Appears when an energy-saving operation
is performed using a “3D i-See sensor”
function.
⑯ Page 77
Indicates when filter needs maintenance.
⑰
Appears when the HOLD function is
enabled.
⑱Preliminary error display
An error code appears during the
preliminary error.

12
Menu structure and icons
Menu structure
Main menu
High power .......................................Page 27
Comfort
Manual vane angle.............................Page 28
3D i-See sensor...................................
Refer to the indoor unit Instruction Book.
Timer
On/Off timer........................................Page 31
Auto-Off timer .....................................Page 34
Weekly timer .......................................Page 36
OU silent mode .......................................Page 39
Restriction
Temp. range.........................................Page 42
Operation locked..................................Page 45
Energy saving
Auto return...........................................Page 48
Schedule .............................................Page 50
Basic setting
Clock
Clock.........................................Page 53
Daylight saving time...................Page 55
Administrator password........................Refer to the Installation Manual.
Operation
Timer menu
Energy saving
Initial setting menu

13
Display setting
Main display.........................................Page 57
Display details (Icon explanation etc.) .........Refer to the Installation Manual.
Brightness...........................................Page 60
Language selection..............................Page 61
Design.................................................Page 63
Operation setting
Auto mode...........................................Refer to the Installation Manual.
Setback mode
Touch panel .......................................Page 65
Error information .......................................Page 73
Filter information .......................................Page 77
Cleaning
Auto descending panel.......................Refer to the Instructions Manual that
came with the automatic elevating panel.
Descending operation ................Refer to the Instructions Manual that
came with the automatic elevating panel.
Descending adjustment..............Refer to the Instructions Manual that
came with the automatic elevating panel.
Test run menu
Test run...............................................Refer to the indoor unit Installation
Manual.
Drain pump test run............................Refer to the indoor unit Installation
Manual.
Maintenance information ..................................Refer to the indoor unit Installation
Manual.
Model name input...............................Refer to the indoor unit Installation
Manual.
Serial No. input...................................Refer to the indoor unit Installation
Manual.
Dealer information input .....................Refer to the indoor unit Installation
Manual.
Initialize maintenance info..................Refer to the indoor unit Installation
Manual.
Maintenance menu
Service menu

14
Menu structure and icons
Settings menu
Function setting (M/P-series)..............Refer to the Installation Manual.
Function setting (CITY MULTI)...........Refer to the Installation Manual.
Lossnay (CITY MULTI only)................Refer to the Installation Manual.
Check menu
Error history........................................Refer to the Installation Manual.
Diagnosis
Self check..................................Refer to the Installation Manual.
Remote controller check.............Refer to the Installation Manual.
Smooth maintenance
(
M/P-series only)
..................................Refer to the indoor unit Installation
Manual.
Request code (M/P-series only).........Refer to the indoor unit Installation
Manual.
Other menu
Maintenance password.......................Refer to the Installation Manual.
Initialize remote controller ..................Page 69
Remote controller information ............Refer to the Installation Manual.
Not all functions are available on all models of indoor units.

15
Icon explanations
Controller operation
Timer P
PThe administrator or maintenance user password must be entered on the
password input screen to change settings. There is no settings that can skip this
process.
F1 : Press to move the cursor left.
F2 : Press to move the cursor right.
F3 : Press to decrease the value by 1.
F4 : Press to increase the value by 1.
* Changes cannot be made unless the
correct password is entered.
ON
Indicates settings that can be
changed only while the units
are in operation.
OFF
Indicates settings that can be changed
only while the units are not in
operation.
Indicates settings that can be
changed only while the units
are operated in the Cool,
Heat, or Auto mode.
Indicates functions that are not
available when the buttons are locked
or the system is centrally controlled.
The table below
summarizes the square
icons used in this manual.
F4F3F2F1

16
Basic operations
Power ON/OFF
Button operation
ON Press the ON/OFF button.
The ON/OFF lamp will light up in green, and the
operation will start.
When “LED lighting” is set to “No,” the ON/OFF lamp will
not light up.
OFF Press the ON/OFF button again.
The ON/OFF lamp will come off, and the operation will
stop.
ON/OFF button

17
Operation mode, temperature, fan speed, vane, louver,
ventilation (Lossnay), and HOLD settings
ON
Button operation
Operation mode
Each pressing of the ▼or ▲button cycles through the
following operation modes.
Select the desired operation mode.
Cool Drying Fan
Auto Heat Setback
•Operation modes that are not available to the connected indoor unit
models will not appear on the display.
What the blinking mode icon means
The mode icon will blink when other indoor units in the same refrigerant system (connected to the same
outdoor unit) are already operated in a different mode. In this case, the rest of the unit in the same
group can only be operated in the same mode.

18
Basic operations
Auto (dual set point) and Setback modes:
When the operation mode is set to the Auto (dual set point) mode or the Setback mode, two
set temperatures (one each for cooling and heating) can be set. Depending on the room
temperature, indoor unit will automatically operate in either the cooling or heating mode and
keep the room temperature within the preset range.
ŶDifferences between the two modes
 Auto (dual set point) mode
The set temperatures that are specified for the Cool/Drying mode and the Heat mode will
be used to automatically control the room temperature to stay within the set temperatures.
This mode is especially effective during the in-between seasons, when the temperature
difference between the highest and the lowest is large and both heating and cooling
modes are used within the same day.
 Setback mode
Room temperature is controlled to stay within the set temperature range that is specified
for the Setback mode. By leaving sufficient temperature differential between the set
temperature for cooling (upper limit) and heating (lower limit), it is possible to keep the
room temperature within the specified range without overworking the air conditioners.
This setting will be especially effective during periods of non-occupancy.
Set temp.
(Cool)
Set temp.
(Heat)

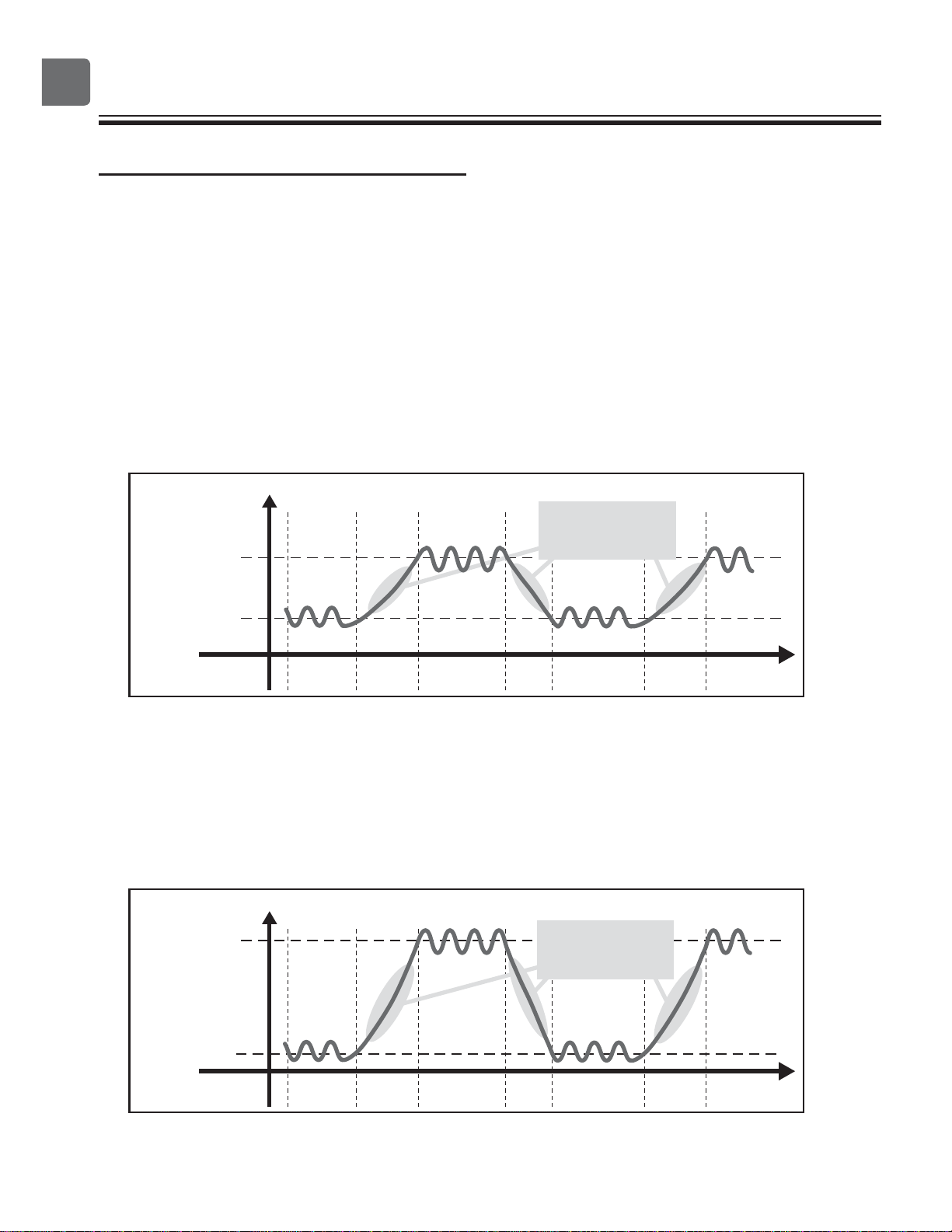

Operation pattern during Auto (dual set point) mode
Heat Cool
The room temperature
changes corresponding
to the change in the
outside temperature.
Heat
Room
temperature
Cool
Set temp.
(Setback_Cool)
Set temp.
(Setback_Heat)
Operation pattern during Setback mode
Heat Cool
The room temperature
changes corresponding
to the change in the
outside temperature.
Heat
Room
temperature
Cool

19

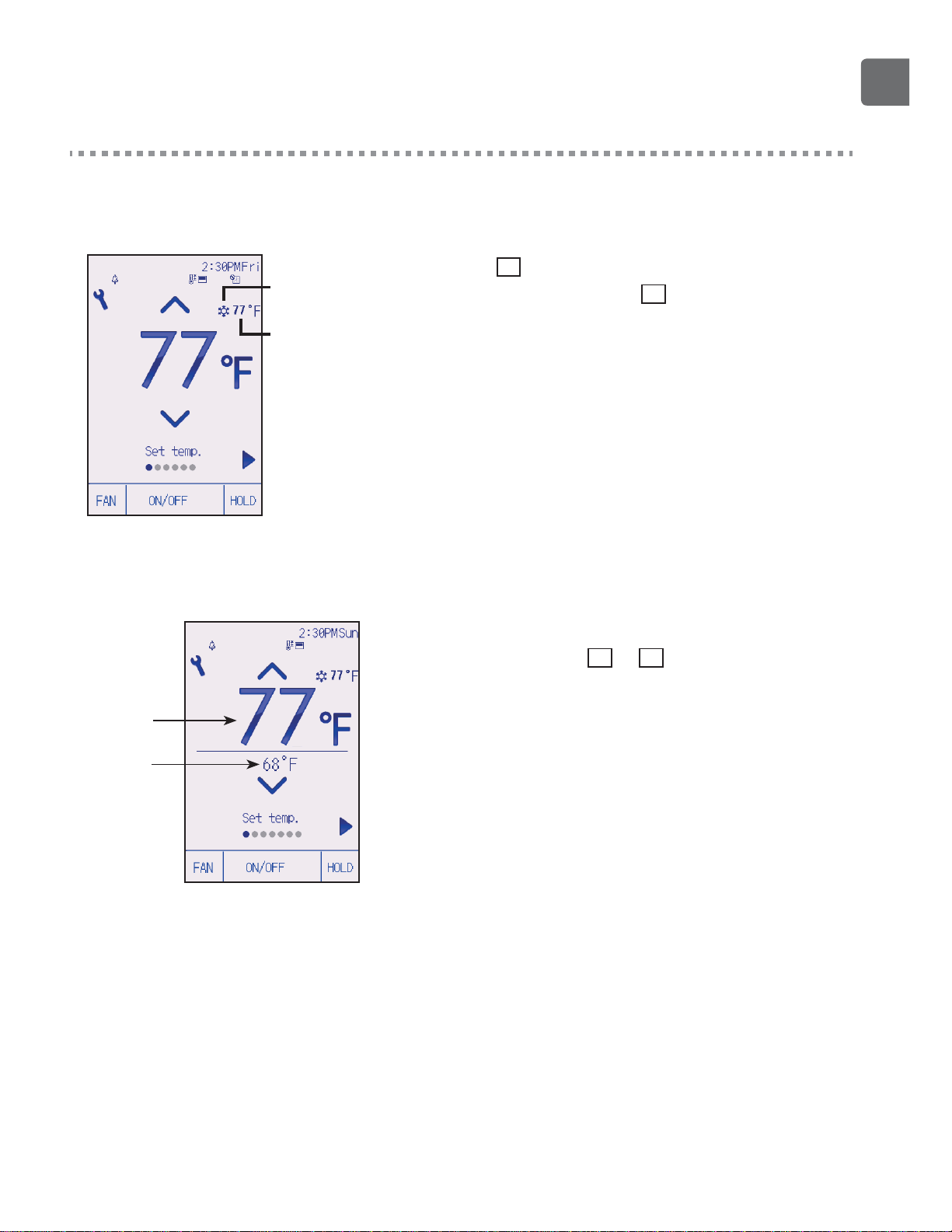

Preset temperature
<Cool, Drying, Heat, and Auto (single set point)>
Press the ▼button to decrease the preset
temperature, and press the ▲button to increase.
•Refer to the table on page 20 for the settable
temperature range for different operation modes.
•Preset temperature range cannot be set for Fan/
Ventilation operation.
•Preset temperature will be displayed either in Centigrade
in 0.5- or 1-degree increments, or in Fahrenheit,
depending on the indoor unit model and the display mode
setting on the remote controller.
<Auto (dual set point) or Setback mode>
1The current preset temperatures will appear.
Each pressing of the ◀or ▶button switches the
preset temperatures for cooling and heating.
Room temperature
(Refer to the
Installation Manual.)
Operation mode
Preset
temperature
for cooling
Preset
temperature
for heating

20
Basic operations
2Press the ▼button to decrease the selected
temperature, and press the ▲button to increase.
•Refer to the table below for the settable temperature
range for different operation modes.
•The preset temperature settings for cooling and heating in
the Auto (dual set point) mode are also used by the Cool/
Drying and Heat modes.
•The preset temperatures for cooling and heating in the
Auto (dual set point) mode must meet the conditions
below:
Preset cooling temperature is higher than preset heating temperature.
The minimum temperature difference requirement between cooling and
heating preset temperatures (varies with the models of indoor units
connected) is met.
If preset temperatures are set in a way that does not meet the minimum
temperature difference requirement, both preset temperatures will
automatically be changed within the allowable setting ranges.
Settable preset temperature range
Operation mode Preset temperature range
Cool/Drying 19 ~ 30 ºC (67 ~ 87 ºF)
Heat 17 ~ 28 ºC (63 ~ 83 ºF)
Auto (Single set point) 19 ~ 28 ºC (67 ~ 83 ºF)
Auto (Dual set points) [Cool]
Preset temperature range for the Cool mode
[Heat]
Preset temperature range for the Heat mode
Setback [Cool]
Preset temperature range for the Cool mode
[Heat]
Preset temperature range for the Heat mode
Fan/Ventilation Not settable
The settable temperature range varies with the model of indoor units.
Preset
temperature
for heating
Preset
temperature
for cooling
