Mitsubishi Heavy Industries SRK100VNXPZSX User manual

Manual No.'17•PAC-T-257
updated September 28, 2018
TECHNICAL MANUAL
INVERTER PACKAGED AIR-CONDITIONERS
(Split system, air to air heat pump type)
WALL MOUNTED TYPE
HYPER INVERTER
WALL MOUNTED TYPE
MICRO INVERTER
Twin type
SRK100VNXPZSX
100VSXPZSX
125VNXPZSX
125VSXPZSX
Triple Type
SRK140VNXTZSX
140VSXTZSX
Twin type
SRK100VNPZSX
100VSPZSX
125VNPZSX
125VSPZSX
Triple type
SRK140VNTZSX
140VSTZSX

-
1
-
'17 • PAC-T-257
TABLE OF CONTENTS
1. HYPER INVERTER PACKAGED AIR-CONDITIONERS ....................................... 2
2. MICRO INVERTER PACKAGED AIR-CONDITIONERS .......................................154
3. OPTION PARTS .....................................................................................................191

-
2
-
'17 • PAC-T-257
CONTENTS
1.1 SPECIFICATIONS ............................................................................... 4
1.2 EXTERIOR DIMENSIONS ................................................................... 10
(1) Indoor units ...................................................................................... 10
(2) Outdoor units ................................................................................... 11
1.4 NOISE LEVEL
1.3 ELECTRICAL WIRING ........................................................................ 15
(1) Indoor units ...................................................................................... 15
(2) Outdoor units ................................................................................... 16
(3) Remote control ................................................................................ 12
..................................................................................... 18
1. HYPER INVERTER PACKAGED AIR-CONDITIONERS
1.5 PIPING SYSTEM
1.6 RANGE OF USAGE & LIMITATIONS
1.7 SELECTION CHART
1.7.1 Capacity tables
1.7.2
Correction of cooling and heating capacity in relation to air flow rate control (fan speed)
1.7.3 Correction of cooling and heating capacity in relation to one way length of refrigerant piping
1.7.4 Height difference between the indoor unit and outdoor unit
1.8 APPLICATION DATA
1.8.1 Installation of indoor unit
.......................................................................... 32
............................................................................. 26
.... 30
.... 30
.... 30
................................................................................. 20
................................................. 22
........................................................................... 26
1.8.3 Installation of outdoor unit .......................................................... 49

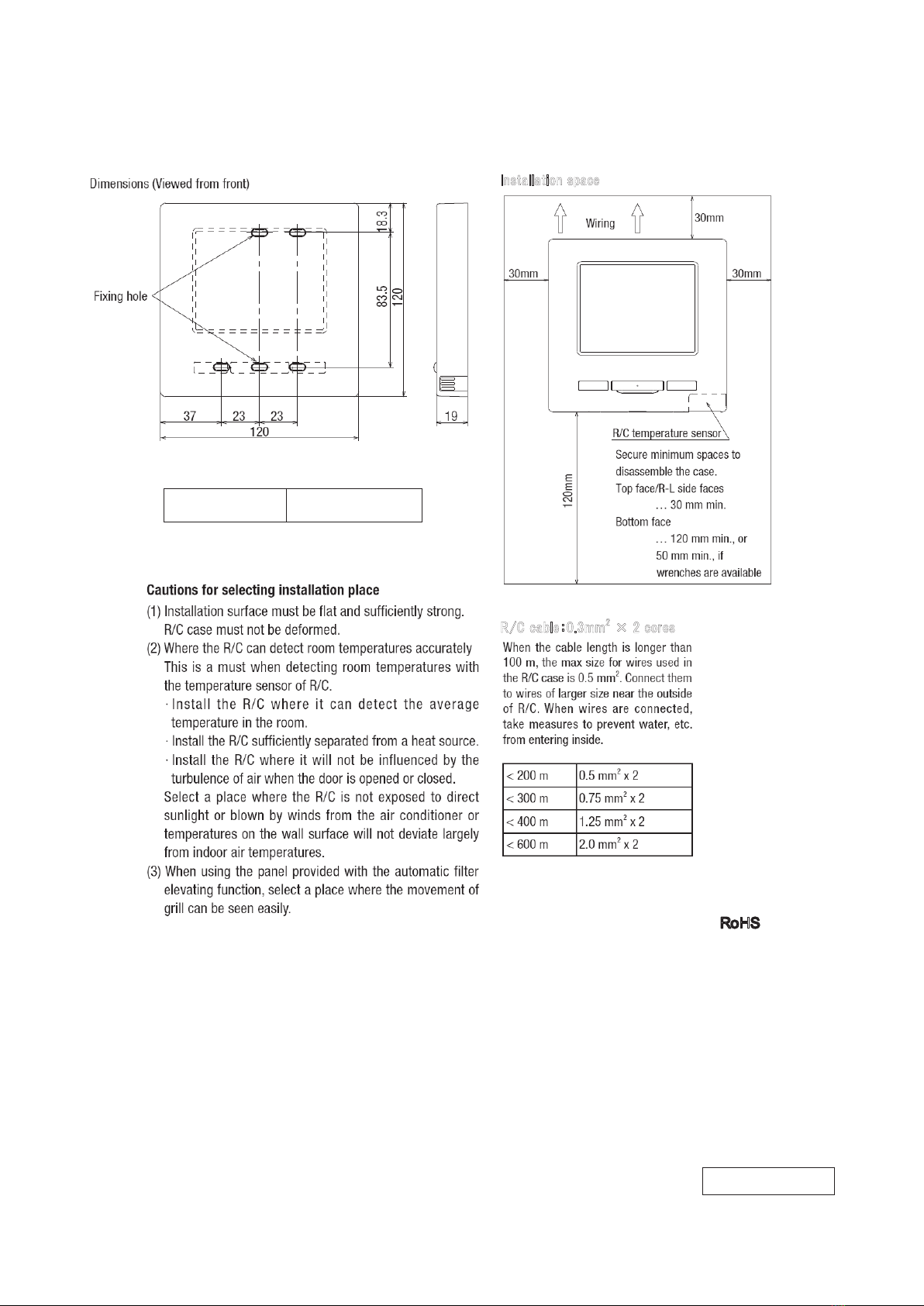

1.8.2 Installation of wired remote control (Option) ............................. 36
.... 57
1.9 OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER ...... 60

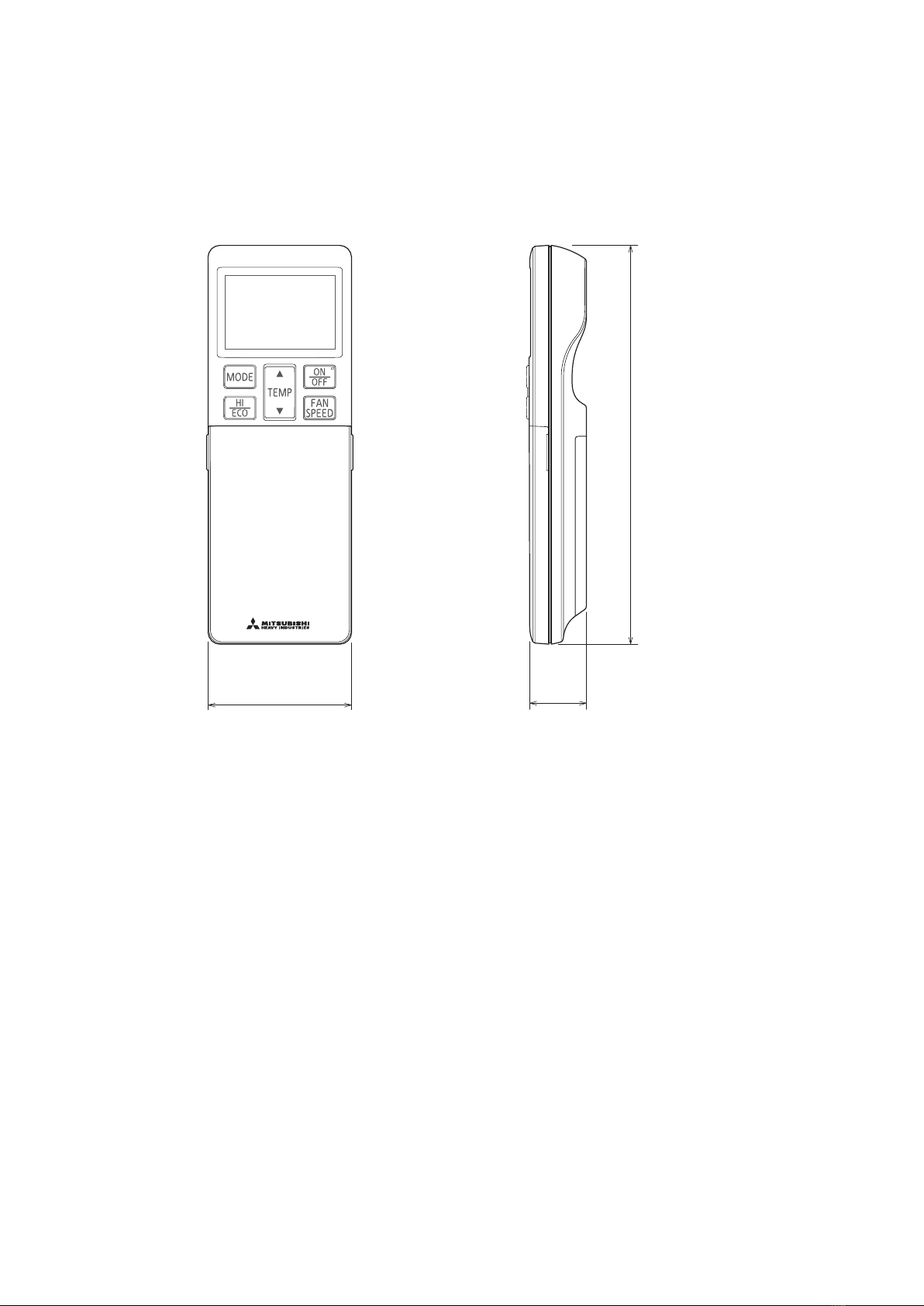

1.9.1 Remote control ............................................................................. 60
1.9.2 Operation control function by the wired remote control
1.9.3 Operation control function by the indoor control ..................... 66
.......... 63
1.8.4 Instructions for branching pipe set (DIS-WA1,WB1,TA1,TB1)
(2) Auto restart function
(3) Auto swing control
...................................................................... 66
......................................................................... 66
...................................................................... 66(1) Unit ON/OFF button
(5) Remote control display during the operation stop
(6) Outline of heating or cooling operation
........................ 68
......................................... 68
............................................................................. 67(4) Timer operation
(7) Indoor fan motor protection
(8) Serial signal transmission error protection
........................................................... 69
.................................... 69
................................................................ 71(12) Frost prevention control
(10) Filter sign
(11) Outline of automatic operation
..................................................................................... 70
..................................................... 70
.... 69(9)
Plural unit control - Control of 16 units group by one remote control
..................................... 72(14) Outline of defumidifying (DRY) operation
(13)
Dew prevention control .................................................................... 71
............................................................ 32

-
3
-
'17 • PAC-T-257
1.9.4 Operation control function by the outdoor control ......................... 73
(1) Determination of comressor speed (Frequency)
(2) Compressor start control
.................................. 73
..................................................................... 73
(3) Compressor soft start control
(4) Outdoor unit fan control
.............................................................. 74
....................................................................... 75
(5) Defrost operation
(6)
Protective control/anomalous stop control by compressor,s number of revolutions
................................................................................. 77
..... 78
(7) Silent mode
(8) Test run
......................................................................................... 82
................................................................................................ 82
(9) Pump-down control
(10) Base heater ON/OFF output control (Option)
............................................................................. 82
...................................... 83
(1) List of troubles
(2) Troubleshooting
(7) Inverter checker for diagnosis of inverter output
1.10.2 Troubleshooting flow
(8) Outdoor unit control failure diagnosis circuit diagram
..........................................................................108
......................................................................................108
....................................................................................109
(1) Selfdiagnosis function
(2) Troubleshooting procedure
1.10.1 Diagnosing of microcomputer circuit ................................................. 84
1.10 MAINTENANCE DATA ................................................................................. 84
.......................................................................... 84
.................................................................. 87
(3) Troubleshooting at the indoor unit
(4) Troubleshooting at the outdoor unit
....................................................... 87
..................................................... 93
(5) Check of anomalous operation data with the remote control
(6)
Power transistor module (including the driver PCB) inspection procedure
..............100
.....102
.................................103
..........................104
1.11 TECHNICAL INFORMATION ........................................................................152
■ How to read the model name
Example: SRK 100 P ZSX
Series code
Applicable power source...See the specification
Product capacity
Model name
FDC : Outdoor unit
SRK : Wall mounted type
P : Twin type
T : Triple type
VNX

-
4
-
'17 • PAC-T-257
Model
Item
SRK100VNXPZSX
Indoor unit SRK50ZSX-S (2 units) Outdoor unit FDC100VNX
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 10.0 [ 4.0(Min.)-11.2(Max.)]
Nominal heating capacity (range) kW 11.2 [ 4.0(Min.)-12.5(Max.)]
Power consumption Cooling
kW
2.66
Heating 2.60
Max power consumption 4.26
Running current Cooling
A
11.8 / 12.3
Heating 11.5 / 12.1
Inrush current, max current 5 , 24
Power factor Cooling %98
Heating 98
EER Cooling 3.76
COP Heating 4.31
Sound power level Cooling
dB(A)
59 70
Heating 62
Sound pressure level Cooling Hi : 44 Me : 39 Lo : 31 ULo : 22 48
Heating Hi : 46 Me : 41 Lo : 33 ULo : 23 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 305 × 920 × 220 1300 × 970 × 370
Exterior appearance
( Munsell color )
Fine snow
Munsell: ( 8.0Y 9.3 / 0.1 ), RAL: 9003
Stucco white
( 4.2Y7.5 / 1.1 ) near equivalent
Net weight kg 13 105
Compressor type & Q'ty — RMT5134MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 (M-MA68)
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fins & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Tangential fan x 1 Propeller fan × 2
Fan motor (Starting method) W 42 x 1 < Direct line start > 86 x 2 < Direct line start >
Air flow Cooling
m
3
/min
Hi : 14.3 Me : 12.4 Lo : 7.8 ULo : 5.4 100
Heating Hi : 17.3 Me : 14.3 Lo : 9.8 ULo : 6.2
Available external static pressure Pa 0 0
Outside air intake Not possible —
Air filter, Quality / Quantity Polypropylene net ( washable ) x 2 —
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber sleeve (for compressor )
Electric heater W — 20 (Crank case heater)
Operation
control
Remote control (option) wired : RC-EX3, RC-E5, RCH-E3 Interface kit : SC-BIKN-E
Room temperature control Thermostat by electronics
Operation display RUN: Green, TIMER : Yellow, ECO : Blue
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") ②φ9.52 (3/8")x0.8 ①φ9.52 (3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: I/Uφ12.7 (1/2") ②φ12.7 (1/2")x0.8 ①φ15.88 (5/8")x1.0 O/Uφ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP16 Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Clean filter Edging
Option parts —
1.1 SPECIFICATIONS
Wall mounted type (SRK)
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) The operation data indicates when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
(6) Indoor unit specifications for one unit. Capacity and operation data is two indoor units are combined and run together.
(7) Branching pipe set "DIS-WA1"×1(option). ①: Pipe of O/U~Branch. ②: Pipe of Branch~I/U
Notes (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
H
PCA001Z717

-
5
-
'17 • PAC-T-257
H
PCA001Z717
Model
Item
SRK125VNXPZSX
Indoor unit SRK60ZSX-S (2 units) Outdoor unit FDC125VNX
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 12.5 [ 5.0(Min.)-14.0(Max.)]
Nominal heating capacity (range) kW 14.0 [ 4.0(Min.)-17.0(Max.)]
Power consumption Cooling
kW
3.60
Heating 3.48
Max power consumption 5.76
Running current Cooling
A
16.0 / 16.7
Heating 15.4 / 16.1
Inrush current, max current 5 , 26
Power factor Cooling %98
Heating 98
EER Cooling 3.47
COP Heating 4.02
Sound power level Cooling
dB(A)
62 70
Heating 63
Sound pressure level Cooling Hi : 46 Me : 41 Lo : 33 ULo : 22 48
Heating Hi : 46 Me : 42 Lo : 34 ULo : 23 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 305 × 920 × 220 1300 × 970 × 370
Exterior appearance
( Munsell color )
Fine snow
Munsell : ( 8.0Y 9.3/0.1 ), RAL : 9003
Stucco white
( 4.2Y7.5/1.1 ) near equivalent
Net weight kg 13 105
Compressor type & Q'ty — RMT5134MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 (M-MA68)
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fins & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Tangential fan x 1 Propeller fan × 2
Fan motor (Starting method) W 42 x 1 < Direct line start > 86 x 2 < Direct line start >
Air flow Cooling
m
3
/min
Hi : 16.3 Me : 13.4 Lo : 8.9 ULo : 5.4 100
Heating Hi : 17.8 Me : 13.7 Lo : 10.9 ULo : 6.2
Available external static pressure Pa 0 0
Outside air intake Not possible —
Air filter, Quality / Quantity Polypropylene net ( washable ) x 2 —
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber sleeve (for compressor )
Electric heater W — 20 (Crank case heater)
Operation
control
Remote control (option) wired : RC-EX3, RC-E5, RCH-E3 Interface kit : SC-BIKN-E
Room temperature control Thermostat by electronics
Operation display RUN: Green, TIMER: Yellow, ECO: Blue
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") ②φ9.52(3/8")x0.8 ①φ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: I/Uφ12.7 (1/2") ②φ12.7(1/2")x0.8 ①φ15.88(5/8")x1.0 O/Uφ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP16 Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Clean filter Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) The operation data indicates when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
(6) Indoor unit specifications for one unit. Capacity and operation data is two indoor units are combined and run together.
(7) Branching pipe set "DIS-WA1"×1(option). ①: Pipe of O/U~Branch. ②: Pipe of Branch~I/U
Notes (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.

-
6
-
'17 • PAC-T-257
Model
Item
SRK140VNXTZSX
Indoor unit SRK50ZSX-S (3 units) Outdoor unit FDC140VNX
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 14.0 [ 5.0(Min.)-16.0(Max.)]
Nominal heating capacity (range) kW 16.0 [ 4.0(Min.)-18.0(Max.)]
Power consumption Cooling
kW
3.98
Heating 3.68
Max power consumption 5.57
Running current Cooling
A
17.7 / 18.5
Heating 16.3 / 17.1
Inrush current, max current 5 , 26
Power factor Cooling %98 / 98
Heating 98
EER Cooling 3.52
COP Heating 4.35
Sound power level Cooling
dB(A)
59 72
Heating 62
Sound pressure level Cooling Hi : 44 Me : 39 Lo : 31 ULo : 22 49
Heating Hi : 46 Me : 41 Lo : 33 ULo : 23 52
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 305 × 920 × 220 1300 × 970 × 370
Exterior appearance
( Munsell color )
Fine snow
Munsell: ( 8.0Y 9.3/0.1 ), RAL: 9003
Stucco white
( 4.2Y7.5/1.1 ) near equivalent
Net weight kg 13 105
Compressor type & Q'ty — RMT5134MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 (M-MA68)
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fins & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Tangential fan x 1 Propeller fan × 2
Fan motor (Starting method) W 42 x 1 < Direct line start > 86 x 2 < Direct line start >
Air flow Cooling
m
3
/min
Hi : 14.3 Me : 12.4 Lo : 7.8 ULo : 5.4 100
Heating Hi : 17.3 Me : 14.3 Lo : 9.8 ULo : 6.2
Available external static pressure Pa 0 0
Outside air intake Not possible —
Air filter, Quality / Quantity Polypropylene net ( washable ) x 2 —
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber sleeve (for compressor )
Electric heater W — 20 (Crank case heater)
Operation
control
Remote control (option) wired : RC-EX3, RC-E5, RCH-E3 Interface kit : SC-BIKN-E
Room temperature control Thermostat by electronics
Operation display RUN : Green, TIMER : Yellow, ECO : Blue
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") ②φ9.52 (3/8")x0.8 ①φ9.52 (3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: I/Uφ12.7 (1/2") ②φ12.7 (1/2")x0.8 ①φ15.88 (5/8")x1.0 O/Uφ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP16 Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Clean filter Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) The operation data indicates when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
(6) Indoor unit specifications for one unit. Capacity and operation data is two indoor units are combined and run together.
(7) Branching pipe set "DIS-WA1"×1(option). ①: Pipe of O/U~Branch. ②: Pipe of Branch~I/U
Notes (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
H
PCA001Z717

-
7
-
'17 • PAC-T-257
H
PCA001Z717
Model
Item
SRK100VSXPZSX
Indoor unit SRK50ZSX-S (2 units) Outdoor unit FDC100VSX
Power source 3 Phase 380-415V 50Hz / 380V 60Hz
Operation
data
Nominal cooling capacity (range) kW 10.0 [ 4.0(Min.)-11.2(Max.)]
Nominal heating capacity (range) kW 11.2 [ 4.0(Min.)-16.0(Max.)]
Power consumption Cooling
kW
2.66
Heating 2.60
Max power consumption 5.32
Running current Cooling
A
3.9 / 4.1
Heating 3.8 / 4.0
Inrush current, max current 5 , 15
Power factor Cooling %98 / 99
Heating 99
EER Cooling 3.76
COP Heating 4.31
Sound power level Cooling
dB(A)
59 70
Heating 62
Sound pressure level Cooling Hi : 44 Me : 39 Lo : 31 ULo : 22 48
Heating Hi : 46 Me : 41 Lo : 33 ULo : 23 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 305 × 920 × 220 1300 × 970 × 370
Exterior appearance
( Munsell color )
Fine snow
Munsell : ( 8.0Y 9.3/0.1 ), RAL : 9003
Stucco white
( 4.2Y7.5/1.1 ) near equivalent
Net weight kg 13 105
Compressor type & Q'ty — RMT5134MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 (M-MA68)
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fins & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Tangential fan x 1 Propeller fan × 2
Fan motor (Starting method) W 42 x 1 < Direct line start > 86 x 2 < Direct line start >
Air flow Cooling
m
3
/min
Hi : 14.3 Me : 12.4 Lo : 7.8 ULo : 5.4 100
Heating Hi : 17.3 Me : 14.3 Lo : 9.8 ULo : 6.2
Available external static pressure Pa 0 0
Outside air intake Not possible —
Air filter, Quality / Quantity Polypropylene net ( washable ) x 2 —
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber sleeve (for compressor )
Electric heater W — 20 (Crank case heater)
Operation
control
Remote control (option) wired : RC-EX3, RC-E5, RCH-E3 Interface kit : SC-BIKN-E
Room temperature control Thermostat by electronics
Operation display RUN: Green, TIMER: Yellow, ECO: Blue
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") ②φ9.52(3/8")x0.8 ①φ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: I/Uφ12.7 (1/2") ②φ12.7(1/2")x0.8 ①φ15.88(5/8")x1.0 O/Uφ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP16 Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Clean filter Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) The operation data indicates when the air-conditioner is operated at 400V 50Hz or 380V 60Hz.
(6) Indoor unit specifications for one unit. Capacity and operation data is two indoor units are combined and run together.
(7) Branching pipe set "DIS-WA1"×1(option). ①: Pipe of O/U~Branch. ②: Pipe of Branch~I/U
Notes (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.

-
8
-
'17 • PAC-T-257
Model
Item
SRK125VSXPZSX
Indoor unit SRK60ZSX-S (2 units) Outdoor unit FDC125VSX
Power source 3 Phase 380-415V 50Hz / 380V 60Hz
Operation
data
Nominal cooling capacity (range) kW 12.5 [ 5.0(Min.)-14.0(Max.)]
Nominal heating capacity (range) kW 14.0 [ 4.0(Min.)-18.0(Max.)]
Power consumption Cooling
kW
3.60
Heating 3.48
Max power consumption 7.20
Running current Cooling
A
5.3 / 5.6
Heating 5.1 / 5.4
Inrush current, max current 5 , 15
Power factor Cooling %98
Heating 98
EER Cooling 3.47
COP Heating 4.02
Sound power level Cooling
dB(A)
62 70
Heating 63
Sound pressure level Cooling Hi : 46 Me : 41 Lo : 33 ULo : 22 48
Heating Hi : 46 Me : 42 Lo : 34 ULo : 23 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 305 × 920 × 220 1300 × 970 × 370
Exterior appearance
( Munsell color )
Fine snow
Munsell : ( 8.0Y 9.3/0.1 ), RAL : 9003
Stucco white
( 4.2Y7.5/1.1 ) near equivalent
Net weight kg 13 105
Compressor type & Q'ty — RMT5134MDE3×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 (M-MA68)
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fins & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Tangential fan x 1 Propeller fan × 2
Fan motor (Starting method) W 42 x 1 < Direct line start > 86 x 2 < Direct line start >
Air flow Cooling
m
3
/min
Hi : 16.3 Me : 13.4 Lo : 8.9 ULo : 5.4 100
Heating Hi : 17.8 Me : 13.7 Lo : 10.9 ULo : 6.2
Available external static pressure Pa 0 0
Outside air intake Not possible —
Air filter, Quality / Quantity Polypropylene net ( washable ) x 2 —
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber sleeve (for compressor )
Electric heater W — 20 (Crank case heater)
Operation
control
Remote control (option) wired : RC-EX3, RC-E5, RCH-E3 Interface kit : SC-BIKN-E
Room temperature control Thermostat by electronics
Operation display RUN: Green, TIMER: Yellow, ECO: Blue
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") ②φ9.52(3/8")x0.8 ①φ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: I/Uφ12.7 (1/2") ②φ12.7(1/2")x0.8 ①φ15.88(5/8")x1.0 O/Uφ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP16 Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Clean filter Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) The operation data indicates when the air-conditioner is operated at 400V 50Hz or 380V 60Hz.
(6) Indoor unit specifications for one unit. Capacity and operation data is two indoor units are combined and run together.
(7) Branching pipe set "DIS-WA1"×1(option). ①: Pipe of O/U~Branch. ②: Pipe of Branch~I/U
Notes (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
H
PCA001Z717

-
9
-
'17 • PAC-T-257
H
PCA001Z717
Model
Item
SRK140VSXTZSX
Indoor unit SRK50ZSX-S (3 units) Outdoor unit FDC140VSX
Power source 3 Phase 380-415V 50Hz / 380V 60Hz
Operation
data
Nominal cooling capacity (range) kW 14.0 [ 5.0(Min.)-16.0(Max.)]
Nominal heating capacity (range) kW 16.0 [ 4.0(Min.)-20.0(Max.)]
Power consumption Cooling
kW
3.98
Heating 3.68
Max power consumption 6.97
Running current Cooling
A
5.9 / 6.2
Heating 5.4 / 5.7
Inrush current, max current 5 , 15
Power factor Cooling %97 / 98
Heating 98
EER Cooling 3.52
COP Heating 4.35
Sound power level Cooling
dB(A)
59 72
Heating 62
Sound pressure level Cooling Hi : 44 Me : 39 Lo : 31 ULo : 22 49
Heating Hi : 46 Me : 41 Lo : 33 ULo : 23 52
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 305 × 920 × 220 1300 × 970 × 370
Exterior appearance
( Munsell color )
Fine snow
Munsell : ( 8.0Y 9.3/0.1 ), RAL : 9003
Stucco white
( 4.2Y7.5/1.1 ) near equivalent
Net weight kg 13 105
Compressor type & Q'ty — RMT5134MDE3×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 (M-MA68)
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fins & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Tangential fan x 1 Propeller fan × 2
Fan motor (Starting method) W 42 x 1 < Direct line start > 86 x 2 < Direct line start >
Air flow Cooling
m
3
/min
Hi : 14.3 Me : 12.4 Lo : 7.8 ULo : 5.4 100
Heating Hi : 17.3 Me : 14.3 Lo : 9.8 ULo : 6.2
Available external static pressure Pa 0 0
Outside air intake Not possible —
Air filter, Quality / Quantity Polypropylene net ( washable ) x 2 —
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber sleeve (for compressor )
Electric heater W — 20 (Crank case heater)
Operation
control
Remote control (option) wired : RC-EX3, RC-E5, RCH-E3 Interface kit : SC-BIKN-E
Room temperature control Thermostat by electronics
Operation display RUN: Green, TIMER: Yellow, ECO: Blue
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") ②φ9.52(3/8")x0.8 ①φ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: I/Uφ12.7 (1/2") ②φ12.7(1/2")x0.8 ①φ15.88(5/8")x1.0 O/Uφ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP16 Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Clean filter Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) The operation data indicates when the air-conditioner is operated at 400V 50Hz or 380V 60Hz.
(6) Indoor unit specifications for one unit. Capacity and operation data is two indoor units are combined and run together.
(7) Branching pipe set "DIS-WA1"×1(option). ①: Pipe of O/U~Branch. ②: Pipe of Branch~I/U
Notes (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.

-
10
-
'17 • PAC-T-257
Hole on wall for right rear piping Hole on wall for left rear piping Gas piping Outlet for piping Drain hose
F E C D
Symbol
A
（φ65）
VP16
Content
（φ65）
SRK 20,25,35 φ9.52（3／8"）（Flare）
Wireless remote control
SRK 50,60 φ12.7（1／2"）（Flare）
Wired remote control
（Option）
φ6.35（1／4"）（Flare）
Liquid piping
B
Unit:mm
Notes（1）The model name label is attached on the right side of the unit. （2）To connect the wired remote control, the interface kit（SC-BIKN-E）is required.
□120 19
60 24
167
□120 19
920
305
60 45
55
6035
55
59.512.5
45
59.512.5
61
220 3
100
100
118.5118.5 683
145 630 145
176 568 176
460 460
10.3277.317.4
56.4
47
48.6
76.6
47
65 70
SRK 50,60 486
548
533
65120
88.6
（Service space）
SRK 20,25,35 480
（Service space）
（Service space）
（Service space）
Outlet for downward piping
（Refer to the top view）
Unit
Installation board
Terminal block
Space for installation and service when viewing from the front
D B AE C
F F
FF
1.2 EXTERIOR DIMENSIONS
(1) Indoor units
Models SRK50ZSX-S, 60ZSX-S
RLF000Z201

-
11
-
'17 • PAC-T-257
c
PCA001Z569
(2) Outdoor units
Models FDC100VNX, 125VNX, 140VNX
100VSX, 125VSX, 140VSX
C
PCA001Z569
E
F
F
C
B
A
C
C
F
D
C
B
A
L1
L3
Intake
Outlet
Intake
Service
Minimum installation space
space
L2 L4
φ15.88（5／8"）（Flare）
Content
C Pipe／cable draw-out hole
D
E Anchor bolt hole
Drain discharge hole
Symbol
B
A
M10 × 4places
φ20 × 3places
Service valve connection（liquid side）
φ9.52（3／8"）（Flare）
L2 L3 L4 L1
300
150
5
Open
Open
5
150 500
Open
5
300
5
F Cable draw-out hole
φ30（front） φ45（side）
φ50（back）
Notes
（1）It must not be surrounded by walls on the four sides. （2）The unit must be fixed with anchor bolts. An anchor bolt must not protrude more than 15mm. （3）Where the unit is subject to strong winds, lay it in such a direction that the blower outlet faces perpendicularly to the dominant wind direction. （4）Leave 1m or more space above the unit. （5）A wall in front of the blower outlet must not exceed the units height. （6）The model name label is attached on the lower right corner of the front panel. （7）Connect the Service valve with local pipe by using the pipe of the attachment. （Gas side only）
Ｉ ＩＩ ＩＩＩ
Examples of
Dimensions
installation
Service valve connection of the attached connecting pipe（gas side）
Terminal block
46
51
46
113
41 67
9
150
7050
195
11050
50 50
27
1300
10
970
55 50 15
624
612
195
11050
60
262 325
38
1560
15103
200580190
76
55
4037040
41020 20
Unit:mm
F
C
41 67
9
150
7050

-
12
-
'17 • PAC-T-257
(3) Remote control
Unit : mm
60 24
167
(3) Remote control
(a) Wireless remote control

-
13
-
'17 • PAC-T-257
PJZ000Z321
Installationspace
R/Ccable：0.3mm2× 2 cores
A
dapted to RoHSdirective
Exterior appearance
(Munsell color)
Pearl White
(N8.5) near equivalent
white
allen
cores
cores
cores
cores
-
(b) Wired remote control (Option parts)
Interface kit (SC-BIKN-E) is required to use the wired remote control.
Model RC-EX3

-
14
-
'17 • PAC-T-257
Model RC-E5
TEMP ON/OFF
48
ڧ120
L C D
Wall surface
Wiring
Electrical box
䠄Not included䠅
19
Wiring specifications
Exposed mounting
23
46
11.5 11
Remote
control
outline
120
45
83.5
42
120
Remote control installation dimensions
Wiring oulet
Installation hole
12×7 slot hole
9.5×5 slot hole 䠄4places䠅
䠄1䠅Installation screw for remote control
M4 screw (2 pieces)
44
(1) If the prolongation is over 100m, change to the size below.
But, wiring in the remote control case should be under 0.5mm2. Change the wire size outside of
the case according to wire connecting. Waterproof treatment is necessary at the wire connecting
section. Be careful about contact failure.
Length Wiring thickness
100 to 200m 0.5mm2×2 cores
0.75mm2×2 cores
1.25mm2×2 cores
2.0mm2×2 cores
Under 300m
Under 400m
Under 600m
Upper part
Lower part
Lower case
Sheath
Upper cace
Board
Wiring
Upper
Lower
XY
Sheath
Upper cace
Board
Wiring
Upper
Lower
YX
Tighten the screws after
cutting off the thin part of
screw mounting part.
Embedded mounting
The peeling-off length of sheath
The peeling-off length
of sheath
In case of pulling out from
upper left
In case of pulling out
from upper left
In case of pulling out
from upper left
X wiring : 170mm
Y wiring : 190mm
Pulling out from center
X wiring : 215mm
Y wiring : 195mm
Pulling out from upper left
In case of pulling out from center
In case of pulling out
from center
In case of pulling out
from center
Wiring outlet
Cut off the upper thin part of remote control lower case with a nipper or knife,
and grind burrs with a file etc.
0.3mm2×2 cores.
X, Y terminal block
Attach M3 screw
with washer
Unit:mm
Exterior appearance
(Munsell color)
Pearl white
(N8.5) near equivalent
PJZ000Z295

-
15
-
'17 • PAC-T-257
1.3 ELECTRICAL WIRING
(1) Indoor units
Models SRK50ZSX-S, 60ZSX-S
RWA000Z412
250V
FUSE
G2
3.15A
S／NVARISTOR
CNU
CNS
INTERFACE KIT
CNG
CNE
DISPLAY
WIRELESS RECEIVER
J
CNF
U
M
1
3 4 5 6
BACK-UP SW
5 2
L
BOARD
CIRCUIT
PRINTED
CNL
M M M M
5 5
RED
WHITE
RED WHITE BLACK BLUE
YELLOW
YELLOW／GREEN
BLACK
t t t
POWER WIRES SIGNAL WIRE
M
5 5 5
M
5
M
5
LEFT
MOTOR
LOUVER
RIGHT
MOTOR
LOUVER
RIGHT
LOWER
MOTOR
FLAP
UPPER
MOTOR
FLAP
LEFT
MOTOR
INLET
RIGHT
MOTOR
INLET
SW
LIMIT
PANEL
INLET
MOTOR
FAN
STACK
DIODE
1 3
EXCHANGER
HEAT
EXCHANGER
HEAT
Power source 1 Phase 220-240V 50Hz
220V 60Hz
TO OUTDOOR UNIT
CNJ
3
SENSOR ROOM TEMP.
SENSOR 1 HEAT EXCHANGER SENSOR 2 HEAT EXCHANGER
SENSOR HUMIDITY
SENSOR MOTION
3
1
[ ]
CNZ CNX
CNY
CNM
CNP
DescriptionItem
ConnectorCNE
CNF CNG CNJ CNL CNM CNP CNS CNU CNX CNY CNZ
LEFT
LOWER
MOTOR
FLAP
7
YELLOW／GREEN
BLOCK
TERMINAL
EARTH WIRE
T
2N2N
4

-
16
-
'17 • PAC-T-257
A
PCA001Z570
SW3-3,4
SW3-2 SW3-1
Model
125 26 23
φ1.6mm x 3 φ1.6
Model
125 29 31 φ1.6mm x 3 φ1.6
140
140 30 30
8
5.5
100 24 25
100 25 24
5.5
52X3
Auxilliary relay（for CH）52X1 Expansion valve for heating Current sensorCT
SM2
Crankcase heaterCH Fan motorFM01
THo-D
Connector Terminal blockTB High pressure switch63H1 Thermistor（Outdoor air temp.）THo-A Compressor motorCM Low pressure sensorLPT
THo-P THo-S
Expansion valve for coolingSM1 Solenoid valve for 4 way valve20S FuseF
THo-R1,2 CnA～Z Meaning of marks SW3,5 LED1 SW1 LED2 DM L
Diode module Indication lamp（GREEN）
Local setting switch
Pump down switch Reactor Auxilliary relay（for 20S） Thermistor（Discharge pipe temp.）
Thermistor（Heat exchanger pipe temp. ） Thermistor（Suction pipe temp.） Thermistor（IPM） Indication lamp（RED）
Local setting switch SW3（Set up at shipment OFF）
Snow guard fan control
Defrost control change
Trial operation
becomes below the freezing point.
2
1
3
is finished.
4
Method of trial operation
Be sure to turn OFF SW3-3 after the trial operation Trial operation can be performed by using SW3-3,4.
in a very snowy country, set this switch to ON.
the compressor is not runnning when the unit is used when outdoor temperature falls to 3℃or lower and fan will run for 30 seconds in every 10 minutes, When this switch is turned ON, the outdoor unit turned ON in the area where outside temperature by turning ON this switch. This switch should be The defrosting operation interval becomes shorter
Power cable, indoor-outdoor connecting wires
MAX over current Power cable size
（A）
Power cable length
（m）
indoor-outdoor
wire size x number
Earth wire size
（mm）
※At the connection with the duct type indoor unit.
MAX over current Power cable size
（mm ）
2
（mm ）
2
（A）
Power cable length
（m）
indoor-outdoor
wire size x number
Earth wire size
（mm）
The specifications shown in the above table are for units without heaters. For units with heaters, refer
to the installation instructions or the construction instructions of the indoor unit.
Switchgear of Circuit breaker capacity which is calculated from MAX. over current should be chosen along the regulations in each country. The cable specifications are based on the assumption that a metal or plastic conduit is used with no
more than three cables contained in a conduit and a voltage drop is 2%. For an installation falling
outside of these conditions, please follow the internal cabling regulations. Adapt it to the regulation in effect in each country.
DescriptionItem
Color
RD Mark
Color marks
OrangeOR Yellow／GreenY／GN BlackBK BlueBL GrayGR PinkP BrownBR YellowY WhiteWH Red GreenGN
Intelligent power moduleIPM
Compressor will be in the operation when SW3-3 is ON. Cooling trial operation will be performed when SW3-4 is OFF, and heating trial operation when SW3-4 is ON.
Drain pan heaterDH
52X2 Auxilliary relay（for DH）
POWER SOURCE 1 Phase 220ｰ240V 50Hz／1 Phase 220V 60Hz
TB
WH RD
N
L1
CNI3
CNI1
CH
BR
BR
CONTROL
CNW
WH
RD
F（30A）
CNW2
WH
BL
POWER WIRES SIGNAL WIRE
TO INDOOR UNIT
TB
RD
3
1
2
3
1 2
CNFAN1CNEEV2CNEEV1
THo-D63H1
BK
BK
THo-R1
BK
BK
BK
BK
LED2LED1
OFF
1 32
SW3
4
ON
THo-ATHo-S THo-P
RD
RD
Y
BK
Y
BK
LPT
（WH）
WH
BK
RD
SW1
OFF
3
SW5
1 2 4
ON
OR
66
RD
24 3 1
Y
OR
BL
WH
7
WH
541
BL
BR
RD
FMO1
Y／GN
WH
t°t°t°t°t°
20S
BL
BL
CNPS
CNIP
（Y）
CNTH
（WH）
CNH
（BR）
CNR CNS
（RD）（WH）
52X352X1
（WH）（RD）（WH）
（OR）
（BK）
（WH）
（WH）
THo-R2
BK
BK
t°
L1o No
F（8A）
L1i Ni
1 2
DM
+ -
N1
P1
CNI4
CNI2
（WH）
（WH）
CNA1
CNA2
（WH）
（WH）
N2
P
N2
P2
CNACT1
（WH）
RD
BL
WH
P
N2
+ -
L1 L2
A／F MODULE
RD
BL
BK
RD
BL
RD BL RD BL
RD
WH
RD
BL
BL BL
[ ]
（RD）
CNB
GNE1
GNE
L
U V W
U
VW
PCB1
F（4A）
DH
WH
WH
CNF
（BK）
Optional
CNFAN2
OR
67
WH
541
BL
BR
RD
FMO2
（WH）
52X2
NOISE FILTER
PCB3
PCB2
+
I P M
INVERTER
CT
CM
3～
MS
M
6
RD
24 3 1
Y
OR
BL
WH
M M
SM2SM1
M
GN
(2) Outdoor units
Models FDC100VNX, 125VNX, 140VNX

-
17
-
'17 • PAC-T-257
Models FDC100VSX, 125VSX, 140VSX
A
PCA001Z571
Description
52X3
Item
Auxilliary relay（for CH）52X1 Expansion valve for heating Current sensorCT
SM2
Crankcase heaterCH Fan motorFMo1,2
THo-D
Connector Terminal blockTB High pressure switch63H1 Thermistor（Outdoor air temp.）THo-A Compressor motorCM Low pressure sensorLPT
THo-P THo-S
Expansion valve for coolingSM1 Solenoid valve for 4 way valve20S FuseF
THo-R1,2 CnA～Z SW3,5 LED1 SW1 LED2 DM L
Diode module Indication lamp（GREEN）
Local setting switch
Pump down switch Reactor Auxilliary relay（for 20S） Thermistor（Discharger pipe temp.）
Thermistor（Heat exchanger pipe temp. ） Thermistor（Suction pipe temp.） Thermistor（IPM） Indication lamp（RED）
Color
RD Mark
OrangeOR Yellow／Green
Y／GN
BlackBK BlueBL BrownBR YellowY WhiteWH Red GrayGR PinkP
52X6 Auxilliary relay（for 52C）
+ +
Intelligent power moduleIPM Drain pan heaterDH Relay52C
SM1 SM2
63H1
NOISE FILTER
F（8A）
F（4A）
POWER SOURCE 3 Phase 380ｰ415V 50Hz
TB
WH RD
N
L1
PCB1
THo-S
THo-A
BK
BK
BK
BK
LED2
LED1
1 32
SW3
4
THo-R1
THo-D
RD
RD
Y
Y
SW1
3
SW5
1 2 4
t°
52X352X1
SW3-3,4
SW3-2 SW3-1
Local setting switch SW3（Set up at shipment OFF）
Model
Power cable, indoor-outdoor connecting wires
125 15 3.5 27 φ1.6mm x 3 φ1.6
Model
※At the connection with the duct type indoor unit.
125 18 23 φ1.6mm x 3
The specifications shown in the above table are for units without heaters. For units with heaters, refer
to the installation instructions or the construction instructions of the indoor unit.
Switchgear of Circuit breaker capacity which is calculated from MAX. over current should be chosen along the regulations in each country. The cable specifications are based on the assumption that a metal or plastic conduit is used with no
more than three cables contained in a conduit and a voltage drop is 2%. For an installation falling
outside of these conditions, please follow the internal cabling regulations. Adapt it to the regulation in effect in each country.
140
140 19 21
L2 L3 BK
BL
TB
BK RD
3
1
CNEEV1
6
RD
2 431
Y
OR
BL
WH
（WH）
M
CNEEV2
（RD）
CNFAN1
OR
6 7
WH
541
BL
BR
RD
FMo1
（WH）
M
BL
BL
CNS
（RD）
BR
BR
CNR
（WH）
BL
t° t° t°
THo-P
t°
BK
BK
52C
BL
WH
CNPS
（WH）
CNM
（GR）
BK
WH
RD
LPT
CNTH
（WH）
CNIP
（Y）
CNW
（BK）
CNW2
（OR）
CNH
（BR）
BK BK
L1i
L2i L3i Ni
L1o L2o L3o No
GN
3.5
RD
WH BL
BK
AC1 AC2 AC3
Va
U
R1 R2
RD
RD
RD
BL RD BL RD BL
CNI 3 18V
15V
CNI1
（WH）
CNA1
（WH）
CNA2
（WH）
CNI2
（WH）
CNO1
（RD）
CNR
（WH）
GN BK
RD
BL
RD G
K
R5
+4 -6
P N
CNW2
（WH）
CNW1
（WH）
BK
WH
RD
BL
R3 R4
C1
C2
WH
RD
LRD
BL
RD BL RD BK
TB5
TB6
IPM
PCB2
52C
1 3 2 4
BK
RD BL
BK
BK
THo-R2
t°
CNB
（RD）
52X6
CN1
CN2-1
T12
2
Y／GN
POWER WIRES SIGNAL WIRE
TO INDOOR UNIT
3
1 2
[ ]
CH 20S
RD
MS
BL
WH
CM
3～
W V U
W
V
U
INVERTER
DM
CONTROL
PCB3
φ1.6
CNFAN2
OR
6 7
WH
541
BL
BR
RD
FMo2
（WH）
M
Optional
WH WH
DH
CNF
（BK）
C4
R5
C3
Y／GN
52X2
100
2616100
CT
6
RD
2 431
Y
OR
BL
WH
M
52X2 Auxilliary relay（for DH）
Snow guard fan control
Defrost control change
Trial operation
becomes below the freezing point.
2 1 3 4
Method of trial operation
Trial operation can be performed by using SW3-3,4.
in a very snowy country, set this switch to ON.
the compressor is not runnning when the unit is used when outdoor temperature falls to 3℃or lower and fan will run for 30 seconds in every 10 minutes, When this switch is turned ON, the outdoor unit turned ON in the area where outside temperature by turning ON this switch. This switch should be The defrosting operation interval becomes shorter
MAX over current Power cable size
（A）
Power cable length
（m）
indoor-outdoor
wire size x number
Earth wire size
（mm）
MAX over current Power cable size
（mm ）
2
（mm ）
2
（A）
Power cable length
（m）
indoor-outdoor
wire size x number
Earth wire size
（mm）
Compressor will be in the operation when SW3-3 is ON. Cooling trial operation will be performed when SW3-4 is OFF, and heating trial operation when SW3-4 is ON. Be sure to turn OFF SW3-3 after the trial operation is finished.
Meaning of marks
Color marks

-
18
-
'17 • PAC-T-257
1.4 NOISE LEVEL
(1) Indoor units
Model SRK50ZSX-S
Mike position: at highest noise level in position as mentioned below
Distance from front side 1m
Mike position
0.8m
1m
Unit Mike position
(Center & Low points)
(Indoor Unit)
Model SRK50ZSX-S
Noise
Level
Cooling 44 dB(A)
Heating 46 dB(A)
Condition ISO-T1, JIS B 8616
10
20
30
40
50
60
70
63 125 250 500 1000 2000 4000 8000
Mid octave band frequency (Hz)
Sound pressure level (dB)
(Standard 2×10-5 Pa)
10
20
30
40
50
60
70
N50
N40
N60
N70
N20
N30
(Indoor Unit)
Model SRK60ZSX-S
Noise
Level
Cooling 46 dB(A)
Heating 46 dB(A)
Model SRK60ZSX-S
Condition ISO-T1, JIS B 8616
10
20
30
40
50
60
70
63 125 250 500 1000 2000 4000 8000
Mid octave band frequency (Hz)
Sound pressure level (dB)
(Standard 2×10-5 Pa)
10
20
30
40
50
60
70
N50
N40
N60
N70
N20
N30
Mike position: at highest noise level in position as mentioned below
Distance from front side 1m
Mike position
0.8m
1m
Unit Mike position
(Center & Low points)
× ...... Cooling, Heating
× ...... Cooling, Heating

-
19
-
'17 • PAC-T-257
63 125 250 500 1000 2000 4000 8000
20
10
30
40
50
60
20
10
30
40
50
60
N30
N40
N20
N50
N60
Mid Octave Band Frequency (Hz)
Souud Pressure Level (dB)
(Standard 2×10-5Pa)
63 125 250 500 1000 2000 4000 8000
20
10
30
40
50
60
20
10
30
40
50
60
N30
N40
N20
N50
N60
Mid Octave Band Frequency (Hz)
Souud Pressure Level (dB)
(Standard 2×10-5Pa)
Model SRC50ZMX-S
Cooling noise level 54 dB (A) Heating noise level 50 dB (A)
63 125 250 500 1000 2000 4000 8000
20
10
30
40
50
60
20
10
30
40
50
60
N30
N40
N20
N50
N60
Mid Octave Band Frequency (Hz)
Souud Pressure Level (dB)
(Standard 2×10-5Pa)
Model SRC40ZMX-S
Noise level 50 dB (A)
63 125 250 500 1000 2000 4000 8000
20
10
30
40
50
60
20
10
30
40
50
60
N30
N40
N20
N50
N60
Mid Octave Band Frequency (Hz)
Souud Pressure Level (dB)
(Standard 2×10-5Pa)
63 125 250 500 1000 2000 4000 8000
20
10
30
40
50
60
20
10
30
40
50
60
N30
N40
N20
N50
N60
Mid Octave Band Frequency (Hz)
Souud Pressure Level (dB)
(Standard 2×10-5Pa)
Model SRC60ZMX-S
Cooling noise level 54 dB (A) Heating noise level 54 dB (A)
4.2 Outdoor units
Measured based or JIS B 8616 or JIS C 9612
Mike position: at highest noise level in position as mentined below.
Distance from front side 1m
(2) Outdoor units
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
N30
N40
N20
N50
N60
N70
N30
N40
N20
N50
N60
N70
N30
N40
N20
N50
N60
N70
N30
N40
N20
N50
N60
N70
Models FDC125VNX,125VSX
Cooling noise level 48 dB (A) Heating noise level 50 dB (A)
Cooling noise level 49 dB (A)
Models FDC140VNX,140VSX
Heating noise level 52 dB (A)
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
N30
N40
N20
N50
N60
N70
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
N30
N40
N20
N50
N60
N70
Model FDC100VNX,100VSX
Cooling noise level 48 dB (A) Heating noise level 50 dB (A)
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
N30
N40
N20
N50
N60
N70
Model FDC71VNX
Cooling noise level 51 dB (A)
63 125 250 500
Mid octave band frequency (Hz)
Souud pressure level (dB)
(Standard 2×10-5Pa)
1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
N30
N40
N20
N50
N60
N70
Heating noise level 48 dB (A)
