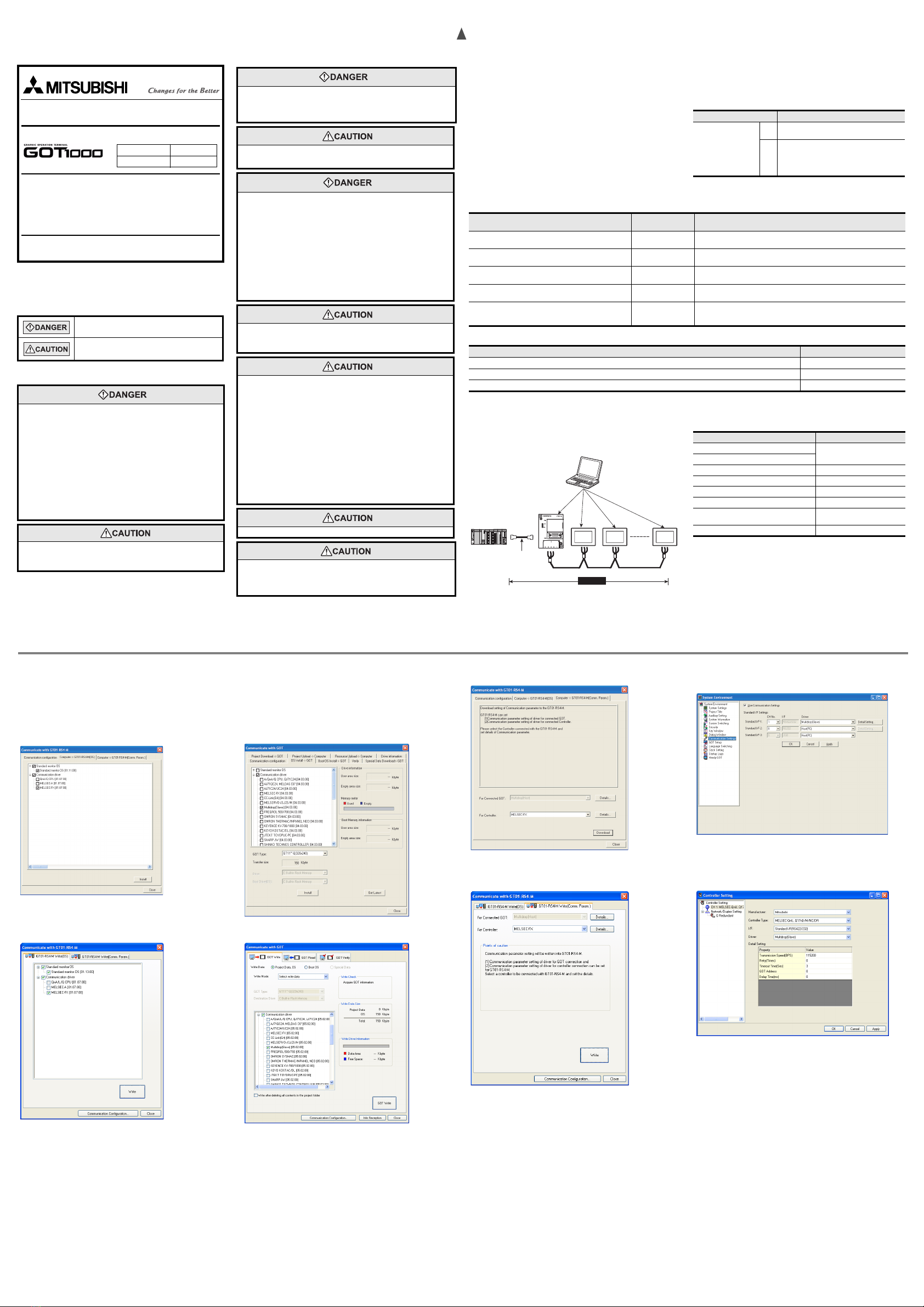

Mitsubishi GT01-RS4-M User manual

JY997D35801E
Safety Precaution (Read these precautions before using.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The precautions given in this manual are concerned with this product.
In this manual, the safety precautions are ranked as "DANGER" and "CAUTION".
Depending on circumstances, procedures indicated by "CAUTION" may also be
linked to serious results.
In any case, it is important to follow the directions for usage.
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
DESIGN PRECAUTIONS
•Some failures of the Multi-Drop Connection Unit or cable may keep the
outputs on or off.
An external monitoring circuit should be provided to check for output signals
which may lead to a serious accident.
Not doing so can cause an accident due to false output or malfunction.
•If a communication fault (including cable disconnection) occurs during
monitoring on the GOT, communication between the GOT and PLC CPU is
suspended and the GOT becomes inoperative.
A system where the GOT is used should be configured to perform any
significant operation to the system by using the switches of a device other
than the GOT on the assumption that a GOT communication fault will occur.
Not doing so can cause an accident due to false output or malfunction.
•
Do not use the Multi-Drop Connection Unit as the warning device that may
cause a serious accident.
An independent and redundant hardware or mechanical interlock is required to
configure the device that displays and outputs serious warning.
Failure to observe this instruction may result in an accident due to incorrect
output or malfunction.
DESIGN PRECAUTIONS
•Do not bundle the control and communication cables with main-circuit, power
or other wiring.
Run the above cables separately from such wiring and keep them a minimum
of 100mm (3.94in.) apart.Not doing so noise can cause a malfunction.
MOUNTING
PRECAUTIONS
•Be sure to shut off all phases of the external power supply used by the system
before mounting or removing the Multi-Drop Connection Unit to/from the panel.
Not doing so can cause the unit to fail or malfunction.
•When installing the battery wear an earth band etc. to avoid the static electricity.
The static electricity can cause the unit to fail or malfunction.
MOUNTING PRECAUTIONS
•Use the Multi-Drop Connection Unit in the environment that satisfies the general
specifications described in this manual. Not doing so can cause an electric shock,
fire, malfunction or product damage or deterioration.
WIRING PRECAUTIONS
•Be sure to shut off all phases of the external power supply used by the system
before wiring. Failure to do so may result in an electric shock, product damage or
malfunctions.
•Please make sure to ground FG terminal of the Multi-Drop Connection Unit power
supply section by applying 100 or less which is used exclusively for the GOT. Not
doing so may cause an electric shock or malfunction.
•Correctly wire the Multi-Drop Connection Unit power supply section after
confirming the rated voltage and terminal arrangement of the product. Not doing
so can cause a fire or failure.
•Tighten the terminal screws of the Multi-Drop Connection Unit power supply
section in the specified torque range. Undertightening can cause a short circuit or
malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the
screws or the Multi-Drop Connection Unit.
•Exercise care to avoid foreign matter such as chips and wire offcuts entering the
Multi-Drop Connection Unit. Not doing so can cause a fire, failure or malfunction.
WIRING PRECAUTIONS
•Plug the communication cable into the connector of the connected unit and
tighten the mounting and terminal screws in the specified torque range.
Undertightening can cause a short circuit or malfunction. Overtightening can
cause a short circuit or malfunction due to the damage of the screws or unit.
STARTUP/MAINTENANCE
PRECAUTIONS
•Do not disassemble or modify the Multi-Drop Connection Unit.
Doing so can cause a failure, malfunction, injury or fire.
•Do not touch the conductive and electronic parts of the Multi-Drop Connection
Unit directly.
Doing so can cause a Multi-Drop Connection Unit malfunction or failure.
•The cables connected to the Multi-Drop Connection Unit must be run in ducts or
clamped.
Not doing so can cause the Multi-Drop Connection Unit or cable to be damaged
due to the dangling, motion or accidental pulling of the cables or can cause a
malfunction due to a cable connection fault.
•When unplugging the cable connected to the unit, do not hold and pull the cable
portion. Doing so can cause the unit or cable to be damaged or can cause a
malfunction due to a cable connection fault.
•Do not drop or apply any impact to the battery.
If any impact has been applied, discard the battery and never use it.
The battery may be damaged by the drop or impact.
•Before touching the unit, always touch grounded metal, etc. to discharge static
electricity from human body, etc.
Not doing so can cause the Multi-Drop Connection Unit to fail malfunction.
DISPOSAL PRECAUTIONS
•When disposing of the product, handle it as industrial waste.
TRANSPORTATION
PRECAUTIONS
•Make sure to transport the Multi-Drop Connection Unit main unit and/or relevant
unit(s) in the manner they will not be exposed to the impact exceeding the impact
resistance described in the general specifications of this manual, as they are
precision devices. Failure to do so may cause the unit to fail.
Check if the unit operates correctly after transportation.
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive for the entire mechanical module should be checked
by the user / manufacturer. For more details please contact the local Mitsubishi
Electric sales site.
Attention
•This product is designed for use in industrial applications.
•Manufactured by: Mitsubishi Electric Corporation
2-7-3 Marunouchi, Chiyoda-ku, Tokyo 100-8310 Japan
•Manufactured at: Mitsubishi Electric Corporation Himeji Works
840 Chiyoda-machi, Himeji, Hyogo 670-8677 Japan
•Authorized Representative in the European Community:
Mitsubishi Electric Europe B.V.
Gothaer Str. 8, 40880 Ratingen, Germany.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (to the
identified standards) and design analysis (forming a technical construction file) to the
European Directive for Electromagnetic Compatibility (2004/108/EC) when used as
directed by the appropriate documentation.
Type :Programmable Controller (Open Type Equipment)
For more details please contact the local Mitsubishi Electric sales site.
Associated Manuals
The following manuals are relevant to this product. When these loose manuals are required, please consult with our local distributor.
Bundled Items
1. System Configuration
1.1 System Configuration
GOT multi-drop connection is a communication method for 1:N communication by
connecting multiple GOTs to one PLC, using the GT01-RS4-M serial multi-drop
connection module.
For details of the system configuration, refer to the GOT1000 Series Connection
Manual.
1.2 Compatible PLC
For PLCs compatible with the GOT multi-drop connection, refer to the GOT1000
Series Connection Manual.
1.3 Compatible GOT
The followings are the GOTs compatible with the GOT multi-drop connection.
For the confirmation method of the hardware version, refer to the User's Manual of
each GOT.
1.4 Compatible drawing software version
GT Designer2 Version2 (Ver.2.93X or later)
GT Designer3 Version1 (Ver.1.01B or later) (Ver.1.14Q or later is applicable to GT16
and GT15.)
Standard Remark
EN61131-2 : 2007
Programmable
controllers-
Equipment,
requirement and tests
EMI Compliance with all relevant aspects of the
standard. (Radiated Emissions)
EMS
Compliance with all relevant aspects of the
standard.
(ESD, RF electromagnetic field, EFTB, Surge,
RF conducted disturbances and Power
frequency magnetic field)
Manual Name Manual Number
(Model Code) Description
GOT1000 Series Connection Manual 1/3, 2/3, 3/3 SH-080532ENG
(1D7M26)
Describes system configurations of connection methods applicable to GOT1000
series and cable creation methods
GOT1000 Series Connection Manual (Mitsubishi Products)
for GT Works3
SH-080868ENG
(1D7MC2)
Describes system configurations of connection methods applicable to GOT1000
series and cable creation methods
GT Designer2 Version2 Basic Operation/Data Transfer Manual
(For GOT1000 Series)
SH-080529ENG
(1D7M24)
Describes methods of the GT Designer2 installation operation, basic operation for
drawing and transmitting data to GOT1000 series
GT Designer2 Version2 Screen Design Manual
(For GOT1000 Series) 1/3, 2/3, 3/3
SH-080530ENG
(1D7M25) Describes specifications and settings of the object functions used in GT Designer2
GT Designer3 Version1 Screen Design Manual
(For GOT1000 Series)
(Fundamentals) 1/2, 2/2
SH-080866ENG
(1D7MB9)
Describes methods of the GT Designer3 installation operation, basic operation for
drawing and transmitting data to GOT1000 series
Included Item Number of Items
GT01-RS4-M main unit 1
Power supply cable with connectors 1
GT01-RS4-M Serial Multi-Drop Connection Unit USER’S MANUAL (this manual) 1
Serial multi drop connection module
Connect to the PLC.
Varies according to
the connection type.
RS-485 cable
• Communication driver
• Communication interface
MAX500m
• GT Designer2
• GT Designer3
• Communication driver
• Communication interface
GOT Hardware version
GT16
Version A or later
GT15
GT1155-QTBD Version C or later
GT1155-QSBD, GT1150-QLBD Version F or later
GT1055-QSBD, GT1050-QBBD Version C or later
GT1045-QSBD, GT1040-QBBD Version A or later
GT1030-LBD/LWD, GT1030-LBDW/LWDW
GT1030-HBD/HWD, GT1030-HBDW/HWDW Version B or later
GT1020-LBD/LWD, GT1020-LBDW/LWDW Version E or later
2. Outline Procedure
The outline procedure is shown below.
GT11 installation follows.
1) Install the OS.
•Install the communication driver of the PLC connected to the multi-drop connection module.
•Install the communication driver (multi-drop (Slave)) to the GOT.
For details of the installation method, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
- For GT Designer2
(For multi-drop connection module) (For GOT)
- For GT Designer3
(For multi-drop connection module) (For GOT)
2) Make sure that the OS is installed.
Check GT Designer2 or GT Designer3 drive information to know if the OS is properly installed in the GOT.
For details, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
3) Set the communication interface.
•For the multi-drop connection module, set the communication interface in the communication setting with GT01-RS4-M of GT Designer2 or GT Designer3.
•For the GOT, set the communication interface in the Communication Settings of GT Designer2 or GT Designer3.
For details, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
- For GT Designer2
(For multi-drop connection module)
(For GOT)
- For GT Designer3
(For multi-drop connection module) (For GOT)
4) Download the project data.
For instructions on how to download the project data, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design
Manual.
5) Connect the cable.
For details of the cable connection, refer to the GOT1000 Series Connection Manual.
GT01-RS4-M
Serial Multi-Drop Connection Unit
USER’S MANUAL
This manual describes the specifications of the product. Before use, read this
manual and manuals of relevant products fully to acquire proficiency in
handling and operating the product. Make sure to learn all the product
information, safety information, and precautions.
And, store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this manual are
the registered trademarks or trademarks of each company.
Effective Jul. 2011
Specifications are subject to change without notice.
©2009 Mitsubishi Electric Corporation
Manual Number JY997D35801E
Date Jul. 2011

JY997D35801E
Safety Precaution (Read these precautions before using.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The precautions given in this manual are concerned with this product.
In this manual, the safety precautions are ranked as "DANGER" and "CAUTION".
Depending on circumstances, procedures indicated by "CAUTION" may also be
linked to serious results.
In any case, it is important to follow the directions for usage.
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
DESIGN PRECAUTIONS
•Some failures of the Multi-Drop Connection Unit or cable may keep the
outputs on or off.
An external monitoring circuit should be provided to check for output signals
which may lead to a serious accident.
Not doing so can cause an accident due to false output or malfunction.
•If a communication fault (including cable disconnection) occurs during
monitoring on the GOT, communication between the GOT and PLC CPU is
suspended and the GOT becomes inoperative.
A system where the GOT is used should be configured to perform any
significant operation to the system by using the switches of a device other
than the GOT on the assumption that a GOT communication fault will occur.
Not doing so can cause an accident due to false output or malfunction.
•
Do not use the Multi-Drop Connection Unit as the warning device that may
cause a serious accident.
An independent and redundant hardware or mechanical interlock is required to
configure the device that displays and outputs serious warning.
Failure to observe this instruction may result in an accident due to incorrect
output or malfunction.
DESIGN PRECAUTIONS
•Do not bundle the control and communication cables with main-circuit, power
or other wiring.
Run the above cables separately from such wiring and keep them a minimum
of 100mm (3.94in.) apart.Not doing so noise can cause a malfunction.
MOUNTING
PRECAUTIONS
•Be sure to shut off all phases of the external power supply used by the system
before mounting or removing the Multi-Drop Connection Unit to/from the panel.
Not doing so can cause the unit to fail or malfunction.
•When installing the battery wear an earth band etc. to avoid the static electricity.
The static electricity can cause the unit to fail or malfunction.
MOUNTING PRECAUTIONS
•Use the Multi-Drop Connection Unit in the environment that satisfies the general
specifications described in this manual. Not doing so can cause an electric shock,
fire, malfunction or product damage or deterioration.
WIRING PRECAUTIONS
•Be sure to shut off all phases of the external power supply used by the system
before wiring. Failure to do so may result in an electric shock, product damage or
malfunctions.
•Please make sure to ground FG terminal of the Multi-Drop Connection Unit power
supply section by applying 100 or less which is used exclusively for the GOT. Not
doing so may cause an electric shock or malfunction.
•Correctly wire the Multi-Drop Connection Unit power supply section after
confirming the rated voltage and terminal arrangement of the product. Not doing
so can cause a fire or failure.
•Tighten the terminal screws of the Multi-Drop Connection Unit power supply
section in the specified torque range. Undertightening can cause a short circuit or
malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the
screws or the Multi-Drop Connection Unit.
•Exercise care to avoid foreign matter such as chips and wire offcuts entering the
Multi-Drop Connection Unit. Not doing so can cause a fire, failure or malfunction.
WIRING PRECAUTIONS
•Plug the communication cable into the connector of the connected unit and
tighten the mounting and terminal screws in the specified torque range.
Undertightening can cause a short circuit or malfunction. Overtightening can
cause a short circuit or malfunction due to the damage of the screws or unit.
STARTUP/MAINTENANCE
PRECAUTIONS
•Do not disassemble or modify the Multi-Drop Connection Unit.
Doing so can cause a failure, malfunction, injury or fire.
•Do not touch the conductive and electronic parts of the Multi-Drop Connection
Unit directly.
Doing so can cause a Multi-Drop Connection Unit malfunction or failure.
•The cables connected to the Multi-Drop Connection Unit must be run in ducts or
clamped.
Not doing so can cause the Multi-Drop Connection Unit or cable to be damaged
due to the dangling, motion or accidental pulling of the cables or can cause a
malfunction due to a cable connection fault.
•When unplugging the cable connected to the unit, do not hold and pull the cable
portion. Doing so can cause the unit or cable to be damaged or can cause a
malfunction due to a cable connection fault.
•Do not drop or apply any impact to the battery.
If any impact has been applied, discard the battery and never use it.
The battery may be damaged by the drop or impact.
•Before touching the unit, always touch grounded metal, etc. to discharge static
electricity from human body, etc.
Not doing so can cause the Multi-Drop Connection Unit to fail malfunction.
DISPOSAL PRECAUTIONS
•When disposing of the product, handle it as industrial waste.
TRANSPORTATION
PRECAUTIONS
•Make sure to transport the Multi-Drop Connection Unit main unit and/or relevant
unit(s) in the manner they will not be exposed to the impact exceeding the impact
resistance described in the general specifications of this manual, as they are
precision devices. Failure to do so may cause the unit to fail.
Check if the unit operates correctly after transportation.
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive for the entire mechanical module should be checked
by the user / manufacturer. For more details please contact the local Mitsubishi
Electric sales site.
Attention
•This product is designed for use in industrial applications.
•Manufactured by: Mitsubishi Electric Corporation
2-7-3 Marunouchi, Chiyoda-ku, Tokyo 100-8310 Japan
•Manufactured at: Mitsubishi Electric Corporation Himeji Works
840 Chiyoda-machi, Himeji, Hyogo 670-8677 Japan
•Authorized Representative in the European Community:
Mitsubishi Electric Europe B.V.
Gothaer Str. 8, 40880 Ratingen, Germany.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (to the
identified standards) and design analysis (forming a technical construction file) to the
European Directive for Electromagnetic Compatibility (2004/108/EC) when used as
directed by the appropriate documentation.
Type :Programmable Controller (Open Type Equipment)
For more details please contact the local Mitsubishi Electric sales site.
Associated Manuals
The following manuals are relevant to this product. When these loose manuals are required, please consult with our local distributor.
Bundled Items
1. System Configuration
1.1 System Configuration
GOT multi-drop connection is a communication method for 1:N communication by
connecting multiple GOTs to one PLC, using the GT01-RS4-M serial multi-drop
connection module.
For details of the system configuration, refer to the GOT1000 Series Connection
Manual.
1.2 Compatible PLC
For PLCs compatible with the GOT multi-drop connection, refer to the GOT1000
Series Connection Manual.
1.3 Compatible GOT
The followings are the GOTs compatible with the GOT multi-drop connection.
For the confirmation method of the hardware version, refer to the User's Manual of
each GOT.
1.4 Compatible drawing software version
GT Designer2 Version2 (Ver.2.93X or later)
GT Designer3 Version1 (Ver.1.01B or later) (Ver.1.14Q or later is applicable to GT16
and GT15.)
Standard Remark
EN61131-2 : 2007
Programmable
controllers-
Equipment,
requirement and tests
EMI Compliance with all relevant aspects of the
standard. (Radiated Emissions)
EMS
Compliance with all relevant aspects of the
standard.
(ESD, RF electromagnetic field, EFTB, Surge,
RF conducted disturbances and Power
frequency magnetic field)
Manual Name Manual Number
(Model Code) Description
GOT1000 Series Connection Manual 1/3, 2/3, 3/3 SH-080532ENG
(1D7M26)
Describes system configurations of connection methods applicable to GOT1000
series and cable creation methods
GOT1000 Series Connection Manual (Mitsubishi Products)
for GT Works3
SH-080868ENG
(1D7MC2)
Describes system configurations of connection methods applicable to GOT1000
series and cable creation methods
GT Designer2 Version2 Basic Operation/Data Transfer Manual
(For GOT1000 Series)
SH-080529ENG
(1D7M24)
Describes methods of the GT Designer2 installation operation, basic operation for
drawing and transmitting data to GOT1000 series
GT Designer2 Version2 Screen Design Manual
(For GOT1000 Series) 1/3, 2/3, 3/3
SH-080530ENG
(1D7M25) Describes specifications and settings of the object functions used in GT Designer2
GT Designer3 Version1 Screen Design Manual
(For GOT1000 Series)
(Fundamentals) 1/2, 2/2
SH-080866ENG
(1D7MB9)
Describes methods of the GT Designer3 installation operation, basic operation for
drawing and transmitting data to GOT1000 series
Included Item Number of Items
GT01-RS4-M main unit 1
Power supply cable with connectors 1
GT01-RS4-M Serial Multi-Drop Connection Unit USER’S MANUAL (this manual) 1
Serial multi drop connection module
Connect to the PLC.
Varies according to
the connection type.
RS-485 cable
• Communication driver
• Communication interface
MAX500m
• GT Designer2
• GT Designer3
• Communication driver
• Communication interface
GOT Hardware version
GT16
Version A or later
GT15
GT1155-QTBD Version C or later
GT1155-QSBD, GT1150-QLBD Version F or later
GT1055-QSBD, GT1050-QBBD Version C or later
GT1045-QSBD, GT1040-QBBD Version A or later
GT1030-LBD/LWD, GT1030-LBDW/LWDW
GT1030-HBD/HWD, GT1030-HBDW/HWDW Version B or later
GT1020-LBD/LWD, GT1020-LBDW/LWDW Version E or later
2. Outline Procedure
The outline procedure is shown below.
GT11 installation follows.
1) Install the OS.
•Install the communication driver of the PLC connected to the multi-drop connection module.
•Install the communication driver (multi-drop (Slave)) to the GOT.
For details of the installation method, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
- For GT Designer2
(For multi-drop connection module) (For GOT)
- For GT Designer3
(For multi-drop connection module) (For GOT)
2) Make sure that the OS is installed.
Check GT Designer2 or GT Designer3 drive information to know if the OS is properly installed in the GOT.
For details, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
3) Set the communication interface.
•For the multi-drop connection module, set the communication interface in the communication setting with GT01-RS4-M of GT Designer2 or GT Designer3.
•For the GOT, set the communication interface in the Communication Settings of GT Designer2 or GT Designer3.
For details, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
- For GT Designer2
(For multi-drop connection module)
(For GOT)
- For GT Designer3
(For multi-drop connection module) (For GOT)
4) Download the project data.
For instructions on how to download the project data, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design
Manual.
5) Connect the cable.
For details of the cable connection, refer to the GOT1000 Series Connection Manual.
GT01-RS4-M
Serial Multi-Drop Connection Unit
USER’S MANUAL
This manual describes the specifications of the product. Before use, read this
manual and manuals of relevant products fully to acquire proficiency in
handling and operating the product. Make sure to learn all the product
information, safety information, and precautions.
And, store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this manual are
the registered trademarks or trademarks of each company.
Effective Jul. 2011
Specifications are subject to change without notice.
©2009 Mitsubishi Electric Corporation
Manual Number JY997D35801E
Date Jul. 2011

This manual confers no industrial property rights or any rights of any other kind,
nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be
held responsible for any problems involving industrial property rights which may
occur as a result of using the contents noted in this manual.
Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be
the cause of Mitsubishi; opportunity loss or lost profits caused by faults in the
Mitsubishi products; damage, secondary damage, accident compensation
caused by special factors unpredictable by Mitsubishi; damages to products
other than Mitsubishi products; and to other duties.
For safe use
This product has been manufactured as a general-purpose part for general
industries, and has not been designed or manufactured to be incorporated in
a device or system used in purposes related to human life.
Before using the product for special purposes such as nuclear power, electric
power, aerospace, medicine or passenger movement vehicles, consult with
Mitsubishi Electric.
This product has been manufactured under strict quality control. However
when installing the product where major accidents or losses could occur if the
product fails, install appropriate backup or failsafe functions in the system.
•
•
•
HEAD OFFICE
HIMEJI WORKS
: TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310,
JAPAN
: 840, CHIYODA CHO, HIMEJI, JAPAN

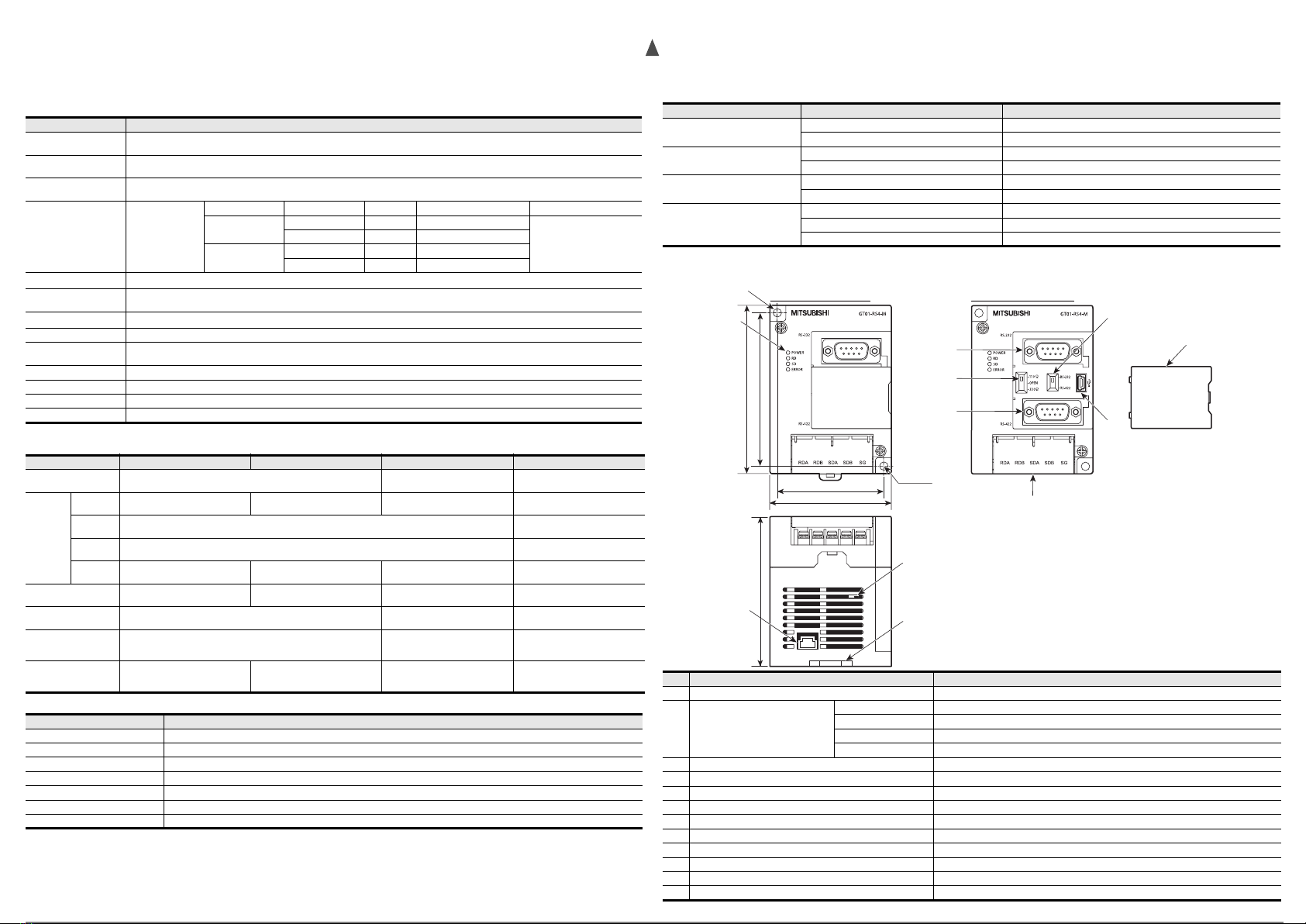

3. Specifications
3.1 General Specifications
*1 Cannot be used under pressures higher than the atmospheric pressure. Failure to observe this instruction may cause the unit to fail.
3.2 Communication Specifications
3.3 Power Supply Specifications
Item Specifications
Operating ambient
temperature 0 to 55°C
Storage ambient
temperature -20 to 60°C
Operating/Storage
ambient humidity 10 to 90% RH, non-condensing (The wet bulb temperature is 39°C or less.)
Vibration resistance Conforms to JIS
C60068-2-6
Frequency Acceleration Half-amplitude Sweep Count
Installed with DIN
rail
10 to 57Hz – 0.035mm
10 times each in X, Y and Z
directions
(Total 80 minutes for each)
57 to 150Hz 4.9m/s2–
Directly installed 10 to 57Hz – 0.075mm
57 to 150Hz 9.8m/s2–
Shock resistance Conforms to JIS C60068-2-27 (147 m/s2, 11 ms, Sine half-wave pulse, 3 times each in the X, Y, and Z directions)
Operating atmosphere Must be free of lamp black, corrosive gas, flammable gas, or excessive amounts of electro conductive dust particles and must not be placed in
direct sunlight. (This applies for storage as well)
Operating altitude 2000m (6562 ft) max.*1
Cooling method Self-cooling
External dimensions
(D×W×H) 90×65×90mm
Weight Approx. 0.3kg
Installation method Using DIN rail or fixed with screws
Exterior color (Case) Standard color of Mitsubishi Electric (Black: corresponding to N-0230-BG)
Standard Conforms to CE
Item I/F1 (RS-422) I/F2 (RS-232) I/F3 (RS-485) I/F4 (USB)
Connection
configuration 1:1 1:N 1:1
Transmiss
ion
standard
Transmissi
on method RS-422 1ch RS-232 1ch RS-485 1ch USB device 1ch
Transmissi
on speed 115, 200/57, 600/38, 400/19, 200/9, 600/4, 800 bps Full Speed 12Mbps
Insulation
method Photocoupler insulation --
Connector D-sub 9-pin (female) D-sub 9-pin (male) Terminal block (attach/detach
type) Mini-B
Transmission distance 30m or less 3m or less 500m (max.) (maximum overall
extension length of the system) --
Number of GOTs that
can be connected 116 (max.) 1
Communication method Full duplex
Half duplex and full duplex
(Can be selected depending on
the wiring)
--
Application
For PLC connection
(Cannot be used simultaneously
with I/F2)
For PLC connection
(Cannot be used simultaneously
with I/F1)
For multi-drop connection PC communication
(OS installation)
Item Specifications
Input power supply voltage 24VDC (+10%, -15%)
Fuse (built-in, not exchangeable) 1A
Power consumption 3.36W or less (140mA/24VDC)
Inrush current 14A or less (24VDC, 2ms)
Dielectric withstand voltage 500VAC for 1 minute (across power supply terminals and earth)
Insulation resistance 10MΩor larger by insulation resistance tester (across power supply terminals and earth)
Grounding Class D grounding (100Ω or less), To be connected to the panel when grounding is not possible
3.4 LED Light Specifications
*1 For details of corrective actions, refer to Chapter 7 Troubleshooting.
4. External Dimensions and Part name
LED Name Status Description
POWER Lit Power is properly supplied.
Not lit Power is not properly supplied.
SD Lit Sending the data to PLC
Not lit Not sending the data to PLC
RD Lit Receiving the data from PLC
Not lit Not receiving the data from PLC
ERROR*1
Not lit No error
Lit in red Communication error with PLC
Blinking in red Multi-drop communication error
No Name Specifications
1) Installation hole for the main unit Installation hole
2) LED
POWER Lit in green when the power is properly supplied.
SD Lit in green when the data is being sent to PLC.
RD Lit in green when the data is being received from PLC.
ERROR Lit or blinking depending on the status.
3) Terminating resistor selector Can be selected among 110Ω, OPEN and 330Ω(set to "OPEN" by default)
4) Connector for PLC communication (for RS-232 connection) D-sub 9-pin (male)
5) Connector selection switch for PLC communication Switch for selecting RS-422 or RS-232 (set to "RS-422" by default)
6) USB port For connecting to a personal computer (for changing the communication driver)
7) Connector for PLC communication (for RS-422 connection) D-sub 9-pin (female)
8) Protective cover Protect unused D-sub connector, USB port and switches.
9) Terminal block for the serial multi-drop communication Terminal block 5-pin (with a protective cover) M3 Tightening torque 0.5 to 0.6N.m
10) Power supply connector 24VDC power supply connector insertion point (A dedicated cable is included.)
11) Slider for installing the DIN rail –
12) Mode selection switch (Slide switch) Do not operate. (Set to right by default. When set to left, the module does not operate normally.)
57
72
1)
2)
10)
12)
11)
4)
3)
7)
8)
5)
6)
9)
80
• Protective cover is installed • Protective cover is removed
65
2- φ4.5
90
5. Installation
5.1 Installed with DIN Rail
Install the multi-drop connection module with its hook (1 place) using the DIN rail.
•Applicable DIN rail DIN46277 (width: 35mm)
(Install the DIN rail with screws at intervals of 150mm.)
5.2 Directly Installed to Panel
Install the multi-drop connection module to the panel using φ4.5mm holes (2 places).
5.3 Caution for compliance with EMC Directive
Programmable logic controllers are open-type devices that must be installed and used within conductive control boxes. Please use the Multi-Drop Connection Unit while
installed in conductive shielded control boxes. Please secure the control box lid to the control box (for conduction). Installation within a control box greatly affects the safety of
the system and aids in shielding noise from the Multi-Drop Connection Unit.
6. Wiring
6.1 Power Supply Wiring
Connect the power supply cable with connectors (included) and the 24VDC terminal of the external power supply.
6.2 Wiring and Terminating Resistor Setting
6.2.1 For 1 pair wiring
Make sure to ground a twisted pair cable by applying Class D Grounding (100Ωor less).
*1 The terminating resistor 110Ωis built in the multi-drop connection module and GOT (GT10,GT11).
Make sure to set the terminating resistor to both ends of the line.
For GT15 or GT16, external wiring is required. Set the terminating resistor of the GOT that is not at the end of the line to "OPEN".
Black-
Green Ground
Red+
GOT side GOT side GOT side
PLC
Class D
Grounding
Terminating
resistor
110ΩClass D
Grounding
*1
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
Signal name
SDA
SDB
RDA
RDB
SG
Multi-drop
connection module
Signal
name
Signal
name
Signal
name
Class D
Grounding
Terminating
resistor
110Ω
*1
Cable for GT11
6.2.2 For 2 pair wiring
Make sure to ground a twisted pair cable by applying Class D Grounding (100Ωor less).
*1 The terminating resistor 330Ωis built in the multi-drop connection module and GOT (GT10,GT11).
Make sure to set the terminating resistor to both ends of the line.
For GT15 or GT16, external wiring is required. Set the terminating resistor of the GOT that is not at the end of the line to "OPEN".
7. Troubleshooting
In the case where ERROR LED is lit or blinking, check the following items.
Status of ERROR LED Description
Lit in red
Check the following items.
•Check if the power supply status is normal or not.
•Check the wiring of the connection cable.
•Install the correct communication driver.
•Check if the communication interface to which the cable is connected is correct or not.
•Check the setting of the RS-422/RS-232 selector switch.
Blinking in red
Check the following items.
•Check that the Mode selection switch is set to the right.
•The OS may be faulty. Install the standard OS and communication driver from GT Designer2 or GT Designer3 to the multi-drop
module again.
Cable for GT11
Class D
Grounding
Class D
Grounding
Class D
Grounding
PLC
Multi-drop
connection module
Signal name
SDA
SDB
RDA
RDB
SG
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1

This manual confers no industrial property rights or any rights of any other kind,
nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be
held responsible for any problems involving industrial property rights which may
occur as a result of using the contents noted in this manual.
Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be
the cause of Mitsubishi; opportunity loss or lost profits caused by faults in the
Mitsubishi products; damage, secondary damage, accident compensation
caused by special factors unpredictable by Mitsubishi; damages to products
other than Mitsubishi products; and to other duties.
For safe use
This product has been manufactured as a general-purpose part for general
industries, and has not been designed or manufactured to be incorporated in
a device or system used in purposes related to human life.
Before using the product for special purposes such as nuclear power, electric
power, aerospace, medicine or passenger movement vehicles, consult with
Mitsubishi Electric.
This product has been manufactured under strict quality control. However
when installing the product where major accidents or losses could occur if the
product fails, install appropriate backup or failsafe functions in the system.
•
•
•
HEAD OFFICE
HIMEJI WORKS
: TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310,
JAPAN
: 840, CHIYODA CHO, HIMEJI, JAPAN
3. Specifications
3.1 General Specifications
*1 Cannot be used under pressures higher than the atmospheric pressure. Failure to observe this instruction may cause the unit to fail.
3.2 Communication Specifications
3.3 Power Supply Specifications
Item Specifications
Operating ambient
temperature 0 to 55°C
Storage ambient
temperature -20 to 60°C
Operating/Storage
ambient humidity 10 to 90% RH, non-condensing (The wet bulb temperature is 39°C or less.)
Vibration resistance Conforms to JIS
C60068-2-6
Frequency Acceleration Half-amplitude Sweep Count
Installed with DIN
rail
10 to 57Hz – 0.035mm
10 times each in X, Y and Z
directions
(Total 80 minutes for each)
57 to 150Hz 4.9m/s2–
Directly installed 10 to 57Hz – 0.075mm
57 to 150Hz 9.8m/s2–
Shock resistance Conforms to JIS C60068-2-27 (147 m/s2, 11 ms, Sine half-wave pulse, 3 times each in the X, Y, and Z directions)
Operating atmosphere Must be free of lamp black, corrosive gas, flammable gas, or excessive amounts of electro conductive dust particles and must not be placed in
direct sunlight. (This applies for storage as well)
Operating altitude 2000m (6562 ft) max.*1
Cooling method Self-cooling
External dimensions
(D×W×H) 90×65×90mm
Weight Approx. 0.3kg
Installation method Using DIN rail or fixed with screws
Exterior color (Case) Standard color of Mitsubishi Electric (Black: corresponding to N-0230-BG)
Standard Conforms to CE
Item I/F1 (RS-422) I/F2 (RS-232) I/F3 (RS-485) I/F4 (USB)
Connection
configuration 1:1 1:N 1:1
Transmiss
ion
standard
Transmissi
on method RS-422 1ch RS-232 1ch RS-485 1ch USB device 1ch
Transmissi
on speed 115, 200/57, 600/38, 400/19, 200/9, 600/4, 800 bps Full Speed 12Mbps
Insulation
method Photocoupler insulation --
Connector D-sub 9-pin (female) D-sub 9-pin (male) Terminal block (attach/detach
type) Mini-B
Transmission distance 30m or less 3m or less 500m (max.) (maximum overall
extension length of the system) --
Number of GOTs that
can be connected 116 (max.) 1
Communication method Full duplex
Half duplex and full duplex
(Can be selected depending on
the wiring)
--
Application
For PLC connection
(Cannot be used simultaneously
with I/F2)
For PLC connection
(Cannot be used simultaneously
with I/F1)
For multi-drop connection PC communication
(OS installation)
Item Specifications
Input power supply voltage 24VDC (+10%, -15%)
Fuse (built-in, not exchangeable) 1A
Power consumption 3.36W or less (140mA/24VDC)
Inrush current 14A or less (24VDC, 2ms)
Dielectric withstand voltage 500VAC for 1 minute (across power supply terminals and earth)
Insulation resistance 10MΩor larger by insulation resistance tester (across power supply terminals and earth)
Grounding Class D grounding (100Ω or less), To be connected to the panel when grounding is not possible
3.4 LED Light Specifications
*1 For details of corrective actions, refer to Chapter 7 Troubleshooting.
4. External Dimensions and Part name
LED Name Status Description
POWER Lit Power is properly supplied.
Not lit Power is not properly supplied.
SD Lit Sending the data to PLC
Not lit Not sending the data to PLC
RD Lit Receiving the data from PLC
Not lit Not receiving the data from PLC
ERROR*1
Not lit No error
Lit in red Communication error with PLC
Blinking in red Multi-drop communication error
No Name Specifications
1) Installation hole for the main unit Installation hole
2) LED
POWER Lit in green when the power is properly supplied.
SD Lit in green when the data is being sent to PLC.
RD Lit in green when the data is being received from PLC.
ERROR Lit or blinking depending on the status.
3) Terminating resistor selector Can be selected among 110Ω, OPEN and 330Ω(set to "OPEN" by default)
4) Connector for PLC communication (for RS-232 connection) D-sub 9-pin (male)
5) Connector selection switch for PLC communication Switch for selecting RS-422 or RS-232 (set to "RS-422" by default)
6) USB port For connecting to a personal computer (for changing the communication driver)
7) Connector for PLC communication (for RS-422 connection) D-sub 9-pin (female)
8) Protective cover Protect unused D-sub connector, USB port and switches.
9) Terminal block for the serial multi-drop communication Terminal block 5-pin (with a protective cover) M3 Tightening torque 0.5 to 0.6N.m
10) Power supply connector 24VDC power supply connector insertion point (A dedicated cable is included.)
11) Slider for installing the DIN rail –
12) Mode selection switch (Slide switch) Do not operate. (Set to right by default. When set to left, the module does not operate normally.)
57
72
1)
2)
10)
12)
11)
4)
3)
7)
8)
5)
6)
9)
80
• Protective cover is installed • Protective cover is removed
65
2- φ4.5
90
5. Installation
5.1 Installed with DIN Rail
Install the multi-drop connection module with its hook (1 place) using the DIN rail.
•Applicable DIN rail DIN46277 (width: 35mm)
(Install the DIN rail with screws at intervals of 150mm.)
5.2 Directly Installed to Panel
Install the multi-drop connection module to the panel using φ4.5mm holes (2 places).
5.3 Caution for compliance with EMC Directive
Programmable logic controllers are open-type devices that must be installed and used within conductive control boxes. Please use the Multi-Drop Connection Unit while
installed in conductive shielded control boxes. Please secure the control box lid to the control box (for conduction). Installation within a control box greatly affects the safety of
the system and aids in shielding noise from the Multi-Drop Connection Unit.
6. Wiring
6.1 Power Supply Wiring
Connect the power supply cable with connectors (included) and the 24VDC terminal of the external power supply.
6.2 Wiring and Terminating Resistor Setting
6.2.1 For 1 pair wiring
Make sure to ground a twisted pair cable by applying Class D Grounding (100Ωor less).
*1 The terminating resistor 110Ωis built in the multi-drop connection module and GOT (GT10,GT11).
Make sure to set the terminating resistor to both ends of the line.
For GT15 or GT16, external wiring is required. Set the terminating resistor of the GOT that is not at the end of the line to "OPEN".
Black-
Green Ground
Red+
GOT side GOT side GOT side
PLC
Class D
Grounding
Terminating
resistor
110ΩClass D
Grounding
*1
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
Signal name
SDA
SDB
RDA
RDB
SG
Multi-drop
connection module
Signal
name
Signal
name
Signal
name
Class D
Grounding
Terminating
resistor
110Ω
*1
Cable for GT11
6.2.2 For 2 pair wiring
Make sure to ground a twisted pair cable by applying Class D Grounding (100Ωor less).
*1 The terminating resistor 330Ωis built in the multi-drop connection module and GOT (GT10,GT11).
Make sure to set the terminating resistor to both ends of the line.
For GT15 or GT16, external wiring is required. Set the terminating resistor of the GOT that is not at the end of the line to "OPEN".
7. Troubleshooting
In the case where ERROR LED is lit or blinking, check the following items.
Status of ERROR LED Description
Lit in red
Check the following items.
•Check if the power supply status is normal or not.
•Check the wiring of the connection cable.
•Install the correct communication driver.
•Check if the communication interface to which the cable is connected is correct or not.
•Check the setting of the RS-422/RS-232 selector switch.
Blinking in red
Check the following items.
•Check that the Mode selection switch is set to the right.
•The OS may be faulty. Install the standard OS and communication driver from GT Designer2 or GT Designer3 to the multi-drop
module again.
Cable for GT11
Class D
Grounding
Class D
Grounding
Class D
Grounding
PLC
Multi-drop
connection module
Signal name
SDA
SDB
RDA
RDB
SG
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1

JY997D35801E
Safety Precaution (Read these precautions before using.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The precautions given in this manual are concerned with this product.
In this manual, the safety precautions are ranked as "DANGER" and "CAUTION".
Depending on circumstances, procedures indicated by "CAUTION" may also be
linked to serious results.
In any case, it is important to follow the directions for usage.
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
DESIGN PRECAUTIONS
•Some failures of the Multi-Drop Connection Unit or cable may keep the
outputs on or off.
An external monitoring circuit should be provided to check for output signals
which may lead to a serious accident.
Not doing so can cause an accident due to false output or malfunction.
•If a communication fault (including cable disconnection) occurs during
monitoring on the GOT, communication between the GOT and PLC CPU is
suspended and the GOT becomes inoperative.
A system where the GOT is used should be configured to perform any
significant operation to the system by using the switches of a device other
than the GOT on the assumption that a GOT communication fault will occur.
Not doing so can cause an accident due to false output or malfunction.
•
Do not use the Multi-Drop Connection Unit as the warning device that may
cause a serious accident.
An independent and redundant hardware or mechanical interlock is required to
configure the device that displays and outputs serious warning.
Failure to observe this instruction may result in an accident due to incorrect
output or malfunction.
DESIGN PRECAUTIONS
•Do not bundle the control and communication cables with main-circuit, power
or other wiring.
Run the above cables separately from such wiring and keep them a minimum
of 100mm (3.94in.) apart.Not doing so noise can cause a malfunction.
MOUNTING
PRECAUTIONS
•Be sure to shut off all phases of the external power supply used by the system
before mounting or removing the Multi-Drop Connection Unit to/from the panel.
Not doing so can cause the unit to fail or malfunction.
•When installing the battery wear an earth band etc. to avoid the static electricity.
The static electricity can cause the unit to fail or malfunction.
MOUNTING PRECAUTIONS
•Use the Multi-Drop Connection Unit in the environment that satisfies the general
specifications described in this manual. Not doing so can cause an electric shock,
fire, malfunction or product damage or deterioration.
WIRING PRECAUTIONS
•Be sure to shut off all phases of the external power supply used by the system
before wiring. Failure to do so may result in an electric shock, product damage or
malfunctions.
•Please make sure to ground FG terminal of the Multi-Drop Connection Unit power
supply section by applying 100 or less which is used exclusively for the GOT. Not
doing so may cause an electric shock or malfunction.
•Correctly wire the Multi-Drop Connection Unit power supply section after
confirming the rated voltage and terminal arrangement of the product. Not doing
so can cause a fire or failure.
•Tighten the terminal screws of the Multi-Drop Connection Unit power supply
section in the specified torque range. Undertightening can cause a short circuit or
malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the
screws or the Multi-Drop Connection Unit.
•Exercise care to avoid foreign matter such as chips and wire offcuts entering the
Multi-Drop Connection Unit. Not doing so can cause a fire, failure or malfunction.
WIRING PRECAUTIONS
•Plug the communication cable into the connector of the connected unit and
tighten the mounting and terminal screws in the specified torque range.
Undertightening can cause a short circuit or malfunction. Overtightening can
cause a short circuit or malfunction due to the damage of the screws or unit.
STARTUP/MAINTENANCE
PRECAUTIONS
•Do not disassemble or modify the Multi-Drop Connection Unit.
Doing so can cause a failure, malfunction, injury or fire.
•Do not touch the conductive and electronic parts of the Multi-Drop Connection
Unit directly.
Doing so can cause a Multi-Drop Connection Unit malfunction or failure.
•The cables connected to the Multi-Drop Connection Unit must be run in ducts or
clamped.
Not doing so can cause the Multi-Drop Connection Unit or cable to be damaged
due to the dangling, motion or accidental pulling of the cables or can cause a
malfunction due to a cable connection fault.
•When unplugging the cable connected to the unit, do not hold and pull the cable
portion. Doing so can cause the unit or cable to be damaged or can cause a
malfunction due to a cable connection fault.
•Do not drop or apply any impact to the battery.
If any impact has been applied, discard the battery and never use it.
The battery may be damaged by the drop or impact.
•Before touching the unit, always touch grounded metal, etc. to discharge static
electricity from human body, etc.
Not doing so can cause the Multi-Drop Connection Unit to fail malfunction.
DISPOSAL PRECAUTIONS
•When disposing of the product, handle it as industrial waste.
TRANSPORTATION
PRECAUTIONS
•Make sure to transport the Multi-Drop Connection Unit main unit and/or relevant
unit(s) in the manner they will not be exposed to the impact exceeding the impact
resistance described in the general specifications of this manual, as they are
precision devices. Failure to do so may cause the unit to fail.
Check if the unit operates correctly after transportation.
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive for the entire mechanical module should be checked
by the user / manufacturer. For more details please contact the local Mitsubishi
Electric sales site.
Attention
•This product is designed for use in industrial applications.
•Manufactured by: Mitsubishi Electric Corporation
2-7-3 Marunouchi, Chiyoda-ku, Tokyo 100-8310 Japan
•Manufactured at: Mitsubishi Electric Corporation Himeji Works
840 Chiyoda-machi, Himeji, Hyogo 670-8677 Japan
•Authorized Representative in the European Community:
Mitsubishi Electric Europe B.V.
Gothaer Str. 8, 40880 Ratingen, Germany.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (to the
identified standards) and design analysis (forming a technical construction file) to the
European Directive for Electromagnetic Compatibility (2004/108/EC) when used as
directed by the appropriate documentation.
Type :Programmable Controller (Open Type Equipment)
For more details please contact the local Mitsubishi Electric sales site.
Associated Manuals
The following manuals are relevant to this product. When these loose manuals are required, please consult with our local distributor.
Bundled Items
1. System Configuration
1.1 System Configuration
GOT multi-drop connection is a communication method for 1:N communication by
connecting multiple GOTs to one PLC, using the GT01-RS4-M serial multi-drop
connection module.
For details of the system configuration, refer to the GOT1000 Series Connection
Manual.
1.2 Compatible PLC
For PLCs compatible with the GOT multi-drop connection, refer to the GOT1000
Series Connection Manual.
1.3 Compatible GOT
The followings are the GOTs compatible with the GOT multi-drop connection.
For the confirmation method of the hardware version, refer to the User's Manual of
each GOT.
1.4 Compatible drawing software version
GT Designer2 Version2 (Ver.2.93X or later)
GT Designer3 Version1 (Ver.1.01B or later) (Ver.1.14Q or later is applicable to GT16
and GT15.)
Standard Remark
EN61131-2 : 2007
Programmable
controllers-
Equipment,
requirement and tests
EMI Compliance with all relevant aspects of the
standard. (Radiated Emissions)
EMS
Compliance with all relevant aspects of the
standard.
(ESD, RF electromagnetic field, EFTB, Surge,
RF conducted disturbances and Power
frequency magnetic field)
Manual Name Manual Number
(Model Code) Description
GOT1000 Series Connection Manual 1/3, 2/3, 3/3 SH-080532ENG
(1D7M26)
Describes system configurations of connection methods applicable to GOT1000
series and cable creation methods
GOT1000 Series Connection Manual (Mitsubishi Products)
for GT Works3
SH-080868ENG
(1D7MC2)
Describes system configurations of connection methods applicable to GOT1000
series and cable creation methods
GT Designer2 Version2 Basic Operation/Data Transfer Manual
(For GOT1000 Series)
SH-080529ENG
(1D7M24)
Describes methods of the GT Designer2 installation operation, basic operation for
drawing and transmitting data to GOT1000 series
GT Designer2 Version2 Screen Design Manual
(For GOT1000 Series) 1/3, 2/3, 3/3
SH-080530ENG
(1D7M25) Describes specifications and settings of the object functions used in GT Designer2
GT Designer3 Version1 Screen Design Manual
(For GOT1000 Series)
(Fundamentals) 1/2, 2/2
SH-080866ENG
(1D7MB9)
Describes methods of the GT Designer3 installation operation, basic operation for
drawing and transmitting data to GOT1000 series
Included Item Number of Items
GT01-RS4-M main unit 1
Power supply cable with connectors 1
GT01-RS4-M Serial Multi-Drop Connection Unit USER’S MANUAL (this manual) 1
Serial multi drop connection module
Connect to the PLC.
Varies according to
the connection type.
RS-485 cable
• Communication driver
• Communication interface
MAX500m
• GT Designer2
• GT Designer3
• Communication driver
• Communication interface
GOT Hardware version
GT16
Version A or later
GT15
GT1155-QTBD Version C or later
GT1155-QSBD, GT1150-QLBD Version F or later
GT1055-QSBD, GT1050-QBBD Version C or later
GT1045-QSBD, GT1040-QBBD Version A or later
GT1030-LBD/LWD, GT1030-LBDW/LWDW
GT1030-HBD/HWD, GT1030-HBDW/HWDW Version B or later
GT1020-LBD/LWD, GT1020-LBDW/LWDW Version E or later
2. Outline Procedure
The outline procedure is shown below.
GT11 installation follows.
1) Install the OS.
•Install the communication driver of the PLC connected to the multi-drop connection module.
•Install the communication driver (multi-drop (Slave)) to the GOT.
For details of the installation method, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
- For GT Designer2
(For multi-drop connection module) (For GOT)
- For GT Designer3
(For multi-drop connection module) (For GOT)
2) Make sure that the OS is installed.
Check GT Designer2 or GT Designer3 drive information to know if the OS is properly installed in the GOT.
For details, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
3) Set the communication interface.
•For the multi-drop connection module, set the communication interface in the communication setting with GT01-RS4-M of GT Designer2 or GT Designer3.
•For the GOT, set the communication interface in the Communication Settings of GT Designer2 or GT Designer3.
For details, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design Manual.
- For GT Designer2
(For multi-drop connection module)
(For GOT)
- For GT Designer3
(For multi-drop connection module) (For GOT)
4) Download the project data.
For instructions on how to download the project data, refer to the GT Designer2 Version2 Basic Operation/Data Transfer Manual or GT Designer3 Version1 Screen Design
Manual.
5) Connect the cable.
For details of the cable connection, refer to the GOT1000 Series Connection Manual.
GT01-RS4-M
Serial Multi-Drop Connection Unit
USER’S MANUAL
This manual describes the specifications of the product. Before use, read this
manual and manuals of relevant products fully to acquire proficiency in
handling and operating the product. Make sure to learn all the product
information, safety information, and precautions.
And, store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this manual are
the registered trademarks or trademarks of each company.
Effective Jul. 2011
Specifications are subject to change without notice.
©2009 Mitsubishi Electric Corporation
Manual Number JY997D35801E
Date Jul. 2011

This manual confers no industrial property rights or any rights of any other kind,
nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be
held responsible for any problems involving industrial property rights which may
occur as a result of using the contents noted in this manual.
Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be
the cause of Mitsubishi; opportunity loss or lost profits caused by faults in the
Mitsubishi products; damage, secondary damage, accident compensation
caused by special factors unpredictable by Mitsubishi; damages to products
other than Mitsubishi products; and to other duties.
For safe use
This product has been manufactured as a general-purpose part for general
industries, and has not been designed or manufactured to be incorporated in
a device or system used in purposes related to human life.
Before using the product for special purposes such as nuclear power, electric
power, aerospace, medicine or passenger movement vehicles, consult with
Mitsubishi Electric.
This product has been manufactured under strict quality control. However
when installing the product where major accidents or losses could occur if the
product fails, install appropriate backup or failsafe functions in the system.
•
•
•
HEAD OFFICE
HIMEJI WORKS
: TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310,
JAPAN
: 840, CHIYODA CHO, HIMEJI, JAPAN
3. Specifications
3.1 General Specifications
*1 Cannot be used under pressures higher than the atmospheric pressure. Failure to observe this instruction may cause the unit to fail.
3.2 Communication Specifications
3.3 Power Supply Specifications
Item Specifications
Operating ambient
temperature 0 to 55°C
Storage ambient
temperature -20 to 60°C
Operating/Storage
ambient humidity 10 to 90% RH, non-condensing (The wet bulb temperature is 39°C or less.)
Vibration resistance Conforms to JIS
C60068-2-6
Frequency Acceleration Half-amplitude Sweep Count
Installed with DIN
rail
10 to 57Hz – 0.035mm
10 times each in X, Y and Z
directions
(Total 80 minutes for each)
57 to 150Hz 4.9m/s2–
Directly installed 10 to 57Hz – 0.075mm
57 to 150Hz 9.8m/s2–
Shock resistance Conforms to JIS C60068-2-27 (147 m/s2, 11 ms, Sine half-wave pulse, 3 times each in the X, Y, and Z directions)
Operating atmosphere Must be free of lamp black, corrosive gas, flammable gas, or excessive amounts of electro conductive dust particles and must not be placed in
direct sunlight. (This applies for storage as well)
Operating altitude 2000m (6562 ft) max.*1
Cooling method Self-cooling
External dimensions
(D×W×H) 90×65×90mm
Weight Approx. 0.3kg
Installation method Using DIN rail or fixed with screws
Exterior color (Case) Standard color of Mitsubishi Electric (Black: corresponding to N-0230-BG)
Standard Conforms to CE
Item I/F1 (RS-422) I/F2 (RS-232) I/F3 (RS-485) I/F4 (USB)
Connection
configuration 1:1 1:N 1:1
Transmiss
ion
standard
Transmissi
on method RS-422 1ch RS-232 1ch RS-485 1ch USB device 1ch
Transmissi
on speed 115, 200/57, 600/38, 400/19, 200/9, 600/4, 800 bps Full Speed 12Mbps
Insulation
method Photocoupler insulation --
Connector D-sub 9-pin (female) D-sub 9-pin (male) Terminal block (attach/detach
type) Mini-B
Transmission distance 30m or less 3m or less 500m (max.) (maximum overall
extension length of the system) --
Number of GOTs that
can be connected 116 (max.) 1
Communication method Full duplex
Half duplex and full duplex
(Can be selected depending on
the wiring)
--
Application
For PLC connection
(Cannot be used simultaneously
with I/F2)
For PLC connection
(Cannot be used simultaneously
with I/F1)
For multi-drop connection PC communication
(OS installation)
Item Specifications
Input power supply voltage 24VDC (+10%, -15%)
Fuse (built-in, not exchangeable) 1A
Power consumption 3.36W or less (140mA/24VDC)
Inrush current 14A or less (24VDC, 2ms)
Dielectric withstand voltage 500VAC for 1 minute (across power supply terminals and earth)
Insulation resistance 10MΩor larger by insulation resistance tester (across power supply terminals and earth)
Grounding Class D grounding (100Ω or less), To be connected to the panel when grounding is not possible
3.4 LED Light Specifications
*1 For details of corrective actions, refer to Chapter 7 Troubleshooting.
4. External Dimensions and Part name
LED Name Status Description
POWER Lit Power is properly supplied.
Not lit Power is not properly supplied.
SD Lit Sending the data to PLC
Not lit Not sending the data to PLC
RD Lit Receiving the data from PLC
Not lit Not receiving the data from PLC
ERROR*1
Not lit No error
Lit in red Communication error with PLC
Blinking in red Multi-drop communication error
No Name Specifications
1) Installation hole for the main unit Installation hole
2) LED
POWER Lit in green when the power is properly supplied.
SD Lit in green when the data is being sent to PLC.
RD Lit in green when the data is being received from PLC.
ERROR Lit or blinking depending on the status.
3) Terminating resistor selector Can be selected among 110Ω, OPEN and 330Ω(set to "OPEN" by default)
4) Connector for PLC communication (for RS-232 connection) D-sub 9-pin (male)
5) Connector selection switch for PLC communication Switch for selecting RS-422 or RS-232 (set to "RS-422" by default)
6) USB port For connecting to a personal computer (for changing the communication driver)
7) Connector for PLC communication (for RS-422 connection) D-sub 9-pin (female)
8) Protective cover Protect unused D-sub connector, USB port and switches.
9) Terminal block for the serial multi-drop communication Terminal block 5-pin (with a protective cover) M3 Tightening torque 0.5 to 0.6N.m
10) Power supply connector 24VDC power supply connector insertion point (A dedicated cable is included.)
11) Slider for installing the DIN rail –
12) Mode selection switch (Slide switch) Do not operate. (Set to right by default. When set to left, the module does not operate normally.)
57
72
1)
2)
10)
12)
11)
4)
3)
7)
8)
5)
6)
9)
80
• Protective cover is installed • Protective cover is removed
65
2- φ4.5
90
5. Installation
5.1 Installed with DIN Rail
Install the multi-drop connection module with its hook (1 place) using the DIN rail.
•Applicable DIN rail DIN46277 (width: 35mm)
(Install the DIN rail with screws at intervals of 150mm.)
5.2 Directly Installed to Panel
Install the multi-drop connection module to the panel using φ4.5mm holes (2 places).
5.3 Caution for compliance with EMC Directive
Programmable logic controllers are open-type devices that must be installed and used within conductive control boxes. Please use the Multi-Drop Connection Unit while
installed in conductive shielded control boxes. Please secure the control box lid to the control box (for conduction). Installation within a control box greatly affects the safety of
the system and aids in shielding noise from the Multi-Drop Connection Unit.
6. Wiring
6.1 Power Supply Wiring
Connect the power supply cable with connectors (included) and the 24VDC terminal of the external power supply.
6.2 Wiring and Terminating Resistor Setting
6.2.1 For 1 pair wiring
Make sure to ground a twisted pair cable by applying Class D Grounding (100Ωor less).
*1 The terminating resistor 110Ωis built in the multi-drop connection module and GOT (GT10,GT11).
Make sure to set the terminating resistor to both ends of the line.
For GT15 or GT16, external wiring is required. Set the terminating resistor of the GOT that is not at the end of the line to "OPEN".
Black-
Green Ground
Red+
GOT side GOT side GOT side
PLC
Class D
Grounding
Terminating
resistor
110ΩClass D
Grounding
*1
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
Signal name
SDA
SDB
RDA
RDB
SG
Multi-drop
connection module
Signal
name
Signal
name
Signal
name
Class D
Grounding
Terminating
resistor
110Ω
*1
Cable for GT11
6.2.2 For 2 pair wiring
Make sure to ground a twisted pair cable by applying Class D Grounding (100Ωor less).
*1 The terminating resistor 330Ωis built in the multi-drop connection module and GOT (GT10,GT11).
Make sure to set the terminating resistor to both ends of the line.
For GT15 or GT16, external wiring is required. Set the terminating resistor of the GOT that is not at the end of the line to "OPEN".
7. Troubleshooting
In the case where ERROR LED is lit or blinking, check the following items.
Status of ERROR LED Description
Lit in red
Check the following items.
•Check if the power supply status is normal or not.
•Check the wiring of the connection cable.
•Install the correct communication driver.
•Check if the communication interface to which the cable is connected is correct or not.
•Check the setting of the RS-422/RS-232 selector switch.
Blinking in red
Check the following items.
•Check that the Mode selection switch is set to the right.
•The OS may be faulty. Install the standard OS and communication driver from GT Designer2 or GT Designer3 to the multi-drop
module again.
Cable for GT11
Class D
Grounding
Class D
Grounding
Class D
Grounding
PLC
Multi-drop
connection module
Signal name
SDA
SDB
RDA
RDB
SG
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
GOT side
Signal
name
SDA
SDB
RDA
RDB
SG
RSA
RSB
CSA
CSB
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1
Terminating
resistor
330Ω
*1
