Mitsubishi MJ-E14CG-S1-IT User manual

Italiano
DEHUMIDIFIER
MODEL
MJ-E14CG-S1-IT
INSTRUCTION MANUAL
Features
Drying Inside
Air Filter
Easy Dehumidifying ·
Intelligent Laundry
l
l
l
In order to ensure correct usage, please read this
instruction manual carefully and retain it for future
reference.
Before accepting the Warranty at the time of
purchase, please make sure that the date of
purchase, place of purchase and other items are
correctly filled in the form.
Keep the Instruction Manual and Warranty in a safe
place.
l
l
l
Table of Contents page
Before using the unit
Recommended Ways of Using the Unit
Depending on Purpose ······························ 2
Frequently Asked Questions····················· 3
Precautions ················································· 4
Warnings ····················································· 6
Tips on Dehumidifying······························· 6
Names and Functions of Parts·················· 7
Unit/Control Panel/LCD Panel
(Low Temperature/Defrost/High Humidity)
Things to Be Aware of ····························· 10
Before Using Your Dehumidier ············· 10
l
l
l
l
l
l
l
l
Operating
Turning the Unit ON and OFF·················· 12
To turn ON/To turn OFF
Reading the humidity display/Tank full lamp
Easy Operation ········································· 13
EASY DEHUMIDIFYING/INTELLIGENT LAUNDRY
Setting Modes ··········································· 14
LOW/MILDEW GUARD/LOW TEMP/AUTO/AIR PURIFIER
Using Louvre ············································ 16
Drying Inside Operation··························· 17
Using Timer ·············································· 18
OFF timer operation/ON timer operation
Using Child Lock ······································ 20
Carrying the Unit ······································ 20
Draining ····················································· 21
Continuous Drainage ······························· 22
l
l
l
l
l
l
l
l
l
l
Troubleshooting
Maintenance ············································· 23
Replacement Parts ··································· 25
Storage and Disposal······························· 25
Troubleshooting ······································· 26
Specications ··········································· 28
l
l
l
l
l
I
English
E
e_mj_e14cg_s1_it.indb 1 2013/06/22 19:36:43


Recommended Ways of Using the Unit Depending on Purpose
Combine operating mode and swing louvre function to get optimum results.
Objective
Recommended
operating
mode
Recommended
swing setting
Procedure
Press the
power button
(the unit turns on)
Page 12
Select the
mode
Page 13–15
Select the
louvre swing
range
Page 16
Lowering room humidity Preventing mold/
When you don’t
want to hang
clothes outside or
it is raining...
When you don’t
know what
humidity level to
set the unit to...
When you want to
set the humidity
level...
When
condensation
occurs indoors...
To prevent
mildew...
INTELLIGENT
LAUNDRY
The unit operates
automatically until the
laundry is dry.
EASY
DEHUMIDIFYING
The unit operates
until the air is
comfortable.
AUTO
The unit maintains
the set humidity.
LOW TEMP
The unit changes the
airflow according to
room temperature.
MILDEW
GUARD
The unit operates
in mildew
suppression mode.
UPWARD
Aim toward clothes.
Turn the power on
Select INTELLIGENT
LAUNDRY
Select EASY
DEHUMIDIFYING
Select
LOW TEMP
Select
MILDEW
GUARD
Select UPWARD Select any swing setting Select any swing setting
Turn the power on
Switch to
HUMIDITY
SELECTION
Set the
humidity
Turn the
power on
Any swing setting Any swing setting
Drying
laundry
What
should I
set it to?
I want to
set it to
60%
e_mj_e14cg_s1_it.indb 2 2013/06/22 19:36:44


Before using the unit E
Recommended Ways of Using the Unit Depending on Purpose
Preventing mold/
To clean
the air
To prevent
mildew...
To keep the inside
of closets and
shoeboxes dry...
There is no need for
dehumidification, but you
wish to remove pollen and
dust from the air.
MILDEW
GUARD
The unit operates
in mildew
suppression mode.
LOW
The dehumidifier
operates regardless
of the humidity level.
REAR
Direct the
air flow
Switch to AIR PURIFIER
Select LOW
Select any swing setting
Select any
swing setting
Select REAR
Turn the power on
Any swing setting Any swing setting
AIR PURIFIER
The unit operates the air
purifier only.
condensation

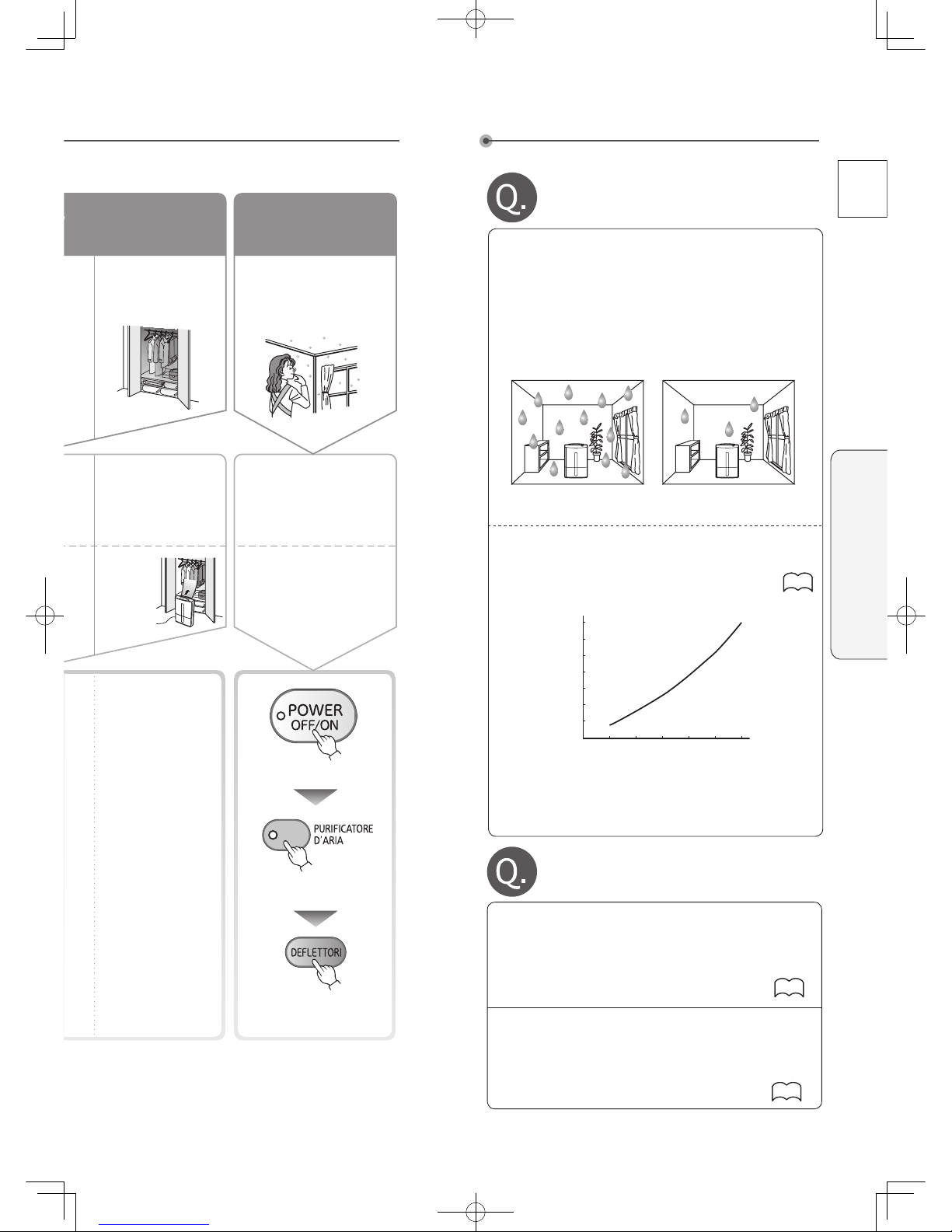

Frequently Asked Questions
Why does the dehumidifier seem
to collect less water in winter?
A. When the temperature and humidity are
low, the amount of water collected is
decreased.
In winter, because the temperature is lower than in
summer, the effect of the dehumidifier decreases
dramatically as shown in the graph below.
Although less water collects in the tank, this is not a
malfunction.
Room temperature (°C)
Winter (dampness)
* If the temperature is low, but the humidity is high due
to snow or rain, operating the unit in LOW TEMP mode
will yield better results than in LOW mode.
Value for LOW when humidity is 80%
1414
0
2
4
6
8
10
12
14
5 10 15 20 25 32
• The values shown on the graph were measured at
constant temperature and humidity and do not reflect
values obtained in actual usage conditions.
Dehumidification capacity (L/day)
• Why doesn’t the dehumidifier operate?
• Why does the unit stop operating suddenly?
A. The unit might be in INTELLIGENT
LAUNDRY mode.
The unit may sometimes stop operation after just a
short amount of time as a result of conditions such as
the room temperature and humidity. 11
A. The unit might be in EASY
DEHUMIDIFYING, MILDEW GUARD, or
AUTO mode.
The unit automatically switches between
dehumidifying, airflow only, and non-operation.
1–151–15
Summer (humidity)
e_mj_e14cg_s1_it.indb 3 2013/06/22 19:36:45

4

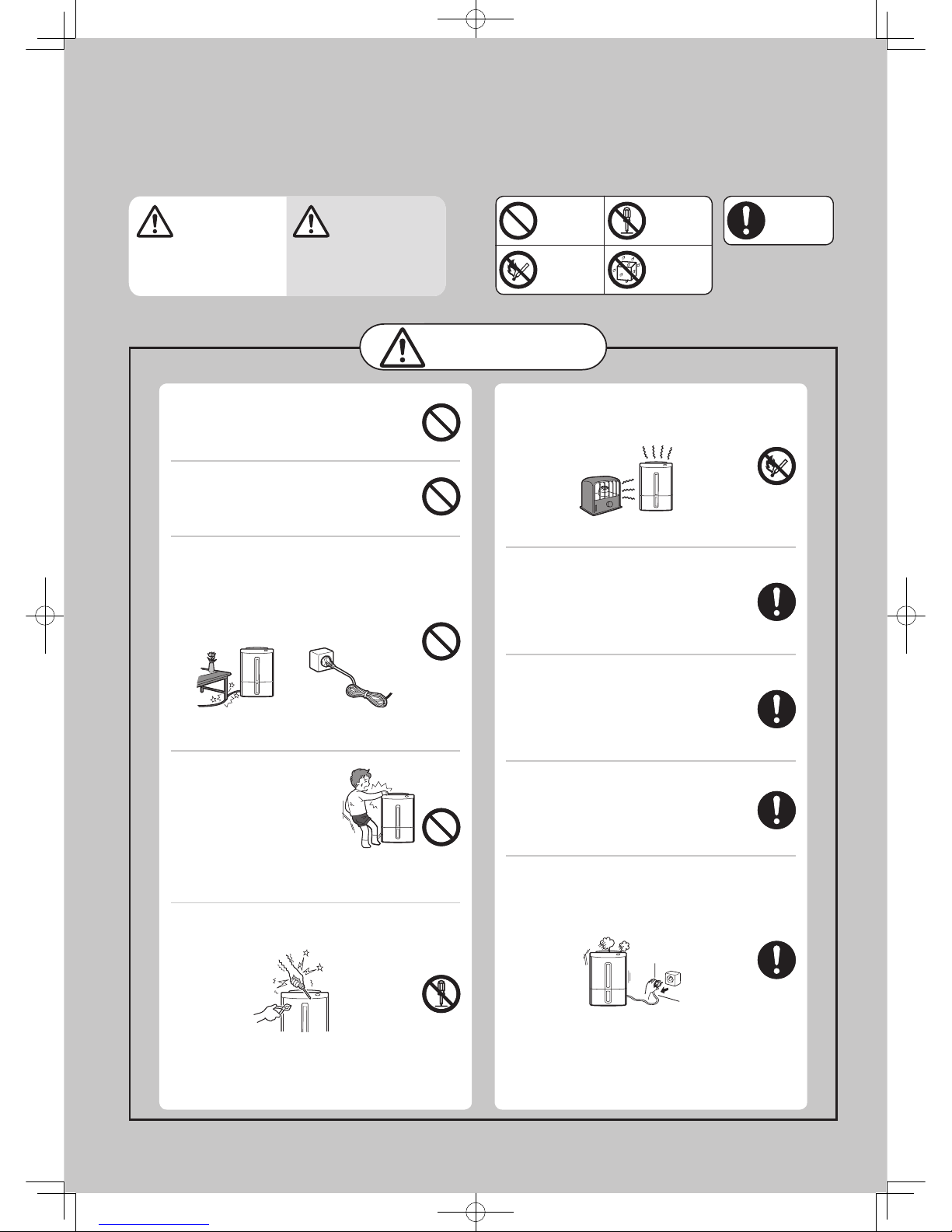

Precautions
WARNING
Meanings of the graphic symbols used in this manual and on
the unit are explained below.
Forbidden
Keep
away from
fire
Do not
subject to
water
Do not
disassemble
Always
follow the
instructions
The following diagrams indicate circumstances where
danger can result from mishandling the unit.
WARNING CAUTION
Mishandling may result in
fatal or serious injuries.
Mishandling may result in
minor injuries or damage to
your home or property, etc.
Do not start/stop the unit by
plugging/unplugging the power
cord.
This may result in re and/or electric shock.
Do not use extension cords or
multiple head adapters.
This may result in re, electric shock or
malfunctions.
Do not damage or modify the
power cord or plug.
Do not modify, bundle, twist, bend or heat
the power cord. Do not place under objects
or use with the end close to the plug bent.
(Keep pets from biting the cord.)
The cord may be damaged resulting in
re or electric shock.
Do not put your ngers
or any long object, into
the air intake/outlet.
Do not touch the swing
louvre.
The internal fan rotates at high speeds,
and such actions may result in injury or
malfunctions.
Do not attempt to repair,
disassemble, or modify the unit.
This may result in re and/or electric
shock. Refer servicing to your dealer or
Mitsubishi Electric Service Centre.
Do not put the unit near heat-
generating devices (such as
stoves, fan heaters, etc.).
The plastic parts may melt and cause re.
Wipe dust off the power plug and
insert the plug rmly.
If the plug is not fully inserted into
the socket, dust may gather on the
connectors which may cause re and/or
electric shock.
Use 220–240V AC power sockets.
Connecting to power sockets other than
220–240V AC may result in re and/or
electric shock.
Remove water that has collected
in the tank.
Accidentally drinking the water or using
it for other purposes may cause illness
and/or unforeseen accidents.
Should abnormal symptoms occur
(a burning smell, etc.), switch off
the unit and unplug it from the
socket.
Continuing to operate the unit may result
in re, electric shock, or malfunctions.
Contact your dealer or Mitsubishi Electric
Service Centre for consultation.
e_mj_e14cg_s1_it.indb 4 2013/06/22 19:36:48

5
Before using the unit E
CAUTION
Do not cover the front or side
air intakes or the air outlet
with cloth, curtain, etc.
This results in poor ventilation and
may cause heat generation/re.
Do not stand on, sit on or lean
against the unit.
The unit may tip over causing injury.
Do not put vases or any other
objects lled with water on the unit.
Water may leak into the unit adversely
affecting electric insulation and cause
electric shock and/or re by short-
circuiting.
Do not use the unit where it may be
exposed to direct sunlight or other
weather conditions.
(This unit is for indoor
use only.)
This may cause overheating,
electric shock and/or re
caused by an electric leak.
Do not use the unit in narrow,
enclosed places such as inside
closets, between
pieces of furniture, etc.
This results in poor
ventilation and may cause
heat generation and/or re.
Do not use combustion appliances
in the path of the
air outlet.
This may cause
incomplete combustion
in the appliance.
Do not use the unit in places
where chemicals are used
(such as hospitals, factories,
laboratories or beauty salons).
Chemicals and solvents evaporated in
the air may harm the unit and cause
water in the tank to leak, resulting in
damage to property.
Do not use the unit for special
purposes, such as preservation of
food, art or scientic
works.
This may negatively affect
the quality of the items
stored.
Do not drain water continuously
if there is a possibility that
temperature around the hose could
drop to freezing point.
Water inside the hose may freeze and
prevent the water in the tank from flowing out.
The water may leak from the unit and
damage surrounding objects.
Do not use the unit in places
that may be subject to oil or
ammable gas leakage.
Such a leak around the unit may cause
combustion and re.
Do not remove the Styrofoam
from the oating element.
The floating element will not
be able to detect a full tank
resulting in water leakage,
which may damage surrounding
objects or cause electric shock and/or
an electric leak.
Do not wash the unit
with water. Do not
use the unit where it
is likely to come in
contact with water.
Exposure to water may result in re or
electric shock caused by an electric
leak.
Do not point air-ow from the unit
directly at the body.
If air-flow is directed at
the body for long periods,
it may harm one’s
physical condition and
lead to dehydration.
Install the unit in a location where
the oor is at and stable.
If the unit falls over, the water collected
in the water tank may leak damaging
surrounding objects and in turn result
in re or electric shock caused by an
electrical leak.
Grasp the plug and remove
from the power socket.
When removing the plug
from the power socket, do
not pull on it diagonally or by the cord as
this may cause the projections/wiring to
be damaged resulting in a short circuit,
electric shock or re.
Before moving the unit always switch
it off, unplug it and remove water
from the water tank.
Moving the unit with water in its tank may
cause the water to leak and damage the
surrounding objects and in turn result
in electric shock and/or an electric leak.
e_mj_e14cg_s1_it.indb 5 2013/06/22 19:36:51


Drain the water tank before use
Refrain from opening
doors/windows during operation
Drying laundry indoors
Maintain room temperature above 16°C with a
heater
Drying times will vary depending on the nature of the
laundry and the room temperature.
The airflow is strongest to the top right of the unit.

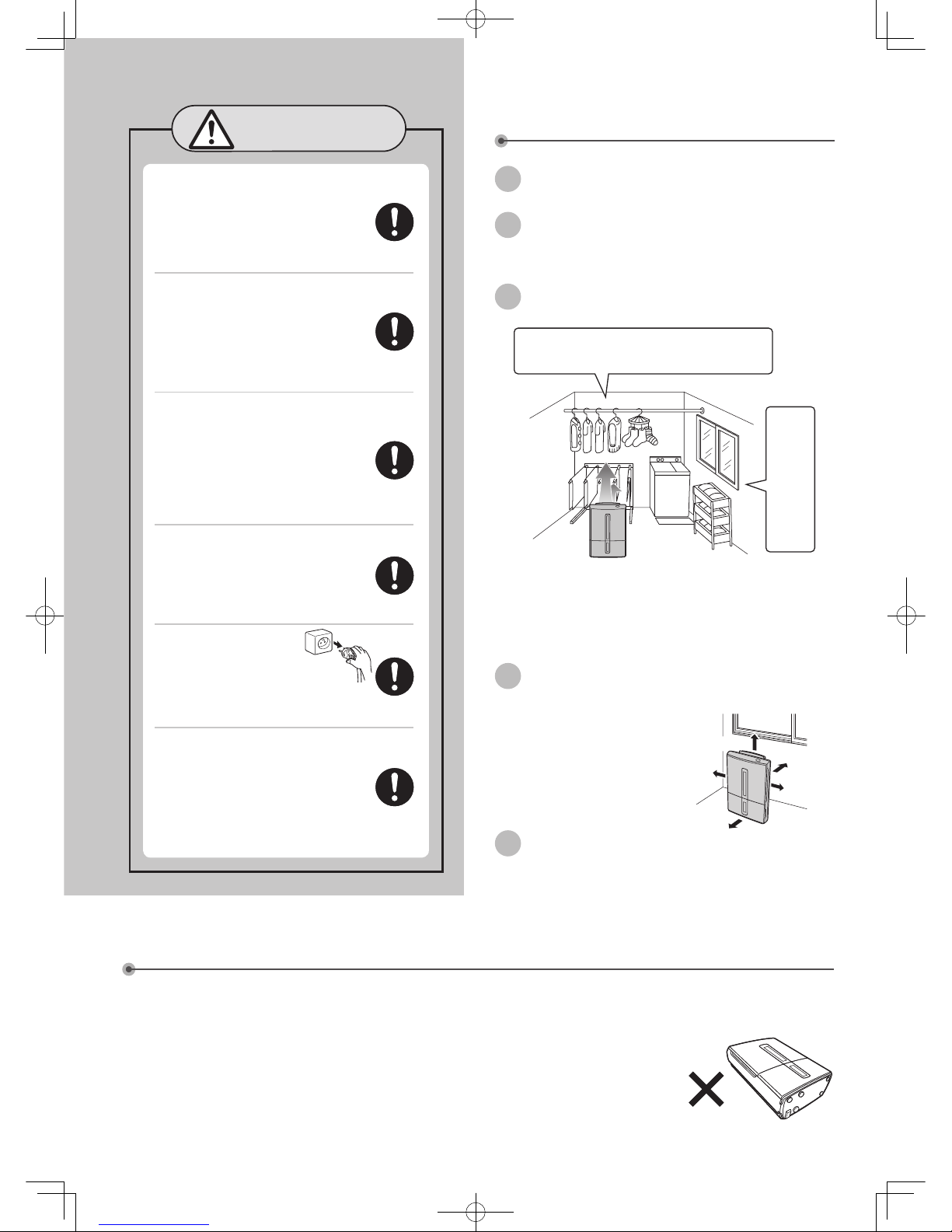

Installing your dehumidifier
Make sure to leave some
space around the unit.
<For use in close
proximity to a wall>
Stop the louvre in the
vertical position. Blowing
air at the wall may cause
staining.
Operating noise
Place the unit on top of a mat. This reduces vibration
and noise. It also prevents leaving depressions on
carpets.
l
l
At least
20 cm
At least 50 cm
At least
2 cm
At least 20 cm
At least
20 cm
• Direct the louvres at the laundry.
• Space laundry to improve airflow.
Precautions (Cont.)
CAUTION
Use the dehumidifier in a small, enclosed room.
l Keep the unit always in an upright
position. Inclining the unit may cause water
in the tank to leak into the unit, resulting in
malfunction. Should this happen contact
service number on the last page for advice.
l Damage to the dehumidifier caused by
atmospheric conditions (ie. Salt or Sulphur) will
not be covered under warranty.
After emptying the tank,
transport the unit by grasping
the handle rmly.
Losing your footing while carrying
the unit may cause personal injury
or damage to the oor.
When using the continuous
drainage outlet, make sure
to position the hose so that
the water drains without
obstruction.
The water in the tank may leak and
damage surrounding objects.
When draining water
continuously or left
unattended for long periods,
inspect the unit every two
weeks.
Do not allow debris to clog the
filter/hose as this may cause
overheating/leakage.
Use the unit with caution
in rooms where the walls,
furniture and art work are
vulnerable to dry air, as
it may cause cracks and
warping.
Switch the unit off and
unplug from the power
source when cleaning it.
When the unit is on, the internal fan
rotates at high speeds and may
cause injury.
Unplug the unit from the
power source when not using
the unit for an extended
period of time.
Otherwise it may cause re and/
or electric shock caused by an
electric leak.
Tips on Dehumidifying
l Do not carry or store the unit horizontally.
This may result in malfunctions.
Such malfunctions are NOT covered under
warranty.
Warnings
e_mj_e14cg_s1_it.indb 6 2013/06/22 19:36:53



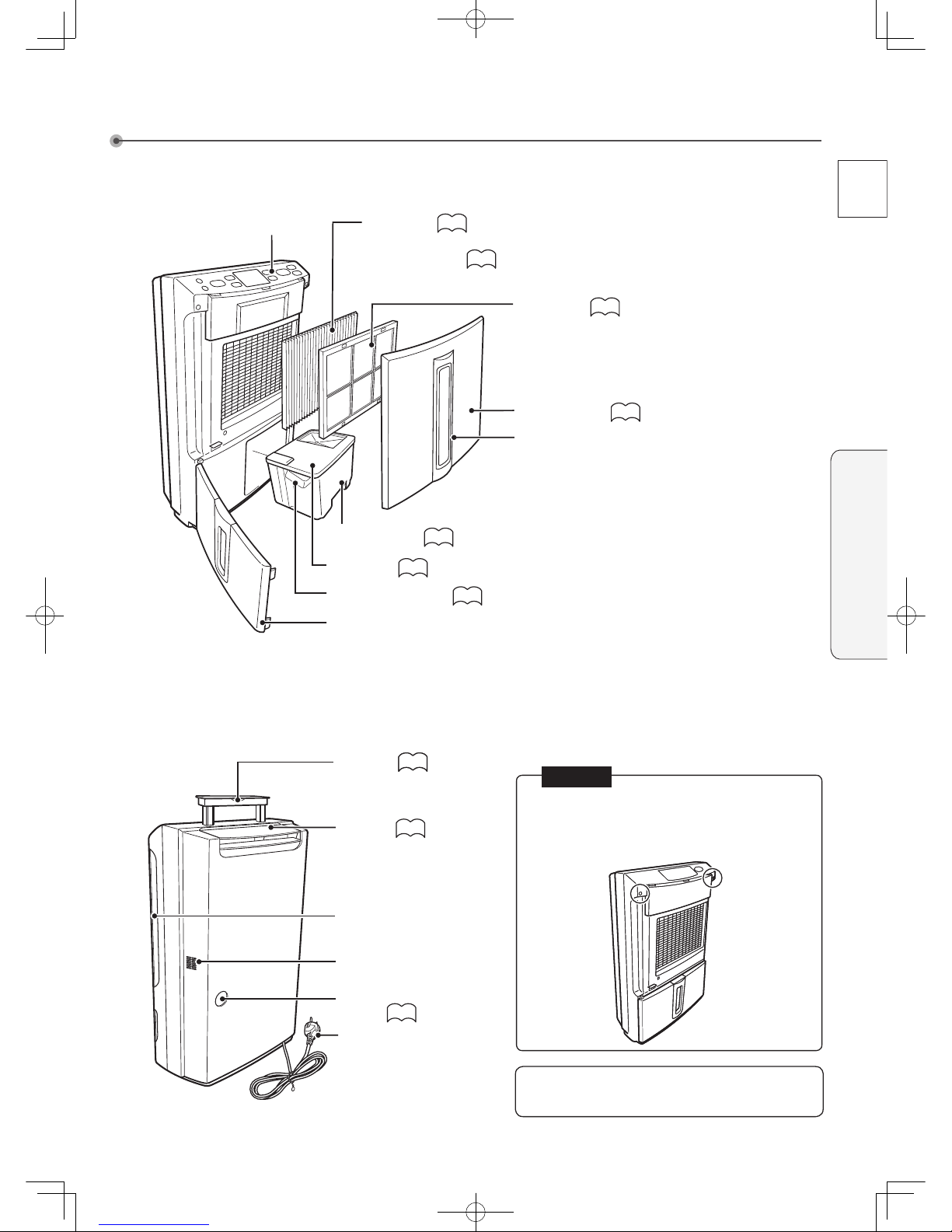

Before using the unit E
Front
Back
Air filter
4·5
Supplied with unit.
Set before use. 10
Front air intake
Do not block.
Handle
Raise handle to transport
00
Side air intakes (left/right)
Do not block.
Power plug
It is impossible to remove the back panel because
the two spots shown are fastened with two special
screws.
If the unit malfunctions, contact your Mitsubishi
dealer.
The water tank may contain water residue at time
of purchase. This is from final product testing at the
factory and is not due to a defect.
Names and Functions of Parts
Control panel
Pre-filter 
Front panel 10
Water tank
11·1
Tank lid
11·1
Floating element 1
Front door
Louvre 1
Sensor
Do not cover.
Continuous drainage
outlet 
NOTE
e_mj_e14cg_s1_it.indb 7 2013/06/22 19:36:54

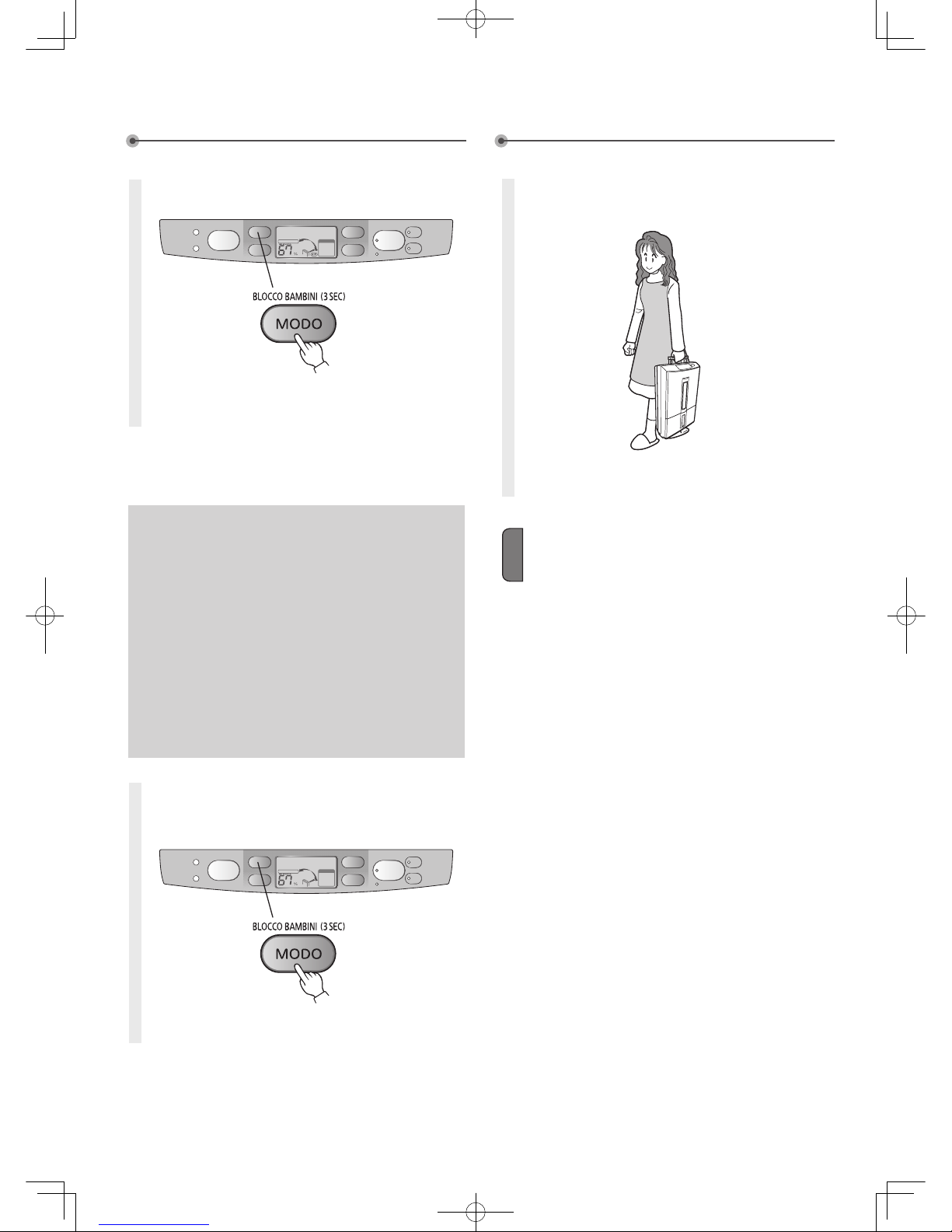

Child lock
To set the child lock,
press the mode
button for three
seconds.


All indicators on the LCD panel shown below.
Control Panel
Lamp
Current mode lights.
Selection button
Switches modes.


Mode button
For switching from one
operating mode to another.
Humidity selection
button
This is used to set the
target humidity.


14–15
Swing louvre button
Sets swing louvre
direction or locks it into
position.

1
1–19
OFF/ON timer button
Sets timer.

LCD Panel
Mode indicator
Indicates the current
operating mode.

14–15
Humidity indicator
This indicates the approximate
humidity.
indicates the current
humidity.
indicates the
humidity setting in
AUTO mode.
The humidity is displayed in a
range from 30 to 80%

1
Swing monitor
Indicates the direction
of the swing louvre.

1
Timer display
Displays the time
set for the ON/
OFF timer.

1–19
Names and Functions of Parts (Cont.)
1
0
Child lock indicator
Displayed while child
lock is active.

0
e_mj_e14cg_s1_it.indb 8 2013/06/22 19:36:55

All modes include
dehumidifier and air purifier
functions.
Air purifier only operation.
The dehumidifier function is
disabled.
9
Before using the unit E
The indicator comes on if the
room temperature drops below
15°C.
Activating LOW TEMP mode is
recommended. 1414
Tank full lamp
This lights up to warn that the
water tank is full.

1
Power lamp
Lights when unit is ON.
Power button
Use this to switch the
unit ON and OFF.


1
You can select from 7 operating modes.
 EASY
DEHUMIDIFYING
 INTELLIGENT
LAUNDRY
 LOW
 MILDEW GUARD
 LOW TEMP
 AUTO
 AIR PURIFIER
Low Temperature
Indicator
DEFROST Indicator
Airflow (dehumidifying) will stop and the
frost that has accumulated inside will be
melted and dropped into the tank when
the indicator is on.
Please wait a moment as operation will
resume in around 5 minutes.
While in DEFROST mode, airflow
(dehumidifying) and the louvre will
stop. The sounds coming from the unit
will also change.
DEFROST will start automatically when
room temperature drops below 15°C
(This may be as often as once every 40
minutes).
Names and Functions of Parts (Cont.)

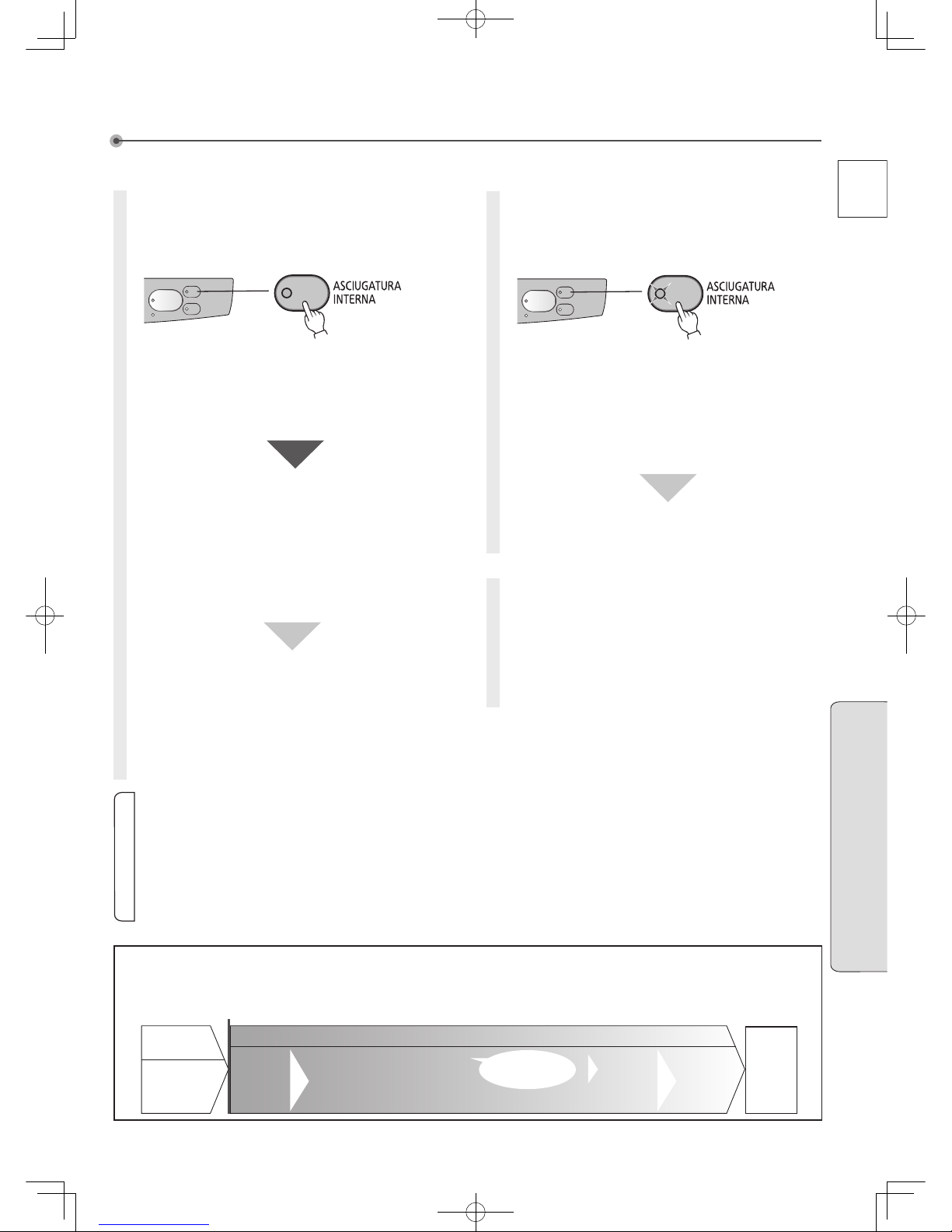

Drying inside lamp
Flashes when drying inside in progress.
Drying inside button
Activate/deactivates drying inside.


1
Air purifier lamp
Lights during air purifier only operation.
Air purifier button
Switches to air purifier only operation.


15
Information display
Indicates room and unit
condition

High Humidity
Warning
The indicator flashes
when the unit is OFF and
the humidity in the room
exceeds 75%. Activating
the dehumidifier is
recommended when the
indicator is flashing.
If the High humidity warning
is not required, remove the
power plug from the power
socket.
e_mj_e14cg_s1_it.indb 9 2013/06/22 19:36:56

10

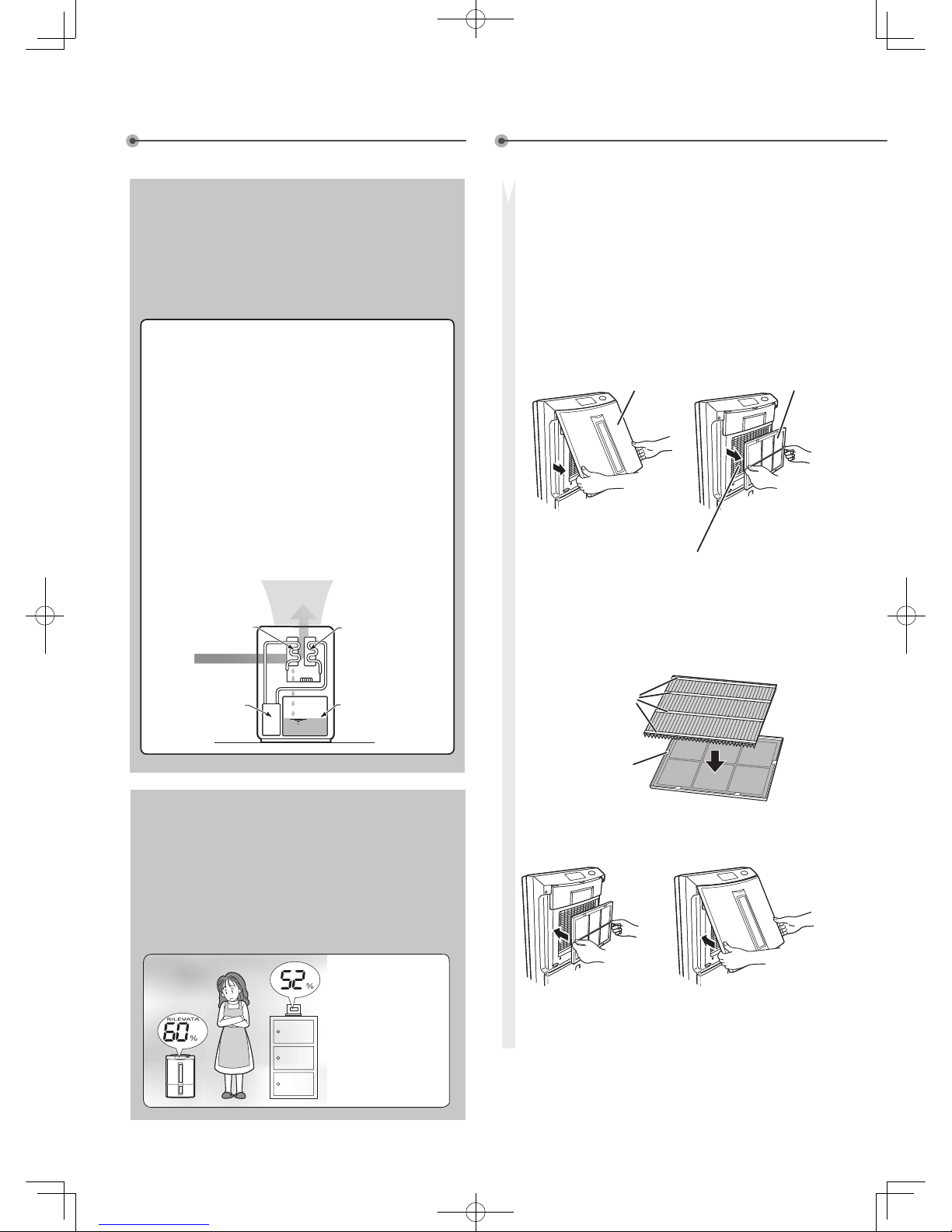

Setting the air filter
The air filter is supplied with the unit at time of
purchase. Fit the air filter before using the unit.
1 Remove the air filter from the
polyethylene bag.
2 Remove the front panel and pre-
filter.
3 Fit the air filter into the pre-filter.
With the strips facing up, set the air filter
inside the tabs on the pre-filter.
Strips
Tabs (6)
4 Attach the pre-filter and front
panel.
Front panel Pre-filter
Performance is unaffected even if
the metal fins inside the main unit
are slightly bent.
1Remove holding
the bottom.
2Remove
holding
the tabs.
Front panel Pre-filter
Performance is unaffected even if
the metal fins inside the main unit
are slightly bent.
1Remove holding
the bottom.
2Remove
holding
the tabs.
Things to Be Aware of Before Using Your Dehumidifier
How does the dehumidifier
work?
If you pour cold water into a cup, the air around
it becomes cold, causing water droplets to form
on the surface of the cup.
The dehumidifier takes advantage of this
phenomenon to remove moisture from the air.
1 The unit draws air from the room, cools it
with its cooling coil, causing the moisture to
transform into water droplets.
2 The water droplets fall into the water tank.
3 The dehumidified air is reheated by the
heating coil, and then discharged.
The humidity of the room is thus reduced by
repeating steps 1, 2, and 3.
Room temperature may rise 2-4°C
during operation
The dehumidifier does not have a cooler function.
Due to heat produced during operation, the room
temperature may rise 2–4°C. As a result, the unit may
blow warm air, but this is not due to a malfunction.
During winter, the air may not feel warm as the
temperature is below body temperature.
The humidity reading on the unit
may differ from a hygrometer in
the same room
Even in the same room, temperature and humidity
levels may differ from place to place. If the hygrometer
and the unit are in different parts of the room, the
humidity levels are prone to differ. Moreover, humidity
levels differ between places that have good and no
airflow.
Use the reading on the unit as an estimate.
<Cause>
Inconsistencies in
temperature and
humidity
Difference in
location
Difference in
hygrometer
accuracy
l
l
l
1Attach holding
the tabs.
2Hook the top edge
to the top part of
the unit and push
the bottom in.
Dried (warm) air
Cooling coil Re-heating coil
Moist air
Compressor Water tank
1
2
3
W
h
y
a
r
e
t
h
e
y
d
i
f
f
e
r
e
n
t
?
e_mj_e14cg_s1_it.indb 10 2013/06/22 19:36:57

11
Before using the unit E
Inserting the water
tank correctly
Tank Lid
Open the front door.
Confirm that the lid
is securely attached
to the water tank.
Push the tank in.
Front door
Tank Lid
Open the front door.
Confirm that the lid
is securely attached
to the water tank.
Push the tank in.
Front door
Plug the power cord into
the power socket
Use a 220–240V AC
power socket only.
 The current humidity level is indicated.
If the louvre is open, it closes automatically.
Before Using Your Dehumidifier
e_mj_e14cg_s1_it.indb 11 2013/06/22 19:36:58

1
Information
If the room temperature falls below 15°C,
defrosting mode is activated once every 40
minutes (for about 5 minutes) causing water to
drain to the tank.
The unit can operate in a room temperature range of
1-35°C. However, if the room temperature exceeds
35°C, the unit may operate in blower mode or
increase the airflow. This is because the temperature
within the unit rises causing the protection mechanism
to operate. In order to lower the temperature within the
unit, when using the louvre, point UPWARD.
• If the temperature is below 1°C, the extracted water is
close to freezing disabling the dehumidifier, and only
the blower is operational.
l
l
To turn ON
Power lamp lights.
The mode is displayed.
The louvre opens automatically.
l
l
l
To start dehumidifying, select the desired mode.
1–15
The dehumidifier does not activate for
3 minutes when the unit is turned ON
immediately after turning it OFF or plugging it
into the power socket. (In order to protect the
compressor.) When dehumidifying begins,
the operational noise increases.
The dehumidifier remembers the operating mode.
Even if the plug is disconnected or the power
turned off, the unit restarts at the previous setting.
Reading the humidity display
Tank full lamp
9
Turning the Unit ON and OFF
Press
To turn OFF
Drying inside will commence if it has been
activated. 1
Press
Power lamp turns off.
The Mode Indicator
goes out.
l
l
Example
Example
RILEVATA indicates the
current humidity.
Current humidity range is
between 30–80%.
• Humidity levels below 30% are
displayed as 30%.
• Humidity levels above 80% are
displayed as 80%.
IMPOSTATA indicates set
humidity level
(Auto mode only).
15
The unit automatically shuts down and indicates
with the lamp and sound that the water tank is full.
Empty the water tank.
 Tank full lamp lights.
(The unit beeps continuously).
 Air flows stops (louvre stops).
 Swing monitor turns off.
 Compressor turns off.
• After removing the water and replacing the tank,
the Tank full lamp will go off, and the unit will
automatically return to operation mode.
• When the Tank full lamp is lit, no operation but OFF/
ON is possible.
1
e_mj_e14cg_s1_it.indb 12 2013/06/22 19:36:59

1
Operating E
The unit automatically monitors room temperature/humidity alleviating the necessity to make minor adjustments. Use
EASY DEHUMIDIFYING for dehumidifying a room and INTELLIGENT LAUNDRY for drying clothes.
 Selected mode lamp lights.

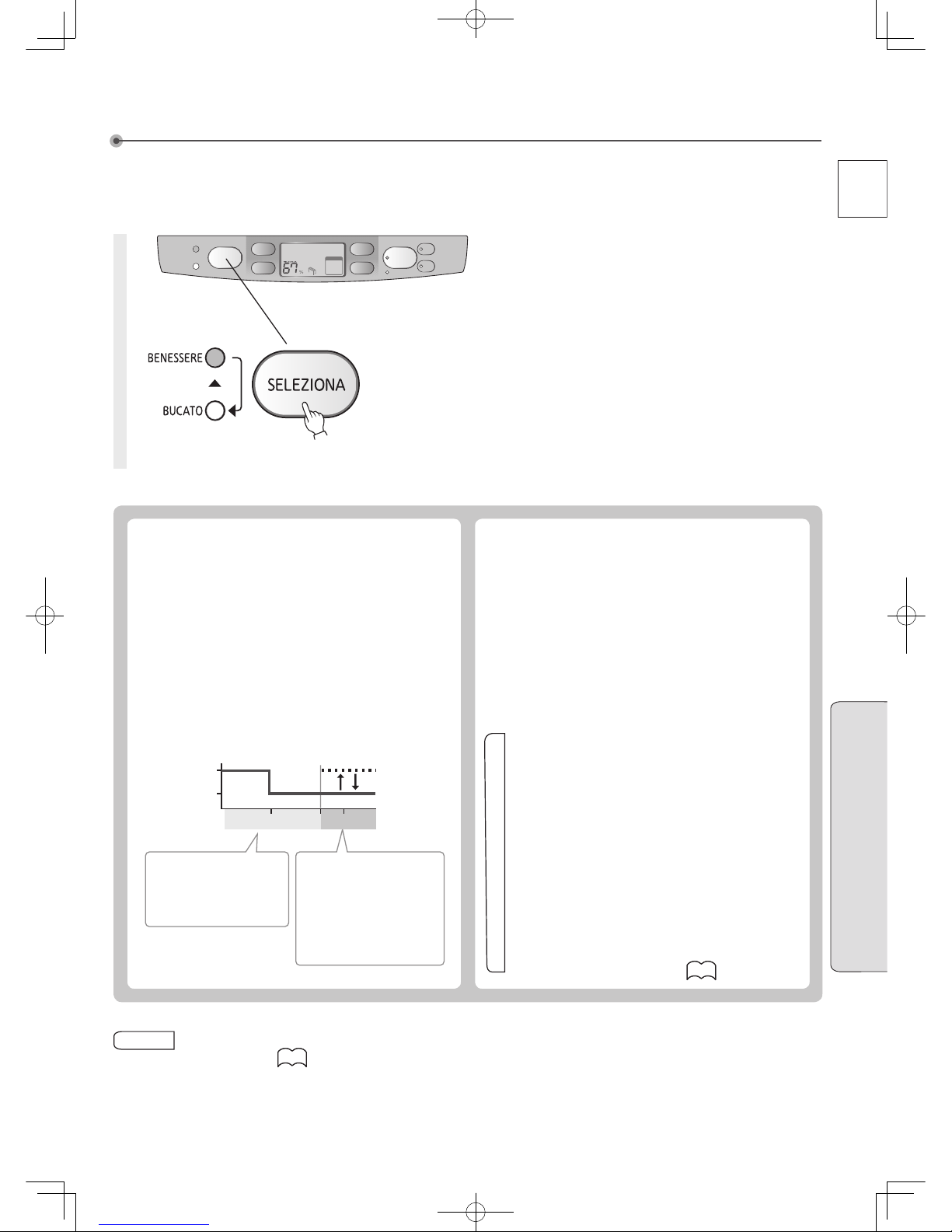

Easy Operation
Press
Changes with
every press
 EASY DEHUMIDIFYING
The unit operates intermittently
controlling the airflow to remove the
damp feeling in the air. (There is no need
to set the humidity level.)
When the room temperature is high, the
blower operates to decrease the damp
feeling.
The airflow or louvre operation may stop
according to the humidity level.
 INTELLIGENT LAUNDRY
The unit controls the airflow rate while
monitoring the humidity in the room,
and automatically stops operation when
the laundry is dry. (This eliminates the
need to make minor changes to the
humidity and operating time settings
depending on the amount of laundry.)
Operation is performed for a maximum
of approximately 12 hours.
50
20 3027
60
Room temperature is
below 27°C - the unit
automatically sets the
humidity level according
to the temperature.
Room temperature is
above 27°C - the unit
lowers the humidity level
to 50%, then activates
the blower.
The dehumidifier is
reactivated when
humidity rises to 60%.
Humidity level (%)
Room
temperature
(°C)
Information
Drain the tank before use.
The unit may stop before the laundry dries
because of a full tank.
Do not use in conjunction with the OFF timer.
The timer may turn the unit off before the laundry
dries.
If the room temperature is approximately 5°C or
less, the operation stops for around 1 hour.
If the room temperature is low, it becomes difficult
for water to evaporate from the laundry, because
the humidity does not change. Use a heater in
combination with the unit in order to raise the room
temperature to approximately 16°C or more.
The following conditions prevent clothes from
drying well:
Room temperature below 15°C, large volume of
laundry; laundry not spaced well; clothes with
thick fabric and large rooms.
l
l
l
l

Pressing Humidity Selection button while in EASY DEHUMIDIFYING or INTELLIGENT LAUNDRY mode changes the
mode to AUTO. 1515
Information
e_mj_e14cg_s1_it.indb 13 2013/06/22 19:37:00

14
LOW, MILDEW GUARD and LOW TEMP
LOW mode is for when you want to leave the dehumidifier on. MILDEW GUARD mode suppresses mildew growth.
LOW TEMP mode is for preventing condensation or when the room temperature is low.

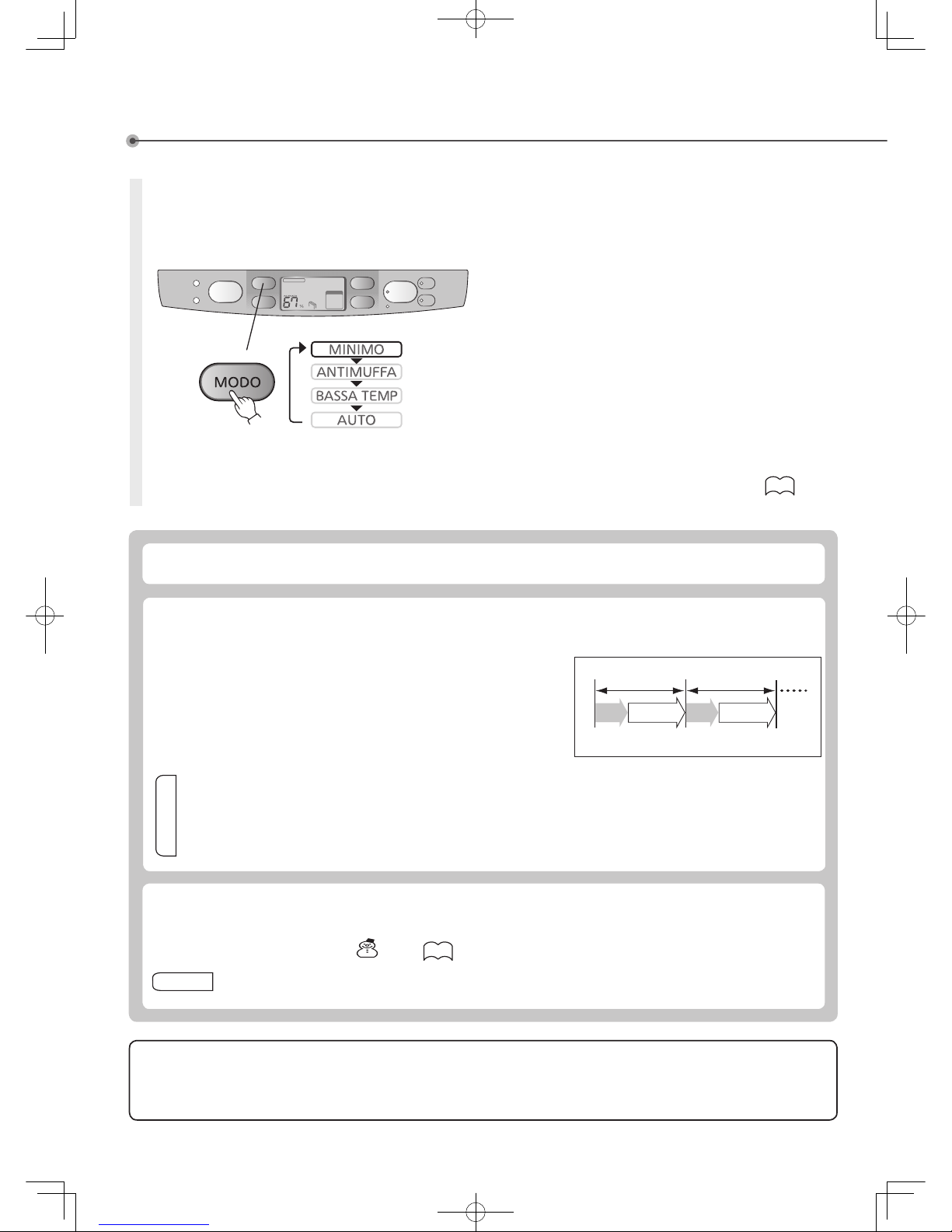

Setting Modes
Press
 Frame appears around selected mode.
Changes with every press
 The amount of dehumidification decreases with the temperature and humidity.
 The humidity level cannot be set with LOW, MILDEW GUARD, and LOW TEMP.

l LOW The dehumidifier operates regardless of the humidity level.
l MILDEW GUARD The unit lowers humidity levels automatically once a day, suppressing
mildew growth.
 The unit operates intermittently for 2-4 hours a day (24
hours). The operating time varies depending on the humidity.
 The unit continues to operate when the humidity does not
decrease.
Humidity 40% Approx. 2 hours
Humidity 50% Approx. 4 hours
•
•
ON
Dehumidifies
Standby
Dehumidifies
24 hours 24 hours
Standby Repeat
l LOW TEMP The unit operates continuously automatically controlling airflow according to
room temperature. The air flow is strongest below 15°C.
The use of LOW TEMP mode is recommended when the Low Temperature
indicator is lit. 9
When the temperature is low, condensation may still form on windows exposed to the outside air even when
LOW TEMP mode is operating.
Information
How is mildew
growth suppressed? Mildew is unable to produce new spores if dried as mycelia. The Mildew Guard feature
applies this principle. (However, the spores themselves are resilient to dry conditions.)
“Identification of Aspergillus and Penicillium”
<Research paper by Dr. K. Abe of the Environmental Biology Research Center>
Information
Refrain from turning on ventilation fans or opening windows or doors as this lowers performance.
Mildew growth may still occur due to the fungus type and conditions of the room.
E.g. Rooms that contain excessive condensation, bathrooms, and places with bad airflow (insides of closets and
behind furniture).
This mode does not remove existing mildew.
Do not use in conjunction with OFF Timer mode. Effects may not be achieved.
l
l
l
l
e_mj_e14cg_s1_it.indb 14 2013/06/22 19:37:01

15
Operating E

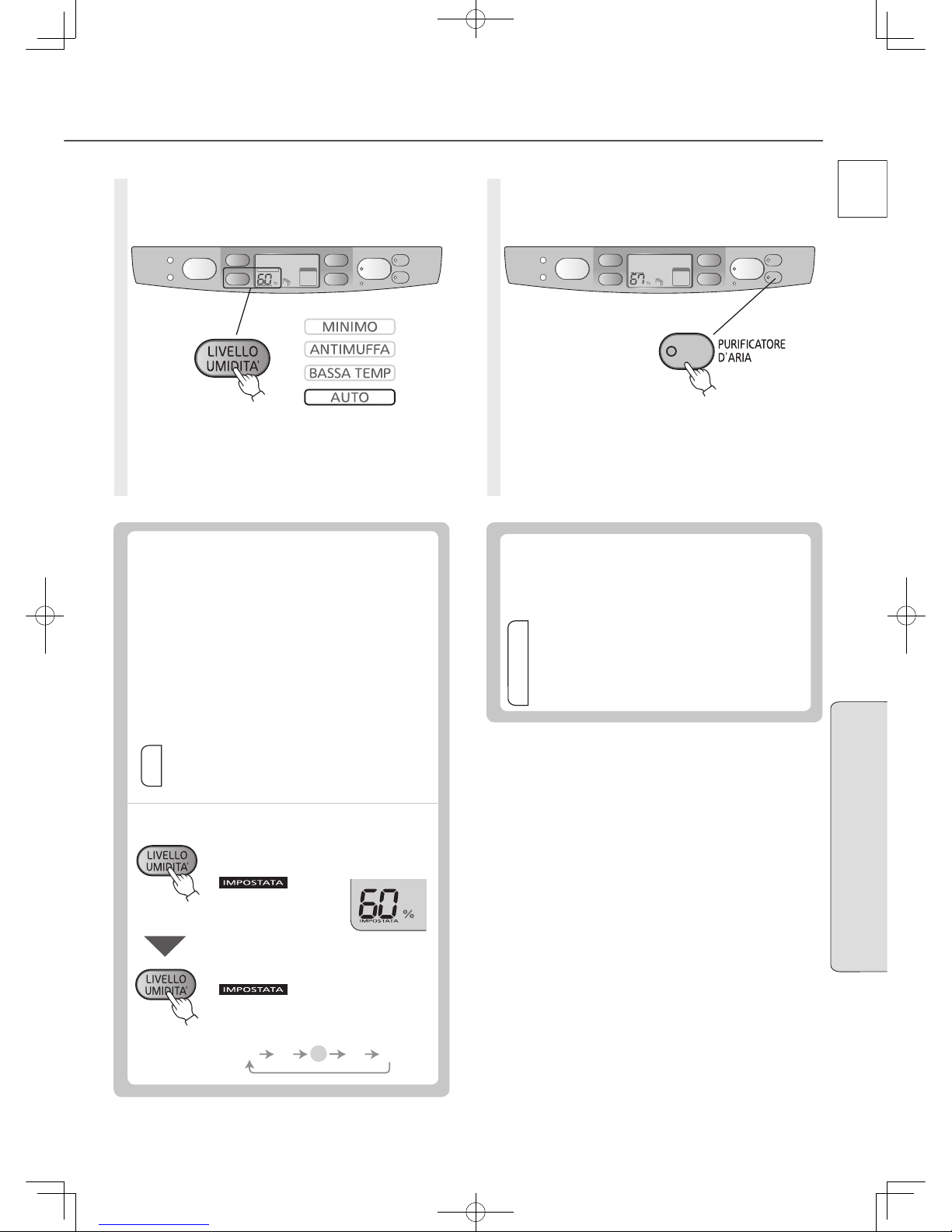

AUTO
Setting Modes
When you want to set the humidity level.
Press
 Frame appears around
AUTO.
AIR PURIFIER
To operate only the air purifier.
Press
 Air purifier lamp lights.
The MODE button can also be used to select
AUTO.
To return to the previous mode, press the air
purifier button again.
l AUTO
The unit maintains the humidity level
by automatically controlling airflow and
operating intermittently as necessary. All
you have to do is set the humidity level.
The unit turns off when current humidity
decreases past the set humidity level, and
restarts when the level is exceeded. (airflow
and louvre stops)
The unit operates for 6 minutes continuously
regardless of the humidity level immediately
after turning the power on.
•
•
Information
Frequent use of exits and room size/conditions
may cause the humidity to not reach the set
level.
<To view set humidity level/To set
humidity level>
Pressing the button once displays
the set humidify level with the
indicator.
After 3 seconds, the
display returns to
the current humidity
display.
Pressing the button while
is displayed sets
the humidity level. Each time the
button is pressed, the humidity
setting changes.
•
•
6570 505560
Press
Press
again
l AIR PURIFIER
The unit cleans the air by passing it
through the pre-filter and air filter. The
dehumidifying function is disabled.
Information
The air passes through the air filter in all
modes, cleaning the air even if the air
purifier lamp is not lit.
Cigarette smoke and toxins found in smoke,
such as carbon monoxide, cannot be
removed with these filters.
l
l
e_mj_e14cg_s1_it.indb 15 2013/06/22 19:37:02

1
The louvre can be made to swing. Select from the 4 possible settings to suit the purpose.
Press
 Starts swing operation.
 The swing monitor is displayed.
The swing operation stops when the power
cord is unplugged.
Using Louvre (how to read the swing monitor)
This indicates the range of louvre swing.
(The louvre and monitor do not move in
synchronization.)
With each
press of the
button
Stop swing
operation
WIDE
UPWARD
REAR
Objective Recommended swing setting Explanation of the swing modes
To stop the
louvre at the
desired angle
 Stop swing
operation
The louvre stops in a vertical position.
The swing monitor turns off.
To change the louvre to a desired angle, wait until the
louvre stops, then adjust by hand.
l
l
To cover the
entire room  WIDE The louvre swings from the UPWARD position through to
the REAR position.
For drying
clothes, etc.  UPWARD
Swing speed is automatically controlled to send air at
washing from all angles.
For directing air
into a closet  REAR
The louvre moves slowly through
the last 30° of the swing, as the
time taken to traverse the rear arc
is shorter than that for the upward
arc when moving at a constant
speed.
Information
The level of noise emitted from the unit varies according to the angle of the air-flow.
The louvre may stop up to a maximum of 8 seconds to correct its position, after which it will start moving again.
If the louvre is knocked out of the desired angle, readjust by following the above steps.
l
l
l
Note
Stop the louvre in the vertical position when using the unit against a wall. Blowing air at the wall may cause staining.
e_mj_e14cg_s1_it.indb 16 2013/06/22 19:37:04

1
Operating E
Information
Connecting/disconnecting the power plug deactivates automatic operation.
This function does not remove existing mildew. Also, aborting drying inside may cause the benefits to diminish.
Do not close the louvres while drying inside as this causes noise.
The moisture expelled from inside the unit may cause the humidity level of the room to rise.
The air leaving the unit may appear white depending on the humidity or temperature of the room.
The moisture expelled from inside the unit may smell due to odorants* that were not caught by the filter dissolving in the
water.
* The air filter is mainly for absorbing ammonia.
The OFF timer cannot be set during drying inside.
l
l
l
l
l
l
l
Drying Inside Operation
The inside of the unit can be dried to suppress mildew growth on the cooler.
On days the dehumidifier is used, drying inside is recommended.
Automatic operation
To activate drying inside after every use.
Press while the unit is on
Drying inside standby
(Drying inside lamp lit)
Drying inside starts when operation
ends
When the unit is turned off, INTELLIGENT
LAUNDRY mode ends, or the OFF timer ends.
Drying inside starts
The Drying inside lamp flashes, the humidity
indicator turns off, and the louvre stops in the
vertical position.
Drying inside mode
Drying inside ends
The Drying inside lamp turns off and the
louvres shut.
<To deactivate automatic operation>
Press the drying inside button while the unit is on
(the Drying inside lamp turns off)
l
l
l
Manual operation
To activate drying inside by pressing a button.
Press while the unit is off
Drying inside starts
The Drying inside lamp flashes, the humidity
indicator turns off, and the louvre stops in the
vertical position.
Drying inside mode
Drying inside ends
The Drying inside lamp turns off and the
louvres shut.
l
l
To abort drying inside
Press the drying inside button while the unit
is performing drying inside (the Drying inside
lamp turns off)
Press the power button to abort drying inside,
and resume normal operation.
<Drying inside operation> This operation takes approximately one hour. However, when the room
temperature is below 1°C, drying time is shortened to protect the
compressor.
Airflow
Approx.
30 min. Approx. 20 min.
Regular
operation
Dehumidifier
Air purifier
Drying inside operation (approx. one hour.)
Airflow stops; compressor
activates (operating sound)
Compressor operates
according to room temperature
Operating
sounds
OFF
Airflow
Approx.
10 min.
Compressor
stops
Unit
stops
auto-
mati-
cally
e_mj_e14cg_s1_it.indb 17 2013/06/22 19:37:05

1
To cancel
<When you want to turn the unit
off>
Press the POWER button. (Power off)
The OFF Timer is cancelled.
<When you want to disable the
OFF Timer mode, and continue
operation>
Keep pressed until the remaining time
display disappears.
The OFF Timer is cancelled.
Information
Empty the water tank before operating. The unit stops
and the Tank full lamp lights if the tank becomes full
during operation.
The OFF timer and ON timer cannot be set at the
same time.
Do not use the OFF timer mode in conjunction with
INTELLIGENT LAUNDRY or MILDEW GUARD.
The OFF timer cannot be set during drying inside.
l
l
l
l
l
l
PressPress
PressPress

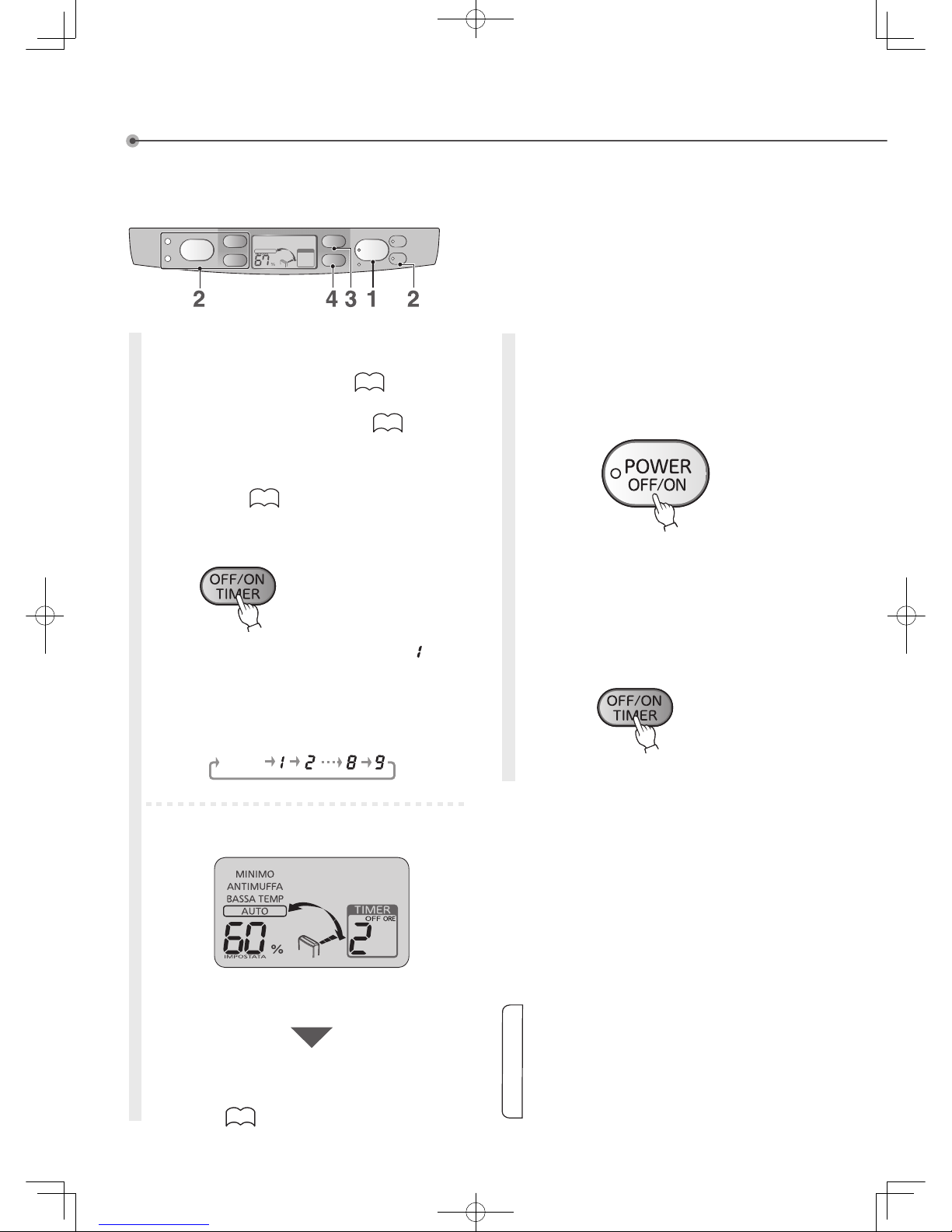

To set
1Switch the power on. 1
2 Select operating mode.
1–15
Select desired operating mode.
3Change the louvre swing
direction. 1
Select the desired setting.
4Set the operation time.
When pressed once the figure [ ] and
[OFF] appear.
Each subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
→The OFF timer is set.
The following is an example of a display indicating
AUTO dehumidifying (set to 60%), swing set to
WIDE and the OFF timer set for 2 hours.
The time remaining until the unit
switches itself off is indicated in
increments of one hour.
When the set time is reached, the unit switches
itself off and the louvre closes automatically.
Drying inside will commence if it has been
activated.
l
l
l
l
PressPress
No DisplayNo Display
11
OFF timer operation The OFF timer can be set for 1 to 9 hours.
Set the timer when the power is switched on.
Using Timer
e_mj_e14cg_s1_it.indb 18 2013/06/22 19:37:06

19
Operating E
ON timer operation The ON timer can be set for 1 to 9 hours.
Set the timer when the power is switched off.
The following is an example of a display indicating
AUTO dehumidifying (set to 60%), swing set to
WIDE and the ON timer set for 5 hours.
• The time remaining until the unit switches itself
on is indicated in increments of one hour.
• When the set time is reached, the unit switches
itself on.
To cancel
Press the Power button.
The ON timer is cancelled.
Information
Drying inside is deactivated when the ON timer is set
during drying inside operation.
The ON timer function is not operable using a
commercially-available timer plug outlet.
l
l
l
PressPress
To set
1 Switch the power off. 1
2 Set the time you wish the unit to
turn on.
Press once. The Power lamp, Mode
indicator, and a [ ] on the digital
display flash. The [ON] indicator
lights.
Each subsequent press changes the
display in order from 1 to 9 hours.
(Hold the button to run automatically
through the numbers.)
3 Select operating mode.
1–15
Select desired operating mode.
Set drying inside as desired.
4 Change the louvre swing
direction. 1
Select the desired setting.
5 Confirm the operating start time.
Power lamp and Timer display light.
g The ON timer is set.
The unit informs you if you forget to press the
Power button by making the Timer display and
Mode indicator blink and sounding an alarm for
1 minute.
l
l
l
PressPress
No DisplayNo Display
PressPress
Using Timer
e_mj_e14cg_s1_it.indb 19 2013/06/22 19:37:07

0
Releasing the child
lock
Press for 3 or
more seconds.
The child lock indicator turns off.l
To lock
Press for 3 or
more seconds.
The child lock indicator lights up.
The child lock is switched off when the power
cord is unplugged.
When the child lock is activated, the other
switches are inoperable. Deactivate the child
lock to use the other buttons.
l
Pull the handle out, and grasp with a
firm grip
Before moving the unit, first make sure to remove
water from the water tank and close the louvre.
Carrying the Unit Using Child Lock
If you lock the unit when the POWER is
OFF.
The unit will not turn on, even if you press the POWER
button to turn it on. Only the CHILD LOCK lamp will
blink.
(Press the POWER button once again so that the
lamp lights.)
If you lock the unit when the POWER is
ON.
The unit will not turn off, even if you press the POWER
button to turn it off. Only the CHILD LOCK lamp will
blink.
(Press the POWER button once again so that the
lamp lights.)
Note
Do not carry the unit on its side as this may cause
malfunctions.
Do not let the power cord drag, as this may damage
the cord.
l
l
e_mj_e14cg_s1_it.indb 20 2013/06/22 19:37:08
