Linear Gage
Counter
EV Counter
User’s Manual
Read this User's Manual thoroughly
before operating the instrument. After reading,
retain it close at hand for future reference.
No.99MBC034B3
SERIES No.542

CONVENTIONS USED IN USER'S MANUAL
Safety Precautions
To operate the instrument correctly and safely, Mitutoyo
manuals use various safety signs (Signal Words and Safety
Alert Symbols) to identify and warn against hazards and
potential accidents.
The following signs indicate general warnings:
Indicates an imminently hazardous situation
which, if not avoided, will result in serious injury
or death.
Indicates a potentially hazardous situation
which, if not avoided, could result in serious
injury or death.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury or property damage.
The following signs indicate specific warnings or prohibited
actions, or indicate a mandatory action:
Alerts the user to a specific hazardous situation.
The given example means "Caution, risk of
electric shock".
Prohibits a specific action. The given example
means " Do not disassemble".
Specifies a required action. The given example
means "Ground".
i
CAUTION
DANGER
WARNING

CONVENTIONS USED IN USER'S MANUAL
On Various Types of Notes
The following types of notes are provided to help the operator
obtain reliable measurement data through correct instrument
operation.
IMPORTANT •An important note is a type of note that
provides information essential to the comple-
tion of a task. You cannot disregard this note
to complete the task.
•An important note is a type of precaution,
which if neglected could result in a loss of
data, decreased accuracy or instrument
malfunction/failure.
NOTE A note emphasizes or supplements important
points of the main text. A note supplies
information that may only apply in special cases
(e.g.. Memory limitations, equipment configura-
tions, or details that apply to specific versions of
a program).
TIP A tip is a type of note that helps the user apply
the techniques and procedures described in the
text to their specific needs.
It also provides reference information associ-
ated with the topic being discussed.
Mitutoyo assumes no liability to any party for any
loss or damage, direct or indirect, caused by use
of this instrument not conforming to this manual.
Information in this document is subject to change
without notice.
© Copyright Mitutoyo Corporation. All rights
reserved.
ii

iii
PRECAUTIONS
To obtain the optimum performance from it, obey the
following precautions
•Neither remove the cover nor disassemble
this counter.
Doing so may expose personnel to electric
shock or result in damage or fire to this
counter due to a short circuit caused by metal
chippings or dust.
•Note the warning labels on the top surface of
this counter.
•This counter is a precision instrument. Do not
bump or apply excessive force to any part of
this counter when setting it up or operating it.
•Use this counter in an environment where the
temperature is between 0°C and 40°C. The
temperature variation should be minimized so
there is no condensation.
•Avoid operating this counter in the following
places:
where it will be exposed to cutting chips and
oil, dirt, dust, or significant vibrations,
where it will be exposed to direct sunlight, or
near high-voltage/large current power
equipment.
CONFORMANCE TO EC DIRECTIVES
This counter conforms to the following EC Directives:
•Low Voltage Directive (73/23/EEC)
EN61010-1: 1993, Demand of safety
•EMC Directive (89/336/EEC)
EN61326-1:1997 + A1:1998
Immunity test requirement: Annex A
Emission limit: Class B
WARNING

iv
WARRANTY
In the event that the Mitutoyo EV Counter should prove
defective in workmanship or material, within one year from
the date of original purchase for use, it will be repaired or
replaced, at our option, free of charge upon its prepaid return
to us.
This warranty shall not apply if the product has been subject
to fair wear and tear, abuse through misuse or improper use/
handling/storage/maintenance/service/repair or through
adaptation/modification by the original purchaser or any third
party without prior written consent of Mitutoyo or as a result
of damage by an actual disaster or circumstances beyond the
control of Mitutoyo.
To obtain service under this warranty the product must be
returned to the nearest Mitutoyo Service Center. Any postage,
insurance, or shipping charges incurred in returning the
product for service are the responsibility of the purchaser.
*This warranty is not transferable and is only valid within
the country of the original purchase.
*You may have additional rights under the laws of country
of original purchase that do not allow the exclusion of
implied warranties or the exclusion or limitation of certain
damages. If these laws apply, Mitutoyo's limitations and
exclusions may not apply to you.

CONTENTS
CONVENTIONS USED IN USER'S MANUAL...... i
PRECAUTIONS...................................................iii
CONFORMANCE TO EC DIRECTIVES..............iii
WARRANTY ....................................................... iv
1 OVERVIEW ...................................................1-1
1.1 EV Counter .................................................... 1-1
1.1.1 Features ........................................................ 1-1

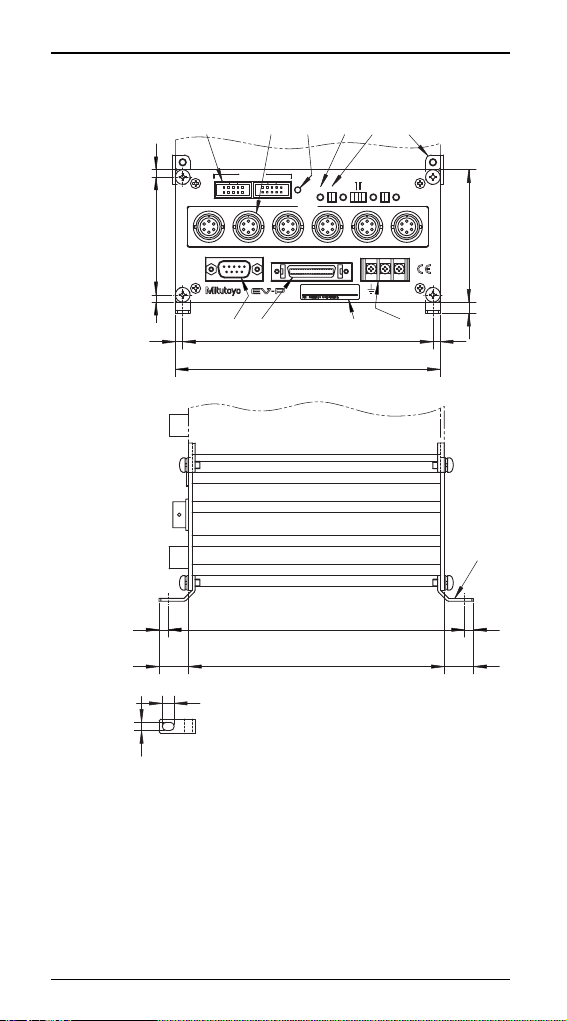

1.1.2 Name and dimensions of each part .............. 1-2
1.2 D-EV External Display Unit (optional) ............ 1-5
1.2.1 Features ........................................................ 1-5

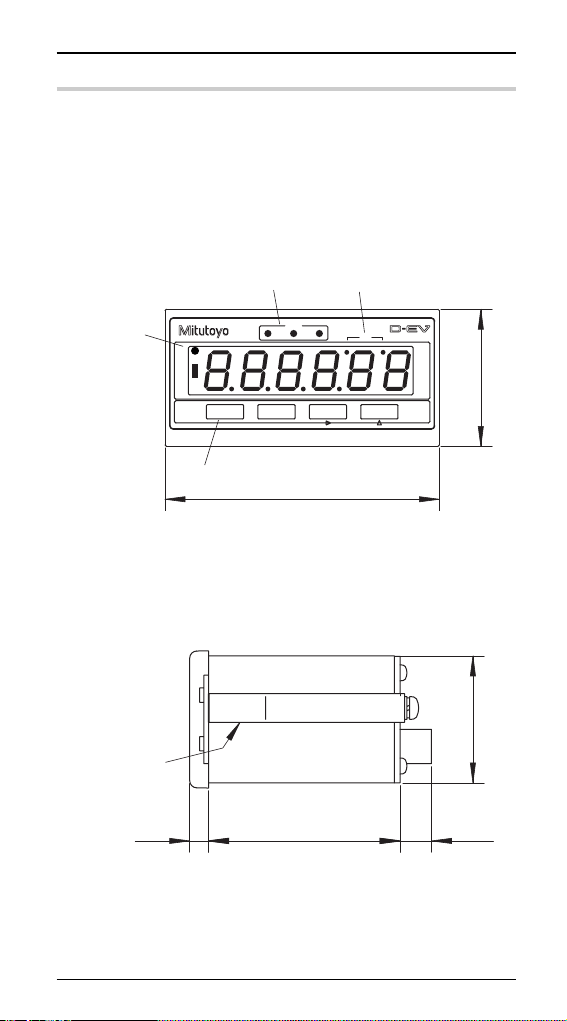

1.2.2 Name and dimensions of each part .............. 1-5

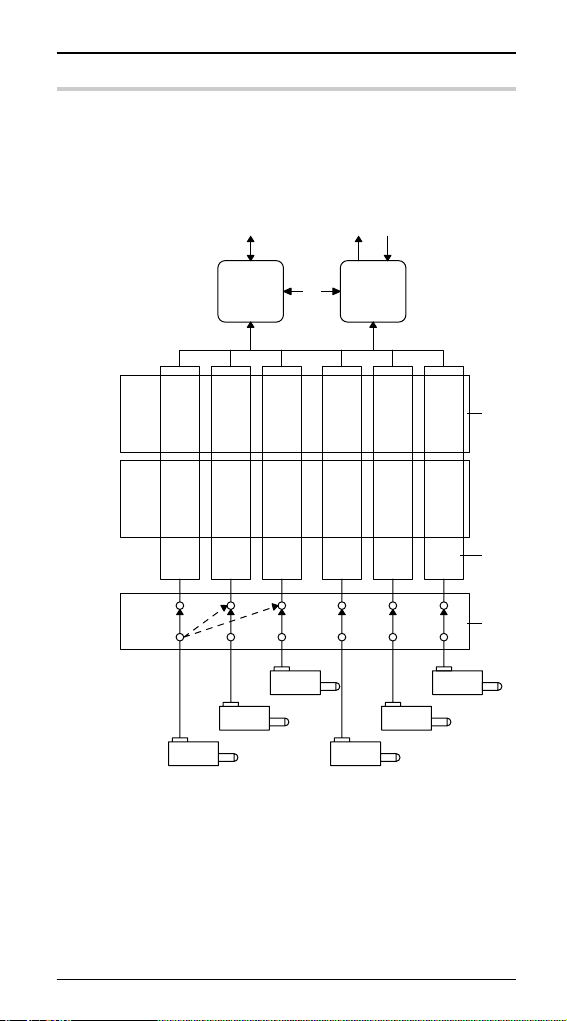

1.3 Internal Block Diagram................................... 1-7
2 SETUP...........................................................2-1
2.1 Installing the EV Counter ............................... 2-1
2.2 Connecting Cables......................................... 2-2
2.2.1 Connecting gages ......................................... 2-2
2.2.2 Connecting the D-EV (External Display Unit)............... 2-3
2.2.3 RS-232C, I/O/BCD, and RS LINK connections ............ 2-3
2.2.4 Connecting the power supply and grounding ................. 2-3
2.3 Power On ....................................................... 2-4
3 SETTING PARAMETERS .............................3-1
3.1 Setting Parameters (with D-EV)..................... 3-1
3.1.1 Parameter mode ON ..................................... 3-1
3.1.2 Specifying the gage resolution (for EV-16P and EV-16Z) ..... 3-2
3.1.3 Setting the axes to be used ........................... 3-2
3.1.4 Parameter mode OFF ................................... 3-3
3.1.5 List of parameters......................................... 3-4
3.2 Setting Parameters (with EV Counter)........... 3-6
3.2.1 Parameter mode ON ..................................... 3-6
3.2.2 Setting the parameters .................................. 3-7
3.2.3 Parameter mode OFF ................................... 3-7
3.2.4 List of parameters......................................... 3-8
v

vi
CONTENTS
4 BASIC OPERATION......................................4-1
4.1 Power ON Precautions .................................. 4-1
4.2 Switching the Display/Output CH (with D-EV) .................. 4-2
4.3 Switching the Peak Mode (with D-EV) ........... 4-4
4.4 Clearing the Peak Value (with D-EV)............. 4-5
4.5 Input of Preset Value/Tolerance Value (with D-EV) ......... 4-6
4.6 Clearing the Error State ................................. 4-8
4.7 Presetting (with the D-EV) ............................. 4-9
4.8 Tolerance Judgment (with the D-EV)........... 4-10
5 RS-232C COMMUNICATION FUNCTION............ 5-1
5.1 RS-232C Connection ..................................... 5-1
5.2 RS-232C Output Specifications ..................... 5-1
5.2.1 Specifications of cables and connectors....... 5-1
5.2.2 Communication specifications ..................... 5-1
5.2.3 Pin assignment ............................................. 5-2
5.2.4 List of available commands ......................... 5-2
5.2.5 RS-232C command and RS-232C response output ..... 5-5
5.2.6 HOLD input and RS-232C response output ................... 5-5
5.2.7 Time required for RS-232C data output ...... 5-6
6 RS LINK FUNCTION .....................................6-1
6.1 Connection Method........................................ 6-1
6.2 Start-Up Method............................................. 6-2
6.3 Troubleshooting ............................................. 6-3
7 I/O FUNCTION ..............................................7-1
7.1 Overview of the I/O function........................... 7-1
7.2 Connectors..................................................... 7-1
7.3 Input/Output Circuit ........................................ 7-1
7.3.1 Output circuit ............................................... 7-1
7.3.2 Input circuit .................................................. 7-1
7.4 NORMAL Mode............................................. 7-2
7.4.1 Overview of the NORMAL mode ............... 7-2
7.4.2 Tolerance judgment output .......................... 7-2
7.4.3 BCD output .................................................. 7-4
7.4.4 Segment output ............................................ 7-6
7.5 Calculation Mode ......................................... 7-10
7.5.1 Overview of the calculation mode ............. 7-10
7.5.2 Tolerance judgment result output .............. 7-10
7.5.3 BCD output ................................................ 7-11
7.5.4 Segment output .......................................... 7-11

vii
CONTENTS
7.6 High-speed Mode......................................... 7-12
7.6.1 Overview of the high-speed mode ............. 7-12
7.6.2 Tolerance judgment result output .............. 7-13
7.6.3 BCD output ................................................ 7-13
7.6.4 Segment output .......................................... 7-13
7.7 Timing Chart ................................................ 7-14
7.7.1 Power ON characteristics ........................... 7-14
7.7.2 Output period of tolerance judgment result ................. 7-14
7.7.3 Data output ................................................. 7-15
7.7.4 External presetting ..................................... 7-16
7.7.5 Designating CELs to be output/Specifying the
calculation method ....................................................... 7-17
7.7.6 Peak clear ................................................... 7-17
7.7.7 HOLD timing ............................................. 7-18
8 SPECIFICATIONS.........................................8-1
8.1 Specifications................................................. 8-1
8.2 Standard Accessories .................................... 8-1
8.3 Optional Accessories ..................................... 8-2
8.4 List of Error Outputs....................................... 8-3
SERVICE NETWORK

No. 99MBC034B 1 - 1
1
1.1 EV Counter
1.1.1 Features
•Three models of EV counter (EV-16P, EV-16D, and EV-16Z) are
available according to the linear gage connected. The applicable
gages for each model are as follows.
EV-16P: LGF, LGB, and LGE series linear gage (excluding the mod-
els that output sine waves)
EV-16D: LGD and LGS series linear gage
EV-16Z: LGF-Z series linear gage
•EV counter is a multi-axis counter to which plural gages can be con-
nected. The maximum number of gages that each model can connect
is 6.
Only EV-16Z supports the origin embedded gages.
•The origin function of EV-16Z realizes high-speed response and re-
duces the time and labor taken by referencing with a master each time
the power is turned on.
•With the RS LINK function a maximum of ten EV Counter units can
be linked. This makes it possible to construct a system consisting of a
maximum of sixty linear gages through one RS-232C port, which is
on, for example, a personal computer.
•The display unit is of a separate type (optional) which takes in-line
use into consideration.
•Depending on the external devices to be connected and uses, the fol-
lowing I/F connection and output mode can be selected:
[Connection I/F]
Tolerance judgment output
Separately outputs the judgment result from each CEL.
Segment output
Outputs the range specified by the external signal after evenly di-
viding it into ±ten stages.
The objective CEL to be output and its range can be specified with
the external SET signal.
BCD output
Output of sign and 6-digit data.
The objective CEL to be output can be designated with the external
SET signal.
RS-232C/RS LINK
A maximum of 10units/60 channels can be linked.
Preset and tolerance values can be remotely controlled.
Can be used simultaneously with other I/O devices.
[Output mode]
NORMAL mode (factory-set default)
Calculation mode
Calculate the sum, mean, maximum, minimum, and width be-
tween the specified CELs and outputs the results.
High-speed mode
Quickly outputs the specified CEL.
OVERVIEW
This chapter outlines the features of the EV
Counter for linear gages.

1 - 2 No. 99MBC034B
1.1.2 Name and dimensions of each part
1) EV-16P Unit: mm
1110
9876
54321
Code No.***-*** Model EV-16P
Code No.***-***
MADE IN JAPAN
RS LINK Err.
OUTIN
LOAD 87MODE 6
54
3SEL. 21 DATA
FED
INPUT CBA
RS-232C IO/BCD +V -V
DC12-24V
700mA
144
6 72
4 4136
4 464
11, 12
4.5
6.5
16 16 139
55 161
1. RS LINK connector 2. Error LED
3. Parameter input switch (4 pieces)
4. Parameter LED (8 pieces)
5. Gage input connector (INPUT A - F)
6. RS-232C connector 7. I/O connector
8. Power inlet terminal strip 9. Name plate
10. Junction bracket*
11. M4 x8 screw*
12. Fixing leg*
* Standard accessory

1 - 3
1 OVERVIEW
No. 99MBC034B
2) EV-16D Unit: mm
5
Code No.***-*** Model EV-16D
Code No.***-***
MADE IN JAPAN
RS LINK Err.
OUTIN LOAD 87MODE 6
54
3SEL. 21 DATA
RS-232C IO/BCD +V -V
DC12-24V
700mA
144
6 72
4 4136
4 464
FEDCBA
INPUT
1110
9876
4321
D
11, 12
4.5
6.5
16 16 139
55 161
1. RS LINK connector 2. Error LED
3. Parameter input switch (4 pieces)
4. Parameter LED (8 pieces)
5. Gage input connector (INPUT A - F)
6. RS-232C connector 7. I/O connector
8. Power inlet terminal strip 9. Name plate
10. Junction bracket*
11. M4 x8 screw*
12. Fixing leg*
* Standard accessory

1 - 4 No. 99MBC034B
3) EV-16Z Unit: mm
1110
98
76
54321
144
672
44 136
44
64
11, 12
4.5
6.5
16 16 139
55 161
1. RS LINK connector 2. Error LED
3. Parameter input switch (4 pieces)
4. Parameter LED (8 pieces)
5. Gage input connector (INPUT A - F)
6. RS-232C connector 7. I/O connector
8. Power inlet terminal strip 9. Name plate
10. Junction bracket*
11. M4 x8 screw*
12. Fixing leg*
* Standard accessory

1 - 5
1 OVERVIEW
No. 99MBC034B
1.2 D-EV External Display Unit (optional)
1.2.1 Features
The D-EV External Display Unit is an optional product used to
set the measurement conditions (parameters) and externally dis-
play EV Counter measurements.
A single D-EV can display/set up one EV Counter.
1.2.2 Name and dimensions of each part
1) D-EV appearance (front view) Unit: mm
4
23
1
MODE P.SETFnDISP
GAGE
MAX MIN
TIR
UNIT +NG
GO
-NG
48
96
1. UNIT LED
2. GAGE No. LED
3. Peak mode LED
4. Key switch
2) D-EV appearance (side view) Unit: mm
5
44.4
(11)676.6
5. Panel-mounting bracket

1 - 6 No. 99MBC034B
3) D-EV appearance (rear view) Unit: mm
687
000001
D-EV
02ADD400
MADE IN JAPAN
Serial No.
Model
Code No.
-V +V
200mA
DC12-24V
OUTIN RS LINK
91.4
6. RS LINK connector
7. Name plate
8. Power inlet terminal strip

1 - 7
1 OVERVIEW
No. 99MBC034B
1.3 Internal Block Diagram
NORMAL mode
High-speed mode
Origin and 
tolerance setup
Peak measurement

Origin and 
tolerance setup
Peak measurement

Origin and 
tolerance setup
Peak measurement

Origin and 
tolerance setup
Peak measurement

Origin and 
tolerance setup
Peak measurement

Origin and 
tolerance setup
Peak measurement

Gage 
selector
Gage A
Gage B
Gage C
Gage D
Gage E
Gage F
Calculation 
mode

Sum of
CELs

Mean of
CELs

Maximum of
CELs

Minimum of
CELs

MAX - MIN of
CELs

Calculation result
Tolerance judgment
CEL1 CEL2 CEL3 CEL4 CEL5 CEL6
CEL designation Peak mode switching Zero-setting Presetting Peak clear Tolerance value input  I/O output Tolerance judgment output Segment output

BCD output  CEL designation
Calculation
function
Internal counterGage 
selector
RS-232C
Simultaneously
Output function
Internal counter

Tolerance 
judgment

Segment

BCD
Gage selector:
By setting the appropriate parameters it is possible to con-
nect a single gage output either to one internal counter or to
multiple internal counters. With this function, multiple ori-
gins and tolerance setups can be set for a single gage.
Internal counter:
Origin setup, peak measurement, and tolerance setup can be
performed individually for each of the six internal counters
(CEL1 - CEL6).

1 - 8 No. 99MBC034B
Calculation function:
Each of the internal counters has a specific calculation func-
tion. Therefore, calculation can be performed between the
counters specified by the parameters.
Output function:
Either RS-232C, BCD, tolerance judgment, or segment out-
put can be selected. The objective CEL to be output can be
selected using the RS-232C command or SET signal.

No. 99MBC034B
2SETUP
This chapter describes the method used to in-
stall and connect the EV Counter and make its
initial conditions.
2 - 1
2.1 Installing the EV Counter
Both the front and rear panels of the EV Counter have four
mounting holes. Use the fixing legs and junction brackets which
come as the standard accessories to install the EV Counter.
a) The fixing legs
(1) Attach the fixing legs (4 places) on
the counter main unit using the
supplied screws.
(2) Use the oval hole provided on each
fixing leg to secure the counter to
an appropriate surface.
b) The junction brackets
Use the junction brackets and sup-
plied screws to join the two panels
along the vertical.
SETUP
This chapter describes the method used to in-
stall and connect the EV Counter and make its
initial conditions.

2 - 2 No. 99MBC034B
2.2 Connecting Cables
IMPORTANT •Connection should be made only after the
power to the main unit and to the partner device
of the connection have been turned off. Other-
wise, the counter main unit and the connected
device will be damaged.
•Use a 12 - 24VDC power supply with a control
output current of 1A or greater. Do not draw
power from a source which is used by high-
power equipment.
•Do not route the power cable, I/O cable, RS-
232C cable, RS LINK cable, or gage connec-
tion cable with other power cables.
•Use a shielded I/O cable not longer than 3m.
•Always ground.
•Each cable should be secured (to, for example,
the main body of the device).
2.2.1 Connecting gages
(1) Sequentially connect the required number of linear gages to
the corresponding connectors, starting with the INPUT A
connector.
(2) If the EV-16P or EV-16Z is connected to a gage that does
not have a resolution of 1µm, refer to section 3.1 Setting
Parameters (with D-EV) and section 3.2 Setting Param-
eters (with EV Counter) to adjust the resolution.
NOTE •The gage resolution has been factory-set to 1mm.
•It is not necessary to modify the resolution on the EV-
16D.
(3) Set the parameter for designating available axes according
to the number of gages to be connected.
(Refer to section 3.1 Setting Parameters (with D-EV) and
section 3.2 Setting Parameters (with EV Counter)).

2 - 3
2 SETUP
No. 99MBC034B
+V -V
DC12-24V
700mA
2.2.2 Connecting the D-EV (External Display Unit)
If a D-EV (External Display Unit) is used, make the necessary
connections according to the following procedure.
(1) Connect the RS LINK OUT connector of the EV Counter to
the RS LINK IN connector of the D-EV using an RS LINK
connection cable.
RS LINK
EV Counter D-EV
IN
RS-232C
OUT RS LINK IN OUT
RS LINK
connecting
cable (optional)
NOTE Always use the RS LINK connection cable specified by
Mitutoyo. Refer to section 8.3 Optional Accessories.
(2) To link more than one counter with the RS LINK connec-
tion cables, refer to chapter 6 RS LINK FUNCTION.
TIP The D-EV will display the data of the EV Counter which
is connected to the RS LINK IN connector of the D-EV.
2.2.3 RS-232C, I/O/BCD, and RS LINK connections
The EV Counter has an RS-232C connector, I/O/BCD connec-
tor, and RS LINK connector. If these connectors are used, refer
to chapter 5 RS-232C COMMUNICA-
TION FUNCTION; chapter 6 RS LINK
FUNCTION; and chapter 7 I/O FUNC-
TION for information about cable connec-
tions.
2.2.4 Connecting the power supply and grounding
The EV Counter and D-EV do not have a power switch. Power
is supplied by connecting the power source to the +V and -V
terminals on the power inlet terminal strip.
IMPORTANT Positively ground the grounding terminal.

2 - 4 No. 99MBC034B
2.3 Power On
When the power source is connected to the EV Counter, it en-
ters the counting stand-by state. To start operation and enter the
counting state, quit the stand-by state.
TIP The counting stand-by function is an alarm function that
is entered if there is a power interruption during use.
a) If a D-EV is not connected
(1) If the EV-16P or EV-16D is used,enter the RS-232C com-
mand or I/O signal (a HOLD signal to clear the error) in the
EV Counter. For information refer to chapter 5 RS-232C
COMMUNICATION FUNCTION; and chapter 7 I/O
FUNCTION.
(2) If the EV-16Z is used, push in the spindles of all connected
gages to pass through the origins after completing the proce-
dure (1) described above.
b) If a D-EV is connected
(1) When the EV Counter and D-EV are on, the counting stand-
by state is entered.
[Display on the D-EV]
UNIT +NG
GO
-NG
(2)-1
If the EV-16P or EV-16D is used, press the P.SET key to
quit the counting stand-by state and enter the counting state.
[Display on the D-EV]
UNIT +NG
GO
-NG
(2)-2
If the EV-16Z is used, press the P.SET key to cancel the
counting stand-by mode, then the counter enters the origin
detection wait mode. All decimal points flash in the origin
detection wait mode.
[Display on the D-EV]
+NG
UNIT
GO
-NG
