MIXVIBES U-Mix Control Pro User manual

User Manual

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
Contents
1 Connections 5
1.1 Stand Alone Setup 5
1.2 Turntables/CD Players and Internal Mixer Setup 6
1.3 MP3 players (iPod®) and Internal Mixer Setup 7
1.4 Turntable/CD Player and External Mixer Setup 8
2 Installation 9
2.1 Windows 9
2.2 Mac OS X 11
2.3 Launching CROSS DJ 11
2.4 License Key 11
3 Configuring CROSS DJ 12
3.1 Audio Configuration 12
3.2 MIDI Configuration 14
4 Controller Overview 15
4.1 Top Panel 15
4.2 Rear Panel 18
4.3 Front Panel 19
5 Software Overview 20
5.1 Menu 20
5.2 Head-Up Display (HUD) 20
5.3 Players 21
5.4 Integrated Mixer 21
5.5 Dock 22
5.6 Browser 22
5.7 Preview Deck 22
6 Importing Audio 23
6.1 Importing Folders 23
6.2 iTunes® Integration 23
7 Loading Tracks 24
8 First Mix with CROSS DJ and U-MIX CONTROL PRO 25
9 Troubleshooting 26
10 Frequently Asked Questions 27
2 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
Important safety instructions
1Read these Instructions.
2Keep these Instructions.
3Heed all Warnings.
4Follow all Instructions.
5Do not use this apparatus near water.
6Clean only with a damp cloth.
7Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized plug. The wide blade is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles,
and point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13 Unplug this apparatus during lighting storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Serving is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING
To reduce the risk of the fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus
shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
CAUTION: To reduce the risk of electric shock, do not remove
any cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use to
the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in the literature accompanying this
appliance.
CAUTION
To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade exposure
CAUTION
C
M
Y
CM
MY
CY
CMY
K
instructions.pdf 10/11/2009 15:36:39
3 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
Welcome
Thank you for choosing MixVibes U-MIX CONTROL PRO. MixVibes U-MIX CONTROL PRO is a DJ package including
CROSS DJ software and an external MIDI DJ controller with an internal sound interface. This is the perfect package
for DJs seeking a compact, professional DJ solution which makes no compromise on the design and quality of the
hardware.
Take a few minutes to run through this quick start guide and you’ll be on your way to making great mixes on
MixVibes U-MIX CONTROL PRO in no time at all!
We invite you be a part of the MixVibes community to share your experiences with other DJs, find help and advice,
and check for available updates. See you online on the forum1or on the website2!
Minimum System Requirements for PC
•Windows XP SP2 or Windows Vista SP2 or Windows 7. We recommend Windows 7 or XP over Vista.
•Intel Core 2 Duo / 1.8 GHz or equivalent
•1 GB RAM
•One available USB port
•Hard drive space for music
Minimum System Requirements for MAC
•Mac OS X 10.4
•Intel Core 2 Duo / 1.8 GHz or higher
•1 GB RAM
•One available USB port
•Hard drive space for music
Box Contents
•CROSS DJ installation disc
•U-MIX CONTROL PRO - USB DJ MIDI controller with an internal sound interface
•1 USB cable; 1 RCA cable; 1 male RCA to male mini jack (3.5mm)
•This user manual
1http://forum.mixvibes.com
2http://www.mixvibes.com
4 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
1 Connections
1.1 Stand Alone Setup
1 Connect outputs 1/2 of your U-MIX CONTROL PRO to your sound system (amplifier, powered speakers, or
home stereo).
2Connect your headphones to one of the ’headphones’ outputs of your U-MIX CONTROL PRO.
3If necessary, connect your microphone to the ’microphone’ input of your U-MIX CONTROL PRO.
4 Connect the supplied USB cable between the USB output of your U-MIX CONTROL PRO and a free USB slot
of your computer.
5To turn on your U-MIX CONTROL PRO, set the rear panel selector to ’USB’.
6 After installing the software, set the CROSS DJ Audio preferences as described in the Audio Configuration
part of this manual: 3.1 on page 12.
REAR
FRONT
LN PH
LN PH
DC IN OUTPUT 3/4
POWER
INPUT 3/4 INPUT 1/2
9V
0.5A
TOUCH SENSOR
MIN MAX MIN MAX
OUTPUT 1/2
LR LR LR LR
USBOFF
C.F. CURVE
LEVEL
R L
HEADPHONES
L R
MICROPHONE
USB
SPEAKERS
SOFTWARE
MIXVIBES
Stand alone setup
5 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
1 Connections
1.2 Turntables/CD Players and Internal Mixer Setup
1If you are using vinyl, plug the ground of your turntable to the ground lug on the U-MIX CONTROL PRO.
2 Connect the outputs of your decks (vinyl or CD) to the RCA inputs of your U-MIX CONTROL PRO plugging
the left deck into the inputs 1/2 and right deck into the inputs 3/4. Match the left channel (usually white)
with the white RCA sockets on the U-MIX CONTROL PRO, and right (usually red) with the red sockets.
3 If you are using turntables with phono outputs, set the U-MIX CONTROL PRO’s input selectors to ’Phono’.
If you are using turntables with line outputs or CD players, set the input selectors on the U-MIX CONTROL
PRO to ’Line’.
4 Connect outputs 1/2 of your U-MIX CONTROL PRO to your sound system (amplifier, powered speakers, or
home stereo).
5Connect your headphones to one of the ’headphones’ outputs of your U-MIX CONTROL PRO.
6If necessary, connect your microphone to the ’microphone’ input of your U-MIX CONTROL PRO.
7 Connect the supplied USB cable between the USB output of your U-MIX CONTROL PRO and a free USB slot
of your computer.
8To turn on your U-MIX CONTROL PRO, set the rear panel selector to ’USB’.
9 After installing the software, set the CROSS DJ Audio preferences as described in the Audio Configuration
part of this manual: 3.1 on page 12.
REAR
FRONT
LN PH
LN PH
DC IN OUTPUT 3/4
POWER
INPUT 3/4 INPUT 1/2
9V
0.5A
TOUCH SENSOR
MIN MAX MIN MAX
OUTPUT 1/2
LR LR LR LR
USBOFF
C.F. CURVE
LEVEL
R L
HEADPHONES
L R
MICROPHONE
USB
SPEAKERS TURNTABLECD PLAYER
PHONO
LINE
LN PH
PHONO
LINE
LN PH
SOFTWARE
MIXVIBES
Turntables/CD Players and internal mixer setup
6 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
1 Connections
1.3 MP3 players (iPod®) and Internal Mixer Setup
1 Connect the outputs of your MP3 players to the RCA inputs of your U-MIX CONTROL PRO plugging the left
MP3 player into the inputs 1/2 and right MP3 player into the inputs 3/4.
2Set the U-MIX CONTROL PRO’s input selectors to ’Line’.
3 Connect outputs 1/2 of your U-MIX CONTROL PRO to your sound system (amplifier, powered speakers, or
home stereo).
4Connect your headphones to one of the ’headphones’ outputs of your U-MIX CONTROL PRO.
5If necessary, connect your microphone to the ’microphone’ input of your U-MIX CONTROL PRO.
6 Connect the supplied USB cable between the USB output of your U-MIX CONTROL PRO and a free USB slot
of your computer.
7To turn on your U-MIX CONTROL PRO, set the rear panel selector to ’USB’.
8 After installing the software, set the CROSS DJ Audio preferences as described in the Audio Configuration
part of this manual: 3.1 on page 12.
Mp3 / iPod (1)
Mp3 / iPod (2)
REAR
FRONT
LN PH
LN PH
DC IN OUTPUT 3/4
POWER
INPUT 3/4 INPUT 1/2
9V
0.5A
TOUCH SENSOR
MIN MAX MIN MAX
OUTPUT 1/2
LR LR LR LR
USBOFF
C.F. CURVE
LEVEL
R L
HEADPHONES
L R
MICROPHONE
USB
SPEAKERS
PHONO
LINE
LN PH
SOFTWARE
MIXVIBES
PHONO
LINE
LN PH
MP3 players (iPod®) and internal mixer setup
7 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
1 Connections

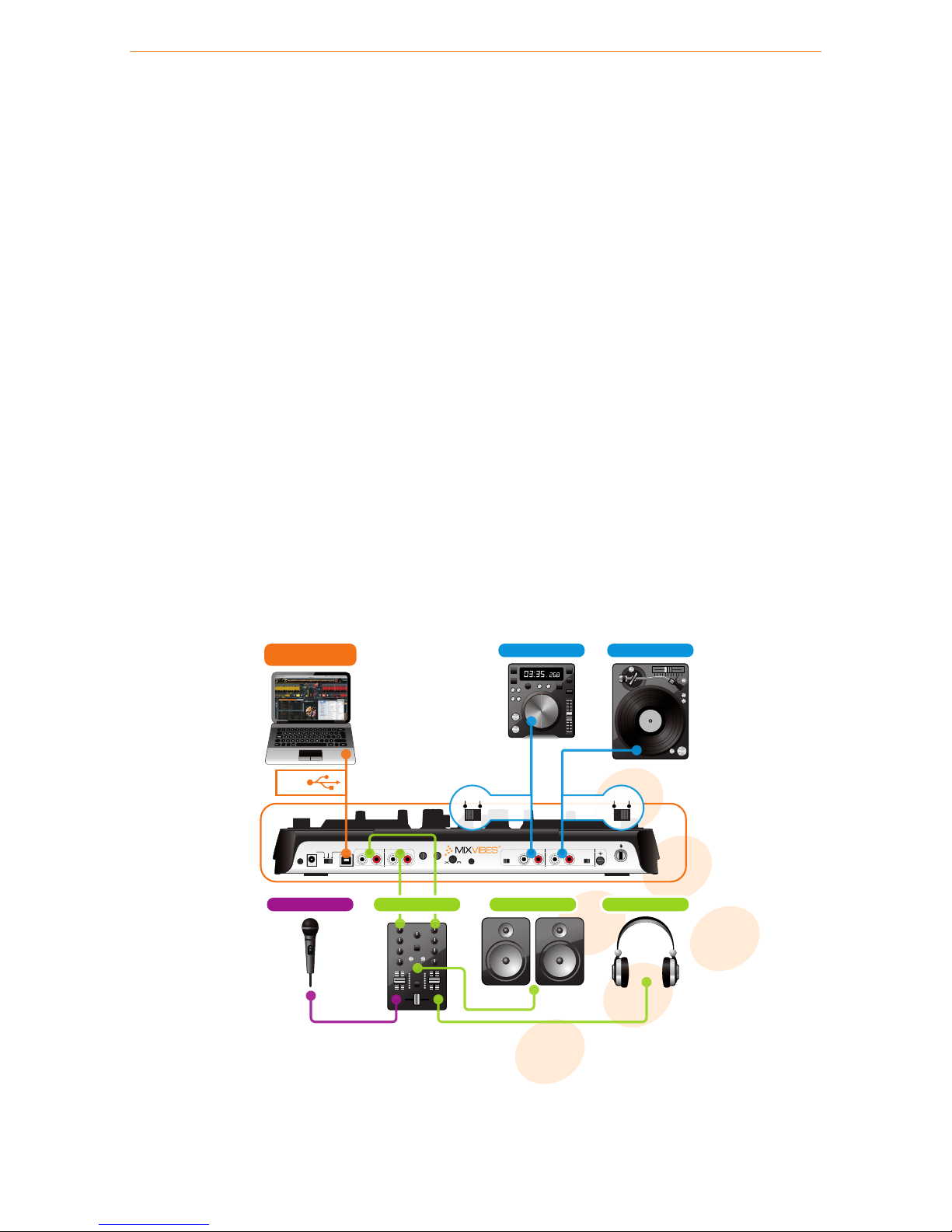

1.4 Turntable/CD Player and External Mixer Setup
1 If you are using vinyl, plug the ground of your turntable to the ground lug on the U-MIX CONTROL PRO or
on your DJ mixer.
2 Connect the outputs of your decks (vinyl or CD) to the RCA inputs of your U-MIX CONTROL PRO plugging
the left deck into the inputs 1/2 and right deck into the inputs 3/4. Match the left channel (usually white)
with the white RCA sockets on the U-MIX CONTROL PRO, and right (usually red) with the red sockets.
3 If you are using turntables with phono outputs, set the U-MIX CONTROL PRO’s input selectors to ’Phono’.
If you are using turntables with line outputs or CD players, set the input selectors to ’Line’.
4 Connect the outputs of your U-MIX CONTROL PRO to the line inputs of your mixer. Connect the outputs
1/2 into a line input of your mixer and the outputs 3/4 into another one.
5 Connect your headphones to the external mixer’s headphone output and plug your sound system
(amplifier, powered speakers, or home stereo) to the external mixer’s main output.
6If necessary, connect your microphone to the external mixer’s microphone input.
7Connect the U-MIX CONTROL PRO to a free USB slot of your computer.
8To turn on your U-MIX CONTROL PRO, set the rear panel selector to ’USB’.
9 After installing the software, set the CROSS DJ Audio preferences as described in the Audio Configuration
part of this manual: 3.1 on page 12.
REAR
LN PH
LN PH
DC IN OUTPUT 3/4
POWER
INPUT 3/4 INPUT 1/2
9V
0.5A
TOUCH SENSOR
MIN MAX MIN MAX
OUTPUT 1/2
LR LR LR LR
USBOFF
C.F. CURVE
LEVEL
R L
USB
TURNTABLECD PLAYER
PHONO
LINE
LN PH
PHONO
LINE
LN PH
SOFTWARE
MIXVIBES
SPEAKERS HEADPHONES
L R
MICROPHONE MIXER
Turntable/CD Player and external mixer setup
8 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
2 Installation
Please log in on our forum in order to register your product and to check for the latest download version of CROSS
software. If it is newer than what is on your CD-ROM, we recommend installing it instead.
2.1 Windows
1 Insert CROSS DJ installation disc into your computer’s CD-ROM drive. The installation program will launch
automatically. In case it does not, open Windows Explorer, navigate to the CROSS DJ installation disc and
double-click on the file «Install Cross DJ.exe».
2Choose your language and click OK.
C
M
J
CM
MJ
CJ
CMJ
N
install_language.pdf 26/02/2009 20:50:35install_language.pdf 26/02/2009 20:50:35
Language Selection
3Read and accept the End-User License Agreement by clicking I Agree.
C
M
J
CM
MJ
CJ
CMJ
N
install_licence_dj.pdf 01/07/2009 13:50:47install_licence_dj.pdf 01/07/2009 13:50:47
End-User License Agreement
4Select the Components you want to install and click Next.
C
M
J
CM
MJ
CJ
CMJ
N
install_components_dj.pdf 01/07/2009 13:49:37install_components_dj.pdf 01/07/2009 13:49:37
Components Selection
9 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
2 Installation
5Choose the folder in which you want to install CROSS DJ and click Next.
C
M
J
CM
MJ
CJ
CMJ
N
install_install_location_dj.pdf 01/07/2009 13:50:27install_install_location_dj.pdf 01/07/2009 13:50:27
Choose Install location
6 Choose the Start Menu folder in which you want to create the CROSS DJ shortcut. To start the installation,
click Install.
C
M
J
CM
MJ
CJ
CMJ
N
install_start_menu_folder_dj.pdf 01/07/2009 13:49:12install_start_menu_folder_dj.pdf 01/07/2009 13:49:12
Start Menu Folder Location
7 Once the installation is complete you can click Finish . If the check box Run CROSS DJ is selected,
CROSS DJ will launch automatically.
C
M
J
CM
MJ
CJ
CMJ
N
install_finish_dj.pdf 01/07/2009 13:49:59install_finish_dj.pdf 01/07/2009 13:49:59
Finish Installation
10 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
2 Installation
2.2 Mac OS X
1Insert the CROSS DJ installation disc into your computer’s CD-ROM drive.
2Double-click the CROSS DJ icon on your desktop.
3Drag and drop CROSS DJ into your "Applications" folder.
C
M
J
CM
MJ
CJ
CMJ
N
install_mac_application_dj.pdf 07/07/2009 11:45:59install_mac_application_dj.pdf 07/07/2009 11:45:59
Installing CROSS DJ
2.3 Launching CROSS DJ
Windows Go to [Start > All Programs > MixVibes > Cross DJ] and click on the CROSS DJ icon.
Mac OS X Go to [Applications > Cross DJ] and double-click on CROSS DJ.

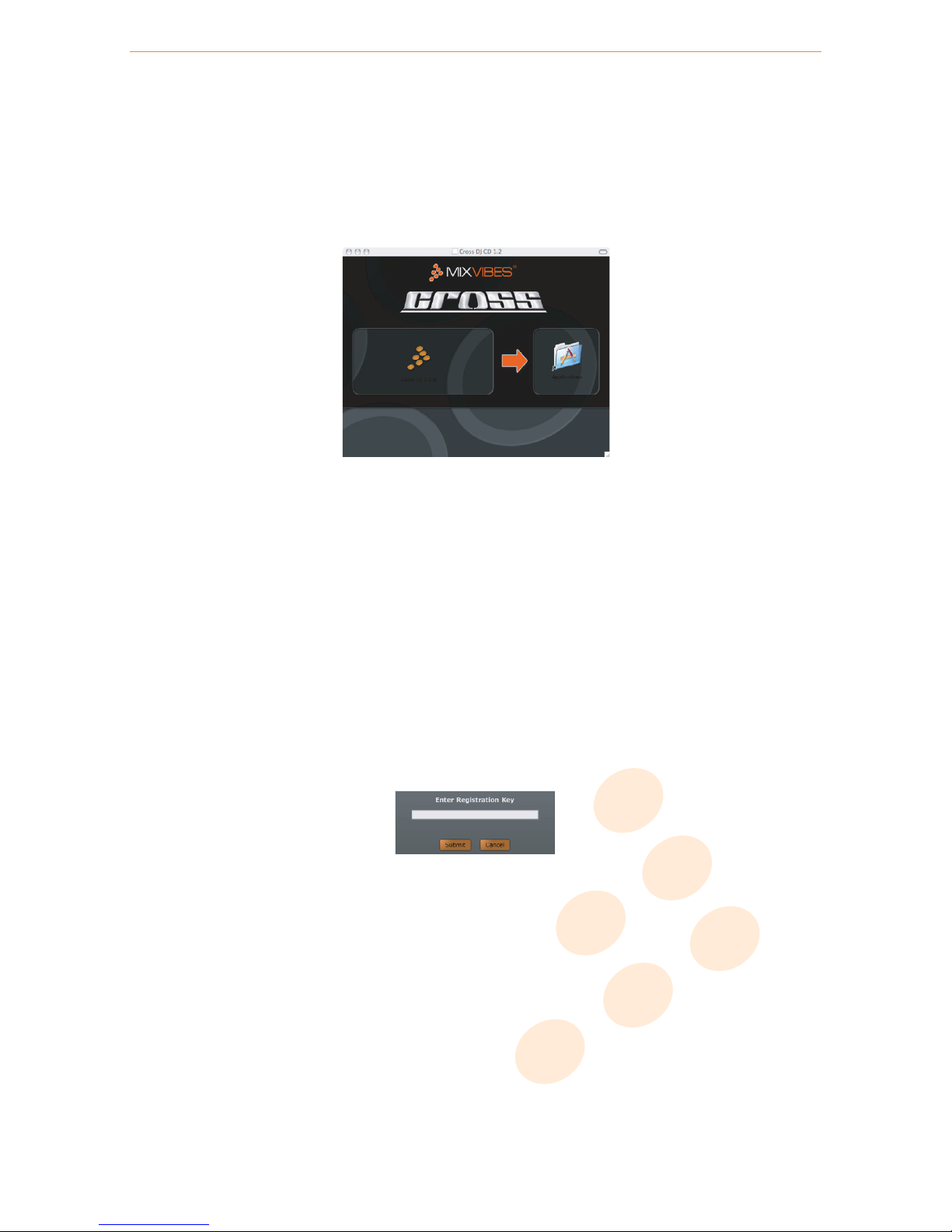

2.4 License Key
Enter the License Key found on the sleeve of your installation disc and click Submit.
C
M
J
CM
MJ
CJ
CMJ
N
serial_number_dj.pdf 01/07/2009 15:53:32serial_number_dj.pdf 01/07/2009 15:53:32
License key
11 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
3 Configuring CROSS DJ
3.1 Audio Configuration
1Go to [File > Preferences > Audio]. Look at the figure on the following page to view the list.
2Select "MixVibes ASIO U-MIX CONTROL PRO" from the pull down menu.
3 Choose your desired sample rate and buffer size . The default settings are 44.1kHz sample rate and
256 samples of buffer.
4Select the inputs of the U-MIX CONTROL PRO from the pull down menus.
1Stand alone setup: Select no input.
2 Turntables/CD Players and internal mixer setup: Select " U-Mix Control Pro 1/U-Mix Control Pro
2 " for stereo input 1 and " U-Mix Control Pro 3/U-Mix Control Pro 4 " for stereo input 2. Press the
SOURCE button of the controller (shift + headphones).
3 MP3 players (iPod ® ) and internal mixer setup: Select " U-Mix Control Pro 1/U-Mix Control Pro 2 " for
stereo input 1 and " U-Mix Control Pro 3/U-Mix Control Pro 4 " for stereo input 2. Press the SOURCE
button of the controller (shift + headphones).
4 Turntable/CD Player and external mixer setup: Select " U-Mix Control Pro 1/U-Mix Control Pro 2 " for
stereo input 1 and " U-Mix Control Pro 3/U-Mix Control Pro 4 " for stereo input 2. Press the SOURCE
button of the controller (shift + headphones).
5Adjust the input gain depending on your input source to have enough level but without clipping.
6Set the input level to Line. Make sure to follow the connection instructions: 1 on page 5.
7Select the outputs of the U-MIX CONTROL PRO from the pull down menus.
1 Stand alone setup: Select " U-Mix Control Pro 1/U-Mix Control Pro 2 " for stereo output 1 (this out-
put is your system’s Master out) and " U-Mix Control Pro 3/U-Mix Control Pro 4 " for stereo output 2
(this output is your system’s Cue/Monitor out).
2 Turntables/CD Players and internal mixer setup: Select " U-Mix Control Pro 1/U-Mix Control Pro
2 " for stereo output 1 (this output is your system’s Master out) and " U-Mix Control Pro 3/U-Mix
Control Pro 4" for stereo output 2 (this output is your system’s Cue/Monitor out).
3 MP3 players (iPod ® ) and internal mixer setup: Select " U-Mix Control Pro 1/U-Mix Control Pro 2 " for
stereo output 1 (this output is your system’s Master out) and " U-Mix Control Pro 3/U-Mix Control
Pro 4" for stereo output 2 (this output is your system’s Cue/Monitor out).
4 Turntable/CD Player and external mixer setup: Select " U-Mix Control Pro 1/U-Mix Control Pro 2 "
for stereo output 1 (this output is linked to player 1) and " U-Mix Control Pro 3/U-Mix Control Pro
4" for stereo output 2 (this output is linked to player 2).
8Select your routing mode.
1Stand alone setup: Select the routing mode Dual Stereo.
2Turntables/CD Players and internal mixer setup: Select the routing mode Dual Stereo.
3MP3 players (iPod®) and internal mixer setup: Select the routing mode Dual Stereo.
4Turntable/CD Player and external mixer setup: Select the routing mode External Mixer.
12 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
3 Configuring CROSS DJ
Here is a description of the different routing modes:
Simple Stereo The sum of the Master and Cue/Monitor signals are routed to outputs 1/2 on your U-MIX CONTROL
PRO.
Dual Stereo The Master signal is routed to outputs 1/2 and the Cue/Monitor signal is routed to outputs 3/4 on
your U-MIX CONTROL PRO.
Split Mono The Master and Cue/Monitor signals are folded down to mono. The mono Master is routed to output
1 and the mono Cue/Monitor is routed to output 2 on your U-MIX CONTROL PRO.
External Mixer Deck A direct out is routed to outputs 1/2 on your U-MIX CONTROL PRO, Deck B direct out is
routed to outputs 3/4. and the Cue/Monitor out is routed to outputs 5/6.
2
3
4
45
5
6
6
7
7
8
C
M
Y
CM
MY
CY
CMY
K
config_audio_dj_le_umcp.pdf 14/01/2011 15:38:33

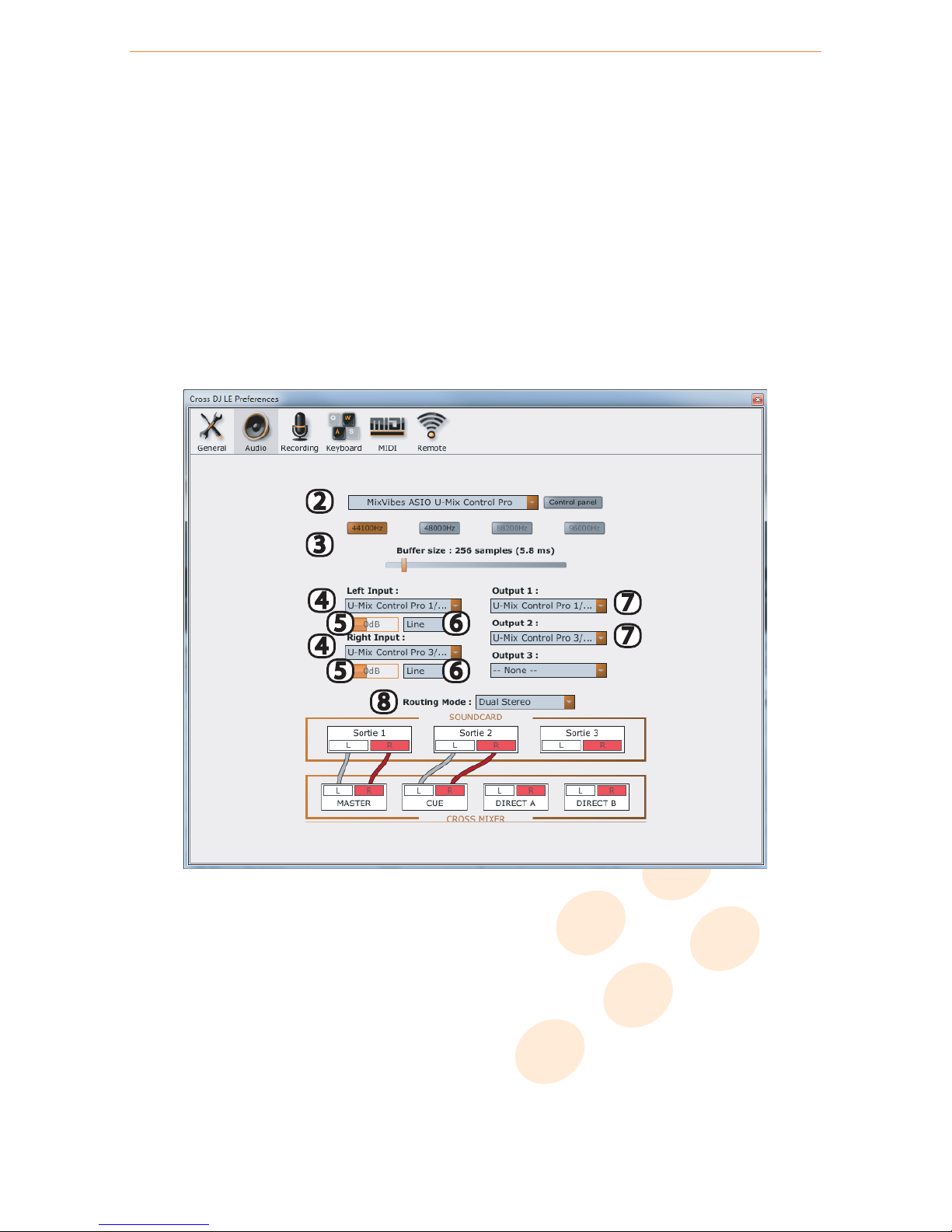

Audio Configuration Pane
13 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
3 Configuring CROSS DJ
3.2 MIDI Configuration
1Go to [File > Preferences > MIDI].
2Select your MIDI input device by clicking on its tab.
3Select your MIDI device mapping by clicking on its picture.
4If necessary you can:
•add and delete a mapping (a).
•duplicate a mapping to personalize it (b).
•import a mapping for example use a mapping posted by another user on our forum (c).
•export a mapping for example share it with other users (d).
abcd
C
M
Y
CM
MY
CY
CMY
K
config_midi_umcp.pdf 14/01/2011 15:39:20
MIDI Configuration Pane
14 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
4 Controller Overview

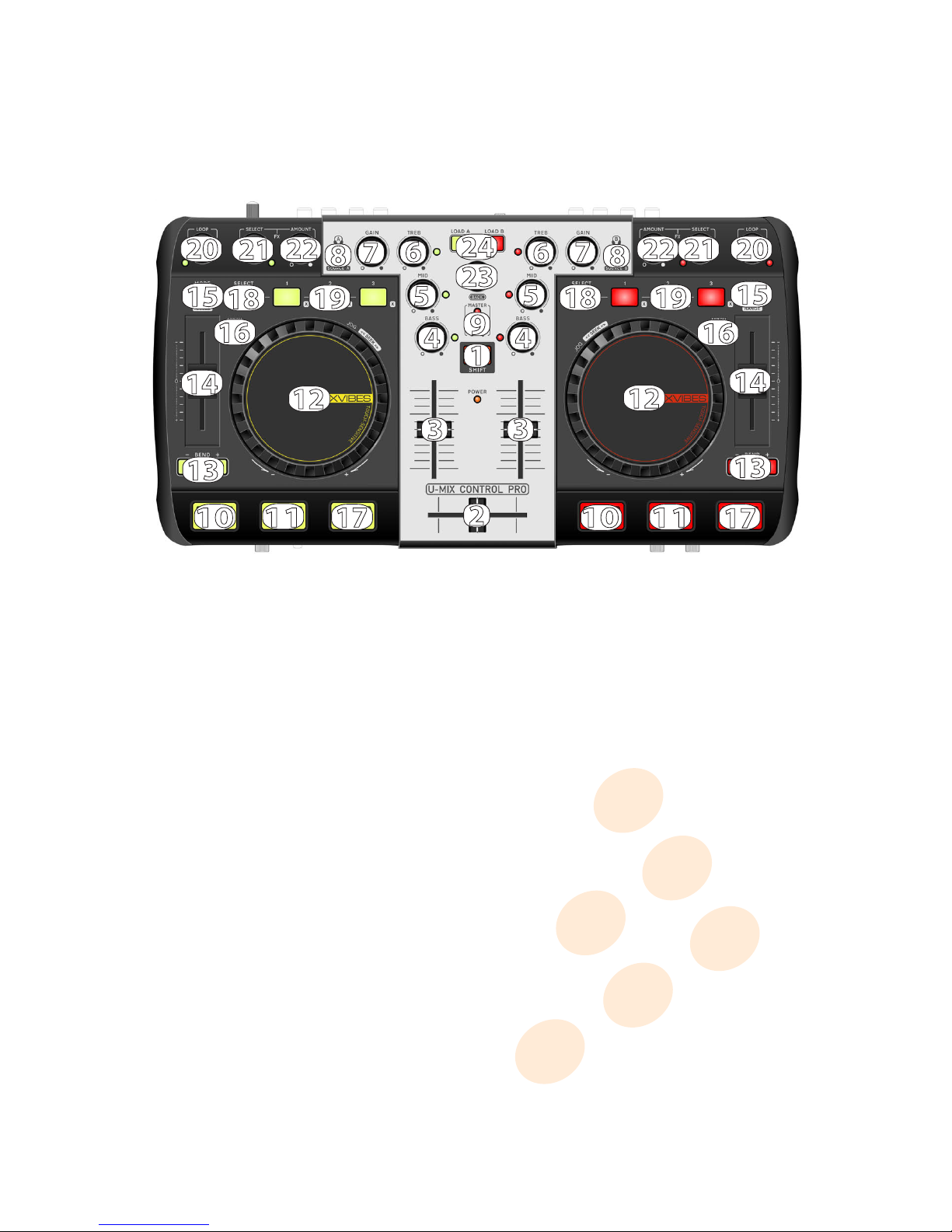

4.1 Top Panel
Each U-MIX CONTROL PRO button has a primary and a secondary function. Primary functions are direct, just press
the desired button. To access the secondary functions, hold SHIFT and press the desired button.
10 10 11 11 17 17
13 13
14 14
16 16
15 15
18 18
19 19
20 20
21 2122 22
88
776 6
55
4 4
33
12 12
2
1
9
23
24
C
M
Y
CM
MY
CY
CMY
K
top_panel_umcp.pdf 24/09/2010 17:36:34
Top panel
1. Shift : holding shift gives many of the buttons a secondary function. Secondary functions are printed inside a
grey box.
MIXER CONTROLS
2. Crossfader: blends audio between the left and right channels.
3. Volume: adjusts the players’ audio level.
4. 5. 6. Equalization:
• If you turn the buttons: a 3-band equalizer is available to modify the equalization of your media file.
Treble, medium and bass can be adjusted with these knobs.
•If you press the buttons: kills basses or mediums or trebles frequencies of your media file.
7. Gain: adjusts the pre-fader, pre-EQ audio level of the corresponding channel.
8. Cue/Monitor: sends the corresponding deck to the headphones mix.
Shift function Source : Input selectors (Player or Line In). If you want to use a turntable, a CD player or a MP3
player (iPod®), you have to select Line In.
9. Master: adjusts the master output level and displays if signal clipping occurs.
15 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
4 Controller Overview
PLAYBACK CONTROLS
10. Cue : If no Cue Point is assigned, or if the deck is paused, press Cue to set a Current Cue Point. While the
media is playing, press it again to skip back to the Current Cue Point and pause playback. You can hold down Cue
to start playback from the Current Cue Point. Release it to skip back to the Current Cue Point and pause playback.
You can hold down Cue and Play/Pause simultaneously to start playback from the Current Cue Point. Release both
buttons to allow playback to continue.
Shift function Cue/Set: defines a cue point on the fly.
11. Play/Pause: starts or pauses playback of a media file.
Shift function Cue Play: jumps the media back to the Current Cue Point without stopping playback.
12. Jog Wheel : the jog wheel can be used for a number of functions. When the media is first loaded you can use
the jog wheel to cue up the media. When a media is playing and Vinyl mode is active you can use the top panel of
the jog wheel to scratch and the jog wheel margin to temporarily change the pitch of the media. When a media
is playing and Vinyl mode is not active you can use the jog wheel to temporarily change the pitch of the media.
Note: this will automatically revert back to the default pitch when you let go of the jog wheel.
Shift function Jog Seek: skips through the media at high speed.
PITCH CONTROLS
13. Pitch bend : hold these buttons down to temporarily alter the speed the playing media. When released, the
media playback will return to the speed designated by the pitch slider.
Shift function Fine: hold these buttons down to temporarily and finely alter the speed the playing media.
14. Pitch slider: changes the speed of the currently playing media.
15. Speed/Tempo/Hybrid select: selects Speed or Tempo or Hybrid.
If Speed mode has been selected you can adjust the pitch like with a normal turntable.
If the Tempo mode has been activated it is possible to change the pitch via the pitch fader without influencing the
tone pitch. This means that the song’s tonal key remains the same while changing its speed.
The hybrid mode is a combination of the speed and the tempo warping modes, hence its name. It is equivalent to
the tempo mode in the (-33%; +33%) speed range and to the speed mode below -66% and above +66%. In the
remaining speed ranges (-66%; -33%) and (33%; 66%), the pitch is gradually increased or decreased to smooth
the pitch transitions.This mode gives the best of the speed and tempo modes: a more natural sound at extreme
speed values, and a wide constant-pitch range around 0% speed.
Shift function Pitch range : sets the range of the pitch slider. Push this button to change it between 4%, 6%, 8%,
16%, 32% and 100%.
16. Vinyl : while a track is playing with this option turned on, you can use the jog wheel to scratch your media; if
this button is off, the jog wheel will allow you to change the speed.
17. Sync: synchronizes the BPM and the beat with the adjacent player.
Shift function Match: only synchronizes the BPM with the adjacent player.
16 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
4 Controller Overview
LOCATORS CONTROLS
18. Select : switches between the commands of the locators 1/2/3 and the locators 4/5/6. If the select button is
on, you can play with the locators 4/5/6.
19. Locator : defines and reaches six locator points (hot cues) in the media being played. To save a locator point,
push a locator button. To go to a locator point, push a previously saved locator button again. Once it is assigned,
the locator button will light up.
Shift function Clear locators: clears a defined locator point.
LOOP CONTROLS
20. Auto Loop:
• If you turn the button: changes the currently selected auto loop length or change the length of the active
loop by moving its end point.
Shift function Smart Seek/Loop Jump : moves forward or backward the amount of beats as defined in the Smart
Seek Length. If an auto loop is enable, the loop will also be moved backwards or forwards.
•If you press the button: enables/disables an auto loop.
Shift function Smart Seek/Loop Jump Length: selects the step size in beats.
EFFECT CONTROLS
21. Effect:
•If you turn the button: selects an effect.
•If you press the button: enables/disables current effect.
22. Effect amount: sets current effect amount.
BROWSE CONTROLS
23. Browse:
•If you turn the button: allows to navigate in the media windows to find the appropriate media.
Shift function Quick Browse: allows to navigate faster in the media windows to find the appropriate media.
•If you press the button: opens the highlighted directory.
Shift function Back: returns to the parent directory.
24. Load: loads the highlighted media into a player.
17 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
4 Controller Overview
4.2 Rear Panel
10
10
11 11 17 17
13 13
14 14
16 16
15 15
18 18
19 19
20 20
21 2122 22
8
8
7
76
6
5
5
4
4
3
3
12 12
2
19
23
24
C
M
Y
CM
MY
CY
CMY
K
rear_panel-umcp.pdf 04/10/2010 12:04:56
Rear panel
1. Power adapter input : connect the power adapter here (optional, can be bought separately if USB power is
too low).
2. Power switch (adaptor / Off / USB) : set the switch to Adaptor when using the exclusive adaptor, set to USB
when using power provided from the computer via USB.
3. USB connection: used to connect U-MIX CONTROL PRO to your computer.
4. Output 1/2-3/4 : use these standard RCA outputs to connect to an external mixer or your sound system
(amplifier, powered speakers, or home stereo). If you have a speakers set with a cable mini jack male, use an
adapter male RCA to female mini-jack (3.5mm).
5. Touch sensor level : adjusts the level of touch sensitivity for the jog wheel; adjust it if CROSS DJ is not
detecting your touches correctly.
6. C.F. Curve : adjust the shape of the crossfader curve from a quick cut for scratching or to a longer fade for
mixing.
7. Line/Phono switch: this switch allows you to set the pre-amplification level for each stereo input to the line
(CD/MP3 player, iPod ® for example) or phono (turntable) level. A turntable outputs a considerably weaker audio
signal than a CD or MP3 player, and therefore requires extra pre-amplification in order to achieve a comparable
volume.
8. Input 1/2-3/4 : use these standard RCA inputs to connect your decks or MP3 players. The phono level inputs
and line level inputs share the same connectors. Use the input source selectors to select the input sources.
9. Ground lug : when using a turntable, connect the ground lead from your turntable to the ground lug to help
preventing hum.
10. Kensington® safety slot : accommodates a plug associated with a padlock, then connected to a cable to
be fixed around a fixed object, or difficult to move.
18 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
4 Controller Overview
4.3 Front Panel
10 10 11 11 17 17
13 13
14 14
16 16
15 15
18 18
19 19
20 20
21 2122 22
88
776 6
55
4 4
33
12 12
2
1
9
23
24
6
5
4
3
2
1
C
M
Y
CM
MY
CY
CMY
K
front_panel_umcp.pdf 22/09/2010 11:57:09
Rear panel
1. Microphone thru input : connect a 1/4” microphone to this input. Mic signal is sent directly to the outputs
(there is no software control on this input).
2. Microphone level : controls the hardware input level of the microphone (there is no software control on this
input level).
3. Microphone switch (off / on / talk over) : OFF: No microphone sound is output. ON: Microphone sound is
output normally. TALK OVER: Microphone sound is output; when sound is input to a connected microphone, the
TALK OVER function operates and all sound other than that from the microphone is attenuated by 14 dB: that
allows you to be heard when you’re speaking. When not using the TALK OVER function, it is recommended to set
the switch to the OFF or ON position.
4. Headphones mix : controls the balance in the headphones via software between the master output and the
headphone cue.
5. Headphones level : controls the hardware output level of the headphone (does not correspond to the monitor
volume software knob).
6. Headphones output : connect your 1/4” or 1/8” headphones to this output for cueing and mix monitoring.
This output is coupled with the RCA output 3/4.
19 / 30

C
M
Y
CM
MY
CY
CMY
K
vibe-watermark-bright.pdf 25/10/2010 17:41:48
5 Software Overview
Once CROSS DJ is configured, you will see the following graphical interface:
Preview Deck
Browser
Dock
Integrated
Mixer
Player
Head-Up
Display
Menu
C
M
Y
CM
MY
CY
CMY
K
overview_dj_le.pdf 28/09/2010 15:22:36
User Interface
5.1 Menu
The menu lets you access various commands in CROSS DJ.
5.2 Head-Up Display (HUD)
The Head-Up Display contains essential information about your mix:
12 2 3 3
4 5 6
C
M
J
CM
MJ
CJ
CMJ
N
hud_dj.pdf 14/12/2009 12:24:46hud_dj.pdf 14/12/2009 12:24:46
Head-Up Display
1MixVibes logo.
2Input level meters.
3Deck Selectors.
4The Beat Matcher display gives a visual representation of the synchronization between the players.
5Zoom.
6Clock.
20 / 30
