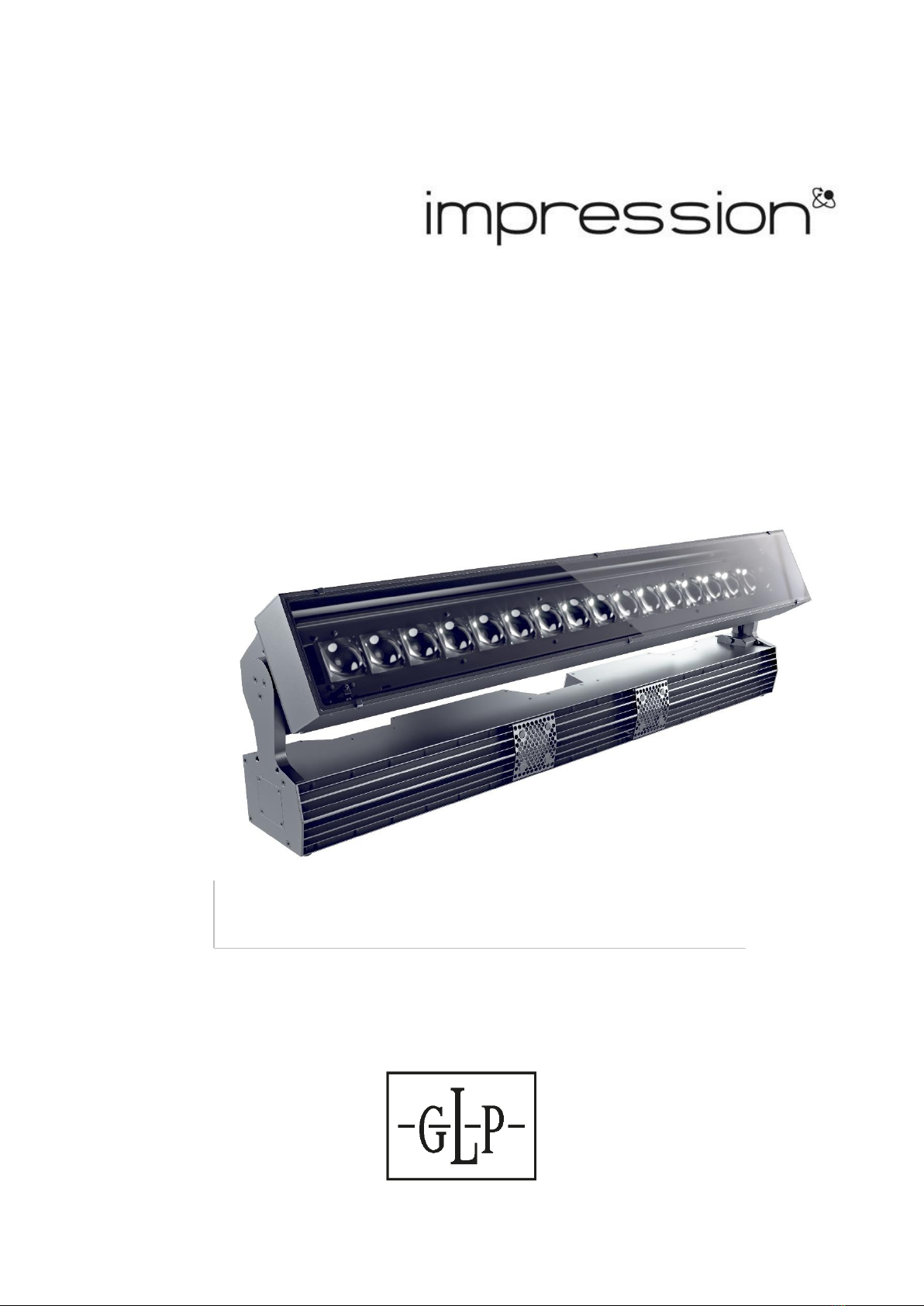

GLP Impression X5 IP Bar 1000 User manual

X5 IP Bar 1000
Quick Start and Safety Manual
Software v.1.1.3
Rev. 20230815-01

Document revisions
Revision
number
Notes
Date released
20230815-01
First release of the Quick Start and Safety
Manual for the impression X5 IP Bar 1000.
Covers firmware v. 1.1.3
August 2023
GLP® impression X5 IP Bar 1000 Quick Start and Safety Manual –Revision 20230815-01
© 2023 German Light Products GmbH. All rights reserved.
The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of
German Light Products GmbH in Germany, in the United States of America and in other
countries.
The information contained in this document is subject to change without notice. German Light
Products GmbH and all affiliated companies disclaim liability for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability
to use or reliance on the information contained in this document.
Manufacturer head office:
German Light Products GmbH (GLP), Industriestrasse 2, 76307 Karlsbad, Germany
Tel (Germany): [phone] - 0
Service & Support EMEA:
GLP, Industriestrasse 2, 76307 Karlsbad, Germany
Tel. (Germany): [phone]
Email: [email protected]
www.glp.de
Service & Support USA:
GLP USA, 1145 Arroyo St., Ste. A, 91340 San Fernando, California
Tel (USA): [phone]
Support (US): [e-mail]
www.germanlightproducts.com

Table of Contents
1. Safety............................................................................................................................... 4
Key to symbols ................................................................................................... 4
General safety information ........................................................................ 4
Electrical safety ...................................................................................................5
Fire safety and protection from burns............................................... 6
Eye safety ................................................................................................................7
Strobe safety .........................................................................................................7
Installation safety and protection from personal injury......... 8
2. Avoiding damage to the fixture ..................................................................10
General precautions.......................................................................................10
Avoiding damage from light sources and heat..........................10
Avoiding damage from dust and airborne particles................11
Transportation and storage.......................................................................11

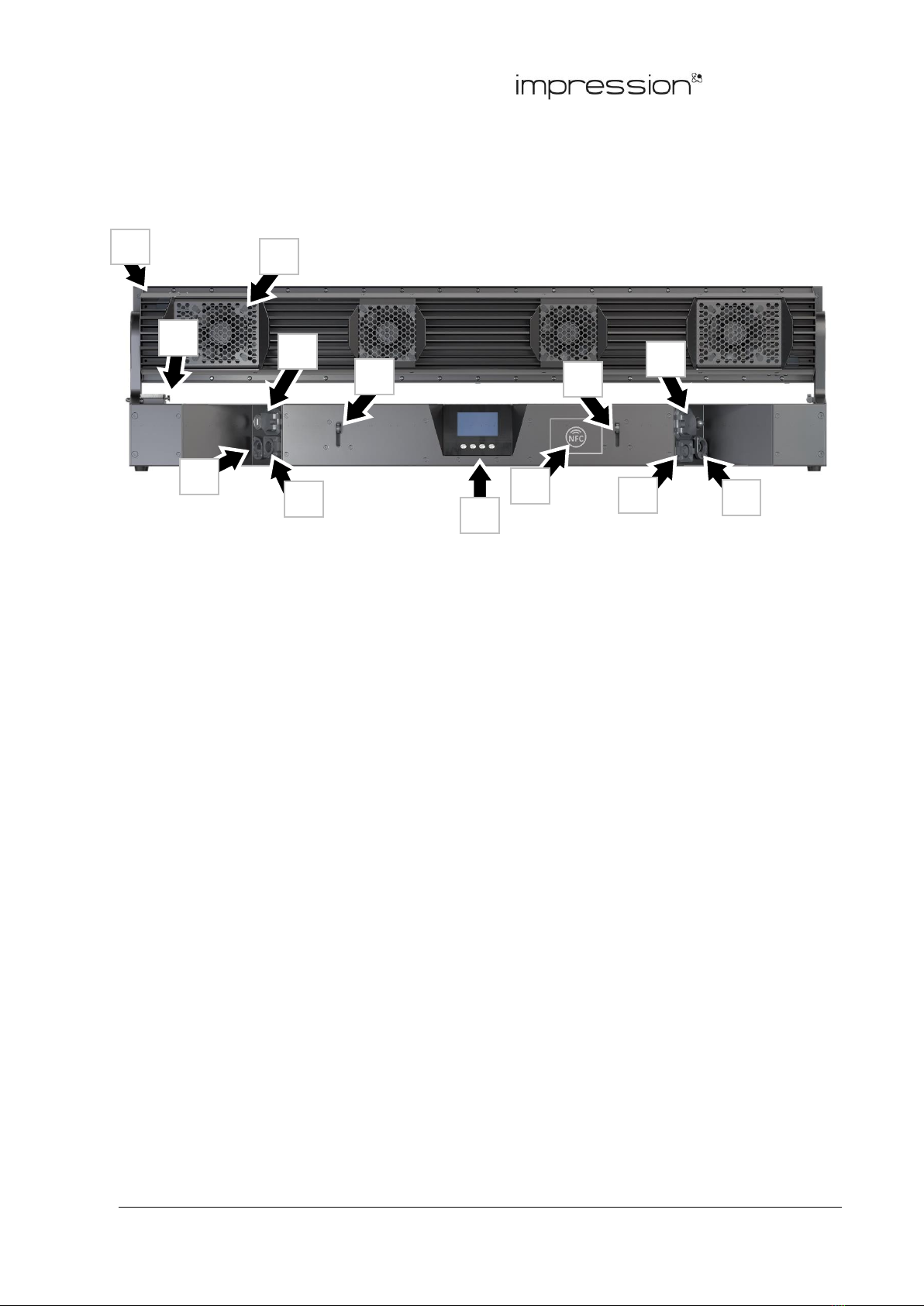

3. impression X5 IP Bar 1000 overview .........................................................12
4. Features .......................................................................................................................13
User Manual ........................................................................................................13

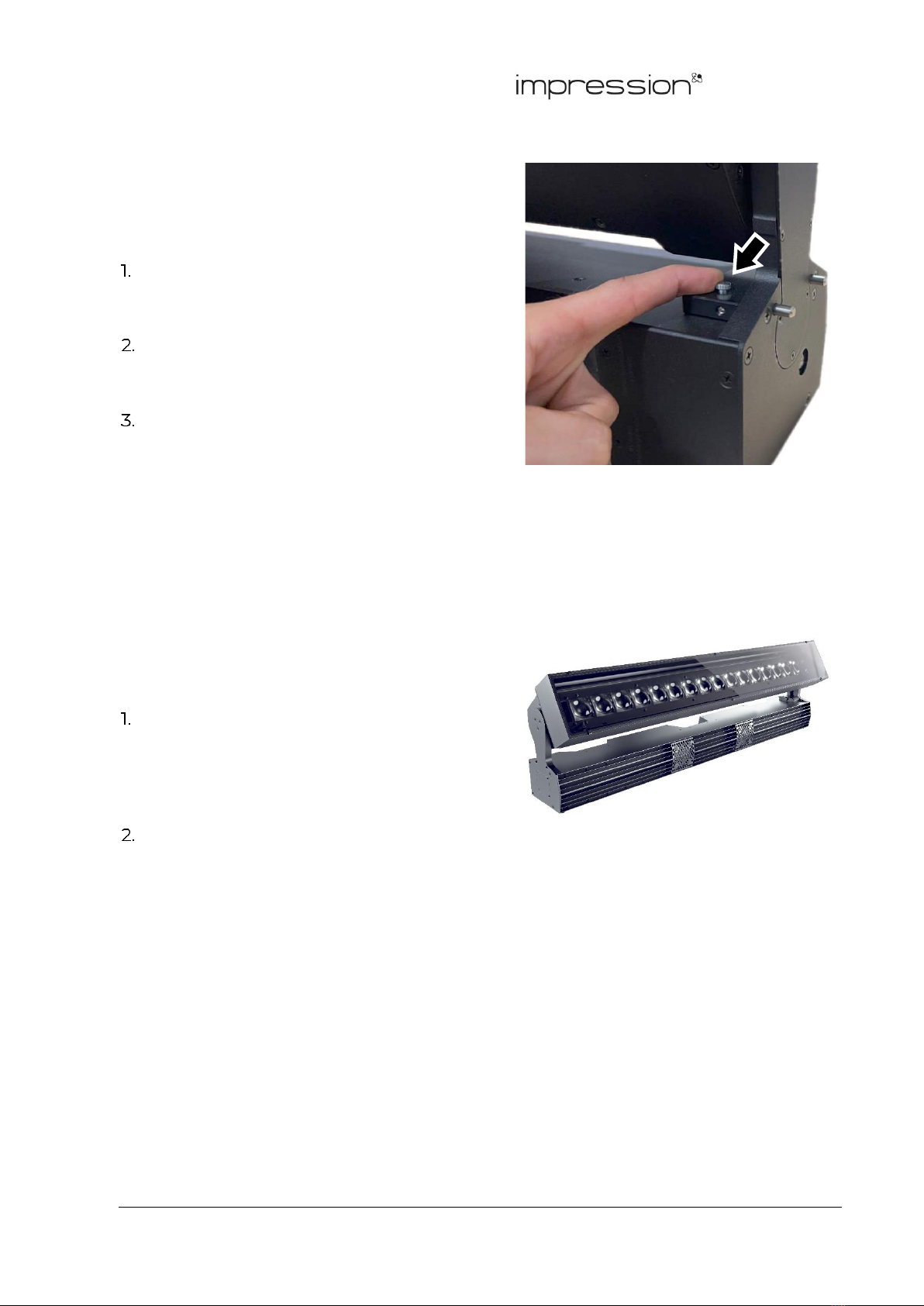

Tilt lock....................................................................................................................13
5. Installation..................................................................................................................14
Mounting options............................................................................................14
Securing the fixture with a safety cable...........................................14
End-to-end alignment.................................................................................15
Standing the fixture on a horizontal surface................................15
Installing on a rigging truss or similar structure........................15
6. AC mains power .....................................................................................................17
Power cable.........................................................................................................17
Connecting to power....................................................................................17
Installing power connectors ....................................................................17
Connecting multiple fixtures to power in a chain ....................18
7. Connecting to DMX data..................................................................................19
8. Starting and stopping operation ...............................................................20
Transportation and storage.....................................................................20
9. Service ...........................................................................................................................21
Installing optical accessories ...................................................................21
Cleaning.................................................................................................................21
GLP Service and Support ..........................................................................22
10.Technical specifications ...................................................................................23
11. Dimensions...............................................................................................................26

www.glp.de X5 IP Bar 1000
4 impression X5 IP Bar 1000 Quick-Start and Safety Manual
1. Safety
Key to symbols
The following symbols are used in this Guide:
General safety information
Read this manual carefully before installing, using or servicing the GLP impression
X5 IP Bar 1000 lighting fixture.
If you have any doubts or questions about how to use the fixture safely, contact your
GLP® supplier for assistance. Your GLP supplier will be happy to help.
The user documentation for the impression X5 IP Bar 1000 lighting fixture consists
of:
•The Quick Start and Safety Manual, supplied with fixtures and available for
download from www.glp.de. The Quick Start and Safety Manual contains
important safety information and installation instructions that the installer and
user must read.
•The User Manual, available for download from www.glp.de. The User Manual
explains features and control options of fixtures.
•The DMX Channel Index, available for download from www.glp.de. The Channel
Index is a separate guide to the DMX control channel layout and DMX commands
available.
All documents are available for download from www.glp.de.
The impression X5 IP Bar 1000 is intended for use by experienced professionals with
the knowledge and skills to set up, operate, and maintain high-powered, remotely
controlled lighting equipment safely and efficiently. These operations require
expertise that may not be provided in this Manual or in the User Manual.
Warning! Safety hazard.
Risk of severe injury or
death.
Warning! Hazardous
voltage. Risk of lethal or
severe electric shock.
Warning! See user
manual for important
safety information.
Warning! Fire hazard.
Warning! Risk of eye
injury.

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 5
•Respect all warnings and directions given in the fixture’s user documentation
and on the fixture. Read the user documentation and familiarize yourself with the
safety precautions it contains before installing or using the fixture. GLP and
affiliated companies will take no responsibility for damage or injury resulting
from disregard for the information in the user documentation.
•Check the GLP website at www.glp.de and make sure that you have the latest
version of this manual. Check the fixture software version indicated on page 2 of
this manual and then use the fixture’s control panel to check the version installed
in the fixture. If the versions are not the same, this manual may still cover the
fixture, because software updates do not always affect the way you use the
fixture. However, it is possible that this manual does not match the fixture
perfectly. Software release notes can help clarify this question. You can consult
software release notes and download the correct version of this manual on the
GLP website if necessary.
•Make all user documentation –this Quick Start and Safety Manual as well as the
User Manual –available to all installers and operators. Save both documents for
future reference.
•If you have any questions about the safe operation of the fixture, please contact
an authorized GLP distributor (see list of distributors at www.glp.de).
•The fixture is not suitable for household use or for use in any location where
unattended children have access to it.
•Use the fixture only as directed in this manual. Observe all markings in this
manual and on the fixture.
•Refer any repairs and service operations that are not described in this manual to
a technician authorized by GLP.
•The light source in this fixture must not be changed by the end user.
•Read and follow the user documentation for all additional equipment.
Electrical safety
•The fixture is IP65-rated. It may be installed in outdoor locations temporarily for
entertainment lighting purposes. It is not designed to be installed permanently
outdoors or in any environment where there is a presence of salt or other
corrosive substance. Do not submerge the fixture or any part of it. Do not expose
any part of the fixture to high-pressure water or air jets.
•Ensure that cables arrive at connectors from below. Ensure that water cannot
pool around connectors.
•Use only a source of AC mains power that complies with local building and
electrical codes and has both overload and ground fault (earth fault) protection.
•Ensure that the fixture is electrically connected to ground (earth).

www.glp.de X5 IP Bar 1000
6 impression X5 IP Bar 1000 Quick-Start and Safety Manual
•Disconnect the fixture from AC mains power before carrying out any installation
or maintenance work and when the fixture is not in use.
•Disconnect the fixture from power immediately if any seal, cover, cable,
connector or other component is damaged, defective, deformed or showing
signs of overheating. Do not reapply power until the fixture has been repaired
and made safe by a technician authorized by GLP.
•Check that all power distribution equipment, cables and connectors are in
perfect condition, rated for the electrical requirements of all connected devices,
suitable for their application and suitable for the installation environment.
•Use only Neutrik PowerCON TRUE1 TOP-type cable connectors for AC mains
power input at the fixture’s Mains IN connector and for relaying AC mains power
from one fixture’s Mains OUT (Thru) connector to another fixture’s Mains IN
connector.
•Use minimum 14 AWG or 1.5 mm2power input and relay cables that are
minimum 16 A-rated and temperature-rated to suit the application. In the USA
and Canada the cables must be UL-listed, type SJT or equivalent. In the EU the
cables must be type H05VV-F or equivalent for indoor use in a dry or wet
environment or type H07RN-F or equivalent for outdoor use or use in a location
where the temperature may fall below 5° C / 41° F.
•Do not connect devices to power in a chain if the total maximum current draw of
all the devices in the chain when added together will exceed the current rating of
any cable or connector used at any point in the chain. The supplied power input
cable is rated as follows:
- US power cable: 16 A, 14 AWG, UL-listed, E304117, SJT, length 4.9 ft.
- EU power cable: 16 A, 1.5 mm², H05VVF-F, length 1.5 m. This cable is suitable for
indoor use in dry or wet locations. If you use the fixture in an outdoor location or
in any location where the ambient temperature can fall below 5° C / 41° F,
replace the power cable with a 16 A-rated, 3 x 1.5 mm2H07RN-F type cable.
Do not connect more than two (2) impression X5 IP Bar 1000 fixtures linked
together in a chain to power at 100-120 V, 60 Hz.
Do not connect more than four (4) impression X5 IP Bar 1000 fixtures linked
together in a chain to power at 200-240 V, 50 Hz.
•The voltage and frequency at the Mains OUT socket are the same as the voltage
and frequency applied to the Mains IN socket. Only connect devices to the Mains
OUT socket that accept this voltage and frequency.
Fire safety and protection from burns
•Do not operate the fixture if the ambient temperature (Ta) exceeds 45° C (113° F).
•The surface of the fixture can become hot during operation. Avoid contact by
persons and materials. Do not install the fixture in a location where there is a risk

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 7
of accidental contact. Allow the fixture to cool for at least 20 minutes before
handling
•Keep the fixture well away from flammable materials.
•Keep all combustible materials (e.g. fabric, wood, paper) at least 0.2 m (8 in.) away
from the fixture.
•Ensure that there is free and unobstructed airflow around the fixture.
•Do not illuminate surfaces within 1 m / 3.3 ft. of the fixture. The light output from
the fixture is powerful enough to cause burns or fire in illuminated objects at very
close range.
•Do not place any optical components other than impression X5 IP Bar 1000
accessories from GLP onto the front of the fixture.
•Do not stick filters, masks or other materials onto the fixture unless they are
supplied or approved by GLP. Do not block the light output in any way. The front
surface becomes hot during operation and can melt or ignite objects that are in
contact with the surface. Ensure that the front surface is clean and unobstructed
at all times in order to prevent a fire hazard and prevent damage to the fixture.
•The fixture’s optical components can focus the sun’s rays, creating a risk of fire
and damage. Do not expose the front of the fixture to sunlight or any other
intense light source, even from an angle.
Eye safety
•The impression X5 IP Bar 1000 is classified as a Risk Group 2 lighting fixture
according to EN 62471 at a distance of 1 m (3.3 ft.). Possibly hazardous radiation
emitted. Do not stare into the light output from the fixture. May be harmful to
the eyes.
•Do not look at the fixture’s light output with optical instruments or any device
that may concentrate the light output.
•Make sure that persons near to or working on the fixture are not looking directly
into the light output when the fixture lights up suddenly. This can happen when
power is applied, when the fixture receives a DMX signal, or when certain control
menu items are selected.
•Provide well-lit conditions to reduce the pupil diameter of anyone working on or
near the fixture.
Strobe safety
•Flashing light, particularly at 5 - 30 Hz, may cause seizures in persons with
photosensitive epilepsy. Do not use strobe effects for extended periods.

www.glp.de X5 IP Bar 1000
8 impression X5 IP Bar 1000 Quick-Start and Safety Manual
•Comply with local regulations on the use of strobe lighting and notify the public
in advance with highly visible warning signs when strobe effects are used.
•If a seizure occurs, stop using strobe effects. Seek professional medical help. Note
the time that the seizure starts and finishes. Call emergency medical help
urgently if the seizure lasts more than five minutes, if it is the person’s first
seizure, or if the person is injured. While waiting for help to arrive, protect the
affected person from injuring themselves on hard or sharp objects. If necessary,
move the person to a safe place. Lay them on their side with their head
supported to prevent it from hitting the floor. Loosen any tight clothing around
their neck. Do not use force to hold the person or restrict their movements. Do
not put anything in their mouth, including your fingers.
Installation safety and protection from personal injury
•Installation must be performed by qualified personnel only and carried out in
accordance with applicable regulations such as DIN VDE 0711-217.
•The fixture is not portable when installed.
•Ensure that the supporting structure and installation hardware used can hold at
least ten times the weight of the load that they support.
•Fasten the fixture to a structure or surface only as directed in this manual and
only with hardware that is specifically designed and rated for its purpose. Do not
use a safety cable as the primary means of support. Check that installation
hardware is in perfect condition. Fasteners must be steel grade 8.8 strength or
better. Rigging clamps must be half-coupler type that completely encircle the
rigging truss chord.
•If the fixture is installed in a location where it could cause injury or damage if it
falls, install as directed in this manual a safety cable or similar secondary
attachment that will hold the fixture if a primary attachment fails. The secondary
attachment must be approved by an official body such as TÜV as a safety
attachment for the weight that it secures, it must comply with EN 60598-2-17
Section 17.6.6, and it must be able to support a static suspended load that is ten
times the weight that it secures.
•If the fixture is installed in a location where it may be exposed to forces such as
wind pressure, vibration or movement, make sure that the installation can
withstand these forces. Monitor weather forecasts constantly. Take down the
installation immediately if there is any risk of weather conditions that could
destabilize the installation.
•Check that all covers and items of rigging hardware are secure before using the
fixture. Do not operate the fixture with missing or damaged covers, shields or any
optical component.
•Restrict access below the work area and work from a stable platform whenever
installing, servicing or moving the fixture.

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 9
•If the fixture becomes damaged, stop using it immediately and disconnect it
from power. Do not attempt to use a fixture that is obviously damaged.
•Do not modify the fixture in any way not described in its user documentation.
•Install genuine GLP parts only.

www.glp.de X5 IP Bar 1000
10 impression X5 IP Bar 1000 Quick-Start and Safety Manual
2. Avoiding damage to the fixture
Important! Follow the directions in this section carefully, or the fixture may
suffer damage that is not covered by the product warranty.
General precautions
•Do not drop the fixture or expose it to mechanical stress.
•Protect the LCD display and control panel from shocks, or they may suffer
damage that is not covered by the product warranty.
•Clean optical components only as directed in the fixture’s user documentation.
Oils, solvents, and other chemicals commonly used for cleaning can damage the
lens coatings and surfaces.
•Use only original spare parts. Do not make any structural modifications to the
fixture, or you will void the product warranty.
•Create loose cable bends only. Do not subject connectors to bending forces or
allow connectors to bear the weight of long lengths of cable.
Avoiding damage from light sources and heat
•Do not point the front of the fixture towards the sun or other strong light sources.
Strong light can cause internal damage to the fixture, melting components or
starting an internal fire within seconds.
Figure 1. Avoiding damage from light sources
•Damage can occur whether the fixture is powered on or off. See Figure 1.
Damage can also occur if the light hits the front of the fixture at an angle: the
fixture does not need to be pointing directly at the sun or other light source.
•To avoid problems from strong light sources:
- Do not expose the front of the fixture to sunlight or any other strong light
source.
- In outdoor applications during daylight, make sure that the front face of the
fixture is shielded or points away from the sun at all times, even when the fixture
is not in use.
- Do not aim other high-powered lighting fixtures directly at the fixture.

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 11
•Do not operate the fixture in ambient temperatures outside the range -10° C
(14°F) to 45° C (113°F).
•Allow free airflow around the fixture.
Avoiding damage from dust and airborne particles
•Carry out regular visual inspections of the fixture to make sure that there is no
accumulation of dirt, especially on the front of the fixture and around air vents.
•If cleaning is necessary, follow the instructions in ‘Service’ on page 21.
Transportation and storage
•Transport the fixture in its original packaging to protect it from damage caused
by shocks during transportation.
•Release the fixture’s tilt lock before putting the fixture in its flightcase or other
protective container for transportation. Before closing the flightcase, check that
the protective liner in the flightcase will hold the head and protect it from
shocks.
•Store the fixture in a dry location when not in use.

www.glp.de X5 IP Bar 1000
12 impression X5 IP Bar 1000 Quick-Start and Safety Manual
3. impression X5 IP Bar 1000 overview
A –Head
B –Air vent (x 4)
C –Alignment pins button
D –AC mains power IN (Neutrik powerCON TRUE1 TOP)
E –etherCON port IN/THRU, fail-safe (Art-Net / sACN)
for future use
F –DMX IN (5-pin XLR)
G –Safety cable attachment points (retractable)
H –Control panel with backlit display
I –NFC Sensor
J –AC mains power THRU (Neutrik powerCON TRUE1 TOP)
K –etherCON port IN/THRU, fail-safe (Art-Net / sACN)
for future use
L –DMX THRU (5-pin XLR)
G
G
H
B
D
J
A
K
L
E
I
F
C
Figure 2. impression X5 Bar IP 1000 overview

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 13
4. Features
The impression X5 IP Bar 1000 from GLP can be used temporarily in outdoor
locations for entertainment purposes and in dry locations in permanent and
temporary installations. Fixtures can be placed on or fastened to a level surface, or
they can be suspended from a suitable structure as directed in this manual.
Power and data can be daisy-chained for ease of installation, and multiple fixtures
can be lined up to give an unbroken line of pixels using the retractable alignment
pins that are built into the fixture.
User Manual
This Quick Start and Installation Manual gives a very basic overview of control
options and functions. See the impression X5 IP Bar 1000 User Manual available for
download from www.glp.de for full details of control, pixel layout, etc.
Tilt lock
Important! Before transporting the fixture in its original packaging or in a flight
case, release the tilt lock and make sure that the head is supported to prevent it
from moving.
The impression X5 IP Bar 1000 has a tilt lock that can be used to prevent the head
from moving while the fixture is being carried. The tilt lock also lets you immobilize
the head during cleaning or while installing optical accessories on the front of the
fixture.
See Figure 3. The tilt lock button is
located on the back of the head. To
engage the tilt lock:
Check that power to the fixture is shut
down.
Move the head into the upright
position, facing away from the fixture
base.
Slide the tilt lock button towards the
yoke and into the Lock position to
engage it.
Release the tilt lock by sliding it away
from the yoke and into the Unlock position before reapplying power to the
fixture.
Figure 3. Tilt lock button

www.glp.de X5 IP Bar 1000
14 impression X5 IP Bar 1000 Quick-Start and Safety Manual
5. Installation
Warning! Read ‘Safety’ starting on page 4 for important safety
information that you must understand before you install or operate the
fixture. Install impression X5 IP Bar 1000 fixtures only as described in this
chapter, or you may create an installation that is unsafe.
It is the installer’s responsibility to provide a stable, secure supporting
structure that is suitable for the environment and application and that
meets all applicable codes and legal requirements. Note the requirement
to secure lighting fixtures with safety cables in temporary installations.
Mounting options
An impression X5 IP Bar 1000 fixture may be installed in one of the following ways:
Standing horizontally on a horizontal surface.
Fastened to a rigging truss or similar structure at any angle using the supplied
brackets and two or more rigging clamps (optional accessories).
Securing the fixture with a safety cable
If a fixture can cause injury or damage if it falls you must secure it with at least one
secondary attachment such as a safety cable that will hold it if the primary means
of attachment fails. The safety cable must be approved for the weight that it
secures. In multiple installations, each fixture must have its own safety cable.
To secure an impression X5 IP Bar 1000 fixture with a safety cable:
Obtain a safety cable that is approved for the weight of the fixture and rigging
hardware that it will secure.
Loop the cable around a secure anchoring point such as a truss chord or fixed
structure so that it will catch the fixture if a rigging clamp fails. Take up as much
slack as possible in the safety cable (by looping it more than once around the
truss chord, for example).
See Figure 2 on page 12. Open one of the retractable safety cable attachment
eyelets marked Gin Figure 2 and fasten the safety cable to it.
If there is any danger that the fixture may swing dangerously from the safety
cable if a primary attachment fails, open the second retractable safety cable
eyelet also marked Gin Figure 2 and add a second safety cable as described
above, fastening it to this second eyelet.
Check that the fixture will now be caught safely by the safety cable if a primary
attachment fails..

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 15
End-to-end alignment
The impression X5 IP Bar 1000 features
alignment pins that let you line up fixtures
perfectly end-to-end to create an unbroken
line of pixels. To use the alignment pins:
See Figure 4. The alignment pin release
button is located on the base of the
fixture.
Slide the release button outwards to
move the alignment pins out of the
fixture.
Engage the pins in the corresponding
holes in the right-hand end of the next
fixture to line the two fixtures.
Important! The pins are for alignment
purposes only, do not apply a load to them.
Standing the fixture on a horizontal surface
To place an impression X5 IP Bar 1000
fixture standing horizontally on a stable
horizontal surface:
Stand the fixture on the small feet in
the fixture’s base as shown in Figure 5.
Make sure that it is safe and secure,
and that it will not present a danger
of tripping or falling.
If there is any danger of injury or
damage if the fixture falls from the
surface, secure it with a safety cable
as described in ‘Securing the fixture
with a safety cable’ on page 14.
Installing on a rigging truss or similar structure
You can suspend an impression X5 IP Bar 1000 fixture from a rigging truss or pipe
using the two brackets that are supplied with the fixture and rigging clamps that
are available from GLP as optional accessories.
If you are going to install the fixture hanging vertically downwards from a horizontal
rigging truss or pipe, you can fasten it to the truss using G-clamps. If you are going
to install the fixture in any other orientation or if the rigging truss is not horizontal,
you must use half-coupler-type clamps that completely surround the truss chord or
pipe.
Rigging clamps must be approved for the weight that they will support.
Figure 5. X5 Bar IP 1000
placed on a horizontal surface
Figure 4. Alignment pin release
button

www.glp.de X5 IP Bar 1000
16 impression X5 IP Bar 1000 Quick-Start and Safety Manual
To install the impression X5 IP Bar 1000 on a rigging truss or pipe:
Check that the truss or pipe is secure and can safely hold ten times the weight
that it will support.
See Figure 6. Bolt at least one rigging clamp securely to each of the two rigging
brackets Athat are supplied with the fixture using high-tensile steel screws or
bolts and self-locking nuts with washers passed through the slots Bor central
hole Cin the rigging brackets.
Fasten the two brackets Ato the bottom of the base using four quarter-turn
fasteners Bper bracket. Turn each fastener a full 90° to lock it.
Hold the fixture up to the truss and use the rigging clamps to fasten the fixture
securely onto the truss chord.
If there is any risk that the fixture will cause injury or damage if it falls, secure it
with a safety cable that is approved for the weight of the fixture, rigging
hardware, cables etc. as described in ‘Securing the fixture with a safety cable’ on
page 14.
Figure 6. Rigging brackets
A
B
D
D
C

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 17
6. AC mains power
Warning! Read ‘Safety’ starting on page 4 for important safety
information that you must understand before you install or operate the
fixture.
Check that all cables and connectors are suitable for the installation
environment and application (see recommendations in ‘Avoiding damage to the
fixture’ on page 10).
Cables used for power input and for relaying power to other fixtures must meet the
requirements listed under ‘Electrical safety’on page 5.
Power cable
The impression X5 IP Bar 1000 is supplied with a power cord with a Neutrik
powerCON TRUE1 TOP connector for AC mains power input.
Connecting to power
The AC mains power supply must include a connection to ground / protective earth.
It must be protected against ground / earth leakage and overload. The fixture’s
internal auto-sensing power supply accepts AC power at 100-240 V, 50/60 Hz. Do
not connect the fixture to power at any other voltage or to an external dimmer.
The impression X5 IP Bar 1000 does not have a power ON/OFF switch. Power is
applied to the fixture as soon as the power cable becomes live.
The impression X5 IP Bar 1000 has a 3-conductor Neutrik powerCON TRUE1 TOP
Mains IN power input socket that accepts AC power from a TRUE1 TOP female cable
connector. Although TRUE1 connectors support hot-plugging, it is still good
practice to shut down power to power cables before connecting them to fixtures.
To connect the fixture to power:
If possible, shut down power to the power input cable.
Note the position of the keys and keyways on the TRUE1 TOP power cable
connector and Mains IN socket and align them with each other carefully. Insert
the cable connector into the socket and twist clockwise to lock. Do not use force.
If the connector feels excessively stiff, remove it and check that it is lined up
correctly.
Before applying power to the power cable, check that nobody is looking directly
into the front of the fixture and check that there is no risk of collision if the head
tilts without warning.
To disconnect the fixture from power, pull the latch on the cable connector
outwards to release it, then twist the connector counterclockwise and pull to
remove it from the socket.
Installing power connectors
If you need to replace the cord cap / power plug on the supplied power cord /
power input cable, check that the cord cap / plug is rated minimum 250 V, 16 A, that
it has a connection to ground / earth and that it has an integral cable grip. Follow
the cord cap / plug manufacturer’s assembly instructions.

www.glp.de X5 IP Bar 1000
18 impression X5 IP Bar 1000 Quick-Start and Safety Manual
If you need to install a Neutrik powerCON TRUE1 TOP connector on a power cable,
follow the instructions given in the Support area of the Neutrik website at
www.neutrik.com.
Respect the color coding used in the supplied power cable and in your local mains
power wiring system. US and EU systems use the color coding shown below:
Live or L
Neutral or N
Ground / Earth or
US system
Black
White
Green
EU system
Brown
Blue
Yellow/green
Connecting multiple fixtures to power in a chain
You can connect fixtures to power in a daisy-chain to simplify your power circuit
layout.
Warning! Do not connect more than two (2) impression X5 IP Bar 1000
fixtures in total to power in one chain at 100-120 V, 60 Hz. Do not connect
more than four (4) impression X5 IP Bar 1000 fixtures in total to power in
one chain at 200-240 V, 50 Hz.
The power input cable supplied with the fixture is rated 16 A maximum.
Add together the maximum current draw ratings of all the devices that
you intend to connect to power in a daisy chain and do not create a chain
with a total maximum current draw of more than 16 A, or you will create a
risk of fire and electric shock.
To connect fixtures to power in a chain:
Obtain power relay cables that have male and female Neutrik powerCON TRUE1
TOP connectors. Cables must be minimum 14 AWG or 1.5mm2, rated minimum
16 A and suitable for the environment and application.
Connect the power input cable to the Mains IN socket of the first fixture.
If you are operating the fixture on 100-120 V, 60 Hz AC mains power, you can
connect maximum one fixture to the mains THRU socket (giving a maximum of
2 fixtures total connected together in a chain) using a power relay cable. Do not
connect any devices to the Mains THRU socket of the second fixture.
If you are operating the fixture on 200-240 V, 50 Hz AC mains power, you can
connect maximum three fixtures to the mains THRU socket (giving a maximum
of 4 fixtures total connected together in a chain) using power relay cables. Do
not connect any devices to the Mains THRU socket of the fourth fixture.

www.glp.de X5 IP Bar 1000
Rev. 20230811-01 19
7. Connecting to DMX data
Check that all cables and connectors are suitable for the installation environment
and application (see recommendations in ‘Avoiding damage to the fixture’ on page
10).
The impression X5 IP Bar 1000 supports USITT DMX 512A, Art-Net and sACN DMX
control data signal protocols. It also supports RDM (Remote Device Management).
The X5 IP Bar 1000 has two 5-pin XLR connectors for IN and THRU connections on a
DMX data link using standard DMX protocol. We recommend the use of digital 110
Ohm DMX cable with original Neutrik 5-pin TOP-type XLR connectors.
If you would like advice with planning and installing a DMX link, your GLP supplier
will be happy to provide assistance.

www.glp.de X5 IP Bar 1000
20 impression X5 IP Bar 1000 Quick-Start and Safety Manual
8. Starting and stopping operation
Warning! Before you apply power to the impression X5 IP Bar 1000 or
operate it after a blackout, make sure that nobody is looking directly into
the front of the fixture and that there is sufficient clearance for the head
to tilt safely.
The fixture’s TRUE1 TOP mains power input connector supports hot-plugging, and
connecting and disconnecting a live power cable is an option, especially if you need
to shut down power urgently, but it is still good practice to shut down power to the
AC mains power circuit before connecting and disconnecting power cables.
To start operation, check that nobody is looking into the front of the fixture and that
there is no risk of collision of the head tilts without warning, then apply power to the
AC mains power circuit.
To stop operation, shut down power to the AC mains power circuit.
Transportation and storage
We strongly recommend that you transport the fixture either in a flightcase or in its
original packaging to protect it from damage during transportation. The product
warranty does not cover damage caused by abnormal shocks during transportation
and handling.
When the fixture is not installed, disconnect it from power and store it in a dry
location.
