MK Diamond Products MK-145 User manual

MK-145 TILE SAW
OWNER’S MANUAL, PARTS LIST &
OPERATING INSTRUCTIONS
08.2013
Manual Part# 158286
Caution: Read all safety and operating instructions
before using this equipment. This owner’s manual
MUST accompany the equipment at all times.
Revision 101

2
MK-145 INTRODUCTION
We at MK Diamond want to congratulate you on selecting the MK-145 Tile Saw. We are certain that
you will be pleased with your purchase. MK Diamond takes pride in producing the nest products in
the industry.
Operated correctly, your MK-145 should provide you with years of quality service. In order to help
you, we have included this manual. This owners manual contains information necessary to operate
and maintain your MK-145 safely and correctly. Please take a few minutes to familiarize yourself
with the MK-145 by reading and reviewing this manual.
If you should have questions concerning your MK-145, please feel free to call our friendly customer
service department at: 1-800-421-5830
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.

3
MK-145 TABLEOFCONTENTS
Page
SAFETY:
Safety Messages 4
Damage Prevention Message 4
General Safety Precautions and Hazard Symbols 4
California Proposition 65 Message 6
Electrical Requirements and Grounding Instructions 8
Lock Out 10
Safety Label Locations 10
Tile Saw Specic Warnings 10
Product Specications 11
UNPACKING AND ASSEMBLY
Unpacking 12
Contents 12
Transport 12
Assembly 13
SETUP, ADJUSTMENT AND OPERATION
Setup 15
Adjustment and Operation 17
Cleanup 20
MAINTENANCE AND TROUBLESHOOTING
Maintenance 21
Troubleshooting 23
EXPLODED VIEW AND PARTS LIST
Exploded View 26
Parts List 27
THEORY
Theory of Diamond Blades 28
ACCESSORIES ORDERING AND RETURN INSTRUCTIONS
Accessories 29
ORDERING and RETURN INSTRUCTIONS
Ordering Information 30
Return Material Policy 30
Packaging Instructions 30
Authorized Service Centers 30

4
MK-145 SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life.
SAFETY MESSAGES
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
You WILL be KILLED or SERIOUSLY INJUREDif you do not follow directions.
You CAN be KILLED or HARMEDif you do not follow directions.
You CAN be INJUREDif you do not follow directions. It may also be used to alert
against unsafe practices.
DAMAGE PREVENTION AND INFORMATION MESSAGES:
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
In order to prevent injury, the following safety precautions and symbols should be followed at all times!
SAFETY PRECAUTIONS
ALWAYS read this Owner’s Manual before operating the machine.
ALWAYS keep the Blade Guard in place.
REMOVE ADJUSTING KEYS AND WRENCHES
Form a habit of checking to see that keys and adjusting wrenches are removed from the
power tool before it is turned on.
KEEP WORK AREA CLEAN
Cluttered work areas and benches invite accidents.
DO NOT USE IN DANGEROUS PLACES
DO NOT use power tools in damp or wet locations nor expose them to rain. Always keep
the work area well lighted.
DANGER
WARNING
CAUTION

5
MK-145 SAFETY
KEEP CHILDREN AWAY
All visitors and children should be kept a safe distance from work area.
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
USE THE RIGHT TOOL
DO NOT force a tool or an attachment, to do a job that it was not designed to do.
USE THE PROPER EXTENSION CORD
If using an extension cord make sure it is in good condition rst. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage that will result in a loss of power and
overheating. TABLE 1, Page 9 shows the correct AWG size to use depending on cord length
and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage
number, the heavier the cord.
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may be
caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering
to contain long hair.
ALWAYS wear approved eye protection.
ALWAYS wear approved respiratory protection.
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
MAINTAIN TOOLS WITH CARE
Keep tools clean for the best and safest performance. Always follow maintenance
instructions for lubricating, and when changing accessories.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing or when changing accessories,
such as blades, bits, cutters, and the like.

6
MK-145 SAFETY
ALWAYS place the power ON/OFF switch in the OFF position when the saw is not in use
USE RECOMMENDED ACCESSORIES
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury.
NEVER STAND ON THE TOOL
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
CHECK FOR DAMAGED PARTS
Before using a power tool, check for damaged part. A guard or any other part that is
damaged should be carefully checked to determine if would operate properly and perform
its intended function. Always check moving parts for proper alignment or binding. Check
for broken parts and mountings and all other conditions that may affect the operation of the
power tool. A guard, or any damaged part, should be properly repaired or replaced.
DIRECTION OF FEED
ALWAYS feed work into a blade or cutter against the direction of rotation. A blade or cutter
should always be installed such that rotation is in the direction of the arrow imprinted on the
side of the blade or cutter.
NEVER LEAVE A TOOL UNATTENDED
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. Always turn a
power tool OFF when leaving the work area, or when a cut is nished.
CALIFORNIA PROPOSITION 65 MESSAGE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contain chemicals known [to the State of California] to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica, from bricks and cement and other masonry products and
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to lter out microscopic particles.
ON / OFF
WARNING

7
MK-145 SAFETY
HAZARD SYMBOLS
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. They can be
sources of electrical shock which could cause severe injury or burns.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never
operate the motor with covers, shrouds, or guards removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum speed.
Severe personal injury and damage to the engine or equipment can result if operated at
speeds above maximum.
DO NOT EXPOSE TO RAIN
DO NOT expose to rain or use in damp locations.
Sawing and drilling generates dust. Excessive airborne particles may cause irritation to eyes, skin
and respiratory tract. To avoid breathing impairment, always employ dust controls and protection
suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).
Diamond Blades improperly used are dangerous. Comply with American National Standards Institute
Safety Code, B7.1 and, Occupational Safety and Health Act covering Speed, Safety Guards,
Flanges, Mounting Procedures, General Operating Rules, Handling, Storage and General Machine
Conditions
((
)
)
on
WARNING
WARNING

8
MK-145 SAFETY
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
In order to prevent potential electrical shock and injury, the following electrical safety precautions
and symbols should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed
by a qualied electrician.
• Improper connections of the equipment-grounding conductor can result in a risk of
electric shock. The equipment-grounding conductor is the insulated conductor that has
an outer surface that is green, with or without yellow stripes. If repair or replacement of
the electric cord or plug is necessary, do not connect the equipment-grounding conductor
to a live terminal.
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole
receptacles that accept the tool’s plug.
• Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch
A. The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary
adapter, which looks like the adapter illustrated in Sketches B and C, may be used to connect this
plug to a 2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet can be installed by a
qualied electrician. The green-colored rigid ear, lug, and the like, extending from the adapter, must
be connected to a permanent ground such as a properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
WARNING
WARNING

9
MK-145 SAFETY
To avoid the possibility of the appliance plug or receptacle getting
wet, position the machine to one side of a wall mounted receptacle.
This will prevent water from dripping onto the receptacle or plug.
A “drip loop,” shown in the picture below, should be arranged by
the user to properly position the power cord relative to the power
source.
The “drip loop” is that part of the cord below the level of the
receptacle, or the connector, if an extension cord is used. This
method of positioning the cord prevents the travel of water along the power cord and coming in
contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking “Acceptable for use with outdoor appliances; store indoors while
not in use.” Use only extension cords having an electrical rating not less than the rating of
the product. Do not use damaged extension cords. Examine extension cords before using
and replace if damaged. Do not abuse extension cords and do not yank on any cord to
disconnect. Keep cords away from heat and sharp edges. Always disconnect the extension
cord from the receptacle before disconnecting the product from the extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not
touch the plug with wet hands. Use of under sized extension cords result in low voltage to
the motor that can result in motor burnout and premature failure. MK Diamond warns that
equipment returned to us showing signs of being run in a low voltage condition, through
the use of undersized extension cords will be repaired or replaced totally at the customer’s
expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct AWG
size required for that length of extension cord.
Drip Loop Information
WARNING
WARNING
WARNING
EXTENSION CORD MINIMUM GAGE FOR LENGTH
VOLTS TOTAL LENGTH OF CORD IN FEET
25 ft. AWG 50 ft. AWG 75-100 ft. AWG
115V 12 10 8
230V 14 14 12

10
MK-145 SAFETY
LOCK OUT:
To prevent accidental starting, and to help ensure your workshop
is “Kidproof,” this saw is provided with a means to deactivate the
functioning of the motor switch. The switch is provided with a
removable toggle. With the toggle removed, the switch does not
function and the motor cannot be turned on. Replacing the toggle
reactivates the switch function.

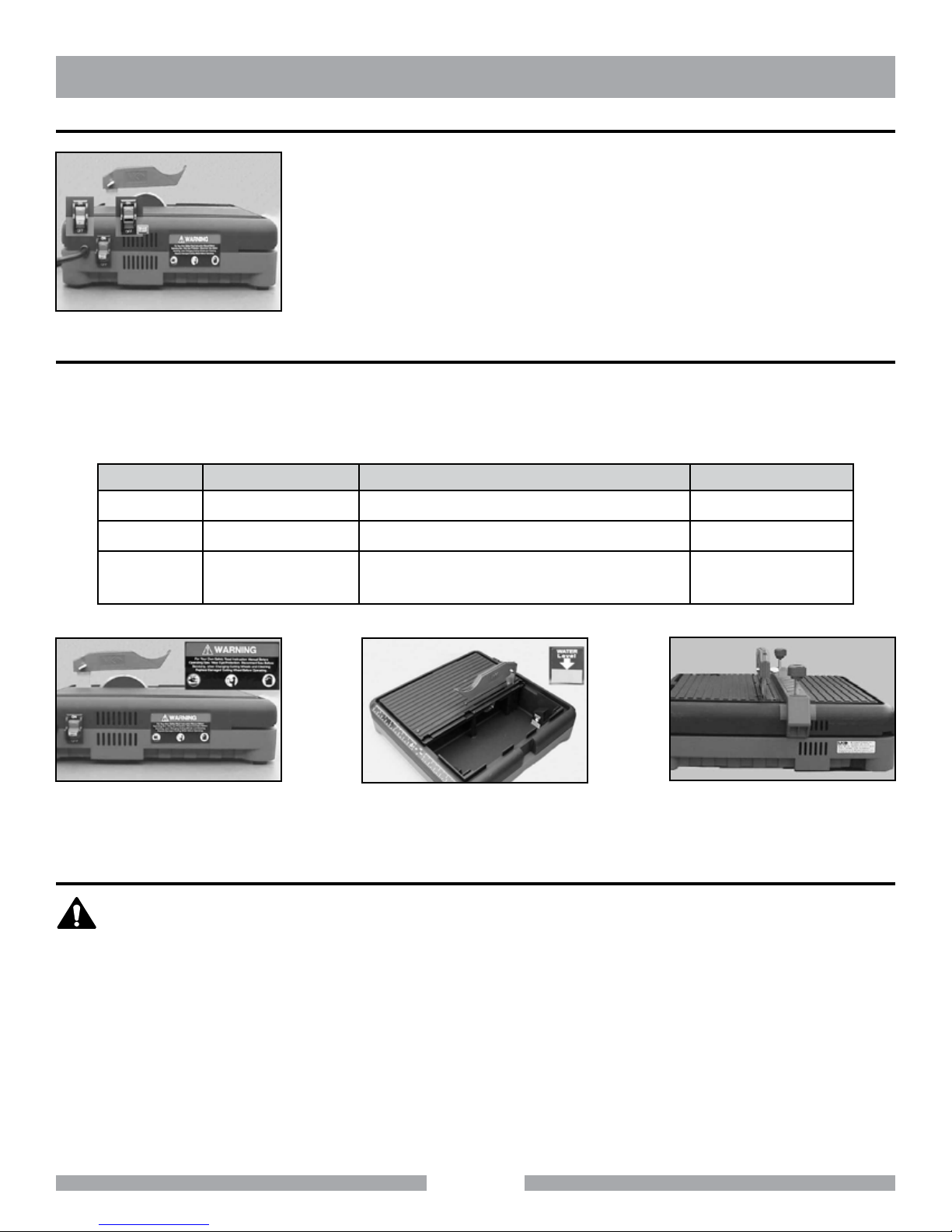

SAFETY LABEL LOCATIONS
Safety labels are located according to Figure 1 to 3 below. The labels contain important information.
Please read the information contained on each label. These labels are considered a permanent part
of your saw. If a label comes off or becomes hard to read, contact MK Diamond or your dealer for a
replacement.
TILE SAW SPECIFIC WARNINGS
Wear eye protection.
Use splash guard for every operation for which it can be used.
Disconnect saw before servicing, when changing cutting blades, and cleaning. Replace damaged
cutting blade before operating.
ITEM LOCATION DESCRIPTION PART NO.
1 Switch Side General Safety Warnings 158315
2 Water Basin Water level warning N/A
3 Back Serial Number and Motor
Specications
158316
1: General Safety Warning 2: Water Level Warning 3: Serial Number and
Motor Specications
WARNING

11
MK-145 SAFETY
PRODUCT SPECIFICATIONS:
The MK-145 is a versatile tabletop tile saw. Operated and used according to this manual, the
MK-145 will provide years of dependable service.
General Description:
The MK-145 tile saw is engineered as a self-contained wet saw consisting of a powerful 120V motor
in a hard plastic case. The saw is capable of cutting a tile up to (1) inch (25mm) thick. The water
basin located below the tabletop can be lled with ordinary tap water, and is easily cleaned following
use.
Motor Specications:
Motor specications for the MK-145 are listed in Table 2 below.
Blade Capacity:
The MK-145 uses a 4-1/2 inch diameter continuous rim MK Diamond blade with a 1/16-inch cutting
width. The MK 145 can miter cut at a 45-degree miter angle or a 22.5-degree angle for octagonal
shapes.
Tile Types:
The MK-145 can cut a variety of tile types including Porcelain, Terracotta, Marble, Quarry and Slate,
or almost any other non-ferrous material.
NOTE: The MK-145 is not designed to cut plastic or ferrous (metals) material.
ITEM LOCATION DESCRIPTION PART NO.
1 Switch Side General Safety Warnings 158315
2 Water Basin Water level warning N/A
3 Back Serial Number and Motor
Specications
158316
Voltage 120V
Overall Amperage 4.0 A
Frequency 50/60 Hz
RPM 6000 rpm
Weight 11 lbs / 5kgs
Table 2

12
UNPACKING:
Your MK-145 has been shipped from the factory thoroughly inspected. Only minimal assembly is required.
If not done, remove the MK-145 from the box and place on a at surface. Remove the Water Basin,
Cover (See Step 1 of the Blade Guard Installation Procedure; page 13.), and remove the accessories
package from the Water Basin.
Use proper lifting techniques when lifting the MK-101.
CONTENTS:
In your container, you will nd one (1) MK-145, one (1) 4-1/2 inch diamond blade, one (1) metal inner
ange, one (1) plastic outer ange, one (1) retaining nut, (1) 45º cutting guide one, (1) adjustable
cutting guide, two (2), adjustable cutting guide retaining knobs, one (1) adjustable blade guard, one
(1) blade guard retaining screw, one (1) MK-145 table stop, one (1) blade wrench, one (1) owners
manual, and one (1) warranty card
TRANSPORT:
The MK-145 weighs approximately eleven (11) pounds, making transport easy.
Never transport the MK-145 with water in the Cooling Basin.
The MK-145 is designed with recessed edges in the molded plastic case for ease of transport. To
transport the MK-145, simply grasp it by the two recessed edges, lift and move it to the desired location.
CAUTION
MK-145
45° Cutting
Guide
MK-145
Table Stop
Diamond Blade
Adjustable
Cutting Guide
Blade Wrench
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This owner’s manual
MUST accompany the equipment at all times.
Revision 100
MK-145 TILE SAW
OWNERS MANUAL, PARTS LIST &
OPERATING INSTRUCTIONS
05.2011
Manual Part# 158286
Metal Inner
Flange
Adjustable
Cutting Guide
Knobs
Owners
Manual
Plastic Outer
Flange
Blade Guard
Warranty Card
Retaining Nut
Blade Guard
Retaining
Screw
MK-145 ASSEMBLY
CAUTION

13
ASSEMBLY:
Follow the assembly instructions to prepare your MK-145 for operation.

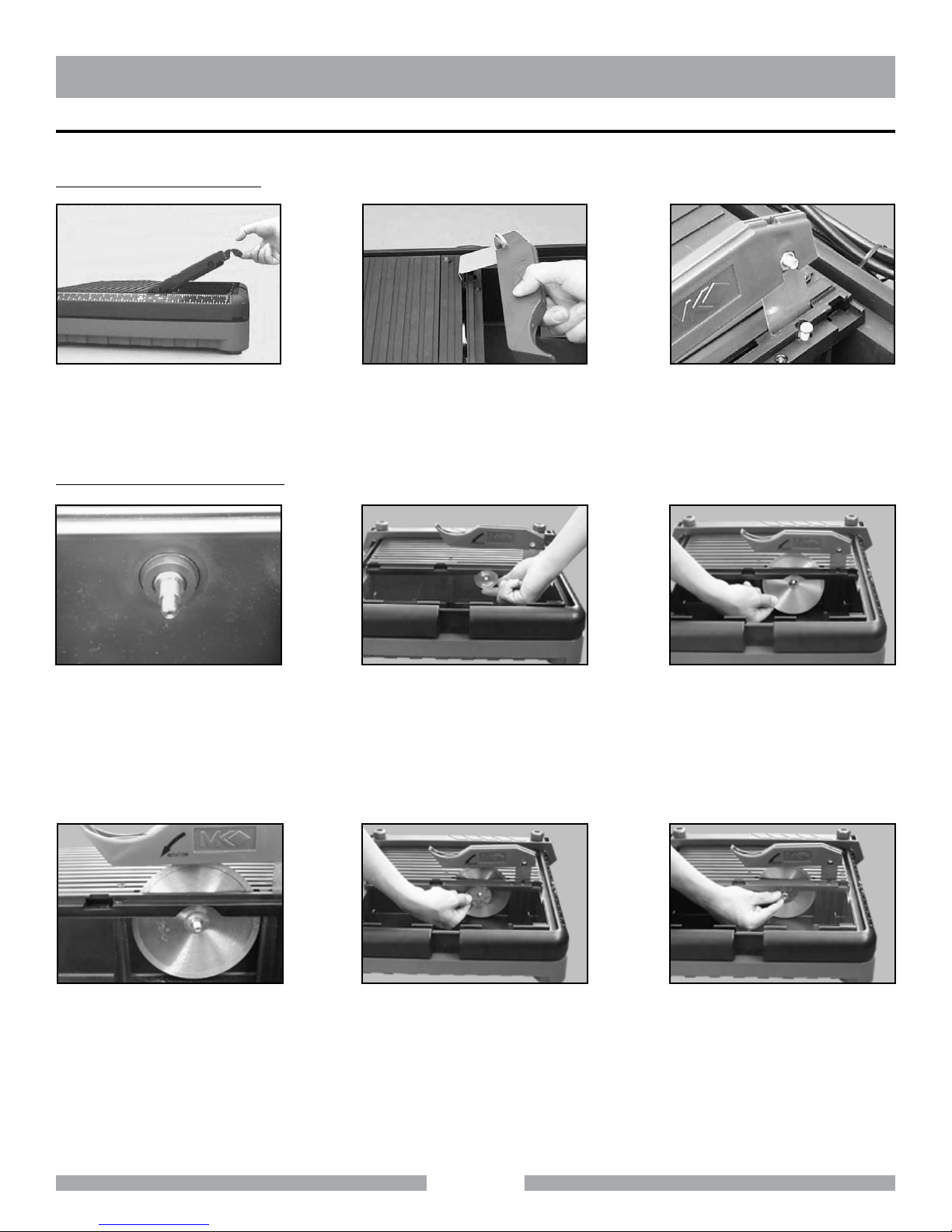

Blade Guard Installation:
Diamond Blade Installation:
NOTE: Do not cross-thread the Retaining Nut during installation.
MK-145 ASSEMBLY
(A)
Lift Water Basin Cover and pull
out the Water Basing Cover
(B)
Insert Blade Guard into the
small Slot of Cutting Table
(C)
Rotate Blade Guard Upright
and insert Blade Guard
Retaining Screw
(A)
Locate the at sides of the
Gear Shaft
(B)
Install the Metal Inner
Flange onto the Gear
Shaft and rotate until it is
seated on the at sides of
the Gear Shaft
(C)
Orient the Blade with the
Directional Arrow facing
out and install the Blade
through the Table Blade
Slot from below
(D)
Verify the Blade is seated
on the Gear Shaft and the
Directional Arrow matches
the Directional Arrow on
the Blade Guard
(E)
Install the Plastic Outer
Flange onto the Gear Shaft
(F)
Install the Retaining Nut
onto the Gear Shaft –
DO NOT CROSS-
THREAD THE NUT

14
MK-145 ASSEMBLY
Adjustable Cutting Guide Installation:
NOTES: 1. The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
2. Step A may be skipped if the Adjustable Cutting Guide is installed.
Table Stop Installation:
(G)
Hold the Diamond Blade
still and rotate the Blade
Wrench clockwise to tighten
- DO NOT OVER TIGHTEN
(H)
Insert the three (3) Cover
Retaining Tabs into the three
(3) Cover Alignment Slots and
seat the Water Basin Cover on
the MK-145
(A)
Fit the Retaining Tabs of
the Adjustable Cutting
Guide to the Grooves of
the MK-145 and slide the
Adjustable Cutting Guide
onto the MK-145
(B)
Install the two Retaining
Knobs into either side
of the Adjustable
Cutting Guide
(A)
Rotate the MK-145 onto
the back end and locate
the Table Stop Retaining
Slots
(B)
Install the Table Stop into
the MK-145 Retaining
Slots
(C)
Place the MK-145 onto the
workbench and position
the Table Stop against the
side of the work bench

15
MK-145 SETUP

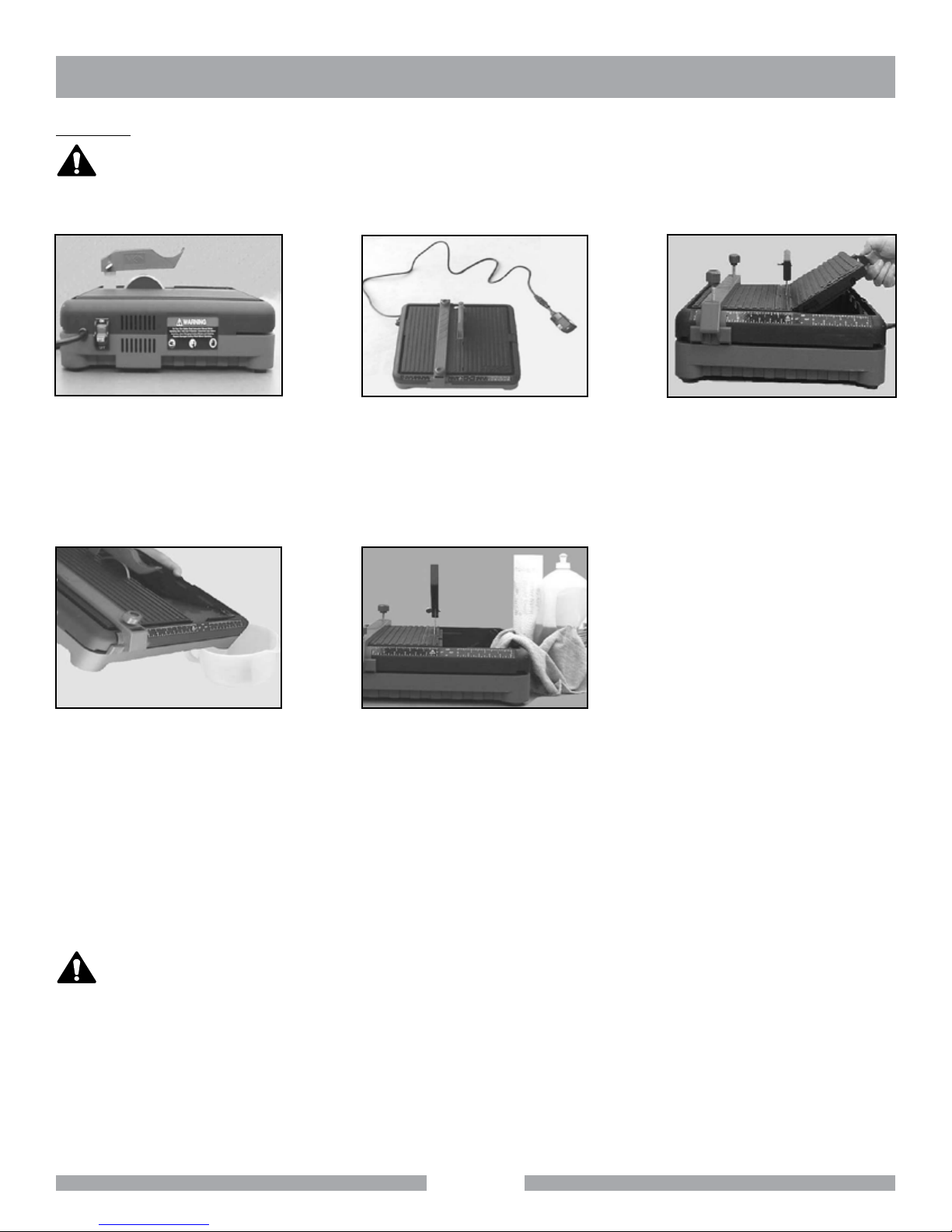

SETUP:
• Before powering or starting, check for damage, that could prevent this equipment from proper
operation or performing its intended function. Check for binding and improper alignment of
moving parts. Check for damaged, broken, or missing parts.
• Verify the On/Off switch is in the OFF position.
• Before connecting the MK-145 to a power supply, be sure the voltage, cycle and phase of the
job site power source meet the requirements of TABLE 3.
• If using an extension power cord, ensure sure the length and wire gauge correspond to the
requirements listed in TABLE 1 on Page 9. An extension power cord that is too small in wire
gauge (diameter), or too long in length, will cause the motor to overheat and could cause
premature failure.
• Use an approved Ground Fault Circuit Interrupter (GFCI).
• Do not cover the motor vents as this could lead to motor overheating.
• Do not overll the Cooling Basin.
NOTE: In order to avoid breaker tripping, a 15-amp circuit breaker should be used.
CAUTION
Voltage 120V
Cycle 60 Hz
Phase: 1-phase
Table 3
(A)
Place MK-145 on a at,
level surface and verify the
Diamond Blade is aligned
with the Blade Guard
Support Angle using
straight edge
(B)
Loosen the Blade Guard
Support Screw and align
the Blade Guard to the
Diamond Blade then
retighten the Blade Guard
Support Screw
(C)
Lift Water Basin Cover and
pull out on Water Basin
Cover to remove

16

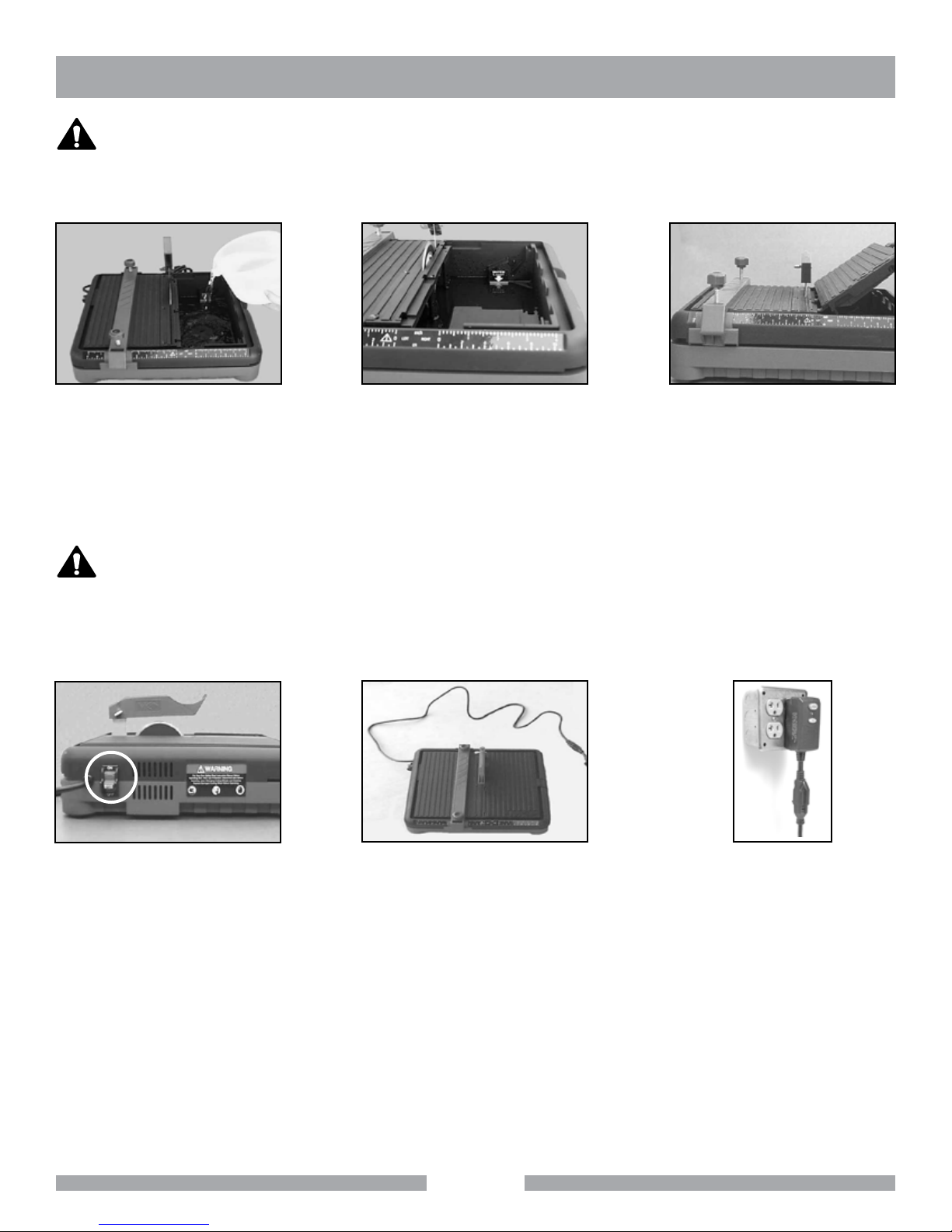

MK-145 SETUP
Overlling the Water Basin can lead to water entering the motor compartment and potential electric shock.
If an extension cord is used, rst verify it meets the requirements of TABLE 1 (Page 9). Plug the
MK-145 into the extension cord, plug the extension cord into a GFCI and nally, plug the GFCI into
the power source in that order.
(D)
Fill the Water Basin up to
the mark indicated on the
Water Level Label
(E)
Verify the Water Basin
water level, is below the
Upper Limit Indicator Arrow
(F)
Insert the three (3) Cover
Retaining Tabs into the three
(3) Cover Alignment Slots
and seat the Water Basin
Cover on the MK-145
(C)
Lift Water Basin Cover,
Pull out on Water Basin
Cover to remove
(C)
Lift Water Basin Cover,
Pull out on Water Basin
Cover to remove
WARNING
WARNING
(G)
Verify the ON/OFF Switch
is in the OFF position
(H)
Plug the MK-145 into
a GFCI
(I)
Plug the GFCI into the
power source

17
MK-145 OPERATION

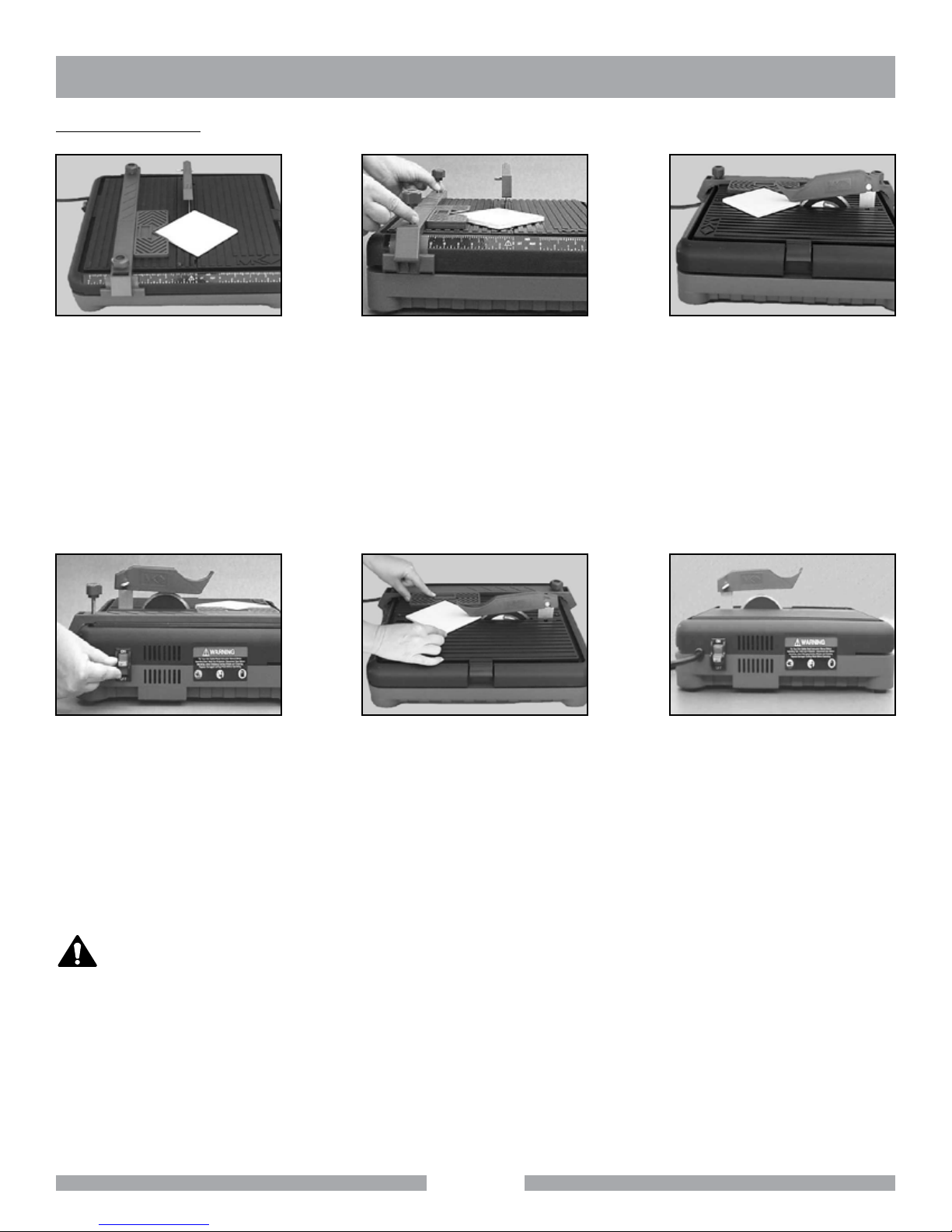

ADJUSTMENT AND OPERATION:
Cutting Straight Edges:
DONOTFORCETOOL, it will do the job better and safer at the rate for which it
was designed.
(A)
Loosen the two (2)
Retaining Knobs and align
the Measuring Arrow of
the Adjustable Cutting
Guide to the cut length
indicated on the Cutting
Table Ruler then retighten
the Retaining Knobs
(B)
Position the tile against the
Adjustable Cutting Guide
(C)
Set Blade Guard above the
top of the tile
(D)
Turn ON the MK-145 and
verify Cooling Water Flow
around Blade Guard
(E)
Feed the tile into the
Diamond Blade with a
steady even pressure
(forcing the tile will cause
the blade to slow which
could cause motor
overheating)
(F)
Turn saw OFF when
cutting is complete
CAUTION

18
MK-145 OPERATION
Diagonal Cutting:
DONOTFORCETOOL, it will do the job better and safer at the rate for which it
was designed.
(A)
Place the Diagonal
Cutting Guide against
the Adjustable Cutting
Guide and t the tile into
the retaining slot of the
Diagonal Cutting Guide
(B)
Loosen the two (2)
Retaining Knobs, align
the Adjustable Cutting
Guide to the desired cut
position and retighten the
Retaining Knobs
(C)
Set Blade Guard above the
top of the Tile
(D)
Turn on the MK-145 and
verify cooling water ow
around Blade Guard
(E)
Feed the tile into the
Diamond Blade with a
steady even pressure
(forcing the tile will cause
the blade to slow which
could cause motor
overheating)
(F)
Turn saw OFF when
cutting is complete
CAUTION

19

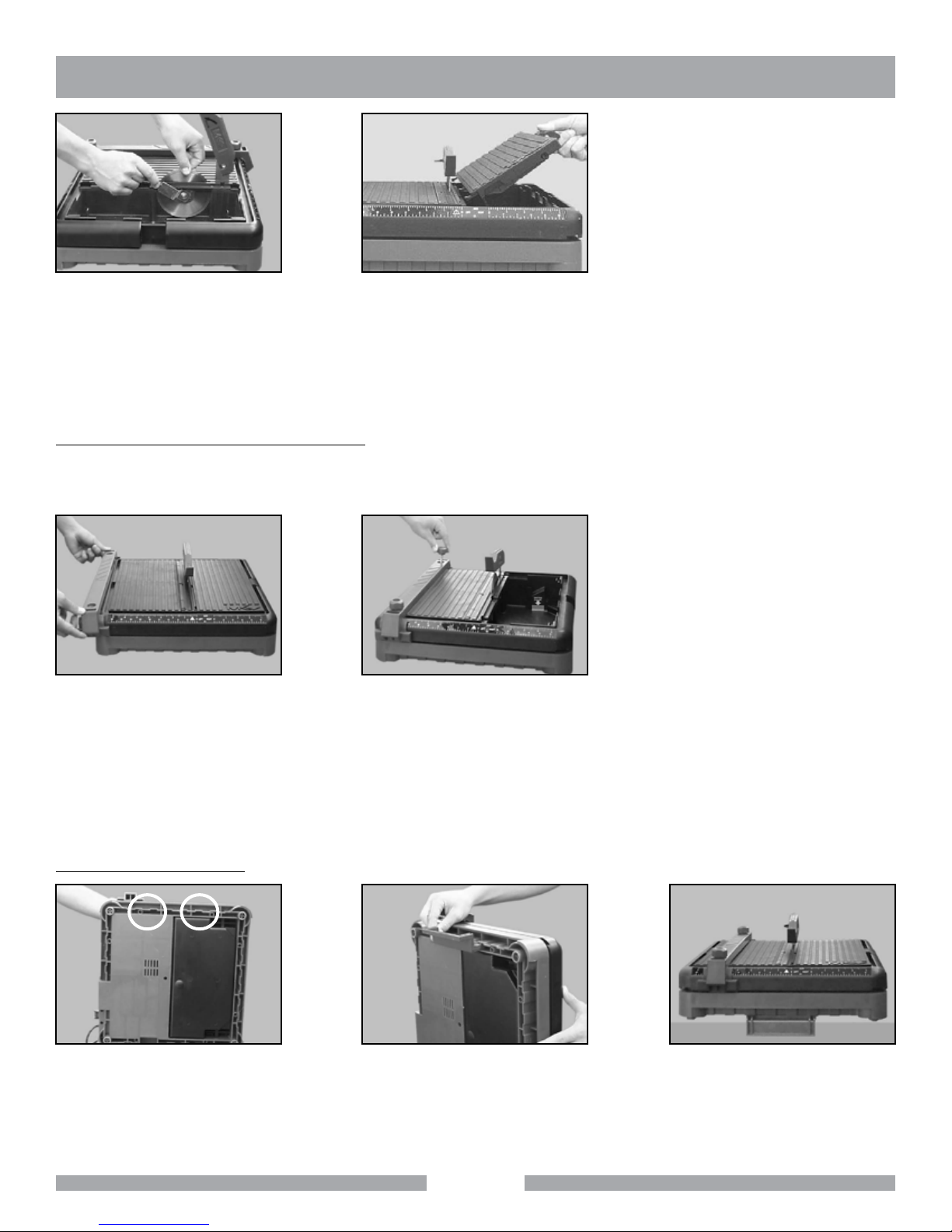

Cutting 22.5 and 45 Degree Angles:
DONOTFORCETOOL, it will do the job better and safer at the rate for which it
was designed.
NOTE: Placing the Adjustable Cutting Guide against the edge of the tile will provide added support
during the cut, and, will reduce the chance of being injured by sharp edges and chips.
MK-145 OPERATION
(A)
Pull out the two (2) Cover
Stays located on the bottom
of the Water Basin Cover
(B)
22.5DegreeCutting:
Place the Cover Stays into the
two (2) 22.5-degree Angle Slots
(lower slots) located inside the
Water Basin then go to Step D
(C)
45DegreeCutting:
Place the Cover Stays into the
two (2) 45-degree Angle Slots
(upper slots) located inside the
Water Basin then go to Step D
(D)
Place the tile onto the raised
Cutting Table with the glazed
side down and verify the tile is
resting against the Tile Support
Groove of the Cutting table
(G)
Turn ON the MK-145 and
verify cooling water ow
around Blade Guard
(E)
Loosen the two (2) Retaining
Knobs and position the
Adjustable Cutting Guide
against the edge of the tile then
retighten the Retaining Knobs
(H)
Feed the tile into the Diamond Blade
with a steady even pressure (forcing
the tile will cause the blade to slow
which could cause motor overheating)
(F)
Set Blade Guard above the
top of the tile
(I)
Turn saw OFF when
cutting is complete
CAUTION

20
Cleanup:
NEVER empty the Cooling Basin with the ON/OFF switch in the ON position, or
when power is applied.
NOTE: DONOT use solvents or acids when cleaning the MK-145.
During the cleaning process, do not allow water to enter the motor compartment
of the MK-145.
MK-145 CLEANUP
WARNING
WARNING
(A)
Verify the ON/OFF switch
is in the OFF position
(D)
Empty the contents of
the Water Basin (Conform
to Federal, State and
Local laws, codes and
ordinances relative to
environmental protection
if unsure of disposal
requirements)
(B)
Unplug the MK-145 from
the power source and
unplug the MK-145 from
the GCFI
(E)
Clean the MK-145 with clean,
fresh water and dish soap
then rinse with clean water
and dry the MK-145 with a
clean cloth or paper towels
(C)
Lift Water Basin Cover and
pull out on Water Basing
Cover to remove
