MK Diamond Products MK-101 User manual

09.2013
MK-101 TILE SAW
OWNER'S MANUAL,
PARTS LIST &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This manual MUST
accompany the equipment at all times.
Revision 109
Manual Part# 168237
MK-101 Part # 167979

2
INTRODUCTION
Congratulations on your purchase of a MK-101 Tile Saw. We are certain that you will be pleased
with your purchase. MK Diamond takes pride in producing the nest construction power tools and
diamond blades in the industry.
Operated correctly, your MK-101 Tile Saw should provide you with years of service. In order to
help you, we have included this manual. This owners manual contains information necessary to
operate and maintain your MK-101 Tile Saw safely and correctly. Please take the time to
familiarize yourself with the MK-101 Tile Saw by reading and reviewing this manual.
Read and follow all safety, operating and maintenance instructions.
If you should have questions concerning your MK-101 Tile Saw, please feel free to call our friendly
customer service department at: 800 421-5830
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.

3
TABLE OF CONTENTS
SAFETY
Safety Messages 4
General Safety Precautions 4-6
California Proposition 65 Message 6
Hazard Symbols 7

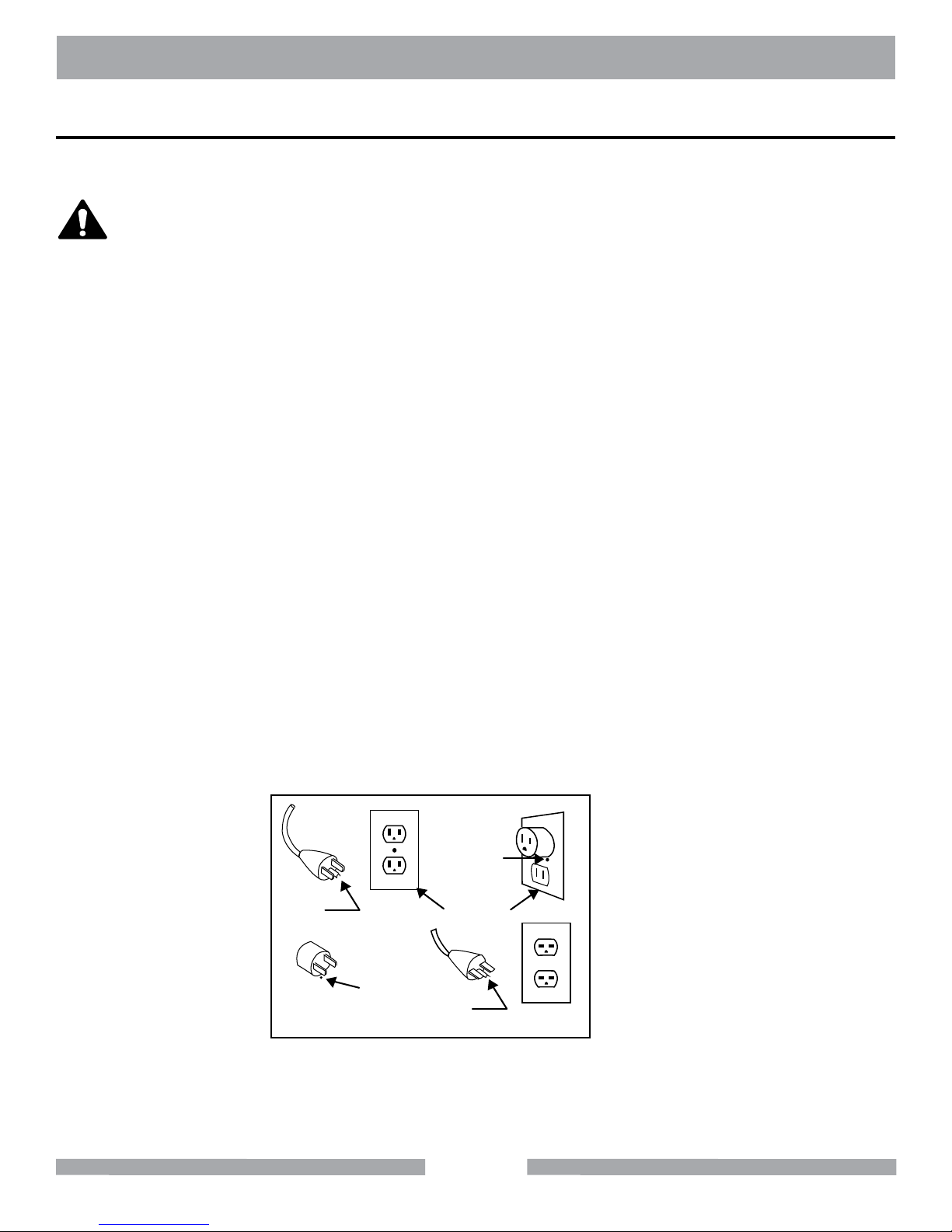

Electrical Requirements 8-10

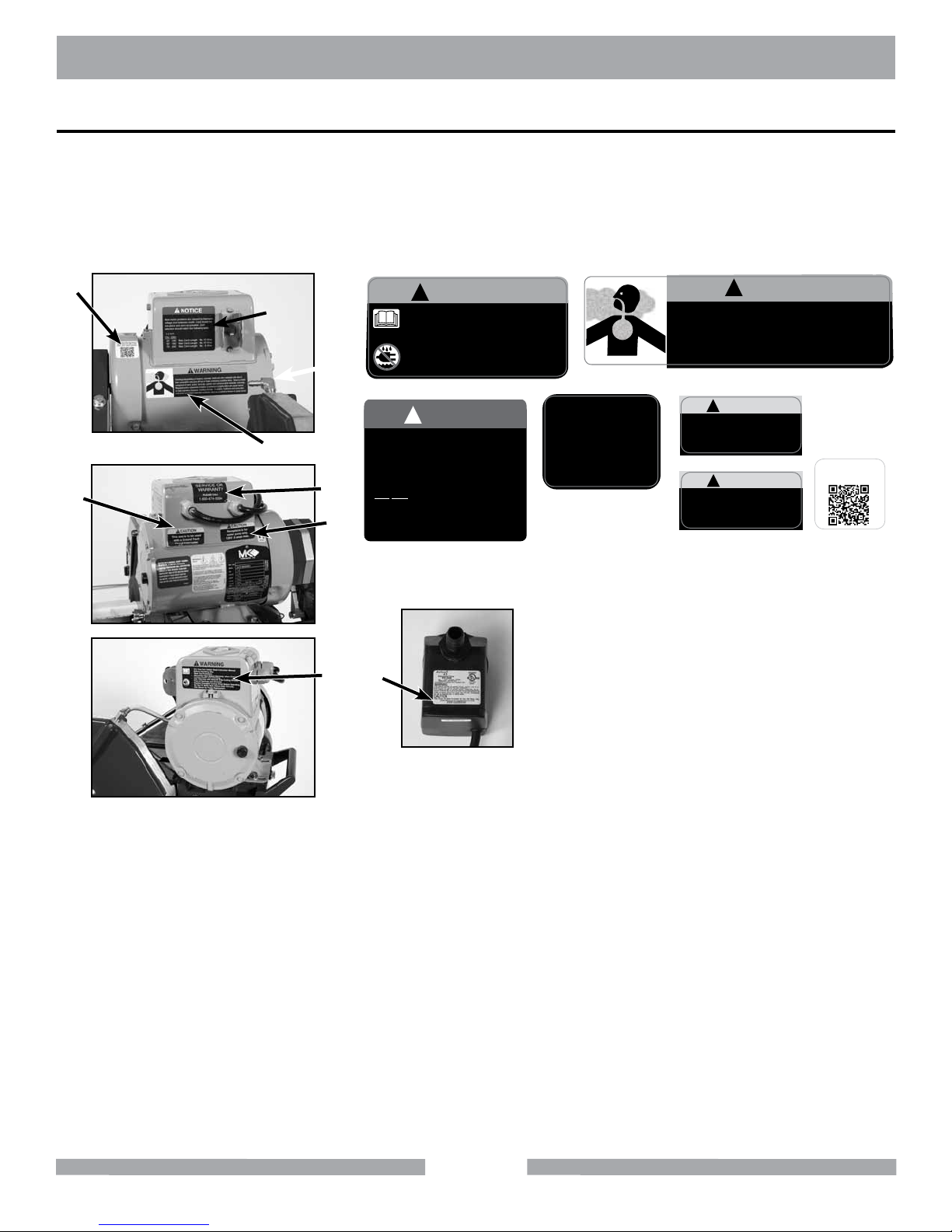

Safety Label Locations 11

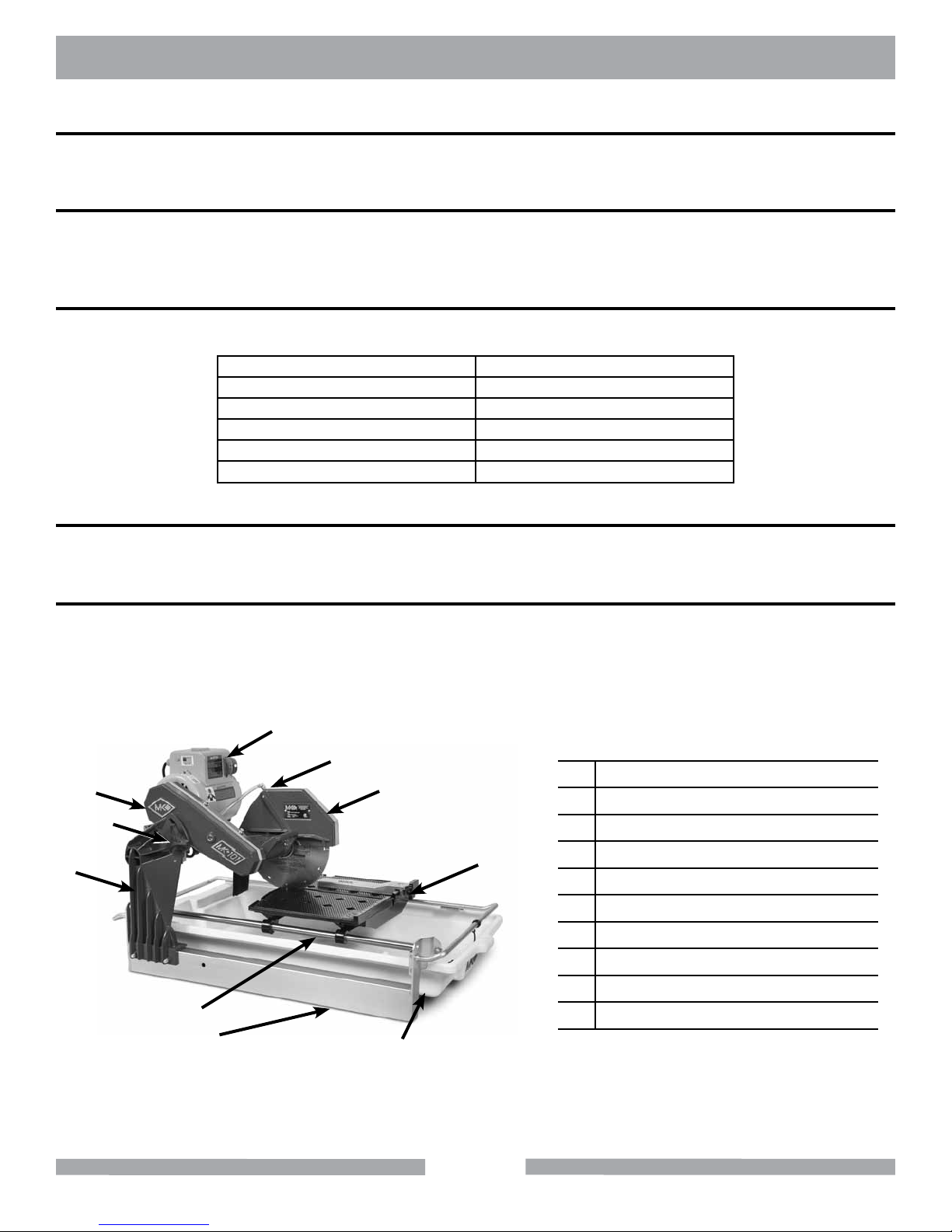

Product Specications 12
UNPACKING, TRANSPORT and ASSEMBLY
Unpacking 13

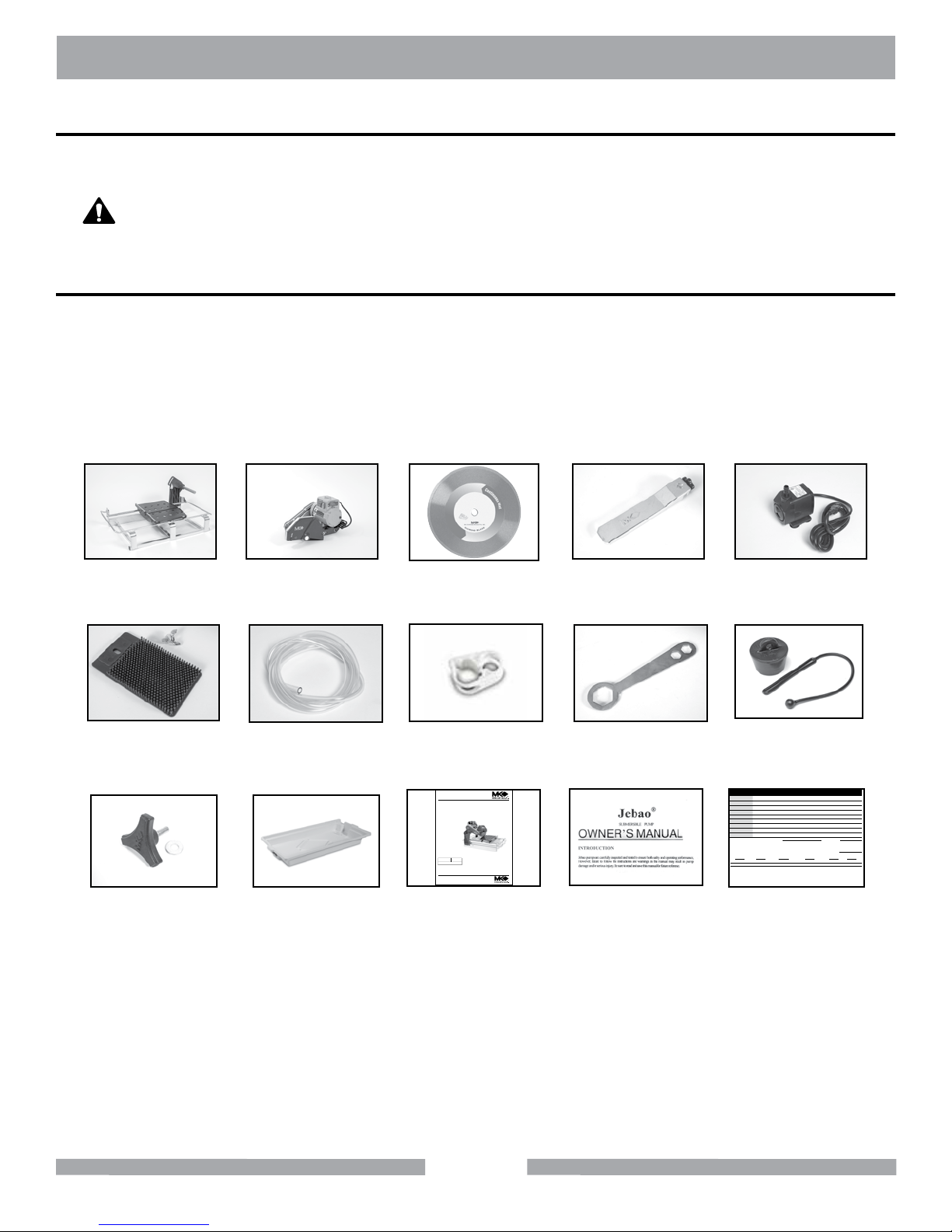

Contents 13
Transport 14
Stand 15
Assembly 16-17
SETUP, STARTUP, ADJUSTMENT, OPERATION and SHUTDOWN
Setup 18-20
Operation 20-23
Cutting Head Adjustment 24-26
Cleanup 27
MAINTENANCE AND TROUBLESHOOTING
Maintenance 28-33
Troubleshooting 34
EXPLODED VIEW AND PARTS LIST
Exploded View & Parts List 36-47
ACCESSORIES ORDERING and RETURN INSTRUCTIONS
Accessories 48
Ordering Information 50
Return Material Policy 50
Packaging Instructions 51
Authorized Service Centers 51

4
MK-101 SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
SAFETY PRECAUTIONS
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
NEVER operate this equipment without proper protective clothing, shatterproof
glasses, steel-toed boots and other protective devices required by the job. Non-slip
foot wear is recommended.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
((
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
In order to prevent injury, the following safety precautions and symbols should be followed at all times!

5
MK-101 SAFETY
ON
(
(
))
ON
(
(
))
ON
(
(
))
All visitors and children should be kept a safe distance from work area. Maintain a safe
operating distance to other personnel.
KEEP CHILDREN AWAY
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never oper-
ate the motor with covers, shrouds, or guards, removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum speed.
Severe personal injury and damage to the engine or equipment can result if operated at
speeds above maximum.
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. Exposed, frayed or
worn electrical wiring and plugs can be sources of electrical shock which could cause severe
injury or burns. Do not touch the plug with wet hands.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. Provide proper
dust removal. Use dust-collection system when applicable.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
Sparks from the cutting-action of this machine can ignite flammable materials, liquids, gases
or dust.
This equipment should not be operated by persons under 18 years of age.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre-
vent accidental starting. Place the ON/OFF switch in the OFF position before performing any
service operation. ALWAYS place the power ON/OFF switch in the OFF position when the
saw is not in use.
ACCIDENTAL STARTS!
PERSONAL PROTECTIVE EQUIPMENT
Engine components can become extremely hot from operation. To prevent severe burns,
do not touch these areas while the engine is running, or immediately after it is turned off.
Never operate the engine with heat shields removed.
HOT PARTS!
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment to do a job that it was not designed to do.
ON
(
(
))

6
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
ALWAYS ensure that the machine is on level ground before using.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
When loading or unloading the machine, use caution. Remove the blade prior to hoisting,
loading and transporting the machine.
USE RECOMMENDED ACCESSORIES
NEVER STAND ON THE TOOL
TRANSPORT
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents. Keep area around machine clear of
obstructions which could cause persons to fall.
DO NOT operate equipment in dangerous or hazardous environments. DO NOT use power
tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
DO NOT USE IN DANGEROUS PLACES
MAINTAIN TOOLS WITH CARE
Keep tools clean and maintained for the best and safest performance. Always follow
maintenance instructions and examine the machine before use. If any abnormal vibrations
or noises occurs, turn off machine immediately and have the problem corrected before
further use.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing, adjusting or when changing
accessories, such as blades, bits, cutters, and the like.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
ON
(
(
))
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cover-
ing to contain long hair.
ON
(
(
))

7
Before using a power tool, check for damaged parts. A guard or any other part that is
damaged should be carefully checked to determine if it would operate properly and
perform its intended function. Always check moving parts for proper alignment or binding.
Check for broken parts and mountings and all other conditions that may affect the
operation of the power tool. A guard, or any damaged part, should be properly repaired or
replaced. Always check the machine for loose bolts before starting.
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor. Always feed work into a blade against the direction of rotation.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS
turn a power tool OFF when leaving the work area, or, when a cut is finished.
NEVER LEAVE A TOOL UNATTENDED
CHECK FOR DAMAGED PARTS
DIRECTION OF ROTATION
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment under the influence of drugs or alcohol.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER use this machine with any cutter designed for woodworking.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
On belt driven equipment, overtensioning of belts will result in premature crank and/or bearing
failure.
Whenever necessary, replace nameplate, operation and safety decals when they become
difcult to read.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in
a clean, dry location out of the reach of children
DO NOT lend or rent this equipment without including the Owner's Manual and the Engine/
Motor Manufacturer's Manual.
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations.

8
MK-101 SAFETY
Sawing and drilling generate dust. Excessive airborne particles may cause irritation to eyes, skin and
respiratory tract. To avoid breathing impairment, always employ dust controls and protection suitable
to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).
WARNING
CALIFORNIA PROPOSITION 65 MESSAGE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
•Lead, from lead-based paints
•Crystalline silica from bricks, cement and other masonry products
•Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial vacuum cleaner.
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
ON
(
(
))

9
MK-101 SAFETY
WARNING
In order to prevent electrical shock and injury, the following electrical safety precautions and symbols
should be followed at all times!
If permanently connected this tool should be connected to a grounded metal permanent
wiring system; or to a system having an equipment - grounding conductor.
In case of a malfunction or breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electric shock. This tool is equipped with an electric cord which has an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• DO NOT modify the plug provided - if it will not t the outlet, have the proper outlet
installed by a qualied electrician.
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric
cord or plug is necessary, DO NOT connect the equipment-grounding conductor to a live
terminal.
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles
that accept the tool’s plug.
• Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, plug, and the like, extending from the adapter, must be connected
to a permanent ground, such as a properly grounded outlet box.
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
NOTE:
ON
(
(
))
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information
Use of a temporary adapter is not permitted in Canada.NOTE:

10
MK-101 SAFETY
WARNING
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. A Ground Fault
Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this
machine. Receptacles are available having built-in GFCI protections and may be used for this
measure of safety. When using an extension cord, GFCI should be installed closest to the power
source, followed by the extension cord and lastly, the machine.
The water pump requires a GFCI. To reduce risk of electrical shock when operating the machine
with the pump plugged into the 3-pole receptacle on the motor, connect the saw to a GFCI outlet.
See the pump manual and informational tags enclosed separately for all pump information.
ON
(
(
))
ON
(
(
))
CAUTION
DO NOT EXPOSE TO RAIN
For maintenance care and operation of the electric motor, refer to your electric motor instruction book-
let furnished with the electric motor. Protect the electric motor from dust as much as possible and keep
ventilating openings clean. Before plugging in the machine, make sure that the outlet voltage is within
the voltage marked on the machines's data plate.
DO NOT spray water on the electric motor. DO NOT touch the plug with wet hands. To reduce
the risk of electrocution, keep all connections dry and off the ground.
ELECTRIC MOTOR SAFETY
DO NOT operate electric motor in an explosive environment.
DO NOT expose to rain or use in damp locations.
ON
(
(
))
ON
(
(
))
ON
(
(
))
WARNING
If operating the equipment in damp locations is unavoidable, ALWAYS use a Ground Fault
Circuit Interrupter, ALWAYS wear rubber gloves and footwear in damp conditions.
DO NOT abuse the cord. Never use the cord to carry the equipment or to pull the plug from
the outlet. Keep the cord away from heat, sharp edges, and moving parts. Replace dam-
aged cords immediately. Damaged cords increase the risk of electric shock.
ON
(
(
))
ON
(
(
))
ON
(
(
))

11
MK-101 SAFETY
To avoid the possibility of the appliance or plug receptacle getting wet, position the machine to one
side of a wall mounted receptacle. This will prevent water from dripping into the receptacle or plug. A
"drip loop," shown in the picture below, should be arranged by the user to properly position the power
cord relative to the power source. Use the drip loop as a way to prevent GFCI and plug from getting
wet.
The "drip loop" is that part of the cord below the level of the receptacle (or the connector, if an exten-
sion cord is used). This method of positioning the cord prevents the travel of water along the power
cord and coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord
Drip Loop Information
WARNING
ON
(
(
))
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking "Acceptable for use with outdoor appliances; store indoors while not
in use." Use only extension cords having an electrical rating not less than the rating of the
product. DO NOT use damaged extension cords. Examine extension cords before using and
replace if damaged. DO NOT abuse extension cords and DO NOT yank on any cord to dis-
connect. Keep cords away from heat and sharp edges. Always disconnect the extension cord
from the receptacle before disconnecting the product from the extension cord.
ALWAYS make certain that the power source required for the electric motor is correct and always
use the correct NEMA conguration plug. Motors can burn out when the line voltage falls 10% below
the voltage rating of the motor. Failure to use proper voltage will cause the motor to overheat. Make
certain that the correct size grounded (3-wires) extension cord is used.
ON
(
(
))
ON
(
(
))

12
MK-101 SAFETY
EXTENSION CORD LENGTH
Nameplate
Amperes
115V 25' 50' 75' 100' 150' 200'
250V 50' 100' 150' 200' 300' 400'
0 - 5 16 16 16 14 12 12
5.1 - 8 16 16 14 12 10 •
8.1 - 12 14 14 12 10 • •
12.1 - 15 12 12 10 10 • •
15.1 - 20 10 10 10 • • •
WARNING
Use of undersized extension cords result in low voltage to the motor that can result in motor burnout
and premature failure. MK Diamond warns that equipment returned to us showing signs of being run
in a low voltage condition, through the use of undersized extension cords,will be repaired or replaced
totally at the customer’s expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
ON
(
(
))

13
SAFETY LABEL LOCATIONS
Safety labels contain important safety information. Please read the information contained on each
safety label. These labels are considered a permanent part of your saw. If a label comes off or
becomes hard to read, contact MK Diamond or your dealer for a replacement.
MK-101 SAFETY
Receptacle is for
water pump only.
125V, .6 amps max.
!CAUTION
This saw is to be used
with a Ground Fault
Circuit Interrupter.
!CAUTION
Label E
Label F Label G
Label D
Label B
Label A
Label C
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in
their composition may give off dust or mists containing crystalline silica. Silica is a basic
component of sand, quartz, brick clay, granite and numerous other minerals and rocks.
Repeated and/or substantial inhalation of airborne crystalline silica can cause serious
or fatal respiratory diseases, including silicosis. In addition,California and some other
authorities have listed respirable crystalline silica as a substance known to cause cancer.
!
For Your Own Safety Read Instruction Manual
Before Operating Saw.
Wear Eye Protection.
Disconnect Saw Before Servicing, when Changing
Cutting Wheels and Cleaning.
Use Tool Only with Smooth Edge Cutting Wheels
Free of Openings and Grooves.
Replace Damaged Cutting Wheel Before Operating.
Do Not Fill Water Bath Above Water Fill Line.
See Manual for Pump Replacement.
!
WARNING
NOTICE
Most Motor Problems are caused by improper
voltage and extension cords. Cord should be
one-piece and short as possible. Cord
selection should match the following table.
1-2 H.P.
25’
50’
75’
100’
150’
250’
Max. Cord Length
Max. Cord Length
Max. Cord Length
No. 12 Wire
No. 10 Wire
No. 8 Wire
115v 230v
!
For manuals and parts
lists scan the QR code
with your smart phone
Decal/Label Location Description
AMotor - Side Warning - Read and Follow Operating Instructions
BMotor - Front Warning - Silica Warning
CMotor - Front Notice - Voltage/Extension Cords
DMotor - Back Service/ Warranty
EMotor - Back Caution - Use with GFCI only
FMotor - Back Caution - Receptacle for water pump
GMotor - Back QR Code for Manuals
HWater Pump Pump Specifications
A
G
C
B
H
D
F
E
Warning Label Sheet Part # 166012

14

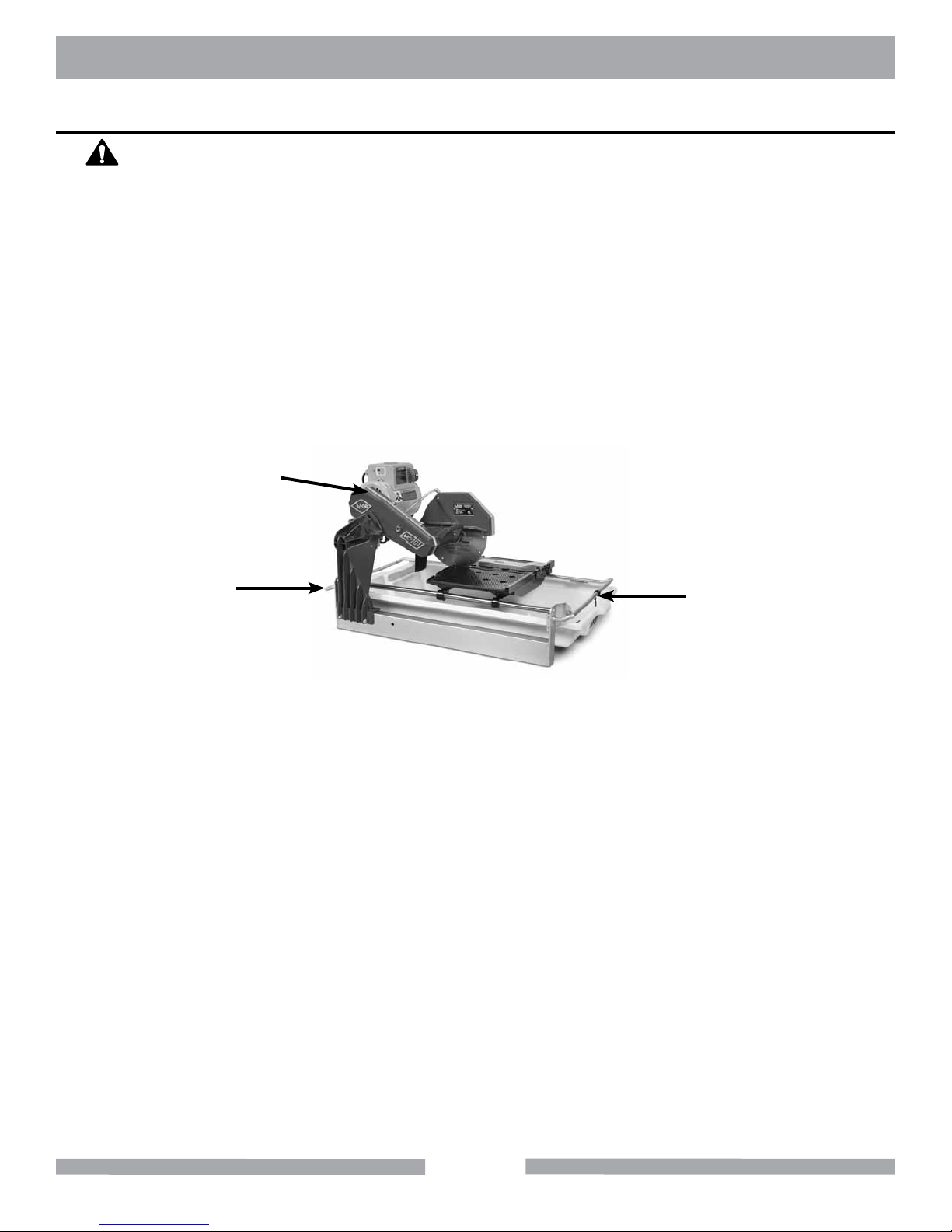

PRODUCT SPECIFICATIONS
The MK-101 is a versatile Tile Saw. Operated and used according to this manual, the MK-101
will provide years of dependable service.
GENERAL DESCRIPTION
MOTOR SPECIFICATIONS
BLADE CAPACITY
TILE TYPES
The MK-101 Tile Saw is engineered as a tabletop or stand mounted wet tile saw. The saw
includes a powerful 120V electric motor. The saw is capable of cutting tile up to twenty (20) inches
in length, depth of cut 3".
Motor specifications for the MK-101 are listed in table below.
Voltage 120v
Motor Only Amperage 14.5
Frequency 60Hz
RPM 3400 rpm
Horse Power 1.5 hp
Weight 92 lbs.
The MK-101 uses a ten (10) inch (254mm) diameter, wet cutting continuous rim, MK Diamond blade
with a five-eighths (5/8) inch (15.875 mm) arbor.
The MK-101 can cut a variety of tile types including stone, masonry, and lapidary products.
NOTE: The MK-101 is not designed to cut plastic or metals.
A
B
D
C
E
J
I
H
G
F
A Motor
BWater Pump Tube
CBlade Guard
DCutting Table
EWater Basin
F Frame
GGuide Bar
H Post
IDepth of Cut Adjustment Knob
JBelt Guard
MK-101 SAFETY

15

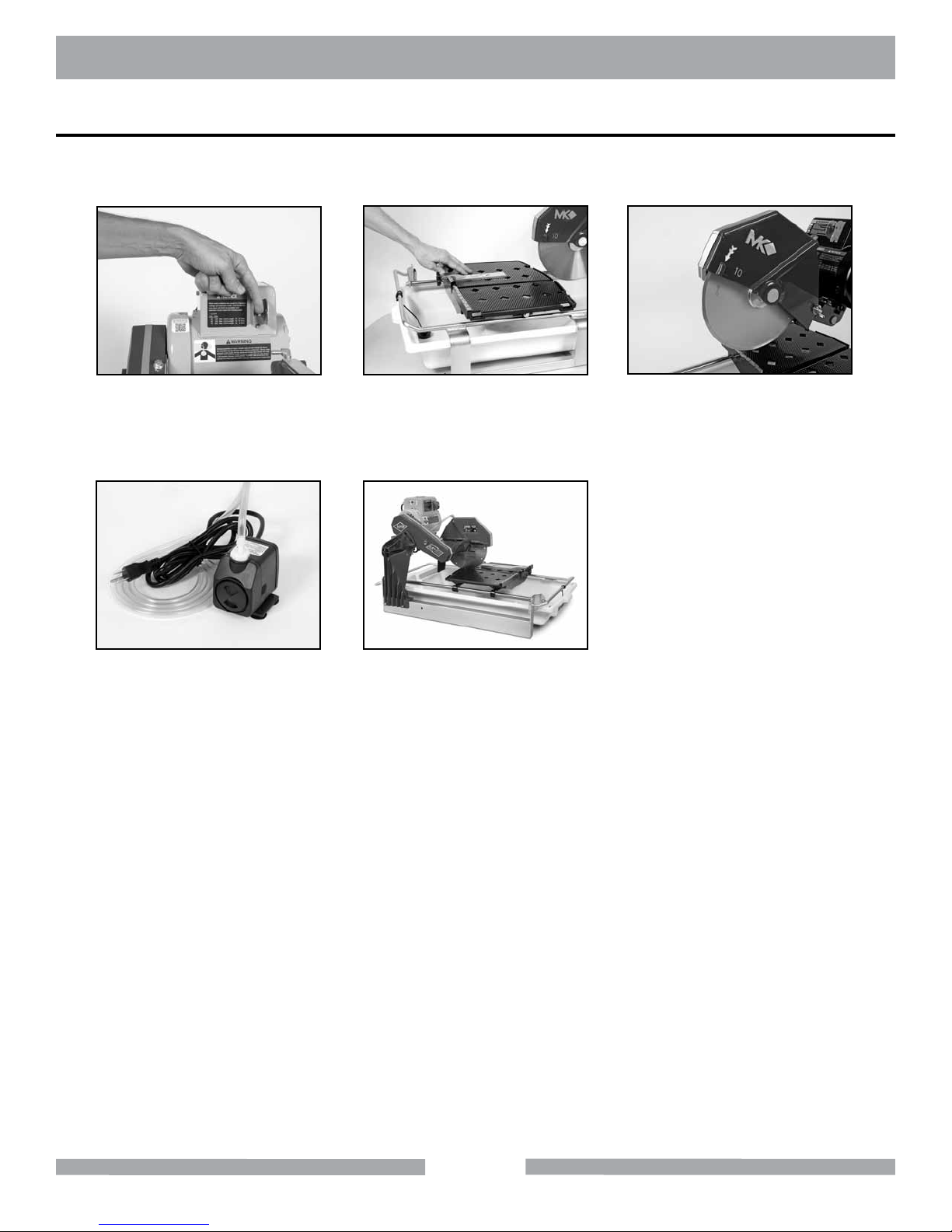

UNPACKING
Use proper lifting techniques when lifting the MK-101.
If not done, remove the MK-101, Cutting Head and accessory box from the carton.
CONTENTS
CAUTION
Your MK-101 has been shipped from the factory thoroughly inspected. Only minimal assembly is
required.
MK-101 CONTENTS
Name
address
City
state zip Code
phoNe Fax
e-mail
produCt model
part NumBer
maChiNe serial#
MK DiaMonD Warranty CarD
q tile distriButor q home CeNter q equipmeNt supply house
q tool supply q Bldg material supply q reNtal equipmeNt house
are you a do-it-yourselFer qor CoNtraCtor qIF so, what type? tile qmasoNry qother
what Criteria was importaNt iN ChoosiNg this saw? (rate From 1 to 5, 5 BeiNg the most importaNt)
power preCisioN portaBility availaBility other
If within one (1) Year from the date of purchase, this MK Diamond saw fails due to defect in material or workmanship, MK will repair it, free of charge when the unit is re-
turned to the dealer where it was purchased. This warranty DOES NOT cover normal wear or damage resulting from operator abuse. In no event shall MK Diamond Products,
Inc. be liable for consequential damages arising out of the failure of any product if operated improperly. MK Diamond Products may act as a warranty station for motor/en-
gine repairs based on an individual agreement with the manufacturer. This warranty is in lieu of all other warranties express or implied.
©2010 All Rights reserved. MK Diamond Products, Inc. • P/N 155037 MK Warranty Card (02/10)
mK diamoNd warraNty 1315 Storm Parkway, Torrance, CA 90509 USA | www.mkdiamond.com | 1.800.421.5830 | 1.310. 539.5158
where did you purChase this saw Fro m ? N a me
CommeNts or suggestioNs:
priCe
date purChased
08.2012
MK-101 TILE SAW
OWNER'S MANUAL,
PARTS LIST &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This manual MUST
accompany the equipment at all times.
Revision 103
Manual Part# 168237
MK-101 Frame
and Water Basin
MK-101
Cutting Head
Adjustable Cutting
Guide
Electric Water Pump
Cooling
Transfer Tube
Blade Nut
Wrench
Drain Plug
Splash Guard Flow
Adjusting Clamp
Pump
Manual
Warranty
Card
Owner's
Manual
Diamond Blade
In your container, you will find one (1) MK-101 frame and water basin, one (1) MK-101 Cutting Head,
one (1) 10-inch wet cutting continuous rim diamond blade, one (1) adjustable cutting guide, one
(1) electric water pump, one (1) splash guard, one (1) cooling transfer tube, one (1) flow adjusting
clamp, one (1) blade wrench, one (1) drain plug, one (1) tri-knob, one (1) water pan, one (1) owner's
manual, one (1) pump manual and one (1) warranty card.
Tri-Knob Water Pan

16
TRANSPORT
The MK-101 is designed with a rigid frame and removable Cutting Head. Two people are
required to transport the MK-101 with the Cutting Head installed. The Cutting Head must be
removed first, if one person is transporting the saw (see Cutting Head Installation and Removal
in the following section).
To lift the saw using two people, each person will grasp the front and back of the frame. To lift the
saw using one person, remove the Cutting Head first, and then grasp the front and back of the
frame. Transport the Cutting Head and the Frame separately.
Cutting
Head
Lift Point
Lift Point
1. The MK-101 weighs approximately eighty-four and half (84) pounds; use care when
transporting.
2. Never transport the MK-101 with water in the Water Pan.
CAUTION
MK-101 TRANSPORT

17
The MK-101 weighs eighty-four (84) pounds; follow the guidelines the Transport section
when placing it on the stand (MK Diamond Part# 168244).
If using the Optional MK Diamond Stand, follow these steps:
MK-101 STAND
STAND (Optional)
CAUTION
(A)
Open the stand and place on
at surface
(B)
Remove Water Basin,
place saw on stand
(C)
Ensure saw frame is
positioned properly
(D)
Reinstall the Water
Basin
NOTE:

18

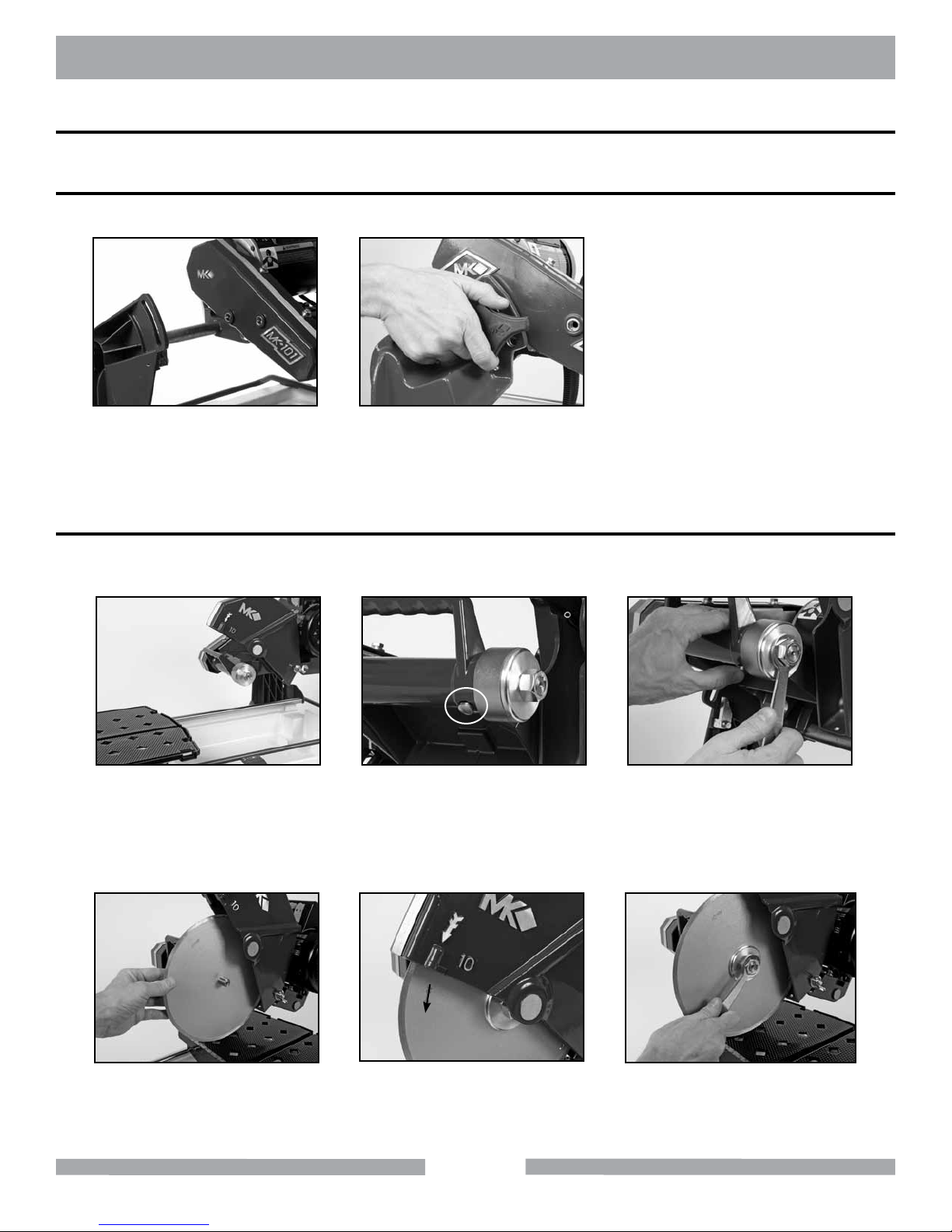

Follow the assembly instructions to prepare your MK-101 for operation.
If the Cutting Head is installed, go to the next step.
MK-101 ASSEMBLY
ASSEMBLY
(A)
Align Cutting Head rear
Pivot Hole to the Post Pivot
Shaft and slide onto shaft
(B)
Install the Cutting Head onto the
Post Pivot Shaft and install the Cut-
ting Head Tri-Knob and washer.
CUTTING HEAD INSTALLATION
When installing the Retaining Nut, do not "cross-thread" and DO NOT over
tighten the nut.
(A)
Position Movable Cutting
Table to the front of the saw
and raise the Blade Guard
(B)
Locate the Shaft Lock but-
ton on the underside of the
Cutting Head
(C)
Depress and hold the Shaft Lock
button and remove Retaining Nut
and Outer Flange using the Blade
Wrench
DIAMOND BLADE INSTALLATION
(D)
Install Diamond Blade onto
Blade Shaft. Verify the Blade is
seated on the Blade Shaft
(E)
Check the directional arrow on
the blade and direction of rota-
tion is correct
(F)
Install Outer Flange and Retaining
Nut, depress and hold the Shaft
Lock button and tighten nut
NOTE:
NOTE:

19
MK-101 ASSEMBLY

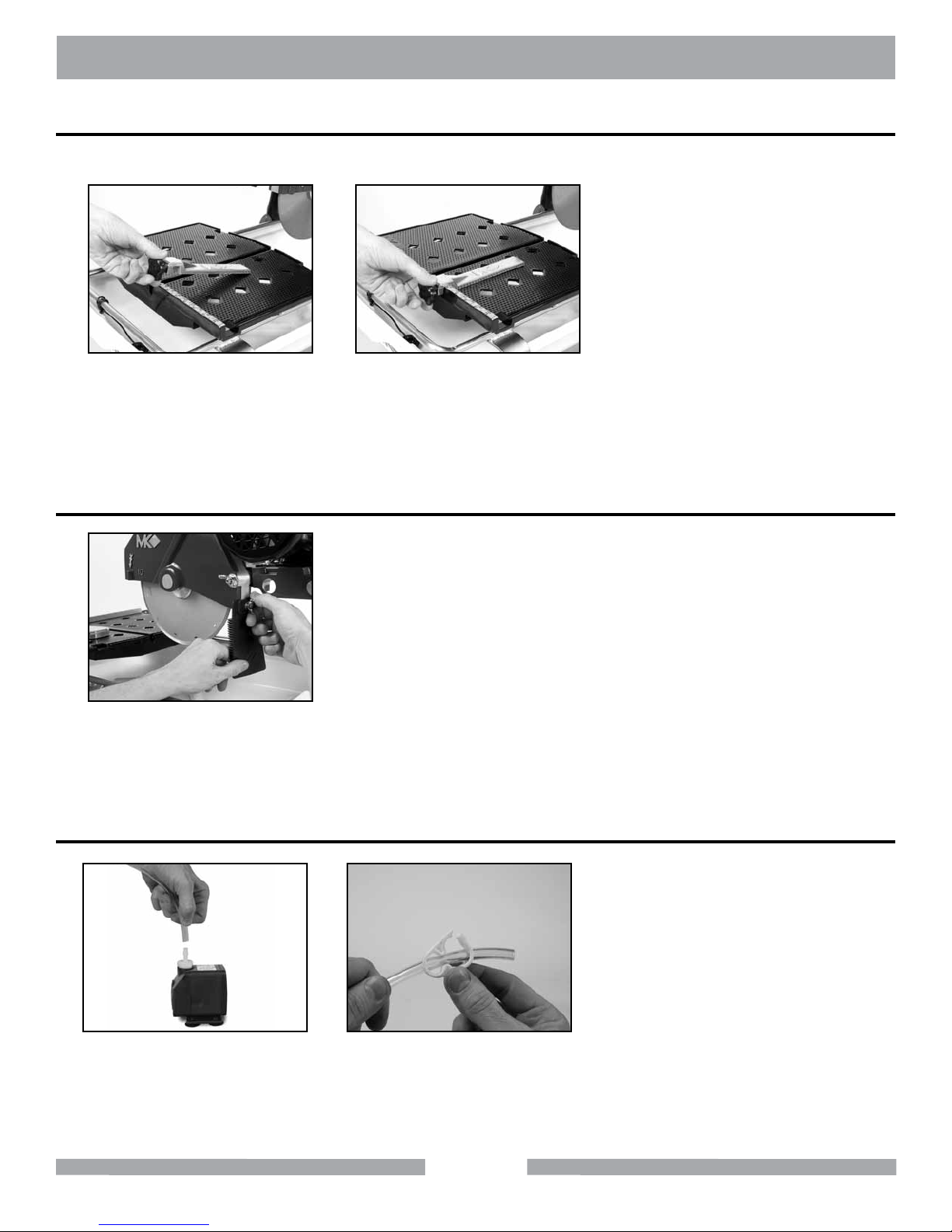

The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
ADJUSTABLE CUTTING GUIDE INSTALLATION
(A)
Loosen Adjustable Cutting
Guide retaining thumbscrew
and place it over the Movable
Cutting Table Ruler/Stop
(B)
Place the Adjustable Cutting
Guide onto the Movable Cutting
Table Ruler/Stop and tighten the
retaining thumbscrew
SPLASH GUARD INSTALLATION
(A)
Install the retaining thumbscrew
through the washer and Splash Guard
then align to the hole found on back
of the Blade Guard and tighten
WATER PUMP PREPARATION
(A)
Press one end of the Cooling
Transfer Tube into the Water
Pump Discharge Fitting
(B)
Slide Cooling Flow Adjust-
ing clamp on to the Cooling
Transfer Tube
NOTE:

20
MK-101 SETUP
Prior to beginning work, a pre-start inspection of the saw should be preformed.
(A)
Ensure the ON/OFF Switch
is in the OFF position
(B)
Verify the Movable Cutting
Table moves freely
(C)
Inspect the Diamond Blade for
damage. Verify the blade is cor-
rect for the material being cut
PRE-START INSPECTION
(D)
Inspection the Pump Assem-
bly for damage. Ensure the
cord is free of cracks of cuts
(E)
Inspect the MK-101 for
damage. Ensure the cord is
free of cracks or cuts
