MK Diamond Products MK-101 User manual

MK-101 TRACKER
CAUTION:
Read all safety and
operating instructions
before using this
e
q
ui
p
ment
TILE SAW
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
Enter the Serial Number of your new saw in the
space below. The Serial Number is located on the
left side of the blade guard.
NOTE:
For your (1) one year warranty to be effective,
complete the warranty card (including the Serial
Number and mail it in as soon as possible.
SERIAL NUMBER:

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 2
INTRODUCTION
We at MK Diamond want to congratulate you on selecting the MK-101 TRACKER Tile Saw. We are certain
that you will be pleased with your purchase. MK Diamond takes pride in producing the finest products in the
industry.
Operated correctly, your MK-101 TRACKER should provide you with years of quality service. In order to help
you, we have included this manual. This owner’s manual contains information necessary to operate and
maintain your MK-101 TRACKER safely and correctly. Please take a few minutes to familiarize yourself with
the MK-101 TRACKER by reading and reviewing this manual.
If you should have questions concerning your MK-101 TRACKER, please feel free to call our friendly
customer service department at: 800 421-5830
Regards,
MK Diamond

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 3
TABLE OF CONTENTS
Page
SAFETY: 4
Safety Messages 4
Damage Prevention Message 4
General Safety Precautions and Hazard Symbols 4
California Proposition 65 Message 6
Electrical Requirements and Grounding Instructions 7
Safety Label Locations 9
Tile Saw Specific Warnings 9
Product Specifications 10
UNPACKING, TRANSPORT, UNIVERSAL STAND, and ASSEMBLY
Unpacking 11
Contents 11
Transport 11
Universal Stand 12
Assembly 13
SETUP, ADJUSTMENT AND OPERATION
Setup 15
Adjustment and Operation 18
Cleanup 24
MAINTENANCE AND TROUBLESHOOTING
Maintenance 26
Troubleshooting 33
EXPLODED VIEW AND PARTS LIST
Exploded View 37
Parts List 39
THEORY
Theory of Diamond Saws 42
ACCESSORIES
Accessories 43
ORDERING and RETURN INSTRUCTIONS
Ordering Information 44
Return Material Policy 44
Packaging Instructions 44
Authorized Service Centers 44
Manual Part No. 159701 Revision No. 06/05

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 4
SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow these
instructions could result in injury or death to you or others. Failure to read and follow these instructions could
also result in damage and/or reduced equipment life.
SAFETY MESSAGES:
Safety messages inform the user about potential hazards that could lead to injury, death and/or equipment
damage. Each safety message will be preceded by one of the following (3) three words that identify the
severity of the message.
Not following instructions WILL lead to DEATH or SERIOUS INJURY
Not following instructions COULD lead to DEATH or SERIOUS INJURY
Not following instructions CAN lead to injury
DAMAGE PREVENTION AND INFORMATION MESSAGES:
A Damage Prevention Message is to inform the user of important information and/or instructions that could
lead to equipment or other property damage if not followed. Information Messages convey information that
pertains to the equipment being used. Each message will be preceded by the word NOTE, as in the example
below.
NOTE:
Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS:
In order to prevent injury, the following safety precautions and symbols should be followed at all times!
Safety Precautions:
KEEP GUARDS IN PLACE.
REMOVE ADJUSTING KEYS AND WRENCHES.
Form a habit of checking to see that keys and adjusting wrenches are removed from the power tool before it
is turned on.
KEEP WORK AREA CLEAN.
Cluttered work areas and benches invite accidents.
DO NOT USE IN DANGEROUS ENVIRONMENTS.
Do not use power tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
KEEP CHILDREN AWAY.
All visitors and children should be kept a safe distance from work area.
MAKE THE WORKSHOP KID PROOF.
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
DO NOT FORCE THE TOOL.
A power tool will do a job better and safer operating at the rate for which it was designed.
USE THE RIGHT TOOL.
Do not force a tool or an attachment, to do a job that it was not designed to do.
In order to prevent injury, keep guards in place and in working order at all times.

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 5
SAFETY
USE THE PROPER EXTENSION CORD.
If using an extension cord, make sure it is in good condition first. When using an extension cord, be sure to
use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in
line voltage that will result in a loss of power and overheating. TABLE 1, Page 7 shows the correct AWG
size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage.
The smaller the gage number, the heavier the cord.
WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may be caught in moving
parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.
ALWAYS USE SAFETY GLASSES.
Safety glasses should always be worn when working around power tools. In addition, a face,
dust mask or respirator should be worn if a cutting operation is dusty. Everyday eyeglasses only
have impact resistant lenses and may not prevent eye injury; they are NOT safety glasses.
SECURE WORK.
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free to operate a
power tool is safer.
DO NOT OVERREACH.
Keep proper footing and balance at all times by not overreaching.
MAINTAIN TOOLS WITH CARE.
Keep tools clean for the best and safest performance. Always follow maintenance instructions for
lubricating, and when changing accessories.
DISCONNECT TOOLS.
Power tools should always be disconnected before servicing or when changing accessories, such as blades,
bits, cutters, and the like.
REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure the switch is in the OFF position before plugging in the saw.
USE RECOMMENDED ACCESSORIES.
Consult the owner's manual for recommended accessories. Using improper accessories may increase the
risk of personal or by-stander injury.
NEVER STAND ON THE TOOL.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally contacted.
CHECK FOR DAMAGED PARTS.
Before using a power tool, check for damaged parts. A guard or any other part that is damaged should be
carefully checked to determine it would operate properly and perform its intended function. Always check
moving parts for proper alignment or binding. Check for broken parts and mountings and all other conditions
that may affect the operation of the power tool. A guard, or any damaged part, should be properly repaired
or replaced.
DIRECTION OF FEED.
Always feed work into a blade or cutter against the direction of rotation. A blade or cutter should always be
installed such that rotation is in the direction of the arrow imprinted on the side of the blade or cutter.
NEVER LEAVE A TOOL RUNNING UNATTENDED – TURN POWER OFF.
Do not leave a tool until it comes to a complete stop. Always turn a power tool OFF when leaving the work
area, or, when a cut is finished.
on

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 6
SAFETY
Hazard Symbols:
ELECTRICAL SHOCK!
Never touch electrical wires or components while the motor is running. Exposed, frayed or worn
electrical motor wiring can be sources of electrical shock that could cause severe injury or burns.
ACCIDENTAL STARTS!
Make sure the switch is in the OFF position before plugging in the saw.
ROTATING OR MOVING PARTS!
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never operate a
power tool with covers, shrouds, or guards removed.
Sawing and drilling generates dust. Excessive airborne particles may cause irritation to eyes, skin and
respiratory tract. To avoid breathing impairment, always employ dust controls and protection suitable to the
material being sawed or drilled; See OSHA (29 CFR Part 1910.1200). Diamond Blades improperly used are
dangerous. Comply with American National Standards Institute Safety Code, B7.1 and, Occupational Safety
and Health Act covering Speed, Safety Guards, Flanges, Mounting Procedures, General Operating Rules,
Handling, Storage and General Machine Conditions.
CALIFORNIA PROPOSITION 65 MESSAGE:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contain
chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica, from bricks and cement and other masonry products
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha-slc.gov/sltc/silicarystalline/index.html
http://www.oehha.org/prop65/out_of_date/6022kLstA.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter out microscopic particles.
on

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 7
SAFETY
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS:
In order to prevent potential electrical shock and injury, the following electrical safety precautions and symbols
should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided – if it will not fit the outlet; have the proper outlet installed by a
qualified electrician
• Improper connections of the equipment-grounding conductor can result in a risk of electric shock.
The equipment-grounding conductor is the insulated conductor that has an outer surface that is
green, with or without yellow stripes. If repair or replacement of the electric cord or plug is
necessary, do not connect the equipment-grounding conductor to a live terminal
• Check with a qualified electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that
accept the tool's plug
• Repair or replace a damaged or worn cord immediately
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch
A of Figure 1. The tool has a grounding plug that looks like the plug illustrated in Sketch A of
Figure 1. A temporary adapter, which looks like the adapter illustrated in sketches B and C,
may be used to connect this plug to a 2-pole receptacle as
shown in Sketch B, if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician. The
green-colored rigid ear, lug, and the like, extending from the
adapter, must be connected to a permanent ground such as a
properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
To reduce the risk of electrocution, keep all connections dry and off the ground.
A Ground Fault Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be
used for the Saw. Receptacles are available having built-in GFCI protections and may be used
for this measure of safety.
When using an extension cord, the GFCI should be installed closest to the power source,
followed by the extension cord and lastly, the saw.
The pump requires a GFCI. To reduce risk of electric shock when operating the saw with the pump plugged into the 3-pole receptacle on the motor, connect the saw to a GFCI outlet. See the
pump manual and informational tags enclosed separately for all pump information.
Shock Hazard. For replacement, use only an identical MK pump, model PE1 part #151271.
NOTE: Do not run the pump dry. Also, be sure to disconnect and remove the pump when cutting dry.
(B)
Metal Screw
Cover of Grounded
Outlet Box
(A)
(C) (D)
ADAPTER
Grounding
Means
Grounding
Pin
Grounding
Pin
FIGURE 1

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 8
SAFETY
When using the water pump plugged into the water pump receptacle, the saw must be plugged into a properly
installed and grounded GFCI outlet See Sketch A of Figure 2. If a GFCI outlet is not available, MK Diamond
has available as an accessory item, a plug-in GFCI that may be plugged into a properly installed and
grounded 3-pole outlet. See Sketch A of Figure 2.
To avoid the possibility of the appliance plug or receptacle getting wet, position the saw to one
side of a wall mounted receptacle. This will prevent water from dripping onto the receptacle or
plug. A "drip loop," shown in Figure 3, should be arranged by the user to properly position the
power cord relative to the power source.
The "drip loop" is that part of the cord below the level of the receptacle, or
the connector, if an extension cord is used. This method of positioning the
cord prevents the travel of water along the power cord and coming in
contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect
the fuse or circuit breaker that supplies power to the tool. Then unplug and
examine for presence of water in the receptacle.
Use only extensions cords that are intended for outdoor use. These extension cords are
identified by a marking "Acceptable for use with outdoor appliances; store indoors while not in
use." Use only extension cords having an electrical rating not less than the rating of the product.
Do not use damaged extension cords. Examine extension cords before using and replace if
damaged. Do not abuse extension cords and do not yank on any cord to disconnect. Keep cords
away from heat and sharp edges. Always disconnect the extension cord from the receptacle
before disconnection the product form the extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch the
plug with wet hands.
Use of undersize extension cords result in low voltage to the motor that can result in motor
burnout and premature failure. MK Diamond warns that equipment returned to us showing signs
of being run in a low voltage condition, through the use of undersized extension cords will be
repaired or replaced totally at the customer’s expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in TABLE 1 below.
Once the proper length is found, move down the column to obtain the correct AWG size required for
that length of extension cord.
Extension Cord Minimum Gage for Length
Volts Total Length of Cord in Feet
120V 25 ft. 50 ft. 100 ft 150 ft.
AWG AWG AWG AWG
14 12 Not Recommended
TABLE 1
LOCK OUT METHOD:
In order to help prevent accidental starting and to help make your workshop
“Kidproof,” this saw is provided with a means to deactivate the functioning of the
motor switch. The switch is equipped with a Lockout plate that can be used with a
lock to prevent the movement of the toggle switch. With the toggle switch unable
to move the motor cannot be turned on. Removing the lock reactivates the switch.
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord
FIGURE 3
A B
FIGURE 2

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 9
SAFETY
SAFETY LABEL LOCATIONS:
Safety labels are located according to Figures 1 through 4 below. The labels contain important safety
information. Please read the information contained on each safety label. These labels are considered a
permanent part of your saw. If a label comes off or becomes hard to read, contact MK Diamond or your
dealer for a replacement
Item Location Description Part No.
1. Motor Front Warning Read and Follow Operating Instructions 155806
2A. Motor Side Caution Receptacle for Pump Only 154822
2A. Blade Side Saw Serial Number Specifications 157249-01
3A Motor Rear Service or Warranty Information 155038
3B Motor Rear Extension Cord Warnings 155038
3C Motor Rear Motor Specifications N/A
4A Pump Left Side Warning Connect to Grounded Receptacle N/A
4B Pump Right Side Pump Specifications N/A
TILE SAW SPECIFIC WARNINGS:
Wear eye protection.
Disconnect saw before servicing, when changing cutting blades, and cleaning.
Use tool only with smooth edge cutting blades free of openings and grooves.
Replace damaged cutting blade before operating.
4
A B
1 2
A B
B
3
A C

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 10
SAFETY
PRODUCT SPECIFICATIONS:
The MK-101 TRACKER is a versatile Tile Saw. Operated and used according to this manual, the MK-101
TRACKER will provide years of dependable service.
General Description:
The MK-101 TRACKER Tile Saw is engineered as a tabletop or stand mounted wet tile saw. The saw
includes a powerful 115v totally enclosed capacitor start Baldor motor with a thermal protective overload. The
saw is capable of cutting tile up to twenty (20) inches in length, or diagonal cutting tile up to fourteen (14)
inches. The saw can cut an object three and one-half (3-1/2) inches thick in one pass.
Motor Specifications:
Motor specifications for the MK-101 TRACKER are listed in Table 2 below.
Voltage 115 v
Overall Amperage 13 a
Motor Only Amperage 12.4 a
Frequency 60 Hz
RPM 3450 rpm
Horse Power 1.5 hp
Weight 107 lbs
Table 2
Thermal Overload Protection:
The motor is protected by a thermal overload equipped with a manual reset.
Blade Capacity:
The MK-101 TRACKER uses a ten (10) inch (254mm) diameter, wet cutting continuous rim, MK Diamond
blade with a one-sixteenth 1/16 inch (1.5875 mm) cutting width and a five-eighths (5/8) inch (15.875 mm)
arbor.
Tile Types:
The MK-101 TRACKER can cut a variety of tile types including Porcelain, Terracotta, Marble, Quarry and
Slate, or almost any other non-ferrous material.
NOTE:
The MK-101 TRACKER is not designed to cut plastic or ferrous (metals) material.

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 11
UNPACKING, TRANSPORT, UNIVERSAL STAND and ASSEMBLY
UNPACKING:
Your MK-101 TRACKER has been shipped from the factory thoroughly inspected. Only minimal assembly is
required. Use proper lifting techniques when lifting the MK-101 TRACKER.
CONTENTS:
In your container, you will find one (1) MK-101 TRACKER frame and water basin, one (1) MK-101 TRACKER
Cutting, one (1) (1) MK-101 TRACKER removable cutting table, one (1) 10-inch wet cutting continuous rim
diamond blade, one (1) adjustable cutting guide, one (1) electric water pump, one (1) pump discharge fitting,
one (1) cooling transfer tube, one (1) flow adjusting clamp, one (1) drain plug, one (1) blade wrench one (1)
splash guard, one (1) owners manual, one (1) pump manual and one (1) warranty card.
MK-101 TRACKER
Frame
and Water Basin
MK-101 TRACKER
Cutting Head Removable Cutting Table Diamond Blade Adjustable Cutting Guide
Electric
Water Pump Pump Discharge Fitting Cooling Transfer Tube Flow Adjusting Clamp Drain Plug
Wrench Splash
Guard Owners Manual Pump Manual Warranty Card
TRANSPORT:
1. The MK-101 TRACKER weighs approximately one hundred and seven (107) pounds.
2. Never transport the MK-101 TRACKER with water in the Water Basin.
The MK-101 TRACKER is designed with a rigid frame removable Cutting Head and Cutting Table. Two
people are required to transport the MK-101 TRACKER with the Cutting Head installed. Remove the Cutting
Table before transport. Remove the Cutting Head if one person is transporting the saw (see Cutting Head
Installation and Removal in the following section).
Cutting Head
Lift Point
Lift Point
Lift the saw using the
lift points shown.
Cutting Table

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 12
UNPACKING, TRANSPORT, UNIVERSAL STAND and ASSEMBLY
UNIVERSAL STAND:
The MK-101 TRACKER weighs approximately one hundred and seven (107) pounds; follow the
guidelines for transport in the TRANSPORT section, when placing it on the stand.
Note: If using the MK Diamond, Universal Stand, follow the following steps.
(A)
Open the Universal Stand
and place on flat surface
(B)
Remove Water Basin (C) Orient the Saw
to the Stand
(D)
Seat Left (Post) Side of saw
onto stand between stand
Orientation Pin
(E)
Seat Right Side of saw onto
stand between stand and
Register Angle
(F)
Reinstall the Water Basin
Slide Water Basin
back in the Saw
Left side
of stand
Left Side
of Saw Right Side of Saw
Right Side
of Stand
Orientation
Pin
Seat Left (Post)
Side of Saw
Left Side
of Stand
Right Side
of Stand Right Side
of Saw
Register
Angle
Slide Water Basin out
of the front of the Saw
(G)
Install the Cutting Table
(See Cutting Table Installation)
Cutting
Table

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 13
UNPACKING, TRANSPORT, UNIVERSAL STAND and ASSEMBLY
ASSEMBLY:
Follow the assembly instructions to prepare your MK-101 TRACKER for operation.
1. Diamond Blade Installation:
NOTE: When installing the Retaining Screw, do not “cross-thread" and DO NOT over tighten the screw.
2. Movable Cutting Table Installation:
(A)
Remove the Movable Cutting
Table from the saw and raise
the Blade Guard
(C)
Depress and hold the Shaft Lock
pushbutton and remove Retaining
Screw and Outer Flange using
the Blade Wrench
(D)
Install Diamond Blade
onto Blade Shaft
(E)
Verify the Blade is seated on
the Blade Shaft and direction
of rotation is correct
(F)
Install Retaining Nut and Outer
Flange, depress and hold the
Shaft Lock pushbutton
and Tighten
Pivot Blade
Guard up Tighten
Wing-nut
Remove Movable
Cutting Table
Turn counter-
clockwise to
loosen
Press and
Hold
Retaining Screw
and Outer Flange
Diamond
Blade Rotation Direction
Retaining
Nut and
Outer Flange
Rotate Blade
Wrench clockwise
to tighten
(B)
Locate the Shaft Lock
pushbutton on the underside
of the Cutting Head
Cutting
Head
Shaft Lock
Pushbutton Blade
Wrench
Blade
Shaft
(A)
A
lign the four (4) wheels of the
Movable Cutting Table to the
saw Guide Rails
(B)
Seat all four (4) wheels onto the
Guide Rails
(C)
Verify movement of the Movable
Cutting Table
Wheel
Guide
Rail
Verify
movement
Wheel
Guide
Rail

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 14
UNPACKING, TRANSPORT, UNIVERSAL STAND and ASSEMBLY

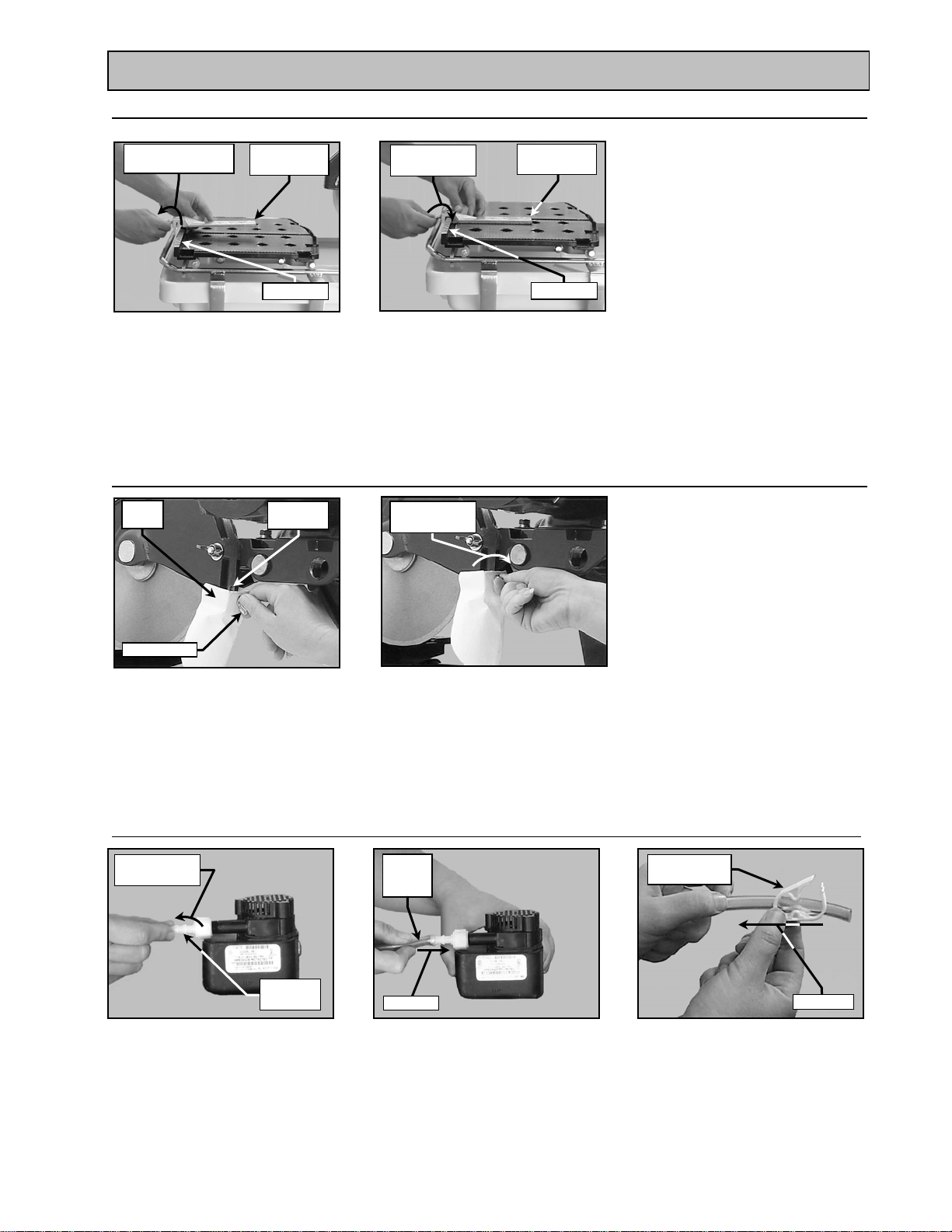

3. Adjustable Cutting Guide Installation:
NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
4. Splash Guard Installation:
5. Water Pump Preparation: :
(A)
Loosen Adjustable Cutting
Guide retaining thumbscrew
and place it over the Movable
Cutting Table Ruler/Stop
(B)
Place the Adjustable Cutting
Guide onto the Movable Cutting
Table Ruler/Stop and tighten
the retaining thumbscrew
(A)
Install Water Pump
Discharge Fitting
(A)
Install the retaining thumbscrew
through the washer and Splash
Guard then align to the hole found
on back of the Blade Guard
(B)
Install the Splash Guard
onto the Blade Guard
Turn counter-
clockwise to loosen
Ruler/Stop
Adjustable
Cutting Guide Turn clockwise
to tighten
Ruler/Stop
Adjustable
Cutting Guide
Retaining
Hole
Thumbscrew
Splash
Guard
Cooling
Transfer
Tube
Turn clockwise
To tighten
(B)
Press one end of the Cooling
Transfer Tube onto the Water
Pump Discharge Fitting
Turn clockwise
to tighten
(C)
Slide Cooling Flow Adjusting
Clamp onto the Cooling
Transfer Tube
Discharge
Fitting Press on
Flow Adjusting
Clamp
Press on

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 15
SETUP, ADJUSTMENT and OPERATION
SETUP:
1. Pre-start Inspection:
Prior to beginning work, a pre-start inspection of the saw should be performed.
2. Connecting the Water Pump:
1. To prevent the possibility electrical shock, the MK-101 TRACKER MUST be de-energized when
connecting the Water Pump.
2. To prevent the possibility of electrical shock, use only MK Diamond qualified replacement parts
NOTE: To prevent pump damage, the Water Pump must be disconnected if cutting with a Dry Blade.
(A)
Ensure the ON/OFF Switch
is in the OFF position
(B)
Verify the Movable Cutting Table
moves freely
(C)
Inspect the Diamond Blade for
damage – verify the blade is
correct for the material being cut
(D)
Inspect the Pump Assembly
for damage – ensure the cord
is free of cracks or cuts
(E)
Inspect the MK-101 TRACKER
for damage – ensure the cord
is free of cracks or cuts
Inspect for cracks,
de-bonding, etc.
Verify ease of movement
(See Maintenance section
if problems exist)
Inspect for
damage
Inspect for
damage
Inspect for
cracks or cuts
Off
Position
(A)
Connect the Cooling Transfer
Tube to the inlet connection
of the Blade Guard
(B)
Connect the Water Pump power
cord to the connection found on
the back of the motor
Press on
Cooling
Transfer
Tube
Inlet
connection Pump
Connection
ON/OFF
Switch

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 16
SETUP, ADJUSTMENT and OPERATION
3. Water Pump Setup for Operation:
The Water Pump can be setup for operation in two ways, External Water Source or Re-circulation.
NOTE: If using a dry blade for operation, DO NOT connect the water pump.
I. External Water Source:
This is the preferred method of cooling.
II. Re-circulation:
NOTE: When using the re-circulation method, the water should be changed often for longer pump life.
(A)
Remove the Drain plug (B) Place the Water Pump
In an external container
(C)
Fill the external container until
water completely covers the
Water Pump suction
(A)
Ensure the Drain Plug is
Installed in the Water Basin
(B)
Place the Water Pump in the
back of the Water Basin.
(C)
Fill the Water Basin until water
completely covers the
Water Pump suction
Cover Pump
Suction
Drain Plug Water Pump
In containe
r
External
Containe
r
Drain Plug
Installed
Water
Pump
Cover Pump
Suction
(A)
Place Water Pump in Water Pan (B) Place Water Pump Clamp as
shown
(C)
Secure Clamp with ¼-20
wingscrews and nuts.

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 17
SETUP, ADJUSTMENT and OPERATION
4 MK-101 TRACKER Setup for Operation:
1. Before powering or starting, check for damage that could prevent this equipment from proper
operation or performing its intended function. Check for binding and alignment of moving parts.
Check for damaged, broken, or missing parts.
2. Verify the On/Off switch is in the OFF position.
3. Before connecting the MK-101 TRACKER to a power supply, be sure the voltage, cycle and
phase of the job site power source meet the requirements of TABLE 3
VOLTAGE: 115v
CYCLE: 60hz
PHASE: 1-phase
TABLE 3
4. If using an extension power cord, made sure, the length and wire gauge correspond to the
requirements listed in TABLE 1 on page 9. An extension power cord that is too small in wire
gauge (diameter), or too long in length, will cause the motor to overheat and could cause
premature failure.
5. Use an approved Ground Fault Circuit Interrupter (GFCI)
6. Do not cover the motor vents as this could lead to motor overheating.
NOTE: In order to avoid breaker tripping, a 20-amp circuit breaker should be used.
Portable Generator:
If using a portable generator, ensure the generator meets the following minimum requirements:
5 KW 120/240 volts 41.7/20.8 amps Single Phase
5. Set Cutting Depth:
When loosing the Cutting Head Adjusting Knob, the Cutting Head will pivot down unless held.
* A GFCI wall socket is the preferred protective device.
Off
Position
ON/OFF
Switch
(A)
Ensure the ON/OFF Switch
is in the OFF position
(B)
Plug MK-101 TRACKER into the
GFCI
(C)
Plug the GFCI into the
Power source *
(A)
Loosen Cutting Head
Adjusting Knob
(B)
Set cutting depth approximately
1/4 to 1/2 inch below the surface
of the Movable Cutting Table
(C)
Ensure the Adjusting Knob
is tight
GFCI
GFCI Plugged
Into Power
Source
Turn Counter-
clockwise to loosen Turn Clockwise
to tighten
Adjust Cutting
Head to Cut Depth
of Approx ¼” to ½”

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 18
SETUP, ADJUSTMENT and OPERATION
ADJUSTMENT and OPERATION:
1. Cutting Straight Edges:
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was
designed.
Off
Position
ON/OFF
Switch
(A)
Loosen the Adjustable Cutting
Guide retaining thumbscrew
(B)
Position the Adjustable Cutting
Guide to desired cut length
indicated inside the diamond
(C)
Tighten the retaining
thumbscrew
(D)
Place the tile against the
Ruler/Stop and Cutting Guide
(E)
Turn the motor ON (F)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(G)
Perform the cut (H)
Turn the motor OFF when
work is complete
Turn Counter-
clockwise to loosen
Desired Cut length
indicated here Turn Clockwise
to tighten
Adjustable
Cutting Guide
Ruler/Stop
On
Position
ON/OFF
Switch
Cooling Flow
Points
Hold Work
in Position
Direction
of Cut

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 19
SETUP, ADJUSTMENT and OPERATION
2. Diagonal Cutting:
NOTE: To cut diagonal, the Dual 45º Flat Angle Guide (MK Diamond Part No. 134557-MK) should be used.
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
NOTE: If Cutting the tile in two equal halves, align the tile in the V-notch of the Movable Cutting Table
Ruler/Stop.
Cooling Flow
Points
On
Position
ON/OFF
Switch
Off
Position
ON/OFF
Switch
(A)
Remove the Adjustable Cutting
Guide
Turn counter-
clockwise to loosen
Ruler/Stop
Adjustable
Cutting Guide
(E)
Turn the motor ON (F)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(H)
Turn the motor OFF when
work is complete
(B)
Place the Dual 45º Flat Angle
Guide on the Ruler/Stop
(C)
Position the Dual 45º Flat Angle
Guide and tighten the
retaining thumbscrew
(D)
Position the tile against the Dual
45º Flat Angle Guide and the
Ruler/Stop
(G)
Perform the cut
Ruler/Stop
Turn counter-
clockwise to loosen Align Guide
to Ruler/Sto
p
Turn Clockwise
to tighten
45º Flat
Angle Guide
Ruler/Stop
Hold Work
in Position
Direction
of Cut

MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005
Page 20
SETUP, ADJUSTMENT and OPERATION
3. 45º Miter Cutting:
NOTE: To cut 45º Miters, the 45º Bullnose Miter Guide (MK Diamond Part No. 134585-MK) should be used.
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
Turn counter-
clockwise to loosen
Ruler/Stop
Adjustable
Cutting Guide
Cooling Flow
Points
On
Position
ON/OFF
Switch
Off
Position
ON/OFF
Switch
(A)
Remove the Adjustable Cutting
Guide
(E)
Turn the motor ON
(F)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(H)
Turn the motor OFF when
work is complete
(B)
Place the 45º Bullnose Miter
Guide on the Ruler/Stop
(C)
Position the 45º Bullnose Miter
Guide and tighten the
retaining thumbscrew
(D)
Position the tile on the 45º
Bullnose Miter Guide and the
Ruler/Stop
(G)
Perform the cut
Align Guide
to Ruler/Sto
p
Turn counter-
clockwise to loosen
Ruler/Stop Turn Clockwise
to tighten
Ruler/Stop
Bull Nose
Mite
r
Hold Work
in Position
Direction
of Cut
