MK Martin TRACK CURRY Programming manual

MK Martin Enterprise Inc.
3950 Stef er Rd Elmira, ON, Canada N3B 2Z3
Tel: [phone]
Toll Free: 1-855-664-2752
Fax: [phone]
E-mail: [email protected]
www.mkmartin.ca
Operator’s / Parts Manual
Rev:18-1

Table of Contents
• Warranty ------------------------------------------------------------------------------------------------
• Registration --------------------------------------------------------------------------------------------
• Safety ---------------------------------------------------------------------------------------------------
• Decals ---------------------------------------------------------------------------------------------------
• Assembly -----------------------------------------------------------------------------------------------
• Operation -----------------------------------------------------------------------------------------------
• Sign Off Form -----------------------------------------------------------------------------------------
• Shank Spacing ----------------------------------------------------------------------------------------
• Track Curry Parts -------------------------------------------------------------------------------------
• Track Curry Wing Parts -----------------------------------------------------------------------------
• Notes ----------------------------------------------------------------------------------------------------
• Sprinkler System Parts -----------------------------------------------------------------------------
• Sprinkler Operation ----------------------------------------------------------------------------------
• Maintenance -------------------------------------------------------------------------------------------
• Bolt Torque ---------------------------------------------------------------------------------------------
2
3
5-6
7
8
8
9
10-11
12-13
14
15
16-17
18-19
20
20

2
Warranty
Effective on products retailed on or after November 1, 2017
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at MK Martin Enterprise Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on  le at
MK Martin Enterprise Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by MK Martin Enterprise Inc. to be free from defects in material and workmanship under
normal use and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes,
from the date of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to
the replacement of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
MK
Martin
authorized dealers may make repairs to the product or affect the replacement of defective parts, unless otherwise approved
by
MK Martin . Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
MK Martin
5. Damages resulting from:
 misuse, negligence, accident, theft or  re
 use of improper or insuf cient fuel,  uids or lubricants
 use of after market parts or accessories, unless approved by
MK Martin
 modi cations, alteration, tampering or improper repair
 any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period speci ed by that manufac-
turer. Please contact the tire manufacturer for warranty on these items.
MK Martin Enterprise Inc. shall not, in any event, be liable for any losses, damages or costs; to include pro ts, travel, transportation,
pick up, delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or
parts are returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those speci ed herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on  le at MK Martin Enterprise Inc.
Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
3950 Stef er Rd.  Elmira  Ontario, Canada  N3B 2Z3  Email : [email protected]  Fax : [phone]  Tel : [phone]
230817

3
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
---------------------------------------------------------------------------------------------------------------------
Purchaser’s warranty protection is valid only when this completed form or a copy of this form
is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged
delivery of equipment and owner’s / operator’s manual and has accepted the condition of the
equipment.
Date of delivery to purchaser -------------------------------------------------------
Type of Equipment -------------------------------------------------------------------
Model # ------------------------------- Serial # -------------------------------------
Retailer’s Signature Indicates
• Equipment was properly assembled as directed by manufacturer
• Equipment was tested for functionality and operates properly
• Purchaser was instructed in safe and proper operating procedures
• Warranty was explained to purchaser
• Purchaser was given the operators manual
Retailer
Signature ----------------------------------------------------------------
Company ---------------------------------------------------------------
Address ---------------------------------------------------------------
-------------------------------------------------------------
Purchaser’s signature indicates
• Acceptance of equipment fully assembled
• Received operator’s manual
• Clearly understands conditions of warranty
• Received instructions of safe and proper operation of equipment
Purchaser
Signature -----------------------------------------------------------
Company ---------------------------------------------------------
Mailing address -------------------------------------------------
City ------------------------------------------ Prov/State -------- Postal Code/Zip ---------------
Available phone number -----------------------------------------
Warranty is valid only when it has been received by manufacturer at address above

4
-------------------------------------------------------------------------------------------------------------------------
Postage
Stamp
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
Fold Here
Please Cut and Return to M K Martin Enterprise Inc
Fold And Tape here Do not tape all edges or use staples
Warranty Registration

5
Safety
Take Note! This safety symbol is found throughout this manual to call your attention to instruc-
tions involving yourself and others working around the machine.
• Failure to follow these instructions can result in injury or death
This symbol means
-- Attention!
-- Become Alert!
-- Your Safety is involved!
Signal words are used in this manual.
Caution: Indicates a potential hazardous situation that may result in injury.
Warning: Indicates a hazardous situation that could result in serious injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that
needs to be aware of these dangers.
If you have any questions not answered in this manual please contact your dealer or
M K Martin Enterprise Inc Tel: [phone]
3950 Stef er Rd 1-855-664-2752
Elmira On Ca N3B 2Z3 Fax: [phone]
e-mail [email protected]
www.mkmartin.ca

6
Safety -- It,s in your interest!
You are responsible for the safe operation and maintenance of your Track Curry.
You must ensure that you and anyone else who operate the Track Curry are properly trained
to operate it.
Annually refresh yourself and all other operators on the safe use of the Track Curry.
Warning! Keep hands and feet away from the Track Curry at all times during opera-
tion. Keep bystanders at a safe distance.
Warning! Do not operate the Track Curry in places that have rocks and other debris.
Do not operate on steep slopes that may upset the tractor.
Warning! Do not operate at high speeds.
Warning! Do not attempt to repair or adjust the equipment while the 3 point hitch is
holding the Track Curry up. (Place a block under the equipment to hold it up.)
Warning! Do not allow any riders on the tractor or the Track Curry!

7

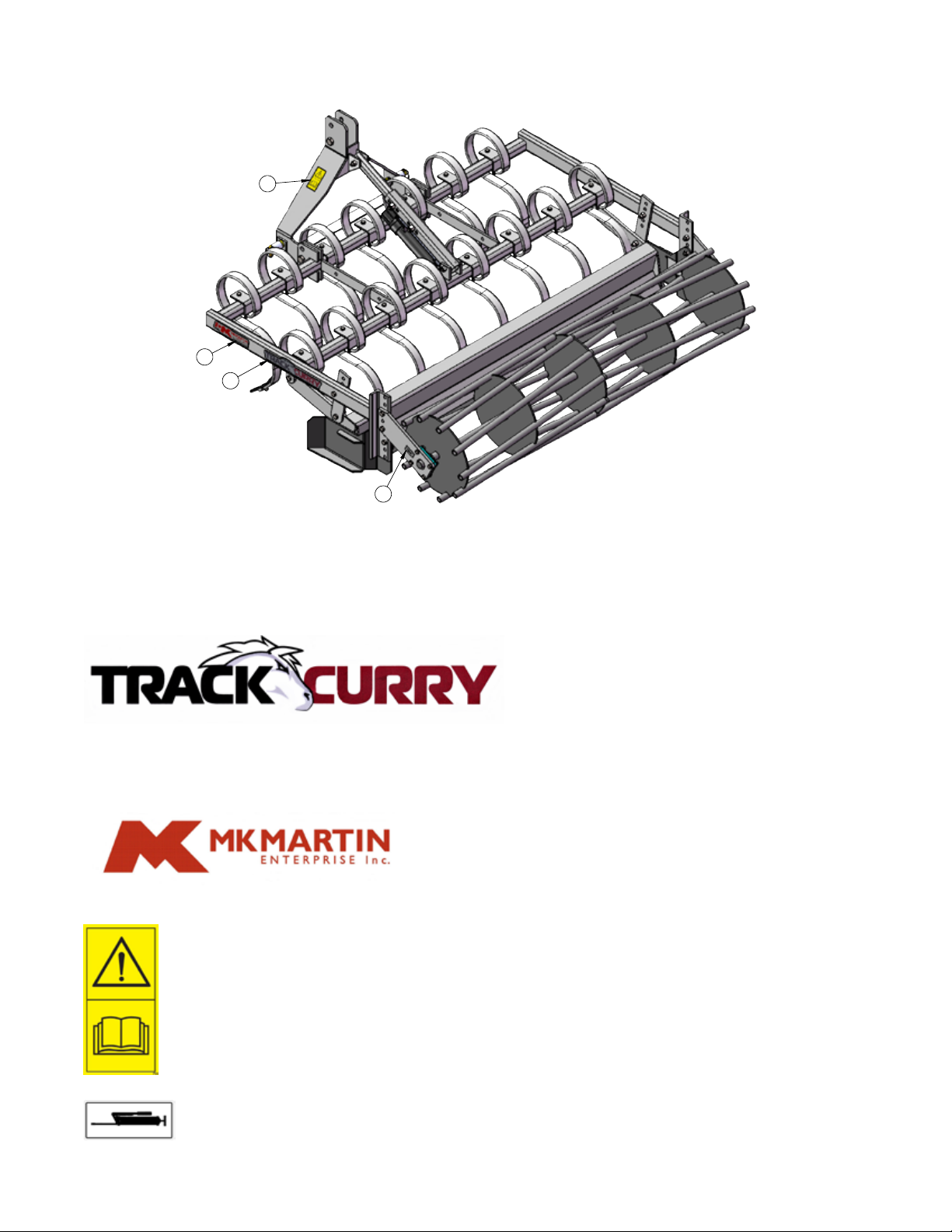

Part #3
Before operating machine, carefully
read the instruction manual
Part #1 Series decal x2
Part #2
MK logo made in canada
#4 - Grease x2
THIRD ANGLE PROJECTION
1
2
3
4
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Trac Curry\6 Ft Track Curry.SLDASM
DWG. NO.
REV
Model
SCALE 1:32
SHEET 3 OF5
DATE DRAWN
MATERIAL
6 Ft Track Curry
February-26-09 3:38:40 PM
DESCRIPTION
6 Ft Track Curry
S:\Solidworks\Solidworks_Elo\Trac Curry\
Weight(lbs.)
0
Width Height Length
0 0 633.11 0
Blank Size Unit of Measure
ITEM ID.
30164
Config ID
30164
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING

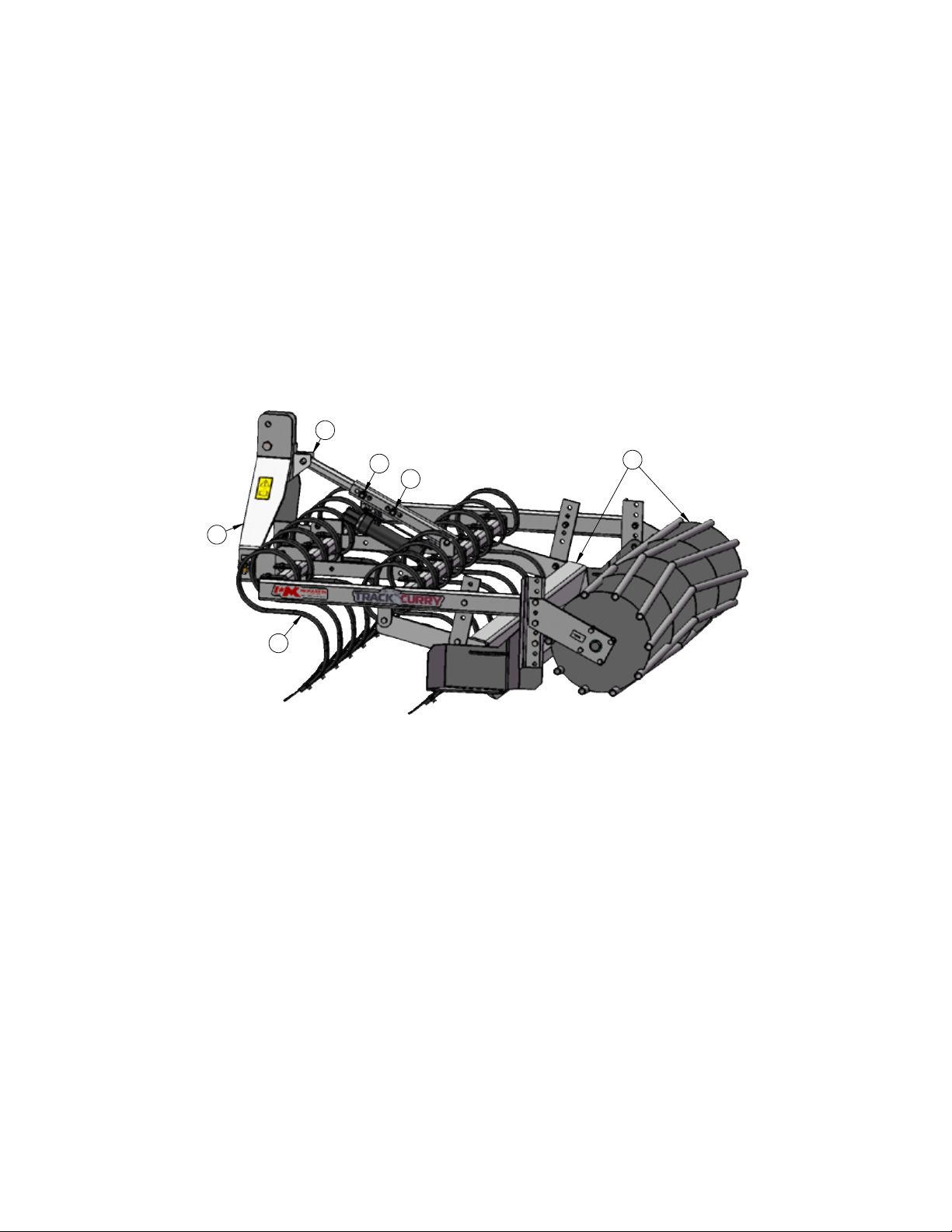

Decal Locations

8
Assembly
This unit is usually shipped with the cultivator teeth removed.
1. Bolt the large “A” frame brace to the frame and the small brace to the top of the “A” frame
using 1/2” bolts and nylon locknuts.
2. Use one 5/8” bolt to couple brace pieces together and allowing 5” of movement, this allows
the machine to “oat”.
3. By using a second 5/8” bolt at the other end of the slot the brace length can be xed.
4. Install the teeth and space them as shown on the following pages according to the width of
your Track Curry.
5. Adjust the leveler blade and the rear drum height to suit your needs.
6. The Track Curry is designed to handle Cat #1 ASAE Quick Coupler and Cat #1 Free Link
and JD “I” Match.
Operation
The Track Curry is designed to renovate and condition horse arenas and tracks in a single pass.
Two rows of heavy duty S-tine shanks loosen and cultivate, an adjustable bar levels the soil and
a 12” diameter roller gauge controls the depth and packs the soil. Resulting in a rm yet giving
surface for secure footing.
Four Models
5’ Track Curry with 13 Shanks (18-33) hp
6’ Track Curry with 15 Shanks (22-39) hp
7’ Track Curry with 17 Shanks (24-47) hp
8’ Track Curry with 19 Shanks (30-53) hp
Shank size: 1 1/4x22 c/w reversible points
Leveler Bar 1/2x6” double-beveled
THIRD ANGLE PROJECTION
1
2
3
4
5
6
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Trac Curry\6 Ft Track Curry.SLDASM
DWG. NO.
REV
Model
SCALE 1:32
SHEET 7 OF7
DATE DRAWN
MATERIAL
6 Ft Track Curry
February-26-09 2:38:40 PM
DESCRIPTION
6 Ft Track Curry
S:\Solidworks\Solidworks_Elo\Trac Curry\
Weight(lbs.)
0
Width Height Length
0 0 633.11 0
Blank Size Unit of Measure
ITEM ID.
30164
Config ID
30164
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING

9
Sign Off Form
M K Martin Enterprise Inc. follows the general Safety Standards speci ed by the American
Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration
(OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly
understand ALL Safety Operating and Maintenance instructions presented in this manual. Do not
operate or allow anyone else to operate this equipment until such information has been reviewed.
Annually review this information before the season start-up. Make these reviews of SAFETY and
OPERATION annually as a standard practice for all your equipment. We feel that an untrained op-
erator is unquali ed to operate this machine. A sign-off sheet is provided for your record keeping
to show that all personnel who will be working with the equipment have read and understood the
information in the operator’s manual and have been instructed in the operation of the equipment.
Date Employees Signature Employers Signature

10

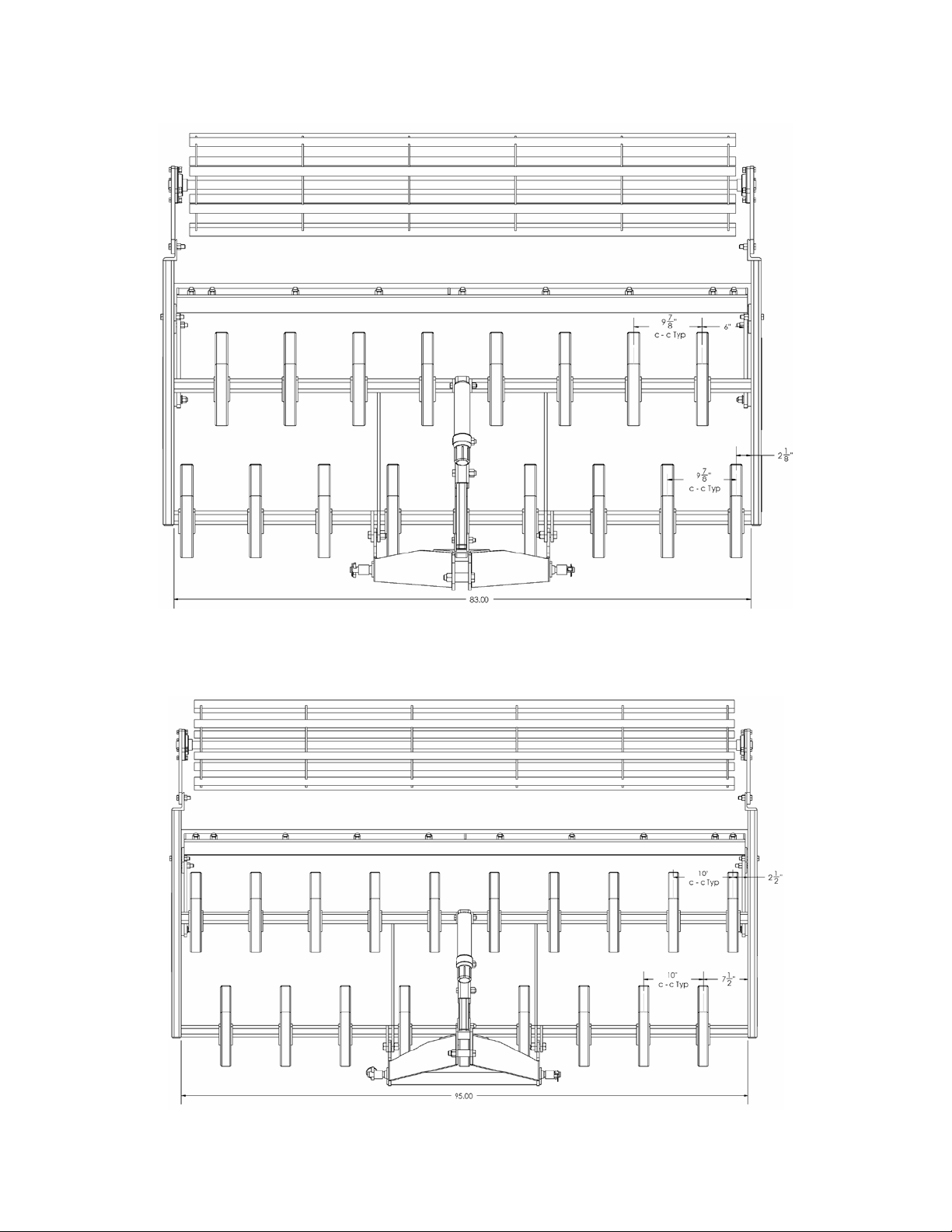

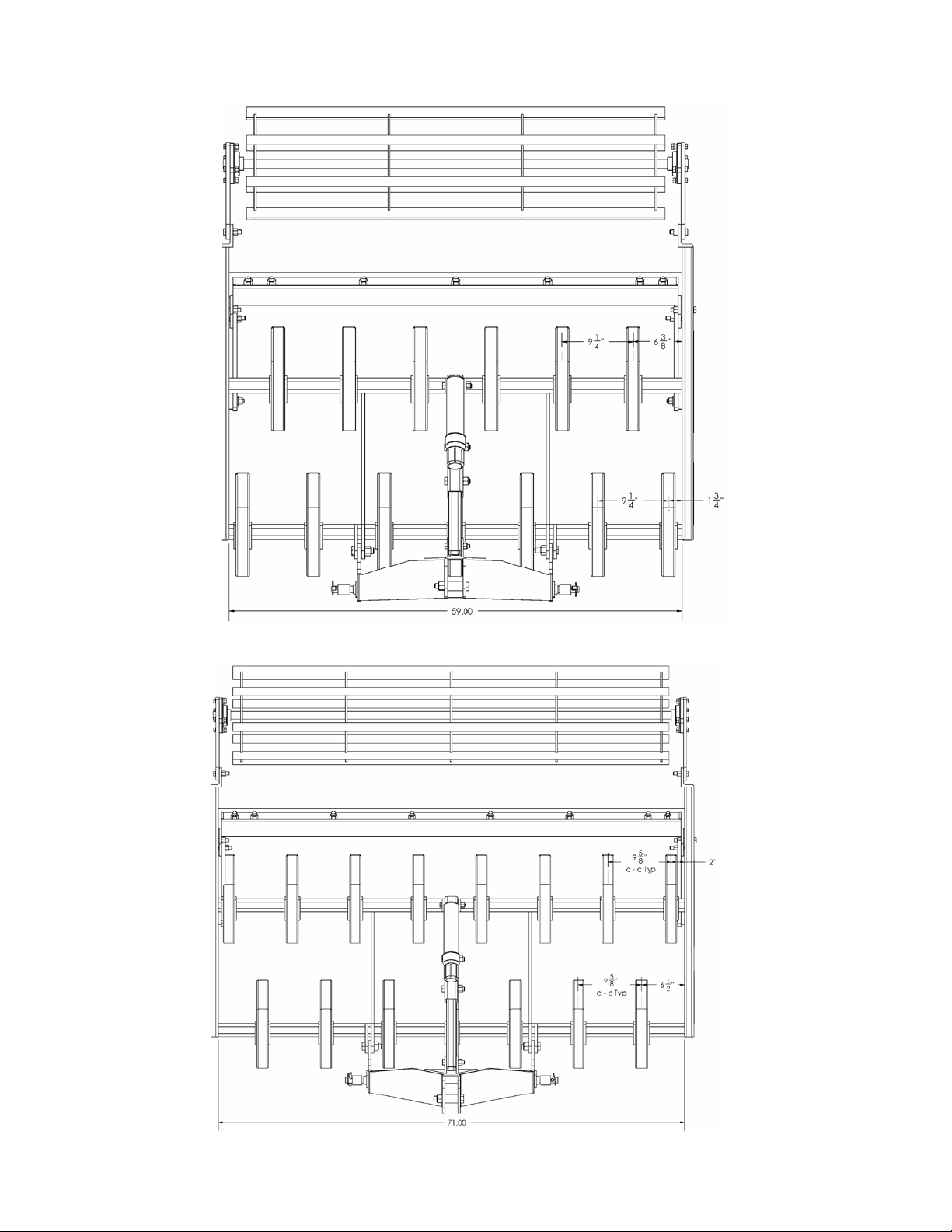

Shank Spacing
5’ - 13 Shanks
6’ - 15 Shanks

11
Shank Spacing
7’ - 17 Shanks
8’ - 19 Shanks

12
THIRD ANGLE PROJECTION
6
7
8
9
10 11
12 13
16 17 18 2019
14 15
21
22
23
24 25
26
27
29
30
31
28
32
33
34
35
1
2
3
4
5
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Trac Curry\6 Ft Track Curry.SLDASM
DWG. NO.
REV
Model
SCALE 1:32
SHEET 6 OF6
DATE DRAWN
MATERIAL
6 Ft Track Curry
February-26-09 3:38:40 PM
DESCRIPTION
6 Ft Track Curry
S:\Solidworks\Solidworks_Elo\Trac Curry\
Weight(lbs.)
0
Width Height Length
0 0 495.25 0
Blank Size Unit of Measure
ITEM ID.
30164
Config ID
Exploded veiw
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
Track Curry Parts
Item # Part # Description TC-5
Qty
TC-6
Qty
TC-7
Qty
TC-8
Qty
1-2 54068 Cultivator Point - Bolt 5’ 13 15 17 19
354069 “S” Tine 13 15 17 19
454071 Tine Clamp 13 15 17 19
5OL Bolt 7/16x4 c/w ln 13 15 17 19
6OL Bolt 3/4x2 1/2 c/w ln 2 2 2 2
730001 “A” Frame Stiffener 1 1 1 1
853061 Cat #1 Hitch Pin 2 2 2 2
930161 Lower Quick Hitch Bushing 2 2 2 2
10 OL Lynch Pin 2 2 2 2
11 30036 “A” Frame 1 1 1 1
12 30162 Bushing Top Link 1 1 1 1
13 OL Bolt 3/4x4 c/w ln 1 1 1 1
14 52649 Op Manual Tube 1 1 1 1
15 OL Flange bolt/Nut 1/4x3/4 2 2 2 2
16 OL Bolt 1/2x3 c/w ln 1 1 1 1
17 30006 Upper Top Brace 1 1 1 1
18 OL Bolt 5/8x3 c/w ln 2 2 2 2
19 30016 Lower Top Brace 1 1 1 1

13
Item # Part # Description TC-5
Qty
TC-6
Qty
TC-7
Qty
TC-8
Qty
20 OL Bolt 1/2x3 1/2 c/w ln 1 1 1 1
21 53315 Spill Plate 1 1 1 1
22 52635 Gauge Drum 5’ 1
52630 Gauge Drum 6’ 1
52634 Gauge Drum 7’ 1
52632 Gauge Drum 8’ 1
23 54070 Bearing 2 2 2 2
24 30009 Bearing Bracket 2 2 2 2
25 OL Bolt 7/16x1 1/2 c/w ln 8 8 8 8
26 OL Bolt 1/2x2 c/w ln 6 6 6 6
27 53316 Spill Plate 1 1 1 1
28 30037 Leveler Frame 5’ 1
30038 Leveler Frame 6’ 1
30039 Leveler Frame 7’ 1
30040 Leveler Frame 8’ 1
29 30011 Leveler Adjuster Bar 2 2 2 2
30 OL Bolt 1/2x3 c/w ln 2 2 2 2
31 OL Bolt 1/2x2 c/w ln 2 2 2 2
32 30014 Spacer 2 2 2 2
33 OL Bolt 1/2x2 c/w ln 2 2 2 2
34 OL Carriage Bolt 5/8x2 c/w ln 7 8 910
35 52787 Leveler Wear Bar 5’ 1
53089 Leveler Wear Bar 6’ 1
53090 Leveler Wear Bar 7’ 1
53918 Leveler Wear Bar 8’ 1
Note:
c/w = Complete With
OL = Obtain Locally
ln = Locknut
Track Curry Parts

14
THIRD ANGLE PROJECTION
F
DETAIL F
SCALE 1 : 16
45
3
1
2
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Trac Curry\5 Ft Track Curry.SLDASM
DWG. NO.
REV
Model
SCALE 1:32
SHEET 4 OF4
DATE DRAWN
MATERIAL
5 Ft Track Curry
February-20-09 11:39:52 AM
DESCRIPTION
5Ft Track Curry
S:\Solidworks\Solidworks_Elo\Trac Curry\
Weight(lbs.)
0
Width Height Length
0 0 608.81 0
Blank Size Unit of Measure
ITEM ID.
30049
Config ID
Side wing eX
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING

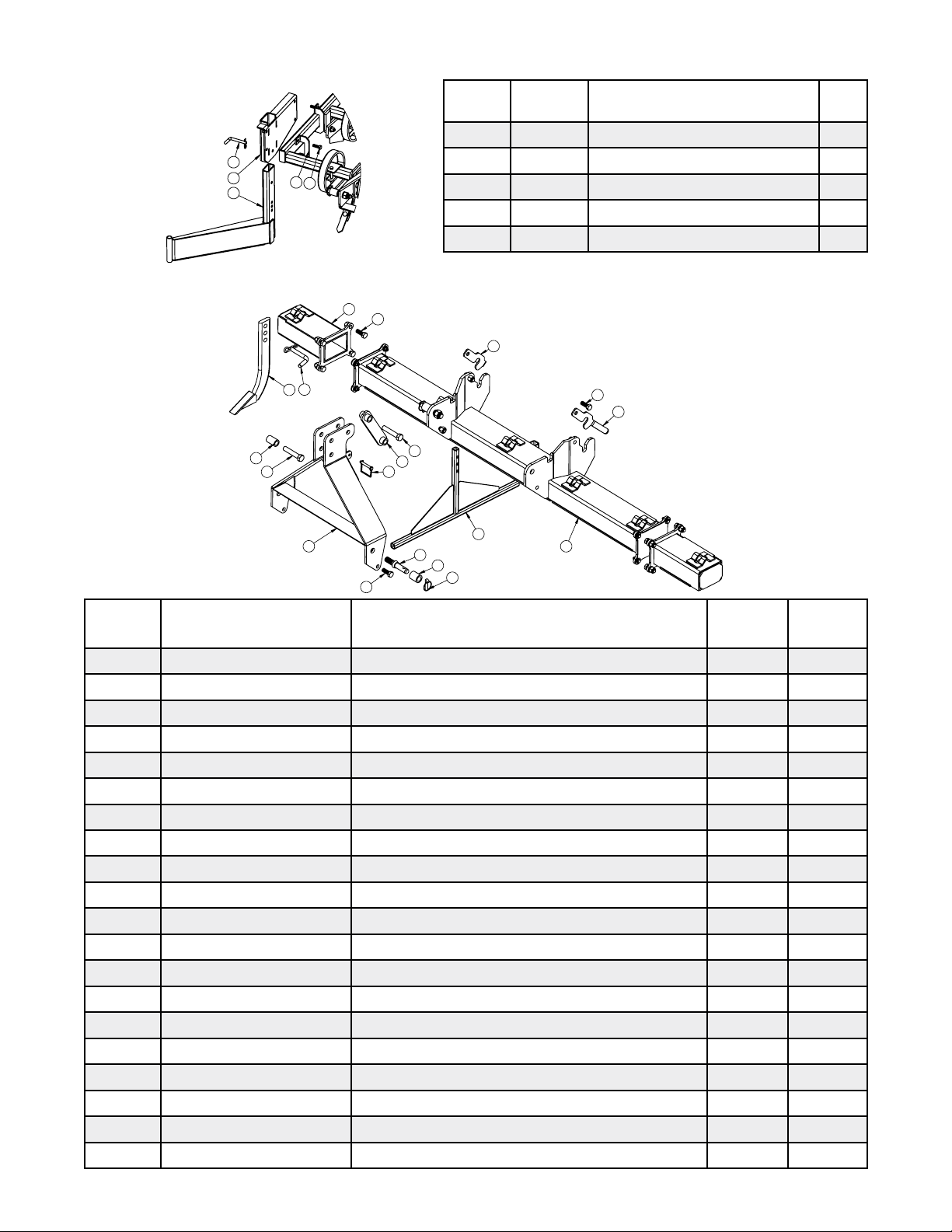

Item # Part # Description Qty
153748 1/2 bent pin 1
253187 Wing Holder 1
353192 Wing Blade 1
453193 Wing Clamp 2
5OL Bolt 1/2 x 1 1/2 c/w lw, n 4
Track Curry Opt. Wing Parts
THIRD ANGLE PROJECTION
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15
16
17
18
19
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Trac Curry\Scarifier\36277.SLDASM
DWG. NO.
REV
Model
SCALE 1:32
SHEET 2 OF2
DATE DRAWN
MATERIAL
36277
June-23-17 9:06:08 AM
DESCRIPTION
Scarifier Assembly
S:\Solidworks\Solidworks_Elo\Trac Curry\Scarifier\
Weight(lbs.)
0
Width Height Length
0 0 298.08 0
Blank Size Unit of Measure
ITEM ID.
36277
Config ID 36277
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
Item # Part # Description TCSA5
Qty
TCSA6
Qty
154074 5ft Main Beam 1
36279 6ft Main Beam 1
236286 Stand 1 1
353061 Cat. 1 Lift Pins 2 2
430161 Bushing 2 2
552656 Lynch Pin 2 2
6OL Bolt 5/8 x 1 3/4 c/w ln 2 2
736280 A Frame 1 1
830162 Bushing 1 1
9OL Bolt 3/4 x 4 c/w ln 1 1
10 52705 PTO Pin 1 1
11 36281 Top Link 1 1
12 OL Bolt 3/4 x 4 c/w ln 1 1
13 50219 Bent Hitch Pin 4-6 5-7
14 54064 Shank 4-6 5-7
15 36282 Scarier Extension ( TCSE12 ) 2 2
16 OL Bolt 5/8 x 1 3/4 c/w ln 8 8
17 36271 Latch Right 1 1
18 36270 Latch Left 1 1
19 OL Bolt 5/8 x 1 3/4 c/w ln 2 2
Track Curry Opt. Scarier Bar Parts

15
NOTES

16

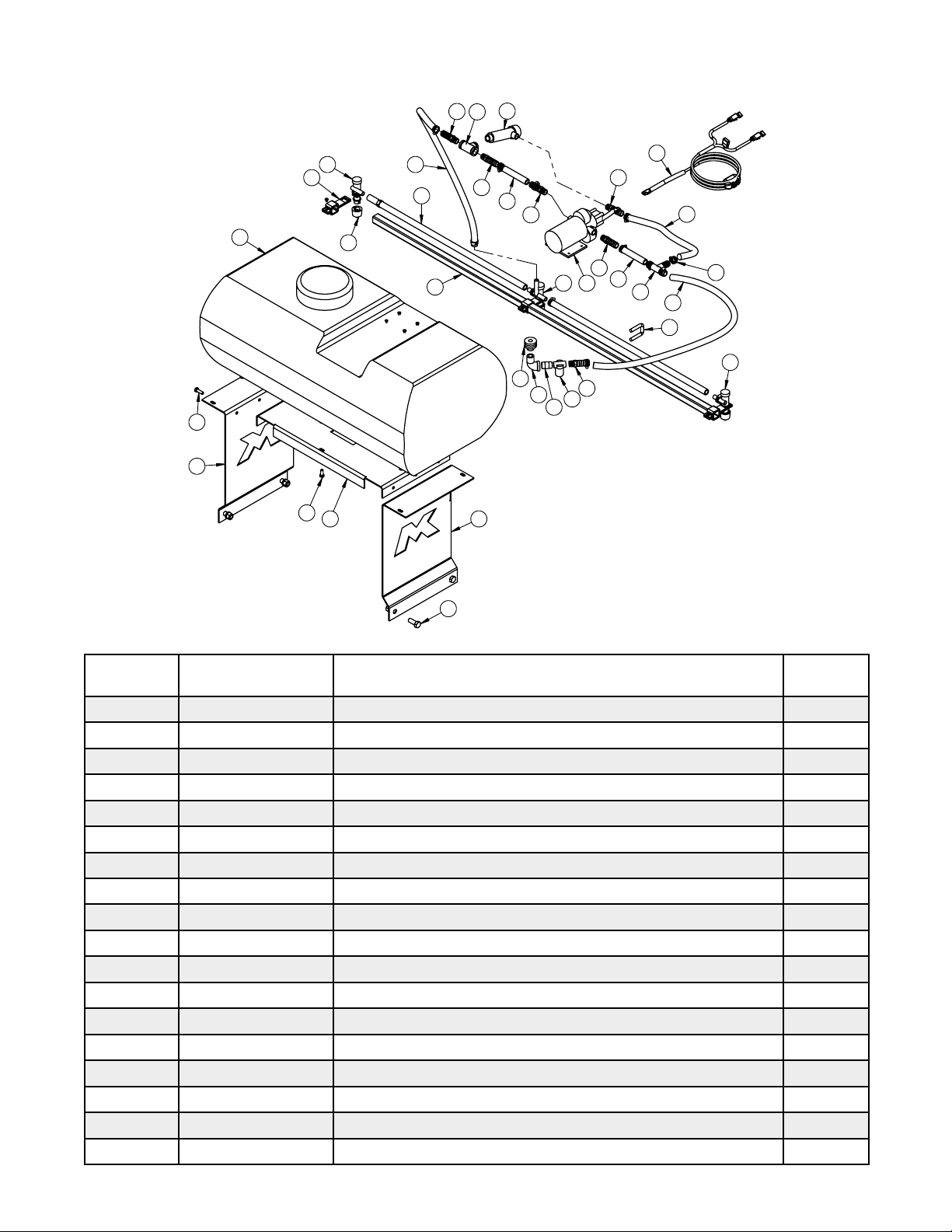

Track Curry Opt. Sprinkler System Parts
Item # Part # Description Qty
160000 Left side leg 1
2OL Bolt 1/2 x 1 1/4 c/w lw, n 4
360002 Tank support 1
4OL Bolt 5/16 x 3/4 c/w lw 6
560001 Right side leg 1
6OL Bolt 5/16 x 1 c/w lw, n 6
754083 Tank 1
860004 Boom tube 1
9OL UBolt 3/8-16 x 1-1/16 x 1-3/4 leg Sq c/w fw, lw, n 2
10 54084 Tank tting 1
11 54085 1/2 Street Elbow 1
12 54086 1/2 Close Nipple 1
13 54087 Line strainer 1
14 54100 1/2 Barb nipple 1 (x6)
15 60009 Suction hose 1
16 54099 1/2 Tee 1
17 60011 Hose 1 (x2)
18 54089 Pump 1
THIRD ANGLE PROJECTION
1
2
3
4
6
28
26
29
27
24
14 20
14
14
14
14
21
17
18
19
22
17
16
23
15
9
25
8
26
14
13
12
11
10
7
5
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Trac Curry\sprinkler system.SLDASM
DWG. NO.
REV
Model
SCALE 1:24
SHEET 2 OF2
DATE DRAWN
MATERIAL
sprinkler system
April-19-17 7:12:50 AM
DESCRIPTION
Sprinkler Assy.
S:\Solidworks\Solidworks_Elo\Trac Curry\Track Curry Sprinkler\
Weight(lbs.)
0
Width Height Length
0 0 78.25 0
Blank Size Unit of Measure
ITEM ID.
60003
Config ID
Parts exPlode
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
Front
Back

17
Track Curry Opt. Sprinkler System Parts
Item # Part # Description Qty
19 54075 Battery cable 1
20 54101 1/2 Tees 1
21 54091 Relief valve 1
22 60010 Bypass line 1
23 54092 Hose Clamp 14
24 60008 Boom supply hose 1
25 54102 Nozzle body triple 1
26 54103 Nozzle body 1 HB 2
27 60007 Hose 2
28 54104 Boom clamp 3
29 54105 Nozzle 3
SERVICE KITS
Kits are readily available to repair standard 2088 series pumps. Repair kits include simple illus-
trated instructions allowing easy installation. To insure that the correct kit is received the model
number and all name plate data must be included with the order. Contact a SHURo distributor
or SHURo directly to order the necessary repair kit.
1 Switch / Check valve and Upper Housing Kit
(Replaces all previous switch designs)
2 Valve plate assembly
3Diaphragm / Drive assembly
4Motor
5Complete Pump Head assembly (includes parts
# 1,2,3) (Replaces all previous switch designs)
Sprinkler System motor Parts

18
CAUTION: “Intermittent Duty” is dened as; operated and/or frequently started within a period
of time that would cause the motor to reach its maximum thermal limits. Once the maximum
thermal limit is obtained, the motor must be allowed to return to ambient temperature before
resuming operation.
CAUTION: DO NOT operate the pump at pressures which causes the motor to exceed the
amperes rating indicated on the name plate. Various pump models are equipped with thermal
breakers to interrupt operation due to excessive heat. Once the temperature of the motor is
within proper limits it will automatically reset, and the pump will start operation without warning.
CAUTION: To prevent electrical shock, disconnect power before initiating any work. In the case
of pump failure, the motor housing and/or the pumped uid may carry high voltage to compo-
nents normally considered safe.
PRESSURE SWITCH OPERATION
The pressure switch reacts to outlet pressure, and interrupts power at the preset shut-off pres-
sure indicated on the pump label. When outlet pressure drops below a predetermined limit (typi-
cally 15-20 psi.[1-1.4 bar] less than the shut-off pressure), the switch will close and the pump will
operate until the shut-off (high) pressure is achieved. The shut-off pressure is set to factory cali-
brated standards. See the motor label and Product Data Sheet for specic pump specications.
CAUTION: Failures due to improper adjustment of the pressure switch will not be covered
under the limited warranty. If the plumbing is restrictive or the ow rate is very low, the pump
may re-pressurize the outlet faster than the uid is being released causing rapid cycling (ON/
OFF within 2 seconds). If the pump is subjected to rapid cycling during normal operation, or for
infrequent periods, damage may occur. Applications which exhibit rapid cycling should have re-
strictions in the outlet minimized.
PLUMBING
• Flexible high pressure tubing compatible with the uid should be used to connect the inlet/out-
let ports. Tubing should be either 3/8” or 1/2” [10 or 13 mm] I.D., Allow for the shortest possible
tubing route and avoid sharp bends that may kink over time.
NOTE: Restrictions on the inlet may cause vacuum levels to reach the uid vapor pressure,
causing cavitation, degassing, vapor lock and a loss in performance. Inlet pressure must not
exceed 30 psi.[2.1 bar] maximum.
• 1/2” Male threaded models: Are intended to be used with SHURo Swivel Barb Fittings which
seal with an internal taper when hand tightened. Standard 1/2” NPT ttings may be used when
tightened to a maximum torque of 3.7 ft\Lb (45 in\Lb) [5 Nm].
NOTE: SHURo does not recommend the use of metal ttings or rigid pipe to plumb the inlet/
outlet ports. Standard plastic male and female threaded are recommended.
CAUTION: Sealers and Teon tape may act as lubricant causing cracked housings or stripped
threads due to over tightening. Care should be used when applying sealers. Sealers may enter
the pump inhibiting valve action, causing no prime or no shut-off. Failures due to foreign debris
is not covered under warranty.
• Installation of a 50 mesh strainer is recommended to prevent foreign debris from entering the
pump.
• If a check valve is installed in the plumbing, it must have a cracking pressure of no more than
2 psi [.14 bar].
Sprinkler System Operation
