MK MK-Manta I Operation manual

Manual Part No. 161115
Revision 03/05
MK-MANTA I
Model MK-Manta I
Core Drill
Owner’s Manual
Parts List &
Operating
Instructions
serial number
For your one (1) year warranty to
be effective, complete the warranty
card (include the serial number) and
mail it in as soon as possible.
please record the serial number of
your drill in this block.
CAUTION
READ SAFETY
AND GENERAL
INSTRUCTIONS
CAREFULLY
BEFORE USING
SAW FOR THE
FIRST TIME.

1MANTA I
Revision 03/05, Effective Date March 2, 2005
General Safety Instructions 2
Safety Messages and Symbols 3
Hazard Symbols 3
Damage Prevention Messages 3
Safety Labels 3
Drill Features
Motor 4
Carraige, Column and Base 4
Vacuum Base and Pump 4
Water System 4
Unpacking 5
Assembly
Main Assembly 6
Feed Handle and Meter Box 6
Vacuum Base Gasket 6
Final Assembly 6
Drilling Operations
Electrical Requirements 7
Grounding 7
Extension Cords 7
Securing the Rig 8
Drilling Speeds 9
Drilling Pressure and the Ammeter 9
Water Supply 9
Carraige Rigidity 10
Shear Pin and Clutch Protection 10
Mounting Bits 10
Drilling Procedure 10
Deep Drilling 12
Maintenance
Cleaning 12
Vacuum Base Gasket 12
Trouble Shooting 13
Warranty Information 14
Exploded View & Parts List

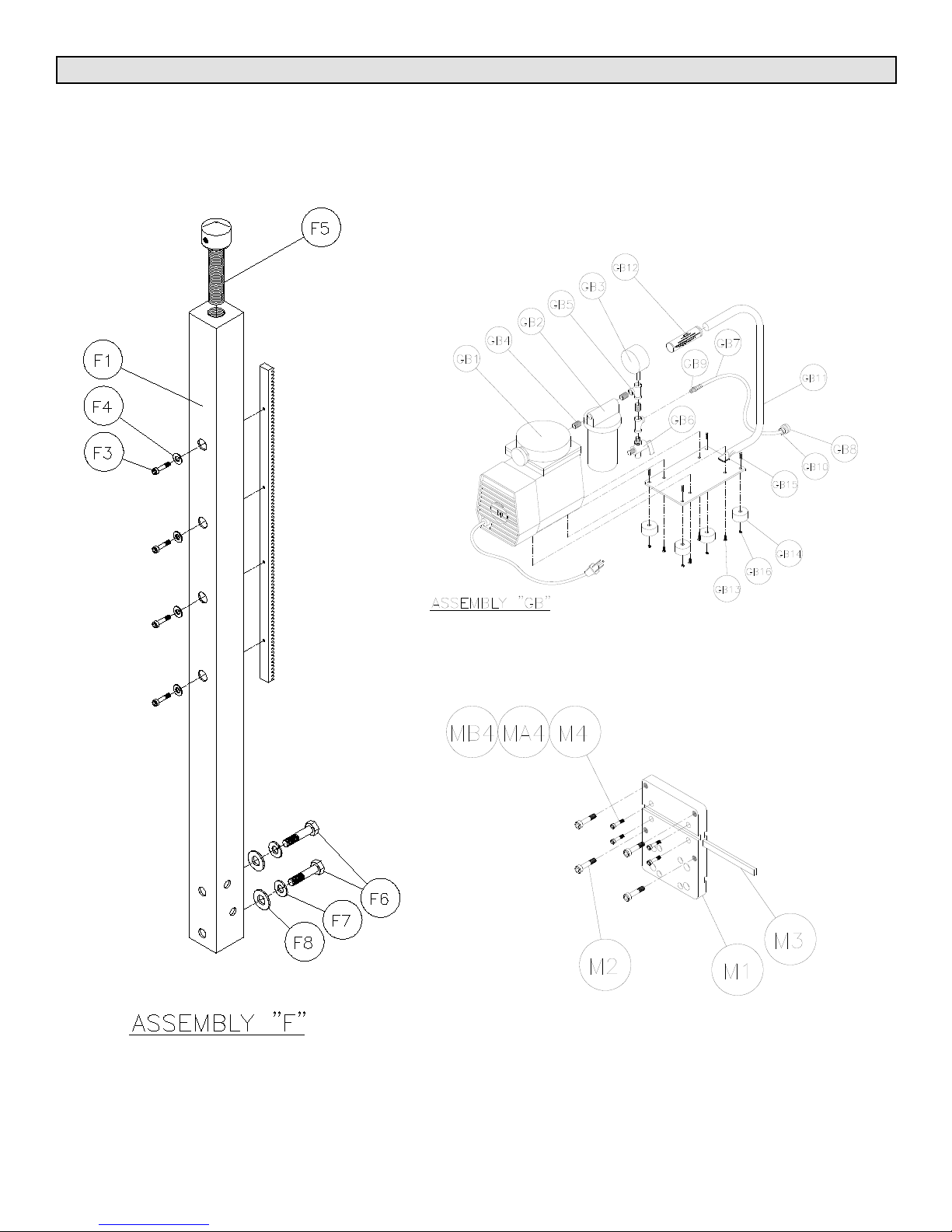

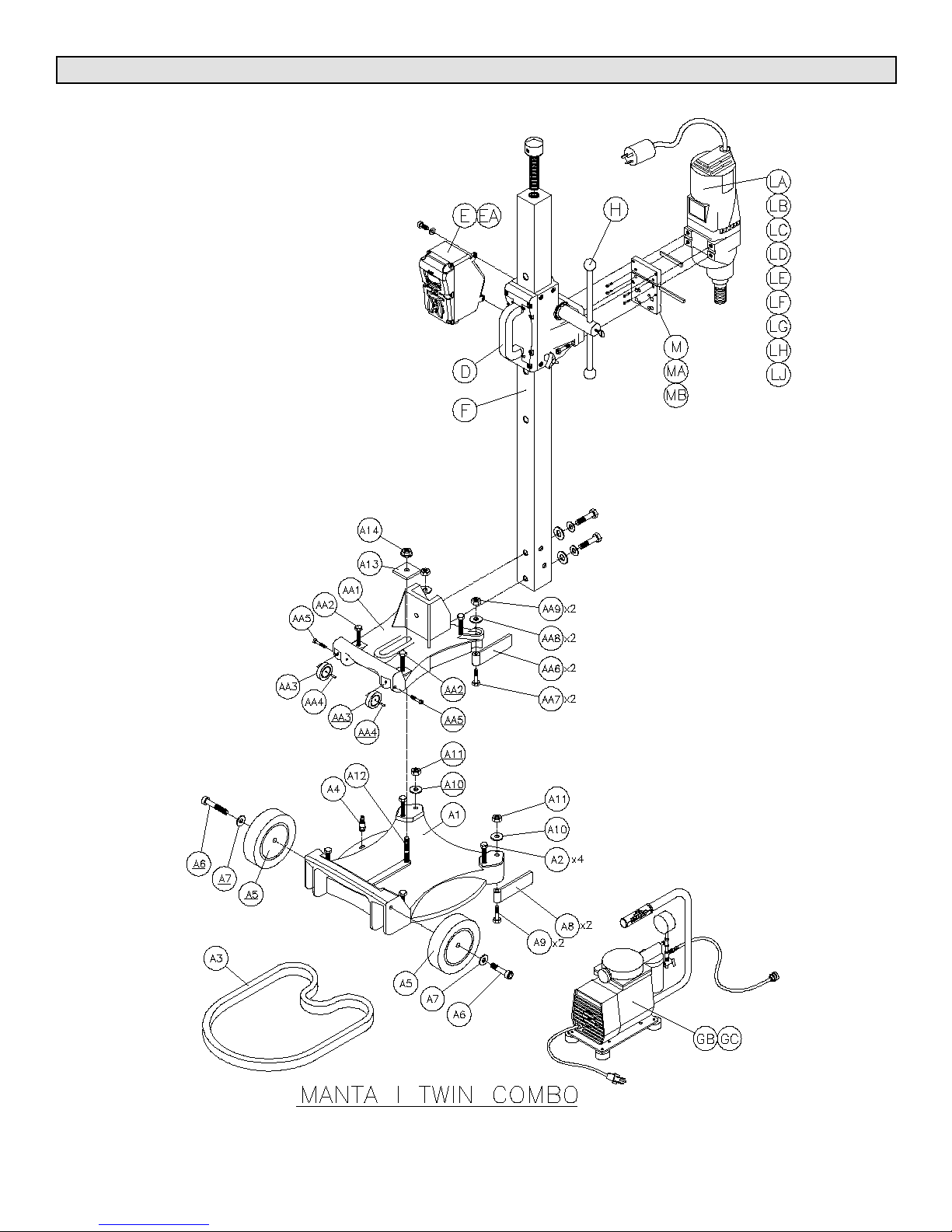

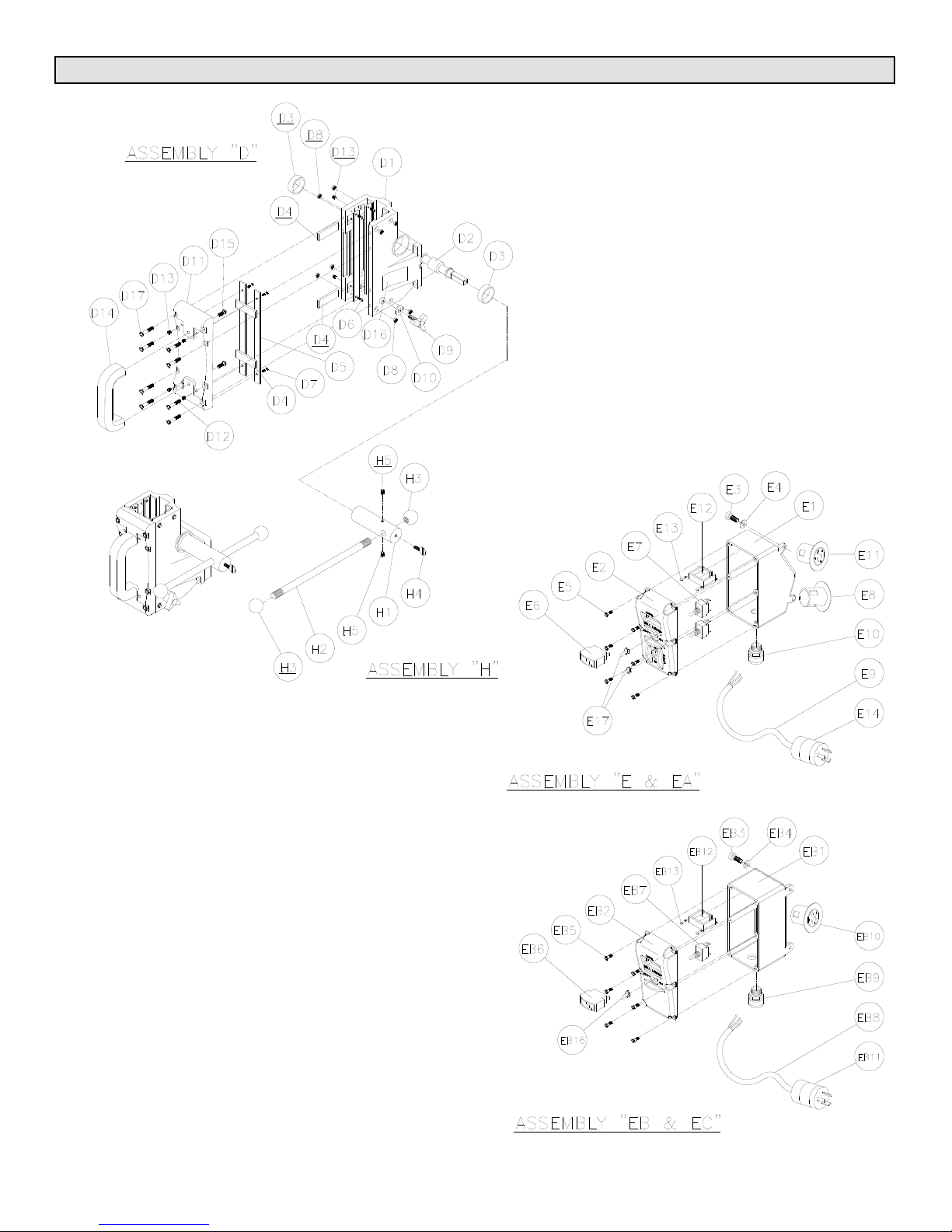

Exploded View 15-18
Parts List 19-21
MK Diamond Authorized Service Center Back Cover
How to Order Repair Parts Back Cover
Returned Merchandise Policy Back Cover
MK Diamond’s Manta I Core Drill - Operators Manual

2MANTA I
Revision 03/05, Effective Date March 2, 2005
3
MANTA I Revision 03/05, Effective Date March 2, 2005
For your Safety!
These safety precautions should be followed at all times. Failure to follow these
safety precautions could result in injury to yourself and others. Safety is a
combination of operator common sense and alertness at all times when this drill
rig is being used.
For your own safety and protection, do not attempt to operate the drill until it is
completely assembled and installed according to the instructions, and until you
read and understand all safety and operating instructions.
Take time to read and understand fully the owners manual and all safety labels
attached to the core drill.
Use safety equipment. Everyone in the work area should wear safety goggles
or glasses with side shields complying with current safety standards. Wear
hearing protection during extended use and a dust mask for dusty operations.
Hard hats, face shields, safety shoes, etc. should be used when specified or
necessary.
Use the right tool. Do not use a tool or attachment to do a job for which it is not
recommended. Do not alter the tool.
Keep your work area clean and safe to avoid accidents. Maintain a safe zone
and keep all visitors at a safe distance from the work area.
Always insure that the switch is off before plugging unit into electrical power.
Never leave the drill running unattended. Turn power off.
Do not over reach, maintain control. Keep proper footing and balance at all
times. Maintain a firm grip. Use extra care when using the tool on ladders,
roofs, scaffolds, etc.
Maintain all tools with care for the safest and best performance.
Should any part of this drill become missing or damaged, or any component fail
to perform properly, shut off the drill and unplug the power source. Replace the
missing, damaged, and/or failed part before resuming operations.
Always keep alert. Do not allow familiarity (gained from frequent use) to cause
a careless mistake. Always remember that a careless fraction of a second is
sufficient to inflict serious injury.
Think Safety The operation of any power tool can result in foreign objects
being thrown into the eyes causing severe damage. Use safety goggles to
comply with ANSI Z87.1.
FORESIGHT IS BETTER THAN NO SIGHT
General Safety Instructions for the MK-Manta I Core Drill
((
)
)
on
((
))
on

2MANTA I
Revision 03/05, Effective Date March 2, 2005
3
MANTA I Revision 03/05, Effective Date March 2, 2005
A safety message informs you about potential hazards that could hurt you or
others. Each safety message is preceded by one of the three words: Danger,
Warning, or Caution.
You WILL be KILLED or SERIOUSLY injured if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY injured if you don’t follow instructions.
You CAN be injured if you don’t follow instructions.
Additional information as to the nature of the hazard is provided by the following
hazard symbols, which appear throughout the manual in conjunction with safety
messages.
Never touch electrical wires or
components while the drill is running. They can be sources of electrical shock
which could cause severe injury or burns.
Before performing any maintence or service on this equipment, always turn
the switch off and unplug the drill from the power source to prevent accidental
starting.
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury.
Other important messages that are designed to help prevent damage to your
MK Diamond Manta Core Drill, other property, or the environment, are preceded
by the word notice.
Notice: Your MK-Manta I Core Drill or other property could be damaged if you
don’t follow instructions.
Safety labels contain important safety information. Please read them carefully.
These labels are considered a permanent part of your drill. If a label comes off
or becomes hard to read, contact MK Diamond or your dealer for replacement.
Safety Messages
Hazard Symbols
Damage Prevention
Messages
Safety Labels
(
(
))
on
(
(
)
)
on
Electrical Shock!
(
(
)
)
on
Accidental Starts!
(
(
)
)
on
Rotating Parts!
DANGER
!
WARNING
!
CAUTION
!

4MANTA I
Revision 03/05, Effective Date March 2, 2005
5
MANTA I Revision 03/05, Effective Date March 2, 2005
Drill Features
Manta I Core Drilling Machine
Motor
Carraige,
Column and
Base
Vacuum
Base and
Pump
Water System
The MK-Manta I Core Drill is a powerful all-purpose drilling rig that is designed
to drill holes, up to 12 inches in diameter (14 inches with the 2 inch spacer), in
all types of concrete slabs, floors, walls, and ceilings. The Manta is designed for
easy anchoring using masonry anchors. A secondary vacuum base is provided
to facilitate quick and easy anchoring to smooth floor surfaces.
The Manta is designed for use with a variety of motors. All motors are powerful
two or three speed units that provide the correct cutting speed over a range
of diamond drill sizes. Some models utilizes a shear-pin system for motor
protection, while some others utilize a slip-clutch. See the Drilling Speeds
section of this manual.
The carraige, column and base assembly of the Manta I Core Drill is the strong,
sturdy drilling platform that provides the rigidity needed to quickly drill accurately
placed, straight, smooth holes in all types of concrete. The Manta’s base is
slotted to provide easy anchoring of the drill, in a variety of drilling situations,
with a single masonry anchor. The slot also allows more than one hole to be
drilled from a single anchor location. The base contains four leveling screws to
insure accurate hole alignment even on uneven concrete surfaces. The base
also has a cast in handle and a set of wheels to provide easy transport.The
carraige travel is controlled by a strong rack and pinion gear-system, that can
be locked at any point on the column. The slidding handle allows the operator
to easily control the drilling pressure and speed. At the top of the column is
a strong jack-screw that allows for additional bracing to overhead or opposite
surfaces.
The vacuum base and pump provide quick and reliable mounting to smooth
concrete slab and floor surfaces. The powerful vacuum pump provides 25 PSI of
holding power which equates to over 1800 pounds of force, holding the Manta
securely, for safe, accurate drilling. The pump has a quick disconnect connector
on the hose, as well as an ergonomic handle, to provide ease of transport. The
vacuum base also features leveling screws, a cast-in handle and six inch (6”)
wheels.
The water system for the Manta is a simple hose hook-up and shut-off valve
that provides water under pressure to the diamond drill bit. The water travels to
the center of the bit through the water swivel and spindle to insure that water is
supplied to the cutting end of the bit, even in deep drilling operations.

4MANTA I
Revision 03/05, Effective Date March 2, 2005
5
MANTA I Revision 03/05, Effective Date March 2, 2005
Unpacking Carefully cut through the carton approximately 6 inches from the bottom using a
box cutter or other safety knife, and lift away the top portion of the box. Remove the
Accessory Pack, Vacuum Pump and Manta Core Drill. Open the accessory pack and
check each item with the contents list and illustration below, making certain that all
items are accounted for and in good condition before discarding any packing material. If
there are any missing or damaged parts, call our toll free number 1-(800)-421-5830 for
instructions before proceeding with the assembly.

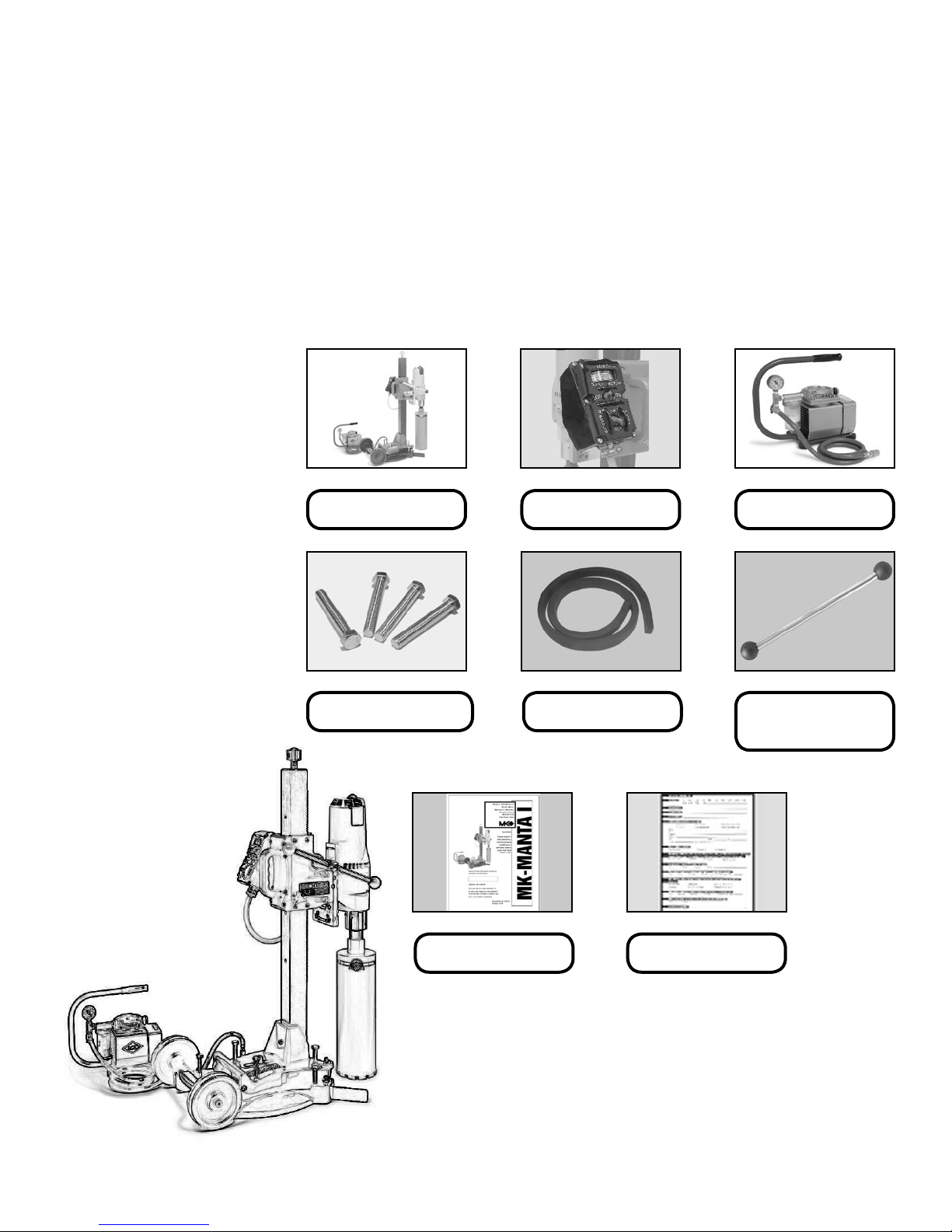

Contents of the carton: Manta (including column, carraige, both bases and motor),
Vacuum Pump and Accessory Pack.
In the Accessory Pack you will find: Control box, leveling screws (8), feed handle (1)
and knobs (2), vacuum base gasket, wrench, Manta manual, Manta warranty card,
motor manual and motor warranty card.
Base GasketLeveling Screws Feed Handle and
Knobs
Manta and Vacuum
Pump
Control Box Vacuum Pump
CONTENTS
Manta Manual Warranty Card

6MANTA I
Revision 03/05, Effective Date March 2, 2005
7
MANTA I Revision 03/05, Effective Date March 2, 2005
Vacuum Base Gasket
Final Assembly
Assembly
Main Assembly
Feed Handle and
Meter Box
For your own safety and protection, do not attempt to operate this drill until it is
completely assembled and installed according to these instructions, and until
you understand the machines capabilities and the potential hazards associated
with it.
Step 1 The Manta I is shipped with the main part of the Manta mounted
backwards on the Vacuum base. Remove the nut and bolt that hold the main
assembly to the Vacuum base observing the following precaution. Turn the
Vacuum base around to the correct orientation, slide the small base all the way
back on the vacuum base, and reinstall the nut and bolt.
When removing the nut and bolt that holds the main assembly to the vacuum
base, the Manta will tip forward. Be sure to hold the Manta when removing the
vacuum base.
To set the Manta so that it will stand up, loosen the carraige lock knob (be sure
to hold the carraige) and move the carraige down to a position where the end of
the motor spindle just touches the ground.
Step 2 Install the leveling screws (8), screwing four (4) into each base.
Step 3 Install the feed handles (1) and knobs (2) by screwing one knob onto
the end of the handle, then slip thru hub and attach other knob.
Step 4 Remove the Manta from the vacuum base by removing the nut and
bolt that holds the main assembly to the vacuum base. Set the Manta aside,
observing the following precaution.
Turn the vacuum base over. Press the gasket into the groove in the underside of
the base. The gasket is cut, at the factory, to the correct length, so that the two
ends will butt together once the gasket is installed.
Step 5 Assemble the two pieces of the water valve, and install the valve, into
the water swivel, on the motor, just above the spindle (see motor literature).
Plug the cord from the motor into the upper outlet on the meter box (the one
opposite the motor on-off switch. The other outlet on the meter box is for the
vacuum pump.
WARNING
!
CAUTION
!

6MANTA I
Revision 03/05, Effective Date March 2, 2005
7
MANTA I Revision 03/05, Effective Date March 2, 2005
The MK-Manta I Core Drill rig has been equipped with either a 20 Amp/115V 3
speed motor, a 20 Amp/120V 2 speed motor, or a 15 Amp/115V 2 speed motor.
The drill should be used on an electrical circuit, separate from other loads, and
protected by a 30 amp circuit breaker.
The MK-Manta I has been provided with a 20 Amp plug (NEMA 15-20) or a 30
Amp (NEMA 15-30) locking plug depending on the model.
The MK Manta is marked “Grounding Required” and has a three wire cord and
three prong grounding plug. The plug must be connected to a properly grounded
outlet (see figure below). If the tool should electrically malfunction or break
down, grounding provides a low resistance path to carry electricity away from
the user, reducing the risk of electrical shock.
The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding systems and must never be attached
to an electrically live terminal.
Your tool must be plugged into an appropriate outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet
should look like those in the figure to the left.
Improperly connecting the grounding wire can result in the risk of electric shock.
Check with a qualified electrician if you are in doubt as to whether the outlet
is properly grounded. Do not modify the plug provided with the tool. Never
remove the grounding prong from the plug. Do not use the tool if the cord or
plug is damaged. If damaged, have it repaired by an authorized service facility
before use. If the plug will not fit the outlet, have a proper outlet installed by a
qualified electrician. The use of a circuit protected by a ground fault interrupter
(GFI) is highly recommended.
Use extension cords of the proper cable size, referring to the following chart.
Cord Length 25 feet 50 feet 75 feet
Wire Size (AWG) #10 #8 #6
Never use an extension cord smaller than shown in the chart. Be sure your
extension cord is properly wired and in good electrical condition. Always replace
a damaged extension cord or have it repaired by a qualified electrician before
using it.
Protect your extension cords form sharp objects, excessive heat and damp or
wet areas.
Notice: Using an extension cord with inadequately sized wire causes a serious
drop in voltage, resulting in loss of power and possible tool damage.
NEMA L5-20 125 V, 20 Amp
Locking Plug and receptacle
Grounding
blade
Cover of grounded outlet
box
Extension Cords
Drilling Operations
Electrical Requirements
Grounding
Ý
Ý
NEMA L5-30 125 V, 30 Amp
Locking Plug and receptacle
Grounding
blade
Cover of grounded outlet
box
Ý
Ý
WARNING
!
WARNING
!

8MANTA I
Revision 03/05, Effective Date March 2, 2005
9
MANTA I Revision 03/05, Effective Date March 2, 2005
Securing the Rig
Recommended
Methods
A. Use a concrete anchor. Use either a 1/2 or 5/8 concrete anchor to secure
the base to the work surface. Always be sure to level the rig. Using a concrete
anchor, insert a bolt through the slot located on the base and tighten the bolt
firmly in the anchor.
It is essential to always secure the rig to the work surface to help prevent
personal injury and also to protect the rig. An unsecured rig could rotate during
drilling and possibly cause injury. It could also cause the bit to chatter against
the work surface or bind in a hole, which can fracture the diamond segments.
B. Vacuum base. The MK-Manta I Core Drill Rig is equipped with a vacuum
base. This base is designed to provide approximately 1800 pounds of total
holding power. In order to provide the most rigidity to your core rig the unit
should be used on a relatively smooth surface such as concrete. (If the surface
is too porous or rough the vacuum mount may not hold securely.)
1. Turn the vacuum pump on and step on the vacuum base until a vacuum is
created and the base adheres to the work surface.
2. Level the rig using the leveling bolts. Use a minimum amount of adjustment to
the leveling bolts to avoid breaking the vacuum seal.
The vacuum gauge should read approximately 25 pounds per square inch
(PSI) of pressure. If the gauge reads 20 PSI or less, check the work surface
for conditions which may interfere with adequate suction such as cracks, dirt or
debris on a porous surface.
Do not drill if the gauge reads less than 20 PSI. Do no use vacuum base on
cracked, uneven, porous or vertical surfaces.
C. Additional support. For added rigidity, you may use a telescoping extension
assembly in conjunction with a concrete anchor or vacuum base. To use a
telescoping assembly, first level the rig with the leveling screws. Secure the
rig with an anchor or the vacuum base. Place the top flange of the extension
against a ceiling or wall and place the other end on the jack screw of the
column. The assembly is adjustable up to 14 feet. Use the jack screw to tighten
the assembly and to make small adjustments.
The MK-Manta I features two speed motors by Milwaukee and a three speed
motor by Eibenstock. Specifications for the different motors are listed in the
following table.
WARNING
!
WARNING
!

8MANTA I
Revision 03/05, Effective Date March 2, 2005
9
MANTA I Revision 03/05, Effective Date March 2, 2005
The MK-Manta I will operate in either a high or low gear speed. This speed combined
with applied pressure provides the cutting action for the core bit. Speed selection and
pressure are determined by hardness of material, aggregate size and grade of diamond
core bit. Generally, harder material and larger aggregates require more speed and
pressure. Use low speed for large diameter bits and high speed for small diameter bits.
Changing of the speeds is accomplished by using the speed shift lever built into the
gear case.
Notice: Change the gears only when the motor is off.
All building materials and work surfaces are composed of aggregate of various size.
Aggregates are materials such as gravel or crushed stone. The size of the grains and
the hardness of the material affects the speed of drilling. Most building materials contain
some type of steel reinforcements. All MK bits are designed to cut through these types
of reinforcing steel. However, bits should never be used for drilling solid steel plates.
Proper selection of the diamond core bit should be based on material to be drilled and
performance requirements.
Steady, even pressure assures accurate holes and longer bit life. Always maintain
consistent pressure so that the bit is constantly cutting.
Notice: Too much pressure will damage the bit and motor. Too little pressure will
glaze over the diamonds, reducing cutting efficiency and prematurely wearing the bit.
The ammeter is the gauge on the Control Box. It provides pressure feedback information
during drilling, allowing the operator to help prevent motor overload and premature bit
wear. The green area is the operating range, and the red area is the overload range.
Generally, the operator should keep the ammeter needle in the upper area of the
operating range for large diameter bits, and in the lower green area for small diameter
bits. If the bit contacts steel reinforcing rods, the needle on the ammeter may jump
slightly showing a heavier load. If this occurs, do not decrease pressure or you may
damage the diamonds. The Manta may be operated with the ammeter needle into the
red area for the short period of time that it takes to cut through a steel rod.
An adequate supply of clean water is necessary for drilling. Connect the water supply
hose to the hose fitting on the output of core drill motor. Take precautions that the water
supply will not be interrupted during the drilling operations.
Notice: If a bit is run dry it can be ruined in a few seconds.
Water Supply
Drilling Speeds
Drilling Pressure
and the Ammeter
LOW
HIGH
A
M
P
S
20
15
18
Manufacturer Model # AMP Volts Speed(RPM) Suggested Dia. in
Medium Aggregate
Eibenstock EBM
300/3 P
20 120 Low – 270
Medium – 700
High – 1250
Low – 4”
Medium – 2”-6”
High – 3/4”-4”
Milwaukee 4004 20 120 Low – 300
High – 600
Low – 4”
High – 14”
Milwaukee 4090 15 120 Low – 375
High – 750
Low – 5”-8”
High – 2 1/2”-5”
Milwaukee 4094 20 120 Low – 450
High – 900
Low – 6”-10”
High – 2”-6”
Milwaukee 4096 20 120 Low – 450
High – 900
Low – 6”-10”
High – 2”-6”
Milwaukee 4097-20 15 120 Low – 500
High – 1000
Low – 1 1/4”
High – 5”

10 MANTA I
Revision 03/05, Effective Date March 2, 2005
11
MANTA I Revision 03/05, Effective Date March 2, 2005
Mounting Bits
Drilling Procedure
Carriage Rigidity
Shear Pin and
Clutch Protection
It is essential that the carraige fits snugly on the column to prevent the motor or
bit from wobbling during drilling. Through normal use the carraige may loosen
from the column and begin to wobble. Before drilling, always make sure the
carraige is rigid by trying to wiggle it with your hand. If the carraige is secure it
should not move. If it does move, tighten the adjustment screws for the nylon
gibs that secure the carraige to the column.
Tighten only enough to remove the play. Do not over tighten.
The MK-Manta I Core Drill uses either a shear pin or a friction clutch to protect
the gear and motor against overload. The shear pin drives the outer portion of
the drive spindle. If the motor should overload the pin will shear. Extra shear
pins are supplied or can be ordered from MK Diamond’s Customer Service.
Tighten only enough to remove the play. Do not over tighten. Another model
features a friction clutch rather than a shear pin to protect the motor and gears.
If the motor overloads the clutch will begin to slip and the bit will stop rotating.
The clutch is factory-set and does not require adjustments. However, under
normal use, the clutch may start to slip at low torque. If this happens, refer to the
motors Owner’s Manual.
Bits with permanently attached adapters simply screw directly onto the threads
of the drill spindle. Ensure that the end of the bit butts up squarely against the
shoulder on the spindle.
The MK-Manta I has a 1 1/4”-7 thread. For bits with other threads, use a shaft
coupling. After a bit has been mounted, turn the power on and check that there
is a minimum of run-out or wobble.
To reduce the risk of injury, always unplug tool before attaching or removing
accessories. Only use specifically recommended accessories. Others may be
hazardous.
When drilling through concrete floors, the core will generally drop from the
diamond bit. Caution should be provided for people and property below the
drilling area.
1. Ensure that you have read and fully understand the complete operation of the
MK-Manta I you have purchased prior to commencing drilling operations.
2. Select and install a diamond core bit appropriate for the job. Note: Grease the
bit threads to help prevent the bit from seizing on the spindle due to rust.
3. Select either high or low gear speed according to the chart in the Drilling
Speeds section of this manual. (Do not shift speed when motor is on.)
4. Connect water hose to water swivel.
5. Secure the rig as described in the Securing the rig section of this manual.
WARNING
!
WARNING
!

10 MANTA I
Revision 03/05, Effective Date March 2, 2005
11
MANTA I Revision 03/05, Effective Date March 2, 2005
If using the vacuum base, do not continue operations unless the vacuum gauge
reads more than 20 inches of mercury. Normally, the gauge will read 23 inches
or more.
6. Turn the motor switch on the Control box ON. Turn the water ON so that an
adequate flow of water is supplied through the water swivel, to the bit. Hold the
handle and slightly loosen the carriage lock knob. Slowly rotate the handle to
lower the bit into the work piece - apply steady even pressure.
Note: To prevent the bit from wandering, always use a light load to start the
hole and wait for the diamond tip of the bit to penetrate the work surface before
increasing the load.
7. Use consistent pressure so that the bit cuts consistently. Insufficient pressure
will cause the diamond core bit to glaze over. Too much pressure will overload
the motor and crush the diamonds. Use the ammeter on the Control box as a
guide for proper pressure.
If the rig shifts during drilling, stop the motor, reposition the rig, and resume
drilling.
8. Monitor the water flow. If the water flow is adequate, the water leaving the cut
should be slightly sludgy. When cutting metal rebar, the water should have a
gray metal coloring.
Notice: When drilling into prestressed concrete the bit may cut into the hardened
steel cable under tension. As the bit cuts through each strand, the tension in the
cable is released. The diamond segments on the bit crown can be damaged by
the loose wires. The best prevention for bit damage is to use a core bit designed
especially for drilling in prestressed concrete.
9. When the cut is complete, keep the drill motor on and rotate the handle to
bring the bit up out of the hole. The bit may become stuck if the motor is turned
off before the bit is completely clear of the hole. Once the bit is clear of the hole,
tighten the carraige lock knob, turn off the motor and the water supply.
Note: Normally the core will drop out of the bit, and remain in the hole. However,
in cases where the core sticks in the bit, it is sometimes necessary to push
the core up and down with the water running to allow the core to drop out.
Sometimes very light tapping on the barrel of the bit with a piece of wood will
loosen the core.
Perform this action only with the motor turned off and the unit unplugged
to prevent accidental starting and injury. Exercise extreme caution in hand
placement when removing a stuck core, as it can be heavy and inflict injury.
WARNING
!
CAUTION
!
CAUTION
!

12 MANTA I
Revision 03/05, Effective Date March 2, 2005
13
MANTA I Revision 03/05, Effective Date March 2, 2005
Cleaning
Vacuum Base Gasket
Deep Drilling
Maintenance
When drilling holes that are longer than the core bit, follow the steps below.
1. Begin drilling the hole as usual. When you have drilled to the length of the bit,
retract the bit from the hole and turn off the motor and water as usual.
2. Break off the core by driving a chisel or slender wedge into the circular kerf.
Remove the core using core tongs, bent music wire or anchor bolts.
3. After removing the core, insert the bit carefully into the hole, attach a bit
extension to the bit and core drill rig, then continue drilling as usual.
Periodic maintenance, including cleaning, lubrication and inspection for wear
and damage are routine servicing procedures. Following the procedures as
outlined can prevent serious damage or malfunctioning of the machine, and aid
in preserving the useful life of core drill bits.
Before performing any maintenance to the MK-Manta I, always unplug the unit
from the electrical power source. Be sure the On-Off switches are in the Off
position, after servicing, and before plugging the unit back in.
Clean the machine after use, being careful to remove dust and slurry from the
motor, vents, carraige and column. Keep tool handles clean, dry and free of oil
and grease. Use only mild soap and a damp cloth to clean this tool since certain
cleaning agents and solvents are harmful to plastics and other insulated parts.
Never use flammable or combustible solvents around tools.
Through normal use, the rubber gasket on the underside of the vacuum base
can become worn, requiring replacement. Periodically check the gasket for
wear. If replacement is required, clean the groove in the base before installing a
new gasket.
(
(
)
)
on
WARNING
!
CAUTION
!

12 MANTA I
Revision 03/05, Effective Date March 2, 2005
13
MANTA I Revision 03/05, Effective Date March 2, 2005
PROBLEM
Low
Penetration
Rate Under
Prevailing
Drilling
Paramters
Heavy
Wear at
Steel Tube
No return of
fluid
WHAT TO DO?
1. Check fluid
return.
2. Check motor
speed range
3. Check wear
picture of bit
face
Check where
fluid is leaking.
INDICATION
Fluid not muddy.
Evidence of steel
cuttings
Bit worn out.
Diamond without
exposure.
(flush with matrix)
Face of bit
plugged with
cuttings
Face of bit
covered with steel
Steel cuttings stick
to bit face.
Wear picture of
polished diamonds
Deep grooves.
Heavy Wear.
SOLUTION/ RECOMMENDATIONS
Adjust drilling parameters to
recommendations for reinforcement
See recommended
speeds
Replace with new bit
Increase bit load
Reduce RPM, or resharpen bit
Break core, clean bottom of hole or
reduce RPM and drill with increased
bit load
Clean bit face by sharpening methods
such as drilling dry at low RPM in a
concrete block 3/8” deep max.
Increase water flow rate
Clean bit face by drilling in concrete
block.
Reduce RPM
Increase bit load
Use lower speed; increase bit load
Adjust guidance on carraige
Adjust guidance on carraige
Nicks or dirt on mounting faces
Replace bit.
Improve flushing.
Replace bit
If Leaking can be tolerated; continue
drilling with increased attention.
CAUSE
Drilling in steel
reinforcement
Speed not correct for
the bit size used
Insufficient bit load
Rotated with
high RPM on
reinforcement
Loose material at
bottom of hole
Not enough fluid
pumped. Cuttings
burnt to matrix.
Diamonds prevented
from cutting
Steel cuttings stick to
bit face. Diamonds
prevented from
cutting
Bit load too low
Bit speed too high
Worn or open guide
ways on cradle.
Borehole is getting
undulated
Protruding steel.
Spindle is offset.
Bit out of true
Bit is deformed.
Poor cleaning of
abrasive cuttings.
Crown clearance
worn out.
Troubleshooting When trouble occurs, be sure to check the simple causes which, at first, may
seem too obvious to be considered. Refer to the table below for problems and
their possible causes.

14 MANTA I
Revision 03/05, Effective Date March 2, 2005
15
MANTA I Revision 03/05, Effective Date March 2, 2005
If within one (1) year from the date of purchase, this MK Diamond drill
fails due to a defect in material or workmanship, MK will repair it, free
of charge, by returning the unit to the dealer where it was purchased.
This warranty DOES NOT cover normal wear or damage resulting from
operator abuse. In no event shall MK Diamond Products, Inc. be liable
for consequential damages arising out of the failure of any product if
operating improperly. Selected components such as motors/engines
are excluded from this warranty and are subject to the manufacturer’s
warranty. Each manufacturer carries its own warranty conditions which
are listed on the literature accompanying the motor/engine at the time
of purchase. MK Diamond Products may act as a warranty station
for the motor/engine repairs based on individual agreement with the
manufacturer. This warranty is in lieu of all other warranties expressed or
implied.
Warranty Information
PROBLEM
Bit Stuck
Shear Pin Fail
WHAT TO DO?
1. Try to raise
bit, if impossible:
2. Stop rotation
1. Stop rotation
2. Raise bit
INDICATION
Loose material
(cut steel or
aggregates) is
blocking between
core and bit or
between borehole
and bit.
Drill moved during
drilling (poor
fastening).
Bit deviates, guide
ways on cradle
have too much
clearance.
No clearance
between tube I.D.
or O.D. and crown
I.D. or O.D.
Drill impacted
to stall at lower
speeds.
SOLUTION/ RECOMMENDATIONS
Step 1: Apply wrench and rotate
bit in both directions while bit is
under tension. If not successful:
Step 2: Try to over drill a hole
slightly larger than the stuck bit.
Disconnect bit and remove,
break core. Start over with
improved fastening of machine.
Disconnect machine, adjust
guidance.
Replace bit.
Use recommended speed for
the bit diameter used. Raise bit
when it begins to load down.
Feed bit slowly when chattering
begins.

14 MANTA I
Revision 03/05, Effective Date March 2, 2005
15
MANTA I Revision 03/05, Effective Date March 2, 2005
MANTA I COMBO EXPLODED VIEW AND PARTS LIST
EXPLODED VIEW

16 MANTA I
Revision 03/05, Effective Date March 2, 2005
17
MANTA I Revision 03/05, Effective Date March 2, 2005
MANTA EXPLODED VIEW (cont...)

16 MANTA I
Revision 03/05, Effective Date March 2, 2005
17
MANTA I Revision 03/05, Effective Date March 2, 2005
MANTA EXPLODED VIEW (cont...)

18 MANTA I
Revision 03/05, Effective Date March 2, 2005
19
MANTA I Revision 03/05, Effective Date March 2, 2005
MANTA EXPLODED VIEW (cont...)

18 MANTA I
Revision 03/05, Effective Date March 2, 2005
19
MANTA I Revision 03/05, Effective Date March 2, 2005
MANTA PARTS LIST
PARTS LIST:
Item Description Qty MK p/n
A Assembly, M1 Base, Vacuum 1 n/a
A1 Base, M1 Vacuum 1 155753
A2 Screw, -13 x 3  Hex Hd. Cap, Full Thread 4 158284
A3 Gasket, Neoprene 1 154543
A4 Fitting,  MNPT x 3/8 Barb 1 154659
A5 Wheel 6” 2 157434
A6 Screw, 1/2 x 1 3/4 Socket Head Shoulder 2 158390
A7 Washer,  SAE Flat 2 150924
A8 Foot, Base Support 2 158389
A9 Screw, 3/8-16 x 2  Hex Head Cap 2 153529
A10 Washer, 3/8 SAE Flat 2 150923
A11 Nut, 3/8-16 Hex Nylok 2 152505
A12 Stud, -13 x 4 Clamping 1 155124
A13 Washer, Plate  x 2 x 2 1 154613
A14 Nut, -13 Flange 1 155125
AA Assembly, M1 Base, Anchor 1 n/a
AA1 Base, M1 Anchor 1 155755
AA2 Screw, -13 x 3  Hex Hd. Cap, Full Thread 4 158284
AA3 Wheel, Dia. 1 5/8 x 7/8 2 158396
AA4 Sleeve Bearing 2 158458
AA5 Screw, -20 x 2.0, Socket Head Cap 2 158394
AA6 Foot, Base Support 2 158389
AA7 Screw, 3/8-16 x 2  Hex Head Cap 2 153529
AA8 Washer, 3/8 Flat 2 150923
AA9 Nut, 3/8-16 Hex Nylok 2 152505
AA10 Label, Manta Serial Tag (not shown) 1 157730
AA11 Label, Caution, Safety (not shown) 1 155576
AA12 Label, MK, Adhesive (not shown) 1 157914
D Assembly, Carriage 2 ” 1 n/a
D1 Body, Carriage 1 155757
D2 Shaft, Gear, Short 1 158348
D3 Bearing 2 137711
D4 Plate, Adjustment 3 157317
D5 Slide, Carriage 8 157318
D6 Screw, 6-32 x 1/2 Flat Head Phillips Machine 8 154448
D7 Screw, 6-32 x 3/8 Flat Head Phillips Machine 8 157521
D8 Nut, 6-32 Nylok Hex 8 157519
D9 Knob, Davies -20 x  1 151681
D10 Washer,  SAE Flat 1 151915
D11 Back, Carriage 1 157438
D12 Screw, 1/4-20 X 1 Socket Head Cap 4 151049
D13 Screw, -20 x 5/16 Socket Head Set 6 154226
D14 Handle, Carriage 1 157440
D15 Screw, 1/4-20 X  Pan Head Phillips 2 157523
D16 Label, MK USA 2 154334
D17 Screw, 1/4-20 X 1  Socket Head Cap 4 159336
E Assembly, Control Box, Fixed, Dual Switch 120V 1 158428
E1 Box, Control, Fixed 1 158274
E2 Cover, Control Box, Fixed, Dual Switch 1 158276
E3 Screw, -20 x  Socket Head Cap 2 152587
E4 Washer,  Split Lock 2 152591
E5 Screw, 10-24 x 5/8 Self Tapping (phillips) 6 153681
E6 Ammeter 120V 1 154489
