ML Accessories OS009 Instruction Manual

DCJUN21_V3
INSTALLATION & MAINTENANCE MANUAL
OS009
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
116
INTERNATIONAL
CONTACT DETAILS
GENERAL
• The unit should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist
• Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may
damage the fitting
WARRANTY
This product has a warranty of 1 year from date of purchase. Failure to install this product in
accordance with the current edition of the IEE Wiring Regulations, improper use, or removal of
the batch codes will invalidate the warranty. If this product should fail within its warranty period,
it should be returned to the place of purchase for a free of charge replacement. ML Accessories
does not accept responsibility for any installation costs associated with the replacement
product. Your statutory rights are not affected. ML Accessories reserve the right to alter product
specification without prior notice.
OS009 INSTRUCTIONS_NEW.indd 1-3OS009 INSTRUCTIONS_NEW.indd 1-3 15/06/2021 07:57:0915/06/2021 07:57:09

GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end
user for future reference and maintenance.
These instructions should be used to aid installation of the following product:
OS009
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations
(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the
rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for
installation
• Do not overload this accessory or subject it to conditions outside its rating
• This product is Class II double insulated
• This product is IP20 rated

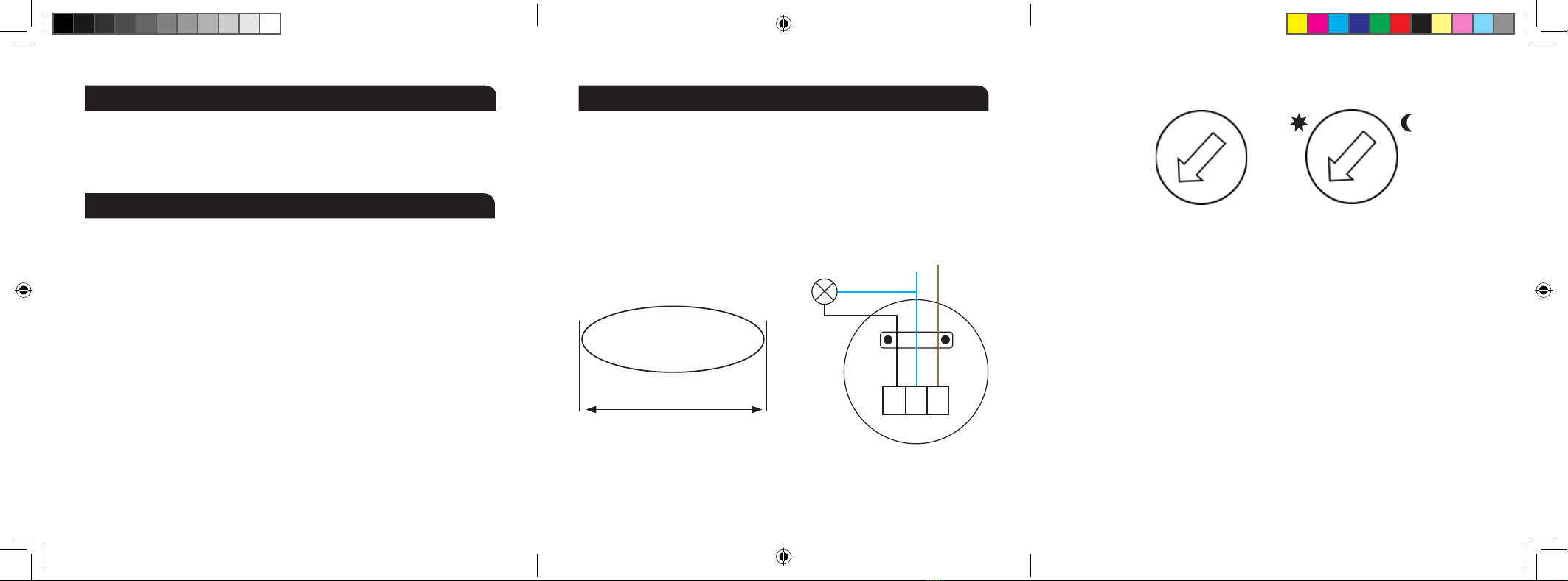

Fig. 2Fig. 1
Load
Neutra l
(Blue)
Live
(B rown)
62mm
INSTALLATION
• Provide power to the required point of installation
• Cut a suitable hole in the ceiling as per the cut-out detail (see Fig. 1) ensuring that it does not
infringe with electrical cables, water / gas pipes or ceiling joists
• Remove the transparent cover on the rear to access the connection terminals by pinching
together from the sides
• Wire terminals on the PIR ensuring correct polarity is observed (see Fig. 2)
• Replace the transparent cover
• Switch on and check for correct operation Min 10 sec
± 3 sec
Max 8 min
± 2min
+
-
Time
2000lx 3lx
Lux
Fig. 3
• The time dial can be adjusted to increase the length of time the sensor is activated after the
detection of movement
• The lux dial can be used to adjust the level of brightness at which the sensor is operational. When
set to 2000 lux it will operate during daytime; when set to 3 lux it will operate only in darkness
• It should be noted that the unit will be more sensitive when detecting movement across the field
of vision, and less sensitive when detecting movement directly towards it
