MLis MLB-G1103 User manual

MLB-G1103
MLB-G1103
LTE Wireless Terminal

MLB-G1103 LTE Wireless Terminal User Manual 2 Rev 1.1
USER MANUAL
Information provided by Schmidt & Co., (HK) Ltd, (herein known as ‘the company’), is believed to be
accurate and reliable. However, the company assumes no responsibility for its use, nor any
infringement of patents or other rights of third parties, which may result from its use. No license is
granted by implication or otherwise under any patent rights of the company other than for circuitry
embodied in the company’s products. The company reserves the right to change the circuitry and
specifications at any time without notice. This document is subject to change without notice.
No part of this document may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including but not limited to photocopying, recording, transmitting via fax and/or modem
devices, scanning, and/or information storage and retrieval systems for any purpose without the
expressed written consent of the company.
WARNING: The MLiS GSM wireless terminal is a RF product intended for interfacing and operating with
a host device. Local relevant RF regulations such as allowed frequencies and usage in commercial
flights must be observed. Safety instructions must be included in the manuals of the host device.
Schmidt & Co., (HK) Ltd assumes NO liability for customers, who fail to comply with these precautions.
Service and Support
[email protected]
Download Information
http://www.schmidtm2m.com/en/support_download.php

MLB-G1103 LTE Wireless Terminal User Manual 3 Rev 1.1
CONTENTS
1INTRODUCTION ..................................................................................................................................................5
1.1 Description................................................................................................................................................5
1.2 Highlights...................................................................................................................................................5
1.3 Functional Block Diagram .........................................................................................................................9
1.4Precautions ...............................................................................................................................................9
2MECHANICAL DESCRIPTION ............................................................................................................................ 10
2.1 Overview ................................................................................................................................................ 10
2.2 Dimensions............................................................................................................................................. 10
3ELECTRICAL INTERFACE DESCRIPTIONS........................................................................................................... 11
3.1 Right side view (DB9 connector)............................................................................................................ 11
3.2 Left side view (DC Jack & Industry connector)....................................................................................... 12
3.3 Frond view (Antenna & LED).................................................................................................................. 13
3.4 SIM card holder...................................................................................................................................... 14
3.5Din rail mounting ................................................................................................................................... 14
3.6Getting Started....................................................................................................................................... 15
4 SW Installation
5OPERATING NOTE............................................................................................................................................ 34
5.1 Power on the Modem ............................................................................................................................ 34
5.2 Reset to default...................................................................................................................................... 34
5.3 External input x2 .................................................................................................................................... 34
5.4 External Relay x1.................................................................................................................................... 34
5.5 DB9 Connector ....................................................................................................................................... 34
5.6 Install SIM card....................................................................................................................................... 34
6MLiS Cellular Control Protocol (MCCP) ........................................................................................................... 35

MLB-G1103 LTE Wireless Terminal User Manual 4 Rev 1.1
7 SALES CONTACT ................................................................................................................................................. 41
8ORDERING INFORMATION................................................................................................................................ 42
List of Figures
Figure 1-1: Functional Block Diagram for MLB-G1103 ...................................................................................9
List of Tables
Table 1: Operating Modes………………………………………………………………………………………………………………………………….12
Table 2: Features and Specifications…………………………………………………………………………………………………………………..12
Table 3: Chassis Dimensions and Mechanical Description for MLB-G1103 ............................................................ 10
Table 4: DB9 pins define for MLB-G1103 ................................................................................................................ 11
Table 5: Interfaces and Indicators Description of MLB-G1103 ............................................................................... 12
Table 6: LED functions of MLB-G1103..................................................................................................................... 13
Table 7: Operation Modes for different transmission rates comparison

MLB-G1103 LTE Wireless Terminal User Manual 5 Rev 1.1
1 INTRODUCTION
1.1 Description
The MLiS MLB-G1103 is a LTE wireless terminal. It is designed for RS232/RS422/RS485 communication
over TCP/IP via any readily available LTE carrier network. Overall, they are more cost and time effective
to use remote solutions to combine Machine to Machine over diverse locations without having first to
establish and invest in a huge complex network.
The MLB-G1103 wireless terminal series use the DB9 Connector to provide data communication
interface and the DC jack to provide power input. LEDs are used to indicate the status of the wireless
terminal.
The MLB-G1103 wireless terminal can be used to provide a wireless communication link to many
applications, including metering, fleet and asset management, vending, security and alarm monitoring,
e-maintenance and other telemetry applications.
1.2 Highlights
Interface
DC jack connector for power / Terminal Block for power
DB9 connector (male)
SMA Female Connector (GSM antenna connector)
SIM card reader
1 * Relay
2 * DIs

MLB-G1103 LTE Wireless Terminal User Manual 6 Rev 1.1
General Features
General Features
Frequency Range
MLB-G1103-EU:
LTE: Penta band 700 (Bd28) / 800 (Bd20) / 900 (Bd8) / 1800 (Bd3)
/2100 MHz (Bd1)
UMTS/HSPA+: Dual band 900 (BdVIII) / 2100MHz (BdI)
GSM/GPRS/EDGE: Dual band 900/1800MHz
Protocol Stack
TCP/UDP/FTP/HTP/SMTP
Power Supply Input
5~42VDC
Power Consumption
Working Mode : 102 mA @12V
Standby Mode : 29 mA @12V
Humidity
5~95% (non-condensing).
Operating Temperature
-40~+75°C
Switch Off Protection
+90°C
Dimension
(L) x (W) x (H)
119.5 x 89 x 26.9mm
(excluding connectors)
Weight
200g (without antenna)
Casing Material
Metal
Data Transmission
LTE
UE CAT 1 supported
DL 10.2Mbps, UL 5.2Mbps
HSPA+
DL 7.2Mbps, UL 5.7Mbps
HSDPA Cat.8 / HSUPA Cat.6 data rates
Compressed mode (CM) supported according to 3GPP TS25.212
GPRS/EGPRS
GPRS:
•Multislot Class 12
•Full PBCCH support
•Mobile Station Class B
EGPRS:
•Multislot Class 12
•EDGE E2 power class for 8 PSK
•SRB loopback and test mode B
•PBCCH support
•Mobile Station Class B
SMS
MT, MO, Cell broadcast, Text and PDU mode
Operating Mode
Transparent (TCP server/TCP client/UDP)
TCP server/TCP client/UDP

MLB-G1103 LTE Wireless Terminal User Manual 7 Rev 1.1
SMS/AT command
Serial Mode
RS-232/422/485
Serial Parameter
Data Bits: 7, 8
Stop Bits: 1, 2
Parity: None, Even, Odd
Flow Control: RTS/CTS, DTR/DSR
Baud Rate: 1200 - 921600 selectable
Serial Signals: TxD, RxD, RTS, CTS, DTR,
DSR, DCD, RST (reset circuit), GND
Relay
1 output with current carrying capacity of 2A @40VDC
Digital Inputs
2 electrically isolated inputs:
+13~+30V for state “1” (on)
+3~-30V for state “0” (off)
ESD Protection
15 KV
Heart Beat Packet
Yes
ID with Packet
Yes (15 Bytes MAX.)
Data Buffering
128KB
Data Delimiter
Yes
Event Trigger
GPRS/Reboot/IO/Relay
MCCP/MCCU
Yes
API: MLiS Cellular Control Protocol (MCCP)
Utility: MLiS Cellular Configuration Utility (MCCU)
Interfaces
RF Antenna Socket
50 Ohm SMA
Power Connector
DC jack connector / Terminal Block for power
SIM Card Num.
1
SIM Card Slot
Flip-up type
Serial Interface
DB9 connector (male)
LED
6 x Working Status Indicator
3 x Network Status Indicator
Reset
HW Reset
Approval
Certification
EMC
EN55032/35

MLB-G1103 LTE Wireless Terminal User Manual 8 Rev 1.1
RF
EN301489-1
EN301489-52
EN62311
Safety
LVD 60950-1
NCC
PLMN10
CNS13438
CNS13438
CNS14336-1

MLB-G1103 LTE Wireless Terminal User Manual 9 Rev 1.1
Functional Block Diagram
Figure 1-1: Functional Block Diagram for MLB-G1103
The MLB-G1103 series consist of a fully certified (CE /NCC approved) GSM/GPRS engine, SIM card
holder and power regulator.
The wireless terminal is supplied with power via the DC jack. The remaining DB9 connector is used for
data communications.
The SMA female connector provides the air interface to an external 50 ohm antenna specified for the
correct frequency band.
1.3 Precautions
The MLB-G1103 wireless terminals are designed for indoor use only. For outdoor uses it has to be
integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as
specified in the user manual.
DB9

MLB-G1103 LTE Wireless Terminal User Manual 10 Rev 1.1
2MECHANICAL DESCRIPTION
2.1 Overview
The pictures below show the mechanical design of the wireless terminal along with the positions of the
different connectors.
2.2 Dimensions
Figure 2: Chassis Dimension for MLB-G1103
S/N
Parameter
Value
1
Height (H)
26.9mm
2
Length (L)
119.5mm
3
Width (W)
89.0mm
4
Weight
200g
5
Chassis Material
Metal
Table 1: Chassis Dimensions and Mechanical Description for MLB-G1103

MLB-G1103 LTE Wireless Terminal User Manual 11 Rev 1.1
3 ELECTRICAL INTERFACE DESCRIPTIONS
3.1 Right Side View (DB9 connector)
Figure 3: RS232/RS422/RS485 for MLB-G1103
The table below defines the RS232/RS422/RS485 pin configuration on the wireless terminal.
Table 2: DB9 Pins Define for MLB-G1103

MLB-G1103 LTE Wireless Terminal User Manual 12 Rev 1.1

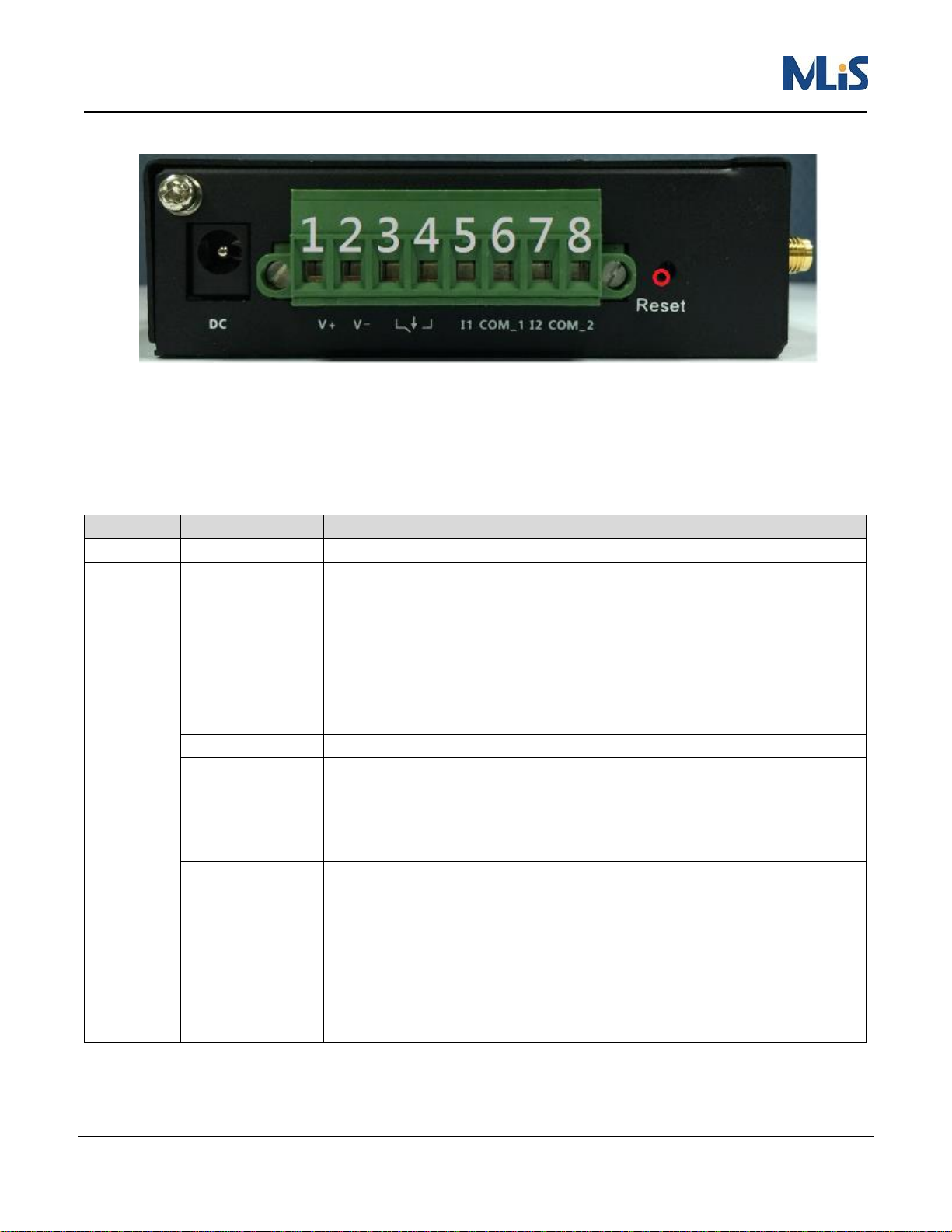

3.2 Left Side View (DC Jack & Industry Connector)
Figure 4: DC and Terminal Block for MLB-G1103
For power redundancy purpose, it is recommended to connect both DC jack and the wire power line to
the corresponding power pinouts of terminal block to a DC power sources.
The interfaces and pinouts definition for MLB-G1103 are as follows:
Name
Description
Function
DC
DC
Input Power: +5V~+42V
Terminal
Block
PWR (V+, V-)
•Input Power: +5V~+42V
•Pin #1 is V+
•Pin #2 is V-
•When use DC for input, the output power of TB is same as input
power
Do Not use DC & PWR to be the input power at the same time,
it may cause damage to the equipment.
Relay
External Relay: max+40V
DI1 (I1, COM_1)
Pin #5 is +
Pin #6 is -
•I1: External signal +12V~+48V
•COM_1: common grand
•Pin #5 is +
•Pin #6 is -
DI2 (I2, COM_2)
Pin #7 is +
Pin #8 is -
•I2: External signal, +12V~+48V
•COM_2: common grand
•Pin #7 is +
•Pin #8 is -
Reset
Reset
•1-click to reboot MLB-G1103
•Double click to set MLB-G1103 into configuration mode.
•Long press over 10 seconds to reset MLB-G1103 to default.
Table 3: Interfaces description and Pinouts definition of MLB-G1103

MLB-G1103 LTE Wireless Terminal User Manual 13 Rev 1.1
3.3 Frond view (antenna & LED)
Figure 5-1: Antenna Connector for MLB-G1103
For optimum RF performance, the MLiS wireless terminals have to be connected to an external RF
antenna matched to 50ohms. Please use a SMA Male connection for the wireless terminal.
The functions of LED are indicated on the table below.
Item
Description
Function
1
Power
Power on indication
2
Ready
Registered to a base station with cellular connection & Get IP address.
3
NET
Data Connection Establishment indication
4
Error
Error Occurred.
- LED light-up: No SIM inserted.
- Flashing: SIM locked.
5
Tx
UART transmit indication.
6
Rx
UART receive indication.
Table 4: LED Functions of MLB-G1103
The RESET button is located on the bottom panel of the MLB-G1103. You can reboot the MLB-G1103 or
reset it to default settings by pressing the RESET button with a pointed object such as an unfolded
paper clip.
Configuration Mode: Double click RESET button to enter configuration mode and the signal LEDs
will become marquee mode.
Reboot: Hold the RESET button down for under 5 seconds and then release.
Reset to Default: Hold the RESET button down for over 5 seconds until the LEDs are off. Release
the button to reset the MLB-G1103 and enter the boot-up stage.

MLB-G1103 LTE Wireless Terminal User Manual 14 Rev 1.1

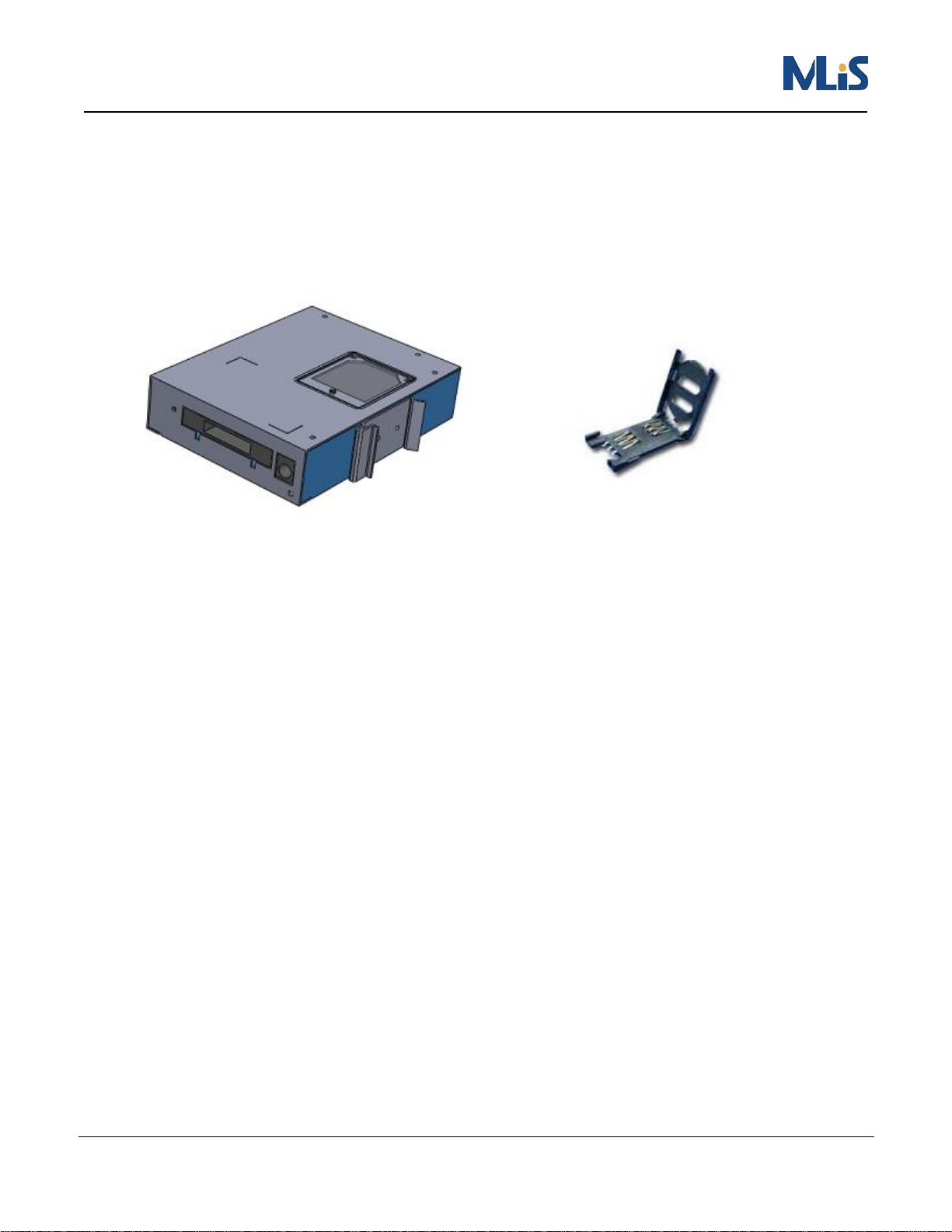

3.4 SIM Card Holder
In the bottom, The MLB-G1103 wireless terminals are provided with a SIM card reader designed for
1.8V and 3V SIM cards. It is the flip-up type which can be locked. It can be accessed through removing
the cover as shown below.
Figure 6: SIM Card Holder for MLB-G1103
Be sure to power off the modem when user replaces the SIM card. Otherwise it may cause
damage to the equipment.
The MLB-G1103 series fully operate when inserting a SIM card. Some MLB-G1103 series’ functionality
may be lost if the users try to operate the wireless terminal without a SIM card.
3.5 DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the MLB-G420X
when you take it out of the box.
STEP 1:
Insert the top of the DIN-Rail into the slot just below the stiff metal spring.
STEP 2:
The DIN-Rail attachment unit will snap into place as shown.
<DIN-Rail mounting kits PIC>
To remove MLB-G420X from the DIN-Rail, simply reverse Steps 1 and 2.

MLB-G1103 LTE Wireless Terminal User Manual 15 Rev 1.1
3.6 Getting Started
HW Installation
Step 1: Please insert SIM card into SIM card holder as follows.
Be sure to power off the modem when user replaces the SIM card. Otherwise it may cause
damage to the equipment.
Installing a SIM Card
The SIM card slots are located inside the MLB-G1103’s housing. To install a SIM card, please follow the
steps below:
1. Turn off the MLB-G1103.
2. Remove the screw to open the SIM card slot cover.
3. Install a SIM card into a SIM card flip-up holder.
Orient the gold contacts facing down and the cut-off edge to the left.
4. Install the screw to secure the SIM card slot cover.

MLB-G1103 LTE Wireless Terminal User Manual 16 Rev 1.1
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the MLB-G1103
when you take it out of the box.
1. Insert the top of the DIN-Rail stiff metal spring into the slot.

MLB-G1103 LTE Wireless Terminal User Manual 17 Rev 1.1
2. The top of stiff metal spring of the DIN-Rail mounting kit unit will snap into the Din rail rack as shown
in the following illustration.
To remove MLB-G1103 from the DIN-Rail, simply reverse Steps 1 and 2.
Step 2: Please connect the serial port to device as following Pinouts.

MLB-G1103 LTE Wireless Terminal User Manual 18 Rev 1.1
Step 3: Please connect power supplier with 5~42 VDC, then boot up. The LED will light up when MLB-
G1103 Series ready.
Step 4: After plug-in power adapter. The wireless terminal is usually fully operational within 30
seconds, after powering it up. Depending on the signal strength of the network in the area, logging into
a network may take longer and is outside the control of the wireless terminal.
The device is ready after LED of signal is lighted. Then user can operate it.

MLB-G1103 LTE Wireless Terminal User Manual 19 Rev 1.1
Step 5: When user uses the MCCU (MLiS Cellular Configuration Utility) to configure MLB-G1103, please
refer the connection as below:
Note: The user needs to use null modem adaptor, DB9 Female to DB9 Female connector so
RS-232 console management is workable from PC via RS-232 console cable.

MLB-G1103 LTE Wireless Terminal User Manual 20 Rev 1.1
4. SW Installation
Preliminary Work: Power on MLB-G1103 and use USB-to-RS232 cable to connect to MLB-G1103 & PC.
Step 1: Open MCCU (MLiS Cellular Configuration Utility)
