MLis MLB-G4201 User manual

MLB-G4201 Wireless Terminal User Manual 1 Rev 1.1
MLB-G4201
Ethernet to 2G/3G Terminal
USER MANUAL
Information provided by Schmidt & Co., (HK) Ltd, (herein known as ‘the company’), is believed to be
accurate and reliable. However, the company assumes no responsibility for its use, nor any
infringement of patents or other rights of third parties, which may result from its use. No license is
granted by implication or otherwise under any patent rights of the company other than for circuitry

MLB-G4201 Wireless Terminal User Manual 2 Rev 1.1
embodied in the company’s products. The company reserves the right to change the circuitry and
specifications at any time without notice. This document is subject to change without notice.
No part of this document may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including but not limited to photocopying, recording, transmitting via fax and/or modem
devices, scanning, and/or information storage and retrieval systems for any purpose without the
expressed written consent of the company.
WARNING: The MLiS GSM wireless terminal is a RF product intended for interfacing and operating
with a host device. Local relevant RF regulations such as allowed frequencies and usage in commercial
flights must be observed. Safety instructions must be included in the manuals of the host device.
Schmidt & Co., (HK) Ltd assumes NO liability for customers, who fail to comply with these precautions.
Service and Support
[e-mail]
Download Information
http://www.schmidtm2m.com/en/support_download.php

MLB-G4201 Wireless Terminal User Manual 3 Rev 1.1
CONTENTS
1INTRODUCTION............................................................................................................................ 6
1.1 Description............................................................................................................................. 6
1.2 Highlights ...............................................................................................................................6
1.3 Functional Block diagram.......................................................................................................9
1.4 Main Features and Services................................................................................................. 10
1.4.1 Wireless Terminal Features and Electrical Specifications................................................. 10
1.5 Precautions.......................................................................................................................... 11
2MECHANICAL DESCRIPTION..................................................................................................... 12
2.1 Overview.............................................................................................................................. 12
2.2 Dimensions .......................................................................................................................... 12
3ELECTRICAL INTERFACE DESCRIPTIONS............................................................................... 13
3.1 Right side view (DB9 connector) .......................................................................................... 13
3.2Left side view (DC Jack & Industry connector)...................................................................... 14
3.3 Frond view (Antenna & LED)................................................................................................ 15
3.4 SIM card holder.................................................................................................................... 17
3.5 Getting Started..................................................................................................................... 18
4SW Installation.............................................................................................................................. 20
4.1 Web Console........................................................................................................................ 20
4.2 Overview.............................................................................................................................. 21
4.2.1 System Info ...................................................................................................................... 21
4.2.2 LAN Info:.......................................................................................................................... 22
4.2.3 Cellular Info...................................................................................................................... 22
4.3 Basic Settings ...................................................................................................................... 23
4.3.1 Network Settings .............................................................................................................. 23
4.3.2 Cellular WAN Settings...................................................................................................... 24

MLB-G4201 Wireless Terminal User Manual 4 Rev 1.1
4.3.3 DHCP Server.................................................................................................................... 25
4.3.4 Port Forwarding................................................................................................................ 26
4.4 Advanced Settings ............................................................................................................... 27
4.4.1 Com port setting............................................................................................................... 27
4.4.2 IPsec-base VPN Setting................................................................................................... 28
4.5 Maintenance......................................................................................................................... 32
4.5.1 Ping.................................................................................................................................. 32
4.5.2 AT command.................................................................................................................... 32
4.5.3 Password ......................................................................................................................... 33
4.6 Update FW........................................................................................................................... 34
4.7 Reset to Default.................................................................................................................... 34
4.8 Status................................................................................................................................... 35
4.8.1 IO/Relay Status ................................................................................................................ 35
4.8.2 IPSec Log/OpenVPN Log/Syslog ..................................................................................... 35
4.9 Save..................................................................................................................................... 36
5OPERATING NOTE...................................................................................................................... 37
5.1 Power on the Modem ........................................................................................................... 37
5.2 Reset to default.................................................................................................................... 37
5.3 External input x2................................................................................................................... 37
5.4 External Relay x1................................................................................................................. 37
5.5 DB9 Connector..................................................................................................................... 37
5.6 Install SIM card..................................................................................................................... 37
6MLiS Cellular Control Protocol (MCCP) ........................................................................................ 38
SALES CONTACT............................................................................................................................... 47
7ORDERING INFORMATION......................................................................................................... 48

MLB-G4201 Wireless Terminal User Manual 5 Rev 1.1
List of Figures
Figure 1: Functional Block Diagram for MLB-G4201..............................................................................9
Figure 2: Chassis Dimension for MLB-G4201...................................................................................... 12
Figure 3:RS232/RS422/RS485 for MLB-G4201................................................................................... 13
Figure 4: DC and Industry connector for MLB-G4201 .......................................................................... 14
Figure 5: Antenna Connector for MLB-G4201...................................................................................... 15
Figure 6: SIM Card Holder for MLB-G4201.......................................................................................... 17
List of Tables
Table 1: Chassis Dimensions and Mechanical Description for MLB-G4201......................................... 12
Table 2: DB9 pins define for MLB-G4201............................................................................................. 13
Table 3: Interfaces and Indicators Description of MLB-G4201 ............................................................. 14
Table 4: LED functions of MLB-G4201................................................................................................. 16

MLB-G4201 Wireless Terminal User Manual 6 Rev 1.1
1 INTRODUCTION
1.1 Description
The MLiS MLB-G4201 is a Ethernet to 3G wireless terminal designed for RJ45 communication over
TCP/IP via any readily available 3G carrier network. Overall, it is more cost and time effective to use
remote solutions to combine Machine to Machine over diverse locations without having first to establish
and invest in a huge complex network.
The MLB-G4201 wireless terminal uses the DB9 Connector to provide data communication interface
and the DC jack to provide power input. LEDs are used to indicate the status of the wireless terminal.
The MLB-G4201 wireless terminal can be used to provide a wireless communication link to many
applications, including metering, fleet and asset management, vending, security and alarm monitoring,
e-maintenance and other telemetry applications.
1.2 Highlights
Interface
DC jack Connector for power
DB9 connector (female)
2 * Ethernet: 10/100Mbps, RJ45 connector, Auto MDI/MDIX
SMA Female Connector (GSM antenna connector)
2 * SIM card reader
1 * relay
2 * I/O pins
General Features
•Cellular Interface:
Standards: GSM/GPRS/EDGE/UMTS/HSPA
•Band Options:
•UMTS Bands: 800, 850, 900, 1900 and 2100 MHz
• Quad-Band GSM Bands: 850, 900, 1800 and 1900 MHz
•Data Rate:
HSDPA Cat.8/HSUPA Cat.6 data rates

MLB-G4201 Wireless Terminal User Manual 7 Rev 1.1
DL: max. 7.2 Mbps, UL: max. 5.76 Mbps
•EDGE Class 12 data rates
DL: max. 237 kbps, UL: max. 237 kbps
•GPRS Class 12 data rates
DL: max. 85.6 kbps, UL: max. 85.6 kbps
•Power Supply Input : 9~48VDC
•Relative Humidity: 90% MAX.
•Operation Temperature : -40°C ~+75°C
•Switch Off Protection : +90°C
•Dimensions (L) x (W) x (H): 119.5 x 89 x 26.9mm (excluding connectors)
•Weight: 425g
•Casing Material: Metal
•SMS : MT, MO, Cell Broadcast, Text and PDU mode.
•Serial Parameter :
–Data Bits: 5, 6, 7, 8
–Stop Bits: 1, 1, 5, 2
–Parity : None, Even, Odd, Space, Mark
–Flow Control : RTS/CTS, DTR/DSR
–Baud-rate : 1200~230400 selectable
–Serial signals : TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST(reset circuit), GND
•Relay: 1 output with current carrying capacity of 2A @ 40 VDC
•Digital Inputs: 2 electrically isolated inputs:
–+13~30V for state “1”(On)
–+3~-30V for state “0”(Off)
•ESD Protection: 15KV
•Data Buffering: 1M`

MLB-G4201 Wireless Terminal User Manual 8 Rev 1.1
•Data Delimiter: Yes
•Data Length Packing: Yes
•MCCP/MCCU: Yes
–API: MLiS Cellular Control Protocol (MCCP)
–Utility: MLiS Cellular Control Utility (MCCU)

MLB-G4201 Wireless Terminal User Manual 9 Rev 1.1
1.3 Functional Block Diagram

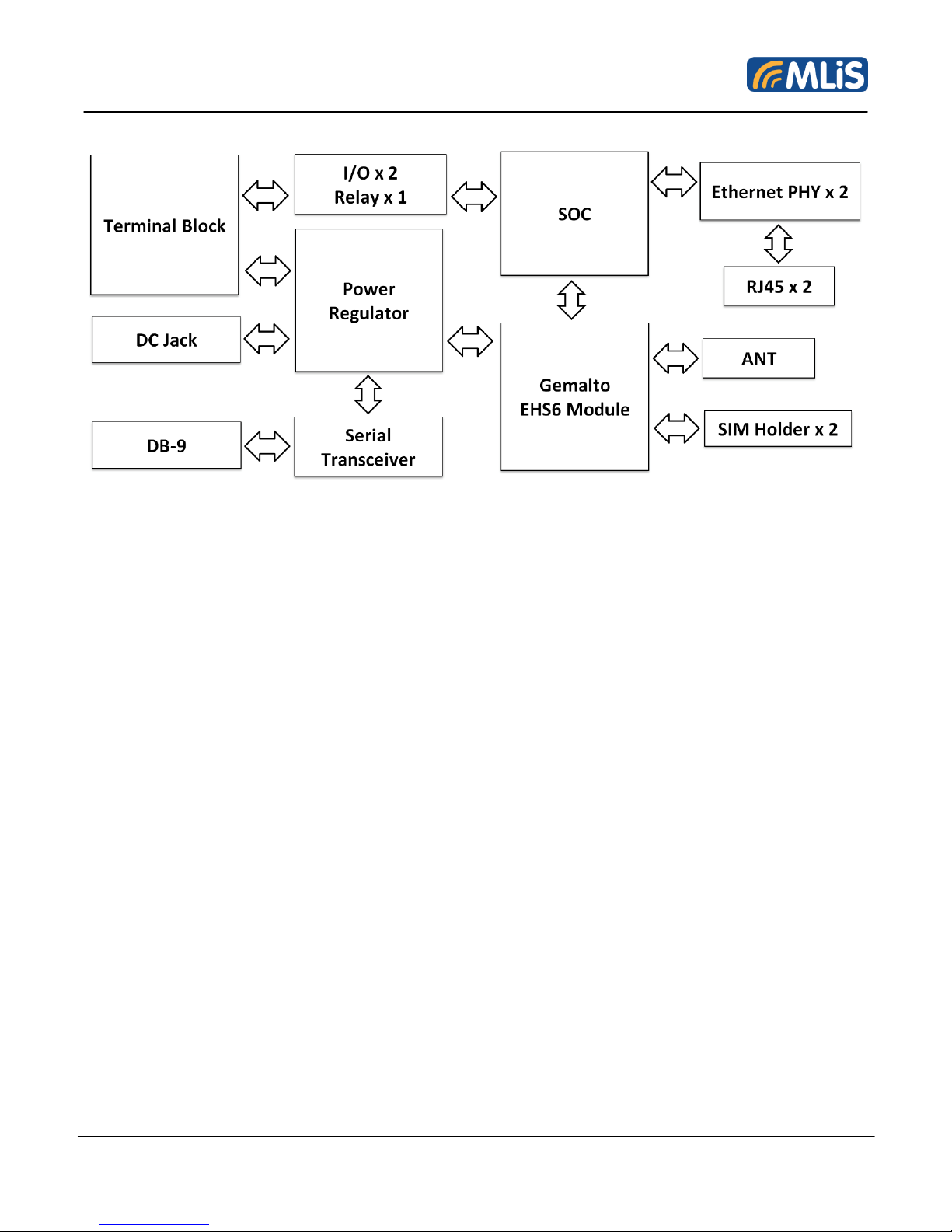

Figure 1: Functional Block Diagram for MLB-G4201
The MLB-G4201 consists of a fully certified (CE /NCC approved) GSM/GPRS engine, SIM card holder
and power regulator.
The wireless terminal is supplied with power via the DC jack. The remaining DB9 connector is used for
data communications.
The SMA female connector provides the air interface to an external 50 ohm antenna specified for the
correct frequency band.

MLB-G4201 Wireless Terminal User Manual 10 Rev 1.1
1.4 Main Features and Services
The MLB-G4201 performs a set of telecom services (TS) according to GSM standard phase 2+, ETSI
and ITU-T. The services and functions of the MLB-G4201 are implemented by issuing customized
applications embedded on the device, or by AT commands issued internally, or over the RJ-45 to RS-
232 serial interface.
1.4.1Wireless Terminal Features and Electrical Specifications
S/N
Feature
Specifications
1
Frequency Bands
GSM/GPRS/EDGE: Quad band 850/900/1800/1900MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100MHz
2
RF Output Power
Class 4 (+33dBm ±2dB) for EGSM850
Class 4 (+33dBm ±2dB) for EGSM900
Class 1 (+30dBm ±2dB) for GSM1800
Class 1 (+30dBm ±2dB) for GSM1900
Class E2 (+27dBm ± 3dB) for GSM 850 8-PSK
Class E2 (+27dBm ± 3dB) for GSM 900 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1800 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1900 8-PSK
Class 3 (+24dBm +1/-3dB) for UMTS 2100, WCDMA FDD BdI
Class 3 (+24dBm +1/-3dB) for UMTS 1900,WCDMA FDD BdII
Class 3 (+24dBm +1/-3dB) for UMTS 900, WCDMA FDD BdVIII
Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV
Class 3 (+24dBm +1/-3dB) for UMTS 800, WCDMA FDD BdVI
3
GSM Class
Small MS
4
Power Supply
3.3V to 4.5V
5
Power Consumption
- DATA mode: GPRS 1TX, 4RX
GSM 850/EGSM 900
GSM 1800/1900
180mA
145mA
- DATA mode: GPRS 2TX, 3RX
GSM 850/EGSM 900
GSM 1800/1900
330mA
260mA
6
Operating Temperature
Normal operation: -40°C to +75°C
7
Data Transfer
GPRS:
•Multi-slot Class 12
•Full PBCCH Support
•Mobile Station Class B
•Coding Scheme 1 –4
EGPRS:
•Multi-slot Class 12
•EDGE E2 power class for 8 PSK

MLB-G4201 Wireless Terminal User Manual 11 Rev 1.1
S/N
Feature
Specifications
•Downlink coding schemes –CS 1-4, MCS 1-9
•Uplink coding schemes –CS 1-4, MCS 1-9
•SRB loopback and test mode B
•8-bit, 11-bit RACH
•PBCCH support
•1 phase/2 phase access procedures
•Link adaptation and IR
•NACC, extended UL TBF
•Mobile Station Class B
CSD:
•V.110, RLP, non-transparent
•9.6kbps
•USSD
8
SMS
Point-to-point MT and MO
Cell broadcast
Text and PDU mode
Storage: SIM card plus SMS locations in mobile equipment
9
AT Commands
Hayes 3GPP TS 27.007, TS 27.005, Gemalto M2M
AT commands for RIL compatibility
10
TCP/IP Stack
Access by AT Commands
Internet Services include TCP, UDP
11
Serial Interface
DB9 connector
8-wire Modem Interface with status and control lines,
unbalanced, asynchronous
Fixed bit rate: 1,200bps to 230, 400bps
Flow Control: Hardware RTS0/CTS0 and Software XON/OFF
Multiplex ability according to GSM 07.10 Multiplexer Protocol
12
SIM Interface
2*SIM Card Slot
Supports SIM Cards: +3V and +1.8V
13
Antenna
50 ohms via External SMA Connector
14
Software Reset
Orderly shutdown and Reset by AT Command (AT^SMSO)
15
RoHs
All hardware components are fully compliant with the EU RoHs
directive 2002/95/EC
Exception: MLB55IN
Table 2: Features and Specifications
1.5 Precautions
The MLB-G4201 wireless terminal is designed for indoor use only. For outdoor use it has to be
integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as
specified in the user manual.

MLB-G4201 Wireless Terminal User Manual 12 Rev 1.1
2 MECHANICAL DESCRIPTION
2.1 Overview
The pictures below show the mechanical design of the wireless terminal along with the positions of the
different connectors.
2.2 Dimensions
Figure 2: Chassis Dimension for MLB-G4201
S/N
Parameter
Value
1
Height (H)
48mm
2
Length (L)
121mm
3
Width (W)
88.0mm
4
Weight
420g
5
Chassis Material
Metal
Table 1: Chassis Dimensions and Mechanical Description for MLB-G4201

MLB-G4201 Wireless Terminal User Manual 13 Rev 1.1
3 ELECTRICAL INTERFACE DESCRIPTIONS
3.1 Right side view (DB9 connector)
Figure 3:RS232/RS422/RS485 for MLB-G4201

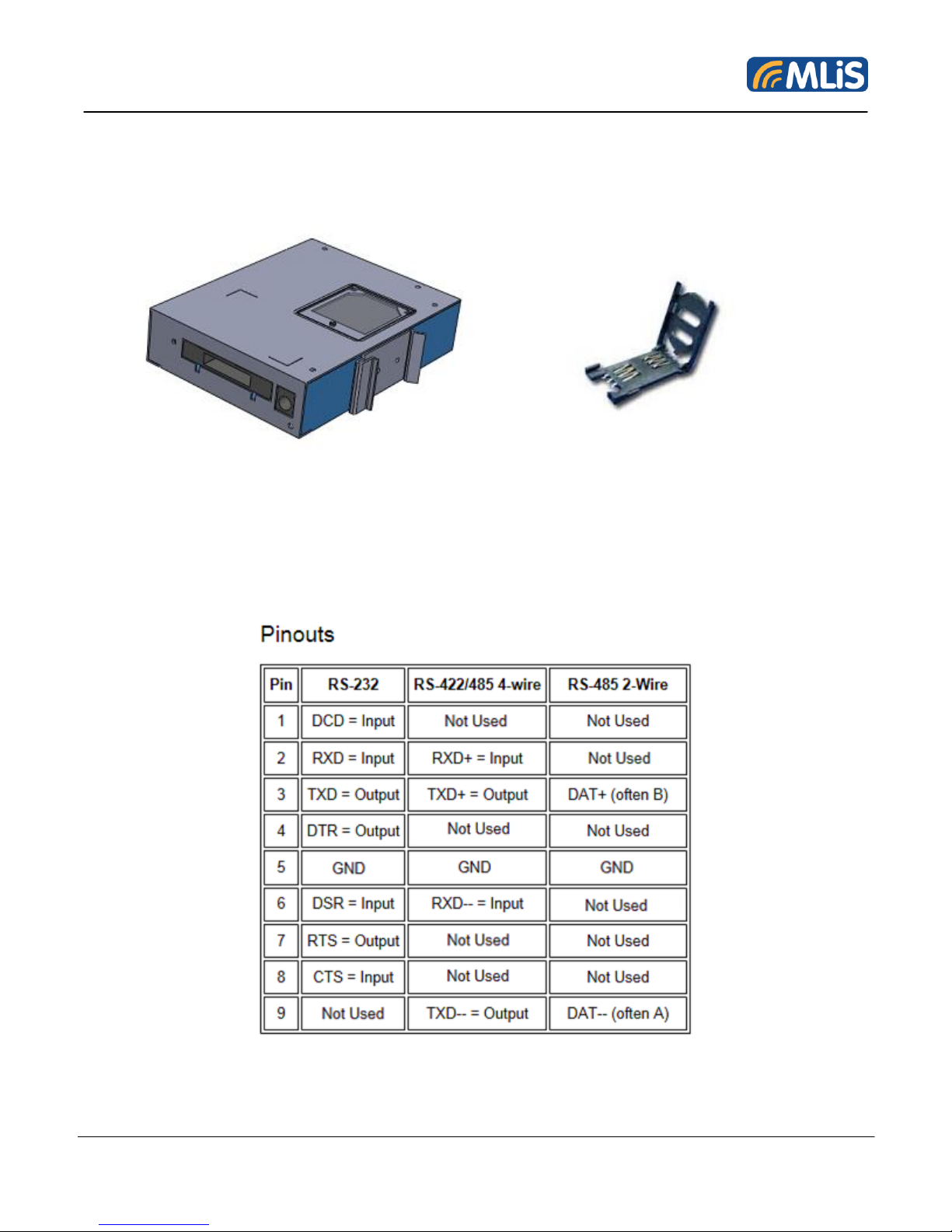

The table below defines the RS-232/422/485 pin configuration on the wireless terminal.
Table 2: DB9 Pins Definition for MLB-G4201

MLB-G4201 Wireless Terminal User Manual 14 Rev 1.1
3.2 Left side view (DC Jack & Industry Connector)
Figure 4: DC and Industry Connector for MLB-G4201
The interfaces and indicators for MLB-G4201 are as follows:
Name
Description
Function
DC
DC
Input Power:+9V~+48V
Terminal
Block
PWR(V+, V-)
•Input Power:+9V~+48V
•Pin #1 is V+
•Pin #2 is V-
•When use DC for input, the output power of TB is same as input
power
Do Not use DC & PWR to be the input power at the same time,
it may cause damage to the equipment.
Relay
External Relay:max+40V
DI1(I1, COM_1)
Pin #5 is +
Pin #6 is -
•I1: external signal +12V~+48V
•COM_1:common grand
•Pin #5 is +
•Pin #6 is -
DI2(I2, COM_2)
Pin #7 is +
Pin #8 is -
•I2:external signal, +12V~+48V
•COM_2: comman grand
•Pin #7 is +
•Pin #8 is -
Reset
Reset
•1-click to reboot MLB-G4201.
•Double click to set MLB-G4201 into configuration mode.
•Long press over 5 seconds to reset MLB-G4201 to default.
Table 3: Interfaces and Indicators Description of MLB-G4201

MLB-G4201 Wireless Terminal User Manual 15 Rev 1.1
3.3 Frond view (Antenna & LED)
Figure 5: Antenna Connector for MLB-G4201
For optimum RF performance, the MLiS wireless terminal has to be connected to an external RF
antenna matched to 50ohms. Please use a SMA Male connection for the wireless terminal.
The functions of LED are indicated on the table below.
LED
Color
State
Description
PWR1 (DC)
Green
On
Power is being supplied from power input 1.
PWR2
(Terminal Block)
Green
On
Power is being supplied from power input 2.
READY
Green
On
System startup is complete and the system is operating.
Blink
Device has been located.
Off
Power is off, or the system is booting up.
FAULT
Red
On
System configuration error or a relay event has occurred.
Blink
IP address conflict.
Off
Power is off, or there is no error condition.
SINGNAL
(3LEDs)
Green
On
Number of LEDs to indicate cellular signal level when registered
to a base station.
Signal LED 1: 0 < RSSI ≤ 12
Signal LED 2: 12 < RSSI ≤ 21

MLB-G4201 Wireless Terminal User Manual 16 Rev 1.1
Signal LED 3: 22 < RSSI ≤ 31
SIM1
Amber
On/Off
SIM 1 is active or inactive.
Blink
SIM 1 is not inserted or PIN code is incorrect.
SIM2
Amber
On/Off
SIM 2 is active or inactive.
Blink
SIM 2 is not inserted or PIN code is incorrect.
3G
Amber
On
Registered to a base station with cellular connection in UMTS or
HSPA mode.
2G
Amber
On
Registered to a base station with cellular connection in LTE
mode.
Table 4: LED Functions of MLB-G4201

MLB-G4201 Wireless Terminal User Manual 17 Rev 1.1
3.4 SIM card holder
In the bottom, the MLB-G4201 wireless terminal is provided with a SIM card reader designed for 1.8V
and 3V SIM cards. It is the flip-up type which can be locked. It can be accessed through removing the
battery cover as shown below.
Figure 6: SIM Card Holder for MLB-G4201
Be sure to power off the modem when user replaces the SIM card. Otherwise it may cause
damage to the equipment.
The MLB-G4201 fully operates when inserting a SIM card. Some MLB-G4201 functionality may be lost
if user try to operate the wireless terminal without a SIM card.

MLB-G4201 Wireless Terminal User Manual 18 Rev 1.1
3.5 Getting Started
HW installation
Step 1：Please insert SIM card into SIM card holder as follows.
Be sure to power off the modem when user replaces the SIM card. Otherwise it may cause
damage to the equipment.
Step 2：Please connect serial port to device as following Pinouts

MLB-G4201 Wireless Terminal User Manual 19 Rev 1.1
Step 3: Please connect power supplier with 5~32VDC, then boot up. The LED will light up when MLB-
G4201 ready.
Step 4：After plug-in power adapter. The wireless terminal is usually fully operational within 30
seconds, after powering it up. Depending on the signal strength of the network in the area, logging into
a network may take longer and is outside the control of the wireless terminal.
The device is ready after LED of signal is lighted. Then user can operate it.

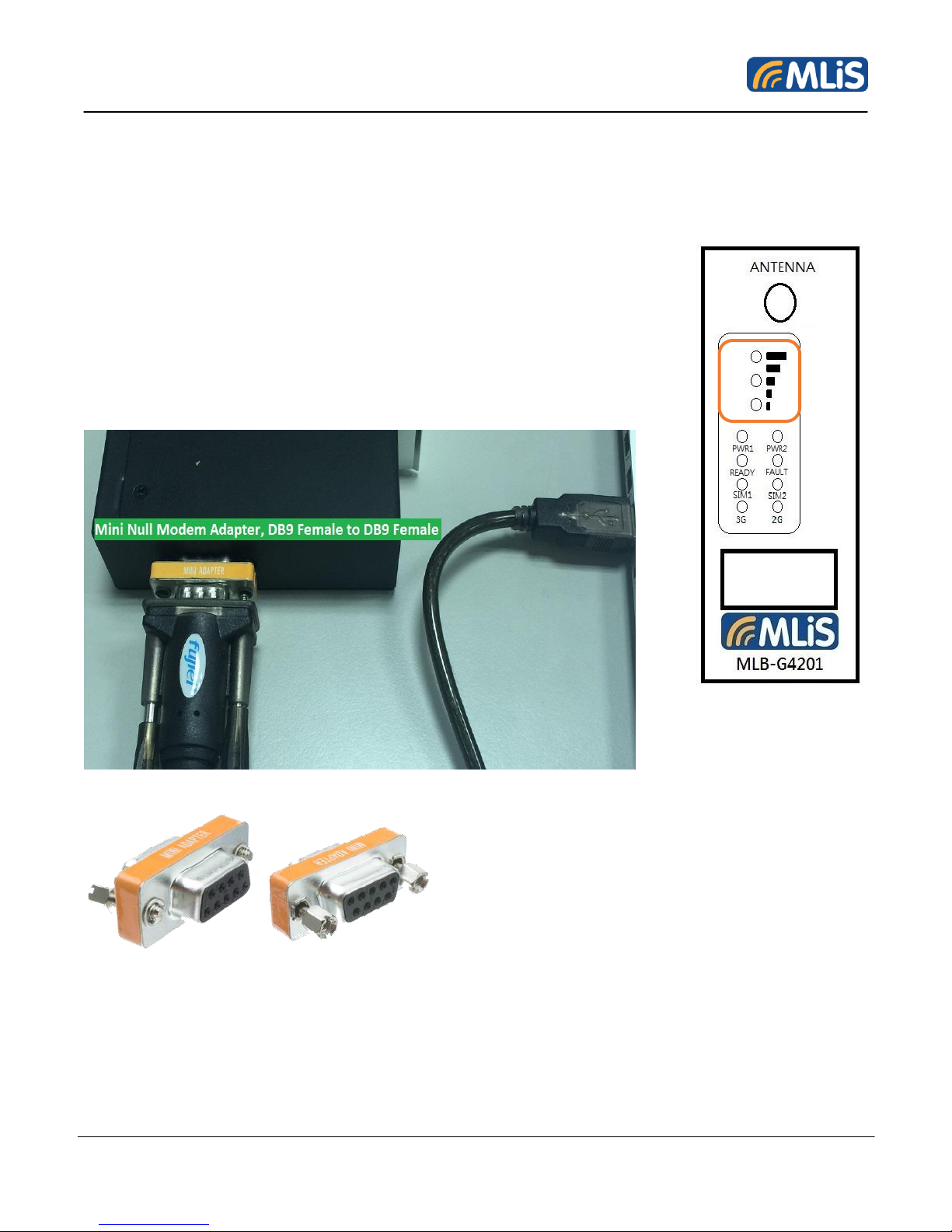

Step 5: When user use the MCCU (MLiS Cellular Configuration Utility) to
configure MLB-G4201, please refer the connection as below:

MLB-G4201 Wireless Terminal User Manual 20 Rev 1.1
4 SW Installation
Preliminary work: Power on MLB-G4201 and use web console cable to configure MLB-G4201.
4.1 Web Console
Set PC & MLB-G4201 into same subnetwork. The Default IP of MLB-G4201 is 10.0.10.1. Please set up
your PC with the same network segment, such as 10.0.10.2. So you can use browser to access the
web console of MLB-G4201. Please enter ID and password as below:
Username: admin
Password: 1234
