MOBB Health Care Bed Assist Rail User manual

Bed Assist Rail
Weight Capacity: 3001bs
INSTRUCTIONS INSIDE
Lifetime Limited Warranty
If you have a question about your MOBB Healthcare
device or this warranty, please contact an
authorized MOBB Healthcare dealer.
MOBB Healthcare warrants to the original consumer
purchaser for as long as they own their MOBB
product that it will be free from defects in material
and workmanship under normal use. This warranty
is only applicable to products used in residential
applications within the United States and Canada
and is not transferable to subsequent owners.
Should defects in material or workmanship exist
during the applicable warranty period in any MOBB
Healthcare Product, MOBB Healthcare will elect at
its discretion to either repair or replace the defective
material. This warranty covers only parts and
materials of the products supplied by MOBB
Healthcare. Not covered under this warranty are
wear and tear items or abuse of the product in a
manner that was not intended for the product to be
used. This warranty shall become void if the product
is in any way modified, improperly adjusted
or abused.
MHHBR
MOBB Healthcare Lt d .
116A Viceroy Rd. Unit 5-6
Concord, Ontario, Canada
L4K 2M1
www.mobbhhc.com

ASSEMBLY and INSTALLATION
1. Slide the straight bars (A) over the long end of the
"L" shaped bars(B) until the button lock.
2. Slide the assembled bars(buttons to the outside
of assembly) into hand bar (C).
3. Slide the end bar (E) into the bar (A) until the
buttons lock the bars together.
4. Ensure all clocking buttons are protruding through
their respective holes.
5. Slide the assembled unit between the mattress
and box spring at the point along the bed best
suited for the user.
6. Adjust hand bar height using locking buttons
below handgrip foam. Warning: The distance
between the hand bar & mattress should not
exceed 4.5"(120 cm).
7. Position safety rail at desired position. The space
between the vertical handle bars(F) and
other bedside device or bed board must be
less then 2.25"(6 cm), or larger than 9.25"(23.5
cm).
Figure 1
(D)
Height Adjustable Buttons
(C)
Hand Bar
(B)
L Shaped Bars
(A)
Straight Bars
(E)
End Bar
(F)
Vertical Bar

STRAP INSTRUCTIONS
1. Secure the SAFETY STRAP to the bed frame, as
shown in Figure 2. Unbuckle strap and loop strap
around bed frame and re-buckle. Tighten strap to
secure Handle Assembly against the side of the
mattress.
2. DO NOT INSTALL PRODUCT WITHOUT
SECURING THE SAFETY STRAP TO THE
BED FRAME.
3. 2nd strap included for extra lenght.
WARNING

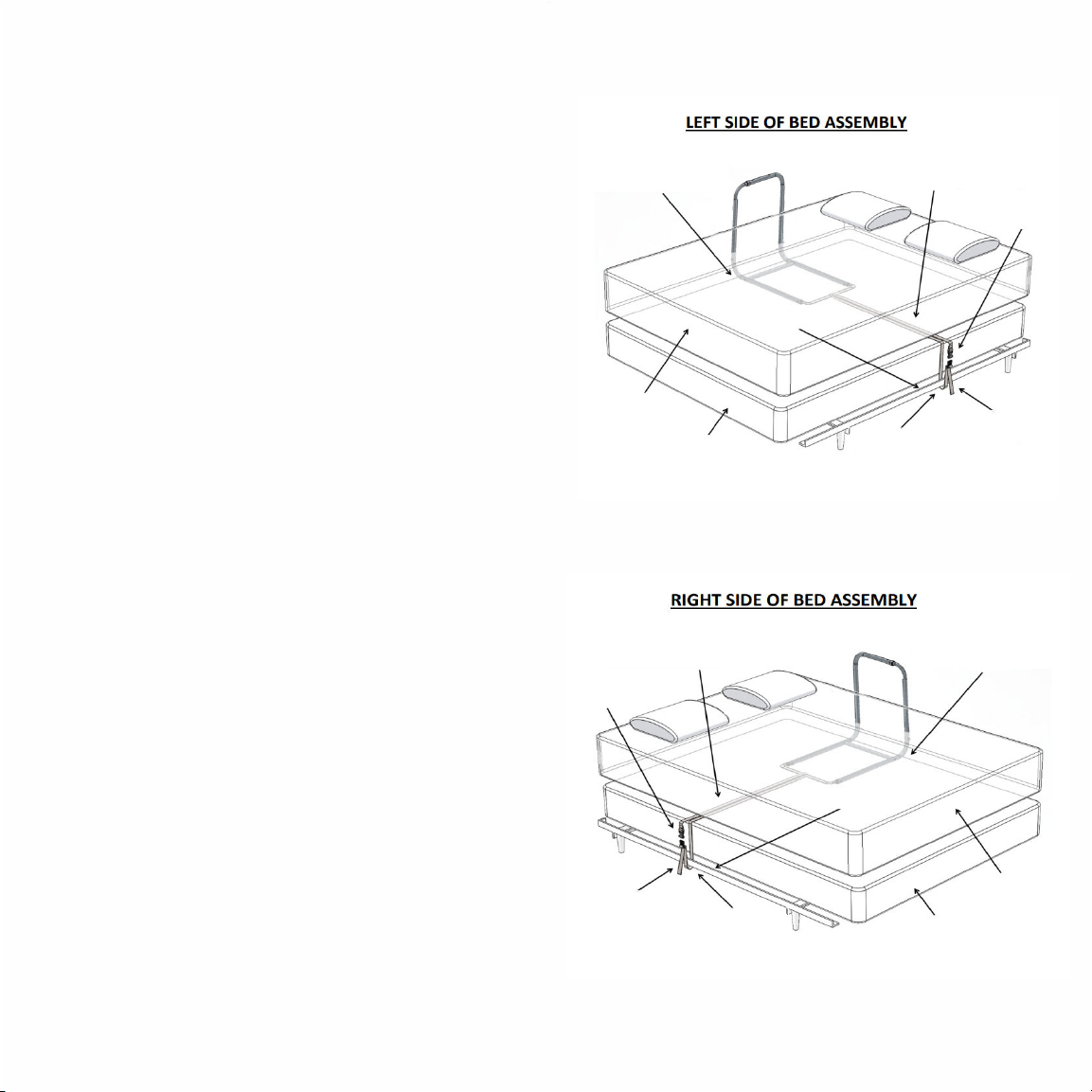

Figure 2
Strap between mattress and box spring Bed Rail between mattress and
box spring of bed
Bed Frame
Box Spring
Mattress
Loop Safety Strap
around Bed Frame
Tighten end of
Safety Strap
Buckle
(Note: Mattress shown transparent for clarity)
Strap between mattress and box spring
(Note: Mattress shown transparent for clarity)
Bed Rail between mattress and
box spring of bed
Buckle
Bed Frame
Mattress
Box Spring Loop Safety Strap
around Bed Frame
Tighten end of
Safety Strap
•This Bed Rail can be installed on most traditional
bed types with mattresses 12" to 16" thick. This
Bed Rail is not intended for use on adjustable
beds or with extra soft mattresses.
•This Bed Rail is not designed or intended to keep
a person from falling or rolling out of bed. It is
designed to assist the user in entering and leaving
the bed by providing a safe handhold.
•Do not use this Bed Rail without the properly
connecting the supplied safety strap.
•Use without the safety strap can allow the bed
rail to slip out of position, creating a
dangerous gap between the handle and the
mattress side posing a risk of entrapment,
strangulation and death.
