Mobi-click Carephone User manual

Operating Manual
Carephone

2
Declaration of conformity
Mobi-Click AG hereby declares that this mobile phone Carephone, type Carephone,
complies with the essential demands and other relevant requirements of the R&TTE
1999/5/EC Directive, when used for its intended purpose.
A copy of the complete Declaration of Conformity can be downloaded anytime via our
website www.mobi-click.com.
Producer:
TSL Elektronik, 04-501 Warszawa, ul. Plowiecka 5A
tel.: [phone], fax: [phone]

3
Table of contents
1 Safety information ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 6
2 General Information ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ a 9
2.1 Carephone, one of the world’s easiest mobile phones ...................................9
2.2 Mobilephoneandemergencycallsystematthesame time ……………………9
2.3 Example of a key assignment: …………………………………………………….10
3 Overview of your Carephone ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ a … 11
4 Getting started ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ a 13
4.1 Installing the SIM card ...............................................................................13
4.2 Charging the battery ................................................................................16
4.3 Activating ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ i 19

4
Table of contents
4.4 Sequence of actions...................................................................................20
4.5 Deactivating………………………………………………………………………………..22
5 Making phone calls with your Carephone ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ ............... 24
5.1 How tocall someonewithyourCarephone .................................................24
5.2 Receiving phone calls ................................................................................26
5.3 Automatic call pick-up in speakerphone mode .............................................28
5.4 Switching to speakerphone mode during a phone call …………………………30
5.5 The key-guard function...............................................................................31

5
Table of contents
7 Emergencycall (SOS) 112 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ a 33
8 Factory settings ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ a 34
9 Acoustical and optical messages........................................................................ 35
10 Important care and maintenance information................................................. 42
11 Technical data ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ a 44
12 Carephone warranty ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ a.. 45

6
1 Safety information
Please read carefuly the important information regarding safety and precautionary measures,
as well as all enclosed documents.
Important safety information is marked by the following symbol:
This equipment is intended for communication via GSM 900, 1800 and 900/1800 dual band.
(GSM = global system for mobile communication).
The registered customer is the intended user of this equipment. The equipment is intended
only for his/her personal use.
To telephone while driving a vehicle impairs the security of all road users.
Always consider therefore any national and international regulations as well as appropriate
safety regulations.

7
1 Safety information
Switch your phone off and secure it against inadvertent activation, while you are on an airplane.
In hospitals the devices, which guarantee life-preserving functions, are extremely sensitive
in relation to radio interferences. Mobile phones may be operated therefore only with special permission
of the hospital. In addition please note that medical instruments, like hearing aids, cardiac pacemakers,
implantable defibrillators etc, which can be disturbed by the high frequency electromagnetic radiation,
briefly RF-energy, of your mobile phone. Inquire therefore, if necessary, with the manufacturer or dealer
of such deviceswhether these are protected against RF - radiation.
Switch your telephone off in the proximity of gas station; consider the restrictions in fuel depots,
chemical plants and where blastingoperations are in progress.
Explain to your children the contents and the hazards associated with using the phone.
Theycould unintentionally send out emergency calls or damage the phone.

8
1 Safety information
-The mobile phone may cause interferences in the proximity of television sets,
radios and computers.
- Use only original Carephone accessories for your Carephone.
- Your Carephone is not waterproof. Therefore do not put it under water or take it
into theshower.
- Dispose of your mobile phone in accordance with the legal regulations.
-The Carephone may not be disposed of with the normal household waste. Please
observe the local regulations and information for the disposal of electronic devices.

9
2 General information
2.1 Carephone, one of the world’s easiest mobile phones
You Carephone functions like a normal mobile phone, only substantially easier! You can receive any
call and direct-dial three predetermined telephone numbers. The "one-touch speed-dialling" function
facilitates the handling for any user very much. With only 5 keys in total you will master your
Carephone quickly and safely.
2.2 Mobile phone and emergency call system at the same time
Carephone is also suitable as emergency call system. With the 3 keys (red, yellow, green) you can
directly call the Carephone, or e.g. your family doctor or your daughter by pressing just one key.

10
2 General information
2.3 Example of a key assignment:
Red key 1: Call desired phone number 1 – help center, police
------------------------------------------------------------------------------------------------------
Yellow key 2: Call desired phone number 2, e.g. family doctor
------------------------------------------------------------------------------------------------------
Green key 3: Call desired phone number 3, e.g. daughter

11

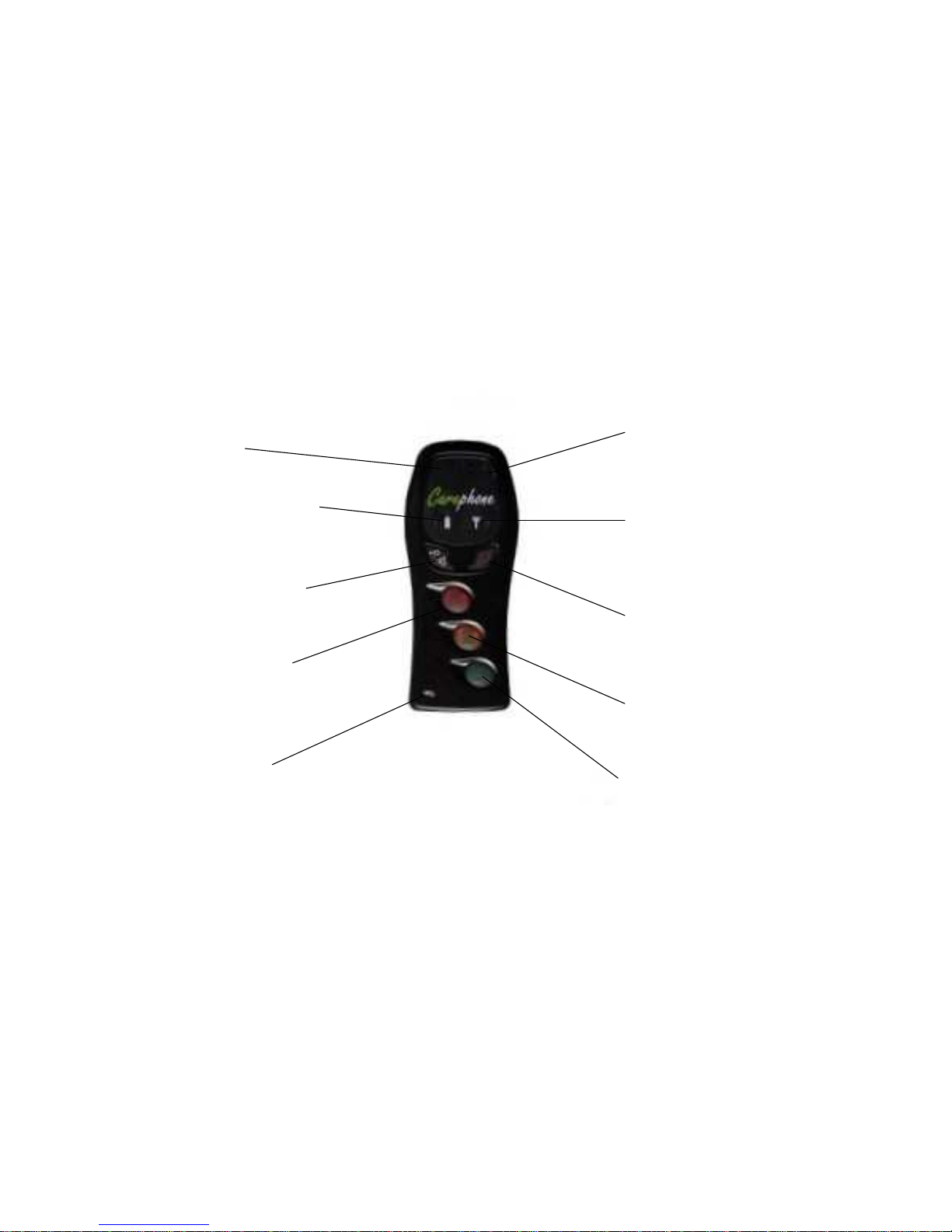

3 Overview of your Carephone
(picture 1)
• Front side
5. Speaker
6. Battery indicator
(green/yellow/red LED)
7. Key-guard and
speakerphone key
(double function)
1. Red key 1
(freely programmable)
10. Microphone
4. GSM net
indicator (blue LED)
8. Signal strength
indicator (green/red
LED)
9. ON/OFF key
2. Yellow key 2
(freely programmable)
3. Green key 3
(freely programmable)

12

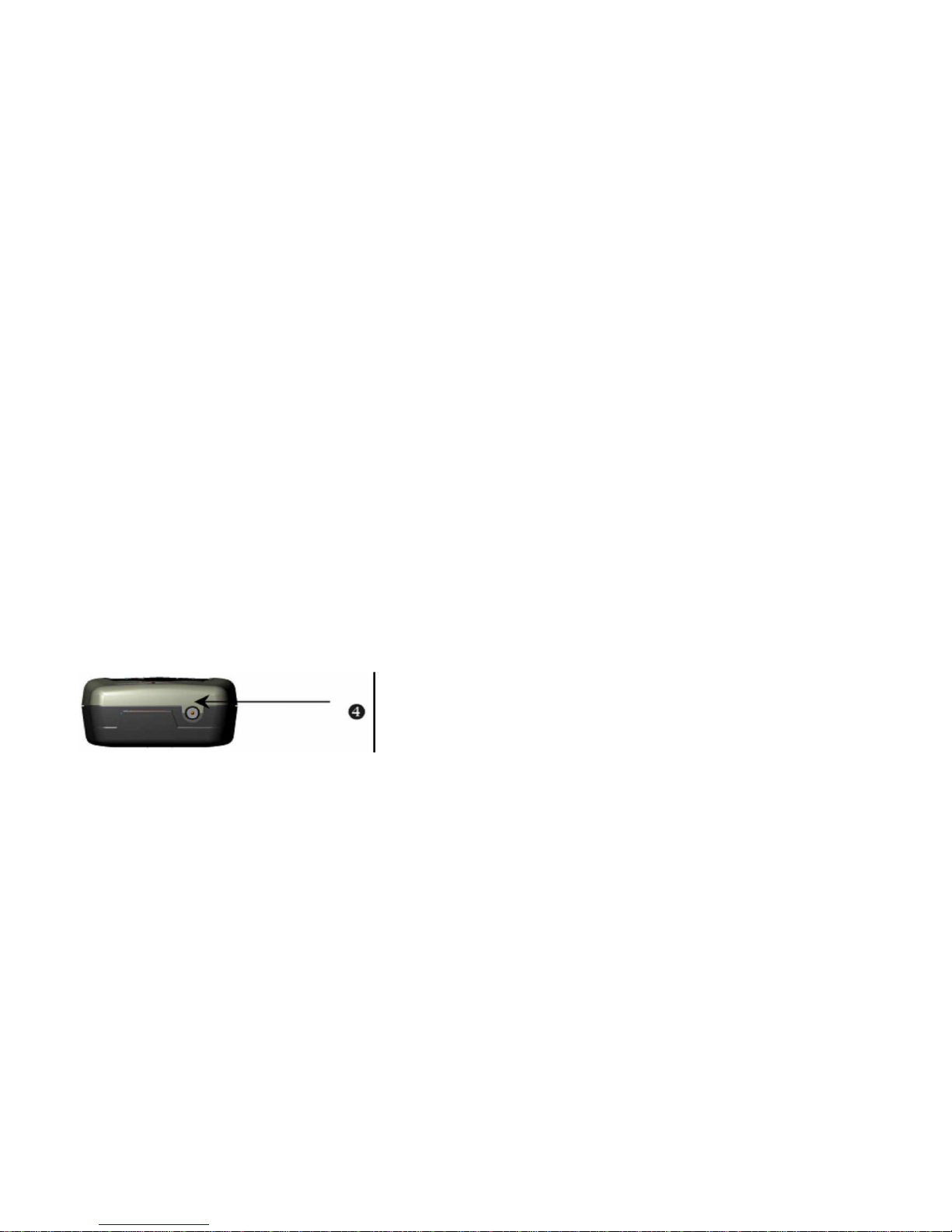

3 Overview of Carephone
(picture 2)
• Back side • Bottom side
Clip for neck strip
SIM card holder with contacts
Reset button
Chargerjack
Legend:
GSM = Global system for
mobile communication
(standard for mobile
telephony
LED = Light emitting diode

13
4 Getting started
4.1 PIN - code / save the three phone numbers
Since Carephone only has three keypad and a power ON / OFF button must be
made in the commissioning certain settings on a second "normal" mobile phone.
These settings are only carried out once!
Changing the PIN code: The operation of Carephone you need, as for any
other mobile phone also, called a SIM card. It does not matter whether you use a prepaid
card or have completed a subscription with your operator. Insert the new SIM card, which
you want to use later with Carephone, first in a "normal" mobile phone. Each SIM card has a
PIN code. Since Carephone has its own PIN processing, thus enabling to protect the device
against unauthorized access even via SMS, the PIN code of the SIM card must be changed.
This is a standard mobile phone can be used.
Set for the Care Phone-to-use SIM card that is a first in any mobile phone. Call the menu
item "PIN code request" on (see instruction manual of the phone) and change from the PIN
code on the following numbers: 27903514
If you have any difficulties, please read the instructions of your wireless service provider
(operator) or your mobile phone manufacturer. Once the PIN code of your SIM card have
changed, you can now program the number three, with which the Care Phone Users will be
in contact. The first number on the key number one, the second number on the key number
2, the third number on the key number 3.
Now you can insert the SIM card back into the Carephone. If you program the three phone
numbers the SIM card, you have the advantage, if you switch the phone to stay the three
most important numbers on the SIM card stored.

14
Or alternative:
You can program the three phone numbers via SMS, then you must write the following
command.
Write one or three text message (SMS) on your phone and send it to Care Phone!
1. >VPBUTTON;1;[phone](space)27903514
Greater-than sign VPBUTTON semicolon 1 semicolon 4946538196431 space 27903514
2. >VPBUTTON;1;[phone] 27903514
Explanation:
3. Greater-than sign VPBUTTON Semicolon 1 Semicolon [phone] space
27903514
Each time after the SMS program, contact the Carephone an SMS confirmation that you
have stored the number in the appropriate key.

15
4 Getting started
• Now insert your SIM card, with the metal contacts facing downwards, into the two lateral guides
and push it up to the stop, so that the angled corner of the SIM card points to the bottom right
corner of your Carephone.
• After installing the SIM card, replace the cover by sliding it up the backside until it
locks into place

16
4 Getting started
4.2 Charging the battery
Before the initial start-up the battery must first be completely charged. It does not matter at all
whether the equipment is switched on or off.
Before the initialstart-up, leave the battery chargerconnected to yourCarephone for at least3 to 4
hours, until the LED next to the battery symbol (fig. 1/6) turns green. From now on each charging
procedure usually takes only 2.5 hours. The jack for the charging cable is located in the bottom of your
Carephone.The batterydoes not need to be installed, since it is built-in and non-detachable.
Jack for charger (Fig. 2)

17
4 Getting started
The battery status of your Carephone is indicated to you both acoustically and optically:
• Audible alarms regarding the battery status:
Charge/ Capacity
>=>
Acoustical alarm
Connectingcharger
i=>
short beep
Disconnectingcharger
i=>
short beep
Batterycapacity
lower than 20%
>=>
5 beeps every
minuts
Warning:
If battery capacity is below 20% and you are hearing alarm beeps, you should recharge
your Carephone as soon as possible with the original charger, or else the phone is
automatically switched off for battery protection after approx. 5 minutes!

18
4 Getting started
• Optical messages regarding battery status:
The optical battery indicator is recognised by the battery symbol (fig. 1/6). The following battery
states are signalled by the LED:
Battery capacity
=>
Optical signal
charging
=>
LED blinking alternately green/red
100% - 60% => green LED.
59% - 20% "=> yellow LED
less than 20%
=>
red LED
(key illumination still active)
less than 20%
shortly before switching off
=>
red LED, flashing
(key illumination inactive)

19
4 Getting started
4.3Activating
The procedureof activating your Carephone is comprised ofthe following steps:
• HolddownON/OFFkey
• Automatic searchforGSMnet
• Automatic log-on to the GSMnetwork
• Carephoneoperational
The procedure from switching the phone on until being operational usually takes 30 seconds,
provided there is sufficient GSM signal strength.

20
4 Getting started
4.4 Sequence of actions:
■Hold down the ON/OFF key (fig. 1/9) until you hear a beep.
■Automatic search for GSM net:
The blue LED (fig. 1/ 4) for GSM net indication is continuouslyglowing, while the LED
indicating signal strength (fig. 1/ 8) is blinking alternately green/red.
■Automatic log-on to the GSM network:
You hear 3 short beeps. The blue LED (fig. 1/ 4) indicating GSM net is flashing continuously,
while the 3 keys 1-3 and the LED indicating signal strength Y (fig. 1/ 8) light up for 4
seconds indicating the successful log-on to the GSM network.
■Your Carephone is now operational.The blue LED (fig. 1/ 4) is flashing continuously.
