Mocka Rayne User manual

Thank you for choosing this product.
WARNING - AVOID SERIOUS INJURY
FROM FALLING OR SLIDING OUT.
ALWAYS USE COMPLETE 5 POINT
SAFETY HARNESS
lMPORTANT!
KEEP FOR FUTURE REFERENCE

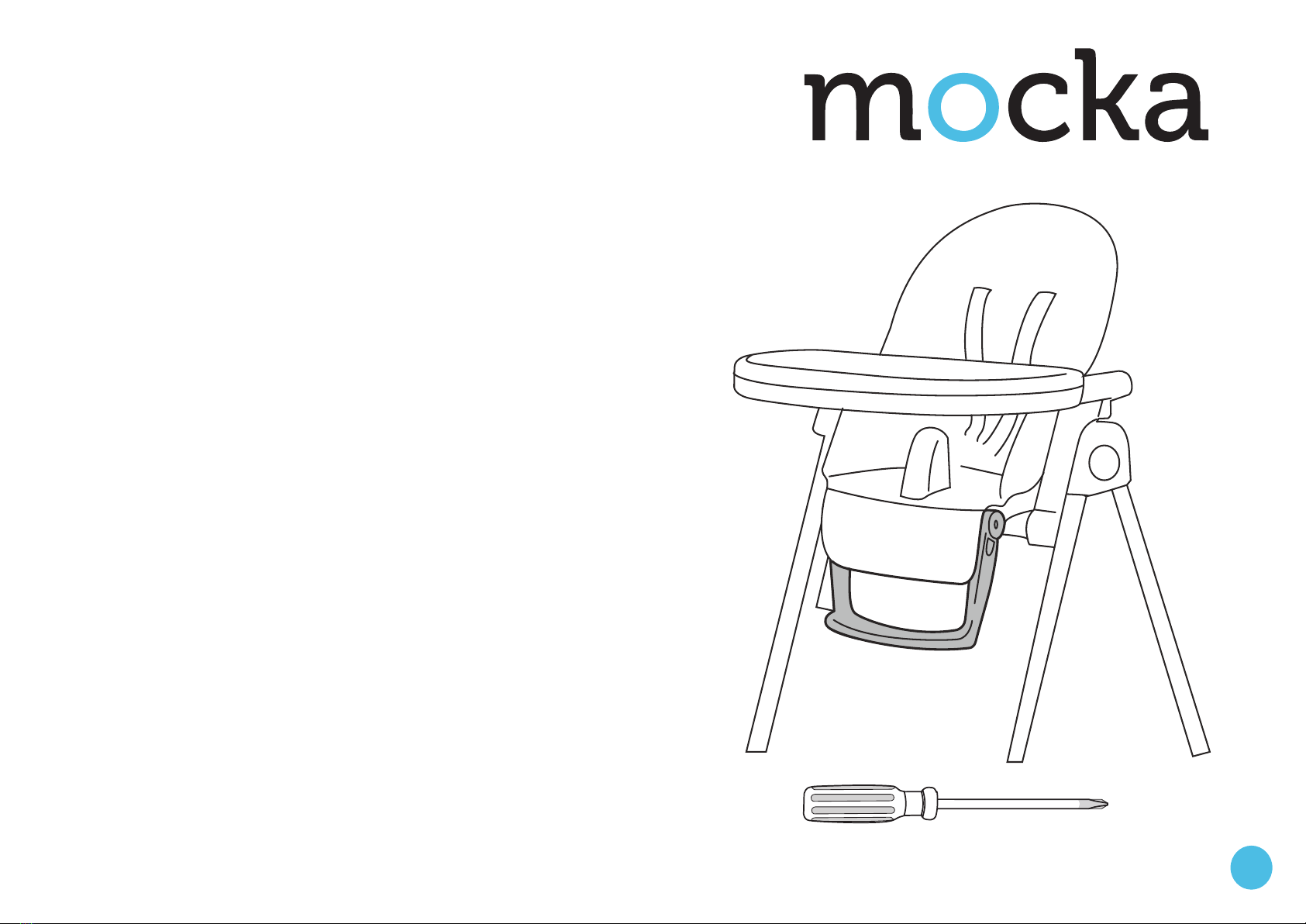

Phillips screwdriver required
Rayne Highchair
1
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Assembly Instructions
• Read these instructions carefully. Failure to
follow them may put the child’s safety at risk.
• The product must be assembled and
adjusted by an adult. Do not use the product
if it is not properly assembled, if it is broken
or if pieces are missing.
• Prevent the child from falling or slipping;
always use the five-point safety harness. Use
the safety harness both when the seat is
reclined and when it is in the vertical position.
• Never leave the child unattended.
• Stay near and watch child during use.
• Do not place your fingers in the mechanisms
and make sure the child’s limbs are safe from
harm when adjusting the chair.
• It could be dangerous to use accessories that
are not approved by the manufacturer.
• Assembly, preparation, cleaning and
maintenance of the product must only be
carried out by adults.
• Do not leave the high chair exposed to
sunlight for long periods of time. Wait until it
has cooled down before sitting the child in
the chair.
• Make sure that any harness is correctly fitted.
• Always use the restraint system.
• Position the product so that the child is far
from dangers such as electrical wiring, heat
sources and flames.
• Do not use the product near stairs or steps.
• Be aware of the risk of open fire and other
sources of strong heat,such as electric bar
fires, gas fires etc. in the vicinity of the high
chair.
• The child should be secured in the high chair
at all times by the restraining system. The
tray is not designed to hold the child in the
chair. It is recommended that the high chair
be used only by children capable of sitting
upright unassisted.
• Never use this product on an elevated
surface(e.g. a table).
• To avoid injury ensure that children are kept
away when unfolding and folding this product.
• Do not let children play with this product.
• This product is designed for indoor use only.
• Do not move or lift this product with the baby
inside it.
RECLINER
• When used as a recliner, this product is
designed for children from birth up to a
weight of 9 kg.

15
16
Rayne Highchair
2
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Assembly Instructions
• Do not use the product as a recliner when
the child is able to sit up alone.
• The recliner is not designed for long
periods of sleep. It should not be used as
a substitute for a cot. If the child needs
to sleep, he/she should be placed in a
suitable cot.
• Danger of strangulation: Never leave the
child in the recliner if the safety harness is
loose or undone.
• A warning! The child should be secured
in the high chair at all times by the
restraining system,either in the reclining
or upright position. The tray is not
designed to hold the child in the chair. It is
recommended that the high chair be used
in the upright position only by children
capable of sitting upright unassisted.
• Fall Hazard: Children have suffered
severe head injuries including skull
fractures when falling from high chairs.
Falls can happen suddenly if child is not
restrained properly. Always use restraints,
and adjust to fit snugly.
HIGH CHAIR
• The high chair is designed for children
from 6 months of age up to a weight of
15 kg.
• Not to use the high chair until the child
can sit up unaided. The tray and its
accessories are not designed to support
the child’s weight. The tray does not
substitute the safety harness.
• Make sure the product is placed on a flat
surface.
• The high chair is designed for use at
tables without the tray. It is suitable for
children from 12 months of age up to a
weight of 15 kg.
A SINGLE PRODUCT WHICH FOLLOWS
THE GROWTH OF YOUR CHILD.
• From 0 to 6 months, a comfortable
reclined cradle;
• From the age of 6 months, a high chair for
eating, playing and relaxing.
• From the age of 12 months, a high chair
without a tray, for sitting at the table with
the adults.

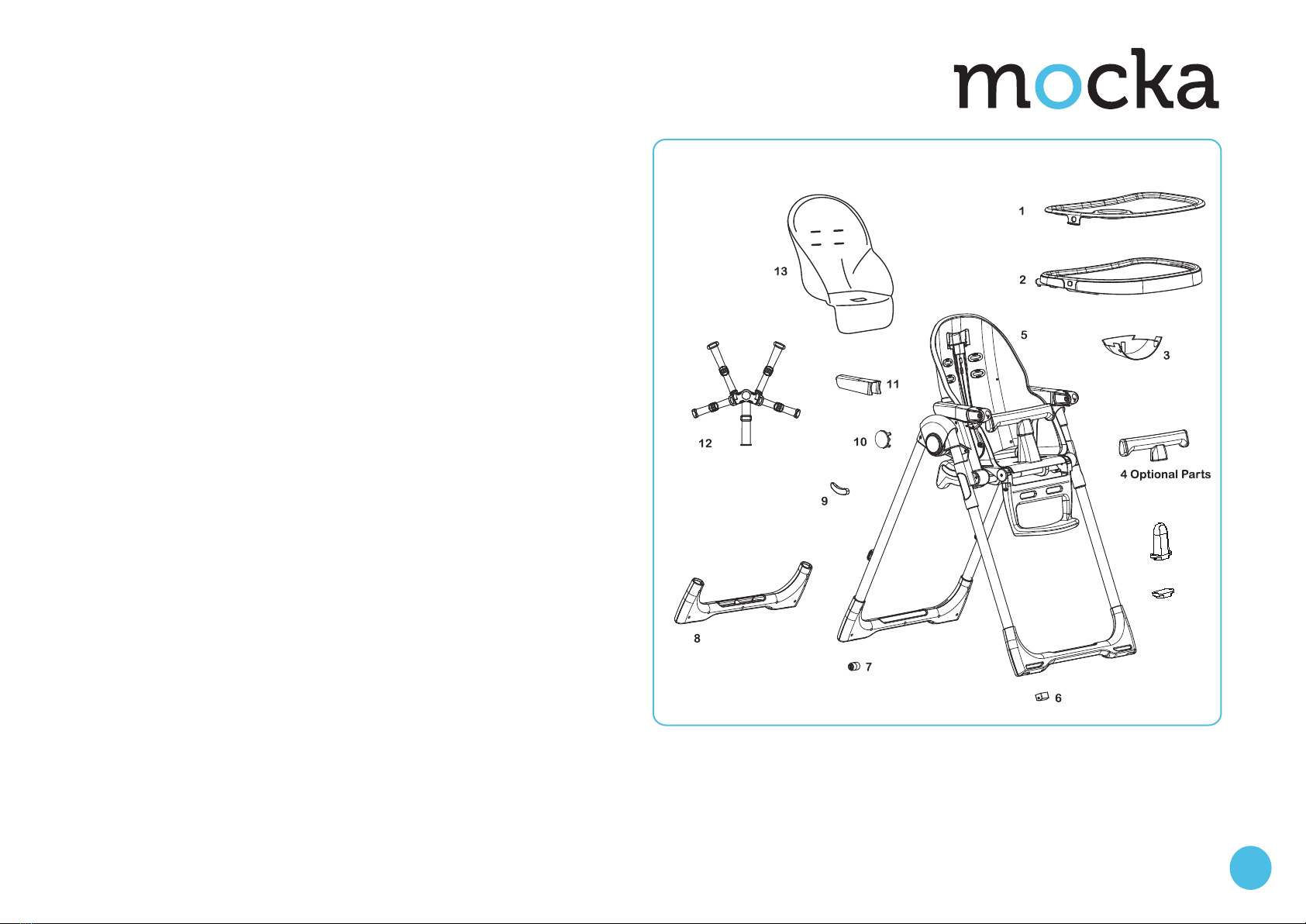

COMPONENTS OF THE ITEM
• Check the contents of the packaging and
if you have any complaints please contact
the assistance service.
A high chair with washable, removable
padding and a double tray.
CLEANING AND MAINTENANCE
• PRODUCT MAINTENANCE: Protect
from the weather: water, rain, or snow;
prolonged and continuous exposure to
bright sunlight may give rise to colour
changes of various different materials;
store this product in a dry place. The
maintenance has to be regularly.
CLEANING THE FRAME:
• Periodically clean all plastic parts with a
damp cloth. Do not use solvent or similar
cleaning products; keep all metal parts
dry to prevent rusting; keep moving parts
clean (adjustment mechanisms, locking
mechanisms, wheels, ...) and free of dust
and sand and if necessary, lubricate with
light machine oil all metallic moving parts.
Check all nuts and bolts for tightness
and tighten when required. Check all
coverings for bolts and sharp edges and
replace when required.
• Check slightly swing seat and
attachments for evidence of deterioration.
Replace when required in accordance
with the manufacturer’s instructions.
CLEANING THE COVER
• Wash with a damp cloth and neutral
detergent. Do not wring.
• Do not use chlorine bleach. Do not iron.
Do not dry clean. Do not use solvents for
stain removal. Do not spin dry.

12
OPENING: Lift the seat (fig_a), press the side buttons (fig_b) and open
the high chair (fig_c).
Note: When lowering your seat, gently slide it down the legs
making sure not to hit the bottom of the seat brace on the stoppers
as this can cause damage to your highchair.
TRAY: To fit the tray, pull the central lever underneath it towards you
while at the same time pushing it all the way into the armrests (fig_a). To
extend or remove the tray, pull the central lever underneath it towards
you (fig_b) and move it outwards (fig_c). To remove the tray, pull the
side levers outwards and pull the tray towards you. The high chair has a
double tray. The top tray can be easily washed at the sink. To
remove it, detach it from the lower tray and lift it up (fig. d).
A
A B
C
D
B
C
Rayne Highchair
3
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Assembly Instructions

34
ADJUSTING THE HEIGHT: The chair can be set at 5 different heights.
To lower the seat, pull the two levers downwards (fig.a) and move it to
the required position. Holding the handle behind the backrest (fig.b)
can also be used to raise the seat.
WARNlNG: Fall Hazard: This can’t be done with the child in the
high chair. Don't use when the horizontal height of the high chair
is inconsistent.
RECLINING BACKREST: The seat can be reclined in 5 positions.To
adjust it, raise the handle behind the backrest (fig.c) and lock it in the
required position.
WARNING: Fall Hazard: Be sure to check that the backrest is fully
locked after adjustment.
ADJUSTABLE FOOTREST: The footrest can be set in 3 positions.To
raise it, push the footrest upwards (fig. a). To lower it, press the two side
buttons at the same time (fig. b) and select one of the three available
heights.
A
A
B
B
C
Rayne Highchair
Assembly Instructions
4
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

Jolt Wardrobe
ASSEMBLY INSTRUCTIONS
5
mocka.co.nz | mocka.com.au
56
FIVE POINT SAFETY HARNESS: To close it, insert the two waist strap
buckles (with attached shoulder straps) into the crotch strap until they
click into position (fig_a). To release it, press the two sides of the
buckles and at the same time pull the waist strap outwards (fig_b). To
tighten the waist strap, pull from both sides in the direction of the arrow
(fig_c), to loosen do the opposite.
The shoulder straps of the harness can be set at two different heights.
PartialIy remove the cover (fig_a), release the shoulder straps from the
backrest (fig_b1) and pull them out from the cover (fig_b2). lnsert the
ends of the shoulder straps in the other slots in the cover and the
backrest (fig_c), then put the cover back into the right position on the
backrest.
AB
C
A
CB
Rayne Highchair
Assembly Instructions
5
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

78

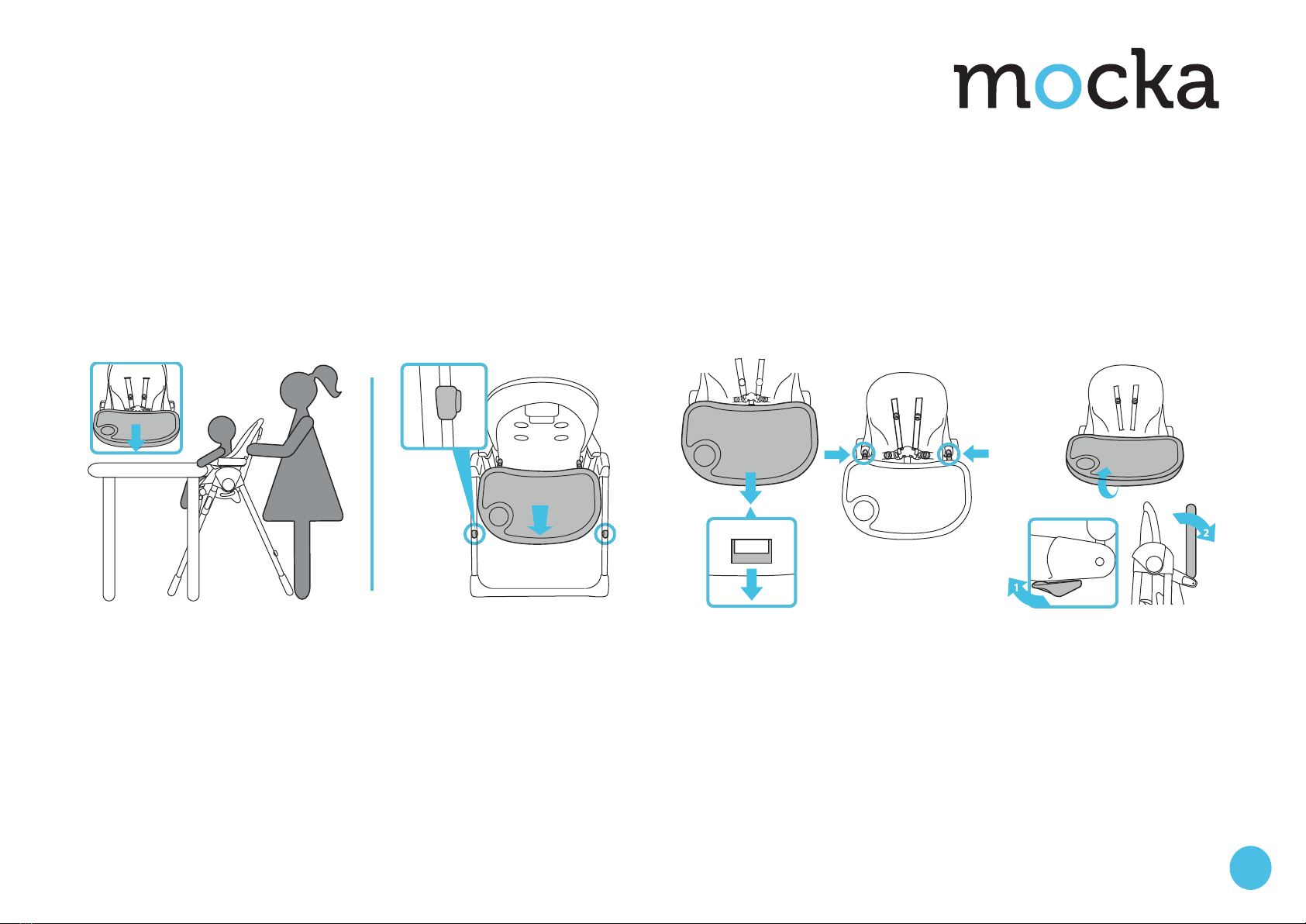

USE WITHOUT THE TRAY: To use the seat at the table, remove the
tray (fig_a). To clip the tray on the rear supports of the high chair, align
and engage it with the attachments (fig_b).
CLOSING AND REOPENING THE TRAY: Pull the central lever
underneath the tray towards you (fig_a) and extend it as far as the red
markers (fig_b), then swing it upwards to lock it in place (fig_c). To
reopen the tray, press the lever under the armrest (fig_d), swing it
downwards, then pull the central lever towards you and put the tray in
one of the positions for use.
WARNING: When the tray is turned up, make sure that the chair is
placed in a safe position where the child can not reach it to prevent
the tray from falling.
A
AD
CB
B
Rayne Highchair
Assembly Instructions
6
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

9
10
FOLDING UP: Press the side buttons (fig_a) and fold up the high chair
(fig_b). Fig_c shows a folded-up high chair.
REMOVABLE COVERS: To remove the covers of the seat, pull off the
upper part of the fabric covering and pull the harness straps through the
backrest (fig_a) and the fabric covering (fig_b). Lower the backrest and
pull out the leg divider strap from under the seat (fig_c).
A
B
C
C
A
B
Rayne Highchair
Assembly Instructions
7
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

11 12
Unbutton the cover at the sides (fig. a) and pull up to remove it (fig. b). WARNING: Always use the restraint system, and adjust to fit
snugly.
Please remove the white stopper from the leg divider (fig_a), then insert
the T bar into the leg divider (fig_b), Finally, use a screwdriver to tighten
the screws to secure the T bar (fig_c)
A
BA
C
B
C
If the white stopper is stuck,
push up from the bottom of
the leg divider with a
screwdriver to pop it out.
Optional Part
0-2 years
Rayne Highchair
Assembly Instructions
8
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

13 14
WARNING: Never leave the child unattended! Please keep
accessories away from babies and children to avoid harms from
eating by mistake.
Use a screwdriver to loosen the screws underneath the seat (fig_a),
then take out the T bar (fig_b) and put the white stopper into the leg
divider (fig_c).
Turn over the cushion and loosen the screws at two sides of the leg
divider, then take off the leg divider (fig_a), press the small white insert
block into the seat (fig_b) and tighten the screws on both sides (fig_c).
A
BA
C
B
C
Optional Part
3+ years
Optional Part
2-3 years
Rayne Highchair
Assembly Instructions
9
