Modena Pulito Series Owner's manual

User
Manual Book
Vacuum Cleaner
Pulito Series
VC 2313

1
Thank you for your trust in choosing MODENA products for your household
needs. With your satisfaction as our priority, we constantly aim to deliver stylishly
designed products equipped with state-of-the-art technology to assist you in
your daily activities.
This is your guidebook containing everything you need to know about our
product. Please reach out to us if you need further assistance or other
information via our Customer Care or our official website www.modena.com.

2
CONTENTS PAGE.
• Introduction 1
• Part 1 : Name of Parts 3
•Part 2 : Installation 4
• Part 3 : How to Use 5
• Part 4 : Maintenance 6
• Part 5 : Precaution Action 7
• Part 6 : Problem & Solution 9
• Part 7 : Specification 10

3

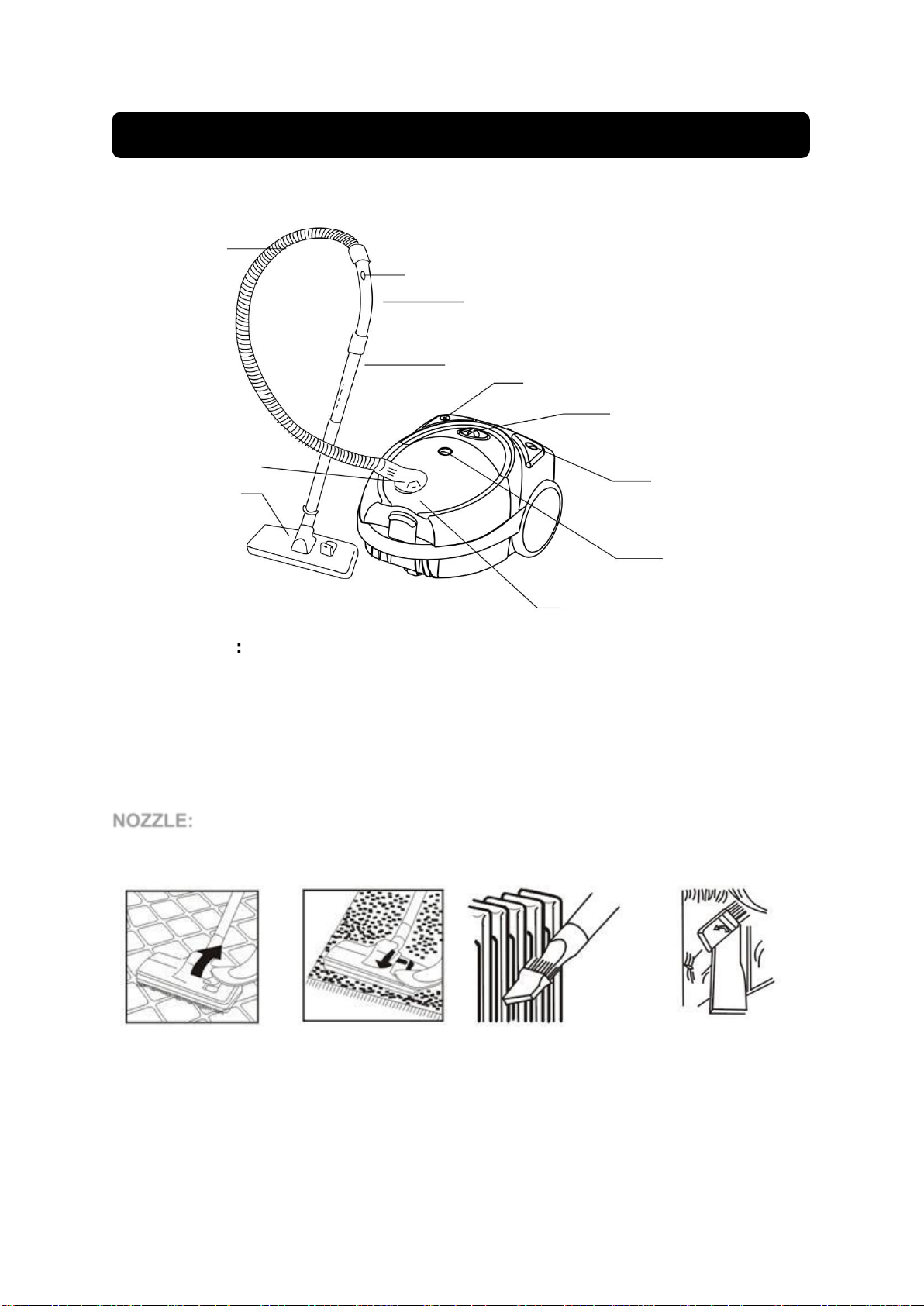

Names of part:
1. Flexible hose 7. Switch On /Off
2. Adjustment level 8. Hose grip
3. Handle/Elbow 9. Floor brush
4. Pipe 10. Dust indicator
5. Button automatic cable roller 11. Front cover
6. Suction controller 12. Dust bin
NOZZLE:
1.Floor /Carpet
2. Gap
3. Small brush
-Extend / deploy the
brush to clean the
hard floor surface.
-Pull /retract the
brush to clean
the carpet.
-Used for radiator,
gap, corner and gap
between the sofa
cushions.
-Used to clean the
curtain, books, shelf,
lamp shade and other
similar objects.
* Features depend on the type of product.
Part 1: Name of Parts

4
Important:
1. Read this manual thoroughly before starting operations.
2. Check whether the voltage specified on the unit fits with the one in your house. If not contact
MODENA Call Center for further inquiries.
3. Unit must be connected with a properly grounded 10A electrical outlet.
4. Always unplug the power cord before installing / detaching accessories, disassembling the unit,
when the unit is not to be used for a long time, or before cleaning and repairing.
5. Do not use solvent substances (methylated spirits) to clean the unit
6. Do not use the unit on wet surface.
7. When the unit is activated, do not leave it without supervision. Make sure to keep it away from
children or incompetent people.
8. The unit is meant for house hold usage. Use it according to the instructions provided in the manual.
9. Do not activate the unit if the unit is damaged.
10. Contact the dealer or call center for repairs and after sales service.
11. If the power cord is damaged, contact MODENA call center for replacement.
12. This unit is not meant to be used by children, mentally or physically challenged, or those who lack
the experience and knowledge regarding the unit. For safety precautions, provide serious
instructions and guidance when they attempt to do operations.
13. Keep the unit away from children’s reach.
14. If you wish to unplug the power cord from the socket, pull the plug, not the cord. If the power cord
is damaged, both cord and the plug must be repaired by a qualified technician.
15. If the dust indicator light turns red, immediately replace or clean the dust container.
16. Replace or clean the dust container on a regular basis to prolong the product’s age.
17. Make sure the front cover is always attached.
CONNECTING THE VACUUM CLEANER
Remove flexible pipe
Remove the cord plug from the socket before releasing the flexible
pipe from the air inlet. Press the button at the end of the flexible pipe
and pull to release it.
Installing and connecting additional pipes and accessories
-Install additional pipes on
the handle.
-Connect additional
pipes.
-Install the accessories to the
additional pipe.
Part 2: Installation

5

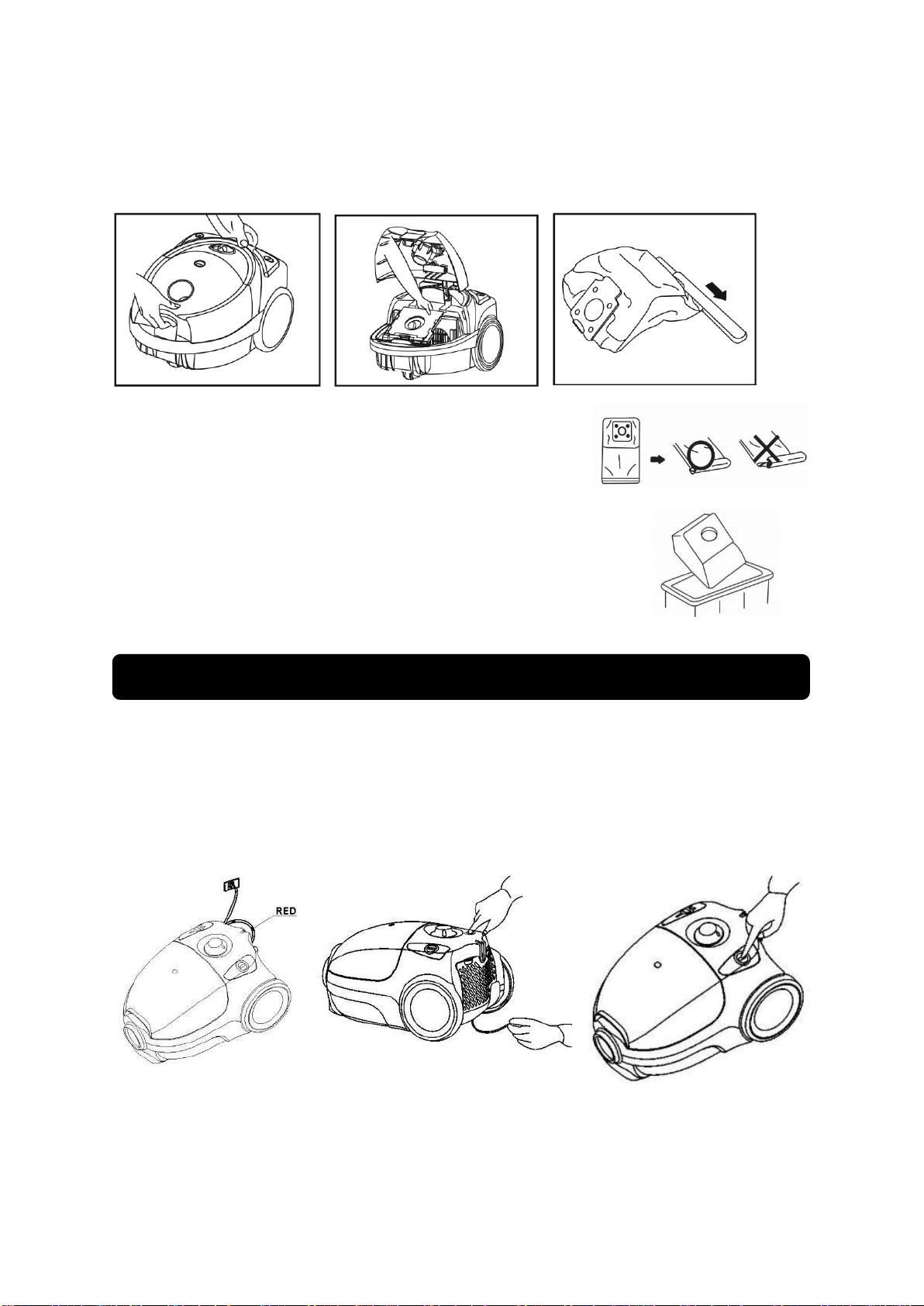

Emptying and replacing dust bag
After removing the flexible pipe, open the cover by pressing the lock button and pull it upwards. Then,
remove the dust bag.
a. Type of dust bag
1. Cloth
To remove the dust from the cloth dust bag, remove the pins
on the bottom of the bag to release the dirt inside the bag, clean
the bag and pin the bottom part again.
2. Paper
If you use a dust bag made from paper, throw away the bag after usage.
1. Before usage, pull / detangle the power cord as necessary and connect the power cord head
to the socket. Red represents the maximum efficient length of cord. Do not pull the cord beyond
the red mark. To roll the power cord, press the cord roller button with one hand and detangle
the cord with one other hand.
2. Press the On/Off button to activate / turn on the unit. Set the vacuum power to MIN before
activating the unit.
3. The vacuum power can be adjusted according to the needs by turning the vacuum power
button.
4. Nozzle brush usage.
-Floor/Carpet
Extend / release the brush to clean the hard floor surface.
Part 3: How to Use

6

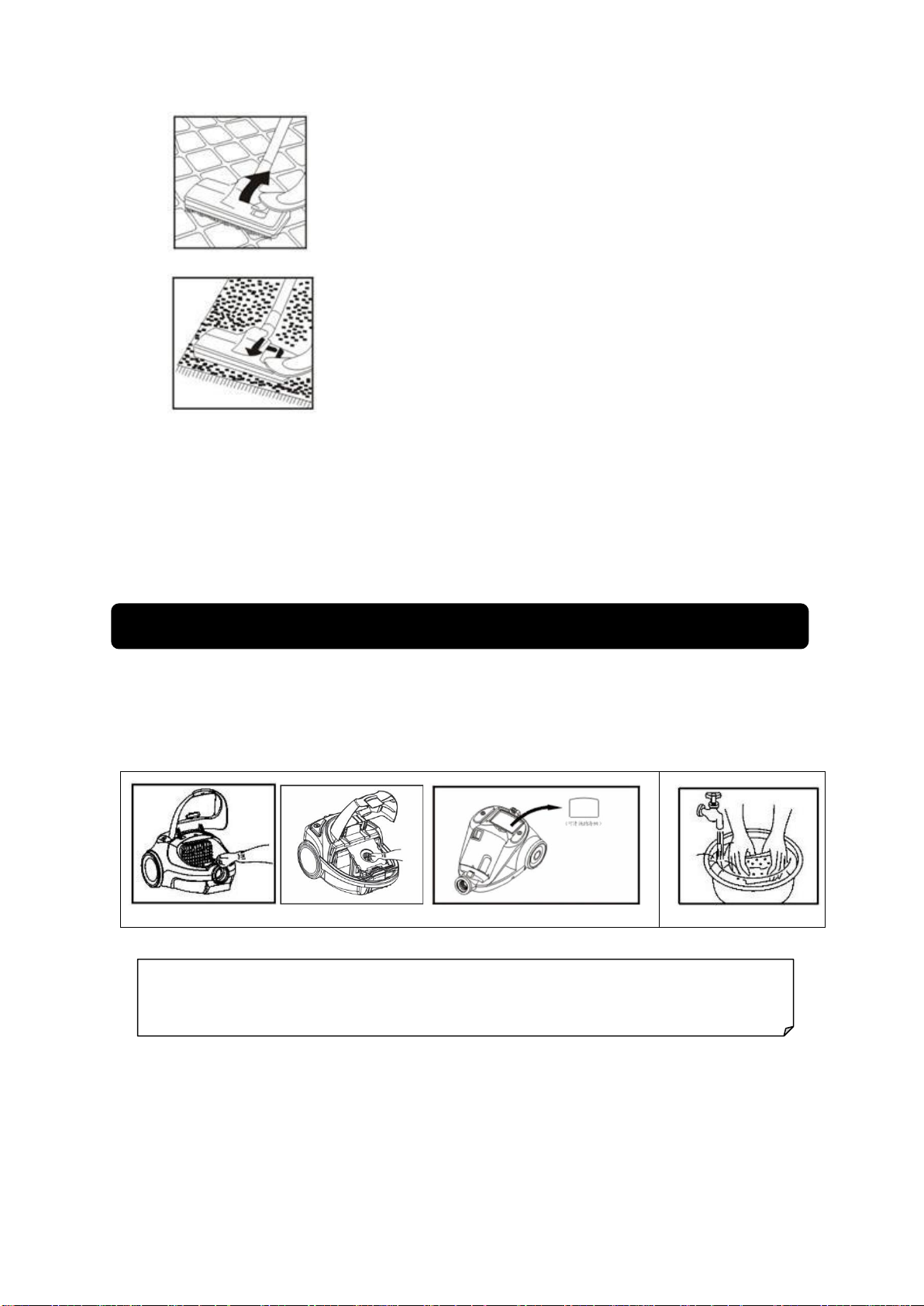

Retract / pull the brush to clean the carpet.
-Small brush
Used to clean the dust on the curtain, book, shelf, lampshade and other objects.
-Gap
Used to clean the gap, corner, radiator and the gap between the sofas.
5. After usage, turn off the vacuum cleaner by pressing the ON/OFF and reroll the power cord.
6. For certain models, do not move the vacuum cleaner when the cleaning pipe is not hooked
perpendicularly to the hole / hook on the unit. This may cause the floor to get scratched from the
brush nozzle.
.
Always remove the plug from the socket before performing maintenance on the vacuum cleaner.
1. Clean the unit using dry cloth. Do not use shining powder, detergent, gasoline, acid, thinner, oil or
hot water to clean any part of the unit.
2. Remove the inlet and outlet air filter, clean the filter by submerging it in warm water, and dry it inside
out. After it’s dried, reinstall it to the vacuum.
If the unit is not going to be used for a long time, store it in a dry place with good circulation. Keep away
from children.
Part 4: Maintenance
−Make sure the filter is dry when reinstalled to the vacuum cleaner.
−Make sure it is placed in its proper place.

7
DISPOSAL
Environmental Preservation
Electronic waste should not be disposed of with household waste. Dispose
property at an electronic dump site. Ask for advice from the retailer or the local
authorities on how to perform proper disposal and recycle.
Perform the following preventive measures before operating the vacuum cleaner:
−Read all instructions thoroughly and pay attention to the pictures before operating the vacuum
cleaners.
−Check the voltage specifications on the vacuum cleaner whether it matches with the voltage in
your house. If it doesn’t match, contact the MODENA Call Center for further information.
−Do not leave the vacuum cleaner while it is still connected to the socket. Always unplug the
power cord from the socket if the vacuum cleaner is not used.
−To avoid electric shock, do not use the vacuum cleaner outside the house or out in the open
area and do not put or submerge the power cord or plug in the water or liquid substance.
−Tight supervision is required if vacuum cleaner is used around the children.
−Do not operate the vacuum cleaner if the power cord or the plug is damaged, dysfunctional,
taking fall damage, or broken. Take it to our Call Center for inspection & testing, rearrangement
of electrical or mechanical functions, and necessary repairs.
−Usage of additional equipment/tools without recommendations and not supplied by the
manufacture may result in fire, electric shock / shortage and damage to the vacuum cleaner.
−Special attention is required for usage on stairs.
−If the air inlet, pipe nozzle or telescopic pipe is obstructed, immediately deactivate the vacuum
cleaner and clear the obstruction before restarting it.
−Make sure you plug the power cord to the socket with dry hands.
−Remove large or sharp objects on the floor before using the vacuum cleaner to avoid damages
to the filter.
−If you wish to unplug the power cord from the socket, pull the plug, not the cord. The damaged
cord and plug must be repaired by a qualified technician.
Part 5: Precaution Action

8
Do not operate vacuum
cleaner near heat sources
such as stove, cigarette buds,
etc.
Do not use the unit on top of
the power cord. Make sure the
power cord is not pinned or
stepped on when the unit is
operating.
Do not use the unit to vacuum /
clean lighted match, lighted
cigarette or hot dust.
Do not use the unit on wet
surface.
Do not obstruct the air inlet or the
drainage.
Do not use the unit to
vacuum / clean threads,
sharp objects, nails, pins,
etc.

9
In the event of operational issues, check the following problems and solutions below before contacting
our Call Center:
Problem
Cause
Solution
Weak Suction Power
-Dust bag and the cylindrical
filter are obstructed.
-Brush or nozzle are
obstructed.
-Flexible pipe is obstructed.
-Replace or clean the dust bag
and the cylindrical filter.
-Clean the brush and nozzle
from dust.
-Clean the flexible pipe
The motor cannot rotate /
vacuum
-Is the cord plugged to the
socket?
-Has the ON button been
pressed yet?
-Reconnect the power cord
with the socket.
-Press the ON Button
Part 6 : Problem & Solution

10
S = Stainless W = White V = Silver G = Grey L = Black Y = Yellow U= Blue N = Green
Design and specifications are subject to change at any time without prior notice.
VACUUM CLEANER
VC 2313 U
VC 2313 N
VC 2313 N
Type
DRY
DRY
DRY
Color
Yellow
Blue
Green
Capacity (liter)
1.1
1.1
1.1
Filter :
-Clot
-Paper
-Motor
-Outlet
-Hepa
-Screen
Yes
No
Yes
Yes
No
No
Yes
No
Yes
Yes
No
No
Yes
No
Yes
Yes
No
No
Pipe
-Type
-Material
-Suction valve
Tube In
Plastic
Yes
Tube In
Plastic
Yes
Tube In
Plastic
Yes
Motor safety mechanism
Yes
Yes
Yes
Nozzle :
-Floor/Carpet
-Water
-Gap
-Dust/Furniture
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Brush nozzle
Fiber
Fiber
Fiber
Cord length (meter)
4.5
4.5
4.5
Wheels
Yes
Yes
Yes
Noise level (dbA)
≤ 76
≤ 76
≤ 76
Suction power (kPa)
≥ 18
≥ 18
≥ 18
Voltage (Volt)
220
220
220
Electrical frequency (Hz)
50
50
50
Power(watt)
400 - 1000
400 - 1000
400 - 1000
Dimension (L x W x H) mm
240 x 340 x 200
240 x 340 x 200
240 x 340 x 200
Weight (kg)
4
4
4
Part 7: Specification
