Modena Quillo Series Owner's manual

User
Manual Book
Vacuum Cleaner
Quillo Series
VC 3213
Gevole Series
VC 1505

1
Thank you for your trust in choosing MODENA products for your household
needs. With your satisfaction as our priority, we constantly aim to deliver stylishly
designed products equipped with state-of-the-art technology to assist you in
your daily activities.
This is your guidebook containing everything you need to know about our
product. Please reach out to us if you need further assistance or other
information via our Customer Care or our official website www.modena.com.

2
CONTENTS PAGE.
• Introduction 1
• Part 1 : Name of Parts 3
•Part 2 : Installation 4
• Part 3 : How to Use 7
• Part 4 : Maintenance 9
• Part 5 : Precaution Action 9
• Part 6 : Problem & Solution 11
• Part 7 : Specification 12

3
VC 3213 N, Y, U
VC 1505

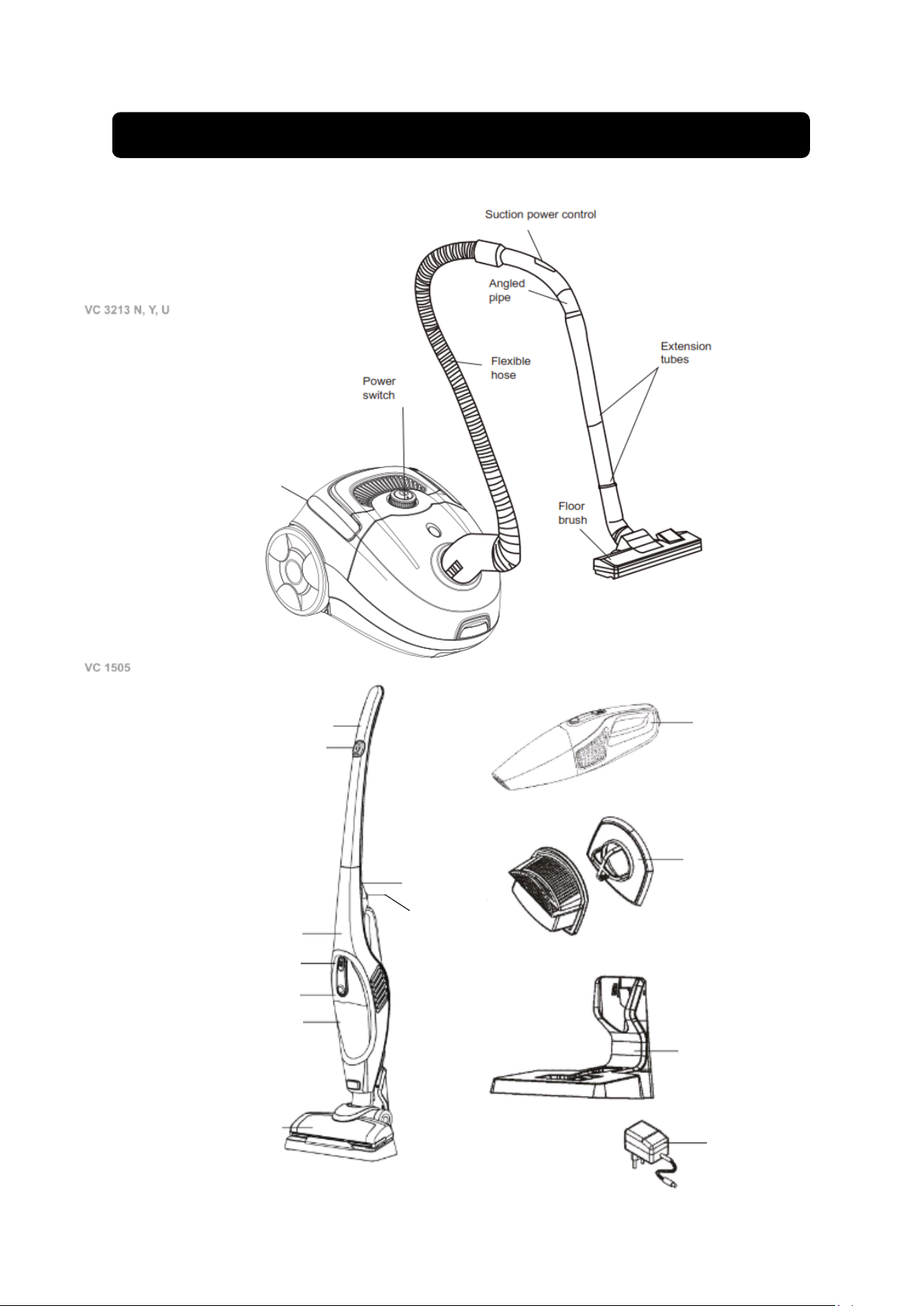

Part 1: Name of Parts
Cable
rewind
button
Handle
Handle switch
Set screw
Handle-held
switch
Body
Handle-held power switch
Dust barrel switch
Dust barrel
Motor brush
Handle-held
Filter
Charge base
Adapter

4
NOZZLE:
1.Floor /Carpet
2. Gap
3. Small brush
-Extend / deploy the
brush to clean the
hard floor surface.
-Pull /retract the
brush to clean
the carpet.
-Used for radiator,
gap, corner and gap
between the sofa
cushions.
-Used to clean the
curtain, books, shelf,
lamp shade and other
similar objects.
* Features depend on the type of product.
Important:
1. Read this manual thoroughly before starting operations.
2. Check whether the voltage specified on the unit fits with the one in your house. If not, contact the
MODENA Call Center for further inquiries.
3. Unit must be connected with a properly grounded 10A electrical outlet.
4. Always unplug the power cord before installing/detaching accessories, disassembling the unit,
when the unit is not to be used for a long time, or before cleaning and repairing.
5. Do not use solvent substances (methylated spirits) to clean the unit
6. Do not use the unit on wet surface.
7. When the unit is activated, do not leave it without supervision. Make sure to keep it away from
children or incompetent people.
8. The unit is meant for house hold usage. Use it according to the instructions provided in
the manual.
9. Do not activate the unit if the unit is damaged.
10. Contact the dealer or call center for repairs and aftersales service.
11. If the power cord is damaged, contact MODENA call center for replacement.
12. This unit is not meant to be used by children, mentally or physically challenged, or those who lack
the experience and knowledge regarding the unit. For safety precautions, provide serious
instructions and guidance when they attempt to do operations.
13. Keep the unit away from children’s reach.
14. If you wish to unplug the power cord from the socket, pull the plug, not the cord. If the power cord
is damaged, both cord and the plug must be repaired by a qualified technician.
15. If the dust indicator lights turns red, immediately replace or clean the dust container.
16. Replace or clean the dust container on a regular basis to prolong the product’s age.
17. Make sure the front cover is always attached.
Part 2: Installation

5
CONNECTING THE VACUUM CLEANER
Remove flexible pipe
Remove the cord plug from the socket before releasing the flexible
pipe from the air inlet.
VC 3213 N, Y, U
Press the flexible pipe until it clicks into the locking position.
Press and pull the flexible pipe to release.
VC 1505

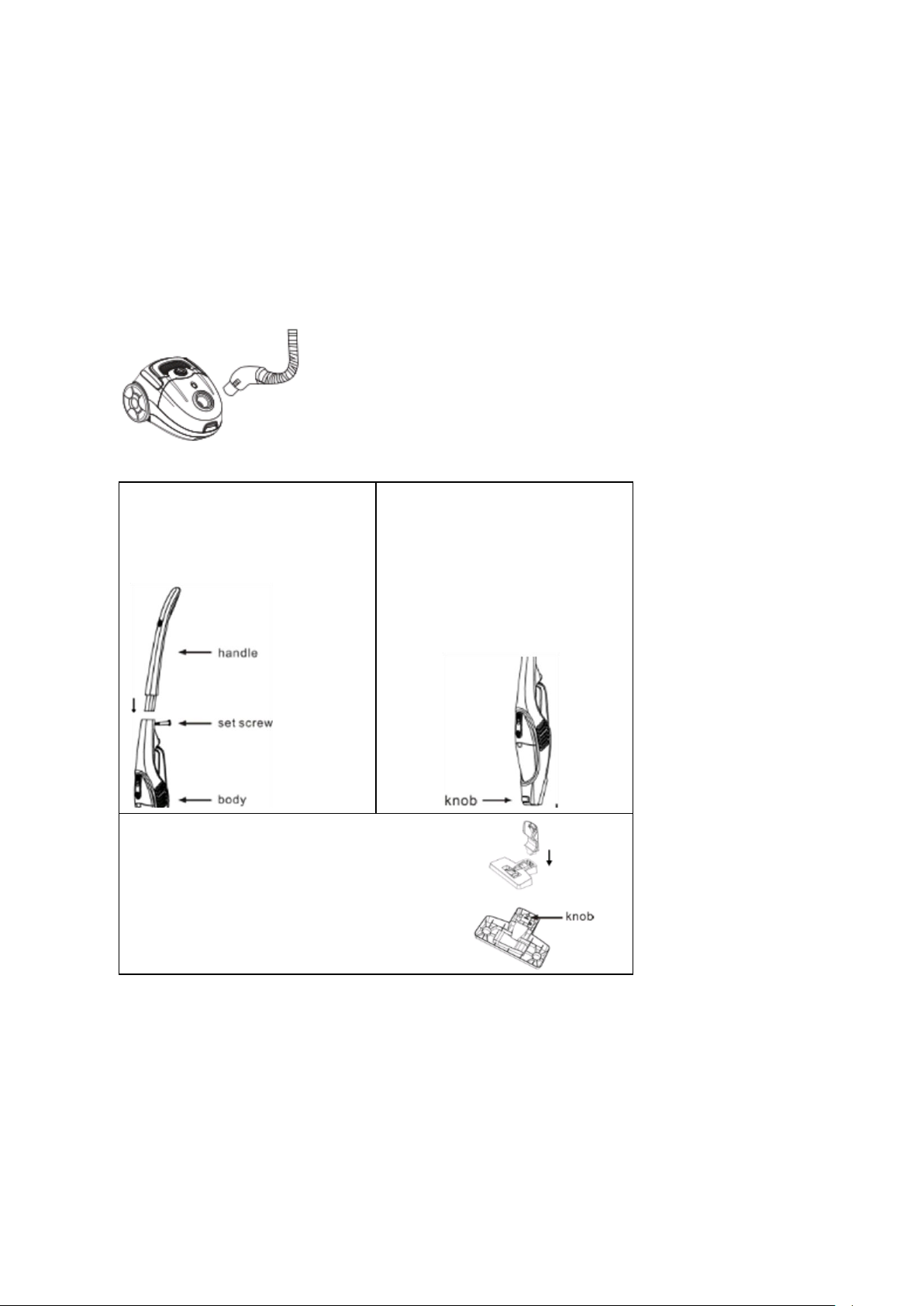

Main unit assembling
Connect the handle and the body
Screwed with the set screw
Motor brush assembling
Fit the motor brush with the body
until it clicks into the position.
Remove the motor brush
Press the knob and remove the
brush from the body.
Charge base assembling
Fit the back into the charge base

6
Installing and connecting additional pipes and accessories
-Install additional pipes on
the handle.
-Connect additional
pipes.
-Install accessories to the
additional pipe.
Emptying and replacing dust bag
After removing the flexible pipe, open the cover by pressing the lock button and pull it upwards. Then,
remove the dust bag.
VC 3213 N, Y, U
1. Open the front cover by pressing the button and pulling it upwards.
2. Clean the dust bag and reinstall it to the unit.
Replacing filter and outlet filter
1. Open the front cover by pressing the button and pulling it upwards.
2. Remove the motor filter and the outlet filter. Then, replace with the new filter and reinstall it to the unit.
Filter replacement and cleaning VC 1505

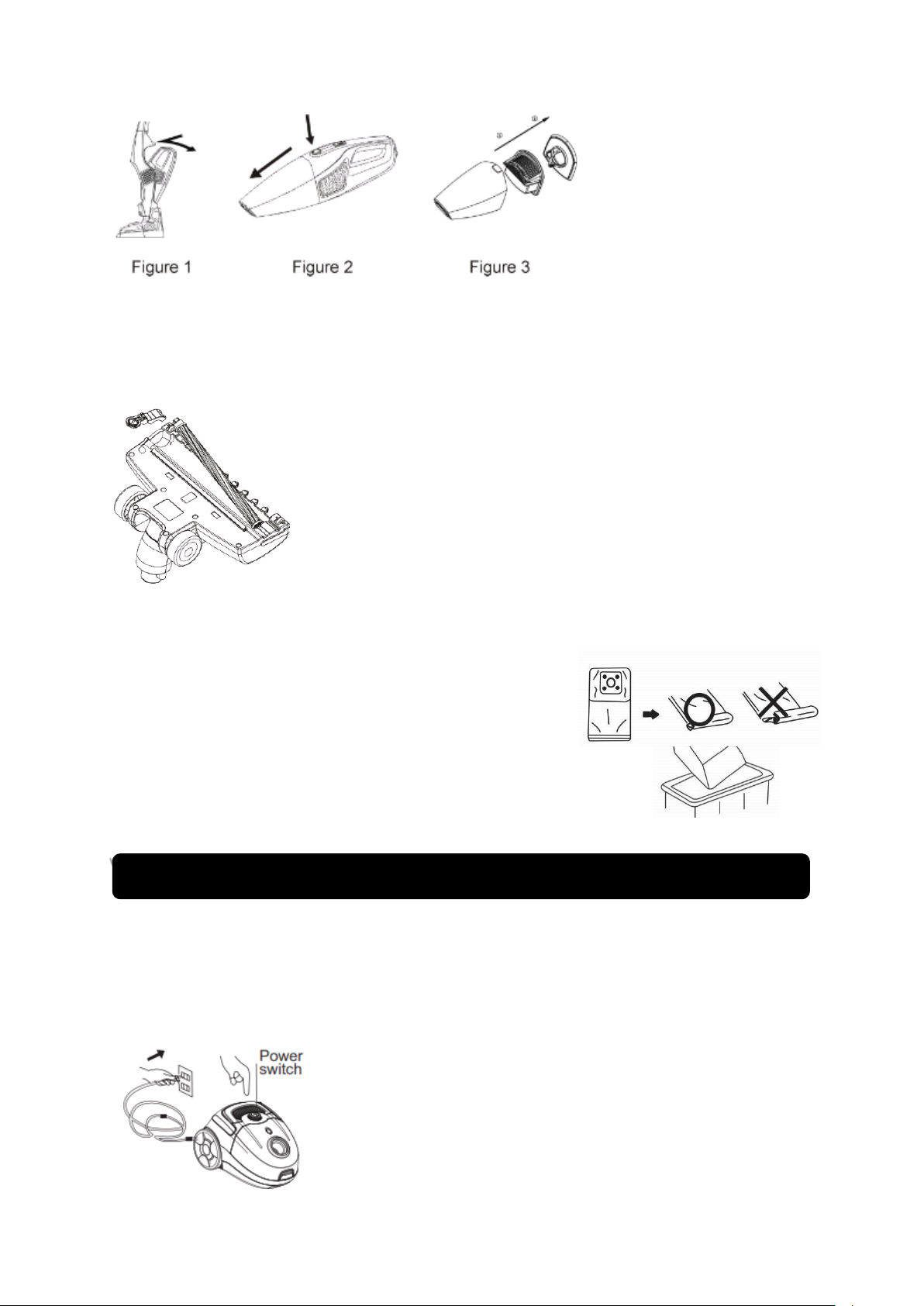

1. Press the hand-held lock, remove the hand-held
2. Press the dust barrel lock, remove the dust barrel, empty the dirt inside
3. Remove the filter, clean the filter with water, wait for it to dry completely
4. Put the filter and dust barrel back into the hand-held

7
Cleaning the rotating brush VC 1505
1. Unscrew the bottom brush screw to unlock it (look at the picture)
2. Remove the brush from its place and clean it through.
a. Type of dust bag
1. Cloth
To remove the dust from the cloth dust bag, remove the
pins on the bottom of the bag to release the dirt inside the
bag, clean the bag and pin the bottom part again.
2. Paper
If you use a dust bag made from paper, throw away the bag
after usage.
VC 3213 N, Y, U
1. Before usage, pull / detangle the power cord as necessary and connect the plug to the socket.
Red mark represents the maximum efficient length of the cord. Do not pull cord beyond the
red mark. To roll the power cord, press the cord roller button with one hand and detangle the
cord with one other hand.
2. Press the On/Off button to activate / turn on the unit. Set the vacuum power to MIN before
activating the unit.
Part 3: How to Use

8

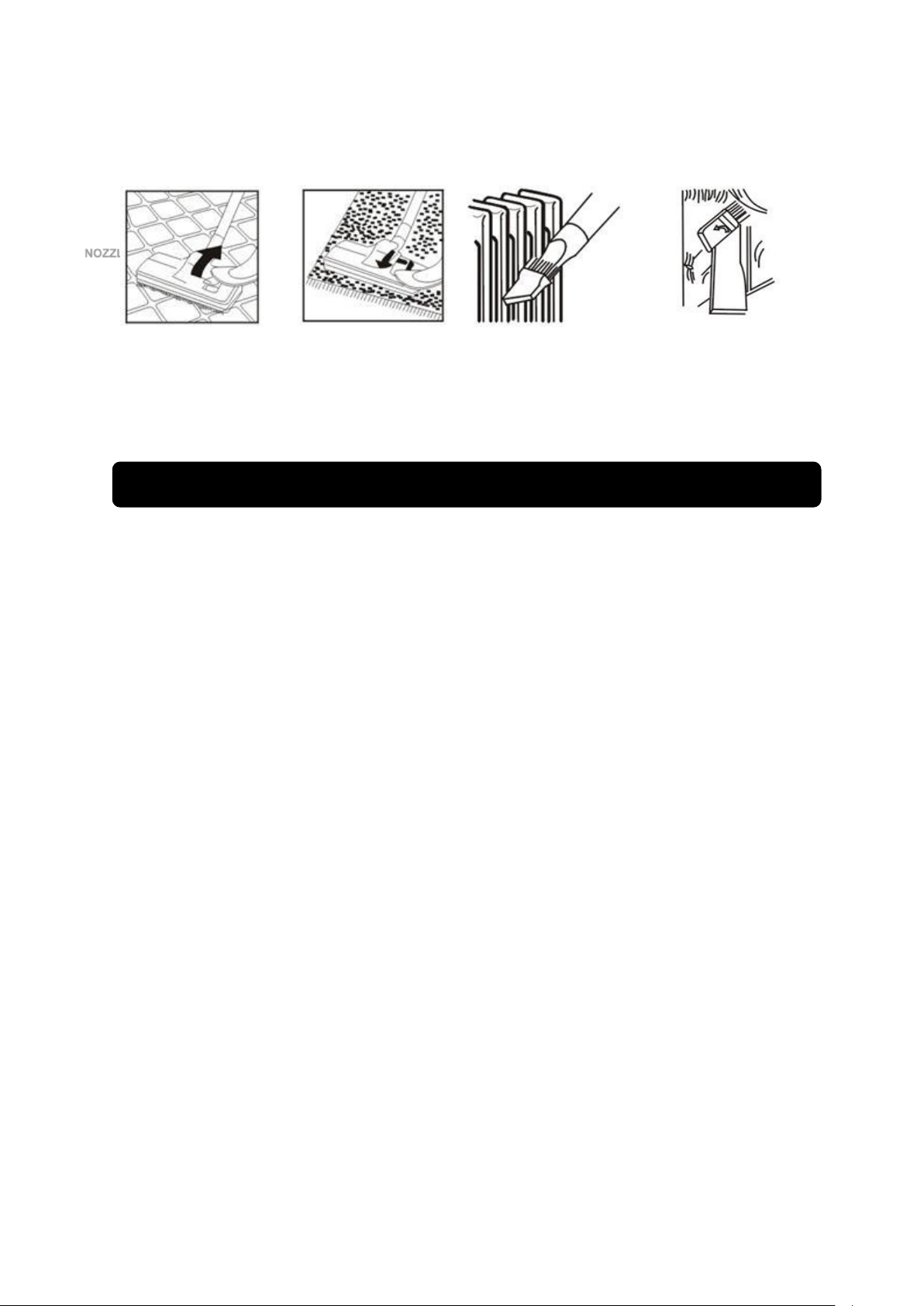

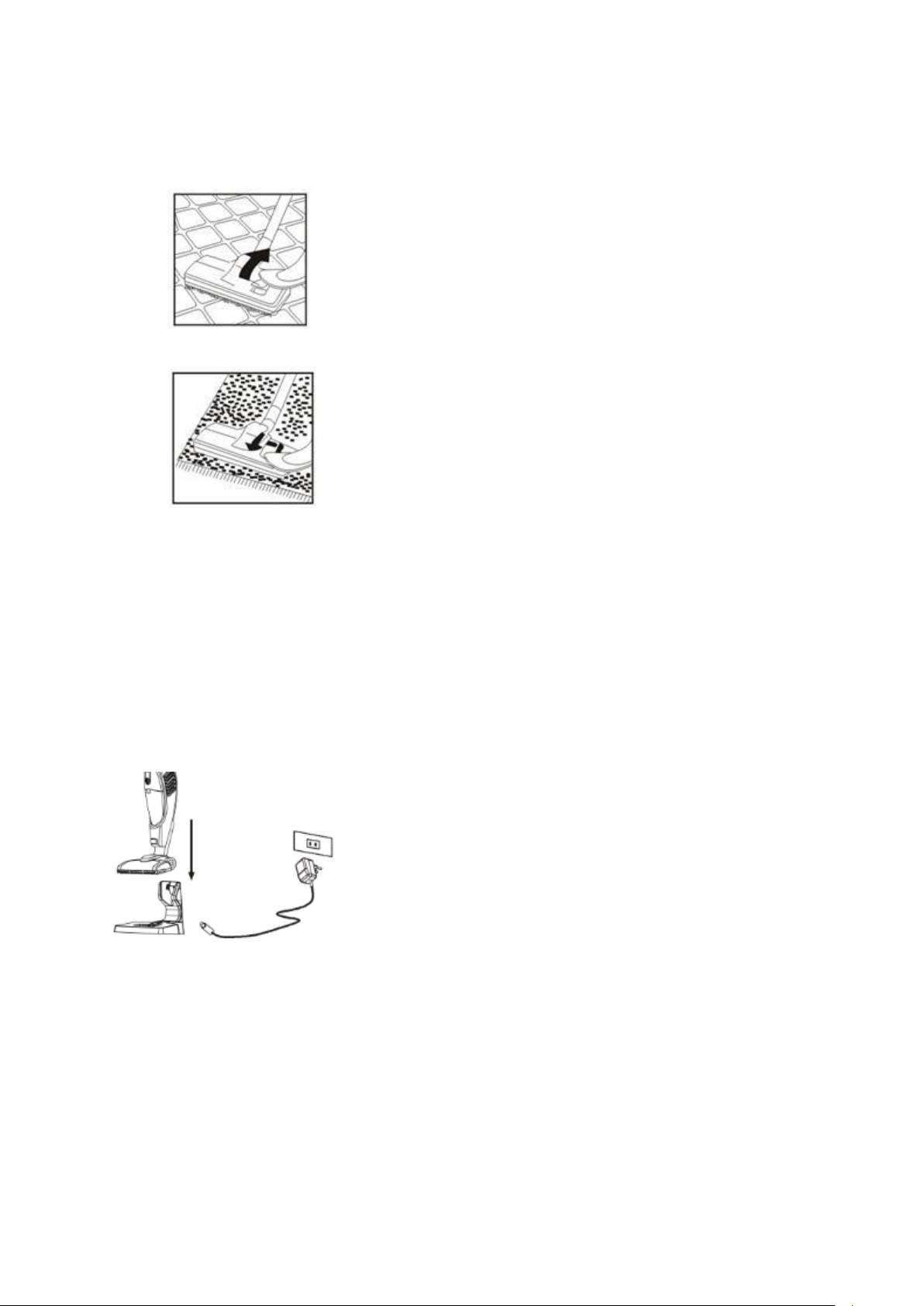

3. Nozzle brush usage.
-Floor/Carpet
Extend / release the brush to clean the hard floor surface.
Retract / pull the brush to clean the carpet.
-Small brush
Used to clean the dust on the curtain, book, shelf, lampshade and other objects.
-Gap
Used to clean the gap, corner, radiator and the gap between the sofas.
4. After usage, turn off the vacuum cleaner by pressing the ON/OFF and reroll the power cord.
5. For certain models, do not move the vacuum cleaner when the cleaning pipe is not hooked
perpendicularly to the hole / hook on the unit because the floor may be scratched from the brush
nozzle.
VC 1505
1. Make sure that the battery is fully charged before using the unit. For first time usage, ensure
that the machine has been charged for 8 hours
2. Turn off the switch and put the body into the charger base. Then, plug in the adapter into socket.
3. Host use: toggle the vacuum cleaner handle switch.
- Brush: Apply to the floor, ground dust or carpet.
4. Handle-held use : toggle the vacuum cleaner mobile switch
- Handle-held: Apply to the bed, sofa, curtains and other parts of the dust.
5. About 15 minutes or when the suction significantly weakened, be sure to shut down for a timely
charger.

9
.
Always remove the plug from the socket before performing maintenance on the vacuum cleaner.
1. Clean the unit using dry cloth. Do not use shining powder, detergent, gasoline, acid, thinner, oil or
hot water to clean any part of the unit.
2. Remove the inlet and outlet air filter, clean the filter by submerging it in warm water, and dry the filters
inside out. After it’s dried, reinstall it back to the vacuum.
If the unit is not going to be used for a long time, store it in a dry place with good circulation. Keep it
away from children.
DISPOSAL
Environmental Preservation
Electronic waste should not be disposed of with household waste.
Hand over the property to an electronic dump site. Ask for advice from
the retailer or the local authorities on how to perform proper disposal
and recycle.
Batteries
Batteries waste should not be disposed of with household waste.
Hand over the property to a batteries dump site. Ask for advice from
the retailer or the local authorities on how to perform proper disposal
and recycle.
Perform the following preventive measures before operating the vacuum cleaner:
−Read all instructions thoroughly and pay attention to the pictures before operating the vacuum
cleaners.
−Check the voltage specifications on the vacuum cleaner whether it matches with the voltage in
your house. If it doesn’t match, contact the MODENA Call Center for further information.
−Do not leave the vacuum cleaner while it is still connected to the socket. Always unplug the
power cord from the socket if the vacuum cleaner is not used.
−To avoid electric shock, do not use the vacuum cleaner outside the house or out in the open
area and do not put or submerge the power cord or plug in the water or liquid substance.
−Tight supervision is required if vacuum cleaner is used around the children.
−Do not operate the vacuum cleaner if the power cord or the plug is damaged, dysfunctional,
taking fall damage, or broken. Take it to our Call Center for inspection & testing, rearrangement
of electrical or mechanical functions, and necessary repairs.
−Usage of additional equipment/tools without recommendations and not supplied by the
manufacture may result in fire, electric shock / shortage and damage to the vacuum cleaner.
Part 5: Precaution Action
Part 4: Maintenance
−Make sure the filter is dry when being reinstalled to the vacuum cleaner.
−Make sure it is placed in its proper place.
−
−
Clean the filter
Clean the dust bag

10
−Special attention is required for usage on stairs.
−If the air inlet, pipe nozzle or telescopic pipe is obstructed, immediately deactivate the vacuum
cleaner and clear the obstruction before restarting it.
−Make sure you plug the power cord to the socket with dry hands.
−Remove large or sharp objects on the floor before using the vacuum cleaner to avoid damages
to the filter.
−If you wish to unplug the power cord from the socket, pull the plug, not the cord. The damaged
cord and plug must be repaired by a qualified technician.

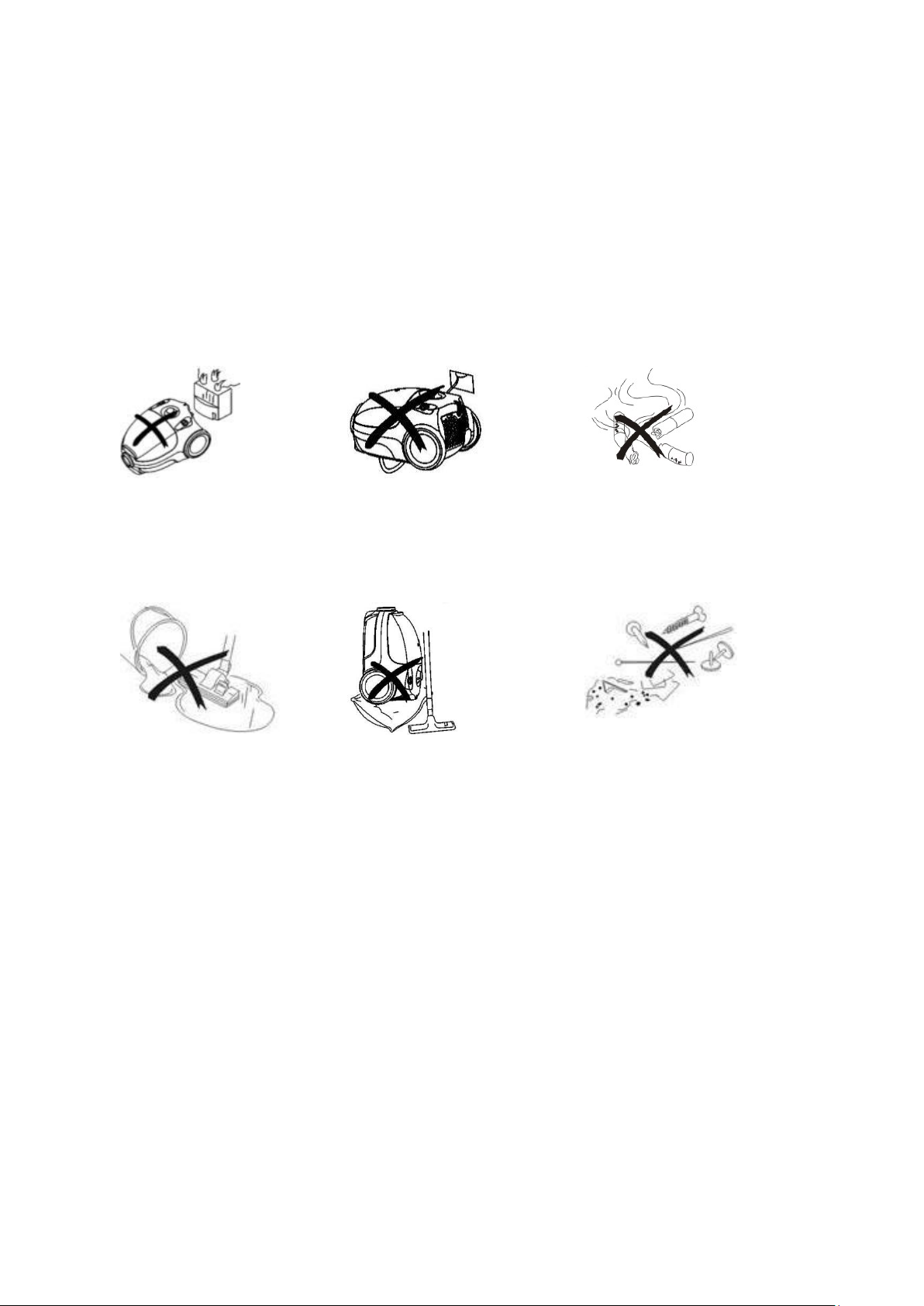

Do not operate the vacuum
cleaner near heat sources
such as stove, cigarette buds,
etc.
Do not use the unit on top of
the power cord. Make sure the
power cord is not pinned or
stepped on when the unit is
operating.
Do not use the unit to vacuum /
clean lighted match, lighted
cigarette or hot dust.
Do not use the unit on wet
surface.
Do not obstruct the air inlet or
the drainage.
Do not use the unit to
vacuum / clean threads,
sharp objects, nails, pins,
etc.

11
In the event of operational issues, check the following problems and solutions below before contacting
our Call Center:
Problem
Cause
Solution
Weak Suction Power
-Dust bag and the cylindrical
filter are obstructed.
-Brush or nozzle are
obstructed.
-Flexible pipe is obstructed.
-Replace or clean the dust bag
and the cylindrical filter.
-Clean the brush and nozzle
from dust.
-Clean the flexible pipe
The motor cannot rotate /
vacuum
-Is the cord plugged to the
socket?
-Has the ON button been
pressed yet?
-Reconnect the power cord
with the socket.
-Press the ON Button
Part 6: Problem & Solution

12
VACUUM CLEANER
VC 3213 N
VC 3213 Y
VC 3213 U
Type
Dry
Dry
Dry
Color
Green
Yellow
Blue
Nozzle material
Fiber
Fiber
Fiber
Main Feature
Blower function
No
No
No
Cloth filter
Yes
Yes
Yes
Cloth paper
No
No
No
Filter for motor / cylinder
Yes
Yes
Yes
Filter for blower
No
No
No
Overload safety / Motor
Yes
Yes
Yes
Wheel
Yes
Yes
Yes
Suction controller
Yes
Yes
Yes
Accessories
Nozzles
2
2
2
Flexible hose
1
1
1
Pipe
2
2
2
Exhaust filter
2
2
2
Technical Features
Capacity (liter)
1.5
1.5
1.5
Cable length (meter)
4.5
4.5
4.5
Noise level (dbA)
75
75
75
Suction power (kPa)
17
17
17
Power Consumption (watt)
350-1200
350-1200
350-1200
Product Dimension
Depth(mm)
350
350
350
Width(mm)
268
268
268
Height (mm)
218
218
218
Gross Weight (Kg)
4.6
4.6
4.6
Part 7: Specification

13
VACUUM CLEANER
VC 1505
Type
Dry Handy 2 in 1
Color
Rose Gold
Nozzle material
Fiber
Main Feature
Blower function
No
Cloth filter
Yes
Cloth paper
No
Filter for motor / cylinder
No
Filter for blower
No
Overload safety / Motor
Yes
Wheel
Yes
Suction controller
Yes
Accessories
Nozzles
2
Flexible hose
-
Pipe
-
Exhaust filter
1
Technical Features
Capacity (liter)
0.5
Cable length (meter)
-
Noise level (dbA)
71
Suction power (kPa)
7
Battery Charger (watt)
12
Product Dimension
Depth(mm)
286
Width(mm)
200
Height (mm)
1135
Gross Weight (Kg)
3.1
S = Stainless W = White V = Silver G = Grey L = Black Y = Yellow U= Blue N = Green
Design and specifications are subject to change at any time without prior notice.

11/20
