Moduspace Sixth98 User manual

Version 3.0
Bespoke Showcase Engineers
Sixth98 Assembly Guide

Back Frame
Vertical Bar x 2
Back Frame
Horizontal Bar x2
Front Frame
Vertical Bar x 2
Front Frame
Horizontal Bar x 2
Side Frame
Horizontal Bar x 4
Vertical
C-Channel x 4
Horizontal
C-Channel x 4 Conduits x 2
BarsSixth98 Assembly Guide
Bespoke Showcase Engineers
1

M5-Long Screw x 16 M5-Short Screw x 8M4 Stacking Screw x 8
Stacking Bracket x 4
M5 Washer x 16
M5 Nuts x 8
Back Frame Foot Pad x 2
Front Frame Foot Pad x 2
M5 T-Handle
Allen Key x 1
Front Panel
Safety Screw x 1
Bespoke Showcase Engineers
2
Horizontal Bracket x 4
Accessories for connecting display cases
M4 Allen Key x 1
ToolkitSixth98 Assembly Guide
Attention: If you are connecting multiple display cases, please refer to
“Connecting Display Cases” assembly guide before commencing.

Back Panel x 1
Top Panel x 1
Laminate Base x 1Plexiglass Side Panel x 2
Bespoke Showcase Engineers
3
PanelsSixth98 Assembly Guide
Plexiglass Front Panel x 1

Bespoke Showcase Engineers
4
Attention: If you have a floor that could easily
scratched or damaged, please ensure you
cover the surface with a protective cover.
Attention: Please ensure you have all the
parts before commencing assembly. Please
read all of the instructions before commencing.
Attention: If you have purchased optional accessories,
please refer to the Optional Accessories assembly
instructions which are supplied separately.
OverviewSixth98 Assembly Guide
Magnet
Magnet
Magnet
Safety Pilot Hole
Plexiglass
Front Panel
Plexiglass
Front Panel
Back Frame
Vertical Bar
Back Frame
Horizontal Bar
Side Frame
Horizontal Bar
Side Frame
Horizontal Bar
Front Frame
Vertical Bar
Side Frame
Horizontal Bar
Front Frame
Horizontal Bar
Side Frame
Horizontal Bar
Front Frame
Vertical Bar
Front Frame
Horizontal Bar
Back Panel
Plexiglass
Side Panel
Top Panel
Back Frame
Horizontal Bar

Bespoke Showcase Engineers
5

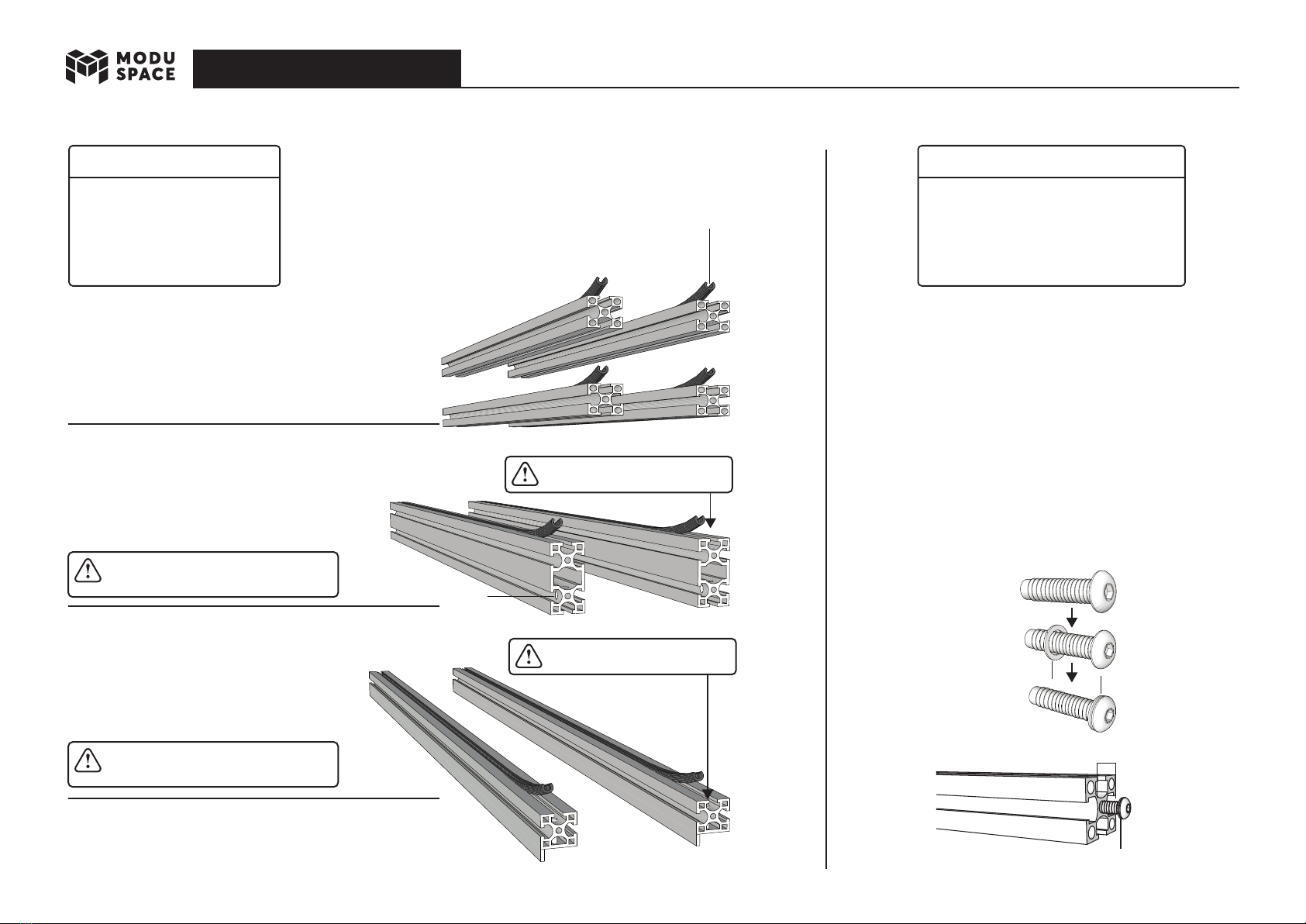

Preparation WorkSixth98 Assembly Guide
You will need
• Side Frame Horizontal Bar x 4
• Back Frame Vertical Bar x 2
• Front Frame Vertical Bar x 2
• Horizontal C-Channel x 4
• Vertical C-Channel x 4
You will need
• M5-Long Screw x 16
• M5-Washer x 16
• Side Frame Horizontal Bar x 4
• Back Frame Horizontal Bar x 2
• Front Frame Horizontal Bar x 2
Side Frame Horizontal Bar
Position the bar on any side. Install a Horizontal
C-Channel into the top slit of the bar. Repeat for all bars.
Front Frame Vertical Bar
Place a bar with the magnets facing down.
Install a Vertical C-Channel into the top slit.
Repeat for all bars.
Back Frame Vertical Bar
Position the bar with the pilot holes facing the
flat surface. Install a Vertical C-Channel into
the top slit of the bar. Repeat for all bars.
C-Channel
Pilot Hole
If you are joining the display cases
horizontally, do not insert the C-Channel
on the connecting bar.
If you are joining the display cases
horizontally, do not insert the C-Channel
on the connecting bar.
Please make sure the C-channel
does not cover the pilot hole.
Please make sure the C-channel
does not cover the pilot hole.
15mm
M5 Washer
M5 Washer
M5 Washer
Steps to insert M5-Long Screw
Step 1. Insert the M5-Long Screw fully into
the M5-Washer.
Step 2. Position the screw with washer into
the pilot hole on the left side of the
bar. Turn clockwise to tighten the
screw. Leave a 15mm gap between
the washer and bar.
Step 3. Repeat steps 1-2 for the other side
of the bar.
Step 4. Repeat steps 1-3 for
• Side Frame Horizontal Bar x 4
• Front Frame Horizontal Bar x 2
• Back Frame Horizontal Bar x 2
Steps to install C-Channel
Step 1. Flatten one end of the C-Channel by
pressing the open edges together.
Step 2. Push the compressed tip into the slit
of the bar.
Step 3. Press down the rest of the C-Channel
along the slit of the bar.

Back Frame
Vertical Bar
Front Frame
Vertical Bar
Step 4.
Press down the Side Frame Horizontal Bar
into the Plexiglass Side Panel. Tighten the
connecting screw using the T-Allen Key.
Side Frame Horizontal Bar
Left Side PanelSixth98 Assembly Guide
Bespoke Showcase Engineers
6
Side Frame
Horizontal Bar C-Channel
C-Channel
Step 2.
Slide in the Plexiglass Side Panel
diagonally into the C-Channels of
the bars.
Plexiglass Side Panel Plexiglass Side Panel
Back Frame
Vertical Bar
Step 3.
Connect Front Frame
Vertical Bar to Side Frame
Horizontal Bar (Refer to
Step 1). Tighten the
connecting screw using
the T-Allen Key.
C-Channel
C-Channel
15mm
M5 Washer
Side Frame
Horizontal Bar
Check that the pilot holes
are facing outwards.
15mm
M5 Washer
Pilot Hole
Step 1.
Connect Back Frame Vertical Bar to Side
Frame Horizontal Bar. Tighten the connecting
screw using the T-Allen Key.

Front Frame
Vertical Bar
Step 8.
Press down the Side Frame
Horizontal Bar into the Plexiglass
Side Panel. Tighten the connecting
screw using the T-Allen Key.
Right Side PanelSixth98 Assembly Guide
Bespoke Showcase Engineers
7
Side Frame
Horizontal Bar
Back Frame
Vertical Bar
Side Frame
Horizontal Bar
15mm
M5 Washer
Step 7.
Connect Front Frame Vertical
Bar to Side Frame Horizontal
Bar (Refer to Step 1). Tighten
the connecting screw using the
T-Allen Key.
Plexiglass Side Panel
Plexiglass Side Panel
Side Frame
Horizontal Bar
Back Frame
Vertical Bar
Step 5.
Connect Back Frame Vertical Bar
to Side Frame Horizontal Bar.
Tighten the connecting screw
using the T-Allen Key.
Step 6.
Slide in the Plexiglass Side Panel
diagonally into the C-Channels of
the bars.
C-Channel
C-Channel

Back PanelSixth98 Assembly Guide
Bespoke Showcase Engineers
8
Step 12.
Press Back Frame Horizontal Bar
into Back Panel.
Step 11.
Slide in the Back Panel.
Step 10.
Connect Back Frame Horizontal Bar
to Left Side Panel.
Step 9.
Connect Front Frame Horizontal Bar
to Left Side Panel.
Magnet
15mm
M5 Washer
Back Panel
Plexiglass
Left Side
Panel
Please ensure the longer
notch is at the bottom.

Step 13.
Connect Front Frame
Horizontal Bar to Front
Frame Vertical bar.
Top PanelSixth98 Assembly Guide
Bespoke Showcase Engineers
9
Plexiglass
Left Side
Panel
Front Frame
Horizontal Bar
Magnet
Magnet
Magnet
Magnet
Safety
Pilot Hole
Back Panel Back Panel
Top Panel
Step 14.
Slide in the Top Panel
between the bars.
Step 15.
Slide in the Right Side Panel.
Please ensure the
longer notch is facing
the Back Panel.
15mm
M5 Washer
M5 Washer
15mm
Please ensure the
Front Frame Vertical
Bar Lip is on the right
side of the panel
before sliding it down.

Step 17.
Attach the Plexiglass
Front Panel and insert
the Safety Screw.
Magnet
Magnet
Magnet
Magnet
Safety Pilot Hole
Front PanelSixth98 Assembly Guide
Bespoke Showcase Engineers
10
Step 16.
Tilt and insert the
Laminate Base.
Laminate Base
PlexiglassPlexiglass
Front PanelFront Panel
