Moeller NZM2-XKSA User manual

1/2
A
09/05 AWA1230-2047
Montageanweisung
Installation Instructions
Notice d’installation
Istruzioni per il montaggio
Instrucciones de montaje
Инструкция по монтажу
Lebensgefahr durch elektrischen Strom!
Nur Elektrofachkräfte und elektrotechnisch
unterwiesene Personen dürfen die im Folgen-
den beschriebenen Arbeiten ausführen.
Electric current! Danger to life!
Only skilled or instructed persons may carry out the
following operations.
Tension électrique dangereuse !
Seules les personnes qualifiées et averties doivent
exécuter les travaux ci-après.
Tensione elettrica: Pericolo di morte!
Solo persone abilitate e qualificate possono eseguire
le operazioni di seguito riportate.
¡Corriente eléctrica! ¡Peligro de muerte!
El trabajo a continuación descrito debe ser realizado
por personas cualificadas y advertidas.
Электрический ток! Опасно для жизни!
Только специалисты или проинструктированные
лица могут выполнять следующие операции.

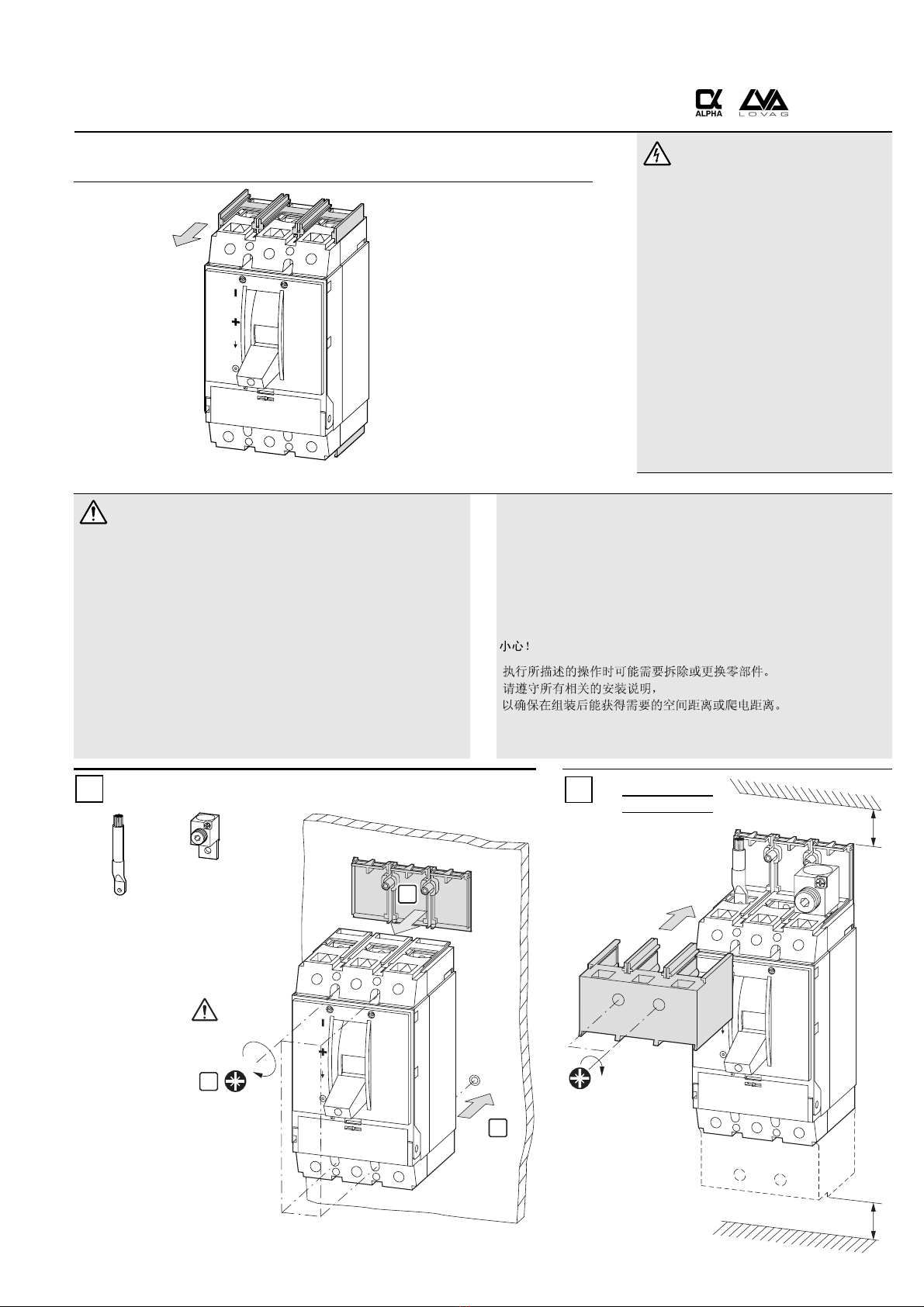

NZM2(-4)-XKSA
Terminal cover for NZM2 Molded Case Circuit Breakers and Switches
-NA
-CNA
(UL/CSA models)
The barrier (shown shaded in the diagrams)
is held tightly into grooves on top and
bottom sides of the breaker or switch and
must be removed in order to mount the
NZM2(-4)-XKSA terminal cover.
To remove:
From the back of the device, use thumb
pressure to push, or an appropriate tool to
gently tap each side of the barrier to help
slide it out..
Vorsicht!
Für die Durchführung der beschriebenen Arbeiten kann das Entfernen oder der
Austausch von Teilen notwendig sein.
Bitte alle Installations-Anweisungen beachten, um die erforderlichen Luft- und
Kriechstrecken nach dem Zusammenbau zu gewährleisten.
Atención!
Con el fin de llevar a cabo los trabajos descritos, puede ser necesario eliminar o cam-
biar alguna pieza.
Le rogamos tenga en cuenta todas las instrucciones de instalación para así garantizar
las líneas de fuga y efluvio necesarias tras el montaje.
Осторожно!
При проведении описанных процедур может возникнуть необходимость
демонтировать или заменить детали.
Для обеспечения надлежащих зазоров и вывода тока утечки, соблюдайте
все инструкции по монтажу.
Caution!
The removal or exchange of parts during mounting may become necessary.
Refer to installation instructions for proper assembly and to maintain electrical
clearances.
Attention !
L’enlèvement où l’échange de certaines pièces pendant le montage est parfois
nécessaire.
Consultez l’instruction d’assemblage pour assurer une installation conforme aux
normes.
Attenzione!
Per l'esecuzione degli interventi descritti potrebbe essere necessaria la rimozione o
sostituzione di alcuni pezzi.
Attenersi alle istruzioni d'installazione per garantire dopo l'assemblaggio le vie di dis-
persione necessarie.
ON
Trip
push
1
ON
Trip
35
35
Z 2
1 Nm
9 lb-in
2
Minimum Clearance
space for all models
mm inch
35 1.4
Z 2
1.3Nm
11.5 lb-in
4 xM4 x85/20
3
2
ON
Trip
1
Connector Type
NZM2-XKA
Compression
Crimp lugs
Use the terminal cover Type NZM2-XKSA
in all cases when making connections
with lug types pictured above.
Top and bottom portions of Terminal cover Type NZM2-XKSA shown shaded in above diagrams.
20470905_Moller.FM Seite 1 Donnerstag, 13. Oktober 2005 10:28 10

2/2
Moeller GmbH, Industrieautomation, D-53105 Bonn
© 2002 by Moeller GmbH Änderungen vorbehalten 09/05 AWA1230-2047 12256581/DE08 Doku/DM Printed in the Federal Republic of Germany (10/05)
09/05 AWA1230-2047
jKombinationsmöglichkeiten – Combination options – Combinaisons possibles – Combinazioni possibili – Combinaciones posibles – Комбинационные возможности –
F415 V j+jj
F525 V j+jj+
F690 V j+j+j+
USE of Terminal Cover NZM2-XKSA on UL/CSA models:
– Terminal cover NZM2-XKSA maintains electrical clearances and provides protection against accidental contact
with live parts in the incoming and outgoing supply circuit terminations of the circuit breaker or switch.
– Top and bottom portions of the terminal cover are mounted as shown in preceeding diagrams.
– Use of the NZM2-XKSA terminal cover is always necessary with Type XKS screw terminations when making
connections with bare bus or non-insulated crimp lugs, or when two wires per phase are connected.
– Follow guidelines illustrated above for additional connection combinations.
f400 mm
XKSA
XKSA XKSA
XKSA XKSA XKSA
