MOLEAER CLEAR 3.0 User manual

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CUSTOMER SERVICE / TECHNICAL SUPPORT
If you have questions or need to order
Moleaer, Inc. replacement parts and products,
please use the following contact information:
CUSTOMER SERVICE:
Monday to Friday: 8:00 a.m. to 5:00 p.m. PST
Phone: [phone]
Email: [email protected]
WEBSITE:
www.moleaer.com

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com i
Table of Contents
Safety Instructions................................................................................................................................................................3
Important Notice..................................................................................................................................................................3
Attention Installer.............................................................................................................................................................3
Attention User..................................................................................................................................................................3
Risk of Electrical Shock...................................................................................................................................................3
General Warnings .................................................................................................................................................................3
Suction Entrapment Hazard............................................................................................................................................4
Information About the System.............................................................................................................................................4
Product Variants..................................................................................................................................................................4
Remote Monitoring..............................................................................................................................................................5
Operation ...............................................................................................................................................................................5
Startup.................................................................................................................................................................................5
Pumps Specifications..........................................................................................................................................................7
DAB ESWIM 300 Series .................................................................................................................................................7
Pentair Sparus.................................................................................................................................................................7
Maintenance...........................................................................................................................................................................9
Pump Maintenance .............................................................................................................................................................9

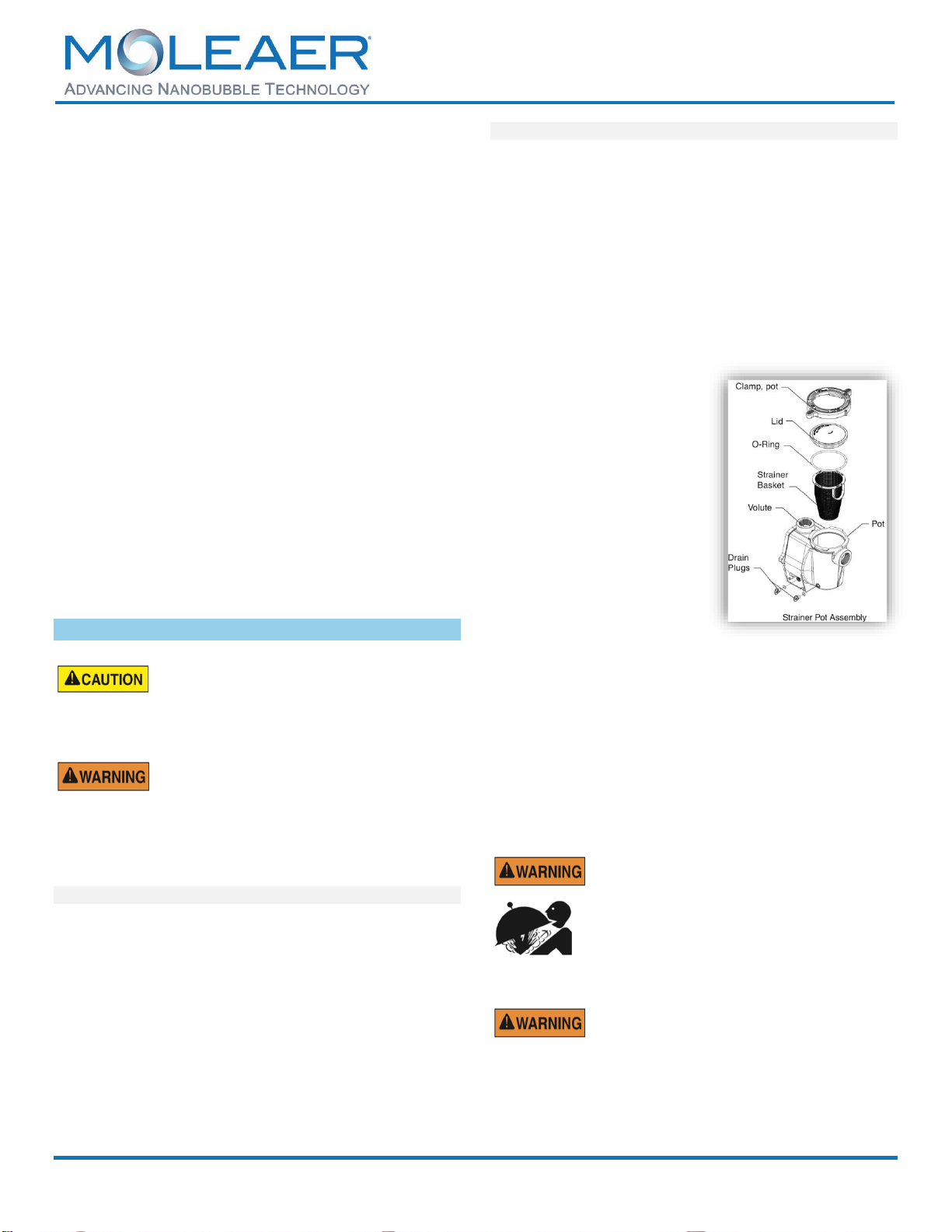

Pump Strainer Basket .....................................................................................................................................................9
Cleaning ..........................................................................................................................................................................9
Motor Care ....................................................................................................................................................................10

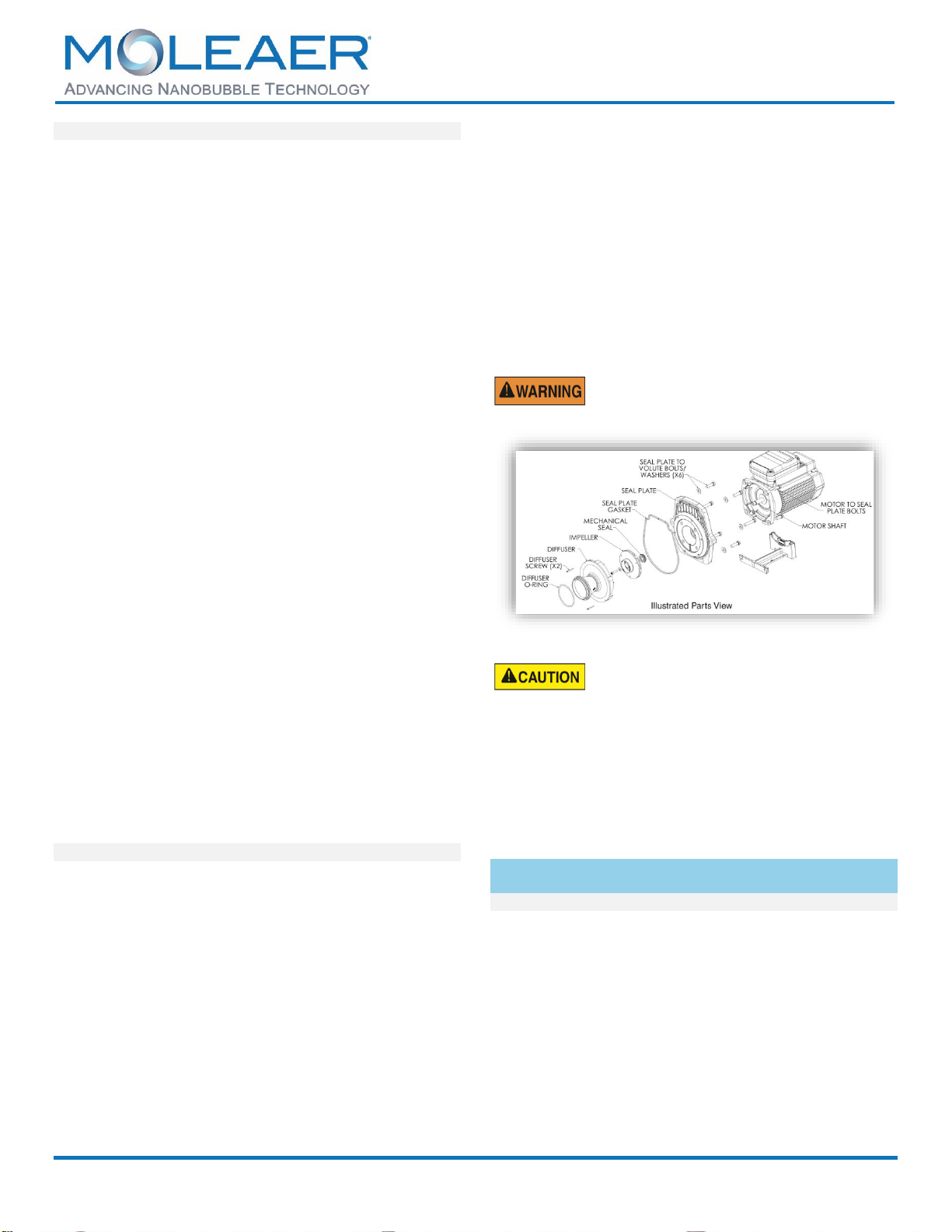

Pump Disassembly........................................................................................................................................................10
Pump Reassembly........................................................................................................................................................11
Restart Instructions .......................................................................................................................................................11
Compressor Maintenance.................................................................................................................................................11
Startup...........................................................................................................................................................................11
Compressor Air Filter Replacement..............................................................................................................................12
Compressor Independent Shutdown.............................................................................................................................12
Compressor Service Kit Installations ............................................................................................................................13
Capacitors Replacement...............................................................................................................................................13
Compressor Troubleshooting............................................................................................................................................14
Enriched Air System (Optional).........................................................................................................................................15
Operation...........................................................................................................................................................................15
Nitrogen Membrane ......................................................................................................................................................15
Maintenance......................................................................................................................................................................15

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com ii
3-Stage Filter (For Enriched unit only)..........................................................................................................................15
Remote Monitoring .............................................................................................................................................................16
Access to remote monitoring website ...............................................................................................................................16
Login information...............................................................................................................................................................16
Locating units....................................................................................................................................................................16
Remote Start/Stop.............................................................................................................................................................17
Measurements Units .........................................................................................................................................................17
System Status...................................................................................................................................................................17
Cellular Connectivity Status ..........................................................................................................................................17
Status LEDs ..................................................................................................................................................................17
Schedule ...........................................................................................................................................................................18
Trending............................................................................................................................................................................18
Notifications.......................................................................................................................................................................19
Error Notifications..........................................................................................................................................................19
Remote monitoring serial number.................................................................................................................................19
Data Export .......................................................................................................................................................................20
Phone Apps.......................................................................................................................................................................20
iOS ................................................................................................................................................................................20
Android..........................................................................................................................................................................20
Winterizing...........................................................................................................................................................................20
Cleaning and Sanitizing......................................................................................................................................................21
Recommended Cleaning Solutions for NBG Generators .................................................................................................22
Safety Precautions............................................................................................................................................................23
Troubleshooting Guide.......................................................................................................................................................24
Monthly Inspection Checklist ............................................................................................................................................29
Preventative Maintenance..................................................................................................................................................30
Preventative Maintenance Schedule ................................................................................................................................30
Preventative Maintenance Kits..........................................................................................................................................31
Emergency Spare Parts....................................................................................................................................................34
Limited Warranty.................................................................................................................................................................35
Warranty............................................................................................................................................................................35
Claims; Exclusive Remedy................................................................................................................................................35
Limited Warranty...............................................................................................................................................................35
Document Revision History...............................................................................................................................................37

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 3
Safety Instructions
Important Notice
This guide provides operation and
maintenance instructions for this product.
Consult Moleaer with any questions
regarding this equipment.
Attention Installer
This guide contains important information about the
operation, maintenance, and safe use of this product. This
information should be given to the owner and / or operator
of this equipment after installation.
Attention User
This manual contains important information that will help
you in operating and maintaining this product. Please retain
it for future reference. Warnings and safety instructions for
Moleaer Clear Nanobubble Generators and other related
products are available at http://www.moleaer.com or call
U.S. [phone] for additional free copies of these
instructions.
READ AND FOLLOW ALL INSTRUCTIONS. SAVE
THESE INSTRUCTIONS.
This is the safety alert symbol. When you
see this symbol, on your system or in this
manual, look for one of the following
signal words and be alert to the potential
for personal injury.
Warns about hazards that can cause
death, serious personal injury, or major
property damage if ignored.
Warns about hazards that may or can
cause minor personal injury or property
damage if ignored.
NOTE
Indicates special instructions not related
to hazards. Carefully read and follow all
safety instructions in this manual and on
equipment. Keep safety labels in good
condition; replace if missing or damaged.
When installing and using this electrical equipment, basic
safety precautions should always be followed, including the
following:
Risk of Electrical Shock
Connect only to a branch circuit protected by a ground-fault
circuit interrupter (GFCI). Contact a qualified electrician if
you cannot verify that the circuit is protected by a GFCI.
This unit must be connected only to a supply circuit that is
protected by a ground-fault circuit interrupter (GFCI). Such
a GCFI should be provided by the installer and should be
tested on a routine basis. To test the GFCI, push the test
button. The GFCI should interrupt power. Push the reset
button. Power should be restored. If the GFCI fails to
operate in this manner, the GFCI is defective. If the GFCI
interrupts power to the pump without the test button being
pushed, a ground current is flowing, indicating the
possibility of an electric shock. Do not use this pump.
Disconnect the pump and have the problem corrected by a
qualified service representative before using.
General Warnings
Never open the inside of the pump drive motor enclosure.
There is a capacitor bank that holds a 230 VAC charge,
even when there is no power to the unit.
The Clear pump is capable of flowrates; use caution when
installing and programming to limit pump’s performance
potential with old or questionable equipment.
Code requirements for the electrical connection differ from
state to state. Install equipment in accordance with the
current National Electric Code and all applicable local
codes and ordinances.
Before servicing the pump, switch OFF power to the pump
by disconnecting the main circuit to the Clear™.
This equipment is not intended for use by persons
(including children) of reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their
safety.
FAILURE TO FOLLOW ALL INSTRUCTIONS AND
WARNINGS CAN RESULT IN SERIOUS BODILY
INJURY OR DEATH. THIS PUMP SHOULD BE
INSTALLED AND SERVICED ONLY BY A
QUALIFIED SERVICE PROFESSIONAL.
INSTALLERS, OPERATORS, AND OWNERS
MUST READ THESE WARNINGS AND ALL
INSTRUCTIONS IN THE OWNER’S MANUAL
BEFORE USING THIS PUMP. THESE WARNINGS
AND THE OWNER’S MANUAL MUST BE LEFT
WITH THE PRODUCT OWNER.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 4
Suction Entrapment Hazard
Stay off main drain and away from all suction outlets!
This generator produces high levels of suction and creates
a strong vacuum at the main drain at the bottom of the body
of water. This suction is so strong that it can trap adults or
children under water if they come in close proximity to a
drain or a loose or broken drain cover or grate.
RISK OF ELECTRICAL SHOCK OR
ELECTROCUTION
PUMPS REQUIRE HIGH VOLTAGE WHICH CAN
SHOCK, BURN, OR CAUSE DEATH.
BEFORE WORKING ON THE CLEAR PUMP,
always disconnect power to the pump at the circuit
breaker from the pump before servicing the pump.
Failure to do so could result in death or serious injury
to service person, system users, or others due to
electric shock.
NOTE: All suction plumbing must be installed in accordance
with the latest national and local codes, standards, and
guidelines.
A clearly labeled emergency shutoff switch for the
pump must be in an easily accessible, obvious
place. Make sure users know where it is and how to
use it in case of emergency. For installation of
Electrical Controls at Equipment Pad (ON / OFF
switches, timers, and automation load center.)
Install all electrical equipment, such as ON / OFF
switches, timers, and control systems, etc. to allow
the operation (startup, shutdown, or servicing) of any
pump or filter so the user does not place any portion
of his / her body over or near the pump strainer lid,
filter lid, or valve closures. This installation should
allow the user enough space to stand clear of the
filter and pump during system startup, shutdown or
servicing of the system filter.
This generator has been evaluated for use with
water only.
Before operation, be sure to completely rinse the
pump volute with water.
RISK OF ELECTRICAL SHOCK
This pump is supplied with a grounding conductor
and grounding type attachment plug. To reduce the
risk of electric shock, be certain that it is connected
only to a properly grounded, grounding type
receptacle.
Pumps improperly sized or installed or used in
applications other than for which the pump was
intended can result in severe personal injury or
death. These risks may include, but not limited to,
electric shock, fire, flooding, suction entrapment, or
severe injury or property damage caused by a
structural failure of the pump or other system
component.
The pump can produce high levels of suction within
the suction side of the plumbing system. These high
levels of suction can pose a risk if a person comes
within the proximity of the suction openings. A
person can be seriously injured by this high level of
vacuum or may become trapped and drown. It is
absolutely critical that the suction plumbing be
installed in accordance with the latest national and
local codes.
HAZARDOUS PRESSURE. STAND CLEAR OF
PUMP AND FILTER DURING STARTUP.
CIRCULATION SYSTEMS OPERATE UNDER
PRESSURE. WHEN ANY PART OF THE
CIRCULATING SYSTEM (I.E., LOCKING RING,
PUMP, FILTER, VALVES, ETC.) IS SERVICED,
AIR CAN ENTER THE SYSTEM AND BECOME
PRESSURIZED. PRESSURIZED AIR CAN CAUSE
THE PUMP HOUSING COVER, FILTER LID, AND
VALVES TO VIOLENTLY SEPARATE, WHICH
CAN RESULT IN SEVERE PERSONAL INJURY
OR DEATH. FILTER TANK LID AND STRAINER
COVER MUST BE PROPERLY SECURED TO
PREVENT VIOLENT SEPARATION. STAND
CLEAR OF ALL CIRCULATION SYSTEM
EQUIPMENT WHEN TURNING ON OR STARTING
UP PUMP. BEFORE SERVICING EQUIPMENT,
MAKE NOTE OF THE FILTER PRESSURE. BE
SURE THAT ALL CONTROLS ARE SET TO
ENSURE THE SYSTEM CANNOT
INADVERTENTLY START DURING SERVICE.
TURN OFF ALL POWER TO THE PUMP.
Information About the System
Product Variants
1. Standard Models: Consists of a compressor to
pump ambient air into the nanobubble generator.
2. Enriched Air Models: An additional compressor
and a nitrogen membrane tank are utilized to
increase the oxygen content of the air up to 40%
(double the ambient concentration.)

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 5
3. Remote Monitoring: All Clear models are remote
monitoring ready. Fees and subscriptions may
apply to activate the capability. The remote
monitoring has onboard global GPS and 3G/LTE
connectivity.
4. Options
a. Ozone Generator An additional ozone
generator that adds a small dose of ozone
into the incoming air to the nanobubble
generator. This ozone option can be
purchased with and without the enriched
air option.
b. Dissolved Oxygen (DO with Remote
Monitoring: This option requires
purchasing the subscription for the remote
monitoring. The DO level is displayed on
the remote monitoring online dashboard,
accessible via computer or smartphone.
Remote Monitoring
Remote monitoring provides information about the unit’s
performance and the capability to send critical errors via
email or text messages to the registered users and the
factory. Furthermore, the performance parameters can be
monitored, and the data can be exported to a spreadsheet
for analysis.
Operation
Startup
1. On the suction side, ensure there is a screen or trap
at the intake to stop large debris from entering the
system. Intake screens should be made of PVC or
corrosion resistant metals. Contact Moleaer for the
intake install kit.
2. To avoid sediment buildup, the intake should be
elevated from the lake bottom. To avoid stalling the
pump, the intake should be at least 2 feet below the
water’s surface.
3. Discharge should be firmly fixed and pointed
directly towards the center of the water body to
avoid causing erosion. Avoid excessive twists or
bends when connecting piping to intake and
discharge.
4. Open intake and discharge valves, if any. Prime the
pump by removing the strainer lid, filling the
strainer basket with water, and replacing the
strainer lid before starting.
5. Open the lid and doors of the Clear enclosure to
access the controls. Ensure that power is
connected and turn the POWER disconnect switch
to the ON position. The light on the outside of the
enclosure will turn AMBER. Push and hold the
START button for 10 seconds, at which time the
light will turn GREEN you should hear the pump
start and begin self-priming.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 6
6. It may take a few minutes for the pump to self-
prime. When the pump has successfully self-
primed, the strainer basket will be full, and the
pump will produce pressure. Normal operating
pressure range is 13 to 25 PSI (.896 BAR to
1.72 BAR). Max pressure limits are 8 to 30 PSI
(0.55 to 2.06 BAR). Do not exceed the maximum
pressure. Once the pump is producing adequate
pressure, the compressor(s) and cooling fan will
turn on.
7. To stop the unit, turn the red POWER disconnect
switch to the OFF position.
8. Close the doors and lock the lid during operation.
9. Gas flow is indicated on the left side of the unit on
the Rotameter. The center of the floating ball
indicates air flow rate. The gas flow rate is set at
the factory and is not field adjustable.
NOTE:
1. If the pond or lake does not have an existing aeration
system, the nanobubble generator should initially be
run periodically over the first seven days of treatment
to avoid an overabundance of bacteria causing a
decline in dissolved oxygen from de-stratifying of the
lake.
2. Expect to see algae float to the surface within the first
few weeks. This is normal. It may foul the intake screen
during this period; therefore, periodic inspections are
necessary until the algae float has subsided.
3. The unit will periodically open a dump valve to drain
liquid from the air filter.
4. Please contact Moleaer for the complete operating
manual for the compressor.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 7
Pumps Specifications
All pumps are factory set for maximum performance at 100% or Max speed. Information below is for installation and
reference purposes. Check your pump model and brand before referring to the specifications. Contact Moleaer if your
pump is not listed below.
DAB ESWIM 300 Series (EU, 50Hz Models)
Pump TDH Curves (DAB ESWIM 300), Factory set speeds for Clear 50 and 150.
Pentair Sparus (US, 60Hz Models)
Pump TDH Curves (Pentair Sparus). Reference SP-12 for Clear 150 and SP-3 for Clear 50.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 8

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 9
Maintenance
Intake screens should be cleaned periodically, along with
the pump basket. Inspect the intake multiple times per week
during the first month of operation and every three weeks
thereafter.
A drop in water pressure is most likely the result of a
clogged intake or check valve. If a drop in water
pressure is observed, inspect the intake and check
valve.
Once the initial treatment is completed, which is determined
by a reduction in or complete elimination in the presence of
algae floating on the surface, Moleaer recommends
monthly inspection (see monthly inspection list in the
manual) followed by quarterly cleanings of intake screens
and piping.
The gas injection zone (nanobubble generator) may require
periodic cleaning due to fouling buildup inside the piping. If
a reduction in air flow is observed on the rotameter, or the
gas pressure gauge increases by greater than 15% from its
starting pressure, or if the water pressure decreases by
20% from its initial pressure, a cleaning is necessary.
1. Please refer to Moleaer’s Clean-in-Place Service
bulletin for more information.
Pump Maintenance
Do NOT open the strainer pot if pump fails to prime,
or if pump has been operating without water in the
strainer pot.Pumps operated inthese circumstances
may experience a buildup of vapor pressure and
may contain scalding hot water.
Opening the pump may cause serious personal
injury. To avoid the possibility of personal injury,
make sure the suction and discharge valves are
open and strainer pot temperature is cool to touch,
then open with extremecaution. To prevent damage
to the pump and for proper operation of the system,
clean pump strainer and system every two weeks.
Pump Strainer Basket
The strainer basket (or “strainer pot”) is in front of the pump
housing. The strainer basket must be kept clean and free
of debris. Inspect basket through the lid on the top of the
housing.
Be sure to visually inspect the strainer basket four weeks.
More frequent inspection may be necessary in the first four
weeks of installation. Dirty strainer baskets reduce filter and
heater efficiency and put abnormal stress on the pump
motor. Bacterial fouling could cause the lid not to be clear.
Cleaning
1. Turn the red POWER disconnect switch to the OFF
position.
2. Relieve pressure in the system or allow it to reduce
by waiting for at least 15 minutes
3. Turn the lid and clamp counterclockwise and
remove from the pump.
4. Remove debris and rinse out the basket. Replace
the basket if it is cracked.
5. Put the basket back
into the housing. Be
sure to align the
notch in the bottom
of the basket with
the rib in the bottom
of the volute.
6. Fill the pump pot and
volute up to the inlet
port with water.
7. Clean the lid and
clamp, O-ring, and
sealing surface of
the pump pot.
NOTE: It is important
to keep the lid O-ring clean and well lubricated.
8. Reinstall the lid by placing the clamp and lid on the
pot. Be sure the lid O-ring is properly placed. Seat
the clamp and lid on the pump, then turn clockwise
until the locking ring handles are horizontal.
9. Turn the power ON.
10. Wait until a stead water flow is observable through
the pump basked lid.
THIS SYSTEM OPERATES UNDER PRESSURE
When any part of the circulating system (e.g., Lock
Ring, Pump, Filter, Valves, etc.) is serviced, air can
enter the system and become pressurized.
Pressurized air can cause the lid to separate, which
can result in serious injury, death, or property
damage. To avoid this potential hazard, follow above
instructions as described in page 4.
Always disconnect power to the Clear generator and
/ or pump at the circuit breaker before servicing the
pump. Failure to do so could result in death or
serious injury to service people, users, or others due
to electric shock. Read all servicing instructions
before working on the pump.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 10
Do NOT open the strainer pot if pump fails to prime
or if pump has been operating without water in the
strainer pot.Pumps operated inthese circumstances
may experience a buildup of vapor pressure and
may scalding hot water. Opening the pump may
cause serious personal injury. In order to avoid the
possibility of personal injury, make sure the suction
and discharge valves are open and strainer pot
temperature iscool to touch, thenopen with extreme
caution.
Be sure not to scratch or mar the polished shaft seal
faces; seal will leak if faces are damaged. The
polished and lapped faces of the seal could be
damaged if not handled with care.
Motor Care
Protect from Heat.
1. It is recommended to shade the Clear generator
from the direct sun.
2. Provide ample cross ventilation to prevent
overheating.
Protect Against Dirt.
1. Protect from any foreign matter or splashing water.
2. Do not sure (or spill) chemicals on or near the
motor.
3. Avoid sweeping or stirring up dust near the motor
while it is operating.
4. If a motor has been damaged by dirt it voids the
motor warranty.
5. Clean the lid and clamp, O-ring, and sealing
surface of the pump pot.
Protect Against Moisture
1. Protect from splashing or sprayed water.
2. Protect from extreme weather.
3. If a motor has become wet, let it dry before
operating. Do not allow the pump to operate if it has
been flooded.
4. If a motor has been damaged by water, the motor
warranty is voided.
Shaft Seal Replacement
The shaft seal consists primarily of two parts: a spring-
loaded member and rotating ceramic seal. The pump
requires little or no service other than reasonable care;
however, a shaft seal may occasionally become damaged
and must be replaced.
NOTE: The polished and lapped faces of the seal could be
damaged if not handled with care.
Pump Disassembly
Tools Required
1. 3/32” Allen head wrench
2. Two 9/16” open end wrenches
3. #2 or #3 Phillips head screwdrivers
4. Adjustable wrench
5. 1/4" Allen head wrench
To remove and repair the motor subassembly, follow the
steps below:
1. Turn off the pump circuit breaker at the main panel.
2. Drain the pump by removing the drain plugs. No
tools are required.
3. Use the 9/16” wrenches to remove the six bolts that
hold the housing (strainer pot / volute) to the rear
subassembly.
4. Gently pull the two pump halves apart, removing
the rear subassembly.
5. Use a 3/32” Allen head wrench to loosen the two
holding screws located on the diffuser.
6. Hold the impeller securely in place and remove the
impeller lock screw by using a Phillips head
screwdriver. The screw is a left-handed thread and
loosens in a clockwise direction.
7. Use a 1/4" Allen wrench to hold the motor shaft in
the rear of the motor. The motor shaft has a slot on
the end, which is accessible through the center of
the fan cover.
8. To unscrew the impeller from the shaft, twist the
impeller counterclockwise.
9. If the seal needs replacing, remove the white
colored, rotating portion of the mechanical seal
from the impeller.
10. Remove the four bolts from the seal plate to the
motor, using a 9/16” wrench.
11. Place the seal plate down on a flat surface and tap
out the carbon spring seat.
12. Clean the seal plate, seal bore, and the motor
shaft.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 11
Pump Reassembly
1. When installing the replacement shaft seal, use
silicone sealant on the metal portion before
pressing into the seal plate, being careful to keep
off the seal face. Be sure the seal is full seated and
allow 24 hours for sealant to cure.
2. Before installing the rotating portion of the seal into
the impeller, be sure the impeller is clean. Use a
light density soap and water to lubricate the inside
of the seal. Press the seal into the impeller with
your thumbs and wipe off the ceramic and carbon
faces with a clean cloth.
3. Remount the seal plate to the motor.
4. Grease the motor shaft thread and screw impeller
onto the motor shaft.
5. Screw in the impeller lock screw (counterclockwise
to tighten.)
6. Remount the diffuser onto the seal plate. Be sure
the plastic pines and holding screw inserts are
aligned.
7. Grease the diffuser O-ring and seal plate gasket
prior to reassembly.
8. Assemble the motor subassembly to the pump
housing by using the two through bolts for proper
alignment. Do not tighten the through bolts until all
six bolts are in place and finger tightened.
9. Fill the pump with water.
10. Reinstall the pump lid and plastic clamp. Refer to
“Cleaning the Pump Strainer Basket” section of this
manual.
11. Prime the pump. Follow the Restart Instructions in
the next section for startup.
Restart Instructions
If pump is installed below the water level, close the return
and suction lines prior to opening the strainer pot on the
pump. Be sure to reopen valves prior to operating.
Priming the Pump
The pump strainer pot must be filled with water before
the pump is initially started. Follow the steps below to
prime the pump:
1. Remove the pump lid plastic clamp. Remove the
pump lid.
2. Fill the pump strainer pot with water.
3. Reassemble the pump lid and locking ring onto the
strainer pot. The pump is now ready to prime.
4. Open the air relief valve on the filter and stand clear
of the filter.
5. Turn on the pump.
6. When water comes out of the filter air relief valve,
close the valve. The system should now be free of
air and recirculating water throughout the system.
7. For variable speed and two speed pumps, pump
should run on high speed for priming.
The pump should not run longer than eight minutes
if priming is not achieved.
Do NOT run the pump dry. If the pump is run dry, the
mechanical seal will be damaged and the pump will
start leaking. If this occurs, the damaged seal must
be replaced. ALWAYS maintain proper water level.
If the water level falls below the suction port, the
pump will draw air through the suction part, losing
the prime and causing the pump to run dry, resulting
in a damaged seal. Continued operation in this
manner could cause a loss of pressure, resulting in
damage to the pump case, impeller and seal, and
may cause property damage and personal injury and
manufacturer warranties will be void.
Compressor Maintenance
Startup
Do not start against a vacuum or pressure load. Do not
remove relief valve head while unit is operating. If motor
fails to start or slows down significantly under load, shut off
and disconnect from power supply. Check that voltage is
correct for motor and that motor is turning in the proper
direction. If the motor runs in the wrong direction, it will
overheat.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 12
Product surfaces become very hot during operation,
allow product surfaces to cool before handling. Air
stream from product may contain solid or liquid
material that can result in eye or skin damage, wear
proper eye protection. Failure to follow these
instructions can result in burns, eye injury or other
serious injury.
Maintenance Tips
1. Regularly inspect and make necessary repairs to
product to maintain proper operation.
2. Make sure that pressure and vacuum is released
from product before starting maintenance.
3. If unit is operated at maximum duties in a clean,
65°F to 75°F (18°C to 24°C) ambient environment
with 35% relative humidity, complete first
inspection and maintenance after 4,000 hours of
operation. Earlier maintenance may be required
depending upon the environment.
Compressor Air Filter Replacement
Refer to preventative maintenance schedule for the
replacement intervals.
1. Turn the unit off by turning the POWER
disconnect to OFF position.
2. Take the existing filter out.
3. Cover the threaded portion of a new filter with 2
tight layers of Teflon tape counterclockwise.
4. Install the new filter.
5. Turn system on (Follow unit startup procedure if
necessary)
NOTE: Air filter is critical to optimal operation of the product.
Do not clean and reuse an old air filter. Do not run the
compressors without air filter. In dry and dusty sites, more
frequent replacements may be necessary.
Compressor Independent Shutdown
If working on the Compressor independently from the Clear,
proper shutdown procedures must be followed to prevent
pump damage. Failure to do so may result in premature
pump failure. Gast Manufacturing Oil-Less Piston Vacuum
Pumps and Compressors are constructed of ferrous metals
or aluminum which are subject to rust and corrosion when
pumping condensable vapors such as water. Follow the
steps below to assure correct storage and shutdown
between operating periods.
1. Disconnect inlet and outlet air tubing.
2. Operate product for five minutes without the tubing.
3. Run at maximum vacuum for 10 to 15 minutes.
4. Repeat Step 2.
5. Turn the unit off by switching the POWER
disconnect to OFF position.
6. Plug open ports to prevent dirt or other
contaminants from entering product.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 13
Compressor Service Kit Installations
Disconnect electrical power supply cord before
installing Service Kit. If product is hard wired into
system, disconnect electrical power at the circuit
breaker or fuse box before installing Service Kit.
Vent all air lines to release pressure or vacuum.
Failure to follow these instructions can result in
death, fire or electrical shock.
1. Disconnect electrical power to pump.
2. Disconnect air supply and vent all air lines to
release pressure or vacuum.
3. Remove shroud, cylinder head and valve
components.
4. Remove cylinder and rings.
5. Clean all parts with water or non-petroleum-based
solvent such as Gast AH255B Solvent. Do NOT
use kerosene or ANY other combustible solvents.
6. Install piston seals, piston rings and rider rings on
piston. Locate ring joints approximately opposite
each other.
7. Use cylinder screws with washers to attach cylinder
to bracket. Tighten screws only until they are finger
tight.
8. Move pistons to top dead center position. Adjust
each cylinder flush with top of piston.
9. Torque cylinder screws to 150” to 160”pounds.
10. Replace valve components in original order.
11. Install cylinder head and head screws. The exhaust
ports have been marked on the cylinder heads by
omitting the ends of two of the fins. Do not tighten
screws.
12. Install manifold nuts and seals on manifold. Insert
into cylinder head and manifold.
13. Torque head screws to 150” to 160”pounds.
14. Turn fan by hand to check that rod assembly is not
hitting head. If rod hits head, loosen cylinders, and
adjust.
15. Install manifold and tighten manifold nut one-
quarter to one-half turn beyond finger tight.
16. Operate unit for ten minutes. Tighten screws again.
17. Install fan shroud.
18. Check that all external accessories such as relief
valves and gauges are attached to cover and are not
damaged before reoperating product.
If pump still does not produce proper vacuum or pressure,
contact Moleaer for assistance.
Capacitors Replacement
Follow preventative maintenance schedule for capacitor(s)
replacement intervals. In standard units, there is one
capacitor for the main compressor. In Enriched Air units,
there is an additional capacitor for the enriched air
compressor. Before replacing a capacitor, make sure the
new capacitor has the same rating.
NOTE: Capacitors for the main and enriched air
compressors are not interchangeable.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 14
Compressor Troubleshooting
Each unit is equipment with a main compressor that injects air into the nanobubble generator. Enriched air models have
an additional compressor called Enriched Air Compressor. Both compressors designs and operation principles are the
same. Troubleshooting guide below applies to both compressors.
Problem
Corrective Action
Motor Will Not Start
•Turn the system off.
•Check that plugs are fully inserted into the outlet inside the Clear.
•Check that the tube connection from the piping to the water pressure gauge. The compressors will
not start if there is inadequate water pressure or if the tube connection is loose.
•Check that voltage from power source matches that listed on nameplate.
•Check wiring connections against diagram on nameplate. Single voltage motors will operate only at
designated voltage.
•Reconnect electrical supply to unit. Check that power is on. If extension cord is used, check that it is
the correct size and length to adequately supply power to the unit.
•If unit will still not operate, contact your Gast Distribution / Representative or a Gast Authorized
Service Facility.
Motor Starts at 0 PSI
but Will Not Start
Under Pressure
•Replace the check valve.
•Wait for the thermal overload switch to reset before attempting to operate.
•If unit will not restart, the thermal overload switch may need to be replaced. If there is no thermal
overload switch, the motor may be damaged and requires service.
Motor Starts
Intermittently
•Disconnect electrical power supply from unit.
•Check that the tube connection from the piping to the water pressure gauge. The compressors will
not start if there is inadequate water pressure or if the tube connection is loose.
•Check points in the pressure or vacuum switch for wear or dirt.
•Check for dirt buildup or uneven wear.
•Replace parts as required.
A Leak is Located at
the Unit
•Vent all pressure from inside the air receiver until gauge reads 0 PSI.
•Inspect check valve for dirt buildup, wear, and proper operation.
•Replace check valve, if necessary.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 15
Enriched Air System (Optional)
Operation
Units equipment with the Enriched Air system are capable
of increasing oxygen content of the air injected in to the
nanobubble generator up to 40% (double the ambient
content). The percentage varies by elevation and ambient
temperature.
Occasional adjustment of the enriched air pressure is
required to optimize the oxygen content of the enriched
air. Often, the adjustment is required when the ambient
temperature significantly changes. The adjustment is not
Nitrogen Membrane
The Enriched air system separate nitrogen from the air.
The membrane tank (Prism) accumulates nitrogen content
of the compressed air and exhausts it through the
enriched air back pressure regulator. The nitrogen filtered
or “enriched”air leaves the tank via a separate port, and is
used as the feed air to the main compressor. There is a
pressure gauge on the tank to monitor the enriched air
pressure. Pressure ranges are as followed.
Enriched Air Pressure Ranges
Optimal Range*
0 to 10 Psi
Maximum Range**
-5 to 20 Psi
*Adjust the pressure by turning the enriched air pressure
regulator knob.
**Exceeding this range may damage the enriched air
compressor or significantly reduce the enriched air oxygen
content.
NOTE: Moleaer’s remote monitoring system monitors the
enriched air pressure and sends alerts when the pressure is out
of the maximum range.
Maintenance
3-Stage Filter (For Enriched unit only)
3-stage filters must be cleaned every 6 months and
replaced annually. Refer to the preventative maintenance
schedule.
Follow steps below to remove the filters. Reverse the
steps to reinstall the filters.
Step 1) Use an Allen wrench to loosen the cap.
Enriched Air
Pressure
gauge
Enriched Air
Pressure
Regulator

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 16
Step 2) Use an adjustable wrench to completely unscrew
the cap.
Remote Monitoring
Moleaer’s remote monitoring system provides valuable
information about the performance of the unit, sends error
notifications alerts and saves historical performance data.
If the optional Dissolved Oxygen (DO) sensor is
purchased, the values are capture on the remote
monitoring dashboard.
Access to remote monitoring website
Use the link below to access the website or browse
Moleaer’s homepage tabs.
https://www.monitoring-moleaer.com/login.aspx
Login information
Contact Moleaer to create a user account. Each unit can
have multiple user account. Each user account request
must include full name, phone number and a valid email
address.
An account activation email will be sent to the new users
to setup the account and password.
Locating units
Each unit can be located by either a physical address, by
name on the left side menu or visually on the map. Steps
below are for finding a unit on the map.
Zoom in or click on the green symbol to see more
information about the unit.
Click on the unit name to access the unit’s dashboard.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 17
Remote Start/Stop
Start and stop buttons are available on the dashboard.
When either button is pressed, a message will appear to
confirm the selection.
If the system is “On” after pressing the remote
START button but there is no change in pressure,
the system may have lost prime. If pump and gas
pressure does not increase after 3 minutes, press
the STOP button and inspect the unit in-person.
Measurements Units
The dashboard readings are available in metric and
imperial systems. Contact Moleaer to switch the systems.
System Status
Cellular Connectivity Status
Unit’s cellular connectivity status and last reading are
shown on top of the page. If the unit is shutdown or not
receiving any cellular connection, the green light will turn
grey, and the last reading reflect the last time the unit had
cellular connection.
To get the most recent data point, click on “Get Status”
button and wait for the page to refresh.
Status LEDs
System on
If the light is green, the system is powered and running.
Water Pump Trip and Compressor trip light:
If the light is red, the corresponding component has had
an electrical problem and has been shut down. If a trip has
occurred, inspect the unit in-person.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 18
Errors
There are three errors for enriched air systems and two
errors for standard system. If an error occurs, the Error
light turns red.
Temperatures
Temperature readings of main internal components are
displayed.
Schedule
The scheduling tool turns the system on and off based on
the schedule page settings. The schedule page access is
via the “Main” tab menu.
To enter in a schedule, select the days of the week, the start
time, and the duration of operation, and then hit save. The unit
will turn on automatically during the designated operating
window.
Trending
Trending displays historical values of all the sensors. The
graphs are updated continuously every 10 minutes. To
pull a new data point, click on refresh button.
The graphs show the data from the past 7 days. The time
window can be adjusted by changing the dates on each
graph.
Once the desired dates are selected, click on the
“Refresh”button to update the graph.

MOLEAER CLEAR™3.0
NANOBUBBLE GENERATOR
Operation and Maintenance Manual
www.moleaer.com 19
NOTE: Clear units are equipped with a dump valve. This valve
exhausts the air inside the system every 24 hours after the last
time the unit was powered on. A dump event takes about 10
seconds. The sudden pressure drops on the gas graphs
represent a dump event and is normal.
Notifications
The remote monitoring system is capable to sending SMS
(text) message and emails if an error in the system
occurs.
Each user must choose the desired error notification on
the dashboard to receive notifications.
Notifications are sent to users who completed notification
setup on the dashboard.
Error Notifications
1. Click on the Error LED.
2. On the “Alerts” window, click on the condition set and
condition reset alerts and check the type of
communication, i.e., email, SMS.
To turn off the alerts, follow steps above. Once on the
“Alerts” menu, uncheck the communication boxes.
Online / Offline Trigger Notifications
To receive the online and offline status notifications, follow
the steps below.
1. On “Setup” tab click on “Ver&Comm”. Check the
desired option on the page.
2. Click on the email button and choose the desired email
address.
NOTE: Online and Offline notifications are via email only.
NOTE: Follow the steps above to turn the notifications off by
unchecking the undesired notification.
NOTE: By default, all users receive the online trigger
notification.
Remote monitoring serial number
Remote monitoring ID is a 5-digit number assigned to
each unit. This number is different than unit’s serial
number and can only be found on the remote monitoring
dashboard or by opening the electrical panel and reading
off the sticker on the hardware.
Follow steps below to find the serial number.
