molex 207129 Series User guide

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 1 of 16
Revision: T Revision Date: 08-19-21
Application Tooling Specification
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position.
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the
requirements of UL, CSA and Military Class II
3-nested tool eliminates the need for additional tools
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual
crimping
SCOPE
Products: Avikrimp/Insulkrimp Terminals and Splices 10-22 AWG and 6.00-0.50mm² (Rings,
Spades, Hooks, Block Spades and Flanged Spades) This tool head is intended for use in the 19279-
0001 (AT-200) either handheld or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19023-0005
AMCT-2X
.312
7.93
.145
3.68
19023-0007
AMMCT-2X
.234
5.95
19025-0001
AMCT-5
.312
7.93
.140
3.55
19025-0002
AMCT-57
.312
7.93
.140
3.55
19026-0003
AMCT-8
.312
7.93
.140
3.55
19026-0004
AMCT-87
.312
7.93
19034-0001
A-769
.312
7.94
.145
3.68
19034-0002
A-259X
.312
7.94
.145
3.68
19034-0005
A-269X
.312
7.94
.145
3.68
19035-0001
A-559
.312
7.94
.145
3.68
19035-0003
A-569
.312
7.94
.145
3.68
19036-0001
A-859
.312
7.94
.145
3.68
19036-0003
A-869
.312
7.94
.145
3.68
19054-0031
A-220-02X
.312
7.94
.145
3.68
19054-0032
A-220-04X
.312
7.94
.145
3.68
19054-0033
A-220-06X
.312
7.94
.145
3.68
19054-0035
A-221-06X
.312
7.94
.145
3.68
19054-0037
A-221-08X
.312
7.94
.145
3.68
19054-0039
A-221-10X
.312
7.94
.145
3.68
19054-0041
A-222-10X
.312
7.94
.145
3.68
19054-0042
A-222-14X
.312
7.94
.145
3.68
19054-0044
A-222-56X
.312
7.94
.145
3.68
19054-0046
A-226-10X
.312
7.94
.145
3.68
19054-0047
A-226-14X
.312
7.94
.145
3.68
19054-0048
A-226-38X
.312
7.94
.145
3.68
19054-0050
A-226-56X
.312
7.94
.145
3.68
19054-0051
A-232-04X
.312
7.94
.145
3.68
19054-0052
A-232-06X
.312
7.94
.145
3.68
19054-0054
A-232-08X
.312
7.94
.145
3.68
19054-0058
A-233-08X
.312
7.94
.145
3.68
19054-0059
A-233-10X
.312
7.94
.145
3.68
19054-0060
AB-225-10HD
.234
5.95
.175
4.44
19054-0061
AB-225-14HD
.234
5.95
.175
4.44
19054-0062
AB-225-56HD
.234
5.95
.175
4.44
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19055-0001
A-620-02X
.312
7.94
.145
3.68
19055-0003
A-620-04X
.312
7.94
.145
3.68
19055-0006
A-620-06X
.312
7.94
.145
3.68
19055-0008
A-621-06X
.312
7.94
.145
3.68
19055-0011
A-621-08X
.312
7.94
.145
3.68
19055-0014
A-621-10X
.312
7.94
.145
3.68
19055-0016
A-622-10X
.312
7.94
.145
3.68
19055-0018
A-622-14X
.312
7.94
.145
3.68
19055-0020
A-622-56X
.312
7.94
.145
3.68
19055-0022
A-626-10X
.312
7.94
.145
3.68
19055-0023
A-626-14X
.312
7.94
.145
3.68
19055-0025
A-626-38X
.312
7.94
.145
3.68
19055-0027
A-626-56X
.312
7.94
.145
3.68
19055-0029
A-632-04X
.312
7.94
.145
3.68
19055-0031
A-632-06X
.312
7.94
.145
3.68
19055-0033
A-632-08X
.312
7.94
.145
3.68
19055-0038
A-633-10X
.312
7.94
.145
3.68
19057-0001
A-520-02
.312
7.94
.145
3.68
19057-0003
A-520-04
.312
7.94
.145
3.68
19057-0005
A-520-06
.312
7.94
.145
3.68
19057-0007
A-521-06
.312
7.94
.145
3.68
19057-0009
A-521-08
.312
7.94
.145
3.68
19057-0011
A-521-10
.312
7.94
.145
3.68
19057-0013
A-522-10
.312
7.94
.145
3.68
19057-0015
A-522-14
.312
7.94
.145
3.68
19057-0017
A-522-56
.312
7.94
.145
3.68
19057-0019
A-526-10
.312
7.94
.145
3.68
19057-0020
A-526-14
.312
7.94
.145
3.68
19057-0022
A-526-38
.312
7.94
.145
3.68
19057-0024
A-526-56
.312
7.94
.145
3.68
19057-0026
A-532-04
.312
7.94
.145
3.68
19057-0028
A-532-06
.312
7.94
.145
3.68
19057-0030
A-532-08
.312
7.94
.145
3.68
19057-0035
A-533-10
.312
7.94
.145
3.68
19058-0008
A-821-06
.312
7.94
.145
3.68
Order Number
64005-0100
Engineering No.
AT1990

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 2 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19070-0001
AA-2111-02X
.234
5.95
.145
3.68
19070-0003
AA-2111-04X
.234
5.95
.145
3.68
19070-0005
AA-220-02X
.234
5.95
.145
3.68
19070-0007
AA-220-04X
.234
5.95
.145
3.68
19070-0009
AA-220-06X
.234
5.95
.145
3.68
19070-0011
AA-221-06X
.234
5.95
.145
3.68
19070-0013
AA-221-08X
.234
5.95
.145
3.68
19070-0015
AA-221-10X
.234
5.95
.145
3.68
19070-0016
AA-221-10XR90
.234
5.95
.145
3.68
19070-0018
AA-221-10T45
.234
5.95
.145
3.68
19070-0019
AA-221-209X
.234
5.95
.145
3.68
19070-0021
AA-222-10X
.234
5.95
.145
3.68
19070-0023
AA-222-14X
.234
5.95
.145
3.68
19070-0026
AA-222-56X
.234
5.95
.145
3.68
19070-0029
AA-226-10X
.234
5.95
.145
3.68
19070-0031
AA-226-14X
.234
5.95
.145
3.68
19070-0033
AA-226-38X
.234
5.95
.145
3.68
19070-0036
AA-226-56X
.234
5.95
.145
3.68
19070-0038
AA-232-04X
.234
5.95
.145
3.68
19070-0040
AA-232-06X
.234
5.95
.145
3.68
19070-0044
AA-232-08X
.234
5.95
.145
3.68
19070-0051
AA-233-10X
.234
5.95
.145
3.68
19070-0394
AA-220-06XR90
.234
5.95
.145
3.68
19071-0001
AA-6111-02X
.234
5.95
.145
3.68
19071-0003
AA-6111-04X
.234
5.95
.145
3.68
19071-0005
AA-620-02X
.234
5.95
.145
3.68
19071-0007
AA-620-04X
.234
5.95
.145
3.68
19071-0009
AA-620-06X
.234
5.95
.145
3.68
19071-0011
AA-621-06X
.234
5.95
.145
3.68
19071-0013
AA-621-08X
.234
5.95
.145
3.68
19071-0015
AA-621-10X
.234
5.95
.145
3.68
19071-0017
AA-622-10X
.234
5.95
.145
3.68
19071-0019
AA-622-14X
.234
5.95
.145
3.68
19071-0021
AA-622-56X
.234
5.95
.145
3.68
19071-0023
AA-626-10X
.234
5.95
.145
3.68
19071-0024
AA-626-14X
.234
5.95
.145
3.68
19071-0026
AA-626-38X
.234
5.95
.145
3.68
19071-0028
AA-626-56X
.234
5.95
.145
3.68
19071-0030
AA-632-04X
.234
5.95
.145
3.68
19071-0032
AA-632-06X
.234
5.95
.145
3.68
19071-0034
AA-632-08X
.234
5.95
.145
3.68
19071-0040
AA-633-10X
.234
5.95
.145
3.68
19073-0001
AA-8111-02
.250
6.35
.140
3.55
19073-0003
AA-8111-04
.250
6.35
.140
3.55
19073-0005
AA-820-02
.250
6.35
.140
3.55
19073-0007
AA-820-04
.250
6.35
.140
3.55
19073-0009
AA-820-06
.250
6.35
.140
3.55
19073-0011
AA-821-06
.250
6.35
.140
3.55
19073-0013
A-821-08
.312
7.94
.145
3.68
19073-0013
AA-821-08
.250
6.35
.140
3.55
19073-0017
AA-821-10
.250
6.35
.140
3.55
19073-0020
AA-821-209
.250
6.35
.140
3.55
19073-0022
AA-822-10
.250
6.35
.140
3.55
19073-0024
AA-822-14
.250
6.35
.140
3.55
19073-0025
AA-822-14R90
.250
6.35
.140
3.55
19073-0027
AA-822-56
.250
6.35
.140
3.55
19073-0029
AA-826-10
.250
6.35
.140
3.55
19073-0030
AA-826-14
.250
6.35
.140
3.55
19073-0032
AA-826-38
.250
6.35
.140
3.55
19073-0034
AA-826-56
.250
6.35
.140
3.55
19073-0036
AA-832-04
.250
6.35
.140
3.55
19073-0038
AA-832-06
.250
6.35
.140
3.55
19073-0042
AA-832-08
.250
6.35
.140
3.55
19073-0049
AA-833-10
.250
6.35
.140
3.55
19073-0051
AB-825-10HD
.234
5.95
.170
4.31
19073-0053
AB-825-14HD
.234
5.95
.170
4.31
19073-0055
AB-825-56HD
.234
5.95
.170
4.31
19073-0303
AA-832-06R90
.250
6.35
.140
3.55
19080-0001
A-2006-MSX
.312
7.94
.145
3.68
19081-0001
A-5006-MS
.312
7.94
.145
3.68
19089-0001
A-205-04X
.312
7.94
.145
3.68
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19089-0002
A-205-06X
.312
7.94
.145
3.68
19089-0004
A-206-06X
.312
7.94
.145
3.68
19089-0005
A-206-08X
.312
7.94
.145
3.68
19089-0006
A-206-10X
.312
7.94
.145
3.68
19089-0007
A-214-04X
.312
7.94
.145
3.68
19089-0008
A-214-06X
.312
7.94
.145
3.68
19089-0009
A-214-08X
.312
7.94
.145
3.68
19089-0010
A-292-06X
.312
7.94
.145
3.68
19089-0012
A-292-08X
.312
7.94
.145
3.68
19089-0013
A-292-10X
.312
7.94
.145
3.68
19089-0014
A-295-06X
.312
7.94
.145
3.68
19089-0015
A-295-08X
.312
7.94
.145
3.68
19089-0016
A-295-10X
.312
7.94
.145
3.68
19089-0017
A-298-04X
.312
7.94
.145
3.68
19089-0018
A-298-06X
.312
7.94
.145
3.68
19089-0019
A-298-08X
.312
7.94
.145
3.68
19089-0020
A-298-10X
.312
7.94
.145
3.68
19090-0001
AA-205-04X
.234
5.95
.145
3.68
19090-0002
AA-205-06X
.234
5.95
.145
3.68
19090-0007
AA-2110-02X
.234
5.95
.145
3.68
19090-0009
AA-2110-04X
.234
5.95
.145
3.68
19090-0011
AA-214-04X
.234
5.95
.145
3.68
19090-0013
AA-214-06X
.234
5.95
.145
3.68
19090-0015
AA-214-08X
.234
5.95
.145
3.68
19090-0024
AA-292-06X
.234
5.95
.145
3.68
19090-0026
AA-292-08X
.234
5.95
.145
3.68
19090-0028
AA-292-10X
.234
5.95
.145
3.68
19090-0030
AA-295-06X
.234
5.95
.145
3.68
19090-0032
AA-295-08X
.234
5.95
.145
3.68
19090-0034
AA-295-10X
.234
5.95
.145
3.68
19090-0036
AA-298-04X
.234
5.95
.145
3.68
19090-0038
AA-298-06X
.234
5.95
.145
3.68
19090-0040
AA-298-08X
.234
5.95
.145
3.68
19090-0042
AA-298-10X
.234
5.95
.145
3.68
19091-0001
A-605-04X
.312
7.94
.145
3.68
19091-0003
A-605-06X
.312
7.94
.145
3.68
19091-0006
A-606-06X
.312
7.94
.145
3.68
19091-0008
A-606-08X
.312
7.94
.145
3.68
19091-0010
A-606-10X
.312
7.94
.145
3.68
19091-0012
A-614-04X
.312
7.94
.145
3.68
19091-0014
A-614-06X
.312
7.94
.145
3.68
19091-0016
A-614-08X
.312
7.94
.145
3.68
19091-0018
A-692-06X
.312
7.94
.145
3.68
19091-0020
A-692-08X
.312
7.94
.145
3.68
19091-0022
A-692-10X
.312
7.94
.145
3.68
19091-0024
A-695-06X
.312
7.94
.145
3.68
19091-0026
A-695-08X
.312
7.94
.145
3.68
19091-0028
A-695-10X
.312
7.94
.145
3.68
19091-0030
A-698-04X
.312
7.94
.145
3.68
19091-0032
A-698-06X
.312
7.94
.145
3.68
19091-0034
A-698-08X
.312
7.94
.145
3.68
19091-0036
A-698-10X
.312
7.94
.145
3.68
19092-0001
AA-605-04X
.234
5.95
.145
3.68
19092-0003
AA-605-06X
.234
5.95
.145
3.68
19092-0009
AA-6110-02X
.234
5.95
.145
3.68
19092-0011
AA-6110-04X
.234
5.95
.145
3.68
19092-0013
AA-614-04X
.234
5.95
.145
3.68
19092-0015
AA-614-06X
.234
5.95
.145
3.68
19092-0017
AA-614-08X
.234
5.95
.145
3.68
19092-0019
AA-692-06X
.234
5.95
.145
3.68
19092-0021
AA-692-08X
.234
5.95
.145
3.68
19092-0023
AA-692-10X
.234
5.95
.145
3.68
19092-0025
AA-695-06X
.234
5.95
.145
3.68
19092-0027
AA-695-08X
.234
5.95
.145
3.68
19092-0029
AA-695-10X
.234
5.95
.145
3.68
19092-0031
AA-698-04X
.234
5.95
.145
3.68
19092-0033
AA-698-06X
.234
5.95
.145
3.68
19092-0035
AA-698-08X
.234
5.95
.145
3.68
19092-0037
AA-698-10X
.234
5.95
.145
3.68
19094-0001
A-505-04
.312
7.94
.145
3.68
19094-0003
A-505-06
.312
7.94
.145
3.68

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 3 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19094-0006
A-506-06
.312
7.94
.145
3.68
19094-0008
A-506-08
.312
7.94
.145
3.68
19094-0010
A-506-10
.312
7.94
.145
3.68
19094-0013
A-514-06
.312
7.94
.145
3.68
19094-0016
A-514-08
.312
7.94
.145
3.68
19094-0019
A-592-06
.312
7.94
.145
3.68
19094-0021
A-592-08
.312
7.94
.145
3.68
19094-0023
A-592-10
.312
7.94
.145
3.68
19094-0026
A-595-06
.312
7.94
.145
3.68
19094-0027
A-595-08
.312
7.94
.145
3.68
19094-0029
A-595-10
.312
7.94
.145
3.68
19094-0031
A-598-04
.312
7.94
.145
3.68
19094-0033
A-598-06
.312
7.94
.145
3.68
19094-0035
A-598-08
.312
7.94
.145
3.68
19094-0037
A-598-10
.312
7.94
.145
3.68
19095-0001
AA-805-04
.250
6.35
.140
3.55
19095-0003
AA-805-06
.250
6.35
.140
3.55
19095-0016
AA-814-04
.250
6.35
.145
3.68
19095-0018
AA-814-06
.250
6.35
.145
3.68
19095-0020
AA-814-08
.250
6.35
.145
3.68
19095-0036
AA-892-06
.250
6.35
.140
3.55
19095-0038
AA-892-08
.250
6.35
.140
3.55
19095-0040
AA-892-10
.250
6.35
.140
3.55
19095-0042
AA-895-06
.250
6.35
.140
3.55
19095-0044
AA-895-08
.250
6.35
.140
3.55
19095-0046
AA-895-10
.250
6.35
.140
3.55
19095-0048
AA-898-04
.250
6.35
.140
3.55
19095-0050
AA-898-06
.250
6.35
.140
3.55
19095-0052
AA-898-08
.250
6.35
.140
3.55
19095-0054
AA-898-10
.250
6.35
.140
3.55
19095-0142
AA-8110-02
.250
6.35
.140
3.55
19099-0001
AA-2190-06X
.234
5.95
.145
3.68
19099-0003
AA-2191-08X
.234
5.95
.145
3.68
19099-0005
AA-2192-10X
.234
5.95
.145
3.68
19099-0007
AA-2704-05X
.234
5.95
.145
3.68
19099-0009
AA-2704-06X
.234
5.95
.145
3.68
19099-0011
AA-2705-08X
.234
5.95
.145
3.68
19099-0012
AA-2706-10X
.234
5.95
.145
3.68
19099-0013
AA-2714-08X
.234
5.95
.145
3.68
19099-0015
AA-2715-10X
.234
5.95
.145
3.68
19099-0081
AA-2704-04X
.234
5.95
.145
3.68
19115-0001
AA-8190-06
.250
6.35
.143
3.63
19115-0003
AA-8191-08
.250
6.35
.143
3.63
19115-0005
AA-8192-10
.250
6.35
.143
3.63
19115-0007
AA-8704-05
.250
6.35
.140
3.55
19115-0009
AA-8704-06
.250
6.35
.140
3.55
19115-0011
AA-8705-08
.234
5.95
19115-0012
AA-8714-08
.250
6.35
.140
3.55
19115-0014
AA-8715-10
.250
6.35
.140
3.55
19115-0052
AA-8706-10
.234
5.95
19119-0001
A-2108-02X
.312
7.94
.145
3.68
19119-0003
A-215-04X
.312
7.94
.145
3.68
19119-0004
A-215-06X
.312
7.94
.145
3.68
19119-0007
A-215-08X
.312
7.94
.145
3.68
19119-0010
A-215-10X
.312
7.94
.145
3.68
19119-0011
A-2461-04X
.312
7.94
.145
3.68
19119-0012
A-2461-06X
.312
7.94
.145
3.68
19119-0014
A-2461-08X
.312
7.94
.145
3.68
19119-0015
A-2461-10X
.312
7.94
.145
3.68
19119-0016
A-290-06X
.312
7.94
.145
3.68
19119-0017
A-290-08X
.312
7.94
.145
3.68
19119-0018
A-290-10X
.312
7.94
.145
3.68
19119-0019
A-293-06X
.312
7.94
.145
3.68
19119-0020
A-293-08X
.312
7.94
.145
3.68
19119-0021
A-293-10X
.312
7.94
.145
3.68
19119-0022
A-296-04X
.312
7.94
.145
3.68
19119-0023
A-296-06X
.312
7.94
.145
3.68
19119-0024
A-296-08X
.312
7.94
.145
3.68
19119-0095
A-290-10XX
.312
7.94
.145
3.68
19120-0003
A-615-04X
.312
7.94
.145
3.68
19120-0005
A-615-06X
.312
7.94
.145
3.68
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19120-0007
A-615-08X
.312
7.94
.145
3.68
19120-0014
A-690-06X
.312
7.94
.145
3.68
19120-0016
A-690-08X
.312
7.94
.145
3.68
19120-0018
A-690-10X
.312
7.94
.145
3.68
19120-0020
A-693-06X
.312
7.94
.145
3.68
19120-0022
A-693-08X
.312
7.94
.145
3.68
19120-0024
A-693-10X
.312
7.94
.145
3.68
19120-0029
A-696-06X
.312
7.94
.145
3.68
19120-0031
A-696-08X
.312
7.94
.145
3.68
19121-0001
AA-2108-02X
.234
5.95
.145
3.68
19121-0002
AA-2108-04X
.234
5.95
.145
3.68
19121-0004
AA-215-04X
.234
5.95
.145
3.68
19121-0005
AA-215-06X
.234
5.95
.145
3.68
19121-0007
AA-215-08X
.234
5.95
.145
3.68
19121-0009
AA-215-10X
.234
5.95
.145
3.68
19121-0011
AA-2461-04X
.234
5.95
.145
3.68
19121-0012
AA-2461-06X
.234
5.95
.145
3.68
19121-0013
AA-2461-08X
.234
5.95
.145
3.68
19121-0014
AA-2461-10X
.234
5.95
.145
3.68
19121-0015
AA-290-06X
.234
5.95
.145
3.68
19121-0016
AA-290-08X
.234
5.95
.145
3.68
19121-0017
AA-290-10X
.234
5.95
.145
3.68
19121-0018
AA-293-06X
.234
5.95
.145
3.68
19121-0019
AA-293-08X
.234
5.95
.145
3.68
19121-0020
AA-293-10X
.234
5.95
.145
3.68
19121-0021
AA-296-04X
.234
5.95
.145
3.68
19121-0022
AA-296-06X
.234
5.95
.145
3.68
19121-0024
AA-296-08X
.234
5.95
.145
3.68
19122-0001
AA-6108-02X
.234
5.95
.145
3.68
19122-0003
AA-6108-04X
.234
5.95
.145
3.68
19122-0005
AA-615-04X
.234
5.95
.145
3.68
19122-0007
AA-615-06X
.234
5.95
.145
3.68
19122-0009
AA-615-08X
.234
5.95
.145
3.68
19122-0011
AA-690-06X
.234
5.95
.145
3.68
19122-0013
AA-690-08X
.234
5.95
.145
3.68
19122-0015
AA-690-10X
.234
5.95
.145
3.68
19122-0017
AA-693-06X
.234
5.95
.145
3.68
19122-0019
AA-693-08X
.234
5.95
.145
3.68
19122-0021
AA-693-10X
.234
5.95
.145
3.68
19122-0023
AA-696-04X
.234
5.95
.145
3.68
19122-0025
AA-696-06X
.234
5.95
.145
3.68
19125-0001
A-515-04
.312
7.94
.145
3.68
19125-0003
A-515-06
.312
7.94
.145
3.68
19125-0005
A-515-08
.312
7.94
.145
3.68
19125-0007
A-515-10
.312
7.94
.145
3.68
19125-0009
A-5461-04
.312
7.94
.145
3.68
19125-0010
A-5461-06
.312
7.94
.145
3.68
19125-0011
A-5461-08
.312
7.94
.145
3.68
19125-0012
A-5461-10
.312
7.94
.145
3.68
19125-0013
A-590-06
.312
7.94
.145
3.68
19125-0015
A-590-08
.312
7.94
.145
3.68
19125-0017
A-590-10
.312
7.94
.145
3.68
19125-0019
A-593-06
.312
7.94
.145
3.68
19125-0021
A-593-08
.312
7.94
.145
3.68
19125-0023
A-593-10
.312
7.94
.145
3.68
19125-0025
A-596-04
.312
7.94
.145
3.68
19125-0027
A-596-06
.312
7.94
.145
3.68
19125-0029
A-596-08
.312
7.94
.145
3.68
19126-0004
A-815-10
.312
7.94
.145
3.68
19126-0026
A-815-08
.312
7.94
.145
3.68
19127-0001
AA-8108-02
.250
6.35
.140
3.55
19127-0003
AA-8108-04
.250
6.35
.140
3.55
19127-0005
AA-815-04
.250
6.35
.143
3.63
19127-0007
AA-815-06
.250
6.35
.143
3.63
19127-0010
AA-815-08
.250
6.35
.143
3.63
19127-0012
AA-815-10
.250
6.35
.143
3.63
19127-0014
AA-8461-04
.250
6.35
.140
3.55
19127-0015
AA-8461-06
.250
6.35
.140
3.55
19127-0016
AA-8461-08
.250
6.35
.140
3.55
19127-0017
AA-8461-10
.250
6.35
.140
3.55
19127-0019
AA-890-06
.250
6.35
.140
3.55

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 4 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19127-0021
AA-890-08
.250
6.35
.140
3.55
19127-0023
AA-890-10
.250
6.35
.140
3.55
19127-0025
AA-893-06
.250
6.35
.140
3.55
19127-0027
AA-893-08
.250
6.35
.140
3.55
19127-0029
AA-893-10
.250
6.35
.140
3.55
19127-0031
AA-896-04
.250
6.35
.140
3.55
19127-0033
AA-896-06
.250
6.35
.140
3.55
19127-0035
AA-896-08
.250
6.35
.140
3.55
19130-0002
A-2118-06X
.312
7.94
.145
3.68
19130-0003
A-2118-08X
.312
7.94
.145
3.68
19130-0004
A-234-04X
.312
7.94
.145
3.68
19130-0005
A-234-06X
.312
7.94
.145
3.68
19130-0006
A-234-08X
.312
7.94
.145
3.68
19130-0007
A-234-10X
.312
7.94
.145
3.68
19130-0008
A-238-04X
.312
7.94
.145
3.68
19130-0009
A-238-06X
.312
7.94
.145
3.68
19131-0027
AA-294-10X
.234
5.95
.145
3.68
19131-0028
AA-294-08X
.234
5.95
.145
3.68
19131-0029
AA-294-06X
.234
5.95
.145
3.68
19131-0031
AA-238-06X
.234
5.95
.145
3.68
19131-0033
AA-238-04X
.234
5.95
.145
3.68
19131-0034
AA-234-10X
.234
5.95
.145
3.68
19131-0036
AA-234-08X
.234
5.95
.145
3.68
19131-0038
AA-234-06X
.234
5.95
.145
3.68
19131-0039
AA-234-04X
.234
5.95
.145
3.68
19131-0040
AA-2118-08X
.234
5.95
.145
3.68
19131-0042
AA-2118-06X
.234
5.95
.145
3.68
19131-0045
AA-2109-04X
.234
5.95
.145
3.68
19131-0047
AA-2109-02X
.234
5.95
.145
3.68
19133-0001
AA-634-04X
.234
5.95
.145
3.68
19133-0002
AA-634-06X
.234
5.95
.145
3.68
19133-0003
AA-634-08X
.234
5.95
.145
3.68
19133-0004
AA-634-10X
.234
5.95
.145
3.68
19137-0002
A-5118-06
.312
7.94
.145
3.68
19137-0003
A-5118-08
.312
7.94
.145
3.68
19137-0004
A-534-04
.312
7.94
.145
3.68
19137-0005
A-534-06
.312
7.94
.145
3.68
19137-0006
A-534-08
.312
7.94
.145
3.68
19137-0007
A-534-10
.312
7.94
.145
3.68
19137-0008
A-538-04
.312
7.94
.145
3.68
19137-0009
A-538-06
.312
7.94
.145
3.68
19137-0010
A-591-06
.312
7.94
.145
3.68
19137-0011
A-591-08
.312
7.94
.145
3.68
19137-0012
A-591-10
.312
7.94
.145
3.68
19137-0013
A-594-06
.312
7.94
.145
3.68
19137-0014
A-594-08
.312
7.94
.145
3.68
19137-0015
A-594-10
.312
7.94
.145
3.68
19137-0016
A-597-04
.312
7.94
.145
3.68
19137-0017
A-597-06
.312
7.94
.145
3.68
19137-0018
A-597-08
.312
7.94
.145
3.68
19139-0001
AA-8109-02
.250
6.35
.143
3.63
19139-0003
AA-8109-04
.250
6.35
.143
3.63
19139-0006
AA-8118-06
.250
6.35
.143
3.63
19139-0008
AA-8118-08
.250
6.35
.143
3.63
19139-0009
AA-834-04
.250
6.35
.140
3.55
19139-0011
AA-834-06
.250
6.35
.140
3.55
19139-0013
AA-834-08
.250
6.35
.140
3.55
19139-0015
AA-834-10
.250
6.35
.140
3.55
19139-0016
AA-838-04
.250
6.35
.140
3.55
19139-0018
AA-838-06
.250
6.35
.140
3.55
19139-0020
AA-891-06
.250
6.35
.140
3.55
19139-0022
AA-891-08
.250
6.35
.140
3.55
19139-0024
AA-891-10
.250
6.35
.140
3.55
19139-0026
AA-894-06
.250
6.35
.140
3.55
19139-0028
AA-894-08
.250
6.35
.140
3.55
19139-0030
A-894-10
.312
7.94
.145
3.68
19139-0030
AA-894-10
.250
6.35
.140
3.55
19139-0032
AA-897-04
.250
6.35
.140
3.55
19139-0034
AA-897-06
.250
6.35
.140
3.55
19139-0036
AA-897-08
.250
6.35
.140
3.55
19142-0003
A-235-06X
.312
7.94
.145
3.68
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19142-0005
A-235-08X
.312
7.94
.145
3.68
19142-0007
A-235-10X
.312
7.94
.145
3.68
19142-0010
A-291-06X
.312
7.94
.145
3.68
19142-0011
A-291-08X
.312
7.94
.145
3.68
19142-0012
A-291-10X
.312
7.94
.145
3.68
19142-0013
A-294-06X
.312
7.94
.145
3.68
19142-0014
A-294-08X
.312
7.94
.145
3.68
19142-0015
A-294-10X
.312
7.94
.145
3.68
19142-0016
A-297-04X
.312
7.94
.145
3.68
19142-0017
A-297-06X
.312
7.94
.145
3.68
19142-0018
A-297-08X
.312
7.94
.145
3.68
19143-0001
A-634-04X
.312
7.94
.145
3.68
19143-0003
A-634-06X
.312
7.94
.145
3.68
19143-0006
A-634-08X
.312
7.94
.145
3.68
19143-0008
A-634-10X
.312
7.94
.145
3.68
19143-0010
A-635-06X
.312
7.94
.145
3.68
19143-0012
A-635-08X
.312
7.94
.145
3.68
19143-0014
A-635-10X
.312
7.94
.145
3.68
19143-0015
A-638-04X
.312
7.94
.145
3.68
19143-0018
A-638-06X
.312
7.94
.145
3.68
19143-0021
A-691-06X
.312
7.94
.145
3.68
19143-0023
A-691-08X
.312
7.94
.145
3.68
19143-0025
A-691-10X
.312
7.94
.145
3.68
19143-0027
A-694-06X
.312
7.94
.145
3.68
19143-0029
A-694-08X
.312
7.94
.145
3.68
19143-0031
A-694-10X
.312
7.94
.145
3.68
19143-0033
A-697-04X
.312
7.94
.145
3.68
19143-0035
A-697-06X
.312
7.94
.145
3.68
19143-0037
A-697-08X
.312
7.94
.145
3.68
19144-0001
AA-235-06X
.234
5.95
.145
3.68
19144-0003
AA-235-08X
.234
5.95
.145
3.68
19144-0005
AA-235-10X
.234
5.95
.145
3.68
19144-0007
AA-291-06X
.234
5.95
.145
3.68
19144-0008
AA-291-08X
.234
5.95
.145
3.68
19144-0009
AA-291-10X
.234
5.95
.145
3.68
19144-0010
AA-297-04X
.234
5.95
.145
3.68
19144-0011
AA-297-06X
.234
5.95
.145
3.68
19144-0012
AA-297-08X
.234
5.95
.145
3.68
19145-0001
AA-6109-02X
.234
5.95
.145
3.68
19145-0003
AA-6109-04X
.234
5.95
.145
3.68
19145-0011
AA-635-06X
.234
5.95
.145
3.68
19145-0013
AA-635-08X
.234
5.95
.145
3.68
19145-0015
AA-635-10X
.234
5.95
.145
3.68
19145-0017
AA-638-04X
.234
5.95
.145
3.68
19145-0019
AA-638-06X
.234
5.95
.145
3.68
19145-0022
AA-691-06X
.234
5.95
.145
3.68
19145-0024
AA-691-08X
.234
5.95
.145
3.68
19145-0026
AA-691-10X
.234
5.95
.145
3.68
19145-0028
AA-694-06X
.234
5.95
.145
3.68
19145-0030
AA-694-08X
.234
5.95
.145
3.68
19145-0032
AA-694-10X
.234
5.95
.145
3.68
19145-0034
AA-697-04X
.234
5.95
.145
3.68
19145-0036
AA-697-06X
.234
5.95
.145
3.68
19145-0038
AA-697-08X
.234
5.95
.145
3.68
19153-0002
AMCT-2NF
.312
7.93
19154-0002
A-2450V
.312
7.94
.145
3.68
19154-0004
A-245X
.312
7.94
.145
3.68
19154-0005
A-245X-B
.312
7.94
.145
3.68
19154-0009
A-L245X
.281
7.14
.145
3.68
19154-0011
AS-V-345X
.281
7.14
.145
3.68
19171-0001
A-210-06X
.312
7.94
.145
3.68
19171-0003
A-210-08X
.312
7.94
.145
3.68
19171-0005
A-210-10X
.312
7.94
.145
3.68
19174-0001
A-510-06
.312
7.94
.145
3.68
19174-0003
A-510-08
.312
7.94
.145
3.68
19174-0005
A-510-10
.312
7.94
.145
3.68
19175-0001
A-610-06X
.312
7.94
.145
3.68
19175-0003
A-610-08X
.312
7.94
.145
3.68
19175-0005
A-610-10X
.312
7.94
.145
3.68
19179-0002
AA-210-06X
.234
5.95
.145
3.68
19179-0004
AA-210-08X
.234
5.95
.145
3.68

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 5 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19179-0006
AA-210-10X
.234
5.95
.145
3.68
19182-0001
AA-610-06X
.234
5.95
.145
3.68
19182-0003
AA-610-08X
.234
5.95
.145
3.68
19182-0005
AA-610-10X
.234
5.95
.145
3.68
19183-0001
AA-810-06
.250
6.35
.140
3.55
19183-0003
AA-810-08
.250
6.35
.140
3.55
19183-0005
AA-810-10
.250
6.35
.140
3.55
19196-0005
A-535-06
.312
7.94
.145
3.68
19196-0007
A-535-08
.312
7.94
.145
3.68
19196-0009
A-535-10
.312
7.94
.145
3.68
19197-0002
A-834-08
.312
7.94
.145
3.68
19197-0006
A-835-08
.312
7.94
.145
3.68
19197-0043
A-838-06
.312
7.94
.145
3.68
19198-0004
AA-835-08
.250
6.35
.140
3.55
19198-0006
AA-835-10
.250
6.35
.140
3.55
19198-0070
AA-835-06
.250
6.35
.140
3.55
19199-0013
A-845
.312
7.94
.145
3.68
19200-0002
AS-845
.312
7.94
.140
3.55
19202-0010
AS-932
.312
7.93
.161
4.08
19202-0011
AS-932-DK
.312
7.93
.161
4.08
19202-0013
AS-N-345
.281
7.14
.130
3.30
19202-0062
A-945
.312
7.94
.145
3.68
19202-0063
A-945-DK
.312
7.94
.145
3.68
19204-0003
A-2XCX
.312
7.94
19204-0004
A-2YCX
.312
7.94
19204-0008
A-5XC
.312
7.94
.145
3.68
19204-0009
A-5YC
.312
7.94
.145
3.68
19206-0002
AS-V-302X
.281
7.14
.150
3.81
19207-0002
AS-N-302
.281
7.14
19212-0003
WP-2218X
.187
4.76
.145
3.68
19213-0003
WP-5218
.187
4.76
.140
3.55
19213-0009
WP-8218
.187
4.76
.140
3.55
MILITARY CLASS 2
Wire Size: 18-22 AWG, 0.80-0.35mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19095-0022
AA-880-1
.250
6.35
.140
3.57
19095-0024
AA-881-1
.250
6.35
.140
3.57
19095-0026
AA-882-1
.250
6.35
.140
3.57
19095-0028
AA-883-1
.250
6.35
.140
3.57
19095-0030
AA-884-1
.250
6.35
.140
3.57
19095-0032
AA-885-1
.250
6.35
.140
3.57
19095-0034
AA-886-1
.250
6.35
.140
3.57
METRIC RING TERMINALS
Wire Size: 1.00-0.50mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19324-0001
AA1-832-M2,5
.250
6.35
.140
3.57
19324-0002
AA1-832-M3
.250
6.35
.140
3.57
19324-0003
AA1-832-M3,5
.250
6.35
.140
3.57
19324-0004
AA1-821-M4
.250
6.35
.140
3.57
19324-0005
AA1-822-M5
.250
6.35
.140
3.57
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19023-0012
MCT-2X
.312
7.93
.175
4.44
19023-0016
MMCT-2X
.234
5.95
19025-0007
MCT-5
.312
7.93
.170
4.31
19025-0008
MCT-57
.312
7.93
.170
4.31
19025-0028
MMCT-5
.234
5.95
19026-0006
MCT-8
.312
7.93
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19026-0008
MMCT-8
.234
5.95
19034-0004
B-789
.250
6.35
19034-0007
B-279X
.312
7.94
.175
4.44
19034-0009
B-289X
.312
7.94
19035-0005
B-579
.312
7.94
.170
4.31
19035-0006
B-579B
.312
7.94
.170
4.31
19035-0009
B-589
.312
7.94
.170
4.31
19035-0010
B-589B
.312
7.94
.170
4.31
19036-0006
B-879
.312
7.94
.170
4.31
19036-0008
B-889
.312
7.94
.170
4.31
19054-0063
B-201-12HDX
.312
7.94
19054-0066
B-201-38HDX
.312
7.94
19054-0070
B-201-76HDX
.312
7.94
19054-0072
B-218-10X
.312
7.94
.175
4.44
19054-0073
B-218-14X
.312
7.94
.175
4.44
19054-0075
B-218-38X
.312
7.94
.175
4.44
19054-0077
B-218-56X
.312
7.94
.175
4.44
19054-0079
B-223-02X
.312
7.94
.175
4.44
19054-0080
B-223-04X
.312
7.94
.175
4.44
19054-0081
B-223-06X
.312
7.94
.175
4.44
19054-0083
B-223-08X
.312
7.94
.175
4.44
19054-0085
B-225-10X
.312
7.94
.175
4.44
19054-0086
B-225-14X
.312
7.94
.175
4.44
19054-0088
B-225-56X
.312
7.94
.175
4.44
19054-0090
B-228-06HDX
.312
7.94
19054-0092
B-228-08HDX
.312
7.94
19054-0094
B-228-10HDX
.312
7.94
19054-0096
B-230-10HDX
.312
7.94
19054-0097
B-230-14HDX
.312
7.94
19054-0098
B-230-56HDX
.312
7.94
19054-0107
B-237-04X
.312
7.94
.175
4.44
19054-0108
B-237-06X
.312
7.94
.175
4.44
19054-0110
B-237-08X
.312
7.94
.175
4.44
19054-0111
B-237-08XR90
.312
7.94
.175
4.44
19054-0113
B-237-10X
.312
7.94
.175
4.44
19054-0114
B-237-10XR90
.312
7.94
.175
4.44
19054-0116
B-239-04X
.312
7.94
.175
4.44
19054-0117
B-239-06X
.312
7.94
.175
4.44
19054-0118
B-239-08X
.312
7.94
.175
4.44
19054-0119
B-239-10X
.312
7.94
.175
4.44
19054-0126
B-240-38HDX
.312
7.94
19055-0046
B-618-10X
.312
7.94
.175
4.44
19055-0048
B-618-14X
.312
7.94
.175
4.44
19055-0050
B-618-38X
.312
7.94
.175
4.44
19055-0052
B-618-56X
.312
7.94
.175
4.44
19055-0054
B-623-02X
.312
7.94
.175
4.44
19055-0056
B-623-04X
.312
7.94
.175
4.44
19055-0059
B-623-06X
.312
7.94
.175
4.44
19055-0061
B-623-08X
.312
7.94
.175
4.44
19055-0063
B-625-10X
.312
7.94
.175
4.44
19055-0066
B-625-14X
.312
7.94
.175
4.44
19055-0068
B-625-56X
.312
7.94
.175
4.44
19055-0082
B-630-56HDX
.312
7.94
.250
6.35
19055-0095
B-637-04X
.312
7.94
.175
4.44
19055-0097
B-637-06X
.312
7.94
.175
4.44
19055-0100
B-637-08X
.312
7.94
.175
4.44
19055-0103
B-637-10X
.312
7.94
.175
4.44
19055-0105
B-639-04X
.312
7.94
.175
4.44
19055-0107
B-639-06X
.312
7.94
.175
4.44
19055-0109
B-639-08X
.312
7.94
.175
4.44
19055-0111
B-639-10X
.312
7.94
.175
4.44
19057-0042
B-518-10
.312
7.94
.170
4.31
19057-0044
B-518-14
.312
7.94
.170
4.31
19057-0046
B-518-38
.312
7.94
.170
4.31
19057-0048
B-518-56
.312
7.94
.170
4.31
19057-0050
B-523-02
.312
7.94
.170
4.31
19057-0052
B-523-04
.312
7.94
.170
4.31
19057-0054
B-523-06
.312
7.94
.170
4.31
19057-0056
B-523-08
.312
7.94
.170
4.31
19057-0058
B-525-10
.312
7.94
.170
4.31
19057-0060
B-525-14
.312
7.94
.170
4.31

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 6 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19057-0062
B-525-56
.312
7.94
.170
4.31
19057-0086
B-537-04
.312
7.94
.170
4.31
19057-0088
B-537-06
.312
7.94
.170
4.31
19057-0090
B-537-08
.312
7.94
.170
4.31
19057-0093
B-537-10
.312
7.94
.170
4.31
19057-0096
B-539-04
.312
7.94
.170
4.31
19057-0098
B-539-06
.312
7.94
.170
4.31
19057-0100
B-539-08
.312
7.94
.170
4.31
19057-0102
B-539-10
.312
7.94
.170
4.31
19058-0016
B-801-12HD
.312
7.94
.225
5.72
19058-0020
B-801-14HD
.312
7.94
.225
5.72
19058-0022
B-801-38HD
.312
7.94
.225
5.72
19058-0024
B-801-56HD
.312
7.94
.225
5.72
19058-0026
B-801-76HD
.312
7.94
.225
5.72
19058-0058
B-830-10HDRR
.312
7.94
.225
5.72
19058-0064
B-830-14HD-03
.312
7.94
.225
5.72
19058-0066
B-830-14HDRR
.312
7.94
.225
5.72
19058-0073
B-830-56HD-03
.312
7.94
.225
5.72
19058-0075
B-830-56HDRR
.312
7.94
.225
5.72
19058-0104
B-839-06
.312
7.94
.170
4.31
19058-0155
TT-1614HD
.375
9.53
19058-0200
B-823-08
.312
7.94
.170
4.31
19070-0054
BB-218-10X
.234
5.95
.175
4.41
19070-0057
BB-218-14X
.234
5.95
.175
4.41
19070-0059
BB-218-38X
.234
5.95
.175
4.41
19070-0063
BB-218-56X
.234
5.95
.175
4.41
19070-0065
BB-223-02X
.234
5.95
.175
4.41
19070-0067
BB-223-04X
.234
5.95
.175
4.41
19070-0069
BB-223-06X
.234
5.95
.175
4.41
19070-0071
BB-223-08X
.234
5.95
.175
4.41
19070-0073
BB-225-10X
.234
5.95
.175
4.41
19070-0075
BB-225-14X
.234
5.95
.175
4.41
19070-0078
BB-225-56X
.234
5.95
.175
4.41
19070-0081
BB-237-04X
.234
5.95
.175
4.41
19070-0083
BB-237-06X
.234
5.95
.175
4.41
19070-0086
BB-237-08X
.234
5.95
.175
4.41
19070-0090
BB-237-10X
.234
5.95
.175
4.44
19070-0095
BB-239-04X
.234
5.95
.175
4.44
19070-0097
BB-239-06X
.234
5.95
.175
4.44
19070-0099
BB-239-08X
.234
5.95
.175
4.44
19070-0102
BB-239-10X
.234
5.95
.175
4.44
19070-0397
BB-237-10XR90
.234
5.95
.175
4.44
19071-0042
BB-618-10X
.234
5.95
.175
4.44
19071-0044
BB-618-14X
.234
5.95
.175
4.44
19071-0046
BB-618-38X
.234
5.95
.175
4.44
19071-0049
BB-618-56X
.234
5.95
.175
4.44
19071-0051
BB-623-02X
.234
5.95
.175
4.44
19071-0053
BB-623-04X
.234
5.95
.175
4.44
19071-0055
BB-623-06X
.234
5.95
.175
4.44
19071-0057
BB-623-08X
.234
5.95
.175
4.44
19071-0060
BB-625-10X
.234
5.95
.175
4.44
19071-0062
BB-625-14X
.234
5.95
.175
4.44
19071-0064
BB-625-56X
.234
5.95
.175
4.44
19071-0066
BB-637-04X
.234
5.95
.175
4.44
19071-0068
BB-637-06X
.234
5.95
.175
4.44
19071-0070
BB-637-08X
.234
5.95
.175
4.44
19071-0072
BB-637-10X
.234
5.95
.175
4.44
19071-0075
BB-639-04X
.234
5.95
.175
4.44
19071-0077
BB-639-06X
.234
5.95
.175
4.44
19071-0079
BB-639-08X
.234
5.95
.175
4.44
19071-0081
BB-639-10X
.234
5.95
.175
4.44
19073-0059
BB-818-38
.250
6.35
.170
4.31
19073-0061
BB-818-56
.250
6.35
.170
4.31
19073-0063
BB-823-02
.250
6.35
.170
4.31
19073-0065
BB-823-04
.250
6.35
.170
4.31
19073-0067
BB-823-06
.250
6.35
.170
4.31
19073-0072
BB-823-08
.250
6.35
.170
4.31
19073-0074
BB-825-10
.250
6.35
.170
4.31
19073-0076
BB-825-14
.250
6.35
.170
4.31
19073-0079
BB-825-56
.250
6.35
.170
4.31
19073-0081
BB-837-04
.250
6.35
.170
4.31
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19073-0083
BB-837-06
.250
6.35
.170
4.31
19073-0085
BB-837-08
.250
6.35
.170
4.31
19073-0087
BB-837-10
.250
6.35
.170
4.31
19073-0094
BB-839-08
.250
6.35
.170
4.31
19073-0097
BB-839-10
.250
6.35
.170
4.31
19073-0301
BB-818-14
.250
6.35
.170
4.31
19080-0003
B-2006-MSX
.312
7.94
.170
4.31
19081-0003
B-5006-MS
.312
7.94
19089-0021
B-208-04X
.312
7.94
.175
4.44
19089-0022
B-208-06X
.312
7.94
.175
4.44
19089-0025
B-209-06X
.312
7.94
.175
4.44
19089-0026
B-209-08X
.312
7.94
.175
4.44
19089-0027
B-209-10X
.312
7.94
.175
4.44
19089-0028
B-213-04X
.312
7.94
.175
4.44
19089-0029
B-213-06X
.312
7.94
.175
4.44
19089-0030
B-213-08X
.312
7.94
.175
4.44
19089-0035
B-282-06X
.312
7.94
.175
4.44
19089-0036
B-282-08X
.312
7.94
.175
4.44
19089-0037
B-282-10X
.312
7.94
.175
4.44
19089-0038
B-285-06X
.312
7.94
.175
4.44
19089-0039
B-285-08X
.312
7.94
.175
4.44
19089-0040
B-285-10X
.312
7.94
.175
4.44
19089-0041
B-288-04X
.312
7.94
.175
4.44
19089-0042
B-288-06X
.312
7.94
.175
4.44
19089-0043
B-288-08X
.312
7.94
.175
4.44
19089-0044
B-288-10X
.312
7.94
.175
4.44
19090-0044
BB-213-04X
.234
5.95
.175
4.41
19090-0046
BB-213-06X
.234
5.95
.175
4.41
19090-0048
BB-213-08X
.234
5.95
.175
4.41
19090-0052
BB-282-06X
.234
5.95
.175
4.44
19090-0054
BB-282-08X
.234
5.95
.175
4.44
19090-0056
BB-282-10X
.234
5.95
.175
4.44
19090-0060
BB-288-04X
.234
5.95
.175
4.44
19090-0061
BB-285-06X
.234
5.95
.175
4.44
19090-0063
BB-285-08X
.234
5.95
.175
4.44
19090-0065
BB-285-10X
.234
5.95
.175
4.44
19090-0071
BB-288-06X
.234
5.95
.175
4.44
19090-0073
BB-288-08X
.234
5.95
.175
4.44
19090-0075
BB-288-10X
.234
5.95
.175
4.44
19091-0038
B-608-04X
.312
7.94
.175
4.44
19091-0040
B-608-06X
.312
7.94
.175
4.44
19091-0044
B-609-06X
.312
7.94
.175
4.44
19091-0046
B-609-08X
.312
7.94
.175
4.44
19091-0048
B-609-10X
.312
7.94
.175
4.44
19091-0050
B-613-04X
.312
7.94
.175
4.44
19091-0052
B-613-06X
.312
7.94
.175
4.44
19091-0054
B-613-08X
.312
7.94
.175
4.44
19091-0060
B-682-06X
.312
7.94
.175
4.44
19091-0062
B-682-08X
.312
7.94
.175
4.44
19091-0062
B-682-10X
.312
7.94
.175
4.44
19091-0067
B-685-06X
.312
7.94
.175
4.44
19091-0069
B-685-08X
.312
7.94
.175
4.44
19091-0071
B-685-10X
.312
7.94
.175
4.44
19091-0073
B-688-04X
.312
7.94
.175
4.44
19091-0075
B-688-06X
.312
7.94
.175
4.44
19091-0077
B-688-08X
.312
7.94
.175
4.44
19091-0079
B-688-10X
.312
7.94
.175
4.44
19092-0039
BB-613-04X
.234
5.95
.175
4.44
19092-0041
BB-613-06X
.234
5.95
.175
4.44
19092-0043
BB-613-08X
.234
5.95
.175
4.44
19092-0045
BB-682-06X
.234
5.95
.175
4.44
19092-0047
BB-682-08X
.234
5.95
.175
4.44
19092-0049
BB-682-10X
.234
5.95
.175
4.44
19092-0051
BB-685-06X
.234
5.95
.175
4.44
19092-0053
BB-685-08X
.234
5.95
.175
4.44
19092-0055
BB-685-10X
.234
5.95
.175
4.44
19092-0057
BB-688-04X
.234
5.95
.175
4.44
19092-0059
BB-688-06X
.234
5.95
.175
4.44
19092-0061
BB-688-08X
.234
5.95
.175
4.44
19092-0063
BB-688-10X
.234
5.95
.175
4.44
19094-0039
B-508-04
.312
7.94
.170
4.31

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 7 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19094-0041
B-508-06
.312
7.94
.170
4.31
19094-0045
B-509-06
.312
7.94
.170
4.31
19094-0047
B-509-08
.312
7.94
.170
4.31
19094-0049
B-509-10
.312
7.94
.170
4.31
19094-0051
B-513-04
.312
7.94
.170
4.31
19094-0053
B-513-06
.312
7.94
.170
4.31
19094-0055
B-513-08
.312
7.94
.170
4.31
19094-0061
B-582-06
.312
7.94
.170
4.31
19094-0063
B-582-08
.312
7.94
.170
4.31
19094-0065
B-582-10
.312
7.94
.170
4.31
19094-0067
B-585-06
.312
7.94
.170
4.31
19094-0069
B-585-08
.312
7.94
.170
4.31
19094-0071
B-585-10
.312
7.94
.170
4.31
19094-0073
B-588-04
.312
7.94
.170
4.31
19094-0075
B-588-06
.312
7.94
.170
4.31
19094-0077
B-588-08
.312
7.94
.170
4.31
19094-0079
B-588-10
.312
7.94
.170
4.31
19095-0056
BB-813-04
.250
6.35
.170
4.31
19095-0058
BB-813-06
.250
6.35
.170
4.31
19095-0060
BB-813-08
.250
6.35
.170
4.31
19095-0068
BB-882-06
.250
6.35
.170
4.31
19095-0070
BB-882-08
.250
6.35
.170
4.31
19095-0072
BB-882-10
.250
6.35
.170
4.31
19095-0081
BB-885-06
.250
6.35
.170
4.31
19095-0083
BB-885-08
.250
6.35
.170
4.31
19095-0085
BB-885-10
.250
6.35
.170
4.31
19095-0091
BB-888-04
.250
6.35
.170
4.31
19095-0093
BB-888-06
.250
6.35
.170
4.31
19095-0095
BB-888-08
.250
6.35
.170
4.31
19095-0097
BB-888-10
.250
6.35
.170
4.31
19095-0135
BB-883-10
.250
6.35
.170
4.31
19095-0138
BB-886-08
.250
6.35
.170
4.31
19095-0140
BB-887-06
.250
6.35
.170
4.31
19095-0141
BB-887-08
.250
6.35
.170
4.31
19099-0017
BB-2193-06X
.234
5.95
.175
4.41
19099-0019
BB-2194-08X
.234
5.95
.175
4.41
19099-0022
BB-2195-10X
.234
5.95
.175
4.41
19099-0025
BB-2707-05X
.234
5.95
.175
4.44
19099-0027
BB-2707-06X
.234
5.95
.175
4.44
19099-0032
BB-2716-08X
.234
5.95
.175
4.44
19099-0034
BB-2717-10X
.234
5.95
.175
4.44
19115-0016
BB-8193-06
.250
6.35
.175
4.44
19115-0018
BB-8194-08
.250
6.35
.175
4.44
19115-0020
BB-8195-10
.250
6.35
.175
4.44
19115-0022
BB-8707-05
.250
6.35
.175
4.44
19115-0024
BB-8707-06
.250
6.35
.175
4.44
19115-0031
BB-8717-10
.250
6.35
.175
4.44
19115-0079
BB-8716-08
.250
6.35
.175
4.44
19119-0025
B-216-04X
.312
7.94
.175
4.44
19119-0026
B-216-06X
.312
7.94
.175
4.44
19119-0029
B-216-08X
.312
7.94
.175
4.44
19119-0032
B-216-10X
.312
7.94
.175
4.44
19119-0041
B-280-06X
.312
7.94
.175
4.44
19119-0042
B-280-08X
.312
7.94
.175
4.44
19119-0043
B-280-10X
.312
7.94
.175
4.44
19119-0044
B-283-06X
.312
7.94
.175
4.44
19119-0045
B-283-08X
.312
7.94
.175
4.44
19119-0046
B-283-10X
.312
7.94
.175
4.44
19119-0047
B-286-04X
.312
7.94
.175
4.44
19119-0048
B-286-06X
.312
7.94
.175
4.44
19119-0049
B-286-08X
.312
7.94
.175
4.44
19120-0033
B-616-04X
.312
7.94
.175
4.44
19120-0035
B-616-06X
.312
7.94
.175
4.44
19120-0037
B-616-08X
.312
7.94
.175
4.44
19120-0039
B-616-10X
.312
7.94
.175
4.44
19120-0051
B-680-06X
.312
7.94
.175
4.44
19120-0053
B-680-08X
.312
7.94
.175
4.44
19120-0055
B-680-10X
.312
7.94
.175
4.44
19120-0057
B-683-06X
.312
7.94
.175
4.44
19120-0059
B-683-08X
.312
7.94
.175
4.44
19120-0061
B-683-10X
.312
7.94
.175
4.44
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19120-0063
B-686-04X
.312
7.94
.175
4.44
19120-0065
B-686-06X
.312
7.94
.175
4.44
19120-0067
B-686-08X
.312
7.94
.175
4.44
19121-0025
BB-216-04X
.234
5.95
.175
4.41
19121-0026
BB-216-06X
.234
5.95
.175
4.41
19121-0028
BB-216-08X
.234
5.95
.175
4.41
19121-0030
BB-216-10X
.234
5.95
.175
4.41
19121-0032
BB-2491-06X
.234
5.95
.175
4.44
19121-0033
BB-2491-08X
.234
5.95
.175
4.44
19121-0034
BB-2491-10X
.234
5.95
.175
4.44
19121-0035
BB-280-06X
.234
5.95
.175
4.44
19121-0036
BB-280-08X
.234
5.95
.175
4.44
19121-0037
BB-280-10X
.234
5.95
.175
4.44
19121-0038
BB-283-06X
.234
5.95
.175
4.44
19121-0039
BB-283-08X
.234
5.95
.175
4.44
19121-0040
BB-283-10X
.234
5.95
.175
4.44
19121-0042
BB-286-04X
.234
5.95
.175
4.44
19121-0043
BB-286-06X
.234
5.95
.175
4.44
19121-0044
BB-286-08X
.234
5.95
.175
4.44
19122-0029
BB-616-04X
.234
5.95
.175
4.44
19122-0031
BB-616-06X
.234
5.95
.175
4.44
19122-0033
BB-616-08X
.234
5.95
.175
4.44
19122-0036
BB-680-06X
.234
5.95
.175
4.44
19122-0038
BB-680-08X
.234
5.95
.175
4.44
19122-0040
BB-680-10X
.234
5.95
.175
4.44
19122-0042
BB-683-06X
.234
5.95
.175
4.44
19122-0044
BB-683-08X
.234
5.95
.175
4.44
19122-0046
BB-683-10X
.234
5.95
.175
4.44
19122-0048
BB-686-04X
.234
5.95
.175
4.44
19122-0050
BB-686-06X
.234
5.95
.175
4.44
19122-0052
BB-686-08X
.234
5.95
.175
4.44
19125-0031
B-516-04
.312
7.94
.170
4.31
19125-0033
B-516-06
.312
7.94
.170
4.31
19125-0035
B-516-08
.312
7.94
.170
4.31
19125-0037
B-516-10
.312
7.94
.170
4.31
19125-0046
B-5491-06
.312
7.94
.170
4.31
19125-0047
B-5491-08
.312
7.94
.170
4.31
19125-0048
B-5491-10
.312
7.94
.170
4.31
19125-0049
B-580-06
.312
7.94
.170
4.31
19125-0051
B-580-08
.312
7.94
.170
4.31
19125-0053
B-580-10
.312
7.94
.170
4.31
19125-0055
B-583-06
.312
7.94
.170
4.31
19125-0057
B-583-08
.312
7.94
.170
4.31
19125-0059
B-583-10
.312
7.94
.170
4.31
19125-0061
B-586-04
.312
7.94
.170
4.31
19125-0063
B-586-06
.312
7.94
.170
4.31
19125-0065
B-586-08
.312
7.94
.170
4.31
19126-0005
B-816-06
.312
7.94
.170
4.31
19126-0007
B-816-10
.312
7.94
.170
4.31
19126-0023
B-816-08
.312
7.94
.170
4.31
19127-0037
BB-816-04
.250
6.35
.170
4.31
19127-0039
BB-816-06
.250
6.35
.170
4.31
19127-0042
BB-816-08
.250
6.35
.170
4.31
19127-0046
BB-8491-06
.250
6.35
.170
4.31
19127-0048
BB-8491-08
.250
6.35
.170
4.31
19127-0050
BB-8491-10
.250
6.35
.170
4.31
19127-0052
BB-880-06
.250
6.35
.170
4.31
19127-0054
BB-880-08
.250
6.35
.170
4.31
19127-0056
BB-880-10
.250
6.35
.170
4.31
19127-0058
BB-883-06
.250
6.35
.170
4.31
19127-0060
BB-883-08
.250
6.35
.170
4.31
19127-0065
BB-886-04
.250
6.35
.170
4.31
19127-0099
BB-816-10
.250
6.35
.170
4.31
19130-0010
B-2471-04X
.312
7.94
.175
4.44
19130-0011
B-2471-06X
.312
7.94
.175
4.44
19130-0038
B-2491-06X
.312
7.94
.175
4.44
19130-0039
B-2491-08X
.312
7.94
.175
4.44
19130-0040
B-2491-10X
.312
7.94
.175
4.44
19130-0044
B-2781-06X
.312
7.94
.175
4.44
19130-0045
B-2781-08X
.312
7.94
.175
4.44
19130-0046
B-2781-10X
.312
7.94
.175
4.44

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 8 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19131-0007
BB-287-08X
.234
5.95
.175
4.44
19131-0009
BB-287-06X
.234
5.95
.175
4.44
19131-0011
BB-287-04X
.234
5.95
.175
4.44
19131-0013
BB-284-10X
.234
5.95
.175
4.44
19131-0014
BB-2781-10X
.234
5.95
.175
4.44
19131-0015
BB-284-08X
.234
5.95
.175
4.44
19131-0017
BB-284-06X
.234
5.95
.175
4.44
19131-0018
BB-2781-08X
.234
5.95
.175
4.44
19131-0020
BB-2781-06X
.234
5.95
.175
4.44
19131-0021
BB-2781-04X
.234
5.95
.175
4.44
19131-0023
BB-2471-06X
.234
5.95
.175
4.44
19131-0025
BB-2471-04X
.234
5.95
.175
4.44
19137-0019
B-5471-04
.312
7.94
.170
4.31
19137-0020
B-5471-06
.312
7.94
.170
4.31
19137-0021
B-5781-04
.312
7.94
.170
4.31
19137-0022
B-5781-06
.312
7.94
.170
4.31
19137-0023
B-5781-08
.312
7.94
.170
4.31
19137-0024
B-5781-10
.312
7.94
.170
4.31
19137-0025
B-581-06
.312
7.94
.170
4.31
19137-0026
B-581-08
.312
7.94
.170
4.31
19137-0027
B-581-10
.312
7.94
.170
4.31
19137-0028
B-584-06
.312
7.94
.170
4.31
19137-0029
B-584-08
.312
7.94
.170
4.31
19137-0030
B-584-10
.312
7.94
.170
4.31
19137-0031
B-587-04
.312
7.94
.170
4.31
19137-0032
B-587-06
.312
7.94
.170
4.31
19137-0033
B-587-08
.312
7.94
.170
4.31
19138-0001
B-8781-06
.312
7.94
.170
4.31
19138-0003
B-8781-10
.312
7.94
.170
4.31
19139-0038
BB-8471-04
.250
6.35
.170
4.31
19139-0039
BB-8471-06
.250
6.35
.170
4.31
19139-0041
BB-8781-04
.250
6.35
.175
4.44
19139-0042
BB-8781-06
.250
6.35
.175
4.44
19139-0044
BB-8781-08
.250
6.35
.175
4.44
19139-0045
BB-8781-10
.250
6.35
.175
4.44
19142-0019
B-207-04X
.312
7.94
.175
4.44
19142-0020
B-207-06X
.312
7.94
.175
4.44
19142-0022
B-224-04X
.312
7.94
.175
4.44
19142-0024
B-224-06X
.312
7.94
.175
4.44
19142-0027
B-224-08X
.312
7.94
.175
4.44
19142-0029
B-227-06X
.312
7.94
.175
4.44
19142-0030
B-227-08X
.312
7.94
.175
4.44
19142-0032
B-227-10X
.312
7.94
.175
4.44
*19142-0036
B-241-10HDX
.312
7.94
*19142-0040
B-268-14HDX
.312
7.94
19142-0047
B-281-06X
.312
7.94
.175
4.44
19142-0048
B-281-08X
.312
7.94
.175
4.44
19142-0049
B-281-10X
.312
7.94
.175
4.44
*Note: Use yellow nest on 14-16 AWG heavy duty "HD" parts
19142-0050
B-284-06X
.312
7.94
.175
4.44
19142-0051
B-284-08X
.312
7.94
.175
4.44
19142-0052
B-284-10X
.312
7.94
.175
4.44
19142-0053
B-287-04X
.312
7.94
.175
4.44
19142-0054
B-287-06X
.312
7.94
.175
4.44
19142-0055
B-287-08X
.312
7.94
.175
4.44
19143-0039
B-607-04X
.312
7.94
.175
4.44
19143-0042
B-607-06X
.312
7.94
.175
4.44
19143-0045
B-624-04X
.312
7.94
.175
4.44
19143-0047
B-624-06X
.312
7.94
.175
4.44
19143-0050
B-624-08X
.312
7.94
.175
4.44
19143-0052
B-627-06X
.312
7.94
.175
4.44
19143-0054
B-627-08X
.312
7.94
.175
4.44
19143-0057
B-627-10X
.312
7.94
.175
4.44
19143-0071
B-6781-06X
.312
7.94
.175
4.44
19143-0072
B-6781-08X
.312
7.94
.175
4.44
19143-0073
B-6781-10X
.312
7.94
.175
4.44
19143-0074
B-681-06X
.312
7.94
.175
4.44
19143-0076
B-681-08X
.312
7.94
.175
4.44
19143-0078
B-681-10X
.312
7.94
.175
4.44
19143-0080
B-684-06X
.312
7.94
.175
4.44
19143-0082
B-684-08X
.312
7.94
.175
4.44
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19143-0084
B-684-10X
.312
7.94
.175
4.44
19143-0086
B-687-04X
.312
7.94
.175
4.44
19143-0088
B-687-06X
.312
7.94
.175
4.44
19143-0090
B-687-08X
.312
7.94
.175
4.44
19144-0013
BB-207-04X
.234
5.95
.175
4.41
19144-0015
BB-207-06X
.234
5.95
.175
4.41
19144-0017
BB-224-04X
.234
5.95
19144-0018
BB-224-06X
.234
5.95
19144-0020
BB-224-08X
.234
5.95
19144-0022
BB-227-06X
.234
5.95
19144-0024
BB-227-08X
.234
5.95
19144-0026
BB-227-10X
.234
5.95
19144-0028
BB-281-06X
.234
5.95
.175
4.44
19144-0029
BB-281-08X
.234
5.95
.175
4.44
19144-0030
BB-281-10X
.234
5.95
.175
4.44
19145-0040
BB-607-04X
.234
5.95
.175
4.44
19145-0042
BB-607-06X
.234
5.95
.175
4.44
19145-0044
BB-624-04X
.234
5.95
.175
4.44
19145-0046
BB-624-06X
.234
5.95
.175
4.44
19145-0048
BB-624-08X
.234
5.95
.175
4.44
19145-0050
BB-627-06X
.234
5.95
.175
4.44
19145-0052
BB-627-08X
.234
5.95
.175
4.44
19145-0054
BB-627-10X
.234
5.95
.175
4.44
19145-0056
BB-681-06X
.234
5.95
.175
4.44
19145-0058
BB-681-08X
.234
5.95
.175
4.44
19145-0060
BB-681-10X
.234
5.95
.175
4.44
19145-0062
BB-684-06X
.234
5.95
.175
4.44
19145-0064
BB-684-08X
.234
5.95
.175
4.44
19145-0066
BB-684-10X
.234
5.95
.175
4.44
19145-0068
BB-687-04X
.234
5.95
.175
4.44
19145-0070
BB-687-06X
.234
5.95
.175
4.44
19145-0072
BB-687-08X
.234
5.95
.175
4.44
19153-0005
MCT-2NF
.312
7.93
19154-0013
B-231OV
.234
5.95
.175
4.44
19154-0015
B-231X
.234
5.95
.175
4.44
19154-0016
B-231X-B
.234
5.95
.175
4.44
19154-0020
B-L231X
.281
7.14
19154-0023
BS-V-331X
.281
7.14
19171-0007
B-219-06X
.312
7.94
.175
4.44
19171-0009
B-219-08X
.312
7.94
.175
4.44
19171-0012
B-219-10X
.312
7.94
.175
4.44
19174-0007
B-519-06
.312
7.94
.170
4.31
19174-0009
B-519-08
.312
7.94
.170
4.31
19174-0011
B-519-10
.312
7.94
.170
4.31
19175-0007
B-619-06X
.312
7.94
.175
4.44
19175-0009
B-619-08X
.312
7.94
.175
4.44
19175-0011
B-619-10X
.312
7.94
.175
4.44
191760003
B-819-06
.312
7.94
.170
4.31
19179-0008
BB-219-06X
.234
5.95
.175
4.41
19179-0010
BB-219-08X
.234
5.95
.175
4.41
19179-0012
BB-219-10X
.234
5.95
.175
4.41
19182-0007
BB-619-06X
.234
5.95
.175
4.44
19182-0009
BB-619-08X
.234
5.95
.175
4.44
19182-0011
BB-619-10X
.234
5.95
.175
4.44
19183-0007
BB-819-06
.250
6.35
.170
4.31
19183-0009
BB-819-08
.250
6.35
.170
4.31
19183-0011
BB-819-10
.250
6.35
.170
4.31
19196-0024
B-507-04
.312
7.94
.170
4.31
19196-0026
B-507-06
.312
7.94
.170
4.31
19196-0030
B-524-04
.312
7.94
.170
4.31
19196-0032
B-524-06
.312
7.94
.170
4.31
19196-0034
B-524-08
.312
7.94
.170
4.31
19196-0037
B-527-06
.312
7.94
.170
4.31
19196-0039
B-527-08
.312
7.94
.170
4.31
19196-0041
B-527-10
.312
7.94
.170
4.31
19197-0037
B-824-08
.312
7.94
.170
4.31
19197-0042
B-807-06
.312
7.94
.170
4.31
19198-0010
BB-807-04
.250
6.35
.170
4.31
19198-0012
BB-807-06
.250
6.35
.170
4.31
19198-0014
BB-824-04
.250
6.35
19198-0016
BB-824-06
.250
6.35
.225
5.71

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 9 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19198-0019
BB-824-08
.250
6.35
.225
5.71
19198-0021
BB-827-06
.250
6.35
.170
4.31
19198-0023
BB-827-08
.250
6.35
.170
4.31
19198-0025
BB-827-10
.250
6.35
.170
4.31
19198-0028
BB-881-06
.250
6.35
.170
4.31
19198-0029
BB-881-08
.250
6.35
.170
4.31
19198-0030
BB-881-10
.250
6.35
.170
4.31
19198-0031
BB-884-06
.250
6.35
.170
4.31
19198-0032
BB-884-08
.250
6.35
.170
4.31
19198-0033
BB-884-10
.250
6.35
.170
4.31
19198-0034
BB-887-04
.250
6.35
.170
4.31
19199-0003
B-831
.312
7.94
.170
4.31
19200-0001
BS-831
.312
7.94
.169
4.29
19202-0018
B-931
.312
7.94
19202-0019
B-931-DK
.312
7.94
19202-0026
BS-942
.312
7.93
.199
5.05
19202-0027
BS-942-DK
.312
7.93
.199
5.05
19202-0031
BS-N-331
.281
7.14
19204-0013
B-2XCX
.312
7.94
19204-0014
B-2YCX
.312
7.94
19204-0017
B-5XC
.312
7.94
19204-0018
B-5YC
.312
7.94
19206-0003
B-204OV
.281
7.14
19206-0004
B-204X
.281
7.14
.175
4.44
19206-0005
BS-V-304X
.281
7.14
19207-0004
BS-N-304
.281
7.14
19212-0005
WP-2614X
.187
4.76
.175
4.44
19213-0005
WP-5614
.187
4.76
.170
4.31
19213-0011
WP-8614
.187
4.76
.170
4.31
MILITARY CLASS 2
Wire Size: 14-16 AWG, 2.00-1.30mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19095-0074
BB-882-2
.250
6.35
.171
4.36
19095-0076
BB-883-2
.250
6.35
.171
4.36
19095-0133
BB-880-2
.250
6.35
.171
4.36
19095-0134
BB-881-2
.250
6.35
.171
4.36
19095-0136
BB-884-2
.250
6.35
.171
4.36
19095-0137
BB-885-2
.250
6.35
.171
4.36
19095-0139
BB-886-2
.250
6.35
.171
4.36
METRIC RING TERMINALS
Wire Size: 2.50-1.00mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
193240006
BB2,5-823-M3
.250
6.35
.170
4.31
193240007
BB2,5-823-M3,5
.250
6.35
.170
4.31
193240008
BB2,5-837-M4
.250
6.35
.170
4.31
193240009
BB2,5-839-M5
.250
6.35
.170
4.31
193240010
BB2,5-825-M6
.250
6.35
.170
4.31
193240011
BB2,5-818-M8
.250
6.35
.170
4.31
Wire Size: 10-12 AWG, 5.00-3.00mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19025-0005
CMCT-5
.375
9.53
.225
19058-0154
TT-1210
.375
9.53
19070-0109
C-201-12X
.375
9.53
.250
6.35
19070-0111
C-201-14X
.375
9.53
.250
6.35
19070-0112
C-201-38X
.375
9.53
.250
6.35
19070-0114
C-201-56X
.375
9.53
.250
6.35
19070-0115
C-201-76X
.375
9.53
.250
6.35
19070-0117
C-228-04X
.375
9.53
.250
6.35
19070-0119
C-228-06X
.375
9.53
.250
6.35
19070-0121
C-228-08X
.375
9.53
.250
6.35
19070-0123
C-228-10X
.375
9.53
.250
6.35
19070-0126
C-228-10XT45
.375
9.53
.250
6.35
19070-0130
C-230-10X
.375
9.53
.250
6.35
19070-0132
C-230-14X
.375
9.53
.250
6.35
19070-0134
C-230-38X
.375
9.53
.250
6.35
19070-0136
C-230-56X
.375
9.53
.250
6.35
19070-0141
C-236-04X
.375
9.53
.250
6.35
19070-0143
C-236-06X
.375
9.53
.250
6.35
19070-0145
C-236-08X
.375
9.53
.250
6.35
19070-0148
C-240-10X
.375
9.53
.250
6.35
19070-0150
C-240-14X
.375
9.53
.250
6.35
19070-0153
C-240-38X
.375
9.53
.250
6.35
19070-0155
C-240-56X
.375
9.53
.250
6.35
19070-0275
C-236-08XR90
.375
9.53
.250
6.35
19070-0336
C-236-06XR90
.375
9.53
.250
6.35
19071-0084
C-601-12X
.375
9.53
.250
6.35
19071-0085
C-601-14X
.375
9.53
.250
6.35
19071-0086
C-601-38X
.375
9.53
.250
6.35
19071-0087
C-601-56X
.375
9.53
.250
6.35
19071-0088
C-601-76X
.375
9.53
.250
6.35
19071-0089
C-628-04X
.375
9.53
.250
6.35
19071-0092
C-628-06X
.375
9.53
.250
6.35
19071-0095
C-628-08X
.375
9.53
.250
6.35
19071-0098
C-628-10X
.375
9.53
.250
6.35
19071-0100
C-628-209X
.375
9.53
.250
6.35
19071-0103
C-630-10X
.375
9.53
.250
6.35
19071-0106
C-630-14X
.375
9.53
.250
6.35
19071-0110
C-630-56X
.375
9.53
.250
6.35
19071-0115
C-636-04X
.375
9.53
.250
6.35
19071-0117
C-636-06X
.375
9.53
.250
6.35
19071-0119
C-636-08X
.375
9.53
.250
6.35
19071-0121
C-640-10X
.375
9.53
.250
6.35
19071-0123
C-640-14X
.375
9.53
.250
6.35
19071-0127
C-640-38X
.375
9.53
.250
6.35
19071-0130
C-640-56X
.375
9.53
.250
6.35
19073-0101
C-501-12
.375
9.53
.225
5.17
19073-0102
C-501-14
.375
9.53
.225
5.17
19073-0103
C-501-38
.375
9.53
.225
5.17
19073-0104
C-501-56
.375
9.53
.225
5.17
19073-0105
C-501-76
.375
9.53
.225
5.17
19073-0106
C-528-04
.375
9.53
.225
5.17
19073-0108
C-528-06
.375
9.53
.225
5.17
19073-0110
C-528-08
.375
9.53
.225
5.17
19073-0113
C-528-10
.375
9.53
.225
5.17
19073-0117
C-530-10
.375
9.53
.225
5.17
19073-0119
C-530-14
.375
9.53
.225
5.17
19073-0122
C-530-38
.375
9.53
.225
5.17
19073-0123
C-530-56
.375
9.53
.225
5.17
19073-0128
C-536-04
.375
9.53
.225
5.17
19073-0130
C-536-06
.375
9.53
.225
5.17
19073-0132
C-536-08
.375
9.53
.225
5.17
19073-0134
C-540-10
.375
9.53
.225
5.17
19073-0136
C-540-14
.375
9.53
.225
5.17
19073-0139
C-540-38
.375
9.53
.225
5.17
19073-0143
C-540-56
.375
9.53
.225
5.17
19073-0145
C-801-12
.375
9.53
.225
5.71
19073-0147
C-801-12X
.375
9.53
.225
5.71
19073-0148
C-801-14
.375
9.53
.225
5.71
19073-0149
C-801-14X
.375
9.53
.225
5.71
19073-0150
C-801-38
.375
9.53
.225
5.71
19073-0151
C-801-38X
.281
7.14
.225
5.71

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 10 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 10-12 AWG, 5.00-3.00mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19073-0152
C-801-56
.375
9.53
.225
5.71
19073-0153
C-801-56X
.281
7.14
.225
5.71
19073-0154
C-801-76
.375
9.53
.225
5.71
19073-0155
C-801-76X
.281
7.14
.225
5.71
19073-0156
C-828-04
.375
9.53
.225
5.71
19073-0158
C-828-04X
.281
7.14
.225
5.71
19073-0160
C-828-06
.375
9.53
.225
5.71
19073-0163
C-828-06X
.281
7.14
.225
5.71
19073-0165
C-828-08
.375
9.53
.225
5.71
19073-0168
C-828-08X
.281
7.14
.225
5.71
19073-0170
C-828-10
.375
9.53
.225
5.71
19073-0173
C-828-10X
.281
7.14
.225
5.71
19073-0176
C-828-209
.375
9.53
.225
5.71
19073-0179
C-830-10
.375
9.53
.225
5.71
19073-0181
C-830-10X
.281
7.14
.225
5.71
19073-0182
C-830-10XLBK
.375
9.53
.225
5.71
19073-0185
C-830-10XX
.375
9.53
.225
5.71
19073-0188
C-830-14
.375
9.53
.225
5.71
19073-0191
C-830-14X
.281
7.14
.225
5.71
19073-0192
C-830-14XLBK
.375
9.53
.233
5.91
19073-0195
C-830-14XX
.375
9.53
.320
8.12
19073-0200
C-830-56
.375
9.53
.233
5.91
19073-0202
C-830-56X
.281
7.14
.250
6.35
19073-0203
C-830-56XLBK
.375
9.53
.233
5.91
19073-0206
C-830-56XX
.375
9.53
.320
8.12
19073-0212
C-836-04
.375
9.53
.225
5.71
19073-0214
C-836-04X
.281
7.14
.250
6.35
19073-0216
C-836-06
.375
9.53
.225
5.71
19073-0220
C-836-06X
.281
7.14
.250
6.35
19073-0222
C-836-08
.375
9.53
.225
5.71
19073-0225
C-836-08X
.281
7.14
.250
6.35
19073-0227
C-840-10
.375
.953
.225
5.71
19073-0229
C-840-10X
.281
7.14
.250
6.35
19073-0231
C-840-14
.375
9.53
.225
5.71
19073-0233
C-840-14X
.281
7.14
.250
6.35
19073-0236
C-840-38
.375
9.53
.225
5.71
19073-0238
C-840-38X
.281
7.14
.250
6.35
19073-0242
C-840-56
.375
9.53
.225
5.71
19073-0244
C-840-56X
.281
7.14
.250
6.35
19073-0272
C-830-10XXBK
.375
9.53
.225
5.71
19073-0273
C-830-14XXBK
.375
9.53
.320
8.12
19073-0274
C-830-56XXBK
.375
9.53
.320
8.12
19080-0005
C-2006-MSX
.375
9.53
.250
6.35
19081-0005
C-5006-MS
.375
9.53
.225
5.17
19090-0077
C-2103-08X
.375
9.53
.250
6.35
19090-0079
C-2106-06X
.375
9.53
.250
6.35
19090-0081
C-212-06X
.375
9.53
.250
6.35
19090-0083
C-212-08X
.375
9.53
.250
6.35
19090-0085
C-212-10X
.375
9.53
.250
6.35
19092-0065
C-6103-08X
.375
9.53
.250
6.35
19092-0067
C-6106-06X
.375
9.53
.250
6.35
19092-0069
C-612-06X
.375
9.53
.250
6.35
19092-0071
C-612-08X
.375
9.53
.250
6.35
19092-0073
C-612-10X
.375
9.53
.250
6.35
19094-0081
C-5103-08
.375
9.53
.225
5.17
19094-0083
C-5106-06
.375
9.53
.225
5.17
19094-0085
C-512-06
.375
9.53
.225
5.17
19094-0087
C-512-08
.375
9.53
.225
5.17
19094-0089
C-512-10
.375
9.53
.225
5.17
19095-0099
C-8103-08
.375
9.53
.225
5.71
19095-0102
C-8106-06
.375
9.53
.225
5.71
19095-0105
C-812-06
.375
9.53
.225
5.71
19095-0108
C-812-08
.375
9.53
.225
5.71
19095-0111
C-812-10
.375
9.53
.225
5.71
19099-0036
C-2196-06X
.375
9.53
.250
6.35
19099-0038
C-2197-08X
.375
9.53
.250
6.35
19099-0040
C-2198-10X
.375
9.53
.250
6.35
19099-0042
C-2199-14X
.375
9.53
.250
6.35
19099-0043
C-2710-05X
.375
9.53
.250
6.35
19099-0044
C-2710-06X
.375
9.53
.250
6.35
19099-0048
C-2718-08X
.375
9.53
.250
6.35
Wire Size: 10-12 AWG, 5.00-3.00mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19099-0050
C-2719-10X
.375
9.53
.250
6.35
19115-0033
C-8196-06
.375
9.53
.225
5.71
19115-0035
C-8197-08
.375
9.53
.225
5.71
19115-0037
C-8198-10
.375
9.53
.225
5.71
19115-0039
C-8199-14
.375
9.53
.225
5.71
19115-0041
C-8710-05
.375
9.53
.225
5.71
19115-0042
C-8710-06
.375
9.53
.225
5.71
19115-0046
C-8718-08
.375
9.53
.225
5.71
19115-0048
C-8719-10
.375
9.53
.225
5.71
19121-0045
C-2101-08X
.375
9.53
.250
6.35
19121-0046
C-2104-06X
.375
9.53
.250
6.35
19121-0047
C-2104-08X
.375
9.53
.250
6.35
19121-0049
C-2104-10X
.375
9.53
.250
6.35
19121-0051
C-217-06X
.375
9.53
.250
6.35
19121-0053
C-217-08X
.375
9.53
.250
6.35
19121-0056
C-217-10X
.375
9.53
.250
6.35
19122-0054
C-6101-08X
.375
9.53
.250
6.35
19122-0056
C-6104-06X
.375
9.53
.250
6.35
19122-0060
C-617-06X
.375
9.53
.250
6.35
19122-0062
C-617-08X
.375
9.53
.250
6.35
19122-0064
C-617-10X
.375
9.53
.250
6.35
19125-0067
C-5101-08
.375
9.53
.225
5.17
19125-0070
C-5104-06
.375
9.53
.225
5.17
19125-0074
C-517-06
.375
9.53
.225
5.17
19125-0076
C-517-08
.375
9.53
.225
5.17
19125-0078
C-517-10
.375
9.53
.225
5.17
19127-0073
C-8101-08
.375
9.53
.225
5.71
19127-0077
C-8104-06
.375
9.53
.225
5.71
19127-0079
C-8104-06X
.281
7.14
.225
5.71
19127-0081
C-8104-08
.375
9.53
.225
5.71
19127-0082
C-8104-10
.375
9.53
.225
5.71
19127-0083
C-817-06
.375
9.53
.225
5.71
19127-0086
C-817-08
.375
9.53
.225
5.71
19127-0089
C-817-10
.375
9.53
.225
5.71
19127-0091
C-817-10X
.281
7.14
.225
5.71
19127-0101
C-8101-08X
.281
7.14
.225
5.71
19127-0102
C-817-06X
.281
7.14
.225
5.71
19127-0103
C-817-08X
.281
7.14
.225
5.71
19131-0001
C-2481-10X
.375
9.53
.250
6.35
19131-0002
C-2105-10X
.375
9.53
.250
6.35
19131-0004
C-2105-08X
.375
9.53
.250
6.35
19131-0006
C-2105-06X
.375
9.53
.250
6.35
19131-0010
C-2102-08X
.375
9.53
.250
6.35
19137-0035
C-5102-08
.375
9.53
.225
5.17
19137-0038
C-5105-06
.375
9.53
.225
5.17
19137-0040
C-5105-08
.375
9.53
.225
5.17
19137-0041
C-5105-10
.375
9.53
.225
5.17
19139-0057
C-8102-08
.375
9.53
.225
5.71
19139-0060
C-8105-08
.375
9.53
.225
5.71
19139-0061
C-8105-10
.375
9.53
.225
5.71
19144-0037
C-241-06X
.375
9.53
.250
6.35
19144-0039
C-241-08X
.375
9.53
.250
6.35
19144-0040
C-241-08XR90
.375
9.53
.250
6.35
19144-0042
C-241-10X
.375
9.53
.250
6.35
19144-0045
C-268-10X
.375
9.53
.250
6.35
19144-0046
C-268-14X
.375
9.53
.250
6.35
19144-0047
C-268-56X
.375
9.53
.250
6.35
19145-0075
C-6102-08X
.375
9.53
.250
6.35
19145-0078
C-6105-06X
.375
9.53
.250
6.35
19145-0082
C-641-06X
.375
9.53
.250
6.35
19145-0084
C-641-08X
.375
9.53
.250
6.35
19145-0088
C-641-10X
.375
9.53
.250
6.35
19145-0091
C-668-10X
.375
9.53
.250
6.35
19145-0093
C-668-14X
.375
9.53
.250
6.35
19145-0094
C-668-56X
.375
9.53
.250
6.35
19153-0003
CMCT-2NF
.281
7.14
19154-0026
C-246OV
.234
5.95
19154-0028
C-246X
.234
5.95
.265
6.73
19154-0029
C-246X-B
.234
5.95
.270
6.85
19154-0033
C-L246X
.359
9.13
19154-0037
CS-V-346X
.359
9.13
.260
6.60

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 11 of 16
Revision: T Revision Date: 08-19-21
Wire Size: 10-12 AWG, 5.00-3.00mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19179-0014
C-211-06X
.375
9.53
.250
6.35
19179-0016
C-211-08X
.375
9.53
.250
6.35
19179-0019
C-211-10X
.375
9.53
.250
6.35
19179-0021
C-299-14X
.375
9.53
.250
6.35
19179-0022
C-299-56X
.375
9.53
.250
6.35
19182-0016
C-699-14X
.375
9.53
.250
6.35
19182-0017
C-699-56X
.375
9.53
.250
6.35
19183-0013
C-811-06
.375
9.53
.225
5.71
19183-0016
C-811-08
.375
9.53
.225
5.71
19183-0019
C-811-10
.375
9.53
.225
5.71
19183-0022
C-899-14
.375
9.53
.225
5.71
19183-0026
C-899-56
.375
9.53
.225
5.71
19183-0028
C-899-14X
.281
7.14
19183-0029
C-811-08X
.281
7.14
.225
5.71
19183-0031
C-811-10X
.281
7.14
.225
5.71
19184-0001
C-511-06
.375
9.53
.225
5.17
19184-0003
C-511-08
.375
9.53
.225
5.17
19184-0005
C-511-10
.375
9.53
.225
5.17
19184-0007
C-599-14
.375
9.53
.225
5.17
19184-0008
C-599-56
.375
9.53
.225
5.17
19196-0068
C-541-10
.375
9.53
.225
5.17
19196-0071
C-568-10
.375
9.53
.225
5.17
19196-0072
C-568-14
.375
9.53
.225
5.17
19196-0074
C-568-56
.375
9.53
.225
5.17
19196-0075
C-541-06
.375
9.53
.225
5.17
19196-0077
C-541-08
.375
9.53
.225
5.17
19198-0039
C-8105-06
.375
9.53
.225
5.71
19198-0044
C-841-06
.375
9.53
.225
5.71
19198-0047
C-841-08
.375
9.53
.225
5.71
19198-0050
C-841-10
.375
9.53
.225
5.71
19198-0055
C-868-10
.375
9.53
.225
5.71
19198-0056
C-868-14
.375
9.53
.225
5.71
19198-0057
C-868-14X
.281
7.14
.250
6.35
19198-0058
C-868-56
.375
9.53
.225
5.71
Wire Size: 10-12 AWG, 5.00-3.00mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19198-0078
C-841-08X
.281
7.14
.250
6.35
19198-0085
C-841-10X
.281
7.14
.250
6.35
19199-0005
C-846
.312
7.94
.228
5.79
19200-0003
CS-846
.312
7.94
.230
5.84
19202-0045
CS-952
.359
9.13
.276
19202-0046
CS-952-DK
.359
9.13
.276
19202-0049
CS-N-346
.359
9.13
19204-0019
C-8XC
.375
9.53
19204-0025
C-2XCX
.375
9.53
.250
6.35
19204-0026
C-2YCX
.375
9.53
.250
6.35
19204-0029
C-5XC
.375
9.53
19204-0030
C-5YC
.375
9.53
19204-0031
C-8YC
.375
9.53
19206-0007
C-203OV
.281
7.14
19206-0008
C-203X
.281
7.14
19207-0005
CS-N-303
.281
7.14
19212-0001
WP-2210X
.281
7.14
.250
6.35
19213-0001
WP-5210
.281
7.14
.220
5.58
19213-0007
WP-8210
.281
7.14
.225
5.71
METRIC RING TERMINALS
Wire Size: 6.00-2.50mm²
Terminal
Order No.
Terminal
Engineering
No. (Ref)
Wire Strip
Length
Insulation
Diameter
Max.
In.
mm
In.
mm
19324-0012
C6-836-M4
.375
9.53
.225
5.71
19324-0013
C6-828-M5
.375
9.53
.225
5.71
19324-0014
C6-830-M6
.375
9.53
.225
5.71
19324-0015
C6-830-M8
.375
9.53
.225
5.71
19324-0016
C6-840-M10
.375
9.53
.225
5.71
Testing
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped
connections. The following chart shows the various specifications for different wire sizes and
types. The tensile strength is shown in pounds (newtons) and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
Wire Size
Minimum Tensile Strength (Pounds (Newtons))
AWG
mm²
*UL486 A
*UL486 C
**Military Class 2
EN 60352-2
EN 61238-1
22
8 (36)
8 (36)
15 (67)
0.5
14 (60)
11 (50)
20
13 (58)
10 (45)
19 (85)
0.75
19 (85)
17 (74)
18
20 (89)
10 (45)
38 (169)
1.0
24 (108)
22 (99)
16
30 (134)
15 (67)
50 (223)
1.5
34 (150)
33 (149)
14
50 (223)
25 (111)
70 (312)
2.5
52 (230)
56 (248)
12
70 (312)
35 (156)
110 (490)
4.0
70 (310)
89 (397)
10
80 (356)
40 (178)
150 (668)
6.0
81 (360)
100 (446)
*UL486 A: Terminals (Copper conductors)
*UL486 C: Parallel Splices
**Military Class 2: Military Approved Terminals
EN 60352-2: Telecom and signal cables
EN 61238-1: Power Cables

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 12 of 16
Revision: T Revision Date: 08-19-21

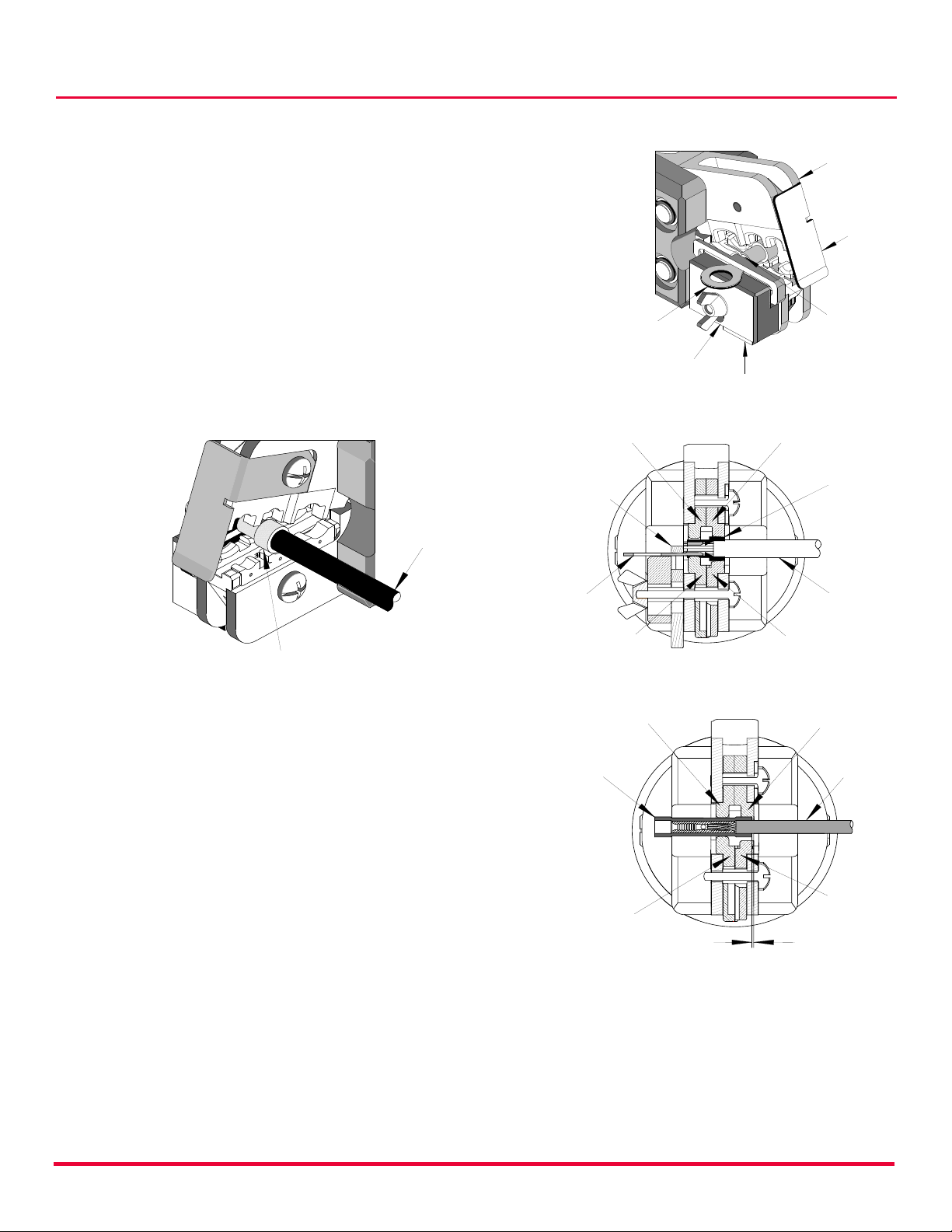

WIRE
TERMINAL
Figure 2
OPERATION
Refer to the instruction manual for the 19279-0001 (AT-200) for mounting this crimp tool head.
Crimping Terminals
1. Adjust the locator up or down until the terminal being
run sits flat and straight in the tool.
2. Insert the wire into the terminal. Push up on the locator
blade and push the terminal and wire with the barrel
facing up into the proper color-coded nest with front
edge of the barrel against the locator (See Figure 1).
Release the locator blade to hold the terminal in position.
Caution: Never operate this tool without the supplied safety
shield in place. Never place fingers in the tool nests.
3. Push on wire to assure it is still fully seated in the
terminal. See Figures 2 and 3. Cycle the tool.
4. Lift the locator blade or wire stop and remove the
crimped terminal. Inspect for proper crimp
location, and check for insulation closure. Locator
is adjustable up and down to keep terminals
straight after crimping.
5. When crimping butt splices the locator must be
removed and the splice visually aligned with the
tooling 1/16” inside the insulation crimp. See
Figure 4.
Note: Whenever crimping without the locator, make
sure the seam of the terminal is oriented up or down
in the tool if using unbrazed product, as this will
provide higher pull force values.
6. If the insulation part of the crimp needs to be adjusted, first disconnect air source and
loosen the M4 screw on the bottom tool jaw, then insert a 3/32” hex wrench (supplied)
into the bottom of the lower die. See Figure 5. A clockwise (CW) rotation decreases
insulation crimp while a counter-clockwise (CCW) rotation increases insulation crimp.
After adjusting retighten the M4 screw. Reconnect air source.
TERMINAL
FRONT EDGE
OF BARREL
SAFETY
SHIELD
PUSH UP
Figure 1
LOCATOR
JAWS OPEN
BUTT
SPLICE
TERMINAL
CONDUCTOR
ANVIL
Figure 4
INSULATION
ANVIL
WIRE
INSULATION
PUNCH
CONDUCTOR
PUNCH
1/16”INSIDE
INSULATION CRIMP
Figure 3
TERMINAL
BARREL
LOCATOR
CONDUCTOR
PUNCH
INSULATION
PUNCH
TERMINAL
WIRE
INSULATION
ANVIL
CONDUCTOR
ANVIL

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 13 of 16
Revision: T Revision Date: 08-19-21
MAINTENANCE
It is recommended that each operator of the tool be made aware of, and responsible for, the
following maintenance steps:
1. Remove dust, moisture and other
contaminants with a clean brush, or soft,
lint-free cloth.
2. Do not use any abrasive materials that
could damage the tool.
3. Make certain all pins; pivot points and
bearing surfaces are protected with a thin
coat of high quality machine oil. Do not oil
excessively. This tool was engineered for
durability, but like any fine piece of
equipment it needs cleaning and
lubrication for a maximum service life of
trouble-free crimping. A light oil, such as
30 weight automotive oil, used at the oil points shown in Figure 5, every 5,000 crimps or
monthly will significantly enhance the tool life and ensure a stable calibration.
4. When tool is not in use store the tool in a clean, dry area.
Tool Calibration
A Certificate of Calibration (see last page) was supplied with the tool. To
recalibrate this tool, pin gauge measurements should be taken in each
conductor nest and compared to this chart. The tool should be lubricated
prior to recalibration to ensure consistent measurements.
Nest Color Code
Wire Range
“X” Dimension
Conductor Crimp
Crimp
Inspection
Marking
AWG
mm²
Mean
Go
No-Go
Red
18-22
0.35-0.80
.108
.104
.112
o
Blue
14-16
1.30-2.00
.117
.112
.122
o o
Yellow
10-12
3.30-5.00
.147
.143
.152
o
Warranty
This tool is for electrical terminal crimping purposes only. This tool is made of the best quality
materials. All vital components are long-life tested. All tools are warranted to be free of
manufacturing defects for a period of 30 days. Should such a defect occur, we would repair or
exchange the tool free of charge. This repair or exchange will not be applicable to altered,
misused or damaged tools.
CAUTION: Molex crimp specifications are valid only when used with Molex terminals,
applicators and tooling.
LOOSEN THE
M4 SCREW
LUBRICATION POINTS
(BOTH SIDES)
LIGHT OIL (EVERY
MONTH
OR 5,000 CRIMPS)
Figure 5
3/32” HEX
WRENCH
“Confining” Crimp
X
PIN GAUGE IN
CONDUCTOR
CRIMP

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 14 of 16
Revision: T Revision Date: 08-19-21

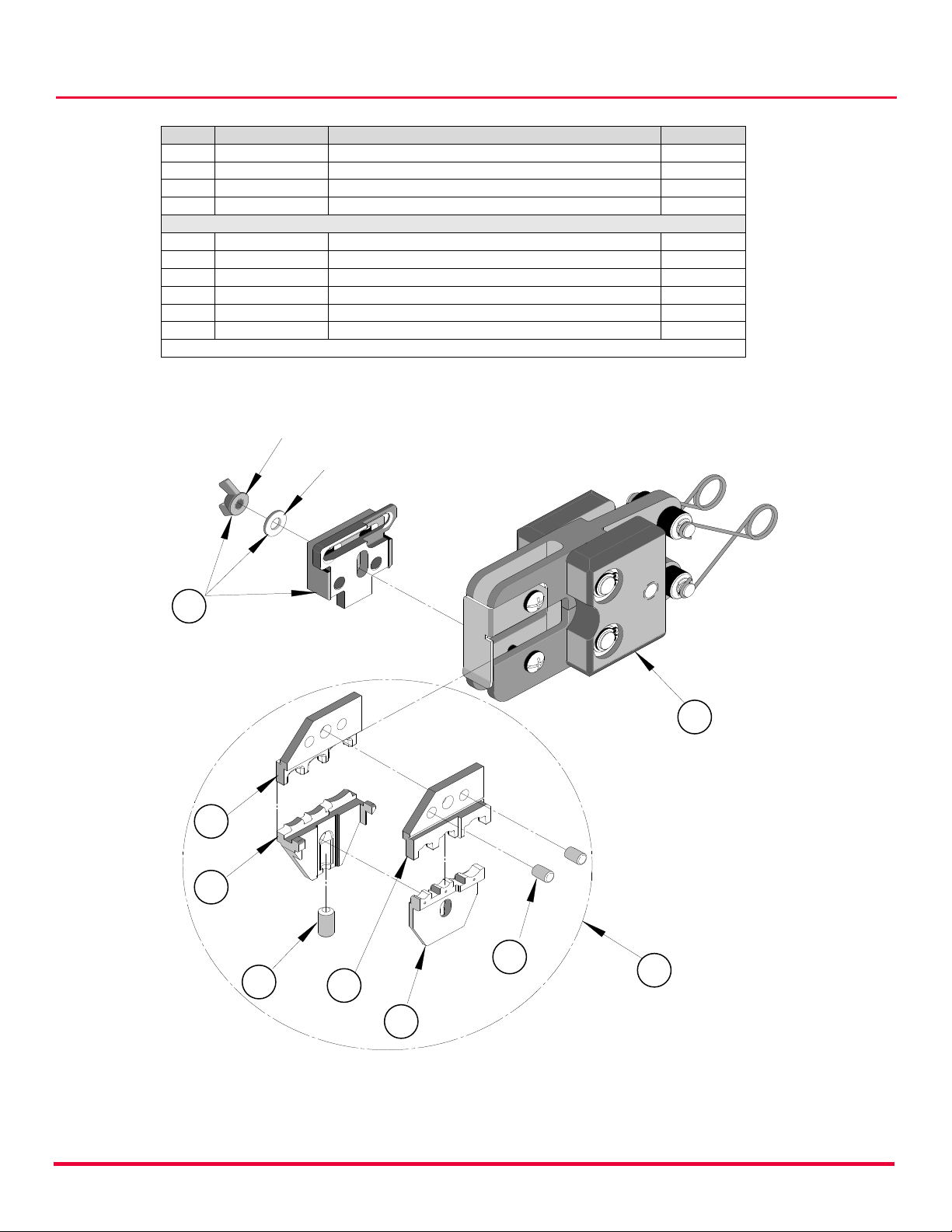

3
2
1
Figure 6
M4 WING NUT
M4 FLAT WASHER
4
5
9
6
7
8
(2)
PARTS LIST
Item
Order No.
Description
Quantity
64005-0100
Crimp Tool Head
Figure 6
1
64005-0000
Basic Air Tool Head
1
2
64005-0175
Locator Assembly
1
3
64001-0170
Tooling Kit
1
Tooling Kit Only
4
64001-0114
Conductor Punch
1
5
64001-0112
Conductor Anvil
1
6
64001-0115
Insulation Punch
1
7
64001-0113
Insulation Anvil
1
8
—
4mm Diameter by 5.00mm Long Roll Pins
2*
9
—
#10-32 by 5/16” Long Cup Point Set Screw
1*
*Available from an industrial supply company.

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 15 of 16
Revision: T Revision Date: 08-19-21
Figure 7
3
4
2
2
2
5
1
(4)
(4)
(2)
(4)
2
2
(2)
(2)
2
PARTS LIST (CONTINUED)
Item
Order No.
Description
Quantity
64005-0000
Basic Air Tool Head
Figure 7
1
64005-0103
Nose Guard
1
2
64000-0077
Repair Kit (Springs, Rods Pivots ,Rings, and Washers)
1
3
—
M4 by 12 Long Freedrive Pan Head Screw
1*
4
—
M4 by 30 Long Freedrive Pan Head Screw
1*
5
—
3/16” by 3/8” Long Dowel Pin
1*
*Available from an Industrial supply company.

AT1990 Air Head Crimp Tool
Doc. No. ATS-640050100 Release Date: 07-08-02 UNCONTROLLED COPY Page 16 of 16
Revision: T Revision Date: 08-19-21
Certificate of Calibration
Tool Order Number: ___________________
Tool Eng. Number: ___________________
Tool Revision: ___________________
Serial Number: ___________________
Date of Manufacture: ___________________
Pin Gauge of Conductor Nest/Nests or Slug height if the nest is the “F” Crimp style.
Range Conductor Nest # 1 = ____________ —Actual = ______________
Range Conductor Nest # 2 = ____________ —Actual = ______________
Range Conductor Nest # 3 = ____________ —Actual = ______________
Technician: ______________
Date of Calibration: ______________
Calibration should be done every 5,000 cycles or every 3 months. Tools should be lubricated
during this operation.
Application Tooling Support
Phone: (402) 458-TOOL (8665)
E-Mail: [email protected]
Website: www.molex.com/applicationtooling
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries;
all other trademarks listed herein belong to their respective owners.
Order Number
64005-0100
Engineering No.
AT1990
