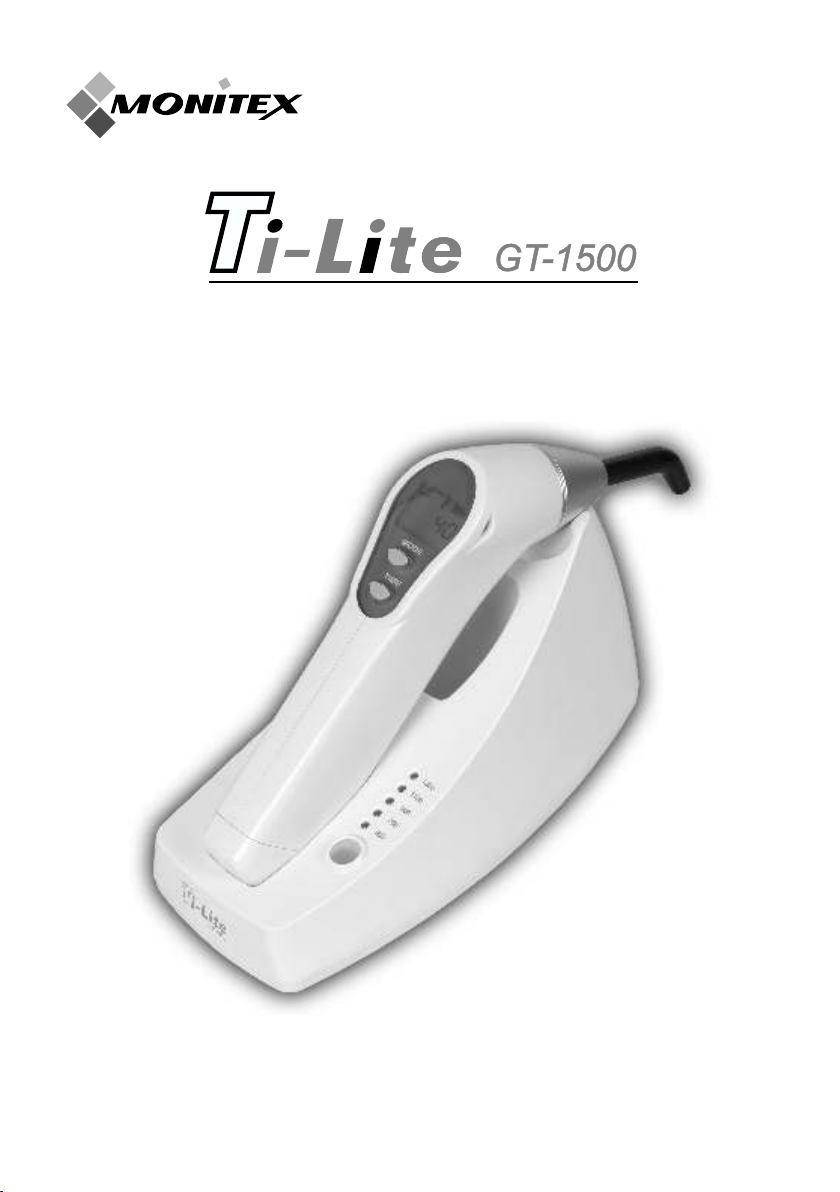

Monitex Ti-Lite GT-1500 User manual

User Manual
The innovative cordless LED
curing light

Table of Contents
PREFACE ------------------------------------------------------- 1
DISCLAIMER -------------------------------------------------- 1
SAFETY PRECAUTIONS ------------------------------------- 2
PARTS AND FUNCTIONS ------------------------------------ 3
GENERAL INSTALLATION ---------------------------------- 4
WARNING: LI-ION BATTERY ------------------------------- 5
OPERATION ---------------------------------------------------- 5

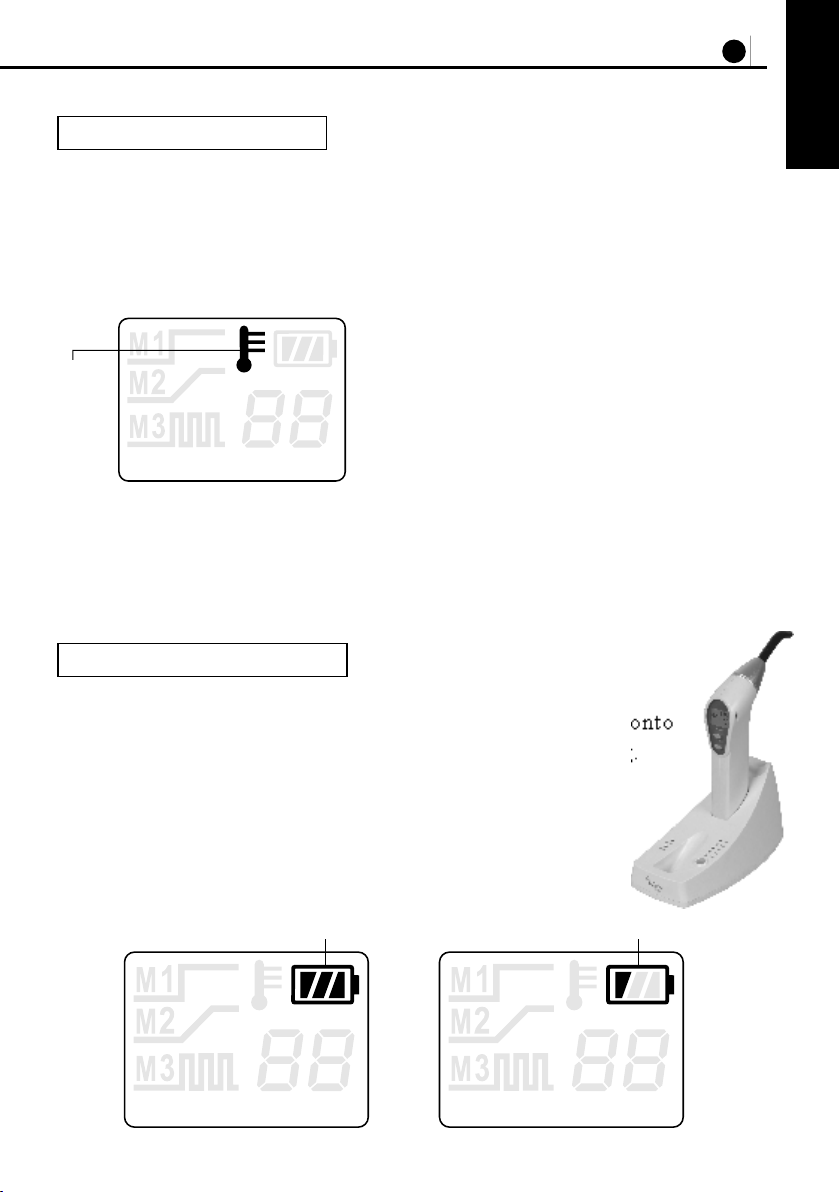

COOLING SYSTEM -------------------------------------------- 7
CHARGER SIGNALS ------------------------------------------- 7
TROUBLE SHOOTING TIPS --------------------------------- 8
SPECIFICATION ------------------------------------------------ 9
PREFACE
Upon your purchase of the “Ti-Lite GT-1500” high efficiency
LED (Light Emitting Diode) curing light, please pay attention to the
following contents.
Prior to using the product, please read this USER MANUAL carefully
and thoroughly as it provides details of proper implementation of the
operations, maintenances, and troubleshooting instructions.
Please keep this manual well preserved for future reference.
DISCLAIMER
1. The manufacturer shall not assume any responsibility for any
malfunction, damage, or accident of personal bodily injury caused
by improper removal, modification, maintenance, or repair, which
is conducted by an unauthorized technical personnel.
2. The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily injury is caused
by the use of this product in conjunction with other regulated products.
3. The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily injury is caused
by improper removal, modification, maintenance, or repair with
device components not supplied by the manufacturer.
4.The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily harm is caused
by improper operation that is incompliant with the manual instructions.
5 The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily harm is caused
by inappropriate modifications to the power supply, installation
environment or any other safety-regulated operating conditions as
specified in this manual.
.
WARNING : Beware of high temperature and strong light.
Do not look directly into the light source without eye protection.
ENGLISH
1

Table of Contents
PREFACE ------------------------------------------------------- 1
DISCLAIMER -------------------------------------------------- 1
SAFETY PRECAUTIONS ------------------------------------- 2
PARTS AND FUNCTIONS ------------------------------------ 3
GENERAL INSTALLATION ---------------------------------- 4
WARNING: LI-ION BATTERY ------------------------------- 5
OPERATION ---------------------------------------------------- 5
COOLING SYSTEM -------------------------------------------- 7
CHARGER SIGNALS ------------------------------------------- 7
TROUBLE SHOOTING TIPS --------------------------------- 8
SPECIFICATION ------------------------------------------------ 9
PREFACE
Upon your purchase of the “Ti-Lite GT-1500” high efficiency
LED (Light Emitting Diode) curing light, please pay attention to the
following contents.
Prior to using the product, please read this USER MANUAL carefully
and thoroughly as it provides details of proper implementation of the
operations, maintenances, and troubleshooting instructions.
Please keep this manual well preserved for future reference.
DISCLAIMER
1. The manufacturer shall not assume any responsibility for any
malfunction, damage, or accident of personal bodily injury caused
by improper removal, modification, maintenance, or repair, which
is conducted by an unauthorized technical personnel.
2. The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily injury is caused
by the use of this product in conjunction with other regulated products.
3. The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily injury is caused
by improper removal, modification, maintenance, or repair with
device components not supplied by the manufacturer.
4.The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily harm is caused
by improper operation that is incompliant with the manual instructions.
5 The manufacturer shall not assume any responsibility if any
malfunction, damage, or accident of personal bodily harm is caused
by inappropriate modifications to the power supply, installation
environment or any other safety-regulated operating conditions as
specified in this manual.
.
WARNING : Beware of high temperature and strong light.
Do not look directly into the light source without eye protection.
ENGLISH
1

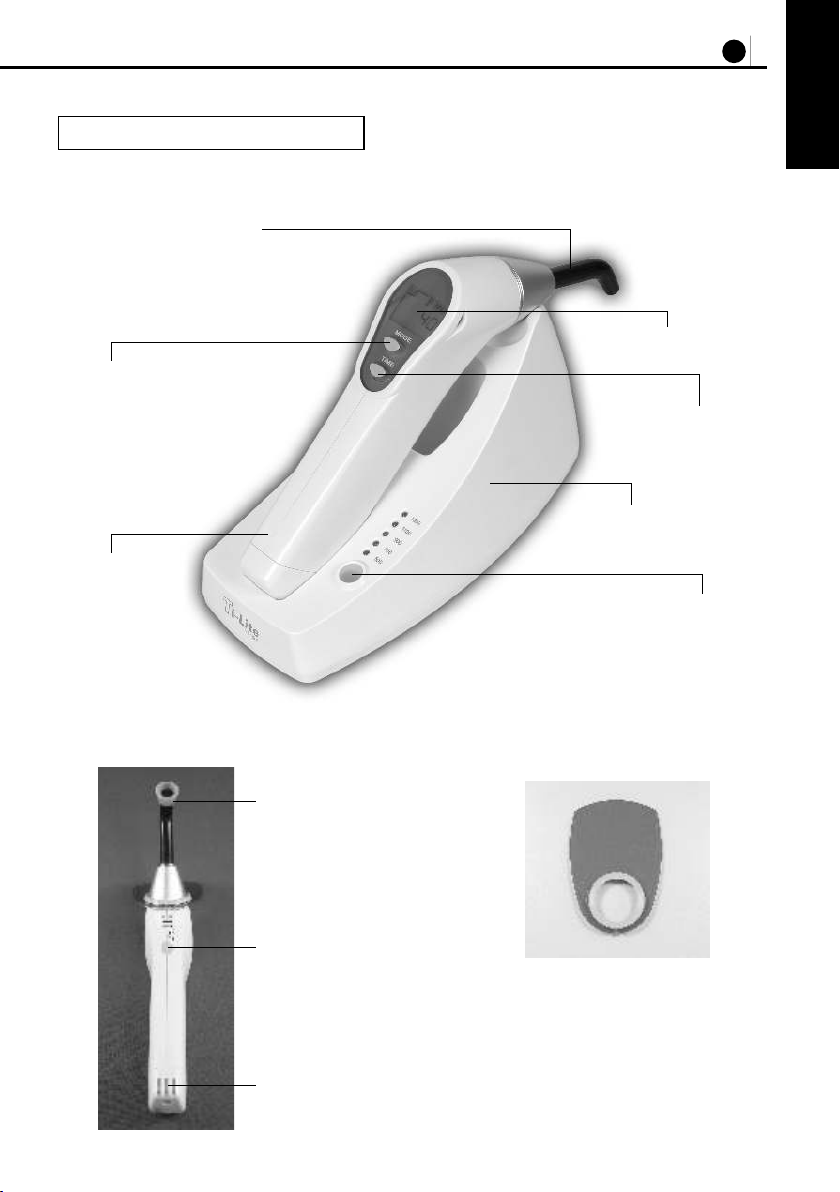

PARTS & FUNCTIONS
Body cover
3 modes setting button:
M1 - Full Power
M2 - Bleaching
M3 - Pulse
Time setting button
Charge stand
(AC 100V~240V 50/60Hz)
Built in radiometer
Fiber optic probe
Anti-glare cone
Protective Shield
LCD display
ON / OFF / SET
(on/off, set/memory)
Charging socket
SAFETY PRECAUTIONS
Please follow instruction steps in this manual for correct and
safe operations of the device. Pay high attention to the following
warning signs beside the operation descriptions where applicable.
DANGER ─ This message appears where the operation may potentially
cause severe injury if instruction not followed correctly.
WARNING ─ This message appears where the operation may cause
serious damage or defect to other objects.
CAUTION ─ This message appears where the operation may cause
slight damage to other objects or slight bodily harm if
operation not properly conducted.
IMPORTANT ─ This message appears where the operation may involve
risk of defecting the device itself if not properly
conducted.
Sterilization for Fiber-Optic Tip:
After operation on each patient, the fiber-optic tip should be disinfected
or sterilized. Suggestion is to use autoclave 134°C / 75 psi for maximum
result. The sterilization time at 134°C should be 5 minutes.
Note: Please disconnect the fiber-optic tip off the handpiece and
autoclave by itself.
Note: Use of disposable sleeves is recommended.
Product Cleaning:
If there is any dirt or stains on the surface of control panel or surface
of the handpiece, please use cloth to wipe clean. If it is hard to clean,
please use a neutral cleansing agent.
Note: Never use a solvent or volatile oil for cleaning. This can
lead to fading in the fiber optic shades.
Symbol Explantion
Type B applied part
Attention, consult
ACCOMPANYING DOCUMENTS
Signifies the device has meet all essential requirements of
European Medical Device Directive 93/42/EEC & 2007/47/EEC.
Symbol used to indicate the polarity of the DC power input.
Direct Current
ENGLISH
23

PARTS & FUNCTIONS
Body cover
3 modes setting button:
M1 - Full Power
M2 - Bleaching
M3 - Pulse
Time setting button
Charge stand
(AC 100V~240V 50/60Hz)
Built in radiometer
Fiber optic probe
Anti-glare cone
Protective Shield
LCD display
ON / OFF / SET
(on/off, set/memory)
Charging socket
SAFETY PRECAUTIONS
Please follow instruction steps in this manual for correct and
safe operations of the device. Pay high attention to the following
warning signs beside the operation descriptions where applicable.
DANGER ─ This message appears where the operation may potentially
cause severe injury if instruction not followed correctly.
WARNING ─ This message appears where the operation may cause
serious damage or defect to other objects.
CAUTION ─ This message appears where the operation may cause
slight damage to other objects or slight bodily harm if
operation not properly conducted.
IMPORTANT ─ This message appears where the operation may involve
risk of defecting the device itself if not properly
conducted.
Sterilization for Fiber-Optic Tip:
After operation on each patient, the fiber-optic tip should be disinfected
or sterilized. Suggestion is to use autoclave 134°C / 75 psi for maximum
result. The sterilization time at 134°C should be 5 minutes.
Note: Please disconnect the fiber-optic tip off the handpiece and
autoclave by itself.
Note: Use of disposable sleeves is recommended.
Product Cleaning:
If there is any dirt or stains on the surface of control panel or surface
of the handpiece, please use cloth to wipe clean. If it is hard to clean,
please use a neutral cleansing agent.
Note: Never use a solvent or volatile oil for cleaning. This can
lead to fading in the fiber optic shades.
Symbol Explantion
Type B applied part
Attention, consult
ACCOMPANYING DOCUMENTS
Signifies the device has meet all essential requirements of
European Medical Device Directive 93/42/EEC & 2007/47/EEC.
Symbol used to indicate the polarity of the DC power input.
Direct Current
ENGLISH
23

GENERAL INSTALLATION
** Please follow the instructions below carefully to ensure proper
function of the device.
1. Insert the fiber optic probe into the handpiece and make sure it is
securely installed at the fixed position.
2. Connect the electric wire to the charger stand and plug it into an
electricity outlet.
**NOTE: Check to make sure the red (CHARGE) led light on the
left side is lit and immediately switch to
green (READY) led is lit.
3. Place the handpiece in the charger stand
to begin the initial charging as the
red CHARGE) led is lit.
4. Put on the anti-glare cone and the
protective shield.
5. Adjust the cone and shield position
according to the dentist's preference.
6. When the handpiece is fully charged, the
green (READY) led light will switch on.
(
IMPORTANT :
> Please make sure to fully charge the battery for at least 6 hours
before the FIRST time of using this device. This will insure the
full length of battery life.
> When battery power decreases to the lowest supply level, a
continuous beeping sound will ring for one minute to remind
the user to recharge.

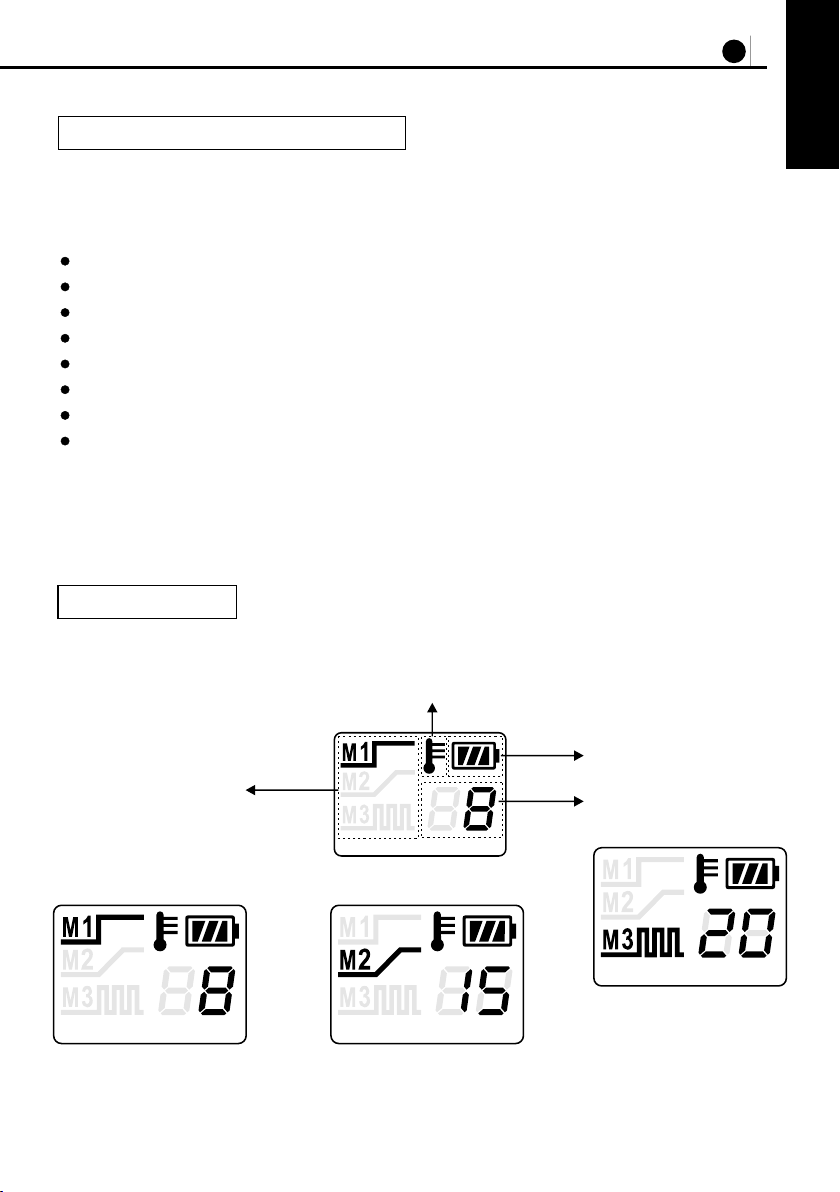

OPERATION
MODES:
There are 3 modes at your
choice.
The working time of M1
and M3 can be reset while
the timer for M2 is fixed.
M2 : Bleaching Mode
70% of full power.
Default time pre-set 15
minutes.
M3 : Pulse Mode
Full power 1 second on,
1 second off.
Default time 20 sec. with
optional time setting to the
user’s preference. (maximum
timer setting up to 90 sec. for
some particular application.)
M1 : Full Power
Default time is 8 sec. with optional
time setting to the user’s preference.
(maximum timer setting up to 90 sec.
for extra oral indirect application.)
Warning: Li-Ion Battery.
To prevent a possibility of the battery from locking out, leaking, heat
generation or explosion, please observe the following precautions:
Do not disassemb le.
Keep the battery dry
Keep away from high temp erature.
Do not crush.
Please charge the battery every 2-months period if left idled.
Please recycle the battery.
Do not dispose the battery in fire to prevent injury or burns.
Do not short circuit.
Improper care-taking of the battery may result possible battery
burnt, it is recommended for regular battery check up by your
nearest local dealer to ensure proper functioning of the unit.
Charging
Stand by
Thermometer:
The thermometer symbol will blink after continuous usage of
about 30 consecutive sessions with each session lasts for 30
seconds. This function will shut off the unit to prevent the device
from over-heating.
Battery Level Indicator
Timer
ENGLISH
45

GENERAL INSTALLATION
** Please follow the instructions below carefully to ensure proper
function of the device.
1. Insert the fiber optic probe into the handpiece and make sure it is
securely installed at the fixed position.
2. Connect the electric wire to the charger stand and plug it into an
electricity outlet.
**NOTE: Check to make sure the red (CHARGE) led light on the
left side is lit and immediately switch to
green (READY) led is lit.
3. Place the handpiece in the charger stand
to begin the initial charging as the
red CHARGE) led is lit.
4. Put on the anti-glare cone and the
protective shield.
5. Adjust the cone and shield position
according to the dentist's preference.
6. When the handpiece is fully charged, the
green (READY) led light will switch on.
(
IMPORTANT :
> Please make sure to fully charge the battery for at least 6 hours
before the FIRST time of using this device. This will insure the
full length of battery life.
> When battery power decreases to the lowest supply level, a
continuous beeping sound will ring for one minute to remind
the user to recharge.
OPERATION
MODES:
There are 3 modes at your
choice.
The working time of M1
and M3 can be reset while
the timer for M2 is fixed.
M2 : Bleaching Mode
70% of full power.
Default time pre-set 15
minutes.
M3 : Pulse Mode
Full power 1 second on,
1 second off.
Default time 20 sec. with
optional time setting to the
user’s preference. (maximum
timer setting up to 90 sec. for
some particular application.)
M1 : Full Power
Default time is 8 sec. with optional
time setting to the user’s preference.
(maximum timer setting up to 90 sec.
for extra oral indirect application.)
Warning: Li-Ion Battery.
To prevent a possibility of the battery from locking out, leaking, heat
generation or explosion, please observe the following precautions:
Do not disassemb le.
Keep the battery dry
Keep away from high temp erature.
Do not crush.
Please charge the battery every 2-months period if left idled.
Please recycle the battery.
Do not dispose the battery in fire to prevent injury or burns.
Do not short circuit.
Improper care-taking of the battery may result possible battery
burnt, it is recommended for regular battery check up by your
nearest local dealer to ensure proper functioning of the unit.
Charging
Stand by
Thermometer:
The thermometer symbol will blink after continuous usage of
about 30 consecutive sessions with each session lasts for 30
seconds. This function will shut off the unit to prevent the device
from over-heating.
Battery Level Indicator
Timer
ENGLISH
45

Time Setting :
1. Once the user sets the mode (M1 or M3), please press TIME button
continuously for longer than 2 seconds (till the number shown in the LCD
panel starts to blink), and press again to change time, one second per push.
2. (M1 and M3) Operating time will start to add up after one second if
the user pushes the TIME button continuously. Press ON/OFF/SET
button to complete time setting.
3. The time setting of M2 is for 15 minutes which can not be re-set.
Operation :
1. After setting up the MODE selection and operating time,
triggers the ON/OFF/SET button to start curing cycle.
2. Press again ON/OFF/SET button to stop operation at any time.
3. Auto Power Saving Mode: the device will turn off automatically if it is left
idled for longer than 90 seconds. Operation resumes once the user presses
the trigger ON/OFF/SET.
4. Under “M1, 8 seconds” setting, the device can be continuously ultilized
for approximately 30 curing sessions.
Caution :
Operating GT-1500 at Mode 1, 8 seconds for more than 30 cycles
continuously could result in high temperature accumulation, which is
hazardous to the patient’s teeth. The user should pay more caution to
check if any over-heating or contraindication.
COOLING SYSTEM
Ti-Lite GT-1500 is equipped with a special built-in magnetic fan
motor to prevent over-heating and to prolong the light emitting time.
Radiometer Sensor :
1. Choose M1 (full power)
2. Instert the Fiber-Optic tip to the handpiece.
3. Aim the tip at the Sensor of Radiometer and
press ON/OFF/SET button to start checking the
light intensity.
Over-heating
Indication
CHARGER SIGNALS
1. When the power of battery is low, place the handpiece onto
the charger stand in up-right position to begin charging.
2. When the charger starts charging, the red (CHARGE)
light will be turned on to indicate the charging begins.
3. The green (READY) light resumes after the
handpiece is fully charged.
IMPORTANT :
> The cooling system will be
activated with the motor fan
which starts turning when the
heat starts to accumulate.
> The thermometer symbol will
start to blink and shut off the
system for complete cooling
and for protection purpose.
Full Low
ENGLISH
67

Time Setting :
1. Once the user sets the mode (M1 or M3), please press TIME button
continuously for longer than 2 seconds (till the number shown in the LCD
panel starts to blink), and press again to change time, one second per push.
2. (M1 and M3) Operating time will start to add up after one second if
the user pushes the TIME button continuously. Press ON/OFF/SET
button to complete time setting.
3. The time setting of M2 is for 15 minutes which can not be re-set.
Operation :
1. After setting up the MODE selection and operating time,
triggers the ON/OFF/SET button to start curing cycle.
2. Press again ON/OFF/SET button to stop operation at any time.
3. Auto Power Saving Mode: the device will turn off automatically if it is left
idled for longer than 90 seconds. Operation resumes once the user presses
the trigger ON/OFF/SET.
4. Under “M1, 8 seconds” setting, the device can be continuously ultilized
for approximately 30 curing sessions.
Caution :
Operating GT-1500 at Mode 1, 8 seconds for more than 30 cycles
continuously could result in high temperature accumulation, which is
hazardous to the patient’s teeth. The user should pay more caution to
check if any over-heating or contraindication.
COOLING SYSTEM
Ti-Lite GT-1500 is equipped with a special built-in magnetic fan
motor to prevent over-heating and to prolong the light emitting time.
Radiometer Sensor :
1. Choose M1 (full power)
2. Instert the Fiber-Optic tip to the handpiece.
3. Aim the tip at the Sensor of Radiometer and
press ON/OFF/SET button to start checking the
light intensity.
Over-heating
Indication
CHARGER SIGNALS
1. When the power of battery is low, place the handpiece onto
the charger stand in up-right position to begin charging.
2. When the charger starts charging, the red (CHARGE)
light will be turned on to indicate the charging begins.
3. The green (READY) light resumes after the
handpiece is fully charged.
IMPORTANT :
> The cooling system will be
activated with the motor fan
which starts turning when the
heat starts to accumulate.
> The thermometer symbol will
start to blink and shut off the
system for complete cooling
and for protection purpose.
Full Low
ENGLISH
67

TROUBLE SHOOTING TIPS
CAUTION :
As failures or errors occur, please use the following table to try
and fix the device. If the device remains problematic, please send
back to the manufacturer for repair.
Federal law restricts this device to sale or on the order of a dentist.
DESCRIPTIONS
The red and green
signal lights of
charger stand are
unable to light up
Poor connection
between plug and
cable
Check the connection
between plug and
cable
LCD device is
unable to light up
Defect in LCD
device or pc board
Return to
manufacturer / agent
for repair
No activation
Lithium-ion
battery is defective
FAILURE CAUSE SOLUTION
Return to
manufacturer / agent
for repair
Defect in charger
Defect in main IC
board
LED lamp is unable
to emit
Defect in LED
module
SPECIFICATION
CURING HANDPIECE :
‧LED LAMP : 5 Watt.
‧LIGHT INTENSITY : up to 1,500 mW/cm
‧WAVE LENGTH : 450 ~ 470 nm
‧DIMENSION : 18.5(L) x 3.86(W) x 8.2(H) cm
‧WEIGHT : APPROX. 206g
CHARGER :
‧OUTPUT VOLTAGE : 8.4 V (TYPICAL)
‧DIMENSION : 19.3(L) X 8.38(W) X 9.59(H) cm
‧WEIGHT : APPROX. 177 g
BATTERY :
‧LI-ION BATTERY PACK : 1 PC
‧VOLTAGE : 7.4 V (TYPICAL)
‧CAPACITY : 1,350 mAh (TYPICAL)
‧DIMENSION : Approx. 1.8 x 6.5 cm
‧WEIGHT : Approx. 78 g
ADAPTOR :
‧INPUT : AC100 V ~ 240 V 50/60 Hz
‧OUTPUT : DC 9 V
‧CURRENT : 1.3 A (TYPICAL)
LIGHT GUIDE :
‧FIBER OPTIC WITH TAPERED TIP
10mm taper to 8mm
‧AUTOCLAVABLE UP TO 134 °C
2
ENGLISH
89

TROUBLE SHOOTING TIPS
CAUTION :
As failures or errors occur, please use the following table to try
and fix the device. If the device remains problematic, please send
back to the manufacturer for repair.
Federal law restricts this device to sale or on the order of a dentist.
DESCRIPTIONS
The red and green
signal lights of
charger stand are
unable to light up
Poor connection
between plug and
cable
Check the connection
between plug and
cable
LCD device is
unable to light up
Defect in LCD
device or pc board
Return to
manufacturer / agent
for repair
No activation
Lithium-ion
battery is defective
FAILURE CAUSE SOLUTION
Return to
manufacturer / agent
for repair
Defect in charger
Defect in main IC
board
LED lamp is unable
to emit
Defect in LED
module
SPECIFICATION
CURING HANDPIECE :
‧LED LAMP : 5 Watt.
‧LIGHT INTENSITY : up to 1,500 mW/cm
‧WAVE LENGTH : 450 ~ 470 nm
‧DIMENSION : 18.5(L) x 3.86(W) x 8.2(H) cm
‧WEIGHT : APPROX. 206g
CHARGER :
‧OUTPUT VOLTAGE : 8.4 V (TYPICAL)
‧DIMENSION : 19.3(L) X 8.38(W) X 9.59(H) cm
‧WEIGHT : APPROX. 177 g
BATTERY :
‧LI-ION BATTERY PACK : 1 PC
‧VOLTAGE : 7.4 V (TYPICAL)
‧CAPACITY : 1,350 mAh (TYPICAL)
‧DIMENSION : Approx. 1.8 x 6.5 cm
‧WEIGHT : Approx. 78 g
ADAPTOR :
‧INPUT : AC100 V ~ 240 V 50/60 Hz
‧OUTPUT : DC 9 V
‧CURRENT : 1.3 A (TYPICAL)
LIGHT GUIDE :
‧FIBER OPTIC WITH TAPERED TIP
10mm taper to 8mm
‧AUTOCLAVABLE UP TO 134 °C
2
ENGLISH
89

6F, 70, GUANG-FU ROAD SAN-CHONG SEC. 1, ,
CITY, 24158, TAIPEI COUNTY, TAIWAN
TEL : [phone] FAX: [phone]
E-mail : [e-mail]
http://www.monitex.com.tw
INDUSTRIAL CO., LTD
2010.08 (Ver. 1)
Copyright© 2010 MONITEX Industrial CO., LTD. All Rights Reserved.
