Monoprice Blackbird 44571 User manual

Blackbird™ by Monoprice™
P/N 44571
User Manual
HDBaseT 3.0 Extender 70M 4K60Hz KVM
USB 2.0 / Audio / RS-232

2
Thank You for Purchasing this Product
Surge Protection Device Recommended
Safety Warnings and Guidelines
To ensure optimum performance and safety, read the following
instructions before connecting, operating, or adjusting the product.
Keep this manual for future reference.
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shocks, lightning strikes,
etc. The use of surge protection systems is highly recommended to
protect and extend the life of your equipment.
Please read this entire manual before using this device, paying extra
attention to these safety warnings and guidelines. Please keep this
manual in a safe place for future reference.
• This device is intended for indoor use only.
• Do not expose this device to water or moisture of any kind. Do not
place drinks or other containers with moisture on or near the device.
• If moisture does get in or on the device, immediately unplug it from
the power outlet and allow it to fully dry before reapplying power.
• Do not touch the device, the power cord, or any other connected
cables with wet hands.
• Do not expose this device to excessive vibration.
• Do not subject the product to extreme force, shock, or uctuations
in temperature or humidity.
• Do not expose this device to excessively high temperatures. Do not
place it in, on, or near a heat source, such as a replace, stove,
radiator, etc. Do not leave it in direct sunlight.

3
• This device ventilates excessive heat through the slots and openings
in the case.
• Do not block or cover these openings. Ensure that the device is in an
open area where it can get sucient airow to keep from
overheating.
• Prior to operation, check the unit and power cord for physical
damage. Do not use if physical damage has occurred.
• Before plugging the unit into a power outlet, ensure that the outlet
provides the same type and level of power required by the device.
• Never unplug the unit by pulling on the power cord. Always grasp
the connector head or adapter body.
• Ensure that power is turned o and disconnected before making any
electrical connections.
• Clean using a soft, dry cloth only. Do not use chemical cleaners,
solvents, or detergents. For stubborn deposits, moisten the cloth
with warm water.
• This device has no user serviceable parts. Do not attempt to open,
service, or modify this device.
Table of Contents
Introduction..................................................................................................................4
Features..........................................................................................................................4
Package Contents.......................................................................................................5
Operation Controls and Functions......................................................................6
Transmitter Panel........................................................................................................6
Receiver Panel..............................................................................................................8
IR Pin Denition...........................................................................................................9
Application Example................................................................................................10
Specications..............................................................................................................11

4
1. Introduction
2. Features
The 18Gbps HDBaseT 3.0 Extender extends uncompressed HDMI
signals, RS-232, bi-directional IR, and USB2.0 signals up to 230ft
(70m) (4K30/1080P) or 131ft (40m) 4K60 using a single CAT6A cable.
It supports video resolution up to 4K2K@60Hz YUV 4:4:4. The
Transmitter has HDMI input and audio extraction capabilities; whereas,
the Receiver has HDMI output and audio extraction capabilities. The
Extender supports bi-directional RS- 232 and IR signal pass-through,
EDID management, USB2.0 signal transmission, and bi- directional POC
function.
This Extender provides a convenient solution for HDMI extension via a
single CAT cable with long-distance capability, making it ideal for both
home and commercial applications.
• HDMI 2.0b and HDCP 2.2 compliant
• 18Gbps Video Bandwidth
• Up to 4K2K@60Hz (YUV 4:4:4) of video resolution supported
• HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG pass-through
• LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,
DTS96/24, DTS High Res, DTS-HD Master Audio, and DSD pass-through
• Transmission distance of up to 230ft/70m (4K30/1080P) or 131ft/
40m (4K60) via a single CAT6A cable
• Bi-Directional POC (Power over Cable) is supported when TX or
RX gets power, and the other end does not need an external
power supply

5
• Over 3.5mm Analog Audio De-Embedding at TX and RX
• EDID Management
• Bi-directional RS-232 signal pass-through, bi-directional IR signal
• Control, and USB2.0 signal transmission
• Compact design for easy and exible installation
• 1 × HDBaseT 3.0 Extender (Transmitter)
• 1 × HDBaseT 3.0 Extender (Receiver)
• 1 × IR Blaster Cable (1.5 meters)
• 1 × IR Receiver Cable (1.5 meters)
• 2 × 3pin-3.81mm Phoenix Connectors (Male)
• 4 × Mounting Ears
• 8 × Machine Screws (KM3*4)
• 1 × 24V/1A Locking Power Adapter
• 1 × User Manual
3. Package Contents

6
4. Operation Controls and Functions

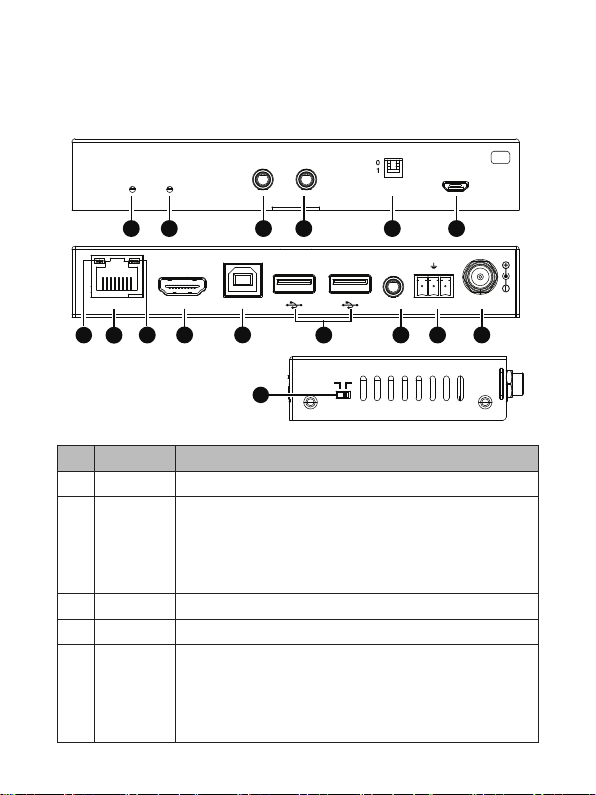

Transmitter Panel
RS-232L/R OUTUSB HOSTHDMI INHDBaseT OUT DC 24V
TX RX
11 13 14 1510 127
89
SERVICE
LINK
IR IN IR OUT
EDID
TX
1 2 3 4 5 6
POC
ON OFF
16
No. Name Function Description
1 Power LED The red LED is on when the Transmitter is powered on.
2 LINK LED
▪Light on: Transmitter and Receiver are in good connection
status.
▪ Light ashing: Transmitter and Receiver are in poor
connection status or connected to the same device.
▪ Light o: Transmitter and Receiver are not connected.
3 IR IN IR signal input port, connected to IR Receiver cable.
4 IR OUT IR signal output port, connected to IR Blaster cable.
5EDID DIP
switch
Used for EDID setting:
00-Copy display’s EDID (as factory default)
01-4K30 4:4:4
10-1080p60 4:4:4
11-1200p60 4:4:4

7
No. Name Function Description
6 SERVICE Firmware update port.
7HDBaseT
OUT
HDBaseT output port, connected to the HDBaseT IN port of
Receiver with a CAT6A cable. It is used for various signals
pass-through.
8
Data Signal
Indicator
(Yellow)
▪Illuminating: HDMI signal with HDCP.
▪Flashing: HDMI signal without HDCP.
▪Dark: No HDMI signal.
9
Link Signal
Indicator
(Green)
▪Illuminating: Transmitter and Receiver are in good
connection status.
▪Flashing: Transmitter and Receiver are in poor connection
status or connected to the same device.
▪Dark: Transmitter and Receiver are not connected.
10 HDMI IN HDMI signal input port, connected to signal source device.
11 USB HOST USB extension host port, connected to PC.
12 USB
DEVICES
Two USB device ports, connected to U disk, mouse or
keyboard.
13 L/R OUT Analog audio output port, used for audio de-embedding
output.
14 RS-232 RS-232 serial port, used for serial port command
transmission.
15 DC 24V
DC 24V/1A power supply input port.
Note that the extender supports POC function, it means
that either transmitter or receiver is powered on by 24V/1A
power adapter, the other one doesn’t need power supply.
16 POC switch Use the switch to turn on/o POC function.

8
SERVICE
LINK
IR IN IR OUT RX
RS-232L/R OUTHDMI OUTHDBaseT IN DC 24V
TX RX
123 4 5
11 12 13
9
67 8 10
POC
ON OFF
14
Receiver Panel
No. Name Function Description
1 Power LED Red LED indicates that the Receiver is powered on.
2 LINK LED
▪Light on: Transmitter and Receiver are in good connection
status.
▪ Light ashing: Transmitter and Receiver are in poor
connection status or connected to the same device.
▪ Light o: Transmitter and Receiver are not connected.
3 IR IN IR signal input port, connected to IR Receiver cable.
4 IR OUT IR signal output port, connected to IR Blaster cable.
5 SERVICE Firmware update port.
6 HDBaseT IN
HDBaseT input port, connected to the HDBaseT OUT port
of Transmitter with a CAT6A cable.
It is used for various signals pass-through.

9
No. Name Function Description
7
Data Signal
Indicator
(Yellow)
• Illuminating: HDMI signal with HDCP.
• Flashing: HDMI signal without HDCP.
• Dark: No HDMI signal.
8
Link Signal
Indicator
(Green)
• Illuminating: Transmitter and Receiver are in good
connection status.
• Flashing: Transmitter and Receiver are in poor
connection status or connected to the same device.
• Dark: Transmitter and Receiver are not connected.
9HDMI OUT HDMI signal output port, connected to HDMI display device.
10 USB
DEVICES
Two USB device ports, connected to U disk, mouse or
keyboard.
11 L/R OUT Analog audio output port, used for audio de-embedding
output.
12 RS-232 RS-232 serial port, used for serial port command transmission.
13 DC 24V
DC 24V/1A power supply input port.
Note that the extender supports POC function, it means
that either transmitter or receiver is powered on by 24V/1A
power adapter, the other one doesn’t need power supply.
14 POC switch Use the switch to turn on/o POC function.

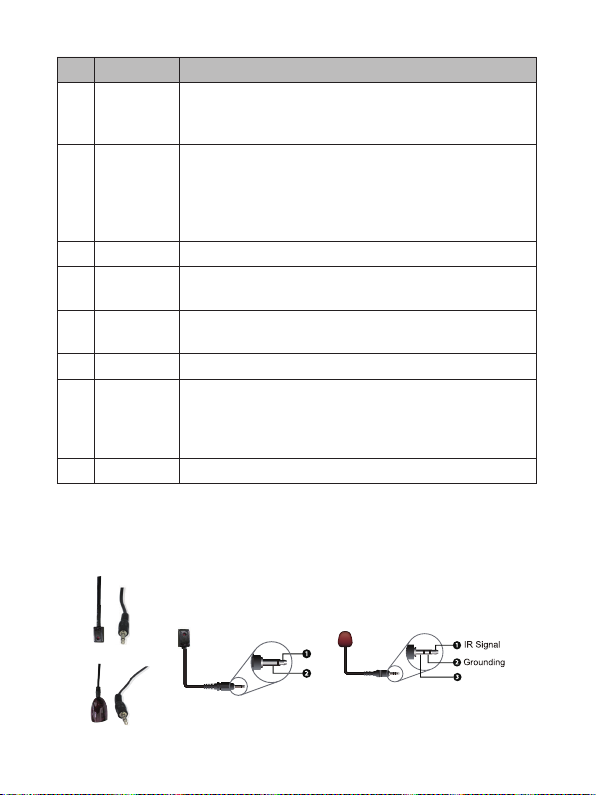

IR Pin Denition
IR Receiver and Blaster pin’s denition as below:
IR RECEIVER
IR BLASTER
Power 12V
IR RECEIVER
+
-
IR BLASTER

10

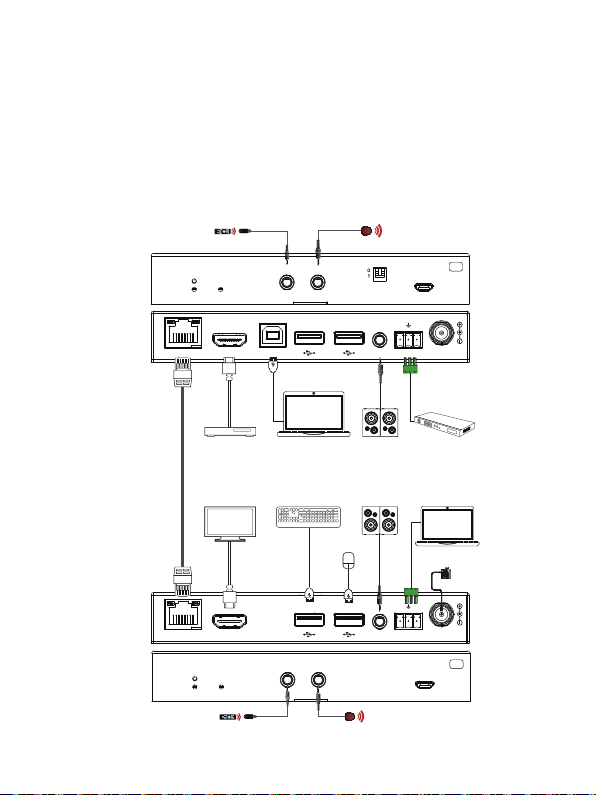

5. Application Example
Transmitter
Receiver
PC1
Power Supply
CAT6A cable
Keyboard
IR Receiver IR Blaster
IR Receiver IR Blaster
PC2TV
SERVICE
LINK
IR IN IR OUT
EDID
TX
RS-232L/R OUTUSB HOSTHDMI INHDBaseT OUT DC 24V
TX RX
SERVICE
LINK
IR IN IR OUT
RX
RS-232L/R OUTHDMI OUTHDBaseT IN DC 24V
TX RX
DVD or Blu-ray Player HDMI Matrix with
RS-232 function
LAN
LAN
Mouse
Speakers
Speakers
Note: When the angle between the IR receiver and the remote
control is ± 45 °, the transmission distance is 0-5 meters; When the
angle between the IR receiver and the remote control is ± 90°, the
transmission distance is 0- 8 meters.
