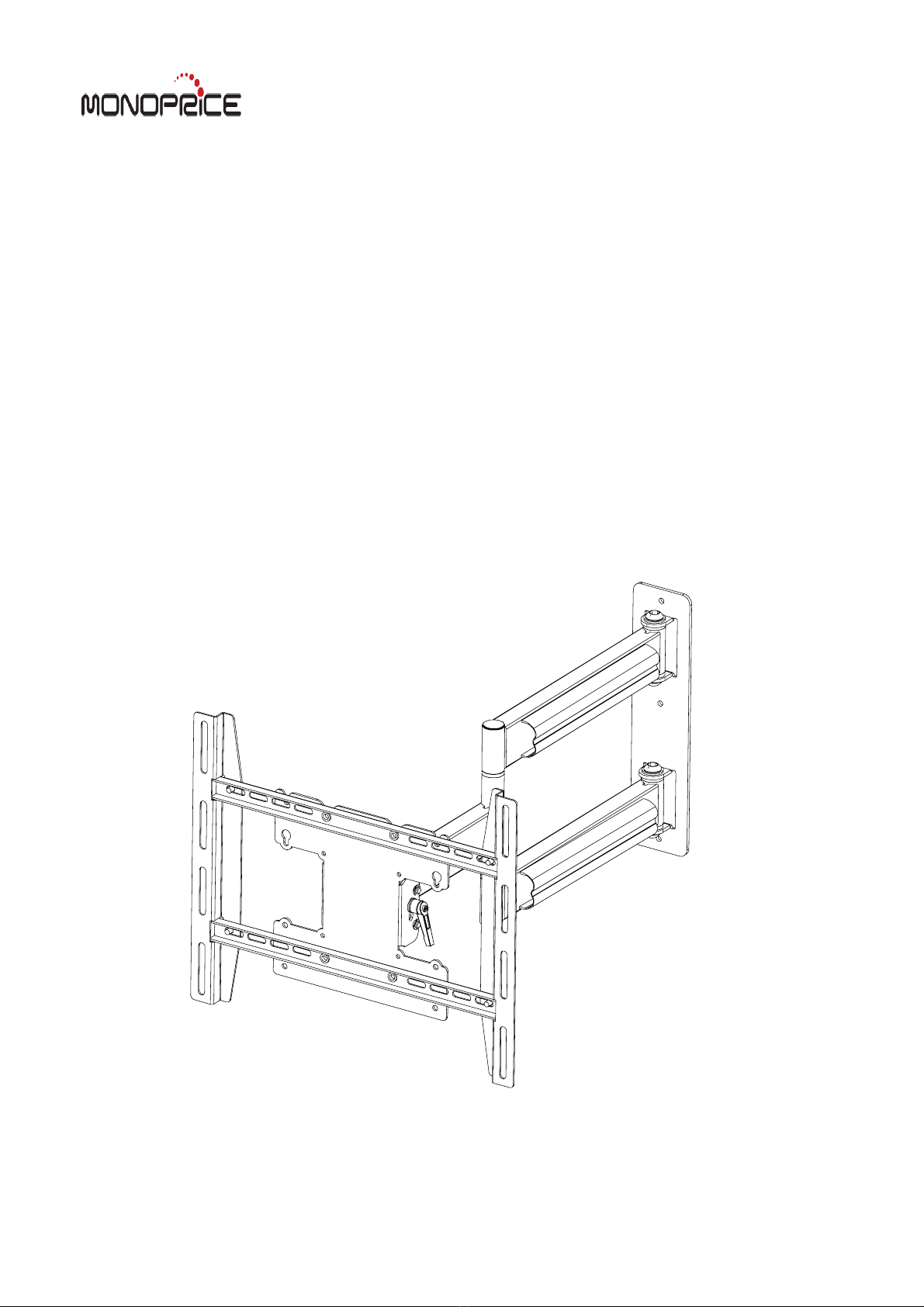

Monoprice MUA-46 User manual

INSTALLATION GUIDE
Flat Panel Arm Mount
MUA-46
Support 32" to 46" Screens
Max Load Capacity: 125 lbs (57 kg)
VESA 300x400 compatible

2 of 7
Table of Contents
Parts List .......................................................................................................................................................................... 3
Installation to Single Wood Stud Wall ................................................................................................................................... 4
Installation to Solid Concrete and Cinder Block .................................................................................................................... 5
Mounting the Assmbly Adapter Plate to screen
Attach Assembly Adapter Plate to Assmbly Arm
..........................................................................................................
..........................................................................................................
. 6,7
Cable Management ............................................................................................................................................................. 8
8
Tools Needed for Assembly
•stud finder ("edge to edge" stud finder is recommended)
•phillips screwdriver
•pencil
•drill
•3/16" drill bit for wood studs, 5/16" drill bit for concrete
•level
•tape measure
•Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before
attempting to begin your installation.
•This product should only be installed by someone who has a basic knowledge of buiding construction,installations and fully
understands these instructions.
•Make sure that the supporting surface will safely support the combined load of the mount, the display and all
attached hardware and components.
•This wall bracket will only supporting flat panel displays(LCD,Plasma).The maximum load capacity is 125pounds.
•If mounting to a wall of wood stud construction, be sure that mounting bolt are anchored to the center of the
studs.
•Always have someone assist you to lift and position your equipment.
•Tighten screws and bolts firmly, but do not over tighten. Over tightening can damage the items and greatly reduce
their ability to hold. Please refer to suggested torque values where applicable in these instructions.
WARNING

3 of 7
B C D EA
F G H
AA
BB CC
￠19x8.2x￠19.6(x4)
￠6.2x1.5x￠13(x4)
￠12.7x6.0x￠12.7(x4) M6x60(x3) M6x40(x3)
spacer
spacer cross slotted head screw concrete anchor
M6x16(x4)
M6x12(x4) M8x12(x4) (x4)
philips pan head screw
M6x30(x4)
philips pan head screw
M8x16(x4)
philips pan head screw
M8x35(x4)
philips pan head screw
with your product.
Parts may appear slightly different than illustrated.
Before you b egin, make sure all parts shown are included

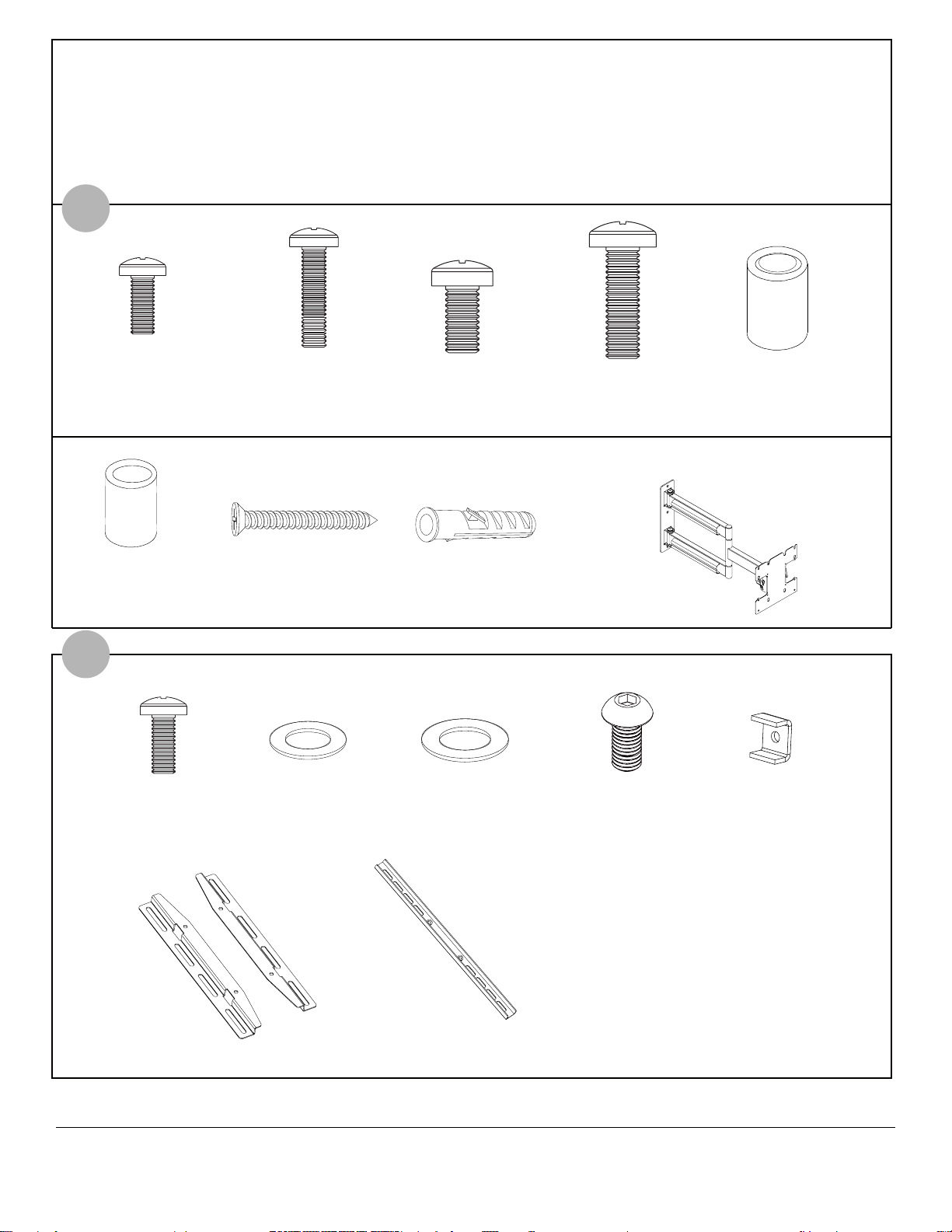

Parts List
1
2
￠16x1.5x￠8.2(x4)

4 of 7
fig. A.1
5"
(127 mm)
CS = center of screen
STUD
CS
AA
AA
G
Using a stud finder, locate and mark the edges of the wood stud. Use of an edge to edge stud finder is highly
recommended. Use a level to draw a vertical line down the center of the stud. Use the wall plate of the mount(AA)
as a template to
as shown in figure A.1. Drill three 3/16" (5 mm) dia. pilot holes 2" (76 mm) deep. Attach the mount(AA)
to wall using three M6 X 60 cross slotted head screw (G) as shown in fig. A.2. Level the plate, then tighten all fasteners.
Installation to Single Wood Stud Wall
•Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
•Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
•Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highly recommended.
•Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Installers
are responsible for providing hardware for other types of mounting situations.
WARNING
fig. A.2
STUD
A

5 of 7
Installation to Solid Concrete or Cinder Block
Use wall plate (AA) as template to mark mounting
holes.The top mounting hole should be 5" above the
desired screen center as shown in figure A.1 on page 4.
Drill three 5/16" (8 mm) dia. holes 2" (50 mm) deep as
shown in fig. B.1. Insert concrete anchor (H
secure with M6x 60 screws ( G). Level, then tighten all
fasteners.
•When installing the wall mount to cinder block, verify that you have a minimum of 1-3/8" of actual solid concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specifications.
It is recommended that a standard electric drill set on a slow setting is used to drill the hole instead of a hammer
drill to avoid breaking out the back of the hole when entering a void or cavity.
•Concrete must have a 2000 psi density minimum. Lighter density concrete may not hold the concrete anchor.
•Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
CUTAWAY VIEW
INCORRECT
concrete
surface
1
3
2
H
Drill holes and insert anchors (F).
CORRECT
Place wall plate (D) over anchors (F) and secure with screws (E).
Tighten all fasteners.
wall plate
plaster/
drywall
concrete wall plate concrete
plaster/
drywall
•Always attach concrete anchors directl to load-
bearing concrete.
•Never attach concrete anchors to concrete covered
with plaster, drywall, or other finishing material. If
mounting to concrete surfaces covered with a finishing
surface is unavoidable, the finishing surface must be
counterbored as shown below. Be sure concrete
anchors do not pull away from concrete when tighten-
ing screws. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by the installer.
WARNING
•Tighten screws so that wall plate is firmly attached,
but do not overti hten. Overtightening can damage
screws, greatly reducing their holding power.
WARNING H
G
B
solid concrete
fig. B.1
cinder
block
y
g

6 of 7
Top of
Display
*For screen with a hole
pattern in a pocket,spacers
go between Assembly
Adapter Plate and screen. Spacers
Mounting
Screw
M6&M8
Hole
M5 Hole
Square
spacer
Note:
Recessed Mounting Holes.
If the mounting holes are recessed
into the back of the display, use the
supplied spacers to pack the
recessed hole. If the mounting
screw is M5&M6,use the
Spacers1.(K.1.)If the mounting screw
is M8,use the Spacers 2.(K.2.)
Ensure that the brackets are

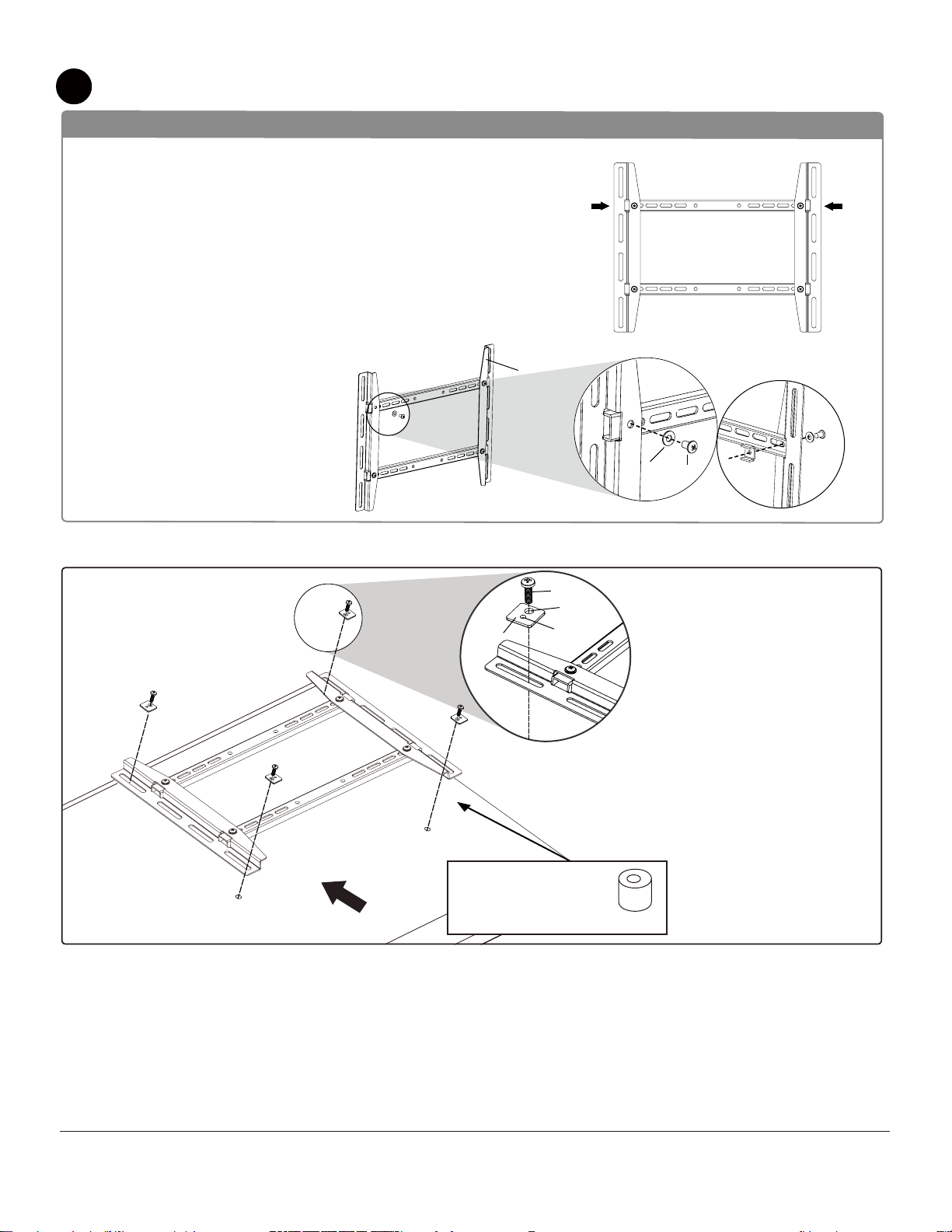

Mounting the Assembly Adapter Plate to screen
Modify the Adapter Plate
B
Adaptor and hooks
Adaptor and hooks
Adaptor Modify the Assembled Adapter Plate
Slide the adapter brackets into Assembled adapter plate slightly.
Place the Assembled Adapter Plate on the back of the display with
one Adapter Bracket aligned with a set of vertical mounting
holes.Then,slide the other Adapter Bracket in or out until it aligns
with the second set of vertical mounting holes.The Adapter should
be horizontally centered on the back of the flat panel display.
Adaptor and hooks Use four M6x16 screws and four iron spacer
and tighten it with Phillips Head Screw Driver.
Adapter
Bracket
Screw
iron spacer
Back of Screen
securely fixed to the display.
C

7 of 7
•Do not remove or loosen screw while the mount is in use. Doing so may cause the screen to fall.
WARNING
Note:
Make sure cords have enough slack to allow
full movement of the arm. Route cords inside
F
arm slots of wall arm assembly (AA) as shown
in fig.F.1.For demonstration purposes, the wall
has been omitted from the image.
Cable Management
Adjust tension knob on side of mount as shown in fig
.
E.1 to desired tension to balance your screen size
and weight.
The tension knob, without changing the bracket tension
,
can be pulled out, away from the bracket and turned
independently of the knob post for readjustment as
shown in
fig.E.2.
Push or pull from top or bottom of screen to adjust
tilt as shown. The tilt can be adjusted to a maximum
of -5° forward or +15°backward.
E
•Be careful not to pinch fingers when opening and
closing mount from the wall.
CAUTION
fig.F.1
fig. E.1
fig. E.2
top screw
1. Insert two M8x15mm screw bolt
and two metal washers into swivel box
on Assembly Adapter Plate as above
shown.
Leave approx. 1/4" of exposed thread.
2. Lift the display and hook it
over the mounting head by lowering
the exposed portion of the top screws
down the open key slots.
3. Once in position, attach the bottom
two M8x15mm screws and two Iron
washers to secure the display to the
mounting head using M5mm Allen
Wrench.
Attach Assembly Adapter Plate to Assembly Arm
D
