Monster PARTY MNX6 User manual

User Manual
Party
Party
Party
ALL-IN-ONE PA SPEAKER

INDEX

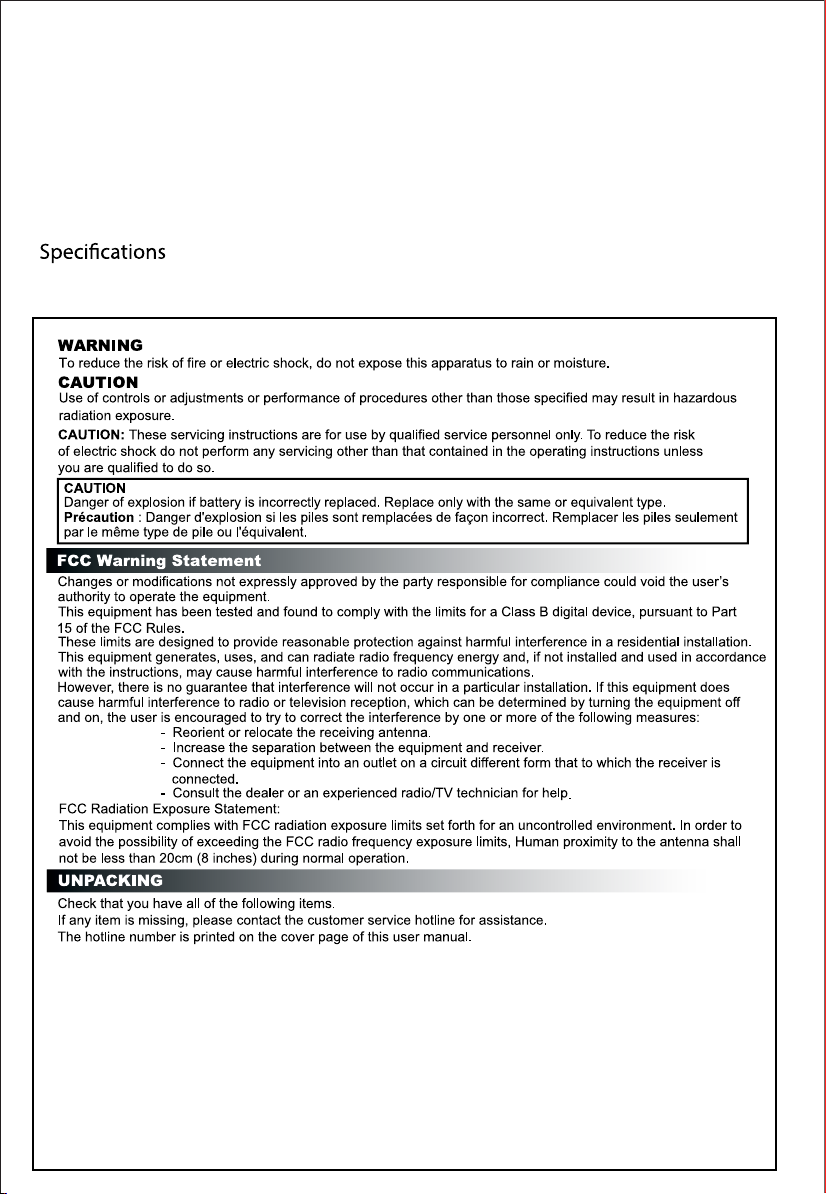

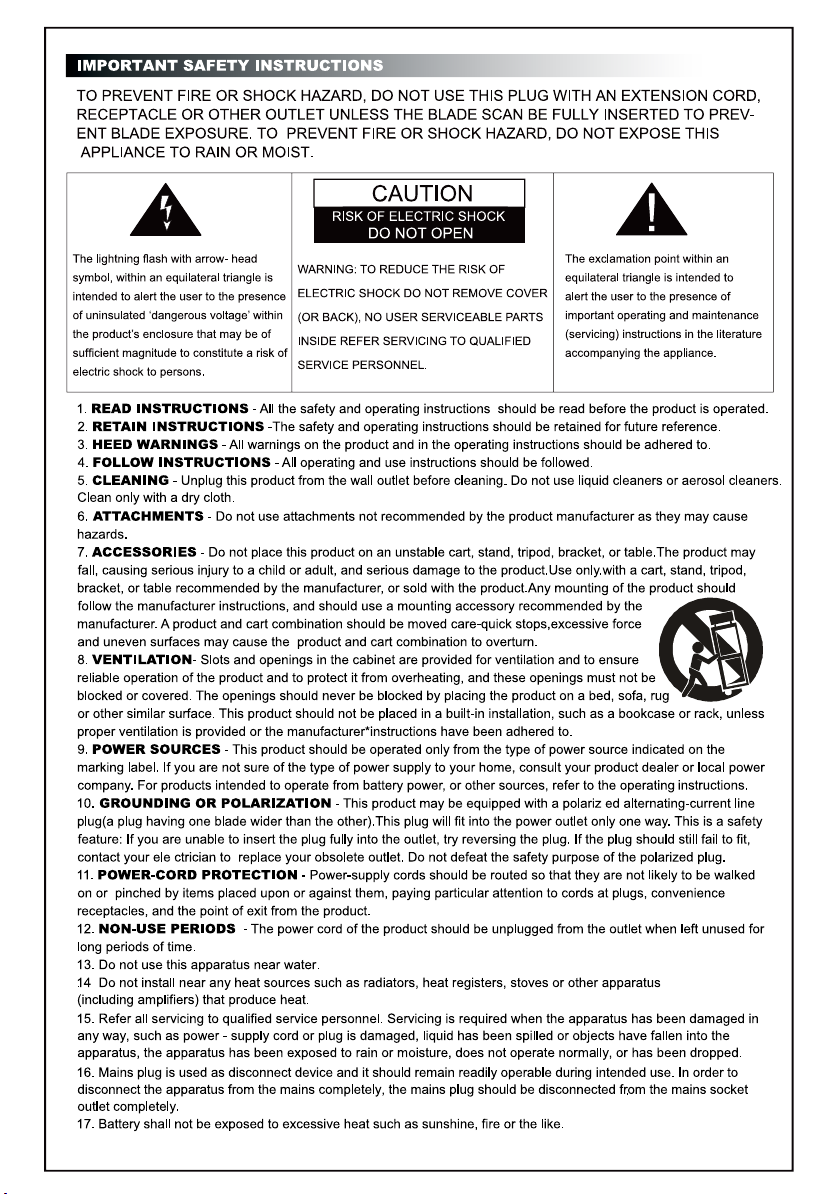

Warnings ...............................................................................................................................
...............................................................................................................................
2
User’s General Instructions
................................................................................................ 4
Features and Functions
................................................................................................. 5
Warranty 7
........................................................................................................................ 6
2
- Monster Rockin’ Roller Party
- AC Power Cable
- Wired Microphone
- Telescoping Tripod Speaker Stand
- User Manual (with Warranty Statement)
- Quick Start Guide

IC Statement:
This device complies with Industry Canada’s licence‐exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.

3

CONTROLS AND CONNECTIONS
1. LED Display
2. USB (MP3 Playback) Port
3. BT (Bluetooth® Source) Button
4. Source Button
5. Previous (back arrow) Button
6. Next (forward arrow) Button
7. Play (/Pause) Button
8. Number (Preset) Buttons
9. Master Volume Knob
10. Microphone 1 Gain Knob
11. Microphone 2 Gain Knob
12. Microphone 1 Echo Knob
13. Microphone 2 Echo Knob
14. Microphone 1 (/Instrument) ¼" Input
15. Microphone 2 (/Instrument) ¼" Input
16. Microphone 1 XLR Input
17. Microphone 2 XLR Input
18. AC Input
19. Repeat Button
20. Power (Green) LED Indicator Light
21. Bluetooth® (Blue) LED Indicator Light
22. Lighting Button
23. TWS (Connection) Button
24. Bass (Boost) Button
25. Bass/Treble Button
26. AUX-in (3.5mm)
27. Microphone XLR-In
28. Microphone XLR-Out
29. On/O Switch
30. Segment LED
31. Power Icon
32. USB Audio Source Icon
33. AUX- In Source Icon
34. FM Radio Icon
35. Bluetooth® Source Icon
4
4
5
10
11
14
15
16
18
30
17
13
12
2
1 19
22
23
24
25
6
7
9
8
21
27
26
28
29
20
3
31
32
34
35
33

5
Power ON/OFF Switch:
•Toggle switch to ON position:
1. Green power LED Indicator light and LED Display will power on.
2. The unit voice promp will say, “Power on.”
3. Automatically enters into Bluetooth® pairing status
•Toggle switch to OFF position:
1. All LED Indicators and LED Display will turn o.
2. The unit voice promp will say, “Power o,” before powering down.
Play (/Pause) Button:
•Play/Pause Button only works with Bluetooth® source:
• While audio is playing, press the Play Button to pause playback.
• While audio is paused, press the Play Button to resume playback.
BT (Bluetooth®) Button:
•Switch to Bluetooth® Audio Source:
1. While in another audio source, press the BT Button to switch to Bluetooth® mode
or cycle though audio sources using the source button.
2. The unit will automaticelly disconnect from the current device.
•Bluetooth® pair audio device:
1. Set unit source to Bluetooth®.
2. Long press BT Button for 2 seconds to enter into pairing status.
3. Select “MNX6” from your Bluetooth® enabled audio device.
4. The unit voice promp will say, “Connected,” when successfully paired.
5. The blue Bluetooth® indicator light will remain on.
6. If the signal moves out of range the blue Bluetooth® indicator light will blink and
disconnect if the connection is not restablished after 5 minutes.
•Disconnnect Bluetooth® audio device connection:
1. Set unit source to Bluetooth®.
2. Long press BT Button for 2 seconds to enter into pairing status.
3. The unit voice promp will say, “Disconnected.”
4. The blue Bluetooth® LED Indicator light will begin to ash.
5. Unit will enter pairing status.
6. The unit voice promp will say, “Pairing.”
•Clear Bluetooth® pairing history:
1. Set unit source to Bluetooth®.
2. Long press BT Button for 8 seconds to clear information.
3. Unit will enter pairing status.
4. The unit voice promp will say, “Pairing.”
5. The blue Bluetooth® LED Indicator light will begin to ash.

6
Master Volume Knob:
•Incress overall volume in playback mode :
• Defualt volme level is 10.
• Rotate master volume knob clockwise. The power LED Indicator blinks when
the max level of 32 is reached.
•Decrese overall volume in playback mode:
• Rotate master volume knob counter-clockwise. The power LED Indicator blinks
when the minimum volume level of 0 (mute) is reached.
Microphone Control:
•XLR & ¼" Ports (Mic 1 and Mic 2):
• Except XLR and ¼" microphones/instrument inputs
• LED display will show the mic icon when a microphone is plugged-in.
•Gain Knob (Mic 1 and Mic 2):
• Rotate the gain knob clockwise to incresse or counter-clockwise to decrease the
level on each channel.
•Echo Eect Knob:
• Rotate the echo knob clockwise to incresse or counter-clockwise to decrease the
level on each channel.
REPEAT Button:
•This function is only available though the USB mode. Short press the REPEAT button
to select one of three status settings:
1. Repeat ALL (tracks). “ALL” will be showen on the LED display.
2. Repeat ONE (track). “ONE” will be showen on the LED display.
3. Repeat OFF. “OFF” will be showen on the LED display.
Previous & Next (arrow) Buttons:
•FM radio source controls:
• LED display FM indicator icon will light up in FM mode.
• Short press the previous or next button to adjust the FM radio frequency shown on
LED display.
• Long press the previous or next button to search for radio stations.
•Bluetooth® source controls:
• LED display BT indicator icon will light up in Bluetooth® mode.
• The previous/next buttons will change the audio track.

7
SOURCE Button:
•Short press the SOURCE button to cycle though the dierent audio sources:
BT (Bluetooth®), USB, AUX, FM (radio).
1-6 Number Button:
•Equilizer presets available in BT (Bluetooth®), AUX, USB audio sources.
1. Short press a number (1-6) button to set the preset. The LED display will show the
selected equilizer setting: “Eq-1, Eq-2, . . . Eq-6.”
•Save and select FM Radio station presets.
1. Short press a number (1-6) button to set the preset station. The LED display will
show the selected preset: “P1, P2, . . . P6.”
2. Long press a number (1-6) button to save an FM radio station as a preset. The LED
display will show the saved preset: “P1, P2, . . . P6.”
TWS Button (True Wireless Dual Pairing):
•TWS pairing (make sure both unit A and B are in close proximity to each other):
1. Long press the TWS button to enter into pairing status. The Bluetooth® indicator LED
will alternate ashing blue and red.
2. Press and hold the TWS button of unit A to enter TWS searching mode while unit B
is set to Bluetooth® pairing mode.
3. The unit A (TX) Bluetooth® indicator LED will light up purple when connected, while
the indicator LED for unit B (RX) will be solid red. The unit voice promp will
say, “Synchronized.”
•Disconnect TWS:
1. Short press the TWS button.
BASS/TREBLE Buttons:
•Bass adjustment in working mode:
• Press the BASS/TREBLE button once to enter bass level status.
• The LED display will show the default setting of “b 00. ”
• Turn the VOLUME knob clockwise to increase or counter-clockwise to decrease levels
between -06 to 06.
•Treble adjustment in working mode:
• Short press the BASS/TREBLE button twice to enter treble level status.
• The LED display will show the default setting of “t 00. ”
• Turn the VOLUME knob clockwise to increase or counter-clockwise to decrease levels
between -06 to 06.

XLR Out:
•While in audio sources: AUX-in, BT (Bluetooth®), FM radio, or USB, connect the unit to
another active (powered) speaker via the XLR line out.
BASS Button:
•Press the button to turn on/o the BASS (boost). The LED will display “b on” or “b o.”
LIGHTING Button:
•Short press the LIGHTING button to cycle through the 15 available light modes. The LED
display will indicate mode number: “L01, L02, L03 . . . OFF.” Modes included: SWIRL-->
DANCE-->FOLLOW-->DYNAMIC-->SPIN-->SPARK-->SUNSET-->MOOD-->PACE-->RED-->
GREEN-->BLUE-->AMBER-->PURPLE-->TEAL-->OFF
•Long press the LIGHTING button to turn o the RGB LED lights.
Technical Specs:
•600 Watts RMS Audio Power
•Sub-woofer: 15'' (inch)
•Passive Radiators
•Bluetooth® 5.0
•Audio File Supported: .mp3, .wma, .wav
•Frequency Response: 3.40Hz–20KHz
•
Product Dimensions (L x W x H) Inches:
• Product Dimensions (L x W x H) mm:
•Tweeter: 1'' (inch)
•AC Power 100-240 Volt
•THD + Noise: <4.10%
•S/N Ratio: >65dB
•Max SPL: >99dB
•RGB LED Lights

Model: MNX6
