Ceiling Fan Installation Instructions
For 5EPR60BRD Series Fans
READ AND SAVE THESE INSTRUCTIONS
Total fan weigh
with light

Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70-
1999), including fire-rated construction.
Use this unit only in the manner intended by the manufacurer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on the other side of the outlet box.
Before you begin installing the fan, Switch power off at Service panel and lock service disconnecting means to prevent power from being switched
on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor to the trailing edge of the blade.
WARNING – Risk of fire, electric shock, or personal injury, The fan in this box may be either directly supported from a structural framing member of
a building and/or may be mounted to an outlet box marked acceptable for fan support of 31.8 kg. (70 lbs.) or less. Most outlet boxes commonly
used for the support of luminaires may not be acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
NEVER place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating equipment
manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.

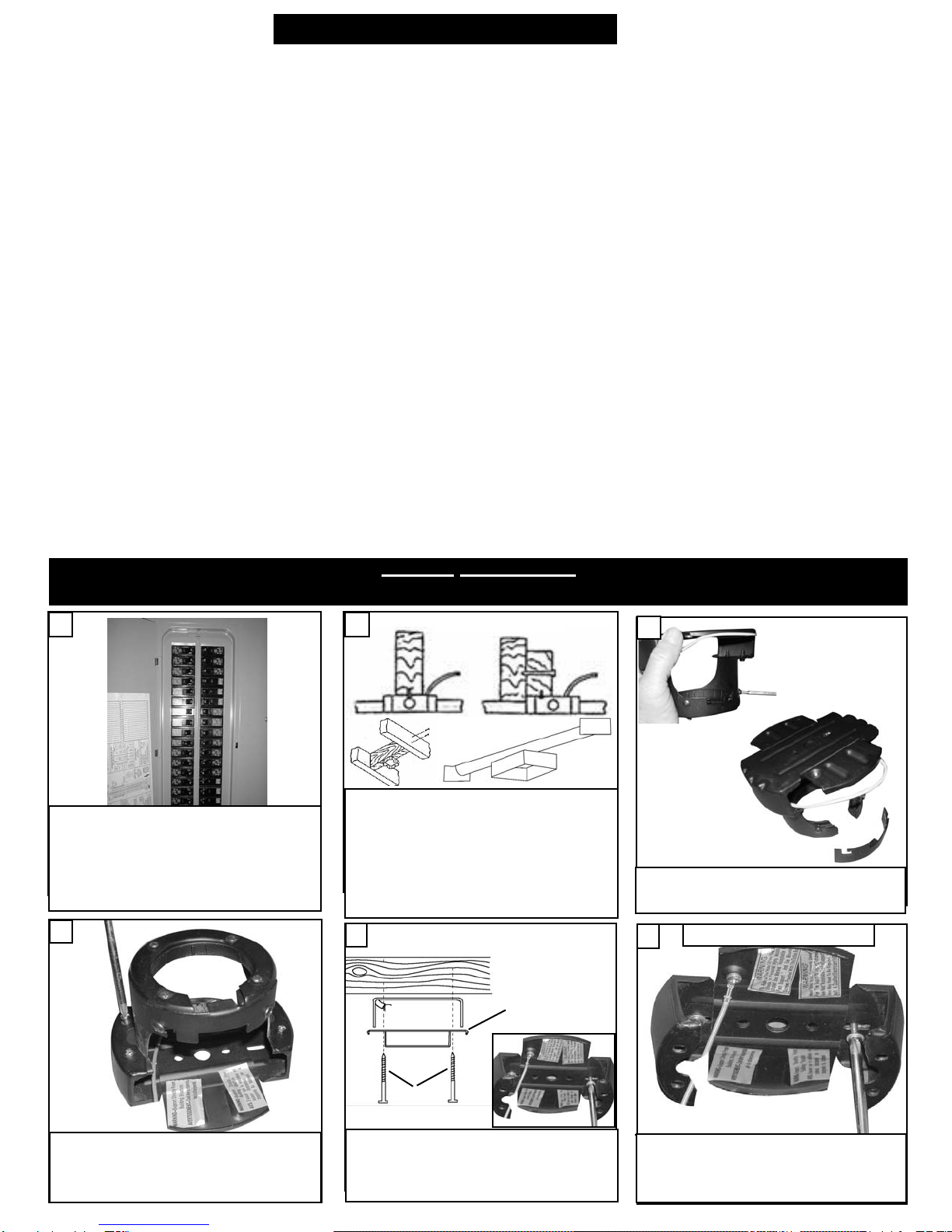

Installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS
SAFETY TIPS
TTOOOOLLSSRREEQQUUIIRREEDD
PPhhiilllliippssSSccrreewwddrriivveerrWWiirreeCCuutttteerrssPPlliieerrssSStteeppLLaaddddeerr
Before you begin installing the fan, Switch
power off at Service panel and lock service dis-
connecting means to prevent power from being
switched on accidentally. When the service dis-
connecting means cannot be locked, securely
fasten a prominent warning device, such as a
tag, to the service panel.
Warning-Risk of fire, electric shock, or person-
al injury. The fan in this box may be either
directly supported from a structural framing
member of a building and/or may be mounted
to an outlet box marked acceptable for fan sup-
port of of 31.8 kg (70 lbs) or less. Most outlet
boxes commonly used for the support of lummi-
naires may not be acceptable for fan support
and may need to be replaced. Consult a quali-
fied electrician if in doubt.
21 OUTLET BOX METHOD
Remove Safety bar from mounting bracket by
loosing screws, sliding bar to side, and lifting it
off the 2 screws.
3
Secure mounting plate directly to a joist from
the buliding structure via the two knock out
holes on the outlet box. Use only the appropri-
ate wood screws and washers included with
your fan. Caution: Wood screws must go
through into the building joist.
5
Outlet boxMounting
Plate
Wood
Screws
BUILDING STRUCTURE METHOD
Remove the 4 screws attaching the Mounting
neck the mounting plate. Retain the 4 screws
for re-assembly.
4
Install the mounting Plate to approved fan
brace and box combination use only the hard-
ware provided with the fan brace and box.
6FAN BRACE AND BOX METHOD

Loosen lock nuts and screws on yoke
till you can not feel screw on inside
of yoke.
Remove keeper from cross pin and
then cross pin from yoke. Replace
keeper on cross pin and save.
9
10
Lift mounting neck to mounting Plate and align
screws.
7
Secure mounting neck to the mounting plate
with four screws to become a complete mount-
ing bracket.
8
Loosen set screw that holds ball.
11
Slide ball down and remove pin save
pin for later.
12
Install yoke cover over downrod onto
fan body. Install canopy onto downrod.
17
16
Install downrod into yoke. Align hole
in downrod with hole in yoke and
install cross pin. Install keeper into
cross pin.
14
Tighten 2 downrod set screws and
lock nuts.
15
Thread leadwires and safety cable
through downrod.
13
Thread leadwires and safety cable
through ball.
18

Place ball on downrod. Replace pin
removed earlier and pull ball up so that
the pin fits in the notches in the ball.
19
Tighten set screw to hold ball in
place.
20
Attach blade arms to blades using
the blade arm screws and washers
provided.
28
Check the motor for plastic shipping sta-
bilizer tabs and remove if they are pres-
ent. The screws, washers and motor pads
are pre-installed to the blade holders.
Attach blade assembly to motor and
tighten screws securely.
29
Loosen 2 screws and remove 1
screw. Save screw removed.
30
Raise fan with downrod assembled to
the ceiling bracket and hang fan
assembly. Be sure to rotate the
downrod ball so that the notch in the
bracket engages the slot in the ball.
22
Set dip switches on the Remote Transmitter and Remote
Receiver to the same settings. This must be done so the
units will communcate properly. If you have other fans you
can set to control from one transmitter by setting both
receivers the same as the transmitter. If you have more
than one fan with remote. You can set the dip switches to
different positiosns to have seperate control.
Remote Transmitter Dip swtiches
Remote Receiver Dip switches
21
Install remote receiver by sliding into opening in
the Mounting bracket. Make sure that the dip
switches on the Transmitter and the Receiver
are set to the same position. See Fig 42 for
remote operation
24
Fan and light kit combinations over 35 lbs,
in both flush and downrod mode the safety
cable must be installed into the house struc-
ture beams using the 3” lag screws,washers,
and lock washers. provided. Make sure that
when the safety cable is fully extended the
lead wires are longer than the cable and no
stress is placed on the lead wires.
23 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw lock
washer
washer
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
26
Lift canopy to ceiling aligning the key hole slots
with the screws on the bottom of the mounting
bracket. Rotate the canopy counter clockwise
to lock in place. Tighten the screws to secure
the canopy. See inset for keyhole shape
27
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Blue from fan to blue from remote marked
light. Black from fan to Black from remote
marked L. White from house to white from
remote marked AC N . Black from house to
Black from remote marked AC L. Connect all
green ground wires to Ground wire from
House.
white
black
25

Loosen 3 screw on light plate as
shown. Plug white wire from fan to white
wire from light kit. Then plug black
wire from fan to black wire from light
kit.
32 33
Place light kit over screws and twist
direction of arrow into place. Then
tighten all 3 screws securely.
34
Install glass onto light kit, install
rubber washer and hex nut to hold in
place and tighten in direction of
arrow.
36
Install 3 x 40 watt incandescent can-
delabra bulbs. Bulbs not included.
35
Install finial cap and tighten in direc-
tion of arrow.
37
Twist lower cover plate into place by
twisting in direction of arrow.
Replace 1 screw removed and tighten
all 3 screws securely.
31
Remove cover by snaping off from top or bot-
tom. Remove battery cover. Install 12V battery
into wall remote. Duracell MN21 / Eveready A23
/ GP 23A all 12V.Attach cover of remote by plac-
ing over buttons and snap the battery cover in
place.
Place face plate over battery compartment and
buttons. Place remote over 2 pins on front
cover. Attach cover of remote by placing over 4
pins and snaping into place.
Install wall control unit to outlet box
using machine screws provided.
33
Attach front cover to wall control
with screws provided. Snap battery
cover in place.
34
32
31 HAND HELD INSTALL
WALL MOUNT INSTALL

Remote Control Transmitter Features:
FAN SPEED Depress “l dot” for low speed, “2 dots” for medium or “3 dots” for
high. To turn fan off press square”.
LIGHT DIMMER To turn light on, press light dimmer once quickly. To turn off
press once quickly while light is on. To dim light hold down button “light dimmer”.
The light will cycle from bright to dim to bright until button is released. Light will
maintain last setting if turned off.
FORWARD/REVERSE Depress rev button allow a few seconds for remote to
change rotation direction with fan running.
HIGH SPEED
MEDIUM SPEED
LOW SPEED
FAN OFF SETTING
(Turns fan off only)
FAN REVERSE
(Press once to
change direction of
the fan)Fanmust be
running to reverse.
LIGHT ON/OFF SET-
TING AND DIMMER
(Press and hold to
dim light infinitively)
LED LIGHT

1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
3.Check to make sure the dip switches from the transmitter and receiver are set on the same
frequency.
CAUTION: Make sure main power is turned off
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Some fan motors are sensitive to signals from Solid State variable speed controls. DO
NOT USE a Solid State variable speed control.
5.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear
after this period.
1.Make sure that the ridge of the canopy engages the notch in the downrod ball.
2.Check that all blades are screwed firmly into blade holders.
3.Check that all blade holders are tightened securely to motor.
4.Make sure that canopy and mounting bracket are tightened securely to ceiling junction box
and junction box is mounted firmly to ceiling joist.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance from
blade tip to ceilng. Keeping measure within 1/8", rotate the fan until the next blade is posi-
tioned for measurement. Repeat for each blade. If all blade levels are not equal, you can
adjust blade levels by the following procedure. To adjust a blade tip down, insert a washer
(not supplied) between the blade and blade holder at the screw closest to the motor. To
adjust a blade tip up, insert washer (not supplied) between the blade and blade holder at the
two screws farthest from the motor. Reverse the position of the washer if blades mount from
top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1.Check wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulbs.
CAUTION: Make sure main power is turned off before entering switch housing.
2. If fan sounds noisy:
1. If fan does not start:
3. If fan wobbles:
4. If light does not work:
Trouble Shooting
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation,
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty
in installation, please call our Customer Service Center at the number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service dis-
connecting means to prevent power from being switched on accidentally. When the service dis-
connecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
Trouble Suggested Remedy
Customer Service Center:
301 West Washington St.
Riverside,NJ 08075
1-800-519-4092
www.montecarlofans.com

6/21/06 REV.0 New made from 5GMR manual
