Ceiling Fan Installation Instructions
For 5STR52 Fan
READ AND SAVE THESE INSTRUCTIONS
Total fan weight

Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes an 70-1999), including
fire-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding con-
ductor on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
Before you begin installing the fan, Switch power off at Service panel and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the floor to the trailing edge of the blade.
To reduce the risk of fire, electric shock, or personal injury, mount to outlet box or supporting system acceptable for fan support.
(Mounting must support at least 35 lbs.)
Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating
blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
NEVER place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating
equipment manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.

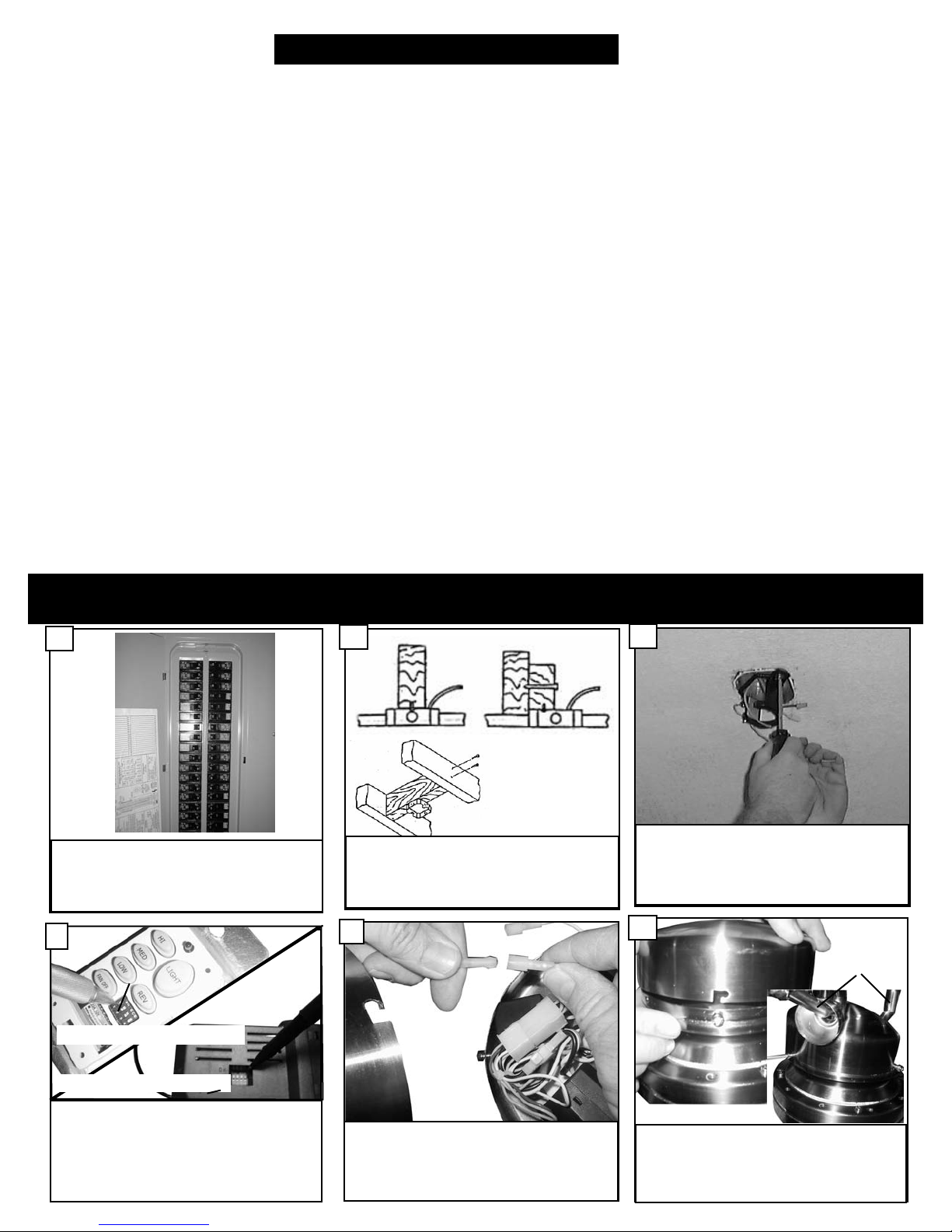

Installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS
SAFETY TIPS
TOOLS REQUIRED
Phillips Screwdriver Wire Cutters Pliers Step Ladder
Before you begin installing the fan, Switch power off
at Service panel and lock service disconnecting means
to prevent power from being switched on accidentally.
When the service disconnecting means cannot be
locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
Before installing this fan make sure the outlet
box is properly installed to the house structure.
To reduce the risk of fire, electric shock, or per-
sonal injury, mount to outlet box or supporting
system acceptable for fan support.
(Mounting must support at least 35 lbs.)
Install the Mounting Bracket to the Outlet box.
Use only the screws provided with the out-
let box.
If using the light kit find wires from light and
fan body. Plug wires together as follows.
Connect blue wire from fan to black wire from
light. Connect white wire from fan to white wire
from light.
3
2
1
5
Use caution with the sloted fitter arms, do not
force the fitter arms in assembling when using
the light kit. Screw in the 2 allen screws then
place switch housing cap with slots as shown
on the 2 screws and twist.
6
Slotted fitter
arms
Set dip switches on the Remote Transmitter and Remote
R
eceiver to the same settings. This must be done so the
units will communcate properly. If you have other fans you
can set to control from one transmitter by setting both
receivers the same as the transmitter. If you have more
than one fan with remote. You can set the dip switches to
different positiosns to hav
e seperate control.
Remote Transmitter Dip swtiches
Remote Receiver Dip switches
4

Loosen the 3 screws with slots and remove the other
3screws. Save the screws.
Take the last allen screw and align with hole in
the switch housing cap or light kit, then tighten
all 3 allen screws securely.
To remove the top motor cover twist the cover
and remove this will allow acesss to the screw
holes for the blade arms.
Place blade arm over label on the fan body and
tighten the 2 screws in the blade arm to the
fan body.
97
12
8
Place medallion in blade for long blade arm.
Repeat for each blade.
14
When attaching the second blade and arm to
fan it should go under the first blade as shown
in photo. Repeat for the other blades and arms.
13
Attach long blade arm to medallion with 2
screws, only start screws. Repeat for each long
blade arm.
15
Attach the long blade arms to motor after attach-
ing to blade. Tighten screws to motor securely
and repeat for each blade arm. Caution go back
and securely tighen screws in step 15.
16
Thread wires and safety cable through motor cover.
17
Place motor cover over 3 screws and twist
cover into position. Take 3 screws removed ear-
lier and replace, tighten all 6 screws securely.
18
Place medallion on side of blade not marked
this side up. Flip the blade over and attach
short arm to set of holes that are closest to the
corner of the blade. The remaining set of holes
is for the long arm. Repeat for each blade.
10
Use this label on the fan body for the first blade arm
starting position. Use caution with blade arms and
blades. Any pressure on blade arms or blades
such as holding fan by blades or blade arms can
create problems of blade pitch deviation or
deforming blade arms.
11
Label

Tighten both yoke set screws to further secure down-
rod.
23
Install cotter pin into cross pin to secure.
22
Align holes in downrod and holes in yoke and install
cross pin.
21
Loosen the 2 yoke screws.
20
Make wire connections as per above diagram.
Connect the white wire from the fan to the
White or Neutral wire from the power source.
Connect the black wire from the fan to the
Black or hot wire from the power source.
Connect all Green / Yellow wires from the fan,
Downrod and mounting bracket to the Ground
wire from the house.
27
For Canadian installation in both flush and
downrod mode the safety cable must be
installed into the house structure beams using
the 3” lag screws provided. Make sure that
when the safety cable is fully extended the
leadwires are longer than the cable and no
stress is placed on the leadwires.
25 CCaannaaddiiaannmmoouunnttiinnggoonnllyy
Safety Cable
Lag Screw
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
26
House Fan
Black
White
Green
Black
White
Green(downrod)
Green(Bracket)
When alligned push screw in glass into the slotted
arm from light kit.
30
Use caution with the sloted fitter arms, do not
force the fitter arms. Align the 3 sloted arms with
the 3 screws in glass.
29
Plug in the 3 light bulbs by aligning the 2
prongs on bulb with holes in socket and then
push in and twist the 50 watt bulbs which are
GU10.
28
Use caution when hanging fan not to hold by blades
are put any pressure on blades or blade arms. This
could create problems of blade pitch deviation,
deforming blade arms, or scratching of
blades.Carefully lift fan assembly by fan body onto
mounting bracket. Rotate fan so that the notch on the ball
engages the ridge in the mounting bracket. This will allow
hands-free wiring.
24
PEFORM FOR LIGHT KIT IF USED
Thread wires and safety cable from fan
through yoke cover, canopy and downrod.
19
downrod
canopy
yoke cover

Install wall control unit to outlet box
using machine screws provided.
35
Attach front cover to wall control
with screws provided.
36
Install the cover of light kit holder tightly over
the screw in glass and the slotted arm from fit-
ter. (twist cover counter clockwise)
31
Lift Canopy to ceiling aligning the key hole slots
with the screws on the bottom of the Mounting
bracket. Rotate the canopy Counter Clockwise
to lock in place. Tighten the screws to secure
the Canopy. See inset for Keyhole shape
32
To control fan speed select from High, Medium
or low speed buttons. To turn the fan off press
the Fan on / off button. To dim lights press and
hold button. To turn off light press and quickly
release button. Press button marked REV to
reverse the rotation direction of the fan blades
Fan speed
control
buttons
Fan on / off
Light dimmer
for lights
Fan reverse
button
37
Remove cover by snaping off from
top or bottom. Install 12V battery
into wall remote. Duracell MN21 /
Eveready A23 / GP 23A all 12V.
33
Attach cover of remote by placing
over buttons and snaping into place.
34

1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
3.Check to make sure the dip switches from the transmitter and receiver are set on the
same frequency.
CAUTION: Make sure main power is turned off.
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Some fan motors are sensitive to signals from Solid State variable speed controls. DO
NOT USE a Solid State variable speed control.
5.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear
after this period.
1.Make sure that the ridge of the canopy engages the notch in the downrod ball.
2.Check that all blades are screwed firmly into blade holders.
3.Check that all blade holders are tightened securely to motor.
4.Make sure that canopy and mounting bracket are tightened securely to ceiling junction
box and junction box is mounted firmly to ceiling joist.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance
from blade tip to ceilng. Keeping measure within 1/8", rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. If all blade levels are not equal, you
can adjust blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade holder at the screw closest to the motor.
To adjust a blade tip up, insert washer (not supplied) between the blade and blade holder at
the two screws farthest from the motor. Reverse the position of the washer if blades mount
from top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1.Check wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulbs.
CAUTION: Make sure main power is turned off before entering switch housing.
WARNING: Before attempting to replace the fuse make sure the main power is
turned off to the fan. Replace only with 3 amp fuse. The fuse is inside the top
housing.
2. If fan sounds noisy:
1. If fan does not start:
3. If fan wobbles:
4. If light does not work:
Trouble Shooting
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation,
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty
in installation, please call our Customer Service Center at the number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service dis-
connecting means to prevent power from being switched on accidentally. When the service dis-
connecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
Customer Service Center:
740 S.W. Loop 820, Suite 110
Fort Worth, Texas 76115
1-800-519-4092
