Monte Carlo Fan Company 5WS52XXD-L Series User manual

Owner’s
Manual
Ceiling Fan Installation Instructions
For 5WS52XXD-L Series Fan
READ AND SAVE THESE INSTRUCTIONS
Total fan weight
with lights
Flush Mount -No light kit Downrod with light kit
Flush Mount -Light kit Downrod without light kit

Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70-
1999), including fire-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on
one side of the outlet box and ungrounded conductor on the other side of the outlet box.
Before you begin installing the fan, Switch power off at Service panel and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from
the floor to the trailing edge of the blade.
To reduce the risk of fire, electric shock, or personal injury, mount to outlet box or supporting system acceptable for fan support.
(Mounting must support at least 35 lbs.)
Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
NEVER place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating equip-
ment manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to prevent power from being switched
on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the
service panel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.

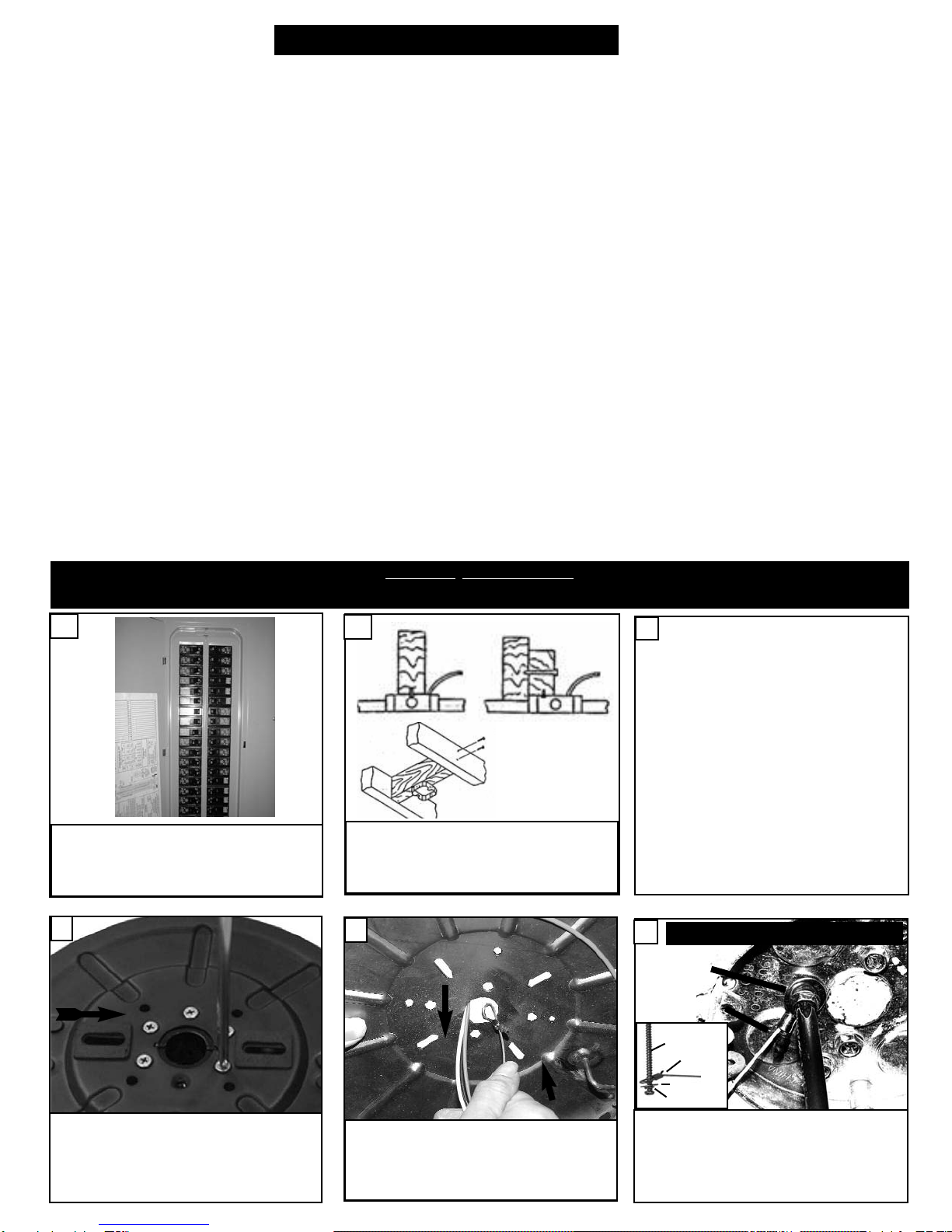

Installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS
SAFETY TIPS
TOOLS REQUIRED
Phillips Screwdriver Wire Cutters Pliers Step Ladder
Before you begin installing the fan, Switch power off
at Service panel and lock service disconnecting means
to prevent power from being switched on accidentally.
When the service disconnecting means cannot be
locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
1
Before installing this fan make sure the outlet
box is properly installed to the house structure.
To reduce the risk of fire, electric shock, or per-
sonal injury, mount to outlet box or supporting
system acceptable for fan support.
(Mounting must support at least 35 lbs.)
23
Remove the coupler from the
mounting plate by unscrewing 6
screws. Save the yoke and screws
for future use when installing
downrod.
4
For Flush mount with or
without light kit go to
step 4.
For Downrod mount
with or without light kit
go to step 29.
Thread safety cable through center
hole of the mounting plate. Thread
your house wires through center hole
also.These will be needed for wiring
of the fan.
5
For Canadian installation and for USA fan and
light kit combinations over 35 lbs, in both flush
and downrod mode the safety cable must be
installed into the house structure beams using
the 3” lag screws provided. Make sure that
when the safety cable is fully extended the
leadwires are longer than the cable and no
stress is placed on the leadwires.
6Safety cable installation
Safety Cable
Lag Screw
Lag Screw
Safety Cable
Washer
Lock Washer

Securely attached the mounting plate
to the outlet box using two screws
supplied by the outlet box. Use metal
outlet box suitable for fan support
(must support 35 lbs).
7
Lift motor housing up and turn motor
housing clockwise to hold in position.
11
Attach blade to blade bracket using
the 3 screws and washers provided.
Tighten each of the screws securely.
Repeat this process 4 more times.
12
Attach blade assembly to the motor
and tighen the 2 screws pre-installed
to the blade bracket. Repeat 4 more
times.
13
Loosen 2 screws, remove 1 screw
and lock washer from the motor
plate and save.
14
Attach the switch cap plate to the
motor plate. Align keyslot holes and
twist to lock. Tighten the screw and
lockwasher removed in step 14 and
tighten the other 2 screws and lock
washers securely.
15
Remove the double sided sticky tape
and stick the capacitor to the switch
cap plate.
16
Lift the motor bracket so that the
threaded studs on the mounting
plate protrude through the slots in
the motor bracket. Securely tighten
the locknuts onto the threaded
studs.
10
Make wire connections to the power source using wire
nuts provided. Make sure that no filiments are outside
of the wirenut. After making the wire connections, the
wires should be spread apart with the grounded con-
ductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on
the other side of the outlet box. Spliced wires should
be turned upward and pushed carefully up into the
outlet box.
9
Connect black and blue wire from fan
to Black or (Hot) wire from house.
Connect White wire from Fan to
White (Neutral) wire from house.
Connect green wire from the fan to
the ground wire from the house.
Refer to Diagram above.
8
House Fan
Blue
Black
White
Green
Black
White
Ground
Remove the 3 screws from the switch cap with
the fitter. Save for later use. To avoid possible
shock, the connectors should not be removed
unless a light kit will be immediately installed
and the power should be turned off prior to the
connector removal of the light kit.
17 For fan with light kit
go to step 18.
For fan without light
kit go to step 23 to
finish.

22
Place glass onto the fitter by thread-
ing the light kit pull chain through
the glass, rubber washer, hex nut,
finial, and finial cap. Tighten the
finial securely by hand.
Connect the plug from motor to the
plug from the switch cap.
27
Remove the hex nut from the switch
cap.
24
Insert the center plastic plug provid-
ed into the center hole of the switch
cap.
26
Disconnect the two plugs in the
switch cap. White wire from the
white wire, the black wire from the
blue wire.
23
Remove the switch cap from the fit-
ter.
25
Install switch cap with fitter onto fan
using 3 screws removed from step
17 and tighten securely.
20
Install 2x40 watt candelabra bulbs. Bulbs
are included.
WARNING: Over lamping the fan
will result in the fan lights shut-
ting down until the proper
wattage of bulbs are installed.
Reset the lights by turning off the
wall switch, breaker,or by remote.
Replace bulbs with the correct
wattage bulbs, turn the power on.
21
Install switch cap onto fan using 3
screws removed from step 17 and
tighten securely.
28
Use metal outlet box suitable for fan support and
use only the screws provided with the outlet
box (must support 35 lbs). Before attaching fan
to outlet box, ensure the outlet box is securely fas-
tened by at least two points to a structural ceiling
member ( a loose box will cause the fan to wob-
ble). Remove the two outlet box screws provided
with the box, aligning the holes of the mounting
bracket with the holes of the outlet box. Re-install
the 2 outlet box screws securely.
29
Connect plug from motor to the plug
from the switch cap.
19
Remove the finial, finial cap, hex nut,
and rubber washer from the fitter.
18

The studs on the mounting plate pro-
trude through the slots in the motor
bracket .Securely tighten the lock-
nuts onto the threaded studs.
32
Install the keeper to pin.
37
33
30
Thread leadwires and safety cable
through the motor housing cover,
canopy and downrod.
Insert the pin through the yoke and
downrod until the point appears on
the other side.
36
Insert downrod into yoke. Align the
hole in the downrod with hole in the
yoke.
35
Hang assembled fan to the mounting
bracket installed to ceiling in previ-
ous step.
39
Tighten the 2 set screws on the
yoke once the downrod is in place.
38
31
Fan and light kit combinations over 35 lbs, in
both flush and downrod mode the safety cable
must be installed into the house structure
beams using the 3” lag screws,washers, and
lock washers. provided. Make sure that when
the safety cable is fully extended the leadwires
are longer than the cable and no stress is
placed on the leadwires.
40 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw lock
washer
washer
Remove the cotter and keeper pins
and save for later use. Thread leadwires and safety cable
through the mounting plate.
Loosen the 2 set screws in yoke.
34
Make sure the studs protruding from
the bottom of the mounting bracket
are installed with threads all the way
through the bracket.
41

47
Lift canopy up aligning with the
studs from mounting bracket. Install
the 2 thumb nuts to the studs and
finger tighten.
44
Go to step 12 to fin-
ish installation.
Make wire connections to the power source using wire
nuts provided. Make sure that no filiments are outside
of the wirenut. After making the wire connections, the
wires should be spread apart with the grounded con-
ductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on
the other side of the outlet box. Spliced wires should
be turned upward and pushed carefully up into the
outlet box.
43
Lift motor housing up and turn motor
housing clockwise to hold in position.
45 46
Place motor housing cover over the
mounting plate.
Connect black and blue wire from fan
to Black or (Hot) wire from house.
Connect White wire from Fan to
White (Neutral) wire from house.
Connect Green leads from mounting
bracket, motor bracket, and downrod
to the Ground lead from house.
Refer to Diagram above.
42
House Fan
Blue
Black
White
Green
Black
White
Ground

1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
3.Check to make sure the dip switches from the transmitter and receiver are set on the same
frequency.
CAUTION: Make sure main power is turned off
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each other
or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
5.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear
after this period.
1.Make sure that the ridge of the canopy engages the notch in the downrod ball.
2.Check that all blades are screwed firmly into blade holders.
3.Check that all blade holders are tightened securely to motor.
4.Make sure that canopy and mounting bracket are tightened securely to ceiling junction box
and junction box is mounted firmly to ceiling joist.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance from
blade tip to ceilng. Keeping measure within 1/8", rotate the fan until the next blade is posi-
tioned for measurement. Repeat for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a washer (not sup-
plied) between the blade and blade holder at the screw closest to the motor. To adjust a blade
tip up, insert washer (not supplied) between the blade and blade holder at the two screws far-
thest from the motor. Reverse the position of the washer if blades mount from top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redis-
tribute the weight and possibly result in smoother operation.
1.Check wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulbs.
WARNING: Over lamping the fan will result in the fan lights shutting down
until the proper wattage of bulbs are installed.
Reset the lights by turning off the wall switch, breaker,or by remote. Replace bulbs
with the correct wattage bulbs, turn the power on.
CAUTION: Make sure main power is turned off before entering switch housing.
2. If fan sounds noisy:
1. If fan does not start:
3. If fan wobbles:
4. If light does not work:
Trouble Shooting
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation,
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty
in installation, please call our Customer Service Center at the number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service dis-
connecting means to prevent power from being switched on accidentally. When the service dis-
connecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
Trouble Suggested Remedy
Customer Service Center:
301 West Washington St.
Riverside, NJ 08075
1-800-519-4092
www.montecarlofans.com
