montpellier SBFO59X User manual

Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
Built in 59ltr Single Fan Oven
SBFO59X - Stainless Steel
SBFO59B - Black
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Built in Oven.
Our Ovenshave been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Built in Oven to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Built in Oven is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your Oven, you
can rest assured that you are fully protected against the cost of repairs for the first
24 months . Please note that any claim must be accompanied by the model
reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This can be
found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

3
TABLE OF CONTENTS
Safety Instructions............................................................4
How to Save Energy.........................................................5
Unpacking.........................................................................5
Description of the Appliance..............................................6
Installation.........................................................................8
Operation...........................................................................9
Prior to First Use................................................................9
Mechanical Timer..............................................................9
Oven.................................................................................10
Cleaning and Maintenance...............................................11
Operation in Case of Emergency ....................................13
Baking in the Oven...........................................................14
Technical Information................ ......................................18

SAFETY INSTRUCTIONS
The appliance becomes very hot during operation. Take care not to touch the heating elements inside
the oven.
WARNING:Accessible parts may become hot during use. To avoid burns, young children should be kept
away.
The mains lead of adjacent appliances may be damaged by hobs or stuck between the oven doors ,
creating a short circuit , therefore keep them at a safe distance from the appliance.
Never put pans on the opened door of the oven.
Do not use the oven in the event of a technical fault. Once a technical fault has been identified ,
disconnect the power and report the fault to the service centre to be repaired.
Never clean the oven with a high-pressure steam cleaning device, as it may create a short circuit.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the door glass, as they can
scratch the surface, which could then result in the glass shattering.
The rules and provisions contained in this instruction manual should be strictly observed. Do not
allow anybody who is not familiar with the contents of this instruction manual to operate the oven.
During use, the appliance becomes hot and care should be taken to avoid touching heating elements
inside the oven.
If the power cable is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualifiedpersons , in order to avoid a hazard.
The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction c oncern ing use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.

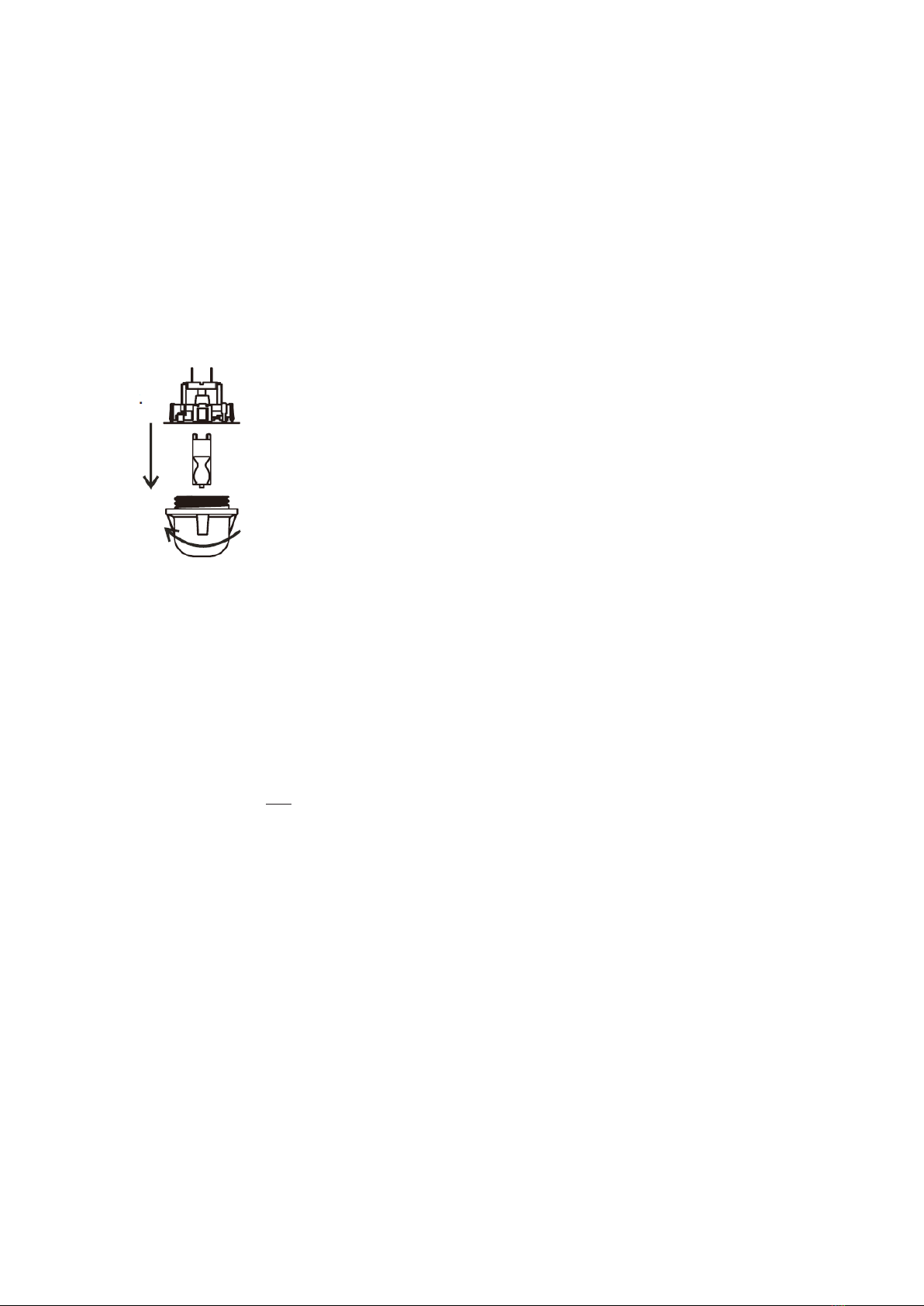

WARNING:Ensure that the appliance is switched off before replacing the lamp, to avoid the
possibility of electri c shock.
WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age m ust be kept away unless continuously supervised
This appliance can be used by children aged 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, provided that they have been
given supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance. Cleaning and user maintenance must not be
undertaken by children.
WARNING: Accessible parts will become hot during use.
.
4
Young children should be kept away
Care should be taken to avoid touching heating elements inside the oven.

5
HOW TO SAVE ENERGY
Using energy in a responsible way not only saves money, but also helps the
environment. So let's save energy! And this is how you can do it:
Make use of residual heat from the oven. If the cooking time is greater than 40 minutes,
switch off the oven 10 minutes before the end time. Important: when using the timer,
set appropriately shorter cooking times according to the dish being prepared.
Make sure the oven door is properly closed.
Heat can leak through spillages on the door seals. Clean up any spillages immediately.
Do not install the oven in the direct vicinity of refrigerators/freezers, otherwise
energy consumption increases unnecessarily.
UNPACKING
During transportation, protective packaging was used to protect the appliance
against any damage.
After unpacking, please dispose of all packaging in a way that will not cause damage to
the environment.
All materials used for packaging the appliance are environmentally-friendly;
they are 100% recyclable and are marked with the appropriate symbol.
Caution!
During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
DISPOSAL OF THE APPLIANCE
Old appliances should not simply be disposed of with normal household waste, but should
be delivered to a collection and recycling centre for electric and electronic equipment.
A symbol shown on the product, the instruction manual or the packaging shows that it is
suitable for recycling.
Materials used inside the appliance are recyclable and are labelled with information
accordingly. By recycling materials or other parts from used devices, you are making a
significant contribution to the protection of our environment.
Information on appropriate disposal centres for used devices can be provided by your
local authority.

6
DECRIPTION OF THE APPLIANCE
1 Temperature control knob
2 Oven function selection knob
3 Oven temperature indicator light
4 Oven door handle
5 Mechanical timer & Manual Mode
5

7
INSTALLATION
Installing the oven
The kitchen should be dry and have effective ventilation, according to the existing
technical provisions.
The mains lead behind the oven must be placed in such manner to avoid touching the
back panel of the oven, because of the heat it develops during operation
Remove any packaging materials (foils, artificial foam, nails, etc.) from the reach of
children, asthey can be dangerous. Children may swallow small parts,or be suffocated by
foils.
This is a built-in oven, which means that its back wall and one side wall can be placed next
to a high piece of furniture or a wall. Coating or veneer used on fitted furniture must be
treated with a heat resistant adhesive (<100℃). This prevents surface deformation or
detachment of the coating. If you are unsure of your furniture's heat resistance, you
should leave approximately 2cm of free space around the oven. The wall behind the oven
should also be resistant to high temperatures. During operation, the back andside of the
appliance can warm up to around 50℃above the ambient temperature.
Create an opening with the dimensions given in the installation diagram.
The appliance must be earthed.
Insert the oven completely into the opening, fixing itwith the four screws in the places
shown in the diagram.
595
21.5 512
559
554
595
564
600
560
40

8
INSTALLATION

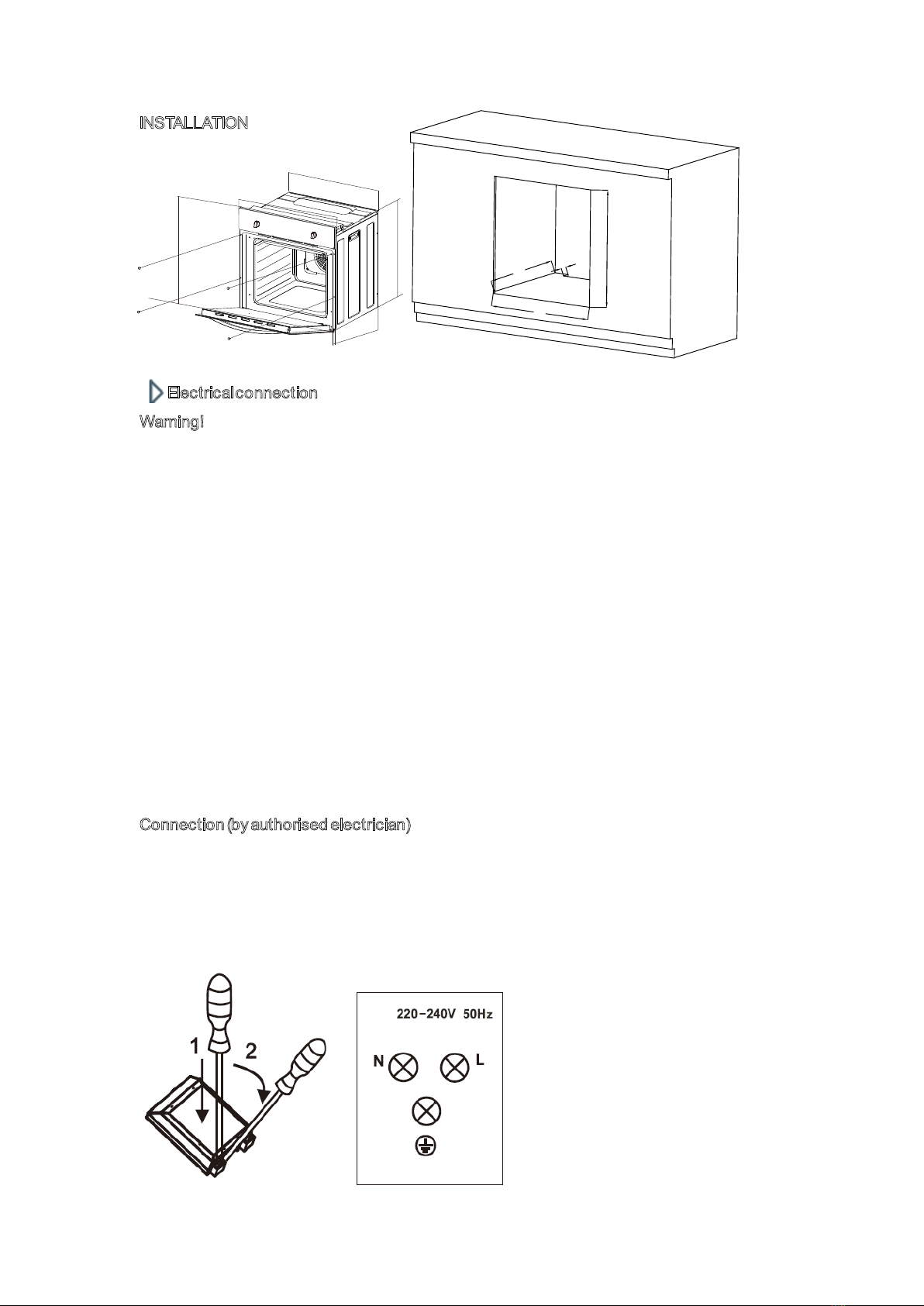

Electricalconnection
Warning!
All electrical work must be carried out by a suitably qualified and authorised electrician. No
changes to the the electricity supply should be carried out unless by a qualified person .
●Before attempting the connection, check whether the voltage indicated on the rating plate
corresponds to the actual mains voltage.
●Mains lead should be minimum 1.0m in length.
●Earth wire should be installed so that it is the last one pulled out, if the safety device on
the mains lead should fail.
●Mains lead behind the oven must be located so as to avoid touching the back panel of the
oven, because of the heat it develops during operation.
●The correct size and rating of cable must be used (cable type H05VV-F 3×1.5m m2). The
earth wire must be longer than the other wires.
●The means for disconnection from the mains supply, having a contact separation in all poles
that provides full disconnection under over voltage category iii, shall be provided in the fixed
wiring in accordance with UK regulations .
Connection (by authorised electrician)
●Using the screwdriver to open the conn ector cover at the rear of the appliance,
release two locks located at either side of the connector bottom.
●The mains lead must be fed through the safety device, protecting the cable f rom
disconnection.
●Tighten the device securely and close the connector cover.
595
21.5 512
559
554
595
564
600
560 40

9
Colour code
L = exterior live wires (black or brown)
N = neutral (blue)
Ensure correct N-connection!
E = earth (green/yellow)
OPERATION
Prior to first use
●Remove packaging, clean the interior of the oven.
●Remove and wash the oven fittings with warm water and washing-up liquid.
●Switch on the ventilation in the room, or open a window.
●Heat the oven to a temperature of 250℃ for approx. 30 minutes to remove any
stains, then wipe carefully.
Caution!
When heating the oven for the first time, it is normal for the oven to give off smoke
and there may be some odour. This will disappear in about 30 minutes.
Mechanical Timer
When using the oven, set the timer as follows:

10
.
Caution!
Caution!
DO NOT turn the mechanical timer clockwise from 120 to
When selecting any heating function the oven will be switched on only after the
temperature hasbeen set by the temperature control knob.
Oven Functions/Knob Settings:
Please not when using the oven or Grill the appliance is fitted with a cooling Fan, this Fan will only operate
when the oven reaches 65 degrees or over, The cooking fan will remain on after you switch off the oven
until the cavity cools to below 65 degrees.
This function uses the fan to circulate the heat from the grill element around the food.
The temperature can be set between 50℃and 250℃.
even heat
The oven will then begin to heat up.
The timer will sound at the end of the cooking time.
o
With this function, only the fan is operating, to allow defrosting or cooling of food.
Oven Light
This function
o
