montpellier MON-SFPO72MX User manual

Installation and Operating Instructions
MODEL: MON-SFPO72MX
Pyrolytic Built-In Oven
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
this manual.
montpellier
(Picture indicative of model supplied)

2
In
t
roduc
t
ion
Thank you for choosing this Montpellier branded appliance. It
has been designed to give years of trouble-free use provided
it is installed and maintained correctly.
Please read these instructions carefully before installing or
using your appliance. It is advisable to keep your purchase
and
installation receipts with these instructions in a safe place for
future reference. Included is some important safety informat
ion
in addition to guidelines and recommendations that will enab
le
you to take full advantage of all the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance ensure that there is no visible
damage. If the appliance has been damaged during transit, do
not use it, contact your retailer immediately.

3
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new montpellier appliance carries a free guarantee which protects you
against the cost of repairs during the first 24 months from date of purchase
provided that:
Any claim is accompanied by evidence of the model reference, model serial
number and proof of purchase, such as a Sales Receipt, showing that the
appliance was purchased within the 24 months prior to the date of claim.
What is not covered under the Guarantee:
Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or
inexpert repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
Cost of Call-out for work required to correct the alignment of doors
following door reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech and/or
carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it
with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number,
serial number, date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

4
Description Of The Appliance
1. Oven Function Control Knob
2. Oven Thermostat Control Knob
3. LED Display & Timer
4. Door Handle
5. Glass Oven Door
(Picture indicative of model supplied)
2.
1.
4.
5
.
3.

5
CONTENTS:
Section 1. Installation
Sect
i
o
n 2.
Safety
A
d
v
i
ce
Section 3. Operating the Appliance
Section 4. Maintenance

6
Section 1. Installation
Remove all packaging, protective film and securing tape from
the appliances
Position the appliances in a dry atmosphere.
The following dimensions are provided as a guide for
installation – your installer will carry out the installation in
accordance with the current regulations.
Your installer will connect the power cables in accordance with
the current regulations.
In order to burn off any oil/grease used during the
manufacturing process, we recommend that prior to use you
run the oven at 250°C for approximately 90 minutes.
1.1. Kitchen Furniture Cut-Out

7
1.2. Electrical Connection
N.B. This product must be installed by a
Qualified Electrician.
This appliance has a total Power Rating of 3.2kW and must be ‘hard
wired’ into a suitable fused spur (see fuse details below) adjacent to
the appliance housing.
Please note that a switchable spur should be accessible
above the work surface in order that the power can be turned
off.
30
AMP
For socket ring mains, some cooker and shower circuits
up to 7.2kw (7200 w)
Electrical Connection Diagram:

8

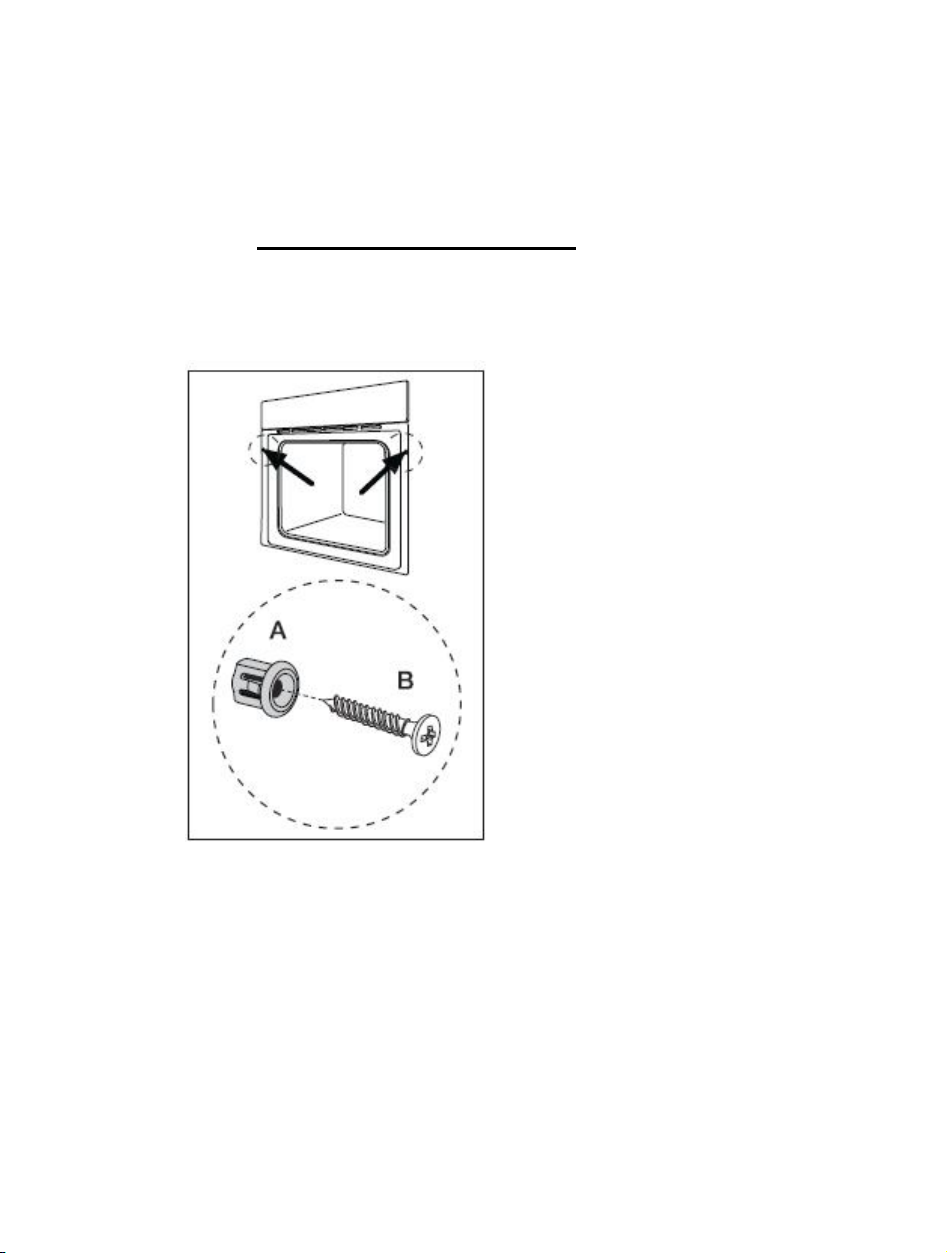

1.3. Secure the Oven in Position
Finally, use the screws to secure the oven to the
kitchen cabinetry.

9
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-This appliance shall not be used by children aged from 8
years and above and persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction on how
to use the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
-This appliance must only be used for cooking/heating food
items. Do not use it for any other purpose.
-It is important that you use only ‘oven proof’ pans and
dishes when using the appliance for cooking or grilling.
Never allow cookware and/or utensils to come into
contact with the top heating element/grill.
Do not use melamine or plastic containers when cooking
or grilling.
Always take care when removing ovenware from the oven
and in particular avoid touching the Grill Element.
-If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical
circuit is not overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot
surfaces.
-Following installation make sure that the power cable is not
trapped underneath the appliance.
-Keep the appliance surfaces clean. Failure to do this could
lead to the appliance malfunctioning.
-The surface of this appliance will get extremely hot during use.
Take care when using the appliance and keep children well
away.

10
-The interior and surface of this appliance will remain hot after
it has been turned off. Do not touch or clean the appliance
until it has completely cooled down.
-Never lift this appliance using the door handle or ‘open’ door.
-If the power supply cord is damaged, it must be replaced by
the manufacturer, it’s service agent or similarly qualified
persons in order to avoid a hazard.
-If the power supply cord(s) is damaged, it must be replaced by
the manufacturer, it’s service agent or similarly qualified
persons in order to avoid a hazard.

11
Section 3. Operating the Appliance
3.1. Oven Control Panel
3.2. Cooking & Functions
It is important that you use only ‘oven proof’ pans and
dishes when using the appliance for cooking or grilling.
Never allow cookware and/or utensils to come into
contact with the top heating element/grill.
Do not use melamine or plastic containers when cooking
or grilling.
Always take care when removing ovenware from the oven
and in particular avoid touching the Grill Element.
3.2.1. Setting The Clock/Timer
When you first connect power to the oven the display will show
“0:00”. Proceed as follows to set the time:
To set the clock, press the ‘Time’ button and then rotate the
Temperature Control Knob to select the correct hour. Press
the ‘Time’ button again and rotate the Temperature Control
Knob to set the correct minutes. Now press ‘Time’ button to
confirm the setting.
Function Control Knob
LED Display Panel & Control Buttons
Temperature
Control Knob
Time Button

12
3.2.2. Cooking Functions
Turn the Oven Function Control Knob clockwise to the required
function. Now turn the Oven Thermostat Control Knob to the
required oven temperature. Now press to start.
The required temperature setting will be displayed in the LED
panel (flashing on/off). When the set temperature has been
achieved, the display will stop flashing.
When you have finished using the oven, you must turn the
thermostat and oven control knobs back to the off position.

13
3.2.3. Full Timer Instructions

14

15

16

17
Section 4. Maintenance
Before any maintenance or cleaning work is carried out,
DISCONNECT the appliance from the ELECTRICITY supply and
ensure that the appliance is completely cool.
4.1. Cleaning the Oven
In addition to the Pyrolytic function, you are advised to clean
spillages from inside the oven as soon as possible after use. Always
ensure that the surface has cooled down before cleaning.
Use a cloth with warm soapy water to clean the surface. If the
spillage has dried on the surface you may need to use a specialist
oven cleaner, available from all good supermarkets.
Clean the glass door with warm soapy water – always ensure the
glass is cool before you clean it!
4.2. Changing the Oven Bulb
Proceed as follows when the glass
is cold:
Unscrew the glass cover
Remove the bulb
Fit new like for like bulb (*)
Replace glass cover
(*) Must be a 25 – 40W 300°
halogen, like for like
replacement oven lamp
available from specialist
hardware & lighting shops

18
4.3. Removing the Oven Door
If your oven is fitted with a removable door, proceed as follows:
In order to improve access when
cleaning the oven, you can remove
the door as follows:
Lift the two safety catches up then
close the oven door partially. Now
lift the door upwards and away
from the oven. To refit the door
carry out the above in reverse
order, ensuring the safety catches
are lowered back into place.

19
4.4. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
-Check the fuse in the plug
The oven operates but the oven light is not working:
-Replace the oven bulb as described in section 4.2. above.
Please note that bulbs are not covered under the guarantee.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance
pack and return it with a stamp affixed or Alternatively you can Register
online at www.repairtechuk.com
-
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the
model number, serial number, date of purchase and your retailer’s details
before registering a fault.
Your service call cannot progress without this information.
DOMESTIC APPLIANCE DISTRIBUTORS;
HENRY JOHN HOUSE
NORTHWAY LANE
ASHCHURCH
TEWKESBURY
GLOUCESTERSHIRE
GL20 8JH

20
Important Note:
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, the Crossed Out Wheelie Bin,
indicates that this appliance may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local
environmental
regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please
contact your local authority, your household waste disposal service
or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our
customers.
For this reason we reserve the right to make changes to any product
at any time, without notice
Issue: 01/03-11-2015
