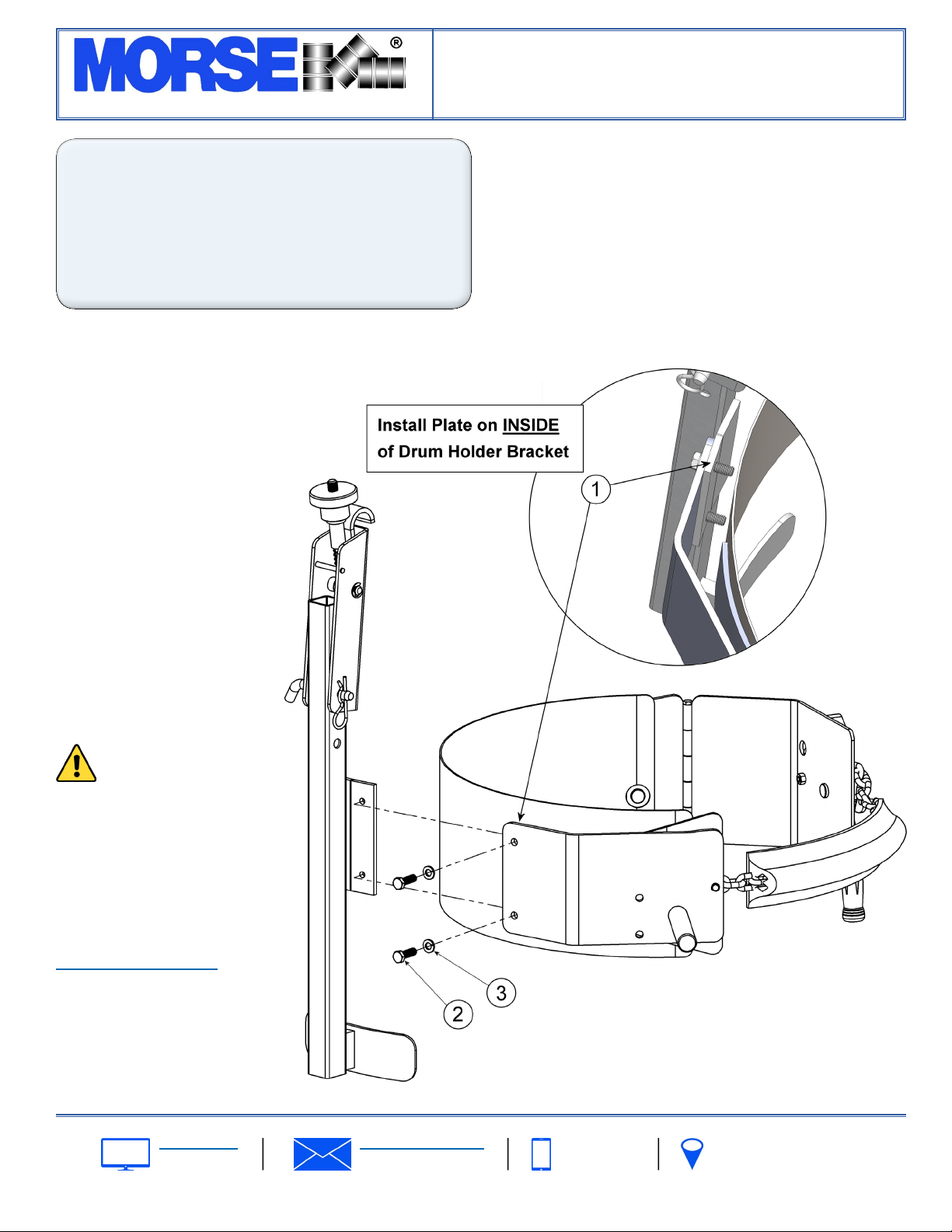

INSTALLATION INSTRUCTIONS
Position Rim Clamp Assembly1.
on INSIDE of drum holder bracket
(item 1) with holes aligned
Bolt in place with2.
2 bolts (item 2) and
2 washers (item 3)
using 9/16” wrench
The Specialist In Drum Handling Equipment
Kit # 4560BSS-P
Kit: Stainless Adjustable Rim Clamp
CONTENTS
Page
Installation Instructions. . . . . . . . . . . . . . 1 - 2
Dimensions. . . . . . . . . . . . . . . . . . . . . 2
Operating Instructions. . . . . . . . . . . . . . . . . . . . 2 - 3
Parts Diagram. . . . . . . . . . . . . . . . . . . . . . . . . 4
Operator’s Manual
for Morse
Stainless Steel Adjustable Rim Clamp Kit
Kit # 4560BSS-P
Serial number 0821 to ____ (MMYY)
[email protected] 103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
morsedrum.com [phone]
WARNING:
This product can expose you to
chemicals including barium sulfate,
cobalt, titanium dioxide, and
2-methylimidazole, which are known
to the State of California to cause
cancer, and bisphenol-A, which is
known to the State of California
to cause birth defects or other
reproductive harm.
For more information go to
www.P65Warnings.ca.gov

The Specialist In Drum Handling Equipment
Kit # 4560BSS-P
Kit: Stainless Adjustable Rim Clamp
Operator’s Manual for Morse Stainless Steel Rim Clamp Assembly Kit # 4560BSS-P
Serial Number 0821 to ____ (MMYY)
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc. Form PL4560BSS-P (0821-____) (Updated 18 Nov, 2021) 2
BEFORE OPERATING RIM CLAMP
Set Correct Rim Clamp Position for
55-Gallon OR for 30-Gallon Drum
(210 Liter OR 114 Liter Drum)
Insert pin through correct holes to set
Top Rim Clamp to position for ONE
of the following drum sizes:
55-gallon (210 liter) size drum1.
30-gallon (114 liter) size drum2.
DIMENSIONS

The Specialist In Drum Handling Equipment
Kit # 4560BSS-P
Kit: Stainless Adjustable Rim Clamp
Operator’s Manual for Morse Stainless Steel Rim Clamp Assembly Kit # 4560BSS-P
Serial Number 0821 to ____ (MMYY)
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc. Form PL4560BSS-P (0821-____) (Updated 18 Nov, 2021) 3
OPERATING INSTRUCTIONS
Steps to Secure Drum
STEP 1.
Tighten cinch chain or web strap around drum
just enough to hold drum with bottom jaw of
Top Rim Clamp positioned under top rim of drum.
Swing bottom jaw into position against drum sidewall
to engage directly beneath drum top rim.
STEP 2.
Swing top hook over top rim of drum and
turn hand wheel clockwise until SECURELY
clamped over drum top rim.
STEP 3.
Securely tighten cinch chain or web strap around drum.
STEP 4.
IMPORTANT: Lift Drum SLIGHTLY... Then ensure:
Bottom jaw is engaged under drum top rim1.
TIGHTEN Top jaw to ensure it grips drum top rim2.
Steps to Release Drum
Lower drum to oor in upright position1.
Release cinch chain or web strap from around drum2.
Open Top Rim Clamp by turning knob counter clockwise3.
Disengage hook from drum top rim4.
Bottom
Jaw
Hand
Wheel
