How to install, operate
and maintain your emand
Controlled Water Softener
Water Softener
Installation and O eration Manual
Model M45

2 Morton®Water Softener Installation & Operation Manual
Protect your new water softener with
Morton®Clean and Protect®or Morton®
Clean and Protect®Plus Rust Defense®Pellets
Morton®Water Softener Salt Pellets are made with a time-release
formula that works with your softener to help prevent mineral buildup
and keep your home’s pipes and appliances working at their best.
Whether you’re looking to remove iron and fight buildup, or extend your
water softener’s life, Morton®has the right salt for you. Use one or both
of our premium formula pellets in any water softener for the best results.
Remember to fill your water softener with Morton®
America’s #1 Brand of Water Softener Salt!

Morton®Water Softener Installation & Operation Manual 3
TABLE OF CONTENTS
Page
Inspect Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
imensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specifications & Performance Claims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Water Conditioning Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
Programming the Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14
Controller Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-19
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
Wiring Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Exploded View & Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-27
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

17"
21"
48"
41-1/2"
IN - OUT
34"
3-3/4"
INOUT
FRONT VIEW SIDE VIEW
4 Morton®Water Softener Installation & Operation Manual
Packing List
Ins ect Shi ment
The parts required to assemble and install the unit are
included in a bag. Thoroughly check the water soften-
er for possible shipping damage and parts loss. Also
inspect and note any damage to the shipping carton.
F G. 1
Remove and discard (or recycle) all packing materials.
To avoid loss of small parts, we suggest you keep the
small parts in the parts bag until you are ready to use
them.
Do not return the water softener to store.
If you have any questions, or there are missing parts or damage, please call Toll Free 1-888-64 WATER
(1-888-649-2837).
When you call, please be prepared to provide the model and serial number of your product, found on the
rating decal, located on the rim below the salt lid hinges.
For more installation or service information, visit www.mortonwatersofteners.com.
Dimensions
F G. 2
OUT IN
FRONT VIEW SI E VIEW
IN - OUT
41-1/2”
48”
34”
21”
rain HoseBypass Valve
Adaptor Elbow
Installation
Adaptors
Hose Clamps
O-rings
Grommet
Cover Lock
(for shipping only)
Rim Insert
(for shipping only)
Clips
17”
3-3/4”

Morton®Water Softener Installation & Operation Manual 5
S ecifications & Performance Claims
In the state of California: You must turn the Salt Efficiency Feature setting to ON. This may initiate
more frequent recharges. However, it will operate at 4,000 grains per pound of salt or higher. To turn
on the Salt Efficiency Feature, follow the instructions in the “Salt Efficiency” section of this manual.
This model is efficiency rated. The efficiency rating is valid only at the minimum salt dose. This system has a
demand initiated regeneration ( .I.R.) feature that complies with specific performance specifications intended to min-
imize the amount of regenerant brine and water used in their operation.
This water softener and filter has a rated softener efficiency of not less than 3,350 grains of total hardness exchange
per pound of salt (based on sodium chloride) and shall not deliver more salt than its listed rating or be operated at a
sustained maximum service flow rate greater than its listed rating. This system has been proven to deliver soft
water for at least ten continuous minutes at the rated service flow rate. The rated salt efficiency is measured by lab-
oratory tests described in NSF/ANSI Standard 44. These tests represent the maximum possible efficiency that the
system can achieve. Operational efficiency is the actual efficiency after the system has been installed. It is typically
less than the rated efficiency, due to individual application factors including water hardness, water usage, and other
contaminants that reduce a softener's capacity.
*Intermittent flow rate does not represent the maximum service flow rate used for determining
the softener’s rated capacity and efficiency. Continuous operation at flow rates greater than
the service flow rate may affect capacity and efficiency performance.
**Capacity to reduce clear water iron is substantiated by laboratory test data. State of Wisconsin
requires additional treatment if water supply contains clear water iron exceeding 5 ppm.
***Canada working pressure: 1.4 - 7.0 kg/cm².
This system conforms to NSF/ANSI Standard 44 for the specific performance claims as verified
and substantiated by test data.
Variable Salt Dose: The salt dose is selected by the electronic controls at regeneration time
based on the amount needed.
Model M45
Model Code o45
Rated Softening Capacity (Grains @ Salt ose)
13,233 @ 2.6 lbs.
35,700 @ 9.9 lbs.
45,400 @ 17.2 lbs.
Rated Efficiency (Grains/Pound of Salt @ Minimum Salt ose) 5,070 @ 2.6 lbs.
Water Used uring Regeneration @ Minimum Salt ose 4.3 gallons / 1,000 grains
Total Water Used Per Regeneration @ Maximum Salt ose 43.7 gallons
Rated Service Flow Rate 10.0 gpm
Amount of High Capacity Ion Exchange Resin 1.26 cu. ft.
Pressure rop at Rated Service Flow 11.2 psig
Intermittent Flow Rate @ 15 psi* 12.3 gpm
Water Supply Max. Hardness 120 gpg
Water Supply Max. Clear Water Iron 12 ppm**
Water Pressure Limits (min. / max.) 20 - 125 psi***
Water Temperature Limits (min. / max.) 40 - 120 °F
Minimum Water Supply Flow Rate 3 gpm
Maximum rain Flow Rate 2.2 gpm

6 Morton®Water Softener Installation & Operation Manual
=The water softener requires a minimum water flow of 3 gallons per minute at the inlet. Maximum allowable inlet
water pressure is 125 psi. If daytime pressure is over 80 psi, nighttime pressure may exceed the maximum. Use
a pressure reducing valve if necessary (Adding a pressure reducing valve may reduce the flow). If your home is
equipped with a back flow preventer, an expansion tank must be installed in accordance with local codes and
laws.
=The water softener works on 24V C electrical power, supplied by a direct plug-in power supply (included). Be
sure to use the included power supply and plug it into a nominal 120V, 60 Hz household outlet that is in a dry
location only, grounded and properly protected by an overcurrent device such as a circuit breaker or fuse.
=o not use this system to treat water that is microbiologically unsafe or of unknown quality without adequate dis-
infection upstream or downstream of the system.
European irective 2002/96/EC requires all electrical and electronic equipment to be disposed of accord-
ing to Waste Electrical and Electronic Equipment (WEEE) requirements. This directive or similar laws are
in place nationally and can vary from region to region. Please refer to your state and local laws for prop-
er disposal of this equipment.
Before You Start
Water Conditioning Information
ron
Iron in water can cause stains on clothing and plumb-
ing fixtures. It can negatively affect the taste of food,
drinking water, and other beverages. Iron in water is
measured in parts per million (ppm). The total* ppm of
iron, and type or types*, is determined by chemical
analysis. Four different types of iron in water are:
=Ferrous (clear water) iron
=Ferric (red water) iron
=Bacterial and organically bound iron
=Colloidal and inorganically bound iron (ferrous or
ferric)
Ferrous (clear water) iron is soluble and dissolves in
water. This water softener will reduce moderate
amounts of this type of iron (see specifications).**
Ferrous (clear water) iron is usually detected by taking
a sample of water in a clear bottle or glass.
Immediately after taking, the sample is clear. As the
water sample stands, it gradually clouds and turns
slightly yellow or brown as air oxidizes the iron. This
usually occurs in 15 to 30 minutes.
When using the softener to reduce Ferrous (clear
water) iron, add 5 grains to the hardness setting for
every 1 ppm of Ferrous (clear water) iron. See "Set
Water Hardness Number" section.
Ferric (red water), and bacterial and organically bound
irons are insoluble. This water softener will not
remove ferric or bacterial iron. This iron is visible
immediately when drawn from a faucet because it has
oxidized before reaching the home. It appears as
small cloudy yellow, orange, or reddish suspended
particles. After the water stands for a period of time,
the particles settle to the bottom of the container.
Generally these irons are removed from water by filtra-
tion. Chlorination is also recommended for bacterial
iron.
Colloidal and inorganically bound iron is of ferric or fer-
rous form that will not filter or exchange out of water.
This water softener will not remove colloidal iron. In
some instances, treatment may improve colloidal iron
water. Colloidal iron water usually has a yellow
appearance when drawn. After standing for several
hours, the color persists and the iron does not settle,
but remains suspended in the water.
Sediment
Sediment is fine, foreign material particles suspended
in water. This material is most often clay or silt.
Extreme amounts of sediment may give the water a
cloudy appearance, and may require a sediment filter
be installed upstream of the water softener.
* Water may contain one or more of the four types of
iron and any combination of these. Total iron is the
sum of the contents.
** Capacity to reduce clear water iron is substantiated
by laboratory test data.

Morton®Water Softener Installation & Operation Manual 7
Installation Requirements
Plumbing Codes
All plumbing must be completed in accordance with
national, state and local plumbing codes.
Laundry Tub
Standpipe
1-1/2”
air gap
Floor Drain
In the state of Massachusetts: The Commonwealth
of Massachusetts plumbing code 248-CMR shall
be adhered to. A licensed plumber shall be used
for this installation.
Air Gap Requirements
A drain is needed for the water discharged from the
valve during the softener’s regeneration cycle (See
Figure 3). A floor drain, close to the water softener, is
preferred. A laundry tub, standpipe, etc. are other
drain options. Secure valve drain hose in place.
Leave an air gap of 1-1/2” between the end of the
hose and the drain. This gap is needed to prevent
backflow of sewer water into the water softener. o
not put the end of the drain hose into the drain.
F G. 3
1-1/2”
air gap
rain
Hose
rain
Hose
1-1/2”
air gap
Location Requirements
Consider all of the following when selecting an installa-
tion location for the water softener.
=o not locate the water softener where freezing
temperatures occur. o not attempt to treat water
over 120ºF. Freezing temperatures or hot water
damage voids the warranty.
=To condition all water in the home, install the water
softener close to the water supply inlet, and
upstream of all other plumbing connections, except
outside water pipes. Outside faucets should remain
on hard water to avoid wasting conditioned water
and salt.
=A nearby drain is needed to carry away regenera-
tion discharge (drain) water. Use a floor drain,
laundry tub, sump, standpipe, or other options
(check your local codes). See "Air Gap
Requirements" and "Valve rain Requirements"
sections.
=The water softener works on 24V C electrical
power, supplied by a direct plug-in power supply
(included). Provide nearby a 120V, 60Hz electrical
outlet in accordance with NEC and local codes.
=Always install the water softener between the water
inlet and water heater. Any other installed water
conditioning equipment should be installed between
the water inlet and water softener (See Figure 4
below).
=Avoid installing in direct sunlight. Excessive sun
heat may cause distortion or other damage to non-
metallic parts.
The Proper Order To nstall Water Treatment Equipment
F G. 4
Pressure
Tank
City Water Supply
Well Water Supply
Well
Pump
OR
Optional
Sediment
Filter
Water
Heater
Water
Softener
Untreated Water to
Outside Faucets
Hot Water
to House
Cold Water
to House
rain
Hose

8 Morton®Water Softener Installation & Operation Manual
Installation Requirements
Valve Drain Requirements
Using the flexible drain hose (included), measure and
cut to the length needed. Flexible drain hose is not
allowed in all localities (check your plumbing codes). If
local codes do not allow use of a flexible drain hose, a
rigid valve drain run must be used. Purchase a com-
pression fitting (1/4 NPT x 1/2 in. minimum tube) and
1/2" tubing from your local hardware store. Plumb a
rigid drain as needed (See Figure 6).
NOTE: Avoid drain hose runs longer than 30 feet.
Avoid elevating the hose more than 8 feet
above the floor. Make the valve drain line as
short and direct as possible.
nlet / Outlet Plumbing Options
Always install either a single bypass valve (provided),
as shown in Figure 7, or, if desired, parts for a 3 valve
bypass system (not included) can be purchased and
assembled, as shown in Figure 8. Bypass valves
allow you to turn off water to the softener for mainte-
nance if needed, but still have water in house pipes.
Pipe fittings must be 3/4” minimum.
Use:
=Copper pipe
=Threaded pipe
=PEX (Crosslinked Polyethylene) pipe
=CPVC plastic pipe
=Other pipe approved for use with potable water
MPORTANT: o not solder with plumbing attached to
installation adaptors and single bypass
valve. Soldering heat will damage the
adaptors and valve.

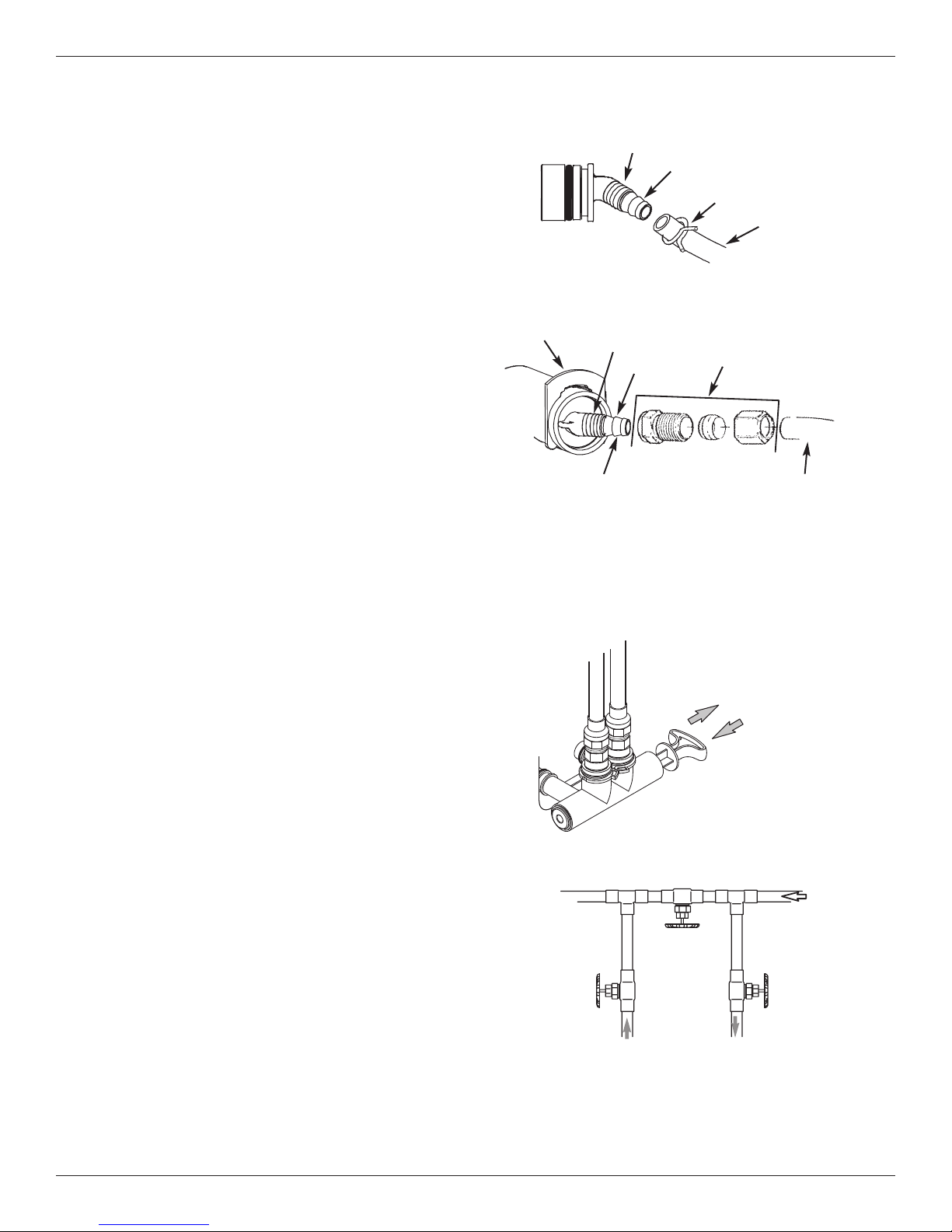

F G. 8
Single Bypass Valve
3 Valve Bypass
From Water
Softener
To Water
Softener
Inlet
Valve
Outlet
Valve
Bypass
Valve
F G. 7
Pull out for “Service”
(Soft water)
Push in for
“Bypass”
F G. 5
F G. 6
1/4” NPT
Thread
Clip
Barbs
1/4 NPT
Threads
1/2” Outside ia.
Copper Tube
(not included)
Compression Fitting.
1/4 NPT x 1/2” O. .
Tube (not included)
Cut barbs from drain fit-
ting (pull clip to remove
fitting from valve)
Barbs for 3/8”
I. . Tubing
rain Hose
Hose Clamp

Morton®Water Softener Installation & Operation Manual 9
Installation Instructions
TYP CAL NSTALLAT ON
F G. 9
NOTE: See “Air Gap Requirements” section.
NOTE: Water Softener shown with Salt Lid and
Top Cover removed
Inlet
Outlet
Clips
Pipe
To Outside
Faucets
1” NPT Sweat
Adaptor (not
included)
O-ring
Single
Bypass Valve
Lubricated
O-ring
Conditioned
Water
Hard Water
Main Water Pipe
Water Softener
Valve
Valve rain
Elbow
Valve rain
Hose*
* o not connect the
water softener valve drain
tubing to the salt storage
tank overflow hose. Floor rain
Overflow
rain Elbow
Salt Storage
Tank Overflow
Hose*
Secure Valve rain Hose
in place over Floor rain
1” NPT
Threaded
Adaptor
1-1/2”
air gap
Plug-in
Power
Supply
To
Controller
Step 1. Turn Off Water Supply
1. Close the main water supply valve, located near the
well pump or water meter.
2. Shut off the electric or fuel supply to the water
heater.
3. Open all faucets to drain all water from house pipes.
NOTE: Be sure not to drain water from the water
heater, as damage to the water heater ele-
ments could result.
Step 2. Assembly
1. Morton®water softener models are factory assem-
bled. uring installation, unsnap and remove the
top cover, together with the salt lid, to expose the
softener valve assembly. Set them aside to prevent
damage. Check the brinewell to be sure it is
secured and vertical (See Figure 11).
2. Lift the brine valve out of the brinewell. Make sure
the float stem is parallel to the stand tube so the
seals will seat properly during operation. Place the
brine valve back into the bottom of the brinewell and
reinstall the brinewell cover.
3. Install the brine tank overflow grommet and elbow
into the 13/16” diameter hole in the back of the salt
storage tank wall.
Step 3. Move the Unit into Place
1. Move the water softener into the desired location.
Set it on a solid, level surface.
MPORTANT: o not place shims directly under the
salt storage tank to level the softener.
The weight of the tank, when full of
water and salt, may cause the tank to
fracture at the shim.
continued on next page

10 Morton®Water Softener Installation & Operation Manual
Installation Instructions
continued from previous page
F G. 13
Correct Assembly
Clip
Outside diameter
of clip channel on
single bypass valve
Outside diameter
of water softener
valve inlet & outlet
NOTE: Be sure all 3 tabs of the clip go through the matching
holes on the water softener valve inlet or outlet, and
fully into the channel on the single bypass valve.
Make sure that the tabs are fully seated.
2. Visually check and remove any debris from the
water softener valve inlet and outlet ports.
3. Make sure the turbine assembly spins freely in the
"out" port of the valve (See Figure 10).
4. If not already done, put a light coating of silicone
grease on the single bypass valve o-rings.
5. Push the single bypass valve into the softener valve
as far as it will go. Snap the two large holding clips
into place, from the top down as shown in Figures
12 & 13.
MPORTANT: Be sure the clips snap firmly into place
so the single bypass valve will not pull
out.
Step 4. Complete nlet and Outlet
Plumbing
Measure, cut, and loosely assemble pipe and fittings
from the main water pipe to the inlet and outlet ports of
the water softener valve. Be sure to keep fittings fully
together, and pipes squared and straight.
Be sure hard water supply pipe goes to the water sof-
tener valve inlet side.
NOTE: Inlet and outlet are marked on the water sof-
tener valve. Trace the water flow direction to
be sure hard water is to inlet.
MPORTANT: Be sure to fit, align and support all
plumbing to prevent putting stress on
the water softener valve inlet and outlet.
Undue stress from misaligned or unsup-
ported plumbing may cause damage to
the valve.
Complete the inlet and outlet plumbing for the type of
pipes you will be using.

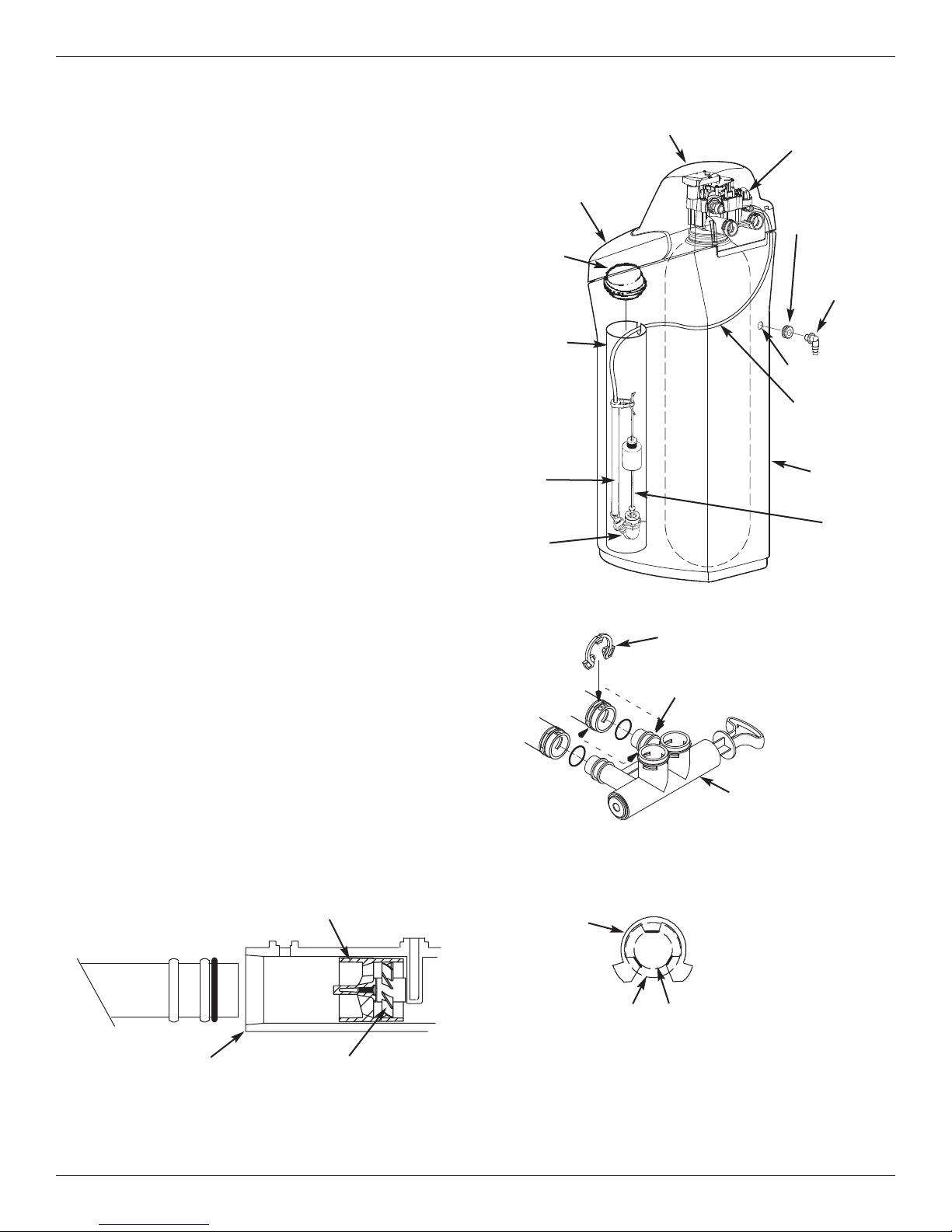

F G. 11
Top Cover
Brine Tank
Overflow
Elbow
Brine Tank
Overflow
Grommet
13/16” Hole
Salt Lid
Salt
Storage
Tank
Float
Stem
Brine
Tubing
Brinewell
Cover
Stand
Tube
Brine
Valve
Brinewell
Nozzle & Venturi
Assembly
F G. 10
Turbine
Support
Valve Outlet Turbine
F G. 12
Clip
Channel
Single Bypass Valve

Morton®Water Softener Installation & Operation Manual 11
Installation Instructions
Step 5. Cold Water Pipe Grounding
CAUT ON: The house cold water pipe (metal only)
is often used as a ground for the house
electrical system, The 3-valve bypass
type of installation, shown in Figure 8,
will maintain ground continuity. f you
use a plastic bypass valve at the unit,
continuity is broken. To restore the
ground, do the following:
1. Install a #4 copper wire across the removed section
of main water pipe, securely clamping it at both
ends (See Figure 14) - parts not included.
NOTE: Check local plumbing and electrical codes
for proper installation of the ground wire.
The installation must conform to them. n
Massachusetts, plumbing codes of
Massachusetts shall be conformed to.
Consult with your licensed plumber.

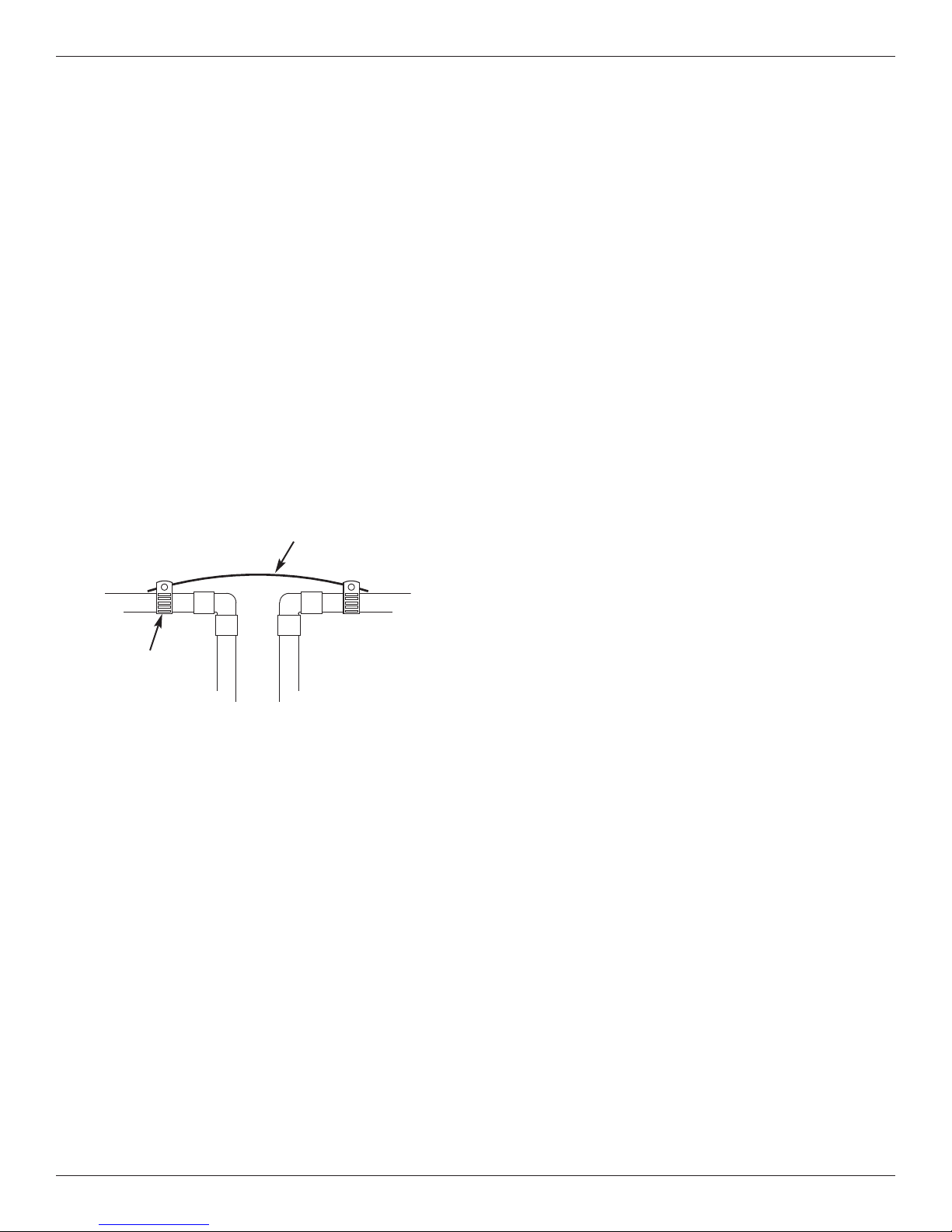

F G. 14
Ground
Wire
Clamp (2)
Step 7. nstall Salt Storage Tank
Over flow Hose
1. Measure, cut to needed length and connect the 3/8"
drain line (provided) to the salt storage tank over-
flow elbow and secure in place with a hose clamp.
2Run the hose to the floor drain, or other suitable
drain point no higher than the drain fitting on the salt
storage tank (This is a gravity drain). If the tank
overfills with water, the excess water flows to the
drain point. Cut the drain line to the desired length
and route it neatly out of the way.
MPORTANT: For proper operation of the water soften-
er, do not connect the water softener
valve drain hose from Step 6 to the salt
storage tank overflow hose.
Step 8. Pressure Testing for Leaks
To prevent air pressure in the water softener and
plumbing system, do the following steps exactly in
order:
1. Fully open two or more softened cold water faucets
nearby the water softener, located downstream from
the water softener.
2. Place the single bypass valve or 3 valve bypass in
"bypass" position. See Figures 7 & 8.
3. Fully open the main water supply valve. Run water
until there is a steady flow from the opened faucets,
with no air bubbles.
4. Place bypass valve(s) in "service" or soft water posi-
tion exactly as follows:
= Single bypass valve: Slowly move the valve stem
toward "service," pausing several times to allow
the water softener to fill with water.
= 3 valve bypass: Fully close the bypass valve and
open the outlet valve. Slowly open the inlet
valve, pausing several times to allow the water
softener to fill with water.
5. After about three minutes, open a hot water faucet
until there is a steady flow and there are no air bub-
bles, then close this faucet.
6. Close all cold water faucets and check for leaks at
the plumbing connections that you made.
7. Check for leaks around clips at softener’s inlet and
outlet. If a leak occurs at a clip, depressurize the
plumbing (turn off the water supply and open
faucets) before removing clip. When removing clips
at the softener’s inlet or outlet, push the single
Step 6. nstall Valve Drain Hose
NOTE: See valve drain options on pages 7 & 8.
1. Measure, cut to needed length and connect the 3/8"
drain line (provided) to the water softener valve
drain fitting. Use a hose clamp to hold the hose in
place.
MPORTANT: If codes require a rigid drain line see
“Valve rain requirements" section.
2. Run the drain hose (or a rigid line) to the floor drain.
Secure drain hose. This will prevent “whipping'' dur-
ing regenerations. Be sure to provide a 1-1/2”
minimum air gap to prevent possible sewer
water backup. See “Air Gap Requirements" sec-
tion.
NOTE: In addition to a floor drain, you can use a laun-
dry tub or standpipe as a good drain point for
this hose.. Avoid long drain hose runs, or ele-
vating the hose more than 8’ above the floor. continued on next page

12 Morton®Water Softener Installation & Operation Manual
Installation Instructions
bypass valve body toward the softener (See Figure
15). Improper removal may damage clips. o not
reinstall damaged clips.
continued from previous page
Questions? Call Toll Free 1-888-64 WATER (1-888-649-2837)
or visit www.mortonwatersofteners.com
When you call, please be prepared to provide the model and serial number,
found on the rating decal, located on the rim below the salt lid hinges.
Step 9. Add Water and Salt to the
Salt Storage Tank
1. Using a container, add about three gallons of clean
water into the salt storage tank.
2. Add Morton®Clean and Protect™or Clean and
Protect™Plus Rust efense™Pellets to the storage
tank.
NOTE: See Page 19 for additional information on
salt.
Step 10. Plug in the Power Supply
uring installation, the water softener wiring may be
moved or jostled from place. Check to be sure all
leadwire connectors are secure on the back of the
electronic board and be sure all wiring is away from
the valve gear and motor area, which rotates during
regenerations.
1. Plug the water softener’s power supply into an elec-
trical outlet that is not controlled by a switch and is
approved by local codes.
Step 11. Program the Controller
1. Install the softener’s top cover and salt lid.
2. Complete the programming steps on pages 13 & 14.
Step 12. Sanitizing the Softener
Care is taken at the factory to keep your unit clean and
sanitary. Materials used to make the unit will not infect
or contaminate your water supply, and will not cause
bacteria to form or grow. However, during shipping,
storage, installation and operation, bacteria could get
into the unit. For this reason, sanitizing as follows is
suggested* when installing.
1. Open salt lid, remove the brinewell cover and pour
about 3 oz. (6 tablespoons) of household bleach
into the softener brinewell. Replace the brinewell
cover.
2Make sure the bypass valve(s) is in the “service”
(open) position.
3 Start a recharge: Press the RECHARGE button and
hold for 3 seconds, until “RECHARGE NOW” begins
to flash in the display. This recharge draws the sani-
tizing bleach into and through the water softener.
Any air remaining in the unit is purged to the drain.
4After the recharge has completed, fully open a cold
water faucet, downstream from the softener, and
allow 50 gallons of water to pass through the sys-
tem. This should take at least 20 minutes. Close
the faucet.
*Recommended by the Water Quality Association. On some
water supplies, the unit may need periodic disinfecting.
Step 13. Restart the Water Heater
Turn on the electricity or fuel supply to the water
heater and relight the pilot, if applicable.
NOTE: The water heater is filled with hard water and,
as hot water is used, it refills with conditioned
water. In a few days, the hot water will be fully
conditioned. To have fully conditioned hot
water immediately, wait until the initial recharge
(Step 12) is over. Then, drain the water heater
(following instructions for water heater) until
water runs cold.

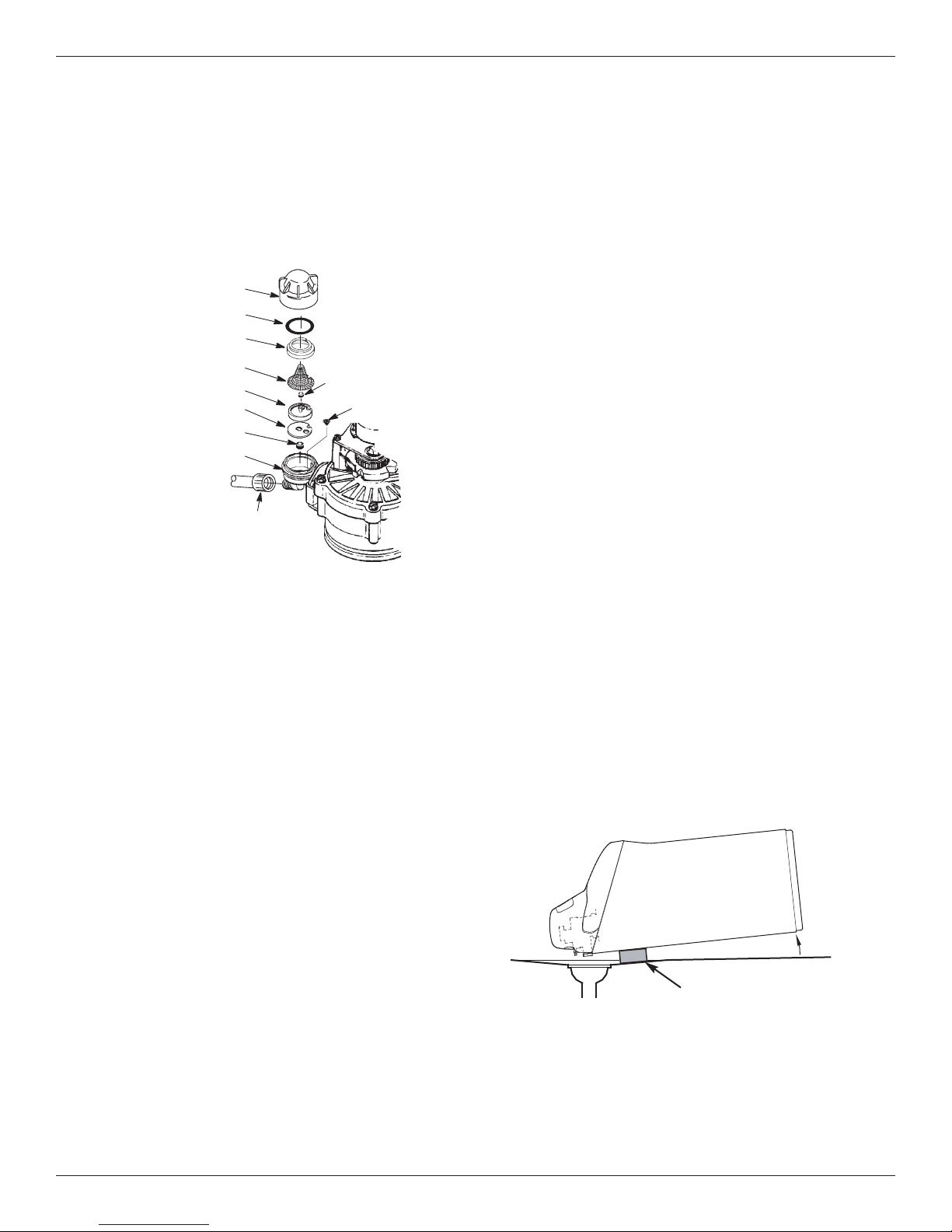

F G. 15
...depressurize the
plumbing, then push
Bypass Valve body
toward softener
If removing
clips...

Select
press for tonight
hold for immediate
Salt
Set
Level Use
Water
Morton®Water Softener Installation & Operation Manual 13
Programming the Water Softener
SET SALT LEVEL button OWN button
WATER USE button
isplay UP buttonREGENERATION button SELECT button
F G. 16
STATUS LIGHT
(see below)
Status Light
When the Morton Water Softener is connected to
electrical power, the status light on the control panel
will be on or flashing, as follows:
=Light on steady (not flashing) - The system has
power applied and does not require any attention.
=Light flashing rapidly, with “PRESENT TIME”
shown in the display and the clock flashing slowly -
The present time needs to be set, either during ini-
tial start up or after a long power outage. See “Set
Present Time of ay”, at right.
=Light flashing slowly, along with the salt level indi-
cators in the display - The salt monitor system indi-
cates a low salt level and needs to be set. See
“Salt Monitor System” on Page 15.
=Light flashing rapidly, with “Err” shown in the dis-
play - The electronic self-diagnostics have detected
a problem. See “Troubleshooting” on Page 21.
=Light flashing slowly, with “CLn” flashing in the dis-
play (See Fig. 17) - Four months have elapsed on
the system’s timer since start up or the last reset.
Step 1. Set Present Time of Day
If the words “PRESENT TIME" do not show in the dis-
play, press the SELECT button a few times until they
do.
1. Press the rUP or sOWN buttons to set the
present time. Up moves the display ahead; down
sets the time back. Be sure AM or PM is correct.
continued on next page
F G. 18
F G. 19
F G. 17
This is a reminder to use Morton®MWSC Water
Softener Cleanser three times a year. To reset the
timer, press any button on the control panel and
“CLn” will disappear. The light will stop flashing,
unless the system is also low on salt (see above).
Program the Softener
When the power supply is plugged into the electrical
outlet, the model code (o45) and a software version
number (example: J3.9), are briefly shown in the dis-
play. Then the words “PRESENT TIME” appear and
12:00 PM begins to flash.

14 Morton®Water Softener Installation & Operation Manual
NOTE: If your water supply contains iron, compen-
sate for it by adding to the water hardness
number. For example, assume your water is
20 gpg hard and contains 2 ppm iron. Add 5
to the hardness number for each 1 ppm of
iron. In this example, you would use 30 for
your hardness number.
20 gpg hardness
2 ppm iron x 5 = 10 +10
(times) 30 HAR NESS NUMBER
2. When finished setting your water’s hardness num-
ber, press the SELECT button, and the display will
change to show the “Recharge Time” screen.
Step 3. Set Recharge (Regeneration)
Start Time
If you completed the previous step, the words
“RE CHARGE TIME" should show in the display.
Otherwise, press the SELECT button several times
until they do.
continued from previous page
NOTE: Press buttons and quickly release to slowly
advance the display. Hold the buttons down
for fast advance.
2. When the correct time is displayed, press the
SELECT button, and the display will change to
show the “Hardness” screen.

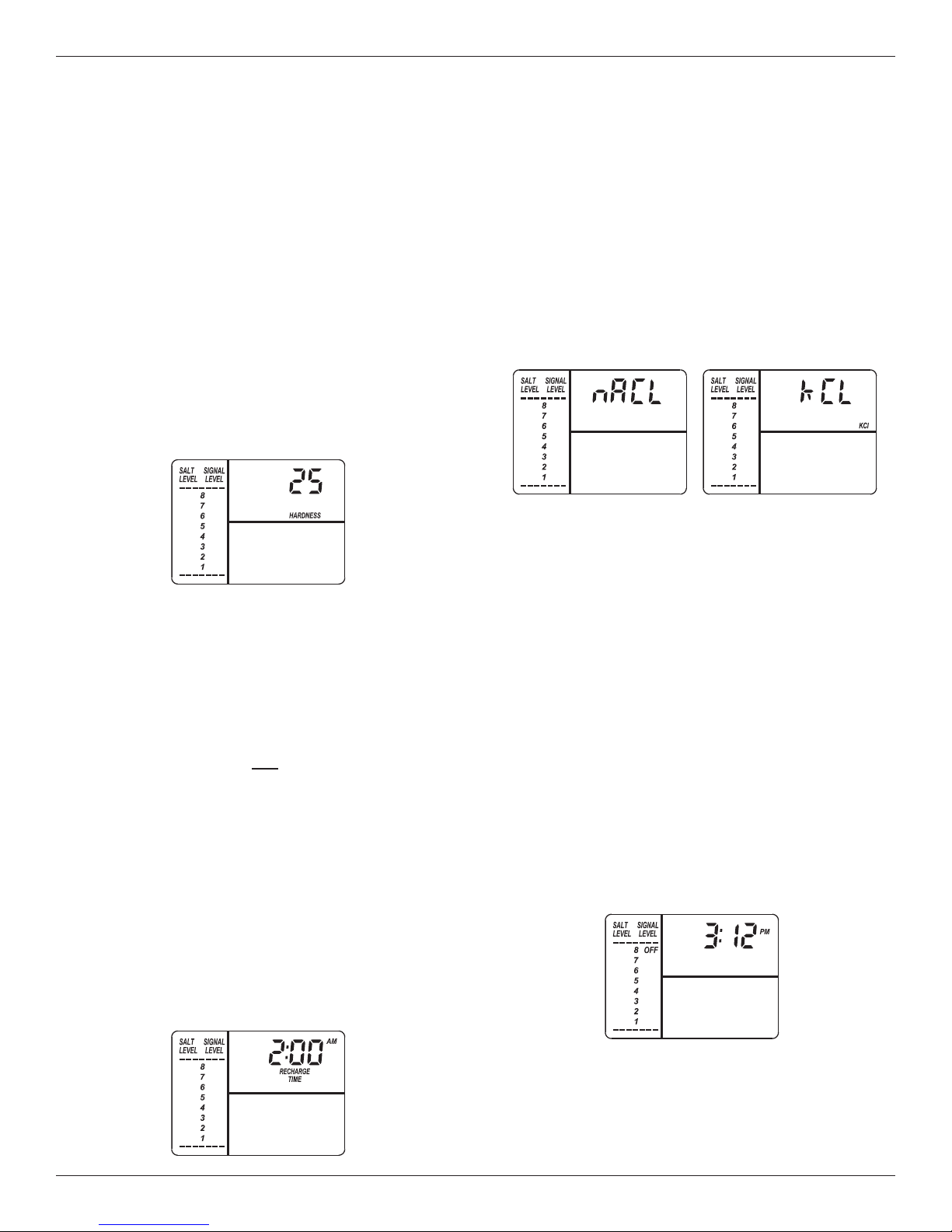

Step 2. Set Water Hardness Number
If you completed the previous step, the word “HAR -
NESS" should show in the display. Otherwise, press
the SELECT button several times until it does.
1. Press the rUP or sOWN buttons to set the
hardness of your water supply, in grains per gallon.
The default is 25.
1. The softener’s default recharge start time is 2:00
AM. This is normally a time of day when water is
not being used in the household. Hard water
bypasses the softener if the household draws
water during the recharge cycle. If a different
recharge start time is desired, press the rUP or
sOWN buttons to change the time, in 1-hour
increments. Be sure AM or PM is correct.
2. When the desired recharge start time is displayed,
press the SELECT button, and the display will
change to show one of the “Salt Type” screens
shown below.
Step 4. Set Salt Type
If you completed the previous step, either “NaCl” (for
Sodium Chloride) or “KCl” (for Potassium Chloride)
should show in the display. Otherwise, press the
SELECT button several times until one of them does.
1. Press the rUP or sOWN buttons to set the
type of salt you will be using in your water softener.
The default is NaCl (standard Sodium Chloride
water softener salt). If you will be using KCl
(Potassium Chloride) instead, be sure to set salt
type to KCl. This setting adjusts the regeneration
cycle times to compensate for the different rate at
which KCl dissolves. See also Page 19 for more
information on salt types.
2. When the correct salt type is displayed, press the
SELECT button, and the display will return to the
normal run (time of day) screen.
Programming the Water Softener
F G. 20
F G. 21
F G. 23
F G. 22

Morton®Water Softener Installation & Operation Manual 15
F G. 24
F G. 25
Recharge Tonight
Press and release (do not hold) the REGENERATION
button. “RECHARGE TONIGHT” will begin flashing in
the display, and the softener will begin regeneration
at the next preset recharge time (2:00 AM, or as set).
If you decide to cancel the regeneration before it
starts, press and release the REGENERATION button
once more. “RECHARGE TONIGHT” will stop flash-
ing in the display.
Extra Recharge
Sometimes, a manually initiated recharge (regenera-
tion) may be desired, or needed. Two examples are:
=You have used more water than usual (guests visit-
ing) and you may run out of soft water before the
next automatic regeneration.
=You did not add salt to the softener before it ran
out. Add salt to the softener before regenerating.
You can start a regeneration immediately, or you can
set the controller to regenerate at the next preset
recharge time (2:00 AM, or as set).
Recharge Now
Press the REGENERATION button and hold for 3
seconds, until the words “RECHARGE”, “Serv” and
“Fill” begin to flash in the display. The softener enters
the fill cycle of regeneration immediately. This regen-
eration will take about 2 hours to complete. Then,
you will have soft water again.
NOTE: If the “Clean Feature” is set ON, the normal
regeneration cycle is preceded by a cleaning
backwash and rinse. The words “CLEAN”
and “Bkwsh” or “Rinse” flash in the display,
along with the minutes of the clean cycle
remaining.
Controller Features
LEVEL
SALT
press for tonight
hold for immediate
Salt
Set
Level
L
Salt Level
Bars
3. Press the SET SALT LEVEL button as many times
as necessary to make the salt level bars in the dis-
play (see Fig. 26) match the number on the brine -
well. At level 2 or below, the Status Light will flash
(See Page 13).
4. If you want to turn the salt monitor off, press the
SET SALT LEVEL button past 8, until “OFF” shows
in the display next to the number 8.

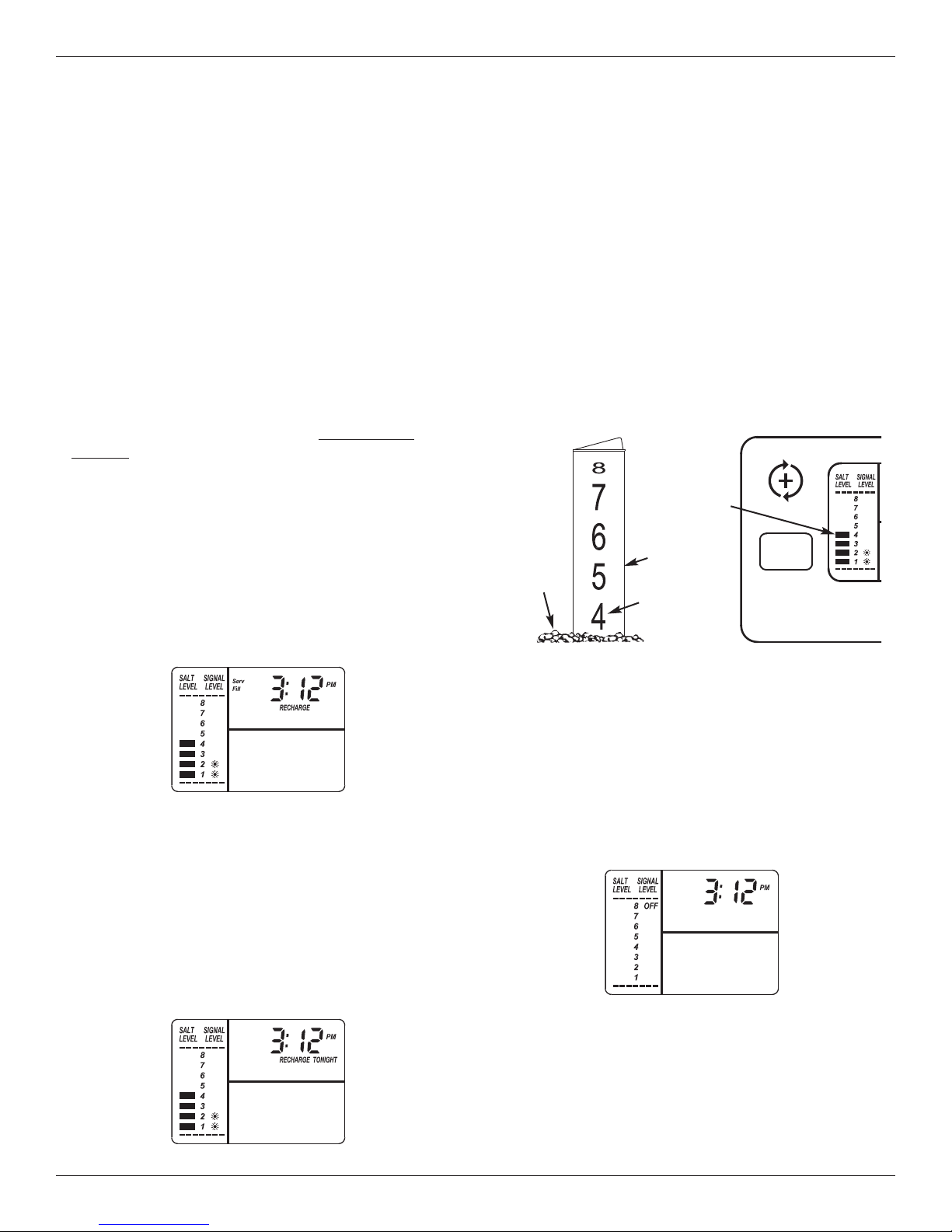

Salt Monitor System
The water softener has a salt monitor indicator light to
remind you to add salt to the storage tank.
NOTE: You must set salt level each time salt is
added to the water softener.
NOTE: The salt monitor system estimates salt levels,
and accuracy will vary with different salts.
To set this monitor system:
1. Lift the salt lid and level the salt in the storage
tank.
2. The salt level scale, on the brinewell inside the
tank, has numbers from 0 to 8 (see Fig. 26).
Observe the highest number the leveled salt is at,
or closest to.
Salt
Level
Numbers
Brinewell
F G. 26
F G. 27

16 Morton®Water Softener Installation & Operation Manual
Controller Features
Optional Settings:
=Salt Efficiency
=Clean Feature
=Clean Feature Minutes
=97% Feature
=12 / 24 Hour Clock
=Gallons / Liters
=Maximum Days Between
Regenerations
=Backwash & Fast Rinse Times
1. To set any of these options, press and hold
SELECT for 3 seconds until “000” shows in the dis-
play. Then press (do not hold) SELECT again to
display one of the “Salt Efficiency” screens shown
below.
Salt Efficiency: When this feature is ON, the
water softener will operate at salt efficiencies of
4000 grains of hardness per pound of salt or high-
er. The softener may recharge more often using
smaller salt dosage and less water. This softener
is shipped with the efficiency feature set OFF. Use
the rUP or sOWN buttons to change
between OFF and ON. An efficiency icon will be
displayed when this feature is ON.
2. Press SELECT again to display one of the “Clean”
screens shown below.
Clean: This feature is beneficial on water sup-
plies containing iron and/or high amounts of sedi-
ments (sand, silt, dirt, etc.). When set to ON, a
backwash and fast rinse cycle will occur first, pre-
ceding the normal regeneration sequence. This
provides extra cleaning of the resin bed before it is
regenerated with the salt brine. To conserve water,
if your water supply does not contain iron or sedi-
ments, be sure this feature is set to OFF. The
default is OFF. Use the rUP or sOWN but-
tons to change between OFF and ON.
3. Press SELECT again to display the “Clean Time”
screen shown below.
Clean Feature Minutes: If you have set the
Clean Feature ON, the length of the extra back-
wash cycle auto matically is set to 7 minutes.
However, you can ad just this time from 1 to 30
minutes in length. To change this cycle time, use
the rUP button to increase the time, or the
sOWN button to shorten the time. If no change
is desired, continue to next step.
4. Press SELECT again to display the “97%” screen.
Efficiency Icon F G. 28
California Efficiency Requirement
Your Morton Water Softener has a “High
Efficiency” feature that can be set ON or OFF.
This softener is shipped with the efficiency fea-
ture set OFF, which will utilize the maximum
rated capacity while most often achieving maxi-
mum salt efficiencies. When installing this unit
in the State of California, you MUST turn the
efficiency feature ON. The softener may initiate
more frequent recharges, but it will operate at
4000 grains per pound of salt or higher.
F G. 29
F G. 30
F G. 31

F G. 35
F G. 36
Morton®Water Softener Installation & Operation Manual 17
Controller Features
97% Feature: The 97% Feature can save salt
and water by regenerating when 97% of the soften-
er’s capacity has been used up. With this feature
ON, the regeneration can occur at any time (when-
ever the system has reached 97% of its capacity).
The default is OFF. If this feature is desired, turn it
on by pressing the rUP button.
5. Press SELECT again to display the “12 or 24 hr”
screen.
12 or 24 Hour Clock: All time displays are
shown in 12 hour (AM/PM) time format at the
default setting. If 24 hour time format is de sired,
set to 24 hr by pressing the rUP button.
6. Press SELECT again to display the “Gallons or
Liters” screen.
F G. 32
Gallon or Liter Readings: Water usage and
flow rate displays are shown in gallons at the
default setting. If you prefer liters, change this set-
ting from “Gals” to “Liter” by pressing the
rUP button.
7. Press SELECT again to display the “Recharge
ays” screen.
F G. 33
Maximum Days Between Regener -
ations: The electronic controller automatically
determines regeneration fre quency. This provides
the greatest operating efficiency and, under most
conditions this feature will be left in its default
mode. However, you can set this feature to force a
regeneration every set number of days. You may
want to do this if, for exam ple, your water supply
contains iron and you want the softener to regener-
ate at least once every few days to keep the resin
bed clean. Use the rUP or sOWN buttons to
change the number of days (up to 15). If no
change is desired, continue to next step.
8. Press SELECT again to display the “Backwash
Time” setting screen.
Backwash & Fast Rinse Times: If you
experience salty tasting water after regeneration,
you may need to increase the backwash and fast
rinse times. The default backwash time is 7 min-
utes and the default fast rinse time is 3 minutes.
However, you may increase the backwash and fast
rinse times, in 1 minute increments.
If you wish to change the backwash time, use the
rUP or sOWN buttons to set the backwash
time between 1 and 30 minutes. Then press
SELECT to display the “Fast Rinse Time” setting
screen.
F G. 34
If you wish to change the fast rinse time, use the
rUP or sOWN buttons to set the fast rinse
time between 1 and 30 minutes.
9. Press SELECT to return to the normal run (time of
day) screen.

Tank Light
Icon
F G. 40
18 Morton®Water Softener Installation & Operation Manual
Controller Features

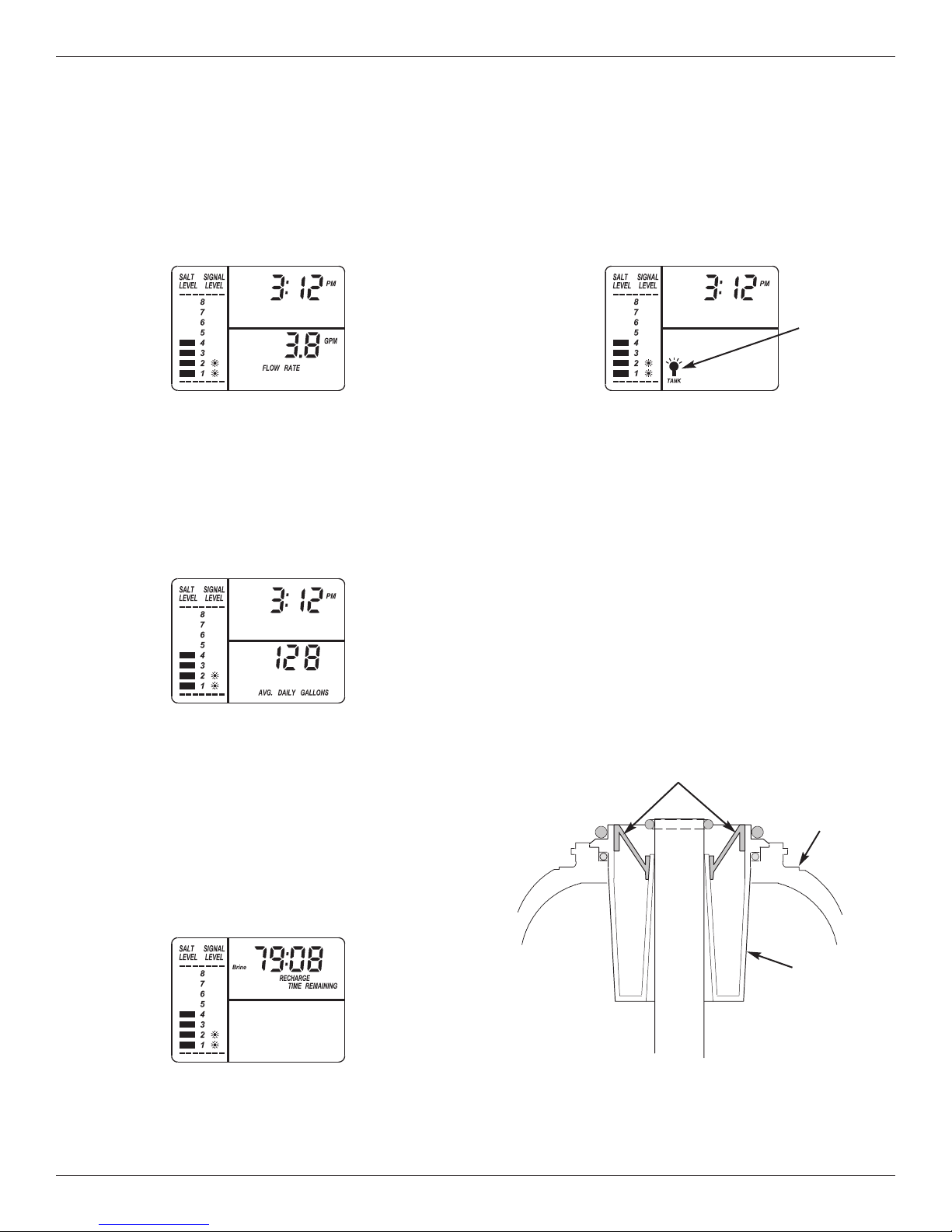

Average Daily Gallons or Liters
Press the WATER USE button a second time to dis-
play the average number of galons (or liters) of soft
water that the household uses each day. This water
usage figure is recalculated daily by the electronic
controller. To turn this display off, press the WATER
USE button once again.
Water Flow Through the Softener
To view the flow rate through the softener in liters (or
gallons) per minute, press the WATER USE button. If
soft water is in use, the flow rate will be displayed to
the nearest tenth of a liter (or gallon). The display will
show “0” when all faucets and water using appliances
are off.
Recharge Time Remaining & Valve
Position ndicators
One of the valve position indicators (Serv, Fill, Brine,
Bkwsh, Rinse) is displayed while the softener is
recharg ing. RECHARGE flashes in the display and,
beginning with Brine, the minutes of recharge remain-
ing before return to service appears in place of the
present time. When the valve is moving from one
cycle to another, both position indica tors are flashing.
Cleansing Feature
The cleansing feature keeps larger particles of sedi-
ment from entering the home’s plumbing system. As
water passes through the softener, the larger sedi-
ment particles are collected in the integrated basket
and then rinsed to the drain before each regenera-
tion. The cleansing feature provides added protection
for water using appliances by reducing the chance of
larger particles entering the various products valves
and screens. The “Clean Feature” may be turned ON
to provide an extra backwash that will help keep the
cleansing screen clean. The default is OFF.
MPORTANT: The cleansing feature is not intended to
replace pretreatment filtration. For
problem water applications, additional
sediment filtration is recommended.
Top
istributor
Cleansing Screen
Resin
Tank
F G. 37
F G. 38
F G. 39 F G. 41
Tank Light
A light inside the salt storage tank will come on when-
ever you open the salt lid. A “Tank Light” icon is dis-
played when this light is on. The light turns off when
you close the salt lid. It will also turn off automatically
after 15 minutes if the salt lid is left open.

Morton®Water Softener Installation & Operation Manual 19
F G. 42
Refilling with Salt
Lift the salt lid and check the salt storage level fre-
quently. If the water softener uses all the Morton®
Clean and Protect™or Clean and Protect™Plus Rust
efense™Pellets before you refill it, you will experi-
ence hard water. Until you have established a refilling
routine, check the salt every two or three weeks.
Always add if less than 1/4 full. Be sure the brinewell
cover is on.
NOTE: In humid areas, it is best to keep the salt stor-
age level lower, and to refill more often to
avoid salt “bridging”.
Recommended Salt: We recommend using Morton®
Clean and Protect™or Clean and Protect™Plus Rust
efense™Pellets in the familiar yellow bag. For soft
water, nothing works harder. Guaranteed®.
Salt Not Recommended: Rock salt, high in impuri-
ties, block, granulated, table, ice melting, ice cream
making salts, etc., are not recommended.
Salt with ron Removing Additives: Some salts
have an additive to help a water conditioner handle
iron in a water supply. For this we recommend
Morton®Rust Remover Super Pellets®in the green bag.

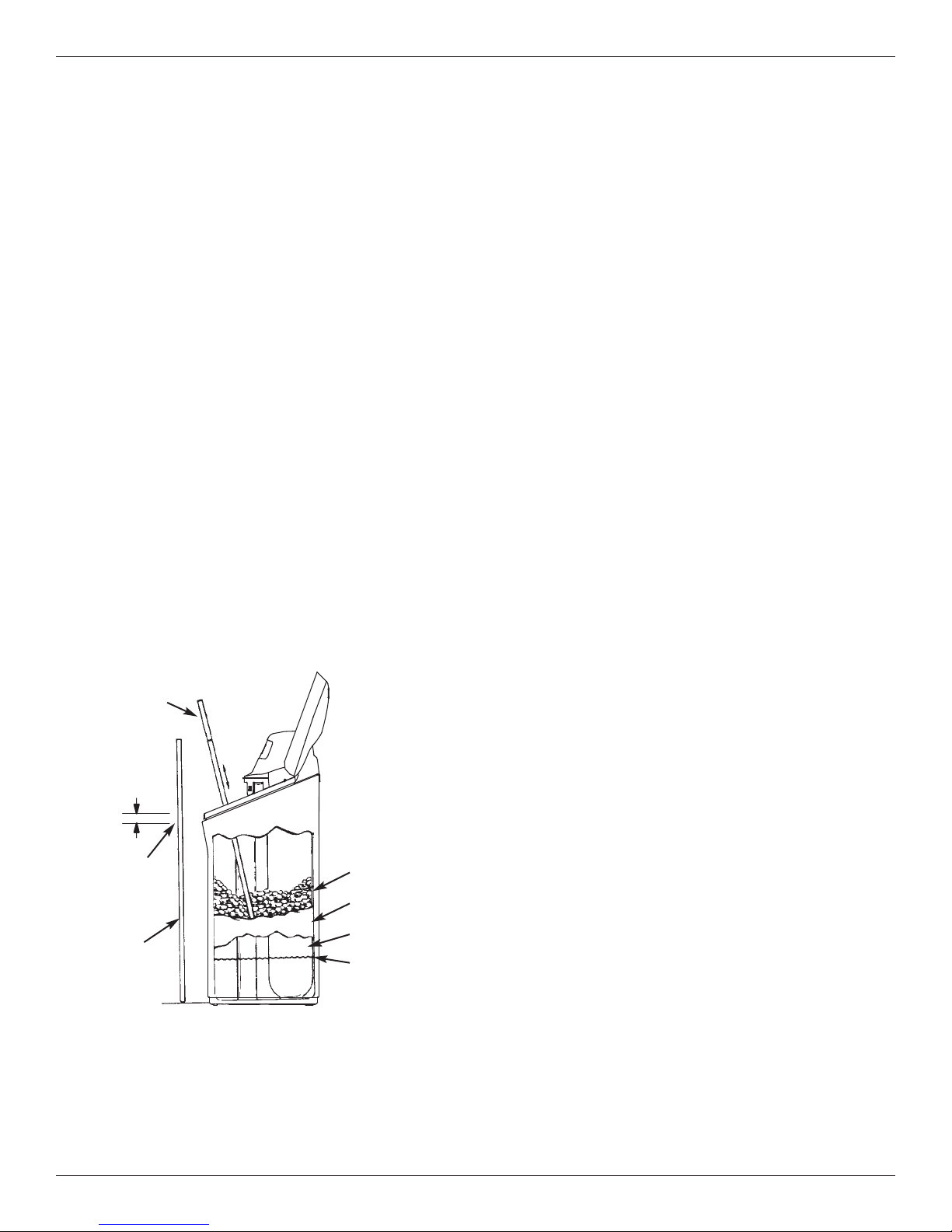

Breaking a Salt Bridge
Sometimes, a hard crust or salt “bridge” forms in the
brine tank. It is usually caused by high humidity or the
wrong kind of salt. When the salt “bridges,” an empty
space forms between the water and the salt. Then,
salt will not dissolve in the water to make brine.
Without brine, the resin bed is not recharged and hard
water will result.
If the storage tank is full of salt, it is difficult to tell if
you have a salt bridge. A bridge may be underneath
loose salt. Take a broom handle, or like tool, and hold
it next to the water softener. Measure the distance
from the floor to the rim of the water softener. Then,
carefully push the broom handle straight down into the
salt. If a hard object is felt before the pencil mark is
even with the top, it is most likely a salt bridge.
Carefully push into the bridge in several places to
break it. o not use any sharp or pointed objects as
you may puncture the brine tank. o not try to break
the salt bridge by pounding on the outside of the salt
tank. You may damage the tank.
Routine Maintenance
Power Outage Memory
If electrical power to the softener is interrupted, the
time display is blank, but the electronic controller
keeps correct time for several hours. When power is
restored, you must reset the present time only if the
display is flashing. All other settings are maintained
and never require resetting unless a change is
desired. If the time is flashing after a long power out-
age, the softener continues to work as it should to
provide you with soft water. However, regenerations
may occur at the wrong time of day until you reset the
clock to the correct time of day.
NOTE: If the water softener was regenerating when
power was lost, it will now finish the cycle.
Controller Features
Salt Bridge
Salt
Empty Space
Water Level
1” - 2”
Pencil
Mark
Broom
Handle
Push tool into
salt bridge to
break
Questions? Call Toll Free 1-888-64 WATER (1-888-649-2837)
or visit www.mortonwatersofteners.com
When you call, please be prepared to provide the model and serial number,
found on the rating decal, located on the rim below the salt lid hinges.

20 Morton®Water Softener Installation & Operation Manual
Routine Maintenance
Protect the Water Softener from
Freezing
If the softener is installed where it could freeze (sum-
mer cabin, lake home, etc.), you must drain all water
from it to stop possible freeze damage. To drain the
softener:
1. Close the shut-off valve on the house main water
pipe, near the water meter or pressure tank.
2. Open a faucet in the soft water pipes to vent pres-
sure in the softener.
3. Move the stem in the single bypass valve to bypass.
Close the inlet and outlet valve in a 3 valve bypass
system, and open the bypass valve. If you want
water in the house pipes again, reopen the shut-off
valve on the main water pipe.
4. Unplug the power supply at the wall outlet. Remove
the softener’s top cover, together with the salt lid.
Take off both drain hoses if they will interfere with
moving the softener into position over the drain.
5. Push the bypass valve body toward the softener (as
shown in Figure 15) and carefully remove the large
holding clips at the softener inlet and outlet.
Separate the softener from the plastic installation
adaptors, or from the bypass valve.
6. Lay a piece of 2 inch thick board near the floor drain
(See Figure 44).
7. Move the softener close to the drain. Slowly and
gently, tip it over until the rim rests on the wood
block with the inlet and outlet over the drain. o not
allow the softener’s weight to rest on the inlet and
outlet fittings or they may break.
8. Tip the bottom of the softener up a few inches and
hold until all water has drained. Leave the softener
laying like this until you are ready to use it. Plug the
inlet and outlet with clean rags to keep dirt, bugs,
etc. out.
Floor rain F G. 44
Wood Block
F G. 43
Cap
O-ring Seal
Screen Support
Screen
Gasket
*Flow Plug (HV C)
Housing
Ferrule
Nut
Cone Screen
*Flow Plug
*Install with lettered
side up, concave
side down.
Cleaning the Nozzle & Venturi
A clean nozzle & venturi (See Figure 43) is a necessity
for the water softener to work properly. This small
component creates the suction to move brine from the
brine tank, into the resin tank. If it should become
plugged with sand, silt, dirt, etc., the water softener will
not work, and hard water will result.
Nozzle & Venturi isc
IMPORTANT: Be sure small hole in the gasket is cen-
tered directly over the small hole in the nozzle & ven-
turi housing. Be sure the numbers are facing up.
To get access to the nozzle & venturi, remove the
water softener’s top cover. Put the bypass valve(s)
into the bypass position. Be sure the water softener is
in soft water (service) cycle (no water pressure at noz-
zle & venturi). Then, holding the nozzle & venturi
housing with one hand, un screw the cap. o not lose
the o-ring seal. Lift out the screen support and screen.
Then, remove the nozzle & venturi disc, gasket and
flow plug(s). Wash the parts in warm, soapy water
and rinse in fresh water. Be sure to clean both the top
and bottom of the nozzle & venturi disc. If needed,
use a small brush to remove iron or dirt. o not
scratch, misshape, etc., surfaces of the nozzle & ven-
turi.
Carefully replace all parts in the correct order.
Lubricate the o-ring seal with silicone grease and
locate in place. Install and tighten the cap by hand,
while supporting the housing. Overtightening may
break the cap or housing. Put the bypass valve(s) into
service (soft water) position.
Recharge the softener to reduce water level in the
tank. This will also assure that the softener is com-
pletely recharged and ready to provide softened water
again. Check the water level in the tank by looking
down the brinewell. If the water level does not drop
after a recharge, the problem has not been resolved.
Call 1-888-64 WATER or visit www.mortonwatersoften-
ers.com.
