MOTO GUZZI B043157 Guide

SERVICE STATION MANUAL
B043157
Moto Guzzi California 1400

SERVICE STATION
MANUAL
Moto Guzzi California 1400
THE VALUE OF SERVICE
As a result of continuous updates and specific technical training programmes for Moto Guzzi products,
onlyMotoGuzziOfficialNetworkmechanicsknowthisvehiclefullyandhavethespecifictoolsnecessary
to carry out maintenance and repair operations correctly.
Thereliabilityofthevehiclealso dependsonitsmechanical conditions.Checkingthevehicle beforeriding
it, its regular maintenance and the use of original Moto Guzzi spare parts only are essential factors!
For information on the nearest Official Dealer and/or Service Centre consult our website:
www.motoguzzi.com
Only by requesting Moto Guzzi original spare parts can you be sure of purchasing products that were
developed and tested during the actual vehicle design stage. All Moto Guzzi original spare parts undergo
quality control procedures to guarantee reliability and durability.
Thedescriptionsandimagesinthispublicationaregivenforillustrativepurposesonlyandarenotbinding.
While the basic characteristics as described and illustrated in this booklet remain unchanged, Piaggio &
C.S.p.A. reserves theright, at anytime and withoutbeing required toupdate this publicationbeforehand,
to make any changes to components, parts or accessories, which it considers necessary to improve the
product or which are required for manufacturing or construction reasons.
Notallversions/modelsshowninthispublicationareavailableinallcountries.Theavailabilityofindividual
versions should be checked with the Official Moto Guzzi sales network.
The Moto Guzzi brand is owned by Piaggio & C. S.p.A.
© Copyright 2015 - Piaggio & C. S.p.A. All rights reserved. Reproduction of this publication in whole or
in part is prohibited.
Piaggio & C. S.p.A. Viale Rinaldo Piaggio, 25 - 56025 PONTEDERA (PI), Italy
www.piaggio.com

SERVICE STATION MANUAL
Moto Guzzi California 1400
This manual provides the main information to carry out regular maintenance operations on your vehicle.
This manual is intended to Moto Guzzi Dealers and their qualified mechanics; several concepts have
been deliberately omitted as they are considered unnecessary. As it is not possible to include complete
mechanical notions in this manual, users should have basic mechanical knowledge or minimum
knowledge about the procedures involved when repairing scooters. Without this knowledge, repairing or
checking the vehicle may be inefficient or even dangerous. As the vehicle repair and check procedures
are not described in detail, be extremely cautious so as not to damage components or injure individuals.
In order to optimise customer satisfaction when using our vehicles, Moto Guzzi commits itself to
continually improve its products and the relative documentation. The main technical modifications and
changes in repair procedures are communicated to all Moto Guzzi Sales Outlets and its International
Subsidiaries.These changes willbe introduced inthe subsequent editionsof the manual.In case ofneed
or further queries on repair and check procedures, consult Moto Guzzi CUSTOMER DEPARTMENT,
which will be prepared to provide any information on the subject and any further communications on
updates and technical changes related to the vehicle.
NOTE Provides key information to make the procedure easier to understand and carry out.
CAUTION Refers to specific procedures to carry out for preventing damages to the vehicle.
WARNING Refers to specific procedures to carry out to prevent injuries to the repairer.
Personal safety Failure to completely observe these instructions will result in serious risk of personal
injury.
Safeguarding the environment Sectionsmarked withthis symbol indicate the correctuse of the vehicle
to prevent damaging the environment.
Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious
damage to the vehicle and sometimes even the invalidity of the guarantee

INDEX OF TOPICS
CHARACTERISTICS CHAR
SPECIAL TOOLS S-TOOLS
MAINTENANCE MAIN
ELECTRICAL SYSTEM ELE SYS
ENGINE FROM VEHICLE ENG VE
ENGINE ENG
POWER SUPPLY P SUPP
SUSPENSIONS SUSP
CHASSIS CHAS
BRAKING SYSTEM BRAK SYS
BODYWORK BODYW
PRE-DELIVERY PRE DE

INDEX OF TOPICS
CHARACTERISTICS CHAR

Rules
Safety rules
Carbon monoxide
If you need to keep the engine running while working on the vehicle, please ensure that you do so in
an open or very well ventilated area. Never run the engine in an enclosed area. If you do work in an
enclosed area, make sure to use a fume extraction system.
CAUTION
EXHAUSTEMISSIONSCONTAINCARBONMONOXIDE, APOISONOUS GASWHICHCANCAUSE
LOSS OF CONSCIOUSNESS AND EVEN DEATH.
Fuel
CAUTION
THE FUEL USED TO POWER INTERNAL COMBUSTION ENGINES IS HIGHLY FLAMMABLE AND
MAY BE EXPLOSIVE UNDER CERTAIN CONDITIONS. IT IS THEREFORE RECOMMENDED TO
CARRY OUT REFUELLING AND MAINTENANCE PROCEDURES IN A VENTILATED AREA WITH
THE ENGINE SWITCHED OFF. DO NOT SMOKE DURING REFUELLING AND NEAR FUEL VA-
POURS, AVOIDING ANY CONTACT WITH NAKED FLAMES, SPARKS OR OTHER SOURCES
WHICH MAY CAUSE THEM TO IGNITE OR EXPLODE.
DO NOT DISPERSE FUEL IN THE ENVIRONMENT.
KEEP OUT OF THE REACH OF CHILDREN
Hot components
The engine and the exhaust system components become very hot and remain hot for some time after
the engine has been switched off. When handling these components, wear insulating gloves or wait
until the engine and the exhaust system have cooled down.
Used engine oil and transmission oil
CAUTION
IT IS ADVISABLE TO WEAR PROTECTIVE IMPERMEABLE GLOVES WHEN SERVICING THE VE-
HICLE.
THE ENGINE OR GEARBOX OIL MAY CAUSE SERIOUS INJURIES TO THE SKIN IF HANDLED
FOR PROLONGED PERIODS OF TIME AND ON A REGULAR BASIS.
WASH YOUR HANDS CAREFULLY AFTER HANDLING OIL.
HAND THE OIL OVER TO OR HAVE IT COLLECTED BY THE NEAREST USED OIL RECYCLING
COMPANY OR THE SUPPLIER.
DO NOT DISPOSE OF OIL IN THE ENVIRONMENT
KEEP OUT OF THE REACH OF CHILDREN
Moto Guzzi California 1400 Characteristics
CHAR - 7

THE BRAKE FLUID MAY DAMAGE PAINTED, PVC OR RUBBER SURFACES. WHEN SERVICING
THE BRAKING SYSTEM, PROTECT THESE COMPONENTS WITH A CLEAN CLOTH. ALWAYS
WEAR PROTECTIVE GOGGLES WHEN SERVICING THE BRAKING SYSTEM. THE BRAKE FLUID
IS EXTREMELY DANGEROUS TO THE EYES. IN THE EVENT OF ACCIDENTAL CONTACT WITH
THE EYES, RINSE THEM IMMEDIATELY WITH PLENTY OF COLD, CLEAN WATER AND SEEK
MEDICAL ADVICE.
KEEP OUT OF THE REACH OF CHILDREN.
Battery electrolyte and hydrogen gas
CAUTION
THE BATTERY ELECTROLYTE IS TOXIC, CORROSIVE AND AS IT CONTAINS SULPHURIC ACID,
IT CAN CAUSE BURNS WHEN IN CONTACT WITH THE SKIN. WHEN HANDLING BATTERY
ELECTROLYTE, WEAR TIGHT-FITTING GLOVES AND PROTECTIVE APPAREL. IN THE EVENT
OF SKIN CONTACT WITH THE ELECTROLYTIC FLUID, RINSE WELL WITH PLENTY OF CLEAN
WATER. IT IS PARTICULARLY IMPORTANT TO PROTECT YOUR EYES BECAUSE EVEN TINY
AMOUNTSOF BATTERYACIDMAY CAUSEBLINDNESS. IF THEFLUID GETSINCONTACT WITH
YOUR EYES, WASH WITH ABUNDANT WATER FOR FIFTEEN MINUTES AND CONSULT AN EYE
SPECIALIST IMMEDIATELY. THE BATTERY RELEASES EXPLOSIVE GASES; KEEP IT AWAY
FROM FLAMES, SPARKS, CIGARETTES OR ANY OTHER HEAT SOURCES. ENSURE ADE-
QUATE VENTILATION WHEN SERVICING OR RECHARGING THE BATTERY.
KEEP OUT OF THE REACH OF CHILDREN
BATTERY LIQUID IS CORROSIVE. DO NOT POUR IT OR SPILL IT, PARTICULARLY ON PLASTIC
COMPONENTS. ENSURE THAT THE ELECTROLYTIC ACID IS COMPATIBLE WITH THE BAT-
TERY TO BE ACTIVATED.
Maintenance rules
GENERAL PRECAUTIONS AND INFORMATION
When repairing, dismantling and reassembling the vehicle follow the recommendations reported below
carefully.
BEFORE REMOVING COMPONENTS
•Beforedismantling components,remove dirt, mud, dust and foreign bodiesfrom thevehicle.
Use the special tools designed for this bike, as required.
COMPONENTS REMOVAL
•Donot loosenand/or tighten screws and nutsusing pliers or any othertools than the specific
wrench.
•Mark the positions on all connection joints (pipes, cables, etc.) before separating them, and
identify them with different distinctive symbols.
•Each component needs to be clearly marked to enable identification during reassembly.
•Clean and wash the dismantled components carefully using a low-flammability detergent.
•Keep mated parts together since they have "adjusted" to each other due to normal wear.
•Some components must be used together or replaced altogether.
Characteristics Moto Guzzi California 1400
CHAR - 8

•Keep away from heat sources.
REASSEMBLY OF COMPONENTS
CAUTION
BEARINGS MUST BE ABLE TO ROTATE FREELY, WITHOUT JAMMING AND/OR NOISE: OTH-
ERWISE, THEY NEED TO BE REPLACED.
•Only use ORIGINAL Aprilia SPARE PARTS.
•Comply with lubricant and consumables use guidelines.
•Lubricate parts (whenever possible) before reassembling them.
•Whentighteningnutsandscrews,start either from the components withthelargestdiameter
or from the innermost components, proceeding diagonally. Tighten nuts and screws in suc-
cessive steps before applying the tightening torque.
•Always replace self-locking nuts, washers, sealing rings, circlips, O-rings (OR), cotter pins
and screws with new parts if the thread is damaged.
•When assembling the bearings, make sure to lubricate them well.
•Check that each component is assembled correctly.
•After a repair or routine maintenance, carry out pre-ride checks and test the vehicle on
private grounds or in an area with low traffic.
•Clean all mating surfaces, oil seal rims and gaskets before refitting. Smear a thin layer of
lithium-based grease on the oil seal rims. Reassemble oil seals and bearings with the brand
or batch number facing outward (visible side).
ELECTRIC CONNECTORS
Electric connectors must be disconnected as described below; failure to comply with this procedure
causes irreparable damage to both the connector and the cable harness:
Press the relevant safety hooks, if any.
•Grip the two connectors and disconnect them by pulling them in opposite directions.
•If any signs of dirt, rust, moisture, etc. are noted, clean the inside of the connector carefully
with a jet of compressed air.
•Ensure that the cables are correctly fastened to the internal connector terminals.
•Then connect the two connectors, ensuring that they couple correctly (if fitted with clips, you
will hear them "click" into place).
CAUTION
TO DISCONNECT THE TWO CONNECTORS, DO NOT PULL THE CABLES.
NOTE
THE TWO CONNECTORS CONNECT ONLY FROM ONE SIDE: CONNECT THEM THE RIGHT WAY
ROUND.
TIGHTENING TORQUES
CAUTION
DO NOT FORGET THAT THE TIGHTENING TORQUES OF ALL FASTENING ELEMENTS ON
WHEELS, BRAKES, WHEEL BOLTS AND ANY OTHER SUSPENSION COMPONENTS PLAY A
KEY ROLE IN ENSURING VEHICLE SAFETY AND MUST COMPLY WITH SPECIFIED VALUES.
CHECK THE TIGHTENING TORQUES OF FASTENING PARTS ON A REGULAR BASIS AND AL-
Moto Guzzi California 1400 Characteristics
CHAR - 9

WAYS USE A TORQUE WRENCH TO REASSEMBLE THESE COMPONENTS. FAILURE TO COM-
PLY WITH THESE RECOMMENDATIONS MAY CAUSE ONE OF THESE COMPONENTS TO GET
LOOSE AND EVEN DETACHED, THUS BLOCKING A WHEEL, OR OTHERWISE COMPROMISE
VEHICLE HANDLING. THIS CAN LEAD TO FALLS, WITH THE RISK OF SERIOUS INJURY OR
DEATH.
Running-in
Engine run-in is essential to ensure engine long life and correct operation. Twisty roads and gradients
are ideal to run in engine, brakes and suspensions effectively. Vary your riding speed during the run-
in. This ensures that components operate under both "loaded" and "unloaded" conditions, allowing the
engine components to cool.
CAUTION
THE CLUTCH MAY EMIT A SLIGHT BURNING SMELL WHEN FIRST USED. THIS PHENOMENON
SHOULD BE CONSIDERED NORMAL AND WILL DISAPPEAR AS SOON AS THE CLUTCH
PLATES GET ADAPTED.
ITIS IMPORTANTTO STRAINENGINECOMPONENTSDURINGRUN-IN, HOWEVER,MAKE SURE
NOT TO OVERDO THIS.
CAUTION
THE FULL PERFORMANCE OF THE VEHICLE IS ONLY AVAILABLE AFTER THE SERVICE AT
THE END OF THE RUNNING IN PERIOD.
Follow these guidelines:
•Do not twist the throttle grip abruptly and completely when the engine is working at a low
revs, either during or after run-in.
•During the first 100 Km (62 miles) use the brakes gently, avoiding sudden or prolonged
braking. That is to permit the adequate adjustment of the pad friction material to the brake
discs.
AFTER THE SPECIFIED MILEAGE, TAKE THE VEHICLE TO AN OFFICIAL Moto Guzzi DEALER
FOR THE CHECKS INDICATED IN THE "AFTER RUN-IN" TABLE IN THE SCHEDULED MAINTE-
NANCE SECTION TO AVOID INJURING YOURSELF, OTHERS AND /OR DAMAGING THE VEHI-
CLE.
Vehicle identification

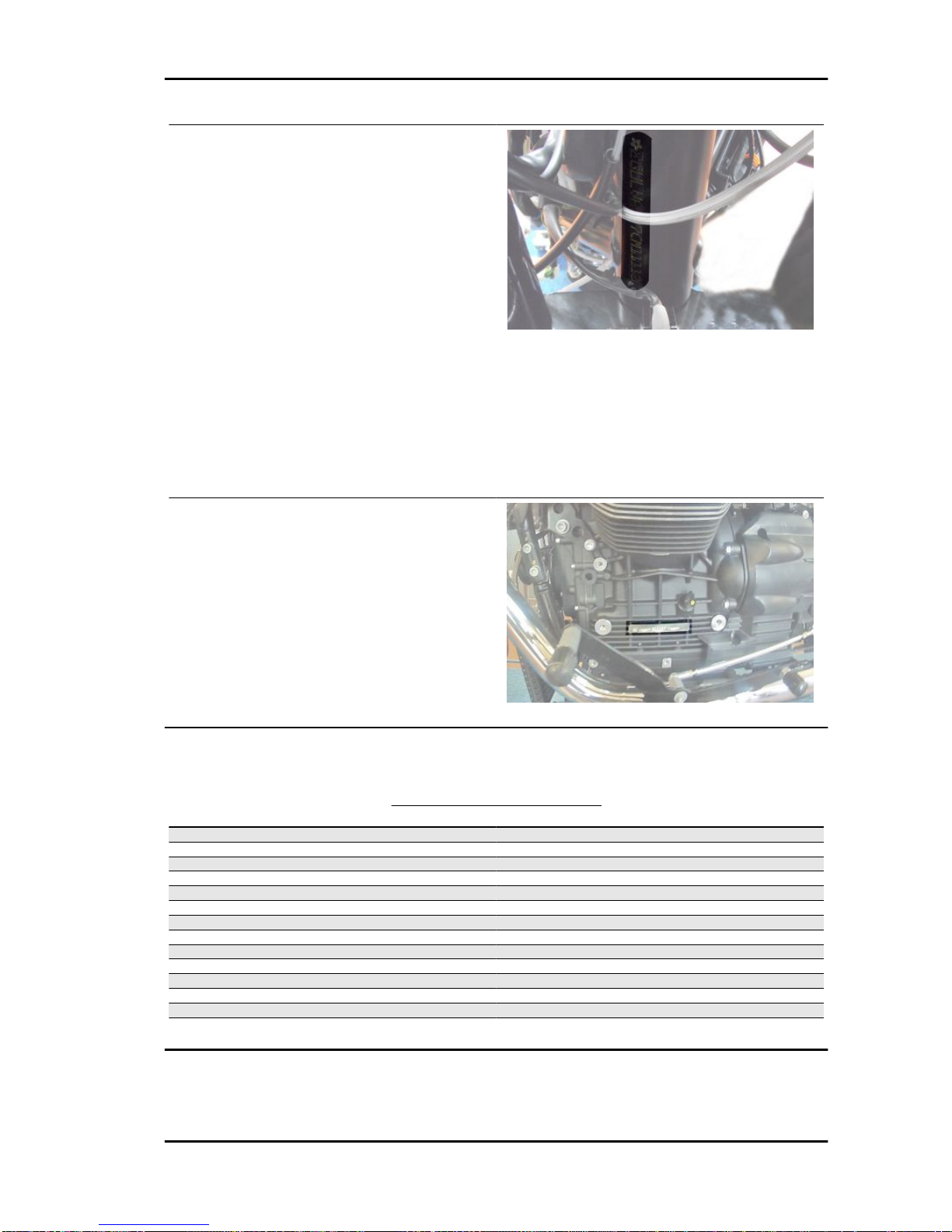

SERIAL NUMBER LOCATION
These numbers are necessary for vehicle registration.
NOTE
ALTERING IDENTIFICATION NUMBERS MAY BE SERIOUSLY PUNISHABLE BY LAW. IN PAR-
TICULAR, MODIFYING THE FRAME NUMBER IMMEDIATELY VOIDS THE WARRANTY.
Characteristics Moto Guzzi California 1400
CHAR - 10

This number consists of numbers and letters, as in
the example shown below.
ZGULVB0009MXXXXXX
KEY:
ZGU: WMI (World manufacturer identifier) code;
LV: model;
B00: version variation;
0: free digit
C: variable year of manufacture (C - for 2012)
M: production plant (M= Mandello del Lario);
XXXXXX: serial number (6 digits);
FRAME NUMBER
The frame number is stamped on the right hand
side of the headstock.
ENGINE NUMBER
The engine number is stamped on the left side,
close to the engine oil level check cap.
Dimensions and mass
WEIGHT AND DIMENSIONS
Specification Desc./Quantity
Maximum length (California Touring SE) 2445 mm (96.26 in)
Maximum length (Touring/Custom) 2445 mm (96.26 in)
Maximum width at handlebar (California Touring SE) 915 mm (36.02 in)
Maximum width at handlebar (Touring) 915 mm (36.02 in)
Maximum width at handlebar (Custom) 940 mm (37.01 in)
Maximum height (California Touring SE) 1460 mm (57.48 in)
Maximum height (Touring) 1460 mm (57.48 in)
Maximum height (Custom) 1180 mm (46.46 in)
Seat height 740 mm (29.13 in)
Minimum earth clearance 165 mm (6.50 in)
Wheelbase 1685 mm (66.34 in)
Kerb weight (California Touring SE) 337 kg (742.96 lb)
Kerb weight (Touring) 337 kg (742.96 lb)
Kerb weight (Custom) 318 kg (701.07 lb)
Moto Guzzi California 1400 Characteristics
CHAR - 11

Engine
ENGINE
Specification Desc./Quantity
Type traverse-mounted twin-cylinder four-stroke V 90°
Cylinder number 2
Cylinder arrangement V 90°
Bore / stroke 104 x 81.2 mm (4.09 x 3.20 in)
Engine capacity 1379.6 cm³ (84.19 cu.in)
Compression ratio 10.5: 1
Electric starter
Engine idle speed 1250 +/- 100 rpm
Clutch hydraulically controlled single-plate dry clutch with incorpora-
ted flexible coupling
Lubrication system Pressure-fed, controlled by valves and trochoidal pump
Air filter cartridge-type dry filter
Cooling air and oil cooled with independent trochoidal pump and oil
pressure control valve
Timing system diagram single overhead camshaft with roller tappets and rocker-oper-
ated valves
Transmission
TRANSMISSION
Specification Desc./Quantity
Primary drive Helical gears, ratio 26/35 = 1:1.346
Gearbox Mechanical, 6 speeds with foot lever on the left hand side of
the engine
Gear ratios, 1st gear 17/38 = 1:2.235
Gear ratios, 2nd gear 20/34 = 1:1.7
Gear ratios, 3rd gear 23/31 = 1:1.347
Gear ratios, 4th gear 26/29 = 1:1.115
Gear ratios, 5th gear 31/30 = 1:0.967
Gear ratios, 6th gear 30/24 = 1:0.800
Final drive cardan shaft and bevel gear set
Ratio 10/36 = 1:3.600
Capacities
CAPACITIES
Specification Desc./Quantity
Engine oil Oil change and oil filter replacement: 4010 cm³ (244.70 cu.in)
Gearbox oil 430 cm³ (26.24 cu.in) in case of replacement
Gearbox oil 500 cm³ (30.51 cu.in) in case of revision
Transmission oil 250 cm³ (15.26 cu.in)
Fuel (reserve included) 20.5 +/- 0.5 l (4.51 +/- 0.11 UK gal) (5.41 +/- 0.13 gal US)
Fuel reserve 5 l (1.10 UK gal) (1.32 gal US)
Seats 2
Maximum weight limit 547 kg (1205.93 lb)
Electrical system
ELECTRICAL SYSTEM
Specification Desc./Quantity
Spark plug NGK LMAR8F
Electrode gap 0.6 - 0.7 mm (0.024 - 0.028 in)
Battery YTX20-BS 12 V - 18 Ampere/hour
Characteristics Moto Guzzi California 1400
CHAR - 12

Specification Desc./Quantity
Alternator (permanent magnet type) 12 V - 550 W
Main fuses 40- 30- 10A
Secondary fuses 15 (4) - 7.5 (2) A
Front daylight running lights 8 low intensity LEDs
(Halogen) low beam light 12V - 55W / H3
(Halogen) high beam light 12V - 55W / H7
Front turn indicators 12VRY10W
Rear turn indicators 9+9 low intensity LEDs
Tail lights /stop lights 6+6 low intensity LEDs
Supplementary headlamps (if fitted) 12V - 35W H8
Dashboard lighting LED
License plate light 12V - 5 W
Cruise control warning light LED
ABS Warning Light LED
MGCT warning light LED
Turn indicator warning light LED
Low fuel warning light LED
High beam warning light LED
Neutral gear warning light LED
General warning light LED
Warning light MI (Euro 4/if active) LED
Frame and suspensions
CHASSIS
Specification Desc./Quantity
Type Closed double cradle tubular steel frame with elasto-kinemat-
ics engine fixing system for the vibration isolator.
Headstock angle 32°
Front 46 mm (1.81 in) diameter hydraulic telescopic fork with radial
brake calliper mounting bracket.
Front wheel travel 120 mm (4.72 in)
Rear (Touring SE/Touring) Swingarm with double shock absorbers with adjustable spring
preloading
Rear (Custom) Swingarm with double shock absorbers with adjustable spring
preloading and hydraulic rebound damping
Rear wheel travel 110 mm (4.33 in)

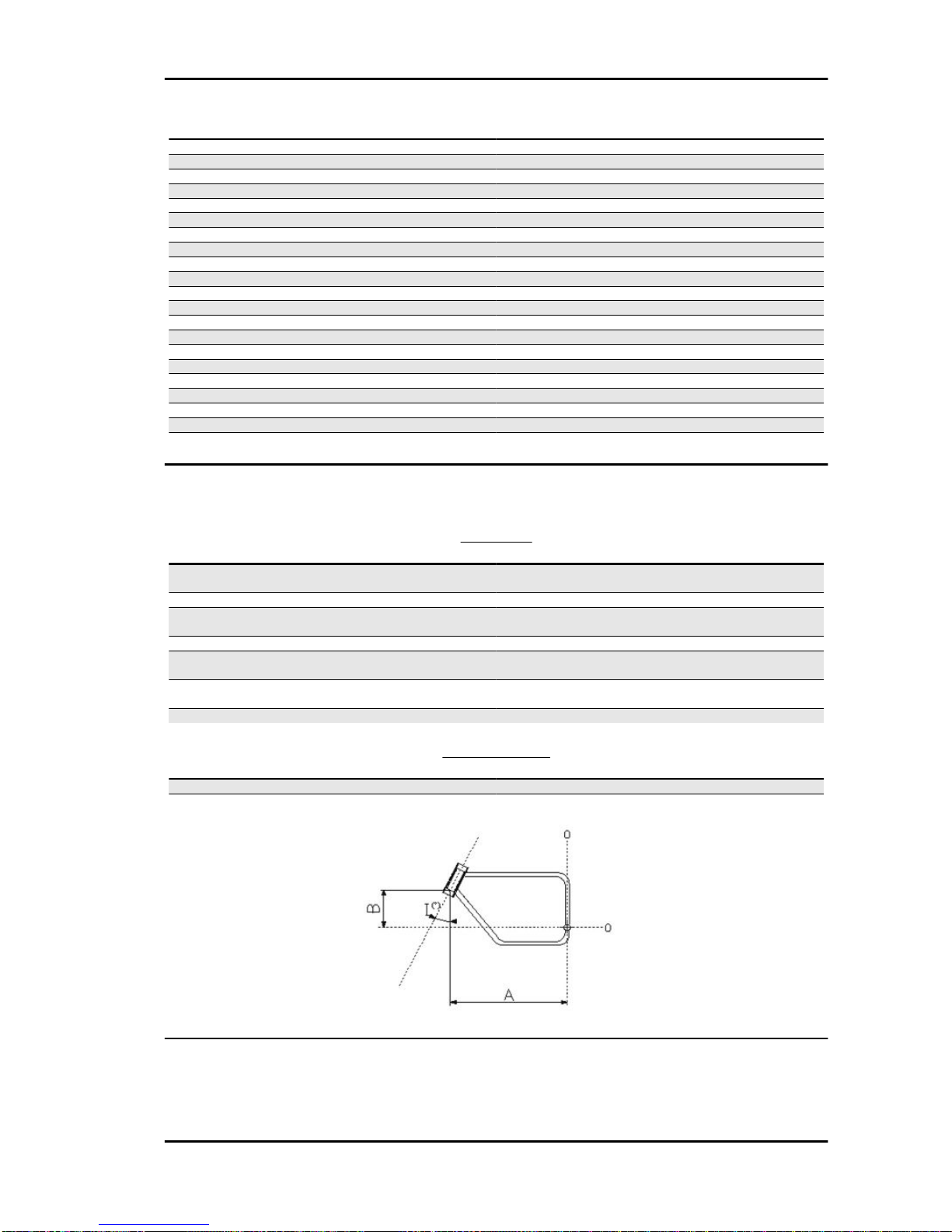

SIZES A AND B
Specification Desc./Quantity
Size A 760.0 mm (29.92 in)
Size B 332.0 mm (13.07 in)
Moto Guzzi California 1400 Characteristics
CHAR - 13

Brakes
BRAKES
Specification Desc./Quantity
Front Ø 320-mm (12.6 in) stainless steel double floating disc, radial
callipers with 4 opposed pistons.
Rear Ø 282-mm (11.1 in) stainless steel disc, floating calliper with 2
different pins.
Wheels and tyres
WHEELS AND TYRES
Specification Desc./Quantity
Type Alloy wheels for tubeless tyres
Front wheel rim 3.50" x 18"
Rear wheel rim 6.00" x 16"
Tyres Dunlop D 251
Front 130/70 R18 (63H)
Inflation pressure (front) 2.5 bar (250 kPa) (36.3 PSI)
Inflation pressure with passenger (front) 2.5 bar (250 kPa) (36.3 PSI)
Rear 200/60 R16 (79H)
Inflation pressure (rear) 2.7 bar (270 kPa) (39.2 PSI)
Inflation pressure with passenger (rear) 2.7 bar (270 kPa) (39.2 PSI)
Tightening Torques
ELECTRICAL SYSTEM

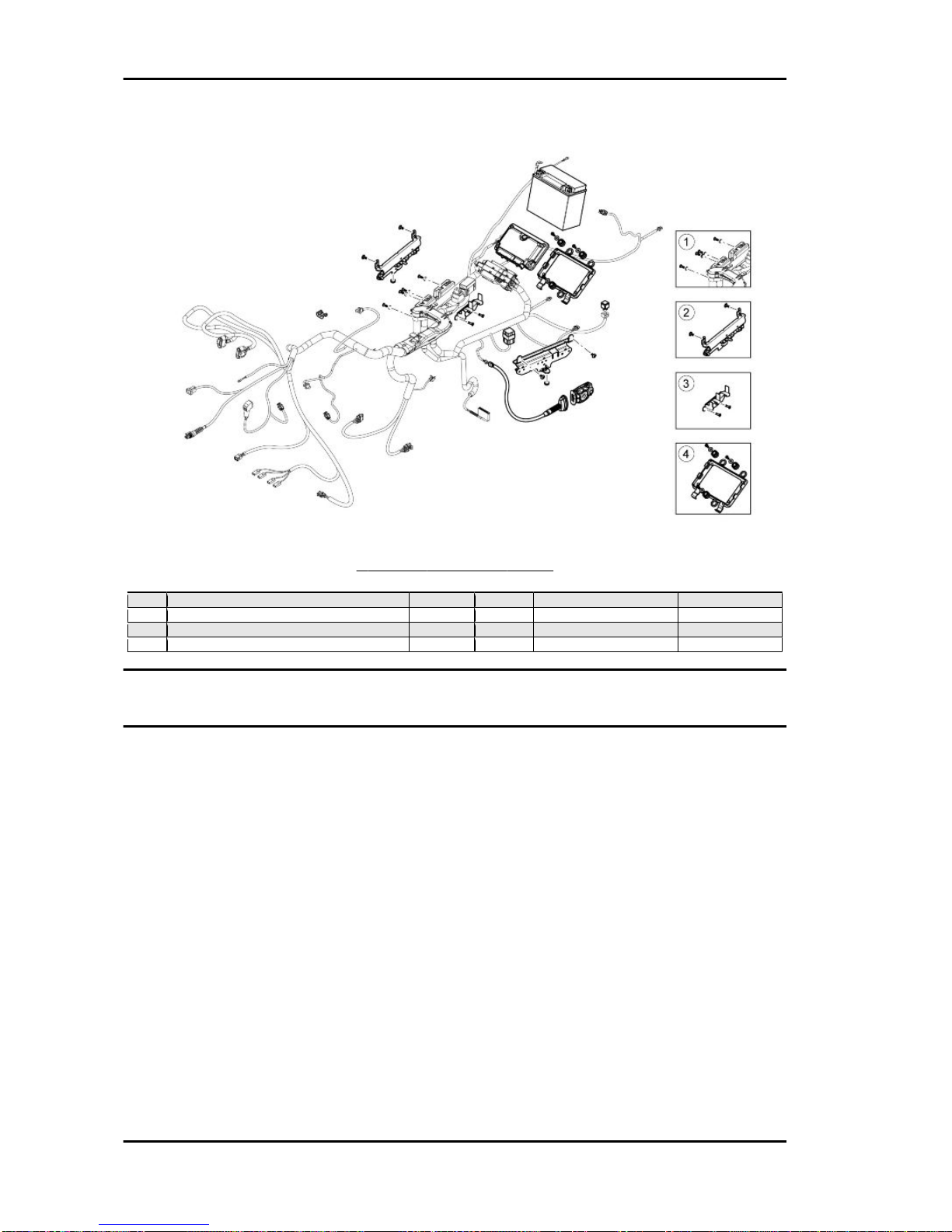

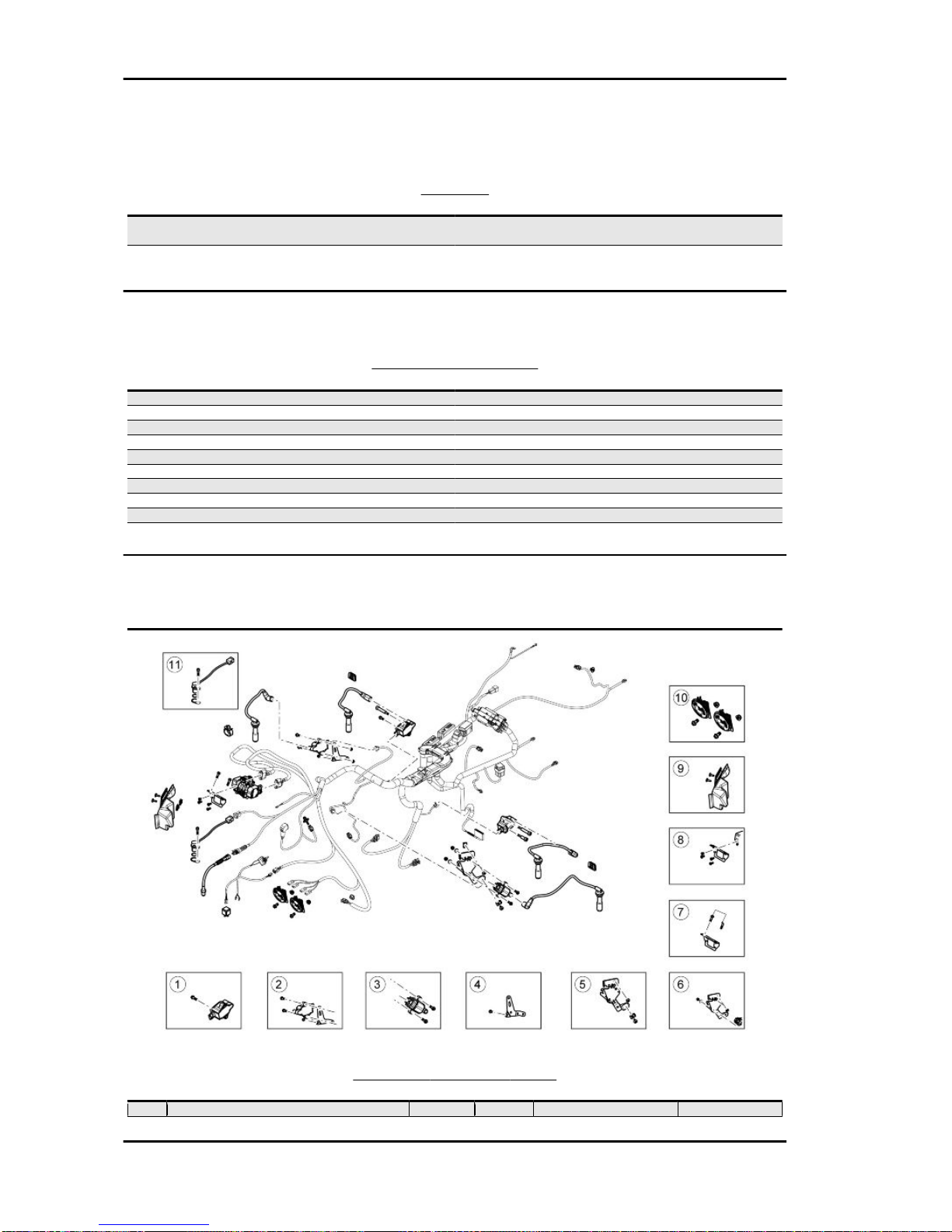

FRONT PART ELECTRICAL SYSTEM
pos. Description Type Quantity Torque Notes
1 Coil fixing screws M6x25 2 10 Nm (7.37 lb ft) -
Characteristics Moto Guzzi California 1400
CHAR - 14

pos. Description Type Quantity Torque Notes
2 Coil fixing screws M6x30 2 10 Nm (7.37 lb ft) -
3 Coil fixing screws M6x16 2 10 Nm (7.37 lb ft) -
4 Coil bracket fixing screws M6x30 2 10 Nm (7.37 lb ft) -
5 Coil bracket fixing screws M5x12 2 6 Nm (4.42 lb ft) -
6 Coil self-locking fixing nut M6 2 10 Nm (7.37 lb ft) -
7 Bracket plate fixing screws M6x25 2 10 Nm (7.37 lb ft) -
8 Bracket plate self threading fixing screws M5x14 4 2.5 Nm (1.84 lb ft) -
9 Box fixing screws M5x12 2 6 Nm (4.42 lb ft) -
10 Horn fixing screws M6x16
stainless
steel
2 10 Nm (7.37 lb ft) -
11 Tone wheel sensor fixing screw M6x16 1 10 Nm (7.37 lb ft) -

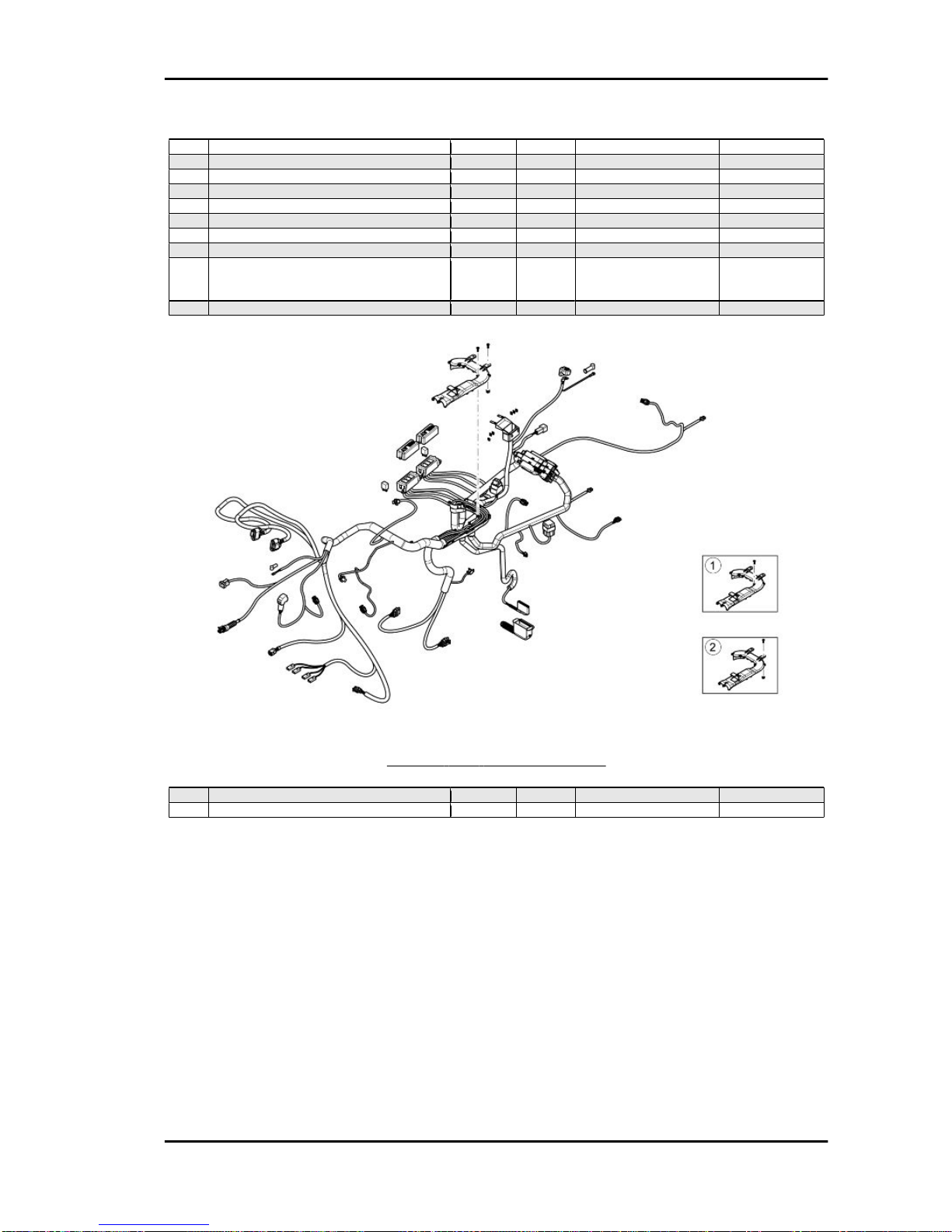

CENTRAL PART ELECTRICAL SYSTEM
pos. Description Type Quantity Torque Notes
1 Duct cover self-threading fixing screws 3.9x14 6 3 Nm (2.21 lb ft) -
2 Duct cover self-threading fixing screws 3.9x14 2 3 Nm (2.21 lb ft) -
Moto Guzzi California 1400 Characteristics
CHAR - 15

REAR PART ELECTRICAL SYSTEM
pos. Description Type Quantity Torque Notes
1 Relay bracket fixing screws M5x12 4 6 Nm (4.42 lb ft) -
2 Bracket self-threading fixing screws M5x14 4 2.5 Nm (1.84 lb ft) -
3 Fuse box bracket fixing screws M5x20 2 3 Nm (2.21 lb ft) -
4 ECU bracket self-threading fixing screws M5x14 3 2.5 Nm (1.84 lb ft) -
Chassis
Characteristics Moto Guzzi California 1400
CHAR - 16

Front side
FRONT HEADLAMP
pos. Description Type Quantity Torque Notes
1 Screw fixing headlamp to supports M6x55 1 5 Nm (3.69 lb ft) -
2 Screw fixing headlamp to joint M6x30 1 10 Nm (7.37 lb ft) -
3Fixingscrewssup.plateheadlights sup.steer-
ing M6x20 4 10 Nm (7.37 lb ft) -
4 Steering lower plate joint head fixing screw M6x35 1 10 Nm (7.37 lb ft) -
Moto Guzzi California 1400 Characteristics
CHAR - 17

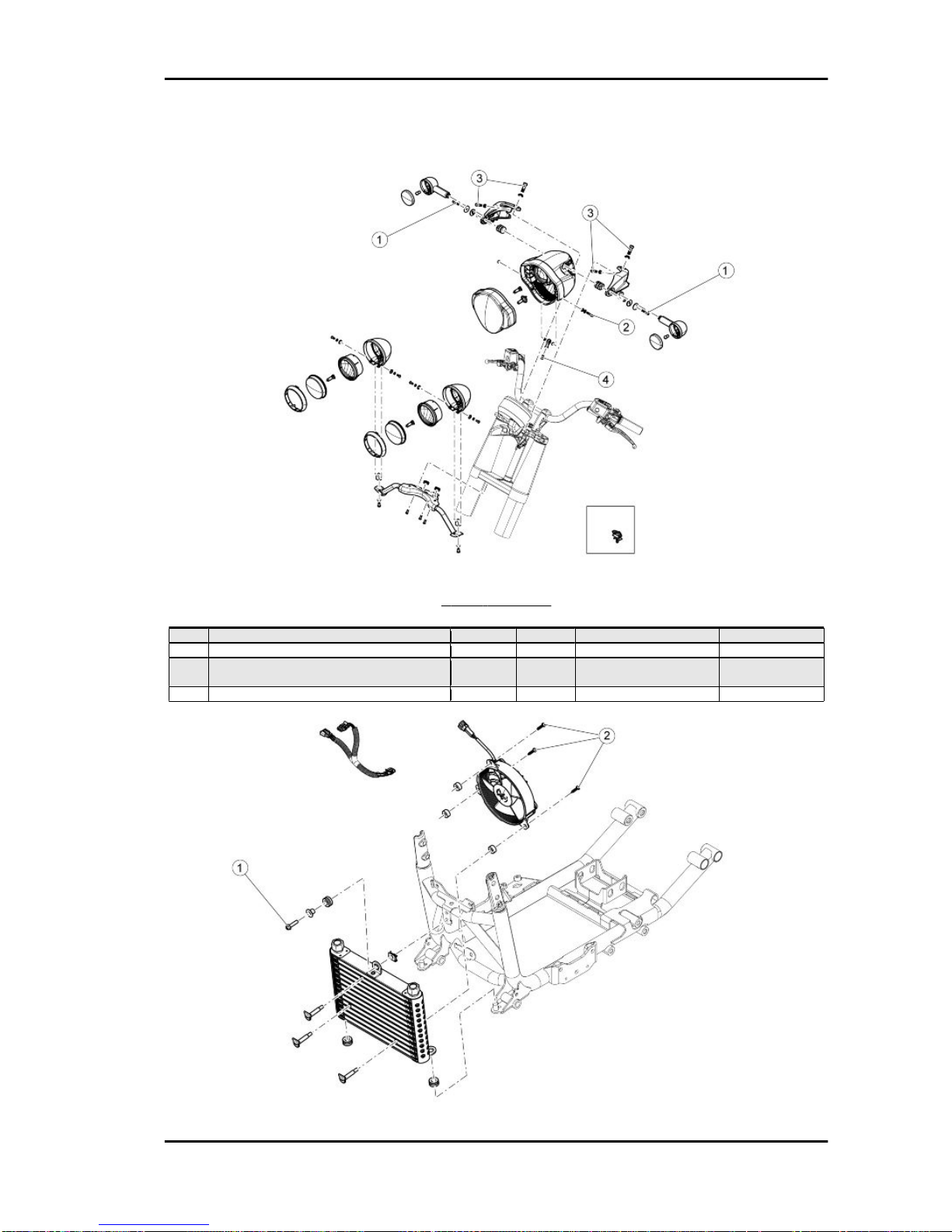

OIL RADIATOR
pos. Description Type Quantity Torque Notes
1 Screws fixing oil radiator to chassis M6x25 1 10 Nm (7.38 lb ft) -
2 Screws fixing electric fan to oil radiator 4.2x20 3 2.5 Nm (1.84 lb ft) -

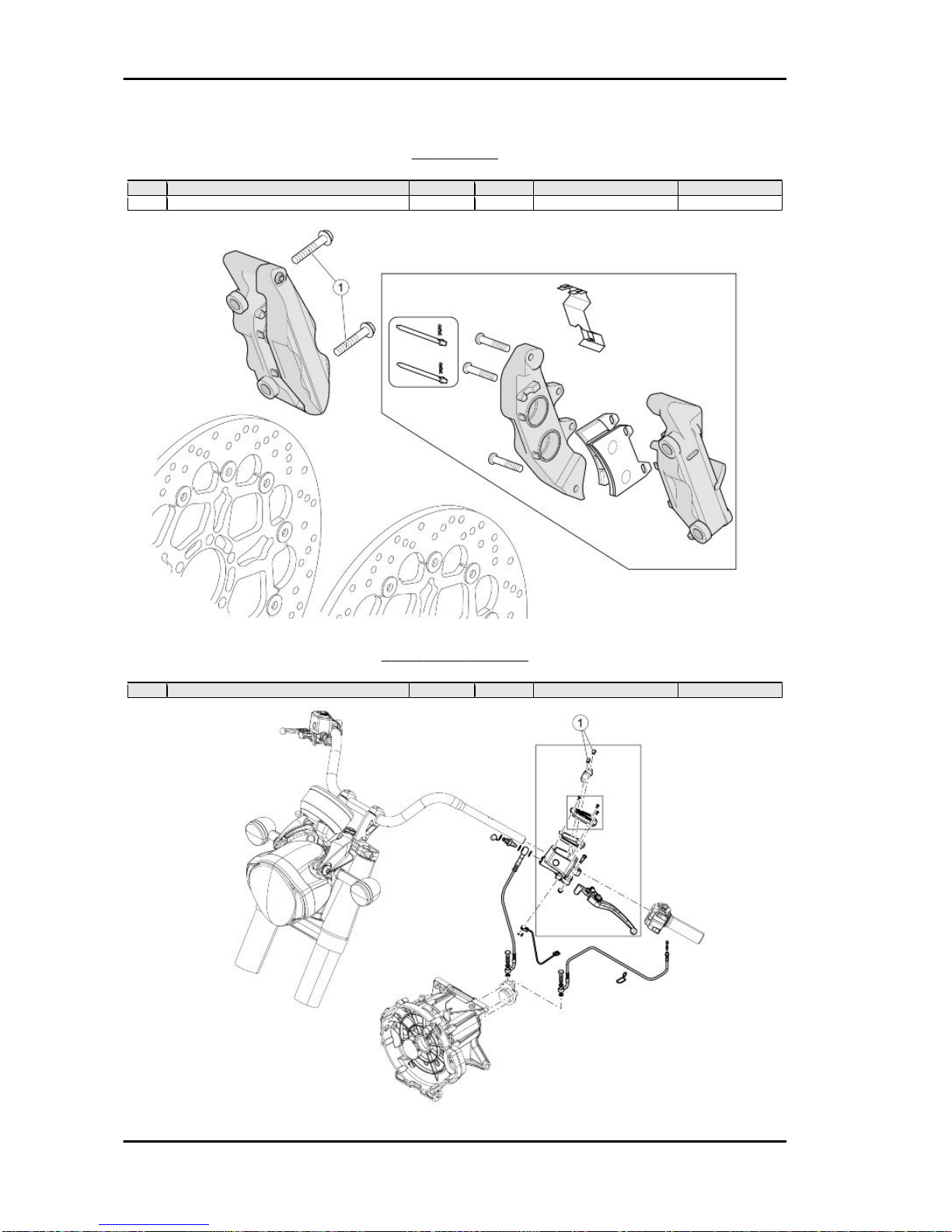

FRONT BRAKE CALLIPER
pos. Description Type Quantity Torque Notes
1 Screws fixing brake callipers to stanchions M10x55 4 50 Nm (36.88 lb ft) -
Characteristics Moto Guzzi California 1400
CHAR - 18

CLUTCH CONTROL PUMP
pos. Description Type Quantity Torque Notes
1 Screws fixing clutch control pump to handle-
bar - 2 10 Nm (7.38 lb ft) -

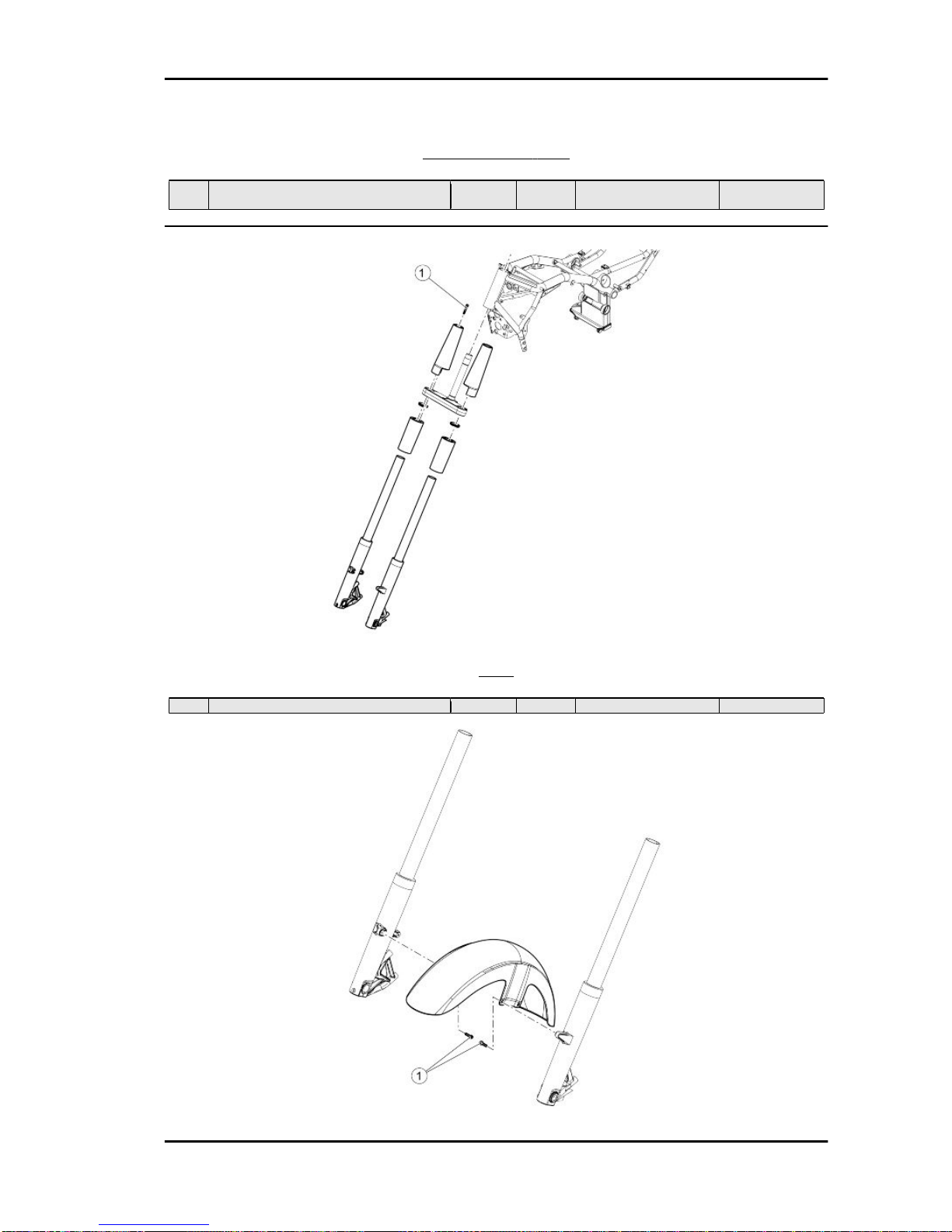

FORK
pos. Description Type Quantity Torque Notes
1 Lower suspension bars fixing screws M5x50 4 6 Nm (4.42 lb ft) -
Moto Guzzi California 1400 Characteristics
CHAR - 19

FRONT MUDGUARD
pos. Description Type Quantity Torque Notes
1 Front mudguard fixing screws M5x12 4 4 Nm (2.95 lb ft) -
HANDLEBAR AND CONTROLS
pos. Description Type Quantity Torque Notes
1 Screws fixing right switch to handlebar - 2 1.5 Nm (1.11 lb ft) -
2 Screws fixing left switch to handlebar - 2 1.5 Nm (1.11 lb ft) -
3 Screws fixing anti-vibration to handlebar M6x18 2 10 Nm (7.38 lb ft) -
4 Screws fastening handlebar to upper plate M8x30 2 25 Nm (18.44 lb ft) -
- Fastening screws handlebar U-bolts to upper
plate M10x40 2 50 Nm (36.88 lb ft) Loct. 243
Characteristics Moto Guzzi California 1400
CHAR - 20
